1. 2021-07-21
MuleSoft for Java Devs - Meetup
Group
Building APIs with Mule and SpringBoot

2. 2
● Introductions
● Mule & Java
● API Lifecycle
○ Building MuleSoft API
○ Building SpringBoot API
● Wrap-up
● Trivia - Win a MuleSoft Course
Agenda
Sponsor:

3. Integration Architect at Infomentum
● More than 13 years working with
development. Start with Java in 2008!
● Since 2014 working with MuleSoft
● MuleSoft Ambassador & Meetup Leader
Guilherme Pereira

4. •Enterprise Architect / Mulesoft Technical Instructor
•EMEA (Milan, Italy)
•Background:
–25+ yrs exp. Software Engineer, Developer, Trainer, Translator
–MuleSoft, Java, .NET, Python, Node.Js, Oracle Cloud, Google Cloud,
AWS, CNCF Kubernetes Specialist, UML/SysML Certified Expert, PMI
PMP, TOGAF 9.1
•Certified MuleSoft Developer (MCD), Certified MuleSoft Integration Architect (MCIA), Cert
Mule Platform Architect (MCPA)
Thimoty Barbieri, PhD
https://www.linkedin.com/in/thimoty/

5. Better together
Mule & Java

6. 6

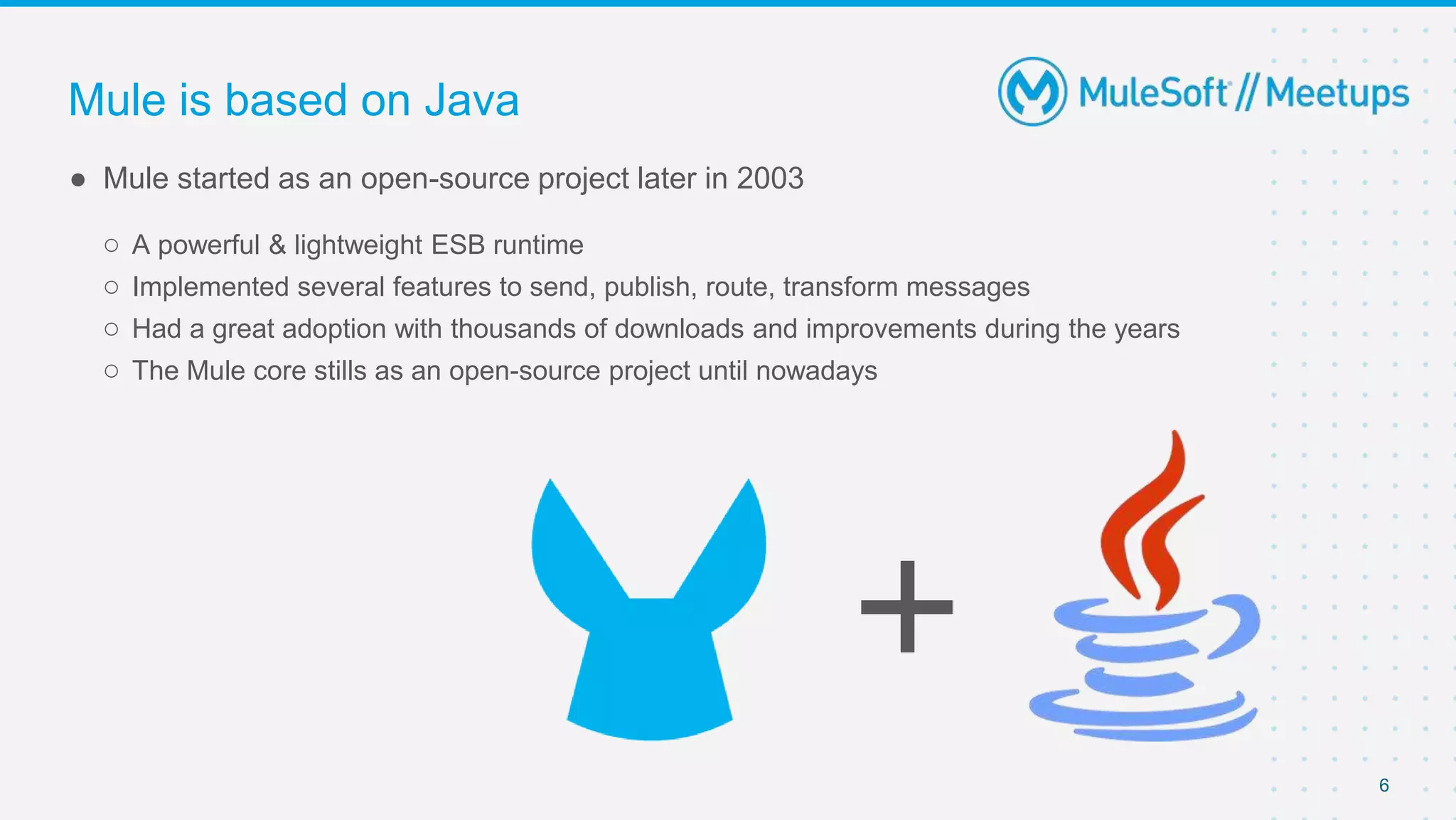

● Mule started as an open-source project later in 2003
○ A powerful & lightweight ESB runtime
○ Implemented several features to send, publish, route, transform messages
○ Had a great adoption with thousands of downloads and improvements during the years
○ The Mule core stills as an open-source project until nowadays
Mule is based on Java

7. 7

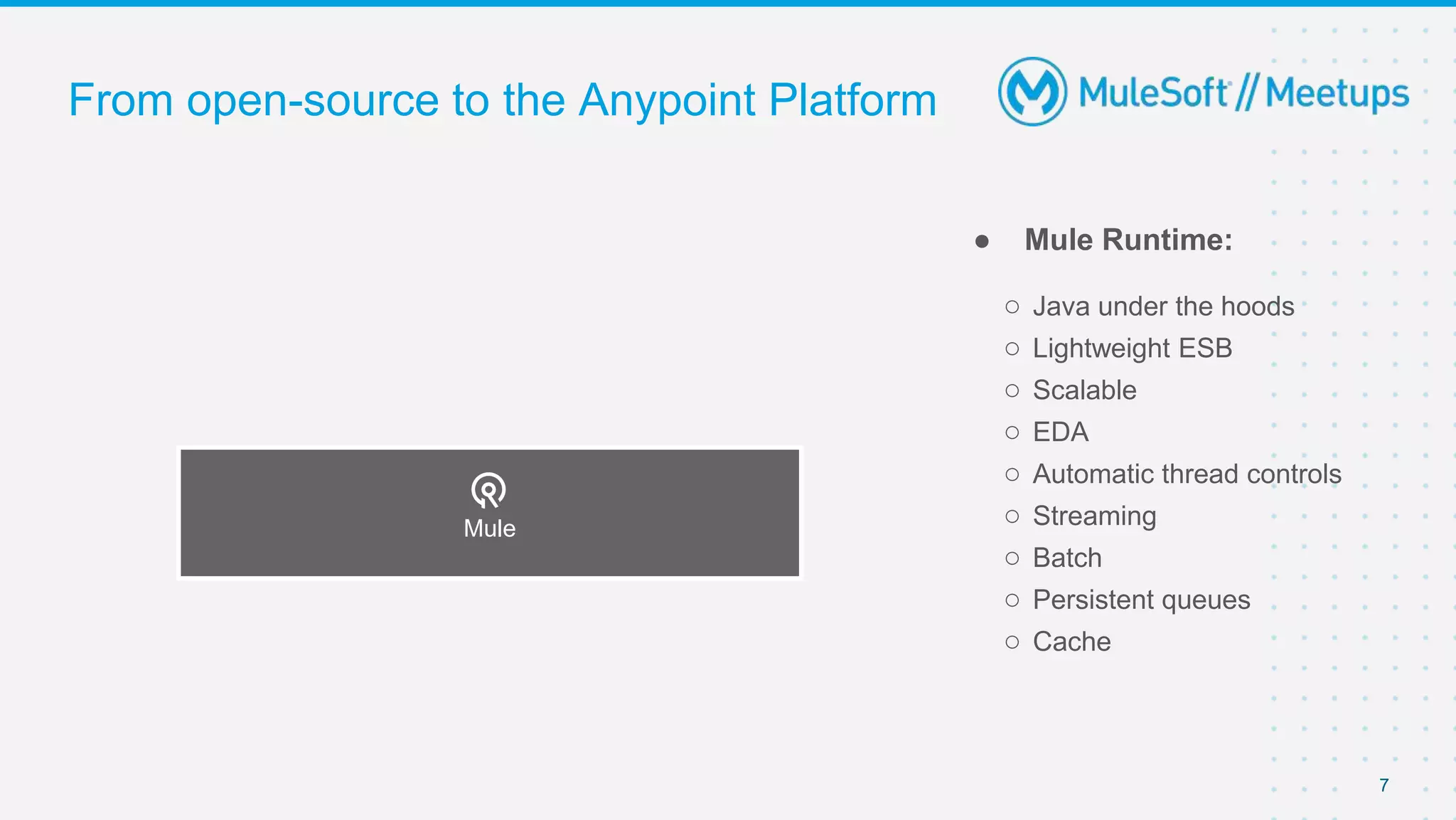

From open-source to the Anypoint Platform
● Mule Runtime:
○ Java under the hoods
○ Lightweight ESB
○ Scalable
○ EDA
○ Automatic thread controls
○ Streaming
○ Batch
○ Persistent queues
○ Cache
Mule

8. 8

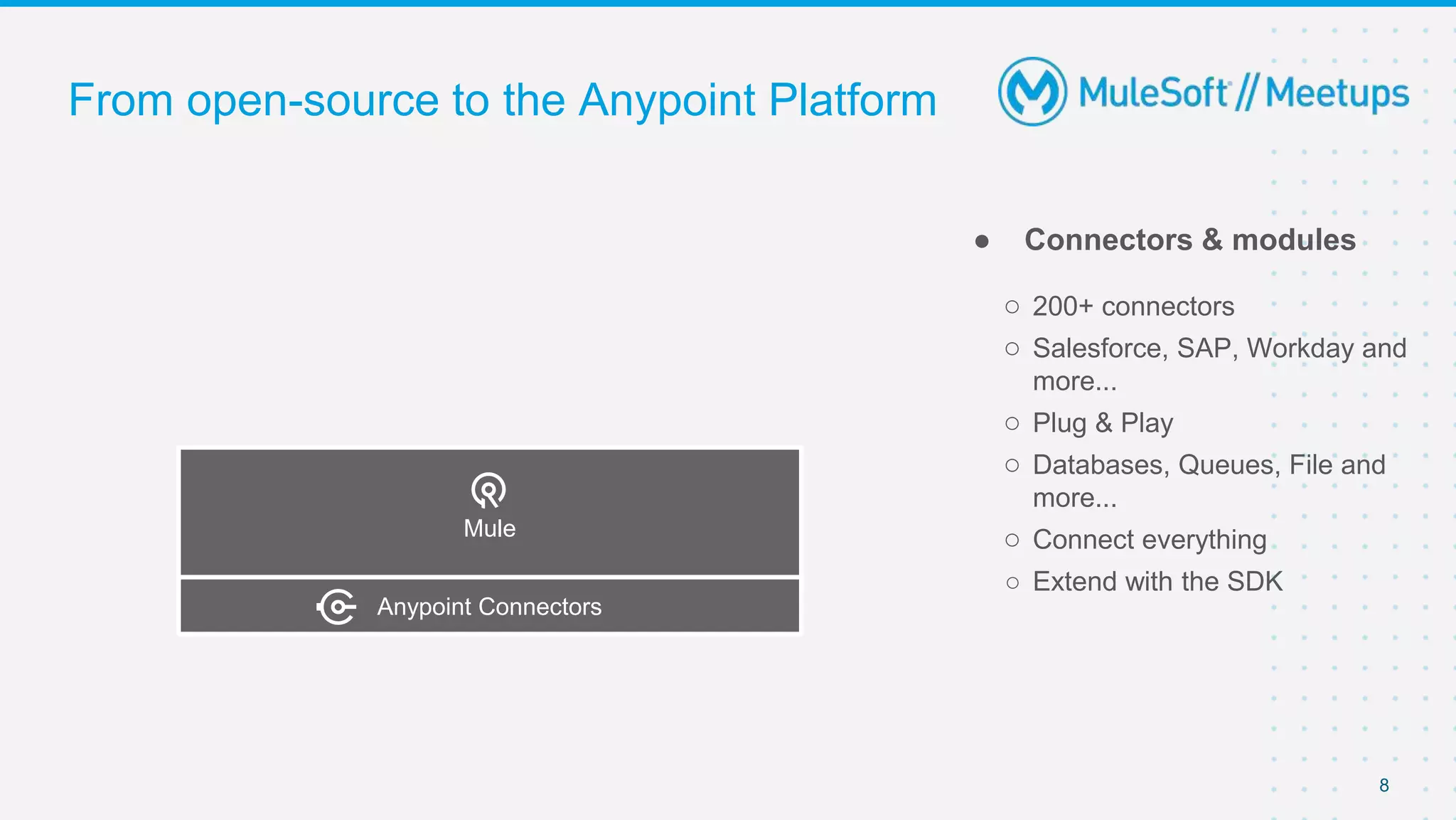

From open-source to the Anypoint Platform
● Connectors & modules
○ 200+ connectors
○ Salesforce, SAP, Workday and
more...
○ Plug & Play
○ Databases, Queues, File and
more...
○ Connect everything
○ Extend with the SDK
Mule
Anypoint Connectors

9. 9

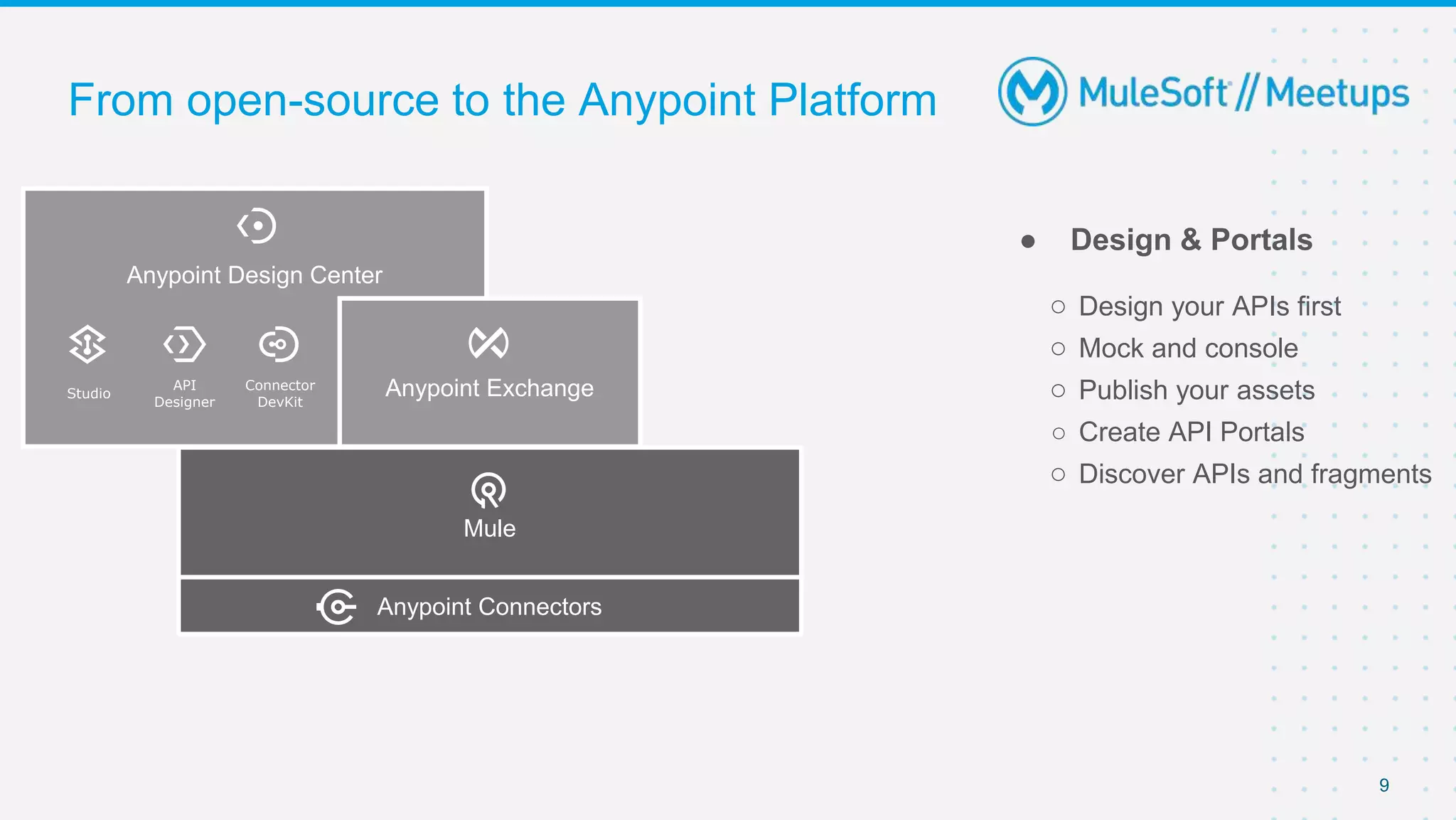

From open-source to the Anypoint Platform
● Design & Portals
○ Design your APIs first
○ Mock and console
○ Publish your assets
○ Create API Portals
○ Discover APIs and fragments
Anypoint Design Center
Anypoint Exchange
Studio
API
Designer
Connector
DevKit
Mule
Anypoint Connectors

10. 10

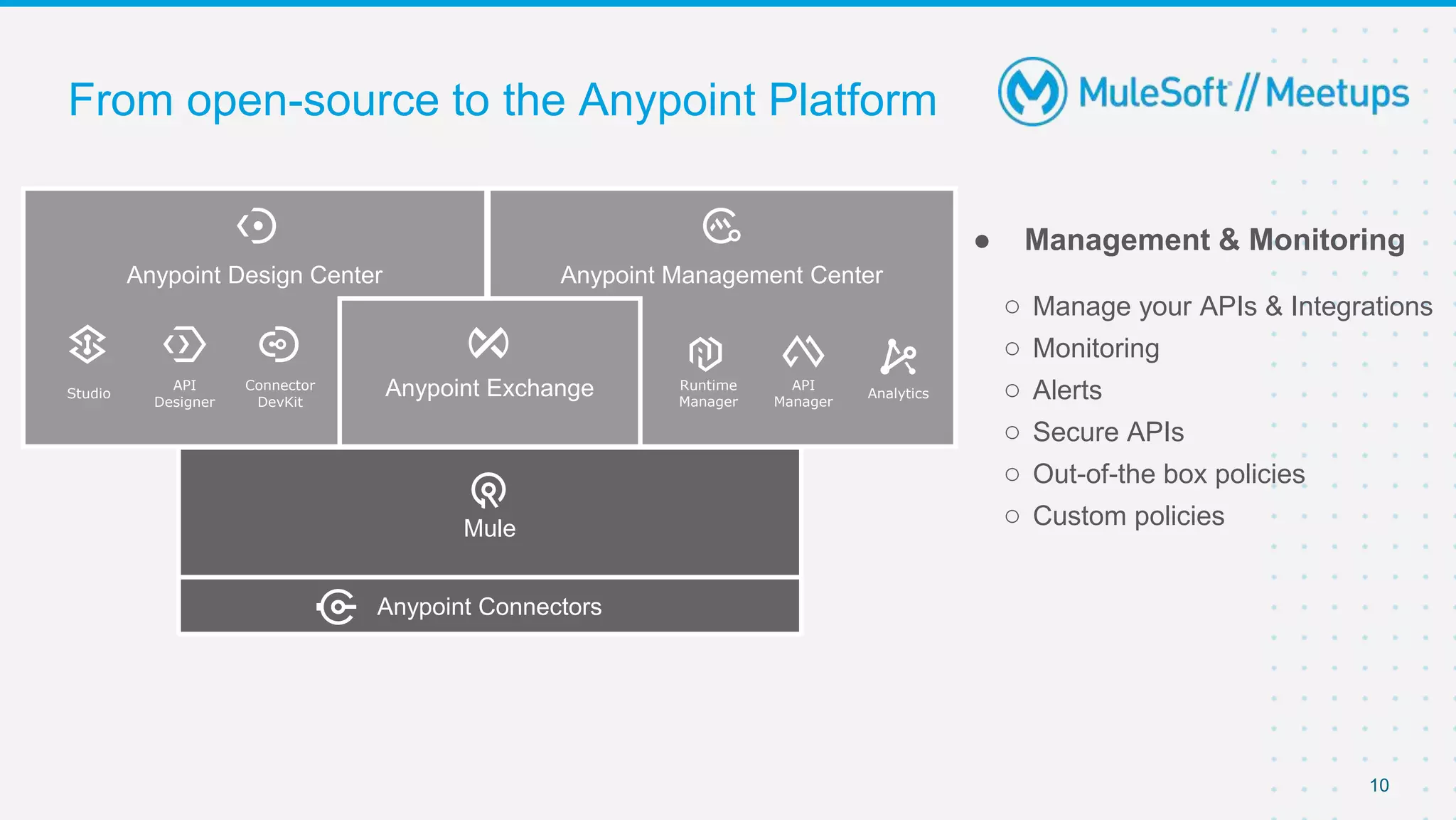

From open-source to the Anypoint Platform
● Management & Monitoring
○ Manage your APIs & Integrations
○ Monitoring
○ Alerts
○ Secure APIs
○ Out-of-the box policies
○ Custom policies
Anypoint Design Center Anypoint Management Center
Anypoint Exchange
Studio
API
Designer
Connector
DevKit
Runtime
Manager
API
Manager
Analytics
Mule
Anypoint Connectors

11. 11

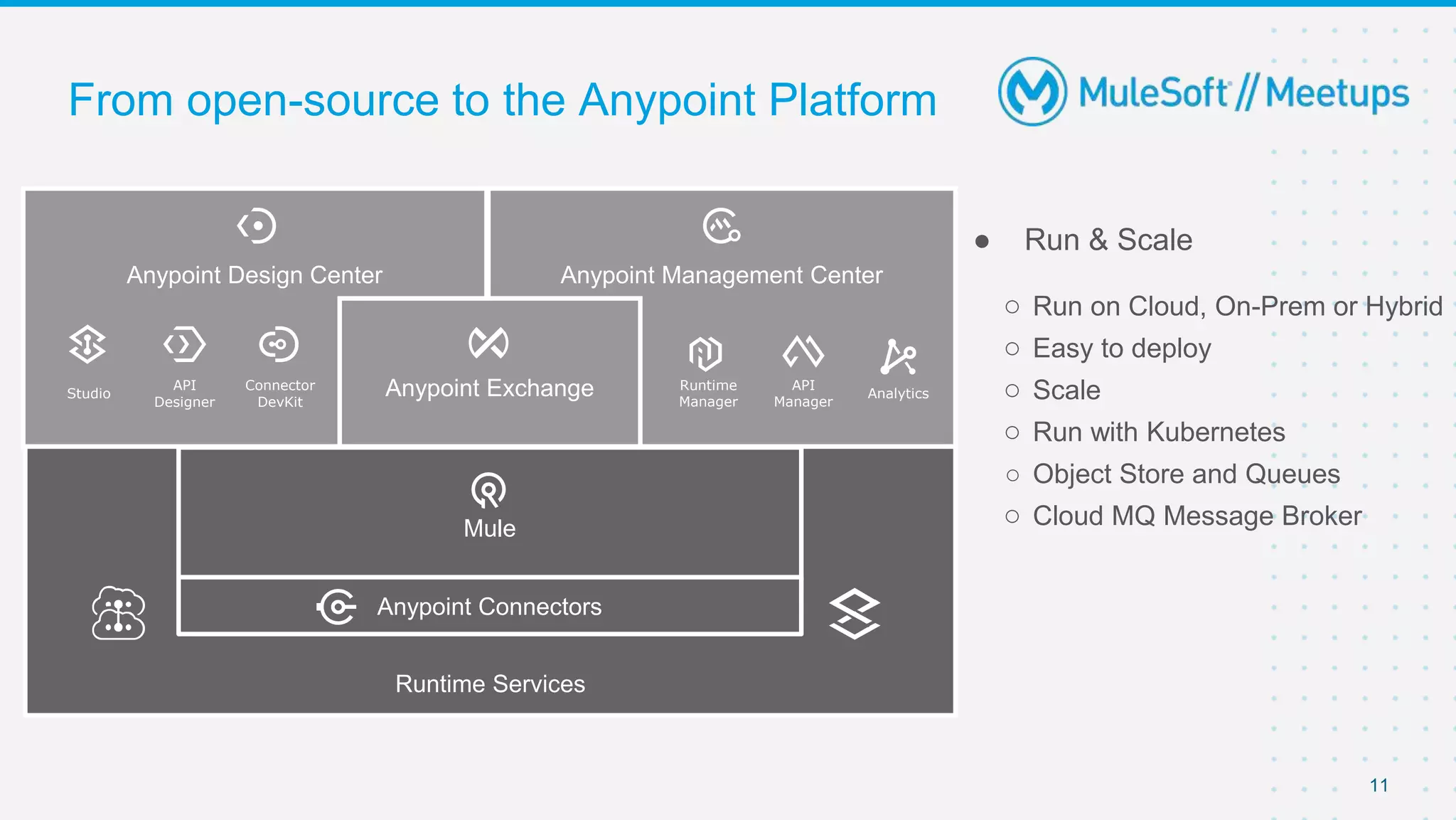

From open-source to the Anypoint Platform
Anypoint Design Center Anypoint Management Center
Anypoint Exchange
Studio
API
Designer
Connector
DevKit
Runtime
Manager
API
Manager
Analytics
Runtime Services
Mule
Anypoint Connectors
● Run & Scale
○ Run on Cloud, On-Prem or Hybrid
○ Easy to deploy
○ Scale
○ Run with Kubernetes
○ Object Store and Queues
○ Cloud MQ Message Broker

12. Building APIs
API Lifecycle

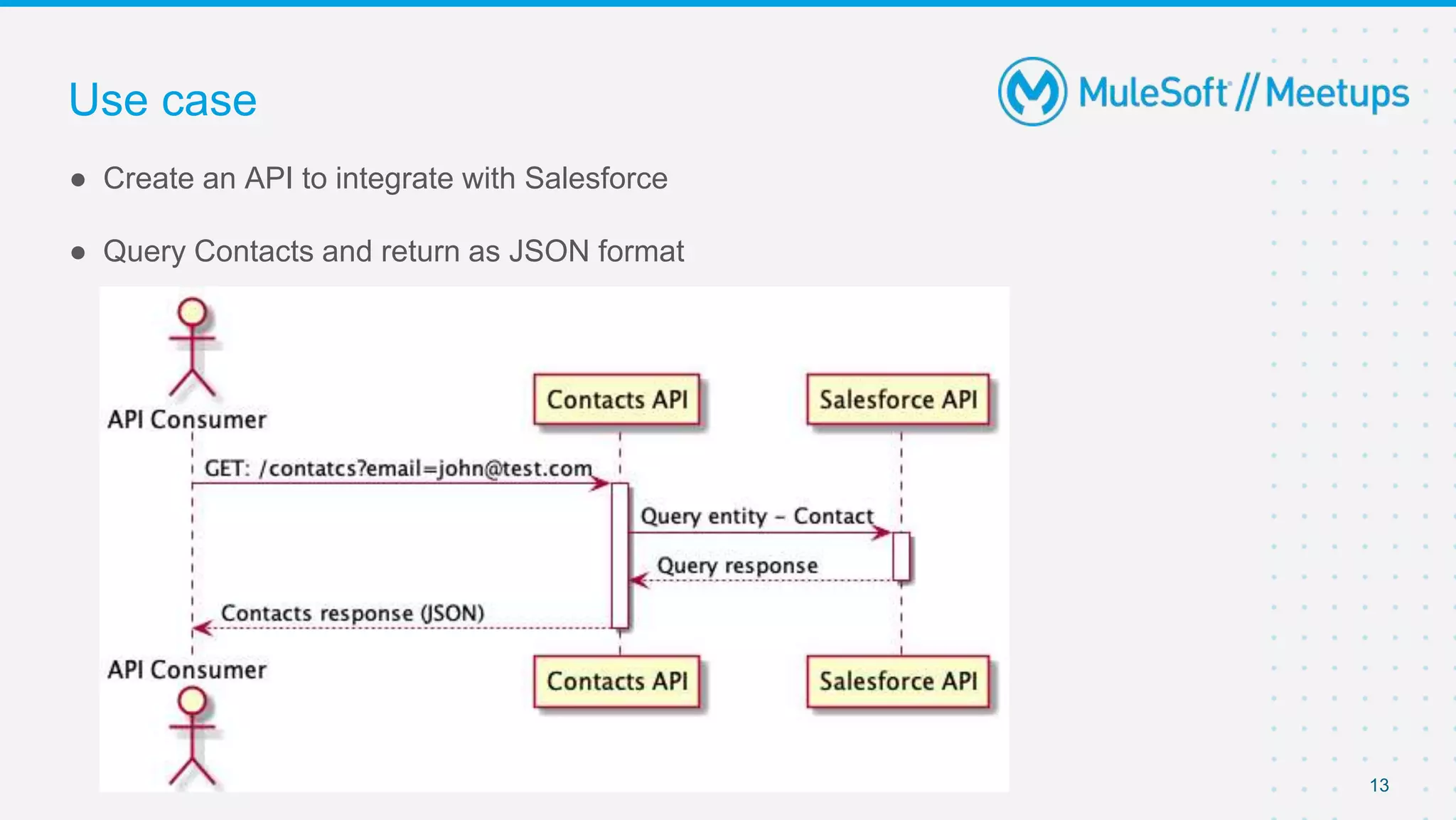

13. Use case
13
● Create an API to integrate with Salesforce
● Query Contacts and return as JSON format

14. “Doing It All” with MuleSoft
(clone full working demo from:
https://github.com/gui1207/sfdc-contacts-sys-api)

15. 15

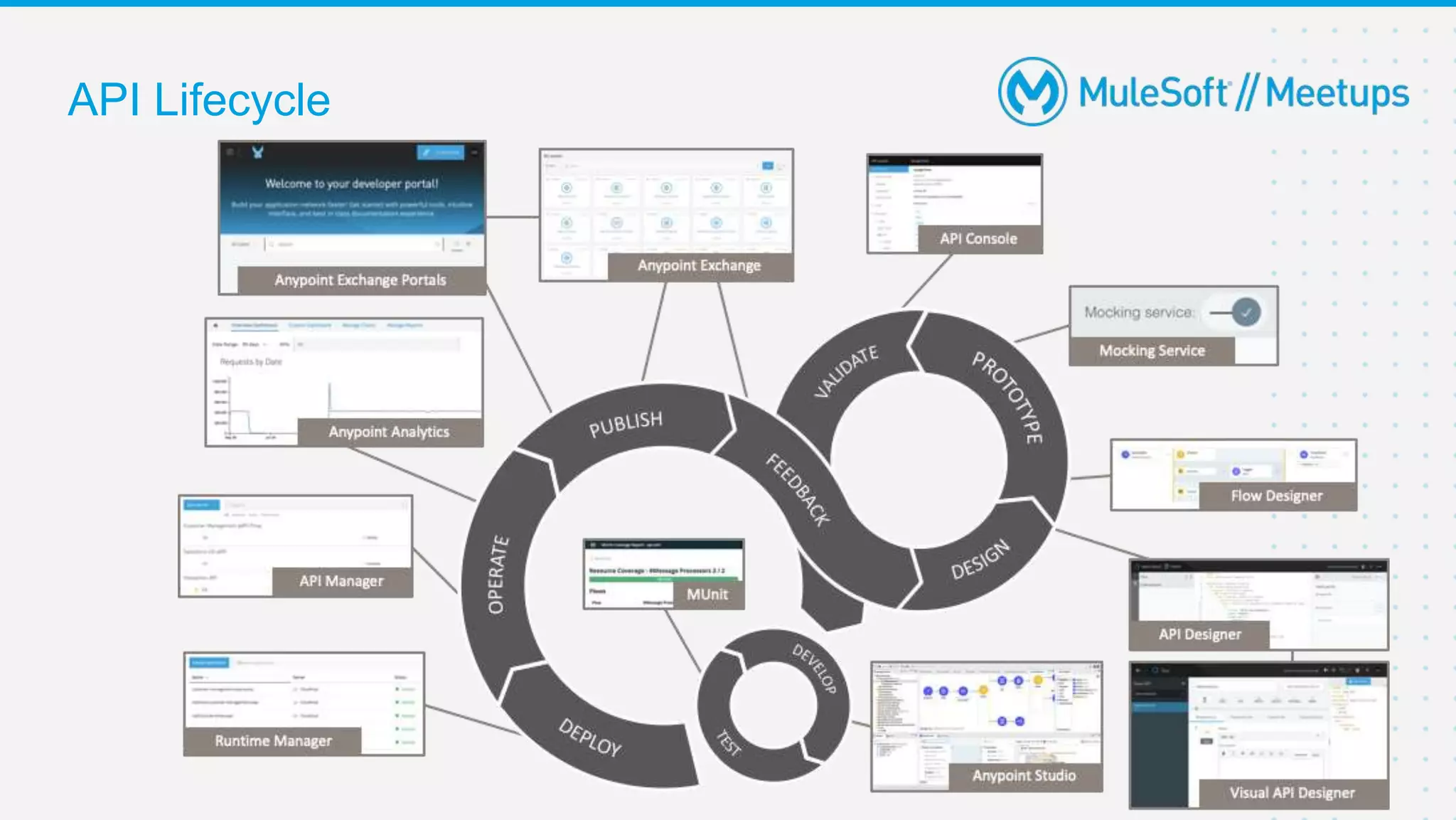

API Lifecycle

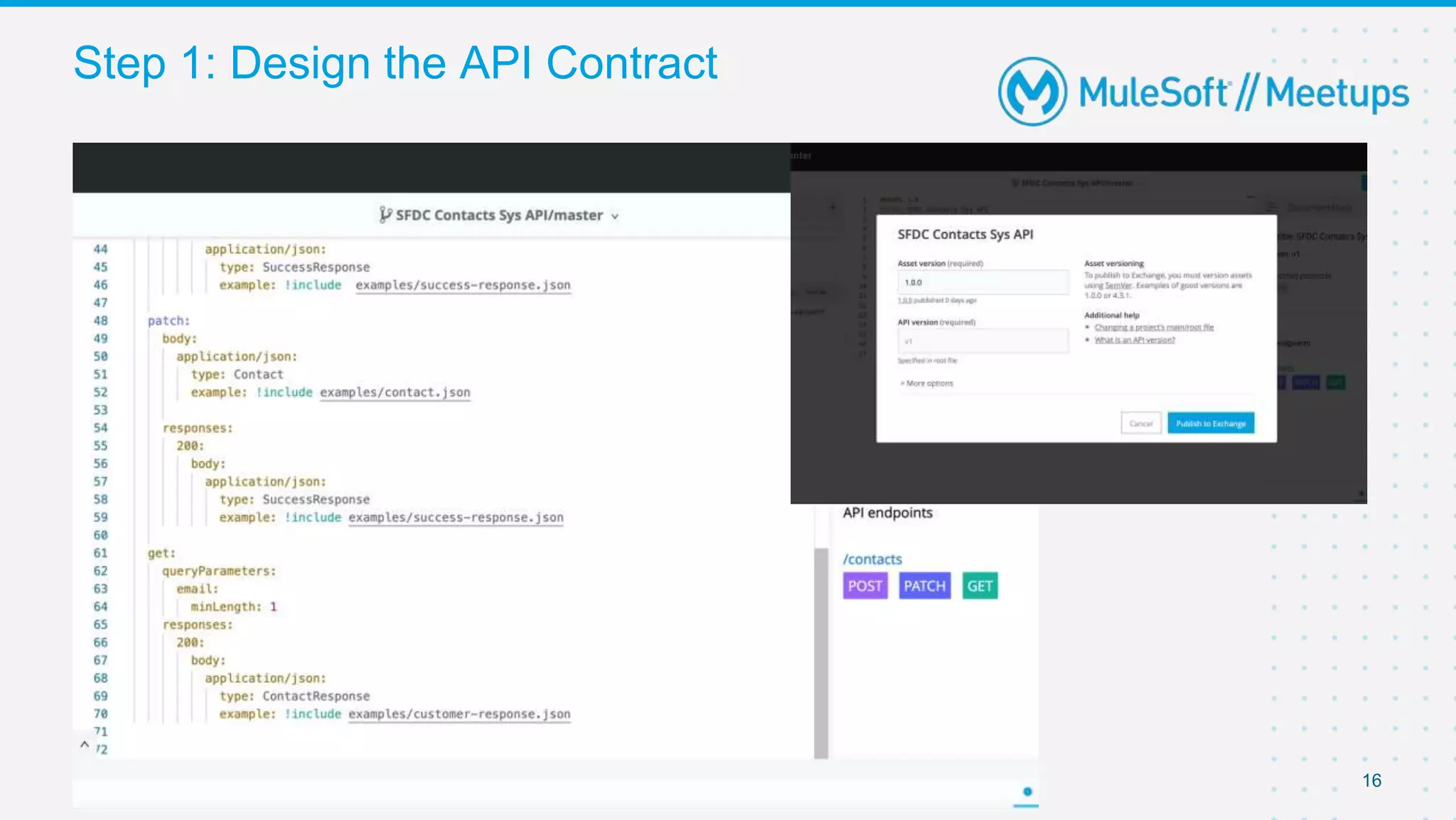

16. Step 1: Design the API Contract
16

17. Step 2: Implement & Test locally
17

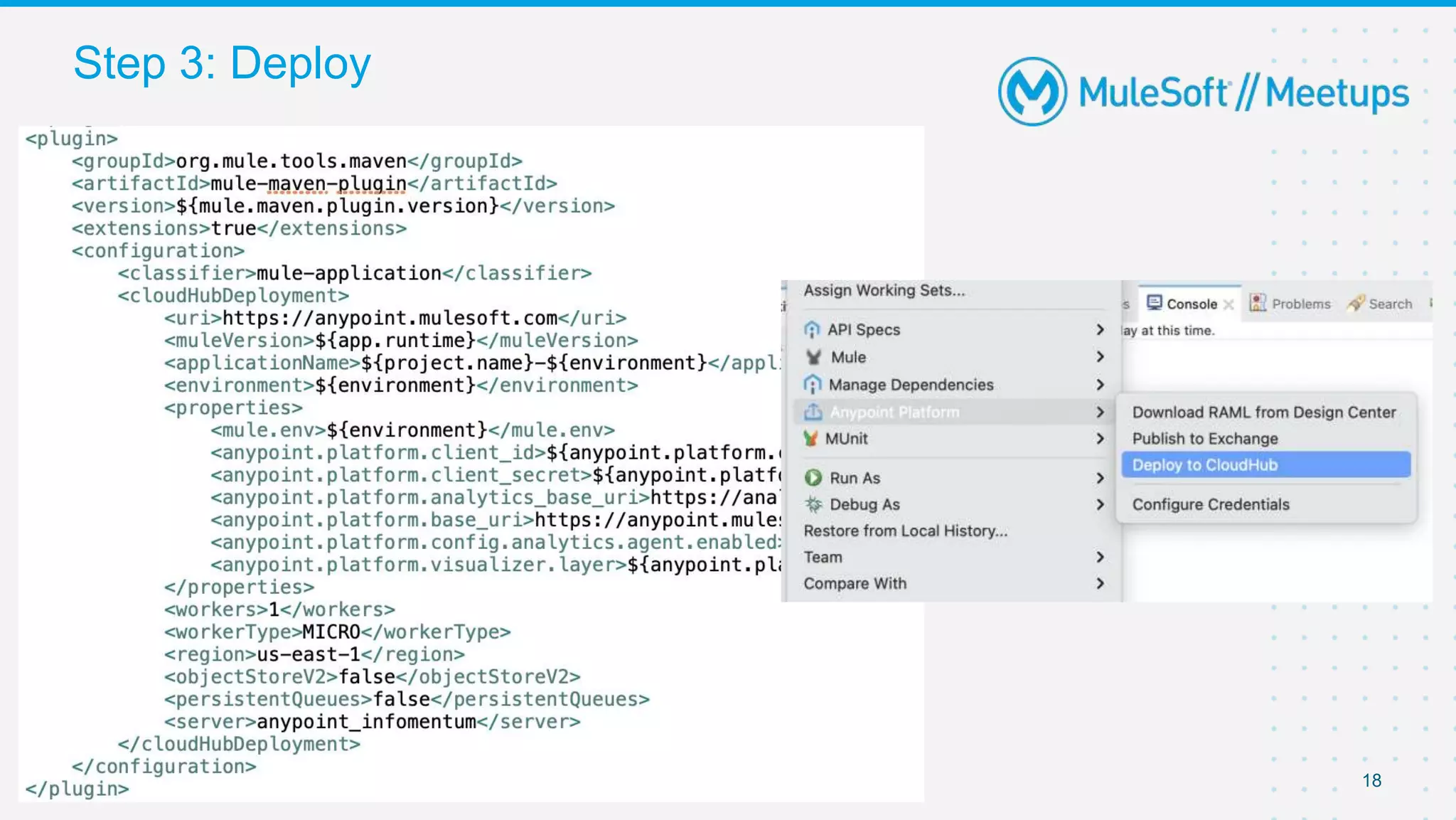

18. Step 3: Deploy
18

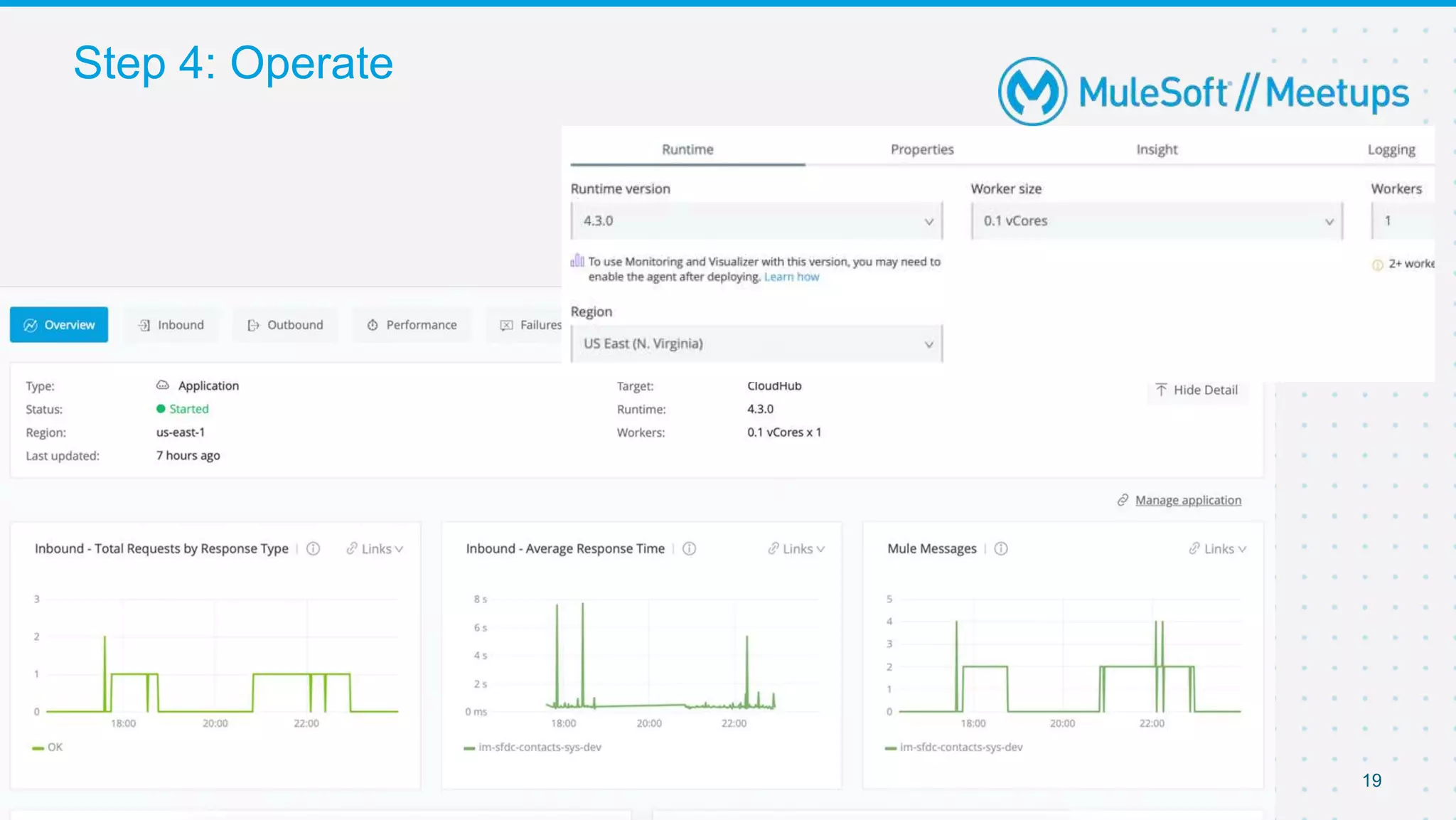

19. Step 4: Operate
19

20. “Doing It All” with Spring Boot
(clone full working demo from:
https://github.com/thimotyb/salesforce-springboot-demo)

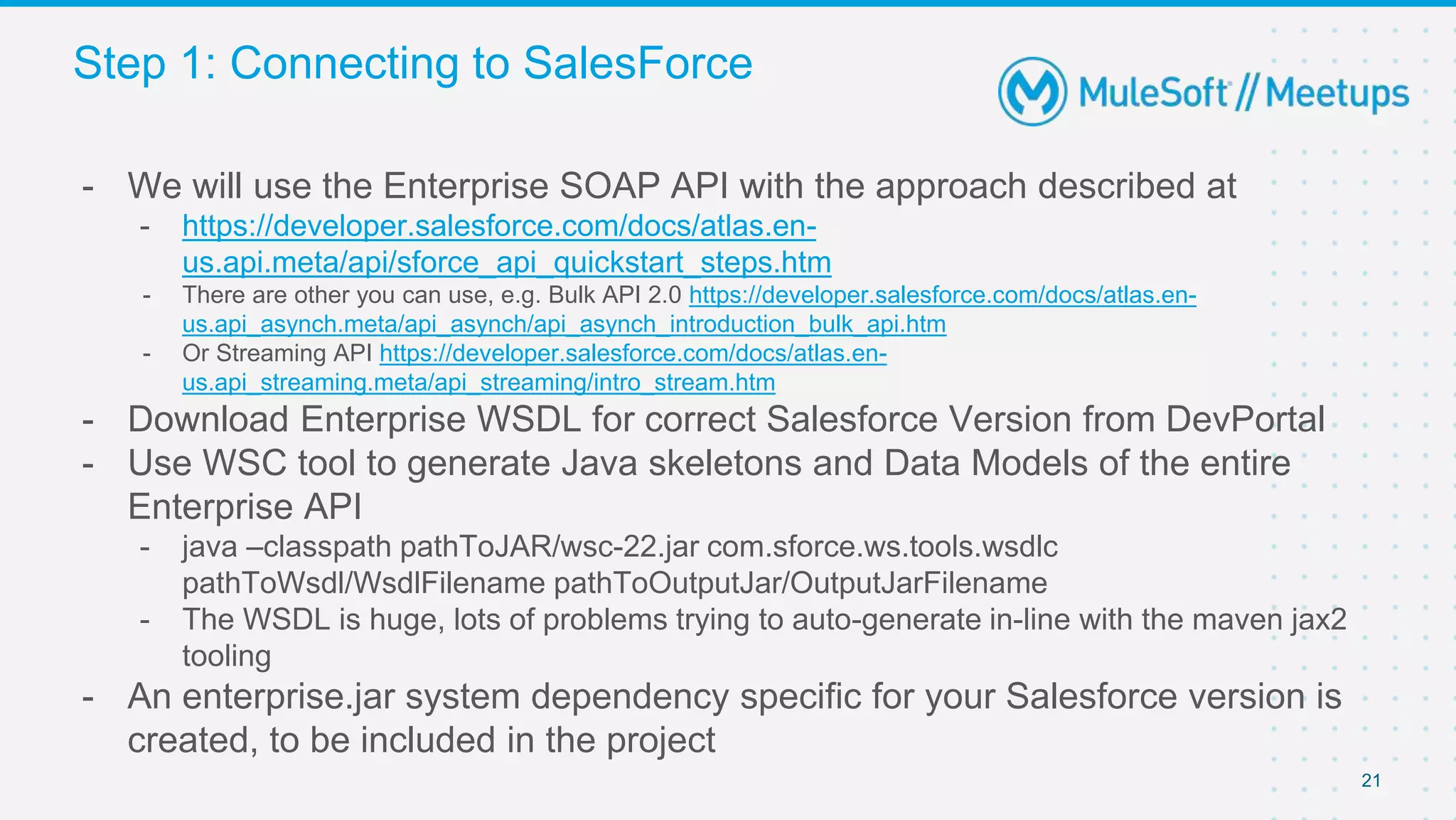

21. Step 1: Connecting to SalesForce
21
- We will use the Enterprise SOAP API with the approach described at
- https://developer.salesforce.com/docs/atlas.en-
us.api.meta/api/sforce_api_quickstart_steps.htm
- There are other you can use, e.g. Bulk API 2.0 https://developer.salesforce.com/docs/atlas.en-
us.api_asynch.meta/api_asynch/api_asynch_introduction_bulk_api.htm
- Or Streaming API https://developer.salesforce.com/docs/atlas.en-
us.api_streaming.meta/api_streaming/intro_stream.htm

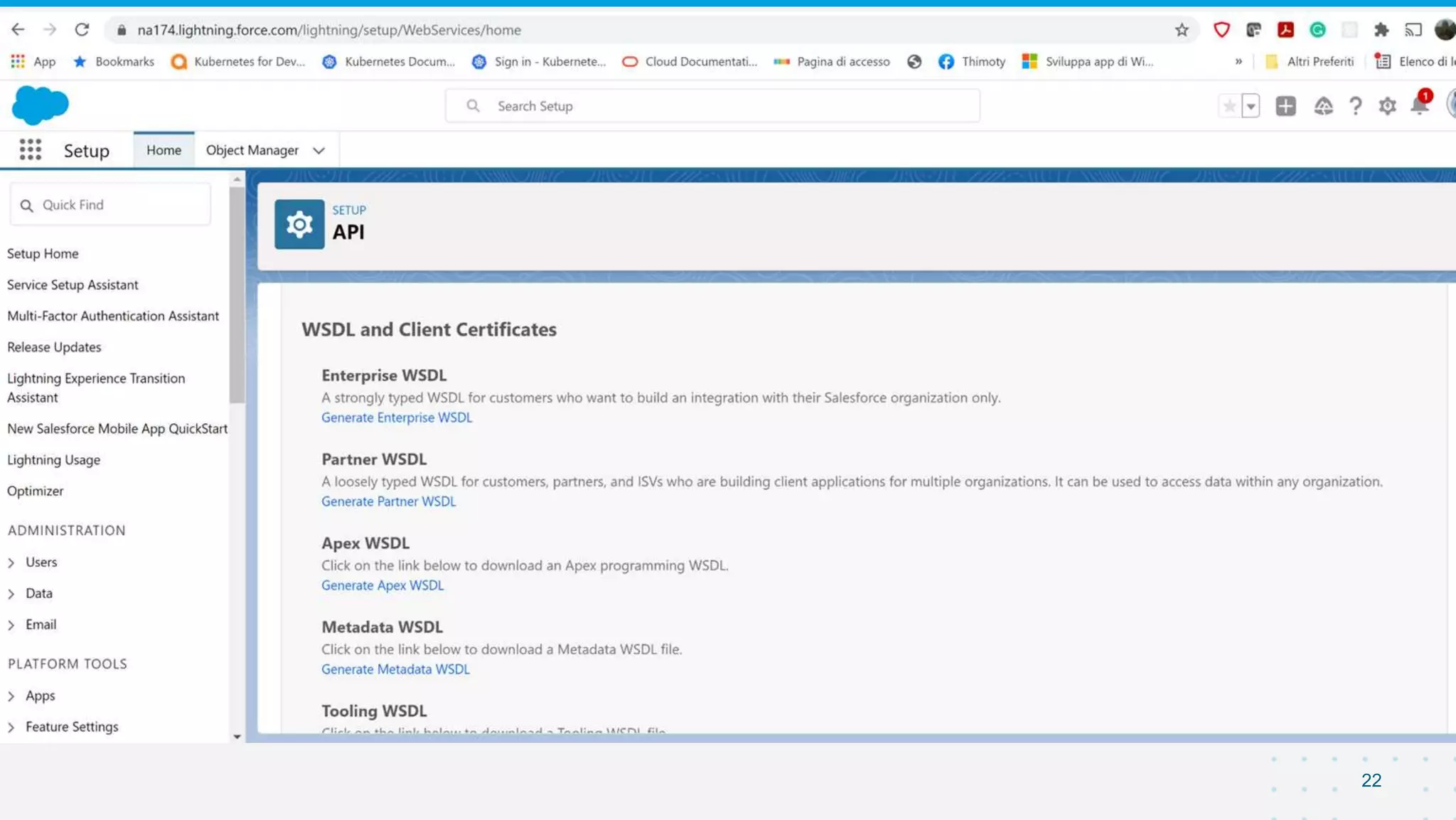

- Download Enterprise WSDL for correct Salesforce Version from DevPortal
- Use WSC tool to generate Java skeletons and Data Models of the entire
Enterprise API
- java –classpath pathToJAR/wsc-22.jar com.sforce.ws.tools.wsdlc
pathToWsdl/WsdlFilename​ pathToOutputJar/OutputJarFilename
- The WSDL is huge, lots of problems trying to auto-generate in-line with the maven jax2
tooling
- An enterprise.jar system dependency specific for your Salesforce version is
created, to be included in the project

22. 22

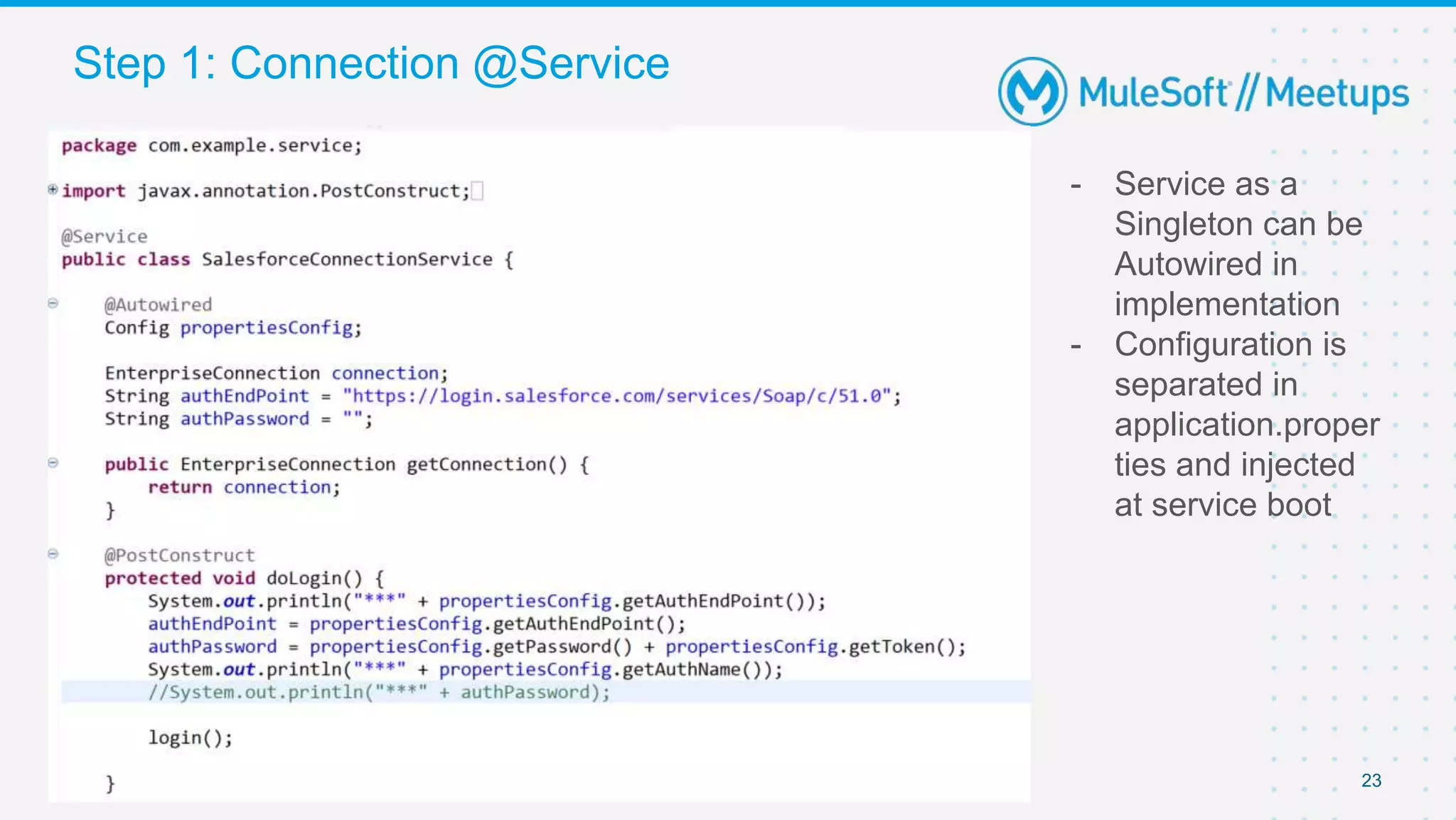

23. 23
- Service as a
Singleton can be
Autowired in
implementation
- Configuration is
separated in
application.proper
ties and injected
at service boot
Step 1: Connection @Service

24. 24

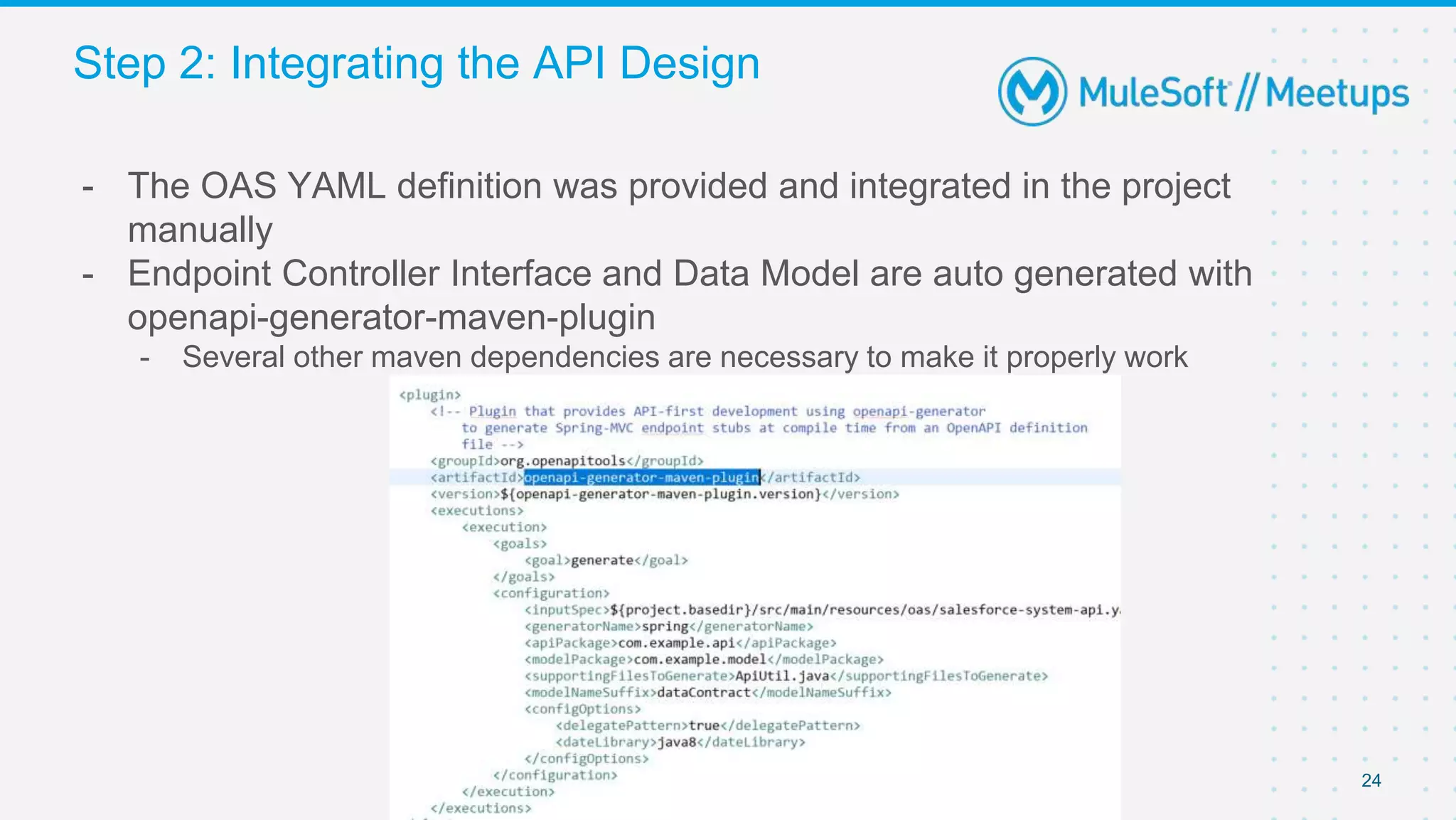

- The OAS YAML definition was provided and integrated in the project
manually
- Endpoint Controller Interface and Data Model are auto generated with
openapi-generator-maven-plugin
- Several other maven dependencies are necessary to make it properly work
Step 2: Integrating the API Design

25. 25
- The interface is
generated in
maven’s target dir
and cannot be
modified
- Implementation
should be done as
separate @Service
implementing this
interface
- Spring’s IOC will
take care of the rest

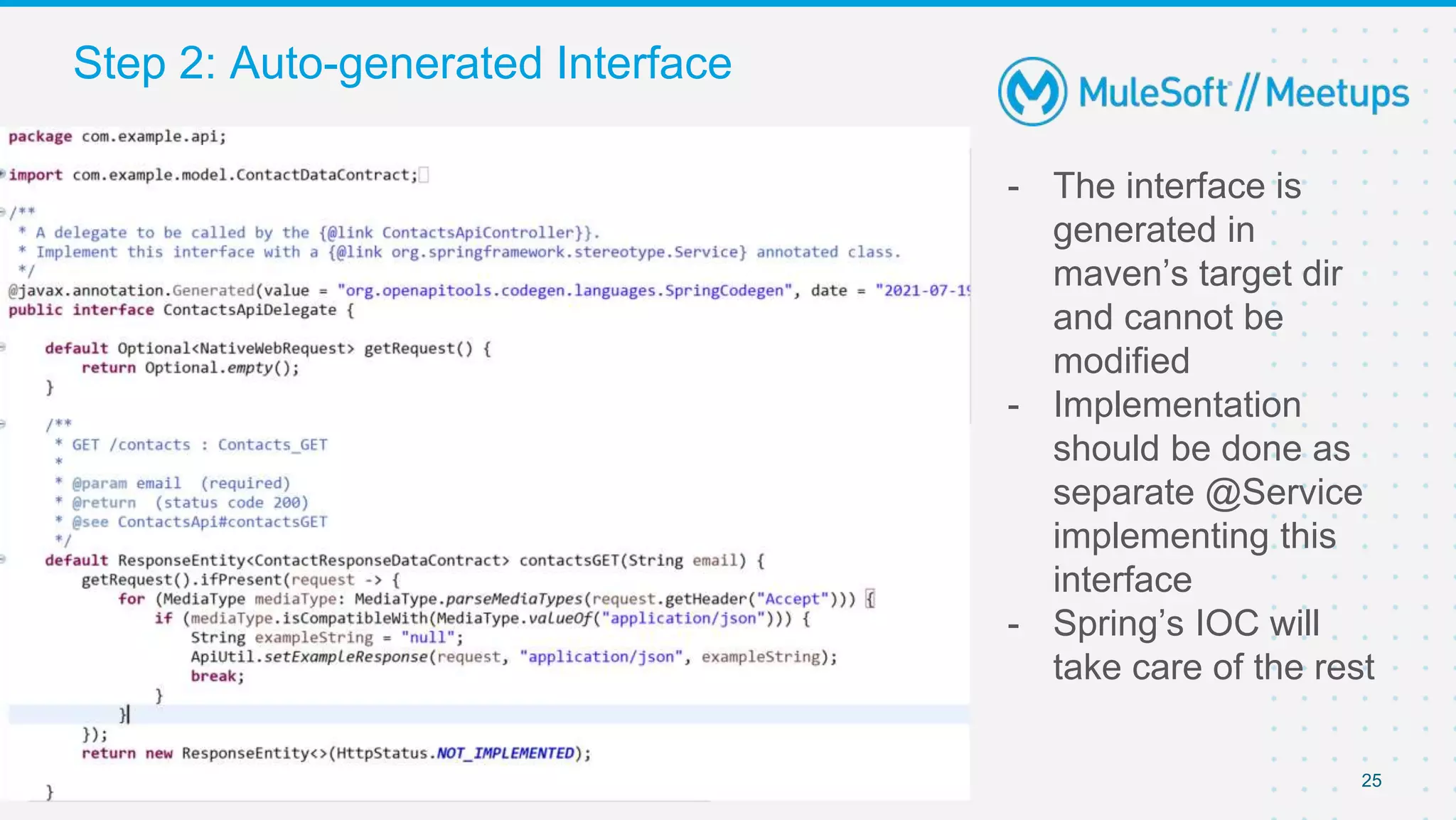

Step 2: Auto-generated Interface

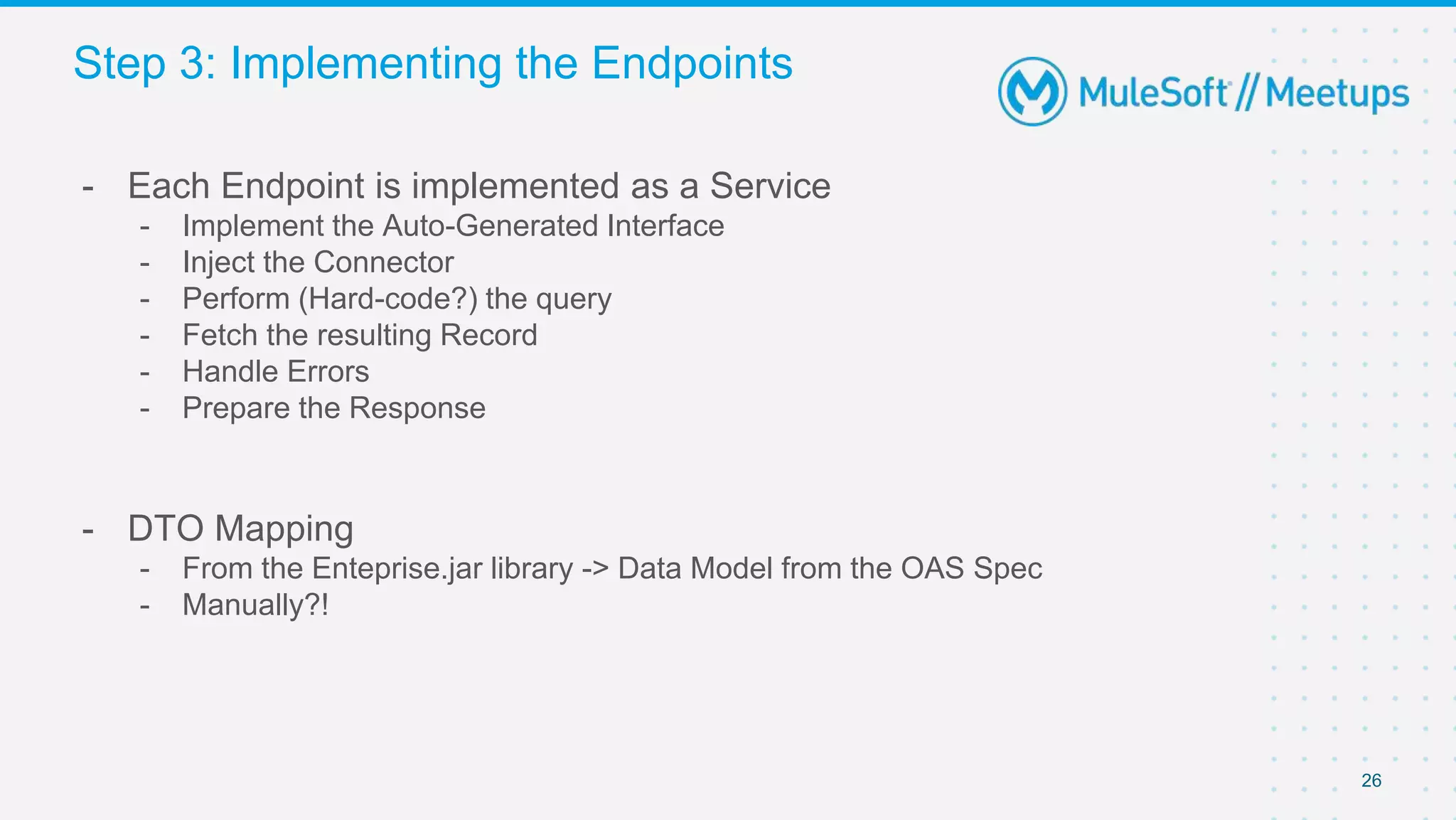

26. 26
- Each Endpoint is implemented as a Service
- Implement the Auto-Generated Interface
- Inject the Connector
- Perform (Hard-code?) the query
- Fetch the resulting Record
- Handle Errors
- Prepare the Response
- DTO Mapping
- From the Enteprise.jar library -> Data Model from the OAS Spec
- Manually?!
Step 3: Implementing the Endpoints

27. 27

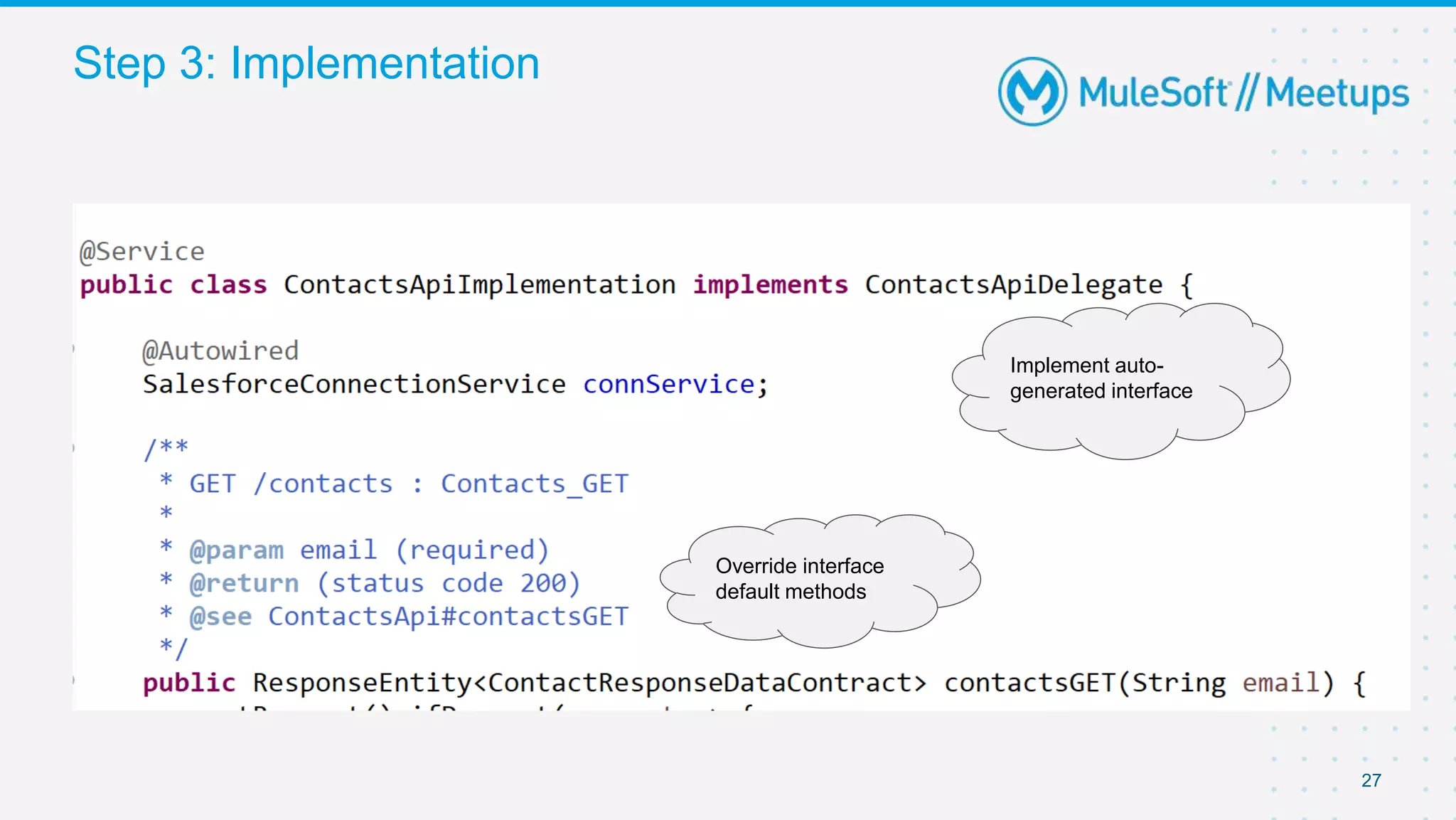

Step 3: Implementation
Implement auto-
generated interface
Override interface
default methods

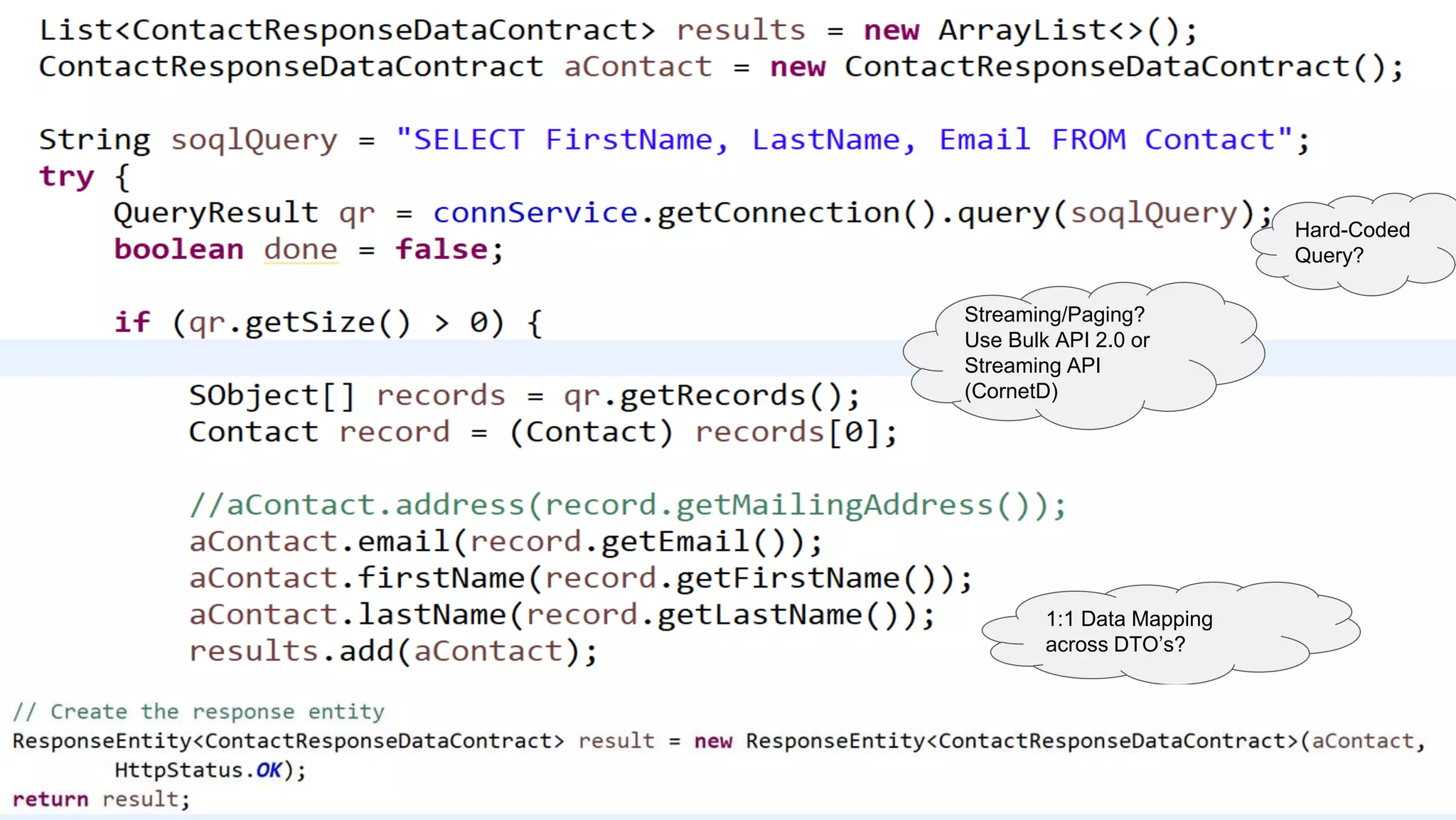

28. 28
Streaming/Paging?
Use Bulk API 2.0 or
Streaming API
(CornetD)
1:1 Data Mapping
across DTO’s?
Hard-Coded
Query?

29. 29

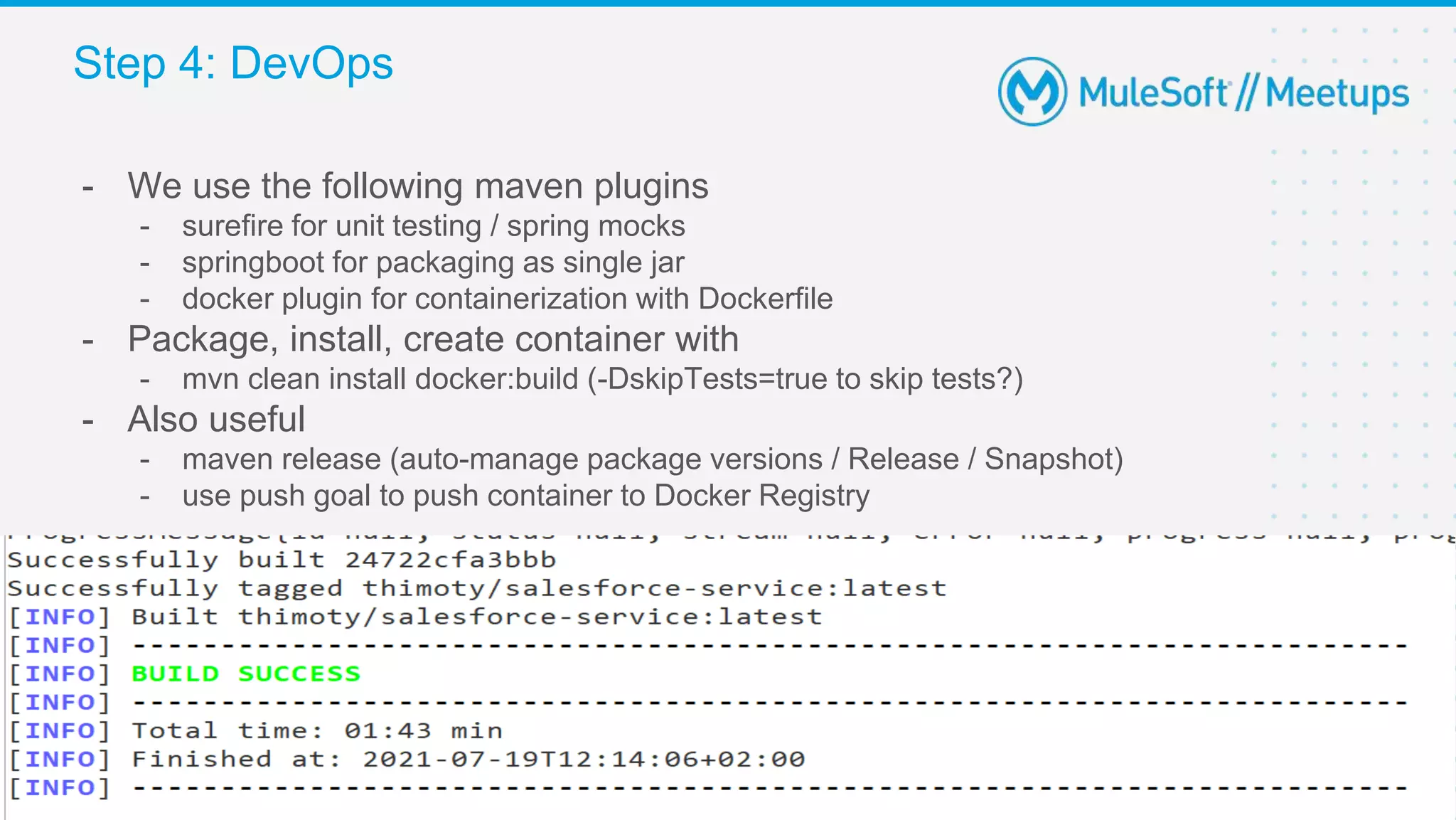

- We use the following maven plugins
- surefire for unit testing / spring mocks
- springboot for packaging as single jar
- docker plugin for containerization with Dockerfile
- Package, install, create container with
- mvn clean install docker:build (-DskipTests=true to skip tests?)
- Also useful
- maven release (auto-manage package versions / Release / Snapshot)
- use push goal to push container to Docker Registry
Step 4: DevOps

30. 30

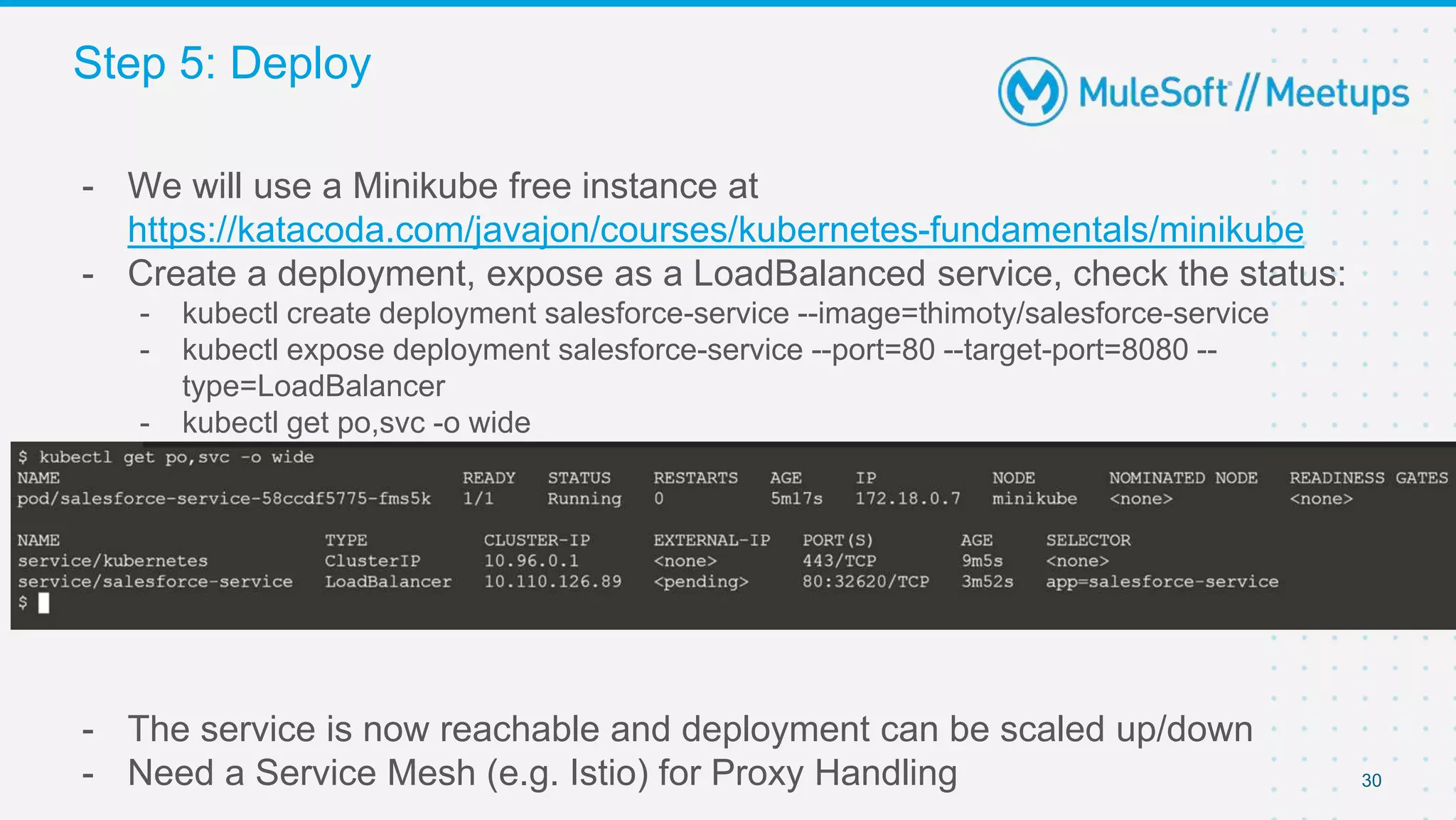

- We will use a Minikube free instance at
https://katacoda.com/javajon/courses/kubernetes-fundamentals/minikube
- Create a deployment, expose as a LoadBalanced service, check the status:
- kubectl create deployment salesforce-service --image=thimoty/salesforce-service
- kubectl expose deployment salesforce-service --port=80 --target-port=8080 --
type=LoadBalancer
- kubectl get po,svc -o wide
- The service is now reachable and deployment can be scaled up/down
- Need a Service Mesh (e.g. Istio) for Proxy Handling
Step 5: Deploy

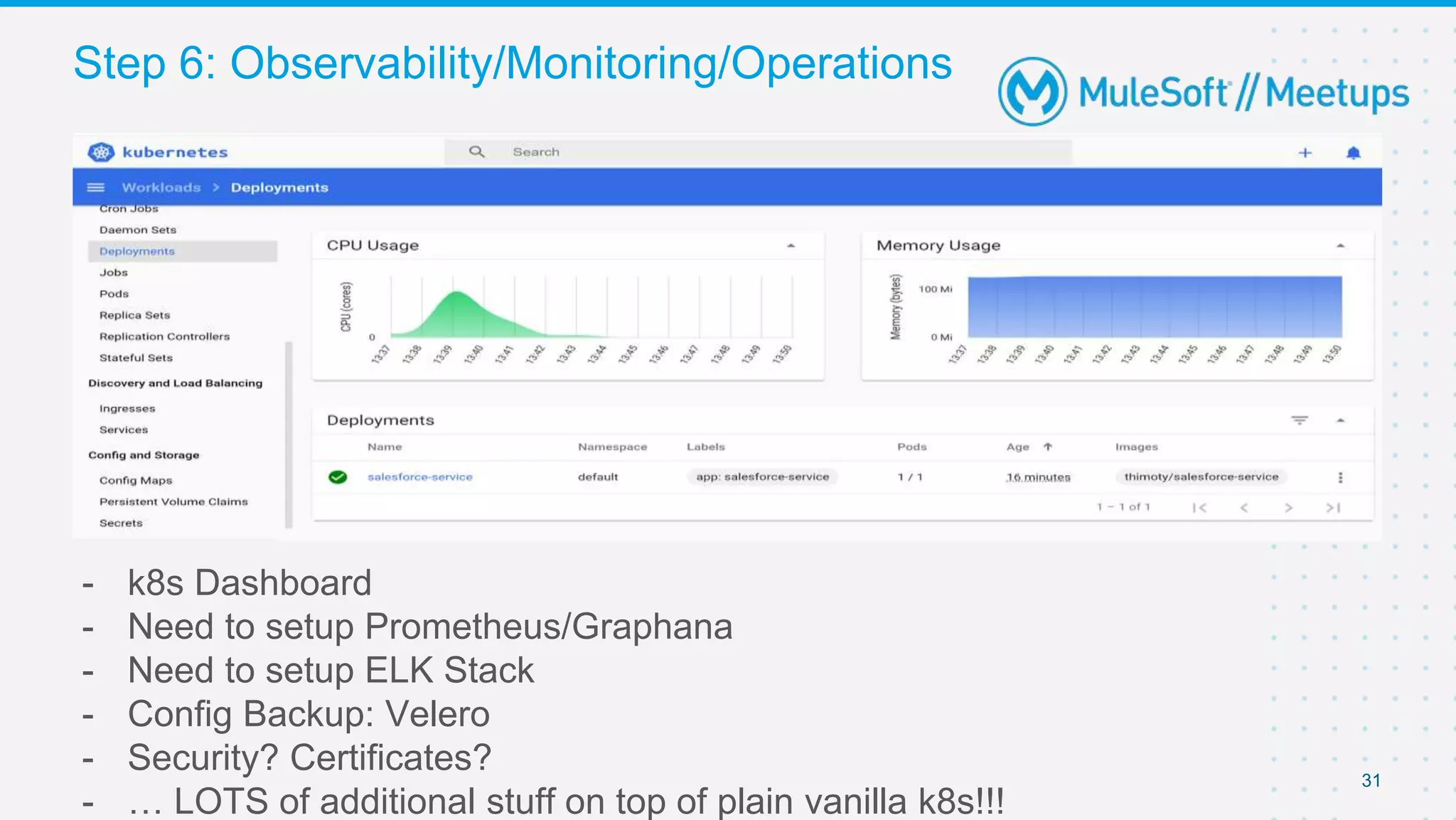

31. 31
- k8s Dashboard
- Need to setup Prometheus/Graphana
- Need to setup ELK Stack
- Config Backup: Velero
- Security? Certificates?
- … LOTS of additional stuff on top of plain vanilla k8s!!!
Step 6: Observability/Monitoring/Operations

32. Final considerations
Wrap up

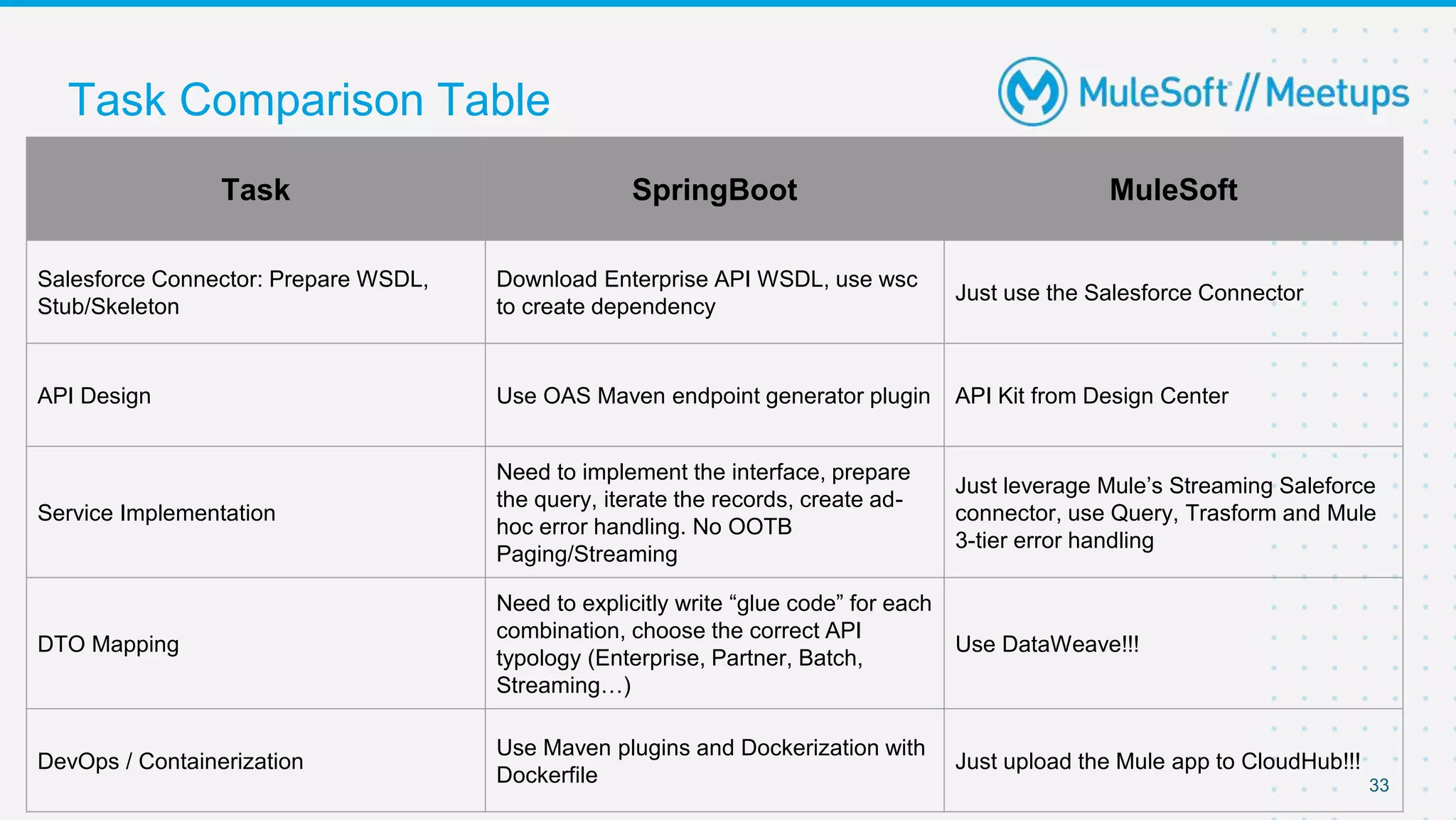

33. Task Comparison Table
33
Task SpringBoot MuleSoft
Salesforce Connector: Prepare WSDL,
Stub/Skeleton
Download Enterprise API WSDL, use wsc
to create dependency
Just use the Salesforce Connector
API Design Use OAS Maven endpoint generator plugin API Kit from Design Center
Service Implementation
Need to implement the interface, prepare
the query, iterate the records, create ad-
hoc error handling. No OOTB
Paging/Streaming
Just leverage Mule’s Streaming Saleforce
connector, use Query, Trasform and Mule
3-tier error handling
DTO Mapping
Need to explicitly write “glue code” for each
combination, choose the correct API
typology (Enterprise, Partner, Batch,
Streaming…)
Use DataWeave!!!
DevOps / Containerization
Use Maven plugins and Dockerization with
Dockerfile
Just upload the Mule app to CloudHub!!!

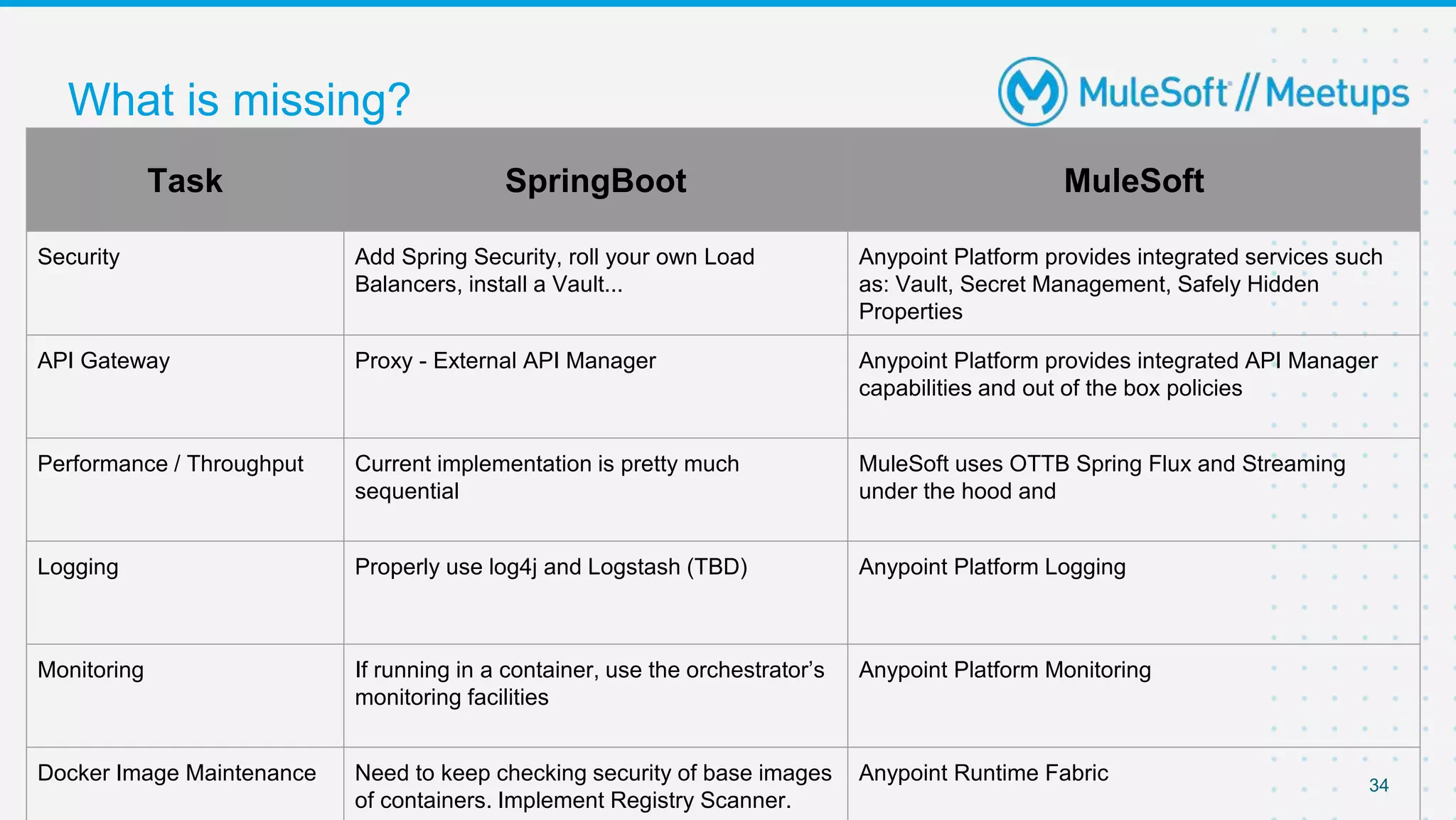

34. What is missing?
34
Task SpringBoot MuleSoft
Security Add Spring Security, roll your own Load
Balancers, install a Vault...
Anypoint Platform provides integrated services such
as: Vault, Secret Management, Safely Hidden
Properties
API Gateway Proxy - External API Manager Anypoint Platform provides integrated API Manager
capabilities and out of the box policies
Performance / Throughput Current implementation is pretty much
sequential
MuleSoft uses OTTB Spring Flux and Streaming
under the hood and
Logging Properly use log4j and Logstash (TBD) Anypoint Platform Logging
Monitoring If running in a container, use the orchestrator’s
monitoring facilities
Anypoint Platform Monitoring
Docker Image Maintenance Need to keep checking security of base images
of containers. Implement Registry Scanner.
Anypoint Runtime Fabric

35. 35

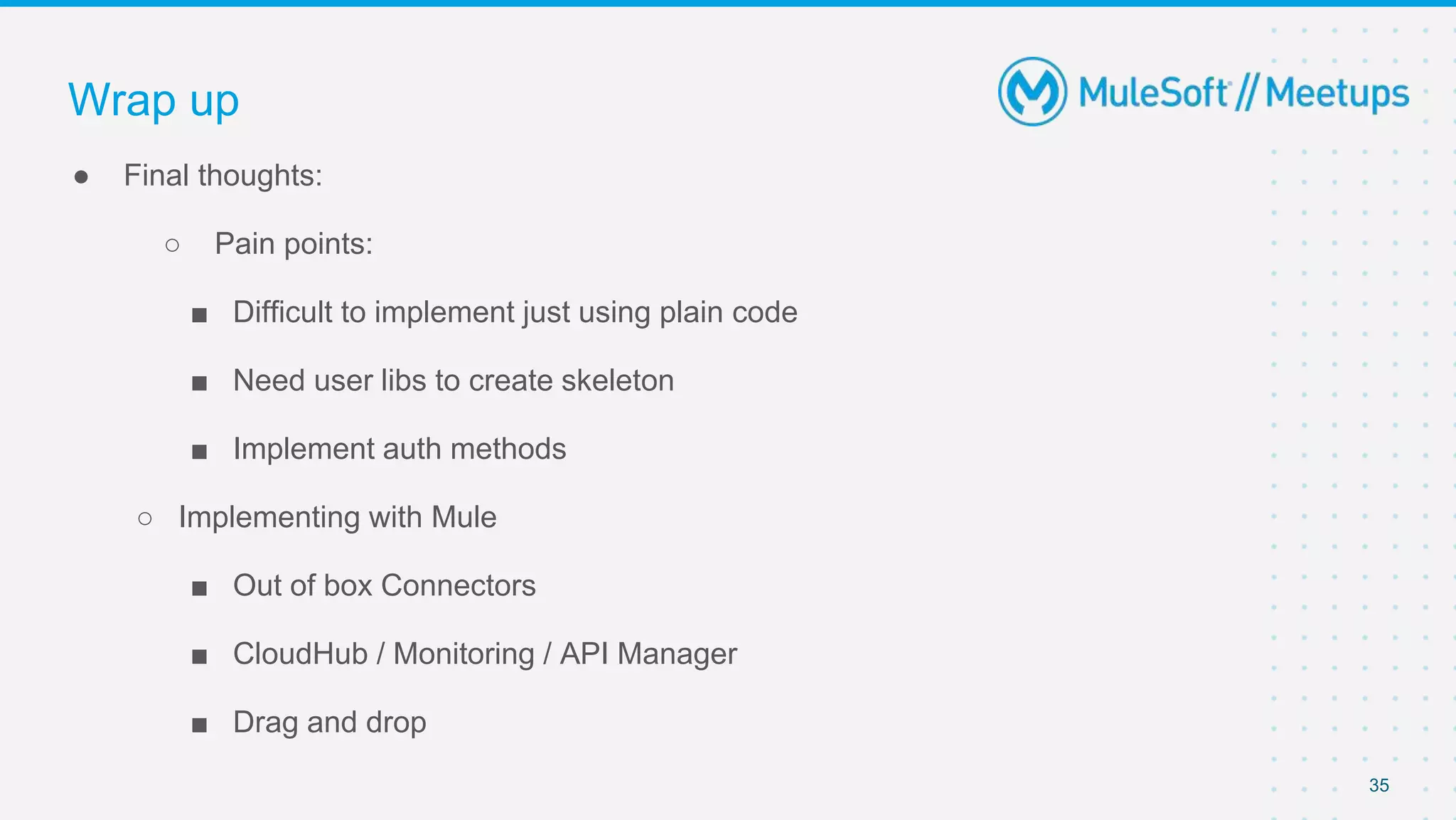

● Final thoughts:
○ Pain points:
■ Difficult to implement just using plain code
■ Need user libs to create skeleton
■ Implement auth methods
○ Implementing with Mule
■ Out of box Connectors
■ CloudHub / Monitoring / API Manager
■ Drag and drop
Wrap up

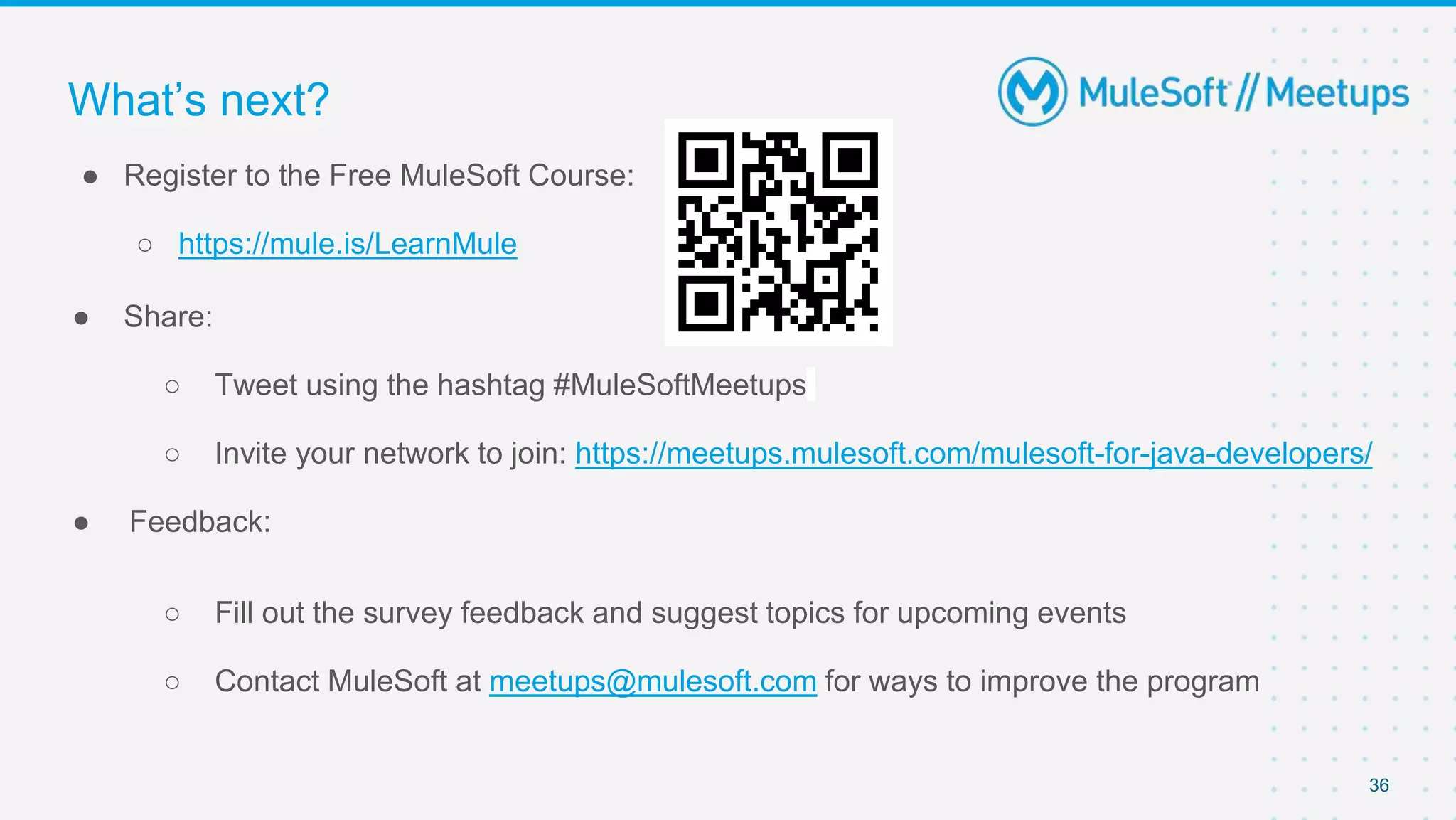

36. 36
● Register to the Free MuleSoft Course:
○ https://mule.is/LearnMule
● Share:
○ Tweet using the hashtag #MuleSoftMeetups
○ Invite your network to join: https://meetups.mulesoft.com/mulesoft-for-java-developers/
● Feedback:
○ Fill out the survey feedback and suggest topics for upcoming events
○ Contact MuleSoft at meetups@mulesoft.com for ways to improve the program
What’s next?

37. Your chance to win an Instructor-led MuleSoft course
Trivia

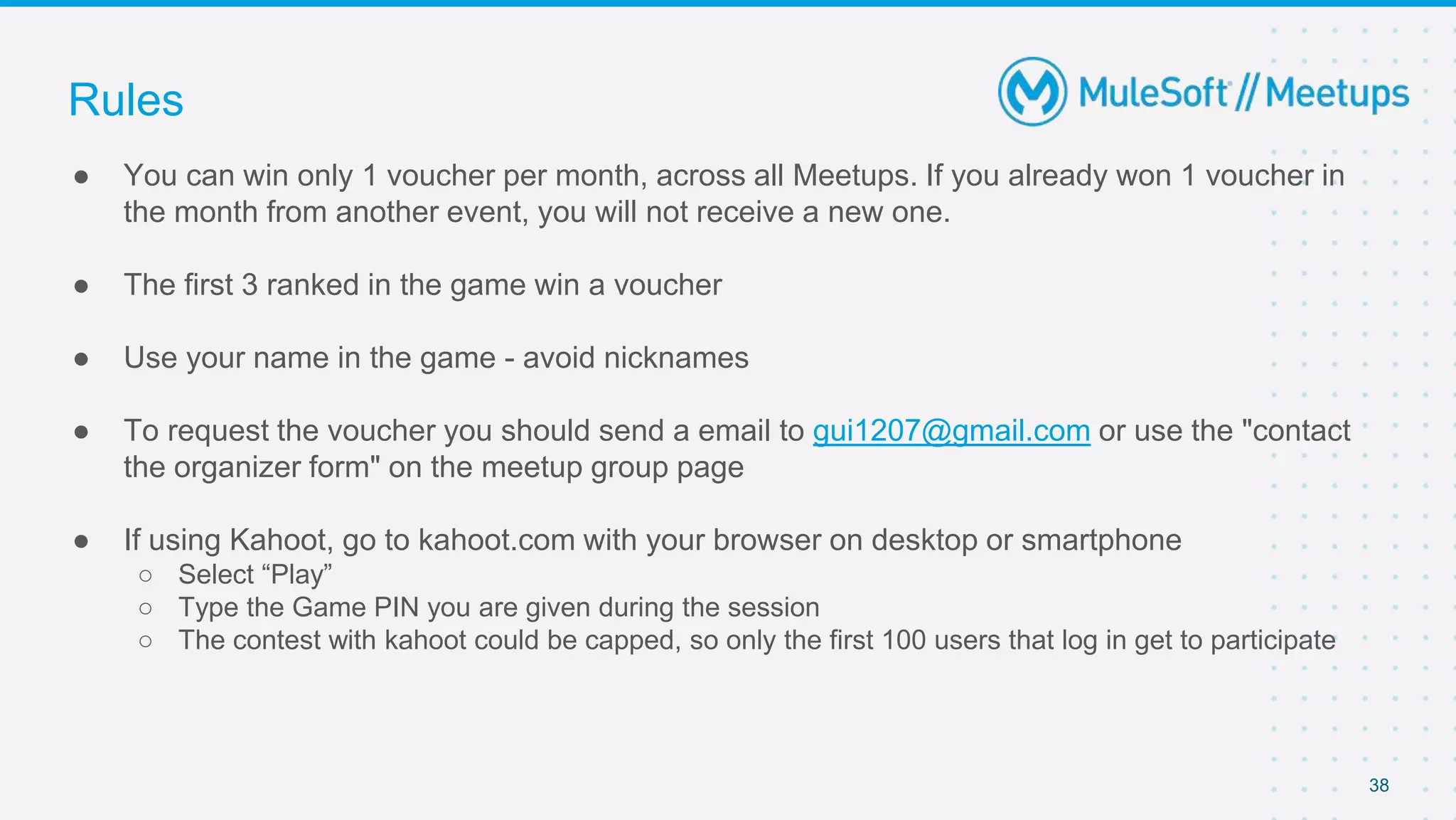

38. 38
● You can win only 1 voucher per month, across all Meetups. If you already won 1 voucher in
the month from another event, you will not receive a new one.
● The first 3 ranked in the game win a voucher
● Use your name in the game - avoid nicknames
● To request the voucher you should send a email to gui1207@gmail.com or use the "contact
the organizer form" on the meetup group page
● If using Kahoot, go to kahoot.com with your browser on desktop or smartphone
○ Select “Play”
○ Type the Game PIN you are given during the session
○ The contest with kahoot could be capped, so only the first 100 users that log in get to participate
Rules
