.docker : how to deploy Digital Experience
in a container drinking a cup of coffee
Matteo Bisi – Andrea Fontana

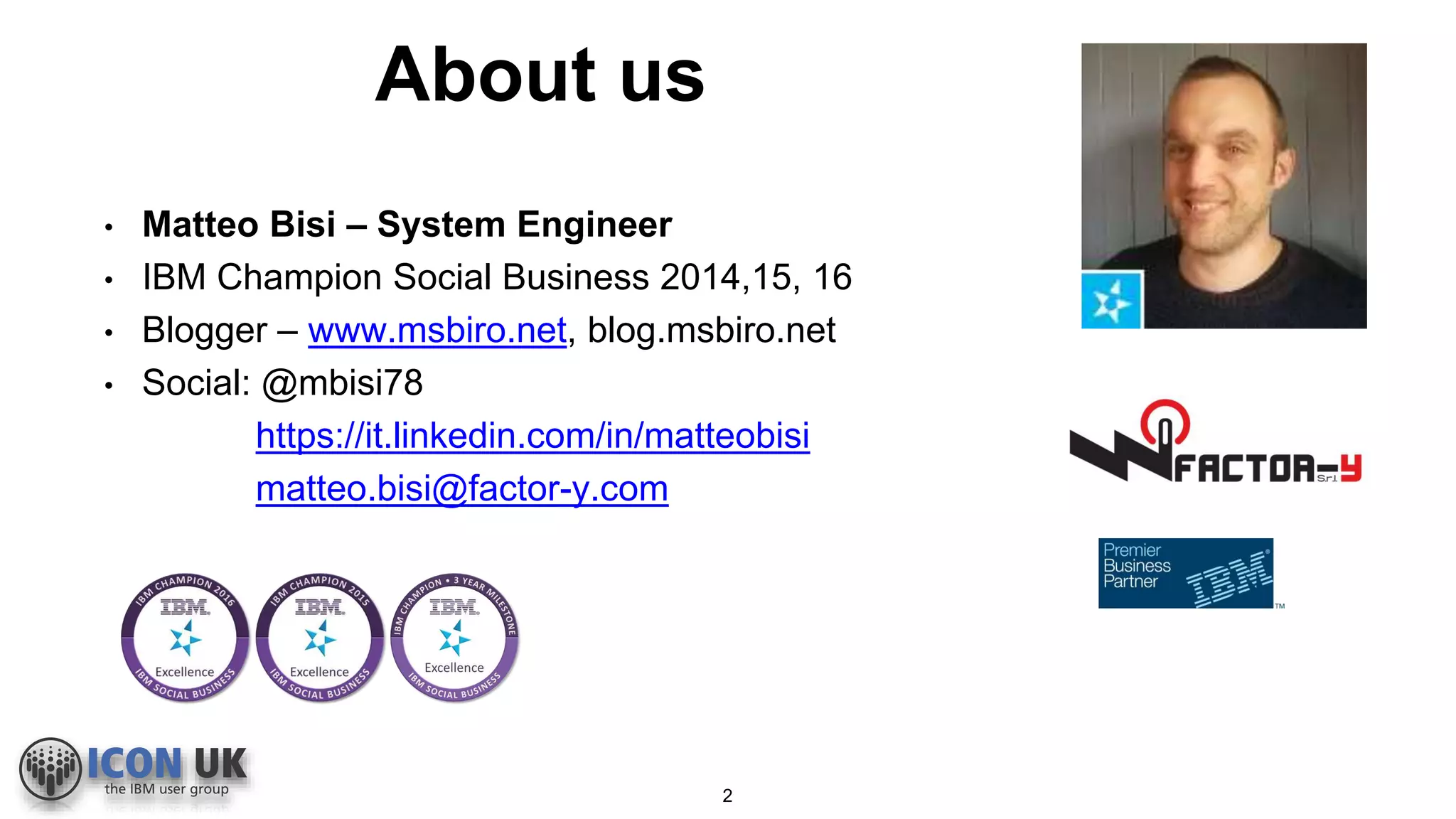

About us
2
• Matteo Bisi – System Engineer
• IBM Champion Social Business 2014,15, 16
• Blogger – www.msbiro.net, blog.msbiro.net
• Social: @mbisi78
https://it.linkedin.com/in/matteobisi
matteo.bisi@factor-y.com
About us
3
• Andrea Fontana – CTO
• IBM Champion Social Business 2015,16
• IBM Champion for WebSphere 2012,13,14
• IBM Advocate since 2012
• Blogger – razioni-k.net2action.com
• Social: @net2action
https://it.linkedin.com/in/afontana
a.fontana@sowre.com
SAP DEVELOPER
BUSINESS PARTNER
Docker + IBM Social Software
What and why
4

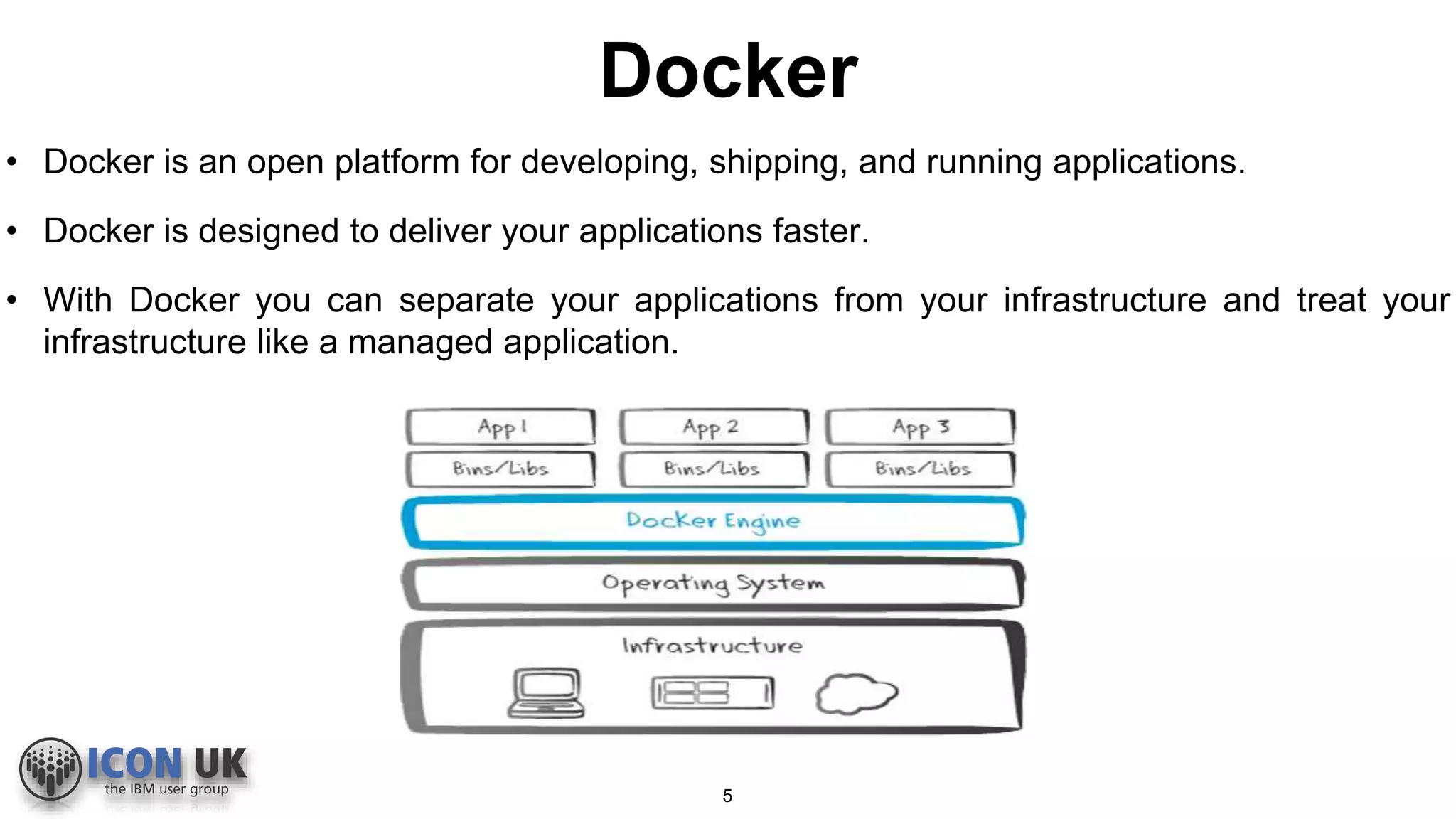

Docker
• Docker is an open platform for developing, shipping, and running applications.
• Docker is designed to deliver your applications faster.
• With Docker you can separate your applications from your infrastructure and treat your
infrastructure like a managed application.
5

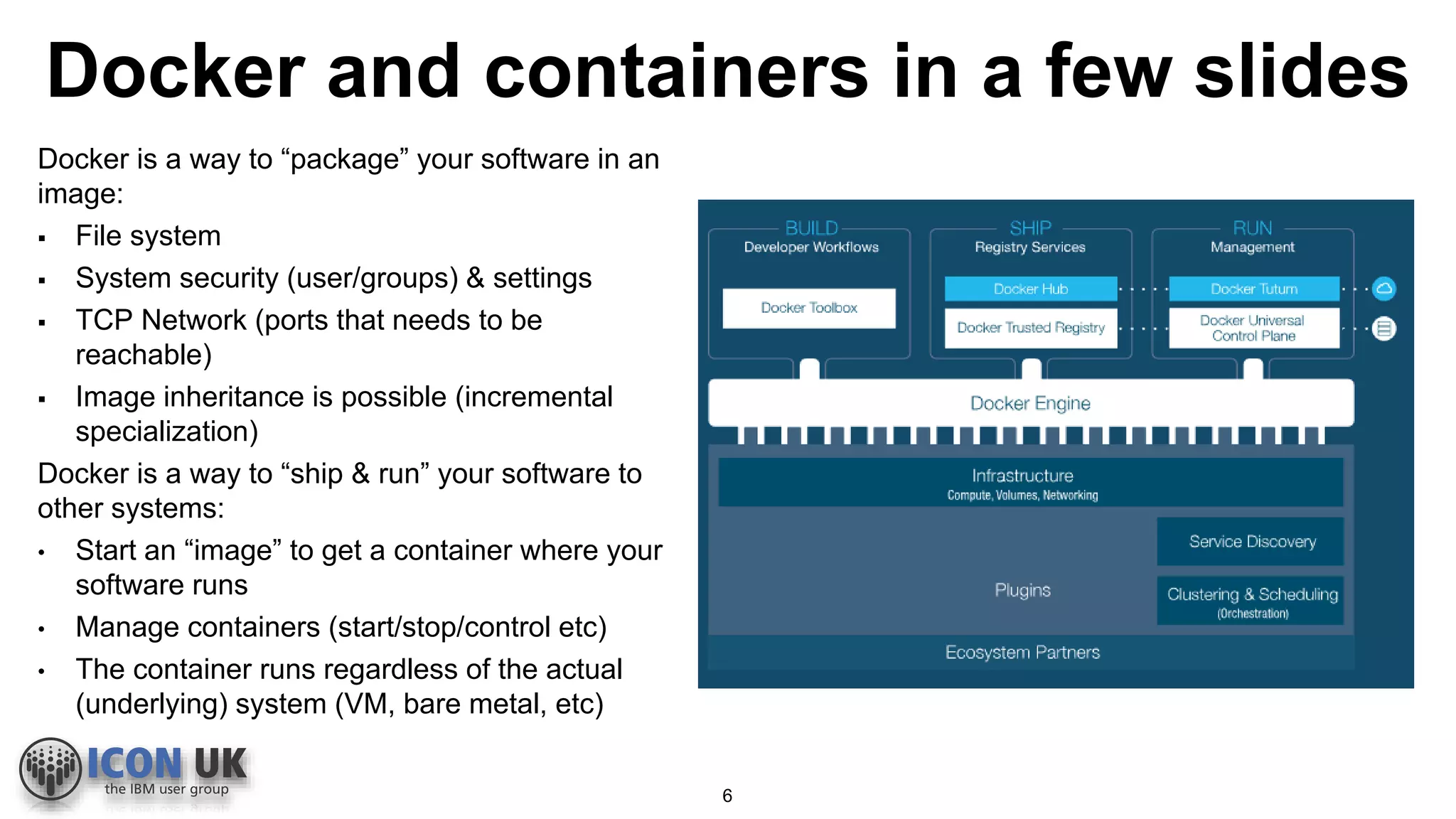

Docker and containers in a few slides
Docker is a way to “package” your software in an
image:
 File system
 System security (user/groups) & settings
 TCP Network (ports that needs to be
reachable)
 Image inheritance is possible (incremental
specialization)
Docker is a way to “ship & run” your software to
other systems:
• Start an “image” to get a container where your
software runs
• Manage containers (start/stop/control etc)
• The container runs regardless of the actual
(underlying) system (VM, bare metal, etc)
6

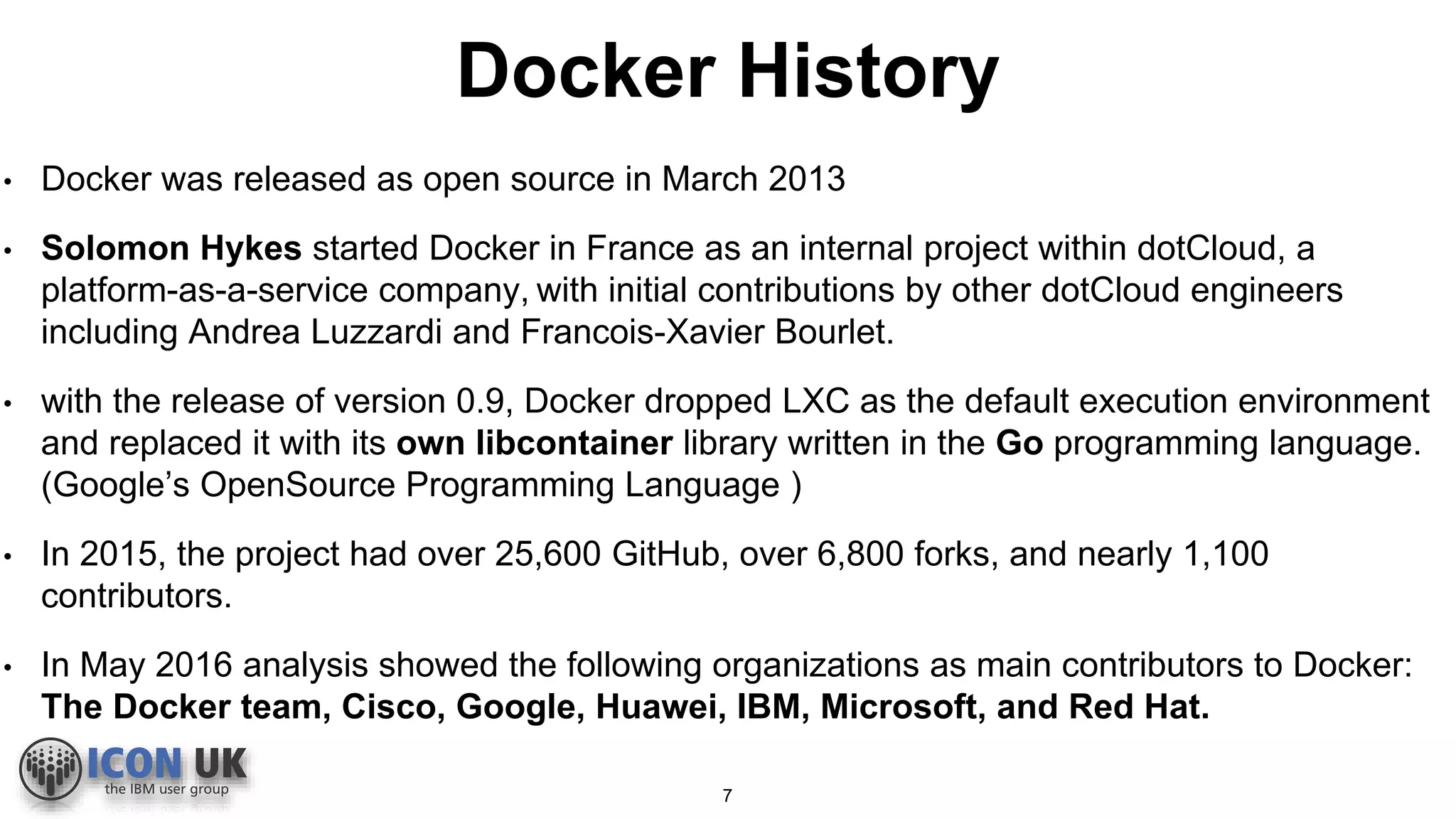

Docker History
• Docker was released as open source in March 2013
• Solomon Hykes started Docker in France as an internal project within dotCloud, a
platform-as-a-service company, with initial contributions by other dotCloud engineers
including Andrea Luzzardi and Francois-Xavier Bourlet.
• with the release of version 0.9, Docker dropped LXC as the default execution environment
and replaced it with its own libcontainer library written in the Go programming language.
(Google’s OpenSource Programming Language )
• In 2015, the project had over 25,600 GitHub, over 6,800 forks, and nearly 1,100
contributors.
• In May 2016 analysis showed the following organizations as main contributors to Docker:
The Docker team, Cisco, Google, Huawei, IBM, Microsoft, and Red Hat.
7

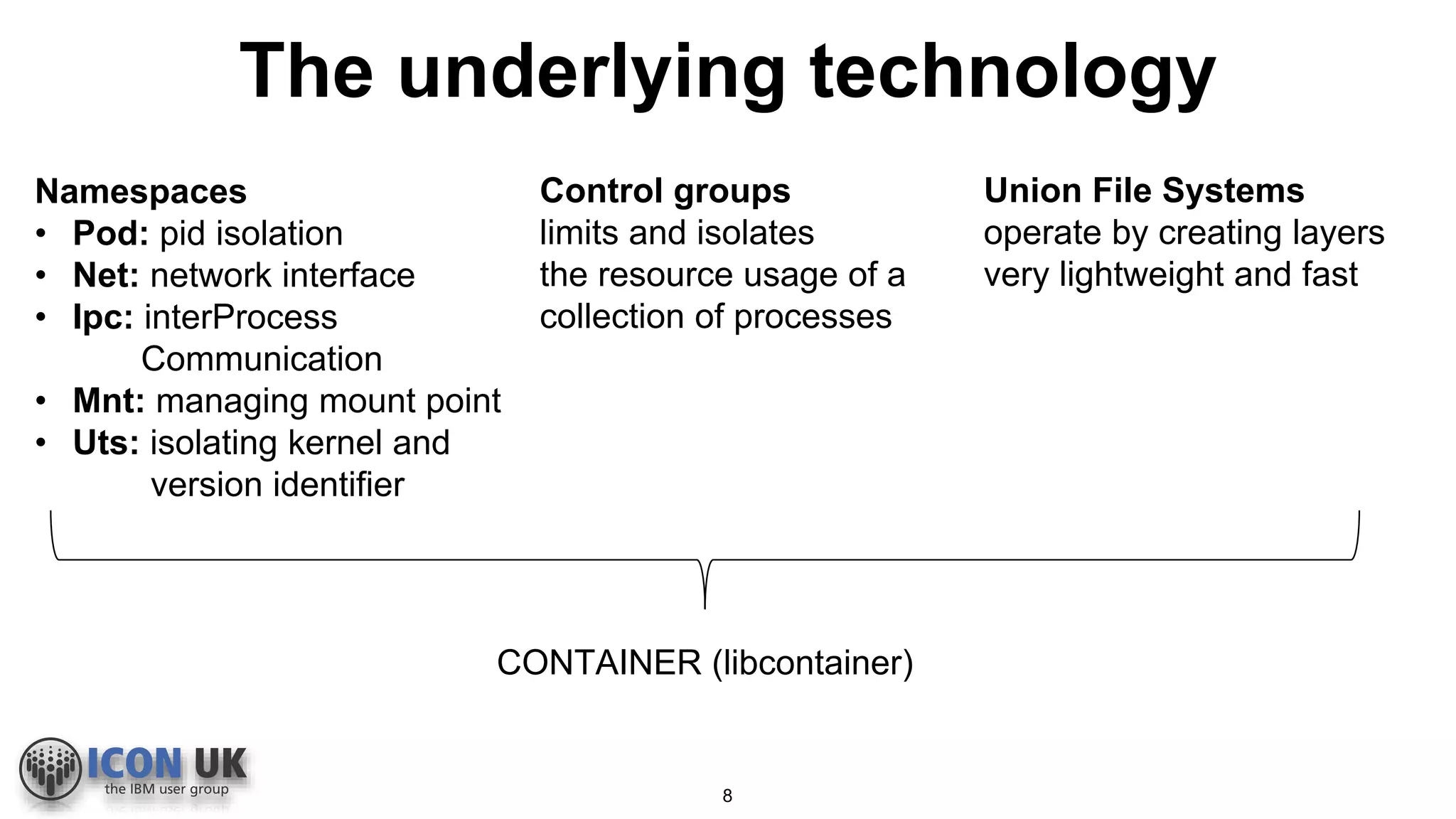

The underlying technology
Namespaces
• Pod: pid isolation
• Net: network interface
• Ipc: interProcess
Communication
• Mnt: managing mount point
• Uts: isolating kernel and
version identifier
Control groups
limits and isolates
the resource usage of a
collection of processes
Union File Systems
operate by creating layers
very lightweight and fast
CONTAINER (libcontainer)
8

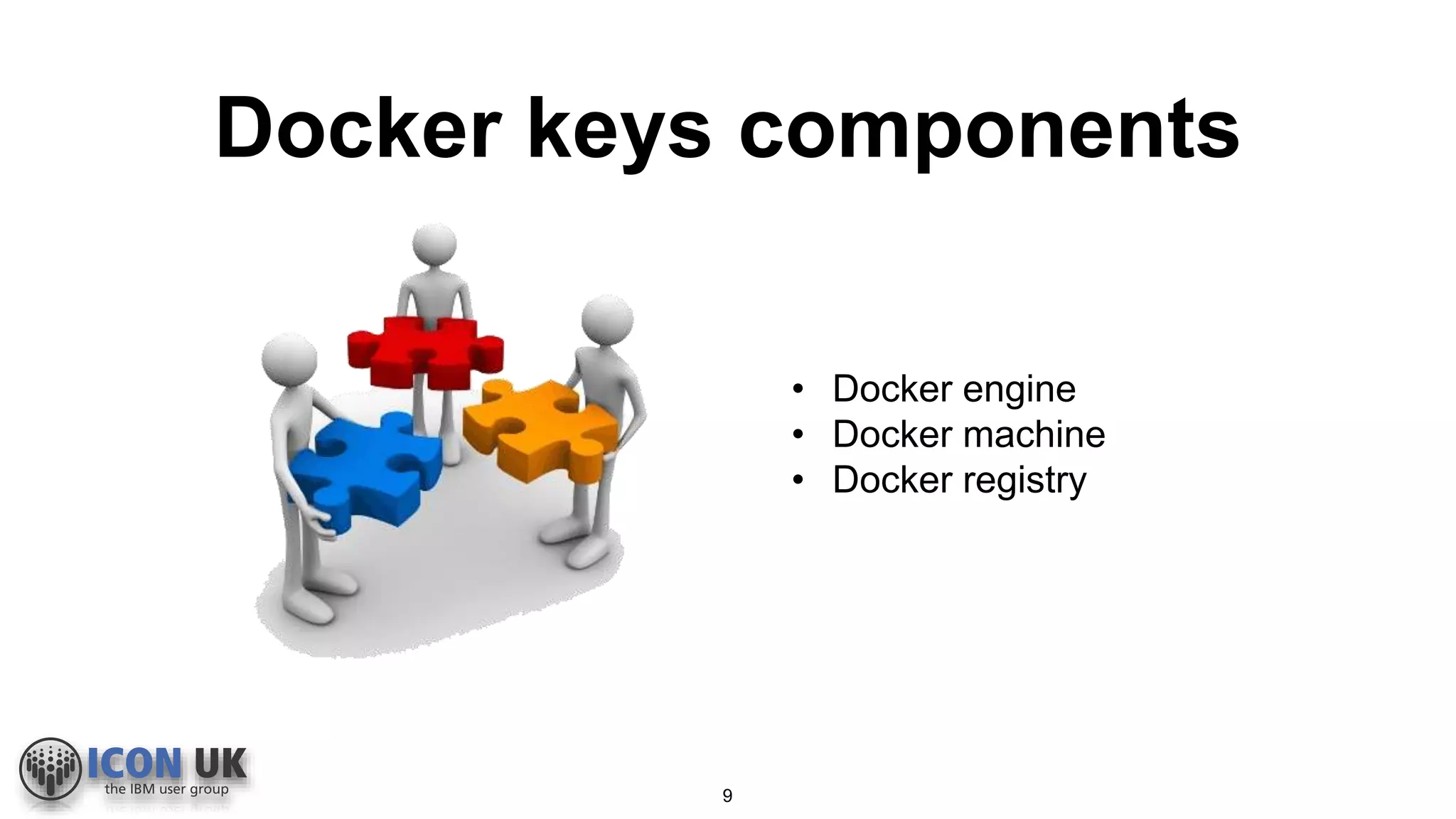

Docker keys components
9
• Docker engine
• Docker machine
• Docker registry

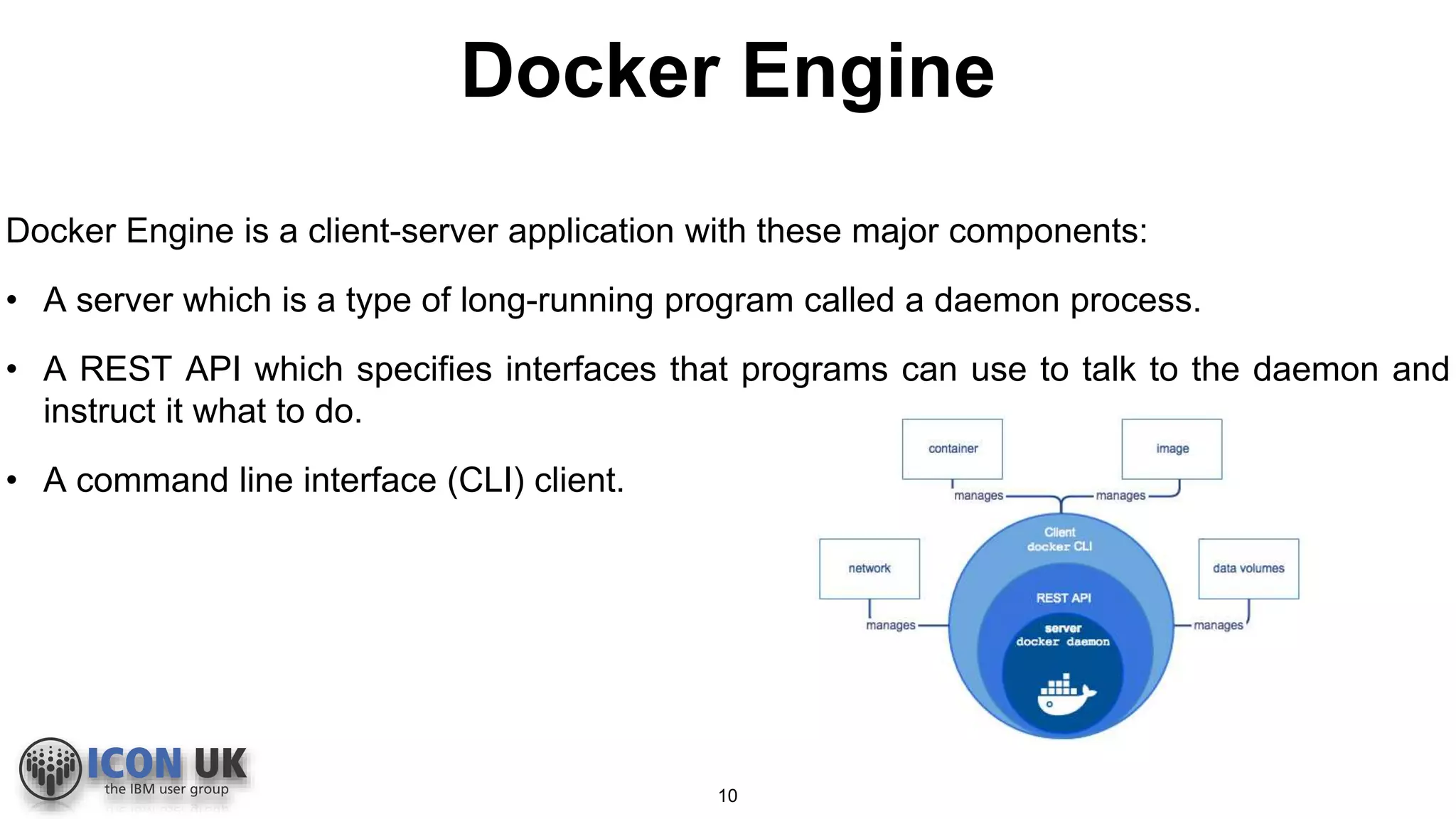

Docker Engine
Docker Engine is a client-server application with these major components:
• A server which is a type of long-running program called a daemon process.
• A REST API which specifies interfaces that programs can use to talk to the daemon and
instruct it what to do.
• A command line interface (CLI) client.
10

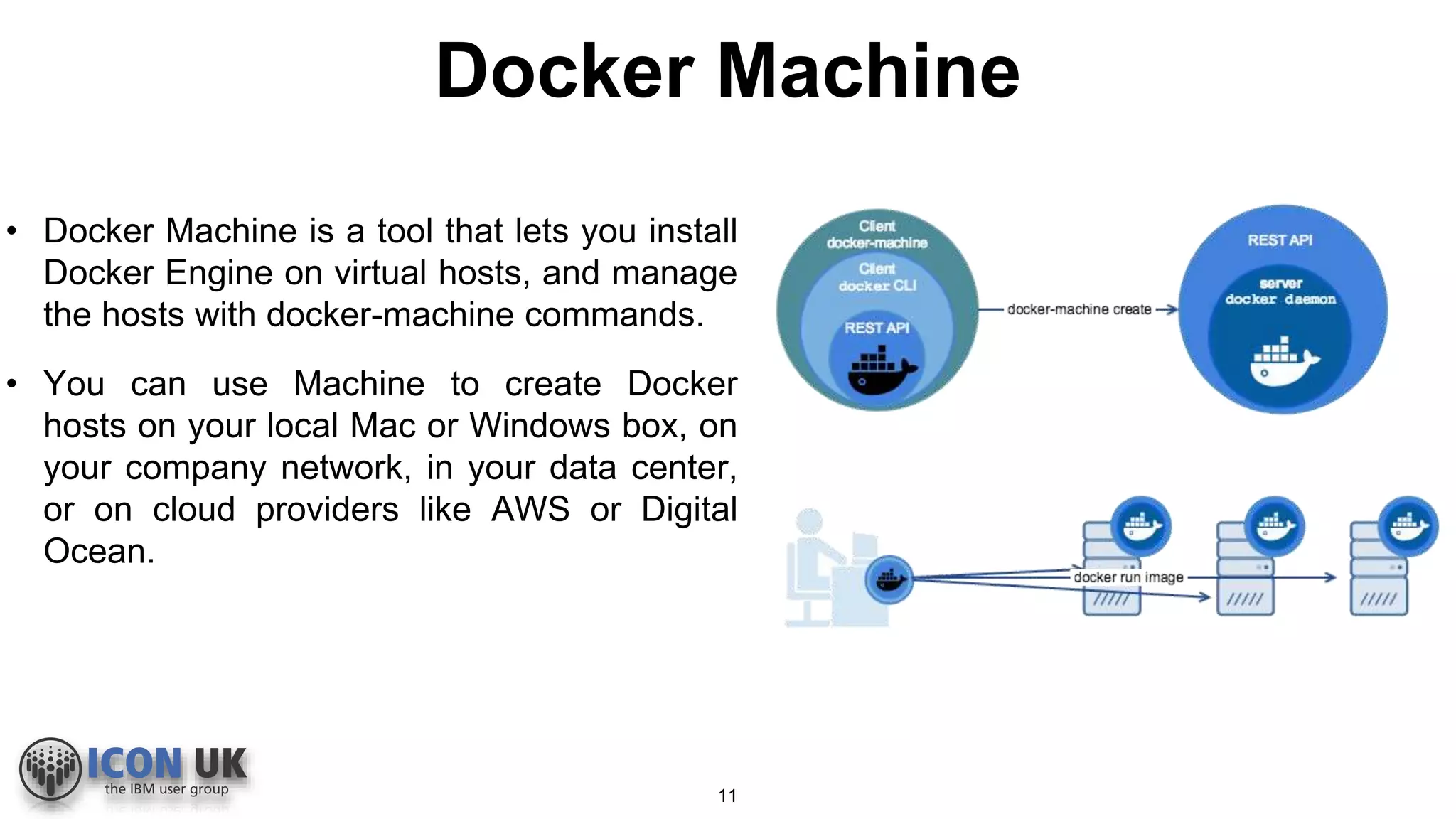

Docker Machine
• Docker Machine is a tool that lets you install
Docker Engine on virtual hosts, and manage
the hosts with docker-machine commands.
• You can use Machine to create Docker
hosts on your local Mac or Windows box, on
your company network, in your data center,
or on cloud providers like AWS or Digital
Ocean.
11
Docker registry
The registry is a server application that lets you distribute Docker images.
https://hub.docker.com/explore/
12https://hub.docker.com/u/ibmcom/

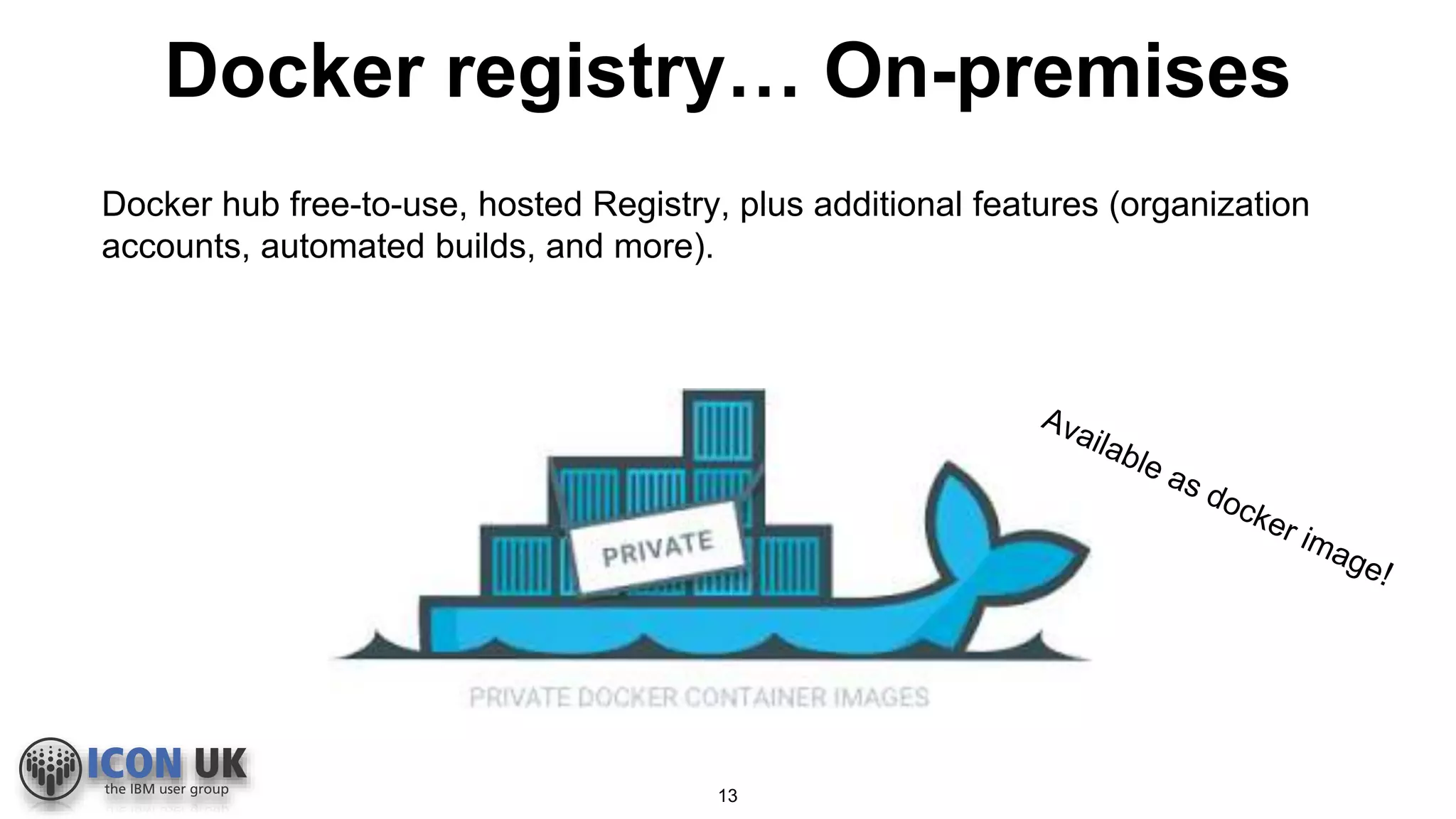

Docker registry… On-premises
Docker hub free-to-use, hosted Registry, plus additional features (organization
accounts, automated builds, and more).
13

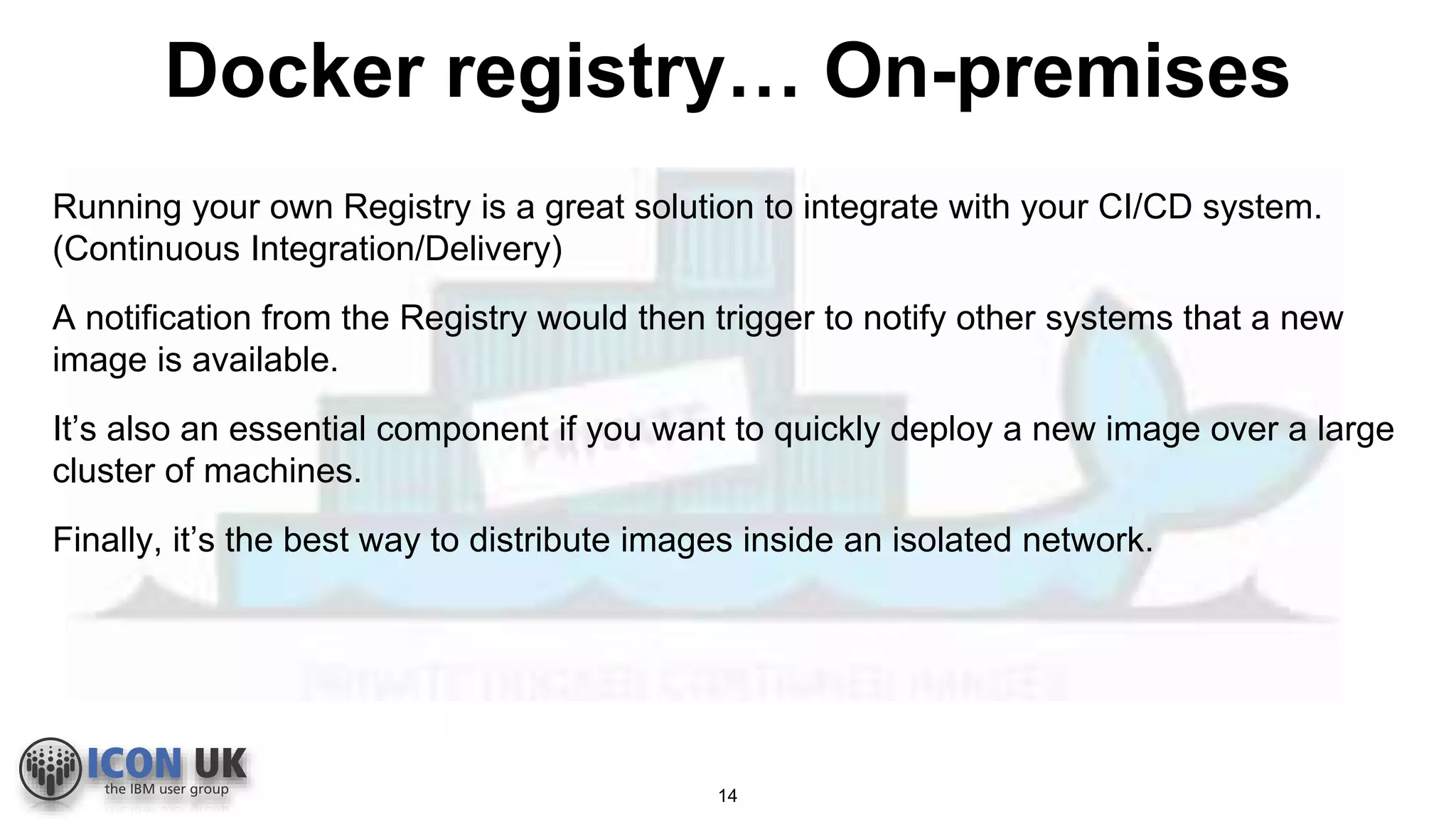

Docker registry… On-premises
Running your own Registry is a great solution to integrate with your CI/CD system.
(Continuous Integration/Delivery)
A notification from the Registry would then trigger to notify other systems that a new
image is available.
It’s also an essential component if you want to quickly deploy a new image over a large
cluster of machines.
Finally, it’s the best way to distribute images inside an isolated network.
14
Availability
• Linux
• Windows
• Mac
• Aws
• Azure
• Bluemix
• …

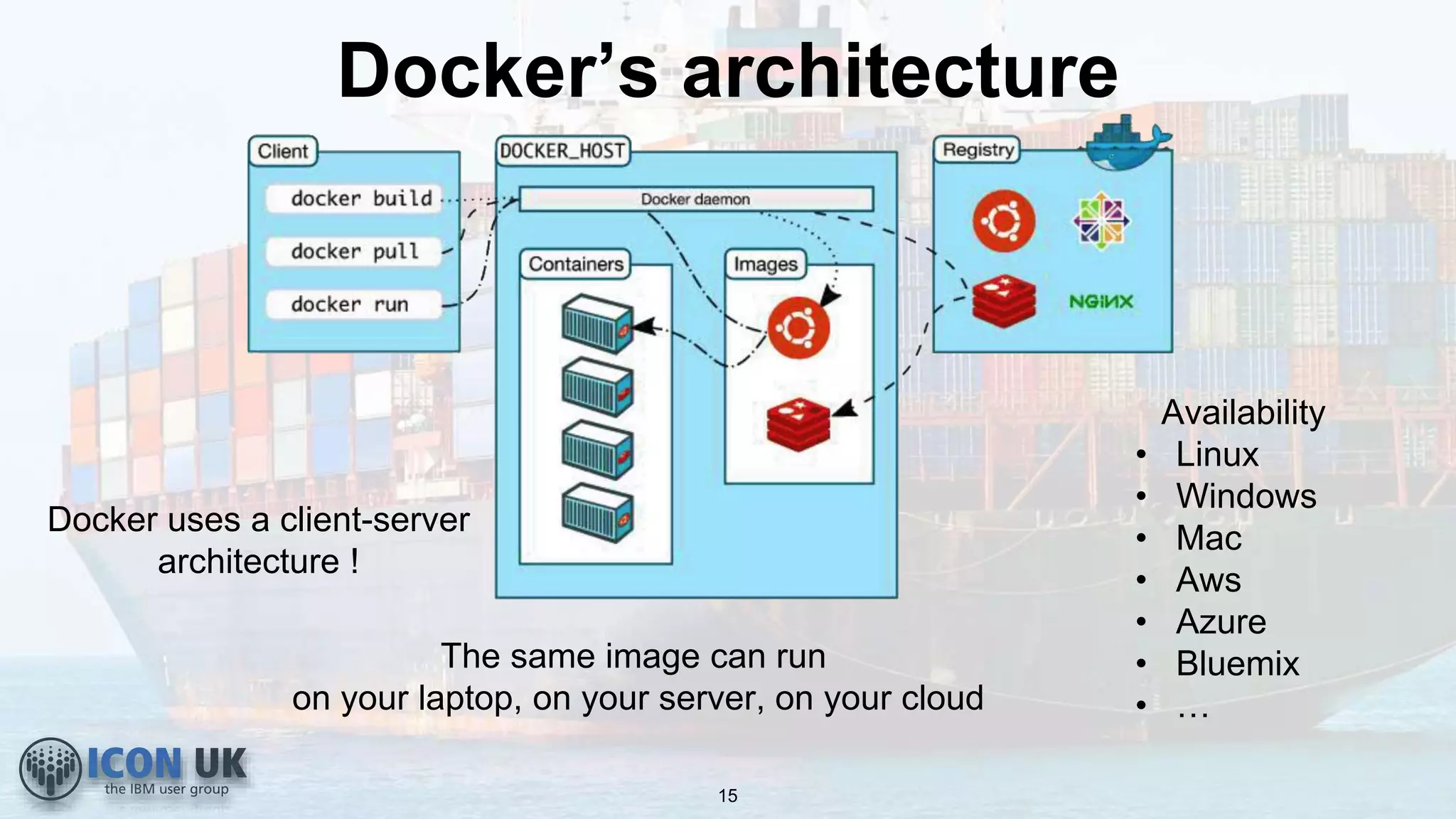

Docker’s architecture
Docker uses a client-server
architecture !
The same image can run
on your laptop, on your server, on your cloud
15

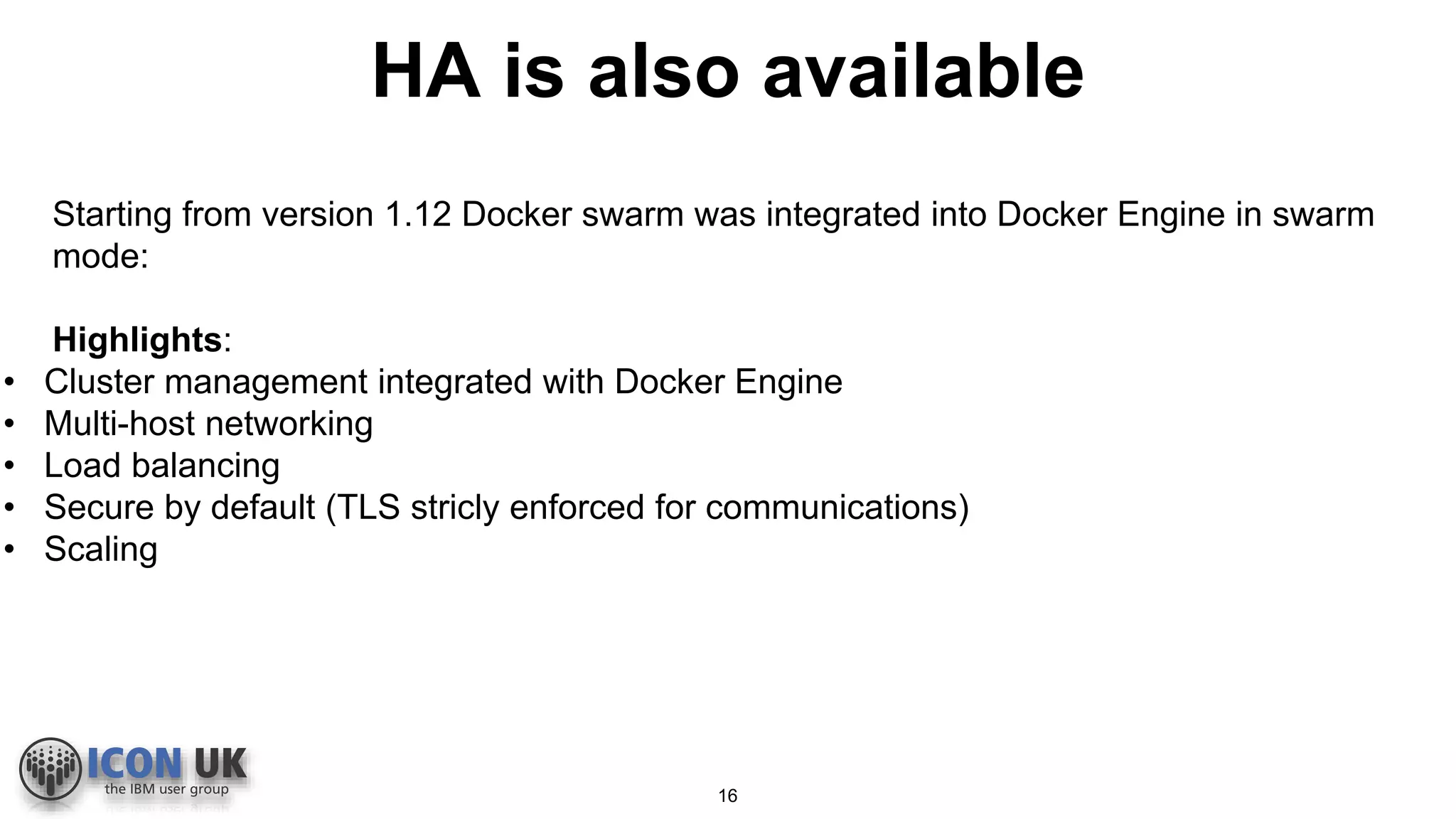

HA is also available
Starting from version 1.12 Docker swarm was integrated into Docker Engine in swarm
mode:
Highlights:
• Cluster management integrated with Docker Engine
• Multi-host networking
• Load balancing
• Secure by default (TLS stricly enforced for communications)
• Scaling
16

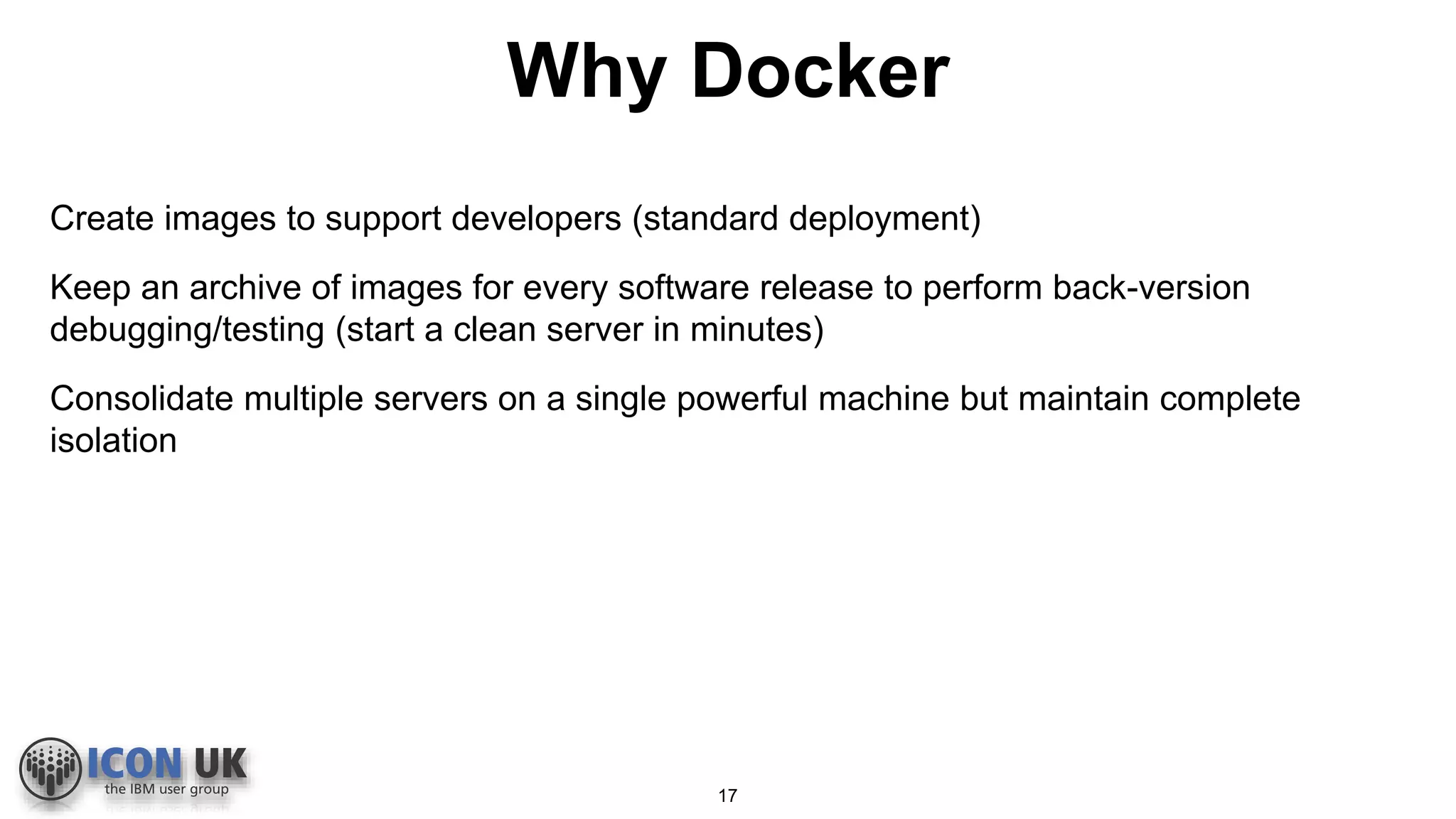

Why Docker
Create images to support developers (standard deployment)
Keep an archive of images for every software release to perform back-version
debugging/testing (start a clean server in minutes)
Consolidate multiple servers on a single powerful machine but maintain complete
isolation
17

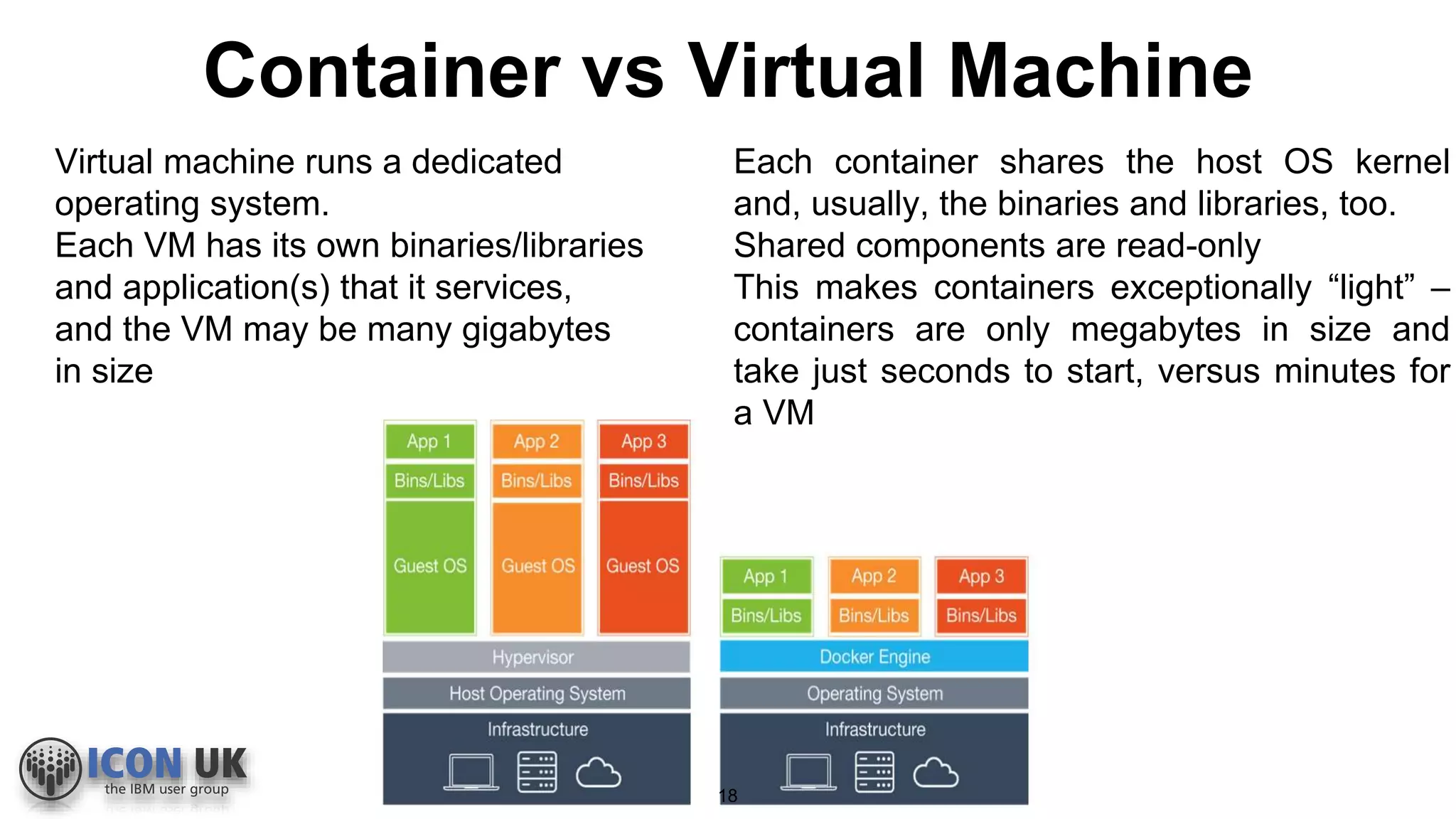

Container vs Virtual Machine
Virtual machine runs a dedicated
operating system.
Each VM has its own binaries/libraries
and application(s) that it services,
and the VM may be many gigabytes
in size
Each container shares the host OS kernel
and, usually, the binaries and libraries, too.
Shared components are read-only
This makes containers exceptionally “light” –
containers are only megabytes in size and
take just seconds to start, versus minutes for
a VM
18
Yours Containers can be shipped!19
And IBM ?
20

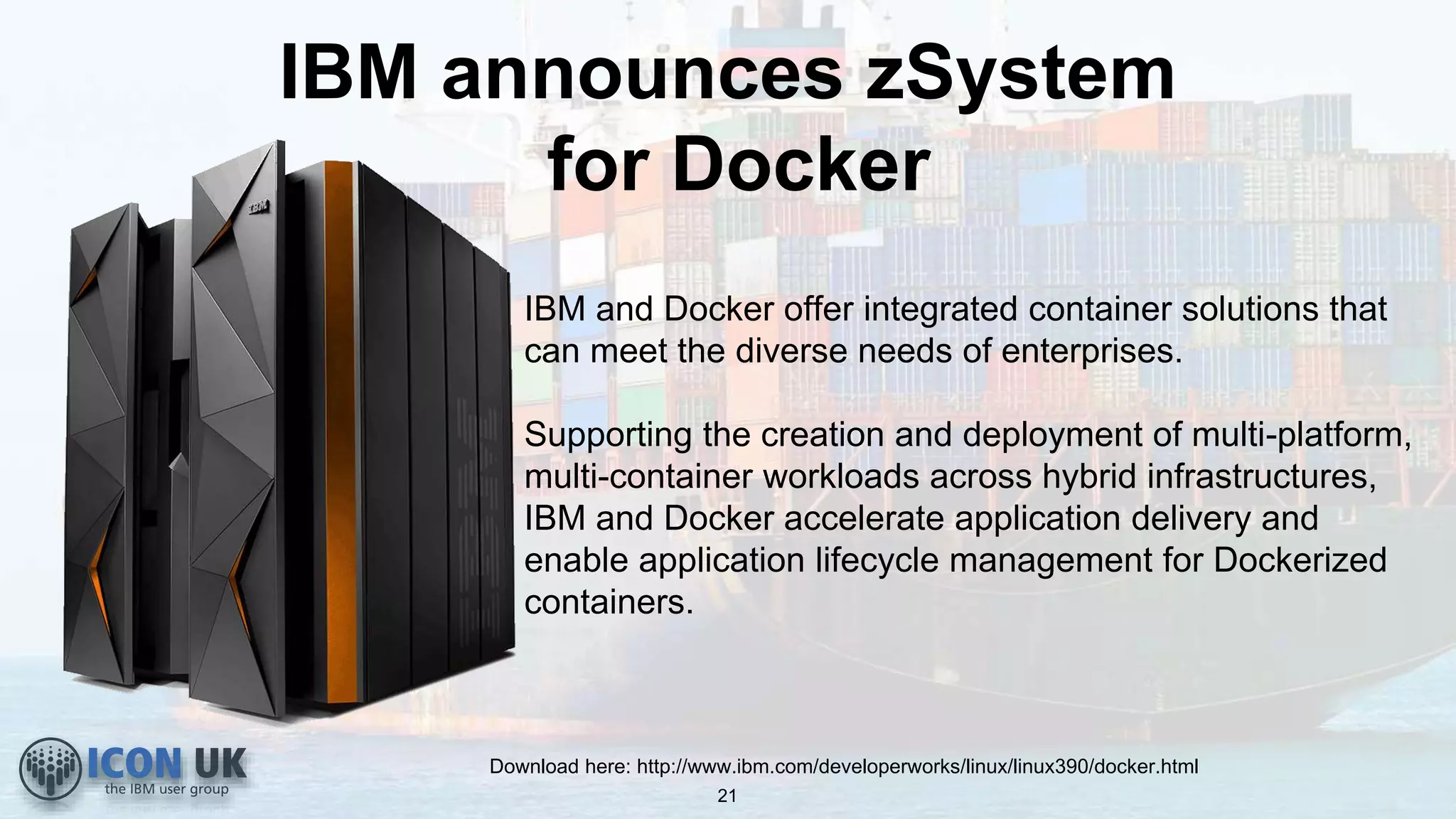

IBM announces zSystem
for Docker
Download here: http://www.ibm.com/developerworks/linux/linux390/docker.html
IBM and Docker offer integrated container solutions that
can meet the diverse needs of enterprises.
Supporting the creation and deployment of multi-platform,
multi-container workloads across hybrid infrastructures,
IBM and Docker accelerate application delivery and
enable application lifecycle management for Dockerized
containers.
21

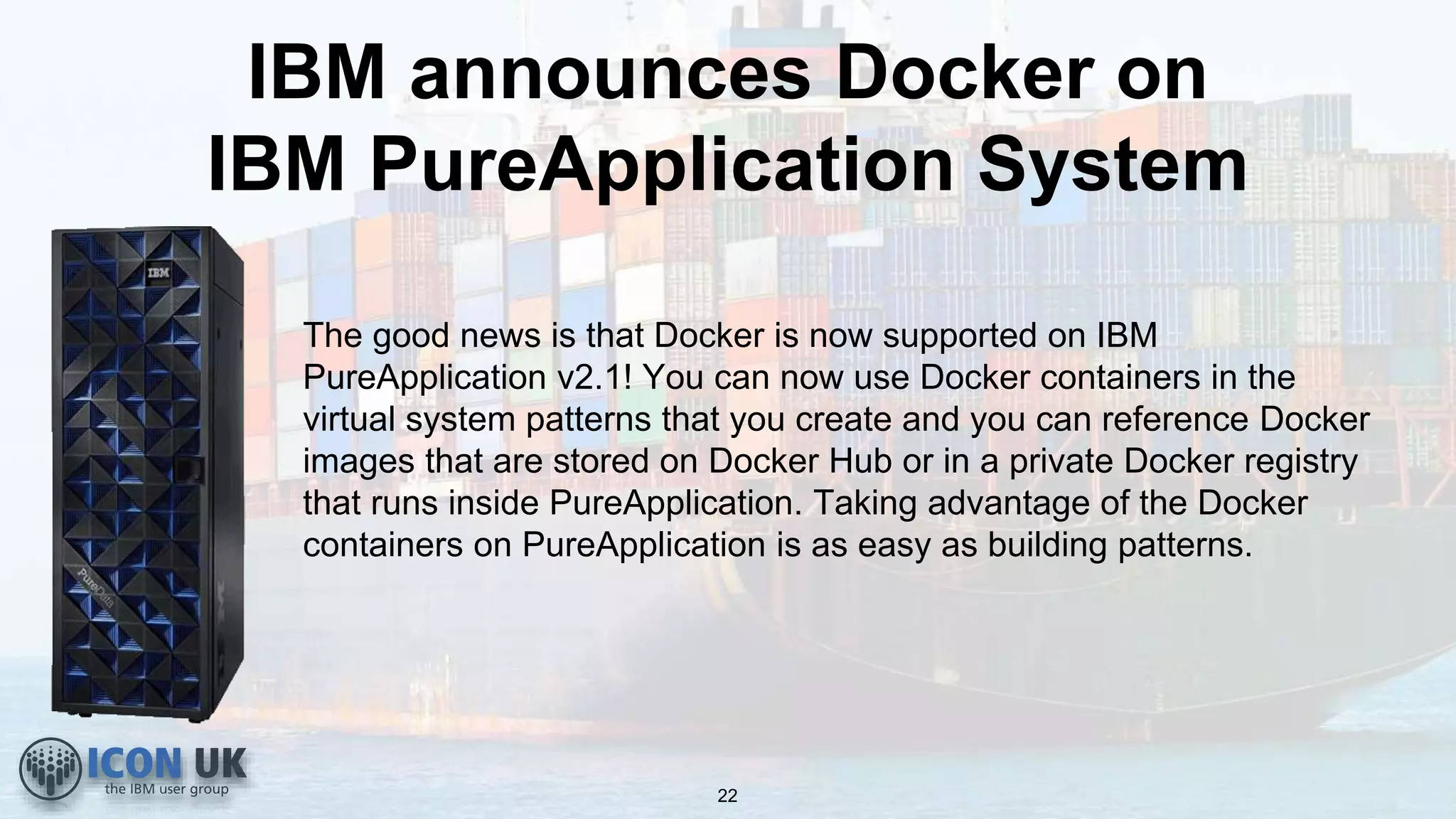

IBM announces Docker on
IBM PureApplication System
The good news is that Docker is now supported on IBM
PureApplication v2.1! You can now use Docker containers in the
virtual system patterns that you create and you can reference Docker
images that are stored on Docker Hub or in a private Docker registry
that runs inside PureApplication. Taking advantage of the Docker
containers on PureApplication is as easy as building patterns.
22
IBM Bluemix
• IBM Bluemix provides built in DevOps services to manage source code and to build, test
and deploy applications to Bluemix.
• For more complex scenarios IBM provides the Continuous Delivery toolset UrbanCode to
deploy hybrid applications to the cloud and on-premises and to deploy composite
applications with multiple components or microservices.
• The store application uses one container on Bluemix . Containers running in a Docker
Swarm cluster on-premises.
Does anyone know this guy?
http://heidloff.net/article/11.11.2015100203NHECLU.htm
He is Niklas Heidloff, Developer Advocate for IBM
Bluemix, working on Docker on Bluemix Environment.
23

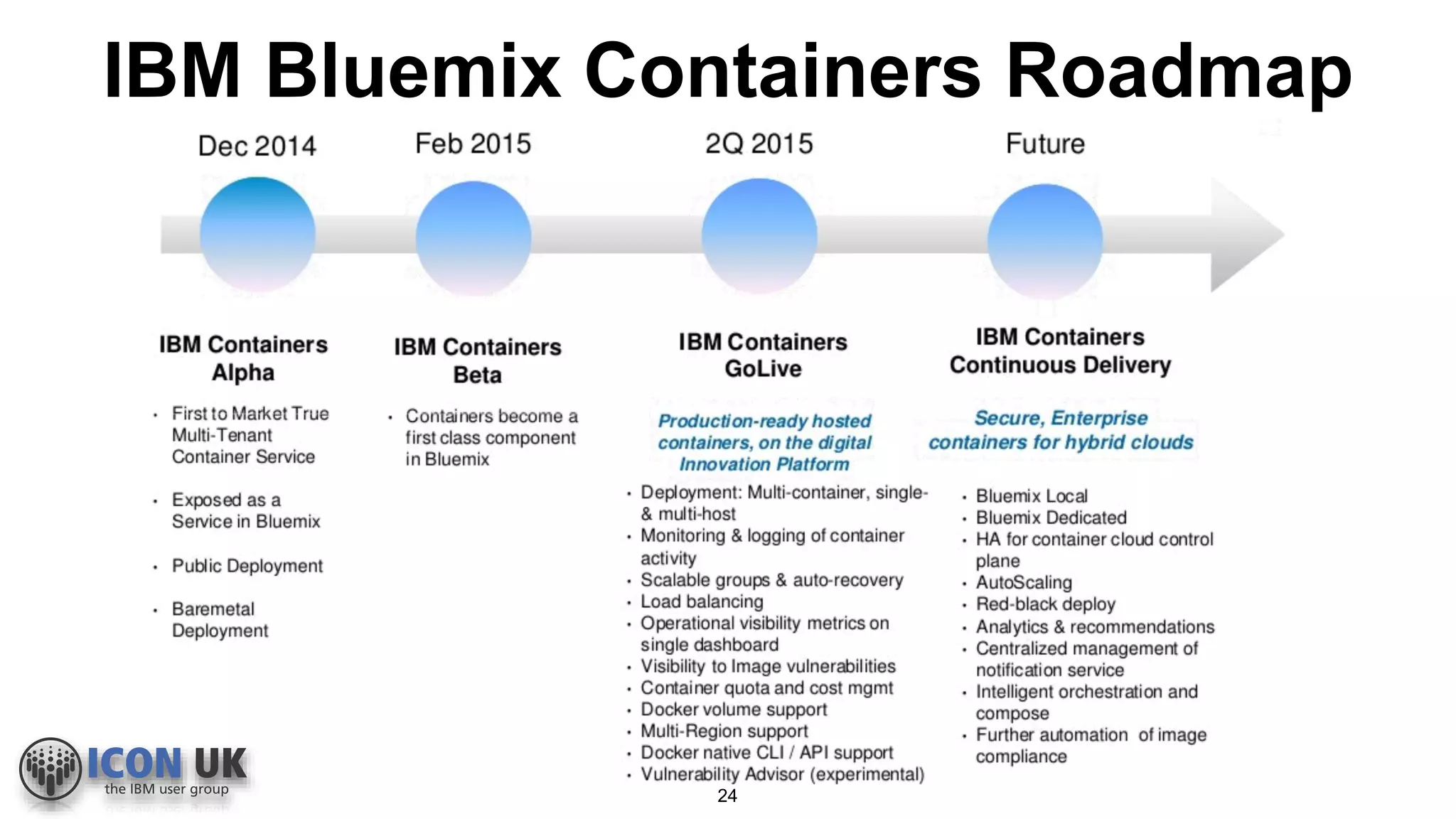

IBM Bluemix Containers Roadmap
24

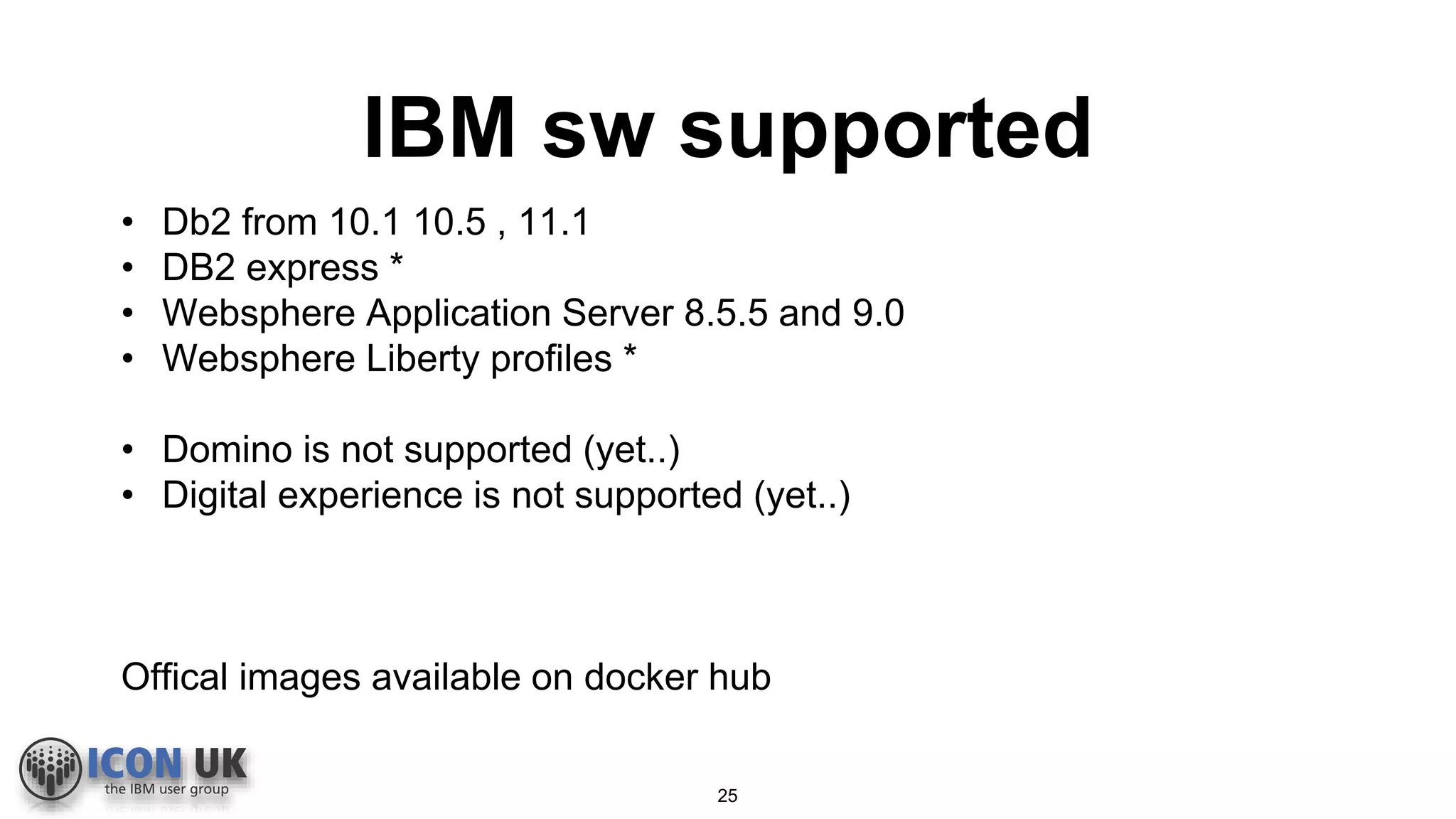

IBM sw supported
25
• Db2 from 10.1 10.5 , 11.1
• DB2 express *
• Websphere Application Server 8.5.5 and 9.0
• Websphere Liberty profiles *
• Domino is not supported (yet..)
• Digital experience is not supported (yet..)
Offical images available on docker hub
How To: Create Docker images with
IBM Social Software
26
Prepare your Container
• Prepare the Installation script
• Using Silent installation method
• Preparing the response file and whatever you need to
complete setup
• Create your Docker File and deploy it.
27

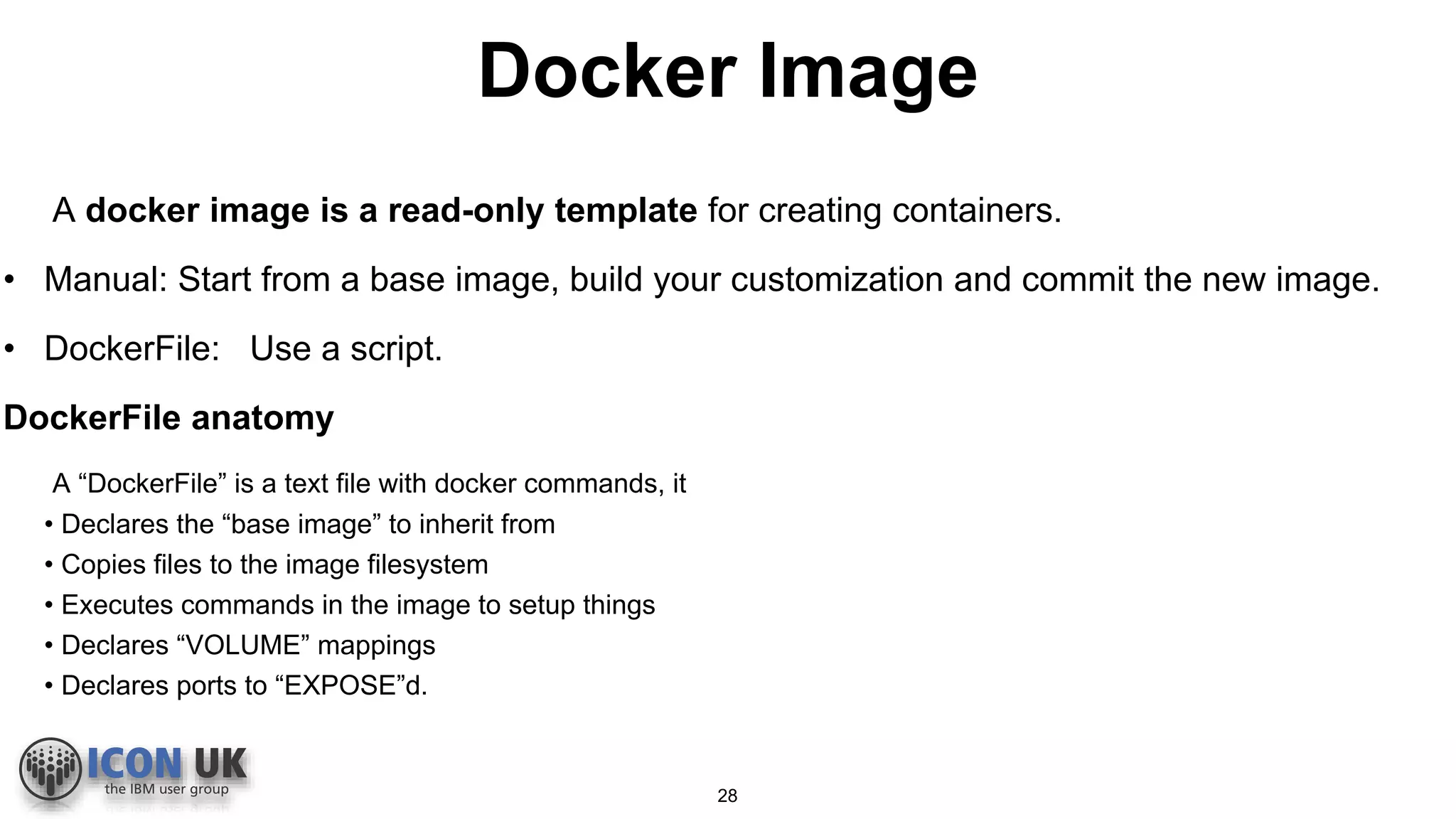

Docker Image
A docker image is a read-only template for creating containers.
• Manual: Start from a base image, build your customization and commit the new image.
• DockerFile: Use a script.
DockerFile anatomy
A “DockerFile” is a text file with docker commands, it
• Declares the “base image” to inherit from
• Copies files to the image filesystem
• Executes commands in the image to setup things
• Declares “VOLUME” mappings
• Declares ports to “EXPOSE”d.
28

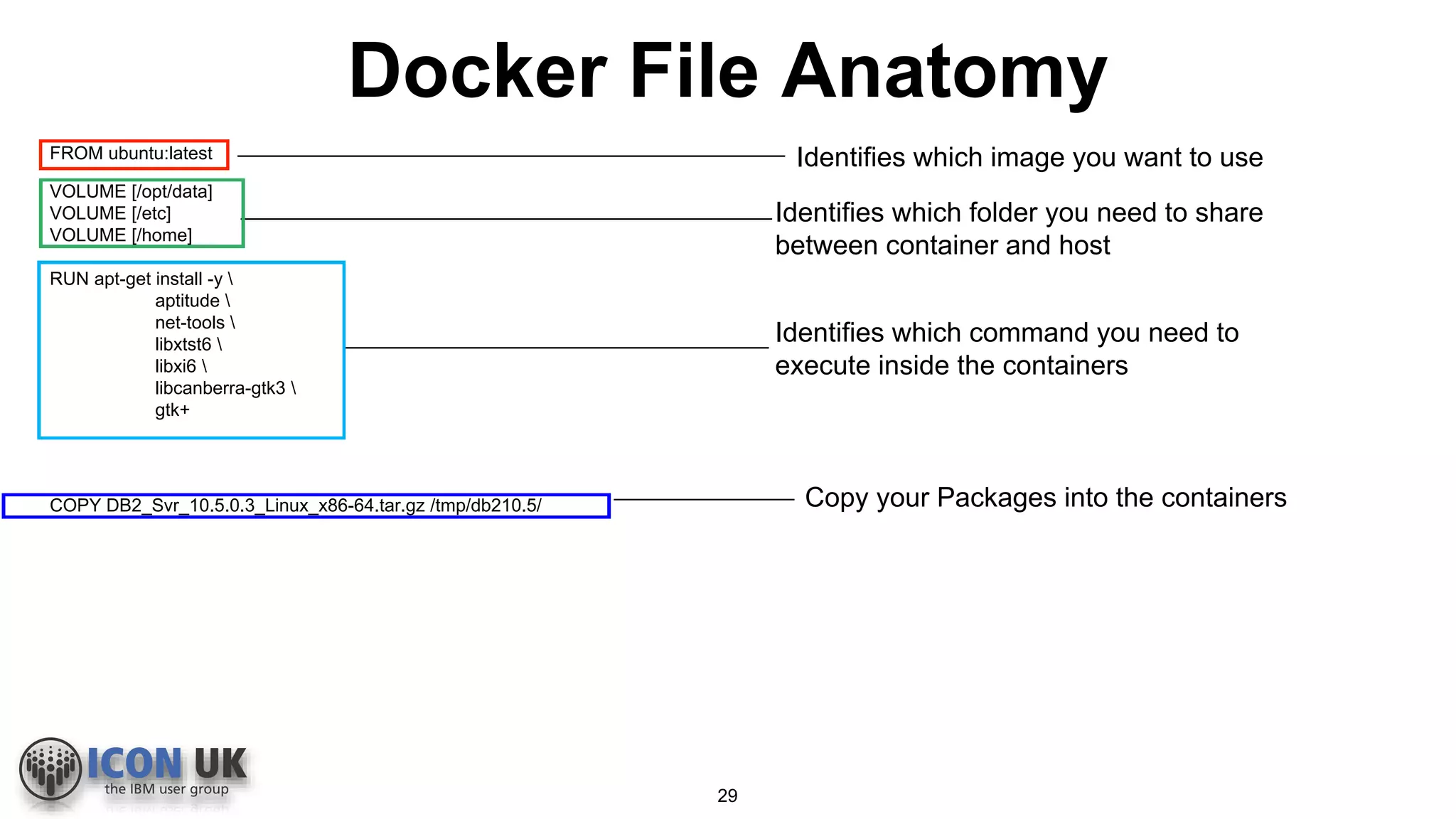

Docker File Anatomy
Identifies which folder you need to share
between container and host
Identifies which image you want to use
Identifies which command you need to
execute inside the containers
FROM ubuntu:latest
VOLUME [/opt/data]
VOLUME [/etc]
VOLUME [/home]
RUN apt-get install -y
aptitude
net-tools
libxtst6
libxi6
libcanberra-gtk3
gtk+
COPY DB2_Svr_10.5.0.3_Linux_x86-64.tar.gz /tmp/db210.5/ Copy your Packages into the containers
29

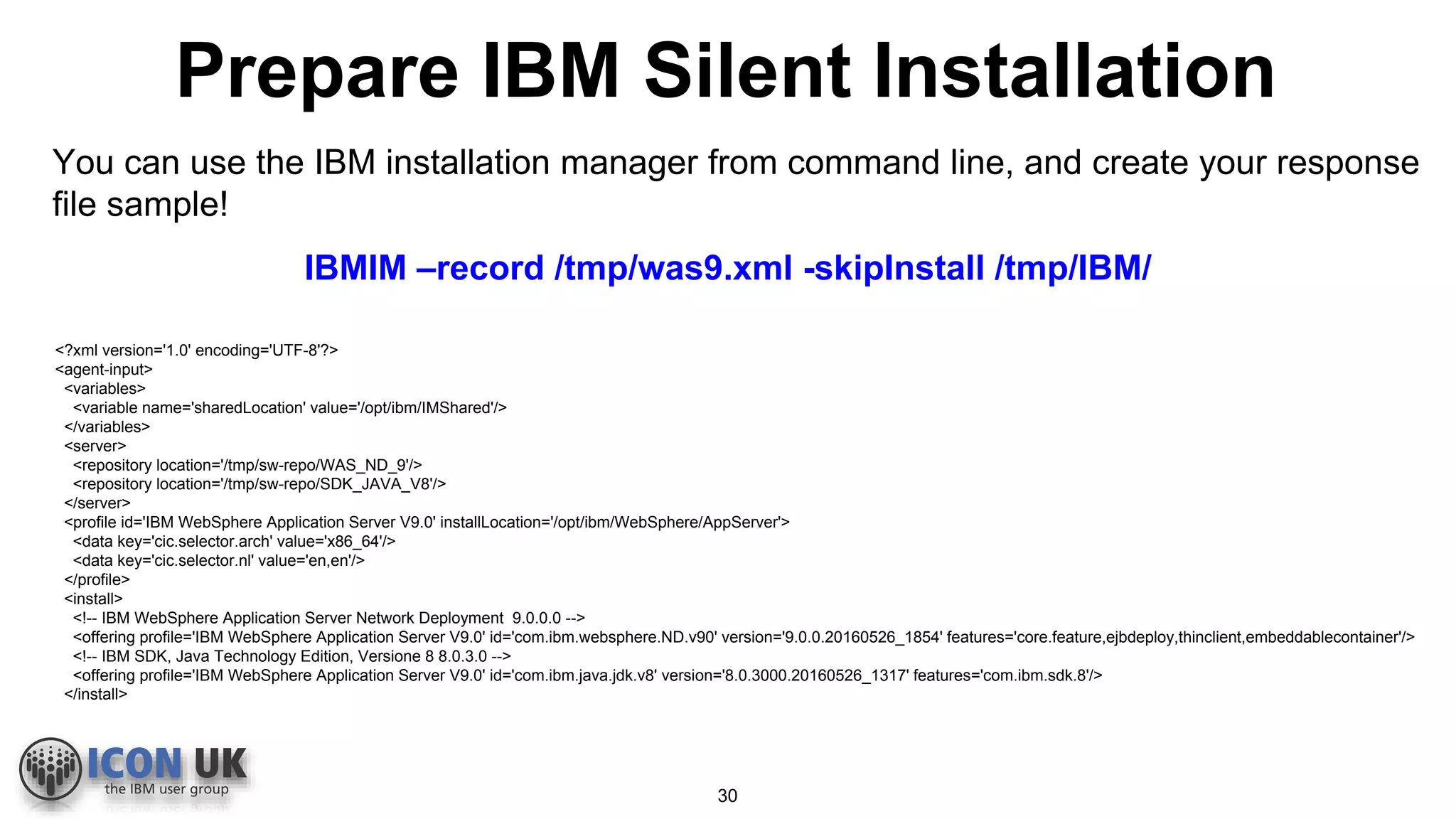

Prepare IBM Silent Installation
You can use the IBM installation manager from command line, and create your response
file sample!
IBMIM –record /tmp/was9.xml -skipInstall /tmp/IBM/
<?xml version='1.0' encoding='UTF-8'?>
<agent-input>
<variables>
<variable name='sharedLocation' value='/opt/ibm/IMShared'/>
</variables>
<server>
<repository location='/tmp/sw-repo/WAS_ND_9'/>
<repository location='/tmp/sw-repo/SDK_JAVA_V8'/>
</server>
<profile id='IBM WebSphere Application Server V9.0' installLocation='/opt/ibm/WebSphere/AppServer'>
<data key='cic.selector.arch' value='x86_64'/>
<data key='cic.selector.nl' value='en,en'/>
</profile>
<install>
<!-- IBM WebSphere Application Server Network Deployment 9.0.0.0 -->
<offering profile='IBM WebSphere Application Server V9.0' id='com.ibm.websphere.ND.v90' version='9.0.0.20160526_1854' features='core.feature,ejbdeploy,thinclient,embeddablecontainer'/>
<!-- IBM SDK, Java Technology Edition, Versione 8 8.0.3.0 -->
<offering profile='IBM WebSphere Application Server V9.0' id='com.ibm.java.jdk.v8' version='8.0.3000.20160526_1317' features='com.ibm.sdk.8'/>
</install>
30

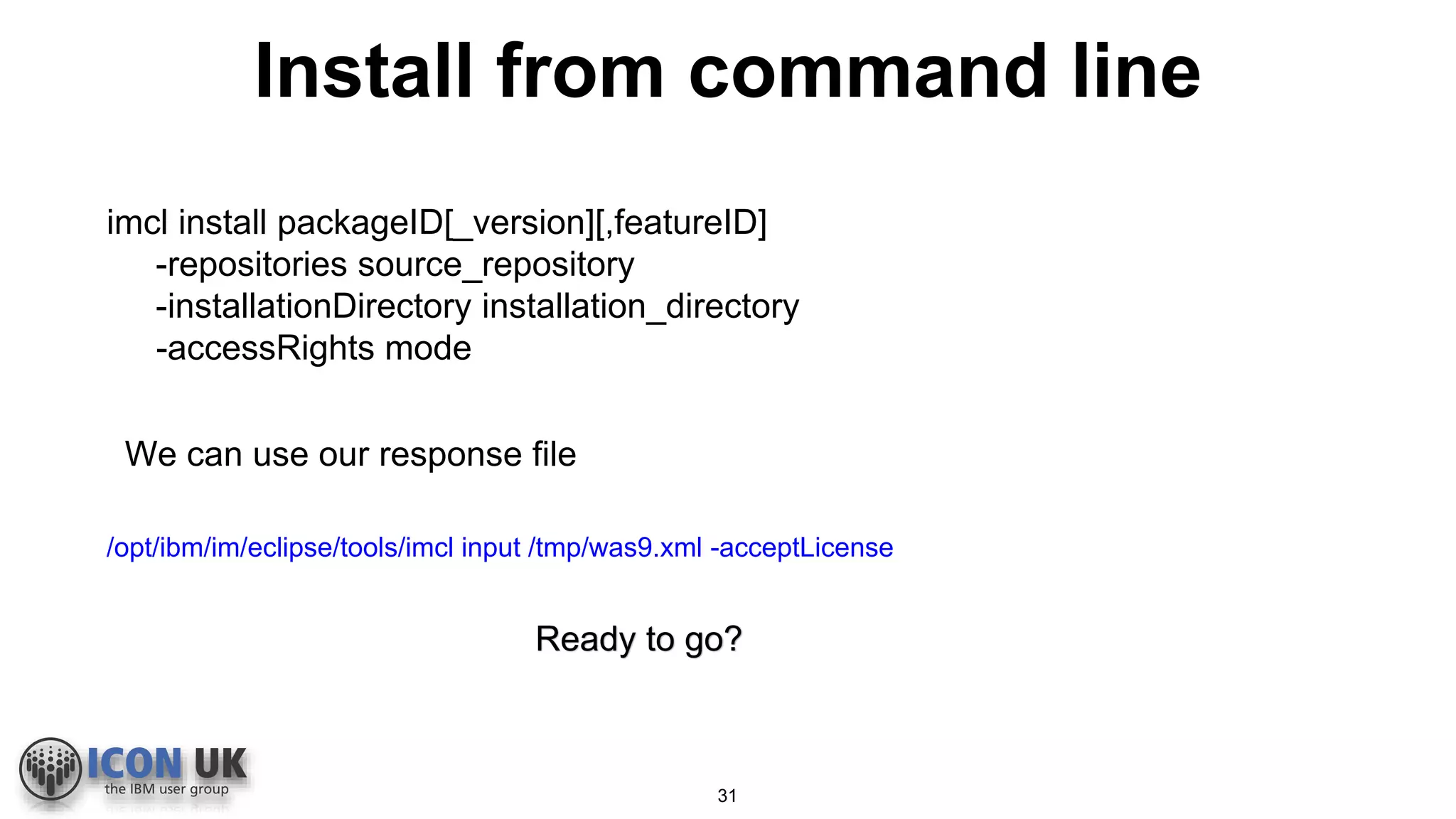

/opt/ibm/im/eclipse/tools/imcl input /tmp/was9.xml -acceptLicense
Ready to go?
imcl install packageID[_version][,featureID]
-repositories source_repository
-installationDirectory installation_directory
-accessRights mode
We can use our response file
Install from command line
31

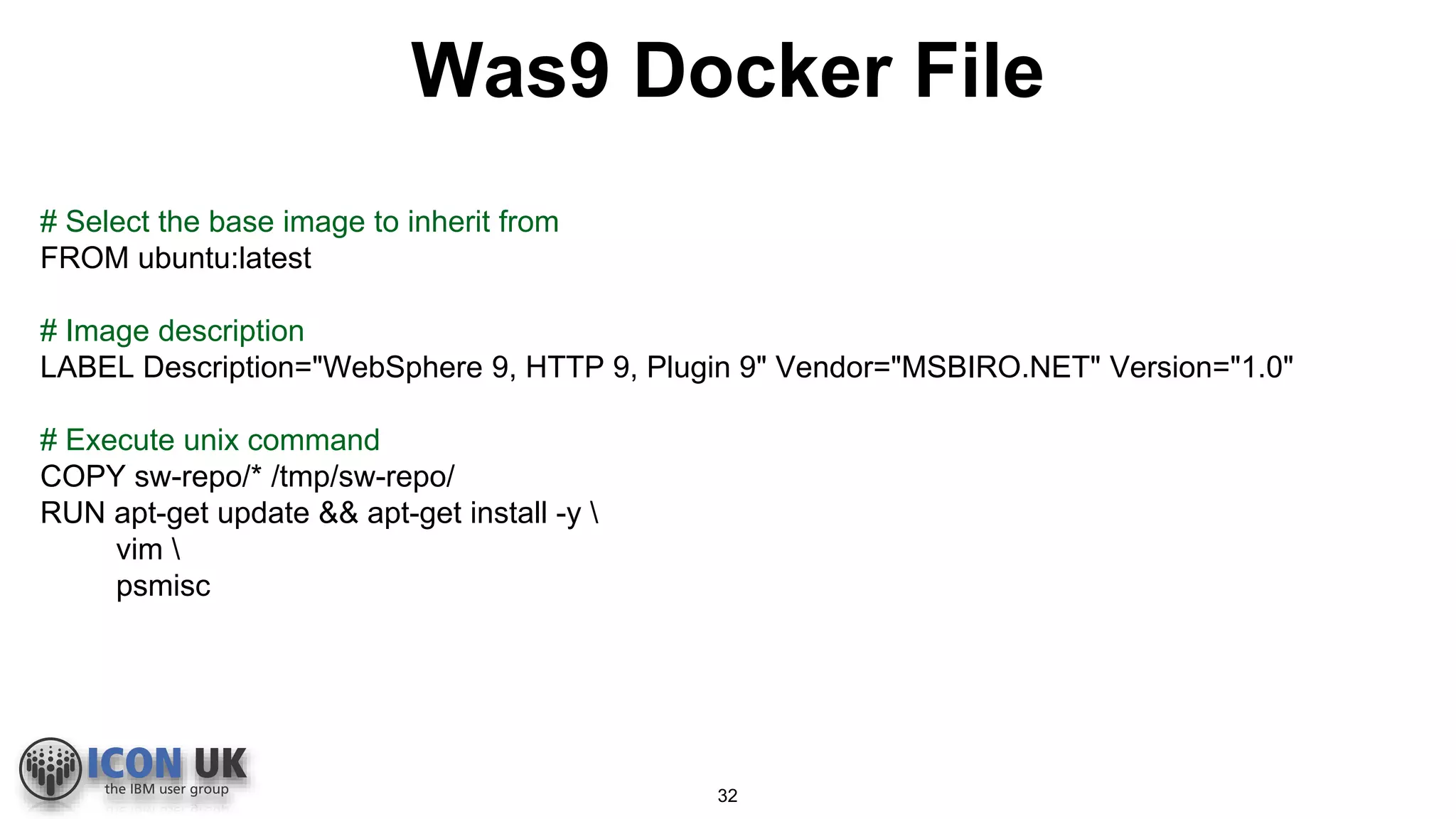

Was9 Docker File
# Select the base image to inherit from
FROM ubuntu:latest
# Image description
LABEL Description="WebSphere 9, HTTP 9, Plugin 9" Vendor="MSBIRO.NET" Version="1.0"
# Execute unix command
COPY sw-repo/* /tmp/sw-repo/
RUN apt-get update && apt-get install -y
vim
psmisc
32

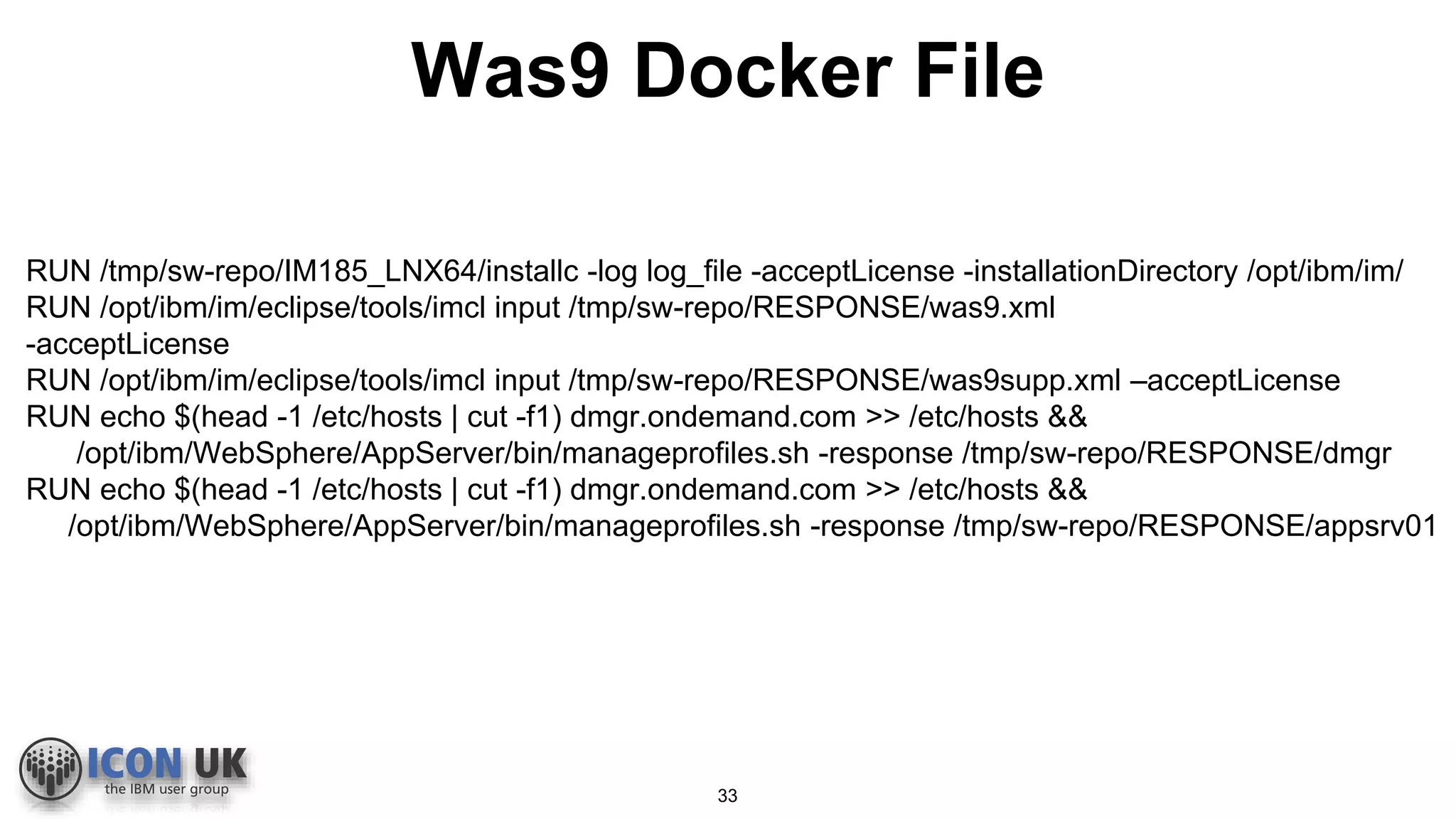

RUN /tmp/sw-repo/IM185_LNX64/installc -log log_file -acceptLicense -installationDirectory /opt/ibm/im/
RUN /opt/ibm/im/eclipse/tools/imcl input /tmp/sw-repo/RESPONSE/was9.xml
-acceptLicense
RUN /opt/ibm/im/eclipse/tools/imcl input /tmp/sw-repo/RESPONSE/was9supp.xml –acceptLicense
RUN echo $(head -1 /etc/hosts | cut -f1) dmgr.ondemand.com >> /etc/hosts &&
/opt/ibm/WebSphere/AppServer/bin/manageprofiles.sh -response /tmp/sw-repo/RESPONSE/dmgr
RUN echo $(head -1 /etc/hosts | cut -f1) dmgr.ondemand.com >> /etc/hosts &&
/opt/ibm/WebSphere/AppServer/bin/manageprofiles.sh -response /tmp/sw-repo/RESPONSE/appsrv01
Was9 Docker File
33

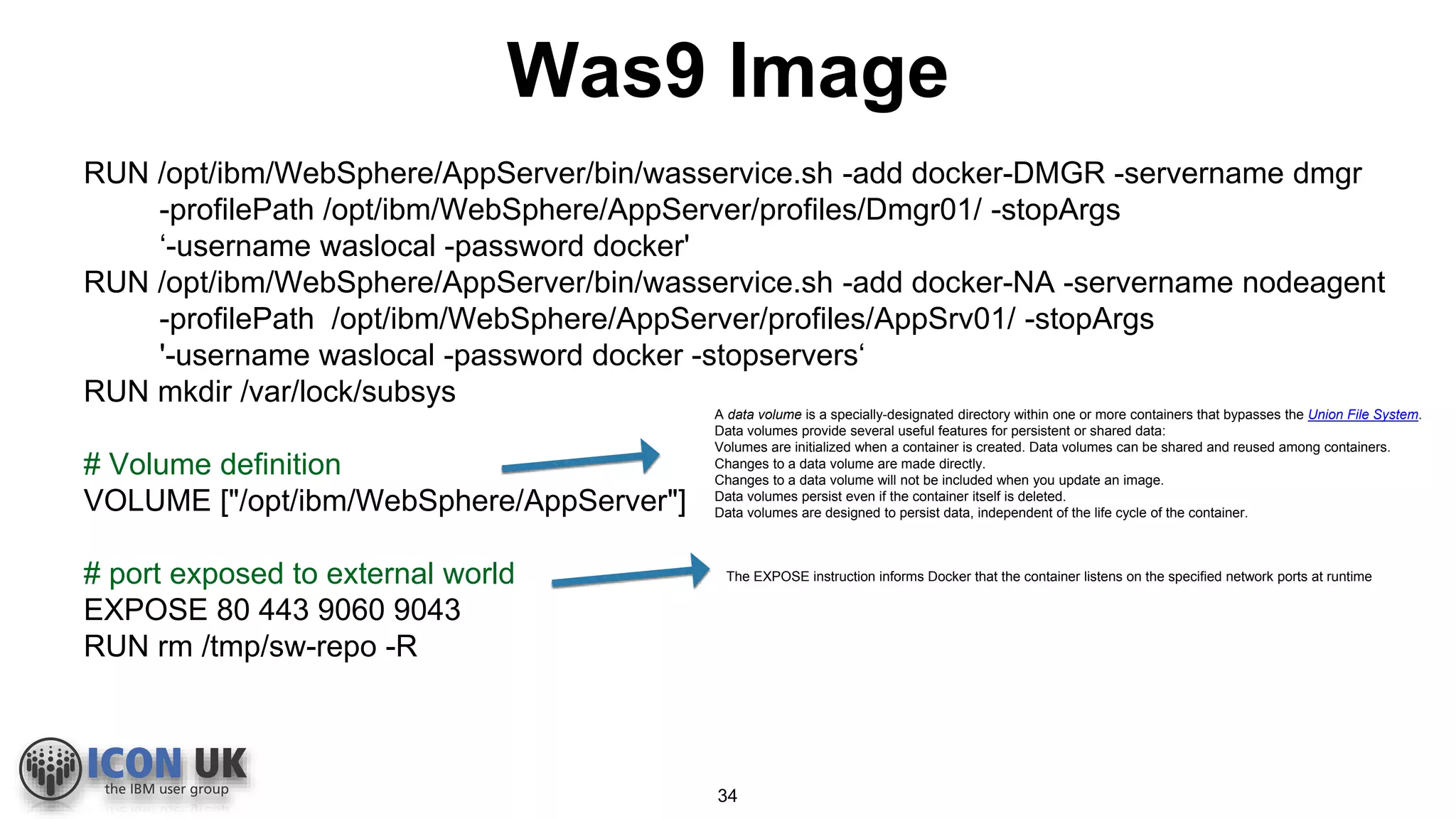

Was9 Image
RUN /opt/ibm/WebSphere/AppServer/bin/wasservice.sh -add docker-DMGR -servername dmgr
-profilePath /opt/ibm/WebSphere/AppServer/profiles/Dmgr01/ -stopArgs
‘-username waslocal -password docker'
RUN /opt/ibm/WebSphere/AppServer/bin/wasservice.sh -add docker-NA -servername nodeagent
-profilePath /opt/ibm/WebSphere/AppServer/profiles/AppSrv01/ -stopArgs
'-username waslocal -password docker -stopservers‘
RUN mkdir /var/lock/subsys
# Volume definition
VOLUME ["/opt/ibm/WebSphere/AppServer"]
# port exposed to external world
EXPOSE 80 443 9060 9043
RUN rm /tmp/sw-repo -R
A data volume is a specially-designated directory within one or more containers that bypasses the Union File System.
Data volumes provide several useful features for persistent or shared data:
Volumes are initialized when a container is created. Data volumes can be shared and reused among containers.
Changes to a data volume are made directly.
Changes to a data volume will not be included when you update an image.
Data volumes persist even if the container itself is deleted.
Data volumes are designed to persist data, independent of the life cycle of the container.
The EXPOSE instruction informs Docker that the container listens on the specified network ports at runtime
34
LIVE DEMO
35
Questions?
36

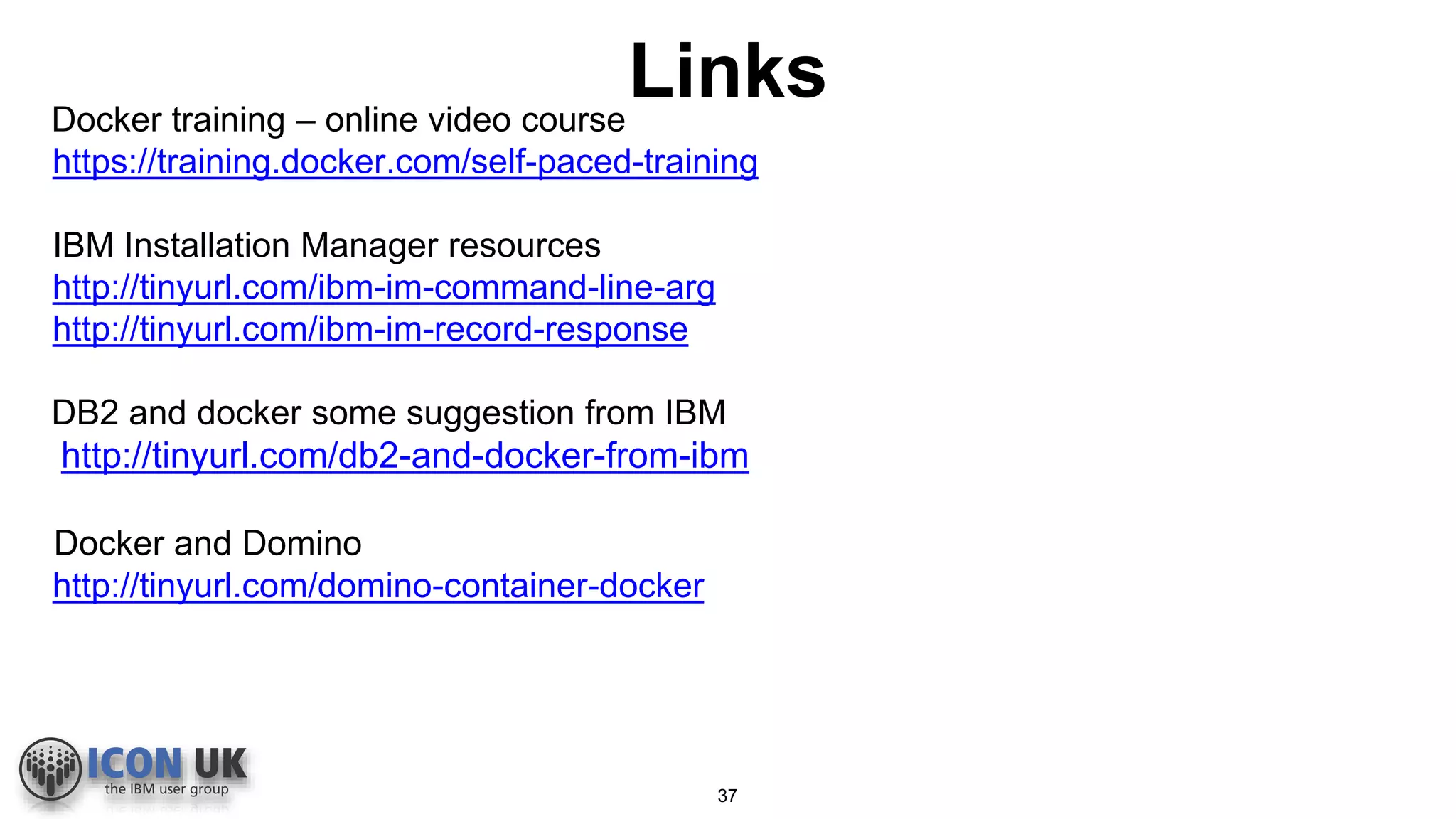

LinksDocker training – online video course
https://training.docker.com/self-paced-training
IBM Installation Manager resources
http://tinyurl.com/ibm-im-command-line-arg
http://tinyurl.com/ibm-im-record-response
DB2 and docker some suggestion from IBM
http://tinyurl.com/db2-and-docker-from-ibm
Docker and Domino
http://tinyurl.com/domino-container-docker
37
38

More Related Content

What's hot

Docker for .NET Developers
Docker for .NET DevelopersDocker for .NET Developers
Docker for .NET Developers
Taswar Bhatti

Cross platform dotnet development using dotnet core
Cross platform dotnet development using dotnet coreCross platform dotnet development using dotnet core
Cross platform dotnet development using dotnet core
Swaminathan Vetri

Modernizing .NET Apps with Docker
Modernizing .NET Apps with DockerModernizing .NET Apps with Docker
Modernizing .NET Apps with Docker
Docker

WebCenter Portal - Integrate Custom taskflows
WebCenter Portal - Integrate Custom taskflowsWebCenter Portal - Integrate Custom taskflows
WebCenter Portal - Integrate Custom taskflows
enpit GmbH & Co. KG

Azure Container Services
Azure Container Services Azure Container Services
Azure Container Services
WinWire Technologies Inc

WebSphere and Docker
WebSphere and DockerWebSphere and Docker
WebSphere and Docker
David Currie

IBM Think Session 8598 Domino and JavaScript Development MasterClass
IBM Think Session 8598 Domino and JavaScript Development MasterClassIBM Think Session 8598 Domino and JavaScript Development MasterClass
IBM Think Session 8598 Domino and JavaScript Development MasterClass
Paul Withers

Introducing CrossWorlds for IBM Domino
Introducing CrossWorlds for IBM DominoIntroducing CrossWorlds for IBM Domino
Introducing CrossWorlds for IBM Domino
Daniele Vistalli

DSpace UI prototype dsember
DSpace UI prototype dsemberDSpace UI prototype dsember
DSpace UI prototype dsember
Bram Luyten

Say Bye to VMware PowerCLI ! Time to "GOVC"
Say Bye to VMware PowerCLI ! Time to "GOVC"Say Bye to VMware PowerCLI ! Time to "GOVC"
Say Bye to VMware PowerCLI ! Time to "GOVC"
Ajeet Singh Raina

"Workstation Up" - Docker Development at Flow by Mike Roth
"Workstation Up" - Docker Development at Flow by Mike Roth"Workstation Up" - Docker Development at Flow by Mike Roth
"Workstation Up" - Docker Development at Flow by Mike Roth
Docker, Inc.

Thoughts on building deployable and updatable share point solutions
Thoughts on building deployable and updatable share point solutionsThoughts on building deployable and updatable share point solutions
Thoughts on building deployable and updatable share point solutions
Serge van den Oever

Developer South Coast 2018: Docker on Windows - The Beginner's Guide
Developer South Coast 2018: Docker on Windows - The Beginner's GuideDeveloper South Coast 2018: Docker on Windows - The Beginner's Guide
Developer South Coast 2018: Docker on Windows - The Beginner's Guide
Elton Stoneman

What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
Heiko Voigt

ACM Gazi Docker?
ACM Gazi Docker?ACM Gazi Docker?
ACM Gazi Docker?
kloia

December OpenNTF Webinar: The Volt MX LotusScript Toolkit
December OpenNTF Webinar: The Volt MX LotusScript ToolkitDecember OpenNTF Webinar: The Volt MX LotusScript Toolkit
December OpenNTF Webinar: The Volt MX LotusScript Toolkit
Howard Greenberg

Developer South Coast 2018: Modernizing .NET Apps with Docker
Developer South Coast 2018: Modernizing .NET Apps with DockerDeveloper South Coast 2018: Modernizing .NET Apps with Docker
Developer South Coast 2018: Modernizing .NET Apps with Docker
Elton Stoneman

HOW TO DRONE.IO IN CI/CD WORLD
HOW TO DRONE.IO IN CI/CD WORLDHOW TO DRONE.IO IN CI/CD WORLD
HOW TO DRONE.IO IN CI/CD WORLD
Aleksandr Maklakov

Continuous Delivery of Containers with Drone & Kontena
Continuous Delivery of Containers with Drone & KontenaContinuous Delivery of Containers with Drone & Kontena
Continuous Delivery of Containers with Drone & Kontena
Jussi Nummelin

Docker for .net developer
Docker for .net developerDocker for .net developer
Docker for .net developer
Tung Nguyen Thanh


What's hot (20)

Docker for .NET Developers
Docker for .NET DevelopersDocker for .NET Developers
Docker for .NET Developers

Cross platform dotnet development using dotnet core
Cross platform dotnet development using dotnet coreCross platform dotnet development using dotnet core
Cross platform dotnet development using dotnet core

Modernizing .NET Apps with Docker
Modernizing .NET Apps with DockerModernizing .NET Apps with Docker
Modernizing .NET Apps with Docker

WebCenter Portal - Integrate Custom taskflows
WebCenter Portal - Integrate Custom taskflowsWebCenter Portal - Integrate Custom taskflows
WebCenter Portal - Integrate Custom taskflows

Azure Container Services
Azure Container Services Azure Container Services
Azure Container Services

WebSphere and Docker
WebSphere and DockerWebSphere and Docker
WebSphere and Docker

IBM Think Session 8598 Domino and JavaScript Development MasterClass
IBM Think Session 8598 Domino and JavaScript Development MasterClassIBM Think Session 8598 Domino and JavaScript Development MasterClass
IBM Think Session 8598 Domino and JavaScript Development MasterClass

Introducing CrossWorlds for IBM Domino
Introducing CrossWorlds for IBM DominoIntroducing CrossWorlds for IBM Domino
Introducing CrossWorlds for IBM Domino

DSpace UI prototype dsember
DSpace UI prototype dsemberDSpace UI prototype dsember
DSpace UI prototype dsember

Say Bye to VMware PowerCLI ! Time to "GOVC"
Say Bye to VMware PowerCLI ! Time to "GOVC"Say Bye to VMware PowerCLI ! Time to "GOVC"
Say Bye to VMware PowerCLI ! Time to "GOVC"

"Workstation Up" - Docker Development at Flow by Mike Roth
"Workstation Up" - Docker Development at Flow by Mike Roth"Workstation Up" - Docker Development at Flow by Mike Roth
"Workstation Up" - Docker Development at Flow by Mike Roth

Thoughts on building deployable and updatable share point solutions
Thoughts on building deployable and updatable share point solutionsThoughts on building deployable and updatable share point solutions
Thoughts on building deployable and updatable share point solutions

Developer South Coast 2018: Docker on Windows - The Beginner's Guide
Developer South Coast 2018: Docker on Windows - The Beginner's GuideDeveloper South Coast 2018: Docker on Windows - The Beginner's Guide
Developer South Coast 2018: Docker on Windows - The Beginner's Guide

What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...
What is cool with Domino V10, Proton and Node.JS, and why would I use it in ...

ACM Gazi Docker?
ACM Gazi Docker?ACM Gazi Docker?
ACM Gazi Docker?

December OpenNTF Webinar: The Volt MX LotusScript Toolkit
December OpenNTF Webinar: The Volt MX LotusScript ToolkitDecember OpenNTF Webinar: The Volt MX LotusScript Toolkit
December OpenNTF Webinar: The Volt MX LotusScript Toolkit

Developer South Coast 2018: Modernizing .NET Apps with Docker
Developer South Coast 2018: Modernizing .NET Apps with DockerDeveloper South Coast 2018: Modernizing .NET Apps with Docker
Developer South Coast 2018: Modernizing .NET Apps with Docker

HOW TO DRONE.IO IN CI/CD WORLD
HOW TO DRONE.IO IN CI/CD WORLDHOW TO DRONE.IO IN CI/CD WORLD
HOW TO DRONE.IO IN CI/CD WORLD

Continuous Delivery of Containers with Drone & Kontena
Continuous Delivery of Containers with Drone & KontenaContinuous Delivery of Containers with Drone & Kontena
Continuous Delivery of Containers with Drone & Kontena

Docker for .net developer
Docker for .net developerDocker for .net developer
Docker for .net developer


Viewers also liked

MWLUG Session- AD112 - Take a Trip Into the Forest - A Java Primer on Maps, ...
MWLUG Session-  AD112 - Take a Trip Into the Forest - A Java Primer on Maps, ...MWLUG Session-  AD112 - Take a Trip Into the Forest - A Java Primer on Maps, ...
MWLUG Session- AD112 - Take a Trip Into the Forest - A Java Primer on Maps, ...
Howard Greenberg

IBM Bluemix for Administrators with Focus on XPages
IBM Bluemix for Administrators with Focus on XPagesIBM Bluemix for Administrators with Focus on XPages
IBM Bluemix for Administrators with Focus on XPages
Niklas Heidloff

Escaping the yellow bubble - rewriting Domino using MongoDb and Angular
Escaping the yellow bubble - rewriting Domino using MongoDb and AngularEscaping the yellow bubble - rewriting Domino using MongoDb and Angular
Escaping the yellow bubble - rewriting Domino using MongoDb and Angular
Mark Leusink

Connect2016 - 1172 Shipping domino
Connect2016 - 1172 Shipping dominoConnect2016 - 1172 Shipping domino
Connect2016 - 1172 Shipping domino
Matteo Bisi

Collaborative Line of Business Applications on IBM Bluemix
Collaborative Line of Business Applications on IBM BluemixCollaborative Line of Business Applications on IBM Bluemix
Collaborative Line of Business Applications on IBM Bluemix
Niklas Heidloff

Iconuk 2016 - IBM Connections adoption Worst practices!
Iconuk 2016 - IBM Connections adoption Worst practices!Iconuk 2016 - IBM Connections adoption Worst practices!
Iconuk 2016 - IBM Connections adoption Worst practices!
Femke Goedhart

Docker and containers : Disrupting the virtual machine(VM)
Docker and containers : Disrupting the virtual machine(VM)Docker and containers : Disrupting the virtual machine(VM)
Docker and containers : Disrupting the virtual machine(VM)
Rama Krishna B

IBM Connections mail with exchange backend
IBM Connections mail with exchange backendIBM Connections mail with exchange backend
IBM Connections mail with exchange backend
michele buccarello

Expanding XPages with Bootstrap Plugins for Ultimate Usability
Expanding XPages with Bootstrap Plugins for Ultimate UsabilityExpanding XPages with Bootstrap Plugins for Ultimate Usability
Expanding XPages with Bootstrap Plugins for Ultimate Usability
Teamstudio

IBM Connections 4.5 CR2 Installation - From Zero To Social Hero - 2.02 - with...
IBM Connections 4.5 CR2 Installation - From Zero To Social Hero - 2.02 - with...IBM Connections 4.5 CR2 Installation - From Zero To Social Hero - 2.02 - with...
IBM Connections 4.5 CR2 Installation - From Zero To Social Hero - 2.02 - with...
Frank Altenburg

Partitioning IBM Connections Cloud Administration
Partitioning IBM Connections Cloud AdministrationPartitioning IBM Connections Cloud Administration
Partitioning IBM Connections Cloud Administration
Maurice Teeuwe

IBM Presents the IBM Notes and Domino Roadmap
IBM Presents the IBM Notes and Domino RoadmapIBM Presents the IBM Notes and Domino Roadmap
IBM Presents the IBM Notes and Domino Roadmap
Teamstudio


Viewers also liked (12)

MWLUG Session- AD112 - Take a Trip Into the Forest - A Java Primer on Maps, ...
MWLUG Session-  AD112 - Take a Trip Into the Forest - A Java Primer on Maps, ...MWLUG Session-  AD112 - Take a Trip Into the Forest - A Java Primer on Maps, ...
MWLUG Session- AD112 - Take a Trip Into the Forest - A Java Primer on Maps, ...

IBM Bluemix for Administrators with Focus on XPages
IBM Bluemix for Administrators with Focus on XPagesIBM Bluemix for Administrators with Focus on XPages
IBM Bluemix for Administrators with Focus on XPages

Escaping the yellow bubble - rewriting Domino using MongoDb and Angular
Escaping the yellow bubble - rewriting Domino using MongoDb and AngularEscaping the yellow bubble - rewriting Domino using MongoDb and Angular
Escaping the yellow bubble - rewriting Domino using MongoDb and Angular

Connect2016 - 1172 Shipping domino
Connect2016 - 1172 Shipping dominoConnect2016 - 1172 Shipping domino
Connect2016 - 1172 Shipping domino

Collaborative Line of Business Applications on IBM Bluemix
Collaborative Line of Business Applications on IBM BluemixCollaborative Line of Business Applications on IBM Bluemix
Collaborative Line of Business Applications on IBM Bluemix

Iconuk 2016 - IBM Connections adoption Worst practices!
Iconuk 2016 - IBM Connections adoption Worst practices!Iconuk 2016 - IBM Connections adoption Worst practices!
Iconuk 2016 - IBM Connections adoption Worst practices!

Docker and containers : Disrupting the virtual machine(VM)
Docker and containers : Disrupting the virtual machine(VM)Docker and containers : Disrupting the virtual machine(VM)
Docker and containers : Disrupting the virtual machine(VM)

IBM Connections mail with exchange backend
IBM Connections mail with exchange backendIBM Connections mail with exchange backend
IBM Connections mail with exchange backend

Expanding XPages with Bootstrap Plugins for Ultimate Usability
Expanding XPages with Bootstrap Plugins for Ultimate UsabilityExpanding XPages with Bootstrap Plugins for Ultimate Usability
Expanding XPages with Bootstrap Plugins for Ultimate Usability

IBM Connections 4.5 CR2 Installation - From Zero To Social Hero - 2.02 - with...
IBM Connections 4.5 CR2 Installation - From Zero To Social Hero - 2.02 - with...IBM Connections 4.5 CR2 Installation - From Zero To Social Hero - 2.02 - with...
IBM Connections 4.5 CR2 Installation - From Zero To Social Hero - 2.02 - with...

Partitioning IBM Connections Cloud Administration
Partitioning IBM Connections Cloud AdministrationPartitioning IBM Connections Cloud Administration
Partitioning IBM Connections Cloud Administration

IBM Presents the IBM Notes and Domino Roadmap
IBM Presents the IBM Notes and Domino RoadmapIBM Presents the IBM Notes and Domino Roadmap
IBM Presents the IBM Notes and Domino Roadmap


Similar to docker : how to deploy Digital Experience in a container drinking a cup of coffee

Docker slides
Docker slidesDocker slides
Docker slides
Jyotsna Raghuraman

Docker, how to use it. organize a meeting with IBM products...
Docker, how to use it. organize a meeting with IBM products...Docker, how to use it. organize a meeting with IBM products...
Docker, how to use it. organize a meeting with IBM products...
Andrea Fontana

IBM Container Service Overview
IBM Container Service OverviewIBM Container Service Overview
IBM Container Service Overview
Kyle Brown

What is Docker?
What is Docker?What is Docker?
What is Docker?
Shubhrank Rastogi

Kubernetes Online Training Hyderabad | Docker Online Training
Kubernetes Online Training Hyderabad | Docker Online TrainingKubernetes Online Training Hyderabad | Docker Online Training
Kubernetes Online Training Hyderabad | Docker Online Training
navyatejavisualpath

Docker OpenStack Cloud Foundry
Docker OpenStack Cloud FoundryDocker OpenStack Cloud Foundry
Docker OpenStack Cloud Foundry
Animesh Singh

Docker, Cloud Foundry, Bosh & Bluemix
Docker, Cloud Foundry, Bosh & BluemixDocker, Cloud Foundry, Bosh & Bluemix
Docker, Cloud Foundry, Bosh & Bluemix
IBM

C219 - Docker and PureApplication Patterns: Better Together
C219 - Docker and PureApplication Patterns: Better TogetherC219 - Docker and PureApplication Patterns: Better Together
C219 - Docker and PureApplication Patterns: Better Together
Hendrik van Run

Cloud foundry Docker Openstack - Leading Open Source Triumvirate
Cloud foundry Docker Openstack - Leading Open Source TriumvirateCloud foundry Docker Openstack - Leading Open Source Triumvirate
Cloud foundry Docker Openstack - Leading Open Source Triumvirate
Animesh Singh

Docker
DockerDocker
Docker
Vu Duc Du

Docker 101 - Nov 2016
Docker 101 - Nov 2016Docker 101 - Nov 2016
Docker 101 - Nov 2016
Docker, Inc.

Velocity NYC 2017: Building Resilient Microservices with Kubernetes, Docker, ...
Velocity NYC 2017: Building Resilient Microservices with Kubernetes, Docker, ...Velocity NYC 2017: Building Resilient Microservices with Kubernetes, Docker, ...
Velocity NYC 2017: Building Resilient Microservices with Kubernetes, Docker, ...
Ambassador Labs

Containerization using docker and its applications
Containerization using docker and its applicationsContainerization using docker and its applications
Containerization using docker and its applications
Puneet Kumar Bhatia (MBA, ITIL V3 Certified)

Containerization using docker and its applications
Containerization using docker and its applicationsContainerization using docker and its applications
Containerization using docker and its applications
Puneet Kumar Bhatia (MBA, ITIL V3 Certified)

What is Docker & Why is it Getting Popular?
What is Docker & Why is it Getting Popular?What is Docker & Why is it Getting Popular?
What is Docker & Why is it Getting Popular?
Mars Devs

Docker for dev
Docker for devDocker for dev
Docker for dev
Erik Talboom

Container on azure
Container on azureContainer on azure
Container on azure
Vishwas N

Docker
DockerDocker
IBM Cloud UCC Talk, 22nd November 2017
IBM Cloud UCC Talk, 22nd November 2017IBM Cloud UCC Talk, 22nd November 2017
IBM Cloud UCC Talk, 22nd November 2017
Michael O'Sullivan

Introduction to Containers & Diving a little deeper into the benefits of Con...
 Introduction to Containers & Diving a little deeper into the benefits of Con... Introduction to Containers & Diving a little deeper into the benefits of Con...
Introduction to Containers & Diving a little deeper into the benefits of Con...
Synergetics Learning and Cloud Consulting


Similar to docker : how to deploy Digital Experience in a container drinking a cup of coffee (20)

Docker slides
Docker slidesDocker slides
Docker slides

Docker, how to use it. organize a meeting with IBM products...
Docker, how to use it. organize a meeting with IBM products...Docker, how to use it. organize a meeting with IBM products...
Docker, how to use it. organize a meeting with IBM products...

IBM Container Service Overview
IBM Container Service OverviewIBM Container Service Overview
IBM Container Service Overview

What is Docker?
What is Docker?What is Docker?
What is Docker?

Kubernetes Online Training Hyderabad | Docker Online Training
Kubernetes Online Training Hyderabad | Docker Online TrainingKubernetes Online Training Hyderabad | Docker Online Training
Kubernetes Online Training Hyderabad | Docker Online Training

Docker OpenStack Cloud Foundry
Docker OpenStack Cloud FoundryDocker OpenStack Cloud Foundry
Docker OpenStack Cloud Foundry

Docker, Cloud Foundry, Bosh & Bluemix
Docker, Cloud Foundry, Bosh & BluemixDocker, Cloud Foundry, Bosh & Bluemix
Docker, Cloud Foundry, Bosh & Bluemix

C219 - Docker and PureApplication Patterns: Better Together
C219 - Docker and PureApplication Patterns: Better TogetherC219 - Docker and PureApplication Patterns: Better Together
C219 - Docker and PureApplication Patterns: Better Together

Cloud foundry Docker Openstack - Leading Open Source Triumvirate
Cloud foundry Docker Openstack - Leading Open Source TriumvirateCloud foundry Docker Openstack - Leading Open Source Triumvirate
Cloud foundry Docker Openstack - Leading Open Source Triumvirate

Docker
DockerDocker
Docker

Docker 101 - Nov 2016
Docker 101 - Nov 2016Docker 101 - Nov 2016
Docker 101 - Nov 2016

Velocity NYC 2017: Building Resilient Microservices with Kubernetes, Docker, ...
Velocity NYC 2017: Building Resilient Microservices with Kubernetes, Docker, ...Velocity NYC 2017: Building Resilient Microservices with Kubernetes, Docker, ...
Velocity NYC 2017: Building Resilient Microservices with Kubernetes, Docker, ...

Containerization using docker and its applications
Containerization using docker and its applicationsContainerization using docker and its applications
Containerization using docker and its applications

Containerization using docker and its applications
Containerization using docker and its applicationsContainerization using docker and its applications
Containerization using docker and its applications

What is Docker & Why is it Getting Popular?
What is Docker & Why is it Getting Popular?What is Docker & Why is it Getting Popular?
What is Docker & Why is it Getting Popular?

Docker for dev
Docker for devDocker for dev
Docker for dev

Container on azure
Container on azureContainer on azure
Container on azure

Docker
DockerDocker
Docker

IBM Cloud UCC Talk, 22nd November 2017
IBM Cloud UCC Talk, 22nd November 2017IBM Cloud UCC Talk, 22nd November 2017
IBM Cloud UCC Talk, 22nd November 2017

Introduction to Containers & Diving a little deeper into the benefits of Con...
 Introduction to Containers & Diving a little deeper into the benefits of Con... Introduction to Containers & Diving a little deeper into the benefits of Con...
Introduction to Containers & Diving a little deeper into the benefits of Con...


Recently uploaded

Mechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdfMechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdf
21UME003TUSHARDEB

5g-5G SA reg. -standalone-access-registration.pdf
5g-5G SA reg. -standalone-access-registration.pdf5g-5G SA reg. -standalone-access-registration.pdf
5g-5G SA reg. -standalone-access-registration.pdf
devtomar25

UNIT 4 LINEAR INTEGRATED CIRCUITS-DIGITAL ICS
UNIT 4 LINEAR INTEGRATED CIRCUITS-DIGITAL ICSUNIT 4 LINEAR INTEGRATED CIRCUITS-DIGITAL ICS
UNIT 4 LINEAR INTEGRATED CIRCUITS-DIGITAL ICS
vmspraneeth

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx
CVCSOfficial

An Introduction to the Compiler Designss
An Introduction to the Compiler DesignssAn Introduction to the Compiler Designss
An Introduction to the Compiler Designss
ElakkiaU

Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...
ijseajournal

Applications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdfApplications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdf
Atif Razi

CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1
PKavitha10

Null Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAMNull Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAM
Divyanshu

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
VICTOR MAESTRE RAMIREZ

LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by AnantLLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
Anant Corporation

5G Radio Network Througput Problem Analysis HCIA.pdf
5G Radio Network Througput Problem Analysis HCIA.pdf5G Radio Network Througput Problem Analysis HCIA.pdf
5G Radio Network Througput Problem Analysis HCIA.pdf
AlvianRamadhani5

Digital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptxDigital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptx
aryanpankaj78

CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURSCompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
RamonNovais6

Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...
cannyengineerings

Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
PriyankaKilaniya

Supermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdfSupermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdf
Kamal Acharya

AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
Paris Salesforce Developer Group

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx
VANDANAMOHANGOUDA

Data Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason WebinarData Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason Webinar
UReason


Recently uploaded (20)

Mechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdfMechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdf

5g-5G SA reg. -standalone-access-registration.pdf
5g-5G SA reg. -standalone-access-registration.pdf5g-5G SA reg. -standalone-access-registration.pdf
5g-5G SA reg. -standalone-access-registration.pdf

UNIT 4 LINEAR INTEGRATED CIRCUITS-DIGITAL ICS
UNIT 4 LINEAR INTEGRATED CIRCUITS-DIGITAL ICSUNIT 4 LINEAR INTEGRATED CIRCUITS-DIGITAL ICS
UNIT 4 LINEAR INTEGRATED CIRCUITS-DIGITAL ICS

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx

An Introduction to the Compiler Designss
An Introduction to the Compiler DesignssAn Introduction to the Compiler Designss
An Introduction to the Compiler Designss

Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...

Applications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdfApplications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdf

CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1CEC 352 - SATELLITE COMMUNICATION UNIT 1
CEC 352 - SATELLITE COMMUNICATION UNIT 1

Null Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAMNull Bangalore | Pentesters Approach to AWS IAM
Null Bangalore | Pentesters Approach to AWS IAM

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member

LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by AnantLLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant
LLM Fine Tuning with QLoRA Cassandra Lunch 4, presented by Anant

5G Radio Network Througput Problem Analysis HCIA.pdf
5G Radio Network Througput Problem Analysis HCIA.pdf5G Radio Network Througput Problem Analysis HCIA.pdf
5G Radio Network Througput Problem Analysis HCIA.pdf

Digital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptxDigital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptx

CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURSCompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS
CompEx~Manual~1210 (2).pdf COMPEX GAS AND VAPOURS

Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...

Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...
Prediction of Electrical Energy Efficiency Using Information on Consumer's Ac...

Supermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdfSupermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdf

AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx

Data Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason WebinarData Driven Maintenance | UReason Webinar
Data Driven Maintenance | UReason Webinar


docker : how to deploy Digital Experience in a container drinking a cup of coffee

  • 1. .docker : how to deploy Digital Experience in a container drinking a cup of coffee Matteo Bisi – Andrea Fontana
  • 2. About us 2 • Matteo Bisi – System Engineer • IBM Champion Social Business 2014,15, 16 • Blogger – www.msbiro.net, blog.msbiro.net • Social: @mbisi78 https://it.linkedin.com/in/matteobisi matteo.bisi@factor-y.com
  • 3. About us 3 • Andrea Fontana – CTO • IBM Champion Social Business 2015,16 • IBM Champion for WebSphere 2012,13,14 • IBM Advocate since 2012 • Blogger – razioni-k.net2action.com • Social: @net2action https://it.linkedin.com/in/afontana a.fontana@sowre.com SAP DEVELOPER BUSINESS PARTNER
  • 4. Docker + IBM Social Software What and why 4
  • 5. Docker • Docker is an open platform for developing, shipping, and running applications. • Docker is designed to deliver your applications faster. • With Docker you can separate your applications from your infrastructure and treat your infrastructure like a managed application. 5
  • 6. Docker and containers in a few slides Docker is a way to “package” your software in an image:  File system  System security (user/groups) & settings  TCP Network (ports that needs to be reachable)  Image inheritance is possible (incremental specialization) Docker is a way to “ship & run” your software to other systems: • Start an “image” to get a container where your software runs • Manage containers (start/stop/control etc) • The container runs regardless of the actual (underlying) system (VM, bare metal, etc) 6
  • 7. Docker History • Docker was released as open source in March 2013 • Solomon Hykes started Docker in France as an internal project within dotCloud, a platform-as-a-service company, with initial contributions by other dotCloud engineers including Andrea Luzzardi and Francois-Xavier Bourlet. • with the release of version 0.9, Docker dropped LXC as the default execution environment and replaced it with its own libcontainer library written in the Go programming language. (Google’s OpenSource Programming Language ) • In 2015, the project had over 25,600 GitHub, over 6,800 forks, and nearly 1,100 contributors. • In May 2016 analysis showed the following organizations as main contributors to Docker: The Docker team, Cisco, Google, Huawei, IBM, Microsoft, and Red Hat. 7
  • 8. The underlying technology Namespaces • Pod: pid isolation • Net: network interface • Ipc: interProcess Communication • Mnt: managing mount point • Uts: isolating kernel and version identifier Control groups limits and isolates the resource usage of a collection of processes Union File Systems operate by creating layers very lightweight and fast CONTAINER (libcontainer) 8
  • 9. Docker keys components 9 • Docker engine • Docker machine • Docker registry
  • 10. Docker Engine Docker Engine is a client-server application with these major components: • A server which is a type of long-running program called a daemon process. • A REST API which specifies interfaces that programs can use to talk to the daemon and instruct it what to do. • A command line interface (CLI) client. 10
  • 11. Docker Machine • Docker Machine is a tool that lets you install Docker Engine on virtual hosts, and manage the hosts with docker-machine commands. • You can use Machine to create Docker hosts on your local Mac or Windows box, on your company network, in your data center, or on cloud providers like AWS or Digital Ocean. 11
  • 12. Docker registry The registry is a server application that lets you distribute Docker images. https://hub.docker.com/explore/ 12https://hub.docker.com/u/ibmcom/
  • 13. Docker registry… On-premises Docker hub free-to-use, hosted Registry, plus additional features (organization accounts, automated builds, and more). 13
  • 14. Docker registry… On-premises Running your own Registry is a great solution to integrate with your CI/CD system. (Continuous Integration/Delivery) A notification from the Registry would then trigger to notify other systems that a new image is available. It’s also an essential component if you want to quickly deploy a new image over a large cluster of machines. Finally, it’s the best way to distribute images inside an isolated network. 14
  • 15. Availability • Linux • Windows • Mac • Aws • Azure • Bluemix • … Docker’s architecture Docker uses a client-server architecture ! The same image can run on your laptop, on your server, on your cloud 15
  • 16. HA is also available Starting from version 1.12 Docker swarm was integrated into Docker Engine in swarm mode: Highlights: • Cluster management integrated with Docker Engine • Multi-host networking • Load balancing • Secure by default (TLS stricly enforced for communications) • Scaling 16
  • 17. Why Docker Create images to support developers (standard deployment) Keep an archive of images for every software release to perform back-version debugging/testing (start a clean server in minutes) Consolidate multiple servers on a single powerful machine but maintain complete isolation 17
  • 18. Container vs Virtual Machine Virtual machine runs a dedicated operating system. Each VM has its own binaries/libraries and application(s) that it services, and the VM may be many gigabytes in size Each container shares the host OS kernel and, usually, the binaries and libraries, too. Shared components are read-only This makes containers exceptionally “light” – containers are only megabytes in size and take just seconds to start, versus minutes for a VM 18
  • 19. Yours Containers can be shipped!19
  • 21. IBM announces zSystem for Docker Download here: http://www.ibm.com/developerworks/linux/linux390/docker.html IBM and Docker offer integrated container solutions that can meet the diverse needs of enterprises. Supporting the creation and deployment of multi-platform, multi-container workloads across hybrid infrastructures, IBM and Docker accelerate application delivery and enable application lifecycle management for Dockerized containers. 21
  • 22. IBM announces Docker on IBM PureApplication System The good news is that Docker is now supported on IBM PureApplication v2.1! You can now use Docker containers in the virtual system patterns that you create and you can reference Docker images that are stored on Docker Hub or in a private Docker registry that runs inside PureApplication. Taking advantage of the Docker containers on PureApplication is as easy as building patterns. 22
  • 23. IBM Bluemix • IBM Bluemix provides built in DevOps services to manage source code and to build, test and deploy applications to Bluemix. • For more complex scenarios IBM provides the Continuous Delivery toolset UrbanCode to deploy hybrid applications to the cloud and on-premises and to deploy composite applications with multiple components or microservices. • The store application uses one container on Bluemix . Containers running in a Docker Swarm cluster on-premises. Does anyone know this guy? http://heidloff.net/article/11.11.2015100203NHECLU.htm He is Niklas Heidloff, Developer Advocate for IBM Bluemix, working on Docker on Bluemix Environment. 23
  • 25. IBM sw supported 25 • Db2 from 10.1 10.5 , 11.1 • DB2 express * • Websphere Application Server 8.5.5 and 9.0 • Websphere Liberty profiles * • Domino is not supported (yet..) • Digital experience is not supported (yet..) Offical images available on docker hub
  • 26. How To: Create Docker images with IBM Social Software 26
  • 27. Prepare your Container • Prepare the Installation script • Using Silent installation method • Preparing the response file and whatever you need to complete setup • Create your Docker File and deploy it. 27
  • 28. Docker Image A docker image is a read-only template for creating containers. • Manual: Start from a base image, build your customization and commit the new image. • DockerFile: Use a script. DockerFile anatomy A “DockerFile” is a text file with docker commands, it • Declares the “base image” to inherit from • Copies files to the image filesystem • Executes commands in the image to setup things • Declares “VOLUME” mappings • Declares ports to “EXPOSE”d. 28
  • 29. Docker File Anatomy Identifies which folder you need to share between container and host Identifies which image you want to use Identifies which command you need to execute inside the containers FROM ubuntu:latest VOLUME [/opt/data] VOLUME [/etc] VOLUME [/home] RUN apt-get install -y aptitude net-tools libxtst6 libxi6 libcanberra-gtk3 gtk+ COPY DB2_Svr_10.5.0.3_Linux_x86-64.tar.gz /tmp/db210.5/ Copy your Packages into the containers 29
  • 30. Prepare IBM Silent Installation You can use the IBM installation manager from command line, and create your response file sample! IBMIM –record /tmp/was9.xml -skipInstall /tmp/IBM/ <?xml version='1.0' encoding='UTF-8'?> <agent-input> <variables> <variable name='sharedLocation' value='/opt/ibm/IMShared'/> </variables> <server> <repository location='/tmp/sw-repo/WAS_ND_9'/> <repository location='/tmp/sw-repo/SDK_JAVA_V8'/> </server> <profile id='IBM WebSphere Application Server V9.0' installLocation='/opt/ibm/WebSphere/AppServer'> <data key='cic.selector.arch' value='x86_64'/> <data key='cic.selector.nl' value='en,en'/> </profile> <install> <!-- IBM WebSphere Application Server Network Deployment 9.0.0.0 --> <offering profile='IBM WebSphere Application Server V9.0' id='com.ibm.websphere.ND.v90' version='9.0.0.20160526_1854' features='core.feature,ejbdeploy,thinclient,embeddablecontainer'/> <!-- IBM SDK, Java Technology Edition, Versione 8 8.0.3.0 --> <offering profile='IBM WebSphere Application Server V9.0' id='com.ibm.java.jdk.v8' version='8.0.3000.20160526_1317' features='com.ibm.sdk.8'/> </install> 30
  • 31. /opt/ibm/im/eclipse/tools/imcl input /tmp/was9.xml -acceptLicense Ready to go? imcl install packageID[_version][,featureID] -repositories source_repository -installationDirectory installation_directory -accessRights mode We can use our response file Install from command line 31
  • 32. Was9 Docker File # Select the base image to inherit from FROM ubuntu:latest # Image description LABEL Description="WebSphere 9, HTTP 9, Plugin 9" Vendor="MSBIRO.NET" Version="1.0" # Execute unix command COPY sw-repo/* /tmp/sw-repo/ RUN apt-get update && apt-get install -y vim psmisc 32
  • 33. RUN /tmp/sw-repo/IM185_LNX64/installc -log log_file -acceptLicense -installationDirectory /opt/ibm/im/ RUN /opt/ibm/im/eclipse/tools/imcl input /tmp/sw-repo/RESPONSE/was9.xml -acceptLicense RUN /opt/ibm/im/eclipse/tools/imcl input /tmp/sw-repo/RESPONSE/was9supp.xml –acceptLicense RUN echo $(head -1 /etc/hosts | cut -f1) dmgr.ondemand.com >> /etc/hosts && /opt/ibm/WebSphere/AppServer/bin/manageprofiles.sh -response /tmp/sw-repo/RESPONSE/dmgr RUN echo $(head -1 /etc/hosts | cut -f1) dmgr.ondemand.com >> /etc/hosts && /opt/ibm/WebSphere/AppServer/bin/manageprofiles.sh -response /tmp/sw-repo/RESPONSE/appsrv01 Was9 Docker File 33
  • 34. Was9 Image RUN /opt/ibm/WebSphere/AppServer/bin/wasservice.sh -add docker-DMGR -servername dmgr -profilePath /opt/ibm/WebSphere/AppServer/profiles/Dmgr01/ -stopArgs ‘-username waslocal -password docker' RUN /opt/ibm/WebSphere/AppServer/bin/wasservice.sh -add docker-NA -servername nodeagent -profilePath /opt/ibm/WebSphere/AppServer/profiles/AppSrv01/ -stopArgs '-username waslocal -password docker -stopservers‘ RUN mkdir /var/lock/subsys # Volume definition VOLUME ["/opt/ibm/WebSphere/AppServer"] # port exposed to external world EXPOSE 80 443 9060 9043 RUN rm /tmp/sw-repo -R A data volume is a specially-designated directory within one or more containers that bypasses the Union File System. Data volumes provide several useful features for persistent or shared data: Volumes are initialized when a container is created. Data volumes can be shared and reused among containers. Changes to a data volume are made directly. Changes to a data volume will not be included when you update an image. Data volumes persist even if the container itself is deleted. Data volumes are designed to persist data, independent of the life cycle of the container. The EXPOSE instruction informs Docker that the container listens on the specified network ports at runtime 34
  • 37. LinksDocker training – online video course https://training.docker.com/self-paced-training IBM Installation Manager resources http://tinyurl.com/ibm-im-command-line-arg http://tinyurl.com/ibm-im-record-response DB2 and docker some suggestion from IBM http://tinyurl.com/db2-and-docker-from-ibm Docker and Domino http://tinyurl.com/domino-container-docker 37
  • 38. 38
