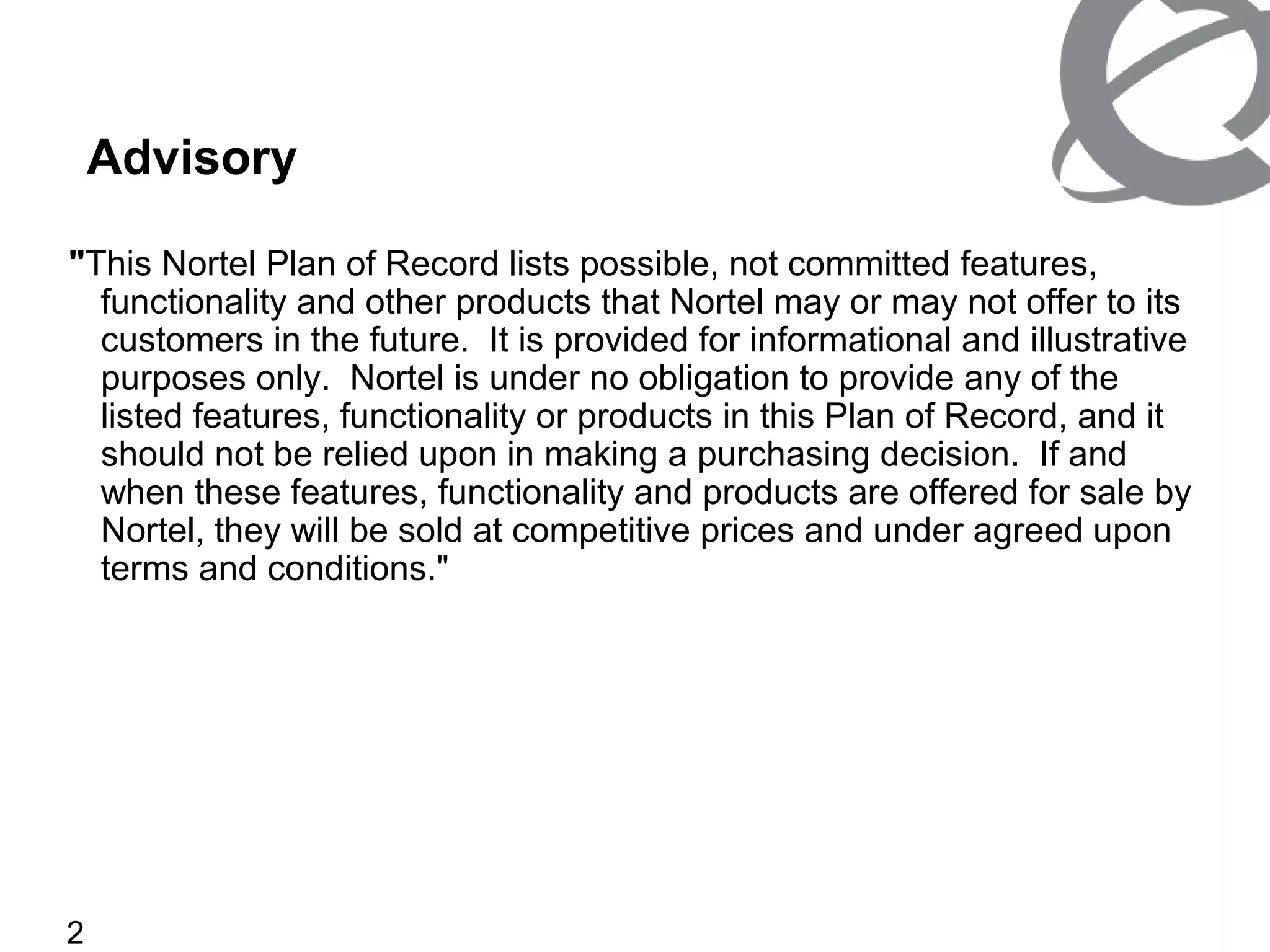

Advisory
"This Nortel Plan of Record lists possible, not committed features,
functionality and other products that Nortel may or may not offer to its
customers in the future. It is provided for informational and illustrative
purposes only. Nortel is under no obligation to provide any of the
listed features, functionality or products in this Plan of Record, and it
should not be relied upon in making a purchasing decision. If and
when these features, functionality and products are offered for sale by
Nortel, they will be sold at competitive prices and under agreed upon
terms and conditions."

3. 3
Overview of MEID Solution
CDMA Marketing and Product Line Management
Version 2.0
April 2007

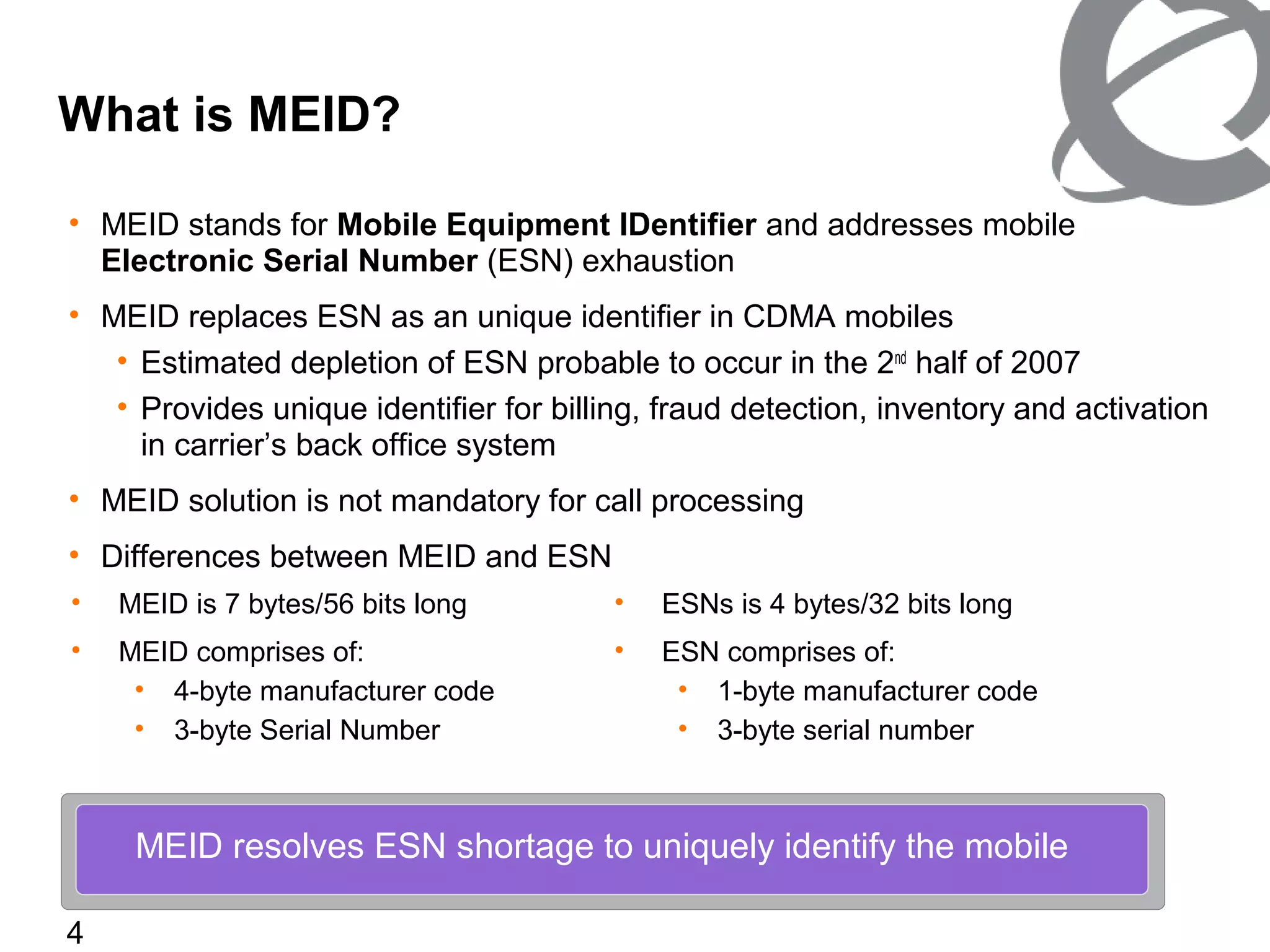

4. 4
• MEID stands for Mobile Equipment IDentifier and addresses mobile
Electronic Serial Number (ESN) exhaustion
• MEID replaces ESN as an unique identifier in CDMA mobiles
• Estimated depletion of ESN probable to occur in the 2nd
half of 2007
• Provides unique identifier for billing, fraud detection, inventory and activation
in carrier’s back office system
• MEID solution is not mandatory for call processing
• Differences between MEID and ESN
What is MEID?
MEID resolves ESN shortage to uniquely identify the mobile
• MEID is 7 bytes/56 bits long
• MEID comprises of:
• 4-byte manufacturer code
• 3-byte Serial Number
• ESNs is 4 bytes/32 bits long
• ESN comprises of:
• 1-byte manufacturer code
• 3-byte serial number

5. 5

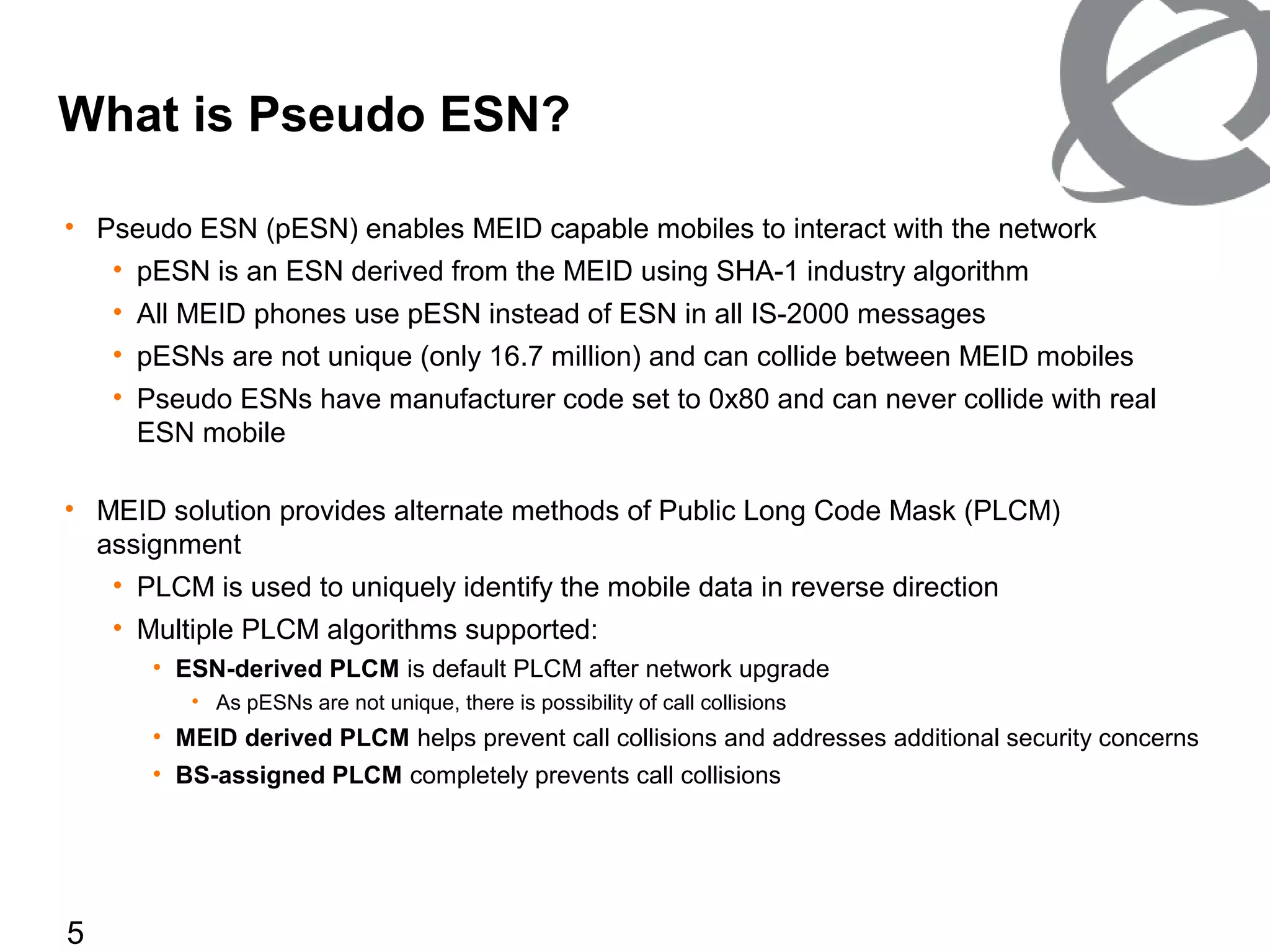

• Pseudo ESN (pESN) enables MEID capable mobiles to interact with the network
• pESN is an ESN derived from the MEID using SHA-1 industry algorithm
• All MEID phones use pESN instead of ESN in all IS-2000 messages
• pESNs are not unique (only 16.7 million) and can collide between MEID mobiles
• Pseudo ESNs have manufacturer code set to 0x80 and can never collide with real
ESN mobile
• MEID solution provides alternate methods of Public Long Code Mask (PLCM)
assignment
• PLCM is used to uniquely identify the mobile data in reverse direction
• Multiple PLCM algorithms supported:
• ESN-derived PLCM is default PLCM after network upgrade
• As pESNs are not unique, there is possibility of call collisions
• MEID derived PLCM helps prevent call collisions and addresses additional security concerns
• BS-assigned PLCM completely prevents call collisions
What is Pseudo ESN?

6. 6

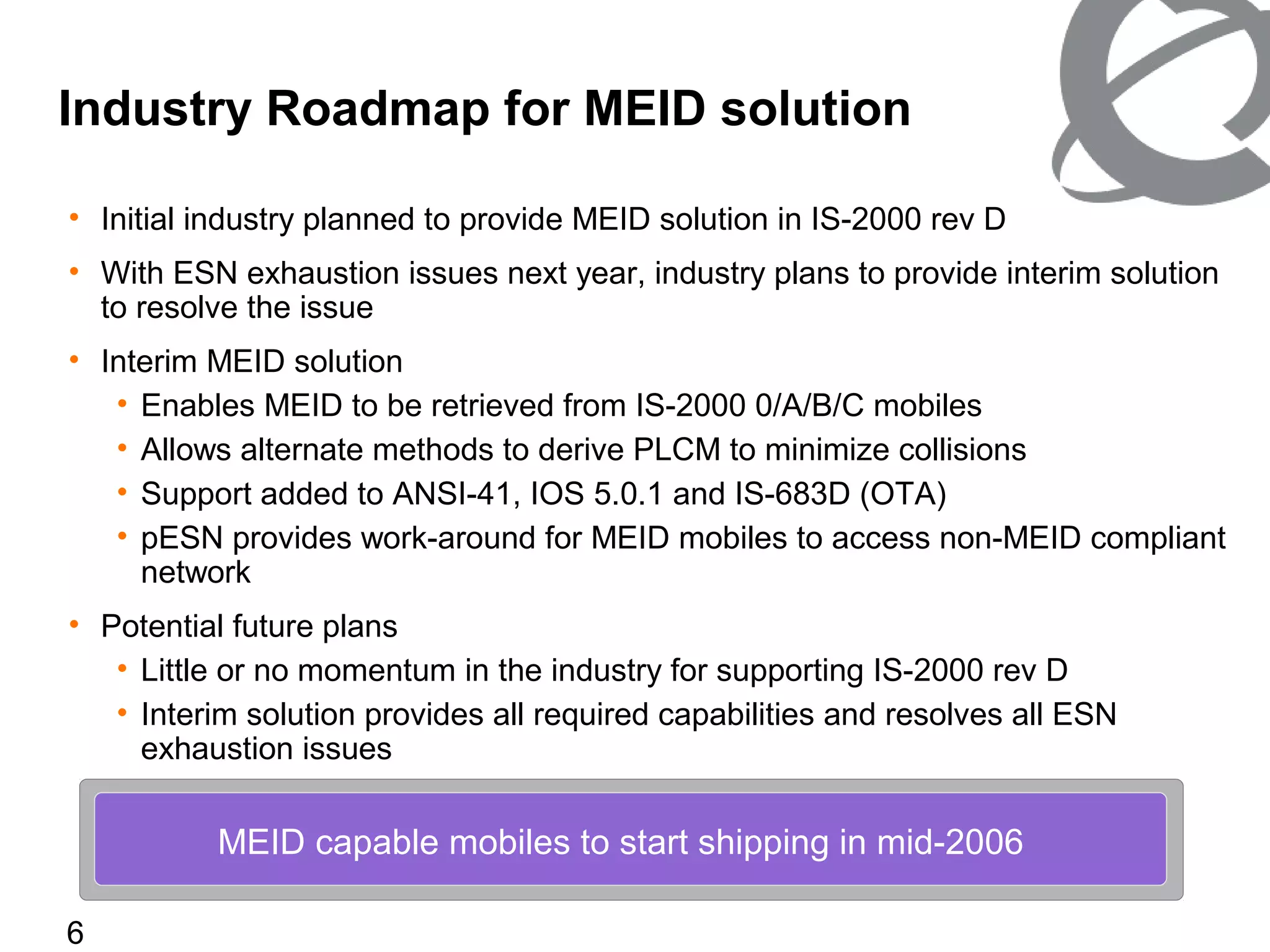

• Initial industry planned to provide MEID solution in IS-2000 rev D
• With ESN exhaustion issues next year, industry plans to provide interim solution
to resolve the issue
• Interim MEID solution
• Enables MEID to be retrieved from IS-2000 0/A/B/C mobiles
• Allows alternate methods to derive PLCM to minimize collisions
• Support added to ANSI-41, IOS 5.0.1 and IS-683D (OTA)
• pESN provides work-around for MEID mobiles to access non-MEID compliant
network
• Potential future plans
• Little or no momentum in the industry for supporting IS-2000 rev D
• Interim solution provides all required capabilities and resolves all ESN
exhaustion issues
Industry Roadmap for MEID solution
MEID capable mobiles to start shipping in mid-2006

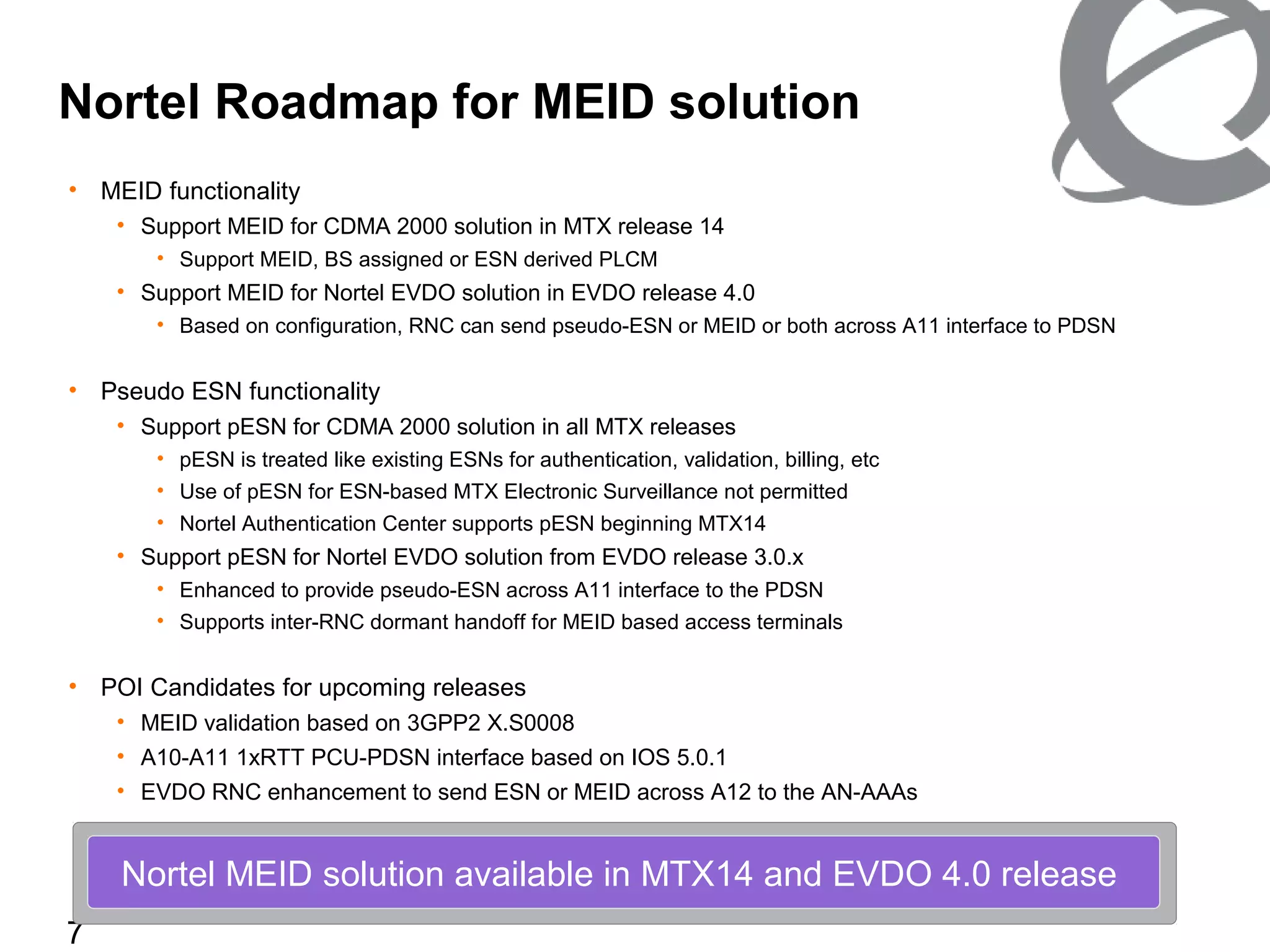

7. 7
• MEID functionality
• Support MEID for CDMA 2000 solution in MTX release 14
• Support MEID, BS assigned or ESN derived PLCM
• Support MEID for Nortel EVDO solution in EVDO release 4.0
• Based on configuration, RNC can send pseudo-ESN or MEID or both across A11 interface to PDSN
• Pseudo ESN functionality
• Support pESN for CDMA 2000 solution in all MTX releases
• pESN is treated like existing ESNs for authentication, validation, billing, etc
• Use of pESN for ESN-based MTX Electronic Surveillance not permitted
• Nortel Authentication Center supports pESN beginning MTX14
• Support pESN for Nortel EVDO solution from EVDO release 3.0.x
• Enhanced to provide pseudo-ESN across A11 interface to the PDSN
• Supports inter-RNC dormant handoff for MEID based access terminals
• POI Candidates for upcoming releases
• MEID validation based on 3GPP2 X.S0008
• A10-A11 1xRTT PCU-PDSN interface based on IOS 5.0.1
• EVDO RNC enhancement to send ESN or MEID across A12 to the AN-AAAs
Nortel Roadmap for MEID solution
Nortel MEID solution available in MTX14 and EVDO 4.0 release

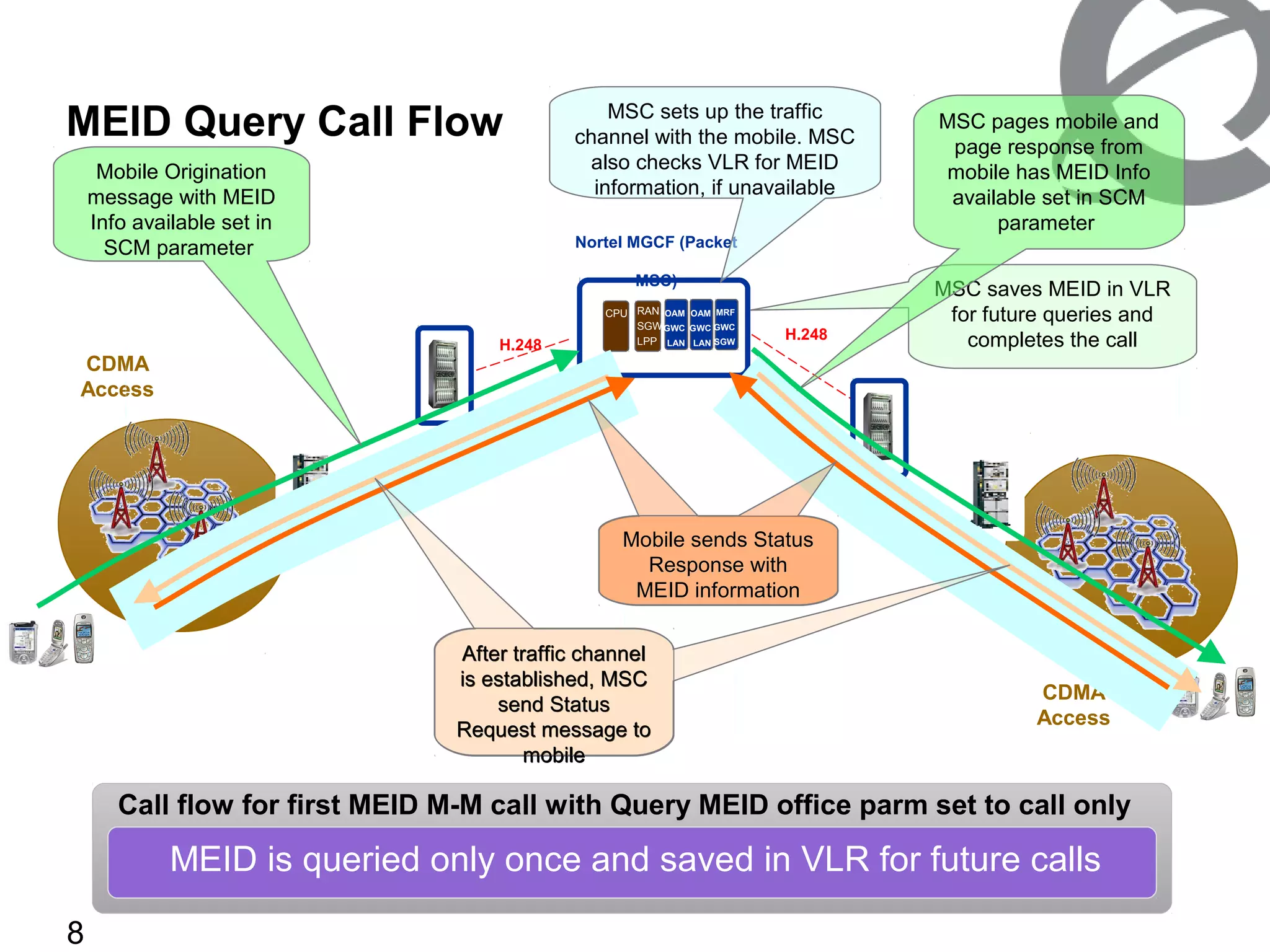

8. 8
MEID Query Call Flow
H.248
CDMA
Access
BSC
MGW
MGW
OAM
GWC
LAN
OAM
GWC
LAN
MRF
GWC
SGW
H.248
Call flow for first MEID M-M call with Query MEID office parm set to call only
MEID is queried only once and saved in VLR for future calls
Mobile Origination
message with MEID
Info available set in
SCM parameter
CPU RAN
SGW
LPP
Nortel MGCF (Packet
MSC)
CDMA
Access
BSC
MSC sets up the traffic
channel with the mobile. MSC
also checks VLR for MEID
information, if unavailable
MSC saves MEID in VLR
for future queries and
completes the call
After traffic channel
is established, MSC
send Status
Request message to
mobile
Mobile sends Status
Response with
MEID information
MSC pages mobile and
page response from
mobile has MEID Info
available set in SCM
parameter
After traffic channel
is established, MSC
send Status
Request message to
mobile
Mobile sends Status
Response with
MEID information

9. 9

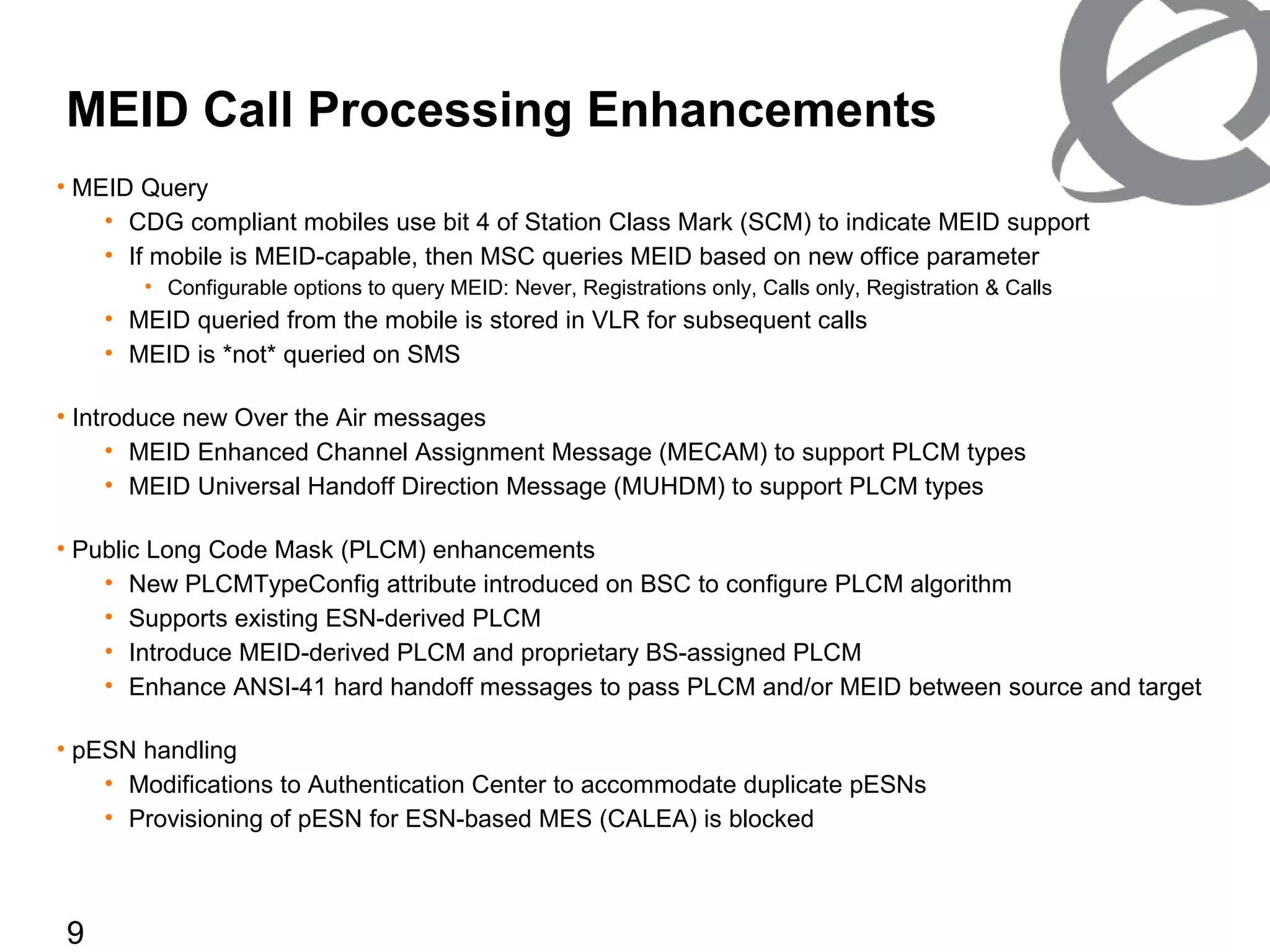

MEID Call Processing Enhancements
• MEID Query
• CDG compliant mobiles use bit 4 of Station Class Mark (SCM) to indicate MEID support
• If mobile is MEID-capable, then MSC queries MEID based on new office parameter
• Configurable options to query MEID: Never, Registrations only, Calls only, Registration & Calls
• MEID queried from the mobile is stored in VLR for subsequent calls
• MEID is *not* queried on SMS
• Introduce new Over the Air messages
• MEID Enhanced Channel Assignment Message (MECAM) to support PLCM types
• MEID Universal Handoff Direction Message (MUHDM) to support PLCM types
• Public Long Code Mask (PLCM) enhancements
• New PLCMTypeConfig attribute introduced on BSC to configure PLCM algorithm
• Supports existing ESN-derived PLCM
• Introduce MEID-derived PLCM and proprietary BS-assigned PLCM
• Enhance ANSI-41 hard handoff messages to pass PLCM and/or MEID between source and target
• pESN handling
• Modifications to Authentication Center to accommodate duplicate pESNs
• Provisioning of pESN for ESN-based MES (CALEA) is blocked

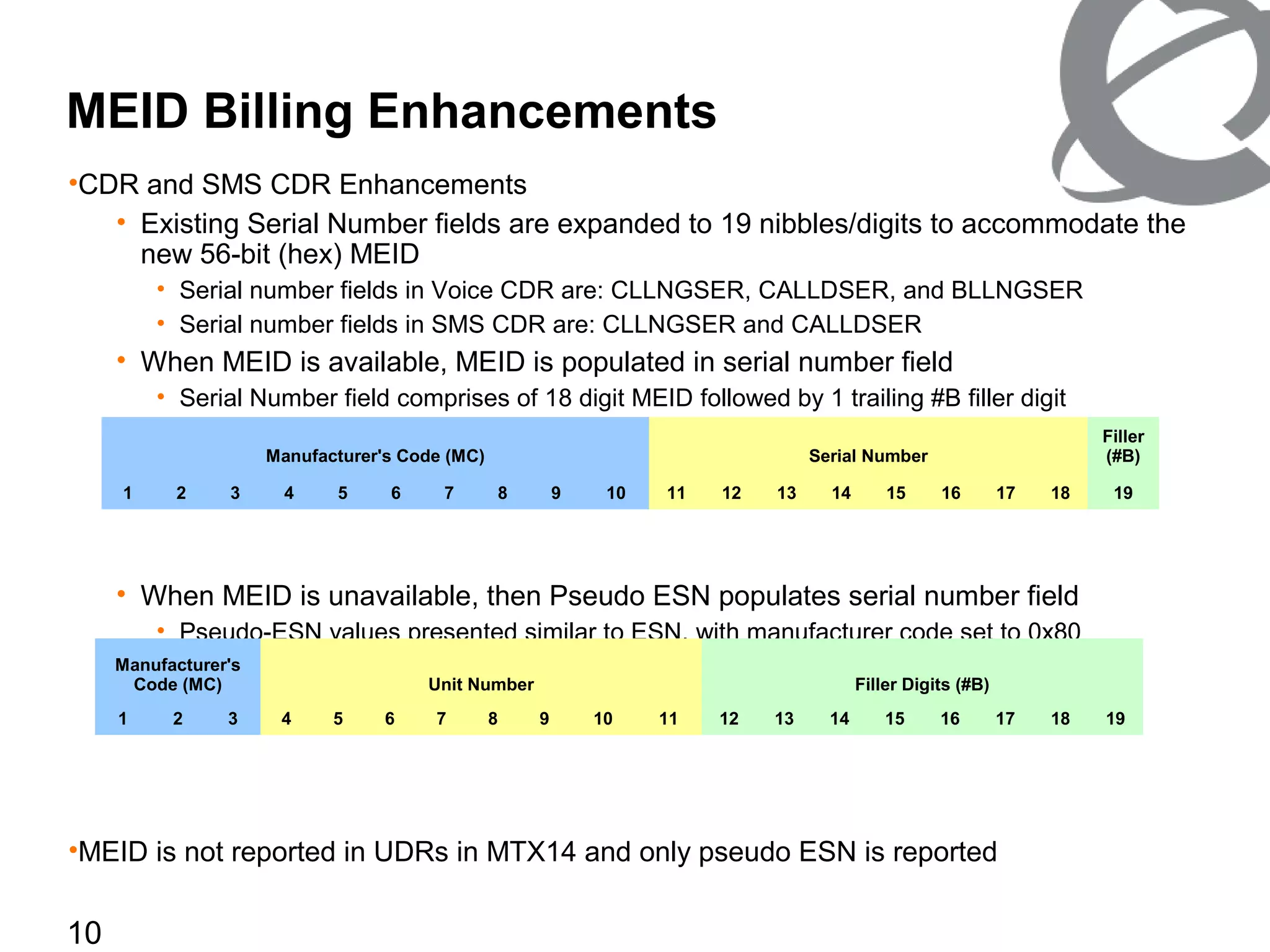

10. 10
MEID Billing Enhancements
•CDR and SMS CDR Enhancements
• Existing Serial Number fields are expanded to 19 nibbles/digits to accommodate the
new 56-bit (hex) MEID
• Serial number fields in Voice CDR are: CLLNGSER, CALLDSER, and BLLNGSER
• Serial number fields in SMS CDR are: CLLNGSER and CALLDSER
• When MEID is available, MEID is populated in serial number field
• Serial Number field comprises of 18 digit MEID followed by 1 trailing #B filler digit
• When MEID is unavailable, then Pseudo ESN populates serial number field
• Pseudo-ESN values presented similar to ESN, with manufacturer code set to 0x80
• Serial Number field comprises of 11 digit ESN followed by 8 trailing #B filler digits
•MEID is not reported in UDRs in MTX14 and only pseudo ESN is reported
Manufacturer's
Code (MC) Unit Number Filler Digits (#B)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Manufacturer's Code (MC) Serial Number
Filler
(#B)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

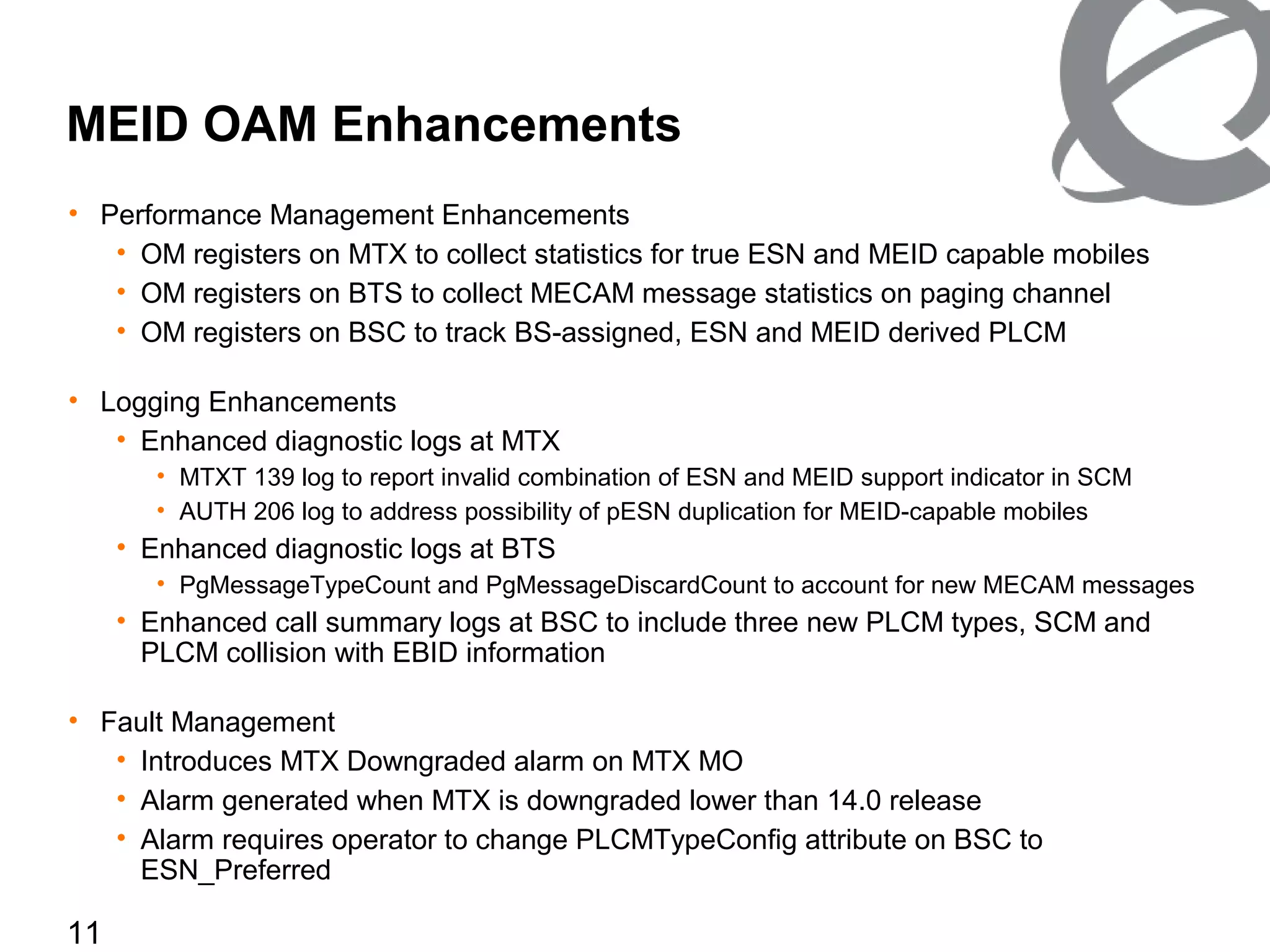

11. 11
MEID OAM Enhancements
• Performance Management Enhancements
• OM registers on MTX to collect statistics for true ESN and MEID capable mobiles
• OM registers on BTS to collect MECAM message statistics on paging channel
• OM registers on BSC to track BS-assigned, ESN and MEID derived PLCM
• Logging Enhancements
• Enhanced diagnostic logs at MTX
• MTXT 139 log to report invalid combination of ESN and MEID support indicator in SCM
• AUTH 206 log to address possibility of pESN duplication for MEID-capable mobiles
• Enhanced diagnostic logs at BTS
• PgMessageTypeCount and PgMessageDiscardCount to account for new MECAM messages
• Enhanced call summary logs at BSC to include three new PLCM types, SCM and
PLCM collision with EBID information
• Fault Management
• Introduces MTX Downgraded alarm on MTX MO
• Alarm generated when MTX is downgraded lower than 14.0 release
• Alarm requires operator to change PLCMTypeConfig attribute on BSC to
ESN_Preferred

12. 12

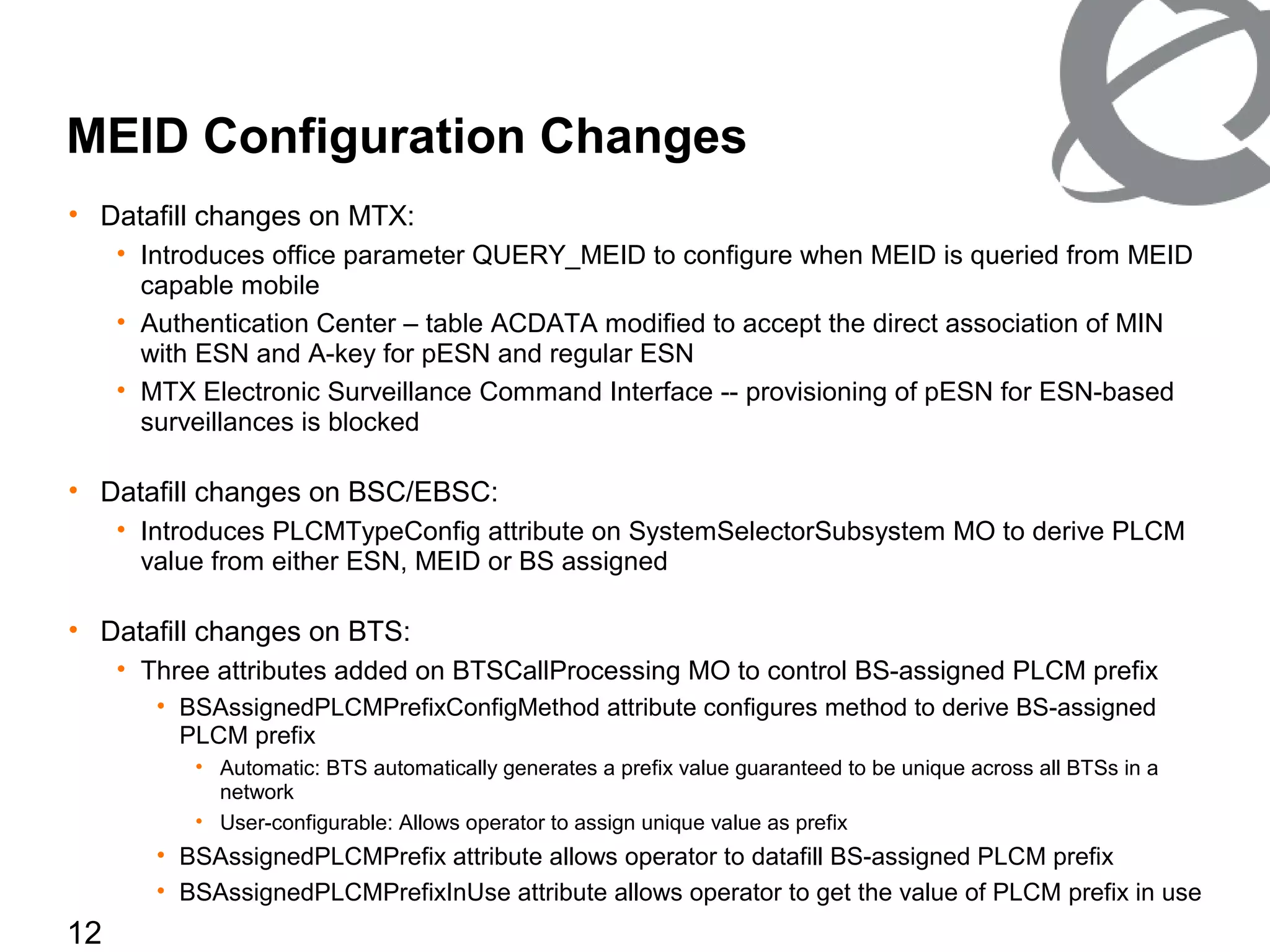

MEID Configuration Changes
• Datafill changes on MTX:
• Introduces office parameter QUERY_MEID to configure when MEID is queried from MEID
capable mobile
• Authentication Center – table ACDATA modified to accept the direct association of MIN
with ESN and A-key for pESN and regular ESN
• MTX Electronic Surveillance Command Interface -- provisioning of pESN for ESN-based
surveillances is blocked
• Datafill changes on BSC/EBSC:
• Introduces PLCMTypeConfig attribute on SystemSelectorSubsystem MO to derive PLCM
value from either ESN, MEID or BS assigned
• Datafill changes on BTS:
• Three attributes added on BTSCallProcessing MO to control BS-assigned PLCM prefix
• BSAssignedPLCMPrefixConfigMethod attribute configures method to derive BS-assigned
PLCM prefix
• Automatic: BTS automatically generates a prefix value guaranteed to be unique across all BTSs in a
network
• User-configurable: Allows operator to assign unique value as prefix
• BSAssignedPLCMPrefix attribute allows operator to datafill BS-assigned PLCM prefix
• BSAssignedPLCMPrefixInUse attribute allows operator to get the value of PLCM prefix in use

13. 13

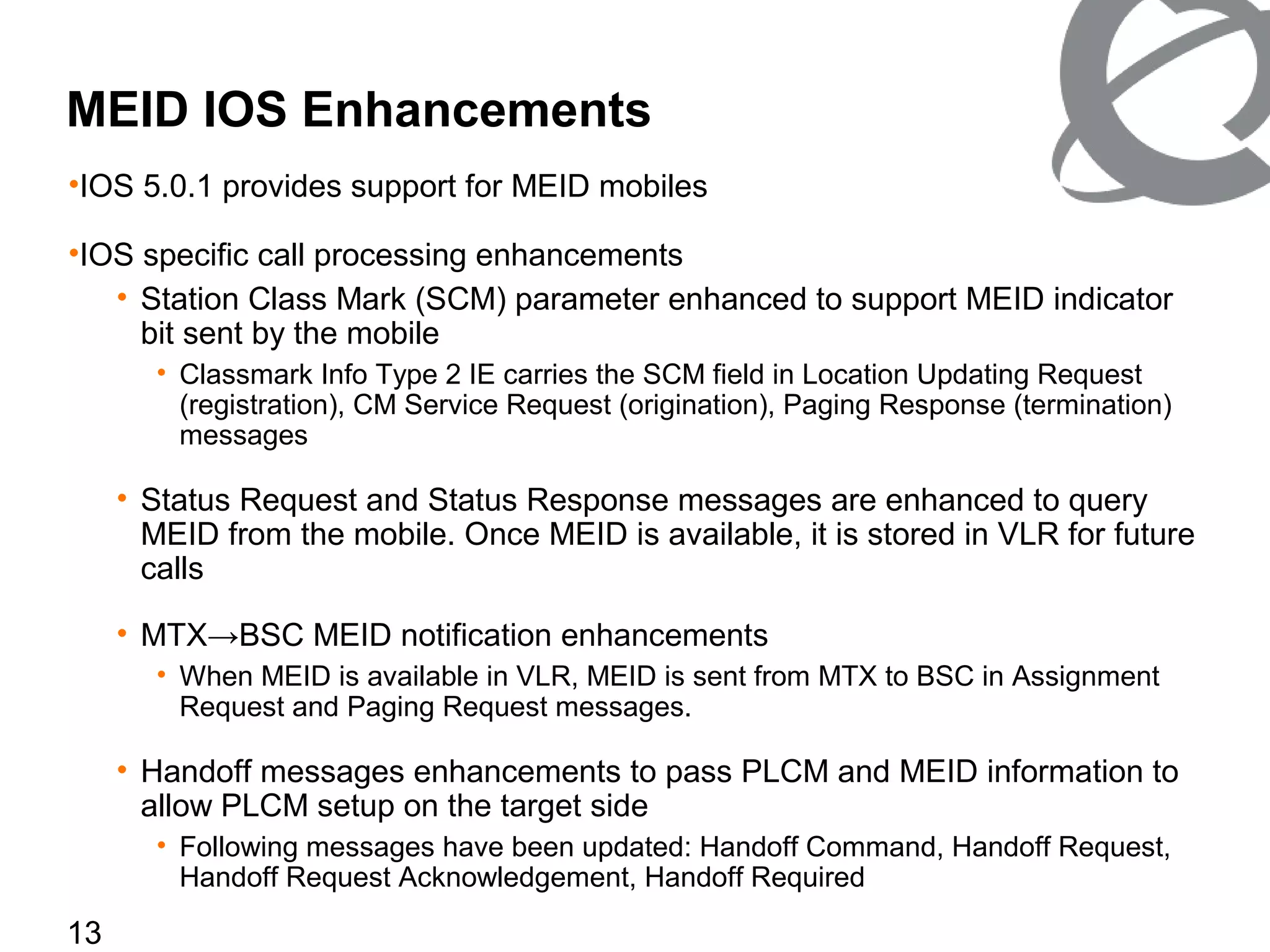

MEID IOS Enhancements
•IOS 5.0.1 provides support for MEID mobiles
•IOS specific call processing enhancements
• Station Class Mark (SCM) parameter enhanced to support MEID indicator
bit sent by the mobile
• Classmark Info Type 2 IE carries the SCM field in Location Updating Request
(registration), CM Service Request (origination), Paging Response (termination)
messages
• Status Request and Status Response messages are enhanced to query
MEID from the mobile. Once MEID is available, it is stored in VLR for future
calls
• MTX→BSC MEID notification enhancements
• When MEID is available in VLR, MEID is sent from MTX to BSC in Assignment
Request and Paging Request messages.
• Handoff messages enhancements to pass PLCM and MEID information to
allow PLCM setup on the target side
• Following messages have been updated: Handoff Command, Handoff Request,
Handoff Request Acknowledgement, Handoff Required

14. 14

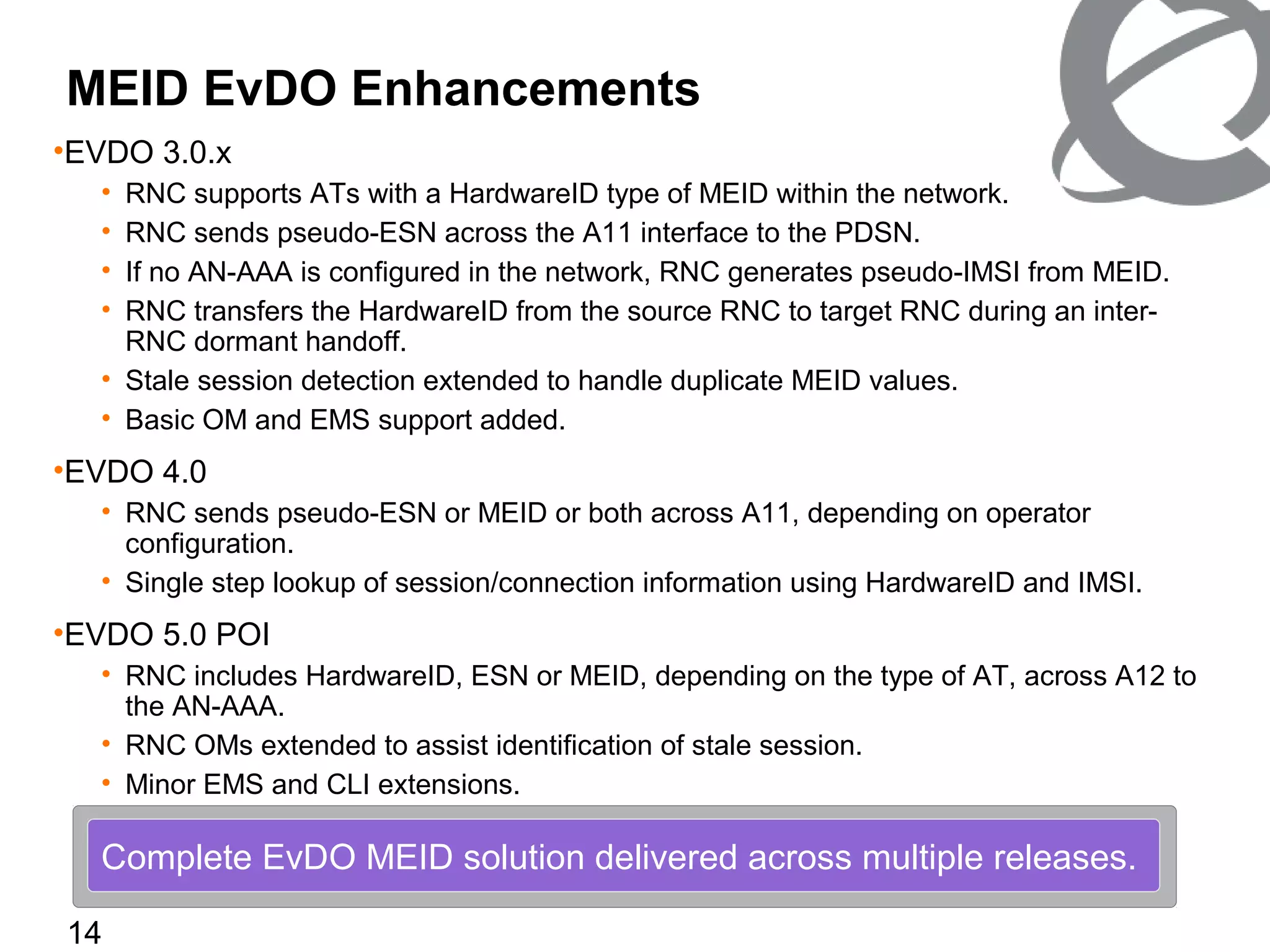

MEID EvDO Enhancements
•EVDO 3.0.x
• RNC supports ATs with a HardwareID type of MEID within the network.
• RNC sends pseudo-ESN across the A11 interface to the PDSN.
• If no AN-AAA is configured in the network, RNC generates pseudo-IMSI from MEID.
• RNC transfers the HardwareID from the source RNC to target RNC during an inter-
RNC dormant handoff.
• Stale session detection extended to handle duplicate MEID values.
• Basic OM and EMS support added.
•EVDO 4.0
• RNC sends pseudo-ESN or MEID or both across A11, depending on operator
configuration.
• Single step lookup of session/connection information using HardwareID and IMSI.
•EVDO 5.0 POI
• RNC includes HardwareID, ESN or MEID, depending on the type of AT, across A12 to
the AN-AAA.
• RNC OMs extended to assist identification of stale session.
• Minor EMS and CLI extensions.
Complete EvDO MEID solution delivered across multiple releases.

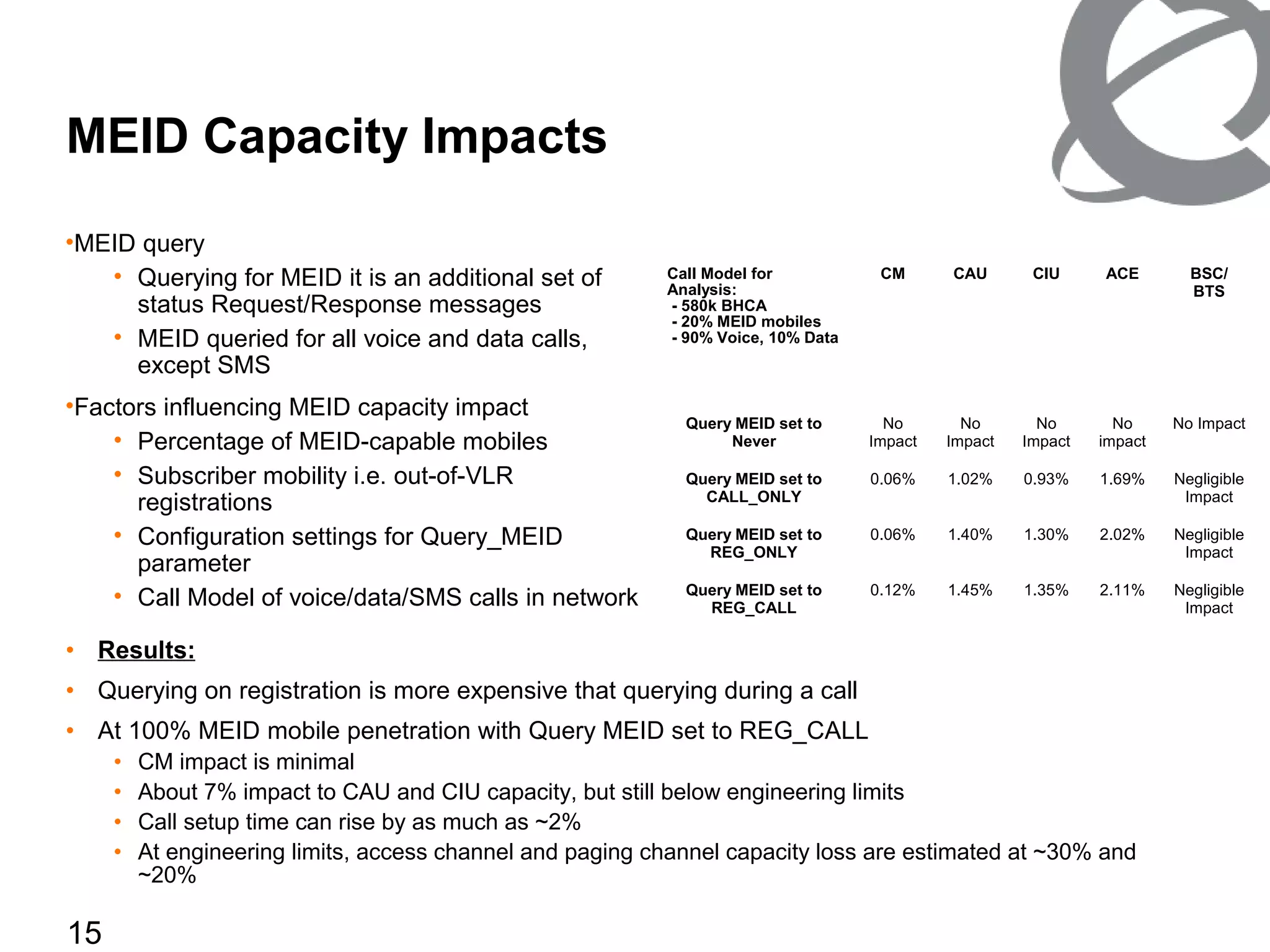

15. 15
MEID Capacity Impacts
•MEID query
• Querying for MEID it is an additional set of
status Request/Response messages
• MEID queried for all voice and data calls,
except SMS
•Factors influencing MEID capacity impact
• Percentage of MEID-capable mobiles
• Subscriber mobility i.e. out-of-VLR
registrations
• Configuration settings for Query_MEID
parameter
• Call Model of voice/data/SMS calls in network
Call Model for
Analysis:
- 580k BHCA
- 20% MEID mobiles
- 90% Voice, 10% Data
CM CAU CIU ACE BSC/
BTS
Query MEID set to
Never
No
Impact
No
Impact
No
Impact
No
impact
No Impact
Query MEID set to
CALL_ONLY
0.06% 1.02% 0.93% 1.69% Negligible
Impact
Query MEID set to
REG_ONLY
0.06% 1.40% 1.30% 2.02% Negligible
Impact
Query MEID set to
REG_CALL
0.12% 1.45% 1.35% 2.11% Negligible
Impact
• Results:
• Querying on registration is more expensive that querying during a call
• At 100% MEID mobile penetration with Query MEID set to REG_CALL
• CM impact is minimal
• About 7% impact to CAU and CIU capacity, but still below engineering limits
• Call setup time can rise by as much as ~2%
• At engineering limits, access channel and paging channel capacity loss are estimated at ~30% and
~20%

16. 16
MTX15: MEID Validation Feature

17. 17

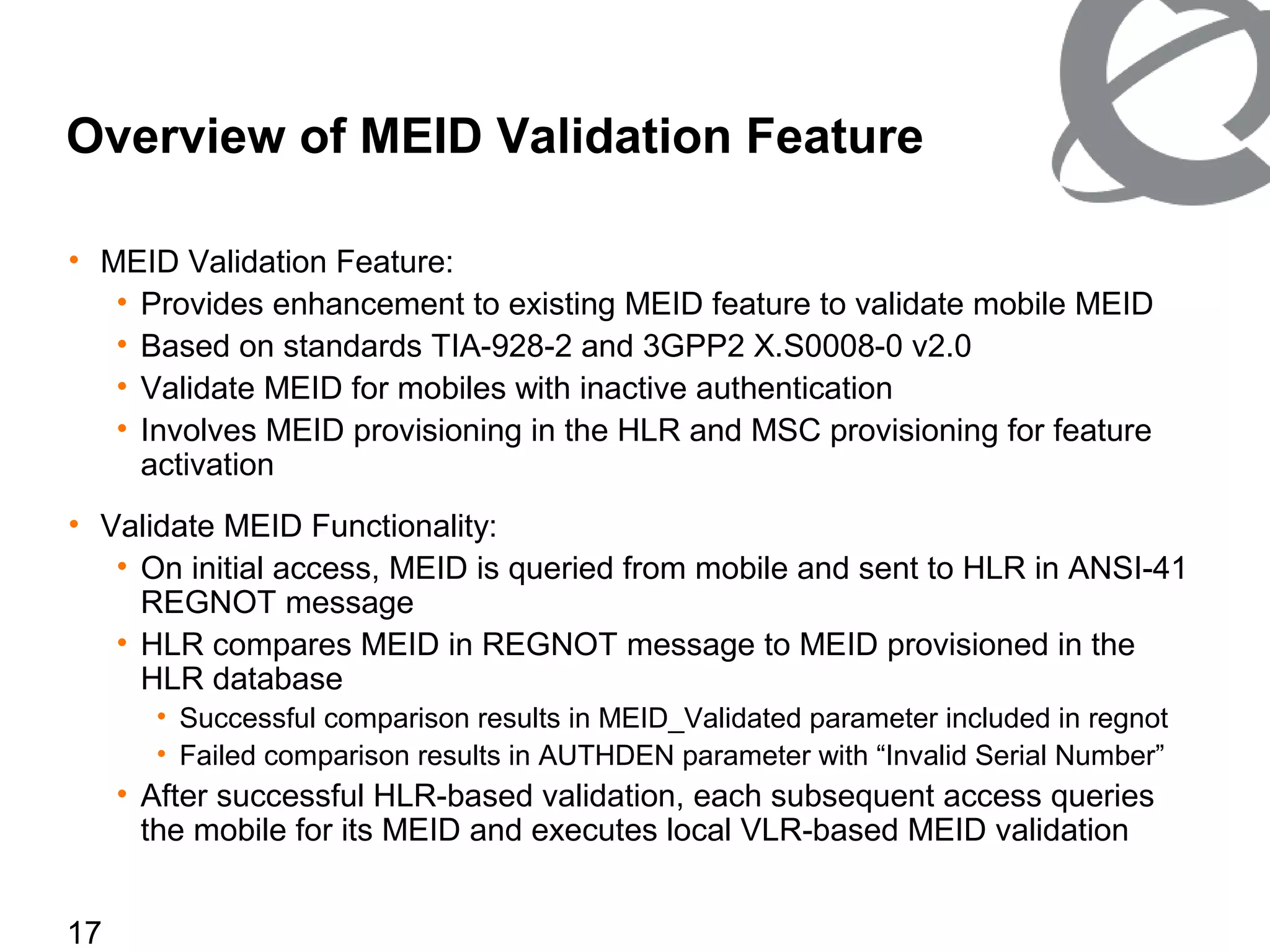

Overview of MEID Validation Feature
• MEID Validation Feature:
• Provides enhancement to existing MEID feature to validate mobile MEID
• Based on standards TIA-928-2 and 3GPP2 X.S0008-0 v2.0
• Validate MEID for mobiles with inactive authentication
• Involves MEID provisioning in the HLR and MSC provisioning for feature
activation
• Validate MEID Functionality:
• On initial access, MEID is queried from mobile and sent to HLR in ANSI-41
REGNOT message
• HLR compares MEID in REGNOT message to MEID provisioned in the
HLR database
• Successful comparison results in MEID_Validated parameter included in regnot
• Failed comparison results in AUTHDEN parameter with “Invalid Serial Number”
• After successful HLR-based validation, each subsequent access queries
the mobile for its MEID and executes local VLR-based MEID validation

18. 18

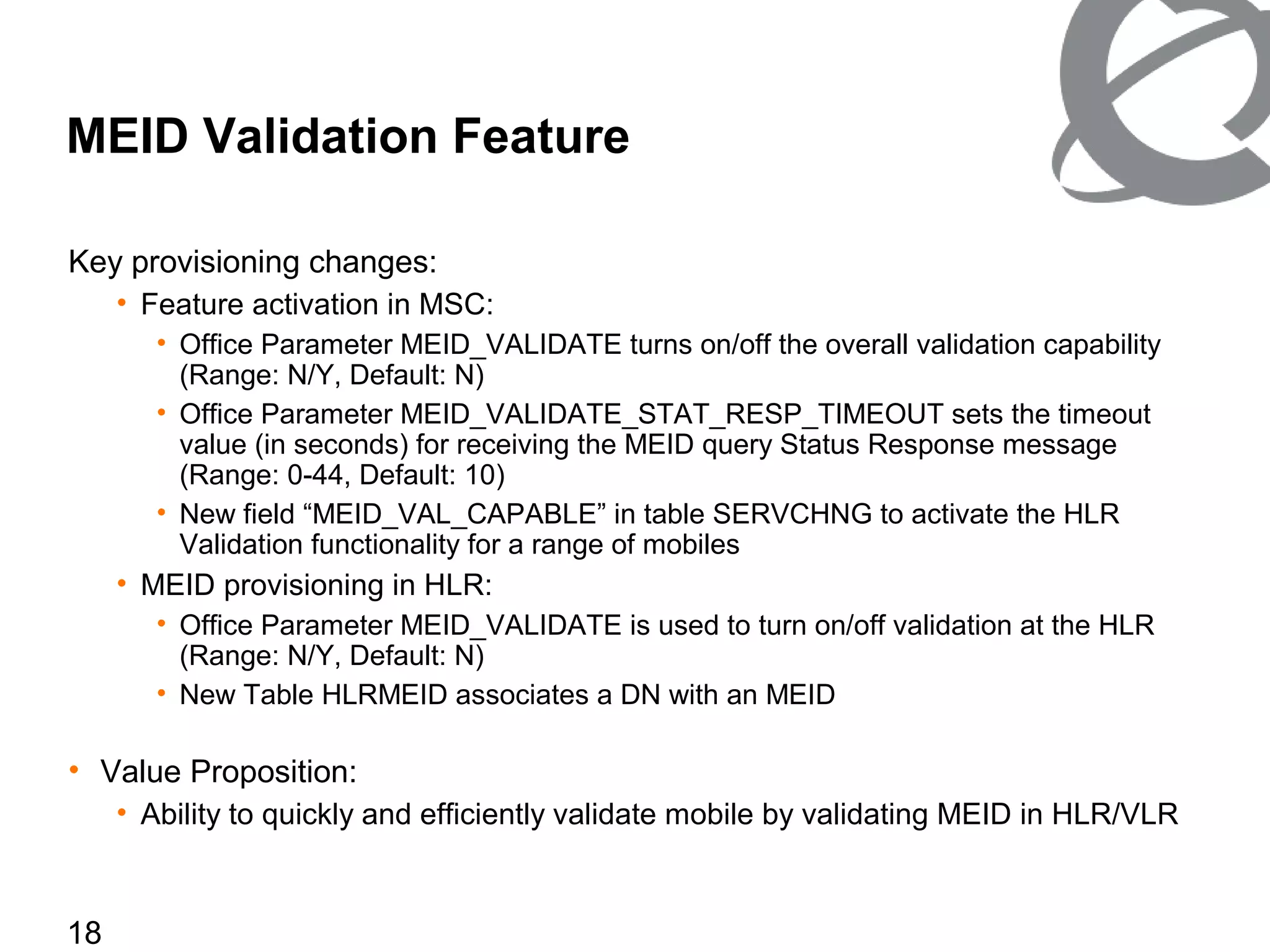

MEID Validation Feature
Key provisioning changes:
• Feature activation in MSC:
• Office Parameter MEID_VALIDATE turns on/off the overall validation capability
(Range: N/Y, Default: N)
• Office Parameter MEID_VALIDATE_STAT_RESP_TIMEOUT sets the timeout
value (in seconds) for receiving the MEID query Status Response message
(Range: 0-44, Default: 10)
• New field “MEID_VAL_CAPABLE” in table SERVCHNG to activate the HLR
Validation functionality for a range of mobiles
• MEID provisioning in HLR:
• Office Parameter MEID_VALIDATE is used to turn on/off validation at the HLR
(Range: N/Y, Default: N)
• New Table HLRMEID associates a DN with an MEID
• Value Proposition:
• Ability to quickly and efficiently validate mobile by validating MEID in HLR/VLR

19. 19
Summary

20. 20

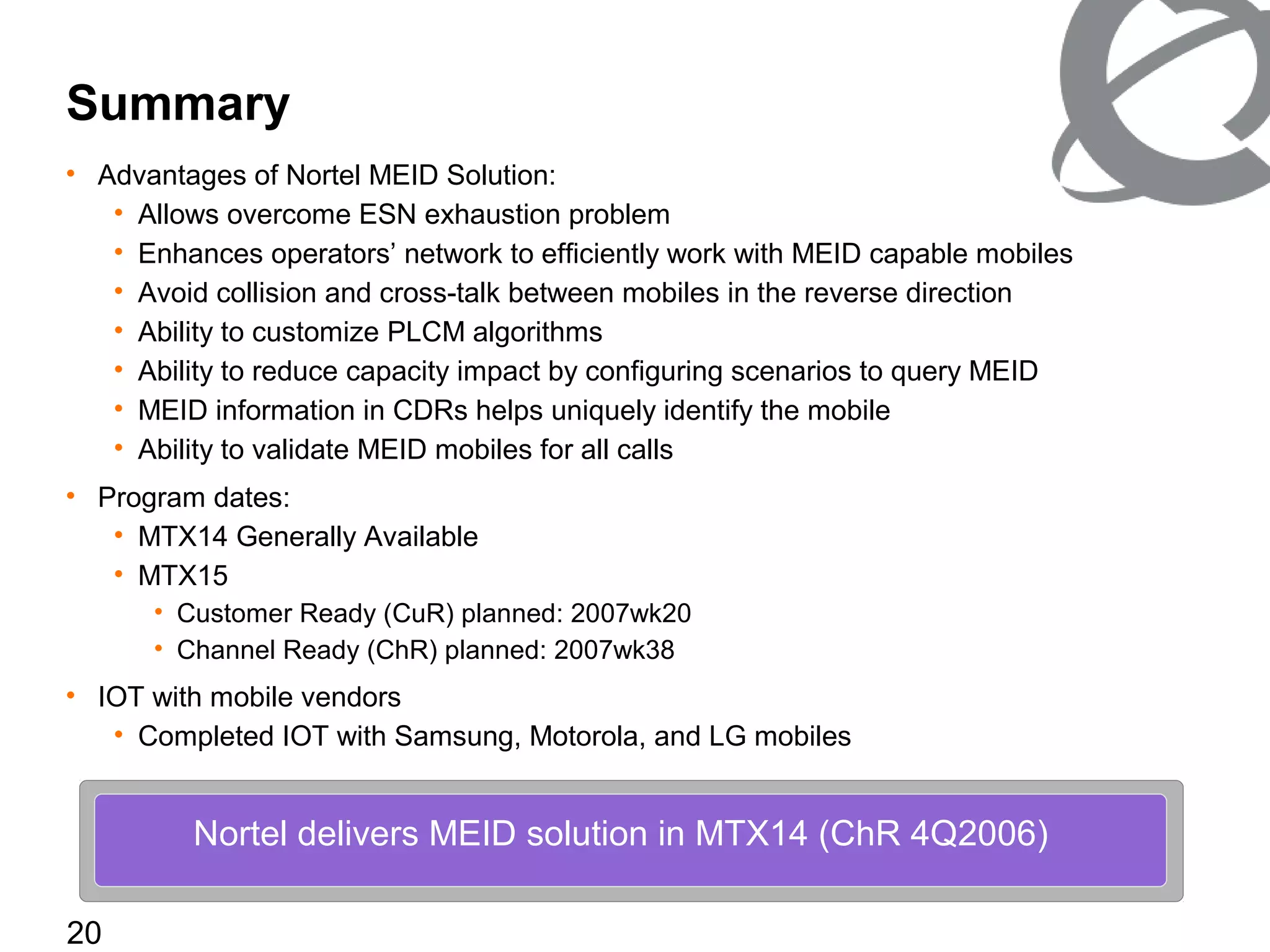

Summary
• Advantages of Nortel MEID Solution:
• Allows overcome ESN exhaustion problem
• Enhances operators’ network to efficiently work with MEID capable mobiles
• Avoid collision and cross-talk between mobiles in the reverse direction
• Ability to customize PLCM algorithms
• Ability to reduce capacity impact by configuring scenarios to query MEID
• MEID information in CDRs helps uniquely identify the mobile
• Ability to validate MEID mobiles for all calls
• Program dates:
• MTX14 Generally Available
• MTX15
• Customer Ready (CuR) planned: 2007wk20
• Channel Ready (ChR) planned: 2007wk38
• IOT with mobile vendors
• Completed IOT with Samsung, Motorola, and LG mobiles
Nortel delivers MEID solution in MTX14 (ChR 4Q2006)

21. 21

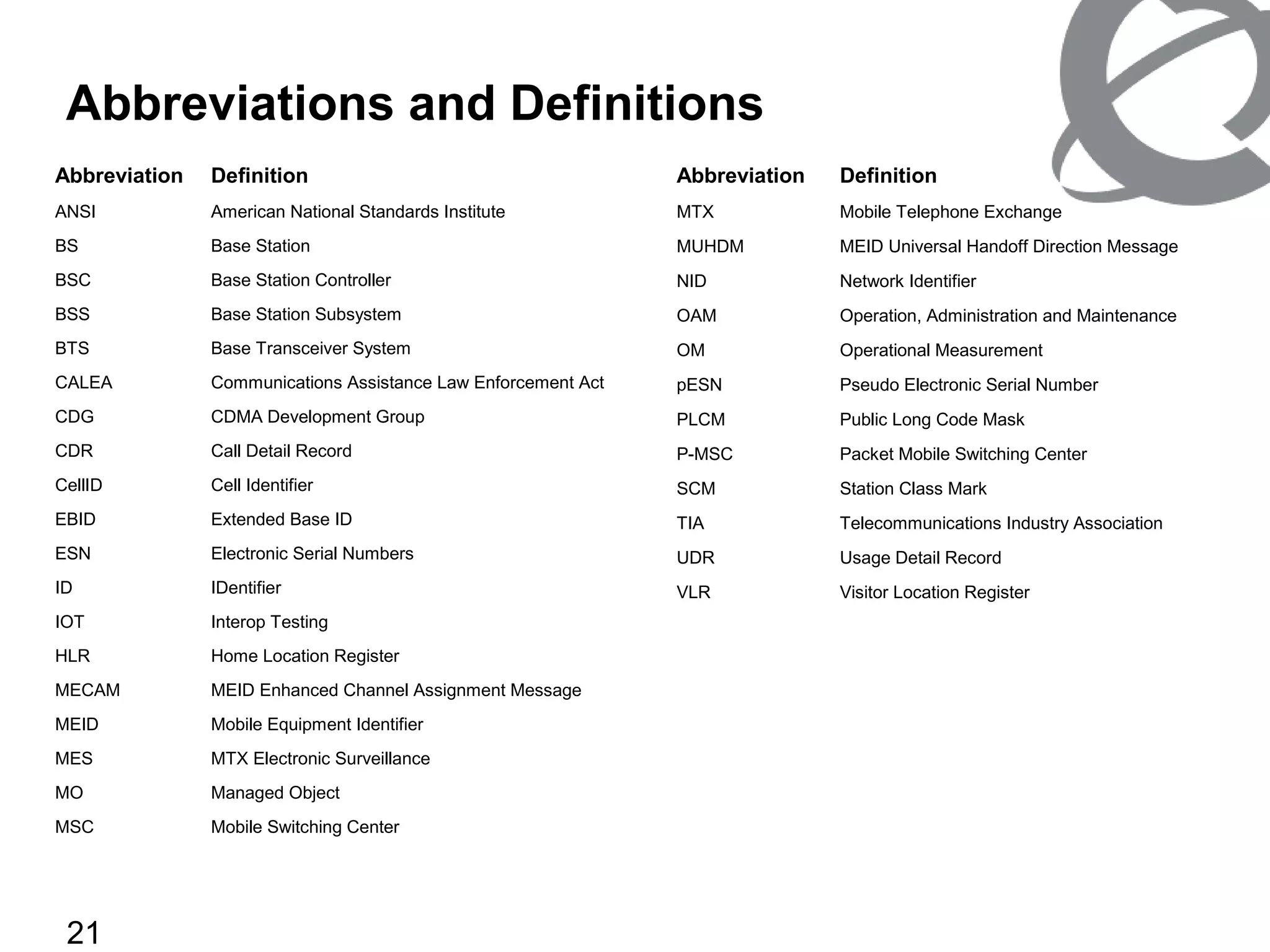

Abbreviations and Definitions
Abbreviation Definition
ANSI American National Standards Institute
BS Base Station
BSC Base Station Controller
BSS Base Station Subsystem
BTS Base Transceiver System
CALEA Communications Assistance Law Enforcement Act
CDG CDMA Development Group
CDR Call Detail Record
CellID Cell Identifier
EBID Extended Base ID
ESN Electronic Serial Numbers
ID IDentifier
IOT Interop Testing
HLR Home Location Register
MECAM MEID Enhanced Channel Assignment Message
MEID Mobile Equipment Identifier
MES MTX Electronic Surveillance
MO Managed Object
MSC Mobile Switching Center
Abbreviation Definition
MTX Mobile Telephone Exchange
MUHDM MEID Universal Handoff Direction Message
NID Network Identifier
OAM Operation, Administration and Maintenance
OM Operational Measurement
pESN Pseudo Electronic Serial Number
PLCM Public Long Code Mask
P-MSC Packet Mobile Switching Center
SCM Station Class Mark
TIA Telecommunications Industry Association
UDR Usage Detail Record
VLR Visitor Location Register
