Multicarrier Interworking Strategy and Parameters for Hanoi
Network

2. HISILICON SEMICONDUCTORHUAWEI TECHNOLOGIES CO., LTD. Page 2
Contents
1 Interworking Strategy
2 U2100 Network Strategy
3 U900 Network Strategy
4 GSM Network Strategy

3. HUAWEI TECHNOLOGIES CO., LTD. Page 3

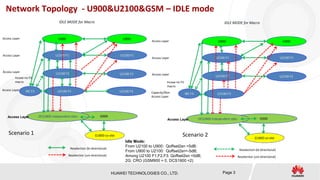

Network Topology - U900&U2100&GSM – IDLE mode
Reselection (bi-directional)
Reselection (uni-directional)
G900
U2100 F2Access Layer
U2100 F3
Access Layer U2100 F1 U2100 F1
U2100 F2
Capacity/Non
Access Layer
G1800 co-site
DCS1800 independent sites
Scenario 2
U900 U900Access Layer
Access Layer
Reselection (bi-directional)
Reselection (uni-directional)
G900
U2100 F2Access Layer
U2100 F3
IDLE MODE for Macro
Access Layer U2100 F1 U2100 F1
U2100 F2
Access Layer
G1800 co-site
DCS1800 independent sites
Scenario 1
U900 U900Access Layer
Access Layer
U2100 F3
Idle Mode:
From U2100 to U900: Qoffset2sn =5dB;
From U900 to U2100: Qoffset2sn=-5dB;
Among U2100 F1,F2,F3: Qoffset2sn =0dB;
2G: CRO (GSM900 = 0, DCS1800 =2)
IBC F3
IBC F3
Incase no F3
macro Incase no F3
macro
IDLE MODE for Macro

4. HUAWEI TECHNOLOGIES CO., LTD. Page 4
Network Topology - U900&U2100&GSM – Connected mode
G900
G1800 co-site
Coverage-based (uni-
directional)Traffic -based (uni-directional)
HSPA RAB DRD (co-sector, bi and uni-directional)
Coverage-based CS & PS IFHO
For LDR ,2 possibilities :
-Blind HO (F1 to F2, F1 to
F3, F2 to F3)
-Measurement based HO
(F3 to F1)
DCS1800 independent
sites
CS Inter-RAT and
LDR (to G900)
Load balance layer
U2100 F2
CONNECTED MODE for Macro
U2100 F1U2100 F1
U2100 F3
U2100 F2
IFHO LDR (co-sector, bi and uni-directional)
Scenario 2
U900U900
G900
G1800 co-site
Coverage-based (uni-
directional)Traffic -based (uni-directional)
HSPA RAB DRD (co-sector, bi and uni-directional)
Coverage-based CS & PS IFHO
For LDR ,2 possibilities :
-Blind HO (F1 to F2, F1 to
F3, F2 to F3)
-Measurement based HO (
F3 to F1)
DCS1800 independent
sites
CS Inter-RAT and LDR
(to G900)
Load balance layer
U2100 F2
CONNECTED MODE for MACRO CELLs
U2100 F1U2100 F1
U2100 F3
U2100 F2
IFHO LDR (co-sector, bi and uni-directional)
Scenario 1
U900U900
U2100 F3
IntraFreq HO IntraFreq HO

5. HUAWEI TECHNOLOGIES CO., LTD. Page 5
Contents
1 Interworking Strategy
2 U2100 Network Strategy
3 U900 Network Strategy
4 GSM Network Strategy

6. HUAWEI TECHNOLOGIES CO., LTD. Page 6
3G Multicarrier Strategy for Macro
Strategy for Macro 3G cells:
I. Based on the current situation:
 Ha Noi Network already applied for Random camping to share the network resource and
capacity.
 Data traffic and DL/UL throughput are preferred to increase for better user experience
 The distribution of F3 Carrier in whole 9 Ha Noi RNCs
We suggest Random camping strategy in Ha Noi as 2 scenarios below:
Scenarios 1: For RNC more than 80% number of cells already have F3 (1109, 1110, 1112,
1113)
1. Idle mode: UE will camp on F1, F2, F3 randomly.
2. Dedicated mode:
 F1 carrier: R99 + HSPA
 F2 Carrier: R99 + HSPA
 F3 Carrier: R99 + HSPA

7. HUAWEI TECHNOLOGIES CO., LTD. Page 7
Based on Carrier Distribution, we can see that 5 RNC has number of F3 cells less than 80% (1111, 1114, 1115, 1116,
1117), we suggest to Let F3 share the data mostly and idle mode only camping on F1 and F2 due to continuous
coverage. This can provide more data resource for network.
Scenarios 2: For RNC less than 80% number of cells already have F3:
1. Idle mode: UE will camp on F1 and F2 randomly.
2. Dedicated mode:
 F1 carrier: R99 + HSPA
 F2 Carrier: R99 + HSPA
 F3 Carrier: HSPA (before: F3 carrier for R99 + HSPA)
3G Multicarrier Strategy for Macro

8. HUAWEI TECHNOLOGIES CO., LTD. Page 8

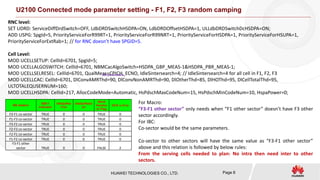

U2100 Connected mode parameter setting - F1, F2, F3 random camping
RNC level:
SET UDRD: ServiceDiffDrdSwitch=OFF, LdbDRDSwitchHSDPA=ON, LdbDRDOffsetHSDPA=1, ULLdbDRDSwitchDcHSDPA=ON;
ADD USPG: SpgId=5, PriorityServiceForR99RT=1, PriorityServiceForR99NRT=1, PriorityServiceForHSDPA=1, PriorityServiceForHSUPA=1,
PriorityServiceForExtRab=1; // for RNC doesn’t have SPGID=5.
Cell Level:
MOD UCELLSETUP: CellId=6701, SpgId=5;
MOD UCELLALGOSWITCH: CellId=6701, NBMCacAlgoSwitch=HSDPA_GBP_MEAS-1&HSDPA_PBR_MEAS-1;
MOD UCELLSELRESEL: CellId=6701, QualMeas=CPICH_ECNO, IdleSintersearch=4; // IdleSintersearch=4 for all cell in F1, F2, F3
MOD UCELLCAC: CellId=6701, DlConvAMRThd=90, DlConvNonAMRThd=90, DlOtherThd=85, DlHOThd=95, DlCellTotalThd=95,
ULTOTALEQUSERNUM=160;
MOD UCELLHSDPA: CellId=217, AllocCodeMode=Automatic, HsPdschMaxCodeNum=15, HsPdschMinCodeNum=10, HspaPower=0;
NB relation
SIB11
Indicator
IdleQoffse
t1sn
IdleQoffset2
sn
Blind
Handov
er Flag
HOCovPrio
F3-F1 co-sector TRUE 0 0 TRUE 0
F1-F3 co-sector TRUE 0 0 TRUE 0
F3-F2 co-sector TRUE 0 0 TRUE 0
F2-F3 co-sector TRUE 0 0 TRUE 0
F2-F1 co-sector TRUE 0 0 TRUE 0
F1-F2 co-sector TRUE 0 0 TRUE 0
F3-F1 other
sector TRUE 0 0 FALSE 2
NB parameters:
For Macro:
“F3-F1 other sector” only needs when “F1 other sector” doesn’t have F3 other
sector accordingly.
For IBC:
Co-sector would be the same parameters.
Co-sector to other sectors will have the same value as “F3-F1 other sector”
above and this relation is followed by below rules:
From the serving cells needed to plan: No intra then need inter to other
sectors.

9. HUAWEI TECHNOLOGIES CO., LTD. Page 9

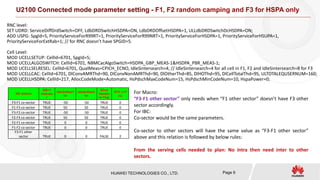

U2100 Connected mode parameter setting - F1, F2 random camping and F3 for HSPA only
For Macro:
“F3-F1 other sector” only needs when “F1 other sector” doesn’t have F3 other
sector accordingly.
For IBC:
Co-sector would be the same parameters.
Co-sector to other sectors will have the same value as “F3-F1 other sector”
above and this relation is followed by below rules:
From the serving cells needed to plan: No intra then need inter to other
sectors.
RNC level:
SET UDRD: ServiceDiffDrdSwitch=OFF, LdbDRDSwitchHSDPA=ON, LdbDRDOffsetHSDPA=1, ULLdbDRDSwitchDcHSDPA=ON;
ADD USPG: SpgId=5, PriorityServiceForR99RT=1, PriorityServiceForR99NRT=1, PriorityServiceForHSDPA=1, PriorityServiceForHSUPA=1,
PriorityServiceForExtRab=1; // for RNC doesn’t have SPGID=5.
Cell Level:
MOD UCELLSETUP: CellId=6701, SpgId=5;
MOD UCELLALGOSWITCH: CellId=6701, NBMCacAlgoSwitch=HSDPA_GBP_MEAS-1&HSDPA_PBR_MEAS-1;
MOD UCELLSELRESEL: CellId=6701, QualMeas=CPICH_ECNO, IdleSintersearch=4; // IdleSintersearch=4 for all cell in F1, F2 and IdleSintersearch=8 for F3
MOD UCELLCAC: CellId=6701, DlConvAMRThd=90, DlConvNonAMRThd=90, DlOtherThd=85, DlHOThd=95, DlCellTotalThd=95, ULTOTALEQUSERNUM=160;
MOD UCELLHSDPA: CellId=217, AllocCodeMode=Automatic, HsPdschMaxCodeNum=15, HsPdschMinCodeNum=10, HspaPower=0;
NB relation
SIB11
Indicato
r
IdleQoffset1
sn
IdleQoffset2
sn
Blind
Handov
er Flag
HOCovP
rio
F3-F1 co-sector TRUE -50 -50 TRUE 0
F1-F3 co-sector TRUE 50 50 TRUE 0
F3-F2 co-sector TRUE -50 -50 TRUE 0
F2-F3 co-sector TRUE 50 50 TRUE 0
F2-F1 co-sector TRUE 0 0 TRUE 0
F1-F2 co-sector TRUE 0 0 TRUE 0
F3-F1 other
sector TRUE 0 0 FALSE 2

10. HUAWEI TECHNOLOGIES CO., LTD. Page 10
Contents
1 Interworking Strategy
2 U2100 Network Strategy
3 U900 Network Strategy
4 GSM Network Strategy

11. HUAWEI TECHNOLOGIES CO., LTD. Page 11

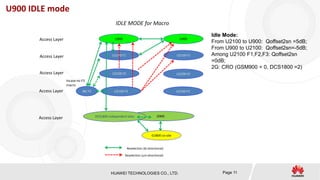

U900 IDLE mode
Reselection (bi-directional)
Reselection (uni-directional)
G900
U2100 F2Access Layer
U2100 F3
IDLE MODE for Macro
Access Layer U2100 F1 U2100 F1
U2100 F2
Access Layer
G1800 co-site
DCS1800 independent sites
U900 U900Access Layer
Access Layer
U2100 F3
Idle Mode:
From U2100 to U900: Qoffset2sn =5dB;
From U900 to U2100: Qoffset2sn=-5dB;
Among U2100 F1,F2,F3: Qoffset2sn
=0dB;
2G: CRO (GSM900 = 0, DCS1800 =2)
IBC F3
Incase no F3
macro

12. HUAWEI TECHNOLOGIES CO., LTD. Page 12

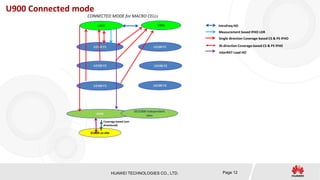

U900 Connected mode
G900
G1800 co-site
Coverage-based (uni-
directional)
DCS1800 independent
sites
U2100 F2
CONNECTED MODE for MACRO CELLs
U2100 F1U2100 F1
U2100 F3
U2100 F2
U900U900
U2100 F3
IntraFreq HO
Single direction Coverage-based CS & PS IFHO
Measurement based IFHO LDR
InterRAT Load HO
Bi-direction Coverage-based CS & PS IFHO

13. HUAWEI TECHNOLOGIES CO., LTD. Page 13

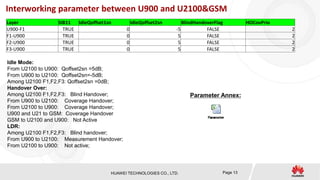

Interworking parameter between U900 and U2100&GSM
Idle Mode:
From U2100 to U900: Qoffset2sn =5dB;
From U900 to U2100: Qoffset2sn=-5dB;
Among U2100 F1,F2,F3: Qoffset2sn =0dB;
Handover Over:
Among U2100 F1,F2,F3: Blind Handover;
From U900 to U2100: Coverage Handover;
From U2100 to U900: Coverage Handover;
U900 and U21 to GSM: Coverage Handover
GSM to U2100 and U900: Not Active
LDR:
Among U2100 F1,F2,F3: Blind handover;
From U900 to U2100: Measurement Handover;
From U2100 to U900: Not active;
Parameter Annex:
Layer SIB11 IdleQoffset1sn IdleQoffset2sn BlindHandoverFlag HOCovPrio
U900-F1 TRUE 0 -5 FALSE 2
F1-U900 TRUE 0 5 FALSE 2
F2-U900 TRUE 0 5 FALSE 2
F3-U900 TRUE 0 5 FALSE 2

14. HUAWEI TECHNOLOGIES CO., LTD. Page 14
Contents
1 Interworking Strategy
2 U2100 Network Strategy
3 U900 Network Strategy
4 GSM Network Strategy

15. HUAWEI TECHNOLOGIES CO., LTD. Page 15

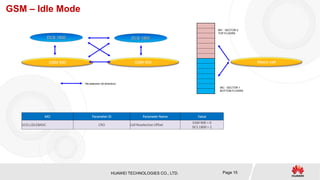

GSM – Idle Mode
GSM 900
DCS 1800
GSM 900
DCS 1800
Re-selection (bi-direction)
Macro cell
IBC - SECTOR 2
TOP FLOORS
IBC - SECTOR 1
BOTTOM FLOORS
MO Parameter ID Parameter Name Value
GCELLIDLEBASIC CRO Cell Reselection Offset
GSM 900 = 0
DCS 1800 = 2

16. HUAWEI TECHNOLOGIES CO., LTD. Page 16

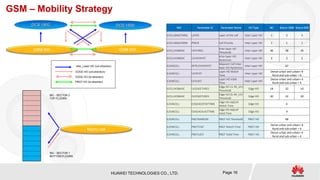

GSM – Mobility Strategy
MO Parameter ID Parameter Name HO Type IBC Macro 1800 Macro 900
GCELLBASICPARA LAYER Layer of the cell Inter Layer HO 1 2 3
GCELLBASICPARA PRIOR Cell Priority Inter Layer HO 1 1 1
GCELLHOBASIC HOTHRES
Inter-layer HO
Threshold
Inter Layer HO 36 38 35
GCELLHOBASIC LEVHOHYST
Inter-layer HO
Hysteresis
Inter Layer HO 2 2 2
G2GNCELL INTELEVHOHYST
Adjacent Cell Inter-
layer HO Hysteresis
Inter Layer HO 67
G2GNCELL LEVSTAT
Layer HO Watch
Time
Inter Layer HO
Dense-urban and urban= 8
Rural and sub-urban = 6
G2GNCELL LEVLAST
Layer HO Valid
Time
Inter Layer HO
Dense-urban and urban= 6
Rural and sub-urban = 4
GCELLHOBASIC ULEDGETHRES
Edge HO UL RX_LEV
Threshold
Edge HO 18 22 10
GCELLHOBASIC DLEDGETHRES
Edge HO DL RX_LEV
Threshold
Edge HO 30 32 20
G2GNCELL EDGEADJSTATTIME
Edge HO AdjCell
Watch Time
Edge HO 6
G2GNCELL EDGEADJLASTTIME
Edge HO AdjCell
Valid Time
Edge HO 4
G2GNCELL PBGTMARGIN PBGT HO Threshold PBGT HO 68
G2GNCELL PBGTSTAT PBGT Watch Time PBGT HO
Dense-urban and urban= 8
Rural and sub-urban = 6
G2GNCELL PBGTLAST PBGT Valid Time PBGT HO
Dense-urban and urban= 6
Rural and sub-urban = 4
GSM 900
DCS 1800
GSM 900
DCS 1800
Inter_Layer HO (uni-direction)
PBGT HO (bi-direction)
EDGE HO (uni-direction)
EDGE HO (bi-direction)
Macro cell
IBC - SECTOR 2
TOP FLOORS
IBC - SECTOR 1
BOTTOM FLOORS

17. HUAWEI TECHNOLOGIES CO., LTD. Page 17

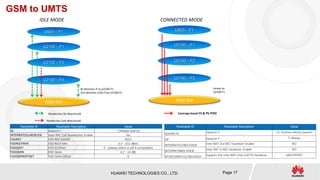

GSM to UMTS
U2100 – F2
GSM 900
U900 – F1
U2100 – F1
U2100 – F3
Bi-direction if no U2100-F1
Uni-direction U2G if has U2100-F1
IDLE MODE
U2100 – F2
GSM 900
U900 – F1
U2100 – F1
U2100 – F3
Incase no
U2100-F1
CONNECTED MODE
Coverage-based CS & PS IFHOReselection (bi-directional)
Reselection (uni-directional)
Parameter ID Parameter Description Value
QI Qsearch I 7 (Always search)
INTERRATCELLRESELEN Inter-RAT Cell Reselection Enable Yes
FDDREP FDD REP QUANT RSCP
FDDRSCPMIN FDD RSCP Min. 6 (~ -102 dBm)
FDDQOFF FDD Q Offset 0 - (always select a cell if acceptable)
FDDQMIN FDD Qmin 6 (~ -14 dB)
FDDQMINOFFSET FDD Qmin Offset 0
Parameter ID Parameter Description Value
QSEARCHC Qsearch C 15: Positive infinity (never)
QP Qsearch P 7: Always
INTERRATOUTBSCHOEN Inter-RAT Out BSC Handover Enable NO
INTERRATINBSCHOEN Inter-RAT In BSC Handover Enable YES
SPTINTERRATOUTBSCPSHO Support Out Inter-RAT Inter-Cell PS Handover UNSUPPORT

18. HUAWEI TECHNOLOGIES CO., LTD. Page 18
THANK YOU!
