use full for B. Pharmacy 5th semester

1. Suresh Bairi MS.(Pharm.), (Ph. D) Asst. Professor
UCPS, Palamuru University, MBNR
Medicinal Chemistry of Local
Anaesthetics
1

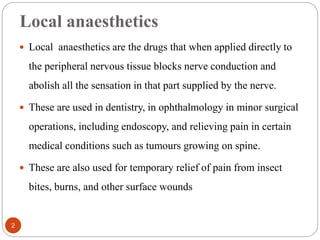

2. Local anaesthetics
 Local anaesthetics are the drugs that when applied directly to
the peripheral nervous tissue blocks nerve conduction and
abolish all the sensation in that part supplied by the nerve.
 These are used in dentistry, in ophthalmology in minor surgical
operations, including endoscopy, and relieving pain in certain
medical conditions such as tumours growing on spine.
 These are also used for temporary relief of pain from insect
bites, burns, and other surface wounds
2

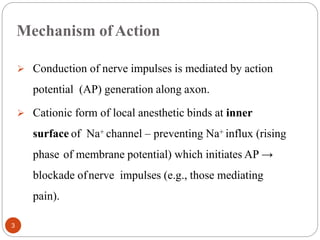

3. Mechanism ofAction
 Conduction of nerve impulses is mediated by action
potential (AP) generation along axon.
 Cationic form of local anesthetic binds at inner
surface of Na+ channel – preventing Na+ influx (rising
phase of membrane potential) which initiates AP →
blockade ofnerve impulses (e.g., those mediating
pain).
3

4. Cont..
4

5. Cont..
5

6. General classification of local anaesthetics
1. Natural agents : Cocain
2. Synthetic nitrogenous compounds
i)Derivatives of benzoic acid: Hexylocaine, cyclomethacain, meprylcain
ii)P-amino benzoic acid derivatives: benzocain, procain, butacain, propoxycain
iii) Derivatives of acetanilides: lignocain, mepivacain, bupivacain
iv) Derivatives of quinolines: cinchocain, dimethisoquin
3. Synthetic non-nitrogenous agents: benzyl alcohol, propane diol
4. Miscellaneous drugs: Phenacaine, Diperodon, Dibucaine, clove oil, phenol,
chlorpromazine, antihistamines.
6

7. Natural agents
 Cocaine: it is an alkoloid obtained from
erythroxylon coccoa (first local anaesthetic)
 Employed topically 1-2% solution (earlier days)
for anaesthesia of ear, nose, throat, rectum and
vagina.
7

8. Benzoic acid derivatives
Name R R1
Hexylocain -H
Meprylocain -H
Cyclomethycain
piperocain -H
8

9. P-Aminobenzoic acid derivatives:
Name R1 R2 R3 R4 R5
Benzocain -H -H -H -
Butamben -H -H -H -
Procain -H -H -H
Butacaine -H -H -H
Propoxycai
n
-H -H -PrO
Tetracain -Bu -H -H
Bunoxynat
e
-H -BuO -H
9

10. Synthesis of Benzocain
 It is used to get rid of pain caused by wounds,
ulcers and in mucus surfaces
10

11. Synthesis of Procain
 It is used in infiltration anaethesia and
spinal anaesthesia (5-20%)
 It is not effective topically
11

12. Anilides (amide) derivatives
Name R1 R2 Description
Lidocaine
(Lignocain)
-CH3 -CH2N(C2H5) 2 Vasodilatory action, used with
vasoconstrictors
Ointments, jelly & Topical solutions
Duration 60-75min prolonged to 2hrs
Mepivacain
(carbocaine
)
-CH3 Topically not active, longer duration of
action 120-150min
Mostly used infiltration
Prilocaine -H Used for ephineprine intolerance patients
Causes methemoglobanemia
Etidocaine -CH3 More potent than lidocaine and longer
duration of action can be used by
infiltration, epidural and regional
anaesthesia
12

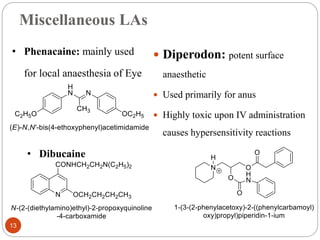

13. Miscellaneous LAs
 Diperodon: potent surface
anaesthetic
 Used primarily for anus
 Highly toxic upon IV administration
causes hypersensitivity reactions
• Phenacaine: mainly used
for local anaesthesia of Eye
• Dibucaine
13

14. Synthesis of Dibucaine
14

15. Cont..
15

16. Dibucaine
 Generally used for surface anaesthesia
 When administered by IV Inhibits plasma cholinesterase
causes toxic effect.
 Neuromuscular blockers generally administered in
anaesthesia to prevent respiratory paralysis
16

17. SAR of Local Anaesthetics
1. General SAR
LA s are broadly belongs to two main basic chemical structures 1. Esters (Procaine)
17

18. Cont..
 Amide 2. Amide ( Lidocaine)
18

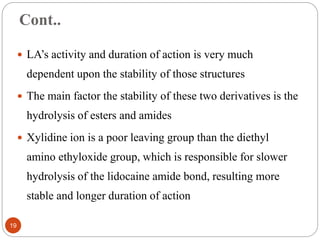

19. Cont..
 LA’s activity and duration of action is very much
dependent upon the stability of those structures
 The main factor the stability of these two derivatives is the
hydrolysis of esters and amides
 Xylidine ion is a poor leaving group than the diethyl
amino ethyloxide group, which is responsible for slower
hydrolysis of the lidocaine amide bond, resulting more
stable and longer duration of action
19

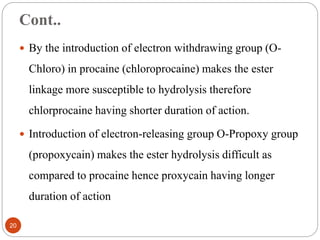

20. Cont..
 By the introduction of electron withdrawing group (O-
Chloro) in procaine (chloroprocaine) makes the ester
linkage more susceptible to hydrolysis therefore
chlorprocaine having shorter duration of action.
 Introduction of electron-releasing group O-Propoxy group
(propoxycain) makes the ester hydrolysis difficult as
compared to procaine hence proxycain having longer
duration of action
20

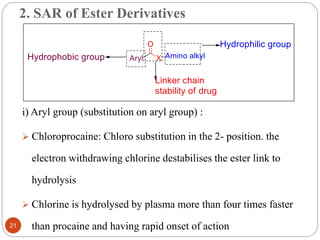

21. 2. SAR of Ester Derivatives
i) Aryl group (substitution on aryl group) :
 Chloroprocaine: Chloro substitution in the 2- position. the
electron withdrawing chlorine destabilises the ester link to
hydrolysis
 Chlorine is hydrolysed by plasma more than four times faster
than procaine and having rapid onset of action21

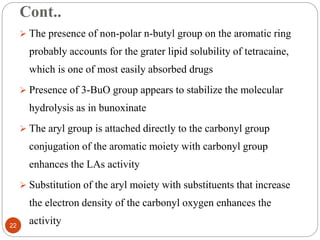

22. Cont..
 The presence of non-polar n-butyl group on the aromatic ring
probably accounts for the grater lipid solubility of tetracaine,
which is one of most easily absorbed drugs
 Presence of 3-BuO group appears to stabilize the molecular
hydrolysis as in bunoxinate
 The aryl group is attached directly to the carbonyl group
conjugation of the aromatic moiety with carbonyl group
enhances the LAs activity
 Substitution of the aryl moiety with substituents that increase
the electron density of the carbonyl oxygen enhances the
activity22

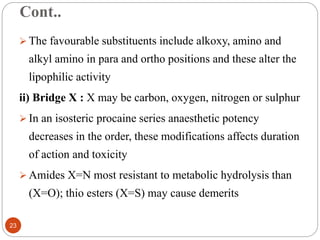

23. Cont..
 The favourable substituents include alkoxy, amino and
alkyl amino in para and ortho positions and these alter the
lipophilic activity
ii) Bridge X : X may be carbon, oxygen, nitrogen or sulphur
 In an isosteric procaine series anaesthetic potency
decreases in the order, these modifications affects duration
of action and toxicity
 Amides X=N most resistant to metabolic hydrolysis than
(X=O); thio esters (X=S) may cause demerits
23

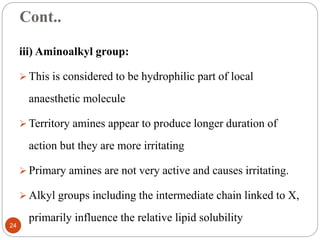

24. Cont..
iii) Aminoalkyl group:
 This is considered to be hydrophilic part of local
anaesthetic molecule
 Territory amines appear to produce longer duration of
action but they are more irritating
 Primary amines are not very active and causes irritating.
 Alkyl groups including the intermediate chain linked to X,
primarily influence the relative lipid solubility
24

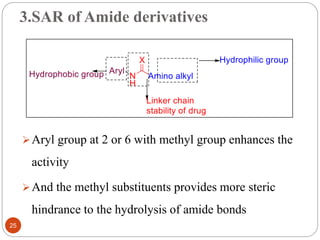

25. 3.SAR of Amide derivatives
Aryl group at 2 or 6 with methyl group enhances the
activity
And the methyl substituents provides more steric
hindrance to the hydrolysis of amide bonds
25

26. Cont..
X may be carbon(Isogramine), oxygen (Lidocaine) or
nitrogen (phenacain) Lidociane (X=O) has provided
useful product
Aminoalkyl group: it is hydrophilic portion of the
molecule and undergoes salt formation
Tertiary amines are more useful clinically and 1o, 2o
are more irritating.
26

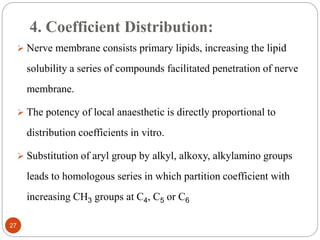

27. 4. Coefficient Distribution:
 Nerve membrane consists primary lipids, increasing the lipid
solubility a series of compounds facilitated penetration of nerve
membrane.
 The potency of local anaesthetic is directly proportional to
distribution coefficients in vitro.
 Substitution of aryl group by alkyl, alkoxy, alkylamino groups
leads to homologous series in which partition coefficient with
increasing CH3 groups at C4, C5 or C6
27

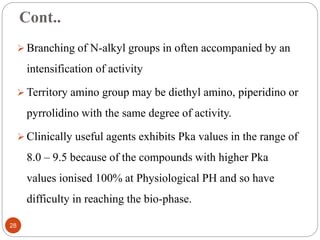

28. Cont..
 Branching of N-alkyl groups in often accompanied by an
intensification of activity
 Territory amino group may be diethyl amino, piperidino or
pyrrolidino with the same degree of activity.
 Clinically useful agents exhibits Pka values in the range of
8.0 – 9.5 because of the compounds with higher Pka
values ionised 100% at Physiological PH and so have
difficulty in reaching the bio-phase.
28
