Master Canary Forging by Yuki Koike - CODE BLUE 2015

Master Canary Forging
A new exploitation method to bypass stack canaries

Who am I?
● 小池悠生(Koike Yuki)
○ a 16-year-old student
● I had been fascinated with CTF
○ DEF CON 2014 Finalist
○ CODEGATE Junior 2015 Winner
○ now focusing on real world bug hunting and
exploitation techniques

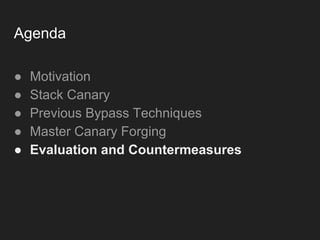

Agenda
● Motivation
● Stack Canary
● Previous Bypass Techniques
● Master Canary Forging
● Evaluation and Countermeasures

Motivation
● I love ROP
○ so I love Stack Based Buffer Overflows
○ and hate Stack Canaries
● Stack Canaries can be strong protection
○ It is worth finding ways to bypass them
○ Are there any good methods?

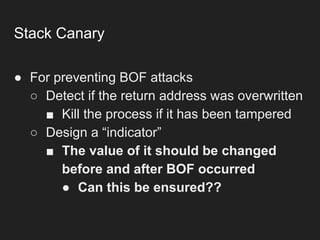

Stack Canary
● For preventing BOF attacks
○ Detect if the return address was overwritten
■ Kill the process if it has been tampered
○ Design an “indicator”
■ The value of it should be changed before
and after BOF occurred

Stack Canary
return address
frame pointer
local variables

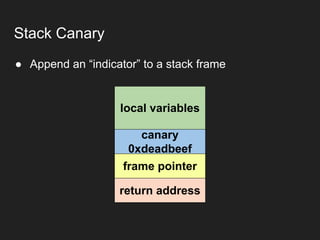

● Append an “indicator” to a stack frame
Stack Canary
return address
frame pointer
canary
0xdeadbeef
local variables

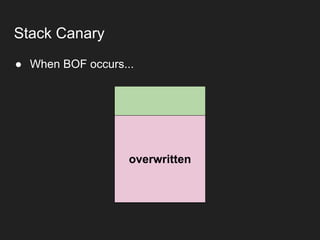

● When BOF occurs...
Stack Canary
canary
overwritten

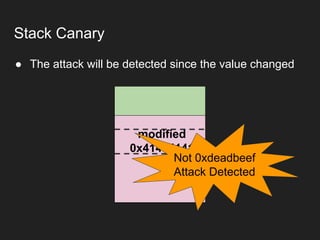

● The attack will be detected since the value changed
Stack Canary
modified
0x41414141

● The attack will be detected since the value changed
Stack Canary
modified
0x41414141
Not 0xdeadbeef
Attack Detected

Stack Canary
○ Design a “indicator”
■ The value of it should be changed before
and after BOF occurred

Stack Canary
○ Design a “indicator”
■ The value of it should be changed
before and after BOF occurred
● Can this be ensured??

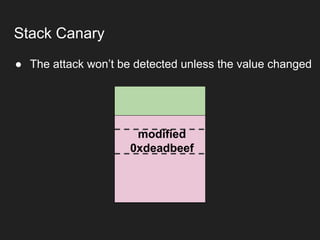

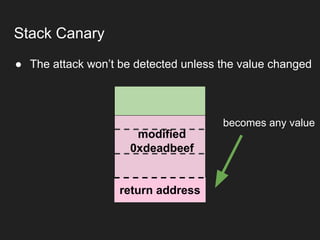

● The attack won’t be detected unless the value changed
Stack Canary
modified
0xdeadbeef

Stack Canary
modified
0xdeadbeef
return address
becomes any value

Stack Canary
⇒ACE(Arbitrary Code
Execution)

Stack Canary

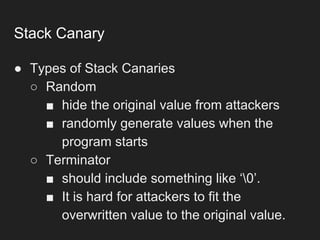

● Types of Stack Canaries
○ Random
■ hide the original value from attackers
■ randomly generate values when the
program starts
○ Terminator
■ should include something like ‘0’.
■ It is hard for attackers to fit the
overwritten value to the original value.

Stack Canary

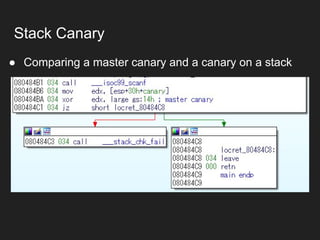

● Comparing a master canary and a canary on a stack

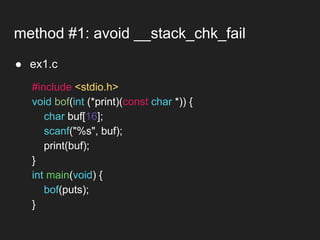

● ex1.c

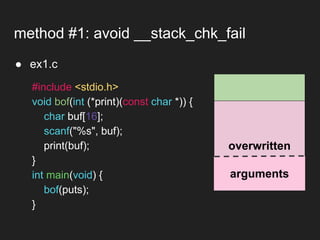

method #1: avoid __stack_chk_fail
#include <stdio.h>
void bof(int (*print)(const char *)) {
char buf[16];
scanf("%s", buf);
print(buf);
}
int main(void) {
bof(puts);
}

● ex1.c
#include <stdio.h>
char buf[16];
scanf("%s", buf);
print(buf);
}
int main(void) {
bof(puts);
}
return address
frame pointer
canary
local variables
arguments

● ex1.c
overwritten
arguments
#include <stdio.h>
char buf[16];
scanf("%s", buf);
print(buf);
}
int main(void) {
bof(puts);
}

● ex1.c
overwritten
arguments
#include <stdio.h>
char buf[16];
scanf("%s", buf);
print(buf);
}
int main(void) {
bof(puts);
}

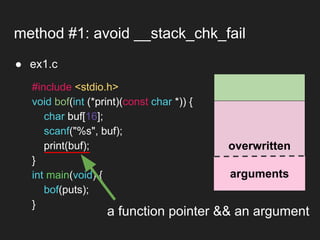

a function pointer && an argument

● ex2.c

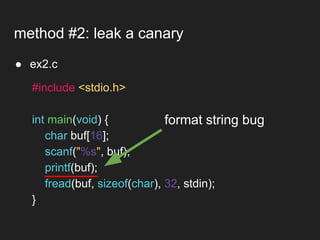

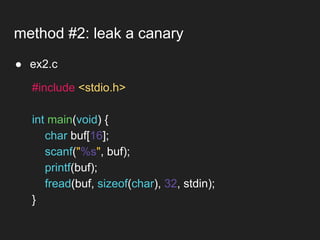

method #2: leak a canary
#include <stdio.h>
int main(void) {
char buf[16];
scanf("%s", buf);
printf(buf);
fread(buf, sizeof(char), 32, stdin);
}

● ex2.c
#include <stdio.h>
int main(void) {
char buf[16];
scanf("%s", buf);
printf(buf);
fread(buf, sizeof(char), 32, stdin);
}
format string bug

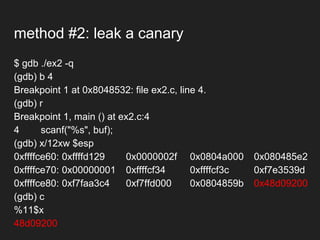

$ gdb ./ex2 -q
(gdb) b 4
Breakpoint 1 at 0x8048532: file ex2.c, line 4.
(gdb) r
Breakpoint 1, main () at ex2.c:4
4 scanf("%s", buf);
(gdb) x/12xw $esp
0xffffce60: 0xffffd129 0x0000002f 0x0804a000 0x080485e2
0xffffce70: 0x00000001 0xffffcf34 0xffffcf3c 0xf7e3539d
0xffffce80: 0xf7faa3c4 0xf7ffd000 0x0804859b 0x48d09200
(gdb) c
%11$x
48d09200

● Where do canaries fail in these methods?
○ method #1: avoid __stack_chk_fail
■ when detecting or terminating attacks
○ method #2: leak a canary
■ the canary value on the stack

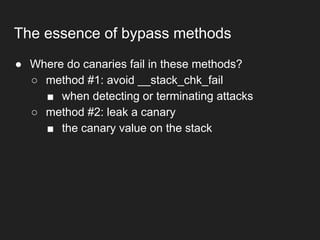

The essence of bypass methods

● Where do canaries fail in these methods?
○ method #1: avoid __stack_chk_fail
■ when detecting or terminating attacks
○ method #2: leak a canary
■ the canary value on the stack

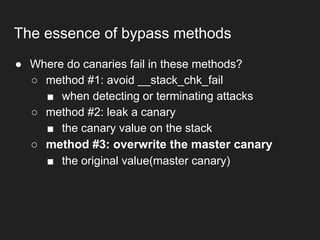

○ method #3: overwrite the master canary
■ the original value(master canary)
The essence of bypass methods

● Following assumption:
■ Linux Kernel 3.19
■ glibc 2.21
■ ASLR enabled

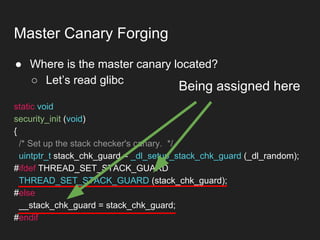

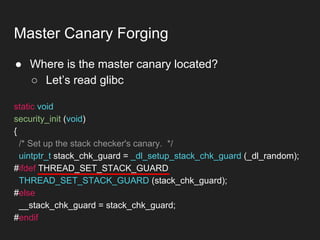

● Where is the master canary located?
○ Let’s read glibc

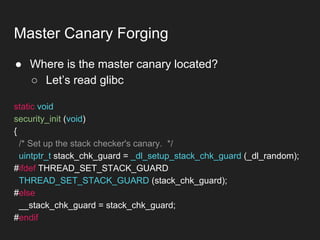

static void
security_init (void)
{
/* Set up the stack checker's canary. */
uintptr_t stack_chk_guard = _dl_setup_stack_chk_guard (_dl_random);
#ifdef THREAD_SET_STACK_GUARD
THREAD_SET_STACK_GUARD (stack_chk_guard);
#else
__stack_chk_guard = stack_chk_guard;
#endif

static void
security_init (void)
{
/* Set up the stack checker's canary. */
uintptr_t stack_chk_guard = _dl_setup_stack_chk_guard (_dl_random);
#ifdef THREAD_SET_STACK_GUARD
THREAD_SET_STACK_GUARD (stack_chk_guard);
#else
__stack_chk_guard = stack_chk_guard;
#endif

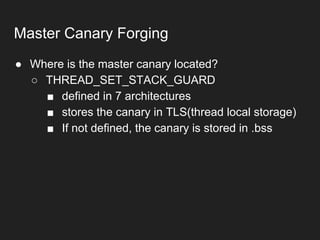

Being assigned here

○ THREAD_SET_STACK_GUARD
■ defined in 7 architectures
■ stores the canary in TLS(thread local storage)
■ If not defined, the canary is stored in .bss

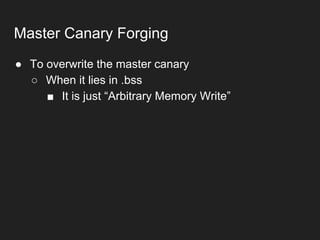

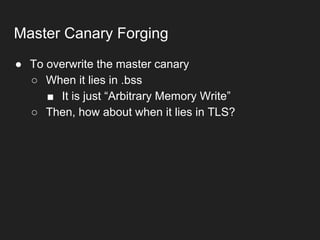

● To overwrite the master canary
○ When it lies in .bss
■ It is just “Arbitrary Memory Write”

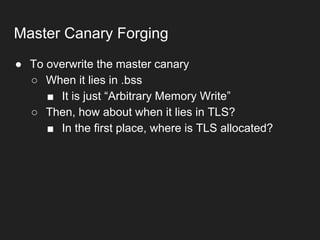

○ Then, how about when it lies in TLS?

○ Then, how about when it lies in TLS?
■ In the first place, where is TLS allocated?

● Where is TLS?

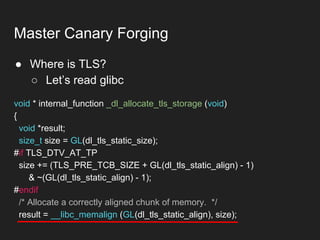

void * internal_function _dl_allocate_tls_storage (void)
{
void *result;
size_t size = GL(dl_tls_static_size);
#if TLS_DTV_AT_TP
size += (TLS_PRE_TCB_SIZE + GL(dl_tls_static_align) - 1)
& ~(GL(dl_tls_static_align) - 1);
#endif
/* Allocate a correctly aligned chunk of memory. */
result = __libc_memalign (GL(dl_tls_static_align), size);

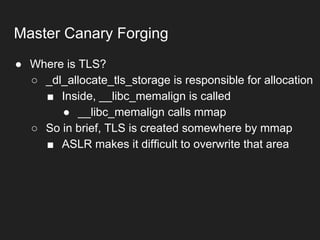

● Where is TLS?
○ _dl_allocate_tls_storage is responsible for allocation
■ Inside, __libc_memalign is called
● __libc_memalign calls mmap
○ So in brief, TLS is created somewhere by mmap
■ ASLR makes it difficult to overwrite that area

● One of the characterics of areas allocated by mmap：
○ The areas are always adjacent to some region

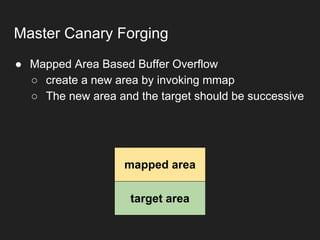

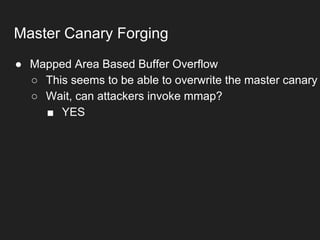

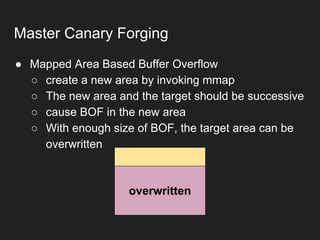

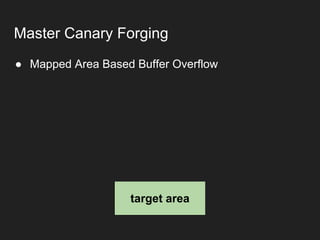

● Mapped Area Based Buffer Overflow
target area

○ create a new area by invoking mmap
○ The new area and the target should be successive
mapped area
target area

○ create a new area by invoking mmap
○ The new area and the target should be successive
○ cause BOF in the new area
○ With enough size of BOF, the target area can be
overwritten
overwritten

○ This seems to be able to overwrite the master canary

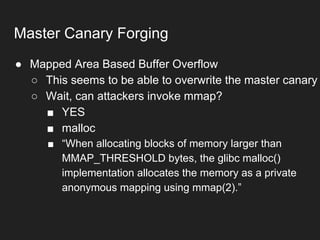

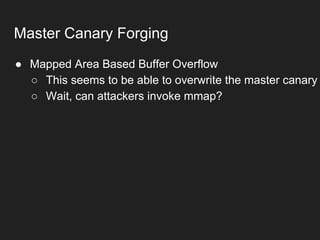

○ Wait, can attackers invoke mmap?

■ YES

■ YES
■ malloc

■ YES
■ malloc
■ “When allocating blocks of memory larger than
MMAP_THRESHOLD bytes, the glibc malloc()
implementation allocates the memory as a private
anonymous mapping using mmap(2).”

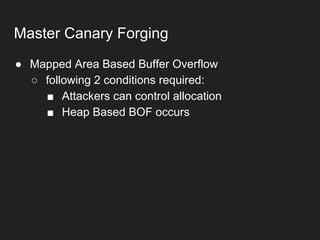

○ following 2 conditions required:
■ Attackers can control allocation
■ Heap Based BOF occurs

1. Overwrite the master canary
a. When it is located in .bss
i. Use an “Arbitrary Memory Write”
b. When it is located in TLS
i. Use a mapped area based BOF
2. Cause a stack based BOF

● Evaluation
○ NOT so useful
■ It requires 2 types of vulnerabilities
■ Heap Based BOF is usually sufficient for ACE
○ Mapped Area Based BOF itself is useful
■ Sometimes a function pointer array is in TLS
Evaluation and Countermeasures

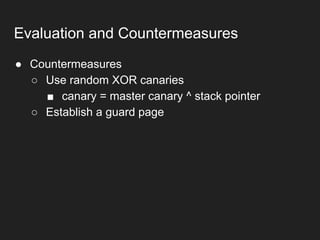

● Countermeasures
○ Use random XOR canaries
■ canary = master canary ^ stack pointer
○ Establish a guard page
Evaluation and Countermeasures

https://github.com/potetisensei/
MasterCanaryForging-PoC/
PoC

Thank you for listening
Please ask me anything
