Mysafe is a Java tool that intercepts and tracks memory allocations, accesses, and frees, aiming to assist in debugging native memory leaks and illegal memory accesses. It offers a range of features, including memory explorer and listener APIs, along with mechanisms for custom memory management and tracing allocation paths. The roadmap indicates future enhancements such as support for Java 9 and improved allocation path detection.

1. MYSAFE
github.com/serkan-ozal/mysafe
SERKAN ÖZAL

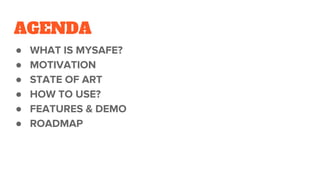

2. AGENDA
● WHAT IS MYSAFE?
● MOTIVATION
● STATE OF ART
● HOW TO USE?
● FEATURES & DEMO
● ROADMAP

3. WHAT IS MYSAFE?
● Intercepts “sun.misc.Unsafe” calls
● Can track memory allocations and frees
● Can track memory accesses (reads/writes)
● Can align memory accesses (reads/writes)
● Can track custom memory allocations/frees
○ Ex. your custom memory manager implementation
● Can track memory allocation paths
○ Find the origins of leaked (non-free) memories

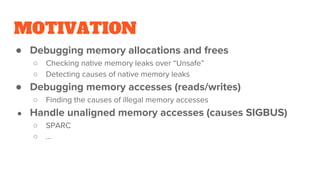

4. MOTIVATION
● Debugging memory allocations and frees
○ Checking native memory leaks over “Unsafe”
○ Detecting causes of native memory leaks
● Debugging memory accesses (reads/writes)
○ Finding the causes of illegal memory accesses
● Handle unaligned memory accesses (causes SIGBUS)
○ SPARC
○ ...

5. STATE OF ART
● Inspect application classes while loading
○ At “ClassFileTransformer” level
○ At “Classloader” level
● Redirect “Unsafe” calls to MySafe
● MySafe handles the call
● Proceeds to “Unsafe”

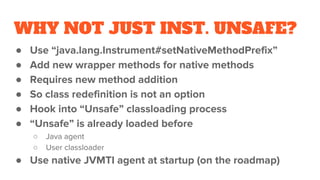

6. WHY NOT JUST INST. UNSAFE?
● Use “java.lang.Instrument#setNativeMethodPrefix”
● Add new wrapper methods for native methods
● Requires new method addition
● So class redefinition is not an option
● Hook into “Unsafe” classloading process
● “Unsafe” is already loaded before
○ Java agent
○ User classloader
● Use native JVMTI agent at startup (on the roadmap)

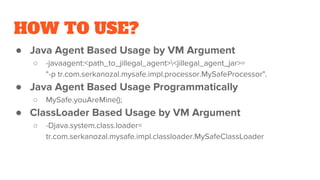

7. HOW TO USE?
● Java Agent Based Usage by VM Argument
○ -javaagent:<path_to_jillegal_agent><jillegal_agent_jar>=
"-p tr.com.serkanozal.mysafe.impl.processor.MySafeProcessor".
● Java Agent Based Usage Programmatically
○ MySafe.youAreMine();
● ClassLoader Based Usage by VM Argument
○ -Djava.system.class.loader=
tr.com.serkanozal.mysafe.impl.classloader.MySafeClassLoader

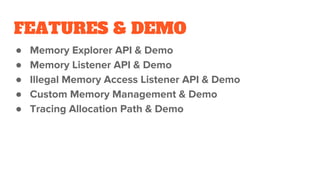

8. FEATURES & DEMO
● Memory Explorer API & Demo
● Memory Listener API & Demo
● Illegal Memory Access Listener API & Demo
● Custom Memory Management & Demo
● Tracing Allocation Path & Demo

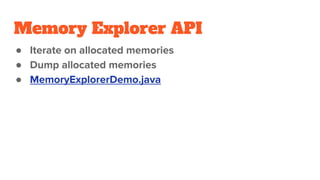

9. Memory Explorer API
● Iterate on allocated memories
● Dump allocated memories
● MemoryExplorerDemo.java

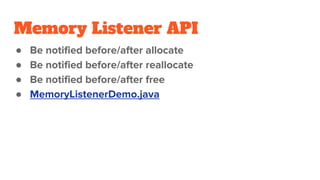

10. Memory Listener API
● Be notified before/after allocate
● Be notified before/after reallocate
● Be notified before/after free
● MemoryListenerDemo.java

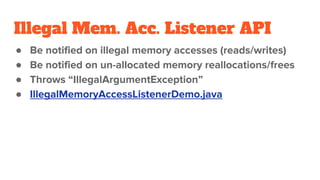

11. Illegal Mem. Acc. Listener API
● Be notified on illegal memory accesses (reads/writes)
● Be notified on un-allocated memory reallocations/frees
● Throws “IllegalArgumentException”
● IllegalMemoryAccessListenerDemo.java

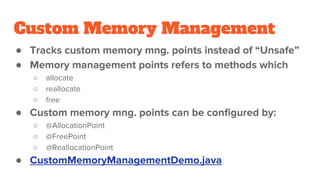

12. Custom Memory Management
● Tracks custom memory mng. points instead of “Unsafe”
● Memory management points refers to methods which
○ allocate
○ reallocate
○ free
● Custom memory mng. points can be configured by:
○ @AllocationPoint
○ @FreePoint
○ @ReallocationPoint
● CustomMemoryManagementDemo.java

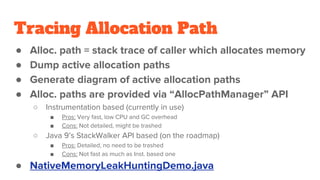

13. Tracing Allocation Path
● Alloc. path = stack trace of caller which allocates memory
● Dump active allocation paths
● Generate diagram of active allocation paths
● Alloc. paths are provided via “AllocPathManager” API
○ Instrumentation based (currently in use)
■ Pros: Very fast, low CPU and GC overhead
■ Cons: Not detailed, might be trashed
○ Java 9’s StackWalker API based (on the roadmap)
■ Pros: Detailed, no need to be trashed
■ Cons: Not fast as much as Inst. based one
● NativeMemoryLeakHuntingDemo.java

15. Inst. Based Alloc. Path Manager
● Identify each method which exist in the any alloc. path
● Inject code into methods to provide them as alloc. path
○ Push method identifier to thread-local call stack
○ Proceed actual call
○ Pop method identifier from thread-local call stack
● Generate alloc. path id from alloc. point (method) ids
○ Each alloc. point id is 2 bytes short number
○ Whole alloc. path is represented with 8 bytes long number
○ There can be at most 4 alloc. points, old ones are evicted

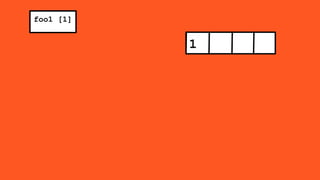

16. foo1 [1]
1

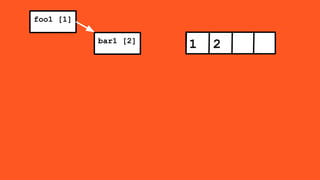

17. foo1 [1]
bar1 [2]
1 2

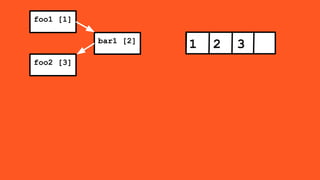

18. foo1 [1]
bar1 [2]
foo2 [3]
1 2 3

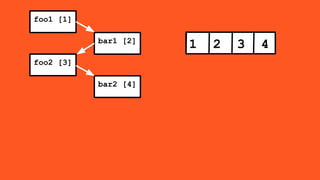

19. foo1 [1]
bar1 [2]
foo2 [3]
bar2 [4]
1 2 3 4

20. foo1 [1]
bar1 [2]
foo2 [3]
bar2 [4]
foo3 [5]
2 3 4 5

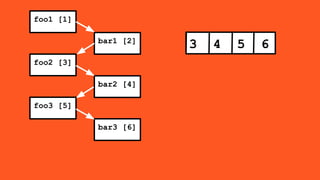

21. foo1 [1]
bar1 [2]
foo2 [3]
bar2 [4]
foo3 [5]
bar3 [6]
3 4 5 6

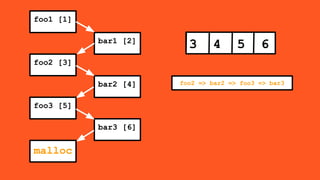

22. foo1 [1]
bar1 [2]
foo2 [3]
bar2 [4]
foo3 [5]
bar3 [6]
malloc
3 4 5 6
foo2 => bar2 => foo3 => bar3

23. ROADMAP
● Ability to track line numbers also
● More detailed and accurate allocation path detection
● Ability to inspect “Unsafe” directly
● Java 9 support
● Allocation path detection via Java 9’s StackWalker API
● Flame graph support

24. THANKS
