Masdar City is a planned city located 17km from downtown Abu Dhabi with a total area of 590 hectares that aims to house 40,000 residents. It is designed to be a model of urban sustainability through strategies like its diagonal grid layout that provides optimal shading, use of renewable energy sources like solar and geothermal, sustainable building materials, electric transportation systems like PRT and FRT, and advanced water and waste management systems. Some of its sustainability achievements have received numerous international awards.
More Related Content
Similar to Masdar City, Abu Dhabi UAE
Masdar City, Abu Dhabi UAE
- 1. MASDAR CITYMASDAR CITY NURULWAHIDAH BINTI JOHANNURUL WAHIDAH BINTI JOHAN A127584A127584 NUR QURRATU ‘AINI BINTI MOHD RAJINNUR QURRATU ‘AINI BINTI MOHD RAJIN A128176A128176 NUR BAHIRAH BINTI IDRISNUR BAHIRAH BINTI IDRIS A128566A128566
- 2. INTRODUCTIONINTRODUCTION • Located tothe southeast of Abu Dhabi Island around 17km from downtown Abu Dhabi • Total site area = 590 hectares • Total populations = 40,000 residents • Land use = Mixed land use (residential, commercial, institutional and lightweight industry)

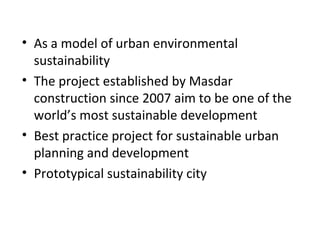

- 3. • As amodel of urban environmental sustainability • The project established by Masdar construction since 2007 aim to be one of the world’s most sustainable development • Best practice project for sustainable urban planning and development • Prototypical sustainability city

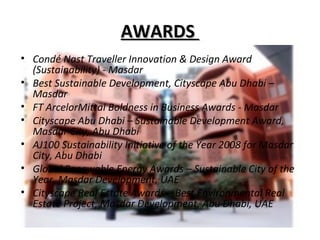

- 4. AWARDSAWARDS • Condé NastTraveller Innovation & Design Award (Sustainability) - Masdar • Best Sustainable Development, Cityscape Abu Dhabi – Masdar • FT ArcelorMittal Boldness in Business Awards - Masdar • Cityscape Abu Dhabi – Sustainable Development Award, Masdar City, Abu Dhabi • AJ100 Sustainability Initiative of the Year 2008 for Masdar City, Abu Dhabi • Global Renewable Energy Awards – Sustainable City of the Year, Masdar Development, UAE • Cityscape Real Estate Awards – Best Environmental Real Estate Project, Masdar Development, Abu Dhabi, UAE

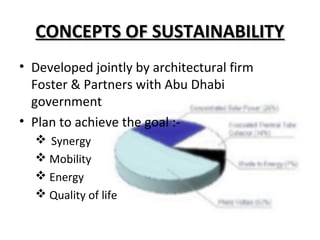

- 5. CONCEPTS OF SUSTAINABILITYCONCEPTSOF SUSTAINABILITY • Developed jointly by architectural firm Foster & Partners with Abu Dhabi government • Plan to achieve the goal :- Synergy Mobility Energy Quality of life

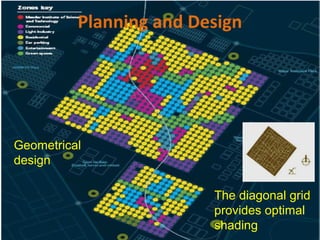

- 6. Planning and Design Geometrical design Thediagonal grid provides optimal shading

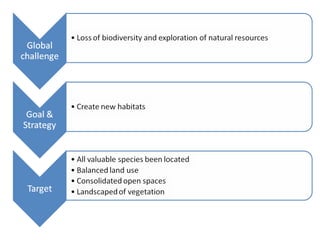

- 8. BUILDING CONCEPTBUILDING CONCEPT •Century before modern era, people design settlements to moderate desert heat to obtain both defensive benefits and stronger winds • This idea inspired Fosters and Partners to elevate Masdar above surrounding area • Rise 23 foot-high concrete base to maximize its exposure

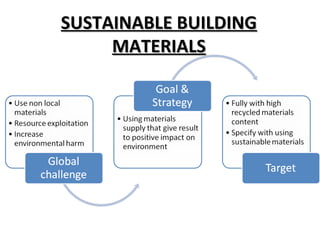

- 9.

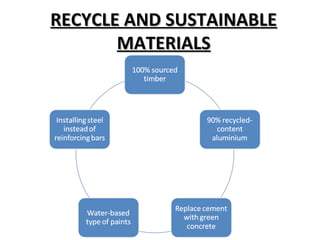

- 10. RECYCLE AND SUSTAINABLERECYCLEAND SUSTAINABLE MATERIALSMATERIALS

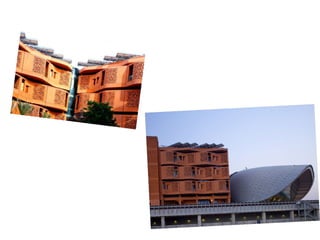

- 11. MASDAR INSTITUTE OFSCIENCE ANDMASDAR INSTITUTE OF SCIENCE AND TECHNOLOGYTECHNOLOGY • Complete built and opened in 2010 • focuses on research and engineering in sustainable technology • Enclosed with wavy facade of concrete latticework • Curve pattern provide an angle view • Main buildings with spherical roof
- 14.

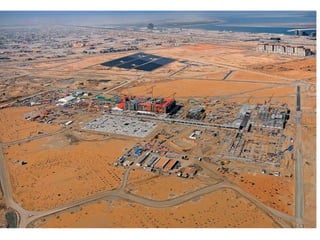

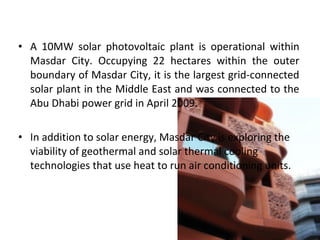

- 15. • A 10MWsolar photovoltaic plant is operational within Masdar City. Occupying 22 hectares within the outer boundary of Masdar City, it is the largest grid-connected solar plant in the Middle East and was connected to the Abu Dhabi power grid in April 2009. • In addition to solar energy, Masdar City is exploring the viability of geothermal and solar thermal cooling technologies that use heat to run air conditioning units.

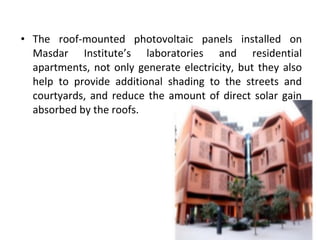

- 16. • The roof-mountedphotovoltaic panels installed on Masdar Institute’s laboratories and residential apartments, not only generate electricity, but they also help to provide additional shading to the streets and courtyards, and reduce the amount of direct solar gain absorbed by the roofs.
- 17.

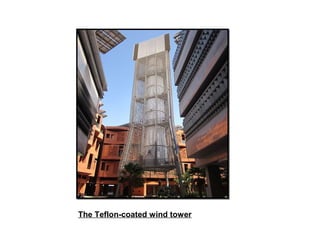

- 18.

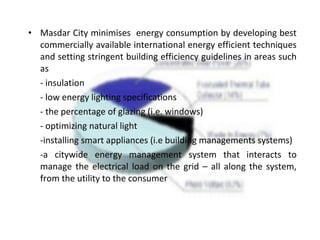

- 19. • Masdar Cityminimises energy consumption by developing best commercially available international energy efficient techniques and setting stringent building efficiency guidelines in areas such as - insulation - low energy lighting specifications - the percentage of glazing (i.e. windows) - optimizing natural light -installing smart appliances (i.e building managements systems) -a citywide energy management system that interacts to manage the electrical load on the grid – all along the system, from the utility to the consumer

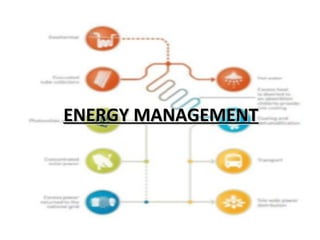

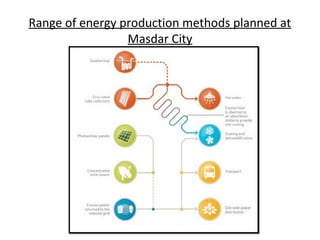

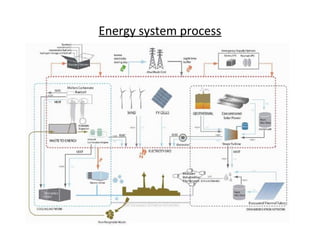

- 20. Range of energyproduction methods planned at Masdar City
- 21.

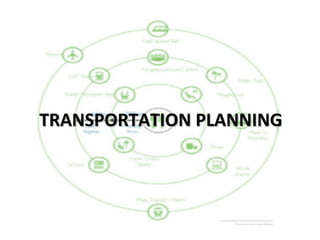

- 22.
- 23. PERSONAL RAPID TRANSIT(PRT)PERSONAL RAPID TRANSIT (PRT)

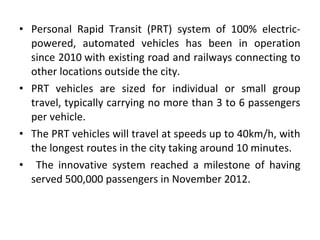

- 25. • Personal RapidTransit (PRT) system of 100% electric- powered, automated vehicles has been in operation since 2010 with existing road and railways connecting to other locations outside the city. • PRT vehicles are sized for individual or small group travel, typically carrying no more than 3 to 6 passengers per vehicle. • The PRT vehicles will travel at speeds up to 40km/h, with the longest routes in the city taking around 10 minutes. • The innovative system reached a milestone of having served 500,000 passengers in November 2012.
- 26. • Description :PRT Network • Peak capacity : 500 p/ph/pd currently • Times operation : 24 hrs/d & 7days/week • Configuration : Network • Connection : Direct (Non stop) • Passenger seated/standing : 4 adults + 2 children • Drive : Electric • Track length : 1200 meters (one-way)
- 27.

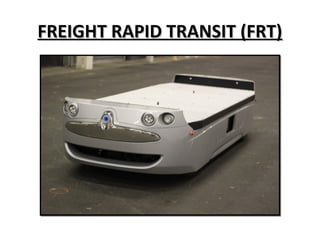

- 28. FREIGHT RAPID TRANSIT(FRT)FREIGHT RAPID TRANSIT (FRT)

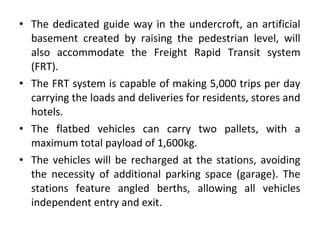

- 29. • The dedicatedguide way in the undercroft, an artificial basement created by raising the pedestrian level, will also accommodate the Freight Rapid Transit system (FRT). • The FRT system is capable of making 5,000 trips per day carrying the loads and deliveries for residents, stores and hotels. • The flatbed vehicles can carry two pallets, with a maximum total payload of 1,600kg. • The vehicles will be recharged at the stations, avoiding the necessity of additional parking space (garage). The stations feature angled berths, allowing all vehicles independent entry and exit.

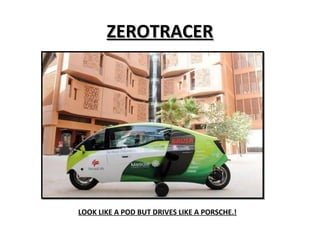

- 30. ZEROTRACERZEROTRACER LOOK LIKE APOD BUT DRIVES LIKE A PORSCHE.!

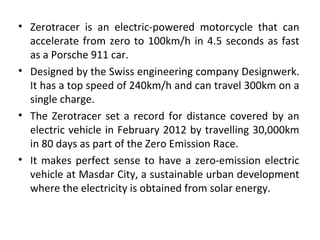

- 31. • Zerotracer isan electric-powered motorcycle that can accelerate from zero to 100km/h in 4.5 seconds as fast as a Porsche 911 car. • Designed by the Swiss engineering company Designwerk. It has a top speed of 240km/h and can travel 300km on a single charge. • The Zerotracer set a record for distance covered by an electric vehicle in February 2012 by travelling 30,000km in 80 days as part of the Zero Emission Race. • It makes perfect sense to have a zero-emission electric vehicle at Masdar City, a sustainable urban development where the electricity is obtained from solar energy.
- 32.

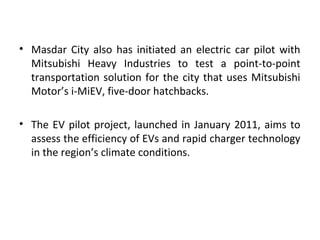

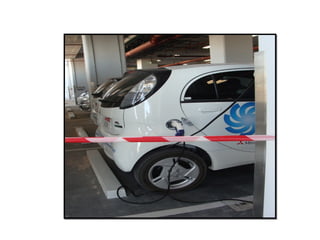

- 34. • Masdar Cityalso has initiated an electric car pilot with Mitsubishi Heavy Industries to test a point-to-point transportation solution for the city that uses Mitsubishi Motor’s i-MiEV, five-door hatchbacks. • The EV pilot project, launched in January 2011, aims to assess the efficiency of EVs and rapid charger technology in the region’s climate conditions.
- 35.

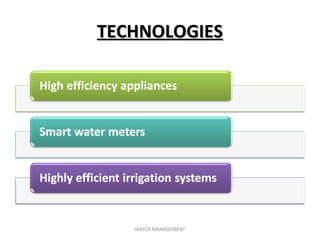

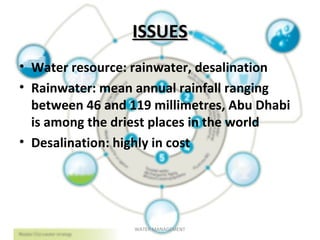

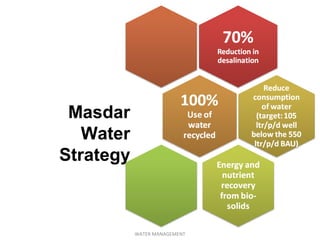

- 36. ISSUESISSUES • Water resource:rainwater, desalination • Rainwater: mean annual rainfall ranging between 46 and 119 millimetres, Abu Dhabi is among the driest places in the world • Desalination: highly in cost WATER MANAGEMENT
- 37.
- 38.

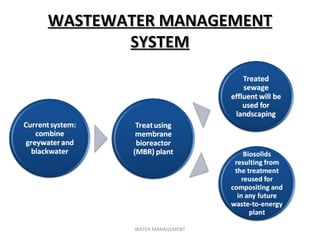

- 39.
- 40.

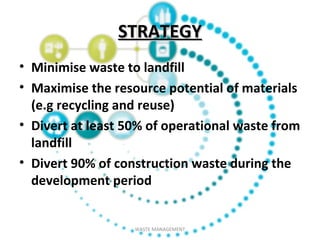

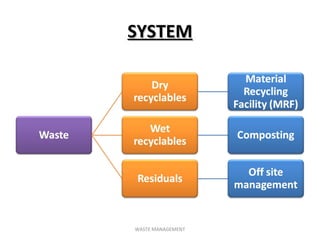

- 41. STRATEGYSTRATEGY • Minimise wasteto landfill • Maximise the resource potential of materials (e.g recycling and reuse) • Divert at least 50% of operational waste from landfill • Divert 90% of construction waste during the development period WASTE MANAGEMENT
