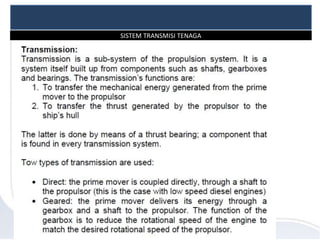

• The transmission system on a ship transmits
power from the engine to the propeller. It is
made up of shafts, bearings, and finally the
propeller itself.
• The thrust from the propeller is transferred to the
ship through the transmission system.

4. SISTEM TRANSMISI TENAGA

5. SISTEM TRANSMISI TENAGA
Vs
Vs
RT
T : Thrust
(Gaya Dorong)

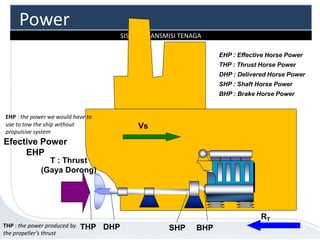

THP DHP SHP BHP
Efective Power
EHP
EHP : Effective Horse Power
THP : Thrust Horse Power
DHP : Delivered Horse Power
SHP : Shaft Horse Power
BHP : Brake Horse Power
EHP : the power we would have to
use to tow the ship without
propulsive system
THP : the power produced by
the propeller’s thrust
Power

6. SISTEM TRANSMISI TENAGA

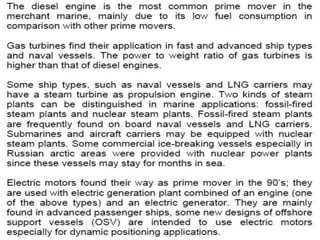

7. SISTEM TRANSMISI TENAGA

8. SISTEM TRANSMISI TENAGA

9. SISTEM TRANSMISI TENAGA
1. Direct transmission
PRIME MOVER
TRANSMISSION
1. Shaft
PROPULSOR

10. SISTEM TRANSMISI TENAGA
• Direct transmission usually using diesel engine
as prime mover on ship. Types of diesel engine:
1. Low speed (60-150 RPM)
2. Medium speed (450-800 RPM)
3. High speed (1000-3000 RPM)
• The low speed diesel engine is reasonable for
marine direct transmission.

11. SISTEM TRANSMISI TENAGA
2. Geared transmission
PRIME MOVER
TRANSMISSION
1. Shaft
2. Reduction gear
PROPULSOR

12. SISTEM TRANSMISI TENAGA

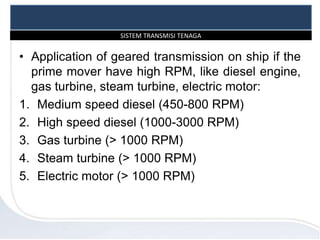

• Application of geared transmission on ship if the
prime mover have high RPM, like diesel engine,
gas turbine, steam turbine, electric motor:
1. Medium speed diesel (450-800 RPM)
2. High speed diesel (1000-3000 RPM)
3. Gas turbine (> 1000 RPM)
4. Steam turbine (> 1000 RPM)
5. Electric motor (> 1000 RPM)

13. SISTEM TRANSMISI TENAGA

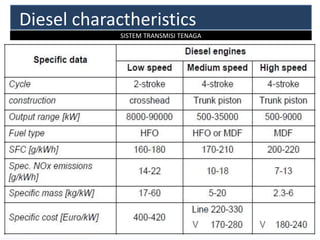

Diesel charactheristics

14. SISTEM TRANSMISI TENAGA

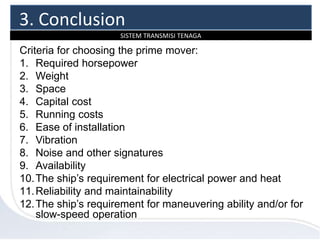

Criteria for choosing the prime mover:
1. Required horsepower
2. Weight
3. Space
4. Capital cost
5. Running costs
6. Ease of installation
7. Vibration
8. Noise and other signatures
9. Availability
10.The ship’s requirement for electrical power and heat
11.Reliability and maintainability
12.The ship’s requirement for maneuvering ability and/or for
slow-speed operation
3. Conclusion

15. SISTEM TRANSMISI TENAGA

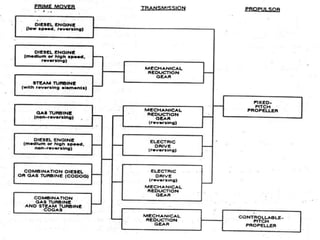

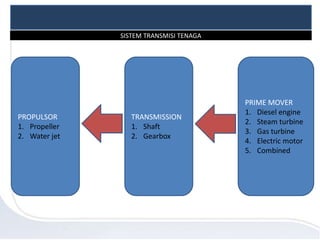

PRIME MOVER
1. Diesel engine
2. Steam turbine
3. Gas turbine
4. Electric motor
5. Combined
TRANSMISSION
1. Shaft
2. Gearbox
PROPULSOR
1. Propeller
2. Water jet

16. SISTEM TRANSMISI TENAGA
PRIME MOVER
1. Diesel engine
2. Steam turbine
3. Gas turbine
4. Electric motor
5. Combined
Diesel engine:
1. Low speed
2. Medium speed
3. High speed
Electric motor:
1. Low speed (AC or DC)
2. Medium speed (AC or DC)
3. High speed (AC or DC)
Combined:
1. CODAD
2. CODOG
3. CODAG
4. COGOG
5. COGAG
6. COSAG
7. COGAS

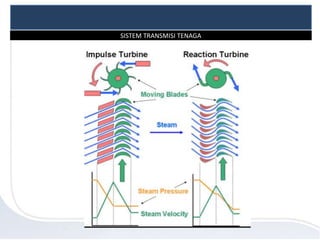

Steam turbine:
1. Conventional (impuls
or reaction)
2. Nuclear (impuls or
reaction)
Gas turbine:
1. Single shaft
2. Double shaft

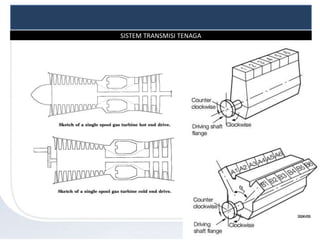

17. SISTEM TRANSMISI TENAGA

18. SISTEM TRANSMISI TENAGA

19. SISTEM TRANSMISI TENAGA

20. SISTEM TRANSMISI TENAGA

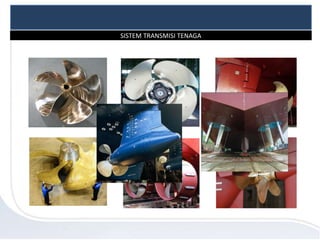

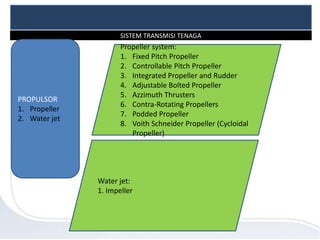

PROPULSOR
1. Propeller
2. Water jet
Propeller system:
1. Fixed Pitch Propeller
2. Controllable Pitch Propeller
3. Integrated Propeller and Rudder
4. Adjustable Bolted Propeller
5. Azzimuth Thrusters
6. Contra-Rotating Propellers
7. Podded Propeller
8. Voith Schneider Propeller (Cycloidal
Propeller)
Water jet:
1. Impeller

21. SISTEM TRANSMISI TENAGA

22. SISTEM TRANSMISI TENAGA

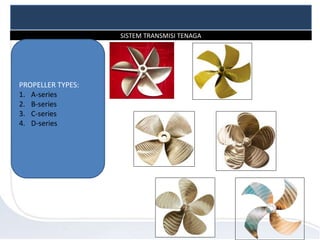

PROPELLER TYPES:
1. A-series
2. B-series
3. C-series
4. D-series

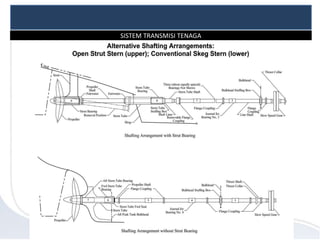

23. SISTEM TRANSMISI TENAGA
