The document describes the muscles that contribute to elbow flexion, extension, and forearm supination and pronation. It provides details on the origin, insertion, action, and nerve supply of the brachialis, brachioradialis, biceps brachii, triceps brachii, supinator, and pronator teres muscles. It also outlines procedures for manually testing the strength of these muscles through resisted motions.

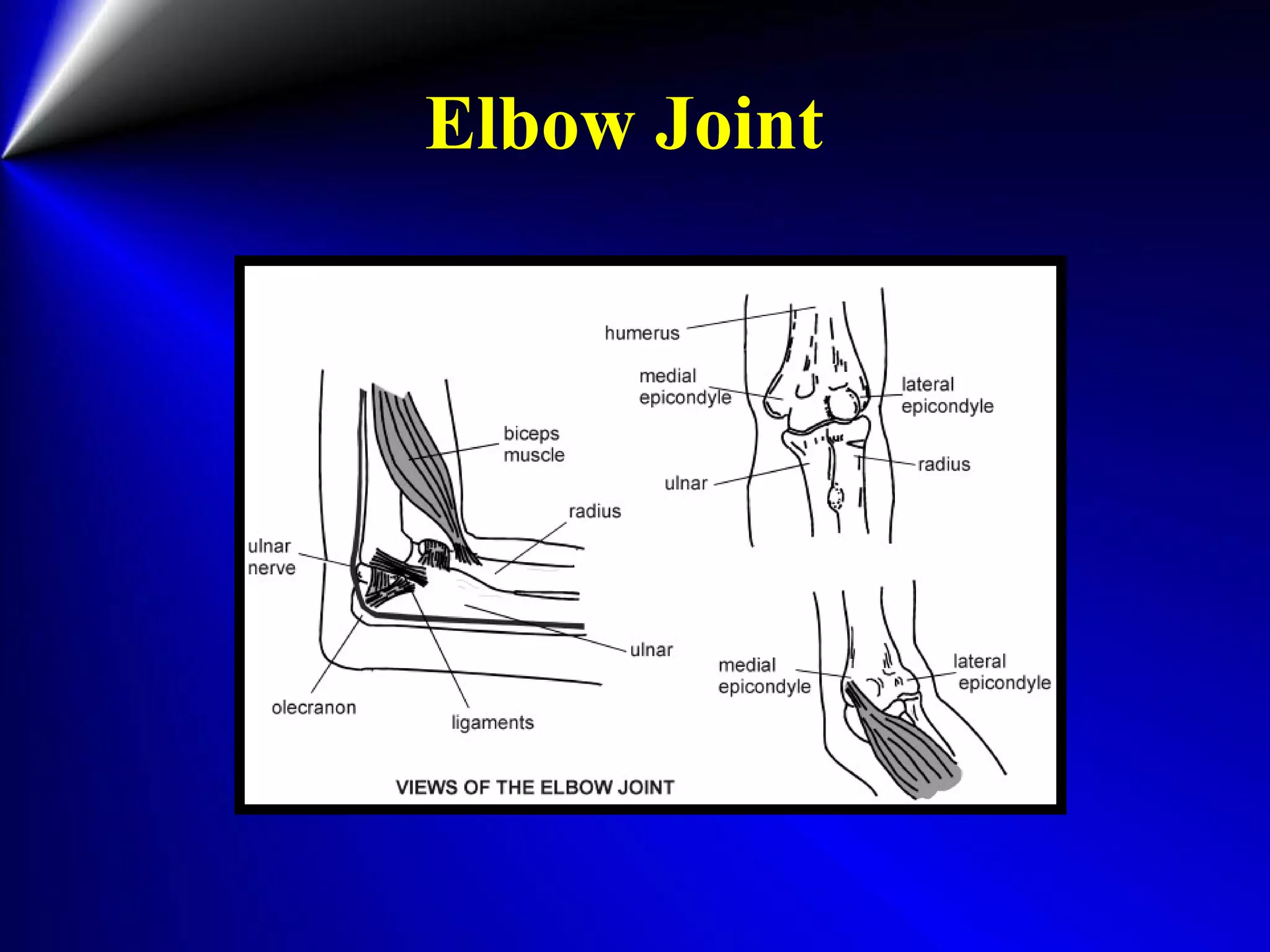

1. Elbow Joint

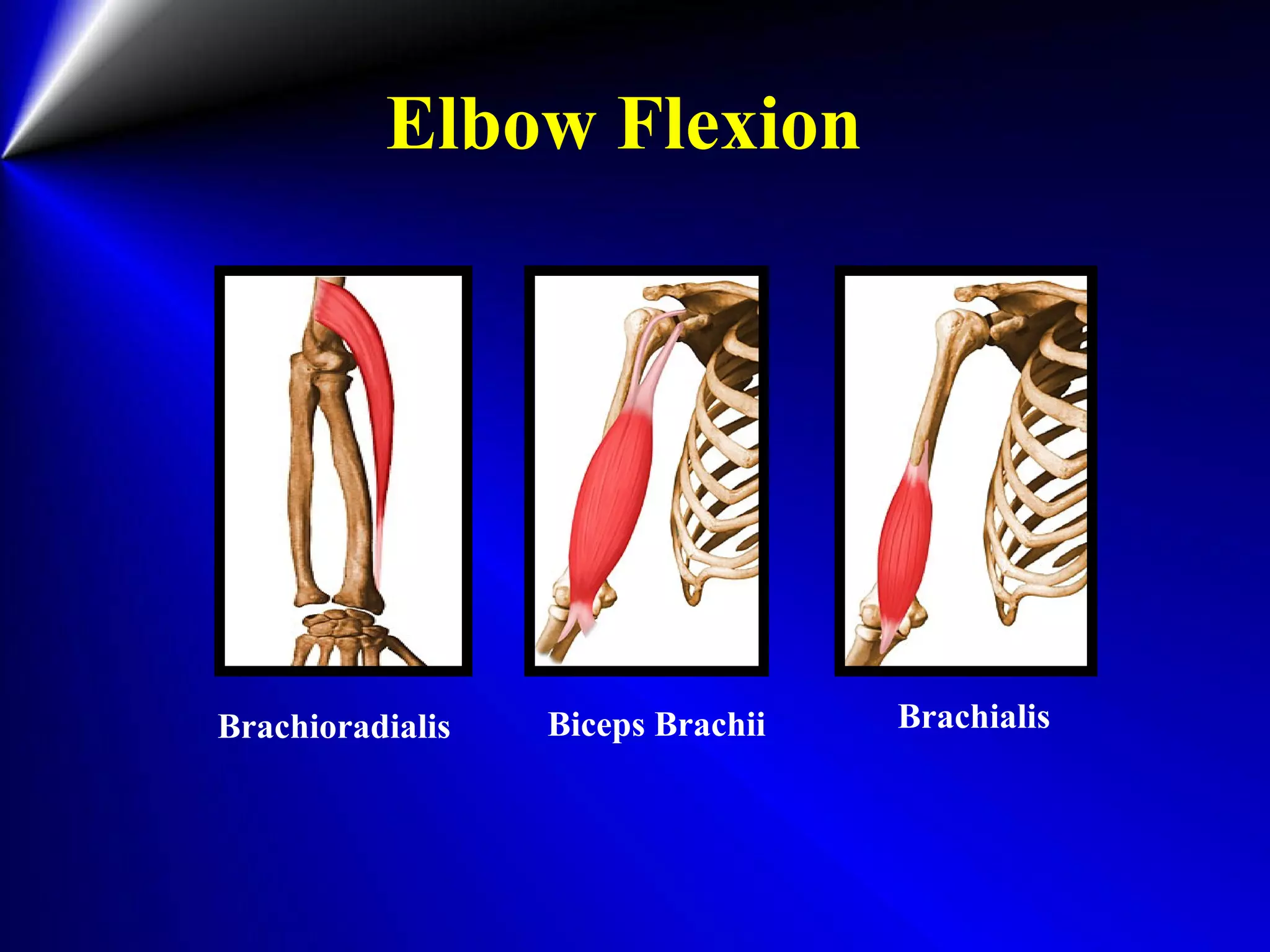

2. Elbow Flexion
BrachialisBrachioradialis Biceps Brachii

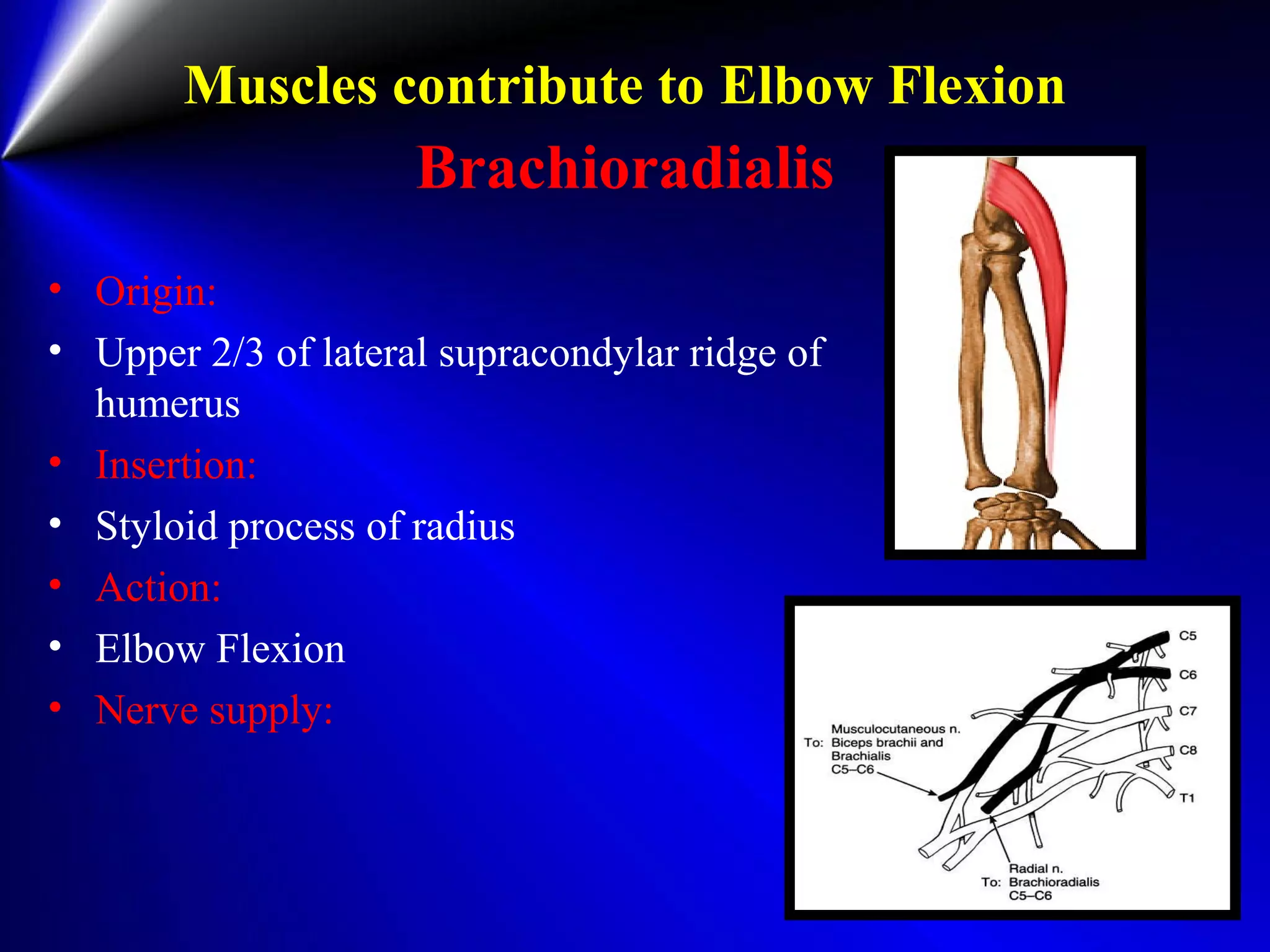

3. Muscles contribute to Elbow Flexion
Brachioradialis
• Origin:
• Upper 2/3 of lateral supracondylar ridge of
humerus
• Insertion:
• Styloid process of radius
• Action:
• Elbow Flexion
• Nerve supply:

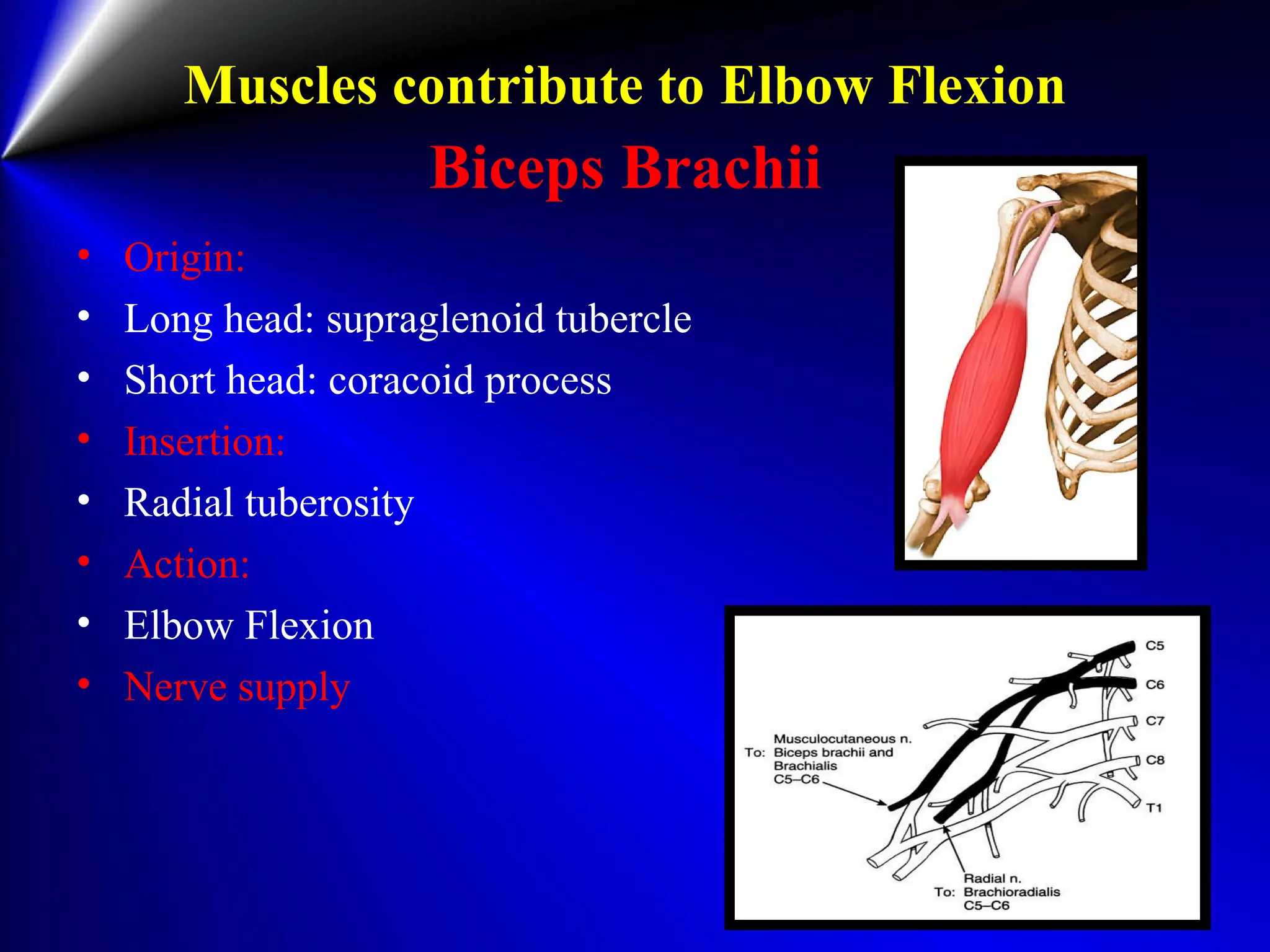

4. Muscles contribute to Elbow Flexion
Biceps Brachii
• Origin:
• Long head: supraglenoid tubercle
• Short head: coracoid process
• Insertion:
• Radial tuberosity
• Action:
• Elbow Flexion
• Nerve supply

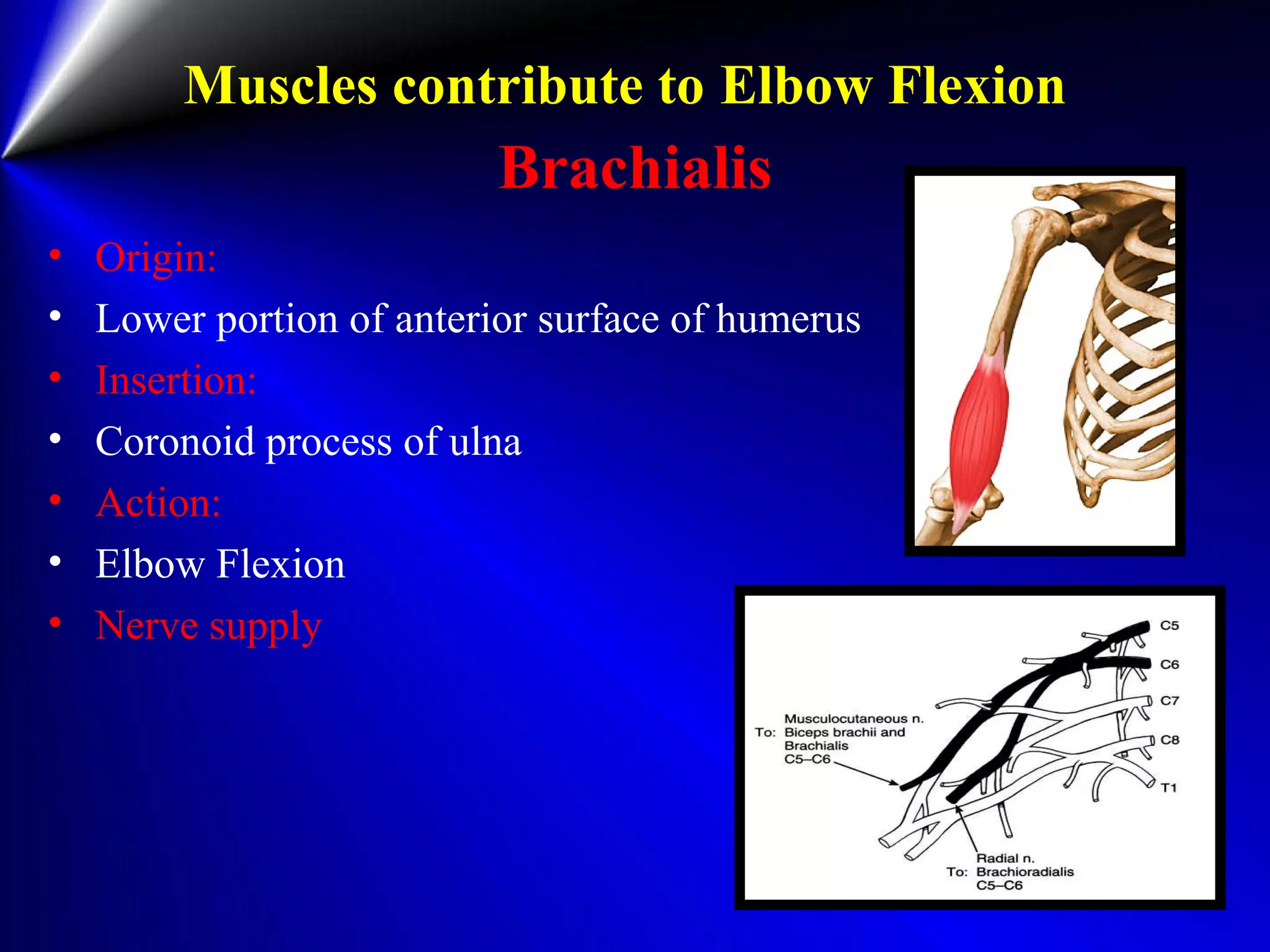

5. Muscles contribute to Elbow Flexion
Brachialis
• Origin:
• Lower portion of anterior surface of humerus
• Insertion:
• Coronoid process of ulna
• Action:
• Elbow Flexion
• Nerve supply

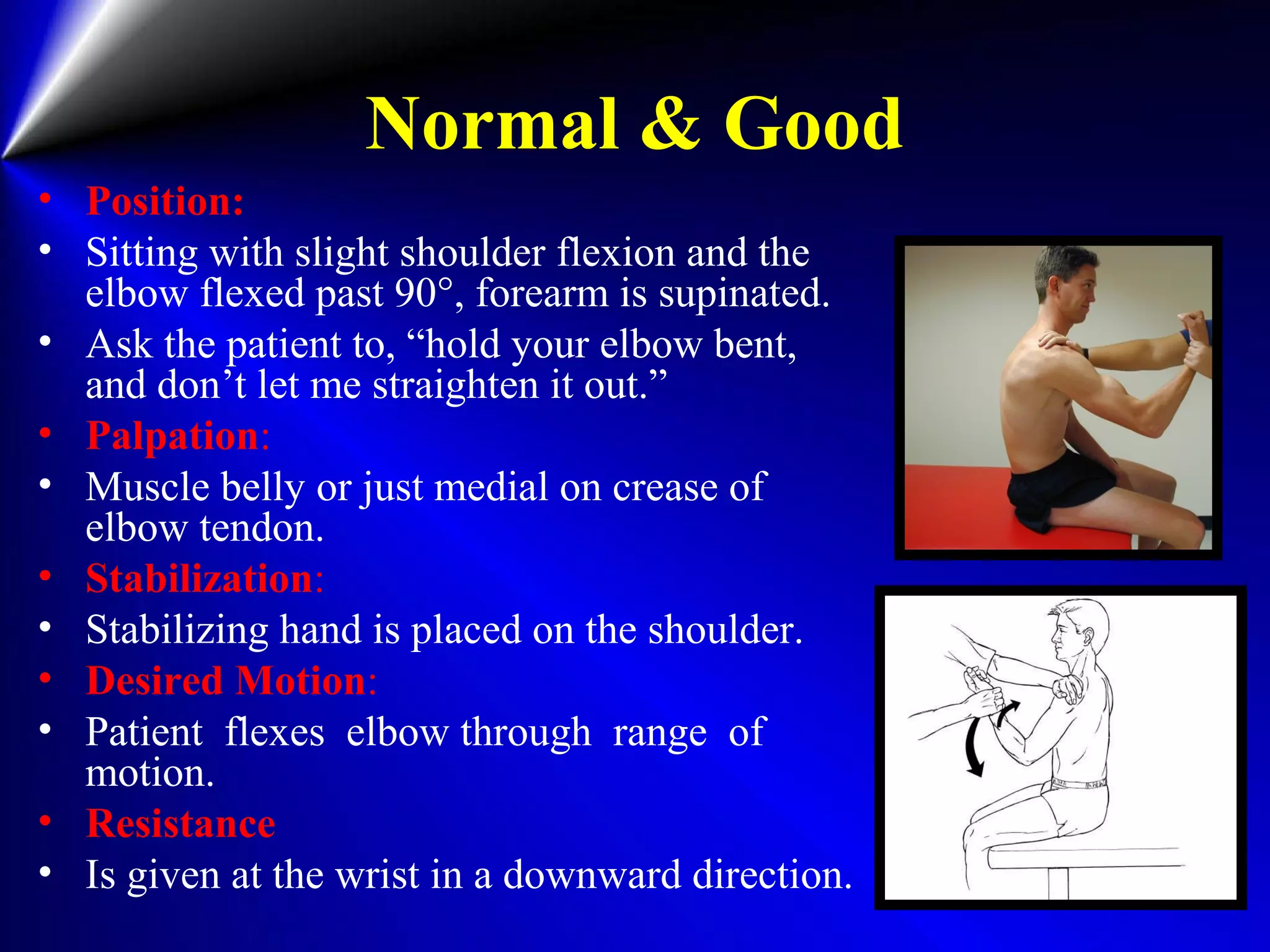

6. Normal & Good
• Position:
• Sitting with slight shoulder flexion and the
elbow flexed past 90°, forearm is supinated.
• Ask the patient to, “hold your elbow bent,
and don’t let me straighten it out.”
• Palpation:
• Muscle belly or just medial on crease of
elbow tendon.
• Stabilization:
• Stabilizing hand is placed on the shoulder.
• Desired Motion:
• Patient flexes elbow through range of
motion.
• Resistance
• Is given at the wrist in a downward direction.

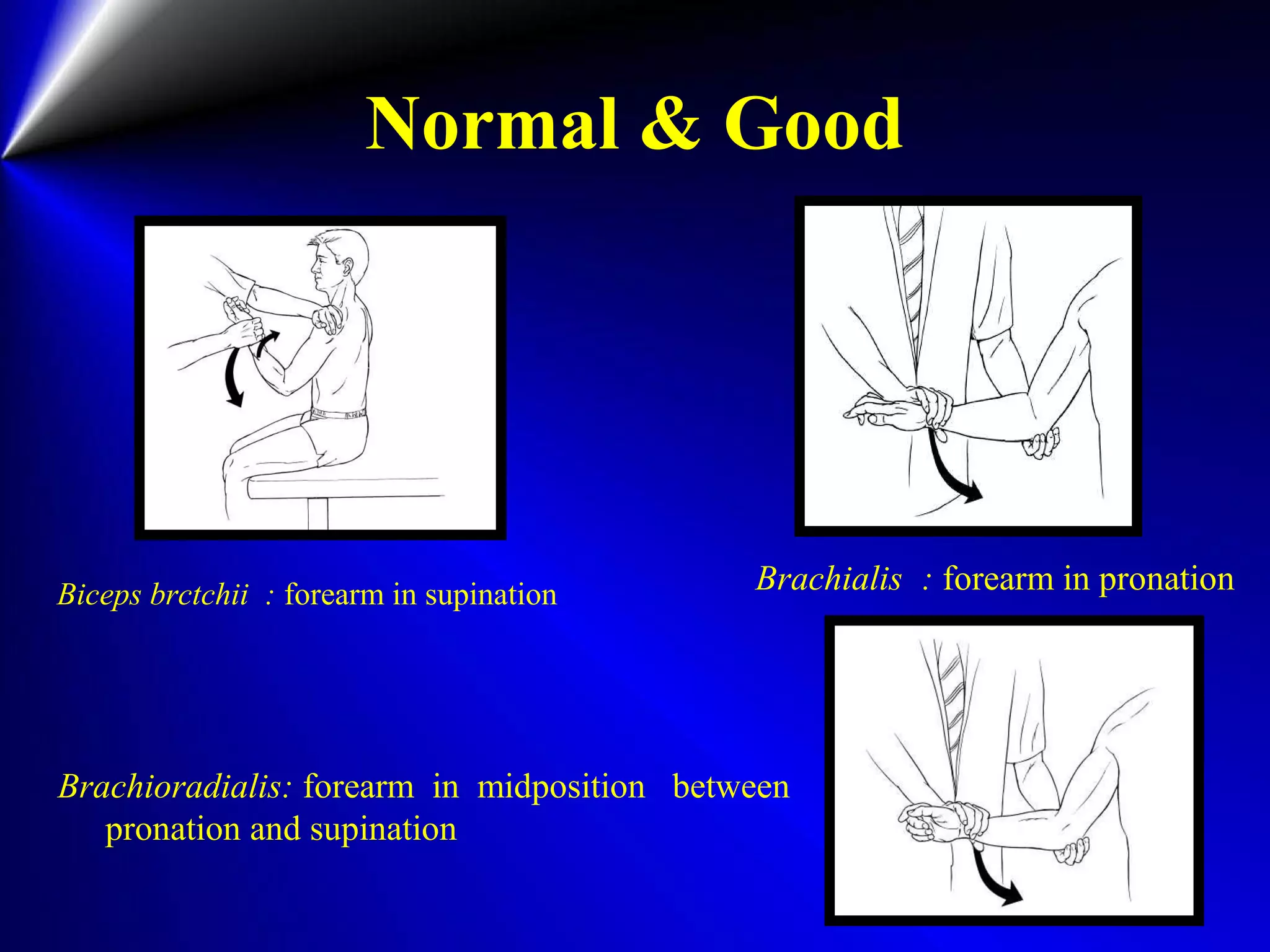

7. Normal & Good
Brachioradialis: forearm in midposition between
pronation and supination
Biceps brctchii : forearm in supination Brachialis : forearm in pronation

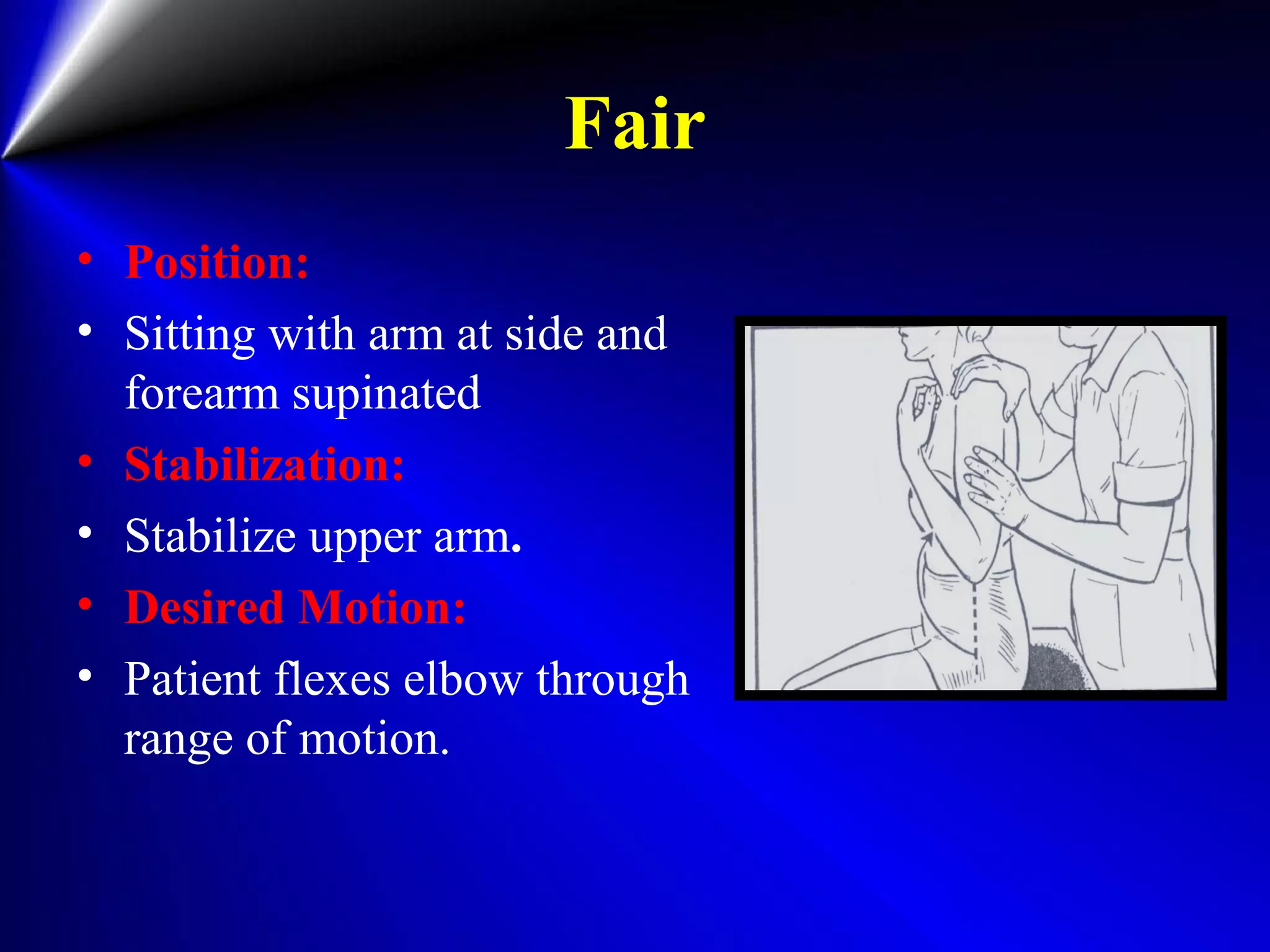

8. Fair
• Position:
• Sitting with arm at side and
forearm supinated
• Stabilization:
• Stabilize upper arm.
• Desired Motion:
• Patient flexes elbow through
range of motion.

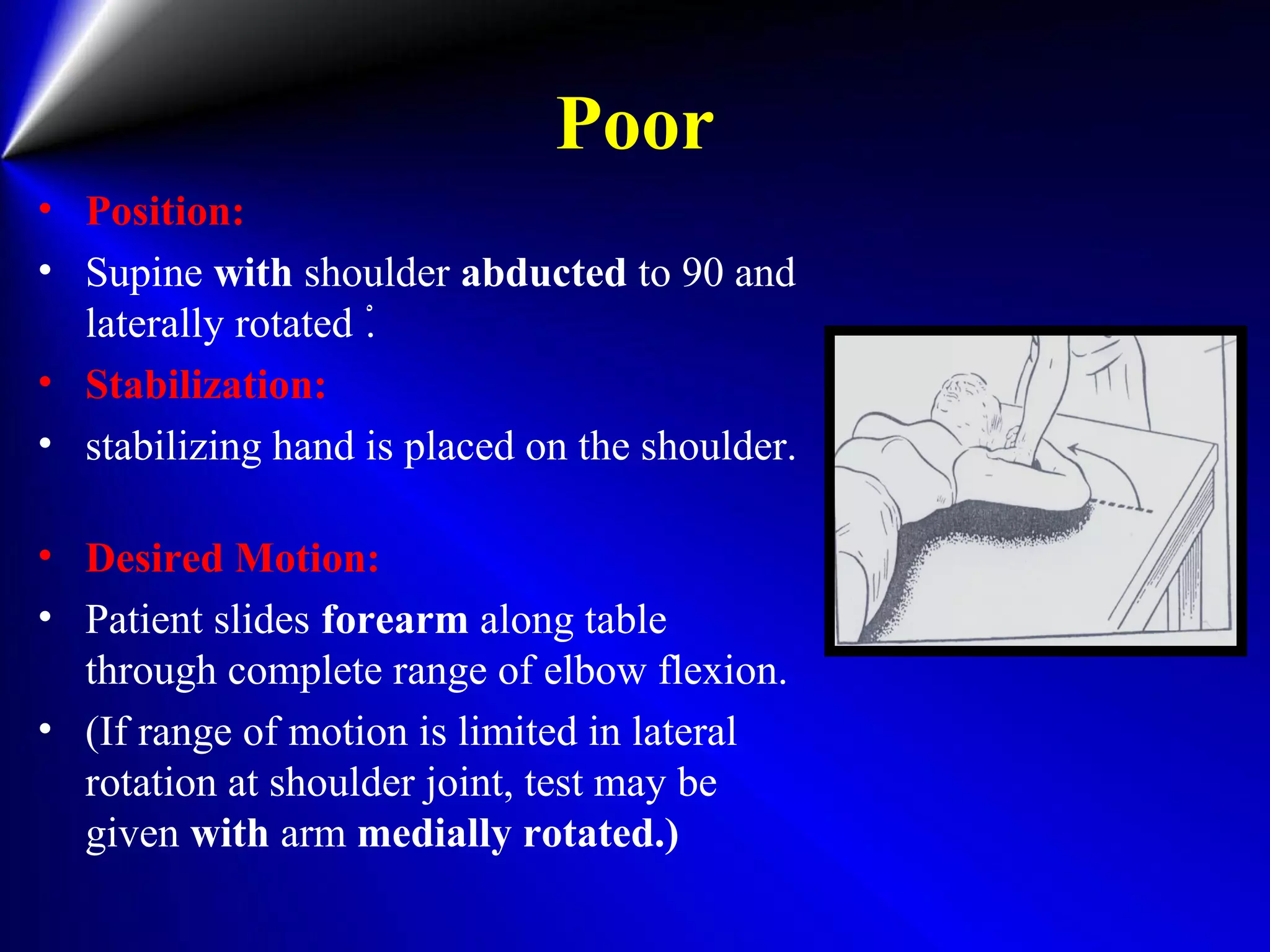

9. Poor
• Position:
• Supine with shoulder abducted to 90 and
laterally rotated ْ.
• Stabilization:
• stabilizing hand is placed on the shoulder.
• Desired Motion:
• Patient slides forearm along table
through complete range of elbow flexion.
• (If range of motion is limited in lateral
rotation at shoulder joint, test may be
given with arm medially rotated.)

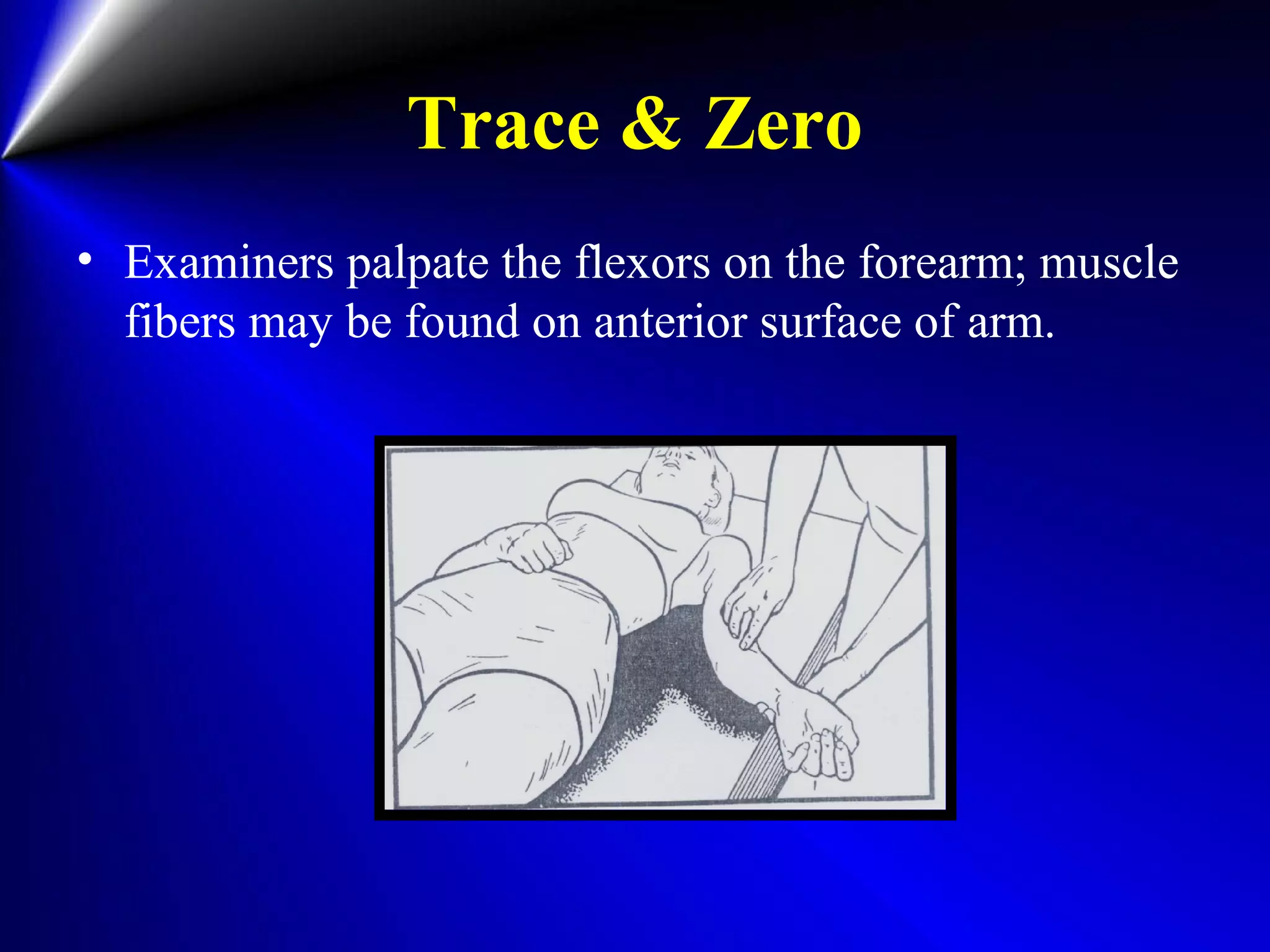

10. Trace & Zero
• Examiners palpate the flexors on the forearm; muscle
fibers may be found on anterior surface of arm.

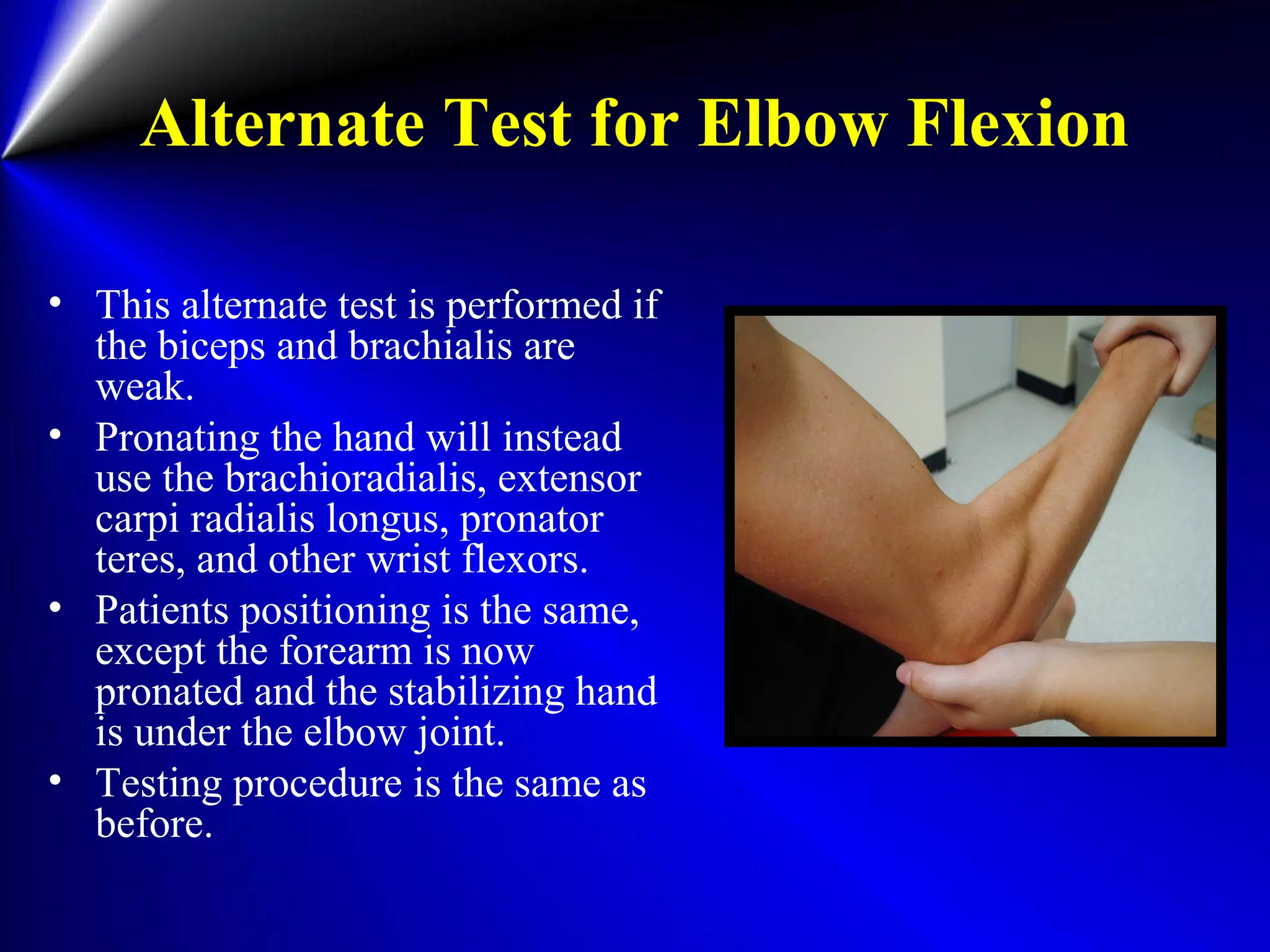

11. Alternate Test for Elbow Flexion
• This alternate test is performed if
the biceps and brachialis are
weak.
• Pronating the hand will instead
use the brachioradialis, extensor
carpi radialis longus, pronator
teres, and other wrist flexors.
• Patients positioning is the same,
except the forearm is now
pronated and the stabilizing hand
is under the elbow joint.
• Testing procedure is the same as
before.

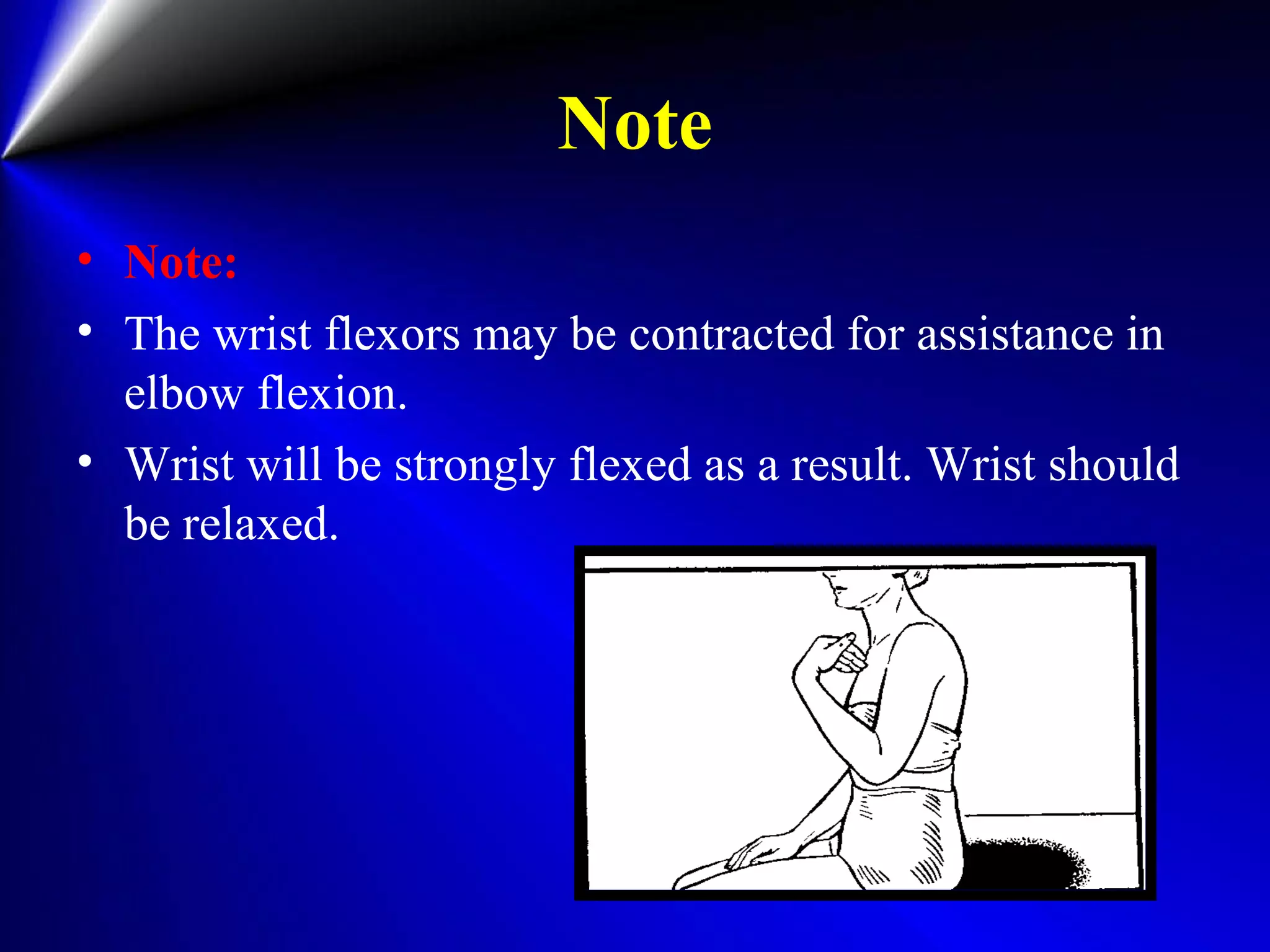

12. Note
• Note:
• The wrist flexors may be contracted for assistance in
elbow flexion.
• Wrist will be strongly flexed as a result. Wrist should
be relaxed.

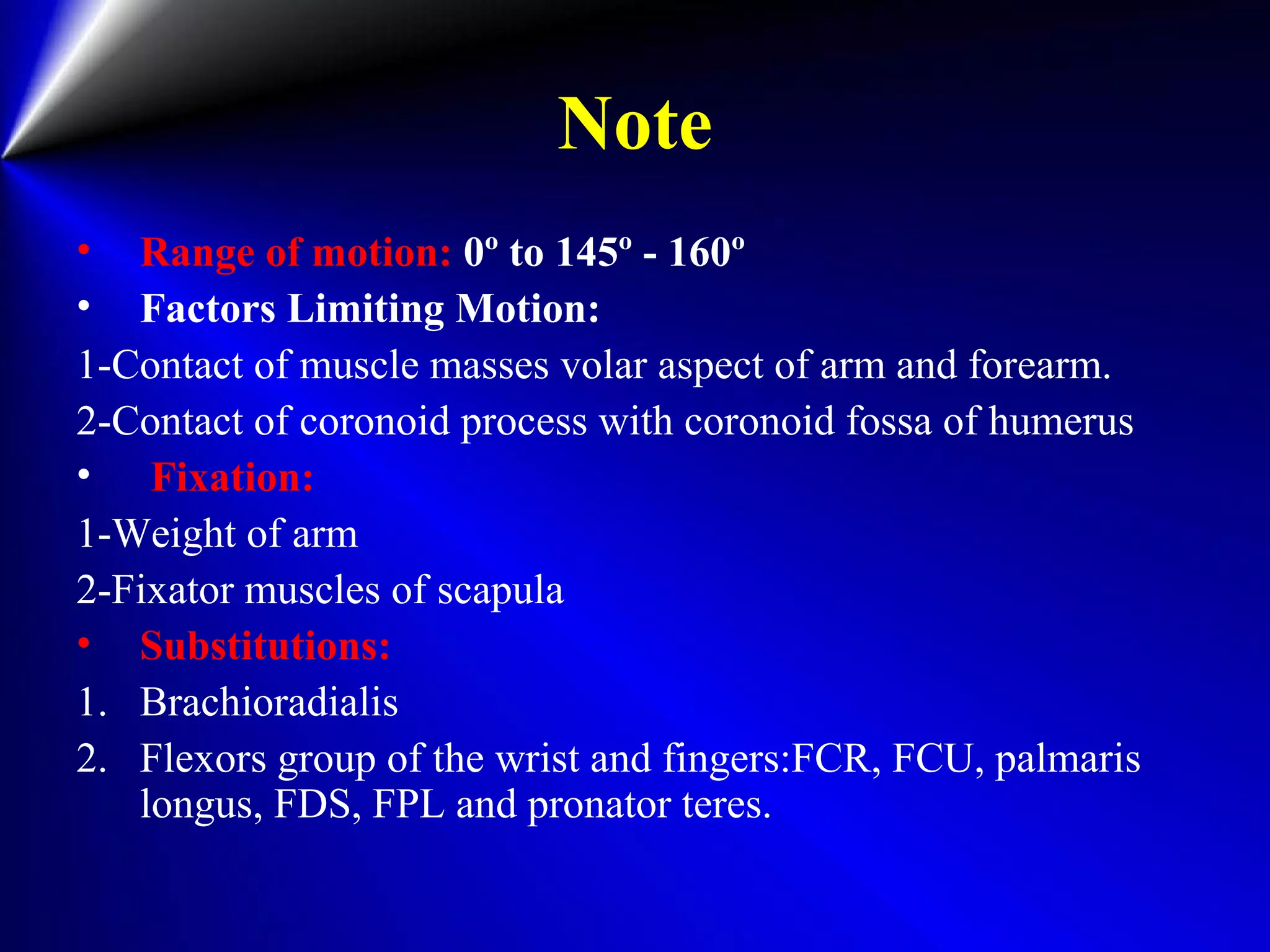

13. Note
• Range of motion: 0º to 145º - 160º
• Factors Limiting Motion:
1-Contact of muscle masses volar aspect of arm and forearm.
2-Contact of coronoid process with coronoid fossa of humerus
• Fixation:
1-Weight of arm
2-Fixator muscles of scapula
• Substitutions:
1. Brachioradialis
2. Flexors group of the wrist and fingers:FCR, FCU, palmaris
longus, FDS, FPL and pronator teres.

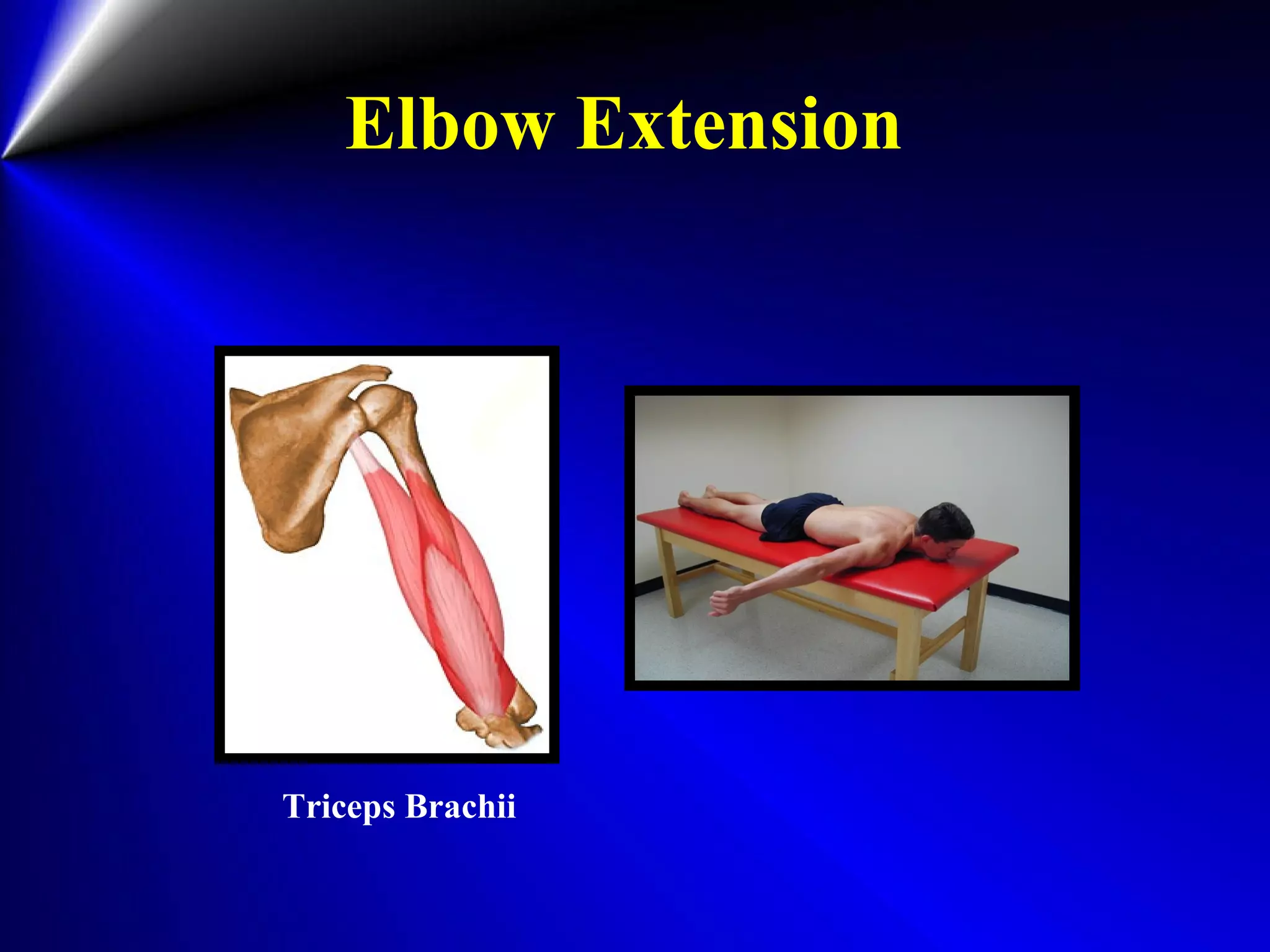

14. Elbow Extension
Triceps Brachii

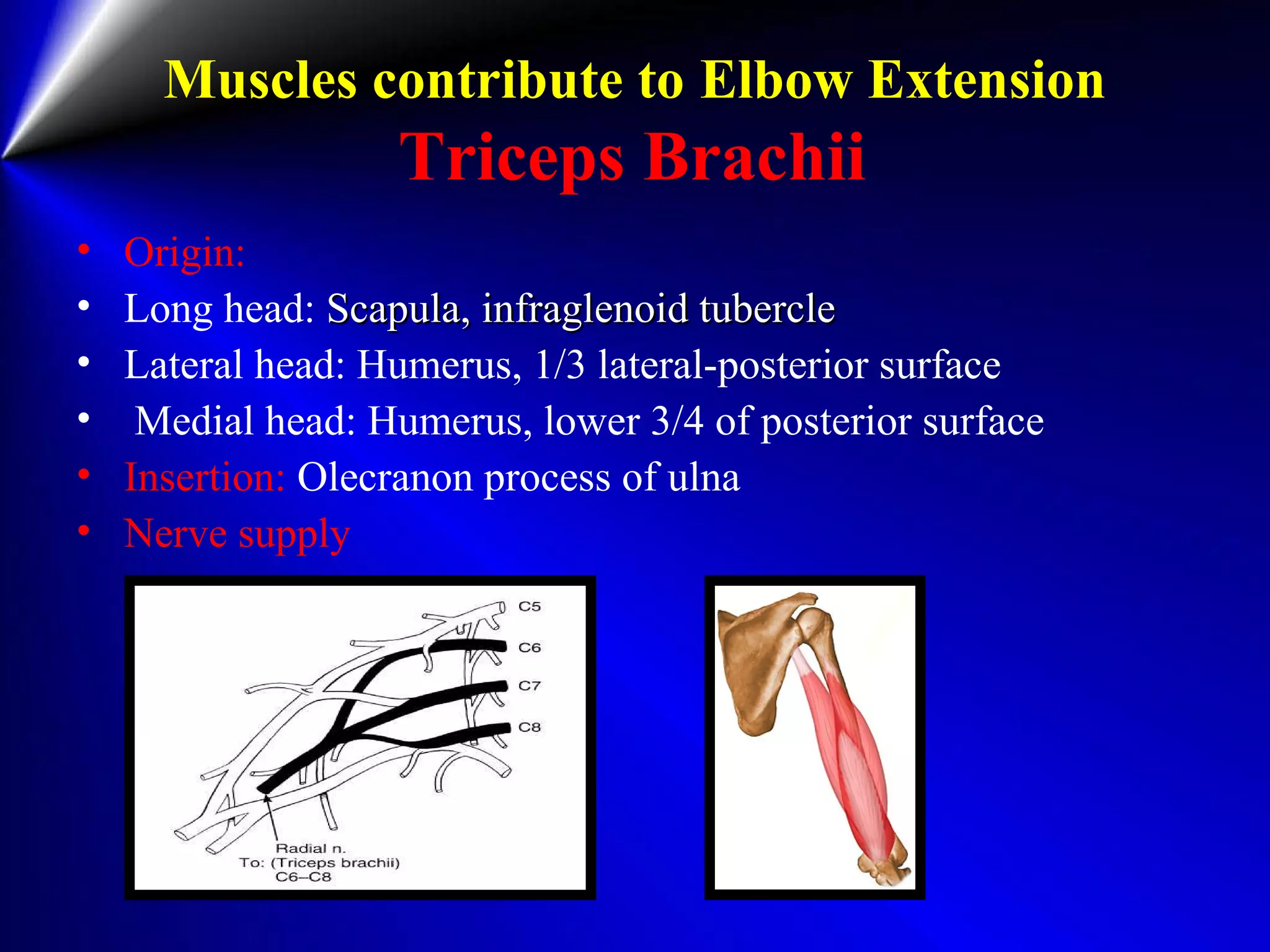

15. Muscles contribute to Elbow Extension
Triceps Brachii
• Origin:
• Long head: Scapula, infraglenoid tubercleScapula, infraglenoid tubercle
• Lateral head: Humerus, 1/3 lateral-posterior surface
• Medial head: Humerus, lower 3/4 of posterior surface
• Insertion: Olecranon process of ulna
• Nerve supply

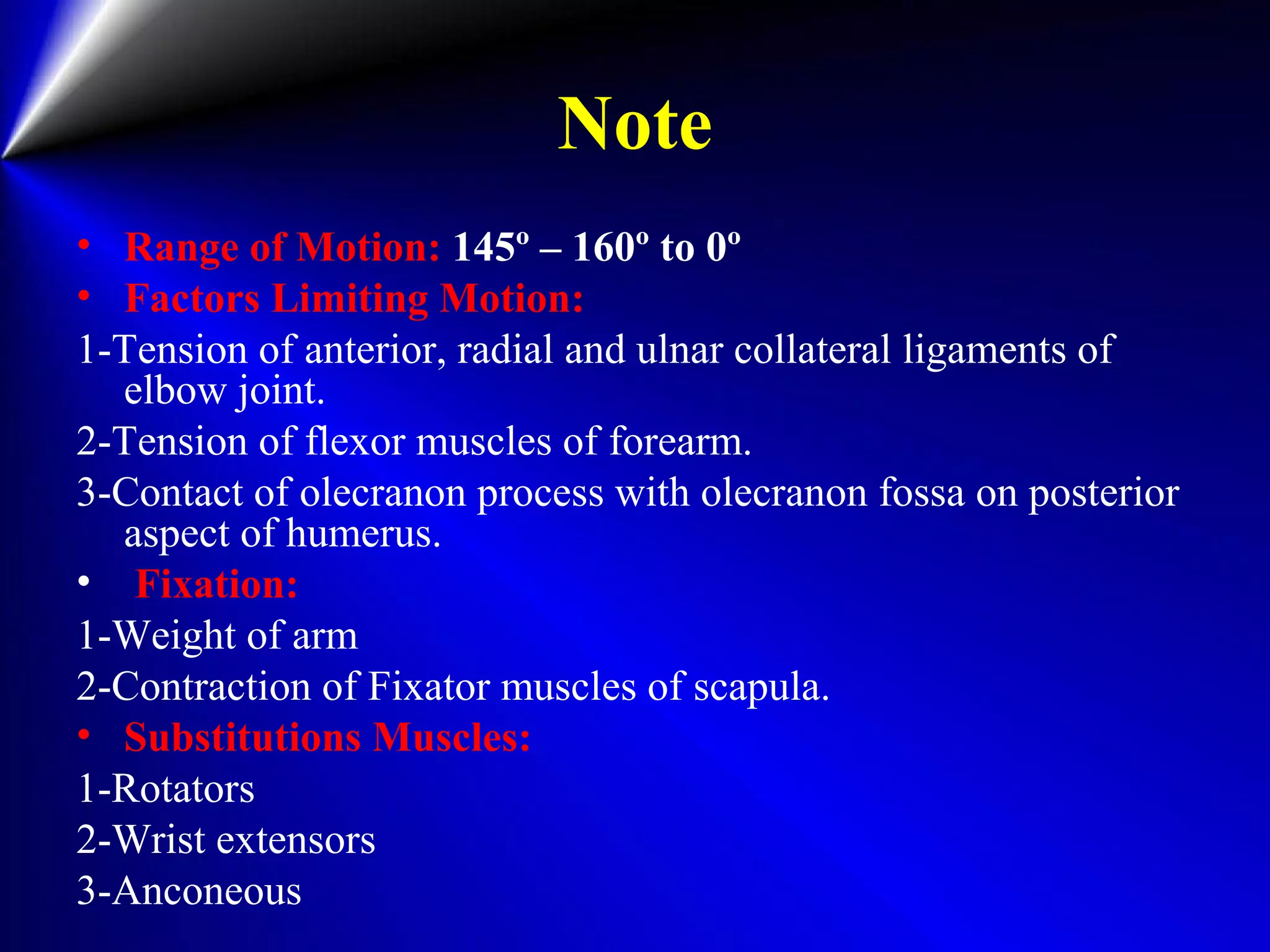

16. Note
• Range of Motion: 145º – 160º to 0º
• Factors Limiting Motion:
1-Tension of anterior, radial and ulnar collateral ligaments of
elbow joint.
2-Tension of flexor muscles of forearm.
3-Contact of olecranon process with olecranon fossa on posterior
aspect of humerus.
• Fixation:
1-Weight of arm
2-Contraction of Fixator muscles of scapula.
• Substitutions Muscles:
1-Rotators
2-Wrist extensors
3-Anconeous

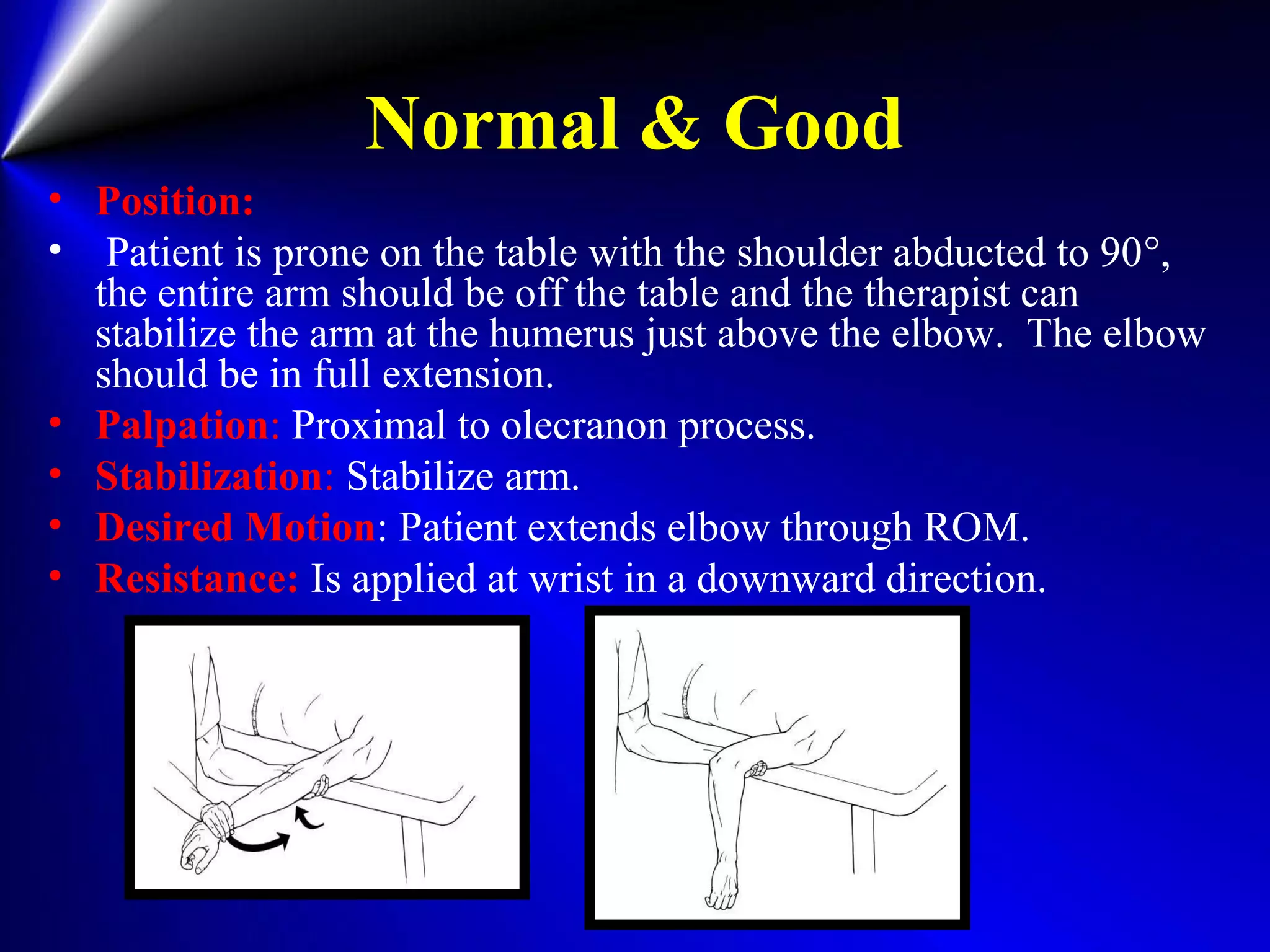

17. Normal & Good
• Position:
• Patient is prone on the table with the shoulder abducted to 90°,
the entire arm should be off the table and the therapist can
stabilize the arm at the humerus just above the elbow. The elbow
should be in full extension.
• Palpation: Proximal to olecranon process.
• Stabilization: Stabilize arm.
• Desired Motion: Patient extends elbow through ROM.
• Resistance: Is applied at wrist in a downward direction.

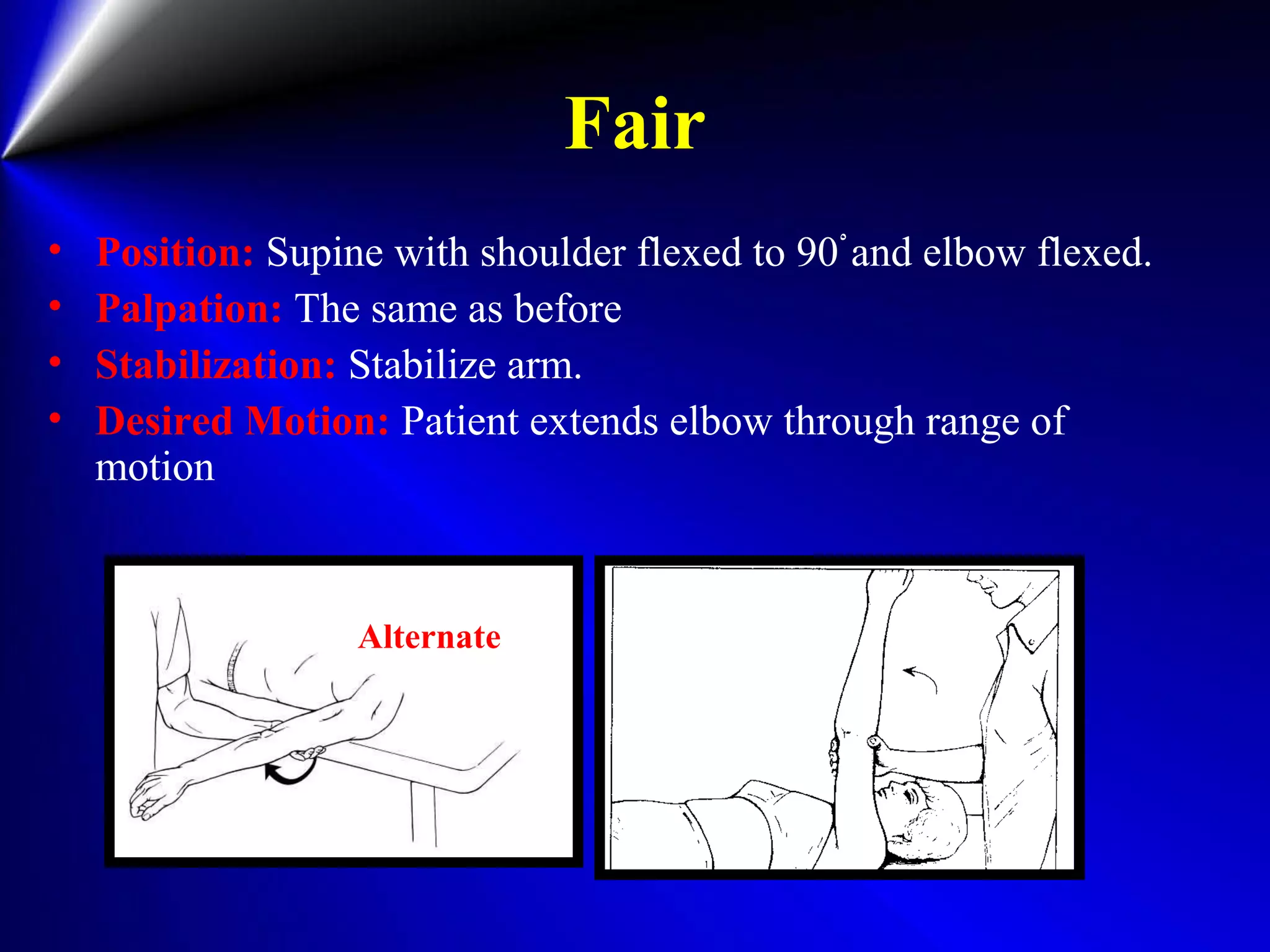

18. Fair
• Position: Supine with shoulder flexed to 90ْand elbow flexed.
• Palpation: The same as before
• Stabilization: Stabilize arm.
• Desired Motion: Patient extends elbow through range of
motion
Alternate

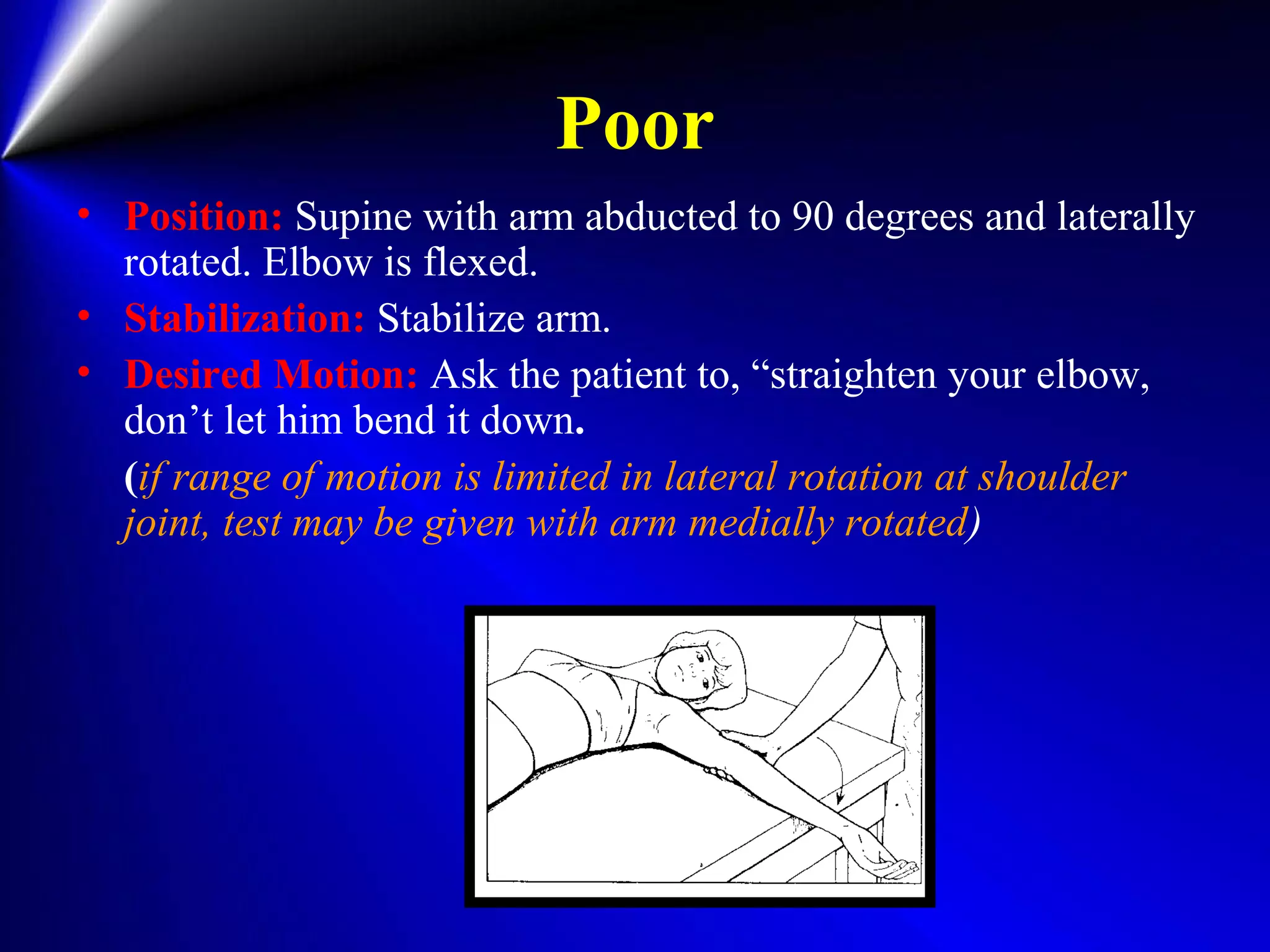

19. Poor
• Position: Supine with arm abducted to 90 degrees and laterally
rotated. Elbow is flexed.
• Stabilization: Stabilize arm.
• Desired Motion: Ask the patient to, “straighten your elbow,
don’t let him bend it down.
(if range of motion is limited in lateral rotation at shoulder
joint, test may be given with arm medially rotated)

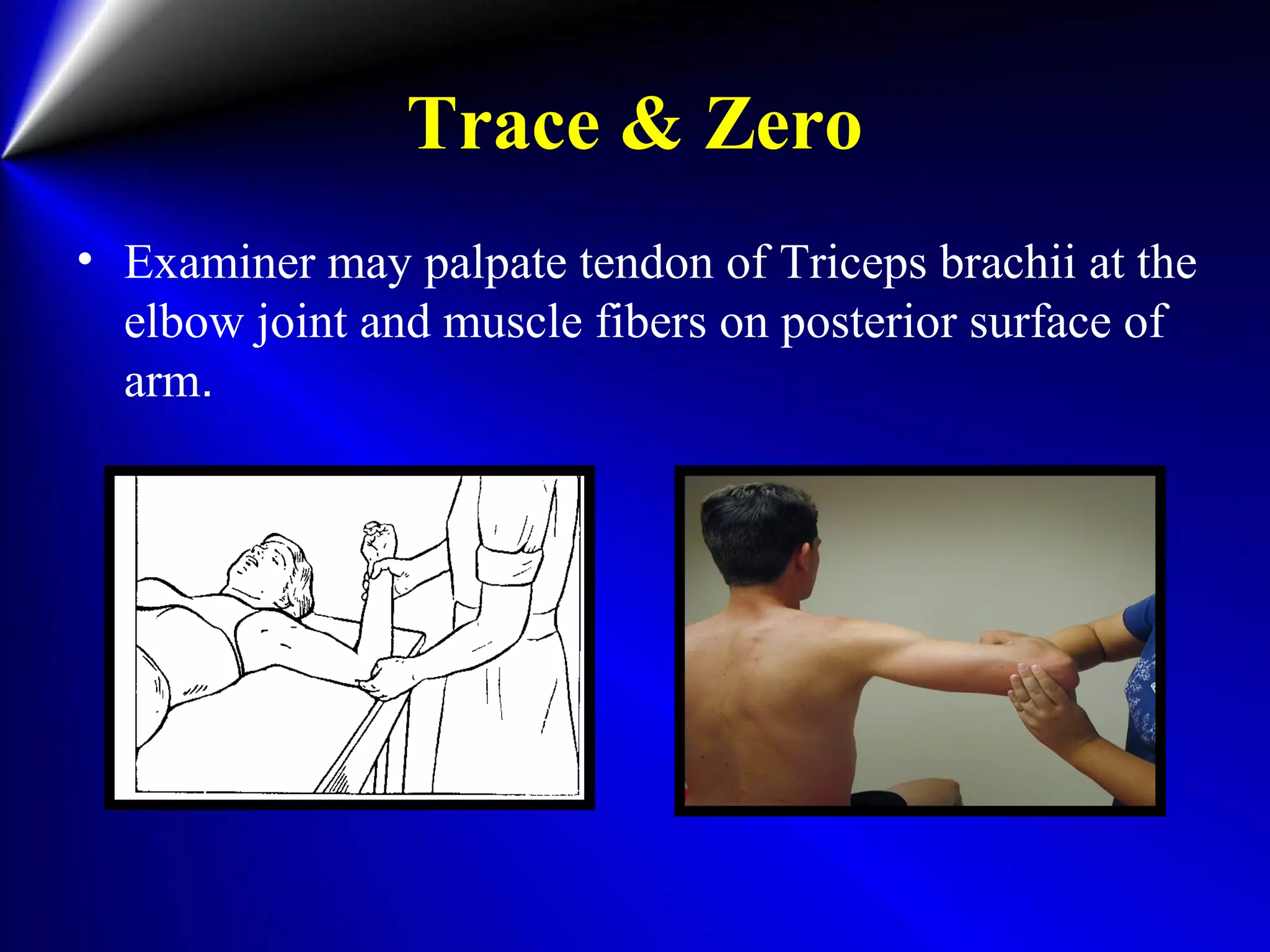

20. Trace & Zero
• Examiner may palpate tendon of Triceps brachii at the
elbow joint and muscle fibers on posterior surface of
arm.

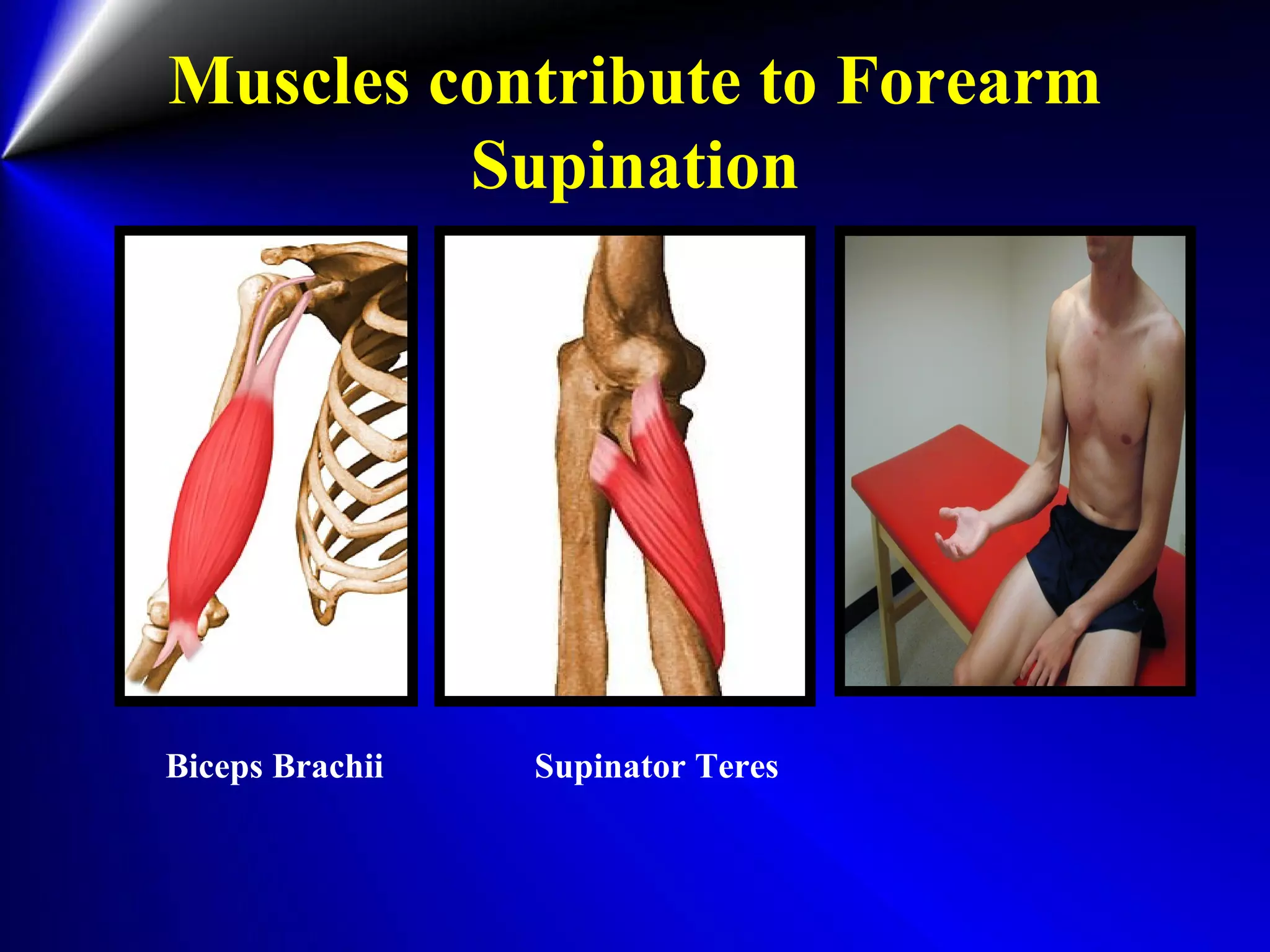

21. Muscles contribute to Forearm
Supination
Biceps Brachii Supinator Teres

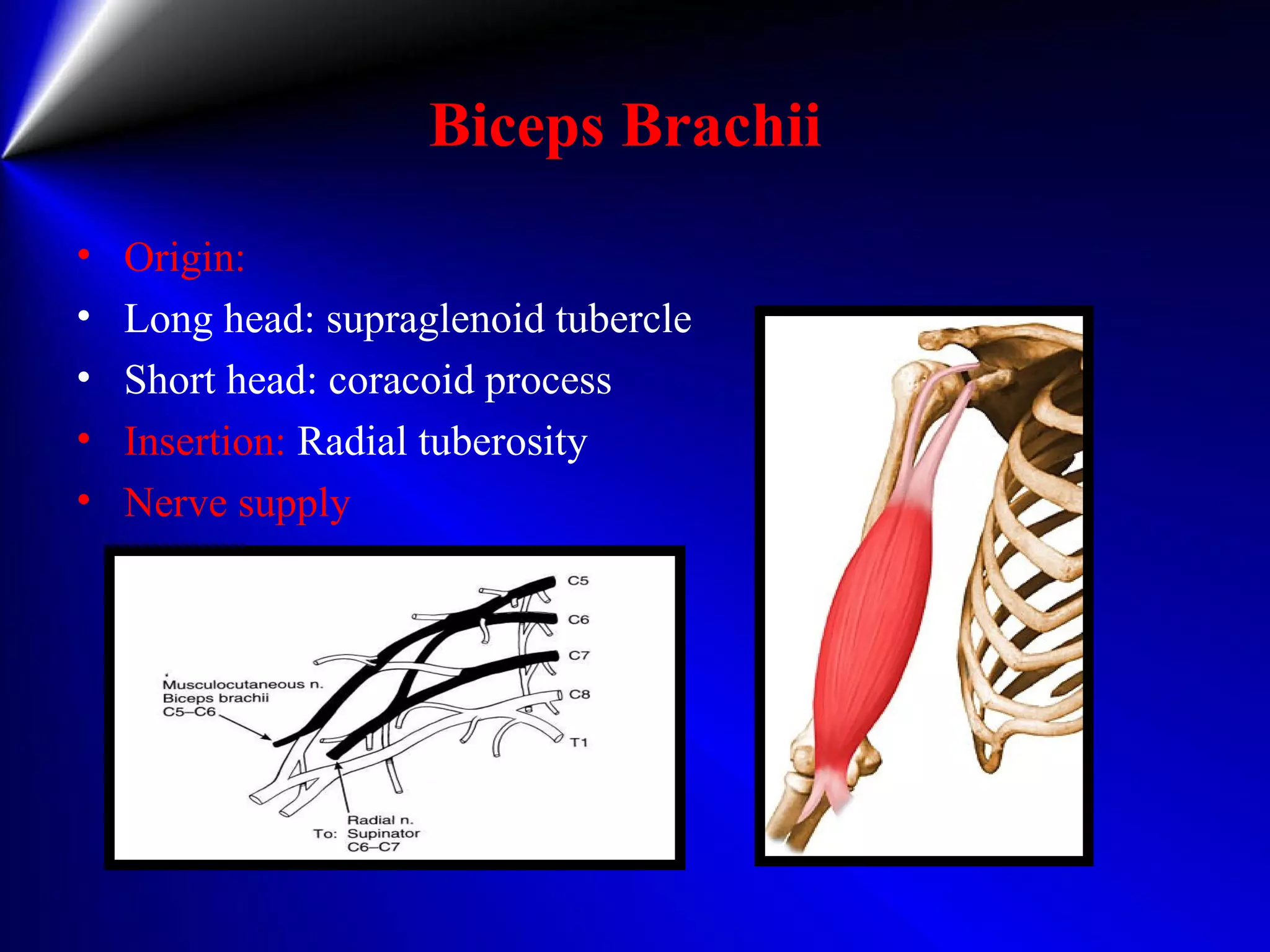

22. Biceps Brachii
• Origin:
• Long head: supraglenoid tubercle
• Short head: coracoid process
• Insertion: Radial tuberosity
• Nerve supply

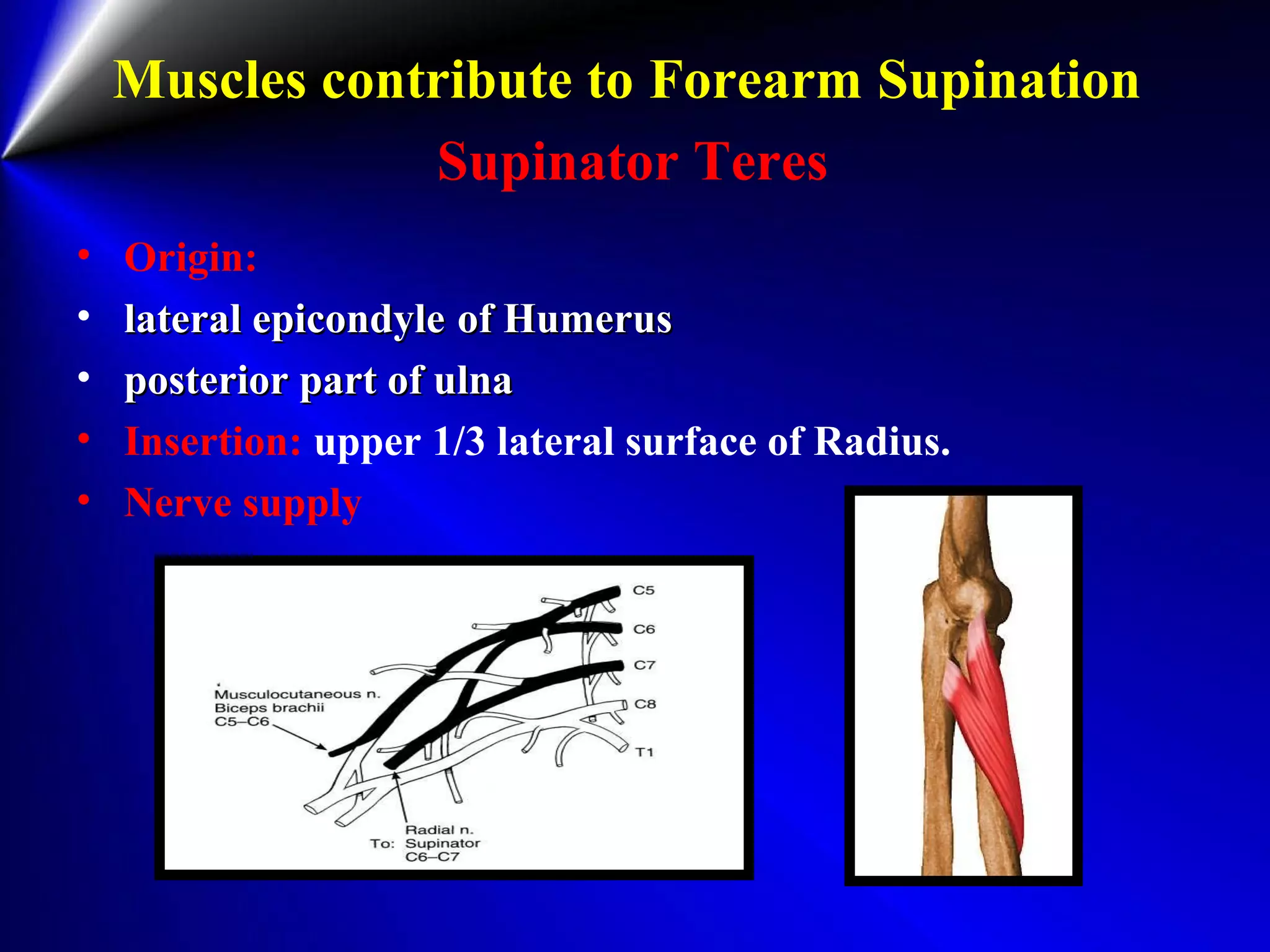

23. Muscles contribute to Forearm Supination
Supinator Teres
• Origin:
• lateral epicondylelateral epicondyle of Humerusof Humerus
• posterior part of ulnaposterior part of ulna
• Insertion: upper 1/3 lateral surface of Radius.
• Nerve supply

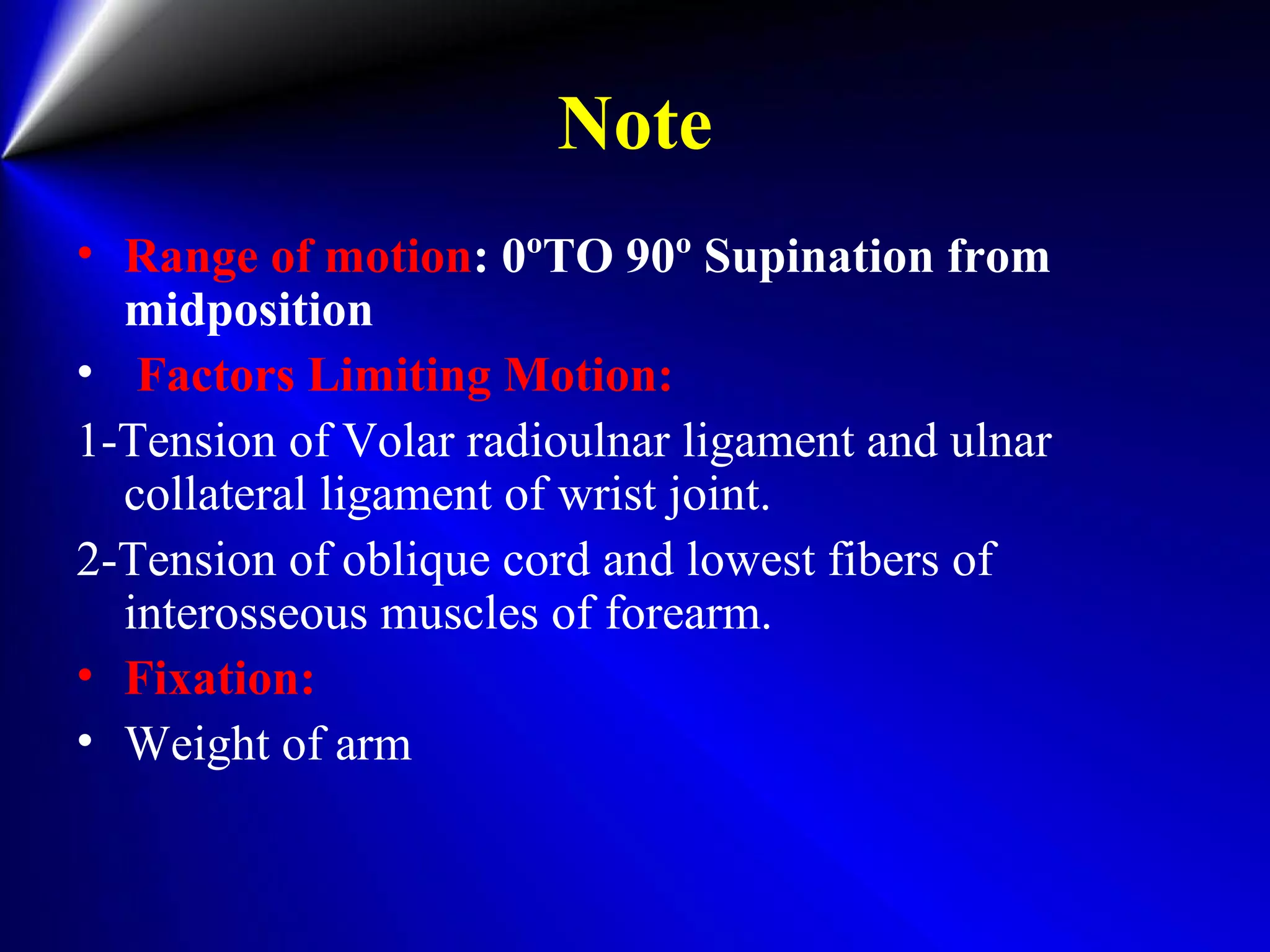

24. Note
• Range of motion: 0ºTO 90º Supination from
midposition
• Factors Limiting Motion:
1-Tension of Volar radioulnar ligament and ulnar
collateral ligament of wrist joint.
2-Tension of oblique cord and lowest fibers of
interosseous muscles of forearm.
• Fixation:
• Weight of arm

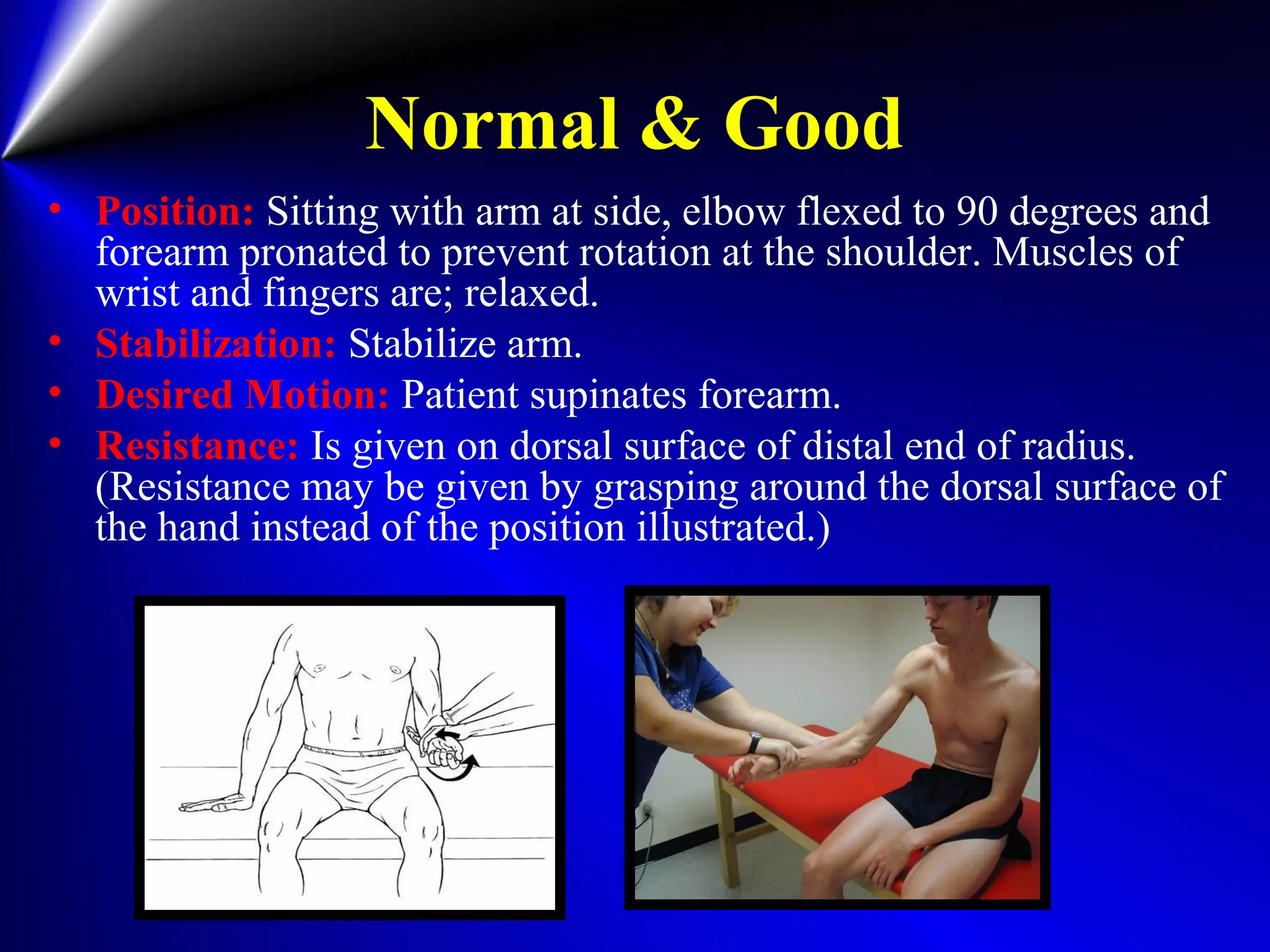

25. Normal & Good
• Position: Sitting with arm at side, elbow flexed to 90 degrees and
forearm pronated to prevent rotation at the shoulder. Muscles of
wrist and fingers are; relaxed.
• Stabilization: Stabilize arm.
• Desired Motion: Patient supinates forearm.
• Resistance: Is given on dorsal surface of distal end of radius.
(Resistance may be given by grasping around the dorsal surface of
the hand instead of the position illustrated.)

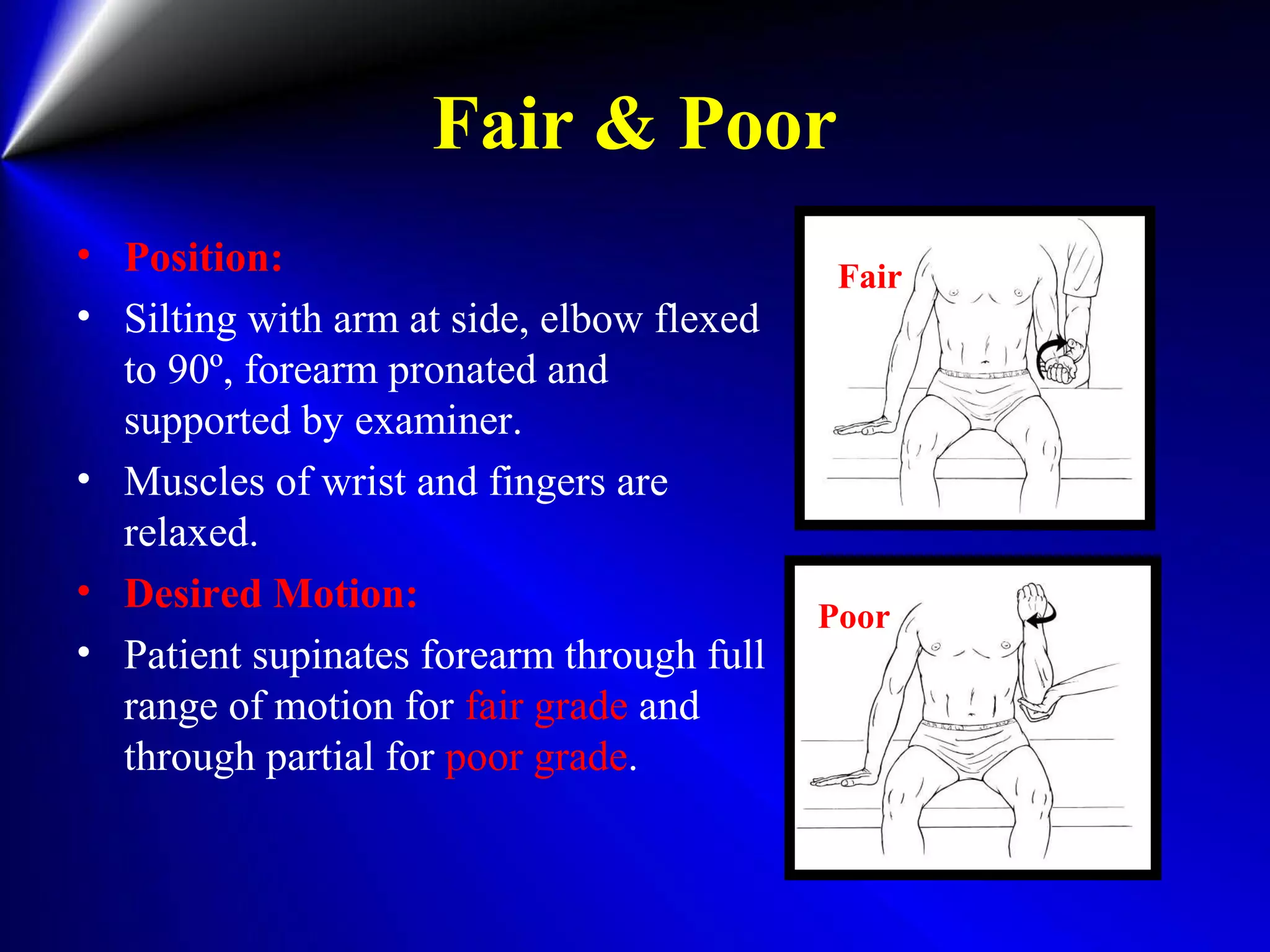

26. Fair & Poor
• Position:
• Silting with arm at side, elbow flexed
to 90º, forearm pronated and
supported by examiner.
• Muscles of wrist and fingers are
relaxed.
• Desired Motion:
• Patient supinates forearm through full
range of motion for fair grade and
through partial for poor grade.
Fair
Poor

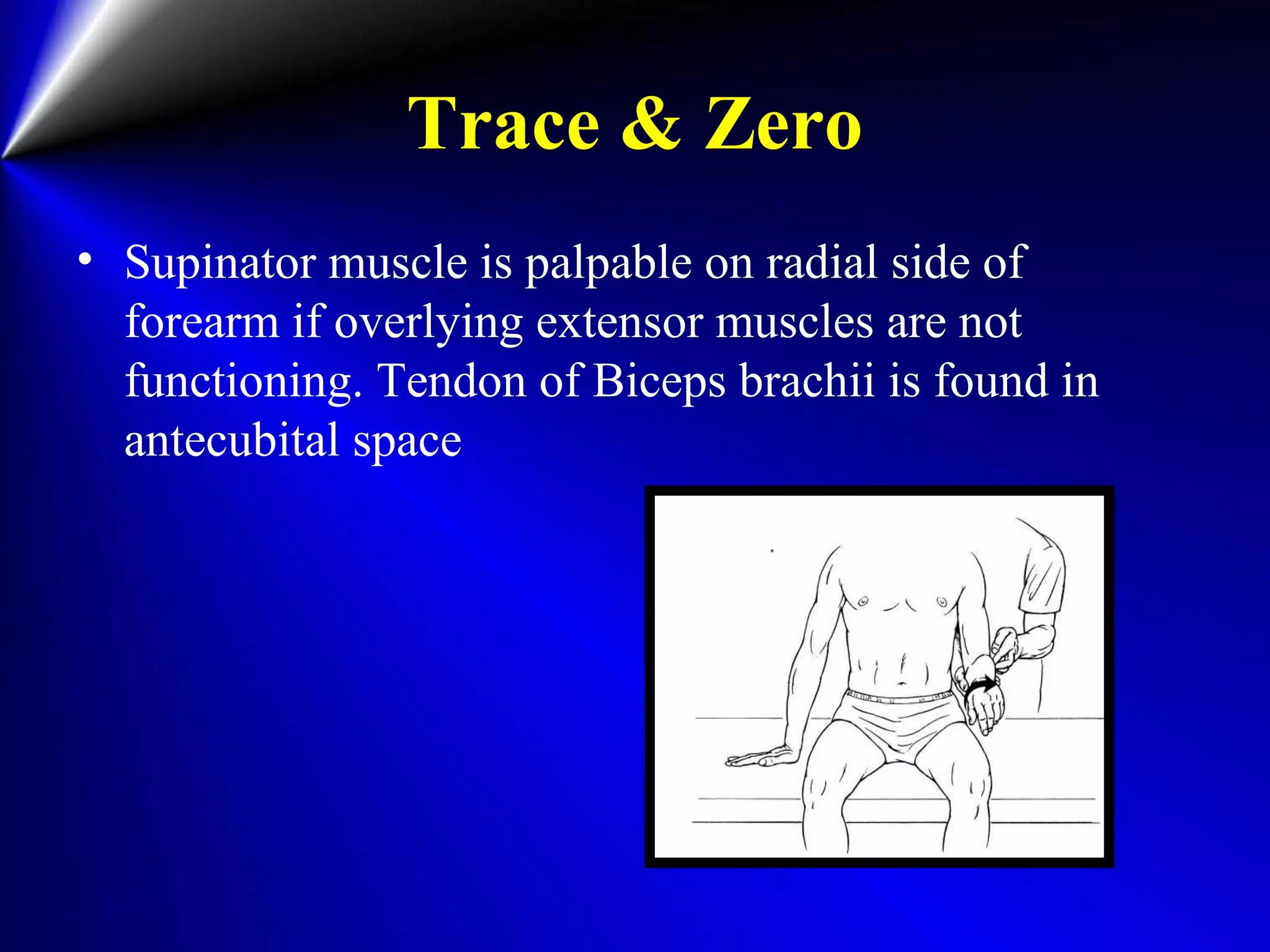

27. Trace & Zero
• Supinator muscle is palpable on radial side of
forearm if overlying extensor muscles are not
functioning. Tendon of Biceps brachii is found in
antecubital space

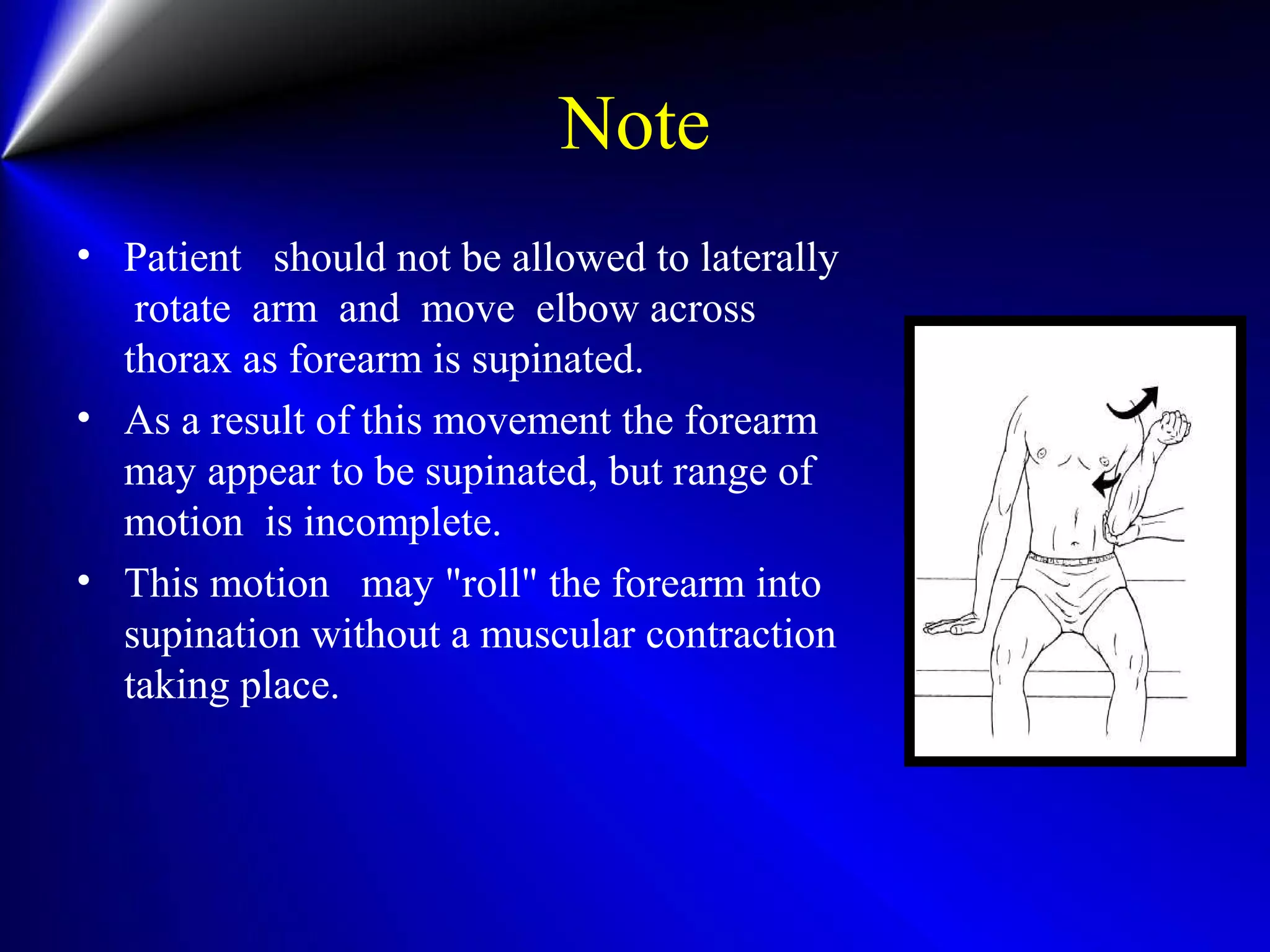

28. Note
• Patient should not be allowed to laterally
rotate arm and move elbow across
thorax as forearm is supinated.
• As a result of this movement the forearm
may appear to be supinated, but range of
motion is incomplete.
• This motion may "roll" the forearm into
supination without a muscular contraction
taking place.

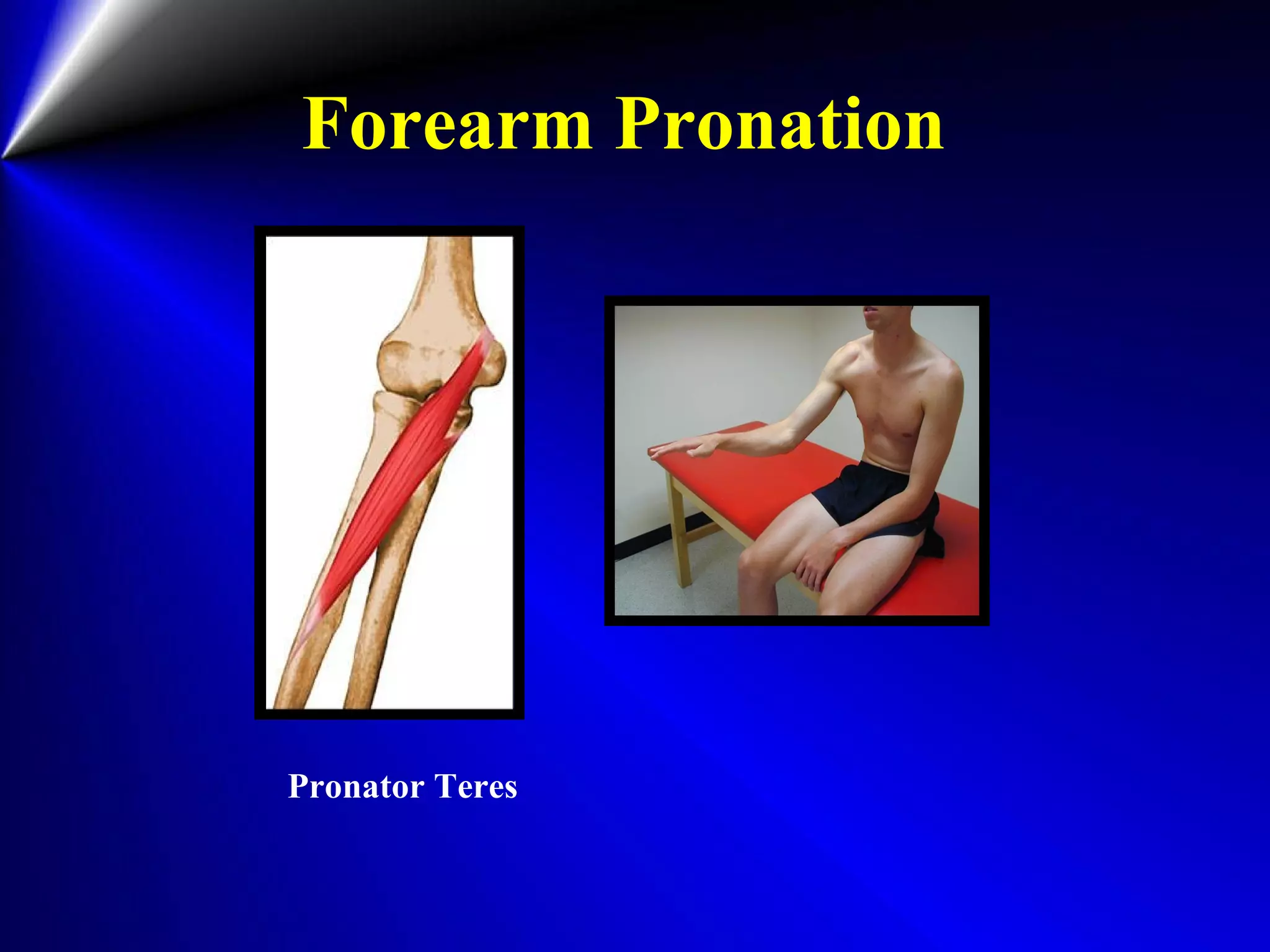

29. Forearm Pronation
Pronator Teres

30. Muscles contribute to Forearm Pronation

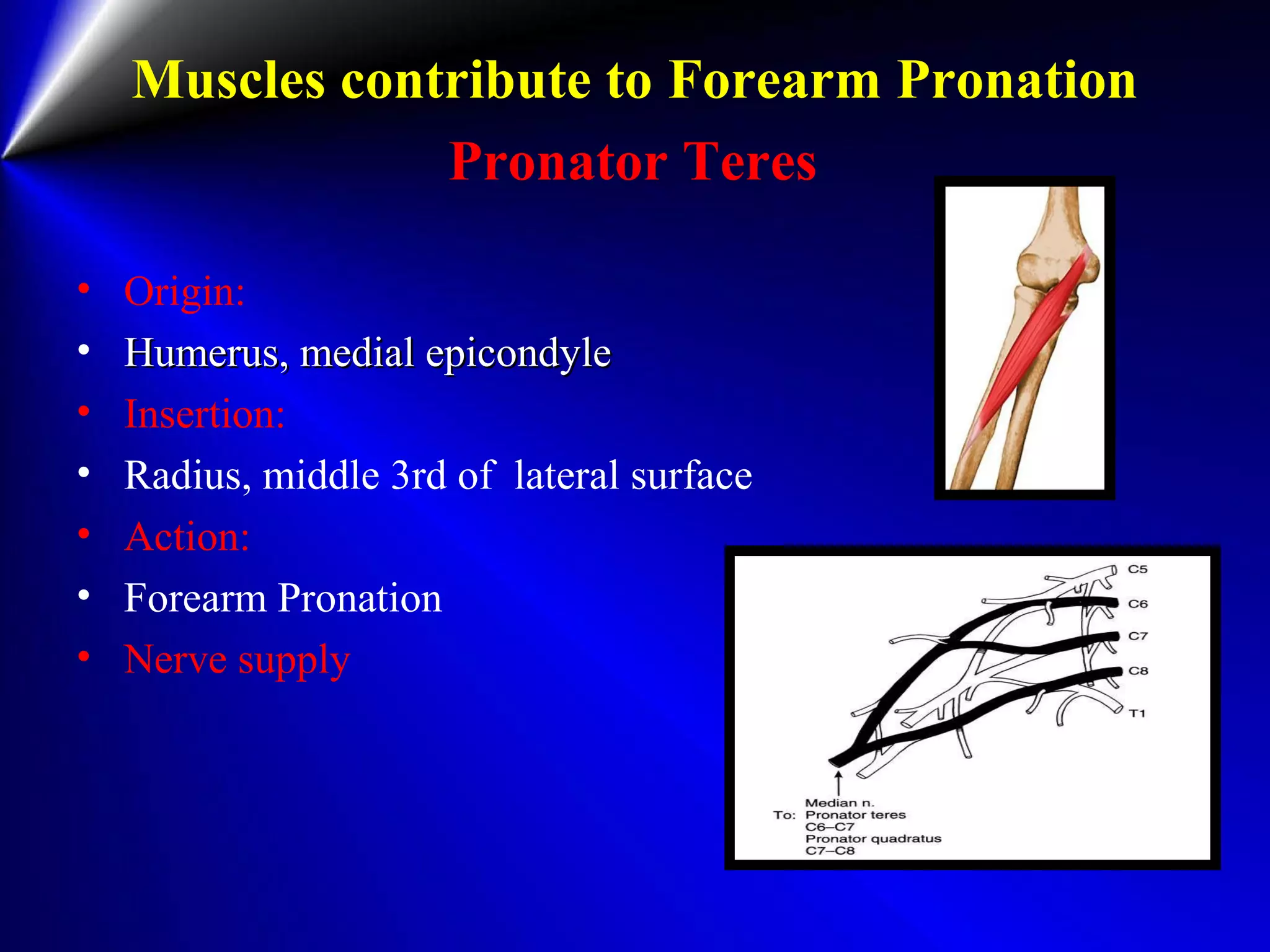

Pronator Teres
• Origin:
• Humerus, medial epicondyleHumerus, medial epicondyle
• Insertion:
• Radius, middle 3rd of lateral surface
• Action:
• Forearm Pronation
• Nerve supply
