1. U.RADHAKRISHNAN.M.P.T

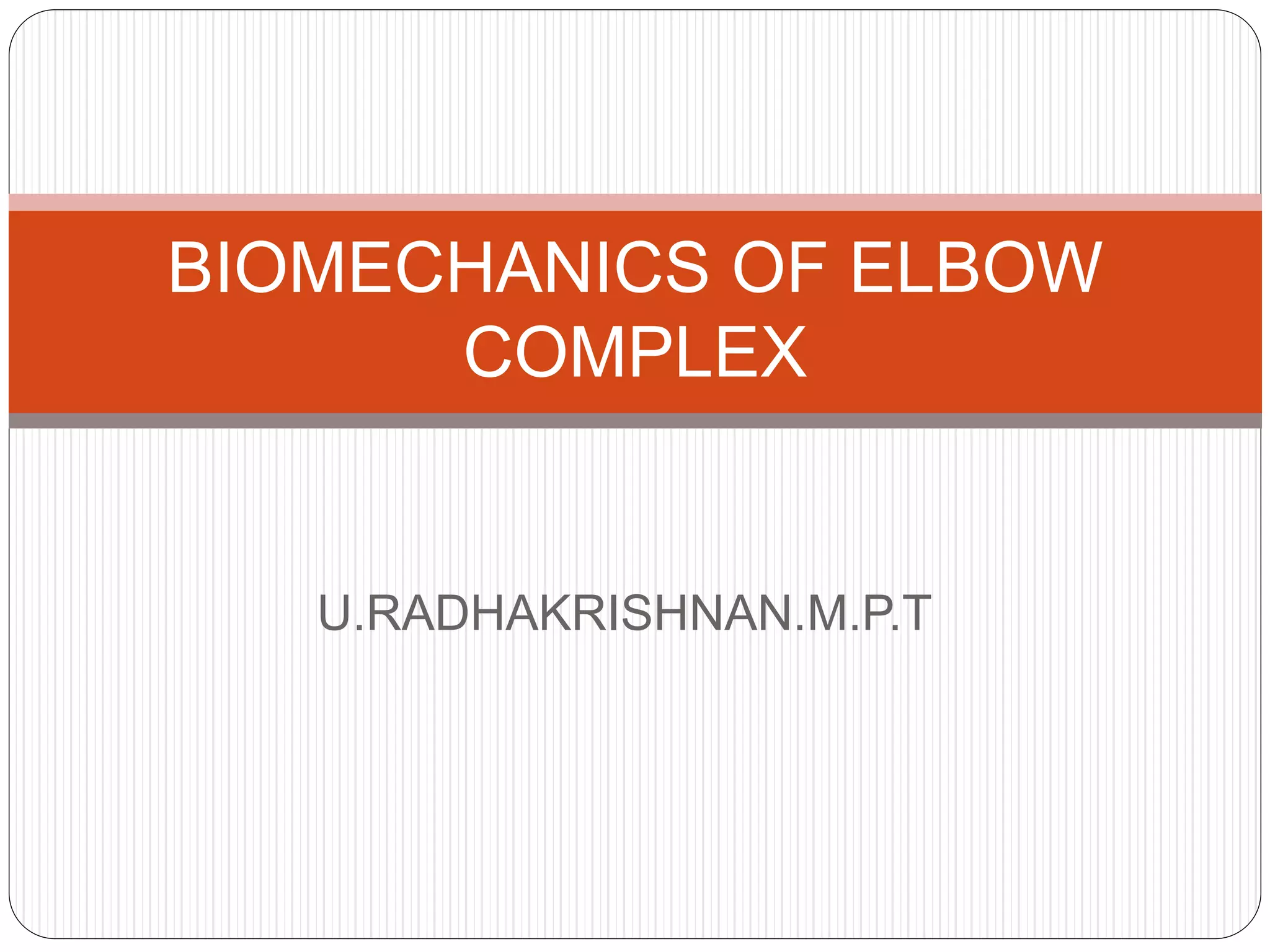

BIOMECHANICS OF ELBOW
COMPLEX

2. INTRODUCTION
 Elbow complex is designed to serve
hand.
 They provide MOBILITY for Hand in
space by apparent shortening and
Lengthening of upper extremity.
 They provide Stability for skillful and
forceful movements

3. ELBOW JOINT

4. HUMERO ULNAR JOINT
 ARTICULATIONS OF HUMEROULNAR JOINT
 The articulating surface on the Humerus is Hour
glass shaped TROCHLEA
 The articulating surface on Ulna is a semicircular
shaped concave surface called TROCHLEAR
NOTCH

5. HUMERO RADIAL JOINT
 ARTICULATION OF HUMERORADIAL JOINT
 The articulating surface on the Humerus is
spherical – shaped CAPITULUM
 The articulating surface on the RADIUS is the
cup shaped Radial head surrounded by a rim

6. ARTICULATIONS OF JOINT
 IN EXTENSION
 The OLECRANON PROCESS enter the
olecranon fossa in Humeroulnar Joint
 There is no contact between the articulating
surfaces in Humeroradial Joint.

7. ARTICULATIONS OF JOINT
 IN FLEXION
 The Trochlear ridge of Ulna slides along the
Trochlear groove until the Coronoid process
reaches the Coronoid fossa in Humeroulnar joint
 The radial head slides over capitulum and
reaches Radial fossa in Full Flexion.

8. JOINT CAPSULE
 The Humeroulnar , Humeroradial and Superior
Radioulnar Joint are enclosed in a single Joint
capsule.The capsule is fairly loose .
 Anteriorly, it is attached above coronoid and radial
fossa
 Posteriorly ,it is attached above Olecranon fossa.

9. LIGAMENTS
 MEDIAL COLLATERAL LIGAMENT
Extends from Medial epicondyle of Humerus to
Coronoid and
Olecranon process of Ulna
 LATERAL COLATERAL LIGAMENT
Extends from Lateral Epicondyle of Humerus to
Annular Ligament and Olecranon process.
 ANNULAR LIGAMENT
It encircles the head of Radius

10. LIGAMENTS OF ELBOW

11. Movements of Elbow Joint
 FLEXION-EXTENSION ( 0-140 degree)
 AXIS-------Medio Lateral Axis (Passess through
Trochlea)
 PLANE------Saggital plane
 MUSCLES:
 FLEXORS OF ELBOW
 Biceps Brachi---Powerful flexor when elbow is in
90 degree Flexion.
 Brachialis----Flexor of elbow in all position
 Brachioradialis---Flexor of elbow in midprone
position

12. BICEPS BRACHI

13. EXTENSORS OF ELBOW
 TRICEPS is the powerful extensor of the
Shoulder
 Long head of Triceps depends on Shoulder
Position
 Medial head of Triceps is active in unresisted
Elbow
extension
 All three Heads of Triceps are active when heavy
resistance is given to Extension.

15. CARRYING ANGLE
 The angle formed between the axis of Humerus
and the Longitudinal axis of Forearm
 Normal angle: In MEN=5 degree ,
In WOMEN=10 degree
 The angle is more in Women due to Wider Pelvis
 CUBITUS VALGUS: Increase in Carrying Angle
 CUBITUS VARUS: Decrease in Carrying Angle

16. CARRYING ANGLE

17. SUPERIOR RADIOULNAR
JOINT
 ARTICULATION
 The Radial notch on Ulna articulate with Head of
Radius along with Annular Ligament & Capitulum.
 LIGAMENTS
 Annular Ligament-----circle the head of Radius
and keeps the Ulna together.
 Quadrate Ligament----extends from the Inferior
edge of radial notch to Neck of Radius
 Oblique cord------attached to inferior part of
Radial notch on Ulna to just below Radial
Tuberosity

18. INFERIOR RADIOULNAR
JOINT
 ARTICULATION
 The Ulnar notch of Radius articulates with head
of Ulna along with Articular Disc.
 LIGAMENTS
 Anterior Radio Ulnar Ligament----attached to
anterior aspect just above the Ulnar head to
above Ulnar notch.
 Posterior Radio Ulnar Ligament---attached to
posterior part of Ulnar head to above Ulnar
notch.
 Interosseous Membrane---binds the shaft of
Radius and Ulna together.

19. MUSCLES
 PRONATOR TERES----- helps in Pronation,it
acts in all position of Elbow, helps in Stabilization
of Superio Radio Ulnar Joint. Active during rapid
and resisted Pronation.
 PRONATOR QUADRATUS---- helps in
Pronation in all position of Elbow
 SUPINATOR---------helps in Supination in all
position of Elbow
 BICEPS BRACHI-------- helps in Supination
when Elbow is flexed to 90 degree

20. MOVEMENTS
 Pronation & Supination
 Axis of movement extends from radial head to
Ulnar head
 Pronation and Supination movement is good
when Elbow is Flexed to 90 degree
 In Elbow extended position Pronation is limited
due to passive tension in Biceps Brachi.
Supination is limited due to passive tension in
Interosseous Membrane.

21. PROBLEMS OF ELBOW
 TENNIS ELBOW or LATERAL EPICONDYLITIS:
 Inflammation at origin of Extensors of Wrist at
Lateral Epicondyle.
 It is caused due to repeated forceful contraction
of Wrist Extensors.
 Extensor carpi radialis brevis is affected
 GOLFER’S ELBOW or MEDIAL
EPICONDYLITIS:
 Inflammation at origin of Flexors of Wrist at
Medial Epicondyle.
 Repetitive contractions of Pronator Teres,Flexor
Carpi Ulnaris

22. PROBLEMS OF ELBOW
 NURSEMAID’S ELBOW or PULLED ELBOW
 In small children the radial head is not fully
developed ,lifting small child up in to by one hand
may cause the RADIAL HEAD to slip out of
Annular Ligament.
 CUBITAL TUNNEL SYNDROME
 Repetitive forceful contractions of Flexor carpi
Ulnaris may compress Ulnar Nerve as it passess
through the cubital tunnel between Medial
Epicondyle of Humerus and Olecranon process of
Ulna.
