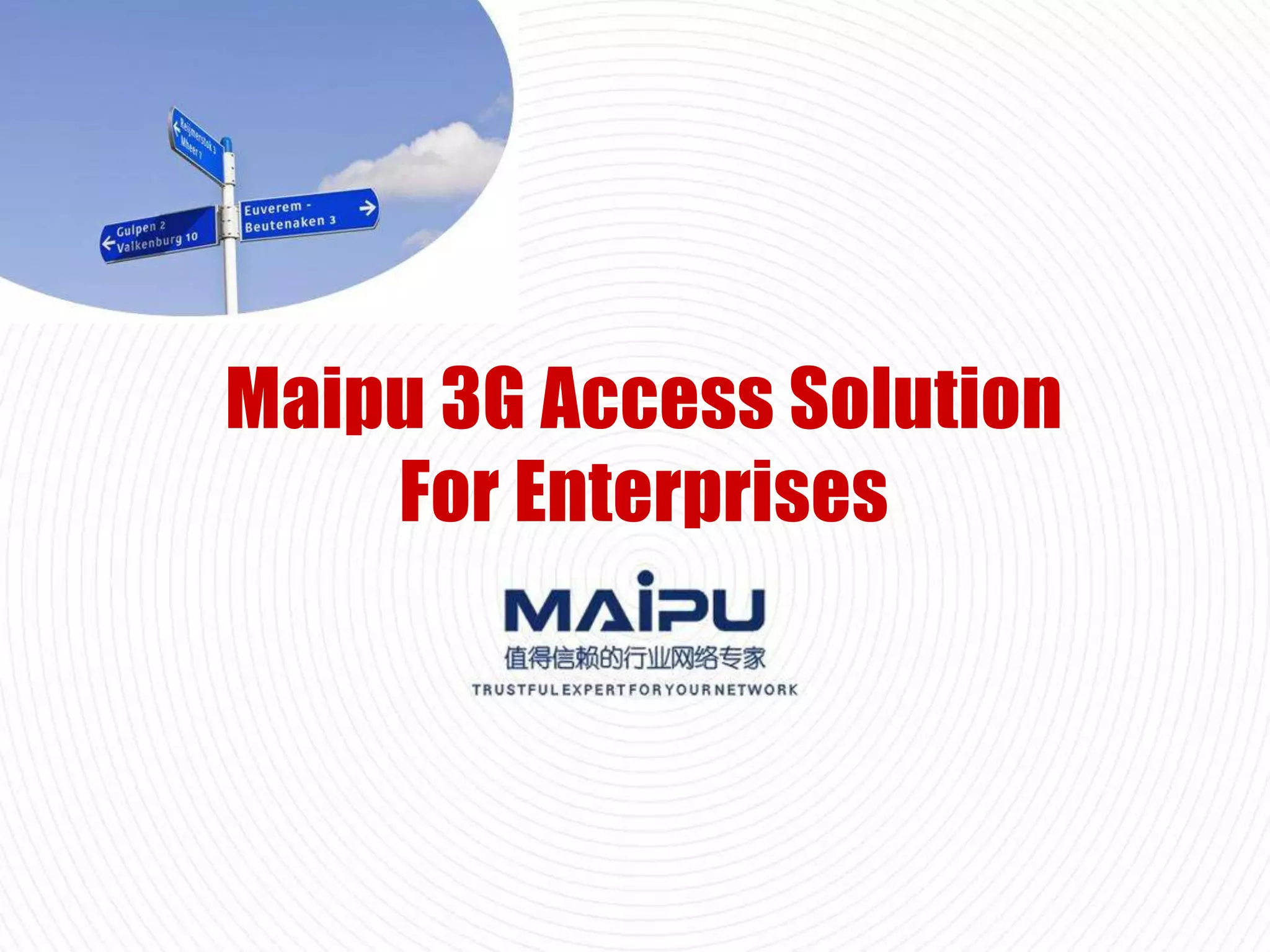

1. Maipu 3G Access Solution
For Enterprises

2. Contents
Network requirements of Financial
service/Police/Transportation Company/Power
Company/Retailer
3G Solution-Flexibility/Reliability/Security/Easy
Management
Router-MP1800 Router Introduction
Case Studies

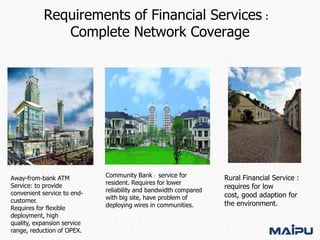

3. Requirements of Financial Services：
Complete Network Coverage
Away-from-bank ATM
Service: to provide
convenient service to endcustomer.
Requires for flexible
deployment, high
quality, expansion service
range, reduction of OPEX.
Community Bank：service for
resident. Requires for lower
reliability and bandwidth compared
with big site, have problem of
deploying wires in communities.
Rural Financial Service :
requires for low
cost, good adaption for
the environment.

4. Requirements of Financial Services：
unfixed places, flexibility of service deployment
Wireless POS: convenient service
Finance Exhibition: provide customer
to experience latest financial service
Marketing activity:
sign contracts on site
Emergency Financial Service: provide
emergency service for some special
situation.

5. Encountered Problems:
Inflexibility of service deployment
– Carriers cannot provide wire resource or have problem to deploy
wires in communities and rural areas.
– Expensive channel rental fee.
– Wires cannot be changed on place
– cannot move the financial machines
– Inconvenient for maintenance

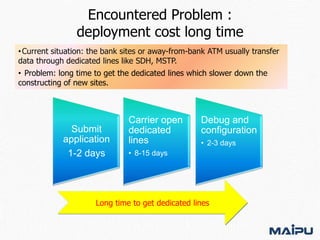

6. Encountered Problem :
deployment cost long time
• Current situation: the bank sites or away-from-bank ATM usually transfer
data through dedicated lines like SDH, MSTP.
• Problem: long time to get the dedicated lines which slower down the
constructing of new sites.
Submit
application
1-2 days
Carrier open
dedicated
lines
Debug and
configuration
• 2-3 days
• 8-15 days
Long time to get dedicated lines

7. Requirements of Police Network
•Mobility for dispatch.
•Easy for locating police cars.
•Easy for monitoring police cars.
•Small space for equipment.
•Only vehicle power supply.

8. Requirements of Transportation Company
•Mobility for trunks.
•Easy for locating.
•Easy for monitoring.
•Small space for equipment.
•Only vehicle power supply.

9. Requirements of Power Company
Power meters in mountains
Power meters in rural areas
•Power meters at remote sites send data through serial
port, network equipment should support serial port and
transfer data to the hub site.
•Wide range of coverage.

10. Requirements of Retailers
•No need leased line, prefer cost-effective link.
•No need 100% reliability, 95% reliability is ok.

11. Contents
Network requirements of Financial
service/Police/Transportation Company/Power
Company/Retailer
3G Solution-Flexibility/Reliability/Security/Easy
Management
Router-MP1800 Router Introduction
Case Studies

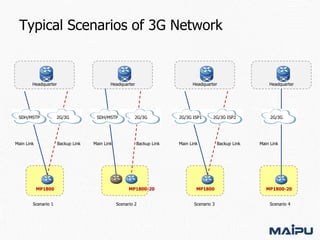

12. Typical Scenarios of 3G Network
Headquarter
SDH/MSTP
Main Link
Headquarter
2G/3G
Backup Link
MP1800
Scenario 1
SDH/MSTP
Main Link
Headquarter
2G/3G
Backup Link
MP1800-20
Scenario 2
2G/3G ISP1
2G/3G ISP2
Main Link
Backup Link
Headquarter
2G/3G
Main Link
MP1800
MP1800-20
Scenario 3
Scenario 4

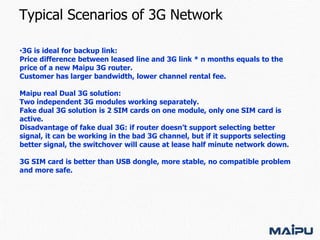

13. Typical Scenarios of 3G Network
•3G is ideal for backup link:
Price difference between leased line and 3G link * n months equals to the
price of a new Maipu 3G router.
Customer has larger bandwidth, lower channel rental fee.
Maipu real Dual 3G solution:
Two independent 3G modules working separately.
Fake dual 3G solution is 2 SIM cards on one module, only one SIM card is
active.
Disadvantage of fake dual 3G: if router doesn’t support selecting better
signal, it can be working in the bad 3G channel, but if it supports selecting
better signal, the switchover will cause at lease half minute network down.
3G SIM card is better than USB dongle, more stable, no compatible problem
and more safe.

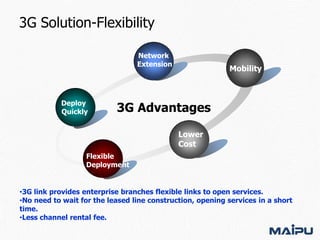

14. 3G Solution-Flexibility
Network
Extension
Deploy
Quickly
Mobility
3G Advantages
Lower
Cost
Flexible
Deployment
•3G link provides enterprise branches flexible links to open services.
•No need to wait for the leased line construction, opening services in a short
time.
•Less channel rental fee.

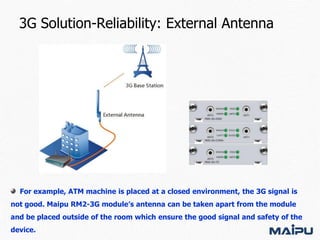

15. 3G Solution-Reliability: External Antenna
For example, ATM machine is placed at a closed environment, the 3G signal is
not good. Maipu RM2-3G module’s antenna can be taken apart from the module
and be placed outside of the room which ensure the good signal and safety of the
device.

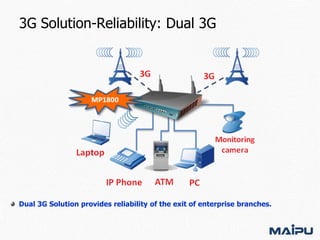

16. 3G Solution-Reliability: Dual 3G
Dual 3G Solution provides reliability of the exit of enterprise branches.

17. 3G Solution-Security
Carrier Network
Branch office
3G Router
3G BTS
LAC
LNS
Headquarter
Access Authentication
End-to-end tunnel
End-to-end encryption
Access security authentication
Multiple authentication binding based on user name, password and IMSI (international mobile
subscriber identity).
End-to-end link privacy
End-to-end private channel from branches to headquarters via IPSEC/GRE/L2TP tunnel.
End-to-end data security encryption
MP1800/2800 adopts DES/AES128/AES256 encryption algorithm to ensure the security of the
enterprise service data.

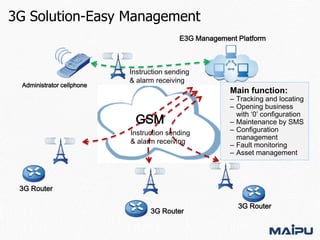

18. 3G Solution-Easy Management
E3G Management Platform
Administrator cellphone
Instruction sending
& alarm receiving
Main function:
GSM
Instruction sending
& alarm receiving
– Tracking and locating
– Opening business
with ‘0’ configuration
– Maintenance by SMS
– Configuration
management
– Fault monitoring
– Asset management
3G Router
3G Router
3G Router

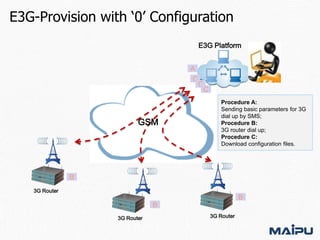

19. E3G-Provision with ‘0’ Configuration
E3G Platform
A
C
GSM
C
C
Procedure A:
Sending basic parameters for 3G
dial up by SMS;
Procedure B:
3G router dial up;
Procedure C:
Download configuration files.
B
3G Router
B
B
3G Router
3G Router

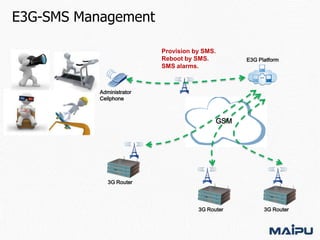

20. E3G-SMS Management
Provision by SMS.
Reboot by SMS.
SMS alarms.
E3G Platform
Administrator
Cellphone
GSM
3G Router
3G Router
3G Router

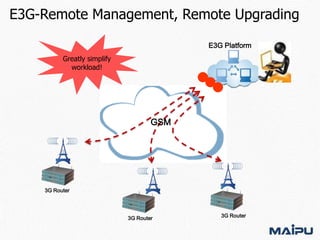

21. E3G-Remote Management, Remote Upgrading
E3G Platform
Greatly simplify
workload!
GSM
3G Router
3G Router
3G Router

22. E3G-Locating & Tracking
E3G can
locate device
by GPS!

23. E3G-Asset Security
Routerx is out
of boundary!
(((((((

24. E3G-Intelligent Power Supply
Router Error!
Coming soon!
Cold
Reboot
Largely
decrease
maintenance
cost!
Intelligent
power socket
MP1800-10

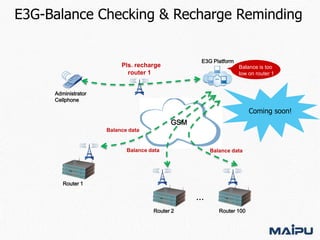

25. E3G-Balance Checking & Recharge Reminding
E3G Platform
Pls. recharge
router 1
Balance is too
low on router 1
Administrator
Cellphone
Coming soon!
GSM
Balance data
Balance data
Balance data
Router 1
…
Router 2
Router 100

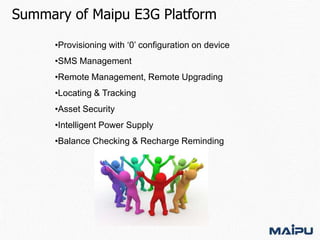

26. Summary of Maipu E3G Platform
•Provisioning with ‘0’ configuration on device
•SMS Management
•Remote Management, Remote Upgrading
•Locating & Tracking
•Asset Security
•Intelligent Power Supply
•Balance Checking & Recharge Reminding

27. Contents
Network requirements of Financial
service/Police/Transportation Company/Power
Company/Retailer
3G Solution-Flexibility/Reliability/Security/Easy
Management
Router-MP1800 Router Introduction
Case Studies

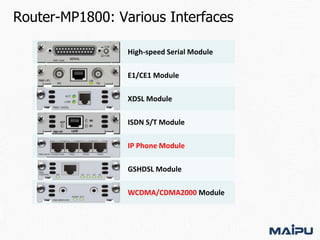

28. Router-MP1800: Various Interfaces
High-speed Serial Module
E1/CE1 Module
XDSL Module
ISDN S/T Module
IP Phone Module
GSHDSL Module
WCDMA/CDMA2000 Module

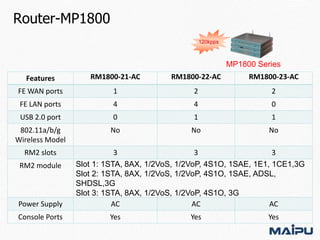

29. Router-MP1800
120kpps
MP1800 Series
Features
RM1800-21-AC
RM1800-22-AC
RM1800-23-AC
FE WAN ports
1
2
2
FE LAN ports
4
4
0
USB 2.0 port
0
1
1
802.11a/b/g
Wireless Model
No
No
No
RM2 slots
RM2 module
Power Supply
Console Ports
3
3
3
Slot 1: 1STA, 8AX, 1/2VoS, 1/2VoP, 4S1O, 1SAE, 1E1, 1CE1,3G
Slot 2: 1STA, 8AX, 1/2VoS, 1/2VoP, 4S1O, 1SAE, ADSL,
SHDSL,3G
Slot 3: 1STA, 8AX, 1/2VoS, 1/2VoP, 4S1O, 3G
AC
AC
AC
Yes
Yes
Yes

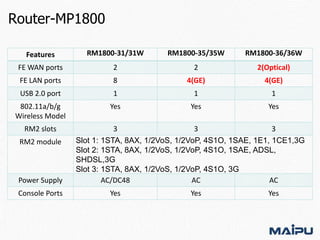

30. Router-MP1800
Features
RM1800-31/31W
RM1800-35/35W
RM1800-36/36W
FE WAN ports
2
2
2(Optical)
FE LAN ports
8
4(GE)
4(GE)
USB 2.0 port
1
1
1
802.11a/b/g
Wireless Model
Yes
Yes
Yes
RM2 slots
RM2 module
Power Supply
Console Ports
3
3
3
Slot 1: 1STA, 8AX, 1/2VoS, 1/2VoP, 4S1O, 1SAE, 1E1, 1CE1,3G
Slot 2: 1STA, 8AX, 1/2VoS, 1/2VoP, 4S1O, 1SAE, ADSL,
SHDSL,3G
Slot 3: 1STA, 8AX, 1/2VoS, 1/2VoP, 4S1O, 3G
AC/DC48
AC
AC
Yes
Yes
Yes

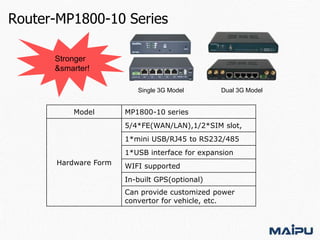

31. Router-MP1800-10 Series
Stronger
&smarter!
Single 3G Model
Model
Dual 3G Model
MP1800-10 series
5/4*FE(WAN/LAN),1/2*SIM slot,
1*mini USB/RJ45 to RS232/485
1*USB interface for expansion
Hardware Form
WIFI supported
In-built GPS(optional)
Can provide customized power
convertor for vehicle, etc.

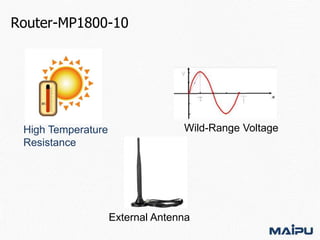

32. Router-MP1800-10
High Temperature
Resistance
Wild-Range Voltage
External Antenna

33. Contents
Network requirements of Financial
service/Police/Transportation Company/Power
Company/Retailer
3G Solution-Flexibility/Reliability/Security/Easy
Management
Router-MP1800 Router Introduction
Case Studies

34. Maipu 3G&E3G Customer Map in China
