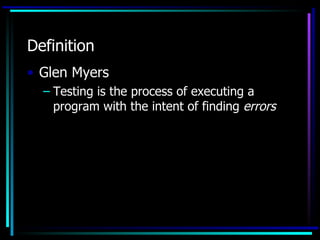

3. Definition
• Glen Myers
– Testing is the process of executing a
program with the intent of finding errors
4. Objective explained
• Paul Jorgensen
– Testing is obviously concerned with errors,
faults, failures and incidents. A test is the
act of exercising software with test cases
with an objective of
• Finding failure
• Demonstrate correct execution

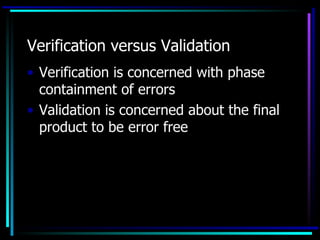

6. Verification versus Validation
• Verification is concerned with phase
containment of errors
• Validation is concerned about the final
product to be error free

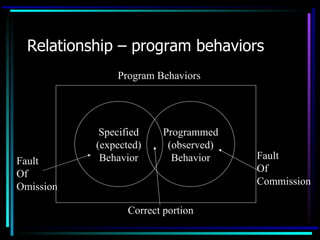

7. Relationship – program behaviors
Program Behaviors
Specified Programmed
(expected) (observed)
Behavior Behavior Fault
Fault
Of
Of
Commission
Omission
Correct portion

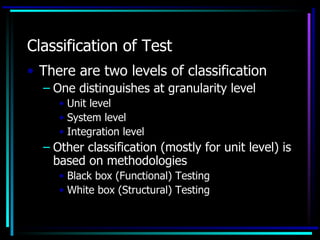

8. Classification of Test
• There are two levels of classification
– One distinguishes at granularity level
• Unit level
• System level
• Integration level
– Other classification (mostly for unit level) is
based on methodologies
• Black box (Functional) Testing
• White box (Structural) Testing

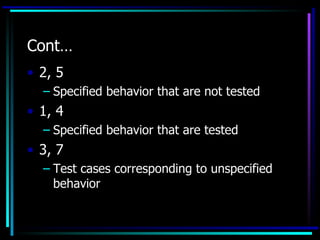

10. Cont…
• 2, 5
– Specified behavior that are not tested
• 1, 4
– Specified behavior that are tested
• 3, 7
– Test cases corresponding to unspecified
behavior

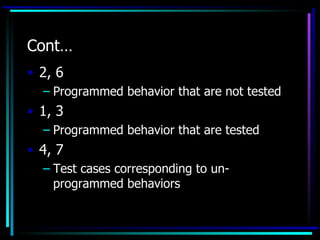

11. Cont…
• 2, 6
– Programmed behavior that are not tested
• 1, 3
– Programmed behavior that are tested
• 4, 7
– Test cases corresponding to un-
programmed behaviors

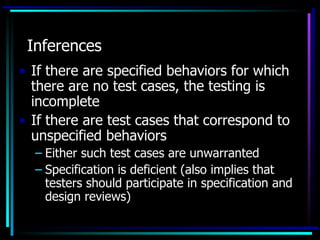

12. Inferences
• If there are specified behaviors for which
there are no test cases, the testing is
incomplete
• If there are test cases that correspond to
unspecified behaviors
– Either such test cases are unwarranted
– Specification is deficient (also implies that
testers should participate in specification and
design reviews)

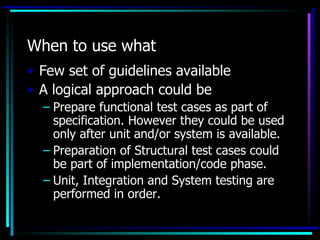

14. When to use what
• Few set of guidelines available
• A logical approach could be
– Prepare functional test cases as part of
specification. However they could be used
only after unit and/or system is available.
– Preparation of Structural test cases could
be part of implementation/code phase.
– Unit, Integration and System testing are
performed in order.

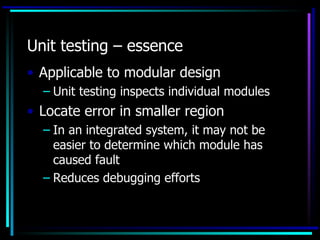

15. Unit testing – essence
• Applicable to modular design
– Unit testing inspects individual modules
• Locate error in smaller region
– In an integrated system, it may not be
easier to determine which module has
caused fault
– Reduces debugging efforts

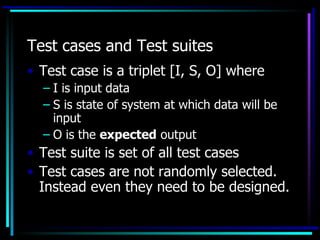

16. Test cases and Test suites
• Test case is a triplet [I, S, O] where
– I is input data
– S is state of system at which data will be
input
– O is the expected output
• Test suite is set of all test cases
• Test cases are not randomly selected.
Instead even they need to be designed.

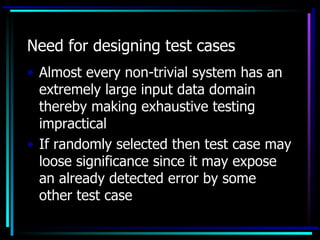

17. Need for designing test cases
• Almost every non-trivial system has an
extremely large input data domain
thereby making exhaustive testing
impractical
• If randomly selected then test case may
loose significance since it may expose
an already detected error by some
other test case

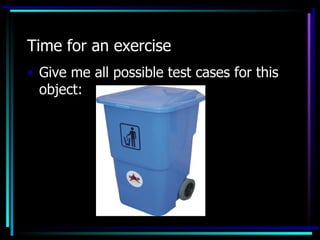

18. Time for an exercise
• Give me all possible test cases for this
object:

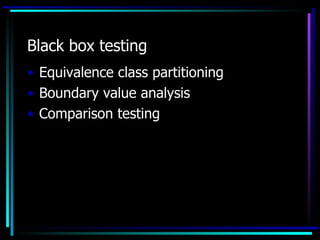

19. Black box testing
• Equivalence class partitioning
• Boundary value analysis
• Comparison testing

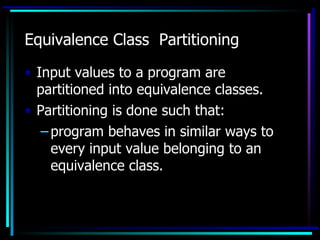

20. Equivalence Class Partitioning
• Input values to a program are
partitioned into equivalence classes.
• Partitioning is done such that:
– program behaves in similar ways to
every input value belonging to an
equivalence class.

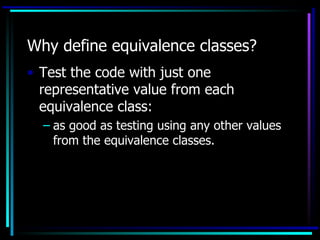

21. Why define equivalence classes?
• Test the code with just one
representative value from each
equivalence class:
– as good as testing using any other values
from the equivalence classes.

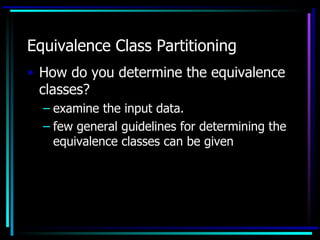

22. Equivalence Class Partitioning
• How do you determine the equivalence
classes?
– examine the input data.
– few general guidelines for determining the
equivalence classes can be given

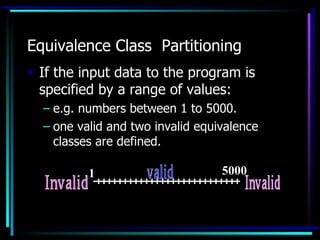

23. Equivalence Class Partitioning
• If the input data to the program is
specified by a range of values:
– e.g. numbers between 1 to 5000.
– one valid and two invalid equivalence
classes are defined.
1 5000

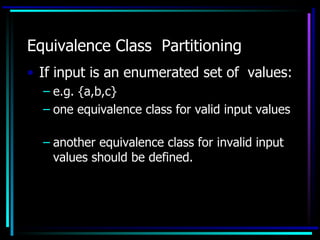

24. Equivalence Class Partitioning
• If input is an enumerated set of values:
– e.g. {a,b,c}
– one equivalence class for valid input values
– another equivalence class for invalid input
values should be defined.

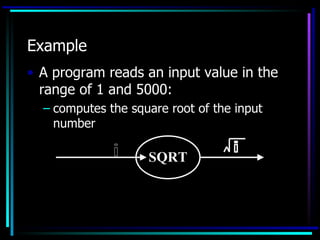

25. Example
• A program reads an input value in the
range of 1 and 5000:
– computes the square root of the input
number
SQRT

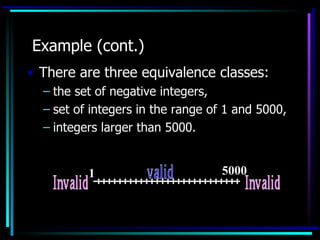

26. Example (cont.)
• There are three equivalence classes:
– the set of negative integers,
– set of integers in the range of 1 and 5000,
– integers larger than 5000.
1 5000

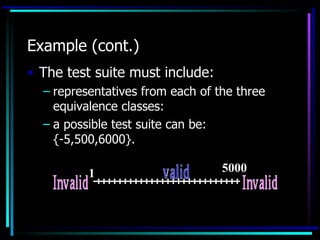

27. Example (cont.)
• The test suite must include:
– representatives from each of the three
equivalence classes:
– a possible test suite can be:
{-5,500,6000}.
1 5000

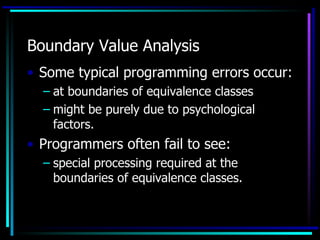

28. Boundary Value Analysis
• Some typical programming errors occur:
– at boundaries of equivalence classes
– might be purely due to psychological
factors.
• Programmers often fail to see:
– special processing required at the
boundaries of equivalence classes.

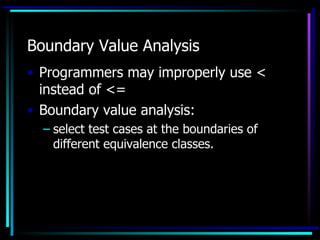

29. Boundary Value Analysis
• Programmers may improperly use <
instead of <=
• Boundary value analysis:
– select test cases at the boundaries of
different equivalence classes.

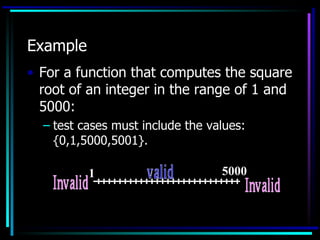

30. Example
• For a function that computes the square
root of an integer in the range of 1 and
5000:
– test cases must include the values:
{0,1,5000,5001}.
1 5000

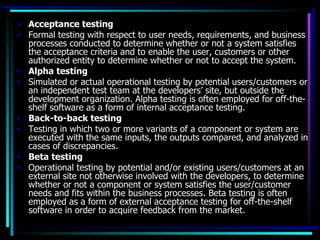

31. • Acceptance testing
• Formal testing with respect to user needs, requirements, and business
processes conducted to determine whether or not a system satisfies
the acceptance criteria and to enable the user, customers or other
authorized entity to determine whether or not to accept the system.
• Alpha testing
• Simulated or actual operational testing by potential users/customers or
an independent test team at the developers’ site, but outside the
development organization. Alpha testing is often employed for off-the-
shelf software as a form of internal acceptance testing.
• Back-to-back testing
• Testing in which two or more variants of a component or system are
executed with the same inputs, the outputs compared, and analyzed in
cases of discrepancies.
• Beta testing
• Operational testing by potential and/or existing users/customers at an
external site not otherwise involved with the developers, to determine
whether or not a component or system satisfies the user/customer
needs and fits within the business processes. Beta testing is often
employed as a form of external acceptance testing for off-the-shelf
software in order to acquire feedback from the market.

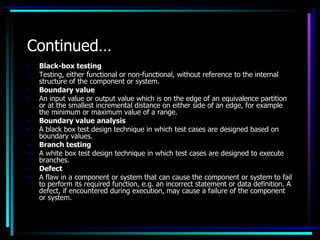

32. Continued…
• Black-box testing
• Testing, either functional or non-functional, without reference to the internal
structure of the component or system.
• Boundary value
• An input value or output value which is on the edge of an equivalence partition
or at the smallest incremental distance on either side of an edge, for example
the minimum or maximum value of a range.
• Boundary value analysis
• A black box test design technique in which test cases are designed based on
boundary values.
• Branch testing
• A white box test design technique in which test cases are designed to execute
branches.
• Defect
• A flaw in a component or system that can cause the component or system to fail
to perform its required function, e.g. an incorrect statement or data definition. A
defect, if encountered during execution, may cause a failure of the component
or system.
33. Continued…
• Functional testing
• Testing based on an analysis of the specification of the functionality of a component or
system.
• Integration testing
• Testing performed to expose defects in the interfaces and in the interactions between
integrated components or systems.
• Load testing
• A test type concerned with measuring the behavior of a component or system with
increasing load, e.g. number of parallel users and/or numbers of transactions to determine
what load can be handled by the component or system.
• Monkey testing
• Testing by means of a random selection from a large range of inputs and by randomly
pushing buttons, ignorant on how the product is being used.
• Recoverability testing
• The process of testing to determine the recoverability of a software product.
• Regression testing
• Testing of a previously tested program following modification to ensure that defects have
not been introduced or uncovered in unchanged areas of the software, as a result of the
changes made. It is performed when the software or its environment is changed.

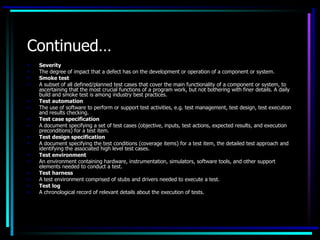

34. Continued…
• Severity
• The degree of impact that a defect has on the development or operation of a component or system.
• Smoke test
• A subset of all defined/planned test cases that cover the main functionality of a component or system, to
ascertaining that the most crucial functions of a program work, but not bothering with finer details. A daily
build and smoke test is among industry best practices.
• Test automation
• The use of software to perform or support test activities, e.g. test management, test design, test execution
and results checking.
• Test case specification
• A document specifying a set of test cases (objective, inputs, test actions, expected results, and execution
preconditions) for a test item.
• Test design specification
• A document specifying the test conditions (coverage items) for a test item, the detailed test approach and
identifying the associated high level test cases.
• Test environment
• An environment containing hardware, instrumentation, simulators, software tools, and other support
elements needed to conduct a test.
• Test harness
• A test environment comprised of stubs and drivers needed to execute a test.
• Test log
• A chronological record of relevant details about the execution of tests.
