The document discusses different black box testing techniques, including equivalence partitioning, boundary value analysis, and state transition testing. Equivalence partitioning divides input domains into equivalence classes where members are expected to produce the same outputs. Boundary value analysis tests values at the boundaries of equivalence classes. State transition testing models a system as a finite state machine and aims to trigger all transitions by inputting events from each state. Together, these black box techniques structure black box testing around a system's specification without knowledge of its internal implementation.

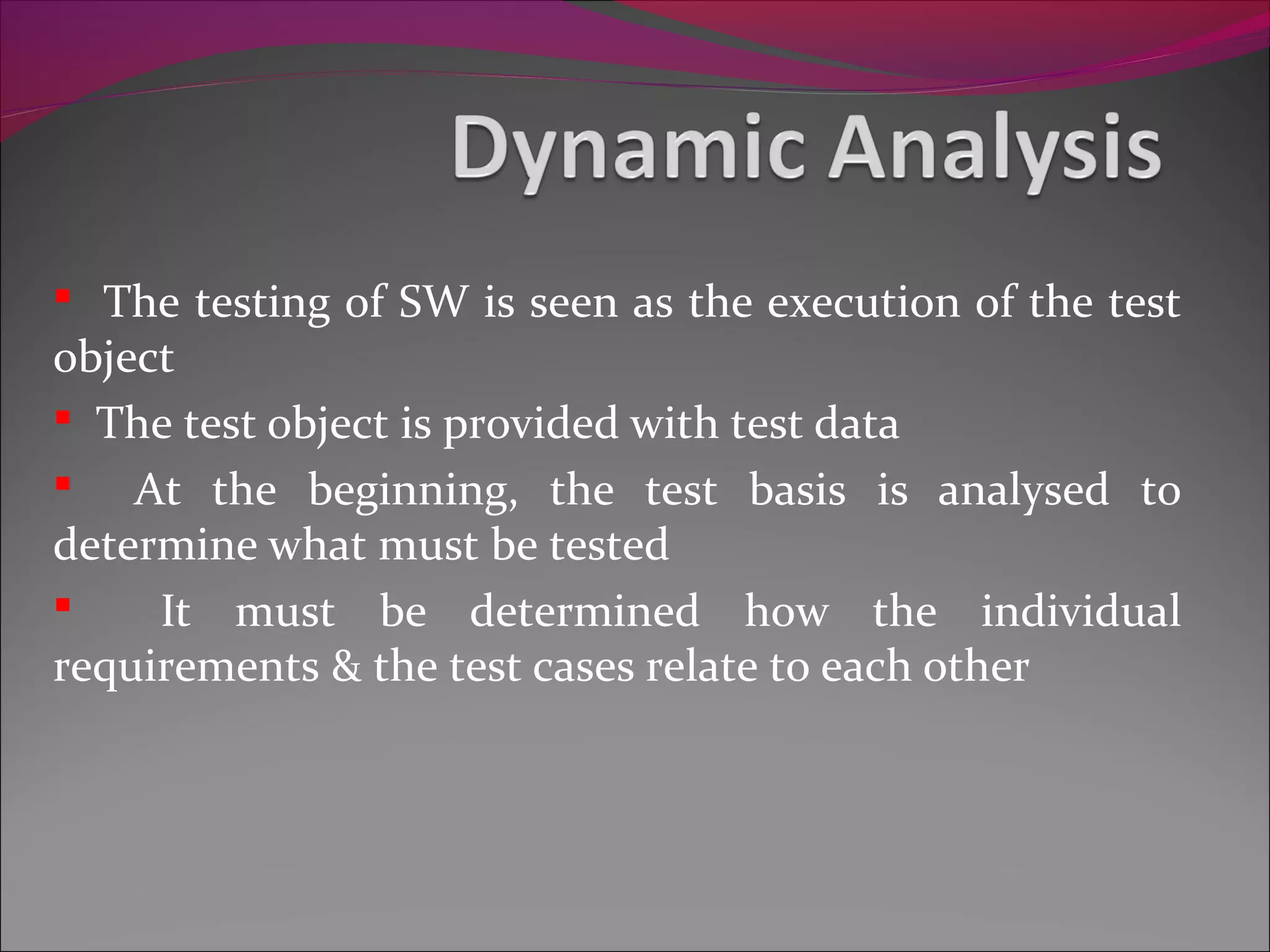

2.  The testing of SW is seen as the execution of the test
object
 The test object is provided with test data
 At the beginning, the test basis is analysed to
determine what must be tested

It must be determined how the individual
requirements & the test cases relate to each other

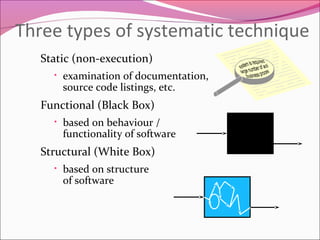

3. Three types of systematic technique
Static (non-execution)
• examination of documentation,
source code listings, etc.
Functional (Black Box)
• based on behaviour /
functionality of software
Structural (White Box)
• based on structure
of software

4. Black Box Testing Technique
 Here the test object is seen as a black box
 It is the specification-based testing techniques
 Also known as input/output-driven testing techniques because
they view the software as a black-box with inputs and outputs,
but they have no knowledge of how the system or component is
structured inside the box
 In essence, the tester is concentrating on what the software does,
not how it does it
 Test cases are derived from the specification of the test object
and behavior is observed from outside(PoO is outside the test
object)
 Not possible to control the operating sequence of the test
object(except adequate input test data) as PoC is outside of test

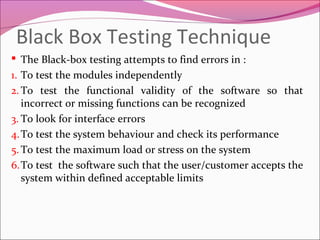

5. Black Box Testing Technique
 The Black-box testing attempts to find errors in :
1. To test the modules independently
2. To test the functional validity of the software so that
incorrect or missing functions can be recognized
3. To look for interface errors
4. To test the system behaviour and check its performance
5. To test the maximum load or stress on the system
6.To test the software such that the user/customer accepts the
system within defined acceptable limits

6. Black Box Testing Technique
 Both functional and non-functional testing are considered
 Functional testing is concerned with what the system does, its
features or functions
 Non-functional testing is concerned with examining how well the
system does something, rather than what it does
 Non-functional aspects (also known as quality characteristics or
quality attributes) include performance, usability, portability,
maintainability, etc
 Techniques to test these non-functional aspects are less
procedural and less formalized than those of other categories as
the actual tests are more dependent on the type of system, what
it does and the resources available for the tests

7. White Box Testing Technique
 Structure-based testing techniques (which are also dynamic rather than
static) use the internal structure of the software to derive test cases
 Also called 'glass-box' techniques (implying we can see into the system)
since they require knowledge of how the software is implemented, that
is, how it works. For example, a structural technique may be concerned
with exercising loops in the software
 Here the source code is known and used for test design
 While executing the test cases, the internal processing of the test object
and the output is analyzed
 PoC and/or PoO inside the test object
 Test cases are designed to cover the program structure of the test
object
 This is called structural testing as structure of the test
object(component hierarchy, flow control, data flow) are considered

9.  Using black box testing, the test object is seen as a black
box
 Test cases are derived from the specification of the test
object
 The behavior of the test object is watched from the outside
(PoO – Point of Observation is outside the test object)
 It is not possible to control the operating sequence of the
test object other than choosing the adequate input test data
(the PoC – Point of Control is situated outside of test object,
too)
 Test cases are designed by using the specification or the
requirements of the test object.

10.  In white box testing, the source code is known and used for
test design
 While executing the test cases, the internal processing of
the test object, as well as the output, is analyzed (the Point of
Observation is inside of the test object)
 Direct intervention in the process of the test object is
possible, but should be used only in special situations, e.g. to
execute negative testing when the component's interface is
not capable of initiating the provoked failure (the Point of
Control can be located inside the test object)
 Test cases are designed to cover the program structure of
the test object

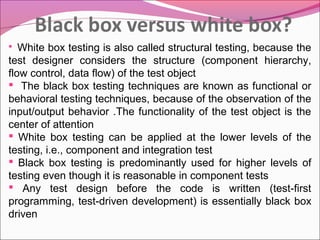

11. White box testing is also called structural testing, because the
test designer considers the structure (component hierarchy,
flow control, data flow) of the test object
 The black box testing techniques are known as functional or
behavioral testing techniques, because of the observation of the
input/output behavior .The functionality of the test object is the
center of attention
 White box testing can be applied at the lower levels of the
testing, i.e., component and integration test
 Black box testing is predominantly used for higher levels of
testing even though it is reasonable in component tests
 Any test design before the code is written (test-first
programming, test-driven development) is essentially black box
driven


12.  Black box
appropriate
at all levels but
dominates higher
levels of testing
 White box used
predominately
at lower levels
to compliment
black box
Acceptance
Acceptance
System
System
Integration
Integration
Component
Component

13. Black Box test design techniques
Techniques defined :
Equivalence partitioning
Boundary value analysis
State transition testing
Cause-effect graphing
Syntax testing
Random testing

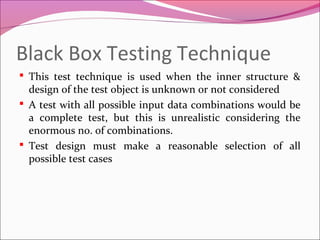

14. Black Box Testing Technique
 This test technique is used when the inner structure &
design of the test object is unknown or not considered
 A test with all possible input data combinations would be
a complete test, but this is unrealistic considering the
enormous no. of combinations.
 Test design must make a reasonable selection of all
possible test cases

15. Equivalence Class Partitioning
• Equivalence Class Partitioning :
 The domain of possible input data for each input data
element is divided into equivalence class
 This is a group of data values where the tester assumes that
the test object processes them in the same way
 These classes should be tested for correct input and
incorrect input as well
 For every input data element that should be tested the
domain of all possible correct inputs should be determined
& then all values outside these domains are wrong inputs
 Equivalence classes are refined if the test object’s
specification tells that some elements of that class are
processed differently ,they are assigned to a new sub-class

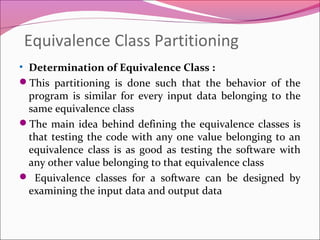

16. Equivalence Class Partitioning
• Determination of Equivalence Class :
This partitioning is done such that the behavior of the
program is similar for every input data belonging to the
same equivalence class
The main idea behind defining the equivalence classes is
that testing the code with any one value belonging to an
equivalence class is as good as testing the software with
any other value belonging to that equivalence class
 Equivalence classes for a software can be designed by
examining the input data and output data

17. Equivalence Class Partitioning
• Determination of Equivalence Class :
 The probability of failure detection is highly dependent
upon the quality of the partitioning and which test cases
are executed
 For the input & output values, identify the restrictions &
conditions in the specification
 For every restriction or condition, if a continuous
numerical domain is specified, then create one valid & two
invalid classes
 To complete the test cases, the tester must define the
preconditions & the expected result for every test case

18. Equivalence Class Partitioning
General guidelines for designing the equivalence
If the input data values to a system can be specified
by a range of values, then one valid and two invalid
equivalence classes should be defined.
If the input data assumes values from a set of discrete
members of some domain, then one equivalence class
for valid input values and another equivalence class
for invalid input values should be defined.

19. Equivalence partitioning (EP)
divide (partition) the inputs, outputs, etc. into areas
which are the same (equivalent)
assumption: if one value works, all will work
one from each partition better than all from one
invalid
valid
0
1
100
invalid
101

20. Equivalence Class Partitioning
Example#1:For a software that computes the
square root of an input integer which can assume
values in the range of 0 to 5000, how many
equivalence classes are there ?
Example#2: Design the black-box test suite for the
following program. The program computes the
intersection point of two straight lines and
displays the result. It reads two integer pairs (m1,
c1) and (m2, c2) defining the two straight lines of
the form y=mx + c.

21. Equivalence Class Partitioning
Rules for test case determination
Restriction of the number of test cases
The number of "valid" test cases is the product of the
number of valid equivalence classes per parameter
Because of this multiplicative combination, even a few
parameters can generate hundreds of "valid test cases“
Since it is seldom possible to use that many test cases, more
rules are necessary to reduce the number of "valid" test
cases

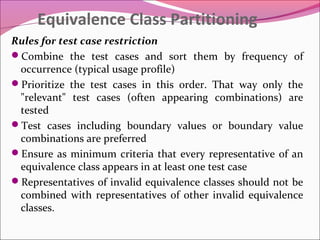

22. Equivalence Class Partitioning
Rules for test case restriction
Combine the test cases and sort them by frequency of
occurrence (typical usage profile)
Prioritize the test cases in this order. That way only the
"relevant" test cases (often appearing combinations) are
tested
Test cases including boundary values or boundary value
combinations are preferred
Ensure as minimum criteria that every representative of an
equivalence class appears in at least one test case
Representatives of invalid equivalence classes should not be
combined with representatives of other invalid equivalence
classes.

23. Equivalence Class Partitioning
• Test Completion Criteria :
 The Percentage of executed equivalence classes in
comparison to the total no. of specified equivalence
classes , i.e.
EC-coverage=(no. of tested EC/total no. of EC)*100%
• Evaluation :
 It gives a complete test coverage where specified
conditions & restrictions are not overlooked
 Drawback: only single input or output conditions are
considered while possible dependencies or interactions
between conditions are ignored

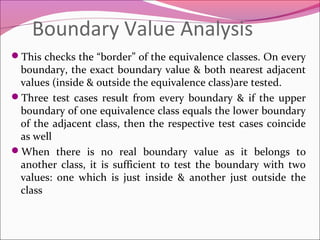

24. Boundary Value Analysis
This checks the “border” of the equivalence classes. On every
boundary, the exact boundary value & both nearest adjacent
values (inside & outside the equivalence class)are tested.
Three test cases result from every boundary & if the upper
boundary of one equivalence class equals the lower boundary
of the adjacent class, then the respective test cases coincide
as well
When there is no real boundary value as it belongs to
another class, it is sufficient to test the boundary with two
values: one which is just inside & another just outside the
class

25. Boundary Value Analysis
A type of programming error frequently occurs at the
boundaries of different equivalence classes of inputs
The reason behind such errors might purely be due to
psychological factors
 Programmers often fail to see the special processing required
by the input values that lie at the boundary of the different
equivalence classes
 For example, programmers may improperly use < instead of
<=, or conversely <= for <. Boundary value analysis leads to
selection of test cases at the boundaries of the different
equivalence classes

26. Boundary Value Analysis
We can also apply equivalence partitioning and boundary value
analysis more than once to the same specification item. For
example, if an internal telephone system for a company with
200 telephones has 3-digit extension numbers from 100 to 699,
we can identify the following partitions and boundaries:
• digits (characters 0 to 9) with the invalid partition containing
non-digits
• number of digits, 3 (so invalid boundary values of 2 digits and
4 digits)
• range of extension numbers, 100 to 699 (so invalid boundary
values of 099 and 700)
• extensions that are in use and those that are not (two valid
partitions, no boundaries)
• the lowest and highest extension numbers that are in use
could also be used as boundary values

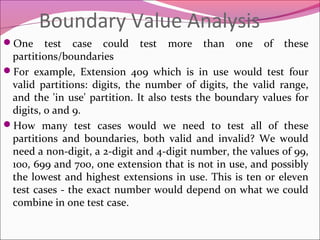

27. Boundary Value Analysis
One
test case could test more than one of these
partitions/boundaries
For example, Extension 409 which is in use would test four
valid partitions: digits, the number of digits, the valid range,
and the 'in use' partition. It also tests the boundary values for
digits, 0 and 9.
How many test cases would we need to test all of these
partitions and boundaries, both valid and invalid? We would
need a non-digit, a 2-digit and 4-digit number, the values of 99,
100, 699 and 700, one extension that is not in use, and possibly
the lowest and highest extensions in use. This is ten or eleven
test cases - the exact number would depend on what we could
combine in one test case.

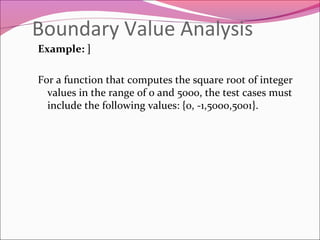

28. Boundary Value Analysis
Example: ]
For a function that computes the square root of integer
values in the range of 0 and 5000, the test cases must
include the following values: {0, -1,5000,5001}.

29. Boundary Value Analysis
Test Completion Criteria :
Intended coverage of the boundary values(BV) can be
predefined & calculated as after execution of the tests:
BV-coverage = ( No. of tested BV)/(Total No. of BV)*100%

30. State Transition Testing
In many cases the current input as well as the history of
execution or events of inputs, influences the outputs & how the
test object will behave. To show the dependence on history
state diagrams are used
The system or test object starts from an initial state & come to a
different state. Events trigger transitions.
It consists of states(nodes),transitions(links),inputs(link
weights) & outputs(link weights).
A state transition test should execute all specified functions of a
certain state at least once.
Precondition: stack is initialized; state is “empty”
Input: Push(“Hello”)
Expected result: Stack contains “hello”
Post-Condition: State of the stack is “filled”

31. State Transition Testing
The system or test object starts from an initial state and can
then come into different states
• Events trigger state transitions where an event normally is a
function invocation
• State transitions can involve actions
• Besides the initial state, the other special state is the endstate
• Finite state machines, state diagrams, or state transition
tables model this behavior
• A finite state machine as follows: "An abstract machine (e.g.,
program, logic circuit, car's transmission) for which the number
of states and input symbols are both finite and fixed. A finite
state machine consists of states (nodes), transitions (links),
inputs (link weights), and outputs (link weights)
•

32. State Transition Testing
 'finite state machine’ simply means that the system can be
in a (finite) number of different states, and the transitions from
one state to another are determined by the rules of the
'machine‘
 This is the model on which the system and the tests are
based. Any system where a different output is got for the
same input, depending on what has happened before, is a
finite state system
 A finite state system is often shown as a state diagram

33. State Transition Testing
 A state transition model has four basic parts:
• the states that the software may occupy (open/closed or
funded/insufficient funds);
• the transitions from one state to another (not all
transitions are allowed);
• the events that cause a transition (closing a file or
withdrawing money);
• the actions that result from a transition (an error
message or being given your cash)

34. State Transition Testing

35. State Transition Testing
 Deriving tests only from a state graph (also known as a state
chart) is very good for seeing the valid transitions, but we may
not easily see the negative tests, where we try to generate
invalid transitions
 To see the total number of combinations of states and
transitions, both valid and invalid, a state table is useful
 The state table lists all the states down one side of the table
and all the events that cause transitions along the top (or vice
versa)
 Each cell then represents a state-event pair. The content of
each cell indicates which state the system will move to, when
the corresponding event occurs while in the associated state
 This will include possible erroneous events - events that are
not expected to happen in certain states. These are negative
test conditions

36. State Transition Testing

37. State Transition Testing

38. State Transition Testing
Transition tree for the stack

39. State Transition Testing

The transition tree is built from a transition diagram in
the following way:
1. The initial or start state is the root tree
2. For every possible transition from the initial state to a
following state in the state transition diagram, the
transition tree receives a branch from its root to a node,
representing this next state
3. The process for step 2 is repeated foe every leaf in the
tree(every newly added node) until one of the following
two end-conditions is fulfilled: A) The corresponding
state is already included in the tree on the way from the
root to the node. This end condition corresponds to one
pass of a cycle in the transition diagram. B) The
corresponding state is a final state,and therefore has no
further transitions to be considered.

40. State Transition Testing

Test Completion Criteria :
Criteria for test intensity & Completion can be defined as:
1. Every state has been reached at least once
2. Every transition has been executed at least once
3. Every transition violating the specification has been
checked
4. Percentage can be defined using the proportion of actually
executed test requirements to possible ones

41. Cause Effect Graphing
It uses the dependencies for identification of the test cases. The
logical relationships between the causes & their effects in a
component or a system are displayed here.
It must be possible to find the cause & effects from the
specification
Every cause is described as a condition that consists of input
conditions or their combinations & they are connected with
logical operators
It uses the dependencies for identification of the test cases
known as cause-effect graphing

42. Cause Effect Graphing
The logical relationships between the causes and their effects in
a component or a system are displayed in a so-called causeeffect graph
 It must be possible to find the causes and effects from the
specification
 Every cause is described as a condition that consists of input
conditions (or combinations of those). The conditions are
connected with logical operators (e.g., AND, OR and NOT)
 A condition, and therefore a cause, can be TRue or false
 The effects are treated in the same way and noted in the graph

43. Decision Table
The techniques of equivalence partitioning and boundary
value analysis are often applied to specific situations or inputs
If different combinations results in different actions being
taken, this can be more difficult to show using equivalence
partitioning and boundary value analysis, which tend to be
more focused on the user interface
The other two specification-based techniques, decision tables
and state transition testing are more focused on business logic
or business rules
A decision table is a good way to deal with combinations of
things (e.g. inputs). This technique is sometimes also referred
to as a 'cause-effect' table. The reason for this is that there is
an associated logic diagramming technique called 'cause-effect
graphing' which was sometimes used to help derive the
decision table

44. Decisiontransformed into a decision table from
Table
The graph is
which the test cases can be taken.
Criteria for test completion is to execute every column in
the decision table by at least one test case. This verifies all
sensible combinations & their corresponding effects.
Steps to transform a graph into a table:
1. Choose an effect
2. Looking into the graph, find combinations of causes that
have this effect and combinations that do not have this
effect
3.one column into the table for every one of these causecombinations and the caused states of the remaining
effects
4.Check if decision table entries occur several times and if
yes, delete them

45. Decision Table at an automated teller
Example, withdrawing money
machine (ATM) shall illustrate how to prepare a causeeffect graph. In order to get money from the machine, the
following conditions must be fulfilled[]:
The bankcard is valid
The PIN must be correctly entered
The maximum number of PIN inputs is three
There is money in the machine, and in the account
The following actions are possible at the machine:
Reject card
Ask for another PIN input
"Eat" the card
Ask for an alternate dollar amount
Pay the requested amount of money

46. Decision Table
Cause-effect graph of the ATM

47. Decision Table
Optimized decision table for the ATM

49. Decision Table
Empty decision table : Loan repayment Schedule

50. Decision Table
Decision table with input combinations

51. Decision Table
Decision table with combinations and outcomes

52. Decision Table
Decision table with additional outcomes

53. Decision Table :Example 2
• You
are a new customer opening a credit card
account, you will get a 15% discount on all your
purchases today. If you are an existing
customer and you hold a loyalty card, you get a
10% discount. If you have a coupon, you can
get 20% off today (but it can't be used with the
'new customer' discount). Discount amounts
are added, if applicable.

54. Decision Table :Example 2
Decision table for credit card example

55. Test Completion Criteria
A minimum requirement is to execute every column in
the decision table by at least one test case
 This verifies all sensible combinations of conditions and
their corresponding effects

56. Use Case Testing
With the increasing use of object-oriented methods for
software development, the Unified Modeling Language
(UML) is used more frequently
 There exist quite a number of (research) results and
approaches to directly derive test cases from UML
diagrams and to generate these tests more or less
automatically
In order to detect requirements, use cases or business
cases are described
 These are then compiled into use case diagrams
 The diagrams serve the purpose of defining requirements
on a relatively abstract level and describing typical user
system interactions

57. Use Case Testing
Use case diagram for ATM

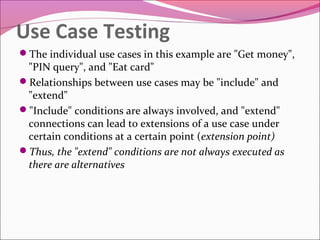

58. Use Case Testing
The individual use cases in this example are "Get money",
"PIN query", and "Eat card"
Relationships between use cases may be "include" and
"extend"
"Include" conditions are always involved, and "extend"
connections can lead to extensions of a use case under
certain conditions at a certain point (extension point)
Thus, the "extend" conditions are not always executed as
there are alternatives

59. Use Case Testing
Use case diagrams mainly serve to show the external view of a system
It shall explain the external view of the system from the viewpoint of
the user or the relation to neighboring systems
Such external connections are shown as lines to "actors“
Pre- and post conditions : For every use case, there exist certain
preconditions that must be fulfilled to make it possible to execute the
use case
 A precondition for getting money at the ATM is, for example, that the
bankcard is valid
 After executing a use case there exist post-conditions
Example, after successfully entering the correct PIN, it is possible to get
money
But first the amount must be entered and it must be confirmed that the
money is available
 Preconditions and post-conditions are also applicable for the flow of
use cases in a diagram, i.e., the path through the diagram

60. Use Case Testing
Useful for system and acceptance testing : Use cases and
use case diagrams serve as the basis for determining test
cases in use case based testing
 As the external view is modeled, the technique is useful for
both system testing and acceptance testing
If the diagrams are used to model the interactions between
different subsystems, test cases can also be derived for
integration testing

61. Use Case Testing
Typical system use is tested : The diagrams show the
"normal", "typical", or "probable" flows and often their
alternatives
Thus, the use case based test checks typical use of a system
 It is especially important for acceptance of a system that it
runs relatively stable in "normal" use
 Use case based testing has a high relevance for the
customer, and therefore for the developer and tester as well

62. Use Case Testing
Every use case has a purpose and shall achieve a certain
result. Events may occur that lead to further alternatives or
activities. After the execution, there are post-conditions
The information necessary for determining the test cases
are:
Start situation and preconditions
Other possible conditions
Expected results
Post-conditions

63. Use Case Testing : test completion criteria
A possible criterion is that every use case and every possible
sequence of use cases in the diagram is tested at least once
by a test case
As alternatives and extensions are use cases too, this
criterion also requires their execution

64. Black Box Techniques
Syntax test
It describes a technique for identification of the test cases that
may be applied if a formal specification of the syntax of the
inputs is available
This may be the case for testing interpreters of command
languages, compilers, and protocol analyzers
 The rules of the syntax definition are used to specify test cases
that cover both the compliance to and violation of the syntax
rules for the inputs

65. Black Box Techniques
Random test
Random testing generates values for the test cases by random
selection
 If a statistical distribution of the input values is given (e.g.,
normal distribution), then it can be used for the selection of test
values
This ensures the derivation of test cases that are preferably close
to reality,making it possible to use statistical models for
predicting or certifying system reliability

66. Black Box Techniques
Smoke test
A smoke test is commonly understood as a "quick and dirty“ test that is
primarily aimed at verifying a minimum reliability of the test object
The test is concentrated on the main functions of the test object
The output of the test is not evaluated in detail. The main outcome of
interest is a crash or serious misbehavior of the test object
A test oracle is not used, which contributes to making this test
inexpensive and easy
The term "smoke test" is derived from testing electrical circuits in
which short circuits lead to smoke rising
 A smoke test is often used to decide if the test object is mature enough
to proceed with further testing by the more comprehensive test
techniques
 Another use of smoke tests is the first test and the fast test of software
updates

67. White Box Testing
The basis for this is the source-code of the test object.So,the
technique is called code-based testing techniques or structural
testing techniques.
The generic idea is to execute every part of code of the test
object at least once. But expected results should be determined
using the requirements or specifications, not the code & this is
done to check if execution results in a failure.
Types are:
1. Statement Coverage
2. Branch Coverage
3. Test of conditions (branch condition & condition
determination testing)
4. Path coverage

68. White Box Testing
Coverage-based :
It attempts to execute (or cover) certain elements of a
program
Examples are Statement Coverage , Branch Coverage etc.
Fault-based :
It targets to detect certain types of faults
These faults that a test strategy focuses on constitutes the
fault model of the strategy
Example is mutation testing

69. White Box Testing
White box testing assumes that the tester can take a look at
the code for the application block and create test cases that
look for any potential failure scenarios. During white box
testing, you analyze the code of the application block and
prepare test cases for testing the functionality to ensure that
the class is behaving in accordance with the specifications and
testing for robustness.
Input
The following input is required for white box testing:
Requirements
Functional specifications
High-level design documents
Detailed design documents
Application block source code

70. White Box Testing Process
Create test plans. Identify all white box test scenarios and
prioritize them.
Profile the application block. This step involves studying the
code at run time to understand the resource utilization, time
spent by various methods and operations, areas in code that are
not accessed, and so on.
Test the internal subroutines. This step ensures that the
subroutines or the nonpublic interfaces can handle all types of
data appropriately.
Test loops and conditional statements. This step focuses on
testing the loops and conditional statements for accuracy and
efficiency for different data inputs.
Perform security testing. White box security testing helps you
understand possible security loopholes by looking at the way
the code handles security.

71. White Box Testing Process
One white-box testing strategy is said to be stronger than
another strategy, if all types of errors detected by the first
testing strategy is also detected by the second testing
strategy, and the second testing strategy additionally
detects some more types of errors
When two testing strategies detect errors that are different
at least with respect to some types of errors, then they are
called complementary

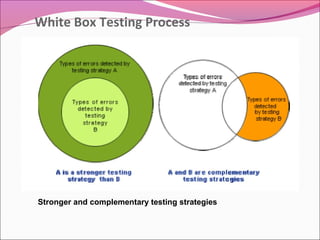

72. White Box Testing Process
Stronger and complementary testing strategies

73. Statement Coverage
The statement coverage strategy aims to design test cases so
that every statement in a program is executed at least once
The principal idea governing the statement coverage strategy
is that unless a statement is executed, it is very hard to
determine if an error exists in that statement
 Unless a statement is executed, it is very difficult to observe
whether it causes failure due to some illegal memory access,
wrong result computation, etc
But executing some statement once and observing that it
behaves properly for that input value is no guarantee that it
will behave correctly for all input values

74. Statement Coverage
This analysis focuses on each statement of the test object
The test cases shall execute a predefined minimum quota or
even all statements of the test object
The first step is to translate the source code into a control
flow graph which makes it easier to specify in detail the
control elements that must be covered
In graph, the statements are represented as nodes & the
control flow between the statements as edges
If sequence of unconditional statements appear in the
program, they are treated as single node, as execution of the
first statement of the sequence ensures execution all of the
rest

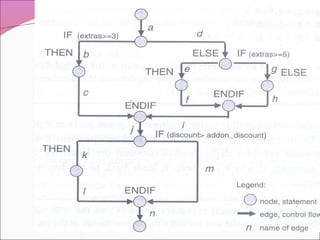

75. The edges of the graph must be traversed in the following order:
a, b, f, g, h, d, e

76. Statement Coverage
The Value of the Technique
 Unreachable code can be detected
 If complete coverage of all statements is required, and some statements
cannot be executed by any test cases, then this may be an indication for
unreachable source code (dead statements).
 Empty ELSE-parts are not considered
 If a condition statement (IF) has statements only after it is fulfilled, i.e.,
after the THEN clause, and there is no ELSE, then the control flow graph
has a (THEN-) edge, starting at the condition, with (at least) one node and
a second outgoing (ELSE-) edge without nodes
 The control flow of both these edges is reunited at the terminating
(ENDIF-) node
 For statement coverage an empty (ELSE-) edge (between IF and ENDIF) is
irrelevant, such as when there is no requirement to cover it during the test
 Possible missing statements after ELSE are not detected by a test using this
criterion

77. Statement Coverage : Example
int compute_gcd(x, y)
int x, y;
{
while (x! = y){
if (x>y) then
x= x – y;
else
y= y – x;
}
return x;
}
By choosing the test set {(x=3, y=3), (x=4, y=3), (x=3, y=4)}, we can exercise
the
program such that all statements are executed at least once

78. Statement Coverage
Different combinations of edges of the graph can
achieve
complete coverage
The cost of testing should always be minimized, which means
reaching the goal with the least possible number of test cases
The expected results and the expected behavior of the test object
should be identified in advance from the specification
 After execution, the expected and actual results, and the
behavior of the test object, must be compared to detect any
difference or failure
Test Completion Criteria :
It can be defined as Statement Coverage=(No. of executed
statements/total No. of statements)*100%
If complete coverage of all statements is required & some
statements can’t be executed by any test cases, that may be
unreachable source code(dead statements)

79. Branch Coverage
Here the attention is on the edges of the graph
The execution of each statement is not considered, rather the
execution of decisions. The result of decision determines which
statement is executed next.
Testing should make sure every decision is executed with both
possible outcome(TRUE & FALSE).That’s decision coverage is
another name for it
In the branch coverage-based testing strategy, test cases are
designed to make each branch condition to assume true and false
values in turn
 Branch testing is also known as edge testing as in this testing
scheme, each edge of a program’s control flow graph is traversed
at least once

80. Branch Coverage
Additional test cases necessary
In the previous example additional test cases are necessary if
all branches of the control flow graph must be executed
during the test
 For 100% statement coverage a test case executing the
following order of edges was sufficient:
a, b, f, g, h, d, e
The edges c, i, and k have not been executed in this test case
The edges c and k are empty branches of a condition, while
the edge i is the return to the beginning of the loop
 Additionally, three further test cases are necessary:
a, b, c, d, e
a, b, f, g, i, g, h, d, e
a, k, e

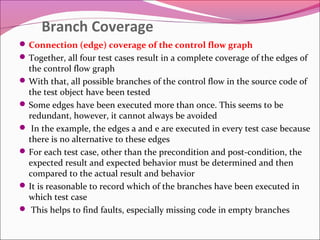

81. Branch Coverage
 Connection (edge) coverage of the control flow graph
 Together, all four test cases result in a complete coverage of the edges of
the control flow graph
 With that, all possible branches of the control flow in the source code of
the test object have been tested
 Some edges have been executed more than once. This seems to be
redundant, however, it cannot always be avoided
 In the example, the edges a and e are executed in every test case because
there is no alternative to these edges
 For each test case, other than the precondition and post-condition, the
expected result and expected behavior must be determined and then
compared to the actual result and behavior
 It is reasonable to record which of the branches have been executed in
which test case
 This helps to find faults, especially missing code in empty branches

82. Branch Coverage
It is obvious that branch testing guarantees statement
coverage and thus is a stronger testing strategy compared to
the statement coverage-based testing
In the previous example Euclid’s GCD computation algorithm
, the test cases for branch coverage can be {(x=3, y=3), (x=3,
y=2), (x=4, y=3), (x=3, y=4)}.

83. Branch Coverage
Test Completion Criteria :
Branch Coverage = (No. of executed branches/Total
No. of branches)*100
In contrast to statement coverage it detects missing
statements in empty branches
A branch coverage of 100% should be aimed for
The test can be categorized as sufficient only if, in
addition to all statements, every possible branch of the
control flow is considered during test execution

84. Test of Conditions
If a decision is based on several(part) conditions connected by
logical operators, then the complexity of the condition should be
considered in the test & there comes the Branch Condition
Testing
An atomic part of a condition is a condition that has no logical
operators such as AND, OR, and NOT, but at the most, includes
relation symbols such as ">" or "=". A condition in the source
code of the test object can consist of multiple atomic partial
conditions
Branch condition testing
The goal is that each atomic(partial) condition in the test shall
adopt the values TRUE or FALSE.
This is a weaker criterion than statement or branch coverage
because it is not required that different logical values for the
result of the complete condition are included in the test

85. Test of Conditions
It meets the criteria of both statement & branch coverage
This is very comprehensive as it takes into account the complexity of
composed conditions but is expensive due to growing no. of possible
combinations
An example for a composed condition is: x > 3 OR y < 5. The condition
consists of two atomic partial conditions (x>3; y<5) connected by the
logical operator OR
 The goal of the branch condition testing is that every atomic part of
conditions is evaluated once for each of the logical values
Both parts of the condition have each resulted in both logical values.
The result of the complete condition , however, is equal for both
combinations
Branch condition testing is therefore a weaker criterion than statement
or branch coverage because it is not required that different logical
values for the result of the complete condition are included in the test

86. Test of Conditions
Branch Condition Combination Testing
Branch condition combination testing, also called multiplecondition coverage requires that all True-False combinations of
the atomic partial conditions be exercised at least once
 All variations should be built, if possible
Branch condition combination testing includes statement and
branch coverage
The complete condition gives both logical values as results
Thus, branch condition combination testing meets the criteria
of statement, as well as branch coverage

87. Branch Condition Combination Testing
It is a more comprehensive criterion that also takes into
account the complexity of composed conditions
 But it is a very expensive technique due to the growing number
of atomic conditions which make the number of possible
combinations grow exponentially (to 2n with n atomic parts of
conditions)
A problem results from the fact that all combinations cannot
always be implemented by test data
For the combined condition of 3<=x AND x<5 not all
combinations with the according values for the variable x can
be produced because the parts of conditions depend on each
other

88. Condition Determination Testing
Here all combinations are not considered & consideration is
given to every possible combination of logical values where the
modification of the logical value of an atomic condition can
change the logical value of the whole
For every logical combination of the conditions, it must be
decided which test cases are sensitive to faults & for which
combinations faults can be masked & those are not considered
Stated in another way, for a test case, every atomic condition
has a meaningful impact on the result
Test cases in which the result does not depend on a change of
an atomic condition need not be designed
So less no. of test cases need execution. For n no. of Boolean
operands of the conditions amount lies between n+1 to 2n

89. Condition Determination Testing
Combination of logical expressions are specially error-prone &
so, a comprehensive test is very important.
Combined complex conditions can be split into a tree-structure
and then execute branch coverage to avoid this expensive
technique
This intensive testing can be avoided if they have been
subjected to review in which the correctness is verified
The example with the two atomic condition parts (x>3, y<5).
Four combinations are possible (2*2):
1) x=6 (T), y=3 (T), x>3 OR y<5 (T)
2) x=6 (T), y=8 (F), x>3 OR y<5 (T)
3) x=2 (F), y=3 (T), x>3 OR y<5 (T)
4) x=2 (F), y=8 (F), x>3 OR y<5 (F)

90. Condition Determination Testing
For the first combination the following applies: If the logical value is
calculated wrong for the first condition part (i.e., an incorrect
condition is implemented) then the fault can change the logical value
of the first condition part from true (T) to false (F)
But the result of the complete condition stays unchanged (T)
The same applies for the second condition part
For the first combination incorrect results of each condition part are
masked because they have no effect on the result of the complete
condition and thus failures will not become visible
Consequently the test with the first combination can be left out
If the logical value of the first condition part in the second test case is
calculated wrongly as false, then the result value of the total
condition changes from true (T) to false (F)
 A failure then becomes visible because the value of the complete
condition has also changed

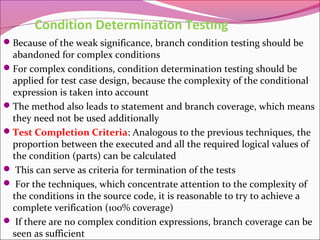

91. Condition Determination Testing
Because of the weak significance, branch condition testing should be
abandoned for complex conditions
For complex conditions, condition determination testing should be
applied for test case design, because the complexity of the conditional
expression is taken into account
The method also leads to statement and branch coverage, which means
they need not be used additionally
Test Completion Criteria: Analogous to the previous techniques, the
proportion between the executed and all the required logical values of
the condition (parts) can be calculated
 This can serve as criteria for termination of the tests
 For the techniques, which concentrate attention to the complexity of
the conditions in the source code, it is reasonable to try to achieve a
complete verification (100% coverage)
 If there are no complex condition expressions, branch coverage can be
seen as sufficient

92. Path Coverage
Until now, test case determination focused on the statements or
branches of the control flow, as well as the complexity of
conditions
 If the test object includes loops or repetitions, the previous
deliberations are not sufficient for an adequate test
Path coverage requires the execution of all different paths
through the test object
If the test object includes loops or repetitions ,this method only
requires the execution of all different paths through the test
object. Both statement & branch coverage focuses on statement &
branch of control flow & complexity of the conditions
A path describes the possible order of single program parts in a
program fragment. Paths consider dependencies between
branches but branch coverage are independent type.

93. Path Coverage

94. Path Coverage
The program fragment represented by the graph includes a loop
This DO-WHILE loop is executed at least once
In the WHILE-condition it is decided at the end of the loop whether
the loop must be repeated, i.e., if a jump to the start of the loop is
necessary
When using branch coverage for test design the loop has been
considered in two test cases:
Loop without repetition:
a, b, f, g, h, d, e
Loop with single return (i) and a single repetition:
a, b, f, g, i, g, h, d, e

95. Path Coverage
Usually a loop is repeated more than once. Further possible sequences
of branches through the graph of the program are
a, b, f, g, i, g, i, g, h, d, e
a, b, f, g, i, g, i, g, i, g, h, d, e
a, b, f, g, i, g, i, g, i, g, i, g, h, d, e
etc.
This shows that there is an indefinite number of paths in the
control flow graph
Even with restrictions on the number of loop repetitions, the
number of paths increases indefinitely

96. Path Coverage
double calculate_price (
double baseprice, double specialprice,
double extraprice, int extras, double discount)
{
double addon_discount;
double result;
if (extras >= 3) addon_discount = 10;
else if (extras >= 5) addon_discount = 15;
else addon_discount = 0;
if (discount > addon_discount)
addon_discount = discount;
result
=
baseprice
/100.0*(100-discount)
extraprice/100.0*(100-addon_discount);
return (result);
}
+
specialprice
+

98. Path Coverage
 In this example the test object consists of altogether three IF-statements
whereof two are nested and the third is placed separately from the others
 All statements (nodes) are reached by the following sequence of edges in
the graph:
a, b, c, j, k, l, n
a, d, e, f, i, j, k, l, n
a, d, g, h, i, j, k, l, n
 These sequences are sufficient to achieve 100% statement coverage.
 But not all branches (edges) have been covered yet
 The edge m is still missing. A sequence might look as follows:
a, b, c, j, m, n
 This additional sequence should have replaced the first sequence (test
case) above and with the resulting three test cases, branch coverage of
100% is achieved

99. Path Coverage
But, even for this simple program fragment, there are still
possibilities to traverse the graph differently, and thus consider
all paths of the graph
Until now, the following paths have not been executed:
a, d, e, f, i, j, m, n
a, d, g, h, i, j, m, n
Altogether, six different paths through the source code result
(the three possible paths through the graph before edge j
multiplied with the two possible paths after edge j)
There is the precondition that the conditions are independent
from each other and the edges can be combined freely

100. Intuitive testing
Basis of this method is the skill, experience, and knowledge of the
tester
The tester selects test cases to uncover expected problems and their
symptoms
 A more systematic approach for this cannot be described
 The test cases are based on the experience of where faults have
occurred in the past or the tester's assumptions where faults might
occur in the future
This type of test case design is also called "error guessing" and is used
very often in practice
Knowledge in developing similar applications and using similar
technologies should also be used when designing test cases, in addition
to experience in testing
 If, for example, there exist experiences with a new programming
language in previous projects, it is reasonable to apply the failures
found, as well as their cause in using the programming language for

101. Exploratory testing
If the documents, which form the basis for test design, are of
very low quality or do not exist at all , so-called "exploratory
testing" may help
In the extreme case only the program exists
 The technique is also applicable when time is severely
restricted because it uses much less time than other techniques
The approach is mainly based on the intuition and experience
of the tester
Here minimum planning and maximum test execution is done
The planning involves the creation of a test charter, a short
declaration of the scope of a short (1 to 2 hour) time-bound test
effort, the objectives and possible approaches to be used

102. Exploratory testing
The test design and test execution activities are performed in
parallel typically without formally documenting the test
conditions, test cases or test scripts
This does not mean that other, more formal testing techniques
will not be used
 For example, the tester may decide to use boundary value
analysis but will think through and test the most important
boundary values without necessarily writing them down
Some notes will be written during the exploratory-testing
session, so that a report can be produced afterwards

103. Exploratory testing
Test logging is undertaken as test execution is performed,
documenting the key aspects of what is tested, any defects
found and any thoughts about possible further testing
A key aspect of exploratory testing is learning: learning by the
tester about the software, its use, its strengths and its
weaknesses
As its name implies, exploratory testing is about exploring,
finding out about the software, what it does, what it doesn't do,
what works and what doesn't work
 The tester is constantly making decisions about what to test
next and where to spend the (limited) time

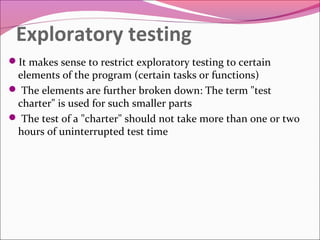

104. Exploratory testing
It makes sense to restrict exploratory testing to certain
elements of the program (certain tasks or functions)
 The elements are further broken down: The term "test
charter" is used for such smaller parts
 The test of a "charter" should not take more than one or two
hours of uninterrupted test time
