Koby Karp presents on building a deep learning-powered visual search engine for fashion products. He discusses using a convolutional neural network like AlexNet, pre-trained on ImageNet, to encode images into numeric vectors capturing shape, color and texture. These vectors are indexed into a database. New images are encoded and the distance between their vector and database vectors is measured to find and rank similar products. The system was tested on a dataset of 60,000 fashion items, with t-SNE used to visualize image clusters of different categories found by the search engine. In conclusion, Koby discusses collaborating with customers to build prototypes that leverage existing data for innovative applications.

1. Building a Deep
Learning-powered Search
Engine
Koby Karp
Deep Learning Paris Meetup #7

2. I’m Koby - Data Scientist @ Equancy
★ Robotics Engineer (2007-2011)
★ Computer Visioner (2011-2012)
★ Data Scientist, Data Engineer, Data Miner, Data Analyst, ... (2011-2016)
★ Deep Learner (2016-)
★ ?

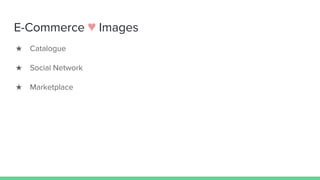

3. E-Commerce ♥ Images
★ Catalogue
★ Social Network
★ Marketplace

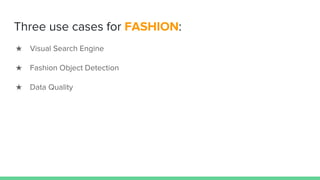

4. Three use cases for FASHION:
★ Visual Search Engine
★ Fashion Object Detection
★ Data Quality

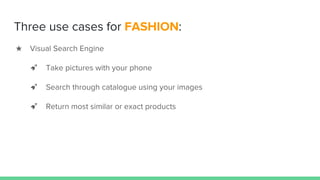

5. Three use cases for FASHION:
★ Visual Search Engine
➹ Take pictures with your phone
➹ Search through catalogue using your images
➹ Return most similar or exact products

6. Big City Life = High Exposure to Fashion Daily

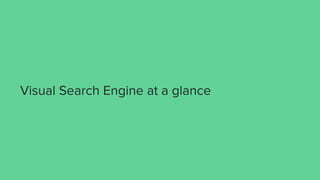

7. Visual Search Engine at a glance

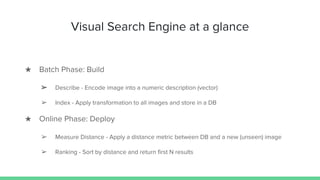

8. Visual Search Engine at a glance
★ Batch Phase: Build
➢ Describe - Encode image into a numeric description (vector)
➢ Index - Apply transformation to all images and store in a DB
★ Online Phase: Deploy
➢ Measure Distance - Apply a distance metric between DB and a new (unseen) image
➢ Ranking - Sort by distance and return first N results

9. Visual Search Engine at a glance
Describe
Numerical
Representation
0.672
0.510
0.741
...
0.919
Catalogue Image
★ Batch Phase: Build
➢ Describe
➢ Index
★ Online Phase: Deploy
➢ Measure Distance
➢ Ranking
Encode image into a numeric description (vector)

10. ★ Batch Phase: Build
➢ Describe
➢ Index
★ Online Phase: Deploy
➢ Measure Distance
➢ Ranking
Visual Search Engine at a glance
Apply transformation to all images and store in a DB
Index
0.672 0.435 0.482 ... 0.141
0.510 0.525 0.810 .... 0.241
0.741 0.526 0.210 ... 0.571
... ... ... ... 0.816
0.919 0.552 0.161 0.622 0.412
Catalogue Images

11. 0.672 0.435 0.482 ... 0.141
0.510 0.525 0.810 .... 0.241
0.741 0.526 0.210 ... 0.571
... ... ... ... 0.816
0.919 0.552 0.161 0.622 0.412

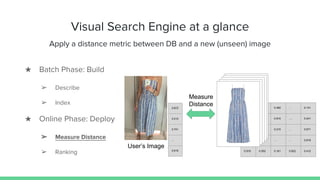

Visual Search Engine at a glance
Apply a distance metric between DB and a new (unseen) image
Measure
Distance
★ Batch Phase: Build
➢ Describe
➢ Index
★ Online Phase: Deploy
➢ Measure Distance
➢ Ranking
0.672
0.510
0.741
...
0.919
User’s Image

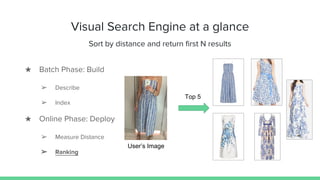

12. Visual Search Engine at a glance
Sort by distance and return first N results
Top 5
★ Batch Phase: Build
➢ Describe
➢ Index
★ Online Phase: Deploy
➢ Measure Distance
➢ Ranking
User’s Image

13. Focus on the Describe step

14. Three attributes that we need to describe
Shape Color Texture

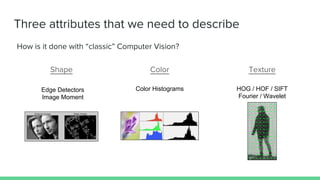

15. Three attributes that we need to describe
Shape Color Texture
How is it done with “classic” Computer Vision?
Edge Detectors
Image Moment
HOG / HOF / SIFT
Fourier / Wavelet
Color Histograms

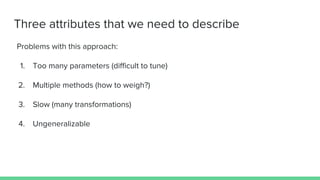

16. Three attributes that we need to describe
Problems with this approach:
1. Too many parameters (difficult to tune)
2. Multiple methods (how to weigh?)
3. Slow (many transformations)
4. Ungeneralizable

17. Solution: Pre-Trained
Convolutional Neural
Network (CNN)

18. Entering: Convolutional Neural Network (CNN)
AlexNet (2012)
1. “The Beatles of the CNNs” -Me
2. Trained on the ImageNet dataset (15 million images)
3. Used for classification of 1000 categories (Animals, Plants, Urban - No Fashion)
4. Invariant to translations and horizontal reflections
5. Tried other models such as VGG16.

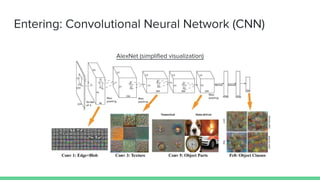

19. Entering: Convolutional Neural Network (CNN)
AlexNet (simplified visualization)

20. Convolutional Neural Network (CNN)
AlexNet (simplified visualization)
❖ We remove the last Fully connected layer (Soft-Max)
❖ We feed our images and generate CNN codes of size 4096
❖ The weights of the Trained CNN contain the Feature Engineering mapping that was necessary
to discriminate between the 1000 classes
❖ We use the network as a general-purpose descriptor.

21. Test Time ...

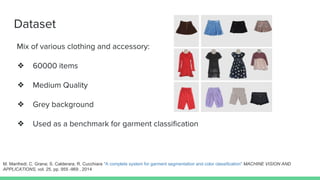

22. Dataset
M. Manfredi; C. Grana; S. Calderara; R. Cucchiara "A complete system for garment segmentation and color classification" MACHINE VISION AND
APPLICATIONS, vol. 25, pp. 955 -969 , 2014
Mix of various clothing and accessory:
❖ 60000 items
❖ Medium Quality
❖ Grey background
❖ Used as a benchmark for garment classification

23. Image Clustering
❖ Using t-SNE for compression to 2D
❖ Selected random 10% for visualization

24. Image Clustering Jewelry & Accessories

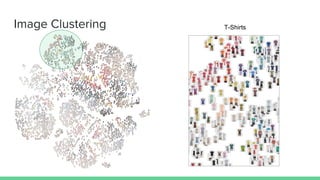

25. Image Clustering T-Shirts

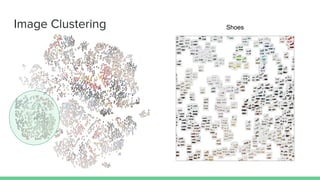

26. Image Clustering Shoes

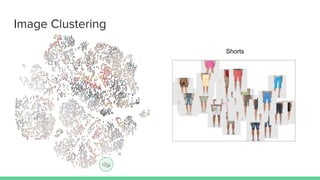

27. Image Clustering
Shorts

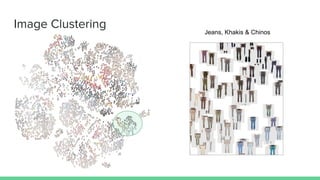

28. Image Clustering
Jeans, Khakis & Chinos

29. Image Clustering
Trousers

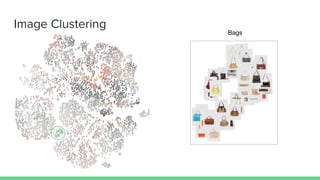

30. Image Clustering
Bags

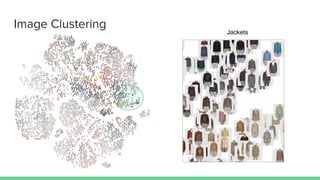

31. Image Clustering
Jackets

32. Image Clustering
Funky Tops

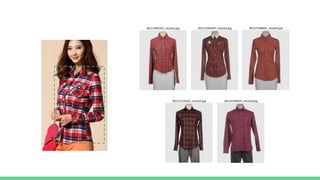

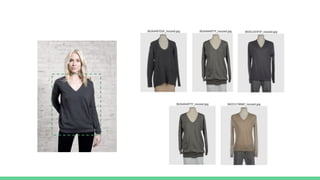

33. Search Results ...

37. We propose our customers to
collaborate, using their data,
for building a first prototype
Built with our customers
Selected topics look for an
innovative way of using existing
data
Leveraging smart data
Topics must lead to real,
operational applications, with
added value for the business
For industrial applications
Equancy selects several topics we consider worth
investigating for our yearly program
Cutting-Edge Topics
Depending how speculative we judge
each topic, Equancy will support
significant time costs of consultants
Co-investment
EQUANCY
R&D Program
Equancy R&D Initiative

38. Thanks!
You were great :)
Equancy is recruiting:
❖ Data Scientist Intern
❖ Data Engineer
kkarp@equancy.com
