Livy is an open source REST service for interacting with and managing Spark contexts and jobs. It allows clients to submit Spark jobs via REST, monitor their status, and retrieve results. Livy manages long-running Spark contexts in a cluster and supports running multiple independent contexts simultaneously from different clients. It provides client APIs in Java, Scala, and soon Python to interface with the Livy REST endpoints for submitting, monitoring, and retrieving results of Spark jobs.

1. Livy: A REST Web Service for Spark
Pravin Mittal, Microsoft
Anand Iyer, Cloudera

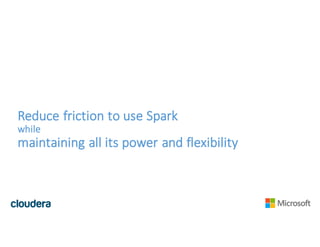

2. Reduce friction to use Spark
while
maintaining all its power and flexibility

3. What is Livy?
A Service that manages long running Spark Contexts in your cluster
• Open Source Apache Licensed
• REST based interface
• Lets you manage multiple Spark Contexts
• Fine grained job submission
• Retrieve job results over REST asynchronously or synchronously
• Client APIs in java, scala and soon in python

4. What is Livy?
Livy
Server
Cluster (Managed by YARN, Mesos, etc)
Driver ExecutorExecutor
Clients
Driver ExecutorExecutor
HTTP
Context 1
Context 2
Context 2
Context 1

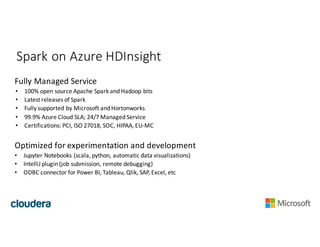

5. Spark on Azure HDInsight
Fully Managed Service
• 100% open source Apache Spark and Hadoop bits
• Latest releases of Spark
• Fully supported by Microsoft and Hortonworks
• 99.9% Azure Cloud SLA; 24/7 Managed Service
• Certifications: PCI, ISO 27018, SOC, HIPAA, EU-MC
Optimized for experimentation and development
• Jupyter Notebooks (scala, python, automatic data visualizations)
• IntelliJ plugin (job submission, remote debugging)
• ODBC connector for Power BI, Tableau, Qlik, SAP, Excel, etc

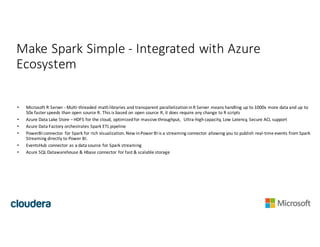

6. Make Spark Simple - Integrated with Azure
Ecosystem
• Microsoft R Server - Multi-threaded math libraries and transparent parallelization in R Server means handling up to 1000x more data and up to
50x faster speeds than open source R. This is based on open source R, it does require any change to R scripts
• Azure Data Lake Store – HDFS for the cloud, optimized for massive throughput, Ultra-high capacity, Low Latency, Secure ACL support
• Azure Data Factory orchestrates Spark ETL pipeline
• PowerBI connector for Spark for rich visualization. New in Power BI is a streaming connector allowing you to publish real-time events from Spark
Streaming directly to Power BI.
• EventsHub connector as a data source for Spark streaming
• Azure SQL Datawarehouse & Hbase connector for fast & scalable storage

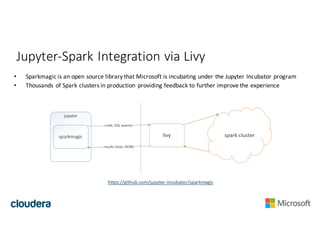

7. Jupyter-Spark Integration via Livy
• Sparkmagic is an open source library that Microsoft is incubating under the Jupyter Incubator program
• Thousands of Spark clusters in production providing feedback to further improve the experience
https://github.com/jupyter-incubator/sparkmagic

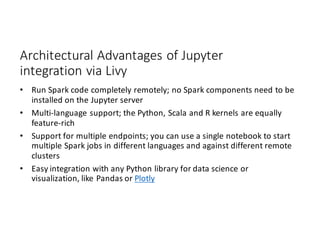

8. Architectural Advantages of Jupyter
integration via Livy
• Run Spark code completely remotely; no Spark components need to be
installed on the Jupyter server
• Multi-language support; the Python, Scala and R kernels are equally
feature-rich
• Support for multiple endpoints; you can use a single notebook to start
multiple Spark jobs in different languages and against different remote
clusters
• Easy integration with any Python library for data science or
visualization, like Pandas or Plotly

9. HN0 HN1
YARN RM
Livy Server
Metadata
ID, State, ...
Gateway
HDI Cluster
WN0
Driver
WN1
Executor
WN2
Executor
Job
Status

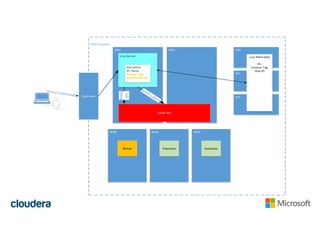

10. HN0 HN1
YARN RM
Livy Server
Metadata
ID, State,
Unique Tag,
Application ID
Gateway
HDI Cluster
WN0
Driver
WN1
Executor
WN2
Executor
Job
Status
ZK0
ZK1
ZK2
Livy Metadata
ID,
Unique Tag,
App ID

11. DEMO

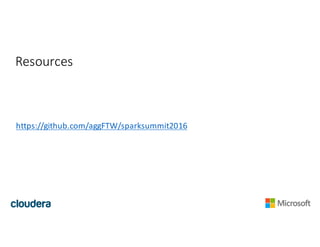

12. Resources
https://github.com/aggFTW/sparksummit2016

13. Livy Architecture Highlights

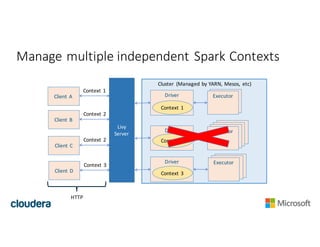

14. Cluster (Managed by YARN, Mesos, etc)
Manage multiple independent Spark Contexts
Livy
Server
Executor
Driver ExecutorExecutorClient A
HTTP
Context 1
Context 1
Driver
ExecutorExecutor
Context 2
Driver
ExecutorExecutor
Context 3
Executor
Executor
Client B
Context 2
Client C
Context 2
Client D
Context 3

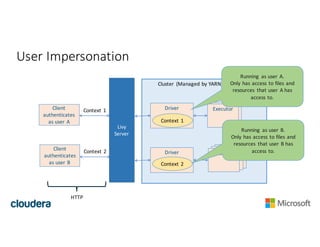

15. Cluster (Managed by YARN, Mesos, etc)
User Impersonation
Livy
Server
Driver ExecutorExecutor
HTTP
Context 1
Driver
ExecutorExecutor
Context 2
Executor
Client
authenticates
as user A
Context 1
Client
authenticates
as user B
Context 2
Running as user A.
Only has access to files and
resources that user A has
access to.
Running as user B.
Only has access to files and
resources that user B has
access to.

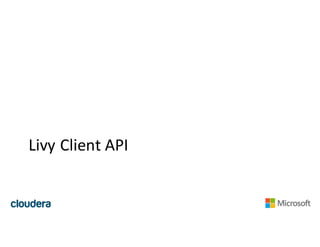

16. Livy Client API

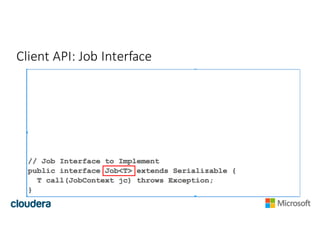

17. Client API: Job Interface

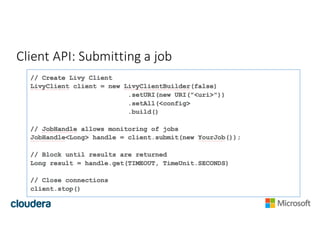

18. Client API: Submitting a job

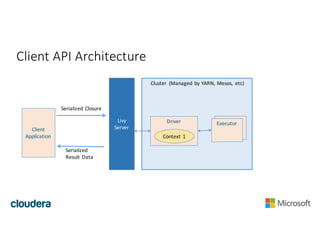

19. Client API Architecture
Livy
Server
Cluster (Managed by YARN, Mesos, etc)
Driver ExecutorExecutor
Client
Application Context 1
Serialized
Result Data
Serialized Closure

20. Community
http://livy.io
