First Look at Azure Logic Apps (BAUG)
This document provides an overview and summary of Azure Logic Apps and API Apps. It discusses how Logic Apps allow users to easily automate business processes across Software as a Service (SaaS) applications and on-premises systems using a visual no-code designer. It also describes how API Apps make it simple to build and consume APIs in Azure. The document highlights some of the key capabilities and built-in connectors for Logic Apps, and tools for developing APIs in API Apps using Visual Studio. It provides a comparison of features between Logic Apps and the previous BizTalk Services offering.
More Related Content
Similar to First Look at Azure Logic Apps (BAUG)
More from Daniel Toomey
First Look at Azure Logic Apps (BAUG)
- 1.
- 2. First Look: Azure AppService Logic Apps
- 3. who? Lee Simpson Solution DeliveryLead at Mexia https://au.linkedin.com/pub/lee-simpson/0/214/997 Architect, team leader, agile practitioner, integration specialist Dan Toomey Senior Consultant at Mexia @Daniel2Me Integration specialist, Pluralsight author, Azure Advisor, BizTalk UG leader

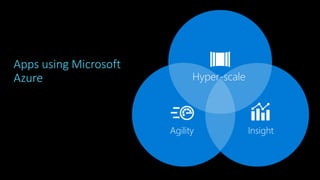

- 4.
- 5. Mobile Services Key app servicesin Azure previously Azure Websites BizTalk Services

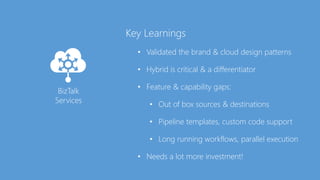

- 6. Key Learnings • Validatedthe brand & cloud design patterns • Hybrid is critical & a differentiator • Feature & capability gaps: • Out of box sources & destinations • Pipeline templates, custom code support • Long running workflows, parallel execution • Needs a lot more investment! BizTalk Services
- 7.
- 8.
- 9.
- 10.
- 11. Mobile Services Key app servicesin Azure today Azure Websites BizTalk Services Azure App Service
- 12. Unique integratedoffering Build rich, engaging & intelligent apps Scale as your business grows Azure App Service

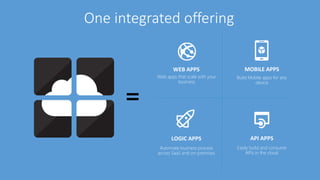

- 13. API APPS Easily buildand consume APIs in the cloud WEB APPS Web apps that scale with your business LOGIC APPS Automate business process across SaaS and on-premises MOBILE APPS Build Mobile apps for any device One integrated offering
- 17. Easily use cloudor custom APIs: • Dozens of built-in APIs for popular SaaS • An ecosystem of APIs for any need • Create and publish custom, reusable APIs • Visual Studio tooling with one click publish and remote debugging • Automatic client SDK generation for many languages Create, consume and host APIs more easily API APPS

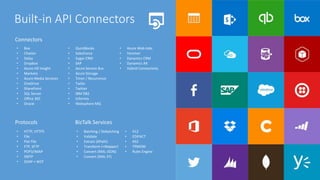

- 18. • Box • Chatter •Delay • Dropbox • Azure HD Insight • Marketo • Azure Media Services • OneDrive • SharePoint • SQL Server • Office 365 • Oracle • QuickBooks • SalesForce • Sugar CRM • SAP • Azure Service Bus • Azure Storage • Timer / Recurrence • Twilio • Twitter • IBM DB2 • Informix • Websphere MQ • Azure Web Jobs • Yammer • Dynamics CRM • Dynamics AX • Hybrid Connectivity • HTTP, HTTPS • File • Flat File • FTP, SFTP • POP3/IMAP • SMTP • SOAP + WCF • Batching / Debatching • Validate • Extract (XPath) • Transform (+Mapper) • Convert (XML-JSON) • Convert (XML-FF) • X12 • EDIFACT • AS2 • TPMOM • Rules Engine Connectors Protocols BizTalk Services Built-in API Connectors

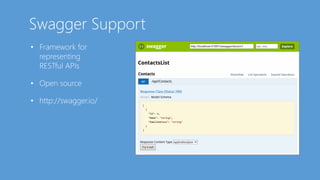

- 19. • Framework for representing RESTfulAPIs • Open source • http://swagger.io/

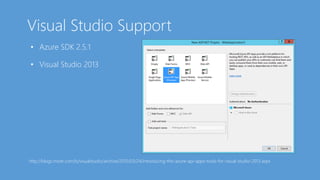

- 20. • Azure SDK2.5.1 • Visual Studio 2013 http://blogs.msdn.com/b/visualstudio/archive/2015/03/24/introducing-the-azure-api-apps-tools-for-visual-studio-2013.aspx

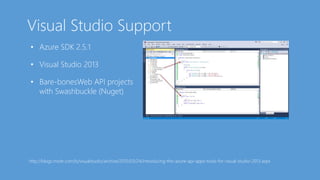

- 21. • Azure SDK2.5.1 • Visual Studio 2013 • Bare-bonesWeb API projects with Swashbuckle (Nuget) http://blogs.msdn.com/b/visualstudio/archive/2015/03/24/introducing-the-azure-api-apps-tools-for-visual-studio-2013.aspx

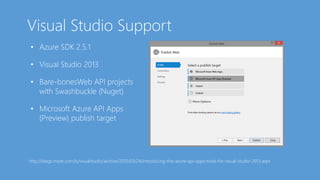

- 22. • Azure SDK2.5.1 • Visual Studio 2013 • Bare-bonesWeb API projects with Swashbuckle (Nuget) • Microsoft Azure API Apps (Preview) publish target http://blogs.msdn.com/b/visualstudio/archive/2015/03/24/introducing-the-azure-api-apps-tools-for-visual-studio-2013.aspx
- 25. New Logic Appsfor easy automation • No code designer for rapid creation • Dozens of pre-built templates to get started • Out of box support for popular SaaS and on- premises apps • Use with custom API apps of your own • BizTalk APIs for expert integration scenarios Automate SaaS and on-premises systems LOGIC APPS

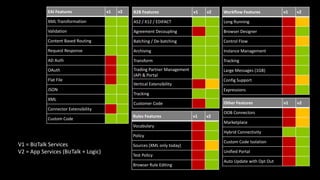

- 27. EAI Features v1v2 XML Transformation Validation Content Based Routing Request Response AD Auth OAuth Flat File JSON XML Connector Extensibility Custom Code B2B Features v1 v2 AS2 / X12 / EDIFACT Agreement Decoupling Batching / De-batching Archiving Transform Trading Partner Management (API & Portal Vertical Extensibility Tracking Customer Code Workflow Features v1 v2 Long Running Browser Designer Control Flow Instance Management Tracking Large Messages (1GB) Config Support Expressions Rules Features v1 v2 Vocabulary Policy Sources (XML only today) Test Policy Browser Rule Editing Other Features v1 v2 OOB Connectors Marketplace Hybrid Connectivity Custom Code Isolation Unified Portal Auto Update with Opt Out V1 = BizTalk Services V2 = App Services (BizTalk + Logic)
- 28. Architecture The Azure Resourcemanager is a highly-scalable geo-distributed system that handles millions of resources across 100,000’s of subscriptions. Can create 200 node cluster in < 5 minutes!
- 29. Same underlying engine… ResourceManager • Can handle thousands of parallel deployments per stamp • Resilient against failure – retries with “at least once” guarantee • Simple, declarative JSON template • Automatically infers dependences between resources Logic Apps • Can handle thousands of parallel runs per stamp • Resilient against failure – retries with “at least once” guarantee • Simple, declarative JSON definition • Automatically infers dependences between actions
- 30. … more power ResourceManager • 8 functions for basic referencing and string functions • Can only PUT resources into resource groups • Auth must be through AAD • Triggered manual through UI or API Logic Apps • Over 50 functions from string manipulations to math, to sets operations, to logical operators • All HTTP operations supported on any arbitrary endpoint • Supports many OAuth providers, AAD, Cert auth, or Basic auth • Different ways to be triggered including recurrence

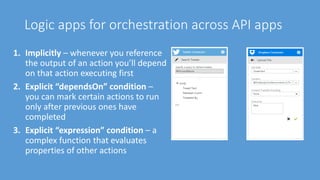

- 32. Logic apps fororchestration across API apps 1. Implicitly – whenever you reference the output of an action you’ll depend on that action executing first 2. Explicit “dependsOn” condition – you can mark certain actions to run only after previous ones have completed 3. Explicit “expression” condition – a complex function that evaluates properties of other actions

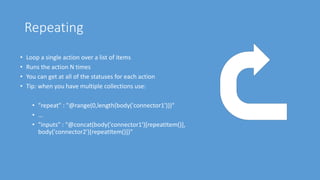

- 33. Repeating • Loop asingle action over a list of items • Runs the action N times • You can get at all of the statuses for each action • Tip: when you have multiple collections use: • "repeat" : "@range(0,length(body('connector1')))" • … • "inputs" : "@concat(body('connector1')[repeatItem()], body('connector2')[repeatItem()])"

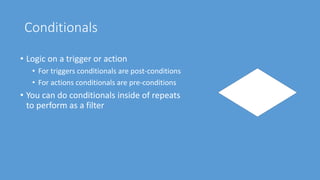

- 34. Conditionals • Logic ona trigger or action • For triggers conditionals are post-conditions • For actions conditionals are pre-conditions • You can do conditionals inside of repeats to perform as a filter

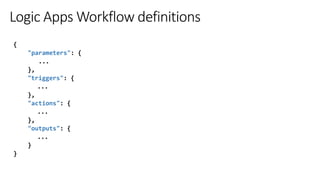

- 35. { "parameters": { ... }, "triggers": { ... }, "actions":{ ... }, "outputs": { ... } } Logic Apps Workflow definitions

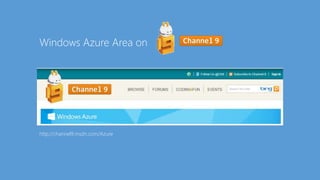

- 38.

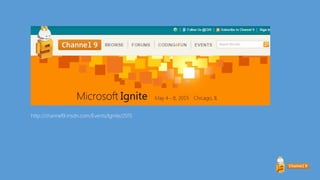

- 39.

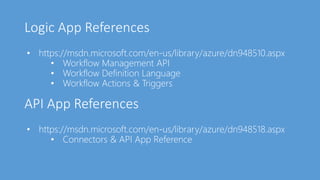

- 40. Logic App References APIApp References
