> Linux Command Line Magic
by Peter Martin
www.db8.nl / @pe7er
Joomla WWoorrlldd CCoonnffeerreennccee 22001144 -- CCaannccuunn,, MMeexxiiccoo
1

1.Introduction
2.Commands
3.Basics
4.Connecting
5.Scripts
Linux Command
Line Magic
6.Backup
7.Finding Files
8.Recover hack
9.In a Box

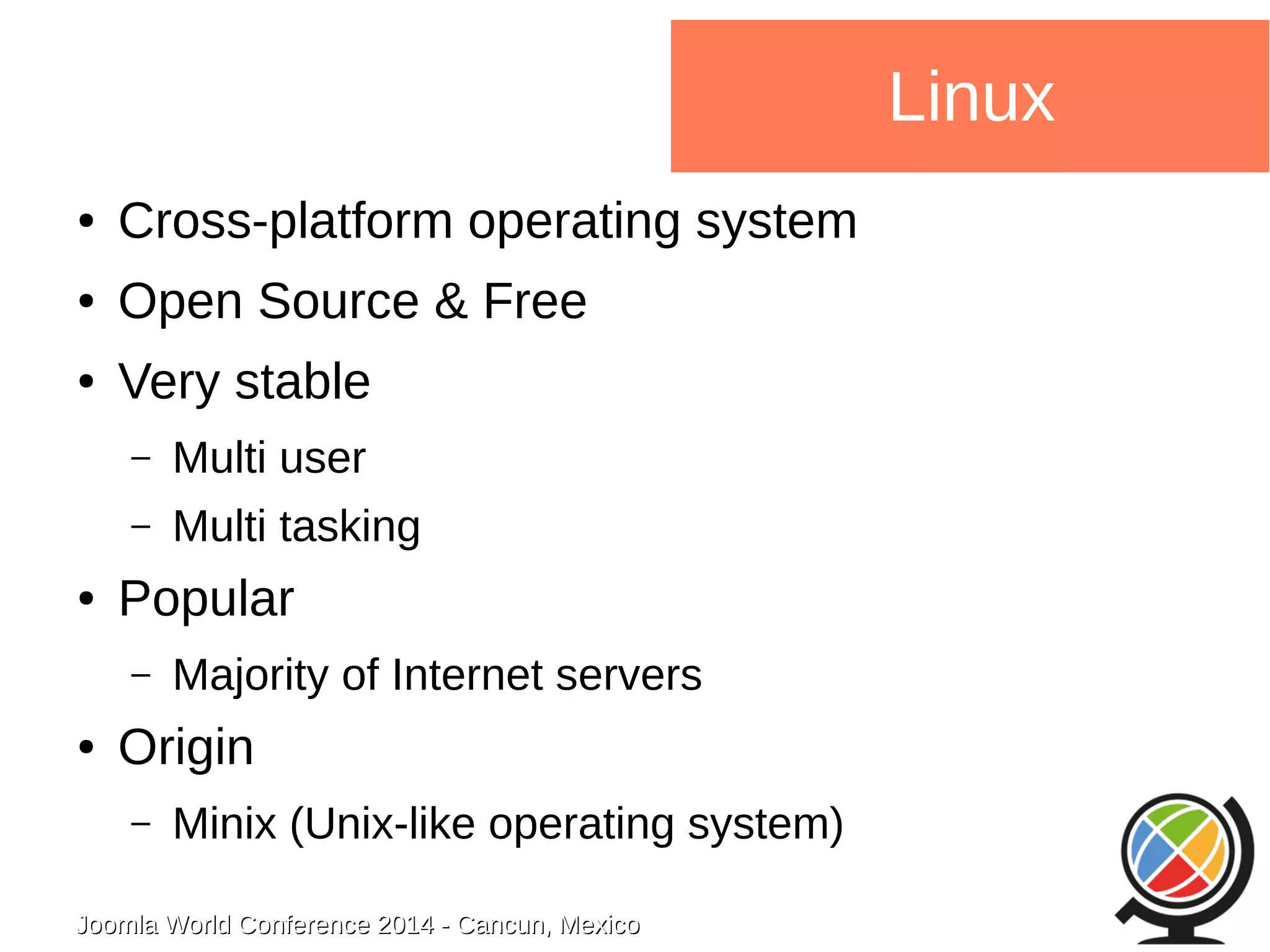

Linux
● Cross-platform operating system
● Open Source & Free
● Very stable
– Multi user
– Multi tasking
● Popular
– Majority of Internet servers
● Origin
– Minix (Unix-like operating system)

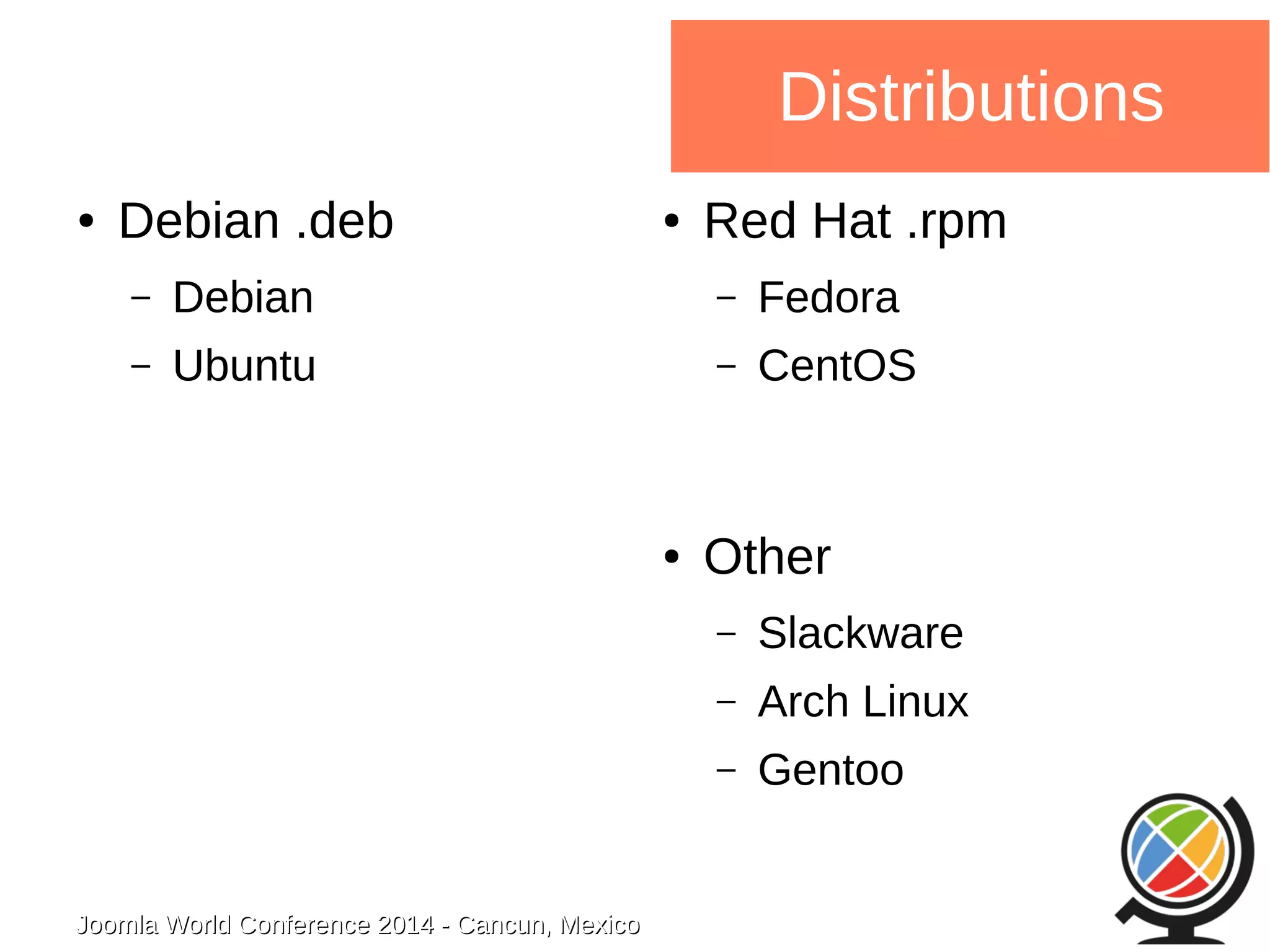

● Debian .deb
– Debian
– Ubuntu
Distributions
● Red Hat .rpm
– Fedora
– CentOS
● Other
– Slackware
– Arch Linux
– Gentoo

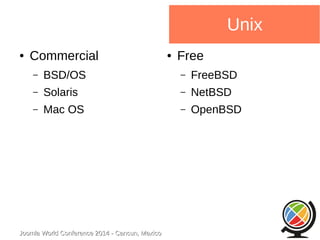

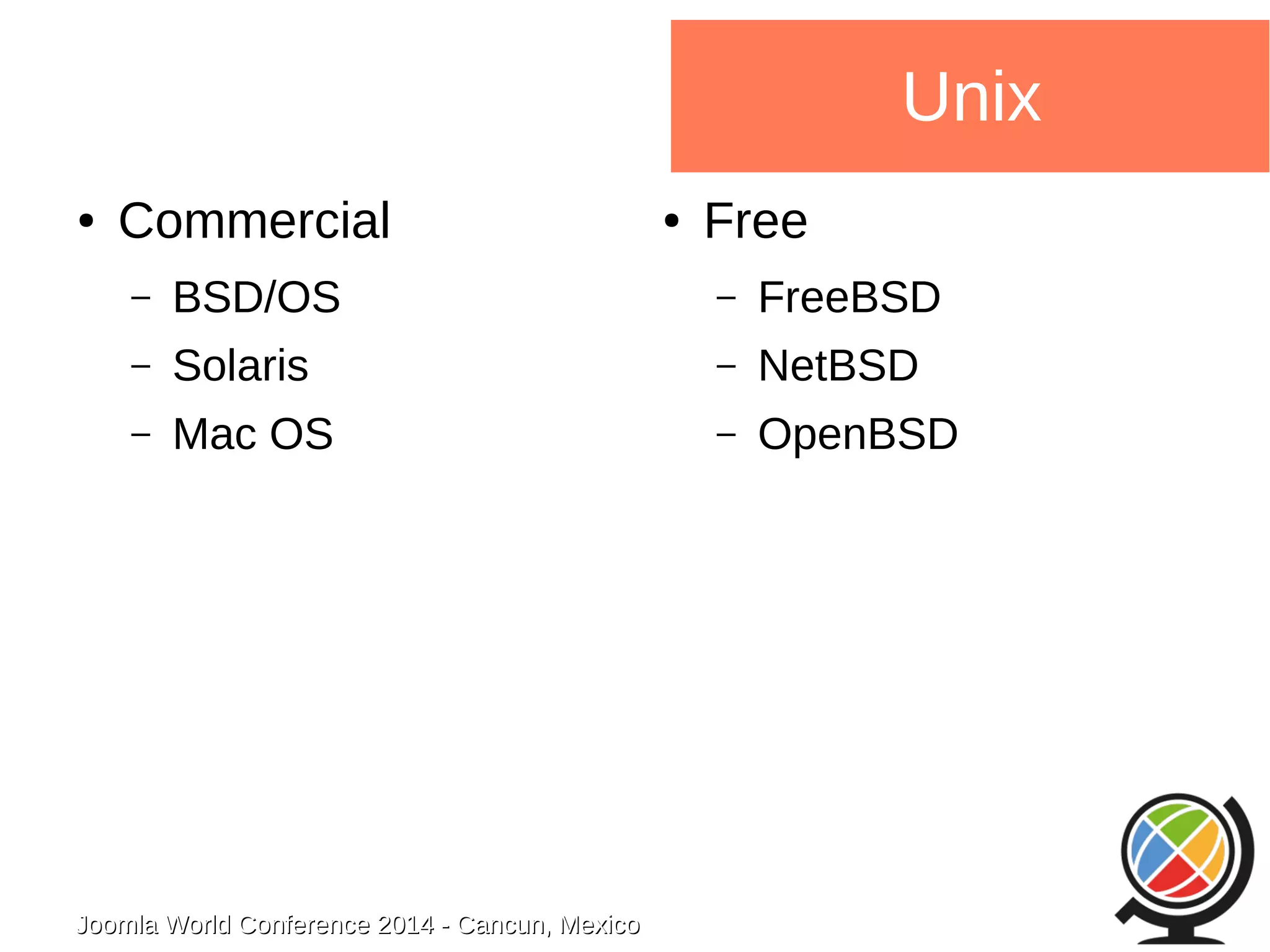

● Commercial
– BSD/OS
– Solaris
– Mac OS
Unix
● Free
– FreeBSD
– NetBSD
– OpenBSD

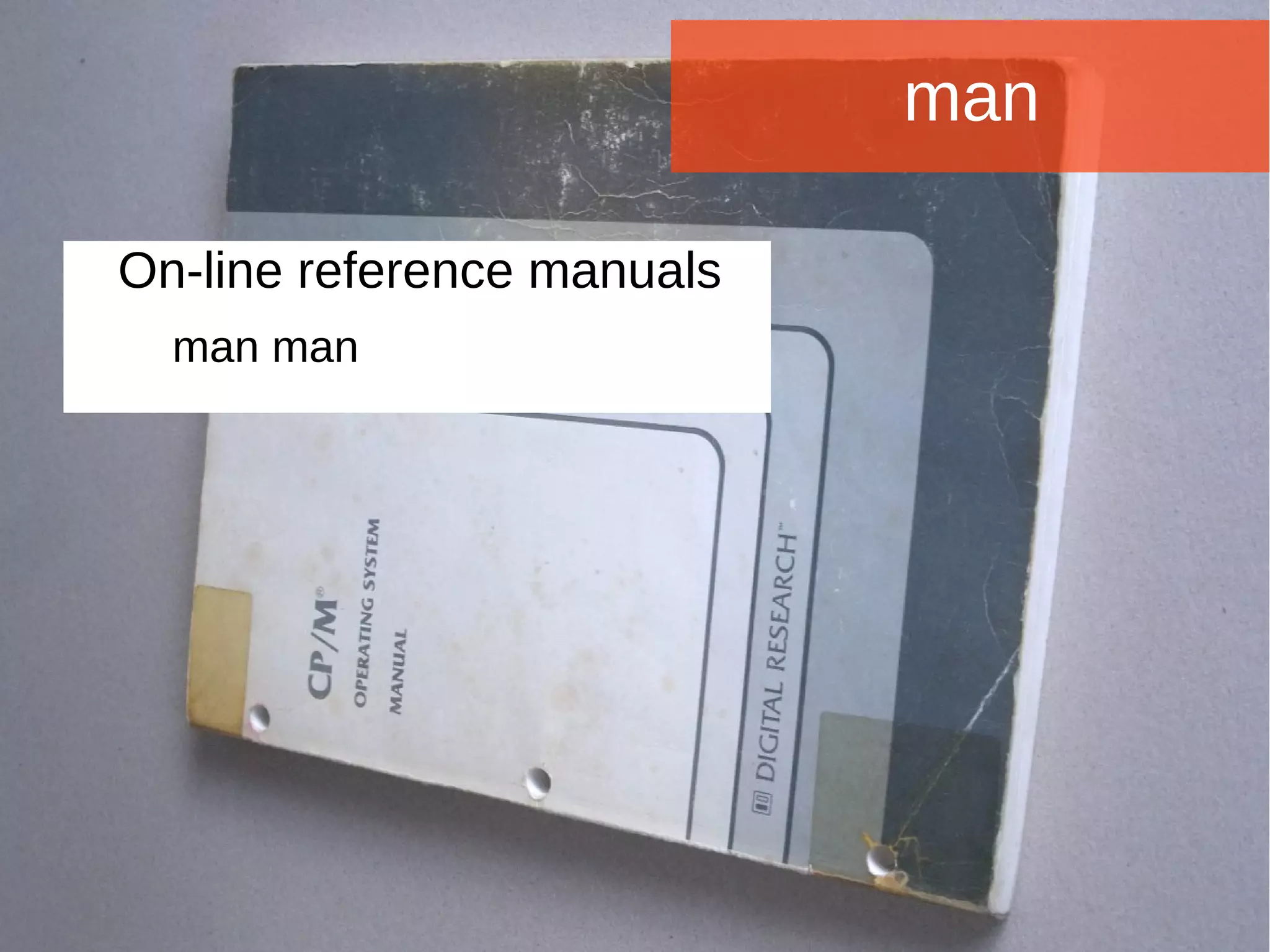

man
On-line reference manuals
man man

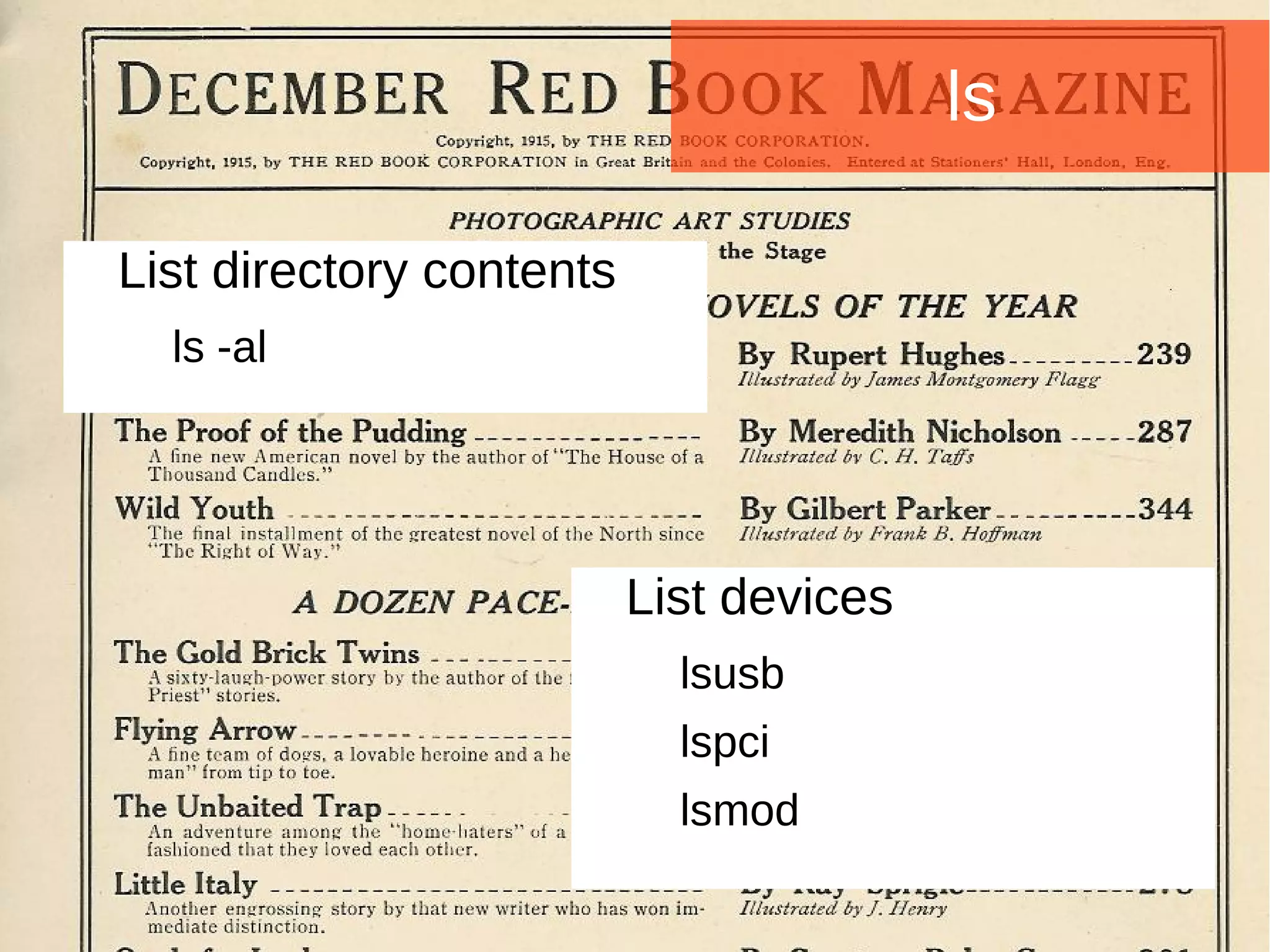

ls
List directory contents
ls -al
List devices
lsusb
lspci
lsmod

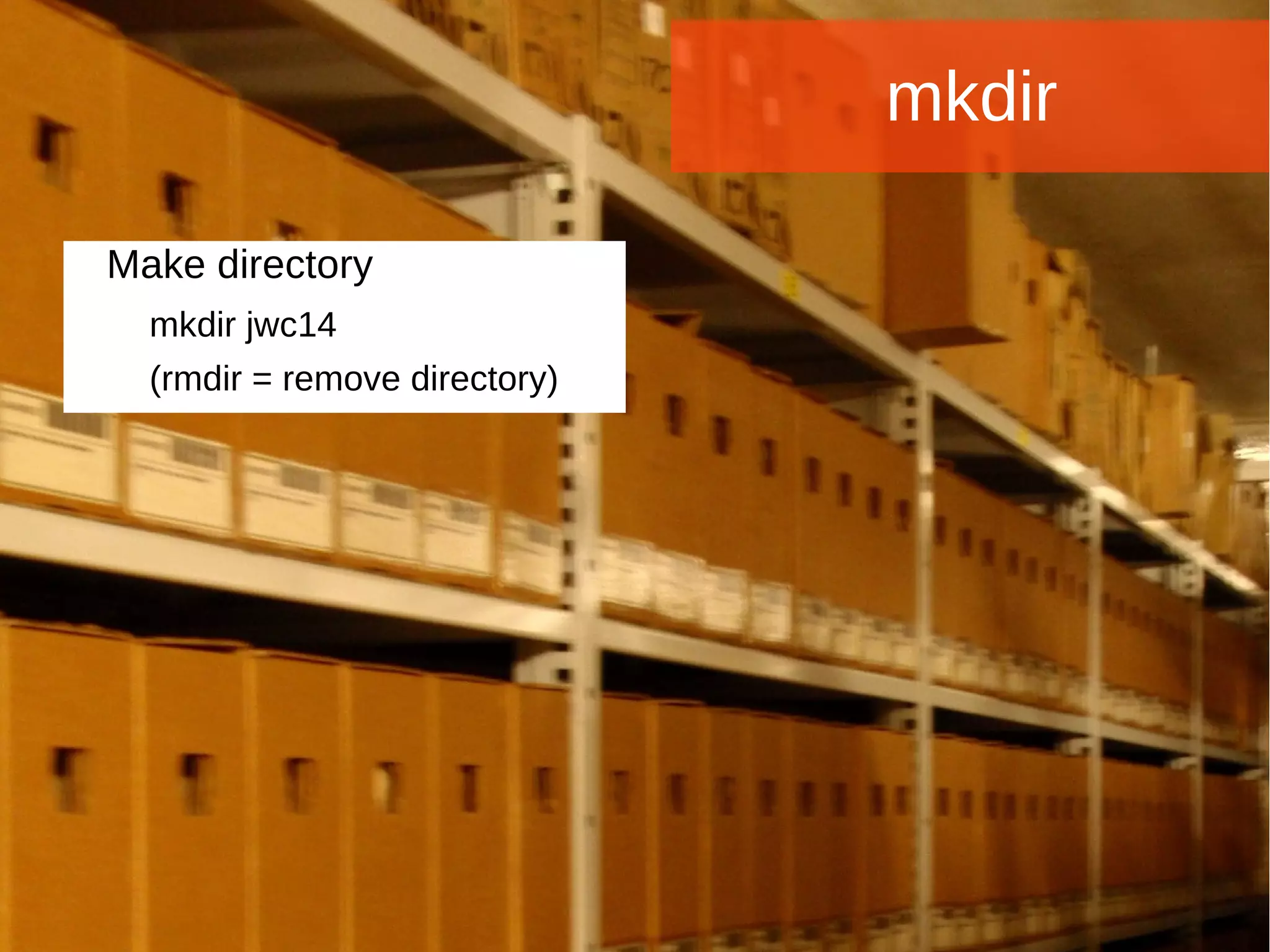

mkdir
Make directory
mkdir jwc14
(rmdir = remove directory)

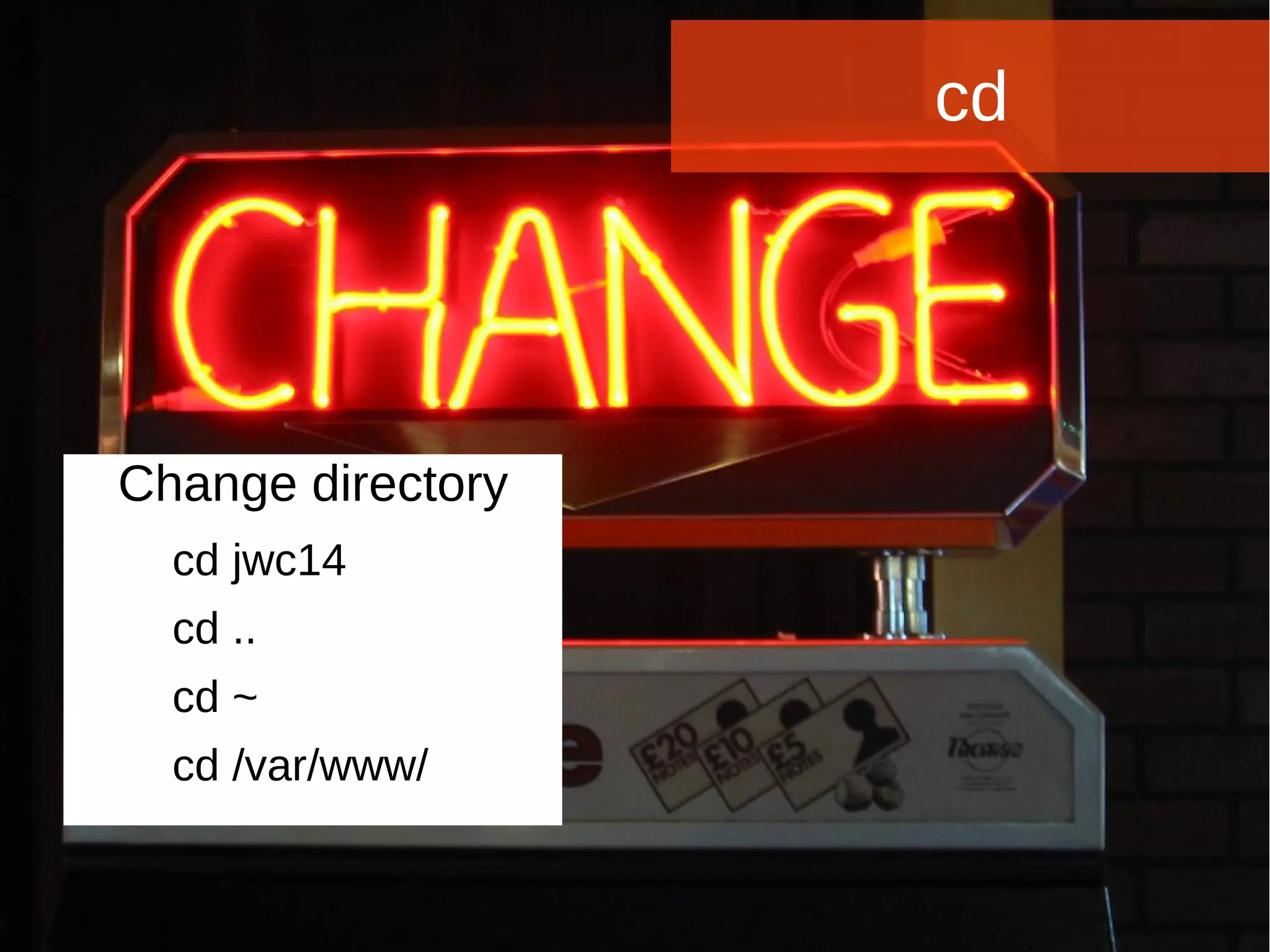

cd
Change directory
cd jwc14
cd ..
cd ~
cd /var/www/

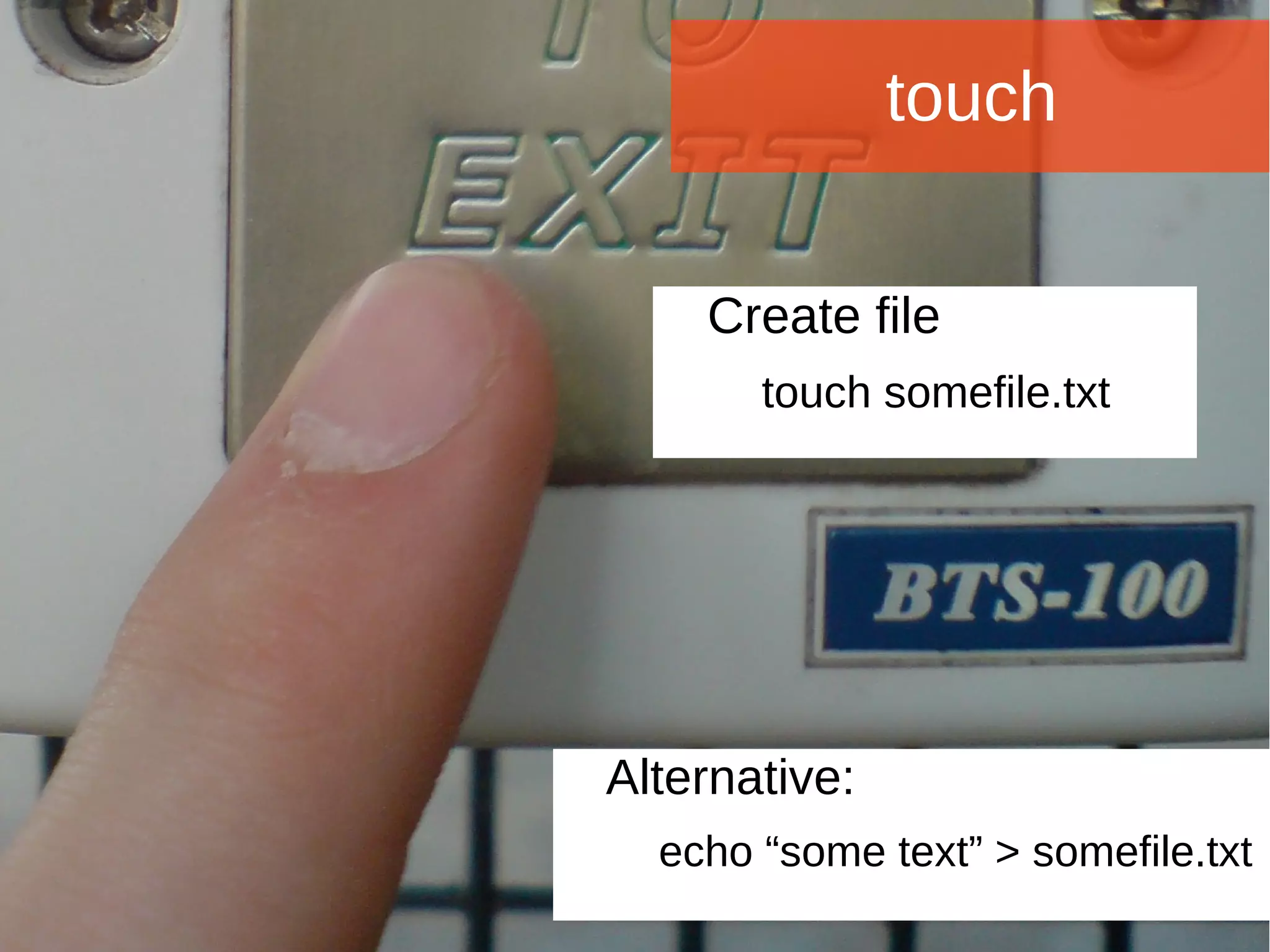

touch
Create file
touch somefile.txt
Alternative:
echo “some text” > somefile.txt

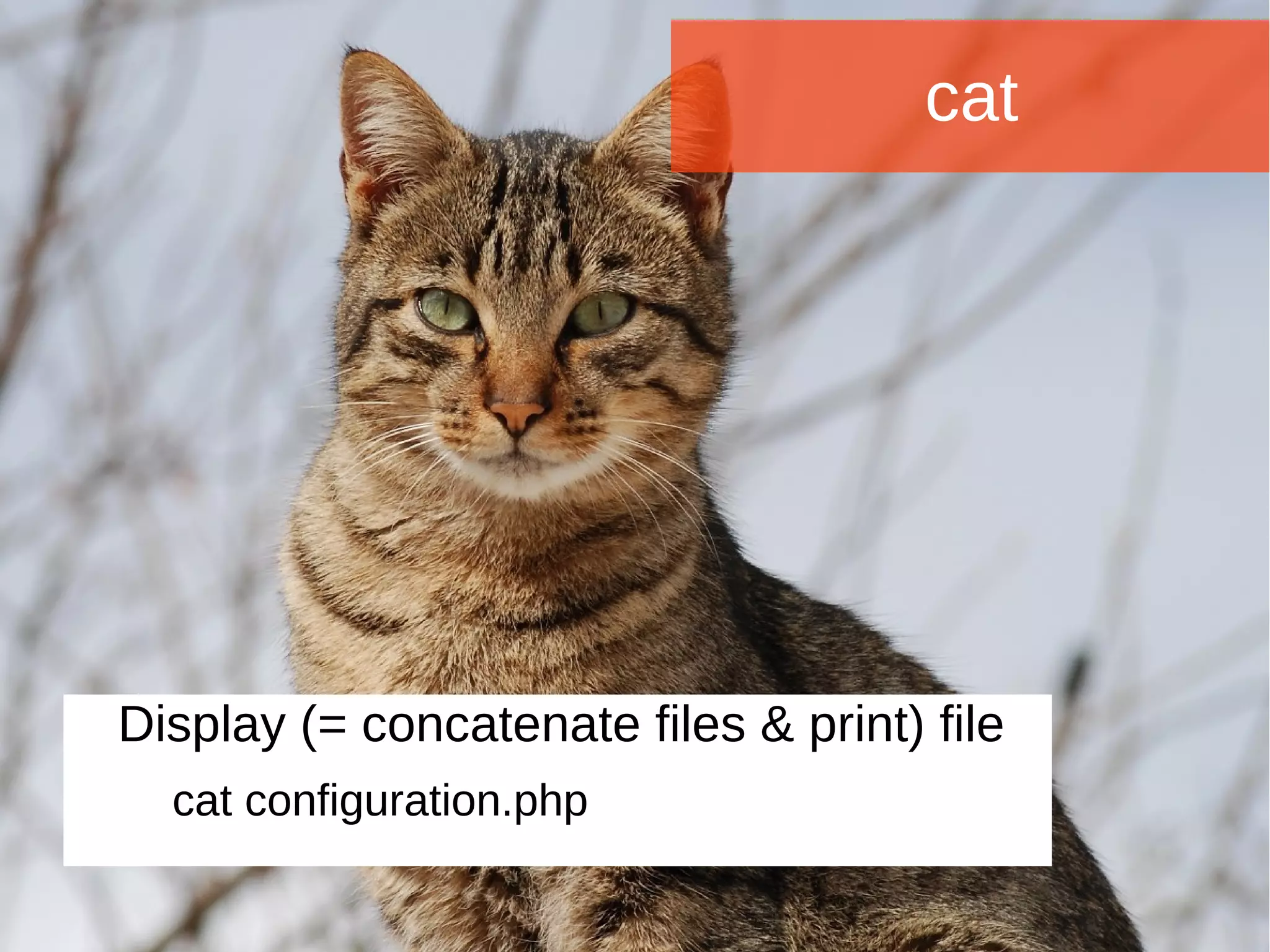

cat
Display (= concatenate files & print) file
cat configuration.php

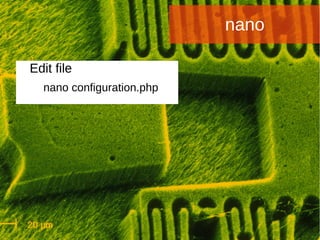

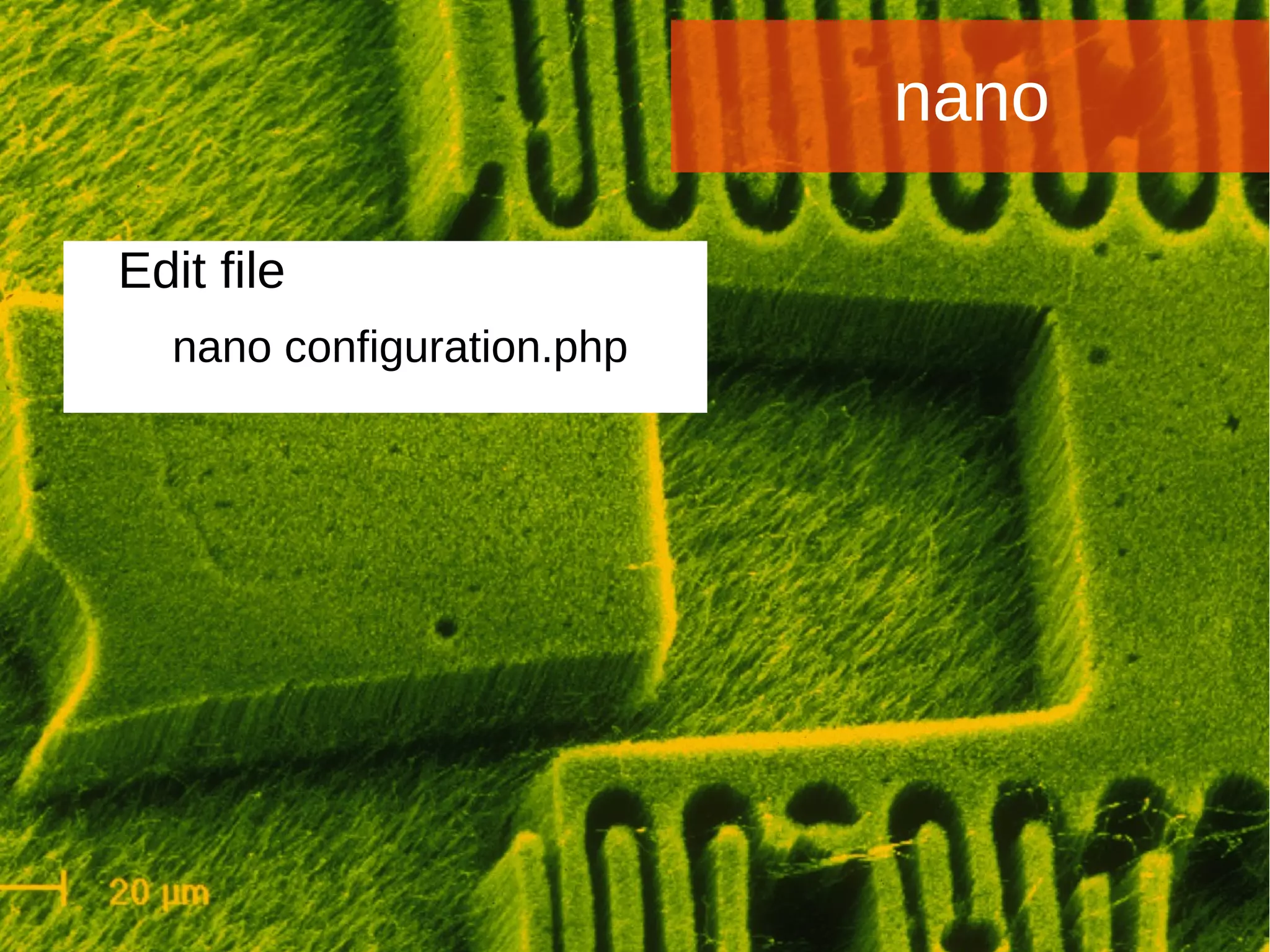

nano
Edit file
nano configuration.php

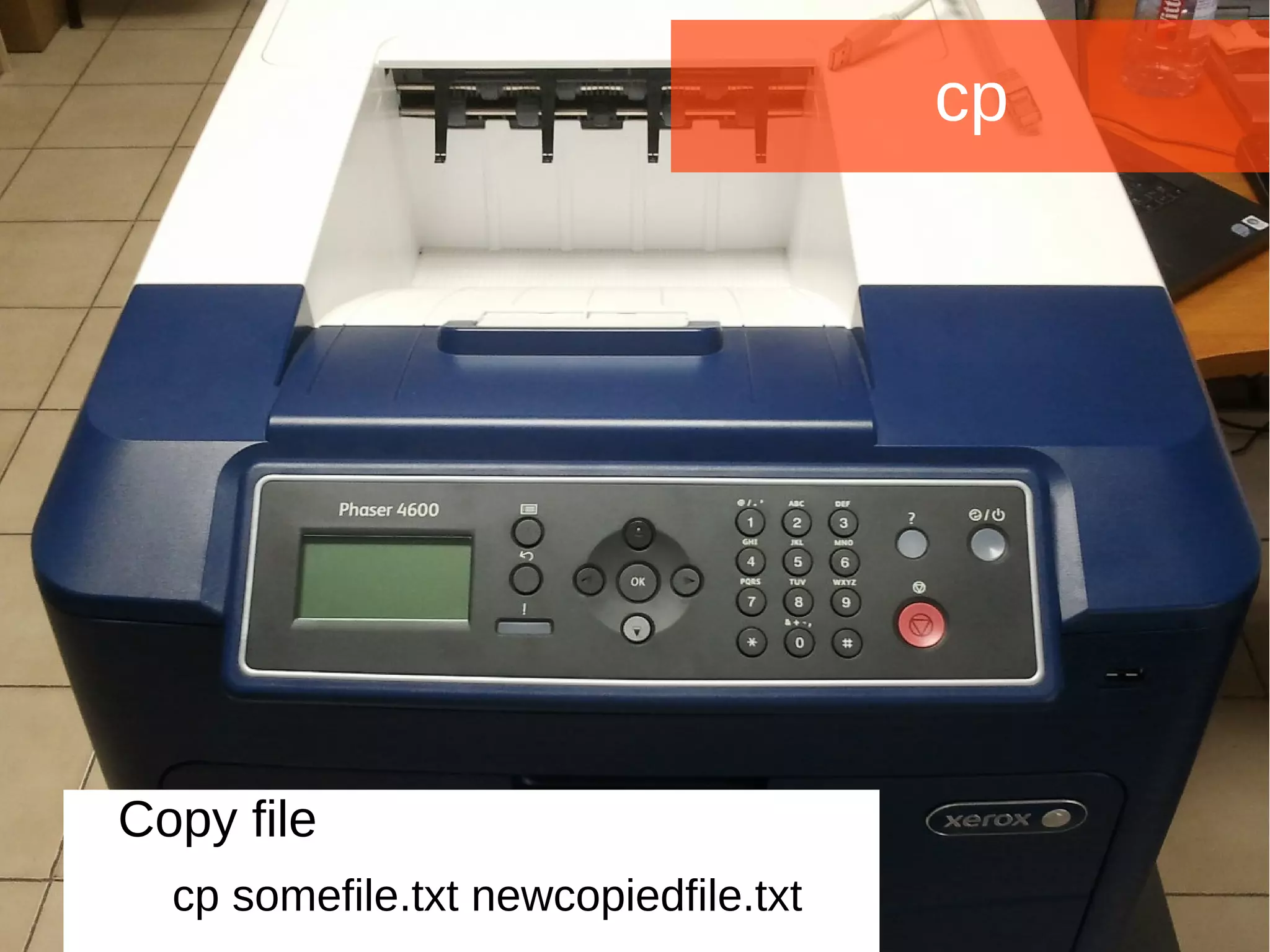

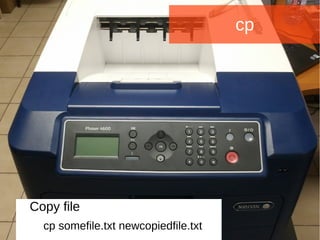

cp
Copy file
cp somefile.txt newcopiedfile.txt

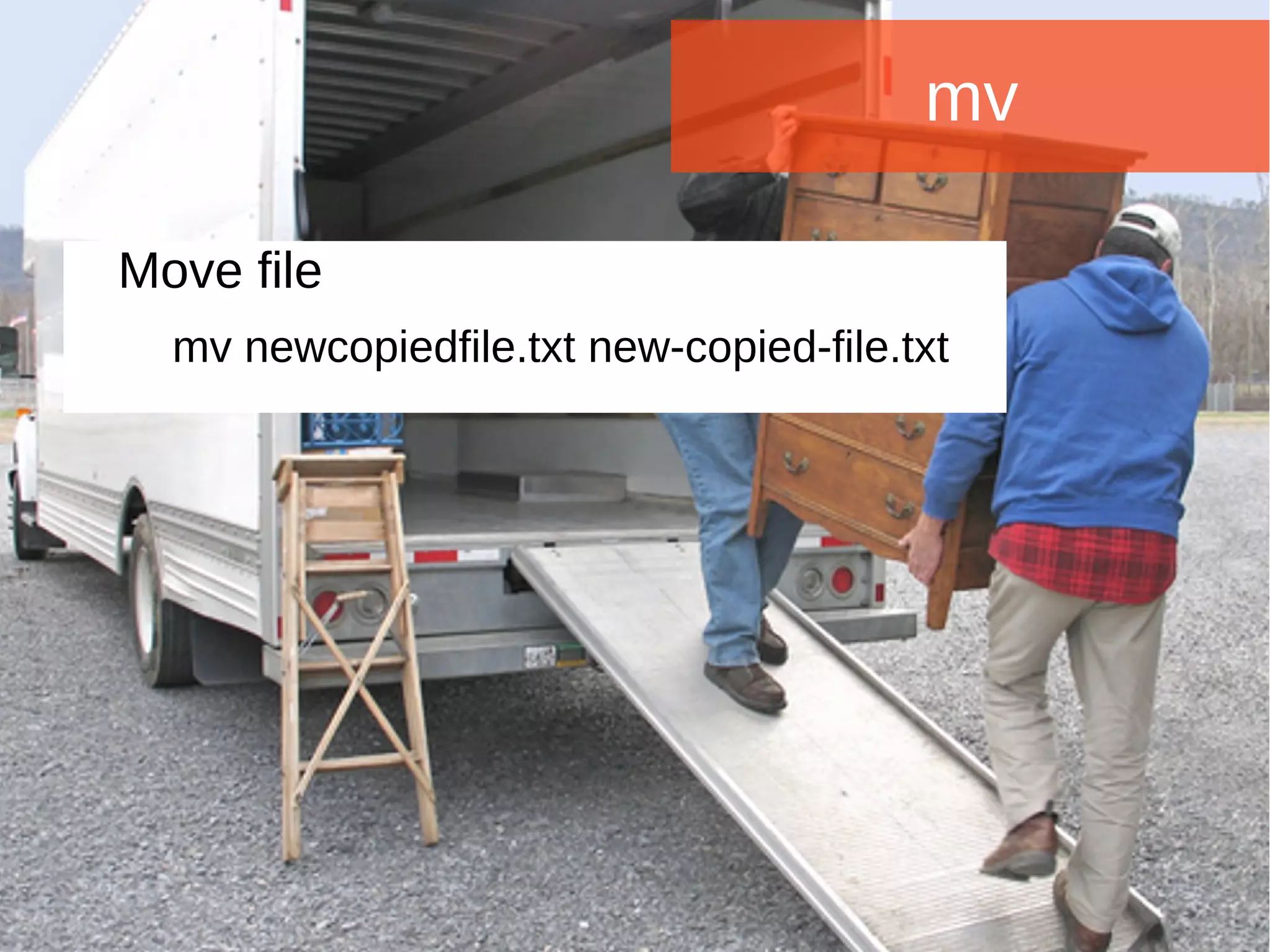

mv
Move file
mv newcopiedfile.txt new-copied-file.txt

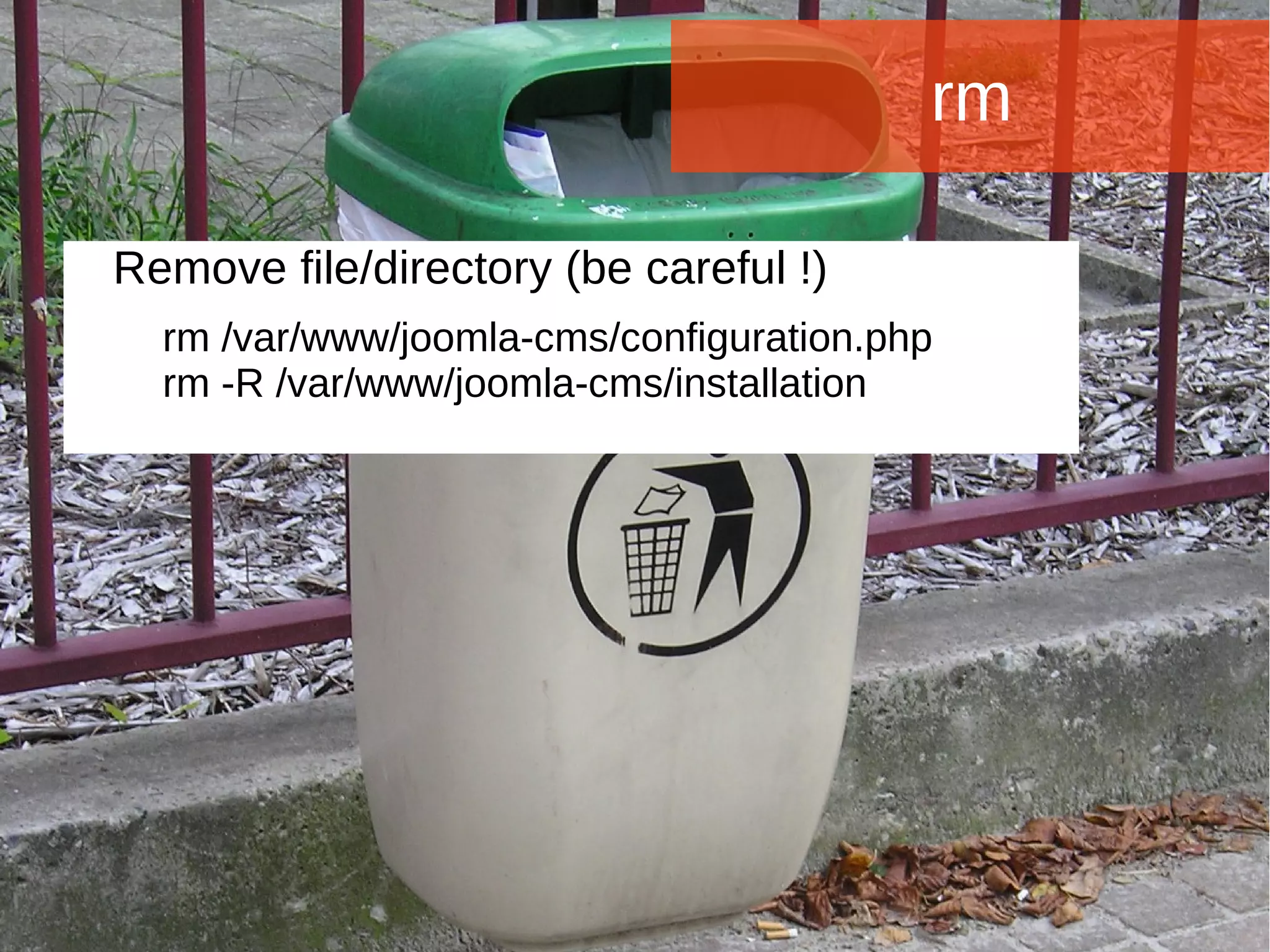

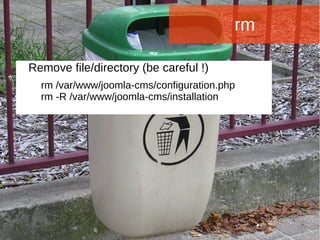

rm
Remove file/directory (be careful !)
rm /var/www/joomla-cms/configuration.php
rm -R /var/www/joomla-cms/installation

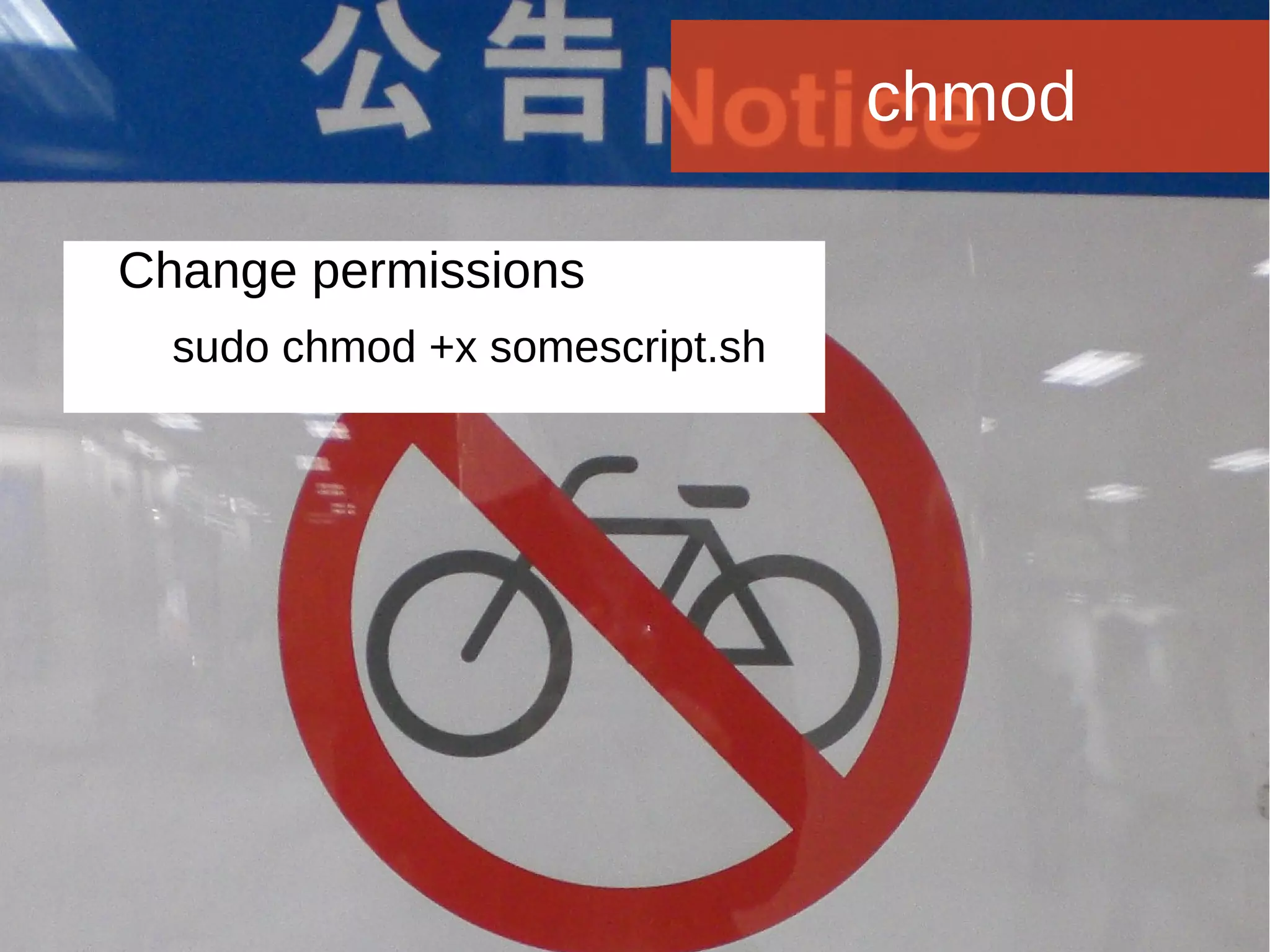

chmod
Change permissions
sudo chmod +x somescript.sh

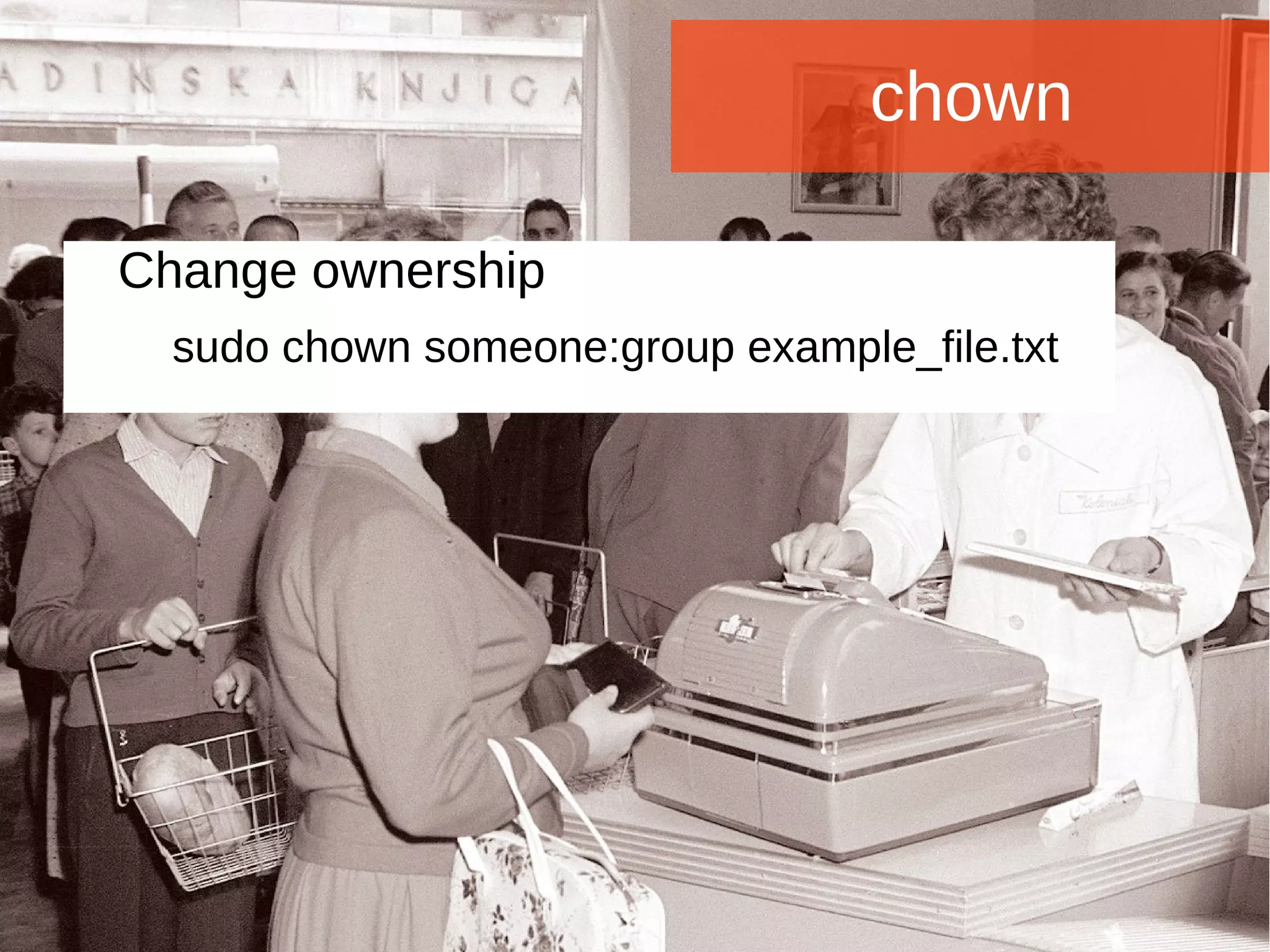

chown
Change ownership
sudo chown someone:group example_file.txt

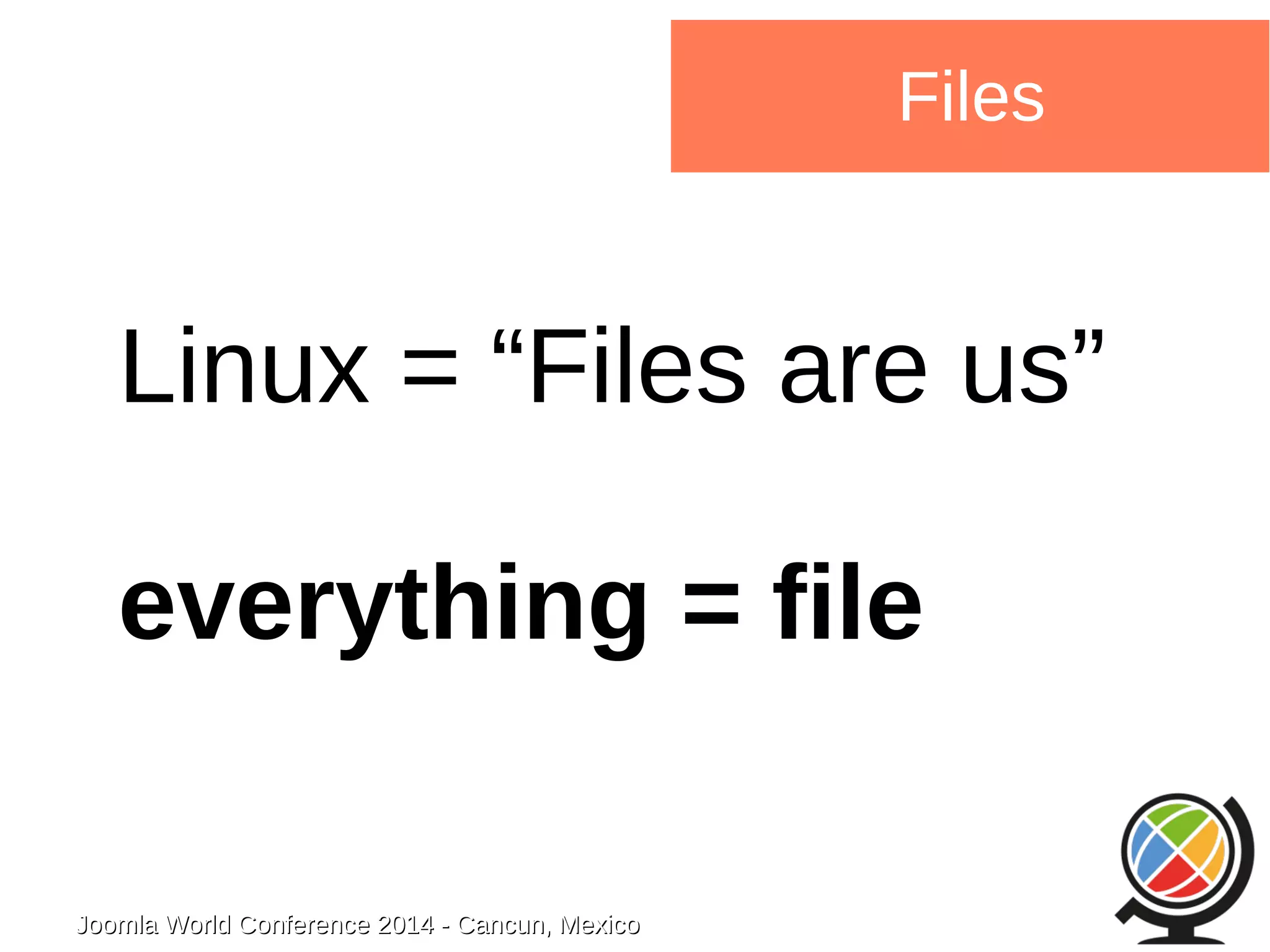

Files
Linux = “Files are us”
everything = file

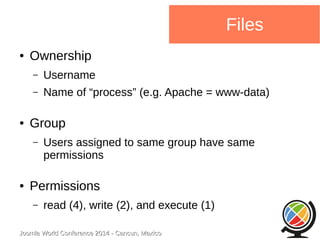

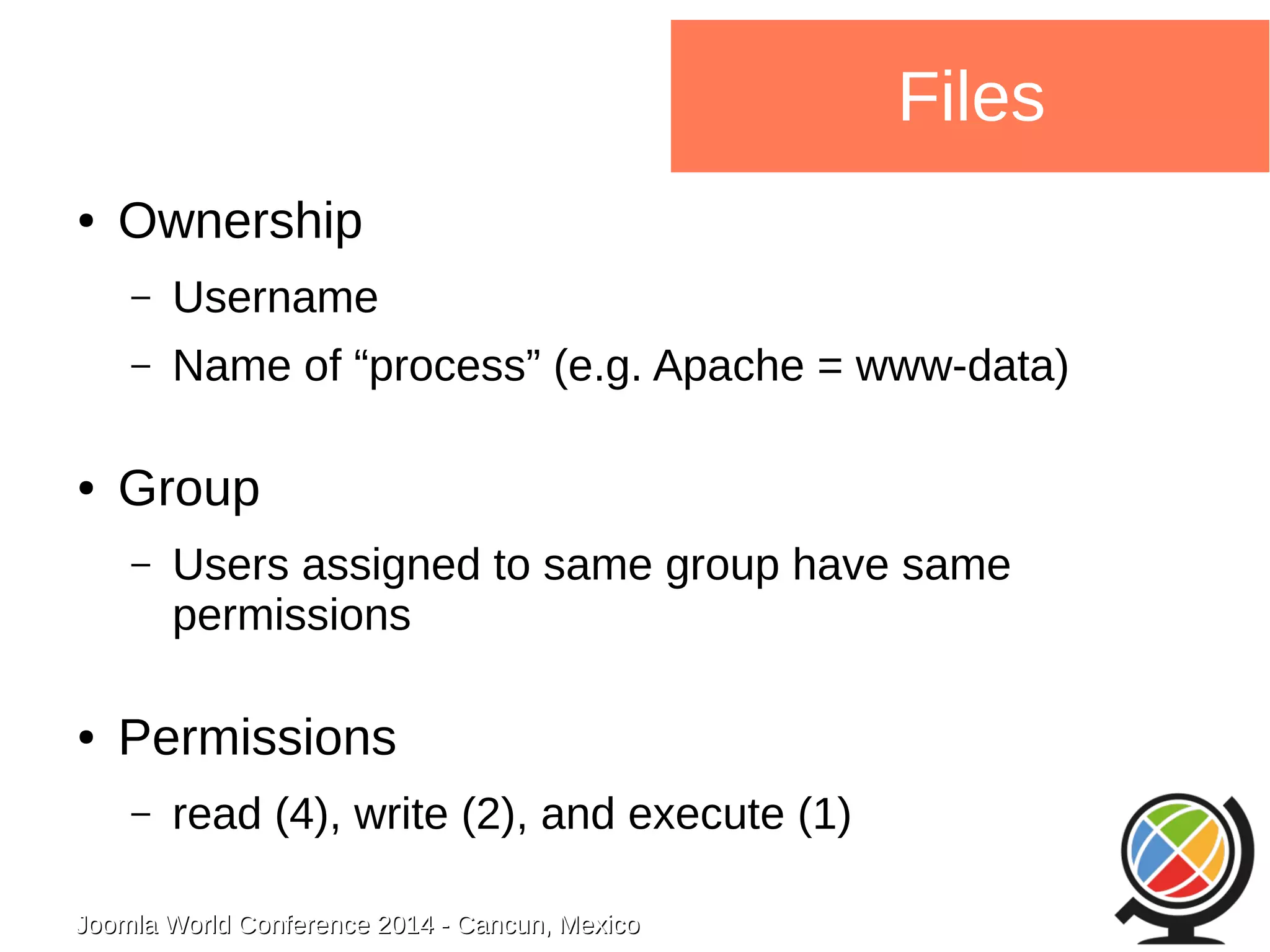

Files
● Ownership
– Username
– Name of “process” (e.g. Apache = www-data)
● Group
– Users assigned to same group have same
permissions
● Permissions
– read (4), write (2), and execute (1)

read (4)
write (2)
execute (1)

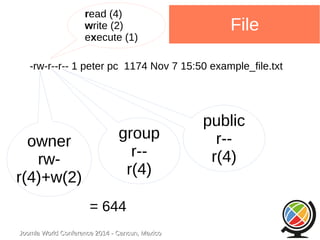

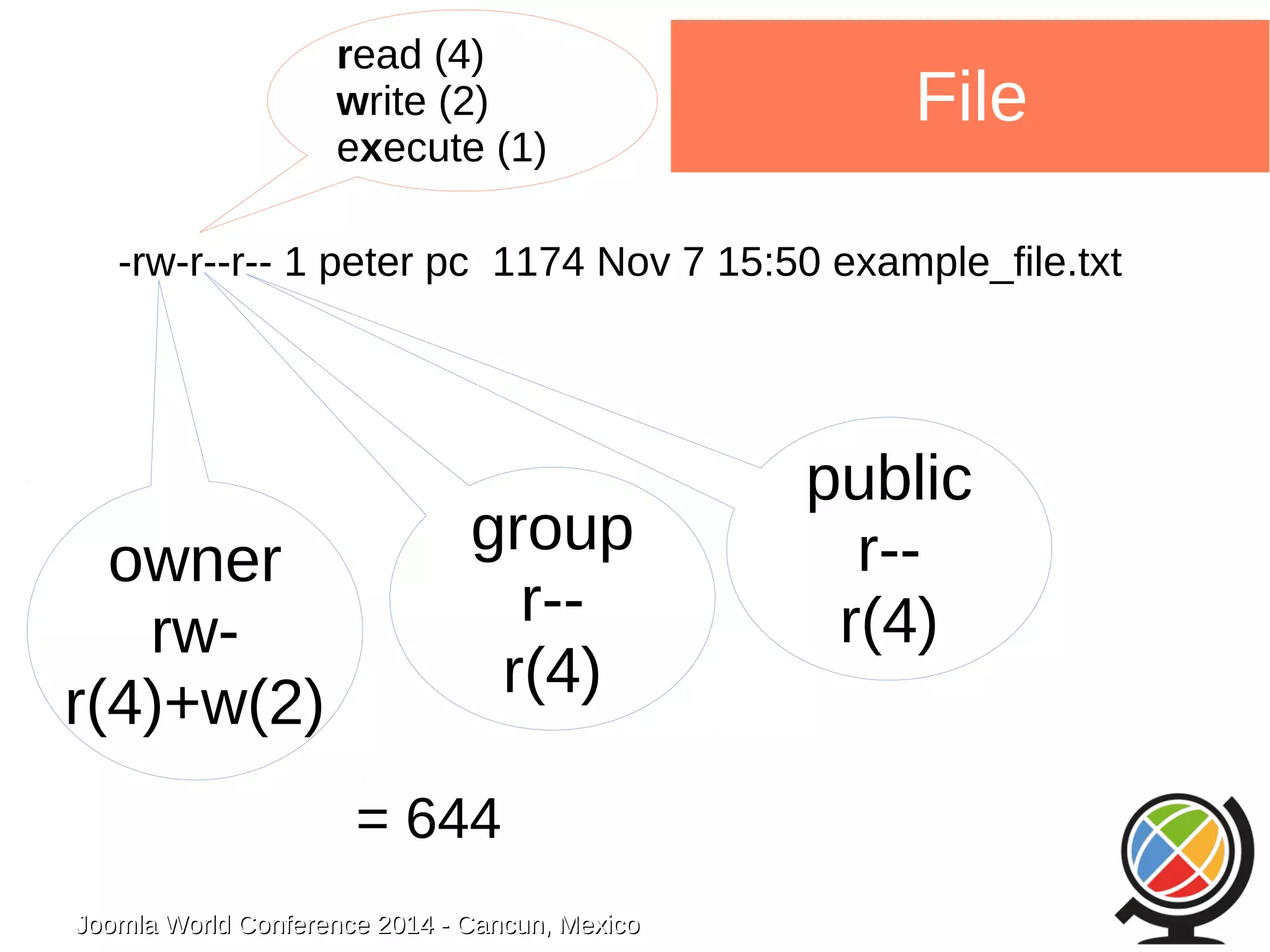

File
-rw-r--r-- 1 peter pc 1174 Nov 7 15:50 example_file.txt
owner
rw-r(
4)+w(2)
group
r--
r(4)
public
r--
r(4)
= 644

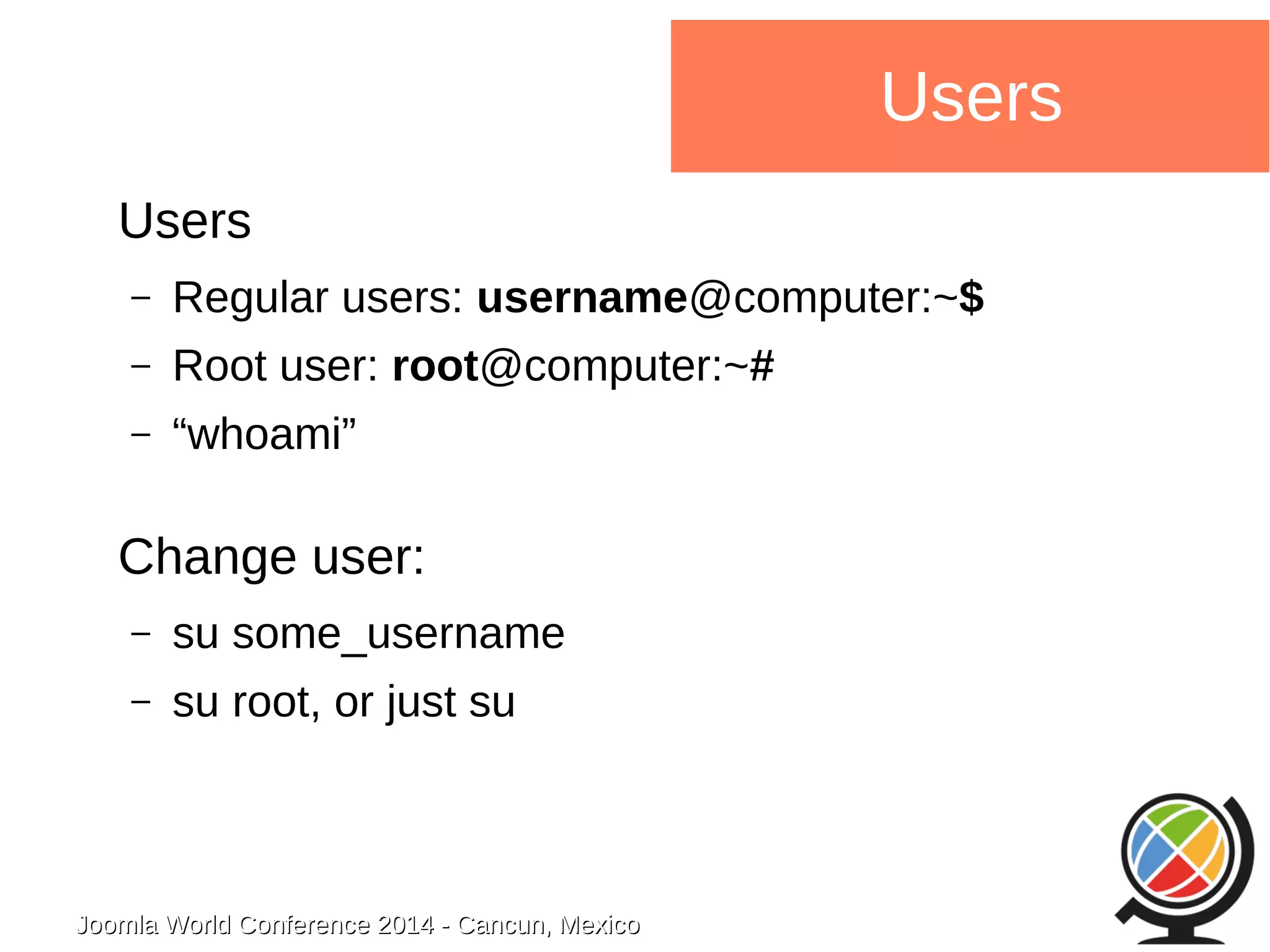

Users
Users
– Regular users: username@computer:~$
– Root user: root@computer:~#
– “whoami”
Change user:
– su some_username
– su root, or just su

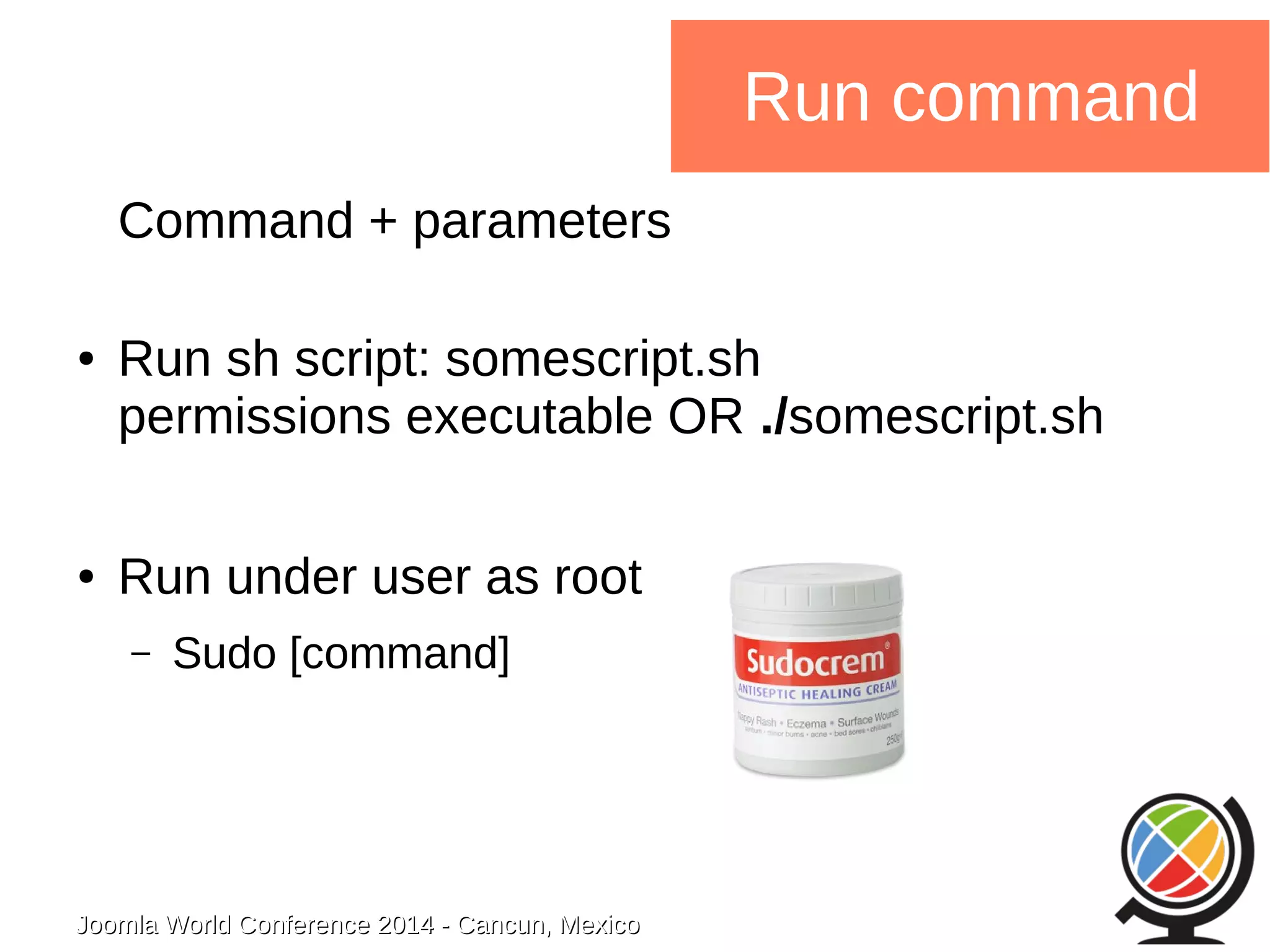

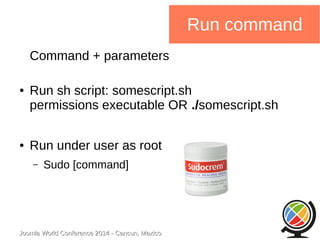

Run command
Command + parameters
● Run sh script: somescript.sh
permissions executable OR ./somescript.sh
● Run under user as root
– Sudo [command]

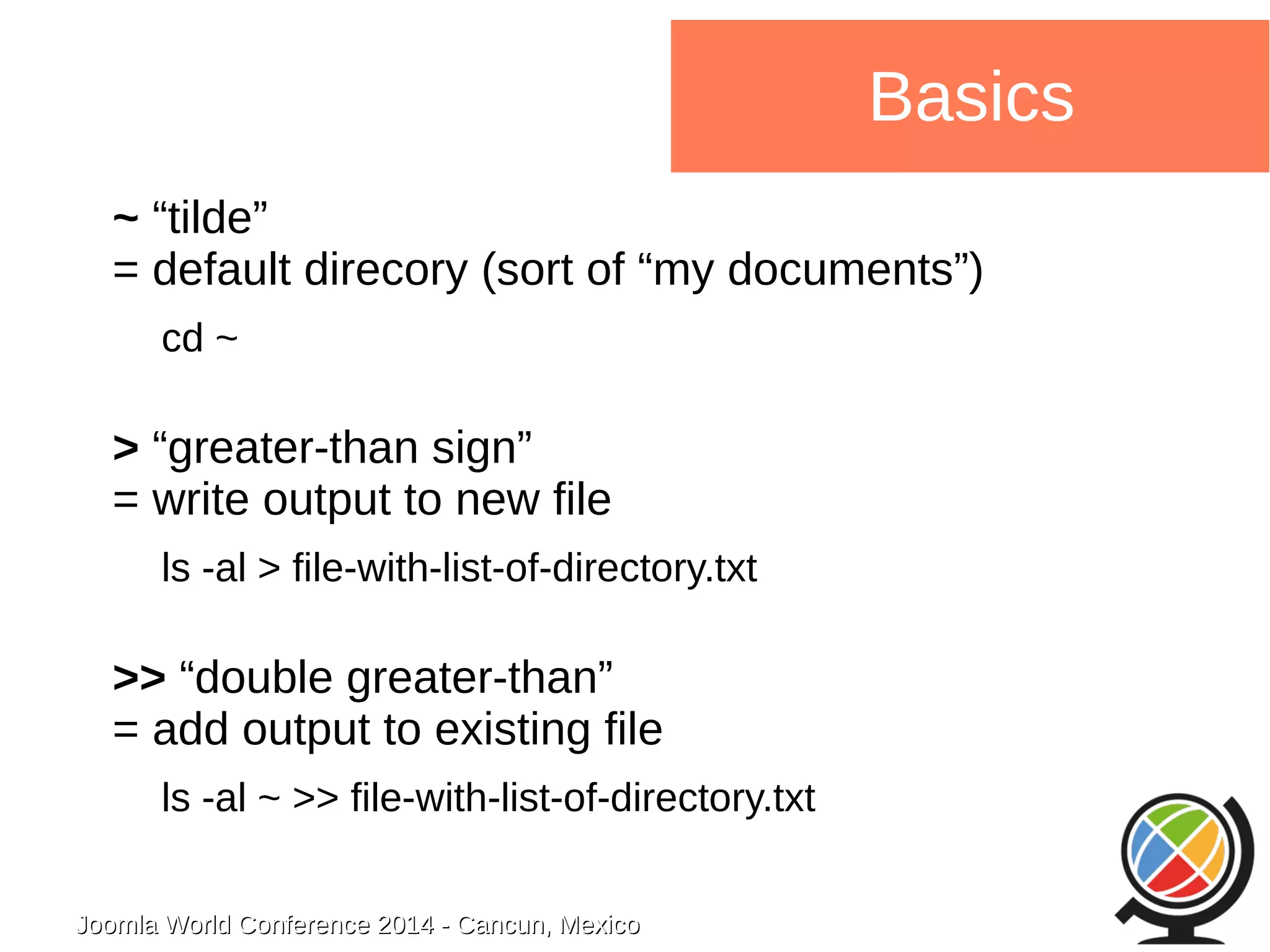

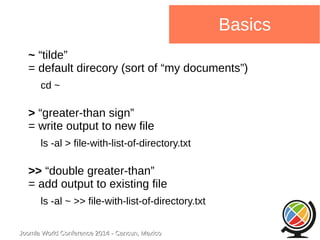

Basics
~ “tilde”
= default direcory (sort of “my documents”)
cd ~
> “greater-than sign”
= write output to new file
ls -al > file-with-list-of-directory.txt
>> “double greater-than”
= add output to existing file
ls -al ~ >> file-with-list-of-directory.txt

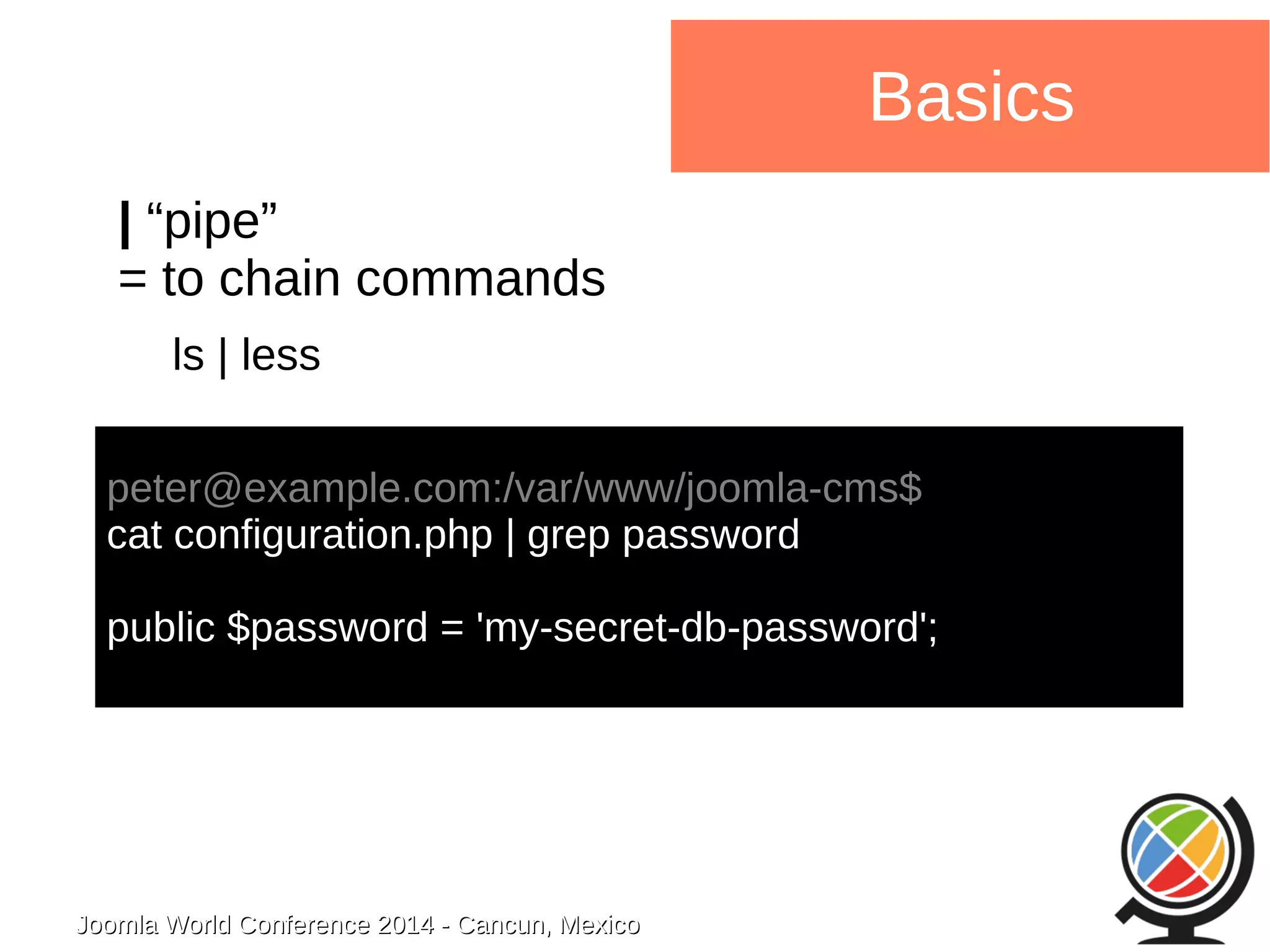

Basics
| “pipe”
= to chain commands
ls | less
peter@example.com:/var/www/joomla-cms$
cat configuration.php | grep password
public $password = 'my-secret-db-password';

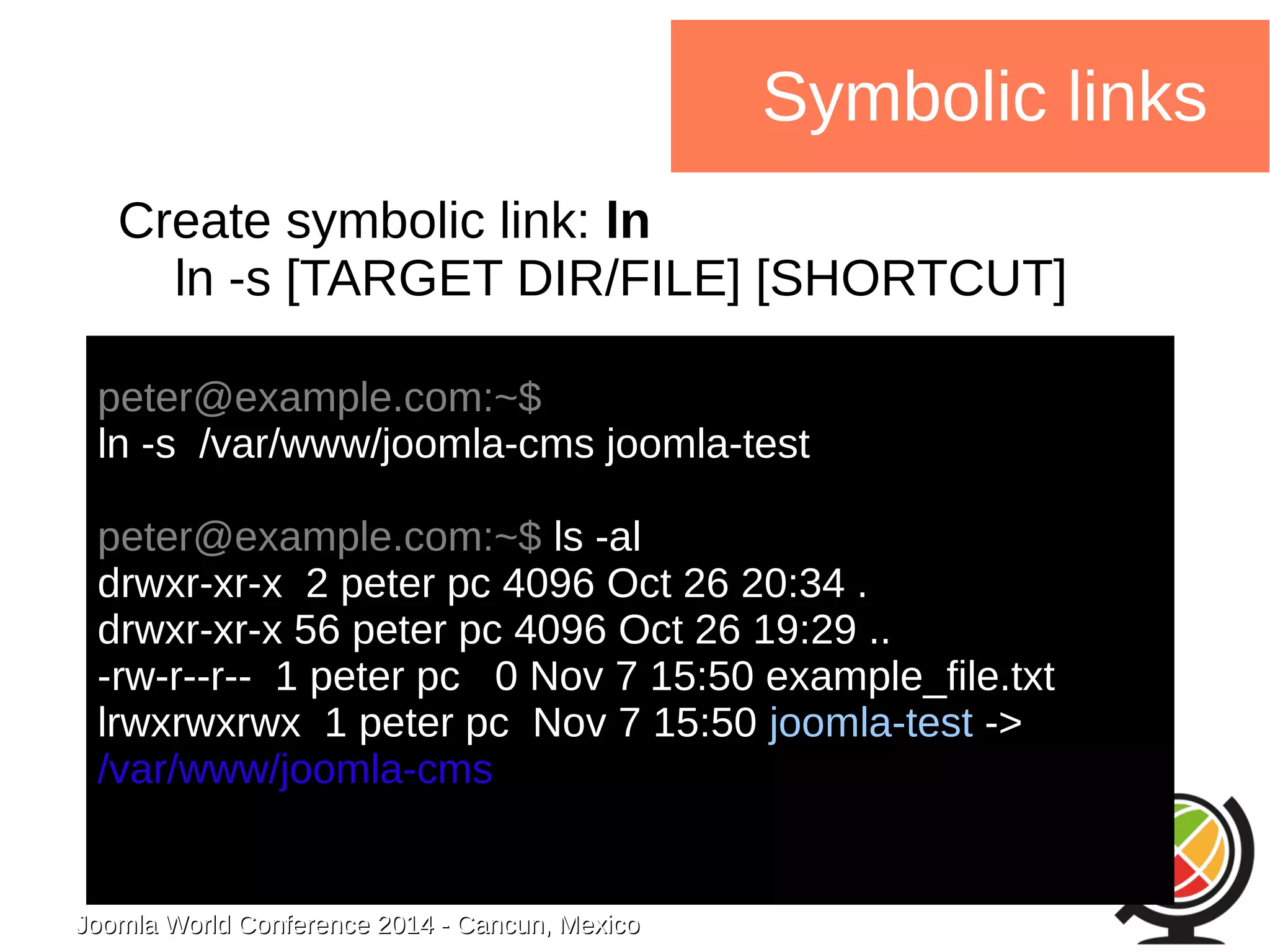

Symbolic links
Create symbolic link: ln
ln -s [TARGET DIR/FILE] [SHORTCUT]
peter@example.com:~$
ln -s /var/www/joomla-cms joomla-test
peter@example.com:~$ ls -al
drwxr-xr-x 2 peter pc 4096 Oct 26 20:34 .
drwxr-xr-x 56 peter pc 4096 Oct 26 19:29 ..
-rw-r--r-- 1 peter pc 0 Nov 7 15:50 example_file.txt
lrwxrwxrwx 1 peter pc Nov 7 15:50 joomla-test ->
/var/www/joomla-cms

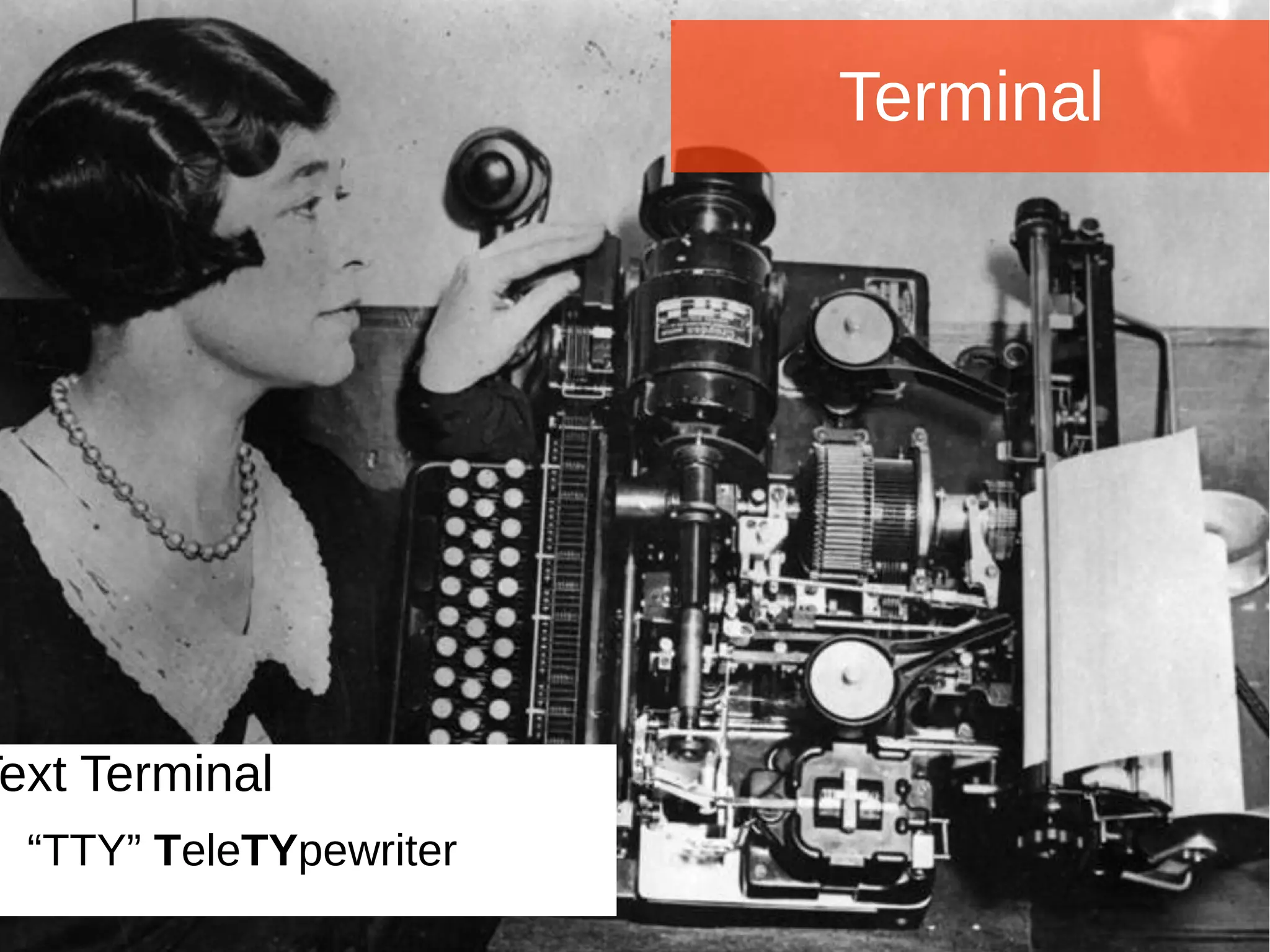

Terminal
Text Terminal
“TTY” TeleTYpewriter

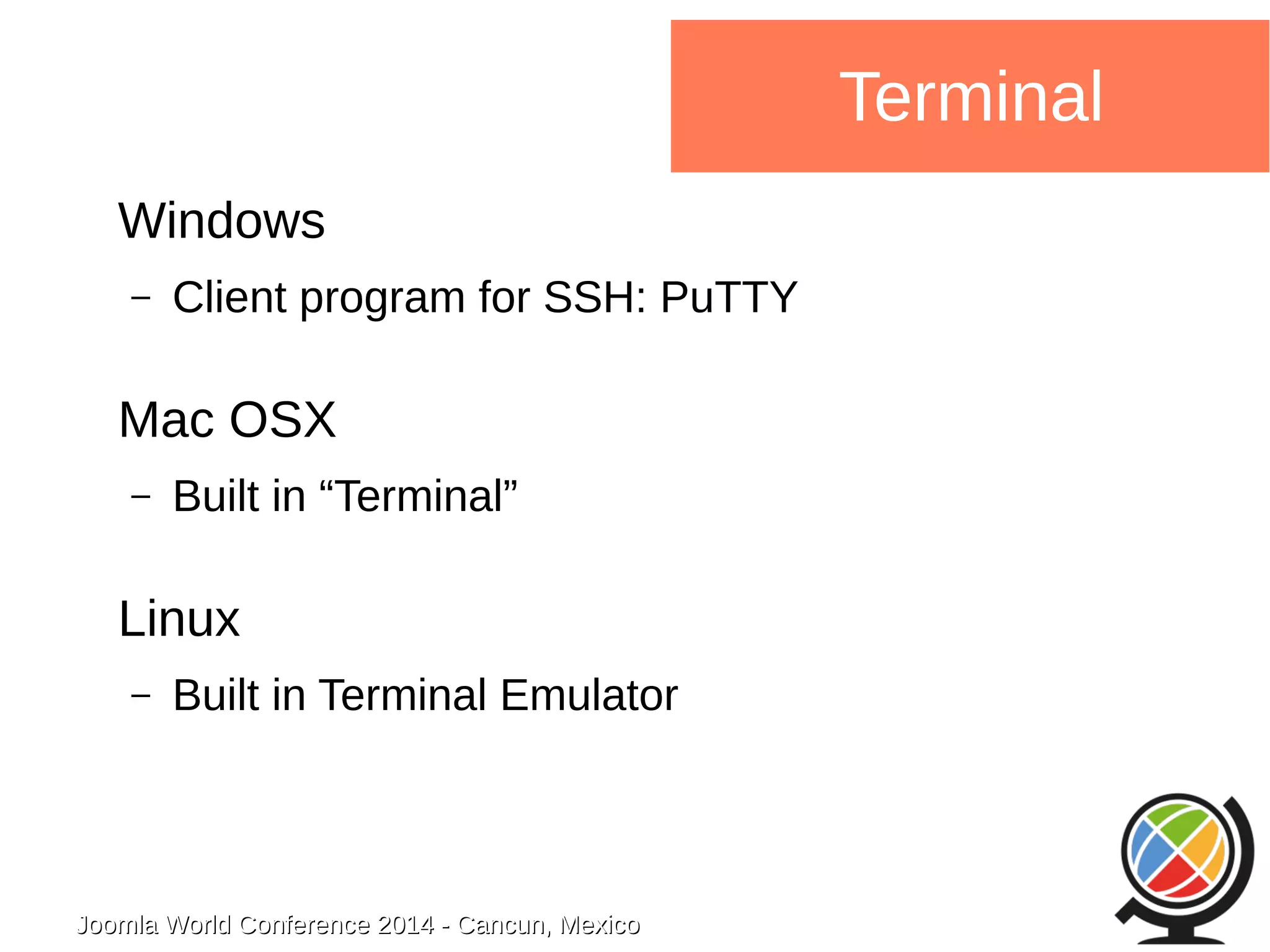

Terminal
Windows
– Client program for SSH: PuTTY
Mac OSX
– Built in “Terminal”
Linux
– Built in Terminal Emulator

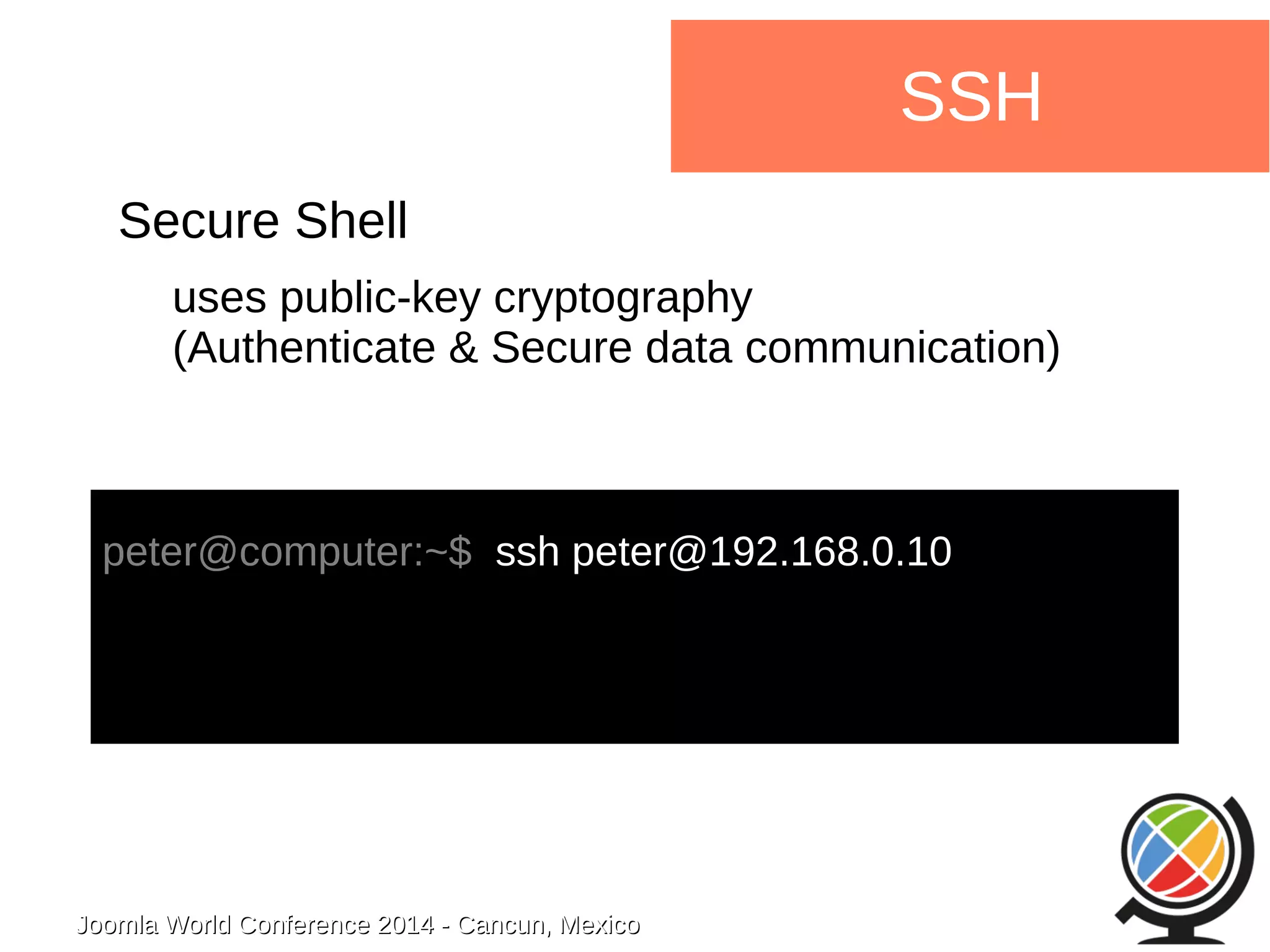

SSH
Secure Shell
uses public-key cryptography
(Authenticate & Secure data communication)
peter@computer:~$ ssh peter@192.168.0.10

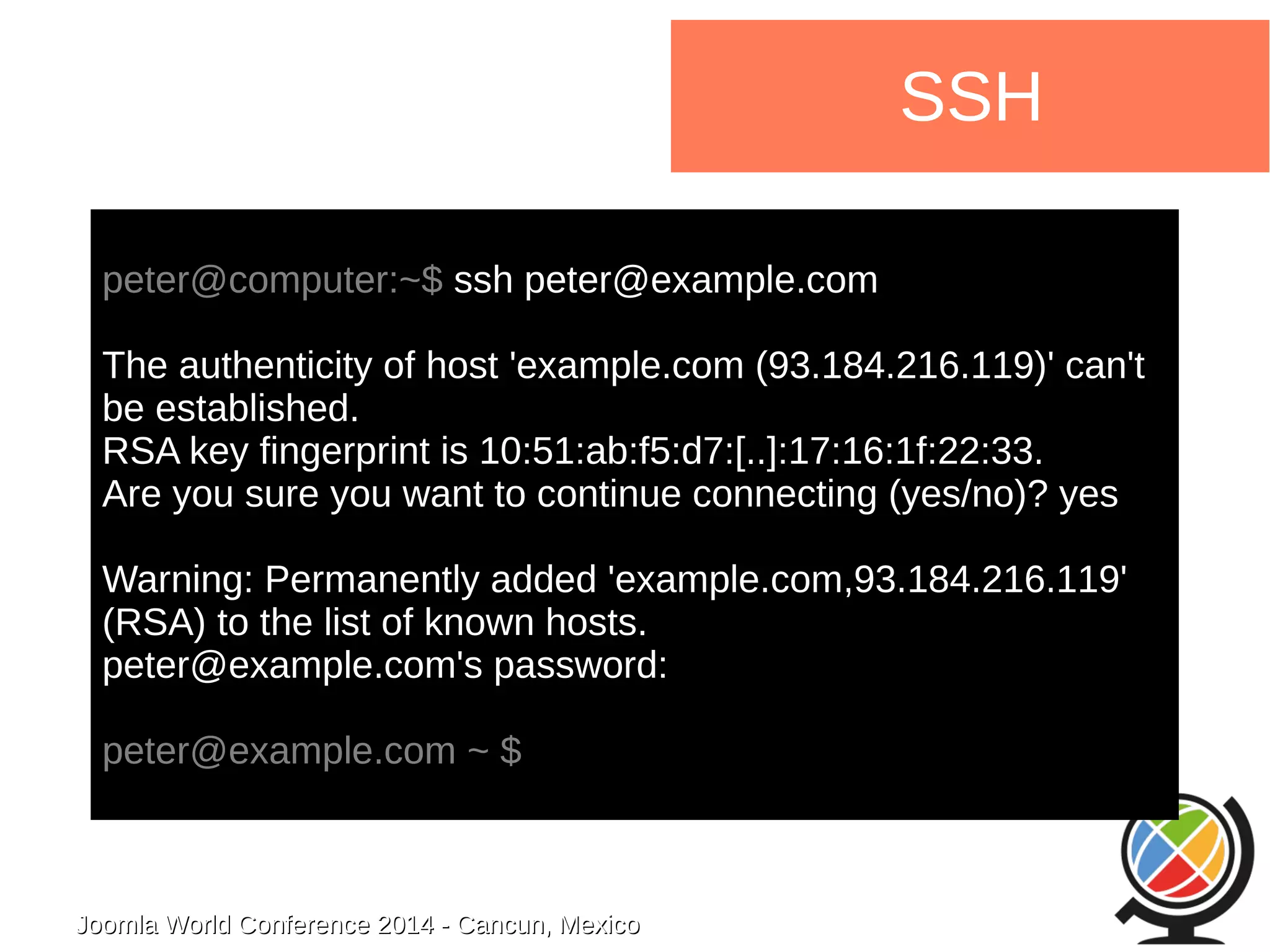

SSH
peter@computer:~$ ssh peter@example.com
The authenticity of host 'example.com (93.184.216.119)' can't
be established.
RSA key fingerprint is 10:51:ab:f5:d7:[..]:17:16:1f:22:33.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'example.com,93.184.216.119'
(RSA) to the list of known hosts.
peter@example.com's password:
peter@example.com ~ $

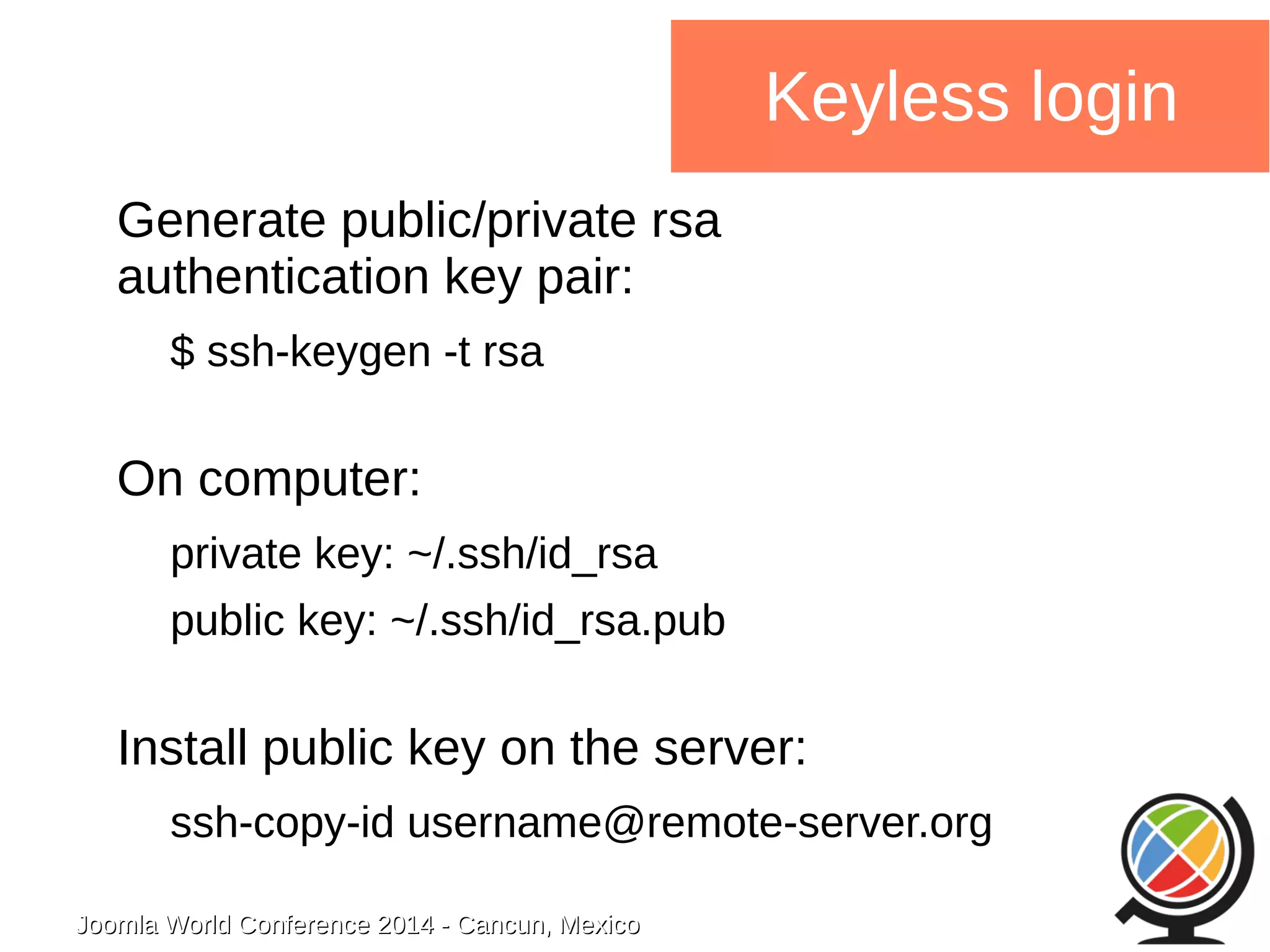

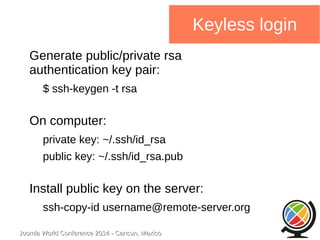

Keyless login
Generate public/private rsa
authentication key pair:
$ ssh-keygen -t rsa
On computer:
private key: ~/.ssh/id_rsa
public key: ~/.ssh/id_rsa.pub
Install public key on the server:
ssh-copy-id username@remote-server.org

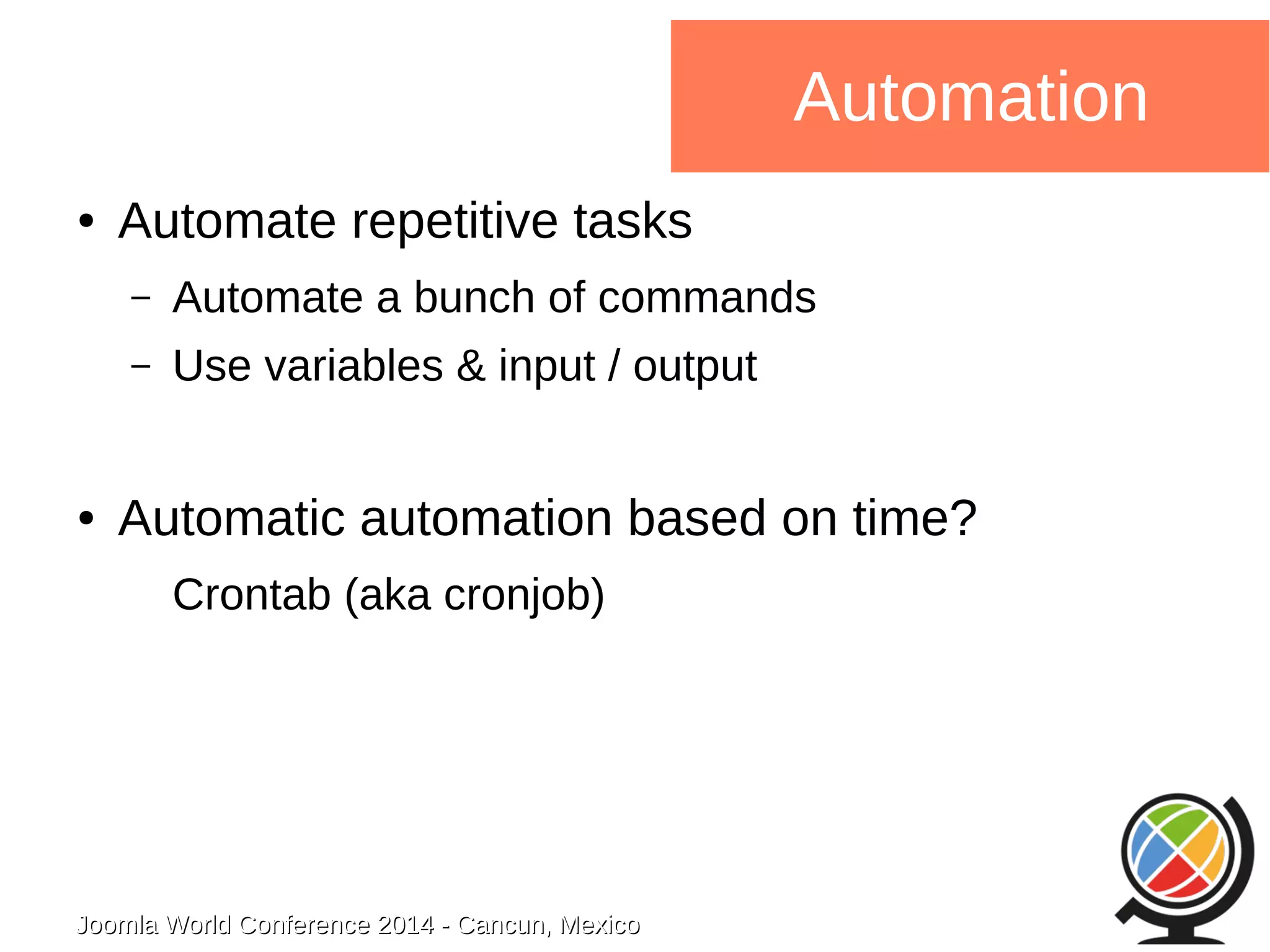

Automation
● Automate repetitive tasks
– Automate a bunch of commands
– Use variables & input / output
● Automatic automation based on time?
Crontab (aka cronjob)

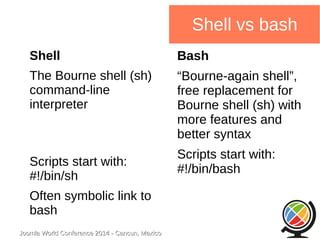

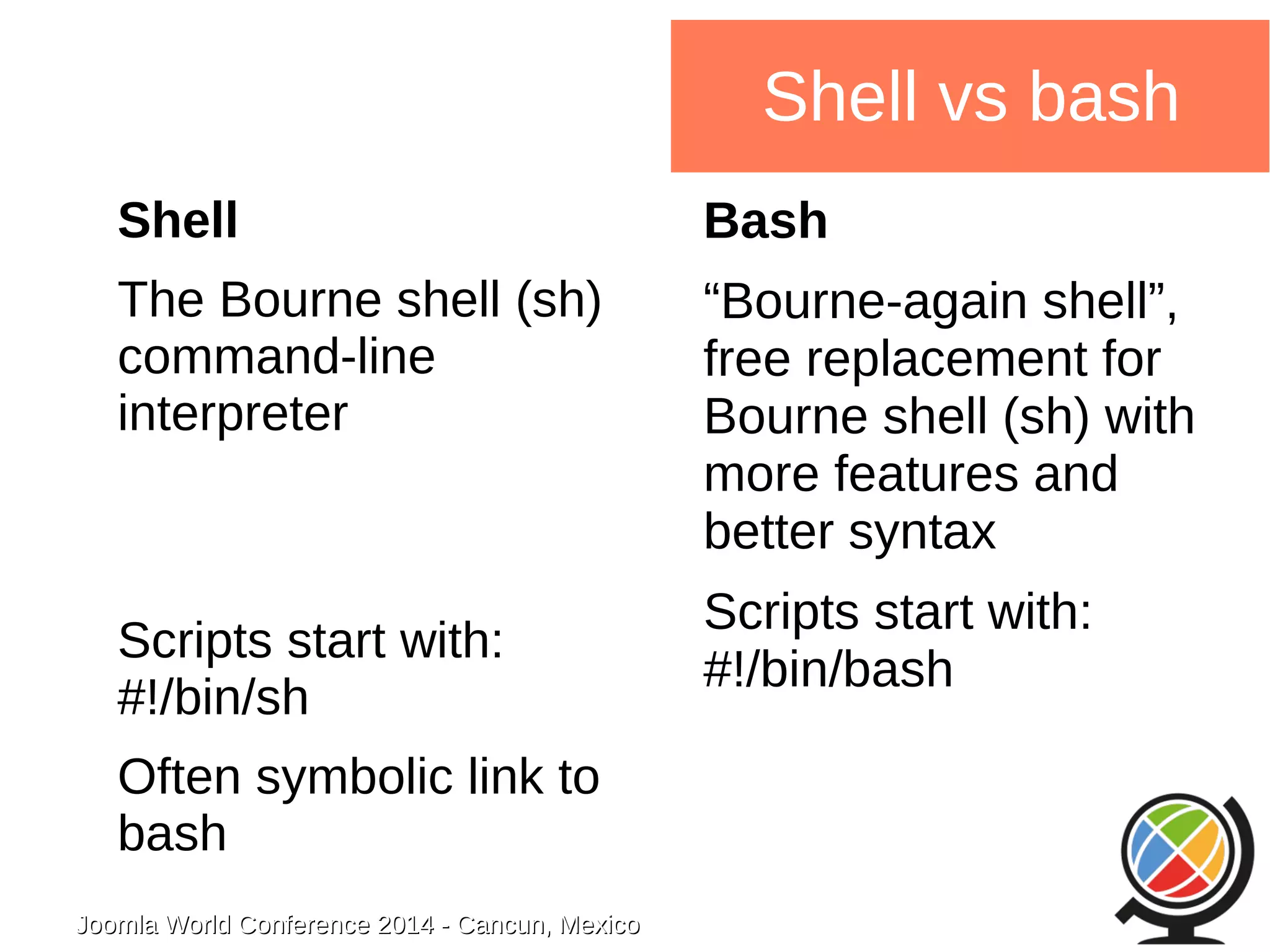

Shell vs bash
Shell
The Bourne shell (sh)
command-line
interpreter
Scripts start with:
#!/bin/sh
Often symbolic link to
bash
Bash
“Bourne-again shell”,
free replacement for
Bourne shell (sh) with
more features and
better syntax
Scripts start with:
#!/bin/bash

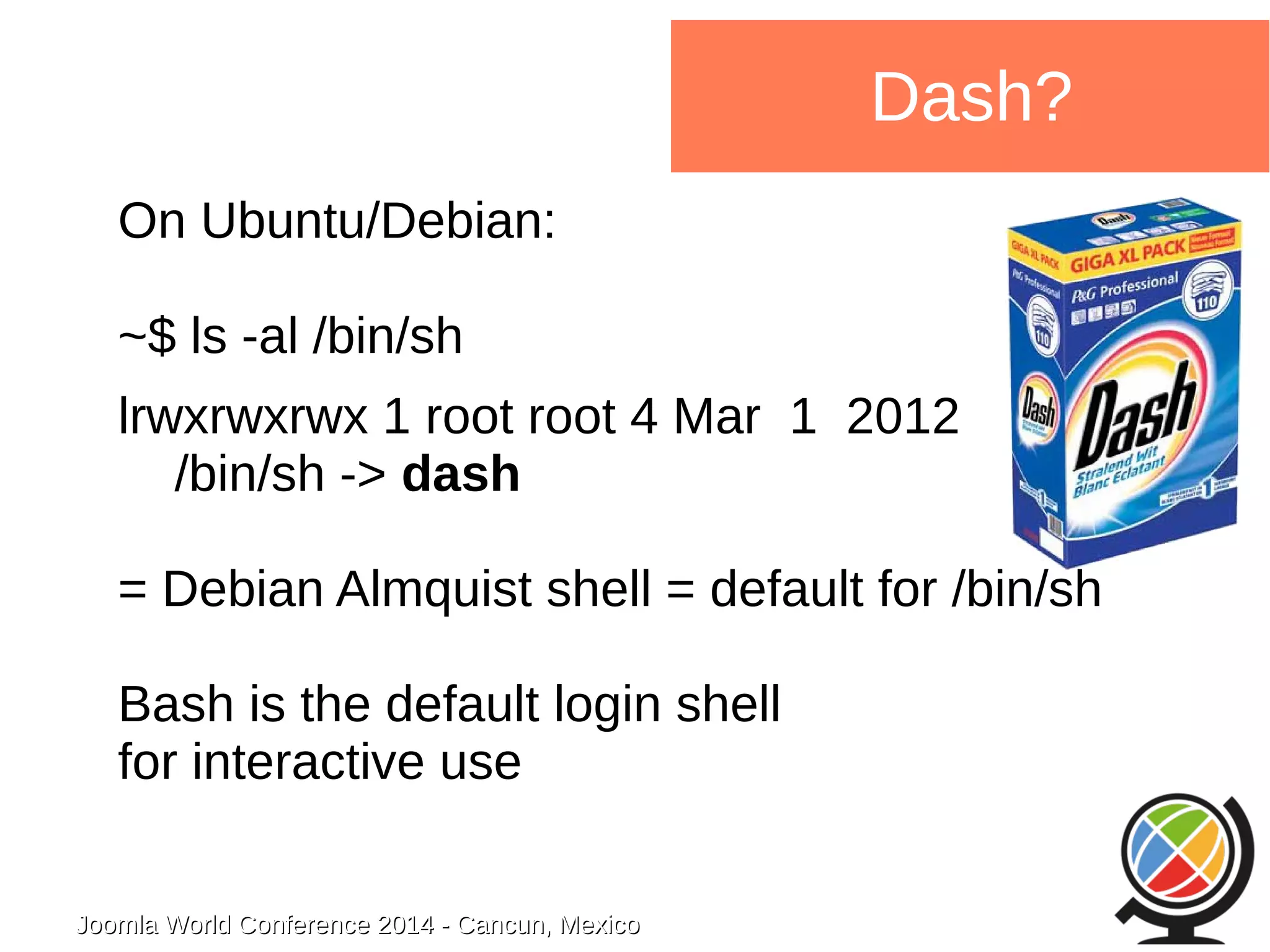

Dash?
On Ubuntu/Debian:
~$ ls -al /bin/sh
lrwxrwxrwx 1 root root 4 Mar 1 2012
/bin/sh -> dash
= Debian Almquist shell = default for /bin/sh
Bash is the default login shell
for interactive use

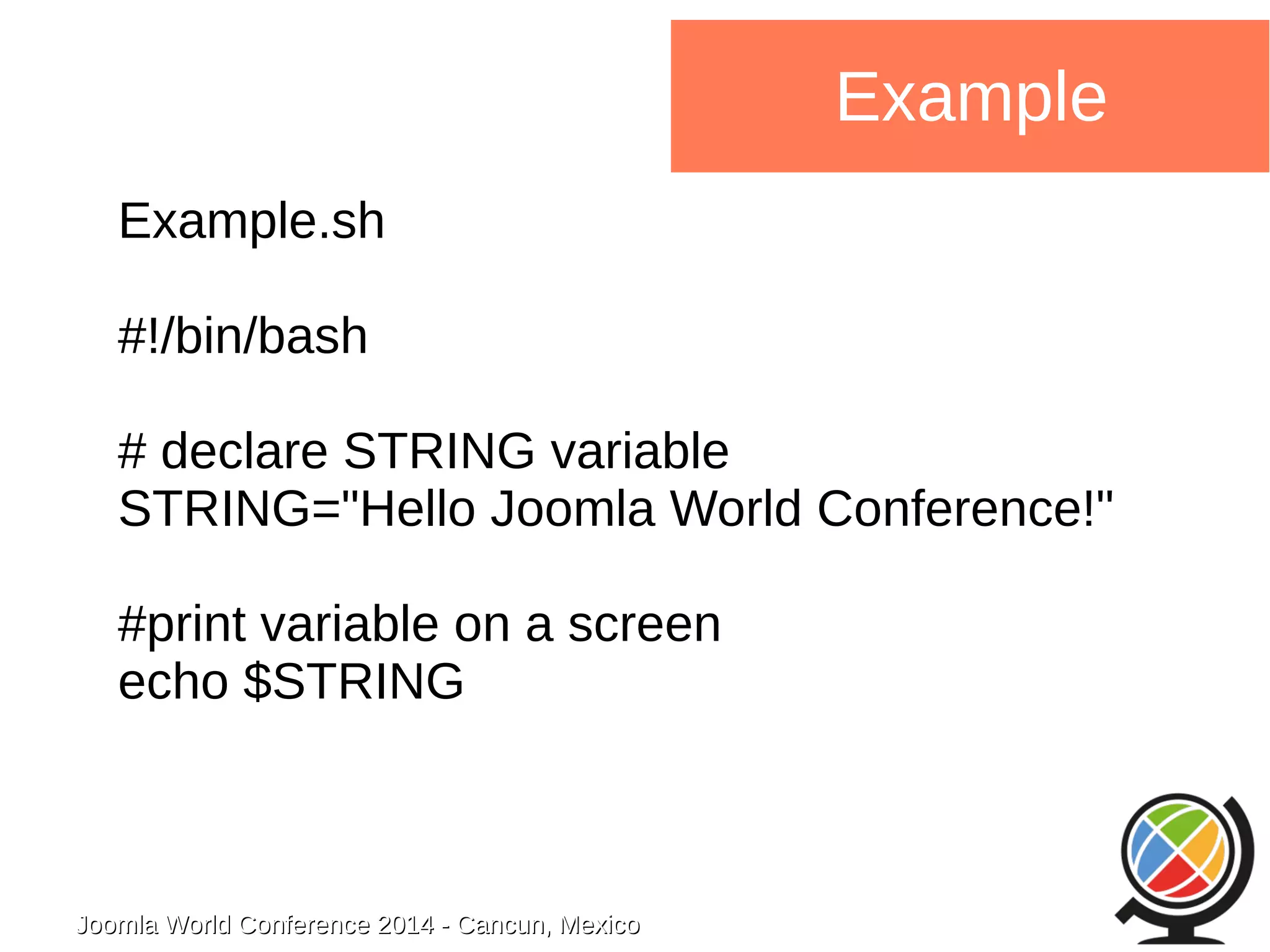

Example
Example.sh
#!/bin/bash
# declare STRING variable
STRING="Hello Joomla World Conference!"
#print variable on a screen
echo $STRING

username
@ server
: folder

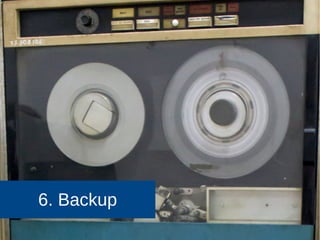

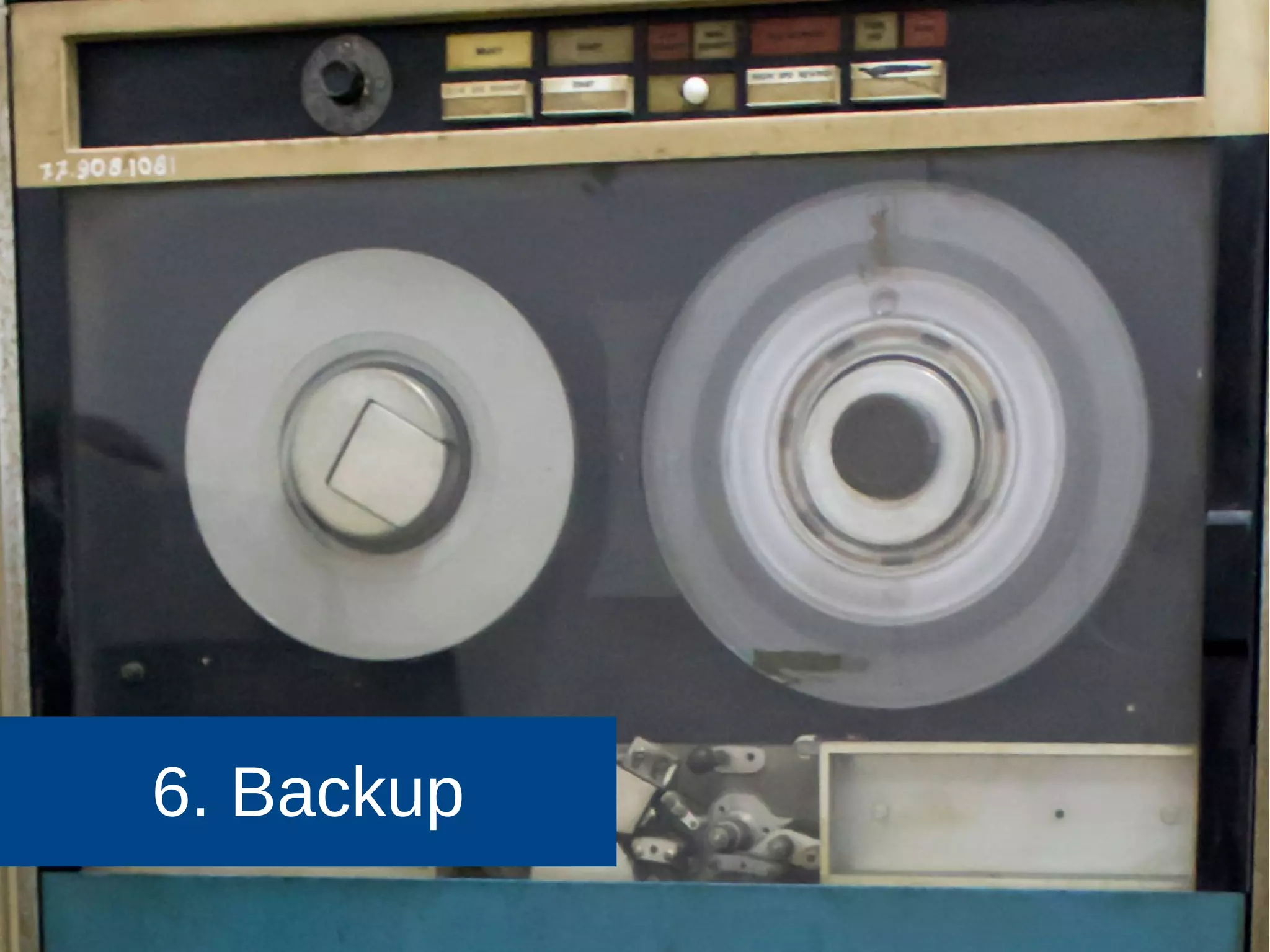

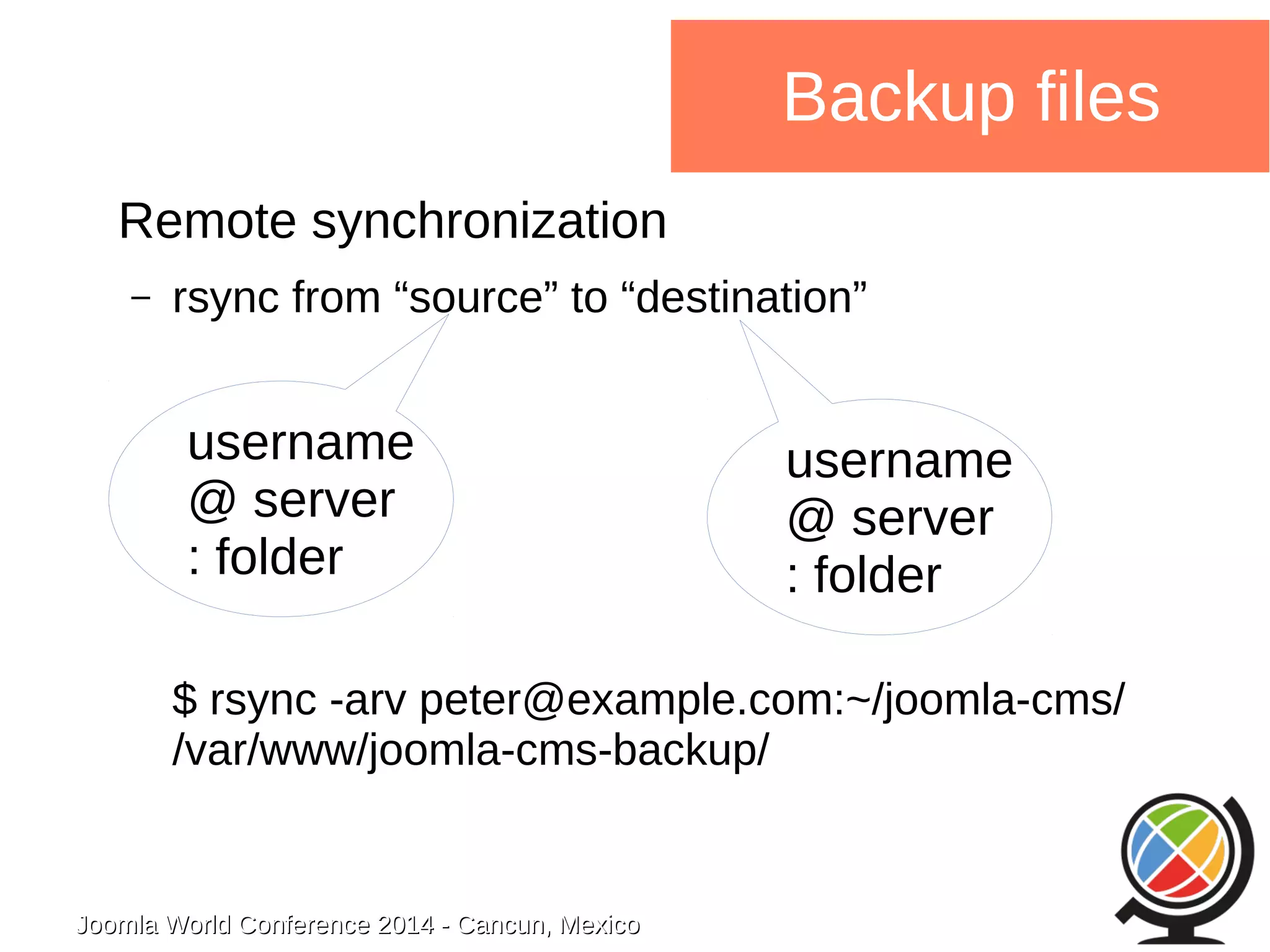

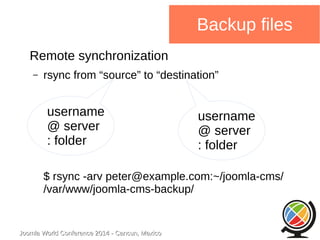

Backup files
Remote synchronization
– rsync from “source” to “destination”
username
@ server
: folder
$ rsync -arv peter@example.com:~/joomla-cms/
/var/www/joomla-cms-backup/

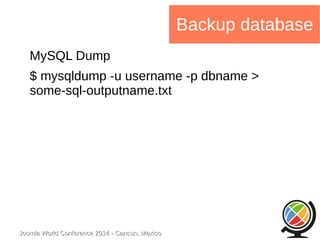

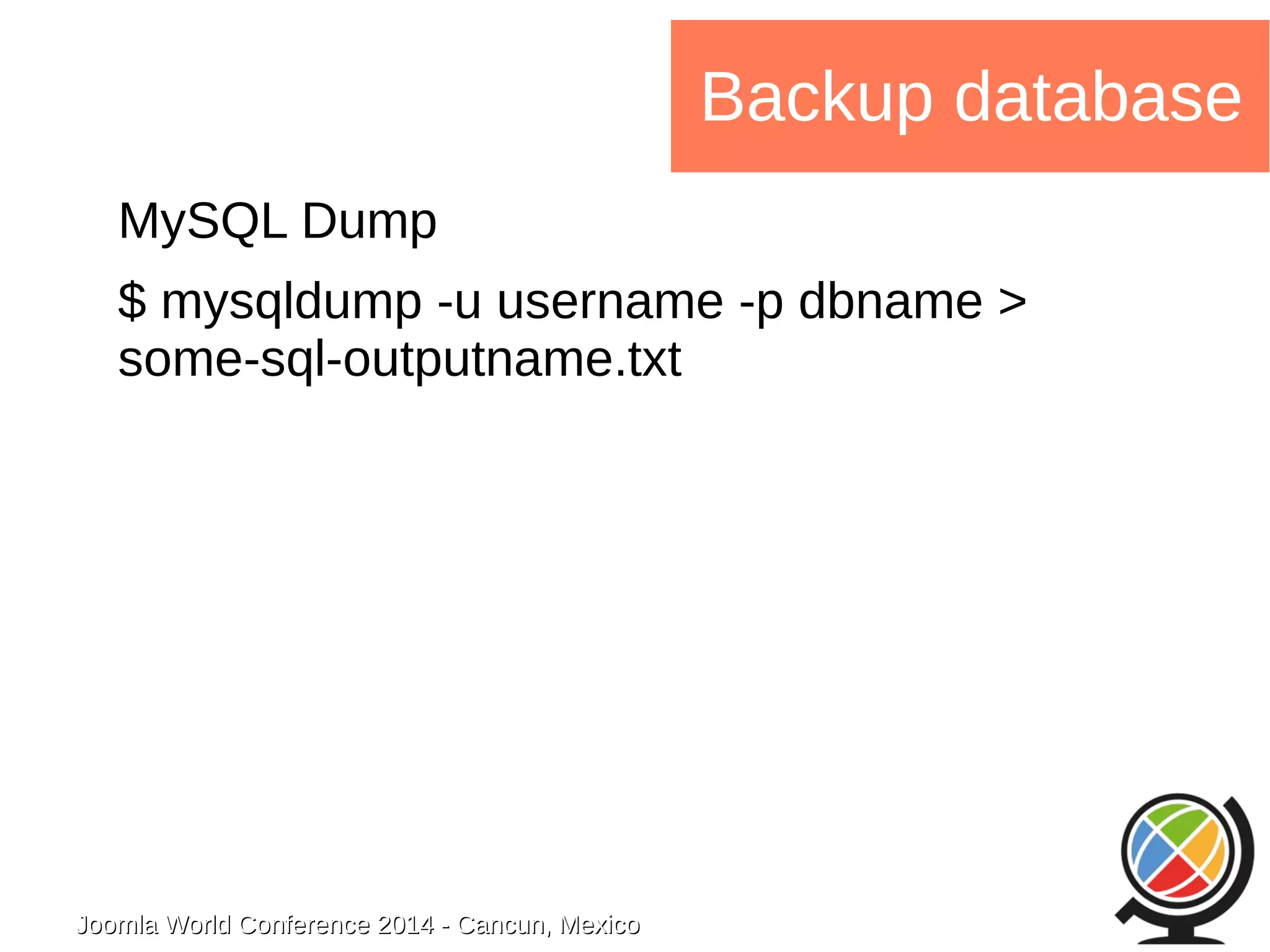

Backup database
MySQL Dump
$ mysqldump -u username -p dbname >
some-sql-outputname.txt

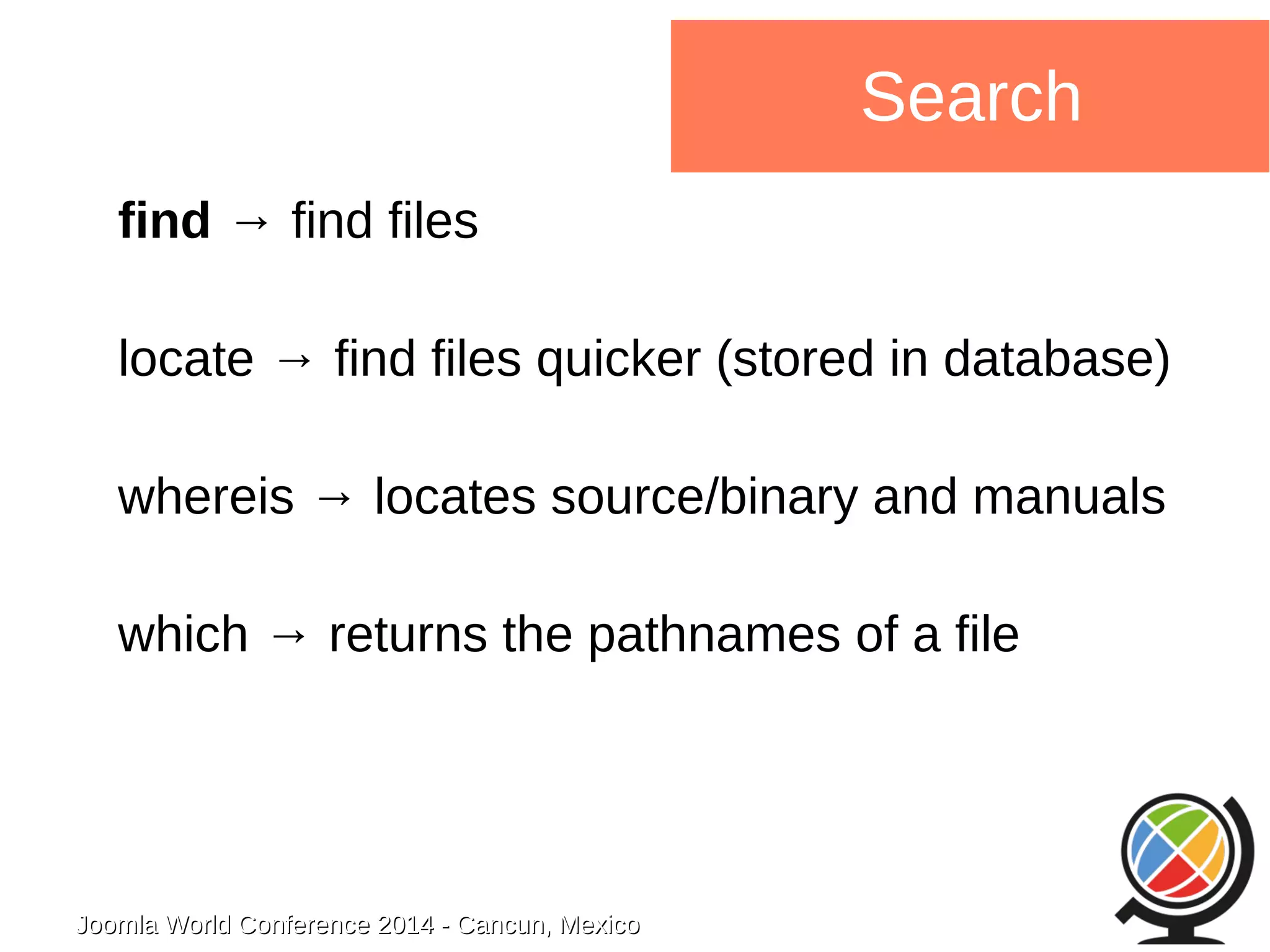

Search
find → find files
locate → find files quicker (stored in database)
whereis → locates source/binary and manuals
which → returns the pathnames of a file

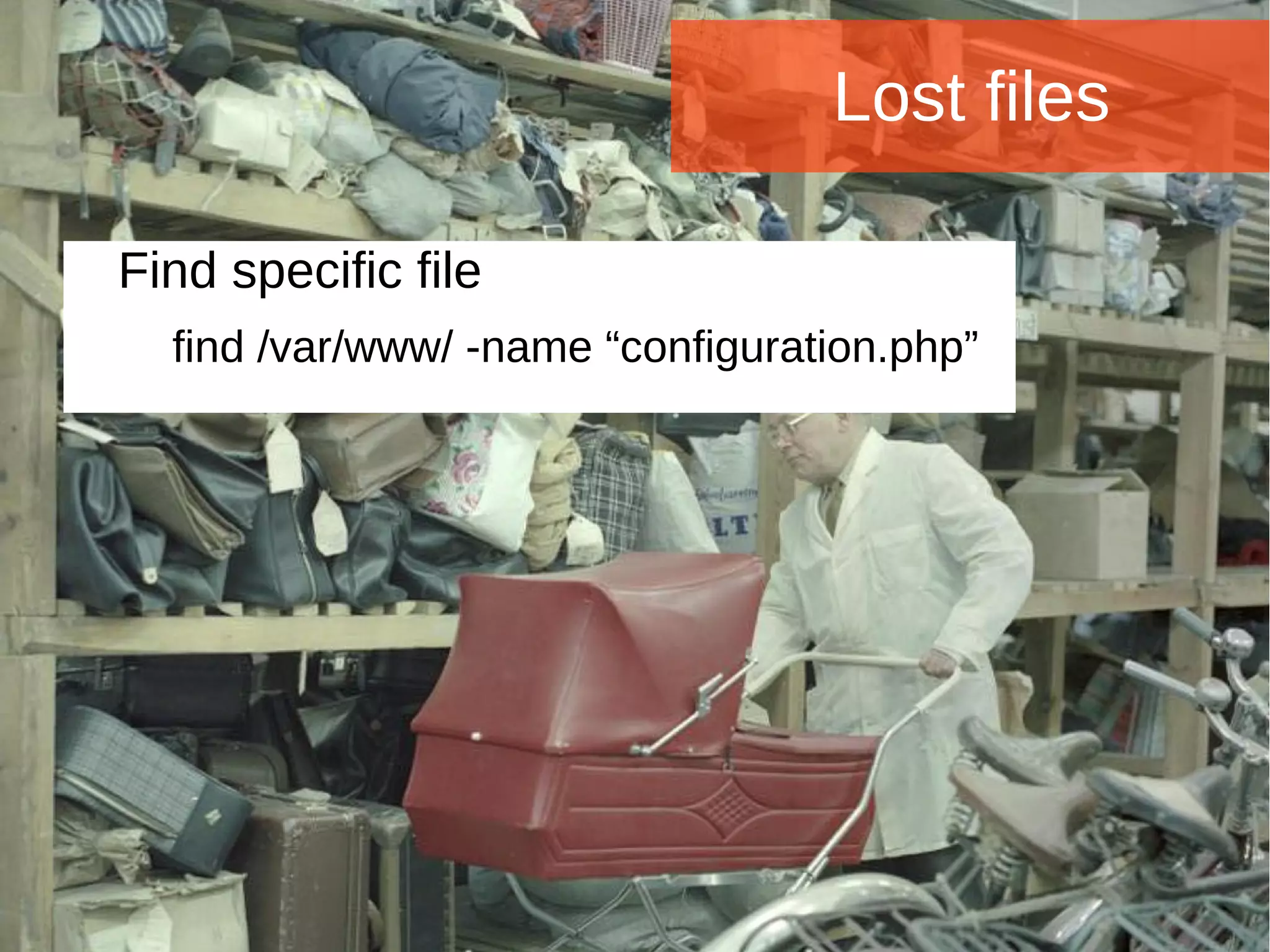

Lost files
Find specific file
find /var/www/ -name “configuration.php”

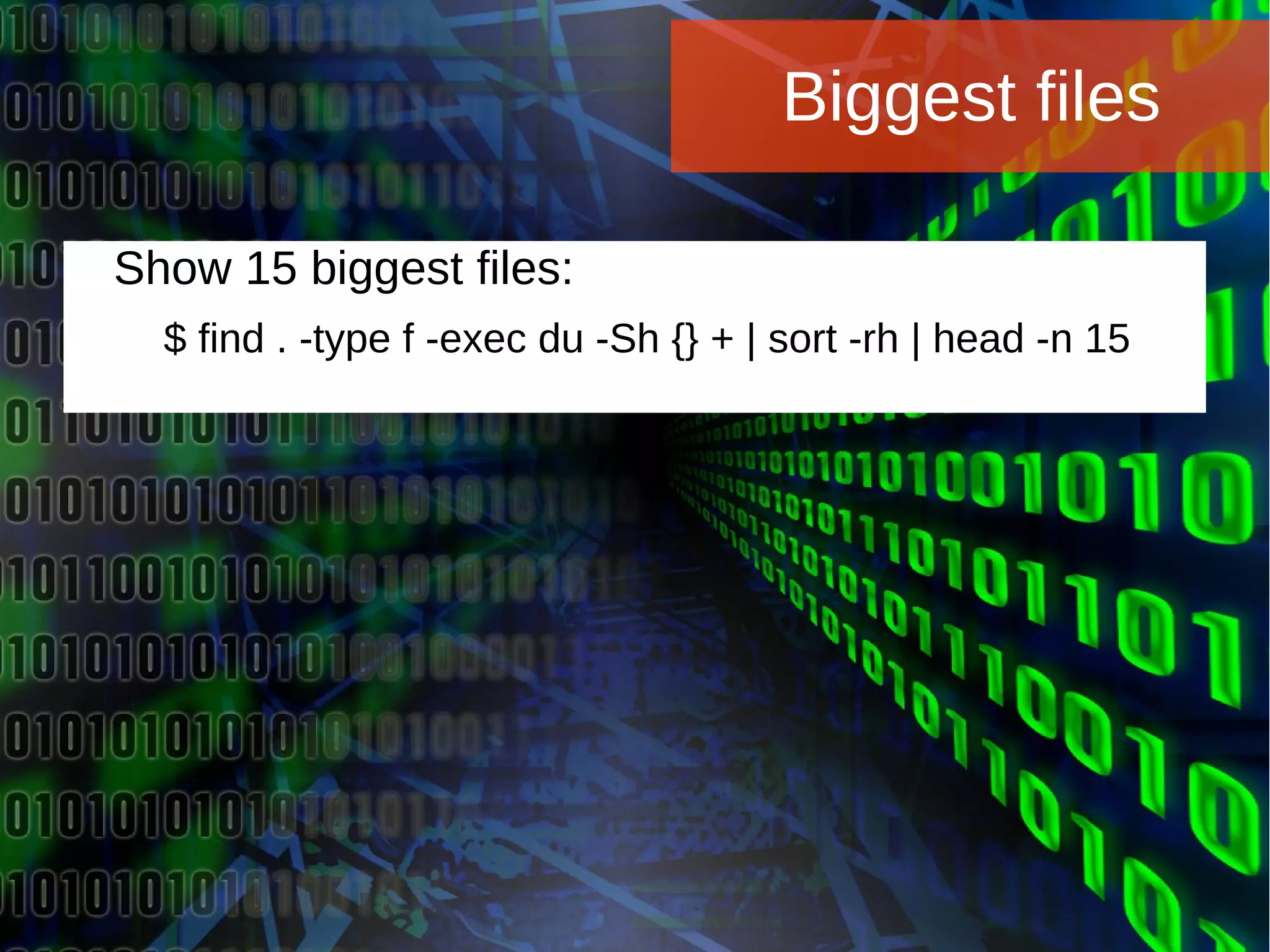

Biggest files
Show 15 biggest files:
$ find . -type f -exec du -Sh {} + | sort -rh | head -n 15

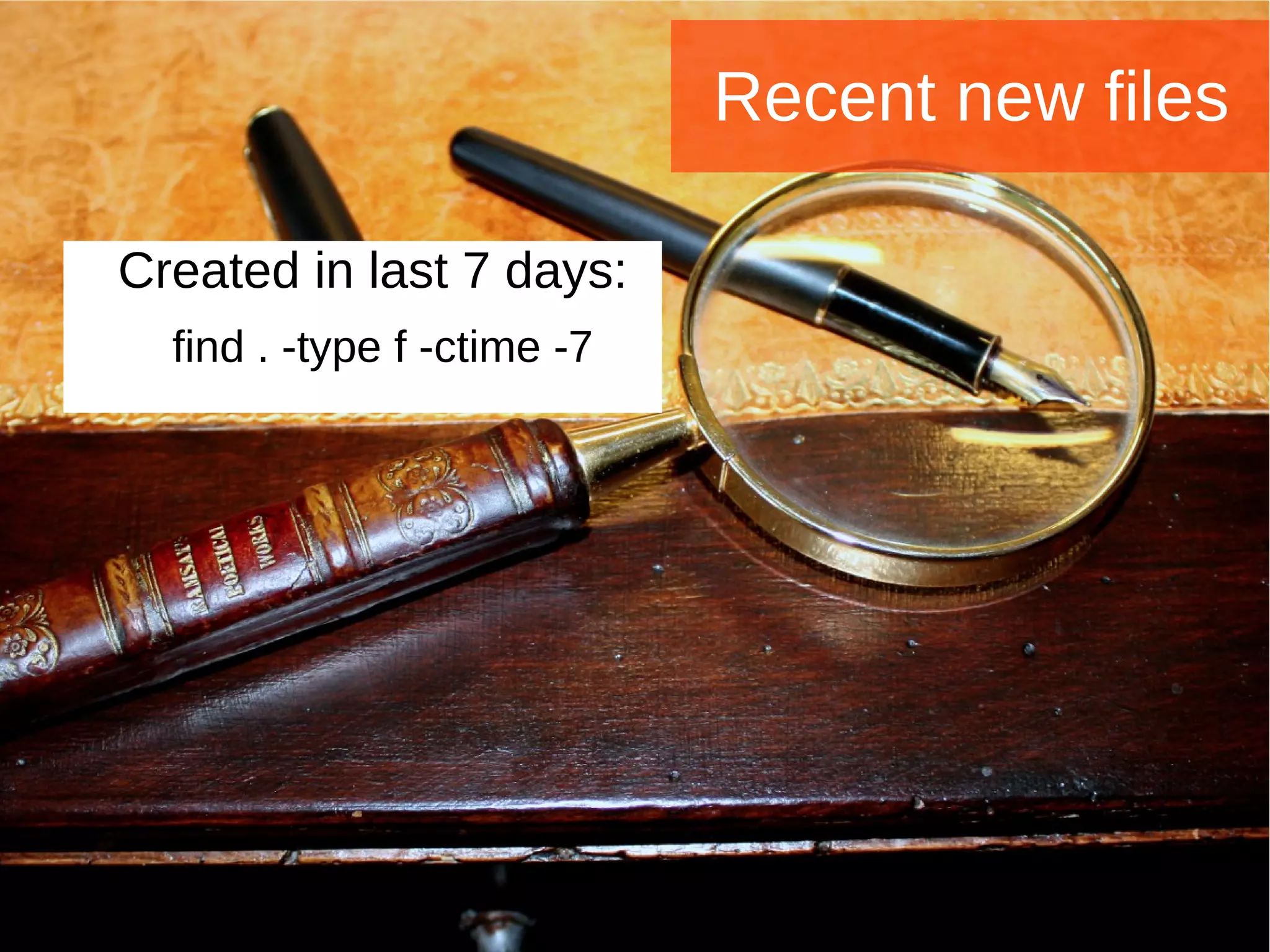

Recent new files
Created in last 7 days:
find . -type f -ctime -7

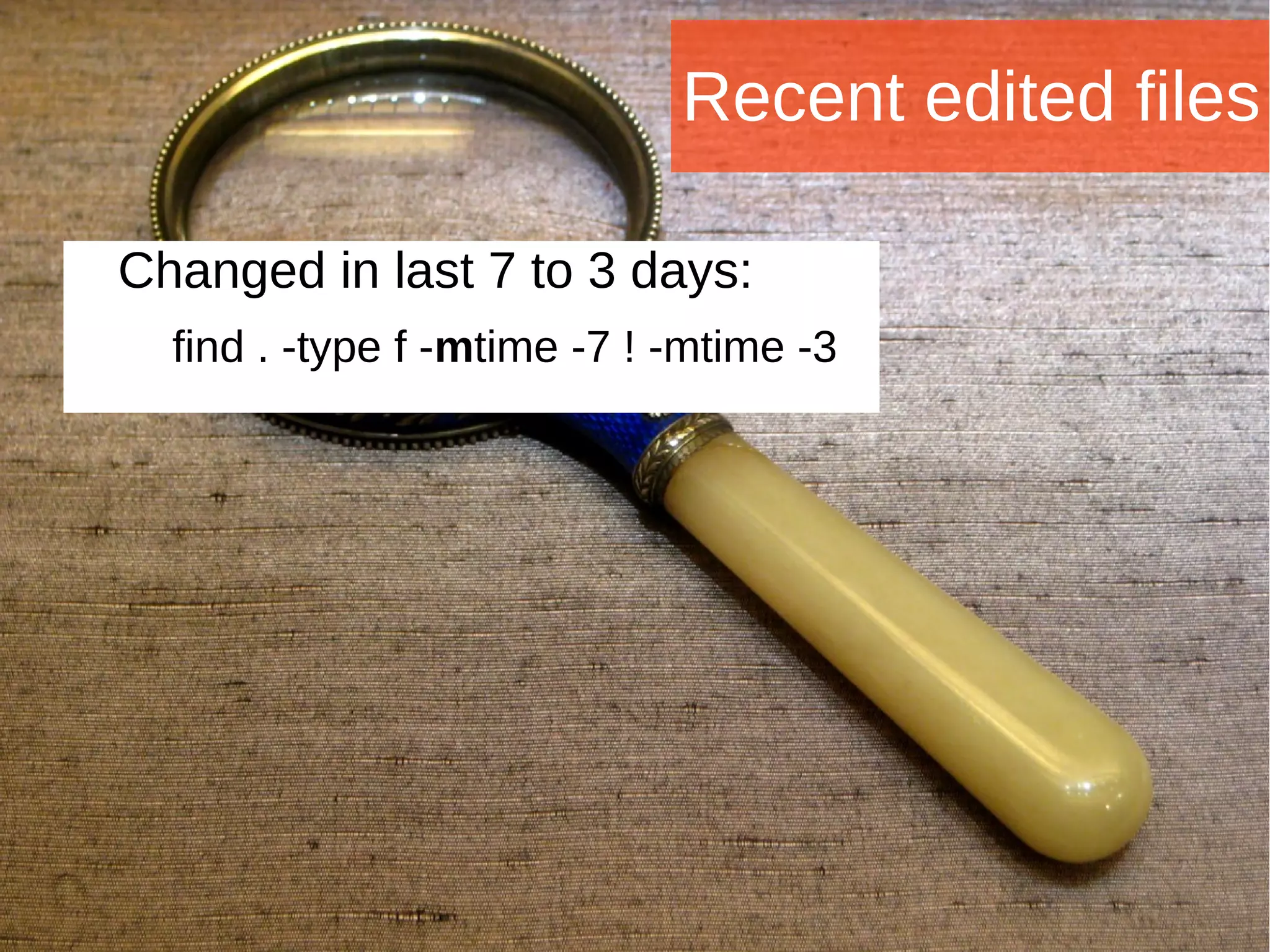

Recent edited files
Changed in last 7 to 3 days:
find . -type f -mtime -7 ! -mtime -3

Unused images
Scan for unused images:
1. create SQL dump &
2. compare files in /images/ with SQL dump
Script "jfindfiles" from Rene Kreijveld
https://gist.github.com/renekreijveld/

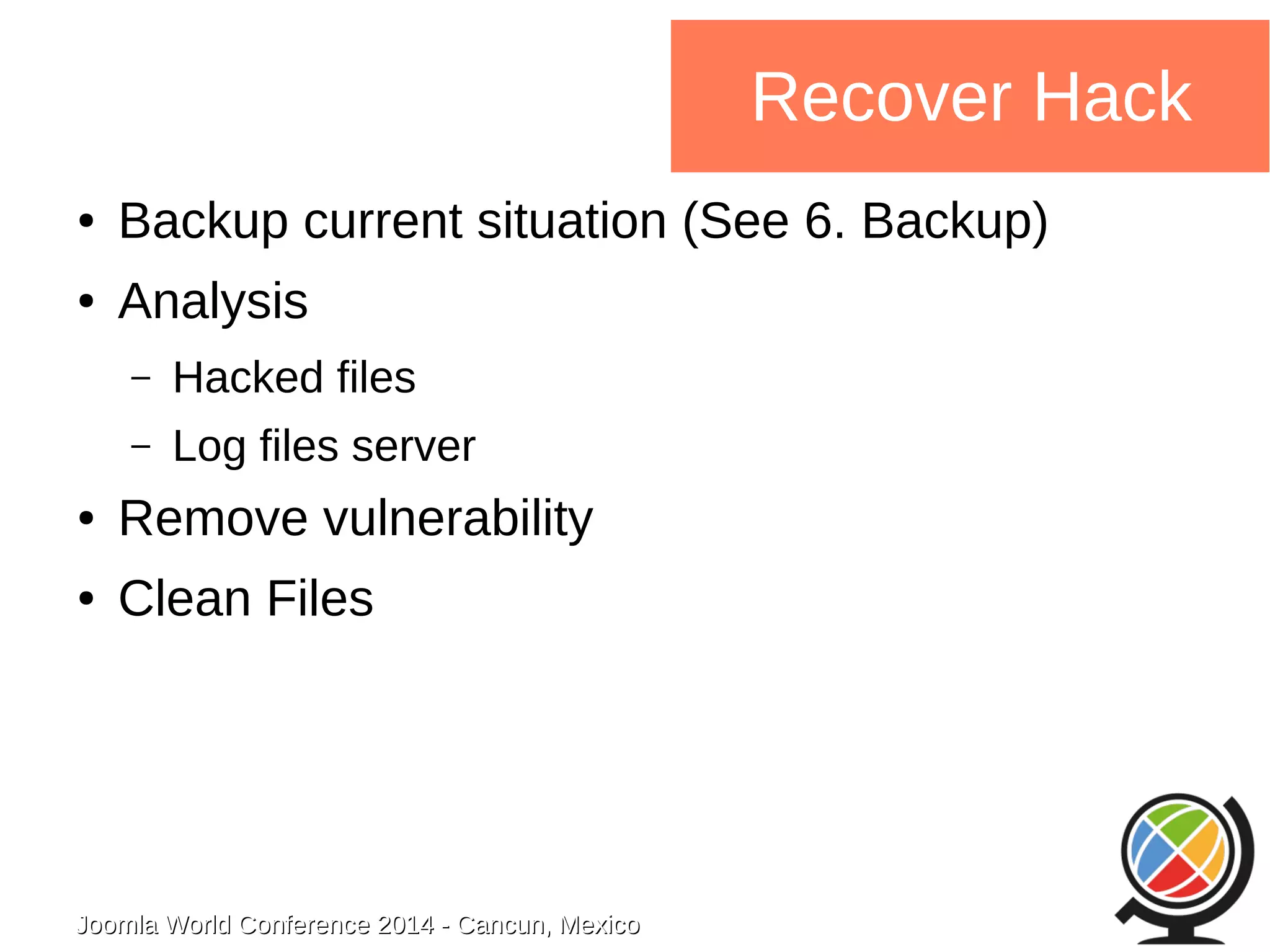

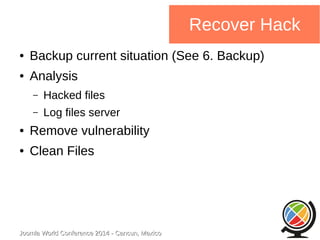

Recover Hack
● Backup current situation (See 6. Backup)
● Analysis
– Hacked files
– Log files server
● Remove vulnerability
● Clean Files

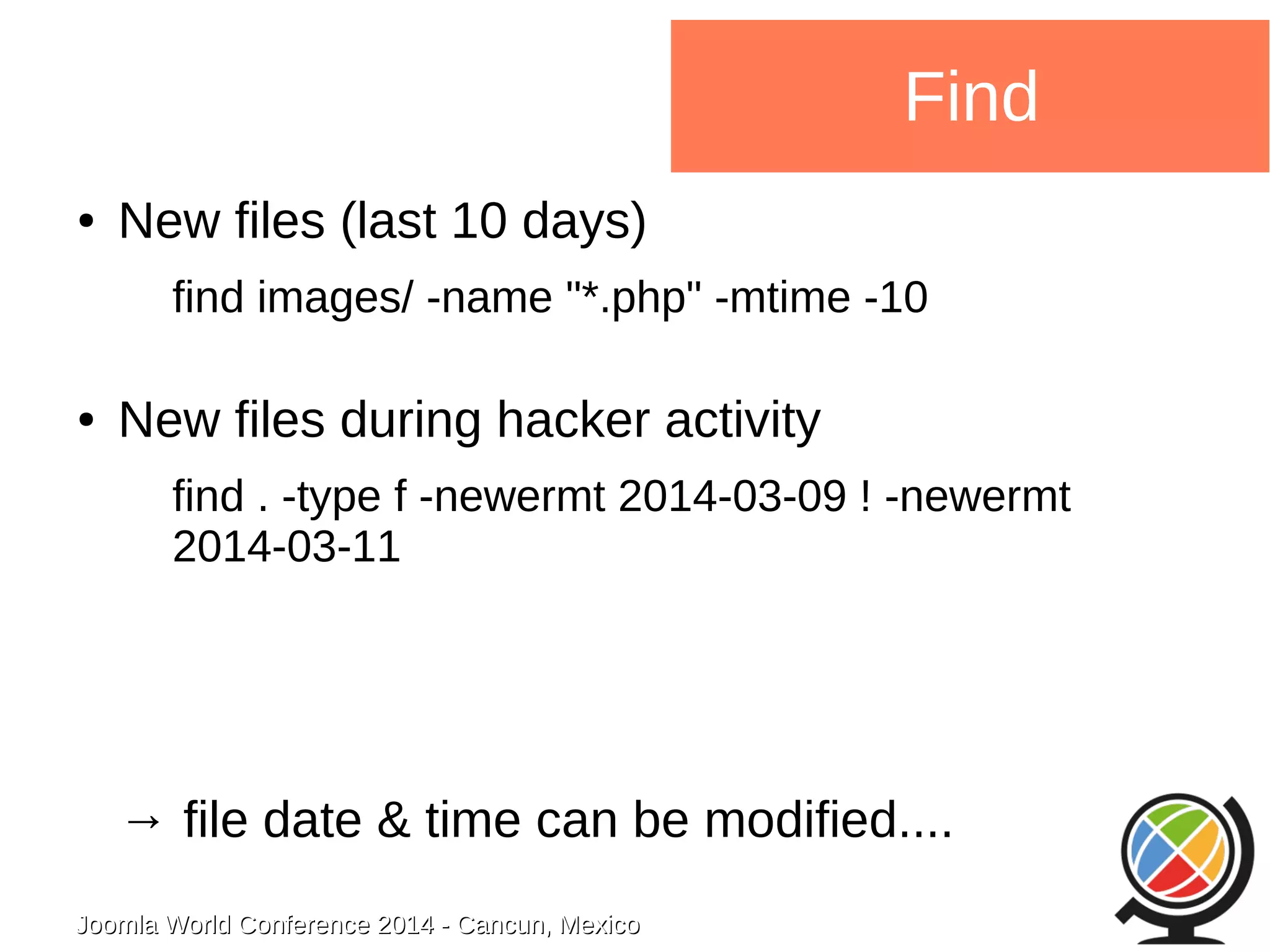

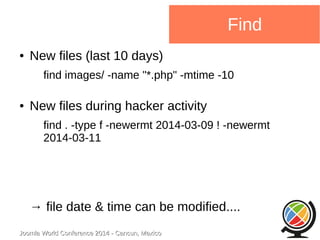

Find
● New files (last 10 days)
find images/ -name "*.php" -mtime -10
● New files during hacker activity
find . -type f -newermt 2014-03-09 ! -newermt
2014-03-11
→ file date & time can be modified....

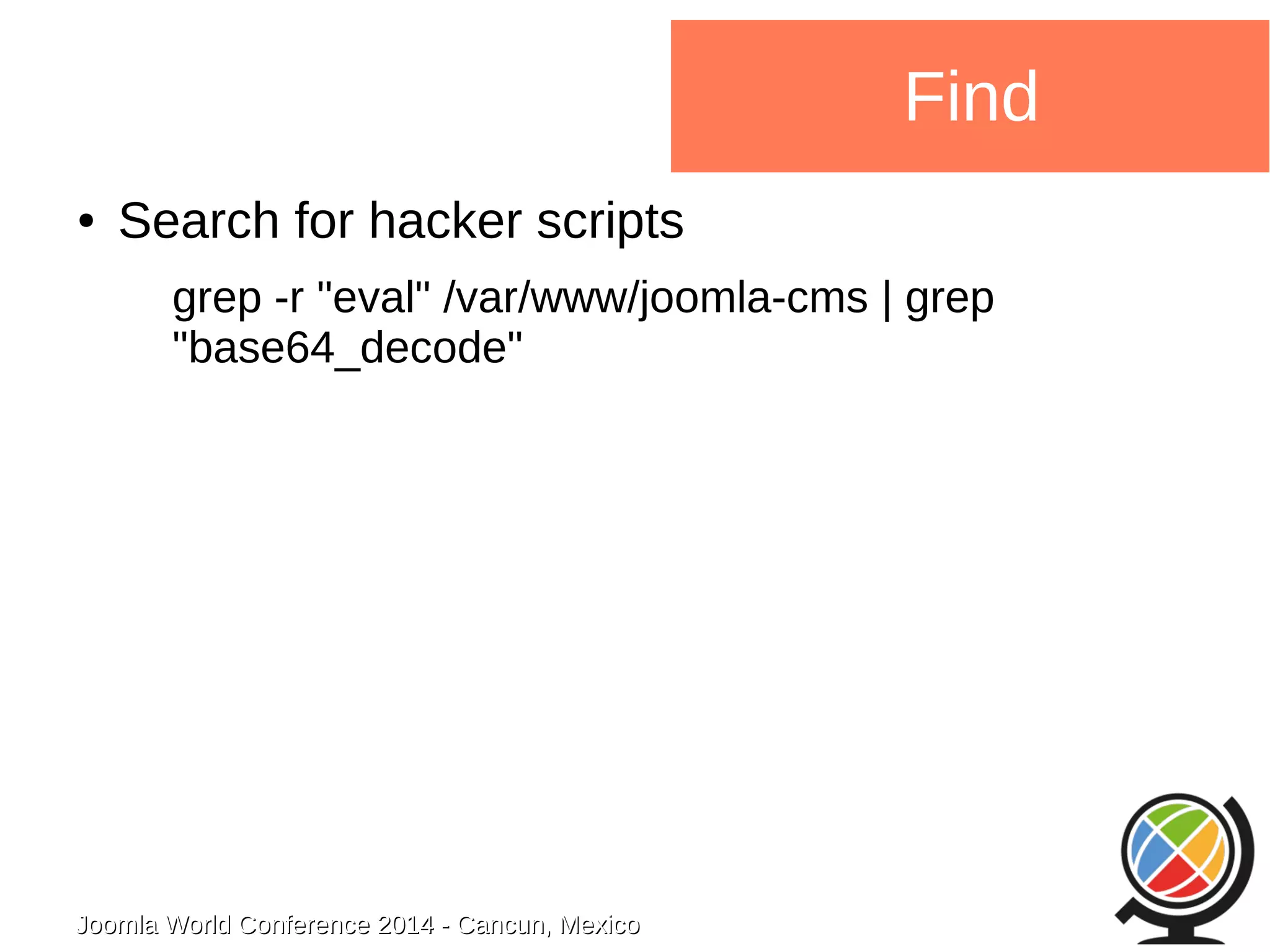

Find
● Search for hacker scripts
grep -r "eval" /var/www/joomla-cms | grep
"base64_decode"

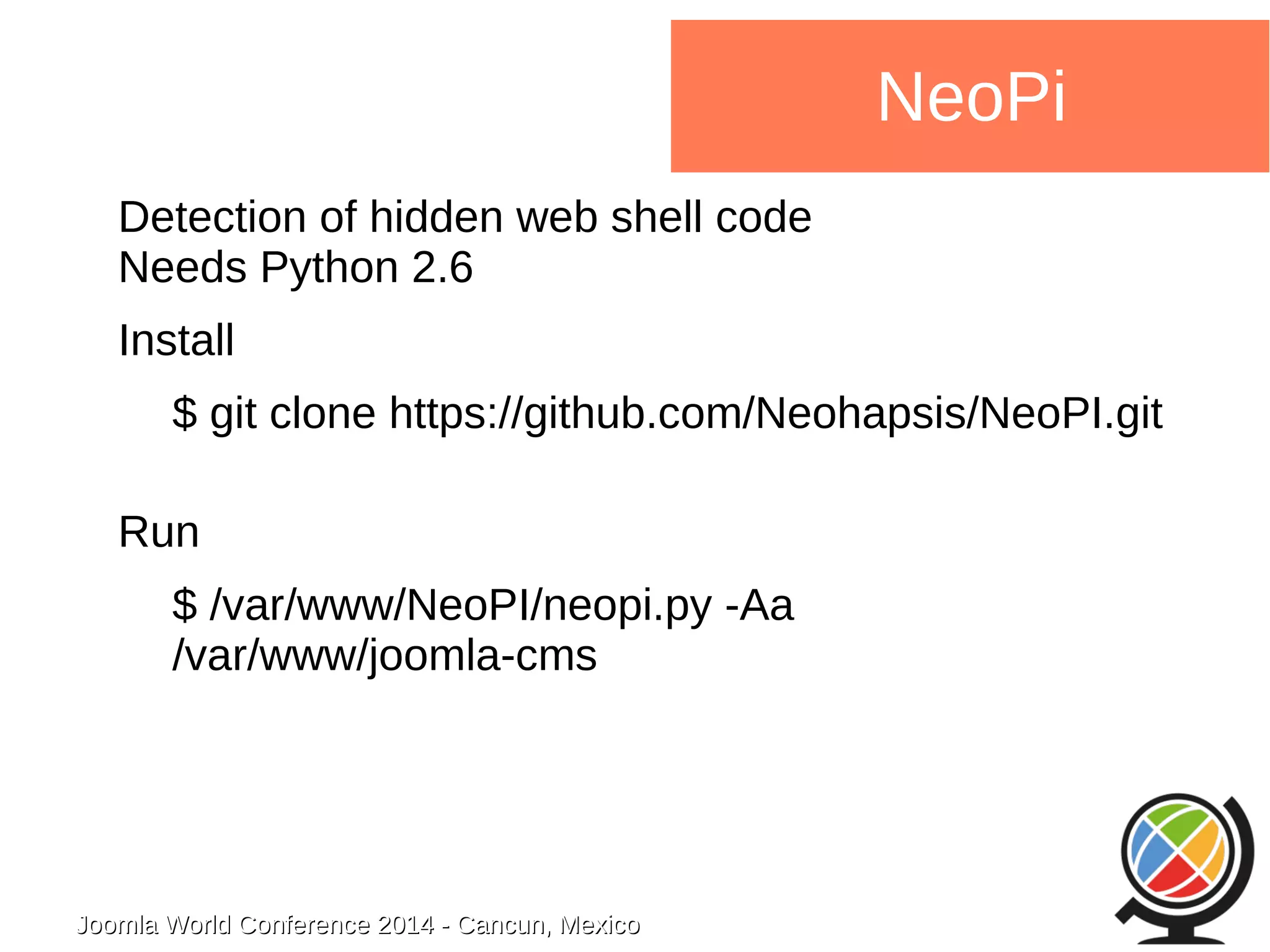

NeoPi
Detection of hidden web shell code
Needs Python 2.6
Install
$ git clone https://github.com/Neohapsis/NeoPI.git
Run
$ /var/www/NeoPI/neopi.py -Aa
/var/www/joomla-cms

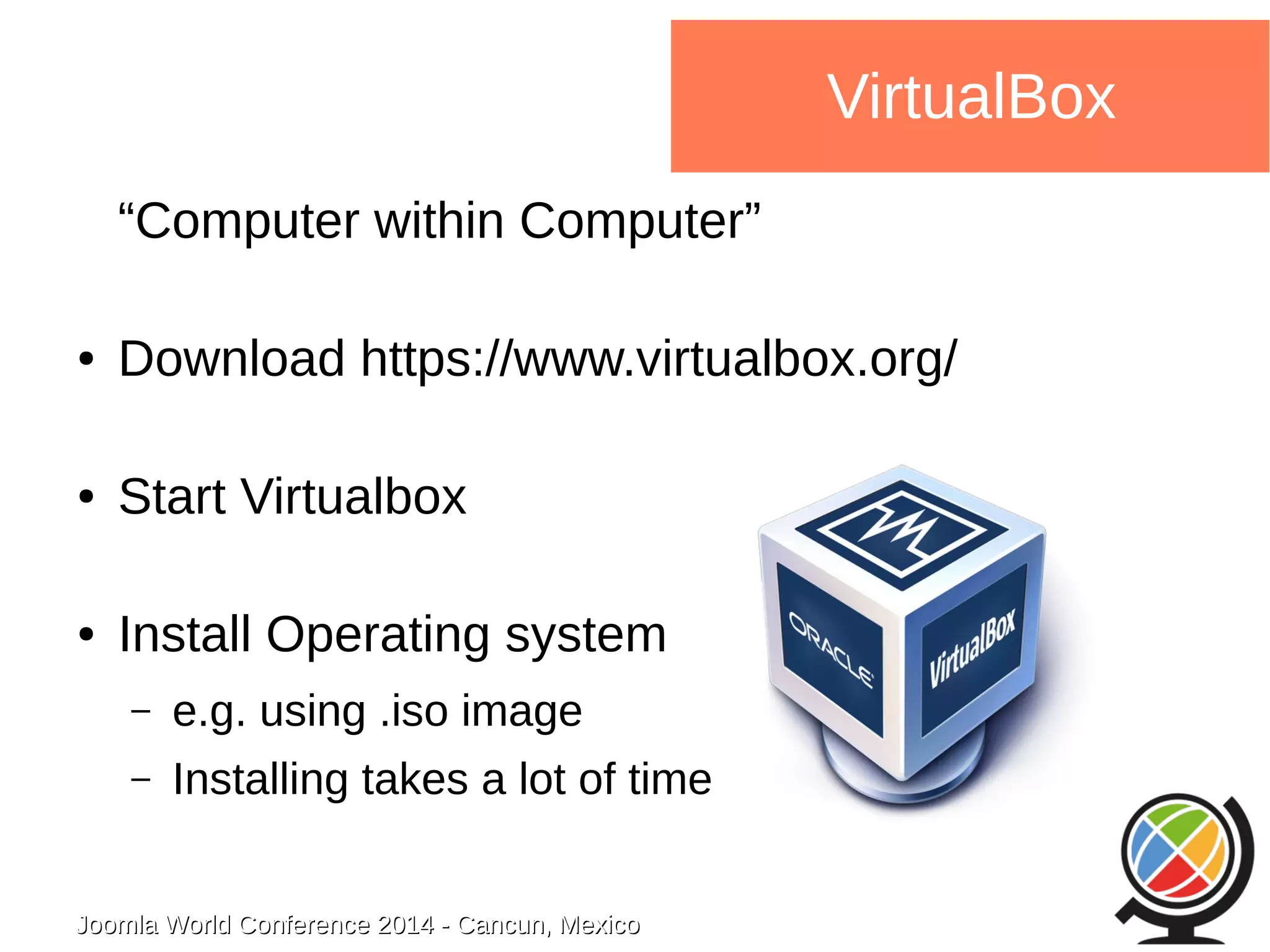

VirtualBox
“Computer within Computer”
● Download https://www.virtualbox.org/
● Start Virtualbox
● Install Operating system
– e.g. using .iso image
– Installing takes a lot of time

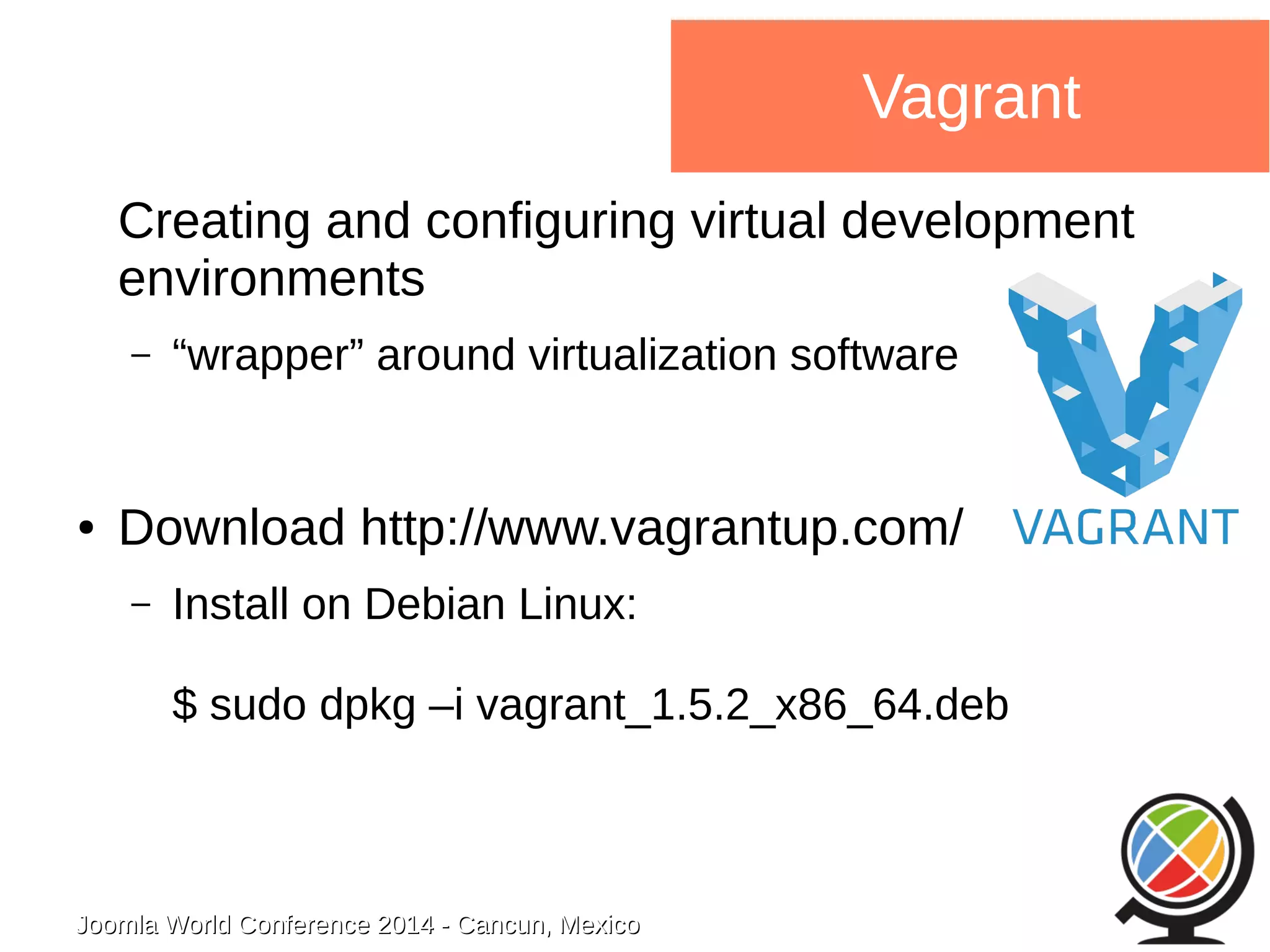

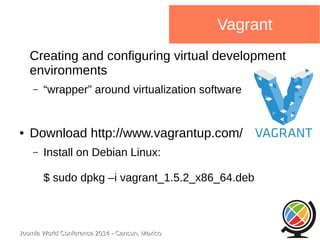

Vagrant
Creating and configuring virtual development
environments
– “wrapper” around virtualization software
● Download http://www.vagrantup.com/
– Install on Debian Linux:
$ sudo dpkg –i vagrant_1.5.2_x86_64.deb

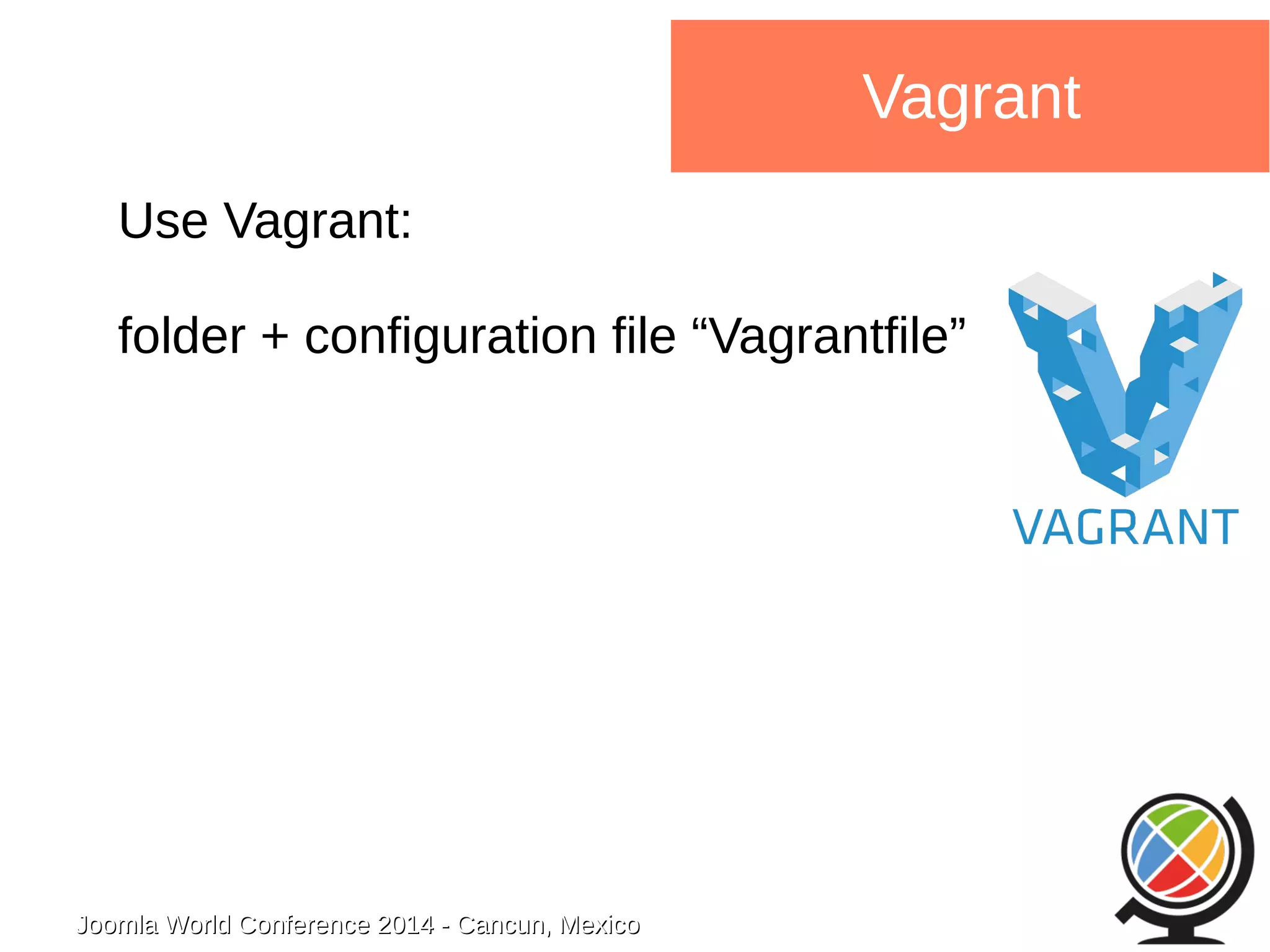

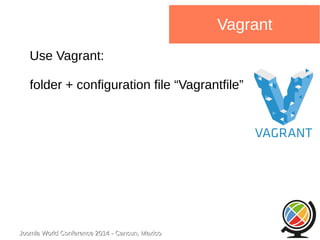

Vagrant
Use Vagrant:
folder + configuration file “Vagrantfile”

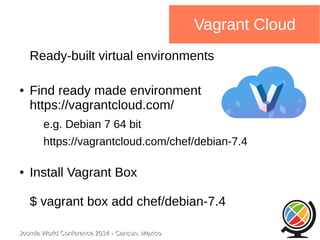

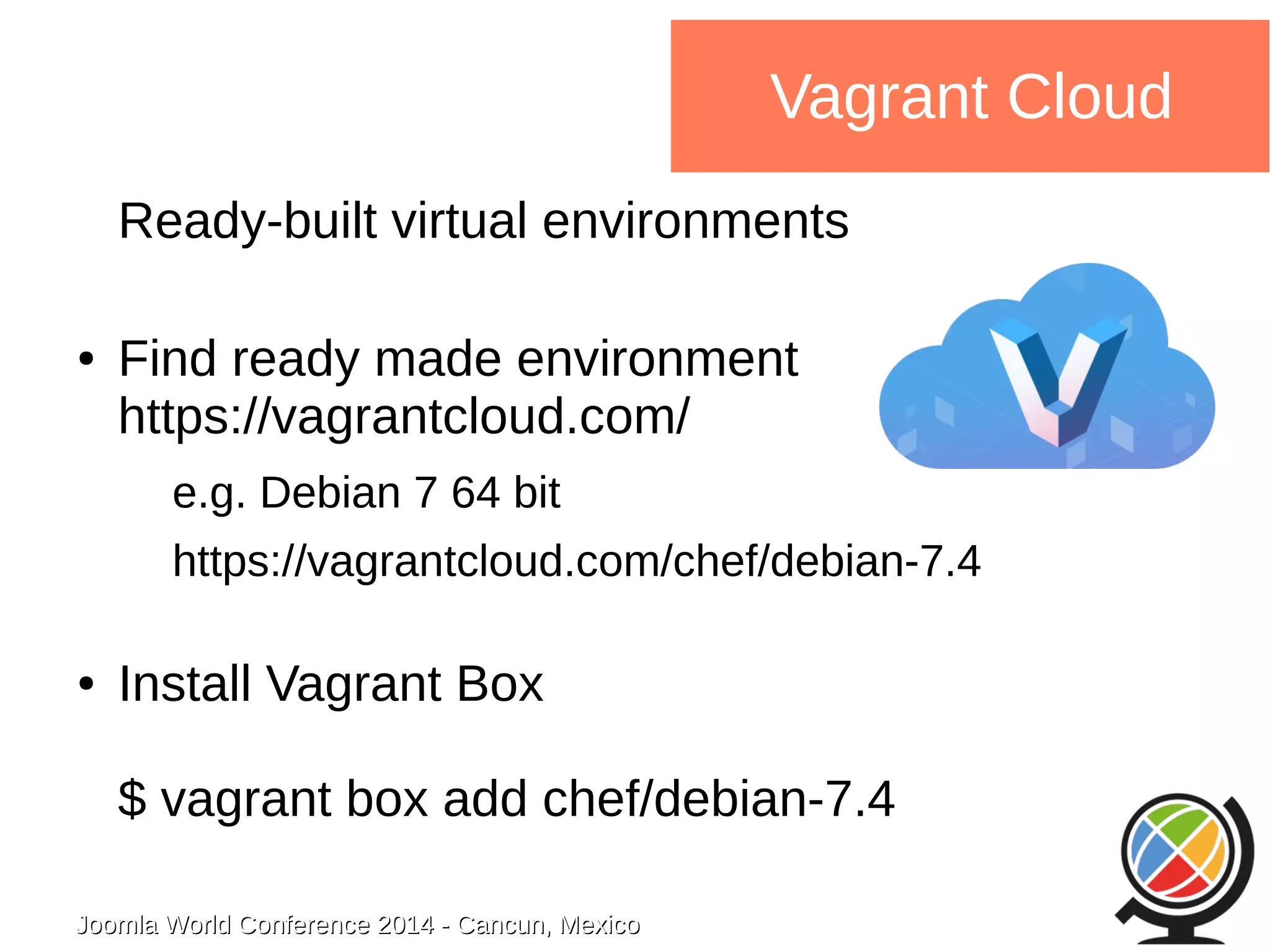

Vagrant Cloud
Ready-built virtual environments
● Find ready made environment
https://vagrantcloud.com/
e.g. Debian 7 64 bit
https://vagrantcloud.com/chef/debian-7.4
● Install Vagrant Box
$ vagrant box add chef/debian-7.4

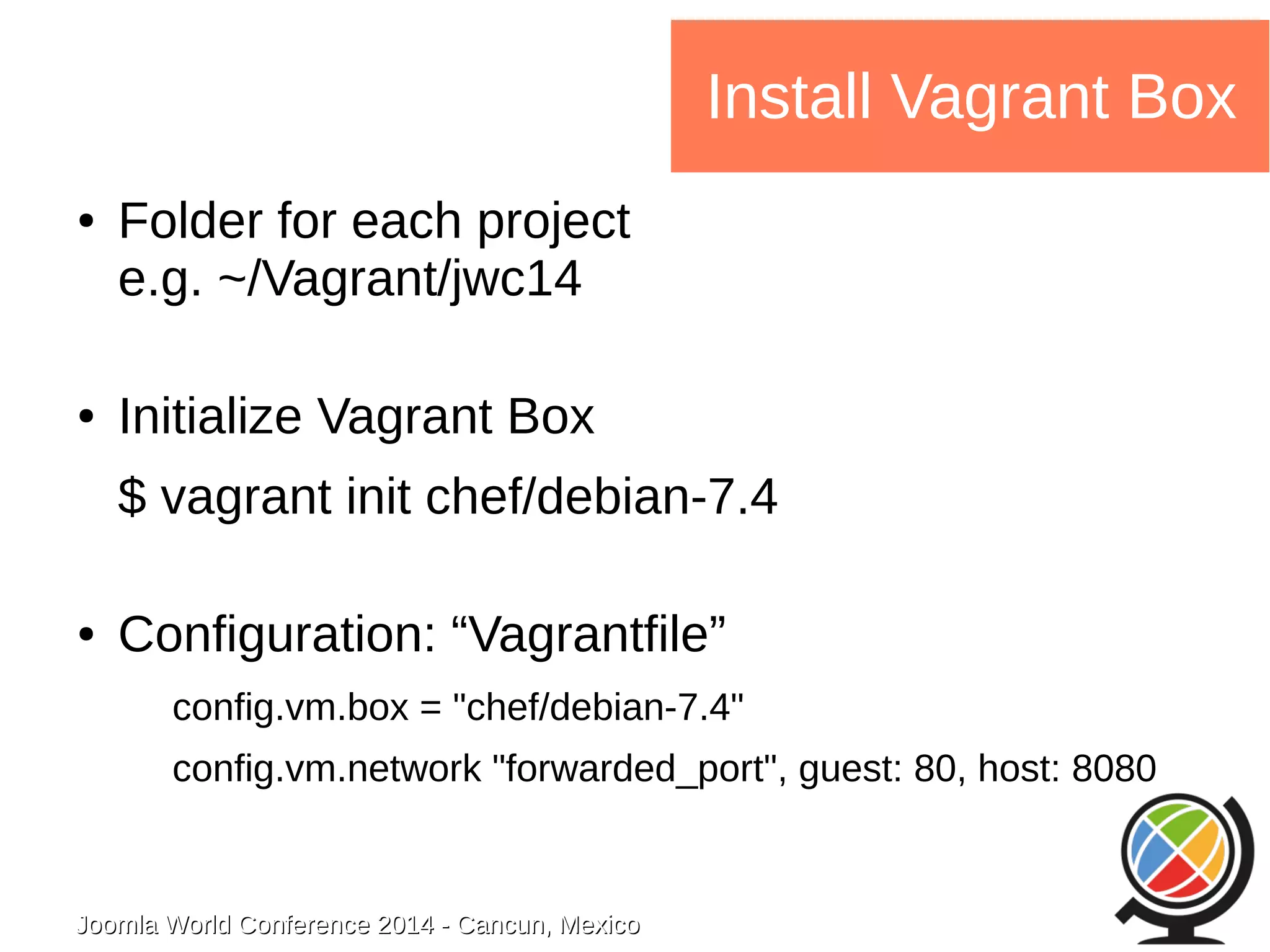

Install Vagrant Box
● Folder for each project
e.g. ~/Vagrant/jwc14
● Initialize Vagrant Box
$ vagrant init chef/debian-7.4
● Configuration: “Vagrantfile”
config.vm.box = "chef/debian-7.4"
config.vm.network "forwarded_port", guest: 80, host: 8080

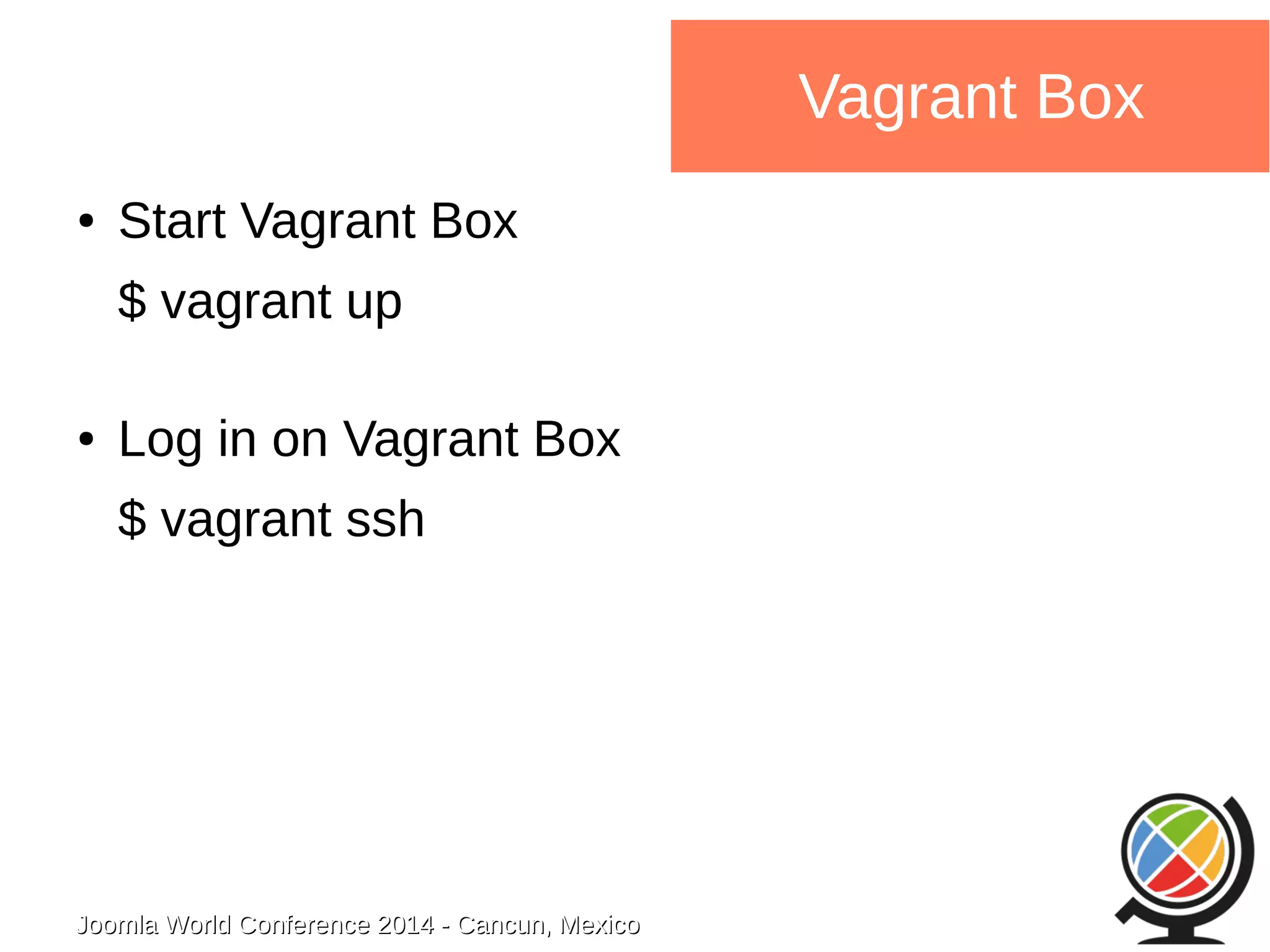

Vagrant Box
● Start Vagrant Box
$ vagrant up
● Log in on Vagrant Box
$ vagrant ssh

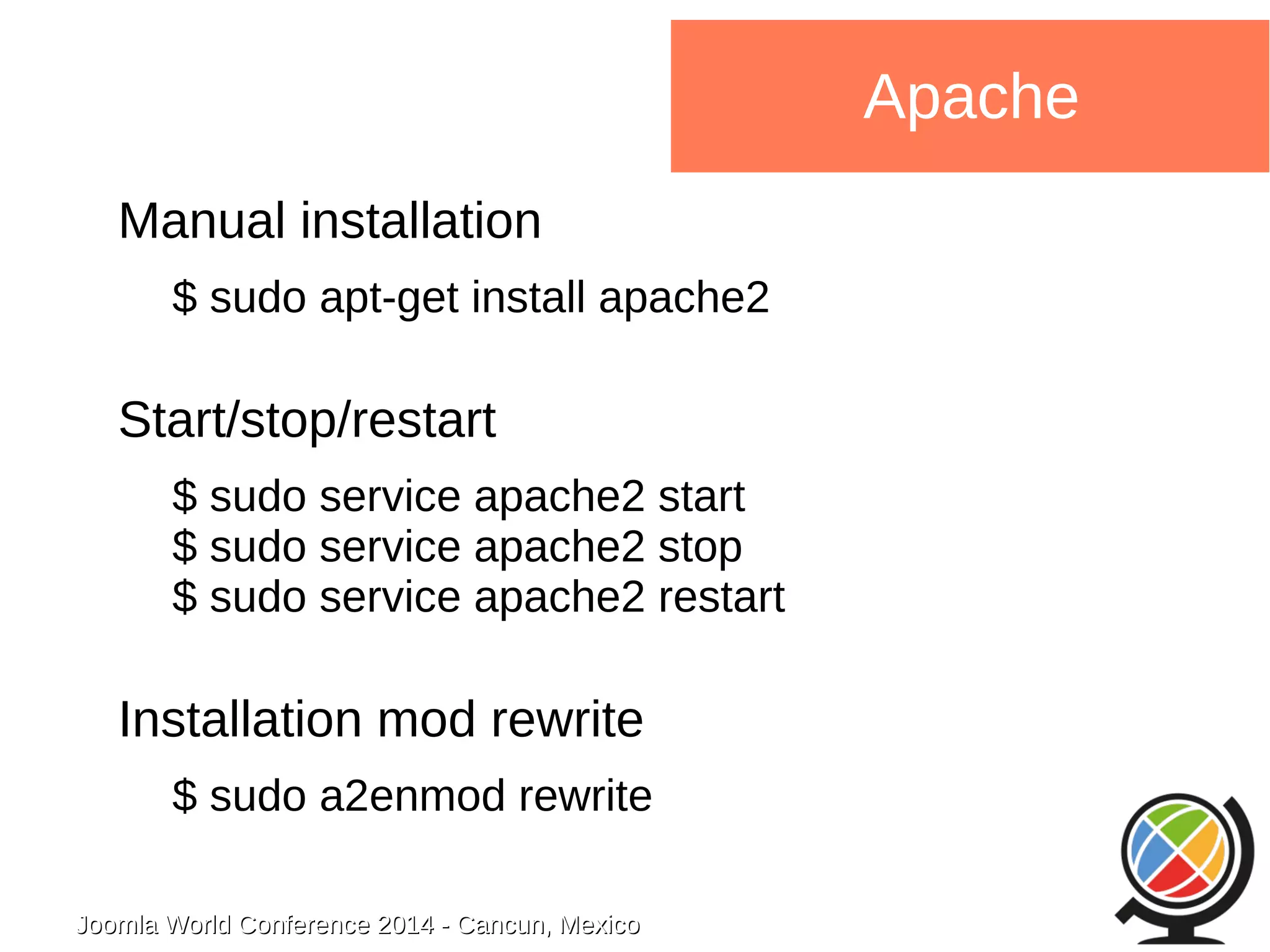

Apache
Manual installation
$ sudo apt-get install apache2
Start/stop/restart
$ sudo service apache2 start
$ sudo service apache2 stop
$ sudo service apache2 restart
Installation mod rewrite
$ sudo a2enmod rewrite

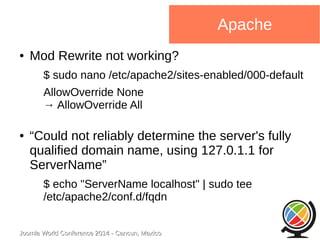

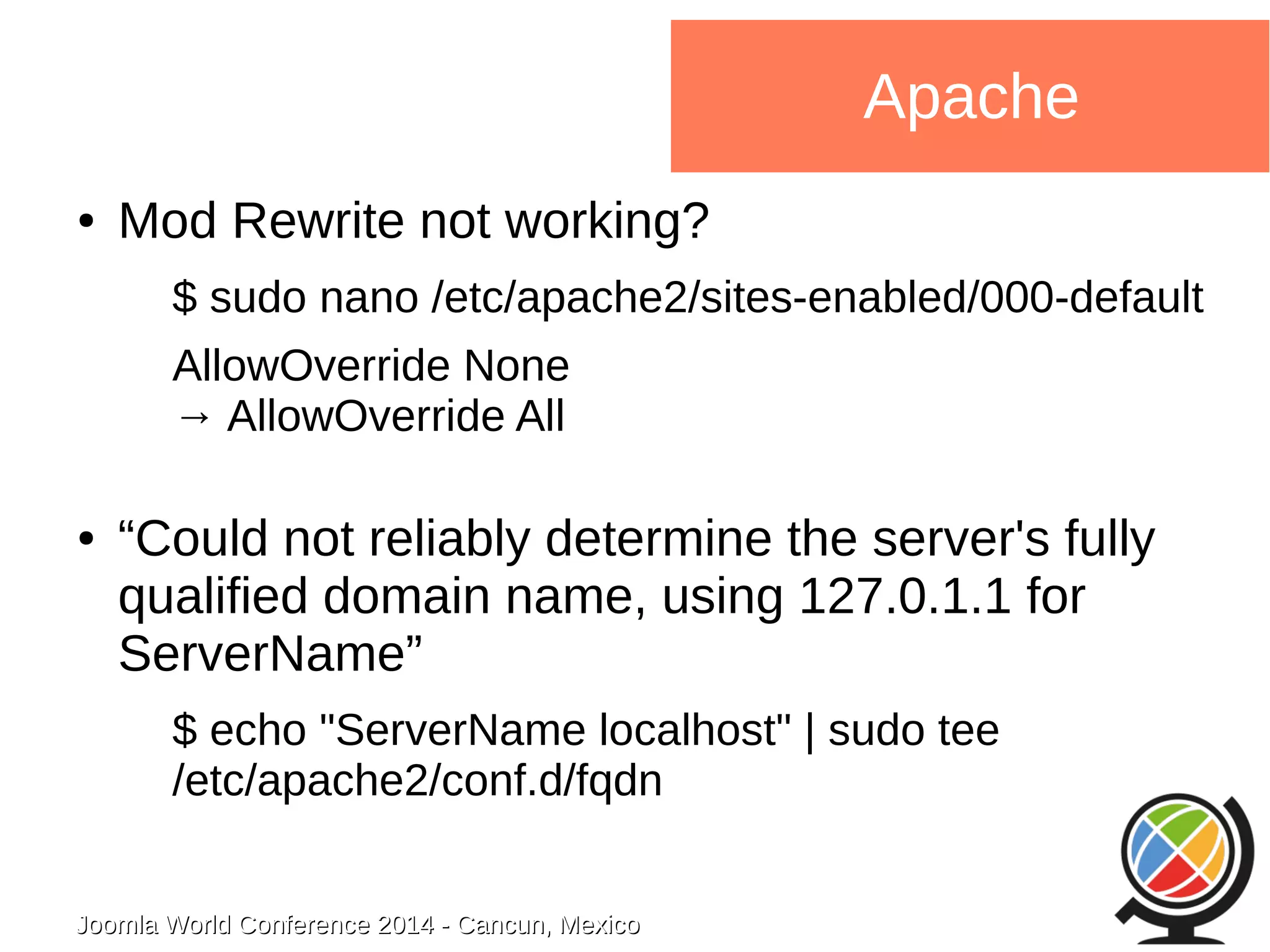

Apache
● Mod Rewrite not working?
$ sudo nano /etc/apache2/sites-enabled/000-default
AllowOverride None
→ AllowOverride All
● “Could not reliably determine the server's fully
qualified domain name, using 127.0.1.1 for
ServerName”
$ echo "ServerName localhost" | sudo tee
/etc/apache2/conf.d/fqdn

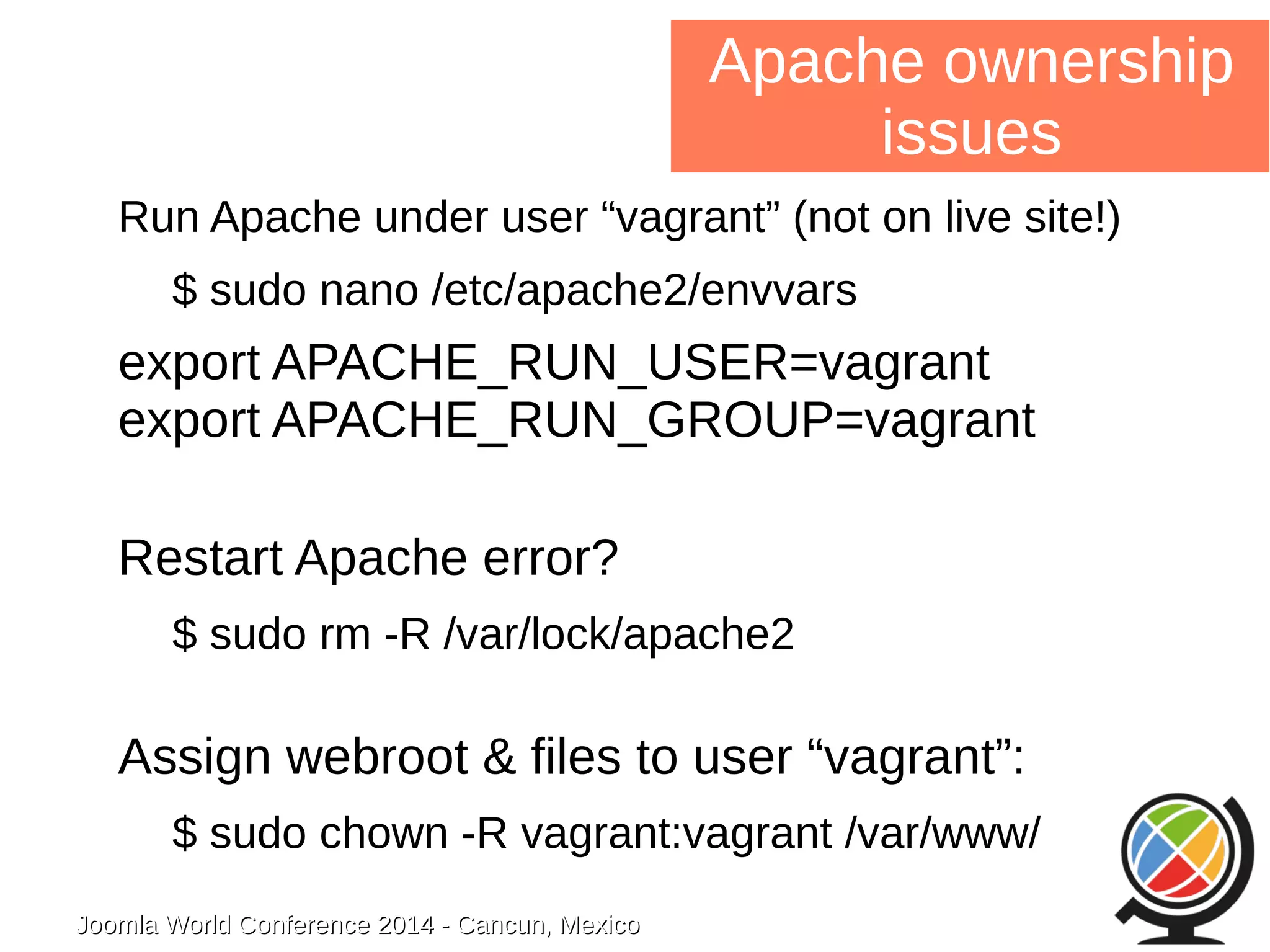

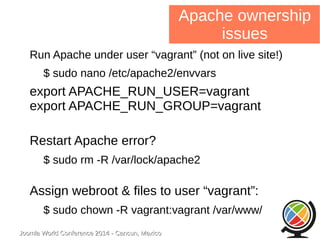

Apache ownership
issues
Run Apache under user “vagrant” (not on live site!)
$ sudo nano /etc/apache2/envvars
export APACHE_RUN_USER=vagrant
export APACHE_RUN_GROUP=vagrant
Restart Apache error?
$ sudo rm -R /var/lock/apache2
Assign webroot & files to user “vagrant”:
$ sudo chown -R vagrant:vagrant /var/www/

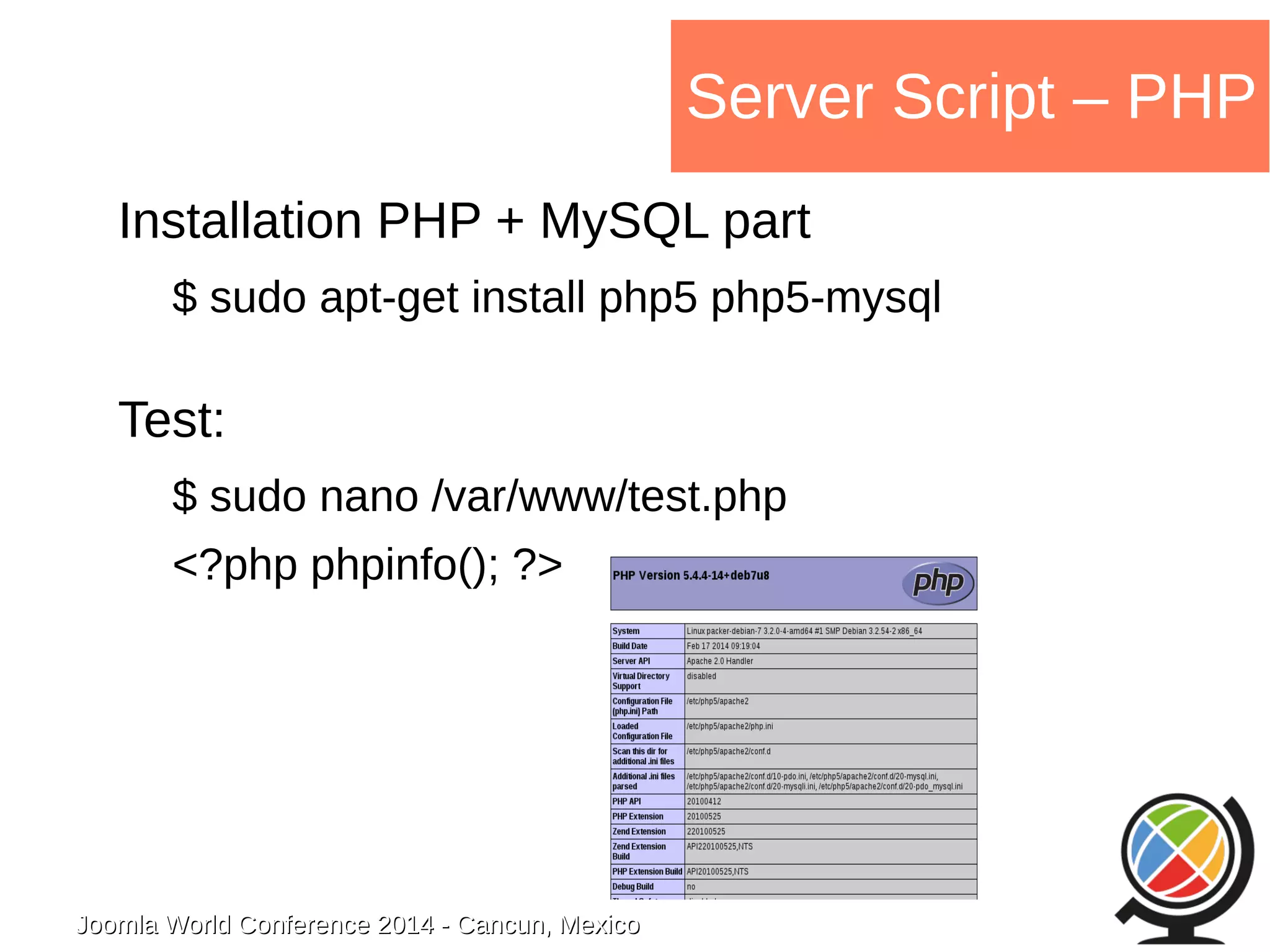

Server Script – PHP
Installation PHP + MySQL part
$ sudo apt-get install php5 php5-mysql
Test:
$ sudo nano /var/www/test.php
<?php phpinfo(); ?>

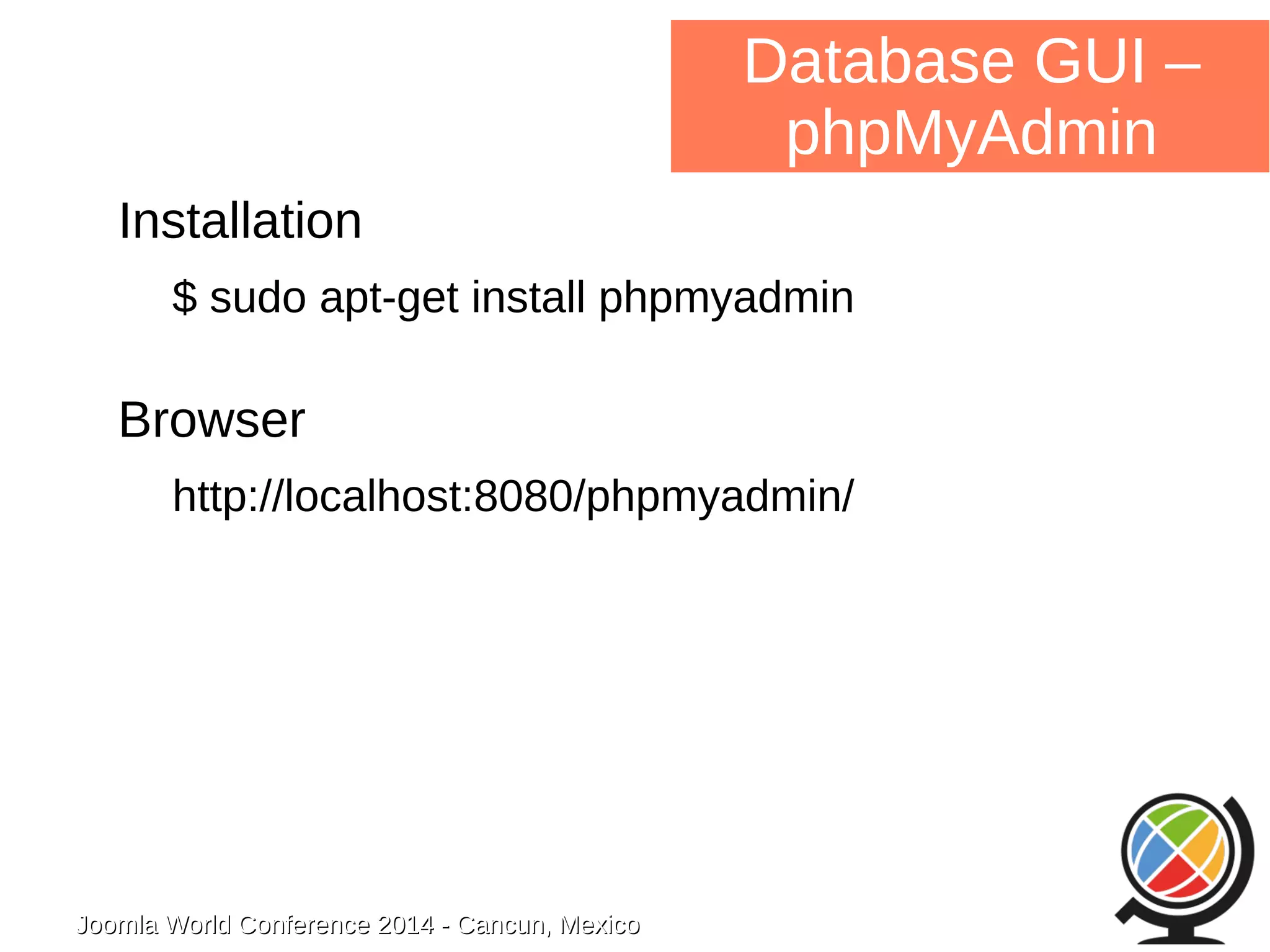

Database GUI –
phpMyAdmin
Installation
$ sudo apt-get install phpmyadmin
Browser
http://localhost:8080/phpmyadmin/

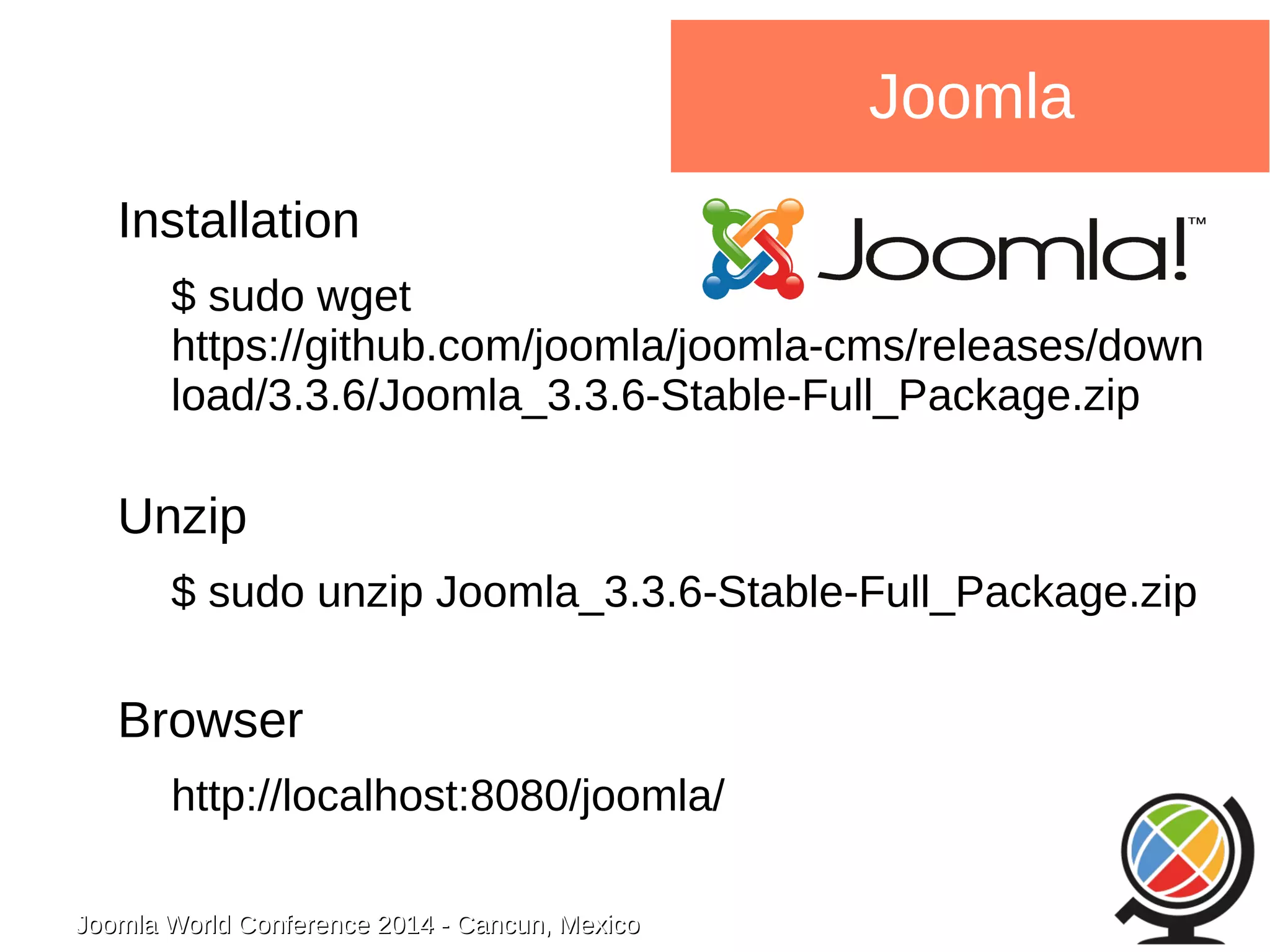

Joomla
Installation
$ sudo wget
https://github.com/joomla/joomla-cms/releases/down
load/3.3.6/Joomla_3.3.6-Stable-Full_Package.zip
Unzip
$ sudo unzip Joomla_3.3.6-Stable-Full_Package.zip
Browser
http://localhost:8080/joomla/

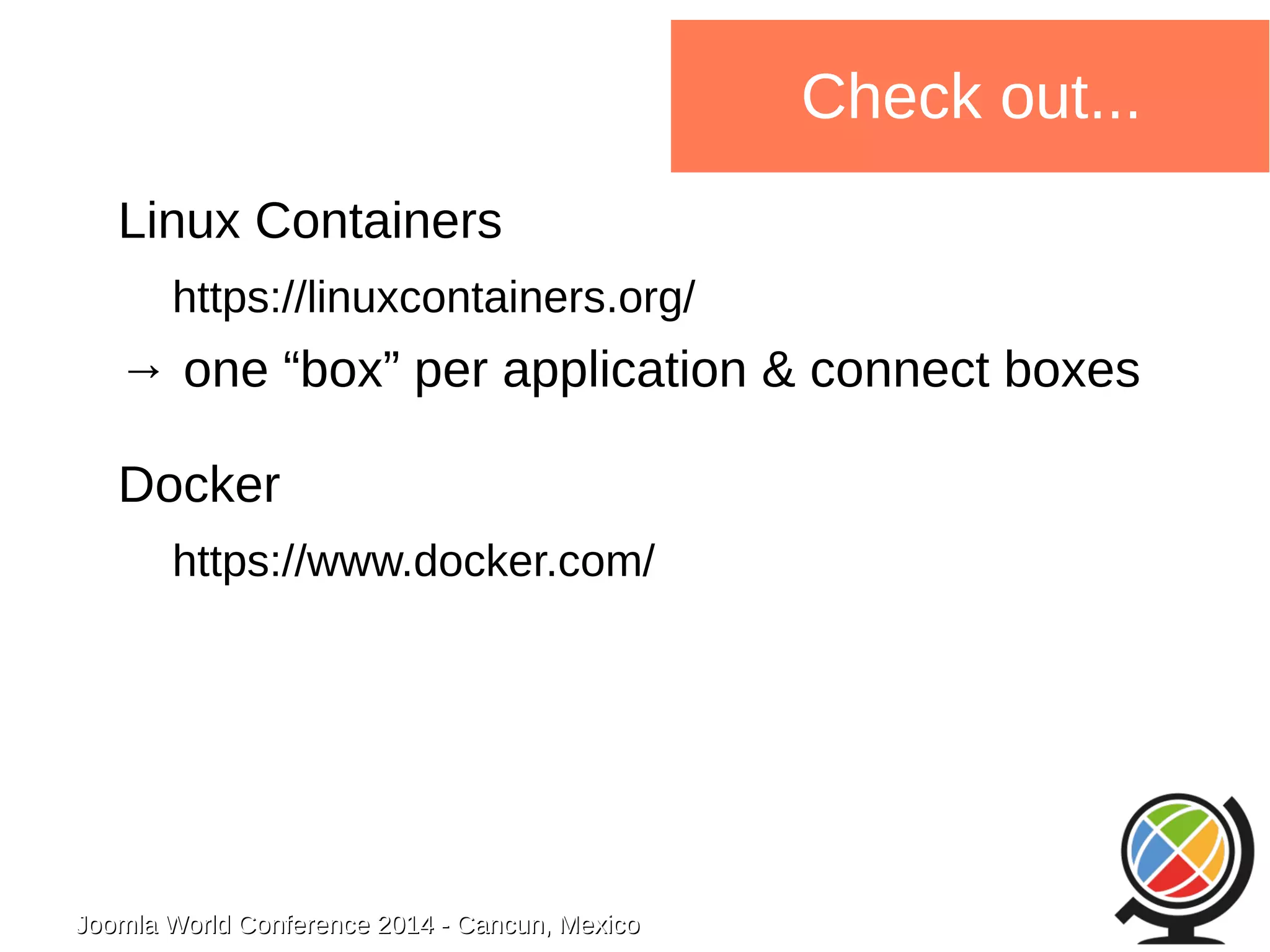

Check out...
Linux Containers
https://linuxcontainers.org/
→ one “box” per application & connect boxes
Docker
https://www.docker.com/

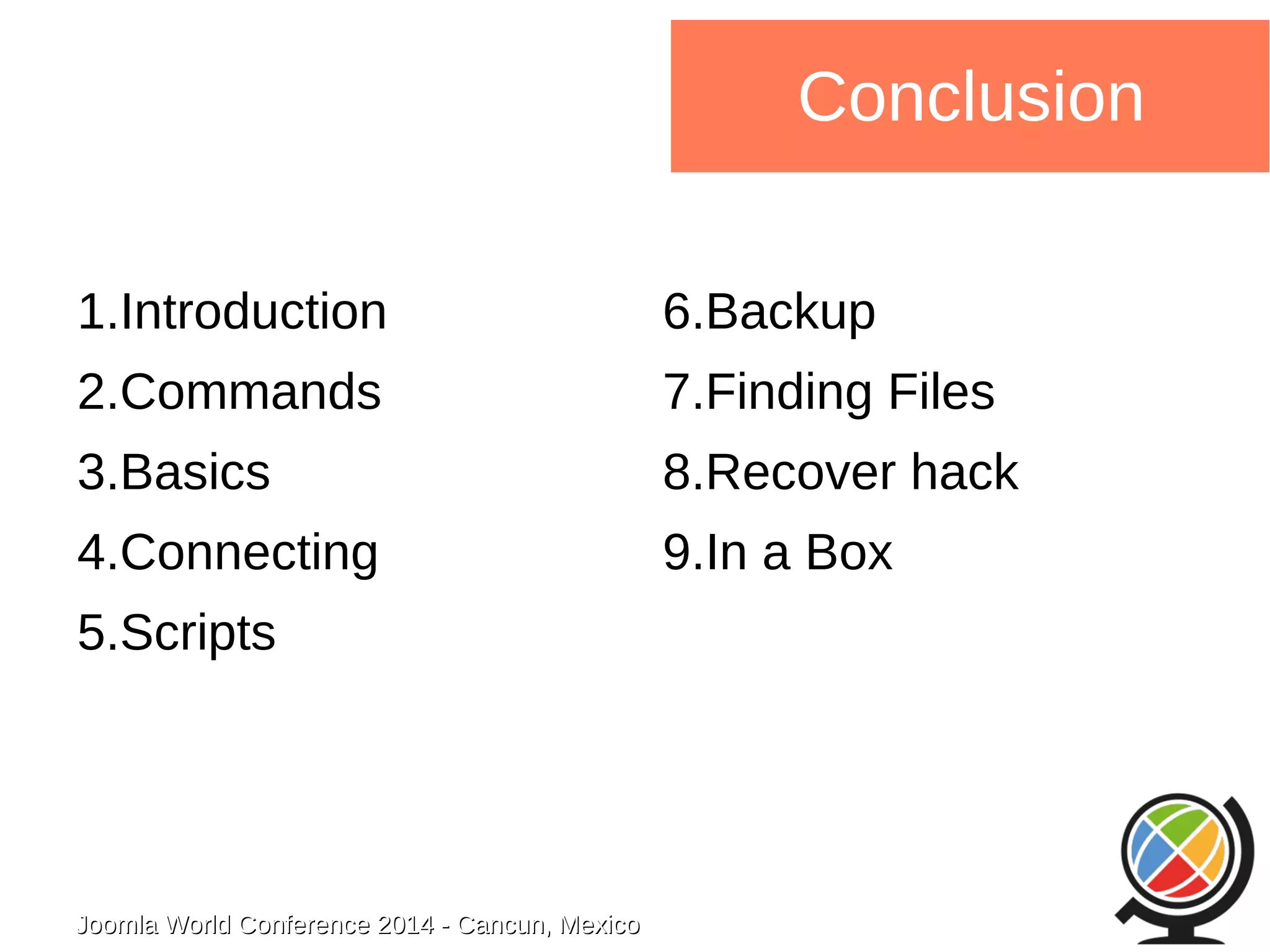

1.Introduction
2.Commands
3.Basics
4.Connecting
5.Scripts
Conclusion
6.Backup
7.Finding Files
8.Recover hack
9.In a Box

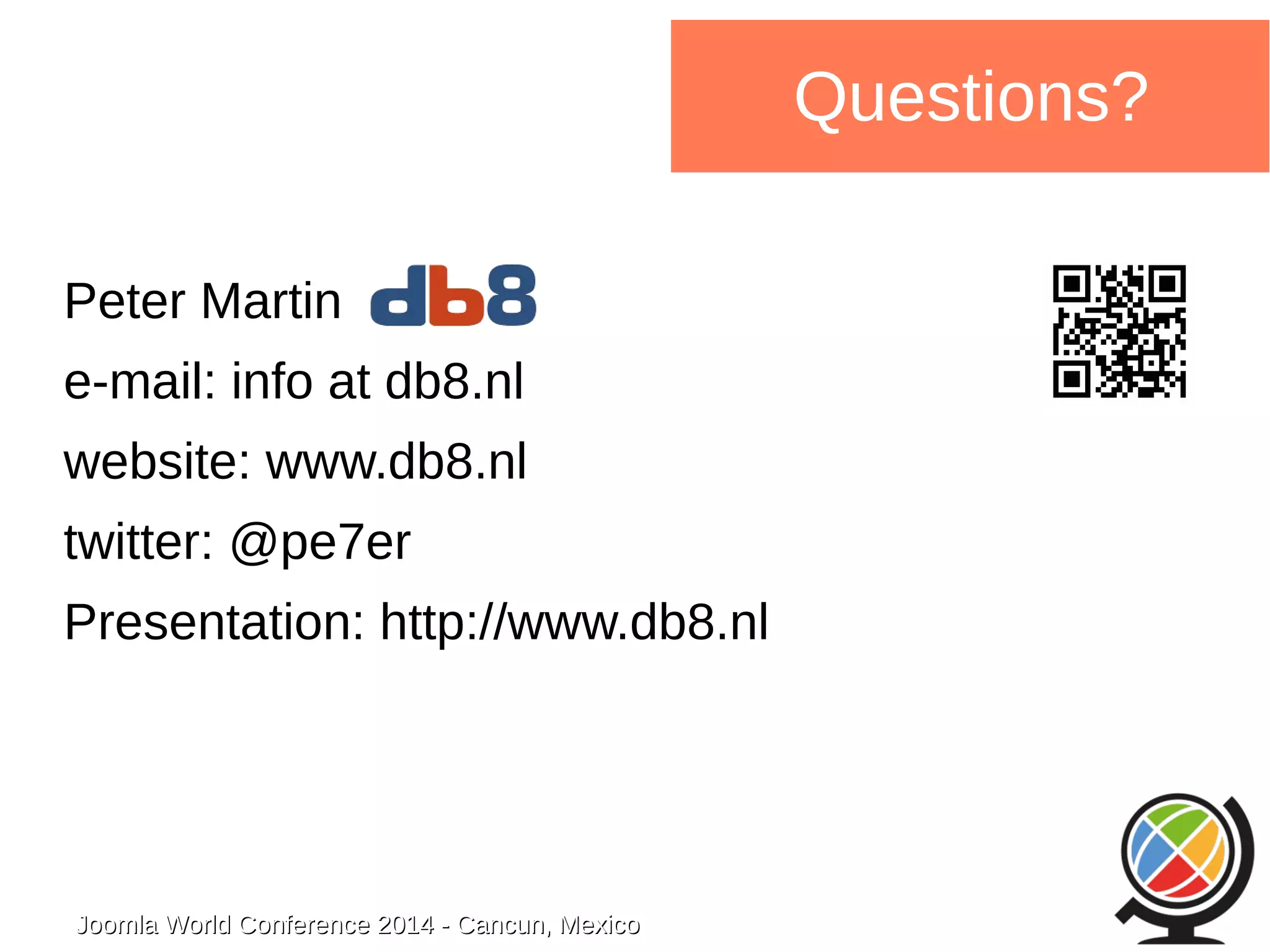

Questions?
Peter Martin
e-mail: info at db8.nl
website: www.db8.nl
twitter: @pe7er
Presentation: http://www.db8.nl

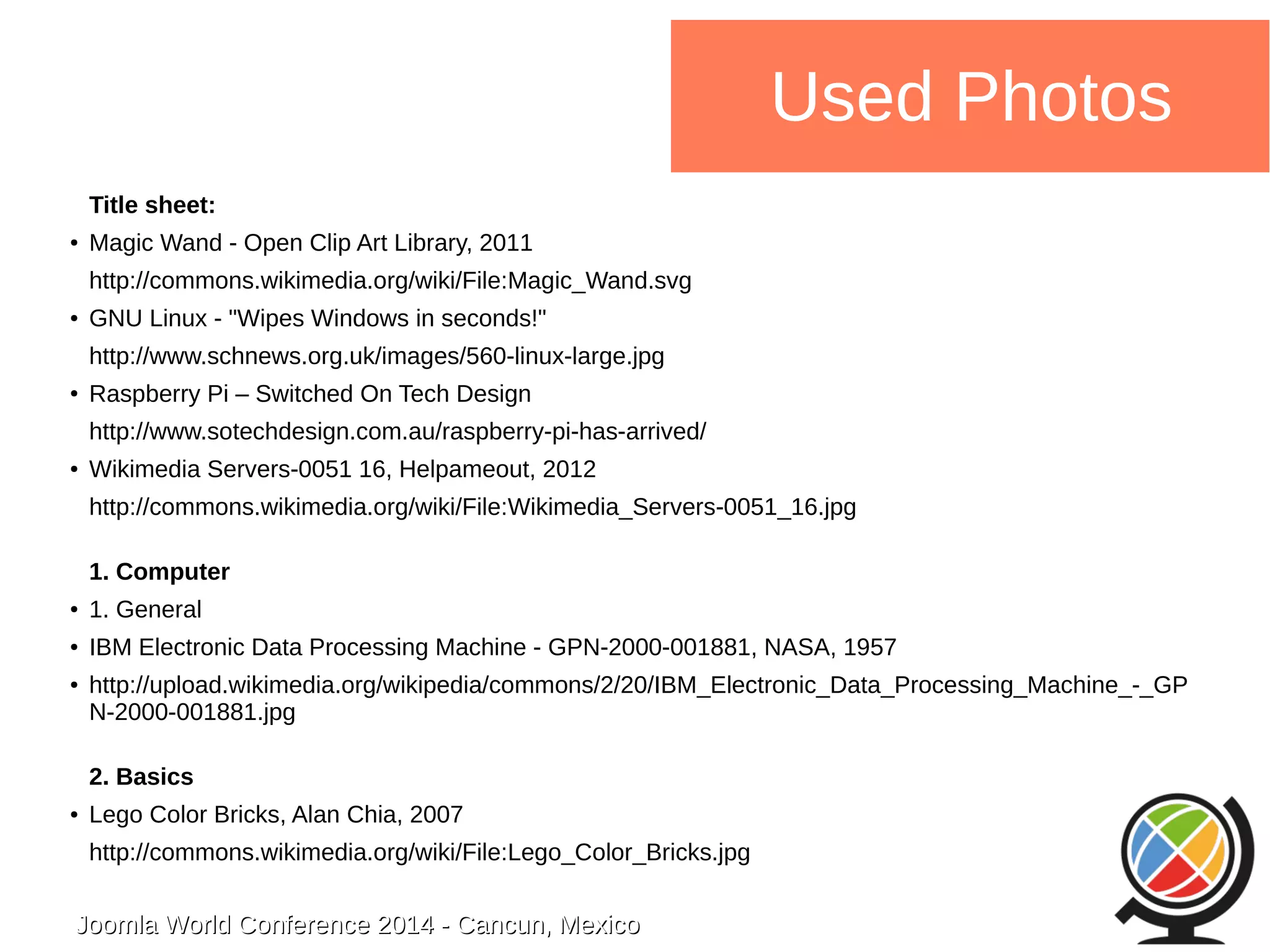

Used Photos
Title sheet:
● Magic Wand - Open Clip Art Library, 2011
http://commons.wikimedia.org/wiki/File:Magic_Wand.svg
● GNU Linux - "Wipes Windows in seconds!"
http://www.schnews.org.uk/images/560-linux-large.jpg

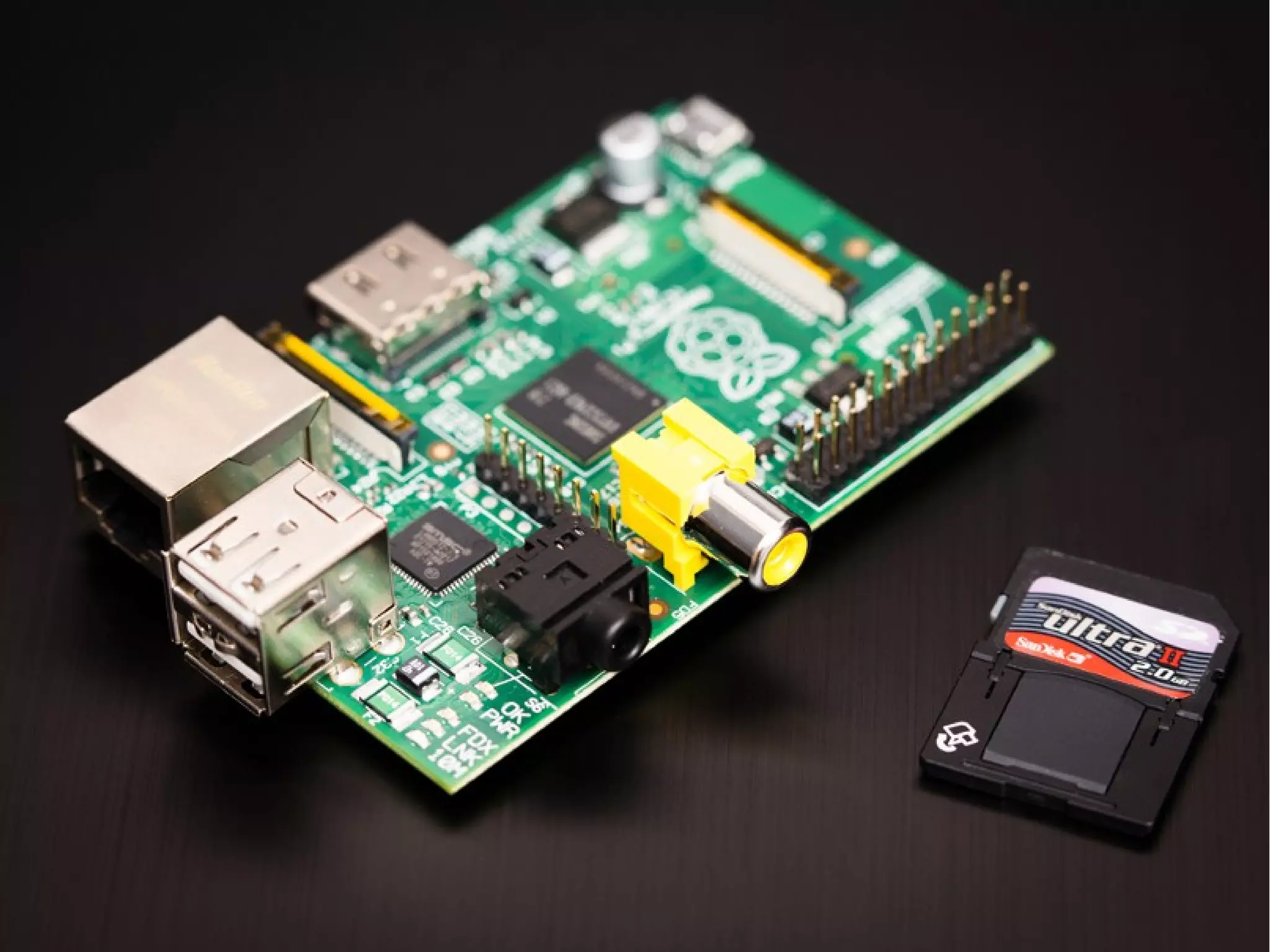

● Raspberry Pi – Switched On Tech Design
http://www.sotechdesign.com.au/raspberry-pi-has-arrived/

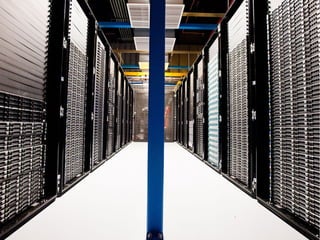

● Wikimedia Servers-0051 16, Helpameout, 2012
http://commons.wikimedia.org/wiki/File:Wikimedia_Servers-0051_16.jpg
1. Computer
● 1. General
● IBM Electronic Data Processing Machine - GPN-2000-001881, NASA, 1957
● http://upload.wikimedia.org/wikipedia/commons/2/20/IBM_Electronic_Data_Processing_Machine_-_GP
2. Basics
● Lego Color Bricks, Alan Chia, 2007
http://commons.wikimedia.org/wiki/File:Lego_Color_Bricks.jpg

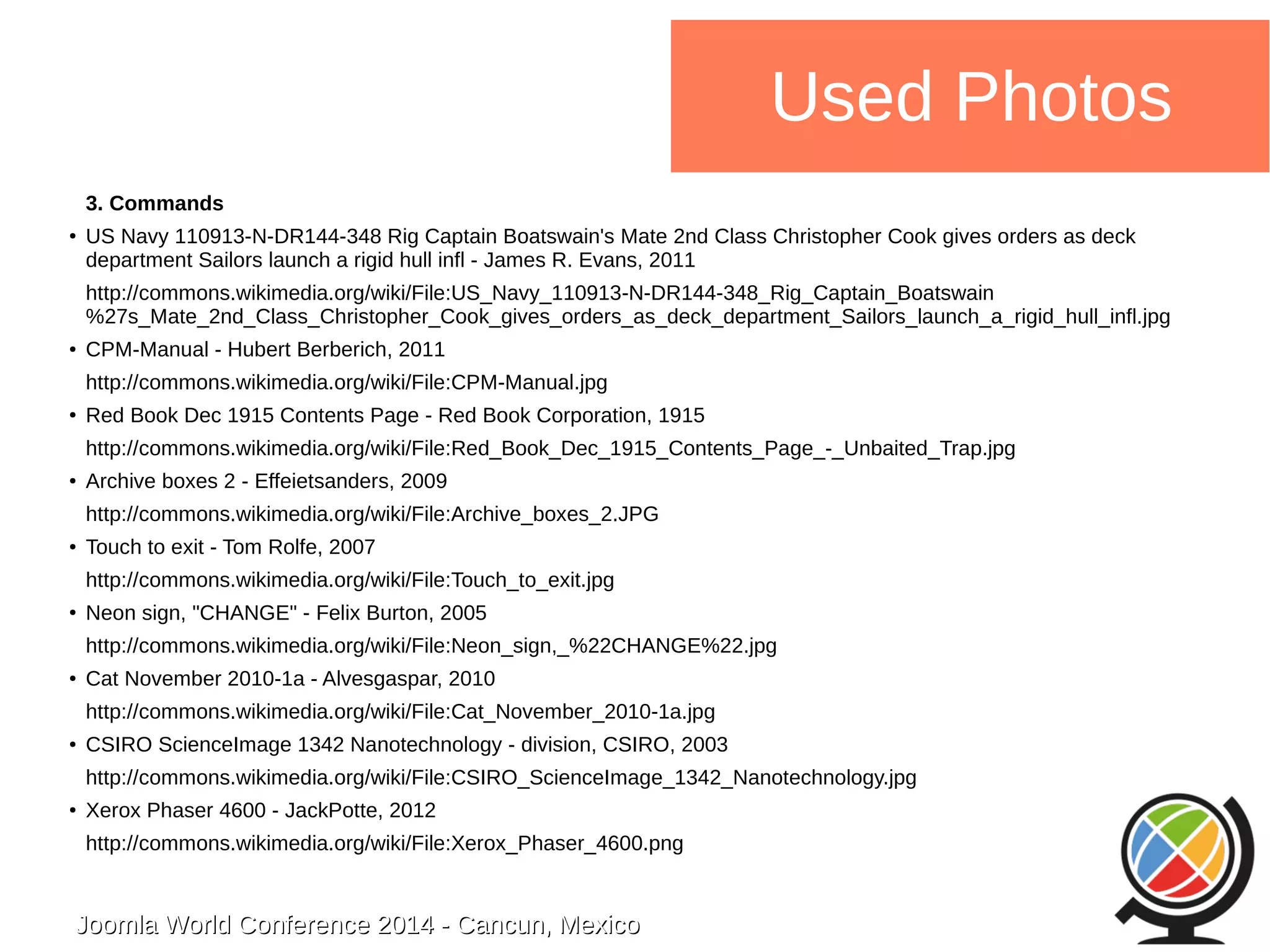

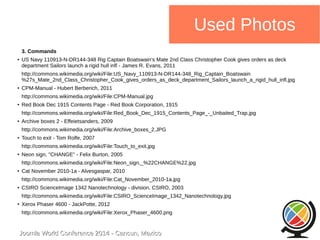

Used Photos
3. Commands
● US Navy 110913-N-DR144-348 Rig Captain Boatswain's Mate 2nd Class Christopher Cook gives orders as deck
department Sailors launch a rigid hull infl - James R. Evans, 2011
http://commons.wikimedia.org/wiki/File:US_Navy_110913-N-DR144-348_Rig_Captain_Boatswain
%27s_Mate_2nd_Class_Christopher_Cook_gives_orders_as_deck_department_Sailors_launch_a_rigid_hull_infl.jpg
● CPM-Manual - Hubert Berberich, 2011
http://commons.wikimedia.org/wiki/File:CPM-Manual.jpg
● Red Book Dec 1915 Contents Page - Red Book Corporation, 1915
http://commons.wikimedia.org/wiki/File:Red_Book_Dec_1915_Contents_Page_-_Unbaited_Trap.jpg
● Archive boxes 2 - Effeietsanders, 2009
http://commons.wikimedia.org/wiki/File:Archive_boxes_2.JPG
● Touch to exit - Tom Rolfe, 2007
http://commons.wikimedia.org/wiki/File:Touch_to_exit.jpg
● Neon sign, "CHANGE" - Felix Burton, 2005
http://commons.wikimedia.org/wiki/File:Neon_sign,_%22CHANGE%22.jpg
● Cat November 2010-1a - Alvesgaspar, 2010
http://commons.wikimedia.org/wiki/File:Cat_November_2010-1a.jpg
● CSIRO ScienceImage 1342 Nanotechnology - division, CSIRO, 2003
http://commons.wikimedia.org/wiki/File:CSIRO_ScienceImage_1342_Nanotechnology.jpg
● Xerox Phaser 4600 - JackPotte, 2012
http://commons.wikimedia.org/wiki/File:Xerox_Phaser_4600.png

Used Photos
● Long Distance Movers - RoadWay Van Lines, 2014
http://commons.wikimedia.org/wiki/File:Long_Distance_Movers.jpg
● Vuilnisbak-Lebbeke - Volkov Vitaly, 2005
http://commons.wikimedia.org/wiki/File:Vuilnisbak-Lebbeke.JPG
● TRTC Taipei Main Station No-bicycle-access notice - Solomon203, 2013
http://commons.wikimedia.org/wiki/File:TRTC_Taipei_Main_Station_No-bicycle-access_notice_20130324.jpg
● Prva samopostrežna trgovina v Mariboru na Partizanski cesti 1960 - Jože Gal, 1960
http://commons.wikimedia.org/wiki/File:Prva_samopostre
4. Connecting
● Switchboard Manual - Peel Conner, Geez-oz, 2012
http://commons.wikimedia.org/wiki/File:Switchboard_Manual_-_Peel_Conner.JPG
● Bundesarchiv Bild 183-2008-0516-500, Fernschreibmaschine mit Telefonanschluss - Illger, Willi, 1930
http://commons.wikimedia.org/wiki/File:Bundesarchiv_Bild_183-2008-0516-500,_Fernschreibmaschine_mit_Telefo
5. Scripts
● Binary Code, Cncplayer, 2013
http://commons.wikimedia.org/wiki/File:Binary_Code.jpg

Used Photos
6. Finding Files
● Postcards and magnifying glass, Anna, 2007
http://commons.wikimedia.org/wiki/File:Postcards_and_magnifying_glass.jpg
● Bundesarchiv Bild 183-M0125-421, Fundbüro in Berlin - Klaus Franke, 1973
http://commons.wikimedia.org/wiki/File:Bundesarchiv_Bild_183-M0125-421,_Fundb
● DARPA Big Data - DARPA, 2013
http://commons.wikimedia.org/wiki/File:DARPA_Big_Data.jpg
● Magnifying glass - Faberge - shakko, 2011
http://commons.wikimedia.org/wiki/File:Magnifying_glass_-_Faberge.jpg
● Magnifying glass on antique table - Stéphane Magnenat, 2008
http://commons.wikimedia.org/wiki/File:Magnifying_glass_on_antique_table.jpg
● Unused Phonebooks - David Shankbone, 2013
http://commons.wikimedia.org/wiki/File:Unused_Phonebooks.JPG
7. Backup
● IBM 7330 on white background, Crisco 1492, 2013
http://commons.wikimedia.org/wiki/File:IBM_7330_on_white_background.jpg

Used Photos
8. In a box
● Carton empty box - humusak2
http://www.freeimages.com/photo/1440365
● Virtualbox logo, Oracle Corporation, 2010
http://en.wikipedia.org/wiki/File:Virtualbox_logo.png
● Vagrant - Fco.plj, 2013
● http://en.wikipedia.org/wiki/File:Vagrant.png
9. Recover hack
● Youve-been-hacked, Hanonen, 2014
http://commons.wikimedia.org/wiki/File:Youve-been-hacked.jpg
Conclusion
● EquinoxeJuniorHighPac-Man - Equinoxe, 2012
http://www.c64-wiki.com/index.php/File:EquinoxeJuniorHighPac-Man.png

linux-commandline-magic-Joomla-World-Conference-2014

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to linux-commandline-magic-Joomla-World-Conference-2014

Similar to linux-commandline-magic-Joomla-World-Conference-2014 (20)

More from Peter Martin

More from Peter Martin (20)

Recently uploaded

Recently uploaded (20)

linux-commandline-magic-Joomla-World-Conference-2014
