Linked Data in Use: Schema.org, JSON-LD and hypermedia APIs - Front in Bahia 2014
- 1. LINKED DATA IN USE

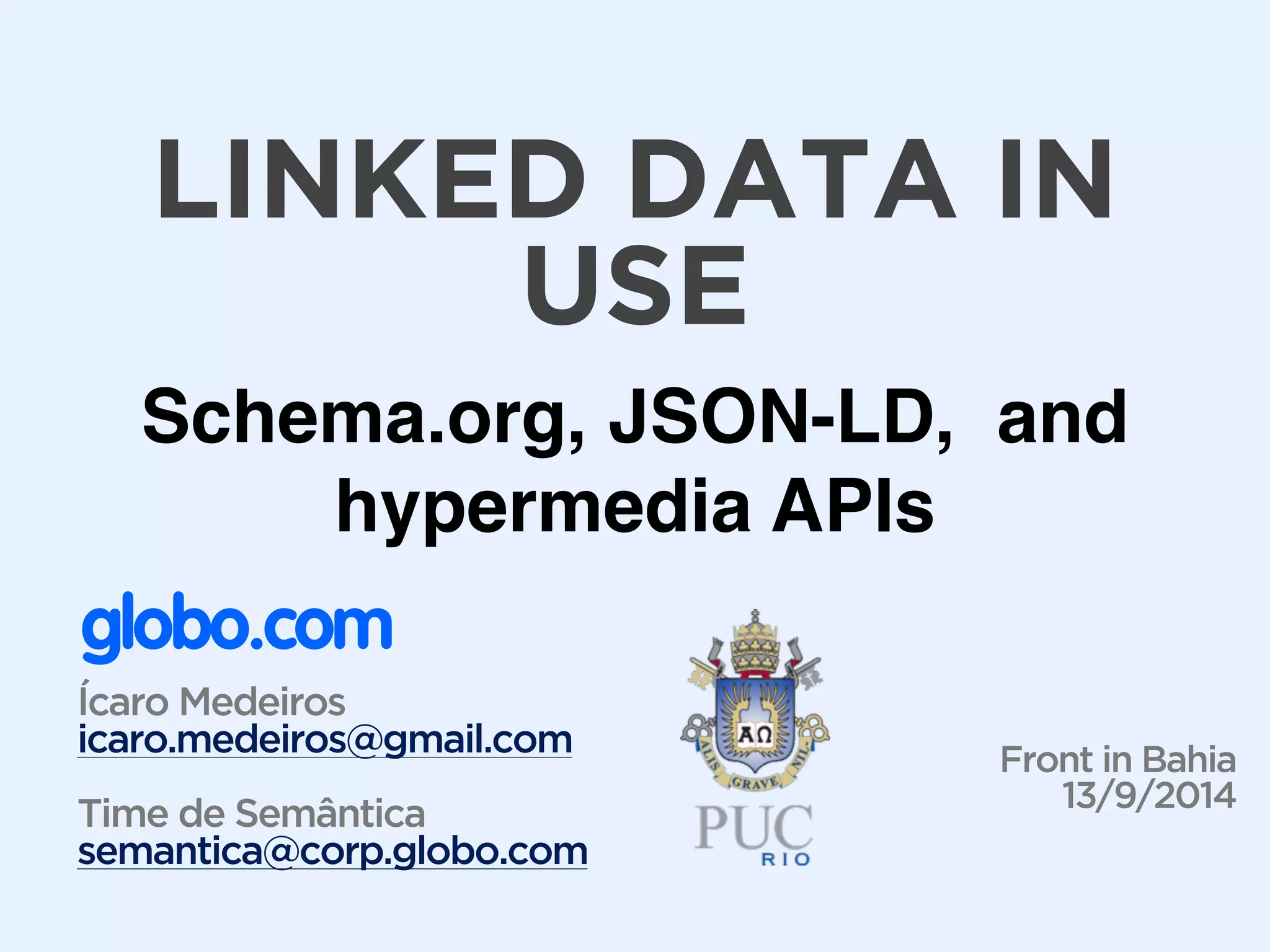

- 2. LINKED DATA IN globo.com Ícaro Medeiros icaro.medeiros@gmail.com ! Time de Semântica semantica@corp.globo.com Front in Bahia 13/9/2014 USE Schema.org, JSON-LD, and hypermedia APIs
- 3. WHAT IS LINKED DATA?
- 4. SEMANTIC WEB ! DONE RIGHT
- 5. "I have a dream for the web in which computers become capable of analyzing all the data on the web - the content, links, and transactions between people and computers." Tim Berners-Lee
- 6. ROBERTO CARLOS GOAL AT MARACANÃ
- 9. Standard Vocabularies • Dublin Core: publications • FOAF: people • SIOC: online communities • DBPedia: Wikipedia in triples
- 10. Linked Data Principles 1. Use URIs as names for things 2. Use HTTP URIs so that people can look up those names. 3. When someone looks up a URI, provide useful information, using the standards (RDF*, SPARQL) 4. Include links to other URIs, so that they can discover more things.
- 11. Or… 1. Entity identity 2. Access 3. Structure 4. Integration
- 12. RDF AND SPARQL
- 13. Triple representation subject predicate object Neymar is a player Barcelona is a team Neymar plays for Barcelona
- 14. <Player> <Time> is a is a is a plays for <Neymar> <Barcelona> <Santos> <Partida> <BarcelonaXSantos:02082013> is a home team away team location <Camp Nou> date "2013/08/02"
- 15. RDF triples @prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>. @prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#>. @prefix foaf: <http://xmlns.com/foaf/0.1/>. @prefix dbpedia: <http://dbpedia.org/ontology> ! esportes:Neymar rdf:type dbpedia:SoccerPlayer ; rdfs:label "Neymar" ; foaf:name "Neymar da Silva Santos Júnior" ; dbpedia:birthDate "05/02/1992" ; owl:sameAs dbpedia:Neymar . Linking! datasets
- 16. LINKED DATASETS
- 17. SPARQL query Select all instances of dbpedia:SoccerPlayer class and its names ! ! ! SELECT ?player ?name FROM <http://dbpedia.org> WHERE { ?player rdf:type dbpedia:SoccerPlayer ; rdfs:label ?name . }
- 18. • Complexity (ontologies?) • NO clear advantage • Triplestore databases: immature • Missing a killer application • Fax problem • Slow adoption Problems
- 19. LINKED DATA WITHOUT RDF?
- 20. DON’T YOU WORRY ABOUT A schema.org/Thing
- 21. SCHEMA.ORG
- 23. RICH SNIPPETS GOOGLE NOW KNOWLEDGE GRAPH CLEAR ADVANTAGE
- 24. RICH SNIPPETS City Date Location
- 27. GOOGLE NOW
- 28. MAPS
- 29. SERP
- 30. <html itemscope itemtype="http://schema.org/Event"> <head> <title itemprop="name"> Front in Maceió </title> crawler! saves annotation! in KG search results! enhanced
- 31. ONE VOCABULARY TO RULE THEM ALL
- 32. HOW TO DO IT?
- 33. MICRODATA <html itemscope itemtype="http://schema.org/Event"> <head> <title itemprop="name"> Front in Bahia </title> ...
- 34. NESTED PROPERTIES <html itemscope itemtype="http://schema.org/Event"> ... <section itemprop="location" itemscope itemtype="http://schema.org/Place"> <span itemprop="name">CESMAC</span> <span itemprop="address" itemscope itemtype="http://schema.org/PostalAddress"> <span itemprop="addressLocality"> Maceió </span> ...
- 35. Schema.org usage • Sample 12B pages (Google Index) • 6% domains • ~21% pages • Avg entities/page: 6 • Avg facts/page: 26 http://www.slideshare.net/rvguha/sem-tech2014c
- 36. JSON-LD
- 37. Plain old JSON { "name": "Keith Urban", "url": "http://www.keithurban.net/tour/420", }
- 38. JSON-LD { "@context": "http://schema.org", "@type": "MusicEvent", "name": "Keith Urban", "url": "http://www.keithurban.net/tour/420", }
- 39. Advantages • Semantic layer on top of JSON • Self-described • Can be added to existing APIs • JSON is extensively used • Data can be anchored in schema.org • Easy serialization to RDF
- 40. JSON-LD AND HYPERMEDIA APIS
- 41. GET /events/1 HTTP/1.1 Host: example.com ==================================== HTTP/1.0 200 OK ... Content-Type: application/json Link: <example.com/events/1.jsonld>; rel=http://www.w3.org/ns/json-ld#context; type=application/ld+json ! { "name": "Keith Urban", "url": "http://www.keithurban.net/tour/420", } Client follows link! (hypermedia API)
- 42. Self-described Resource { "@context": "http://schema.org", "@type": "MusicEvent", "@id": "/events/1", "name": "Keith Urban", "url": "http://www.keithurban.net/tour/420", }
- 43. Resource+links { "@context": "http://schema.org", "@type": "MusicEvent", "@id": "/events/1", "name": "Keith Urban", "url": "http://www.keithurban.net/tour/420", "offers": [{ "@id": "/events/1/offer/1", "@type": "Offer" }]} Client follows link
- 44. JSON-SCHEMA
- 45. Schema in different resource GET /events/1 HTTP/1.1 Host: example2.com ==================================== HTTP/1.0 200 OK … Content-Type: application/json; profile=/events/1/_schema ! { "name": "Keith Urban", "url": "http://www.keithurban.net/tour/420", } Client follows link (hypermedia API)
- 46. GET /events/1/_schema HTTP/1.1 Host: example2.com ==================================== HTTP/1.0 200 OK … ! { "title": "Event", "type": "object", "properties": { "name": {"type": "string"}, "url": {"type": "url"} }, "links": { "rel": "offers", "href": "/events/1/offers" } } Client does not know! URLs, just 'rel's
- 47. HYPERMEDIA APIS
- 48. Hypermedia? • Don’t remind URLS. Navigate! • Decoupling server and client • Content negotiation • Application treated as State Machine
- 49. GET / "links": [ { "href": “http://example.com/“, "rel": "self" }, { "href": "http://example.com/{resource_id}", "rel": "item" }, { "href": "http://example.com", "method": "POST", "rel": "create" }, { "href": "http://example.com/{resource_id}", "method": "DELETE", "rel": "delete" }, { "href": "http://example.com/?page=2", "method": "GET", "rel": "next" } ] { "items": [ { "title": "News", "@id": "http://example.com/news/", "resource_id": "news" }, { "title": "Sports", "@id": "http://example.com/sports/", "resource_id": "sports" } ]
- 50. resource_id:sports rel:item GET / /sports GET
- 51. self Relations /sports/Team/ Barcelona /sports/ Team inCollection item create replace delete
- 52. JSON-LD IN HTML
- 53. JSON-LD annotation <script type="application/ld+json"> [{ "@context": "http://schema.org", "@type": "MusicEvent", "name": "Keith Urban", "url": "http://www.keithurban.net/tour/420", "startDate": "2014-09-07", "performer": [{ "@type": "MusicGroup", "name": "Keith Urban", "sameAs": "http://www.keithurban.net"}], www.keithurban.net/tour Linking! datasets Same! vocabulary
- 54. "location": { "@type": "Place", "name": "Sleep Train Amphitheatre", "address": { "@type": "PostalAddress", "addressLocality": "Sacramento", "addressState": "CA", "addressCountry": "US" }}, "offers": [{ "@type: "Offer", "name": "TICKETS", "url": "http://www.keithurban.net/tour/420" }]} //... ] </script> Link is! followed! by crawler
- 55. { "@context": "http://schema.org", "@type": "MusicEvent", // ... "offers": [{ "@type": "Offer", "name": "General Tickets", "price": "40.00", "priceCurrency": "USD", "availability": "InStock", "validFrom": "2014-02-15T10:00", "category": "primary", "url": "www.axs.com/events/248328/keith-urban-tickets" }]} keithurban.net/tour/420 ……..
- 57. JSON-LD IN EMAIL
- 58. <script type="application/ld+json"> { "@context": "http://schema.org", "@type": "FlightReservation", "reservationNumber": "RXJ34P", "reservationStatus": "http://schema.org/Confirmed", "underName": { "@type": "Person", "name": "Eva Green" }, "reservationFor": { "@type": "Flight", "flightNumber": "110", "airline": { "@type": "Airline", "name": "United" }, //... </script>
- 60. OPEN GRAPH
- 63. TOOLS
- 64. SCHEMA.ORG
- 65. JSON-LD.ORG
- 68. STRUCTURED DATA MARKUP HELPER https://www.google.com/webmasters/markup-helper
- 71. Semantic annotation goes a looong way • +SEO • +Mobile Rich Info • Applications we don’t even know yet
- 73. icaromedeiros.com.br • Pelican (Python) • Use ReStructuredText (rst) or Markdown • Generate static pages • Deploy to github pages easily • github.com/icaromedeiros/pelican-microdata
- 74. .. itemscope:: BusinessEvent :tag: p ! Today I have presented a talk in :itemprop:`Salvador <location>` at :itemprop:`Front in Bahia <name>`.
- 75. <p itemscope itemtype="http://schema.org/BusinessEvent"> Today I have presented a talk in <span itemprop="location">Salvador</span> at <span itemprop="name">Front in Bahia</span>. </p>
- 76. globo.com Ícaro Medeiros icaro.medeiros@gmail.com ! Semantic team semantica@corp.globo.com slides icaromedeiros.com.br slideshare.net/icaromedeiros
