Linked Data APIs (Funding Circle May 2015)
The document discusses Linked Open Data APIs and describes how they build upon the web architecture by using URIs to name things and make them accessible through HTTP, representing data using the Resource Description Framework (RDF) model, and linking representations. It provides examples of how RDF data can be queried and returned in different formats like JSON-LD and N3. The document also offers design advice for Linked Data APIs, such as using URIs instead of internal IDs and reusing existing vocabularies and ontologies.
More Related Content
Similar to Linked Data APIs (Funding Circle May 2015)
Linked Data APIs (Funding Circle May 2015)
- 1.
- 2. Linked Open Datain 1 slide 1. URIs 2. Uniform access 3. Uniform representation 4. Links

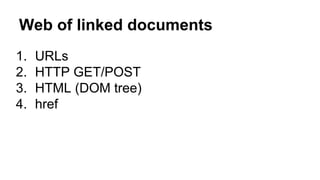

- 3. Web of linkeddocuments 1. URLs 2. HTTP GET/POST 3. HTML (DOM tree) 4. href

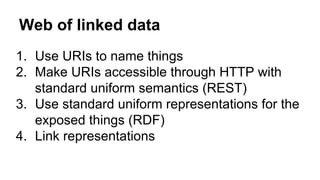

- 4. Web of linkeddata 1. Use URIs to name things 2. Make URIs accessible through HTTP with standard uniform semantics (REST) 3. Use standard uniform representations for the exposed things (RDF) 4. Link representations

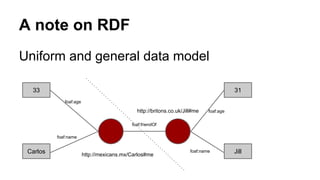

- 5. A note onRDF Uniform and general data model Carlos 33 31 Jillhttp://mexicans.mx/Carlos#me http://britons.co.uk/Jill#me foaf:friendOf foaf:age foaf:age foaf:name foaf:name

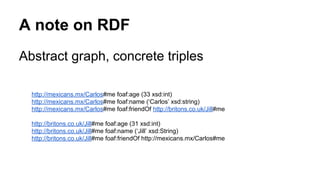

- 6. A note onRDF Abstract graph, concrete triples http://mexicans.mx/Carlos#me foaf:age (33 xsd:int) http://mexicans.mx/Carlos#me foaf:name (‘Carlos’ xsd:string) http://mexicans.mx/Carlos#me foaf:friendOf http://britons.co.uk/Jill#me http://britons.co.uk/Jill#me foaf:age (31 xsd:int) http://britons.co.uk/Jill#me foaf:name (‘Jill’ xsd:String) http://britons.co.uk/Jill#me foaf:friendOf http://mexicans.mx/Carlos#me

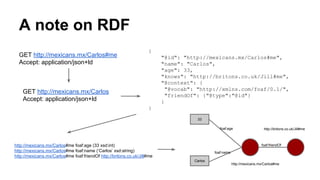

- 7. A note onRDF GET http://mexicans.mx/Carlos#me Accept: application/json+ld GET http://mexicans.mx/Carlos Accept: application/json+ld { "@id": "http://mexicans.mx/Carlos#me", "name": "Carlos", "age": 33, "knows": "http://britons.co.uk/Jill#me", "@context": { "@vocab": "http://xmlns.com/foaf/0.1/", "friendOf": {"@type":"@id"} } } http://mexicans.mx/Carlos#me foaf:age (33 xsd:int) http://mexicans.mx/Carlos#me foaf:name (‘Carlos’ xsd:string) http://mexicans.mx/Carlos#me foaf:friendOf http://britons.co.uk/Jill#me Carlos 33 http://mexicans.mx/Carlos#me foaf:friendOf foaf:age foaf:name http://britons.co.uk/Jill#me
- 8. A note onRDF GET http://britons.co.uk/Jill#me Accept: text/n3 GET http://britons.co.uk/Jill Accept: text/n3 <http://britons.co.uk/Jill#me> <foaf:name> “Jill” ; <foaf:age> 35^^<xsd:int> ; <foaf:friendOf> <http://mexicans.mx/Carlos#me> . http://britons.co.uk/Jill#me foaf:age (31 xsd:int) http://britons.co.uk/Jill#me foaf:name (‘Jill’ xsd:String) http://britons.co.uk/Jill#me foaf:friendOf http://mexicans.mx/Carlos#me Carlo s 33 31 http://mexicans.mx/Carlos#me http://britons.co.uk/Jill#me foaf:friendOf foaf:age foaf:age foaf:name foaf:name Jill

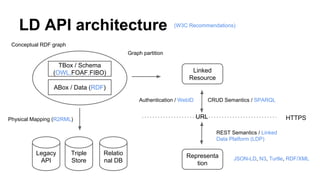

- 9. LD API architecture ABox/ Data (RDF) TBox / Schema (OWL,FOAF,FIBO) Relatio nal DB Triple Store Physical Mapping (R2RML) Conceptual RDF graph Linked Resource Graph partition HTTPS CRUD Semantics / SPARQL REST Semantics / Linked Data Platform (LDP) Representa tion JSON-LD, N3, Turtle, RDF/XML URL Legacy API Authentication / WebID (W3C Recommendations)

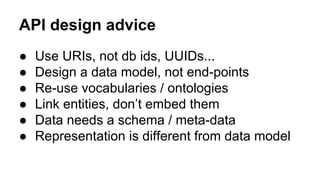

- 10. API design advice ●Use URIs, not db ids, UUIDs... ● Design a data model, not end-points ● Re-use vocabularies / ontologies ● Link entities, don’t embed them ● Data needs a schema / meta-data ● Representation is different from data model
- 11.

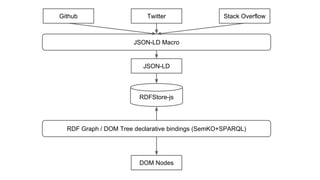

- 12. Github JSON-LD Macro RDFStore-js Stack OverflowTwitter JSON-LD DOMNodes RDF Graph / DOM Tree declarative bindings (SemKO+SPARQL)
