This document provides lighting specifications and options for various interior commercial and residential spaces. It includes lighting details like fixture types and quantities for lobbies, common rooms, a table tennis room, tennis/basketball court, badminton court/banquet hall, and gymnasium. For each space, it lists the ceiling height and proposed lighting fixtures, and provides a 3D rendering of the lighting layout.

1. INTERIOR LIGHTING

2. COMMERCIAL LOBBY
CEILING HEIGHT – 2.8M
1 Integra Neo 31
2 Track Lights 3

4. COMMERCIAL LOBBY
CEILING HEIGHT – 2.8M
3D RENDERING FALSE COLOR RENDERING

5. COMMERCIAL LIFT LOBBY
CEILING HEIGHT – 2.9M
1 Integra Neo 8
2 Track Lights 3
3 Strip Lighting 5 x 5Mtr

7. 3D RENDERING FALSE COLOR RENDERING
COMMERCIAL LIFT LOBBY
CEILING HEIGHT – 2.9M

8. COMMERCIAL SECOND FLOOR LOBBY
CEILING HEIGHT – 3M
1 Integra Neo 18

10. 3D RENDERING FALSE COLOR RENDERING
COMMERCIAL SECOND FLOOR LOBBY
CEILING HEIGHT – 3M

11. 1 Sparkle Pro 20
2 Chandelier 1
3 Hanging Light 3
RESIDENTIAL LOBBY - NE
CEILING HEIGHT – 5.7M

13. 3D RENDERING FALSE COLOR RENDERING
RESIDENTIAL LOBBY - NE
CEILING HEIGHT – 5.7M

14. RESIDENTIAL LOBBY - SE
CEILING HEIGHT – 5.7M 1 Sparkle Pro 25
2 Sparkle Pro
(adjustable)
5
3 Chandelier 1
4 Hanging Light 3

16. 3D RENDERING FALSE COLOR RENDERING
RESIDENTIAL LOBBY - SE
CEILING HEIGHT – 5.7M

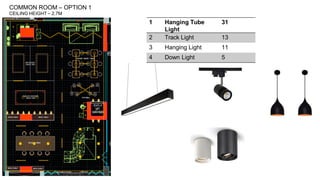

17. 1 Hanging Tube
Light
31
2 Track Light 13
3 Hanging Light 11
4 Down Light 5
COMMON ROOM – OPTION 1
CEILING HEIGHT – 2.7M

19. 3D RENDERING FALSE COLOR RENDERING
COMMON ROOM – OPTION 1
CEILING HEIGHT – 2.7M

20. COMMON ROOM – OPTION 2
CEILING HEIGHT – 2.7M 1 Hanging Tube Light
4ft
15
2 Hanging Tube Light 2ft 32
3 Track Light 13
4 Hanging Light 12
5 Down Light 5

22. 3D RENDERING FALSE COLOR RENDERING
COMMON ROOM – OPTION 2
CEILING HEIGHT – 2.7M

23. TABLE TENNIS ROOM
CEILING HEIGHT – 2.4M
1 Integra Neo 23
2 Track Lights 4

25. 3D RENDERING FALSE COLOR RENDERING
TABLE TENNIS ROOM
CEILING HEIGHT – 2.4M

26. TENNIS/BASKETBALL COURT
CEILING HEIGHT – 8.5M
1 Baybrite Flare 24
2 Hanging Tube
Lights
(Option 2 )
24

28. 3D RENDERING FALSE COLOR RENDERING
TABLE TENNIS ROOM
CEILING HEIGHT – 2.4M

29. BADMINTON COURT / BANQUET HALL – OPTION 1
CEILING HEIGHT – 7M
1 Baybrite Flare 12
2 Track Lights 108

31. 3D RENDERING FALSE COLOR RENDERING
BADMINTON COURT / BANQUET HALL – OPTION 1
CEILING HEIGHT – 7M

32. BADMINTON COURT / BANQUET HALL – OPTION 2
CEILING HEIGHT – 7M
1 Baybrite Flare 24

34. 3D RENDERING FALSE COLOR RENDERING
BADMINTON COURT / BANQUET HALL – OPTION 2
CEILING HEIGHT – 7M

35. BADMINTON COURT / BANQUET HALL – OPTION 3
CEILING HEIGHT – 7M
1 Hanging Tube
Light
4ft
72

37. 3D RENDERING FALSE COLOR RENDERING
BADMINTON COURT / BANQUET HALL – OPTION 3
CEILING HEIGHT – 7M

38. GYMNASIUM
CEILING HEIGHT – 5.6M
1 Hanging Tube
Lights
14
2 Hanging Lights 8
3 Neon Light 5

40. 3D RENDERING FALSE COLOR RENDERING
GYMNASIUM
CEILING HEIGHT – 5.6M
