PORTFOLIO Architecture | Interior Design By: Mohannad A.ullah

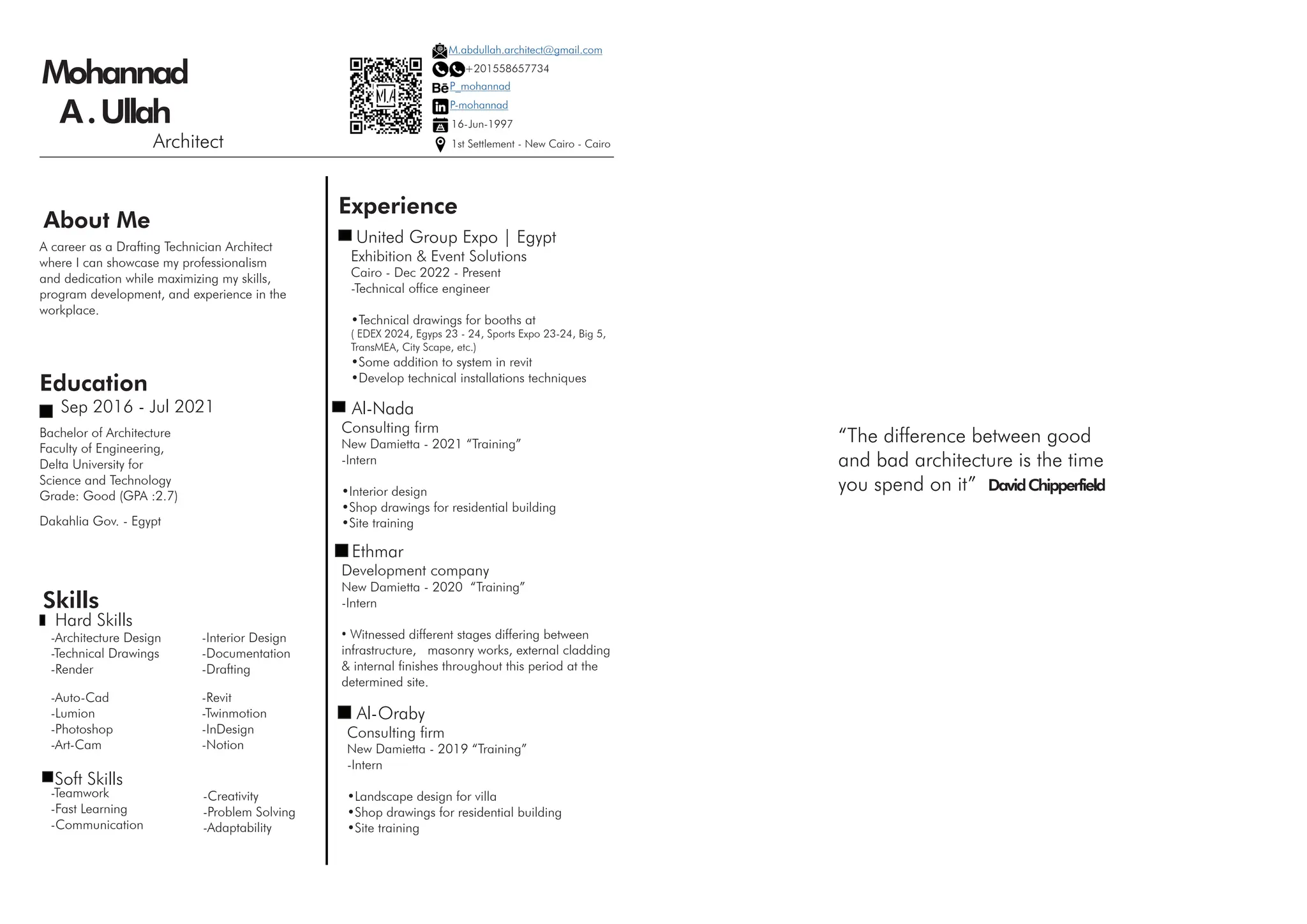

Mohannad A.Ullah Architect “The difference between good and bad architecture is the time you spend on it” DavidChipperfield M.abdullah.architect@gmail.com P-mohannad +201558657734 P_mohannad 16-Jun-1997 1st Settlement - New Cairo - Cairo Education Sep 2016 - Jul 2021 Bachelor of Architecture Faculty of Engineering, Delta University for Science and Technology Grade: Good (GPA :2.7) Dakahlia Gov. - Egypt -Interior Design -Documentation -Drafting Hard Skills Soft Skills Skills -Architecture Design -Technical Drawings -Render -Auto-Cad -Lumion -Photoshop -Art-Cam -Teamwork -Fast Learning -Communication -Revit -Twinmotion -InDesign -Notion -Creativity -Problem Solving -Adaptability Experience Al-Nada Consulting firm New Damietta - 2021 “Training” -Intern •Interior design •Shop drawings for residential building •Site training United Group Expo | Egypt Exhibition & Event Solutions Cairo - Dec 2022 - Present -Technical office engineer •Technical drawings for booths at ( EDEX 2024, Egyps 23 - 24, Sports Expo 23-24, Big 5, TransMEA, City Scape, etc.) •Some addition to system in revit •Develop technical installations techniques Ethmar Development company New Damietta - 2020 “Training” -Intern • Witnessed different stages differing between infrastructure, masonry works, external cladding & internal finishes throughout this period at the determined site. Al-Oraby Consulting firm New Damietta - 2019 “Training” -Intern •Landscape design for villa •Shop drawings for residential building •Site training About Me A career as a Drafting Technician Architect where I can showcase my professionalism and dedication while maximizing my skills, program development, and experience in the workplace.

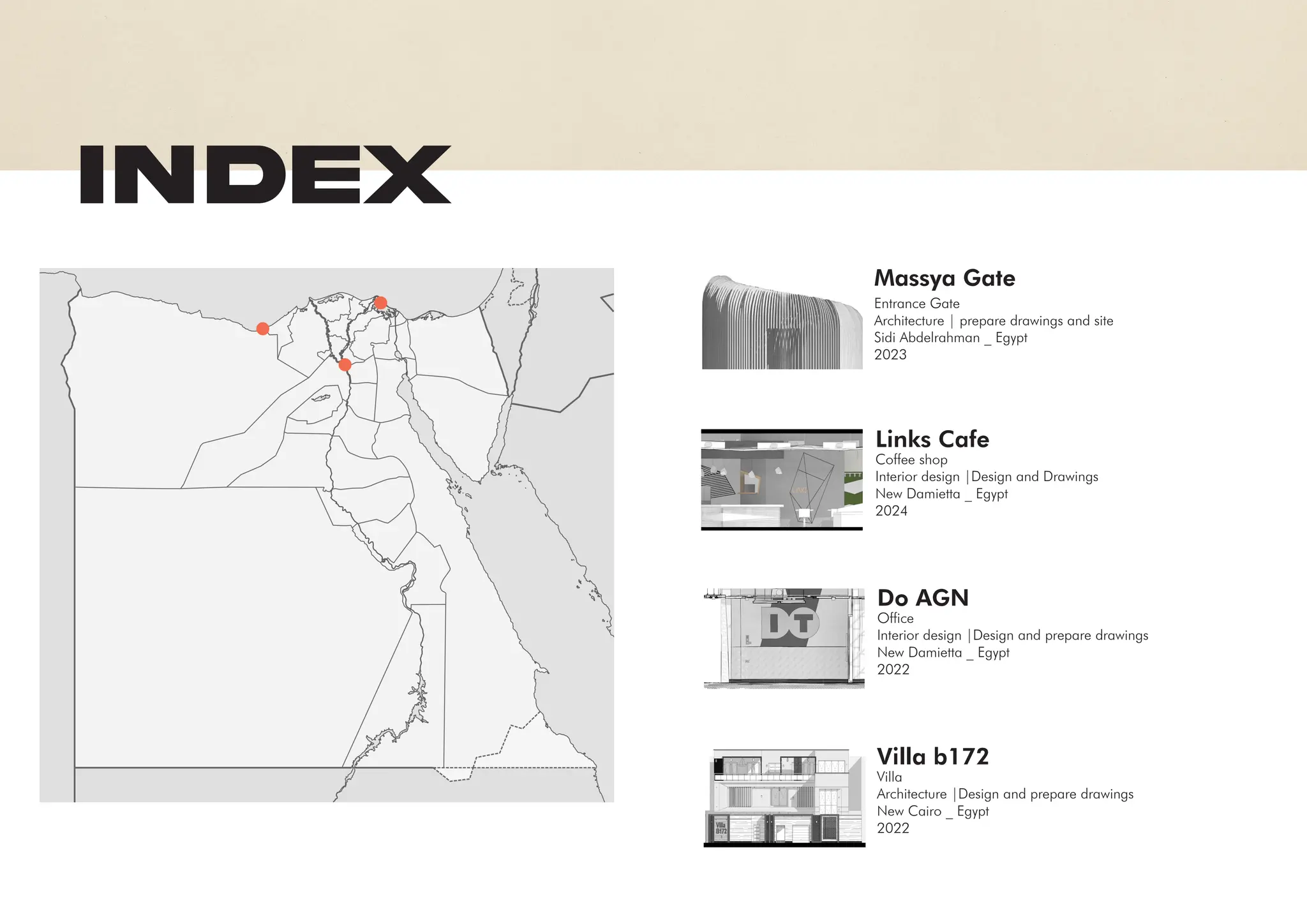

Index Links Cafe Coffee shop Interior design |Design and Drawings New Damietta _ Egypt 2024 Do AGN Office Interior design |Design and prepare drawings New Damietta _ Egypt 2022 Villa b172 Villa Architecture |Design and prepare drawings New Cairo _ Egypt 2022 Entrance Gate Architecture | prepare drawings and site Sidi Abdelrahman _ Egypt 2023 Massya Gate
Massaya Gate Architecture Site | Technical Drawings Type Structure | Landmarks | Entrance gate Location Sidi Abdelrahman - Egypt Project timeline May 2023 - Jun 2023 Area 65m 2 Design By A Subsidiary of All Rights Reserved To

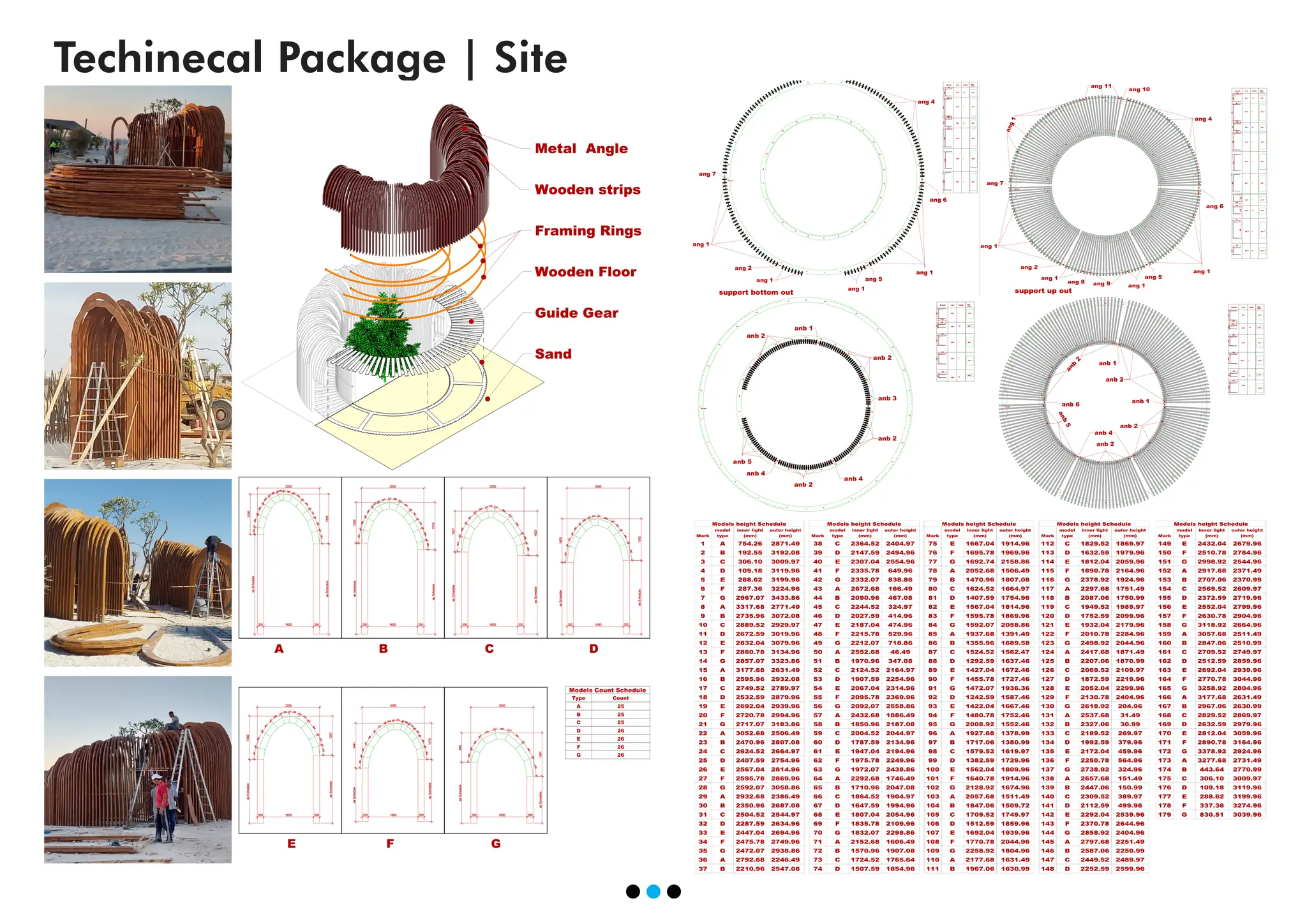

Techinecal Package | Site

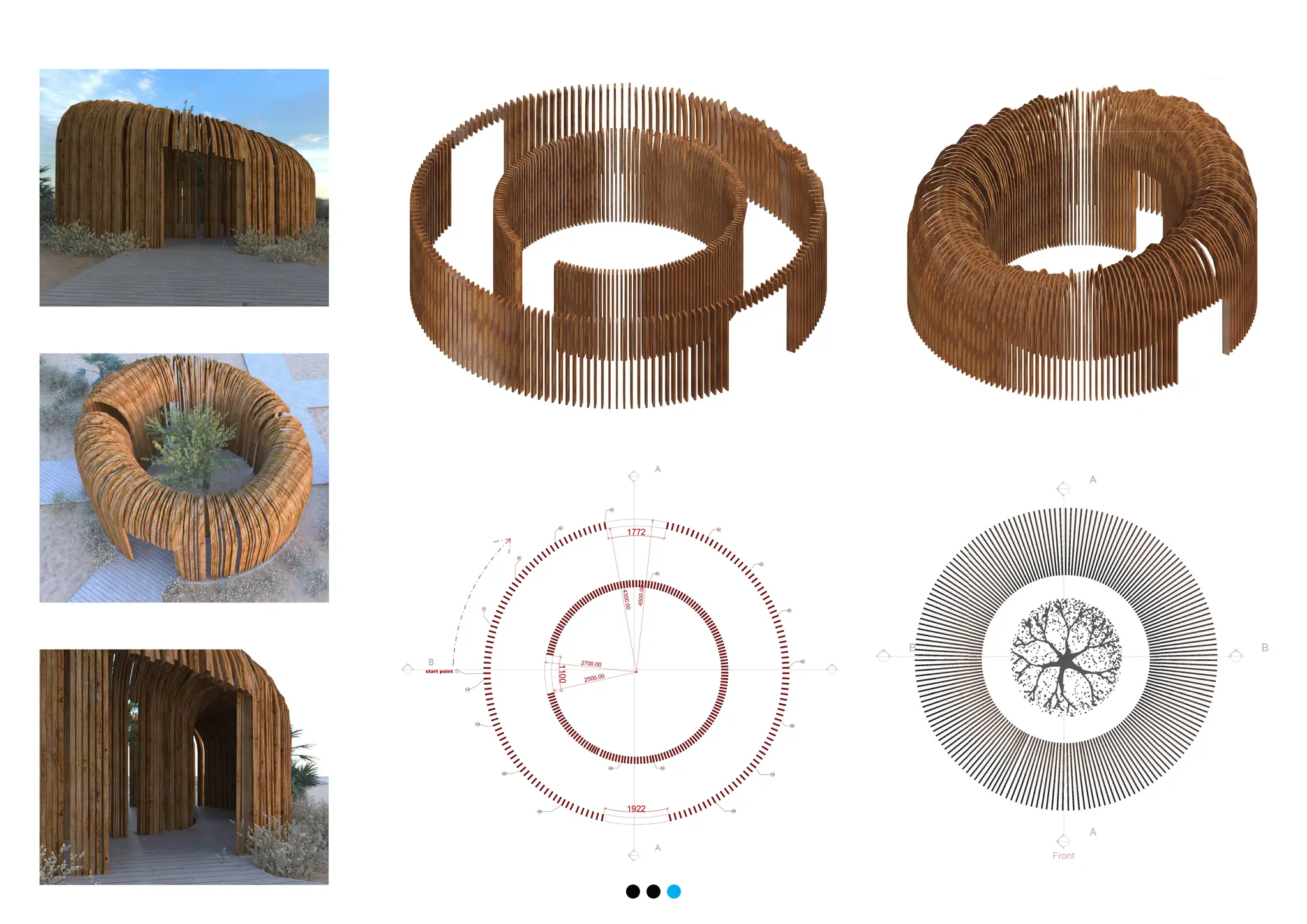

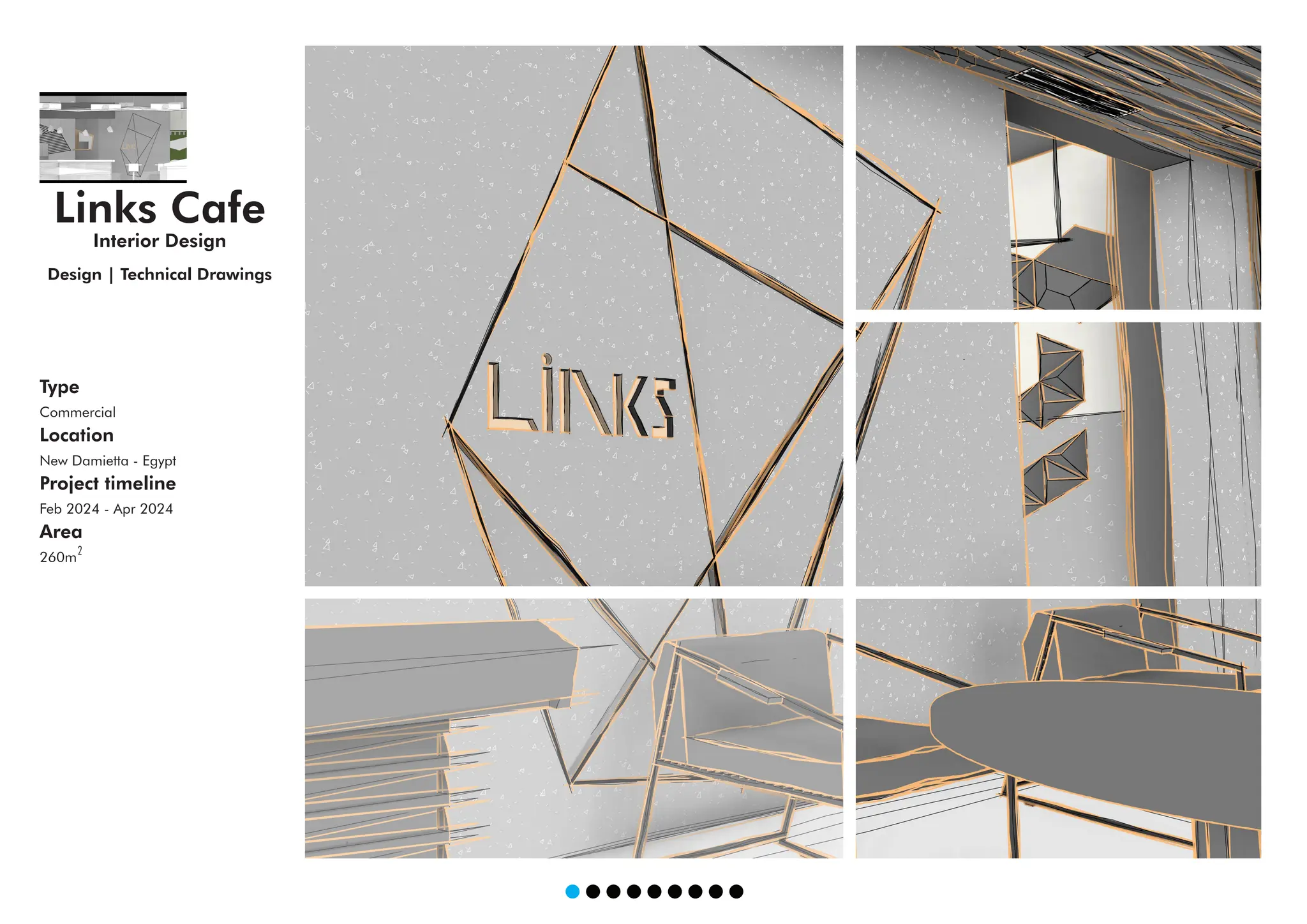

Links Cafe Interior Design Design | Technical Drawings Type Commercial Location New Damietta - Egypt Project timeline Feb 2024 - Apr 2024 Area 260m 2

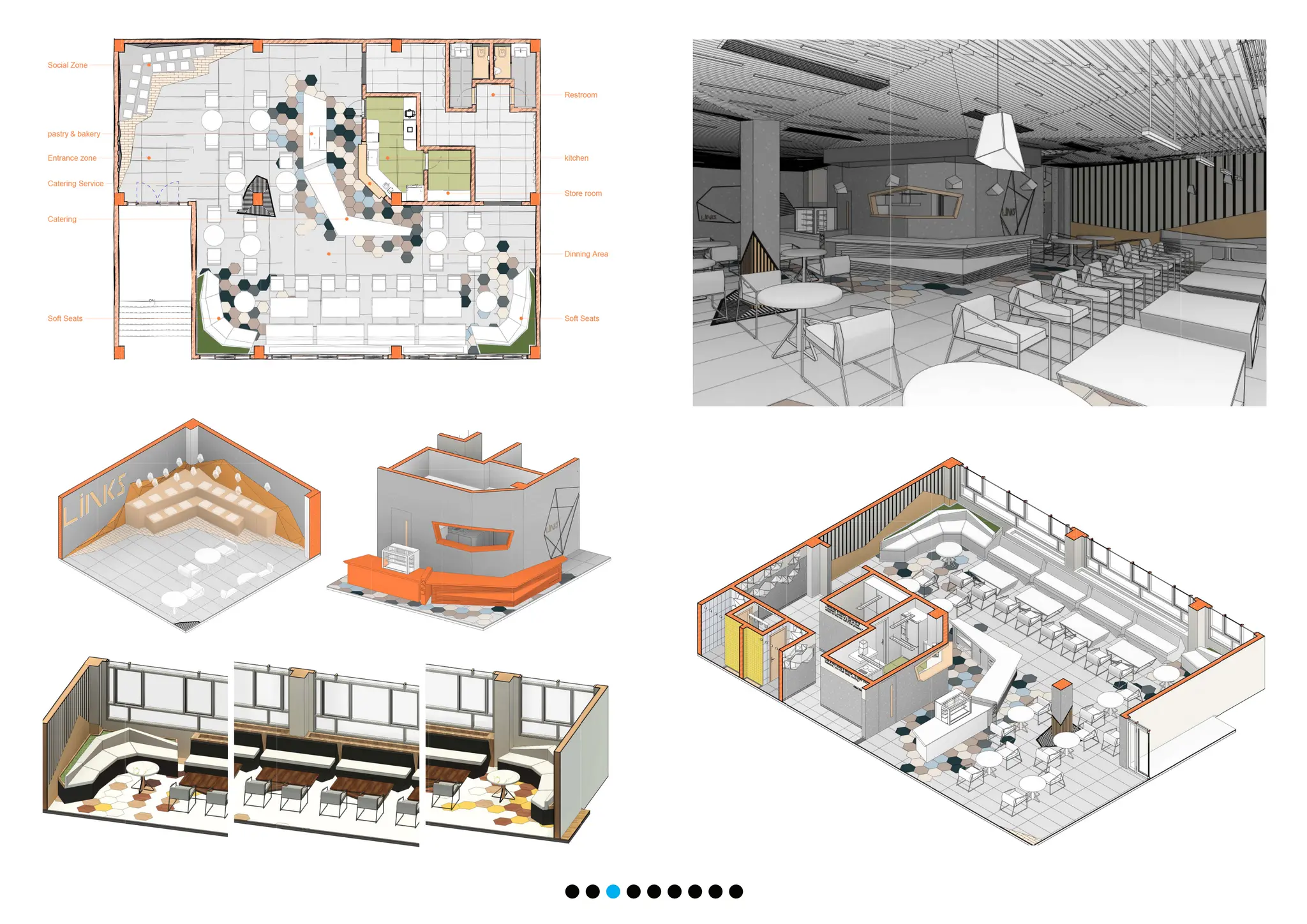

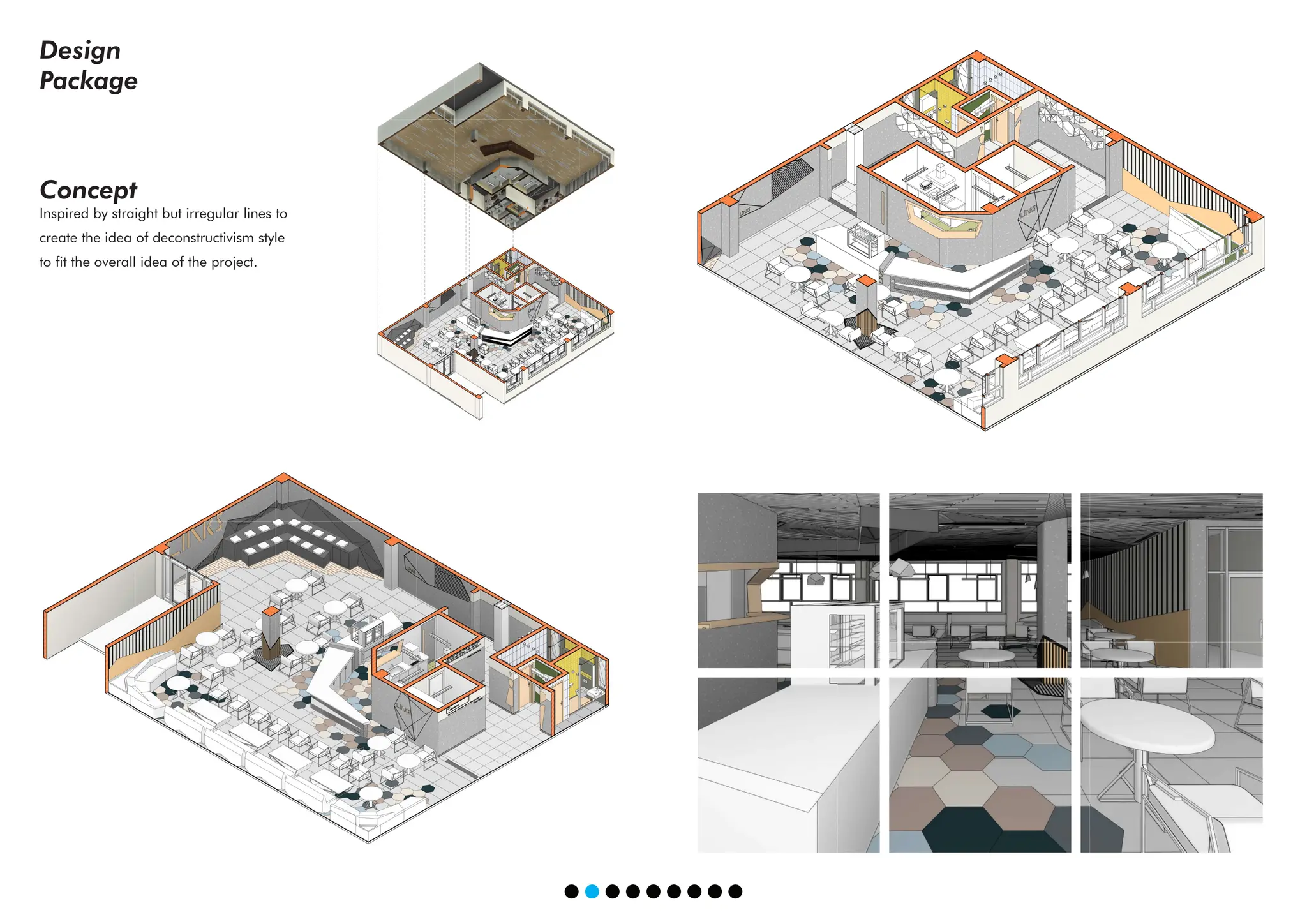

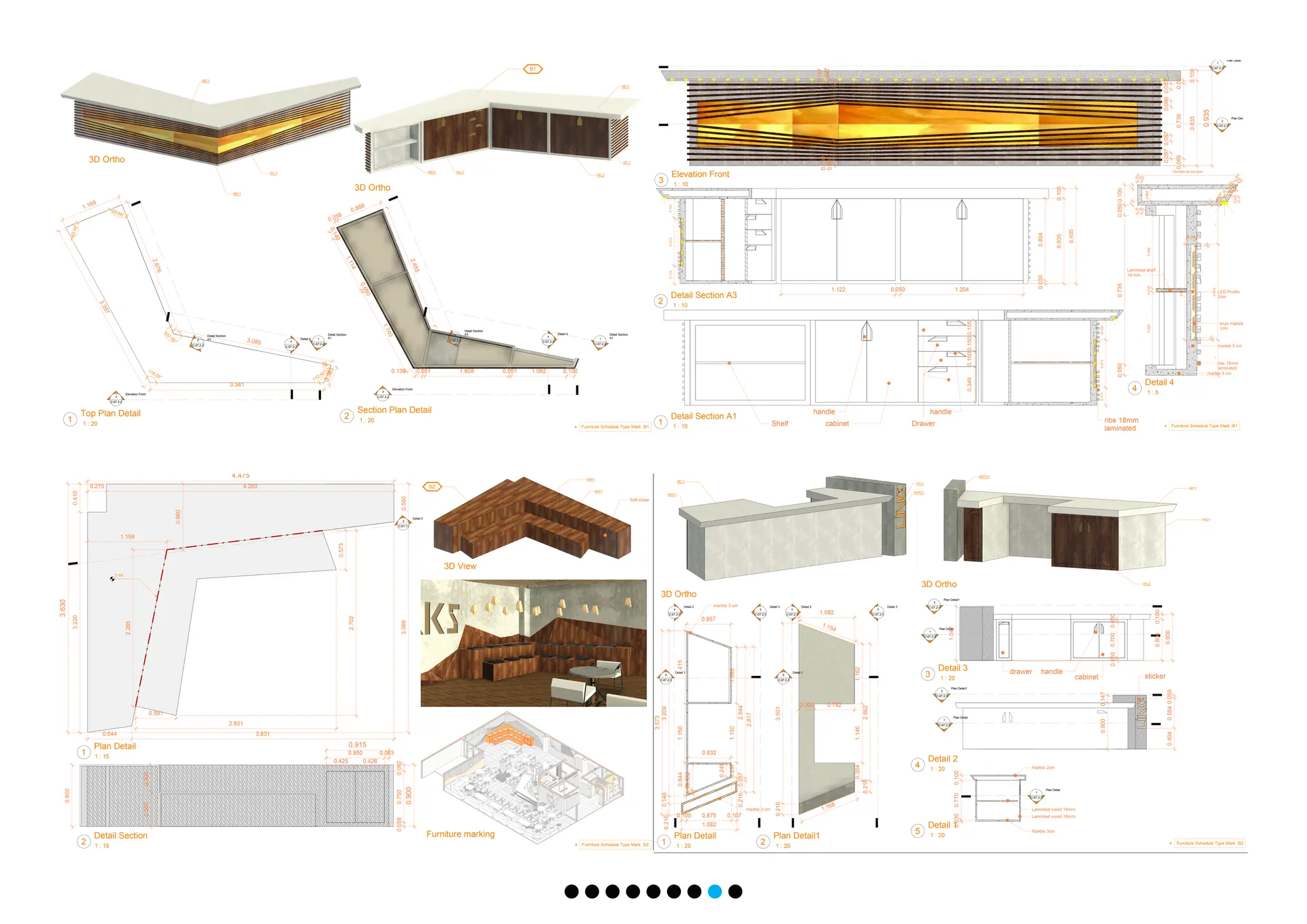

Design Package Concept Inspired by straight but irregular lines to create the idea of deconstructivism style to fit the overall idea of the project.

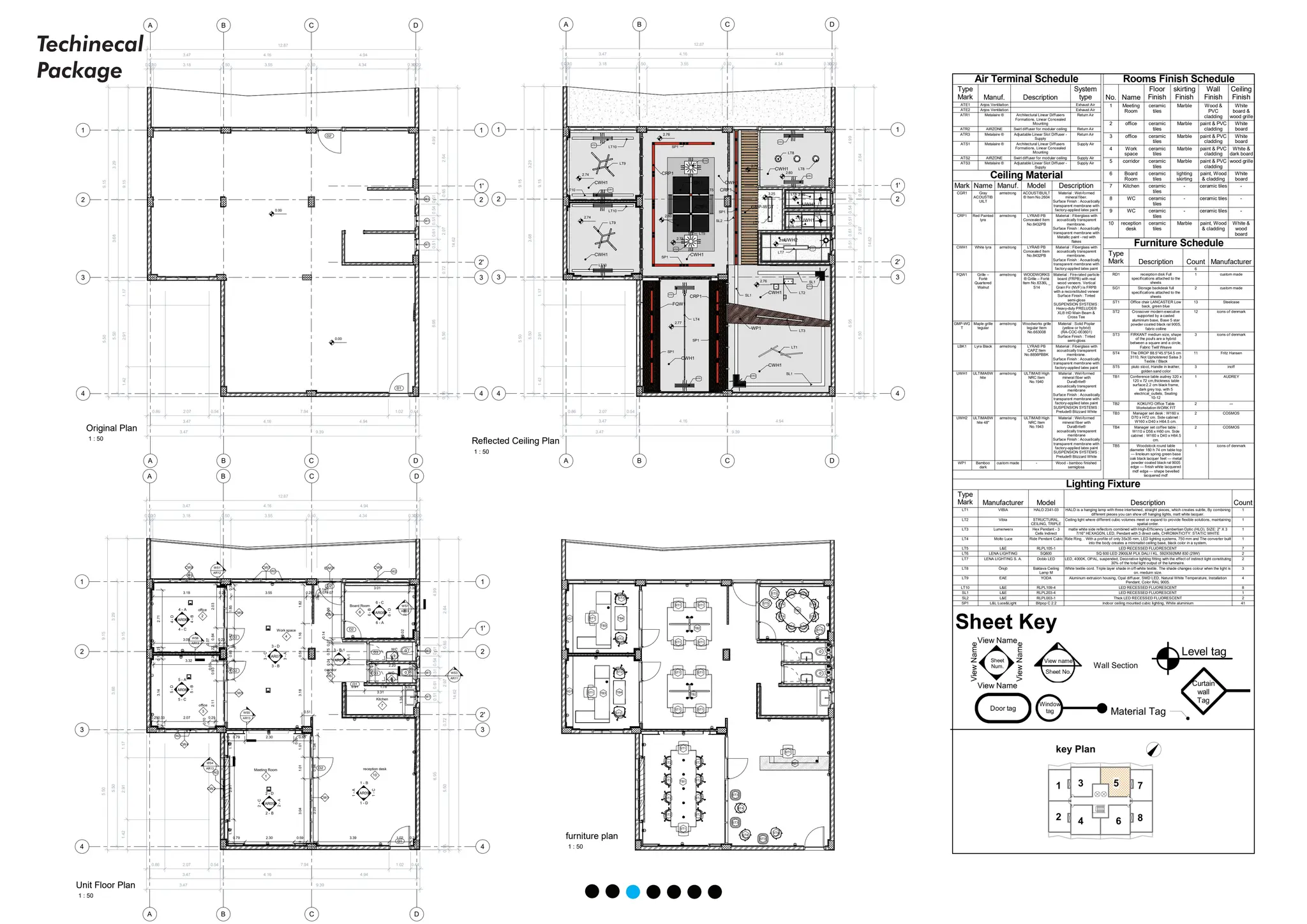

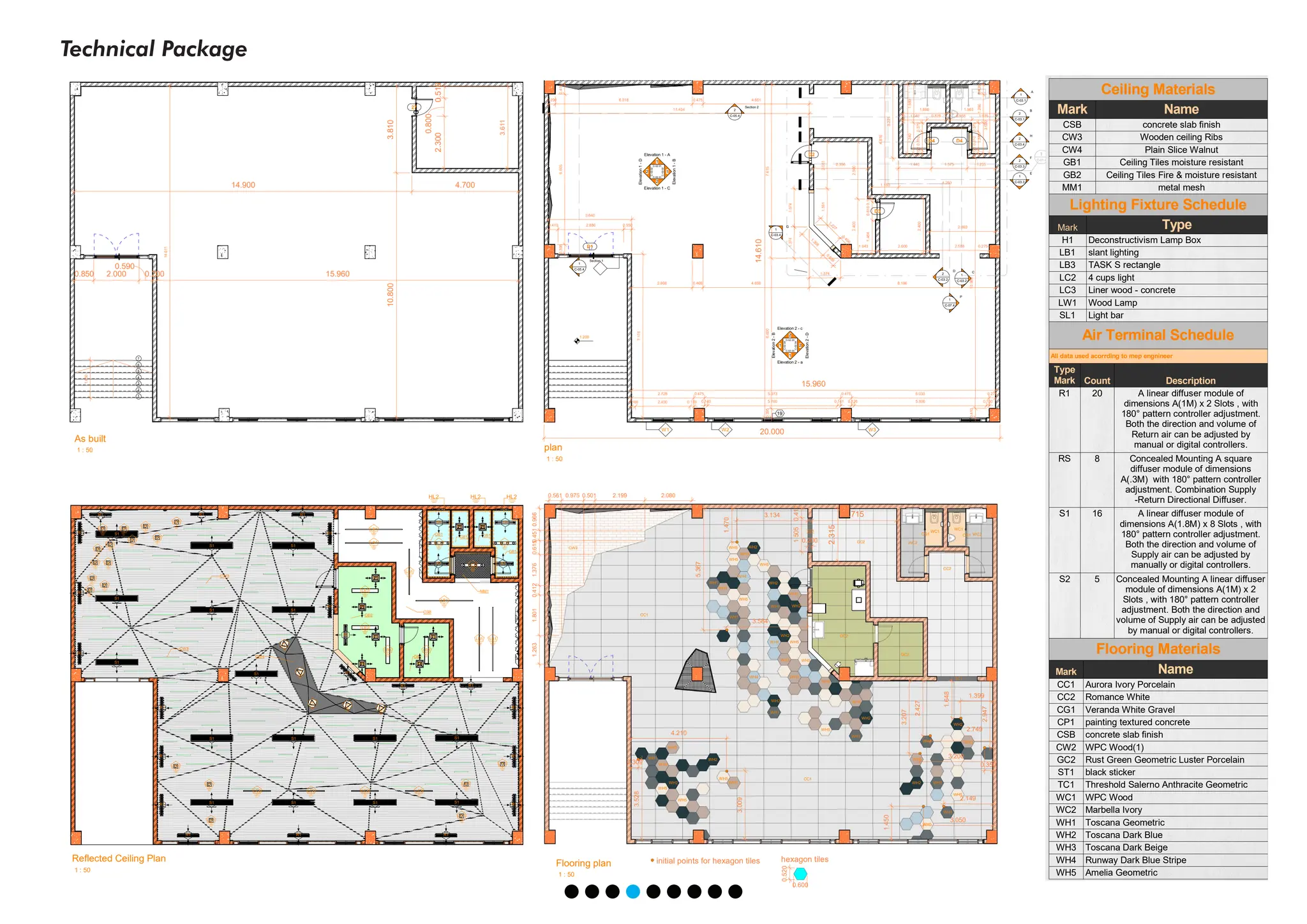

Technical Package 7 6 5 4 3 2 1 14.611 0.850 2.000 0.590 0.200 15.960 10.800 3.810 14.900 4.700 3.611 0.510 0.800 2.300 1.650 27 Notes :- Scale : 1 : 50 Date : 01/02/24 No : C-01.1 Sheet : As built Drawn By : Mohannad Rabea A.Ullah Project : Links Cafe Owner : C.L.C. Project Number : S-03 1 : 50 As built H1 H1 H1 H1 H1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LW1 LC2 LC2 LC2 LB1 LB1 LB1 LB1 LB1 LB1 LC3 LC3 LC3 LC3 LB3 LB3 LB3 LB3 CW3 MM1 CSB GB2 CW3 CW4 GB1 GB1 GB1 GB1 GB2 HL2 HL2 HL2 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S2 S2 S2 S2 RS RS RS RS S2 RS RS RS RS Notes :- Scale : 1 : 50 No : C-01.6 Sheet : Reflected Ceiling Plan Drawn By : Mohannad Rabea A.Ullah Project : Links Cafe Owner : C.L.C. Project Number : S-03 1 : 50 Reflected Ceiling Plan Lighting Fixture Schedule Mark Type H1 Deconstructivism Lamp Box LB1 slant lighting LB3 TASK S rectangle LC2 4 cups light LC3 Liner wood - concrete LW1 Wood Lamp SL1 Light bar All data used acorrding to mep engnineer Air Terminal Schedule Type Mark Count Description R1 20 A linear diffuser module of dimensions A(1M) x 2 Slots , with 180° pattern controller adjustment. Both the direction and volume of Return air can be adjusted by manual or digital controllers. RS 8 Concealed Mounting A square diffuser module of dimensions A(.3M) with 180° pattern controller adjustment. Combination Supply -Return Directional Diffuser. S1 16 A linear diffuser module of dimensions A(1.8M) x 8 Slots , with 180° pattern controller adjustment. Both the direction and volume of Supply air can be adjusted by manually or digital controllers. S2 5 Concealed Mounting A linear diffuser module of dimensions A(1M) x 2 Slots , with 180° pattern controller adjustment. Both the direction and volume of Supply air can be adjusted by manual or digital controllers. Ceiling Materials Mark Name CSB concrete slab finish CW3 Wooden ceiling Ribs CW4 Plain Slice Walnut GB1 Ceiling Tiles moisture resistant GB2 Ceiling Tiles Fire & moisture resistant MM1 metal mesh HL2 : hidden light for ceiling as selected samples Ceiling Materials Mark Name CSB concrete slab finish CW3 Wooden ceiling Ribs CW4 Plain Slice Walnut GB1 Ceiling Tiles moisture resistant GB2 Ceiling Tiles Fire & moisture resistant MM1 metal mesh Lighting Fixture Schedule Mark Type H1 Deconstructivism Lamp Box LB1 slant lighting LB3 TASK S rectangle LC2 4 cups light LC3 Liner wood - concrete LW1 Wood Lamp SL1 Light bar All data used acorrding to mep engnineer Air Terminal Schedule Type Mark Count Description R1 20 A linear diffuser module of dimensions A(1M) x 2 Slots , with 180° pattern controller adjustment. Both the direction and volume of Return air can be adjusted by manual or digital controllers. RS 8 Concealed Mounting A square diffuser module of dimensions A(.3M) with 180° pattern controller adjustment. Combination Supply -Return Directional Diffuser. S1 16 A linear diffuser module of dimensions A(1.8M) x 8 Slots , with 180° pattern controller adjustment. Both the direction and volume of Supply air can be adjusted by manually or digital controllers. S2 5 Concealed Mounting A linear diffuser module of dimensions A(1M) x 2 Slots , with 180° pattern controller adjustment. Both the direction and volume of Supply air can be adjusted by manual or digital controllers. Flooring Materials Mark Name CC1 Aurora Ivory Porcelain CC2 Romance White CG1 Veranda White Gravel CP1 painting textured concrete CSB concrete slab finish CW2 WPC Wood(1) GC2 Rust Green Geometric Luster Porcelain ST1 black sticker TC1 Threshold Salerno Anthracite Geometric WC1 WPC Wood WC2 Marbella Ivory WH1 Toscana Geometric WH2 Toscana Dark Blue WH3 Toscana Dark Beige WH4 Runway Dark Blue Stripe WH5 Amelia Geometric 20.000 15.010 15.960 2.728 0.475 5.973 0.475 6.033 0.275 7.170 3.640 0.410 2.880 0.350 0.416 6.605 0.395 0.290 6.018 0.475 4.651 11.434 2.668 0.468 4.658 8.166 1.374 1.674 1 . 3 0 6 0 . 6 3 8 0.395 6.600 7.615 1.374 3.221 2.863 2.588 0.275 10.980 0.410 1.440 1.575 1.235 2.400 2.000 0.126 0.810 1.464 2.356 1.591 2.051 1.043 1 . 2 2 7 0 . 4 5 6 2.400 2.500 1.160 4.250 4.816 1.868 1.983 1.040 0.828 1.680 1.340 3.020 0.958 1.035 3.020 0.420 1.260 1.340 0.379 0.810 0.152 0.379 0.810 0.152 14.610 1 Elevation 1 - A C-02.01 2 Elevation 1 - D C-02.02 2 Elevation 1 - C C-02.01 1 Elevation 2 - a C-02.03 2 Elevation 2 - D C-02.04 1 Elevation 2 - B C-02.04 2 Elevation 2 - c C-02.03 1 C-03.1 A 2 C-03.1 B 1 C-03.2 C 2 C-03.2 D 1 C-03.3 E 1 C-01.4 1.200 D3 D4 D4 D1 19 W1 W2 W3 1 Elevation 1 - B C-02.02 0.160 2.400 0.176 0.140 5.700 0.141 0.126 5.800 0.130 1 C-03.4 G 2 C-03.3 F 2 C-03.4 H 1 C-07.4 P D2 1 C-05.4 Section 1 2 C-05.4 Section 2 1 : 50 plan WH5 WH2 WH4 WH1 WH2 0.561 0.975 0.501 2.199 2.080 1.263 1.801 0.412 1.376 0.615 0.451 0.966 1.399 1.648 3.528 0.309 3.009 4.210 1.450 3.050 2.149 2.427 2.749 3.200 3.207 1.470 3.134 5.367 3.584 CW2 WH3 WH3 WH2 WH4 WH3 WH1 WH2 WH5 WH2 WH3 WH5 CC2 WC2 WC1 CG1 CG1 WC1 WC2 CC2 GC2 GC2 1.505 0.411 0.200 2.947 0.350 initial points for hexagon tiles 0.520 0.600 hexagon tiles TC1 2.315 3.715 CC1 CC1 TC1 WH1 WH3 WH5 WH5 WH3 WH1 WH2 WH5 WH2 WH1 WH3 WH3 WH3 WH3 WH1 WH2 WH3 WH5 WH1 WH5 WH2 WH1 WH3 WH2 WH5 WH5 WH4 WH5 WH1 WH5 Notes :- Scale : 1 : 50 No : C-01.7 Sheet : Flooring Plan Drawn By : Mohannad Rabea A.Ullah Project : Links Cafe 1 : 50 Flooring plan Flooring Materials Mark Name CC1 Aurora Ivory Porcelain CC2 Romance White CG1 Veranda White Gravel CP1 painting textured concrete CSB concrete slab finish CW2 WPC Wood(1) GC2 Rust Green Geometric Luster Porcelain ST1 black sticker TC1 Threshold Salerno Anthracite Geometric WC1 WPC Wood WC2 Marbella Ivory WH1 Toscana Geometric WH2 Toscana Dark Blue WH3 Toscana Dark Beige WH4 Runway Dark Blue Stripe WH5 Amelia Geometric

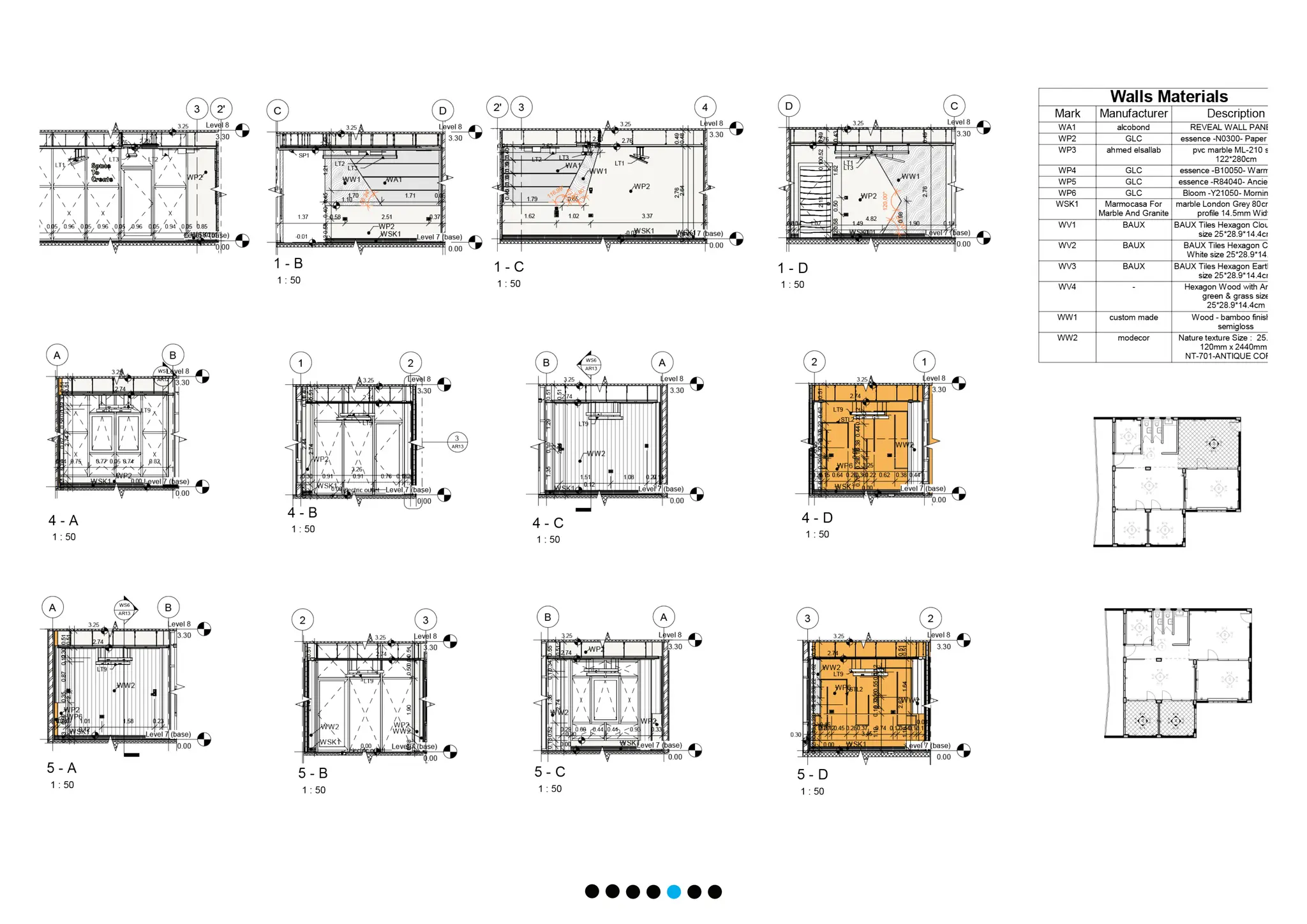

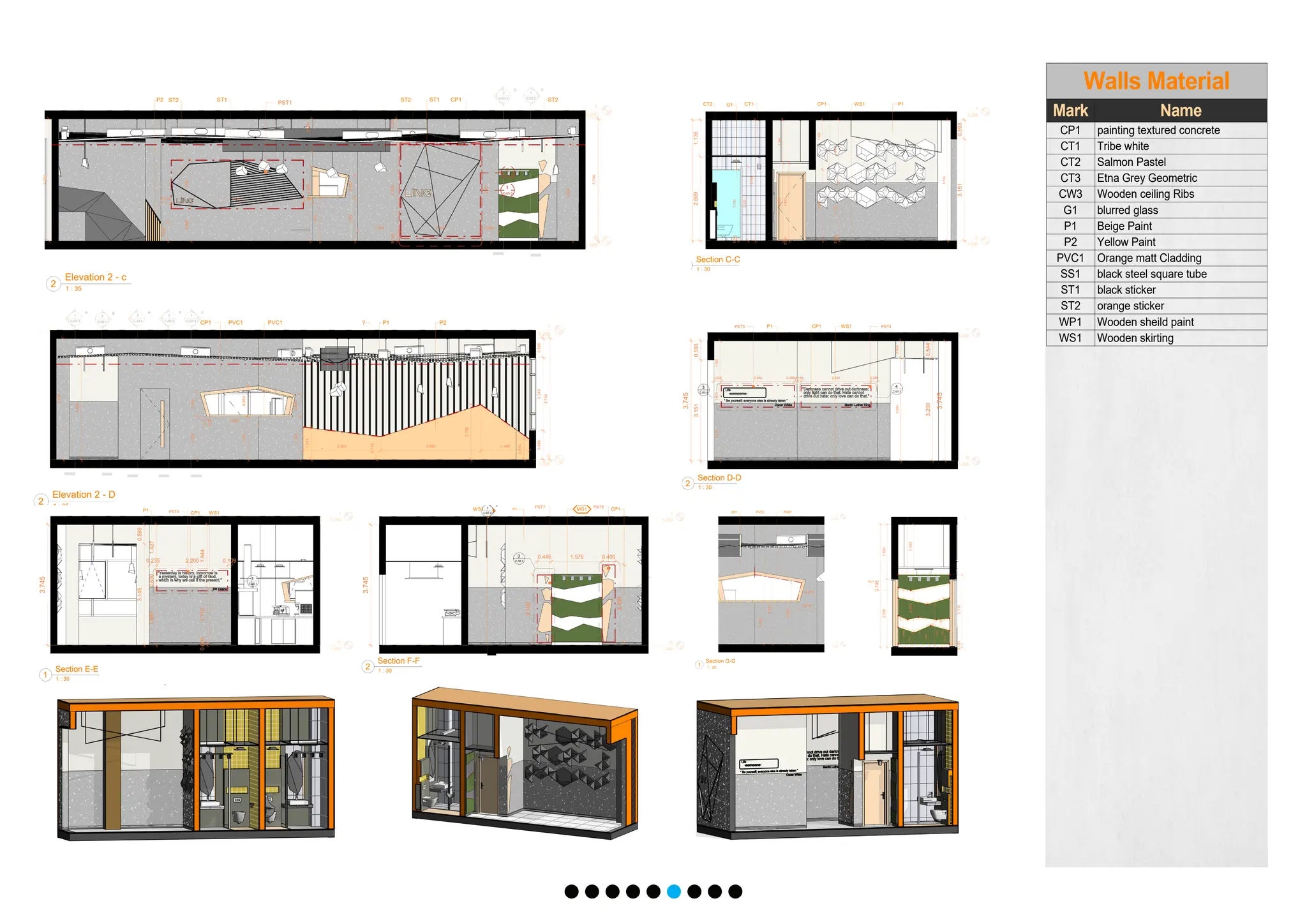

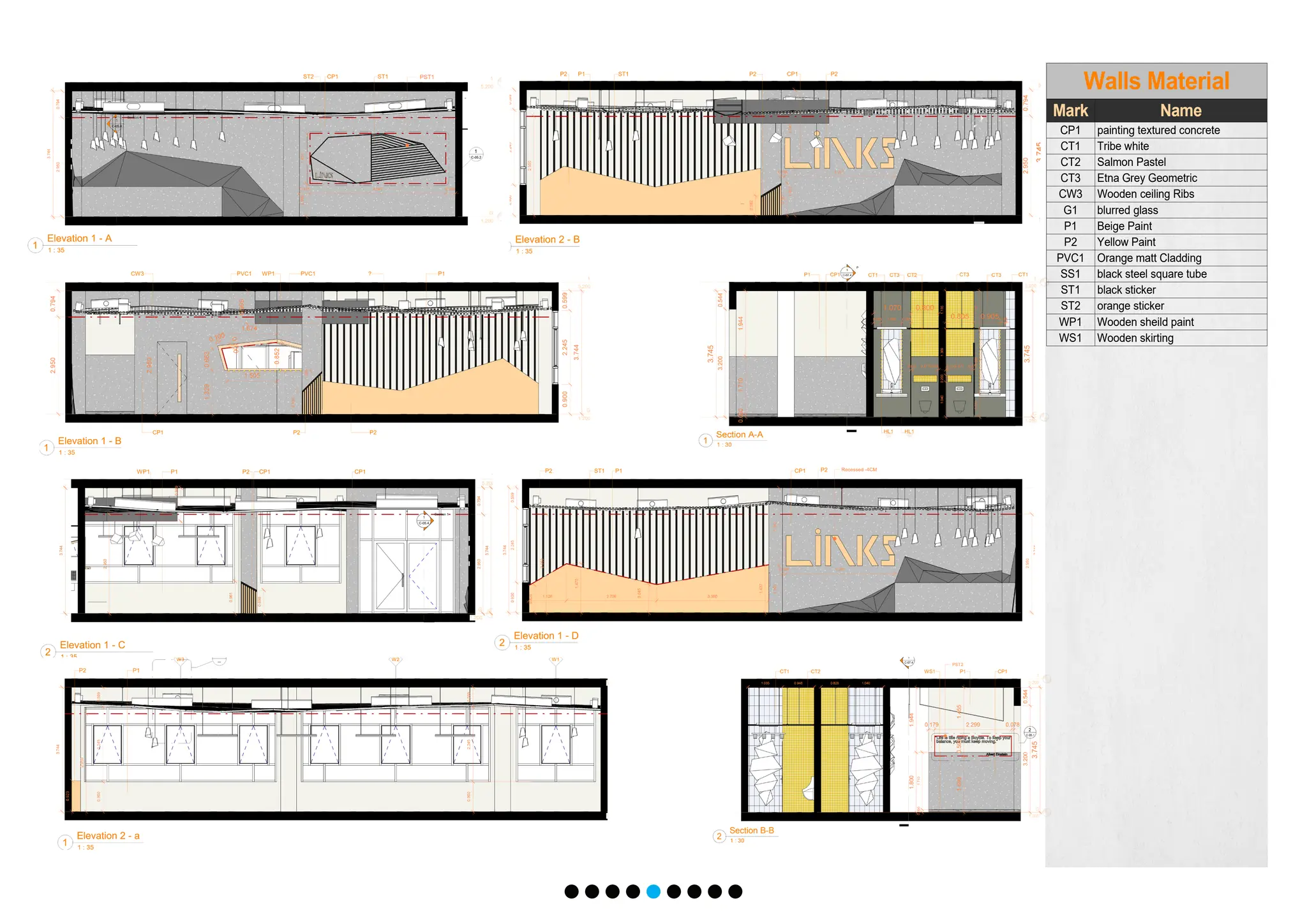

Walls Material Mark Name CP1 painting textured concrete CT1 Tribe white CT2 Salmon Pastel CT3 Etna Grey Geometric CW3 Wooden ceiling Ribs G1 blurred glass P1 Beige Paint P2 Yellow Paint PVC1 Orange matt Cladding SS1 black steel square tube ST1 black sticker ST2 orange sticker WP1 Wooden sheild paint WS1 Wooden skirting
Walls Material Mark Name CP1 painting textured concrete CT1 Tribe white CT2 Salmon Pastel CT3 Etna Grey Geometric CW3 Wooden ceiling Ribs G1 blurred glass P1 Beige Paint P2 Yellow Paint PVC1 Orange matt Cladding SS1 black steel square tube ST1 black sticker ST2 orange sticker WP1 Wooden sheild paint WS1 Wooden skirting

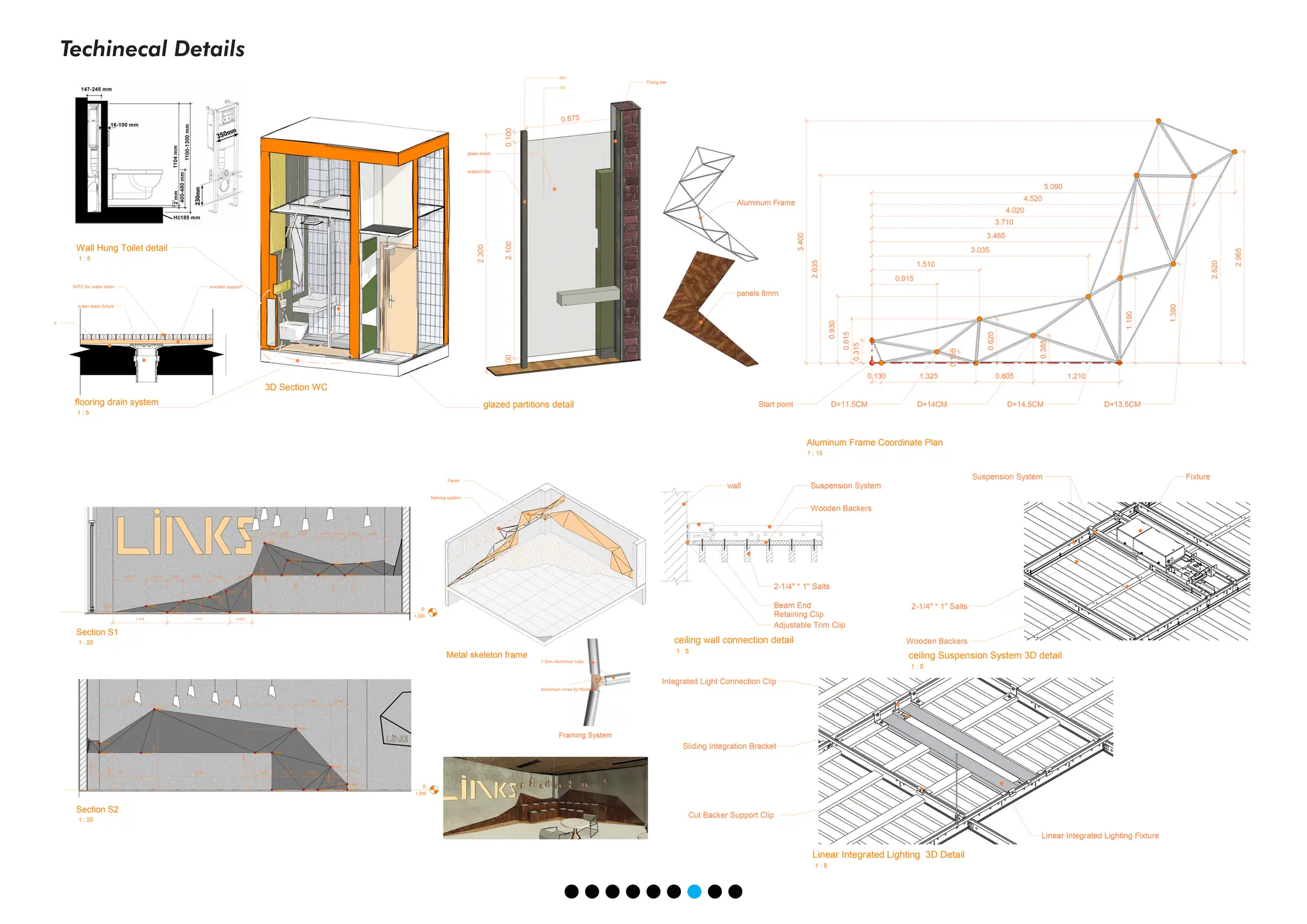

Techinecal Details

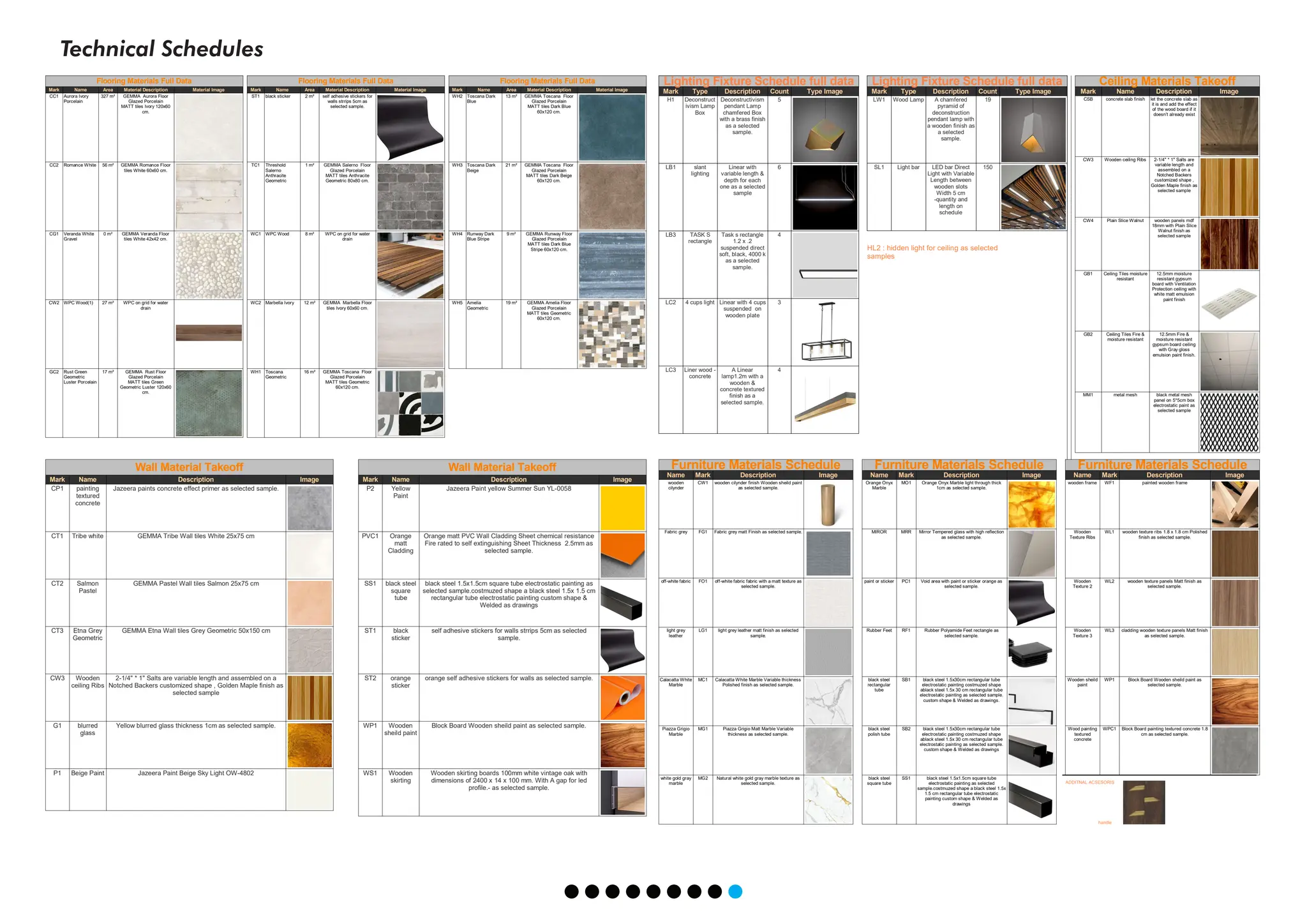

Technical Schedules Flooring Materials Full Data Mark Name Area Material Description Material Image CC1 Aurora Ivory Porcelain 327 m² GEMMA Aurora Floor Glazed Porcelain MATT tiles Ivory 120x60 cm. CC2 Romance White 56 m² GEMMA Romance Floor tiles White 60x60 cm. CG1 Veranda White Gravel 0 m² GEMMA Veranda Floor tiles White 42x42 cm. CW2 WPC Wood(1) 27 m² WPC on grid for water drain GC2 Rust Green Geometric Luster Porcelain 17 m² GEMMA Rust Floor Glazed Porcelain MATT tiles Green Geometric Luster 120x60 cm. Flooring Materials Full Data Mark Name Area Material Description Material Image ST1 black sticker 2 m² self adhesive stickers for walls strrips 5cm as selected sample. TC1 Threshold Salerno Anthracite Geometric 1 m² GEMMA Salerno Floor Glazed Porcelain MATT tiles Anthracite Geometric 80x80 cm. WC1 WPC Wood 8 m² WPC on grid for water drain WC2 Marbella Ivory 12 m² GEMMA Marbella Floor tiles Ivory 60x60 cm. WH1 Toscana Geometric 16 m² GEMMA Toscana Floor Glazed Porcelain MATT tiles Geometric 60x120 cm. Flooring Materials Full Data Mark Name Area Material Description Material Image WH2 Toscana Dark Blue 13 m² GEMMA Toscana Floor Glazed Porcelain MATT tiles Dark Blue 60x120 cm. WH3 Toscana Dark Beige 21 m² GEMMA Toscana Floor Glazed Porcelain MATT tiles Dark Beige 60x120 cm. WH4 Runway Dark Blue Stripe 9 m² GEMMA Runway Floor Glazed Porcelain MATT tiles Dark Blue Stripe 60x120 cm. WH5 Amelia Geometric 19 m² GEMMA Amelia Floor Glazed Porcelain MATT tiles Geometric 60x120 cm. Lighting Fixture Schedule full data Mark Type Description Count Type Image H1 Deconstruct ivism Lamp Box Deconstructivism pendant Lamp chamfered Box with a brass finish as a selected sample. 5 LB1 slant lighting Linear with variable length & depth for each one as a selected sample 6 LB3 TASK S rectangle Task s rectangle 1.2 x .2 suspended direct soft, black, 4000 k as a selected sample. 4 LC2 4 cups light Linear with 4 cups suspended on wooden plate 3 LC3 Liner wood - concrete A Linear lamp1.2m with a wooden & concrete textured finish as a selected sample. 4 Ceiling Materials Takeoff Mark Name Description Image CSB concrete slab finish let the concrete slab as it is and add the effect of the wood board if it doesn't already exist CW3 Wooden ceiling Ribs 2-1/4" * 1" Salts are variable length and assembled on a Notched Backers customized shape , Golden Maple finish as selected sample CW4 Plain Slice Walnut wooden panels mdf 18mm with Plain Slice Walnut finish as selected sample GB1 Ceiling Tiles moisture resistant 12.5mm moisture resistant gypsum board with Ventilation Protection ceiling with white matt emulsion paint finish GB2 Ceiling Tiles Fire & moisture resistant 12.5mm Fire & moisture resistant gypsum board ceiling with Gray gloss emulsion paint finish. MM1 metal mesh black metal mesh panel on 5*5cm box electrostatic paint as selected sample Lighting Fixture Schedule full data Mark Type Description Count Type Image LW1 Wood Lamp A chamfered pyramid of deconstruction pendant lamp with a wooden finish as a selected sample. 19 SL1 Light bar LED bar Direct Light with Variable Length between wooden slots Width 5 cm -quantity and length on schedule 150 HL2 : hidden light for ceiling as selected samples Wall Material Takeoff Mark Name Description Image CP1 painting textured concrete Jazeera paints concrete effect primer as selected sample. CT1 Tribe white GEMMA Tribe Wall tiles White 25x75 cm CT2 Salmon Pastel GEMMA Pastel Wall tiles Salmon 25x75 cm CT3 Etna Grey Geometric GEMMA Etna Wall tiles Grey Geometric 50x150 cm CW3 Wooden ceiling Ribs 2-1/4" * 1" Salts are variable length and assembled on a Notched Backers customized shape , Golden Maple finish as selected sample G1 blurred glass Yellow blurred glass thickness 1cm as selected sample. P1 Beige Paint Jazeera Paint Beige Sky Light OW-4802 Wall Material Takeoff Mark Name Description Image P2 Yellow Paint Jazeera Paint yellow Summer Sun YL-0058 PVC1 Orange matt Cladding Orange matt PVC Wall Cladding Sheet chemical resistance Fire rated to self extinguishing Sheet Thickness 2.5mm as selected sample. SS1 black steel square tube black steel 1.5x1.5cm square tube electrostatic painting as selected sample.costmuzed shape a black steel 1.5x 1.5 cm rectangular tube electrostatic painting custom shape & Welded as drawings ST1 black sticker self adhesive stickers for walls strrips 5cm as selected sample. ST2 orange sticker orange self adhesive stickers for walls as selected sample. WP1 Wooden sheild paint Block Board Wooden sheild paint as selected sample. WS1 Wooden skirting Wooden skirting boards 100mm white vintage oak with dimensions of 2400 x 14 x 100 mm. With A gap for led profile.- as selected sample. Furniture Materials Schedule Name Mark Description Image wooden cilynder CW1 wooden cilynder finish Wooden sheild paint as selected sample. Fabric grey FG1 Fabric grey matt Finish as selected sample. off-white fabric FO1 off-white fabric fabric with a matt texture as selected sample. light grey leather LG1 light grey leather matt finish as selected sample. Calacatta White Marble MC1 Calacatta White Marble Variable thickness Polished finish as selected sample. Piazza Grigio Marble MG1 Piazza Grigio Matt Marble Variable thickness as selected sample. white gold gray marble MG2 Natural white gold gray marble texture as selected sample. Furniture Materials Schedule Name Mark Description Image Orange Onyx Marble MO1 Orange Onyx Marble light through thick 1cm as selected sample. MIROR MRR Mirror Tempered glass with high reflection as selected sample. paint or sticker PC1 Void area with paint or sticker orange as selected sample. Rubber Feet RF1 Rubber Polyamide Feet rectangle as selected sample. black steel rectangular tube SB1 black steel 1.5x30cm rectangular tube electrostatic painting costmuzed shape ablack steel 1.5x 30 cm rectangular tube electrostatic painting as selected sample. custom shape & Welded as drawings. black steel polish tube SB2 black steel 1.5x30cm rectangular tube electrostatic painting costmuzed shape ablack steel 1.5x 30 cm rectangular tube electrostatic painting as selected sample. custom shape & Welded as drawings black steel square tube SS1 black steel 1.5x1.5cm square tube electrostatic painting as selected sample.costmuzed shape a black steel 1.5x 1.5 cm rectangular tube electrostatic painting custom shape & Welded as drawings ADDITNAL ACSESORIS Furniture Materials Schedule Name Mark Description Image wooden frame WF1 painted wooden frame Wooden Texture Ribs WL1 wooden texture ribs 1.8 x 1.8 cm Polished finish as selected sample. Wooden Texture 2 WL2 wooden texture panels Matt finish as selected sample. Wooden Texture 3 WL3 cladding wooden texture panels Matt finish as selected sample. Wooden sheild paint WP1 Block Board Wooden sheild paint as selected sample. Wood painting textured concrete WPC1 Block Board painting textured concrete 1.8 cm as selected sample. handle

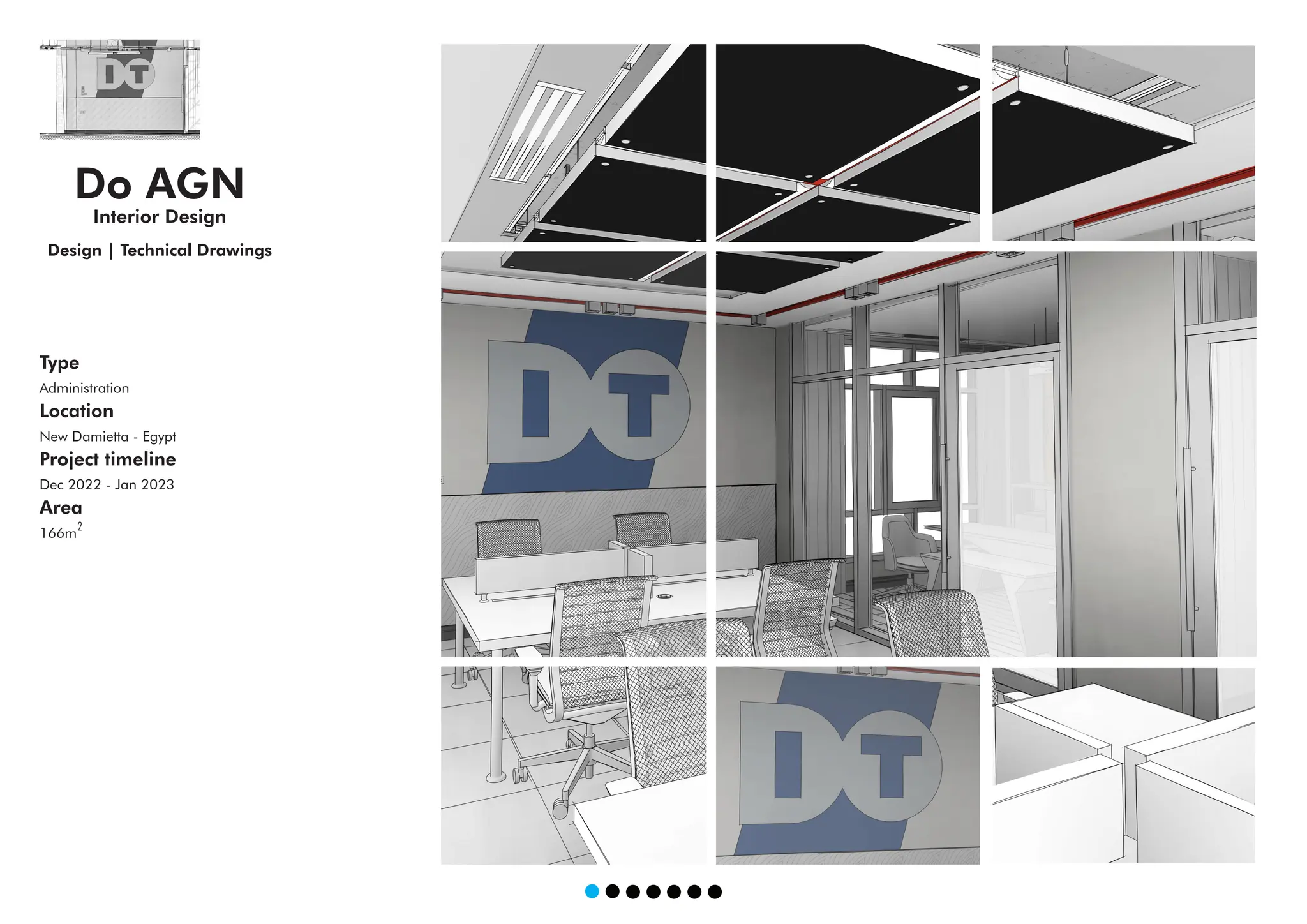

Do AGN Interior Design Design | Technical Drawings Type Administration Location New Damietta - Egypt Project timeline Dec 2022 - Jan 2023 Area 166m 2

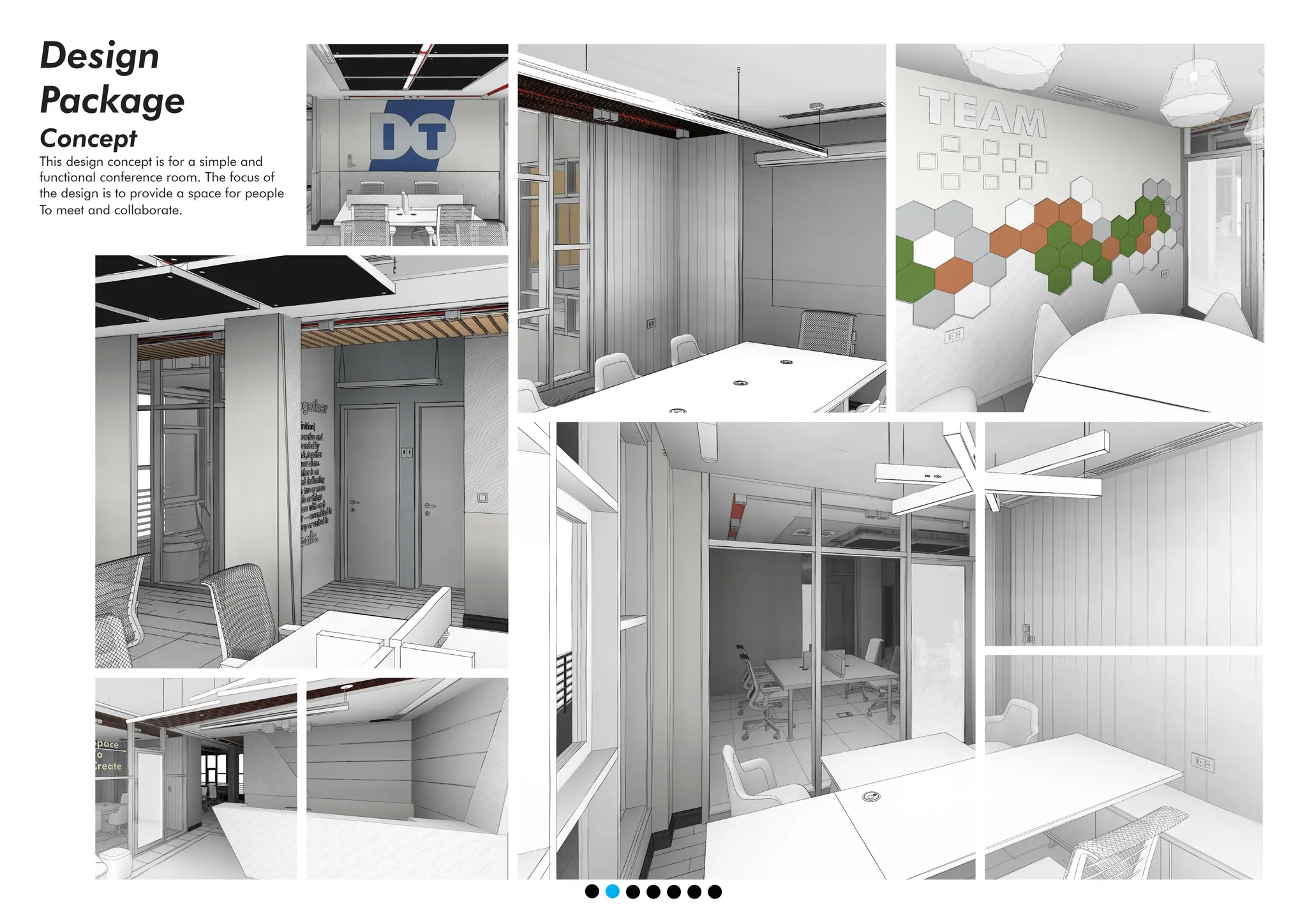

Design Package Concept This design concept is for a simple and functional conference room. The focus of the design is to provide a space for people To meet and collaborate.
1 1 2 2 3 3 4 4 A A B B C C D D 1' 2' 5.50 3.68 3.29 5.50 9.15 1.42 2.91 1.17 9.15 3.47 4.16 4.94 0.20 0.10 3.18 0.50 3.55 0.50 4.34 0.30 0.20 12.87 4.99 0.51 0.54 0.51 0.61 0.51 6.95 2.64 0.65 2.97 0.72 5.50 0.15 14.62 3.47 4.16 4.94 0.86 2.07 0.54 7.94 1.02 0.44 3.47 9.39 W1 W1 W1 D1 0.00 0.00 D2' 1 : 50 Original Plan C C C C AR09 1 - A 1 - D 1 - C 1 - B AR05 2 - A 2 - C 2 - B 2 - D AR06 4 - A 4 - B 4 - D 4 - C AR07 3 - A AR08 6 - A AR07 3 - A-1 3 - B-1 3 - C 3 - D 3 - B 6 - C 6 - B 6 - D AR06 5 - A 5 - B 5 - D 5 - C Meeting Room 1 1 1 2 2 3 3 4 4 A A B B C C D D office 2 office 3 Work space 4 corridor 5 Board Room 6 Kitchen 7 WC 8 WC 9 reception desk 10 1' 2' 5.50 3.68 3.29 5.50 9.15 1.42 2.91 1.17 9.15 3.47 4.16 4.94 0.20 0.10 3.18 0.50 3.55 0.50 4.34 0.30 0.20 12.87 4.99 0.51 0.54 0.51 0.61 0.51 6.95 2.64 0.65 2.97 0.72 5.50 0.15 14.62 3.47 4.16 4.94 0.86 2.07 0.54 7.94 1.02 0.44 3.47 9.39 1.12 2.91 1.13 0.10 3.04 1.01 1.01 0.09 0.16 0.79 2.30 0.80 0.79 2.30 0.59 3.39 1.02 0.24 1.04 0.94 3.09 0.08 0.20 1.85 0.82 0.07 0.60 0.05 0.88 0.51 3.55 0.28 3.18 0.20 3.09 0.23 0.290.33 2.07 0.29 3.32 2.71 0.21 0.11 3.14 0.17 2.03 0.84 0.07 0.22 0.10 2.11 0.93 0.05 0.22 1.82 1.16 0.51 3.18 0.80 0.24 0.75 0.07 0.14 2.66 0.05 0.14 0.071.07 3.01 0.30 2.50 0.02 0.91 1.78 0.63 3.31 1.36 0.60 0.13 0.80 0.04 2.20 W1 W1 W1 D1 D2 D2 D2 D2' D3 D3 O1 CW8 CW7 CW6 CW4 CW5 CW9 CW3 CW1 CW2 CWD1 D2 W2 W2 W2 W2 W2 WS1 AR12 WS3 AR11 WS4 AR13 WS5 AR13 WS6 AR13 WS7 AR13 1 : 50 Unit Floor Plan 1 1 2 2 3 3 4 4 A A B B C C D D 1' 2' 5.50 3.68 3.29 5.50 9.15 1.42 2.91 1.17 9.15 3.47 4.16 4.94 0.20 0.10 3.18 0.50 3.55 0.50 4.34 0.30 0.20 12.87 4.99 0.51 0.54 0.51 0.61 0.51 6.95 2.64 0.65 2.97 0.72 5.50 0.15 14.62 3.47 4.16 4.94 0.86 2.07 0.54 3.47 9.39 CWH1 CWH1 CWH1 CWH1 CWH1 GMP-WGT CWH1 CWH1 WP1 LBK1 CWH1 CRP1 CRP1 CRP1 UWH1 UWH1 UWH2 CRP1 FQW1 LT2 LT1 LT3 SL1 SL1 SL1 LT4 SP1 SP1 SP1 SP1 SL2 LT5 LT5 LT6 LT6 LT7 LT7 LT8 LT8 SP1 LT10 LT9 LT10 LT9 LT10 LT10 ATE1 ATR1 ATS1 ATS2 ATR2 ATS1 ATR1 ATS1 ATR1 ATR3 ATS3 2.74 2.74 2.76 2.78 2.60 2.79 2.60 2.60 3.25 2.60 2.60 2.76 2.77 ATE2 1 : 50 Reflected Ceiling Plan C C C C ST1 ST1 ST2 ST2 TB1 RD1 ST1 ST2 ST2 TB4 ST1 ST2 ST2 TB4 SG1 SG1 ST1 ST1 ST1 ST1 ST1 ST1 ST1 ST1 TB2 TB5 ST4 ST4 ST4 ST4 ST4 ST4 ST4 ST4 ST5 ST3 ST3 ST3 ST4 ST4 ST4 ST5 ST5 ST1 TB2 ST2 ST2 ST2 ST2 ST2 ST2 TB3 TB3 1 : 50 furniture plan Sheet Key Furniture Schedule Type Mark Description Count Manufacturer 6 RD1 receiption disk Full specifications attached to the sheets 1 custom made SG1 Storage backdesk full specifications attached to the sheets 2 custom made ST1 Office chair LANCASTER Low back, green blue 13 Steelcase ST2 Crossover modern executive supported by a casted aluminium base, Base 5 star powder coated black ral 9005, fabric colline 12 icons of denmark ST3 FIRKANT medium size, shape of the poufs are a hybrid between a square and a circle, Fabric Twill Weave 3 icons of denmark ST4 The DROP 88.5*45.5*54.5 cm 3110, Not Upholstered Salsa 3 Textile / Black 11 Fritz Hansen ST5 pluto stool, Handle in leather, golden sand color 3 inoff TB1 Conference table audrey 320 x 120 x 72 cm,thickness table surface:2.2 cm black frame, dark grey top, with 5 electrical_outlets, Seating 10-12 1 AUDREY TB2 KOKUYO Office Table Workstation WORK FIT 2 --- TB3 Manager set desk : W160 x D70 x H72 cm. Side cabinet : W160 x D40 x H64.5 cm. 2 COSMOS TB4 Manager set coffee table : W110 x D56 x H60 cm. Side cabinet : W160 x D40 x H64.5 cm. 2 COSMOS TB5 Woodstock round table diameter 160 h 74 cm table top — linoleum spring green base oak black lacquer feet — metal powder coated black ral 9005 edge — finish white lacquered mdf edge — shape bevelled lacquered mdf 1 icons of denmark Rooms Finish Schedule No. Name Floor Finish skirting Finish Wall Finish Ceiling Finish 1 Meeting Room ceramic tiles Marble Wood & PVC cladding White board & wood grille 2 office ceramic tiles Marble paint & PVC cladding White board 3 office ceramic tiles Marble paint & PVC cladding White board 4 Work space ceramic tiles Marble paint & PVC cladding White & dark board 5 corridor ceramic tiles Marble paint & PVC cladding wood grille 6 Board Room ceramic tiles lighting skirting paint, Wood & cladding White board 7 Kitchen ceramic tiles - ceramic tiles - 8 WC ceramic tiles - ceramic tiles - 9 WC ceramic tiles - ceramic tiles - 10 reception desk ceramic tiles Marble paint, Wood & cladding White & wood board Air Terminal Schedule Type Mark Manuf. Description System type ATE1 Anjos Ventilation Exhaust Air ATE2 Anjos Ventilation Exhaust Air ATR1 Metalaire ® Architectural Linear Diffusers Formations, Linear Concealed Mounting Return Air ATR2 AIRZONE Swirl diffuser for modular ceiling Return Air ATR3 Metalaire ® Adjustable Linear Slot Diffuser - Supply Return Air ATS1 Metalaire ® Architectural Linear Diffusers Formations, Linear Concealed Mounting Supply Air ATS2 AIRZONE Swirl diffuser for modular ceiling Supply Air ATS3 Metalaire ® Adjustable Linear Slot Diffuser - Supply Supply Air Ceiling Material Mark Name Manuf. Model Description CGR1 Gray ACOUSTIB UILT armstrong ACOUSTIBUILT ® Item No.2604 Material : Wet-formed mineral fiber. Surface Finish : Acoustically transparent membrane with factory-applied latex paint CRP1 Red Painted lyra armstrong LYRA® PB Concealed Item No.8432PB Material : Fiberglass with acoustically transparent membrane. Surface Finish : Acoustically transparent membrane with Metallic paint - red with flakes CWH1 White lyra armstrong LYRA® PB Concealed Item No.8432PB Material : Fiberglass with acoustically transparent membrane. Surface Finish : Acoustically transparent membrane with factory-applied latex paint FQW1 Grille – Forté Quartered Walnut armstrong WOODWORKS ® Grille – Forté Item No.6336L _ S14 Material : Fire-rated particle board (FRPB) with real wood veneers. Vertical Grain Fir (NVF) is FRPB with a reconstituted veneer Surface Finish : Tinted semi-gloss SUSPENSION SYSTEMS : Heavy-duty PRELUDE® XL® HD Main Beam & Cross Tee GMP-WG T Maple grille tegular armstrong Woodworks grille tegular Item No.663008 Material : Solid Poplar (yellow or hybrid) (RA-COC-003601) Surface Finish : Tinted semi-gloss LBK1 Lyra Black armstrong LYRA® PB CAPZ Item No.8856PBBK Material : Fiberglass with acoustically transparent membrane. Surface Finish : Acoustically transparent membrane with factory-applied latex paint UWH1 ULTIMA®W hite armstrong ULTIMA® High NRC Item No.1940 Material : Wet-formed mineral fiber with DuraBrite® acoustically transparent membrane Surface Finish : Acoustically transparent membrane with factory-applied latex paint SUSPENSION SYSTEMS : Prelude® Blizzard White UWH2 ULTIMA®W hite 48" armstrong ULTIMA® High NRC Item No.1943 Material : Wet-formed mineral fiber with DuraBrite® acoustically transparent membrane Surface Finish : Acoustically transparent membrane with factory-applied latex paint SUSPENSION SYSTEMS : Prelude® Blizzard White WP1 Bamboo dark custom made - Wood - bamboo finished semigloss Lighting Fixture Type Mark Manufacturer Model Description Count LT1 VIBIA HALO 2341-03 HALO is a hanging lamp with three intertwined, straight pieces, which creates subtle, By combining different pieces you can show off hanging lights, matt white lacquer. 1 LT2 Vibia STRUCTURAL, CEILING, TRIPLE Ceiling light where different cubic volumes meet or expand to provide flexible solutions, maintaining spatial order. 1 LT3 Lumenwerx Hex Pendant - 3 Cells Indirect matte white side reflectors combined with High-Efficiency Lambertian Optic (HLO), SIZE: 2" X 3 7/16" HEXAGON, LED, Pendant with 3 direct cells, CHROMATICITY: STATIC WHITE 1 LT4 Molto Luce Ride Pendant Cubic Ride Ring, . With a profile of only 35x35 mm, LED lighting systems, 750 mm and The converter built into the body creates a minimalist ceiling base, black color in a system, 1 LT5 L&E RLPL105-1 LED RECESSED FLUORESCENT 7 LT6 LENA LIGHTING SQ600 SQ 600 LED 2900LM PLX DALI I KL. 592X592MM 830 (29W) 2 LT7 LENA LIGHTING S. A. Doblo LED LED, 4000K, OPAL, suspended, Decorative lighting fitting with the effect of indirect light constituting 30% of the total light output of the luminaire. 2 LT8 Örsjö Baklava Ceiling Lamp M White textile cord. Triple layer shade in off-white textile. The shade changes colour when the light is on. meduim size. 3 LT9 EAE YODA Aluminum extrusion housing, Opal diffuser, SMD LED, Natural White Temperature, Installation Pendant, Color RAL 9005. 4 LT10 L&E RLPL109-4 LED RECESSED FLUORESCENT 8 SL1 L&E RLPL203-4 LED RECESSED FLUORESCENT 1 SL2 L&E RLPL003-1 Thick LED RECESSED FLUORESCENT 2 SP1 L&L Luce&Light Bitpop C 2.2 Indoor ceiling mounted cubic lighting, White aluminium 41 Techinecal Package

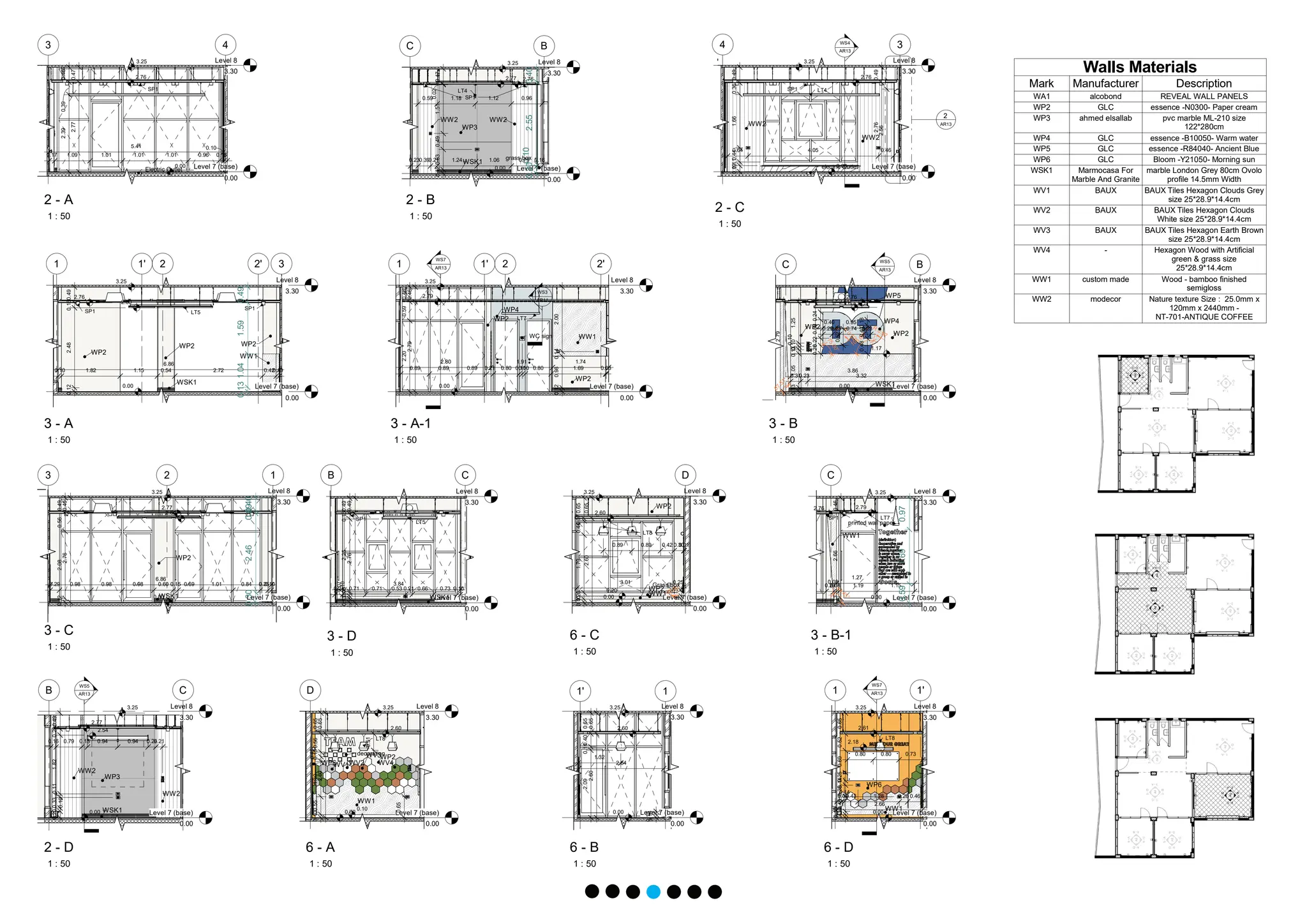

Level 7 (base) 0.00 Level 8 3.30 3 4 0.46 0.39 2.39 0.17 1.09 1.01 1.01 1.01 0.96 0.15 0.10 5.41 0.47 2.77 Electric Outlet 0.00 3.25 2.76 SP1 Level 7 (base) 0.00 Level 8 3.30 B C 0.230.390.21 1.24 1.06 0.79 0.16 0.96 1.12 1.18 0.59 0.12 0.63 0.49 1.51 0.02 0.47 0.00 2.77 3.25 2.76 0.20 0.10 2.55 0.40 WSK1 LT4 SP1 WW2 WW2 grass box WP3 Level 7 (base) 0.00 Level 8 3.30 3 4 0.49 0.36 1.66 0.44 0.11 0.19 2.56 0.64 4.05 0.46 0.49 2.76 electric Outlet WW2 WW2 SP1 0.00 2.76 LT4 3.25 WS4 AR13 2 AR13 Level 7 (base) 0.00 Level 8 3.30 B C 0.49 0.20 1.82 0.11 0.33 0.10 0.20 0.21 0.24 0.94 0.94 0.18 0.79 0.16 WW2 WW2 WP3 WSK1 0.00 2.54 2.77 3.25 WS5 AR13 Level 7 (base) 0.00 Level 8 3.30 1 2 3 1' 2' 0.10 1.82 1.15 0.54 2.72 0.42 0.10 6.86 0.49 0.16 2.48 0.12 WP2 WSK1 WP2 WW1 WP2 0.00 2.60 3.25 2.76 SP1 SP1 0.49 1.59 1.04 0.13 LT5 Level 7 (base) 0.00 Level 8 3.30 1 2 1' 2' 0.89 0.89 0.89 0.21 0.80 0.10 0.10 0.80 1.69 0.03 2.00 0.14 0.98 0.12 2.20 0.59 0.46 0.46 2.79 2.80 1.91 1.74 WC sign WW1 WP2 2.79 3.25 0.00 WP4 WP2 LT7 WS3 AR11 WS7 AR13 Level 7 (base) 0.00 Level 8 3.30 B C 0.13 1.05 0.13 0.10 0.10 1.25 3.32 0.23 0.31 3.86 2.76 0.26 0 .22 0.58 0.24 0.48 0.40 0.18 7 5 . 0 0 ° 105.00° R 0.52 R 0.52 0.29 0.23 0.74 0.23 0.40 0.95 0.52 8 7 . 5 1 ° 2.79 WP2 WP2 WP4 WP5 0.00 1.17 2.76 2.61 WSK1 WS5 AR13 Level 7 (base) 0.00 Level 8 3.30 C 1.15 1.19 0.08 0.08 0.24 0.46 2.66 0.13 94.45° 1.27 1.15 0.97 1.69 0.59 printed wall paper WW1 SP1 LT7 0.00 3.25 2.79 2.76 Level 7 (base) 0.00 Level 8 3.30 1 2 3 0.29 0.98 0.98 0.98 0.60 0.15 0.69 1.01 0.84 0.25 0.10 6.86 0.49 0.56 2.08 0.12 0.49 2.76 0.00 2.60 2.77 3.25 WP2 WSK1 0.30 2.46 0.09 0.40 Level 7 (base) 0.00 Level 8 3.30 B C 0.10 0.73 0.66 0.21 0.53 0.71 0.71 0.24 0.49 0.16 2.25 0.05 0.10 0.07 0.13 3.84 0.49 2.76 SP1 LT5 WSK1 Level 7 (base) 0.00 Level 8 3.30 D 0.100.55 1.10 0.15 0.15 0.56 0.65 2.60 0.65 0.51 0.65 WP2 WW1 WP6 WV1WV2 WV3 WV4 LT8 0.00 0.10 2.60 3.25 decoration Level 7 (base) 0.00 Level 8 3.30 1 1' 2.09 0.11 0.40 0.65 1.32 0.65 2.60 2.64 0.10 0.10 0.00 2.60 3.25 Level 7 (base) 0.00 Level 8 3.30 D 0.65 0.07 0.44 1.79 0.20 0.10 0.01 0.30 0.42 0.89 0.89 0.65 2.60 3.01 0.25 0.15 0.10 135.00° WW1 WP2 Grass box LT8 WP2 3.25 2.60 0.00 0.20 Level 7 (base) 0.00 Level 8 3.30 1 1' 0.65 0.52 0.69 0.25 0.14 0.36 0.45 0.10 0.10 2.66 0.80 0.80 0.73 0.14 0.09 0.43 1.28 0.26 0.46 WP6 LT8 WW1 0.00 2.18 2.61 3.25 WS7 AR13 1 : 50 2 - A 1 : 50 2 - B 1 : 50 2 - C 1 : 50 2 - D 1 : 50 3 - A 1 : 50 3 - A-1 1 : 50 3 - B 1 : 50 3 - B-1 1 : 50 3 - C 1 : 50 3 - D Walls Materials Mark Manufacturer Description WA1 alcobond REVEAL WALL PANELS WP2 GLC essence -N0300- Paper cream WP3 ahmed elsallab pvc marble ML-210 size 122*280cm WP4 GLC essence -B10050- Warm water WP5 GLC essence -R84040- Ancient Blue WP6 GLC Bloom -Y21050- Morning sun WSK1 Marmocasa For Marble And Granite marble London Grey 80cm Ovolo profile 14.5mm Width WV1 BAUX BAUX Tiles Hexagon Clouds Grey size 25*28.9*14.4cm WV2 BAUX BAUX Tiles Hexagon Clouds White size 25*28.9*14.4cm WV3 BAUX BAUX Tiles Hexagon Earth Brown size 25*28.9*14.4cm WV4 - Hexagon Wood with Artificial green & grass size 25*28.9*14.4cm WW1 custom made Wood - bamboo finished semigloss WW2 modecor Nature texture Size : 25.0mm x 120mm x 2440mm - NT-701-ANTIQUE COFFEE 1 : 50 6 - A 1 : 50 6 - B 1 : 50 6 - C 1 : 50 6 - D
D2 3.25 0.05 2.13 0.05 0.97 1.55 0.05 1.55 5.07 0.94 0.05 0.96 0.05 0.96 0.05 0.96 0.05 0.94 0.00 3.25 0.50 0.93 0.93 0.45 2.91 1.20 1.25 2.55 0.68 1.15 0.05 0.58 0.41 0.13 0.73 0.13 0.41 W2 0.30 2.85 2.40 0.49 1.33 0.05 0.43 2.07 0.96 0.05 0.96 0.53 0.13 0.67 0.13 0.53 W2 0.30 2.70 D2 0.00 3.25 3.25 0.97 0.05 2.13 0.81 0.05 0.84 0.05 0.81 2.66 D2 0.00 3.25 3.25 0.97 0.05 2.13 2.93 0.90 0.05 0.93 0.05 0.90 2.23 1.04 0.05 1.04 3.01 0.93 0.05 0.95 0.05 0.93 0.44 0.13 1.00 0.13 0.44 W2 0.30 2.53 3.55 0.63 0.05 0.66 0.05 0.66 0.05 0.66 0.05 0.63 1.20 0.05 1.20 0.88 0.13 0.76 0.13 0.56 2.55 W2 0.30 2.85 3.18 0.72 0.05 0.74 0.05 0.74 0.05 0.72 2.55 1.24 0.05 1.16 0.63 0.13 1.00 0.13 0.58 W2 0.30 2.85 D2 3.25 0.00 2.74 0.84 0.05 0.86 0.05 0.84 3.25 0.97 0.05 2.13 2.85 0.58 0.10 1.98 1.19 1.09 D2' 0.00 2.85 covering profile EPDM Gasket 8mm Tempered Clear Glass (Sısecam) + 16mm Air Double Glass Galvanized Steel Anchor Vertical Profile Line Aluminium profile Notes Project : Do AGN. Office Owner : Do AGN. Date : 5/12/2022 No : AR12 Sheet : Curtain Wall Designed By : Designer Drawn By : Mohannad A.Ullah Scale : 1 : 25 CW1 CW2 CW4 CW3 CW5 CW6 CW7 CW8 CW9 CWD1 Curtain Wall Schedule Mark Length Description CW1 5.07 aluminum mullion, glazed panel CW2 2.91 aluminum mullion, glazed panel CW3 2.83 aluminum mullion, glazed panel CW4 2.07 aluminum mullion, glazed panel CW5 2.93 aluminum mullion, glazed panel CW6 3.01 aluminum mullion, glazed panel CW7 3.55 aluminum mullion, glazed panel CW8 3.18 aluminum mullion, glazed panel CW9 2.74 aluminum mullion, glazed panel CWD1 1.19 aluminum mullion, glazed panel Sheet Key -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified. -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For lighting fixture refer to electrical drawings. -All levels relative base to finish level. Curtain Walls Key plan Door Schedule CW Type Mark Height Description D2 2.13 aluminum frame, glazed panel, chrome handle D2' 2.13 aluminum frame, glazed panel, chrome handle Window Schedule CW Type Mark Description W2 Pvc window, white color, double hinges directions, double glass layers clear glazing, handle stainless steel 1 : 5 Curtain Wall Detail

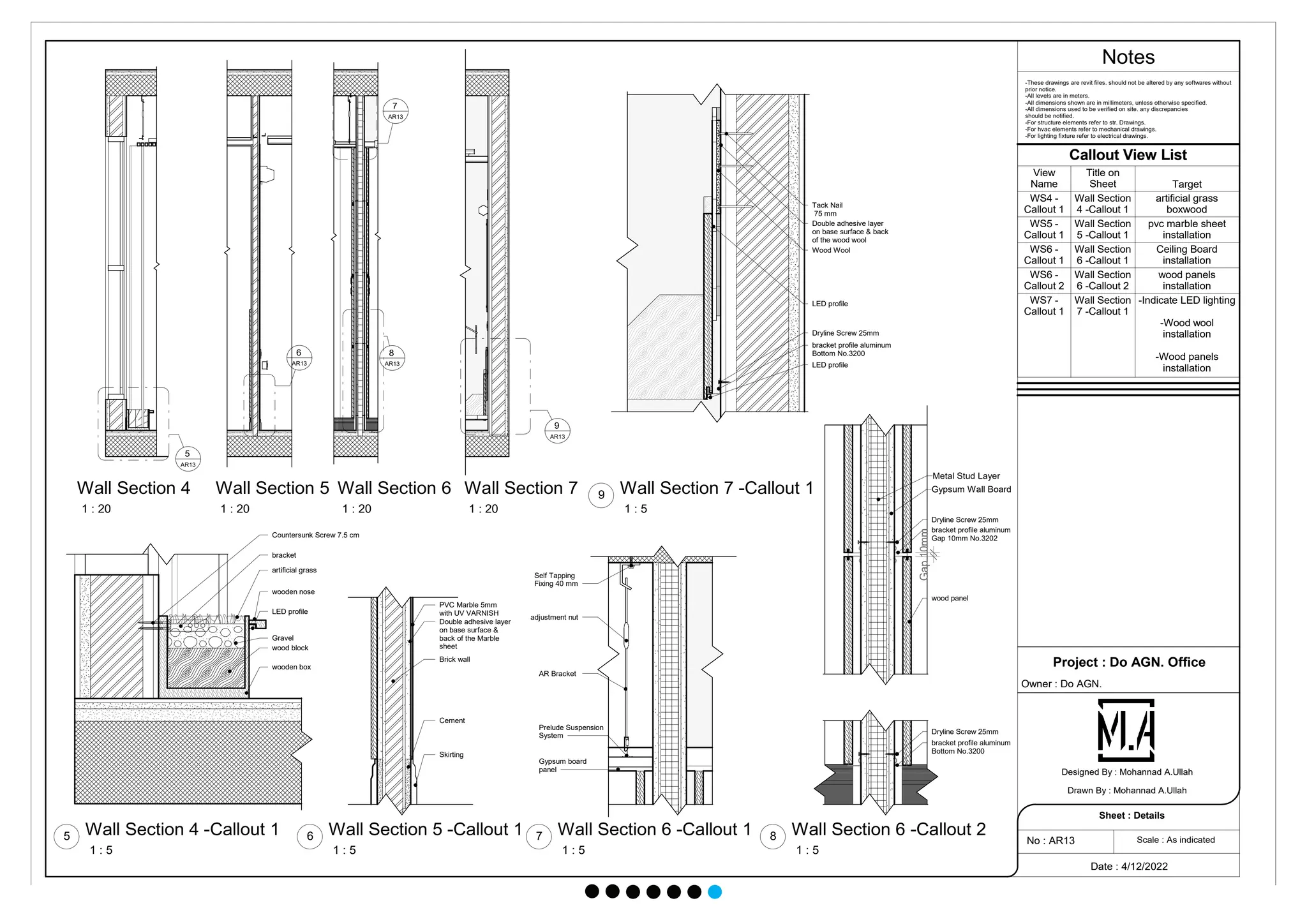

5 AR13 6 AR13 7 AR13 8 AR13 9 AR13 Countersunk Screw 7.5 cm wooden box wood block Gravel wooden nose artificial grass LED profile bracket PVC Marble 5mm with UV VARNISH Double adhesive layer on base surface & back of the Marble sheet Brick wall Cement Skirting Gypsum board panel Prelude Suspension System AR Bracket Self Tapping Fixing 40 mm adjustment nut Dryline Screw 25mm bracket profile aluminum Bottom No.3200 LED profile LED profile Wood Wool Double adhesive layer on base surface & back of the wood wool Tack Nail 75 mm Dryline Screw 25mm bracket profile aluminum Gap 10mm No.3202 Gap 10mm Metal Stud Layer Gypsum Wall Board Dryline Screw 25mm bracket profile aluminum Bottom No.3200 wood panel Notes Scale : As indicated Project : Do AGN. Office Owner : Do AGN. Date : 4/12/2022 No : AR13 Sheet : Details Designed By : Mohannad A.Ullah Drawn By : Mohannad A.Ullah 1 : 20 Wall Section 4 1 : 20 Wall Section 5 1 : 20 Wall Section 6 1 : 20 Wall Section 7 1 : 5 Wall Section 4 -Callout 1 5 1 : 5 Wall Section 5 -Callout 1 6 1 : 5 Wall Section 6 -Callout 1 7 1 : 5 Wall Section 7 -Callout 1 9 -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in millimeters, unless otherwise specified. -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings. 1 : 5 Wall Section 6 -Callout 2 8 Callout View List View Name Title on Sheet Target WS4 - Callout 1 Wall Section 4 -Callout 1 artificial grass boxwood WS5 - Callout 1 Wall Section 5 -Callout 1 pvc marble sheet installation WS6 - Callout 1 Wall Section 6 -Callout 1 Ceiling Board installation WS6 - Callout 2 Wall Section 6 -Callout 2 wood panels installation WS7 - Callout 1 Wall Section 7 -Callout 1 -Indicate LED lighting -Wood wool installation -Wood panels installation
Villa B172 Architecture Facade Design | Technical Drawings Type Residential | Facade Location New Cairo - Egypt Project timeline Apr. 2022- May 2022 Scope 2 Elevation

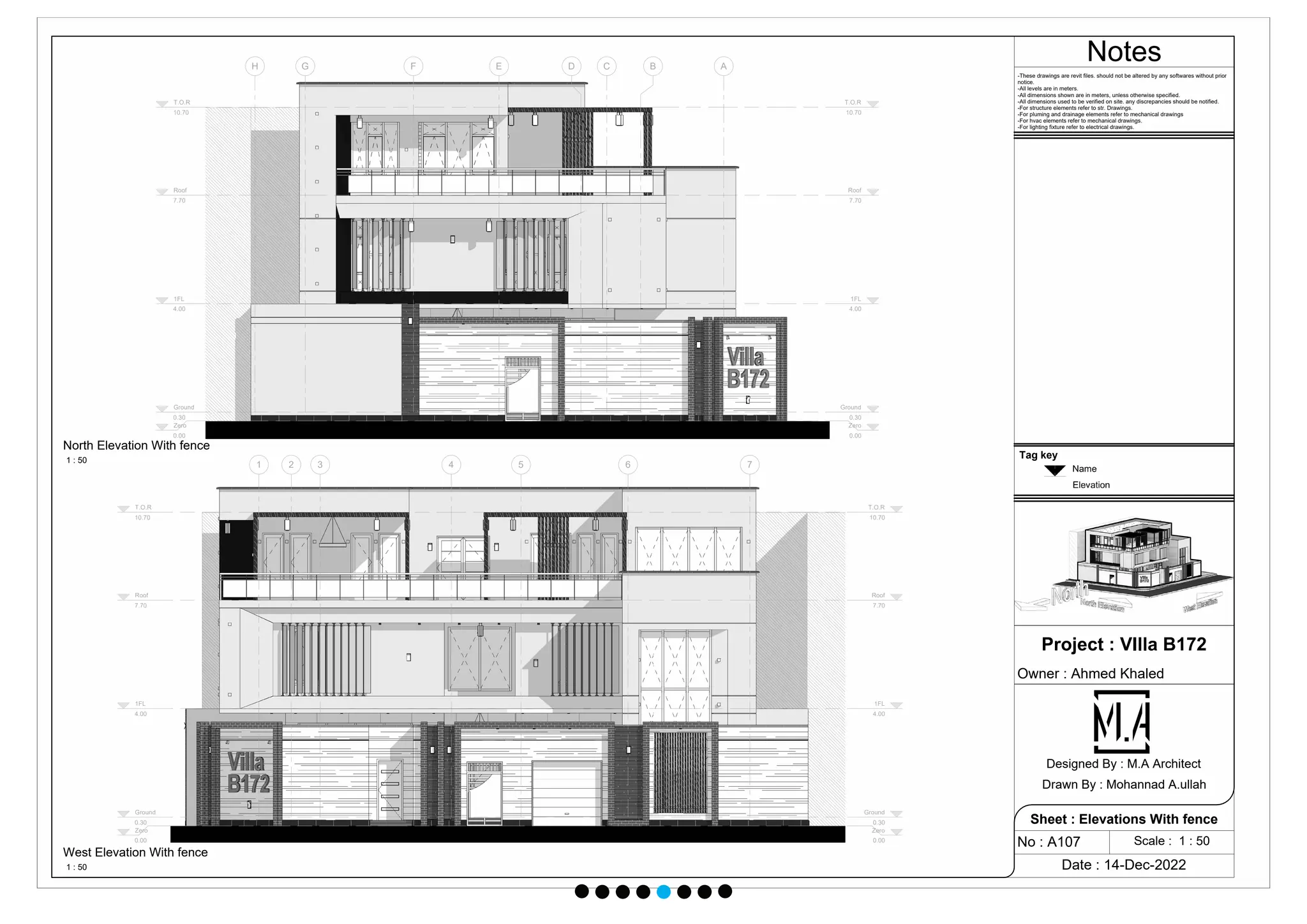

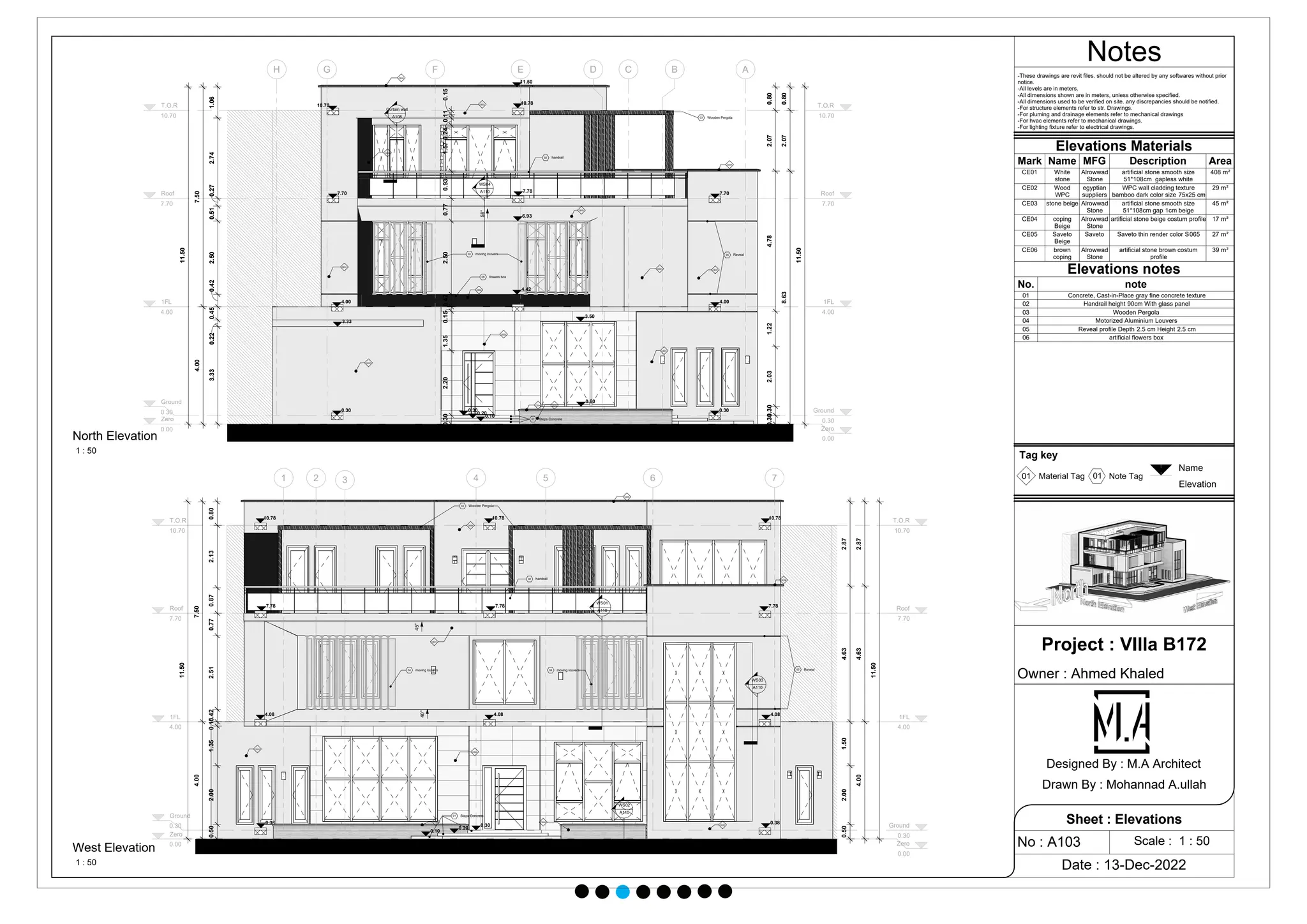

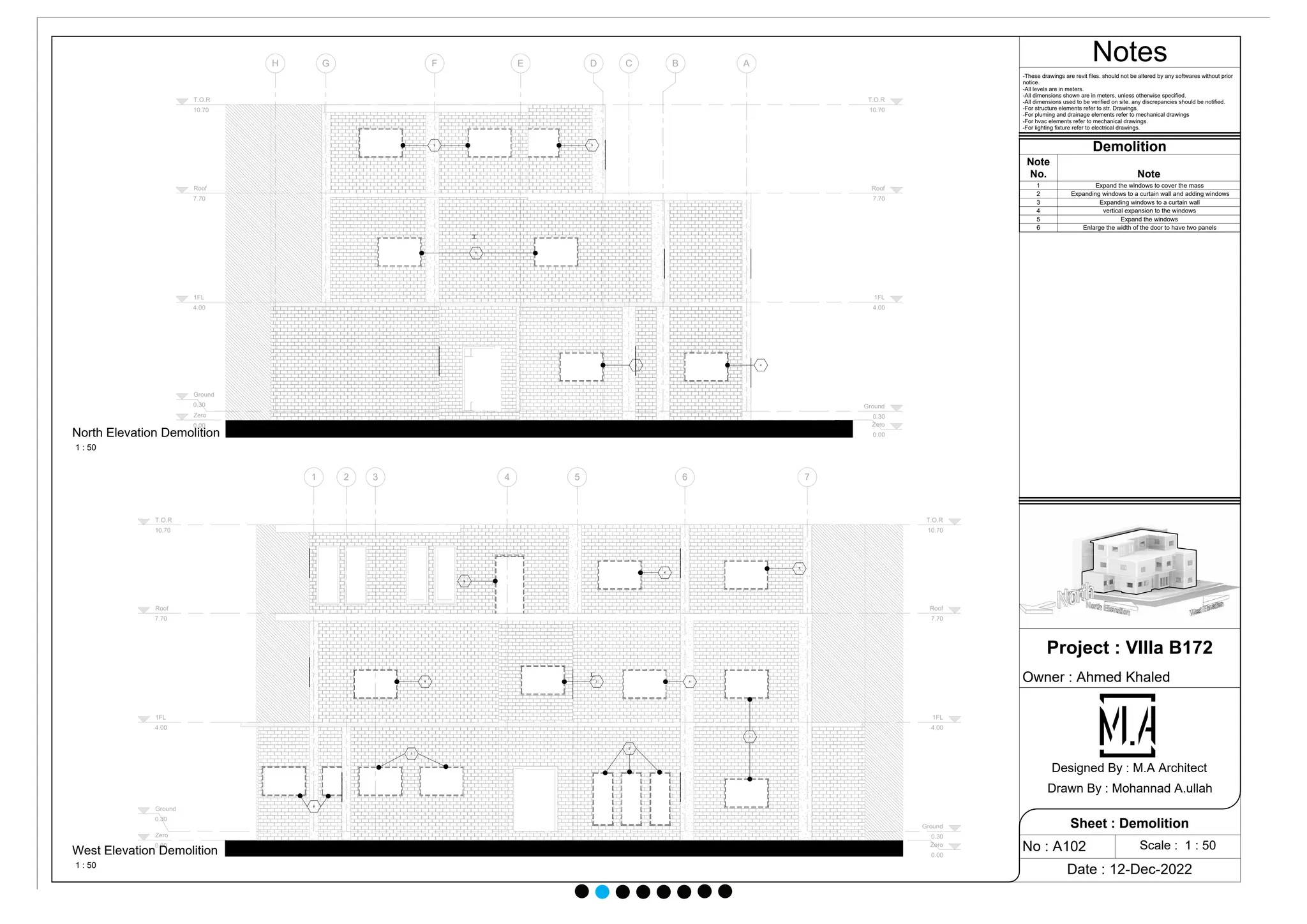

Zero 0.00 Zero 0.00 1FL 4.00 1FL 4.00 Ground 0.30 Ground 0.30 Roof 7.70 Roof 7.70 T.O.R 10.70 T.O.R 10.70 A B C D E F G H 3 4 5 3 3 Zero 0.00 Zero 0.00 1FL 4.00 1FL 4.00 Ground 0.30 Ground 0.30 Roof 7.70 Roof 7.70 T.O.R 10.70 T.O.R 10.70 1 2 3 4 5 6 7 1 2 3 4 4 3 4 3 4 6 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 12-Dec-2022 No : A102 Sheet : Demolition Designed By : M.A Architect Drawn By : Mohannad A.ullah 1 : 50 North Elevation Demolition 1 : 50 West Elevation Demolition Demolition Note No. Note 1 Expand the windows to cover the mass 2 Expanding windows to a curtain wall and adding windows 3 Expanding windows to a curtain wall 4 vertical expansion to the windows 5 Expand the windows 6 Enlarge the width of the door to have two panels -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified. -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings.
Zero 0.00 Zero 0.00 1FL 4.00 1FL 4.00 Ground 0.30 Ground 0.30 Roof 7.70 Roof 7.70 T.O.R 10.70 T.O.R 10.70 A B C D E F G H 3.33 0.22 0.45 0.42 2.50 0.51 0.27 2.74 1.06 4.00 7.50 11.50 0.30 0 .30 2.03 1.22 4.78 2.07 0.80 8.63 2.07 0.80 11.50 10.70 7.70 4.00 0.30 0.30 4.00 7.70 4.42 7.78 10.78 11.50 6.93 0.30 2.20 1.35 0.15 0.42 2.50 0.77 0.93 1.57 0.24 0.11 0.15 3.50 0.60 58° 3.33 0.30 0.20 0.10 CE01 CE01 CE01 CE01 CE01 CE01 CE01 CE02 CE02 CE03 CE06 CE06 CE04 CE05 05 Reveal 04 moving louvers 06 flowers box 02 handrail 01 Steps Concrete 03 Wooden Pergola Curtain wall A108 WS04 A110 Zero 0.00 Zero 0.00 1FL 4.00 1FL 4.00 Ground 0.30 Ground 0.30 Roof 7.70 Roof 7.70 T.O.R 10.70 T.O.R 10.70 1 2 3 4 5 6 7 45° 40° 0.50 2.00 1.35 0.15 0 .42 2.51 0.77 0.87 2.13 0.80 7.50 4.00 11.50 0.50 2.00 1.50 4.63 2.87 2.87 4.63 4.00 11.50 10.78 10.78 10.78 7.78 7.78 7.78 4.08 0.38 4.08 4.08 0.38 0.30 0.20 0.10 CE01 CE03 CE04 CE05 CE01 CE06 CE06 CE01 CE01 01 Steps Concrete 02 handrail 03 Wooden Pergola 04 moving louvers 04 moving louvers 05 Reveal WS02 A110 WS03 A110 WS01 A110 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 13-Dec-2022 No : A103 Sheet : Elevations Designed By : M.A Architect Drawn By : Mohannad A.ullah 1 : 50 North Elevation 1 : 50 West Elevation -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified. -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings. Elevations Materials Mark Name MFG Description Area CE01 White stone Alrowwad Stone artificial stone smooth size 51*108cm gapless white 408 m² CE02 Wood WPC egyptian suppliers WPC wall cladding texture bamboo dark color size 75x25 cm 29 m² CE03 stone beige Alrowwad Stone artificial stone smooth size 51*108cm gap 1cm beige 45 m² CE04 coping Beige Alrowwad Stone artificial stone beige costum profile 17 m² CE05 Saveto Beige Saveto Saveto thin render color S065 27 m² CE06 brown coping Alrowwad Stone artificial stone brown costum profile 39 m² Elevations notes No. note 01 Concrete, Cast-in-Place gray fine concrete texture 02 Handrail height 90cm With glass panel 03 Wooden Pergola 04 Motorized Aluminium Louvers 05 Reveal profile Depth 2.5 cm Height 2.5 cm 06 artificial flowers box Tag key 01 01 Material Tag Note Tag

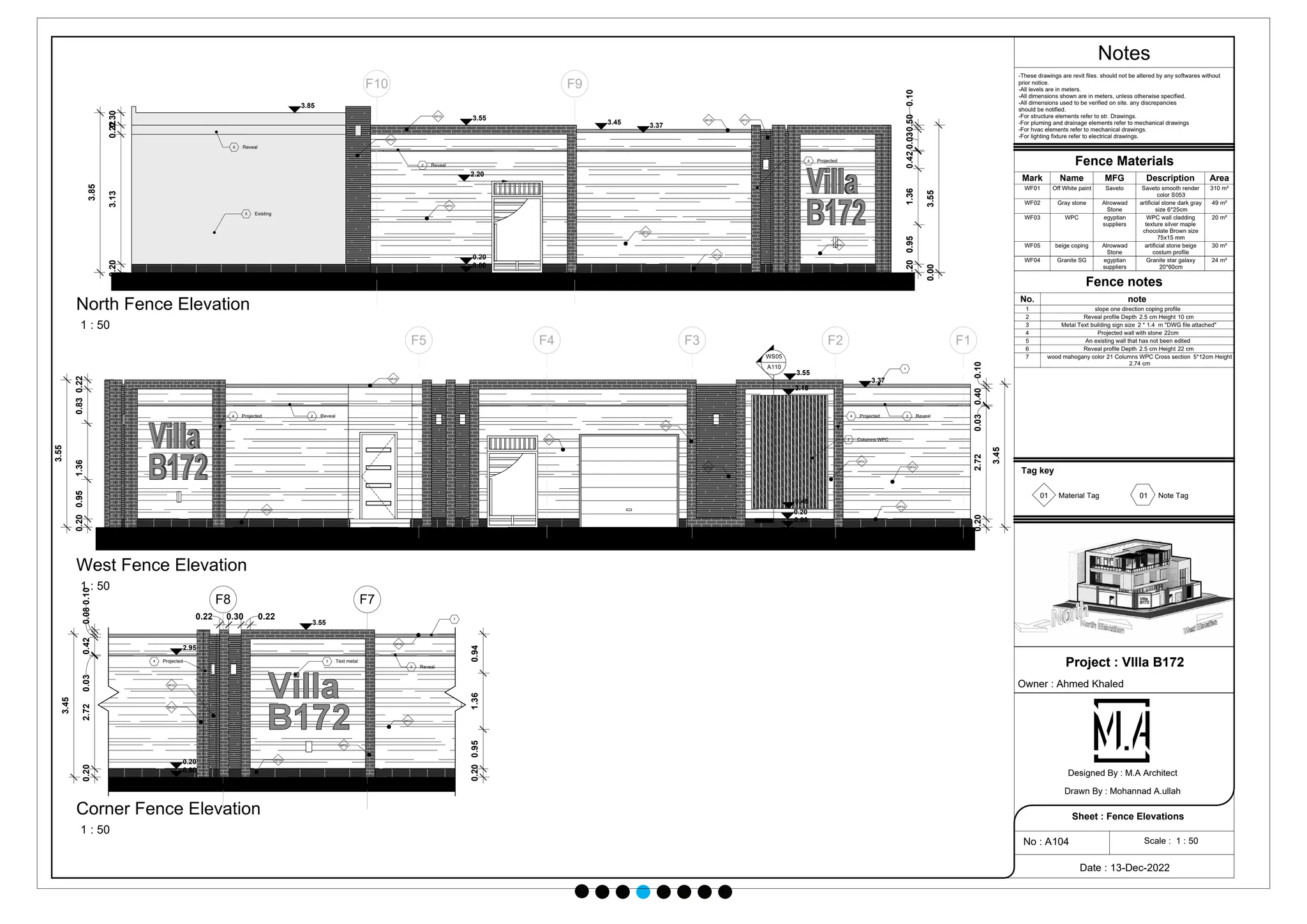

F1 F2 F3 F4 F5 7 Columns WPC WF01 WF03 WF02 WF04 WF01 WF01 WF05 WF04 4 Projected 1 2 Reveal 0.10 0.40 0.03 2.72 0.20 3.45 0.20 0.95 1.36 0.83 0.22 3.55 2 Reveal 4 Projected 0.00 0.20 0.45 3.18 3.55 3.37 WS05 A110 F9 F10 WF03 WF02 WF03 WF05 WF04 WF01 WF01 5 Existing 6 Reveal 3.85 3.55 3.45 3.37 0.00 0.20 2.20 2 Reveal 4 Projected 0.20 0.95 1.36 0.42 0.030.50 0.10 0.00 3.55 0.20 3.13 0.22 0.30 3.85 WF01 F7 F8 2.95 3.55 WF01 WF02 WF04 WF02 WF05 0.00 0.20 WF03 0.20 2.72 0.03 0.42 0.08 0.10 3.45 0.94 1.36 0.95 0.20 0.22 0.30 0.22 1 2 Reveal 3 Text metal 4 Projected Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 13-Dec-2022 No : A104 Sheet : Fence Elevations Designed By : M.A Architect Drawn By : Mohannad A.ullah -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified. -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings. 1 : 50 West Fence Elevation 1 : 50 North Fence Elevation 1 : 50 Corner Fence Elevation Fence Materials Mark Name MFG Description Area WF01 Off White paint Saveto Saveto smooth render color S053 310 m² WF02 Gray stone Alrowwad Stone artificial stone dark gray size 6*25cm 49 m² WF03 WPC egyptian suppliers WPC wall cladding texture silver maple chocolate Brown size 75x15 mm 20 m² WF05 beige coping Alrowwad Stone artificial stone beige costum profile 30 m² Fence notes No. note 1 slope one direction coping profile 2 Reveal profile Depth 2.5 cm Height 10 cm 3 Metal Text building sign size 2 * 1.4 m "DWG file attached" 4 Projected wall with stone 22cm 5 An existing wall that has not been edited 6 Reveal profile Depth 2.5 cm Height 22 cm 7 wood mahogany color 21 Columns WPC Cross section 5*12cm Height 2.74 cm Tag key 01 01 Material Tag Note Tag WF04 Granite SG egyptian suppliers Granite star galaxy 20*60cm 24 m²

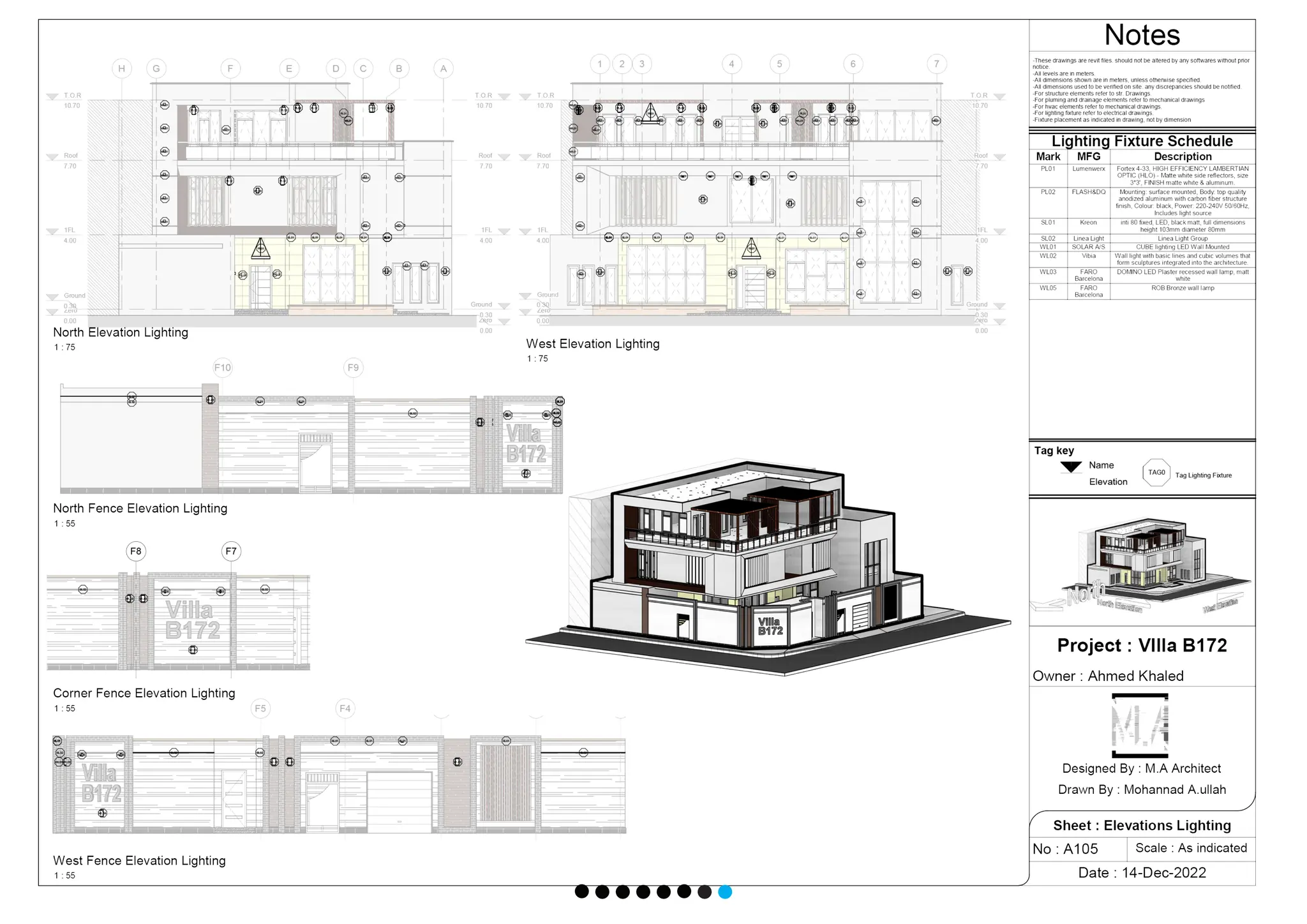

Zero 0.00 Zero 0.00 1FL 4.00 1FL 4.00 Ground 0.30 Ground 0.30 Roof 7.70 Roof 7.70 T.O.R 10.70 T.O.R 10.70 A B C D E F G H Zero 0.00 Zero 0.00 1FL 4.00 1FL 4.00 Ground 0.30 Ground 0.30 Roof 7.70 Roof 7.70 T.O.R 10.70 T.O.R 10.70 1 2 3 4 5 6 7 Notes Scale : 1 : 50 Project : VIlla B172 Owner : Ahmed Khaled Date : 14-Dec-2022 No : A107 Sheet : Elevations With fence Designed By : M.A Architect Drawn By : Mohannad A.ullah -These drawings are revit files. should not be altered by any softwares without prior notice. -All levels are in meters. -All dimensions shown are in meters, unless otherwise specified. -All dimensions used to be verified on site. any discrepancies should be notified. -For structure elements refer to str. Drawings. -For pluming and drainage elements refer to mechanical drawings -For hvac elements refer to mechanical drawings. -For lighting fixture refer to electrical drawings. 1 : 50 North Elevation With fence 1 : 50 West Elevation With fence Tag key

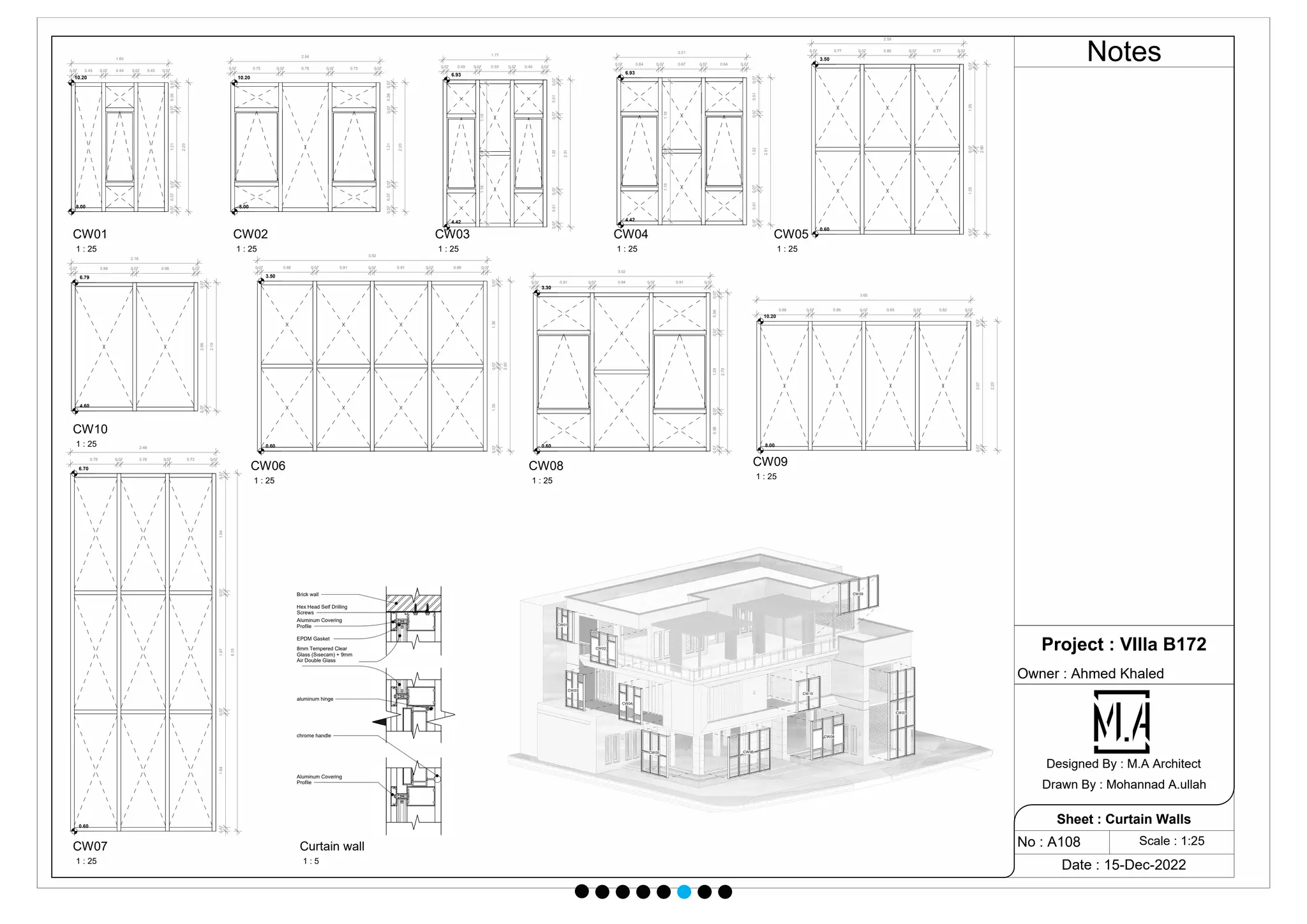

0.07 0.45 0.07 0.49 0.07 0.45 0.07 0.07 0.36 0.07 1.21 0.07 0.37 0.07 10.20 8.00 1.65 2.20 0.07 0.75 0.07 0.78 0.07 0.75 0.07 2.54 0.07 0.36 0.07 1.21 0.07 0.37 0.07 2.20 10.20 8.00 0.07 0.49 0.07 0.53 0.07 0.49 0.07 1.77 0.07 0.51 0.07 1.22 0.07 0.51 0.07 2.51 1.16 0.07 1.16 6.93 4.42 0.07 0.51 0.07 1.22 0.07 0.51 0.07 2.51 0.07 0.64 0.07 0.67 0.07 0.64 0.07 2.21 6.93 4.42 1.16 0.07 1.16 3.50 0.60 0.07 0.77 0.07 0.80 0.07 0.77 0.07 2.59 0.07 1.35 0.07 1.35 0.07 2.90 0.07 0.88 0.07 0.91 0.07 0.91 0.07 0.88 0.07 3.92 0.07 1.35 0.07 1.35 0.07 2.90 3.50 0.60 0.07 1.94 0.07 1.97 0.07 1.94 0.07 0.79 0.07 0.76 0.07 0.73 0.07 2.48 6.10 0.60 6.70 0.07 0.91 0.07 0.94 0.07 0.91 0.07 3.02 0.07 0.58 0.07 1.29 0.07 0.58 0.07 2.70 0.60 3.30 0.88 0.07 0.85 0.07 0.85 0.07 0.82 0.07 0.07 2.07 0.07 2.20 3.65 10.20 8.00 0.07 0.98 0.07 0.98 0.07 2.16 2.19 0.07 2.06 0.07 6.79 4.60 CW06 CW01 CW02 CW03 CW04 CW05 CW07 CW08 CW09 CW10 8mm Tempered Clear Glass (Sısecam) + 9mm Air Double Glass EPDM Gasket Aluminum Covering Profile Hex Head Self Drilling Screws Brick wall aluminum hinge chrome handle Aluminum Covering Profile Notes Project : VIlla B172 Owner : Ahmed Khaled Date : 15-Dec-2022 No : A108 Sheet : Curtain Walls Designed By : M.A Architect Drawn By : Mohannad A.ullah Scale : 1:25 1 : 25 CW01 1 : 25 CW02 1 : 25 CW03 1 : 25 CW04 1 : 25 CW05 1 : 25 CW06 1 : 25 CW07 1 : 25 CW08 1 : 25 CW09 1 : 25 CW10 1 : 5 Curtain wall

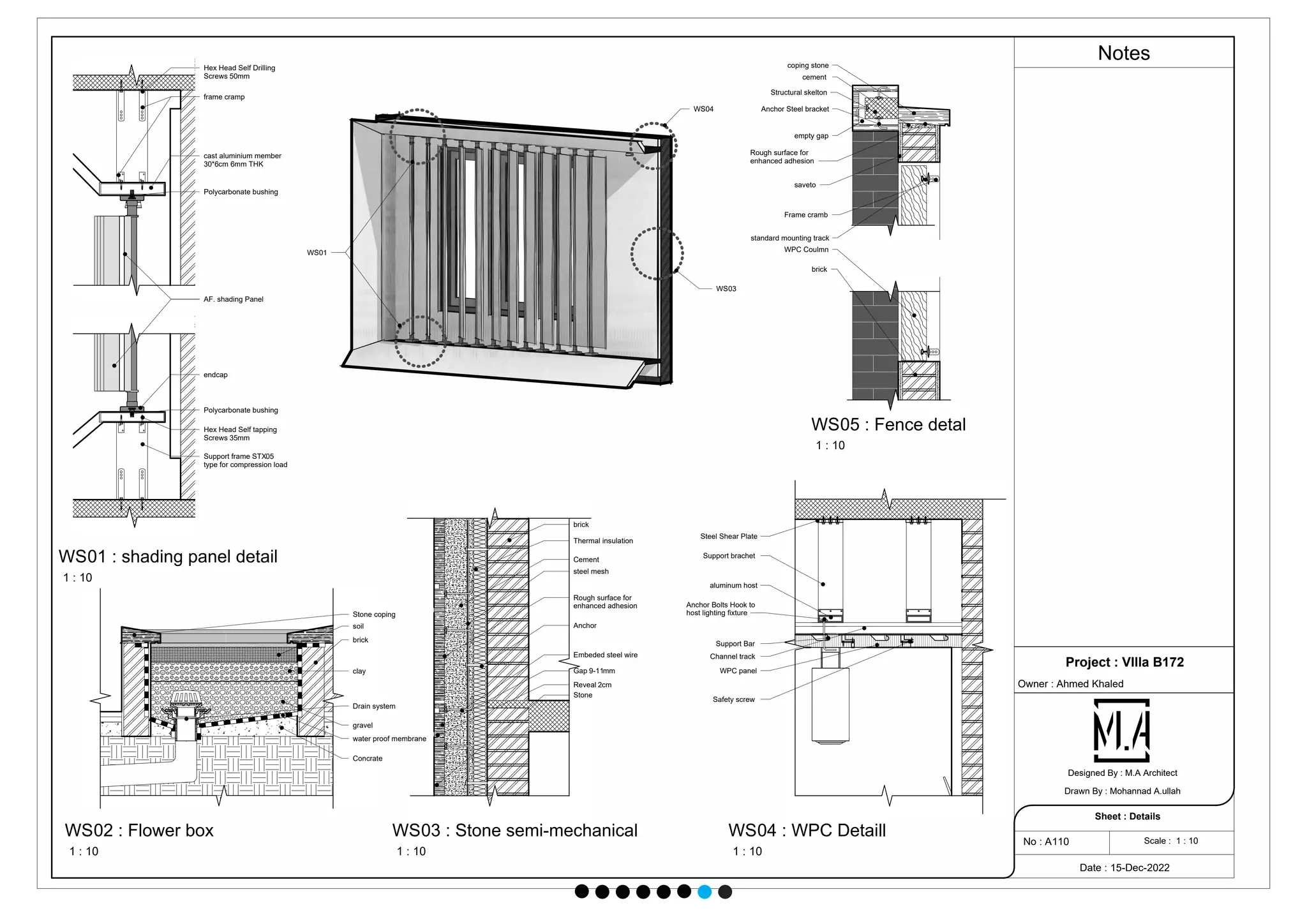

cement coping stone Structural skelton brick WPC Coulmn standard mounting track Anchor Steel bracket Frame cramb empty gap saveto Rough surface for enhanced adhesion Stone coping water proof membrane clay gravel Concrate Drain system soil brick Hex Head Self Drilling Screws 50mm frame cramp Polycarbonate bushing cast aluminium member 30*6cm 6mm THK AF. shading Panel Hex Head Self tapping Screws 35mm Polycarbonate bushing endcap Support frame STX05 type for compression load brick Thermal insulation Cement Anchor steel mesh Embeded steel wire Rough surface for enhanced adhesion Stone Gap 9-11mm Reveal 2cm aluminum host Support brachet Support Bar WPC panel Channel track Safety screw Anchor Bolts Hook to host lighting fixture Steel Shear Plate Notes Scale : 1 : 10 Project : VIlla B172 Owner : Ahmed Khaled Date : 15-Dec-2022 No : A110 Sheet : Details Designed By : M.A Architect Drawn By : Mohannad A.ullah 1 : 10 WS05 : Fence detal 1 : 10 WS02 : Flower box 1 : 10 WS01 : shading panel detail 1 : 10 WS03 : Stone semi-mechanical 1 : 10 WS04 : WPC Detaill WS01 WS04 WS03
Thanks
