Chord is a peer-to-peer lookup service that maps keys to nodes in a distributed system. It addresses problems like load balancing, decentralization, scalability, and availability that arise from nodes frequently joining and leaving the network. Chord uses consistent hashing to assign keys to nodes, and each node maintains a finger table with pointers to other nodes to efficiently route lookup requests. When nodes join or leave, only a few keys are redistributed and finger tables are updated through a stabilization protocol to maintain correctness.

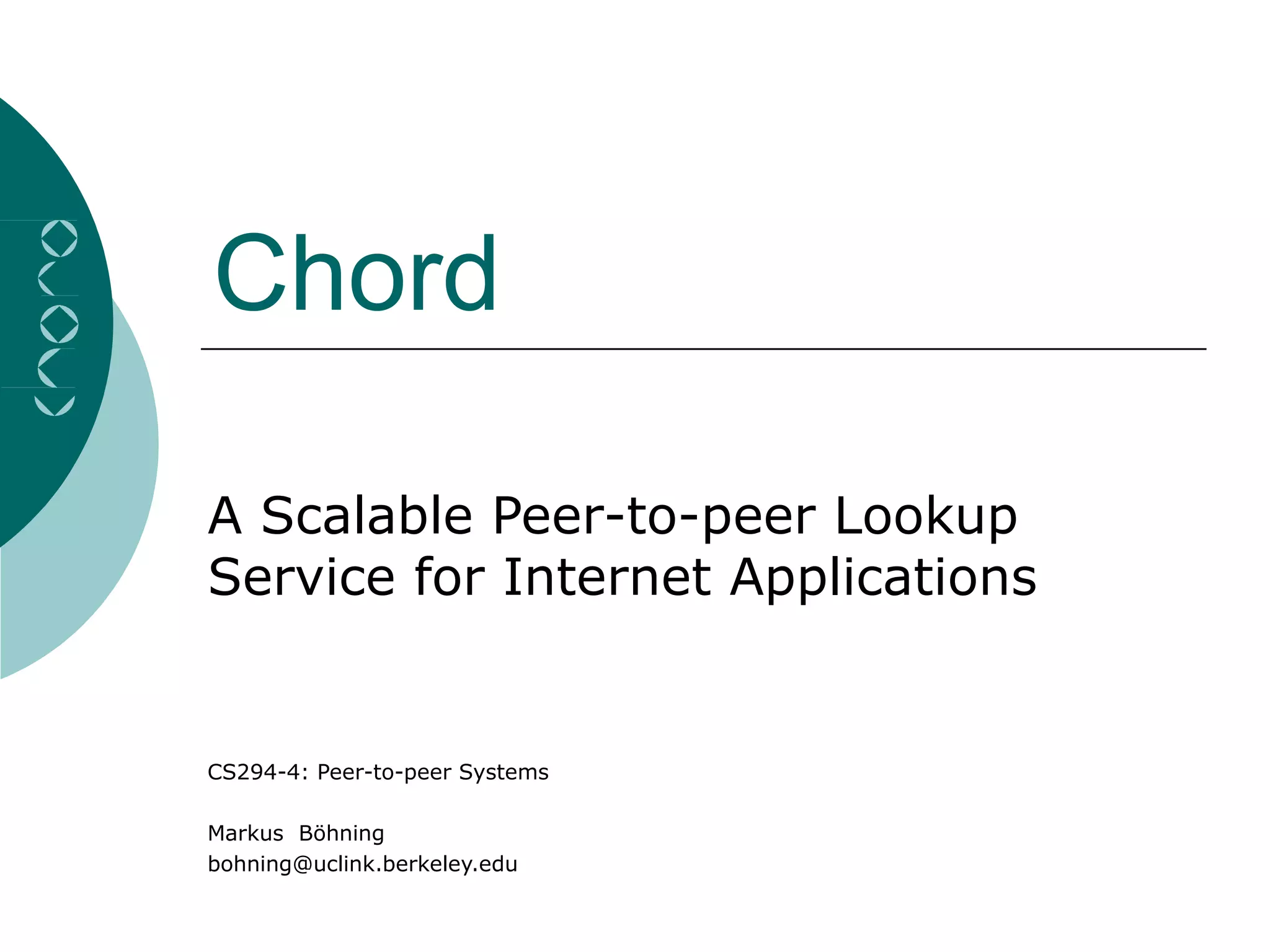

1. Chord
A Scalable Peer-to-peer Lookup
Service for Internet Applications
CS294-4: Peer-to-peer Systems
Markus Böhning
bohning@uclink.berkeley.edu

2. 2

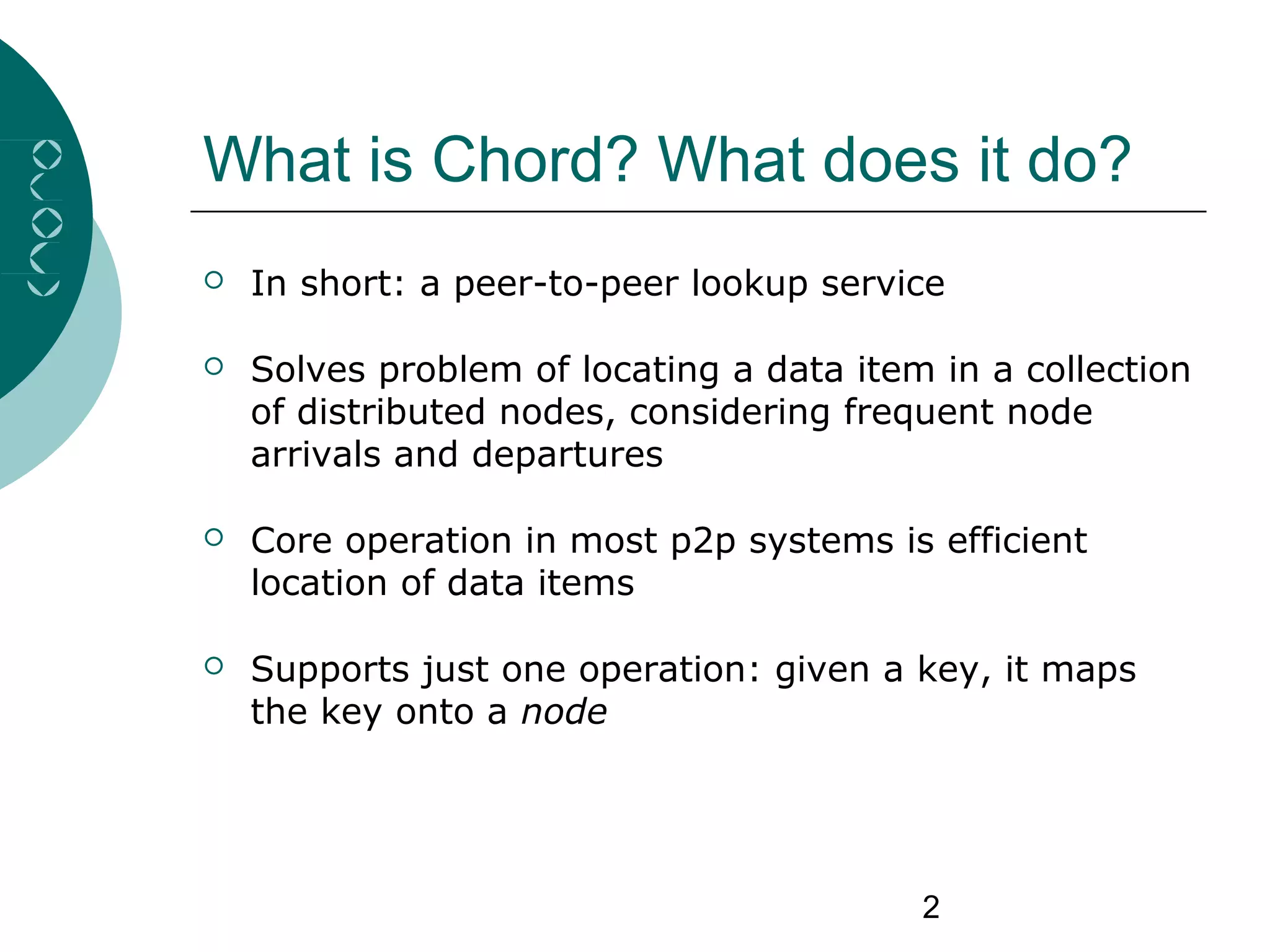

What is Chord? What does it do?
 In short: a peer-to-peer lookup service
 Solves problem of locating a data item in a collection
of distributed nodes, considering frequent node
arrivals and departures
 Core operation in most p2p systems is efficient
location of data items
 Supports just one operation: given a key, it maps
the key onto a node

3. 3

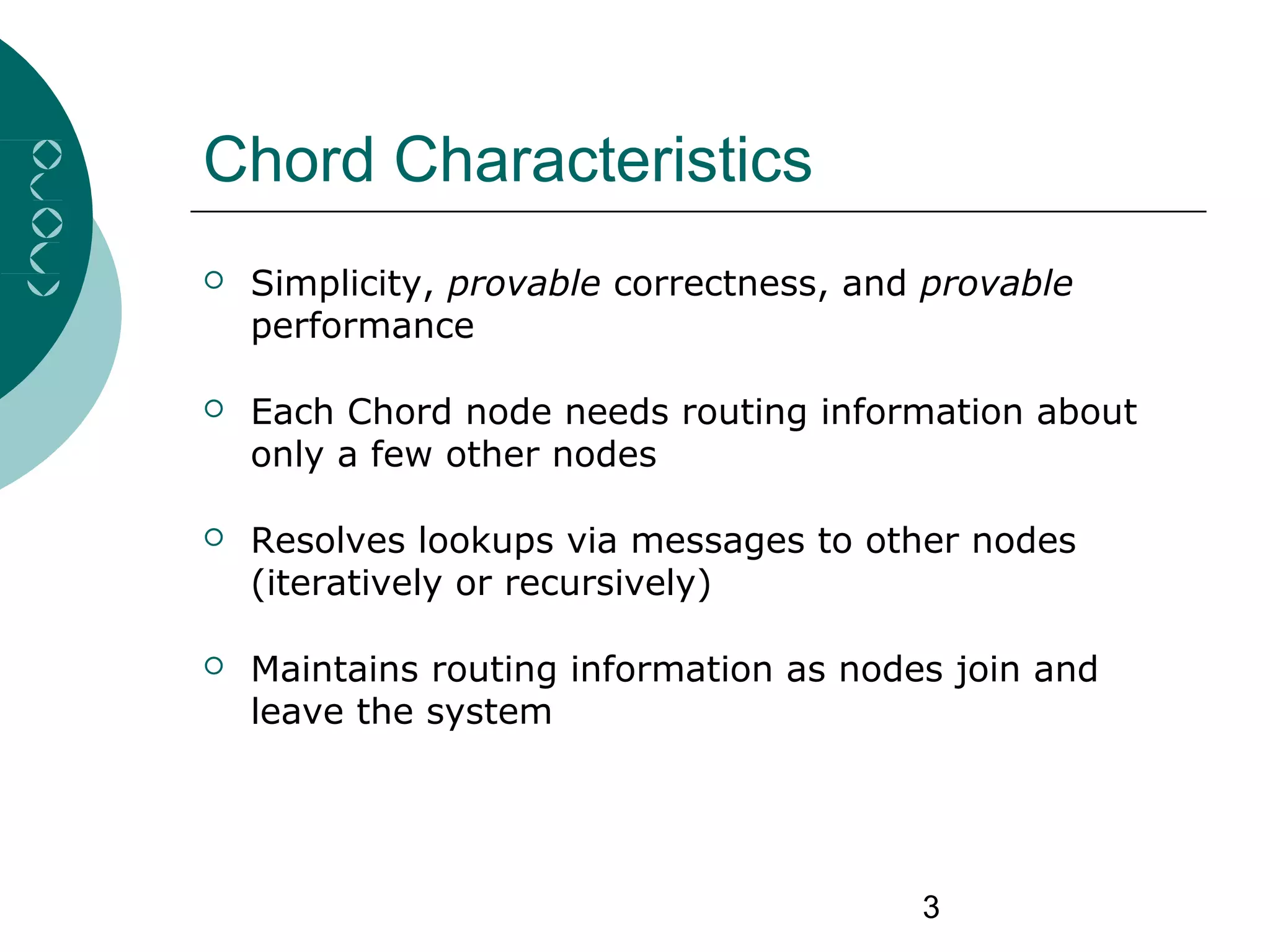

Chord Characteristics
 Simplicity, provable correctness, and provable
performance
 Each Chord node needs routing information about
only a few other nodes
 Resolves lookups via messages to other nodes
(iteratively or recursively)
 Maintains routing information as nodes join and
leave the system

4. 4

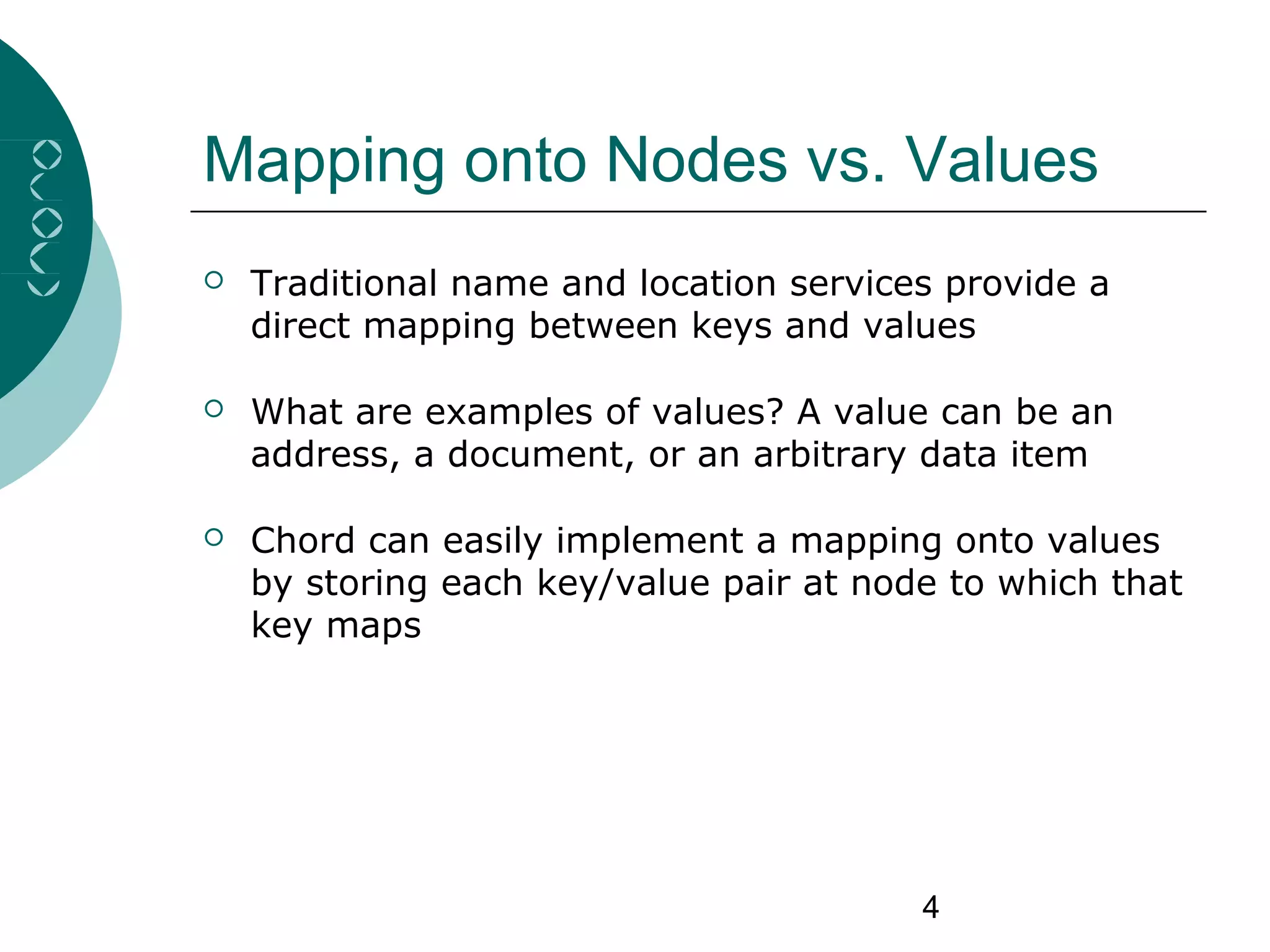

Mapping onto Nodes vs. Values
 Traditional name and location services provide a
direct mapping between keys and values
 What are examples of values? A value can be an
address, a document, or an arbitrary data item
 Chord can easily implement a mapping onto values
by storing each key/value pair at node to which that
key maps

5. 5

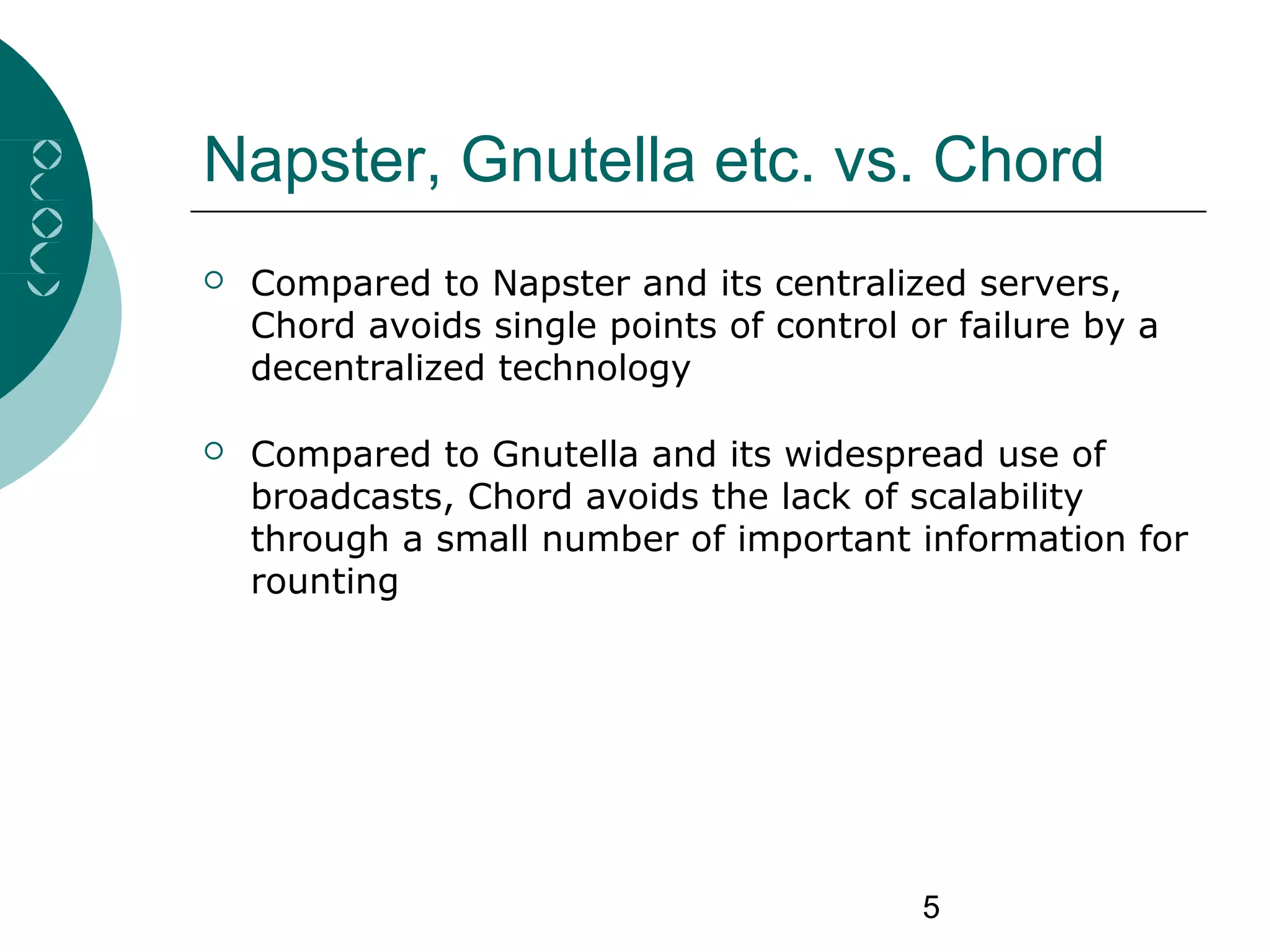

Napster, Gnutella etc. vs. Chord
 Compared to Napster and its centralized servers,
Chord avoids single points of control or failure by a
decentralized technology
 Compared to Gnutella and its widespread use of
broadcasts, Chord avoids the lack of scalability
through a small number of important information for
rounting

6. 6

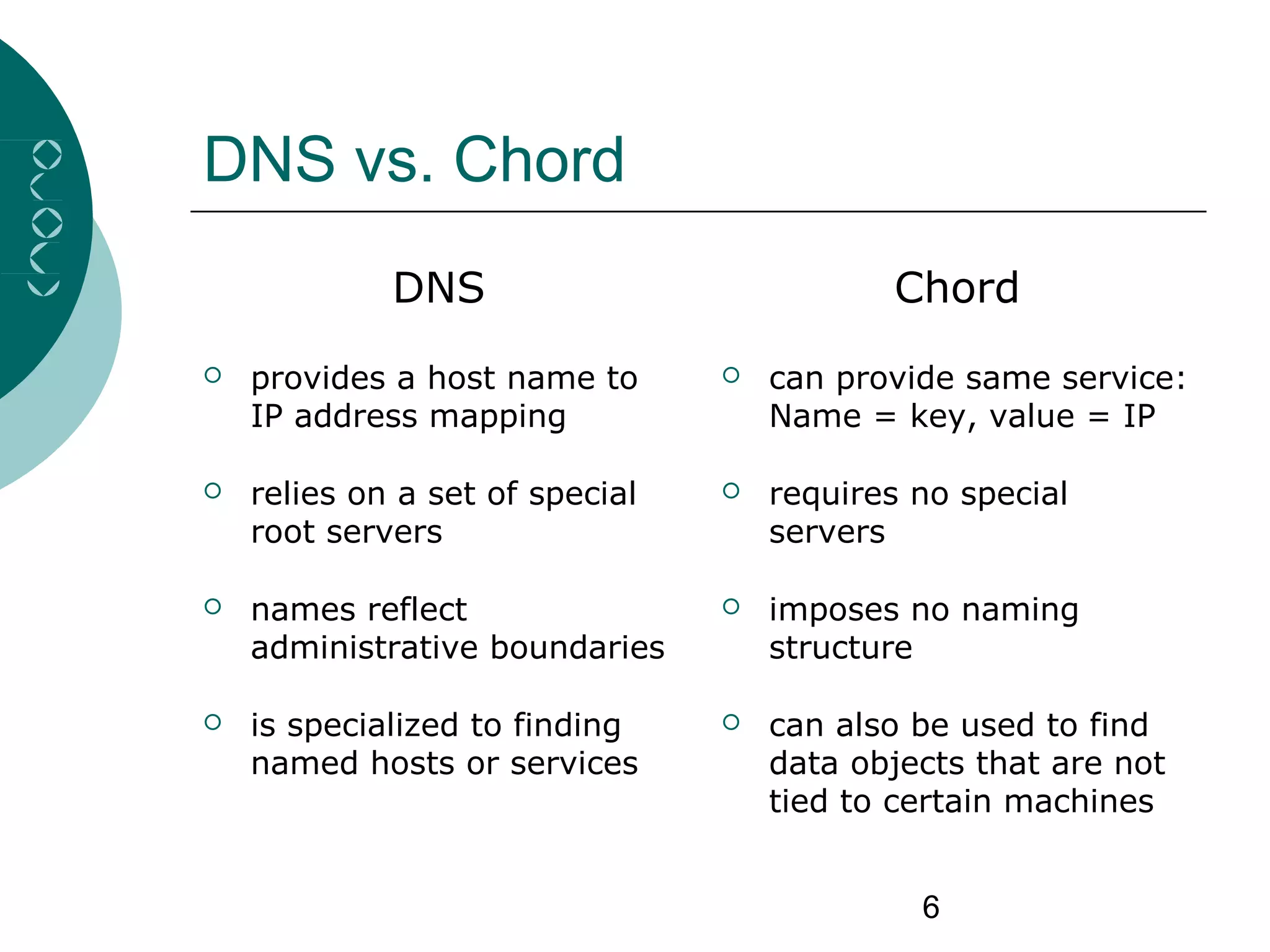

DNS vs. Chord
DNS
 provides a host name to
IP address mapping
 relies on a set of special
root servers
 names reflect
administrative boundaries
 is specialized to finding
named hosts or services
Chord
 can provide same service:
Name = key, value = IP
 requires no special
servers
 imposes no naming
structure
 can also be used to find
data objects that are not
tied to certain machines

7. 7

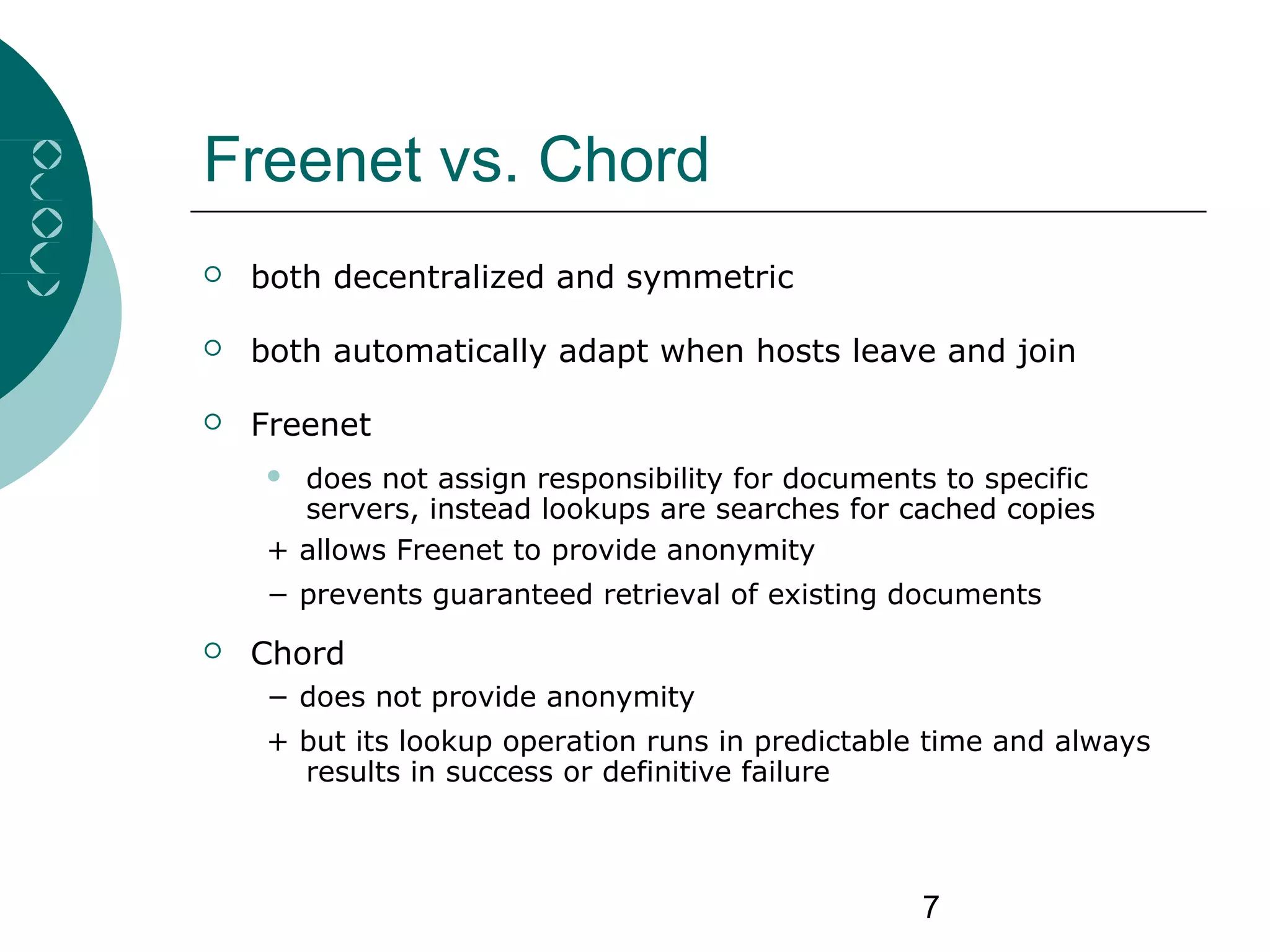

Freenet vs. Chord
 both decentralized and symmetric
 both automatically adapt when hosts leave and join
 Freenet
 does not assign responsibility for documents to specific
servers, instead lookups are searches for cached copies
+ allows Freenet to provide anonymity
− prevents guaranteed retrieval of existing documents
 Chord
− does not provide anonymity
+ but its lookup operation runs in predictable time and always
results in success or definitive failure

8. 8

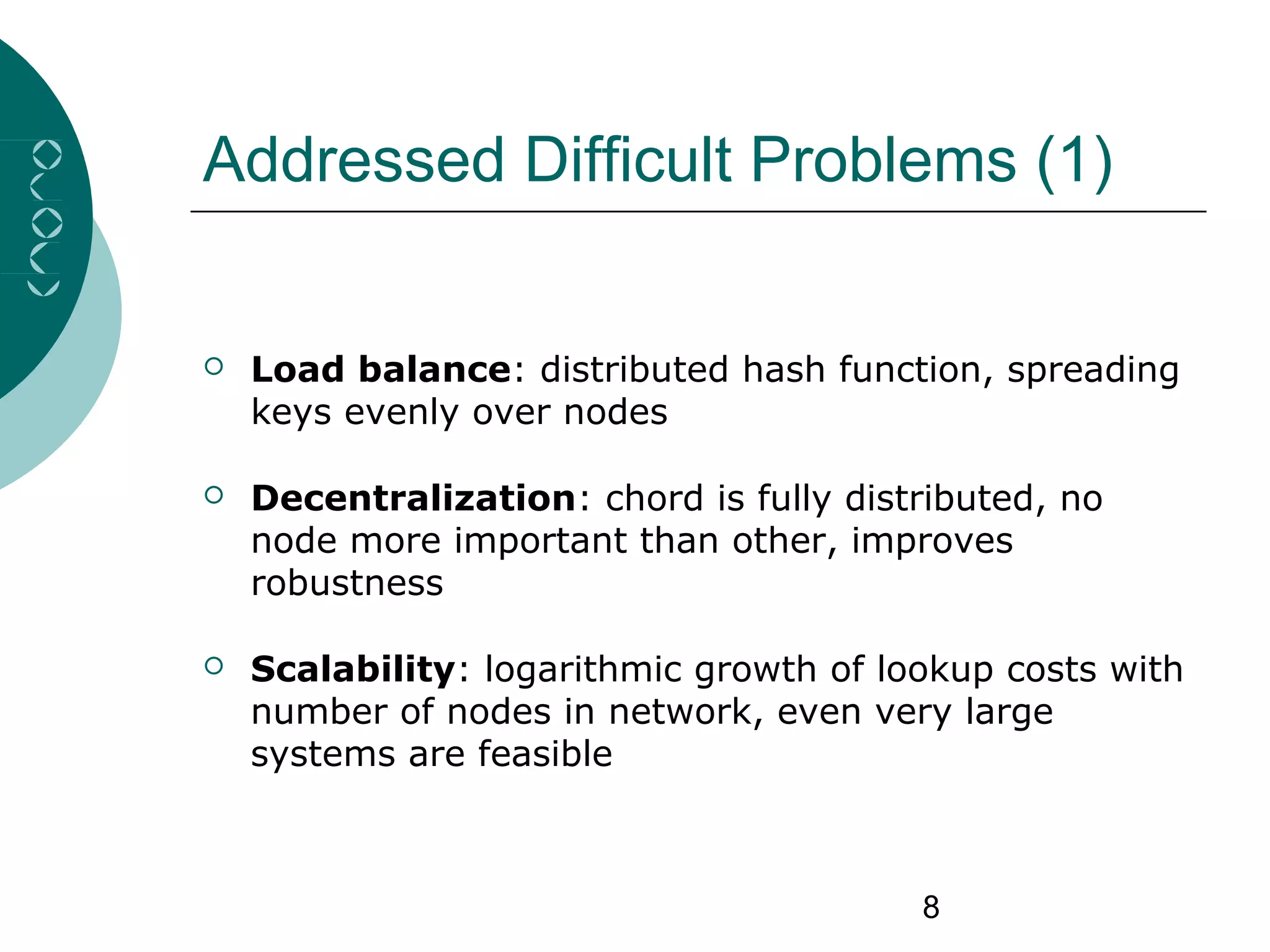

Addressed Difficult Problems (1)
 Load balance: distributed hash function, spreading
keys evenly over nodes
 Decentralization: chord is fully distributed, no
node more important than other, improves
robustness
 Scalability: logarithmic growth of lookup costs with
number of nodes in network, even very large
systems are feasible

9. 9

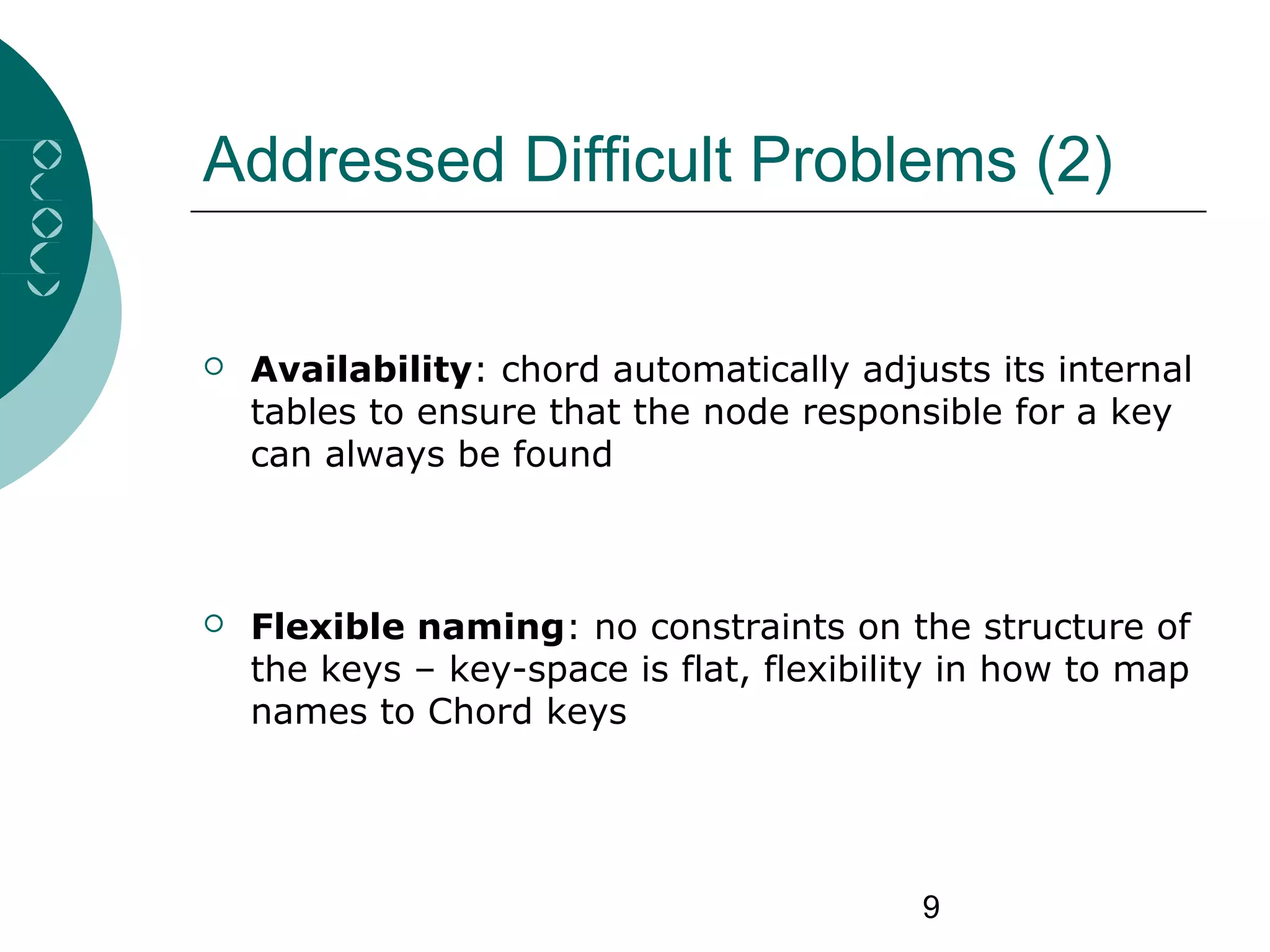

Addressed Difficult Problems (2)
 Availability: chord automatically adjusts its internal
tables to ensure that the node responsible for a key
can always be found
 Flexible naming: no constraints on the structure of
the keys – key-space is flat, flexibility in how to map
names to Chord keys

10. 10

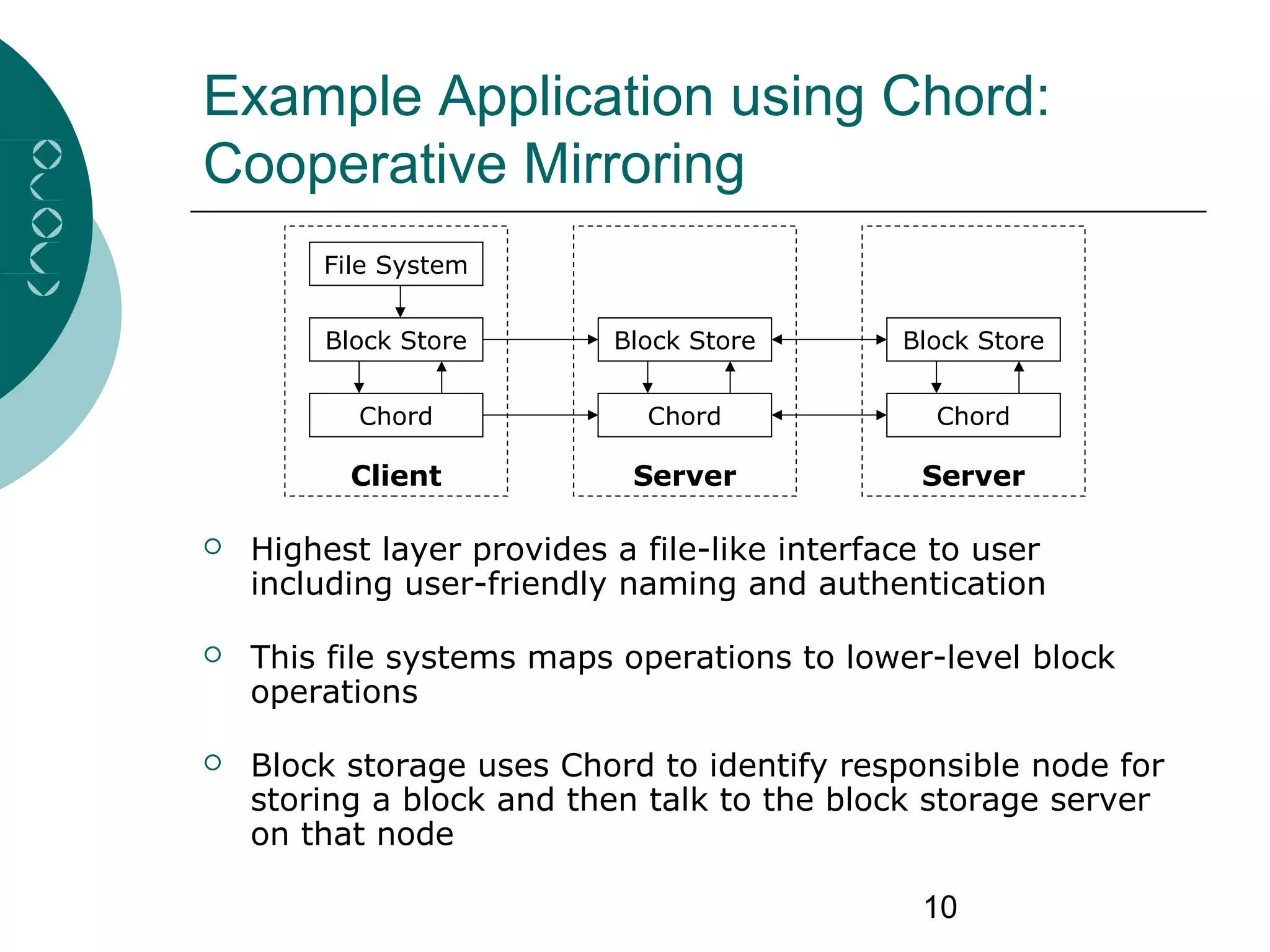

Example Application using Chord:
Cooperative Mirroring
 Highest layer provides a file-like interface to user
including user-friendly naming and authentication
 This file systems maps operations to lower-level block
operations
 Block storage uses Chord to identify responsible node for
storing a block and then talk to the block storage server
on that node
File System
Block Store
Chord
Block Store
Chord
Block Store
Chord
Client Server Server

11. 11

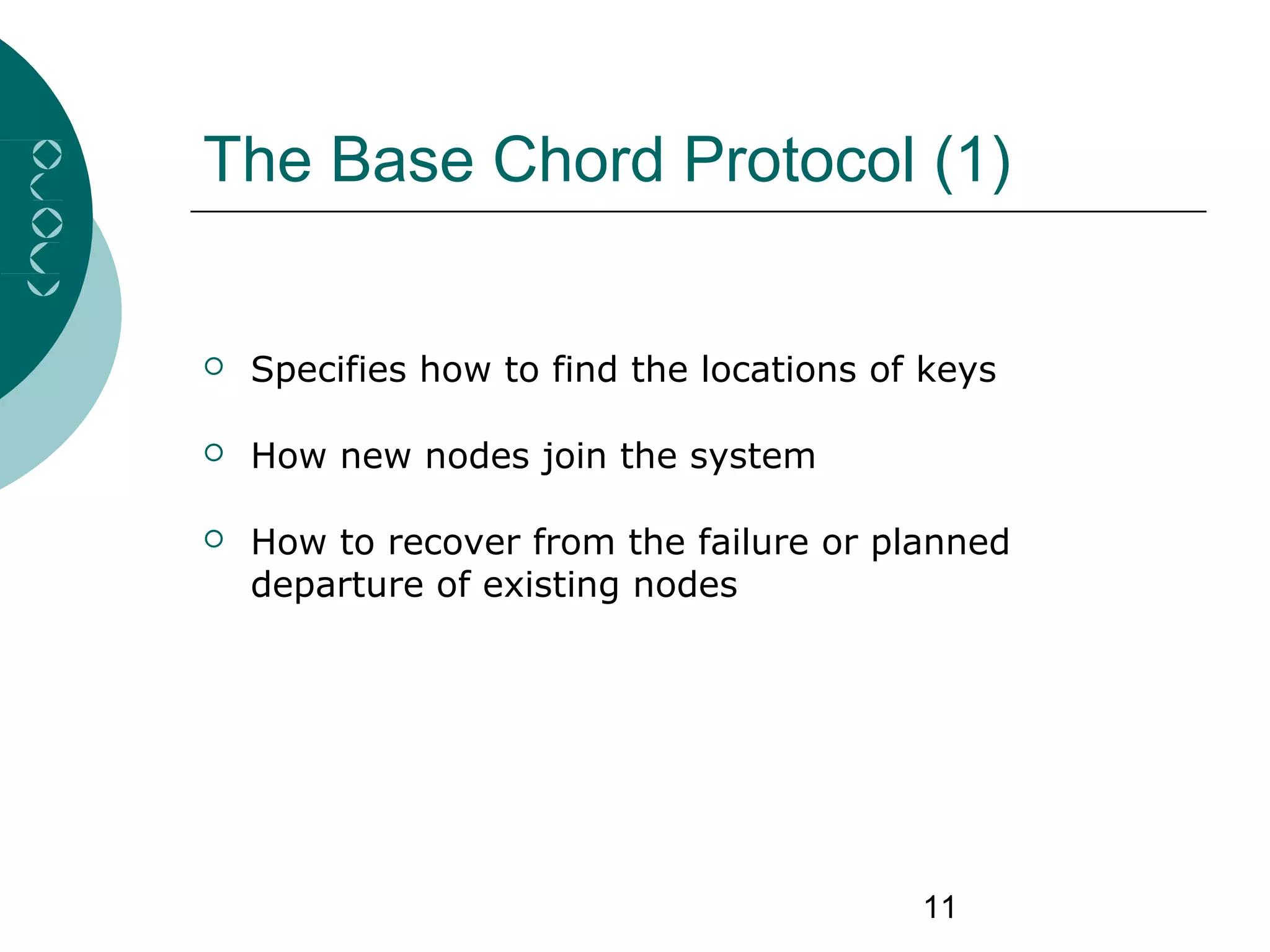

The Base Chord Protocol (1)
 Specifies how to find the locations of keys
 How new nodes join the system
 How to recover from the failure or planned
departure of existing nodes

12. 12

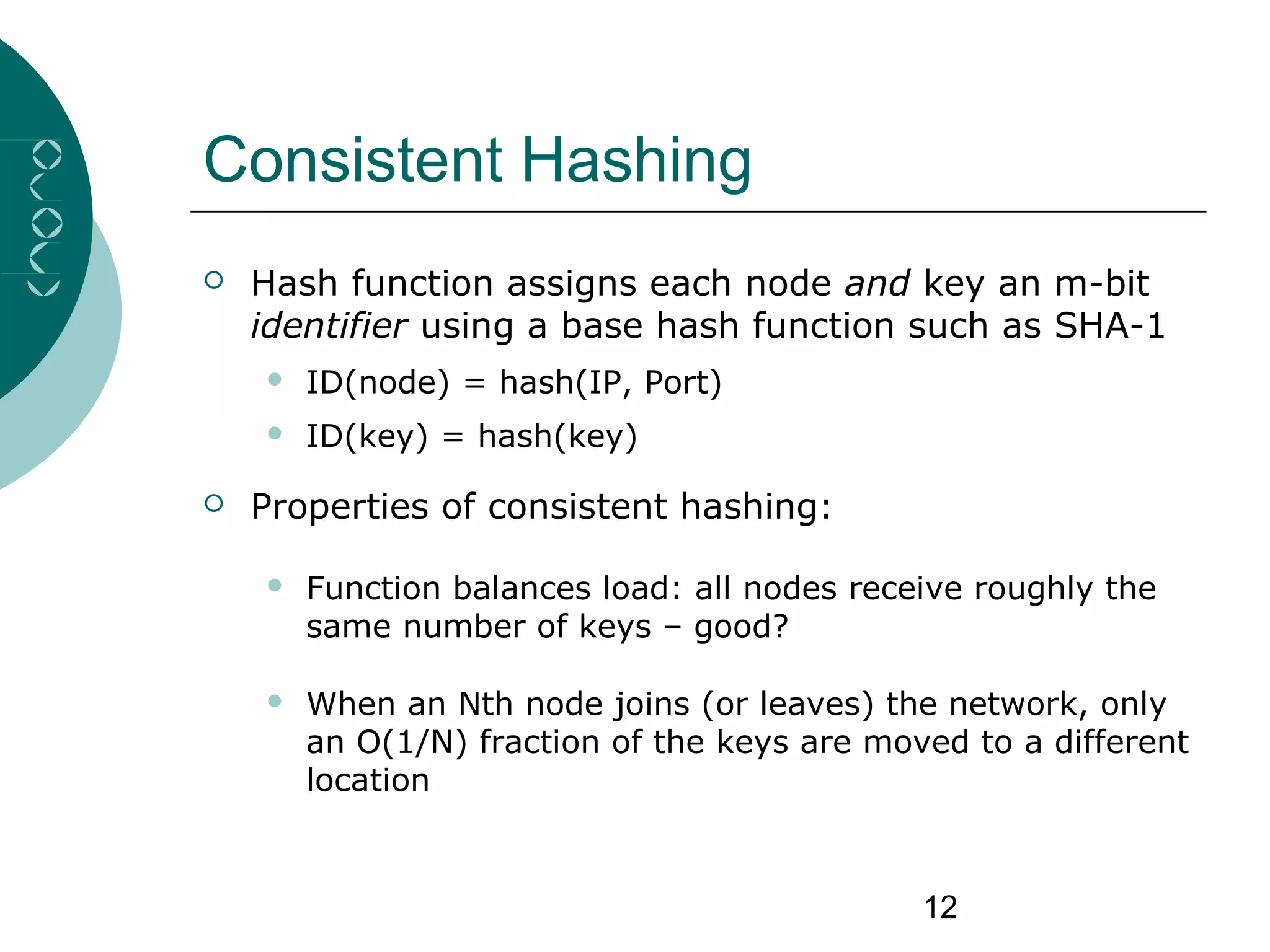

Consistent Hashing
 Hash function assigns each node and key an m-bit
identifier using a base hash function such as SHA-1
 ID(node) = hash(IP, Port)
 ID(key) = hash(key)
 Properties of consistent hashing:
 Function balances load: all nodes receive roughly the
same number of keys – good?
 When an Nth node joins (or leaves) the network, only
an O(1/N) fraction of the keys are moved to a different
location

13. 13
6
1
2
6
0
4
26
5
1
3
7
2
identifier
circle
identifier
node
X key

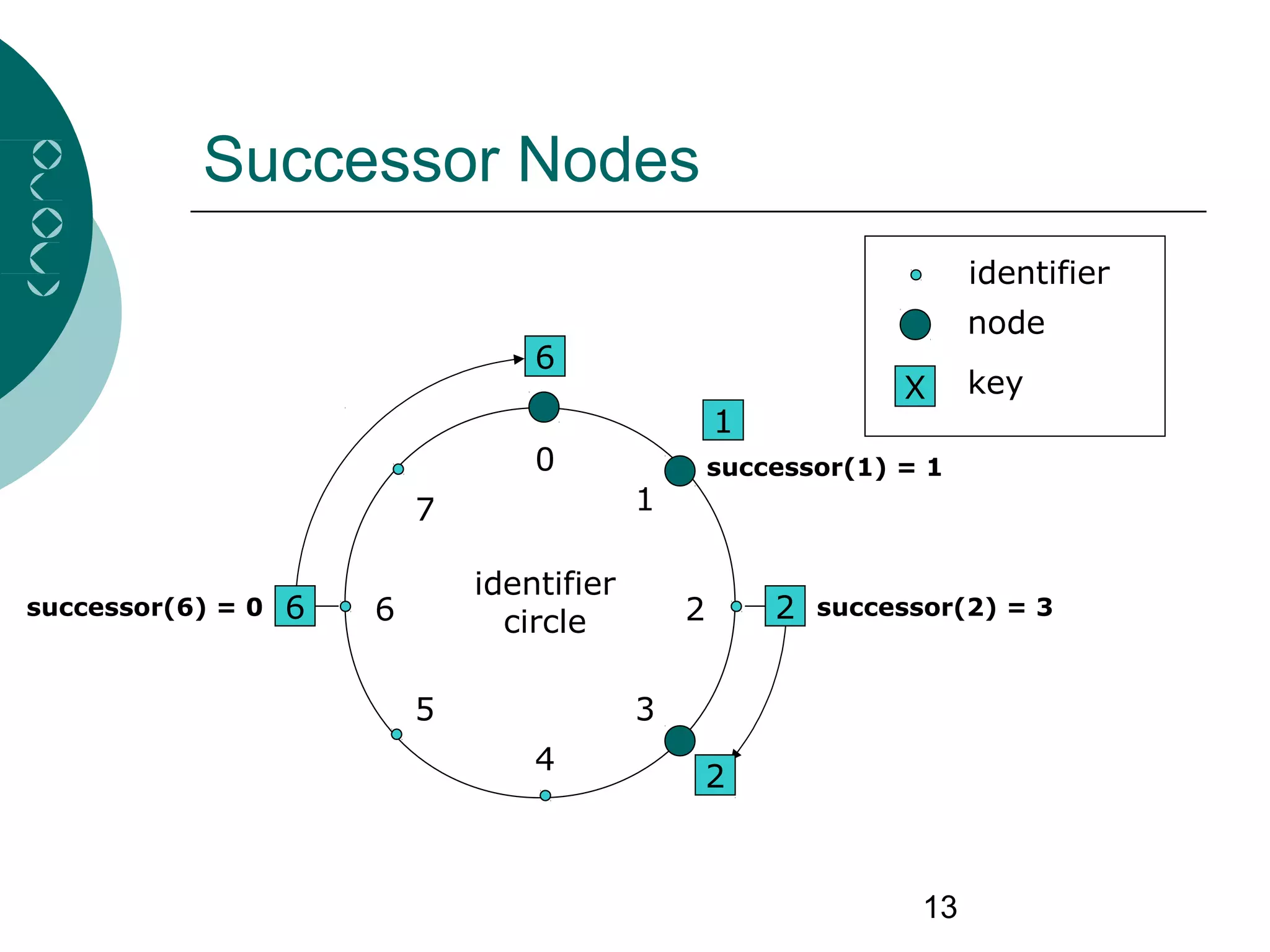

Successor Nodes
successor(1) = 1
successor(2) = 3successor(6) = 0

14. 14

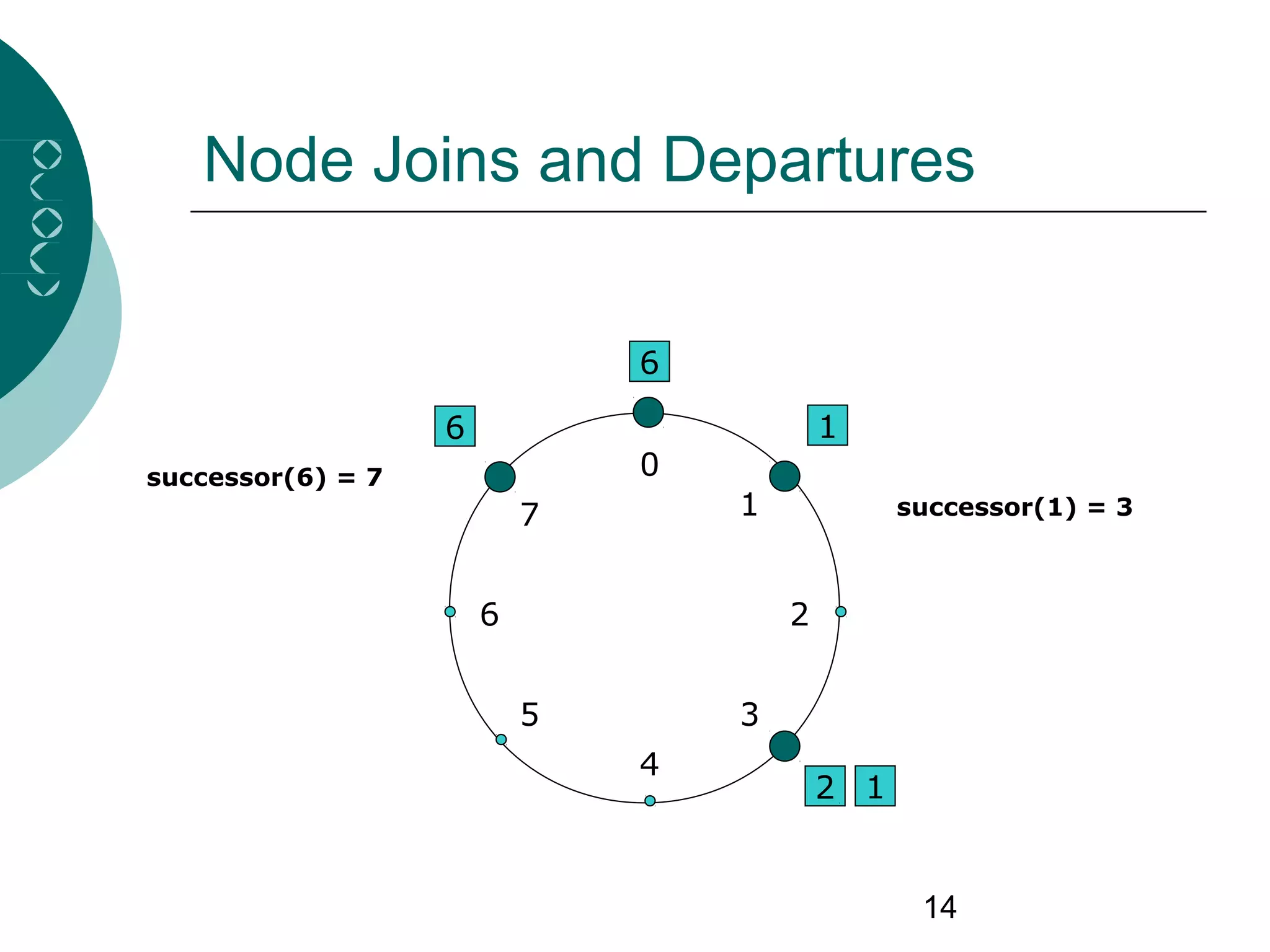

Node Joins and Departures
6
1
2
0
4
26
5
1
3
7
successor(6) = 7
6
1
successor(1) = 3

15. 15

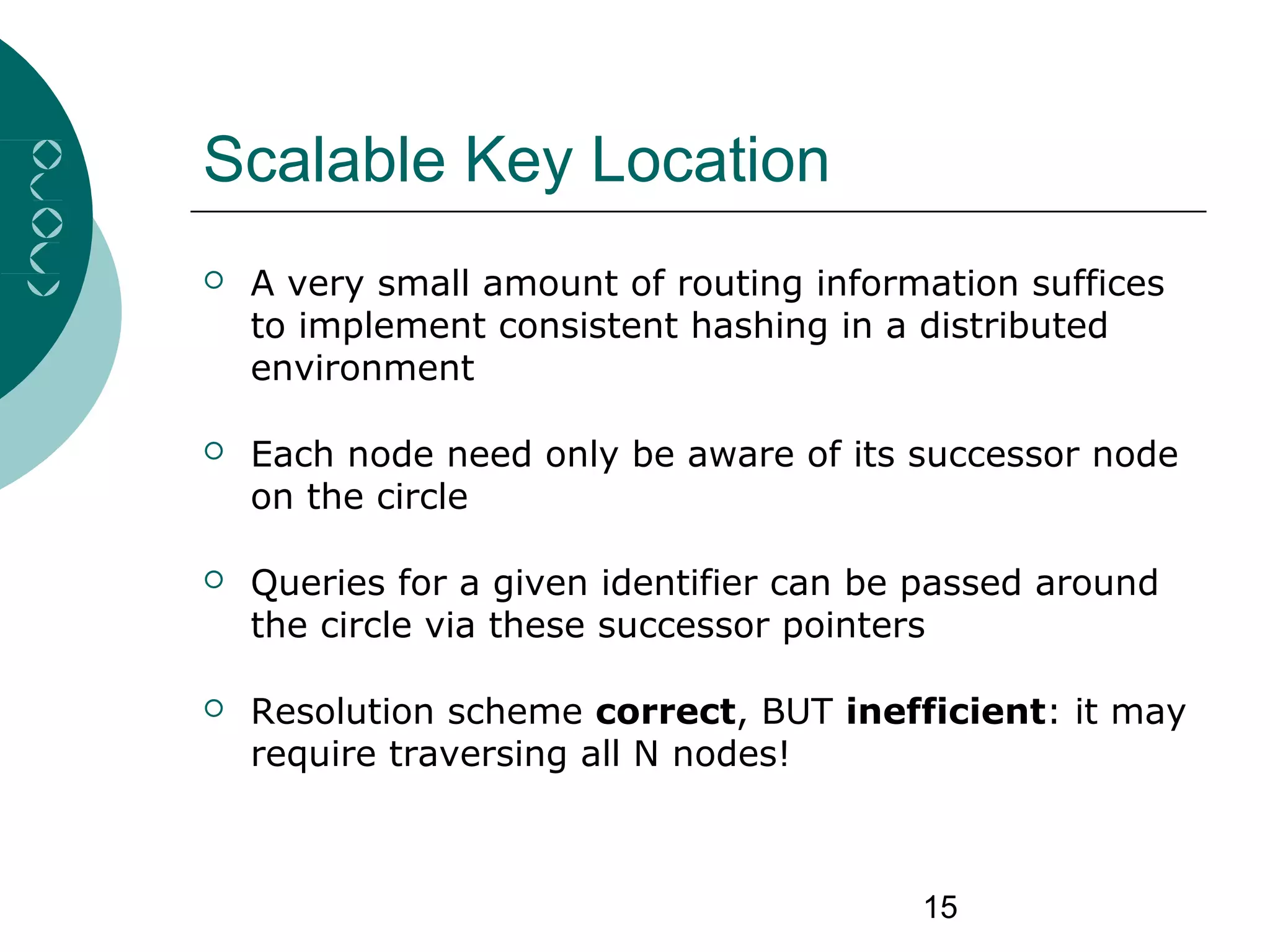

Scalable Key Location
 A very small amount of routing information suffices
to implement consistent hashing in a distributed
environment
 Each node need only be aware of its successor node
on the circle
 Queries for a given identifier can be passed around
the circle via these successor pointers
 Resolution scheme correct, BUT inefficient: it may
require traversing all N nodes!

16. 16

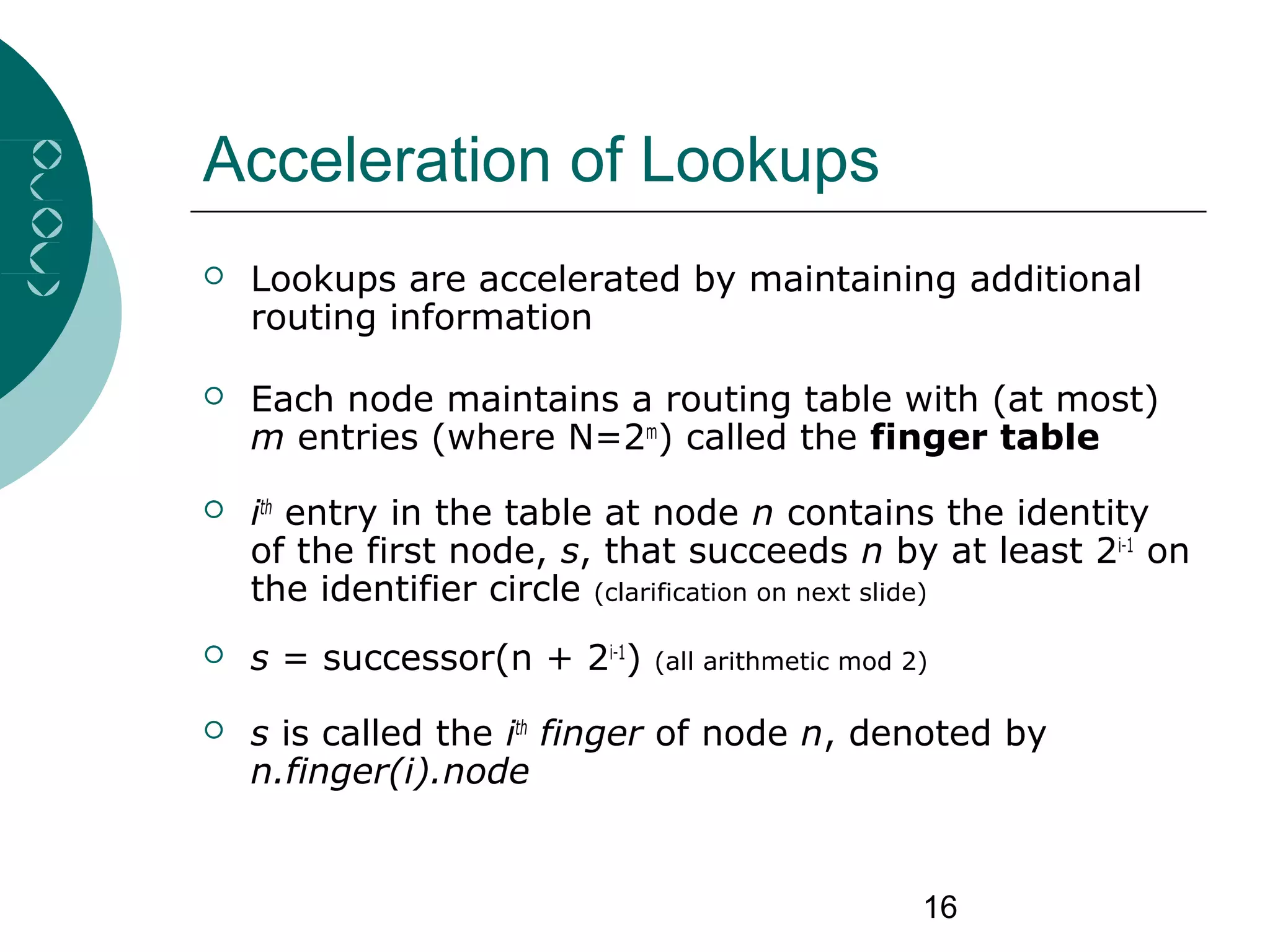

Acceleration of Lookups
 Lookups are accelerated by maintaining additional
routing information
 Each node maintains a routing table with (at most)
m entries (where N=2m
) called the finger table
 ith
entry in the table at node n contains the identity
of the first node, s, that succeeds n by at least 2i-1
on
the identifier circle (clarification on next slide)
 s = successor(n + 2i-1
) (all arithmetic mod 2)
 s is called the ith
finger of node n, denoted by
n.finger(i).node

17. 17

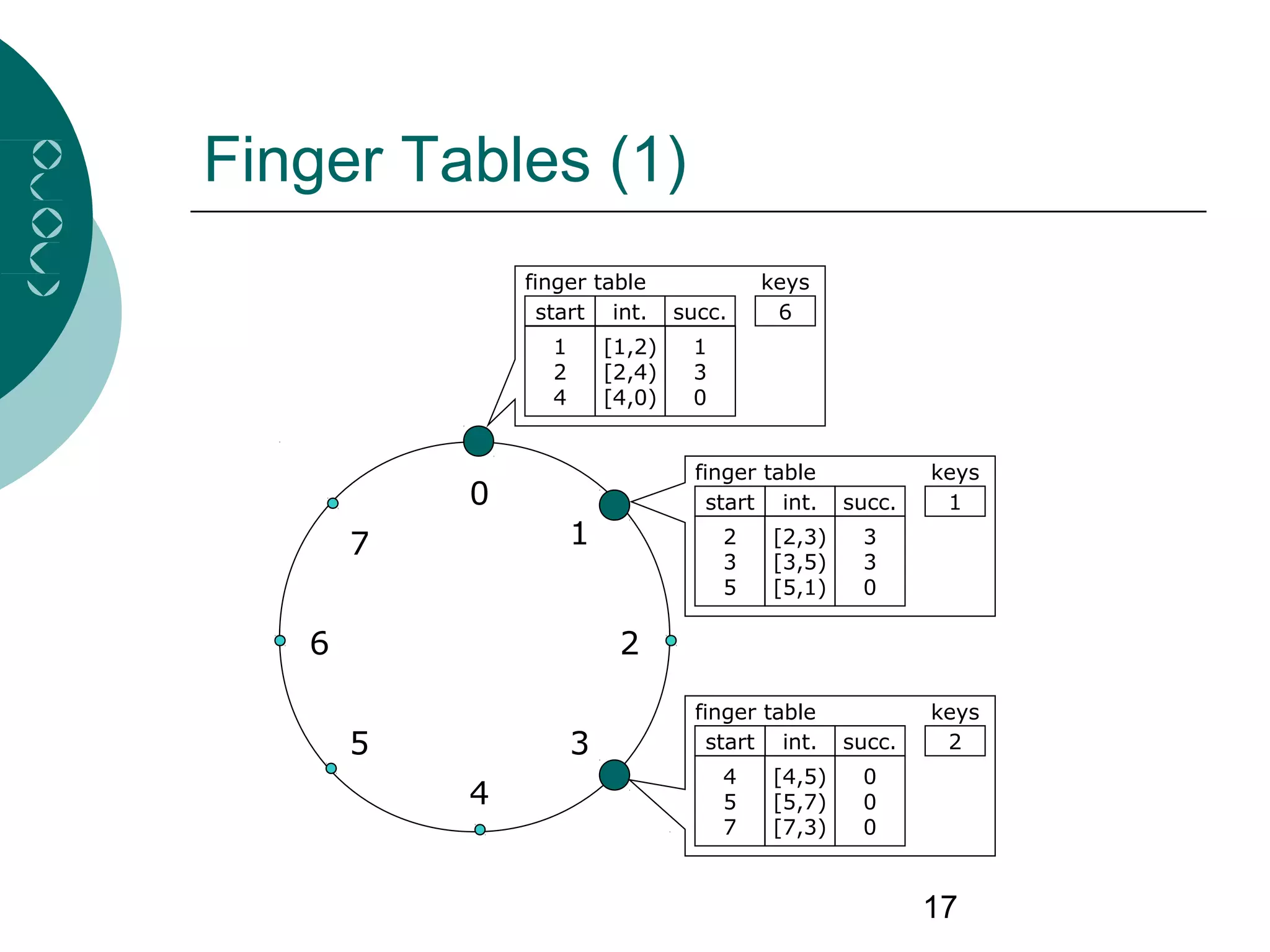

Finger Tables (1)
0
4
26
5
1
3
7
1
2
4
[1,2)
[2,4)
[4,0)
1
3
0
finger table
start int. succ.
keys
1
2
3
5
[2,3)
[3,5)
[5,1)
3
3
0
finger table
start int. succ.
keys
2
4
5
7
[4,5)
[5,7)
[7,3)
0
0
0
finger table
start int. succ.
keys
6

18. 18

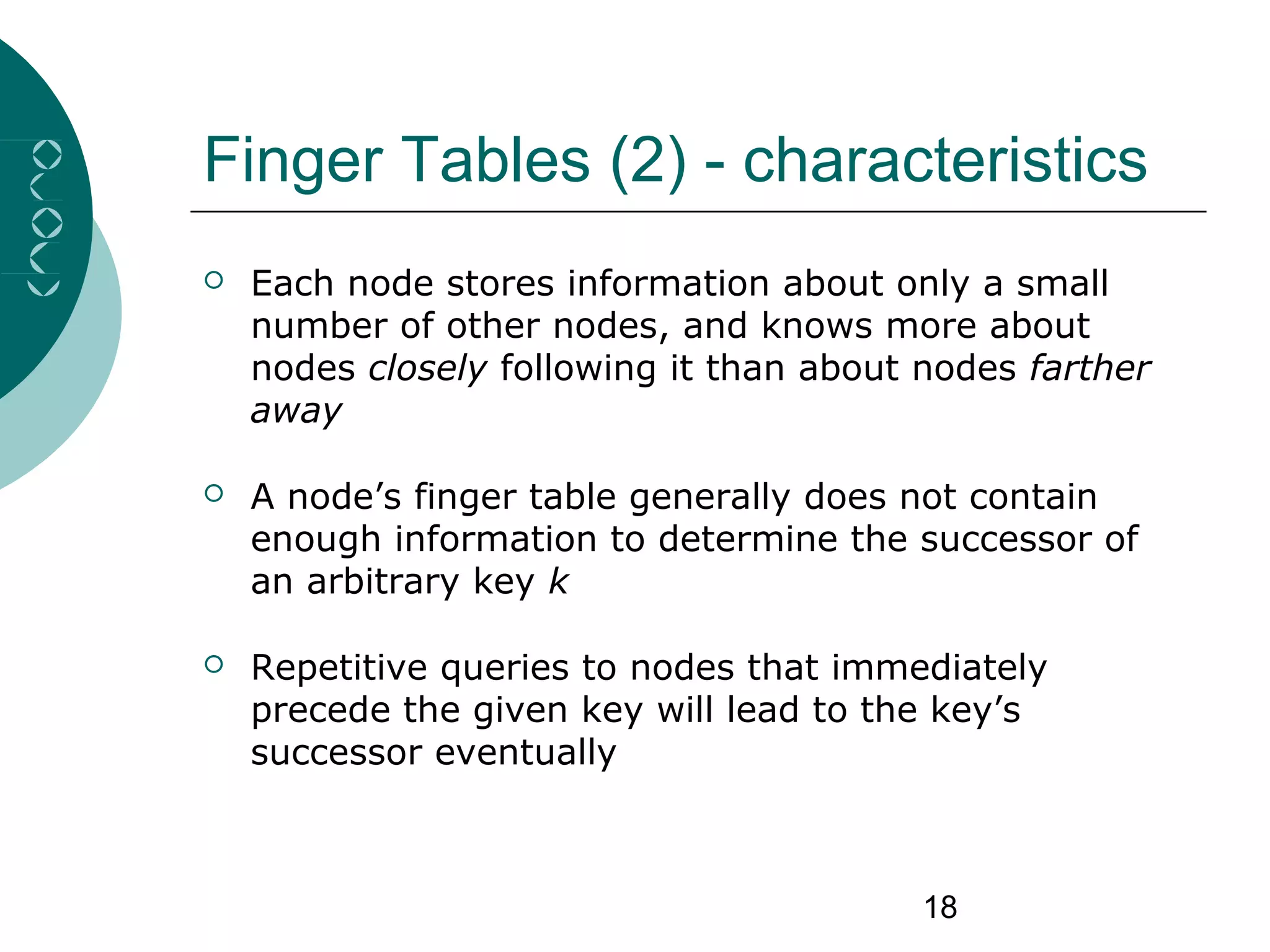

Finger Tables (2) - characteristics
 Each node stores information about only a small
number of other nodes, and knows more about
nodes closely following it than about nodes farther
away
 A node’s finger table generally does not contain
enough information to determine the successor of
an arbitrary key k
 Repetitive queries to nodes that immediately
precede the given key will lead to the key’s
successor eventually

19. 19

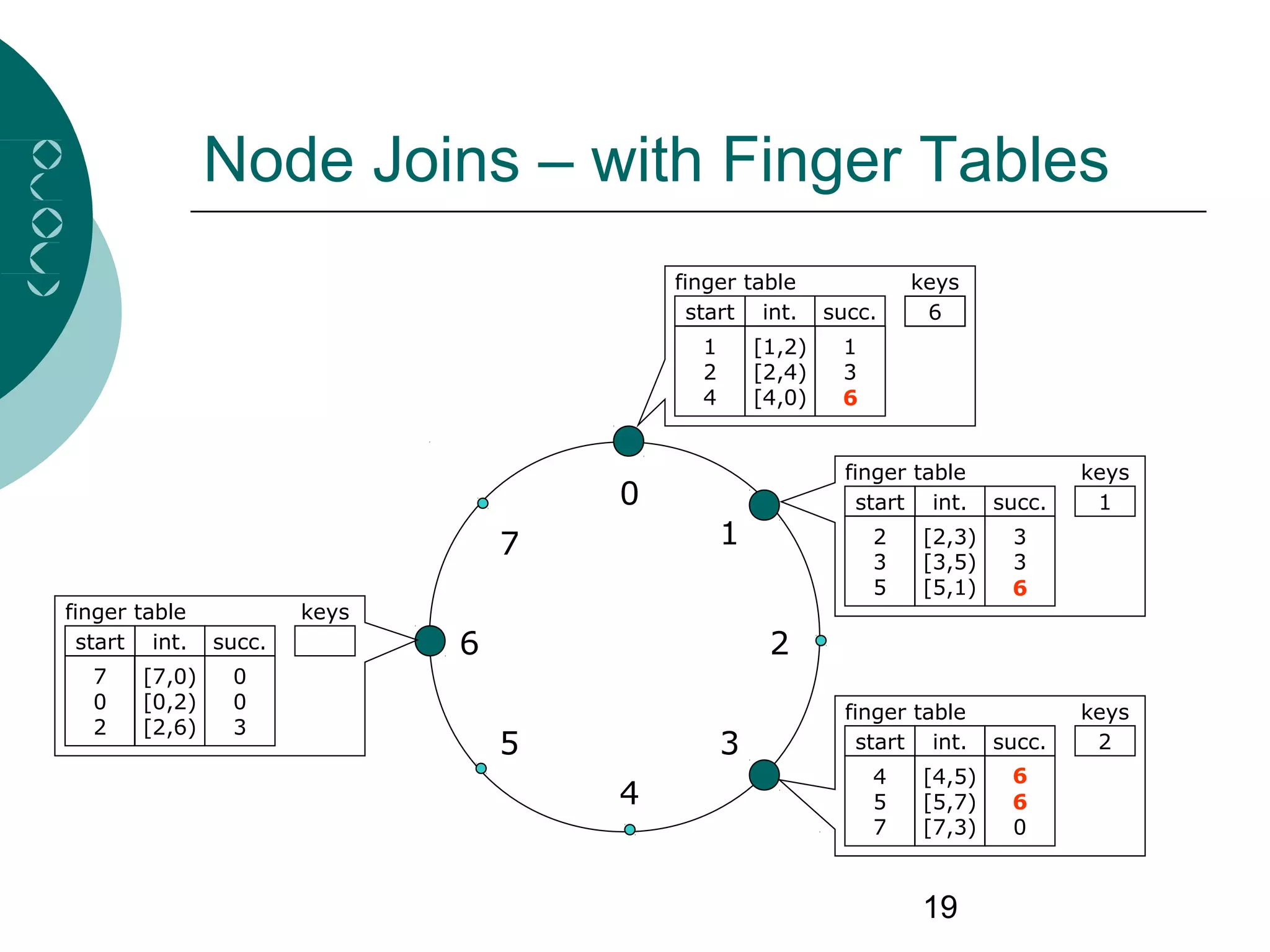

Node Joins – with Finger Tables
0
4
26
5
1
3
7
1
2
4
[1,2)
[2,4)
[4,0)
1
3
0
finger table
start int. succ.
keys
1
2
3
5
[2,3)
[3,5)
[5,1)
3
3
0
finger table
start int. succ.
keys
2
4
5
7
[4,5)
[5,7)
[7,3)
0
0
0
finger table
start int. succ.
keys
finger table
start int. succ.
keys
7
0
2
[7,0)
[0,2)
[2,6)
0
0
3
6
6
6
6
6

20. 20

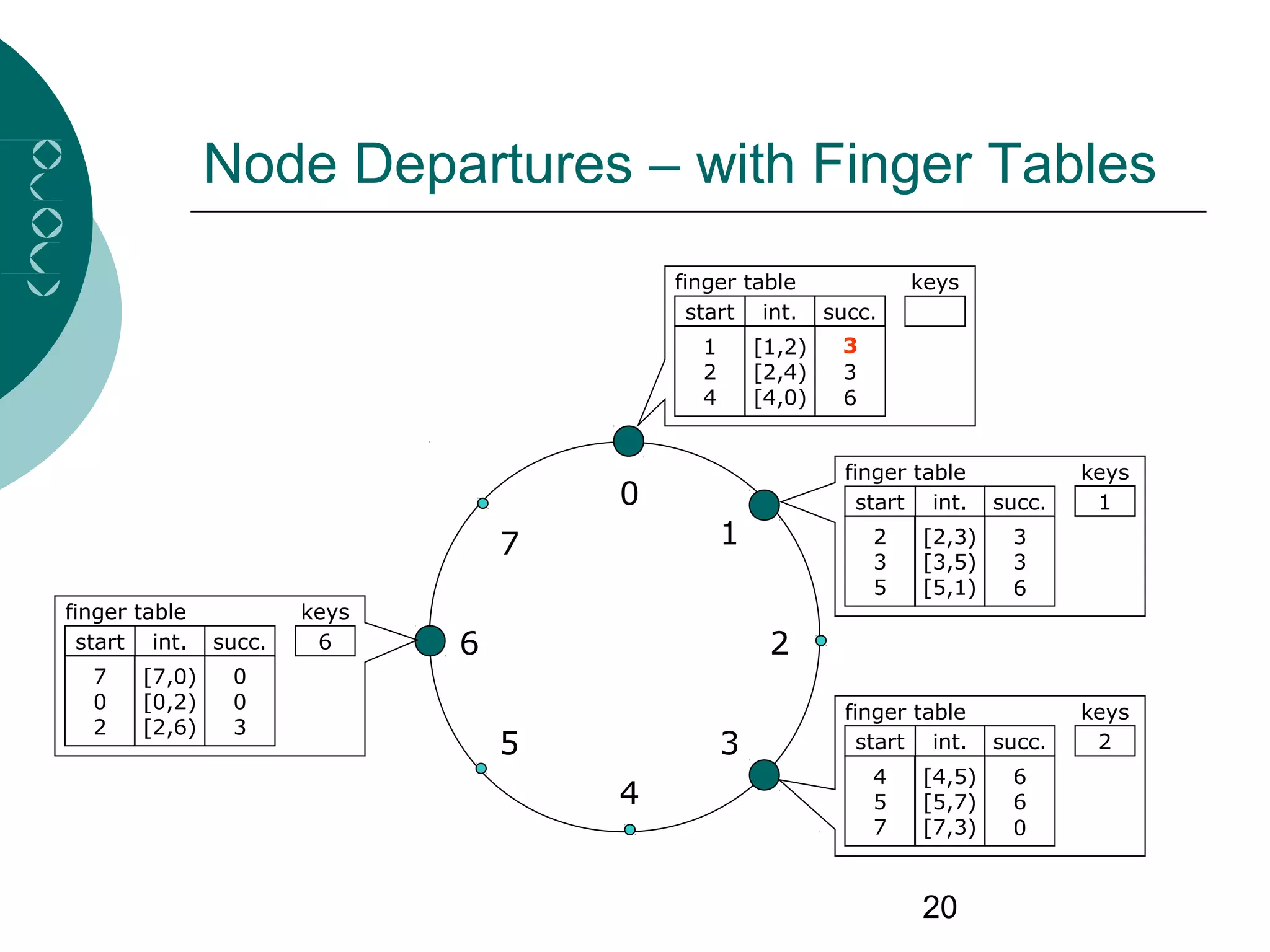

Node Departures – with Finger Tables
0
4
26
5
1
3
7
1
2
4
[1,2)
[2,4)
[4,0)
1
3
0
finger table
start int. succ.
keys
1
2
3
5
[2,3)
[3,5)
[5,1)
3
3
0
finger table
start int. succ.
keys
2
4
5
7
[4,5)
[5,7)
[7,3)
6
6
0
finger table
start int. succ.
keys
finger table
start int. succ.
keys
7
0
2
[7,0)
[0,2)
[2,6)
0
0
3
6
6
6
0
3

21. 21

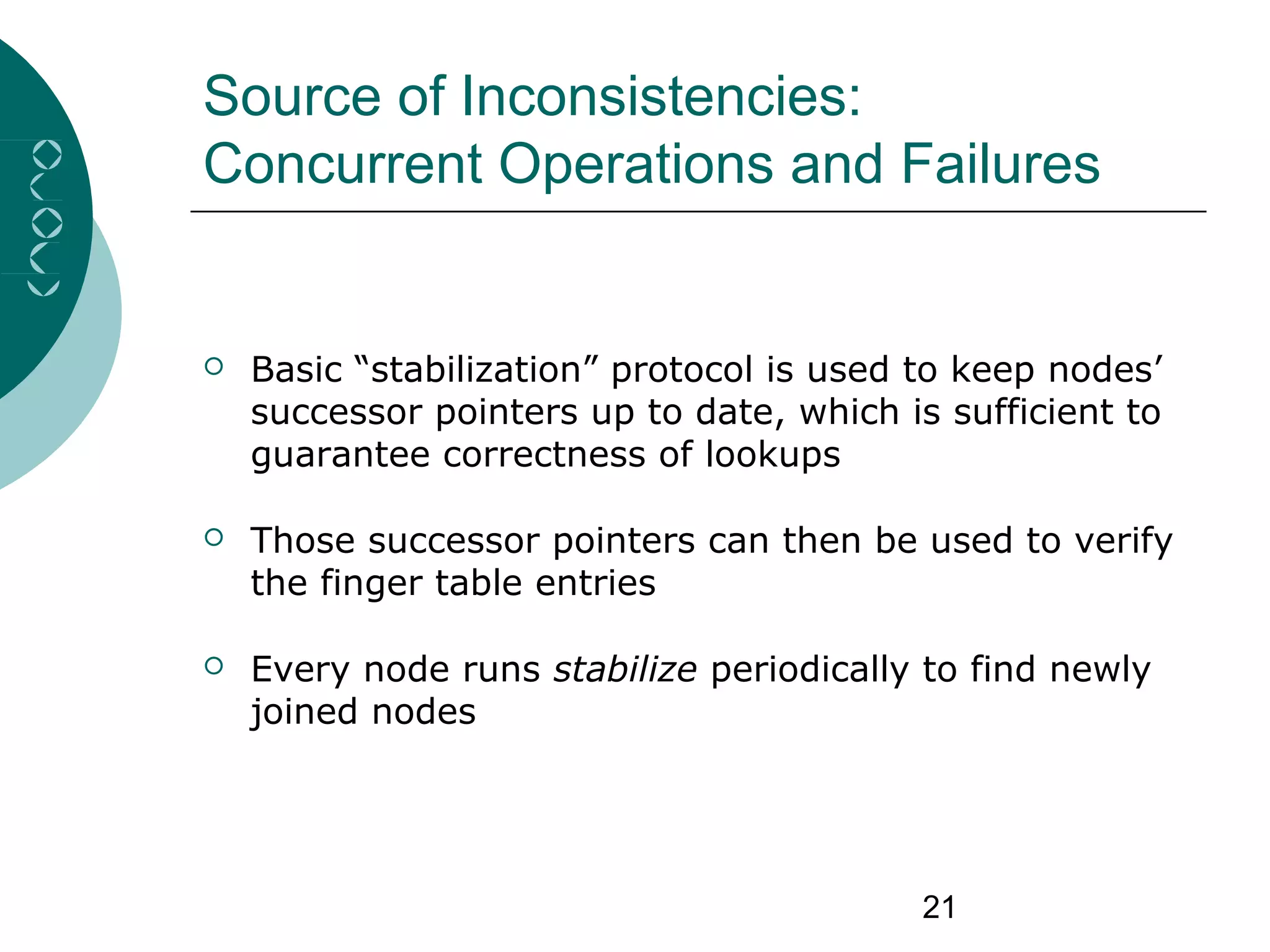

Source of Inconsistencies:
Concurrent Operations and Failures
 Basic “stabilization” protocol is used to keep nodes’
successor pointers up to date, which is sufficient to
guarantee correctness of lookups
 Those successor pointers can then be used to verify
the finger table entries
 Every node runs stabilize periodically to find newly
joined nodes

22. 22

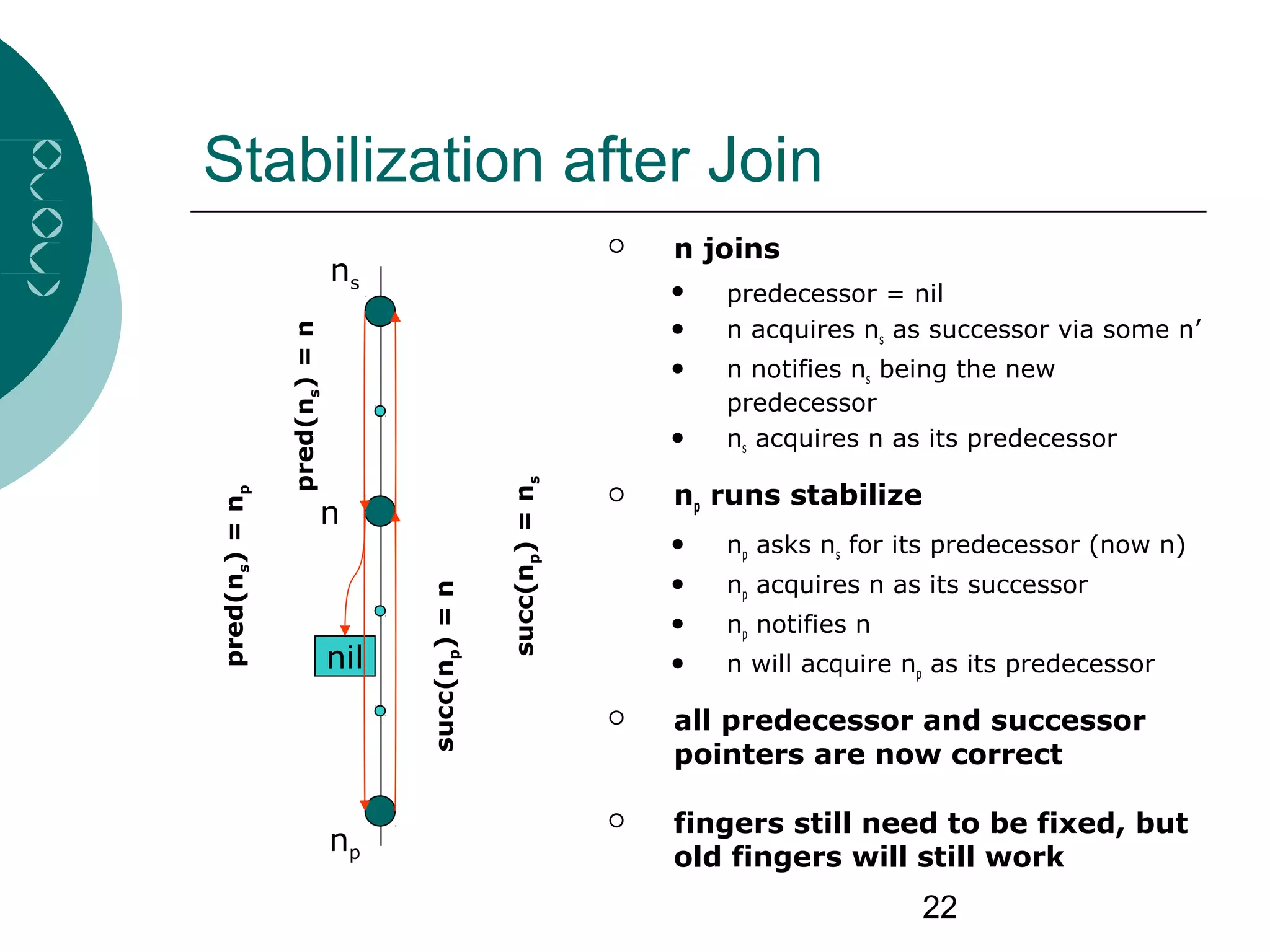

Stabilization after Join
np
succ(np)=ns
ns
n
pred(ns)=np  n joins
 predecessor = nil
 n acquires ns as successor via some n’
 n notifies ns being the new
predecessor
 ns acquires n as its predecessor
 np runs stabilize
 np asks ns for its predecessor (now n)
 np acquires n as its successor
 np notifies n
 n will acquire np as its predecessor
 all predecessor and successor
pointers are now correct
 fingers still need to be fixed, but
old fingers will still work
nil
pred(ns)=n
succ(np)=n

23. 23

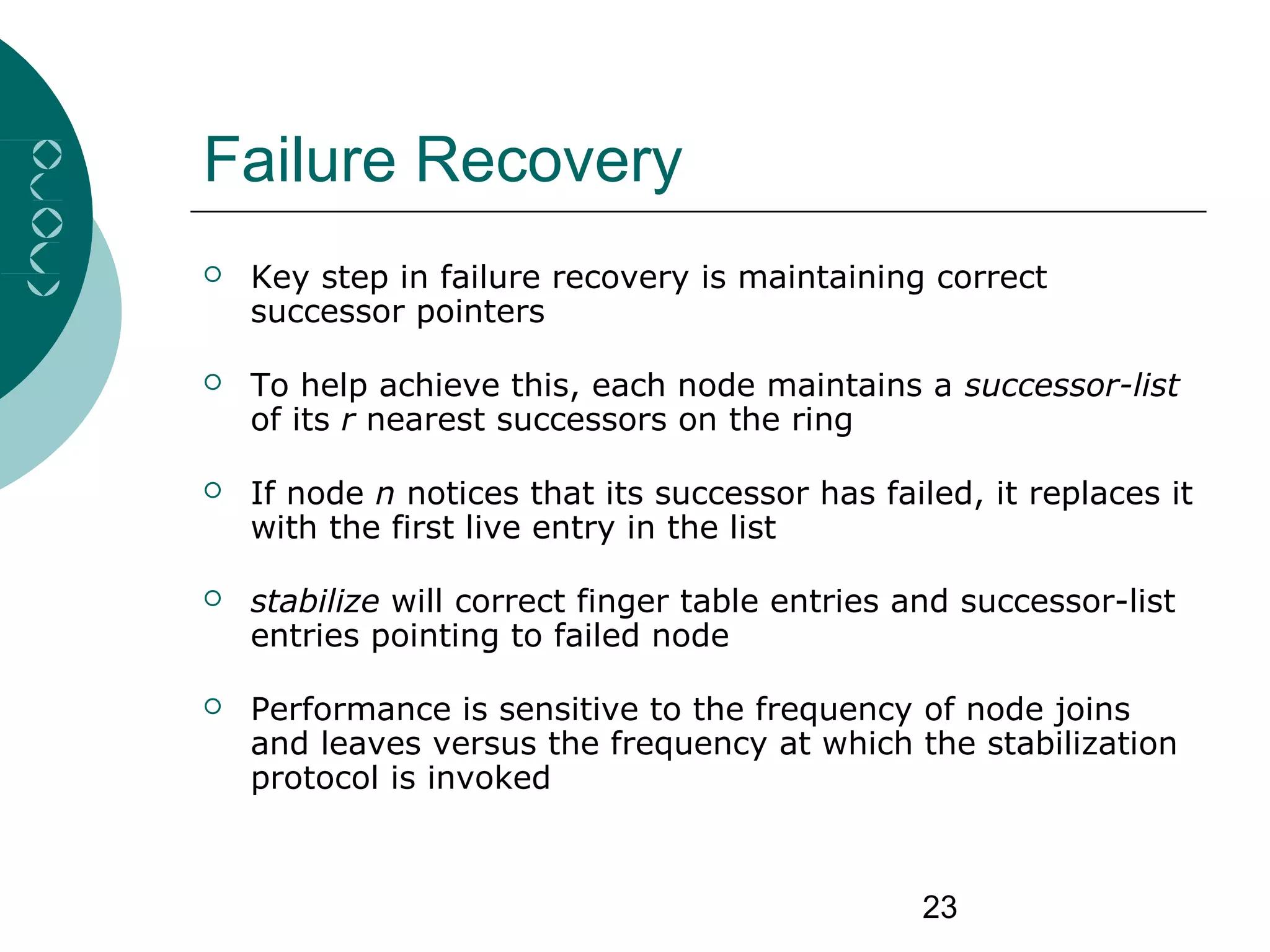

Failure Recovery
 Key step in failure recovery is maintaining correct
successor pointers
 To help achieve this, each node maintains a successor-list
of its r nearest successors on the ring
 If node n notices that its successor has failed, it replaces it
with the first live entry in the list
 stabilize will correct finger table entries and successor-list
entries pointing to failed node
 Performance is sensitive to the frequency of node joins
and leaves versus the frequency at which the stabilization
protocol is invoked

24. 24

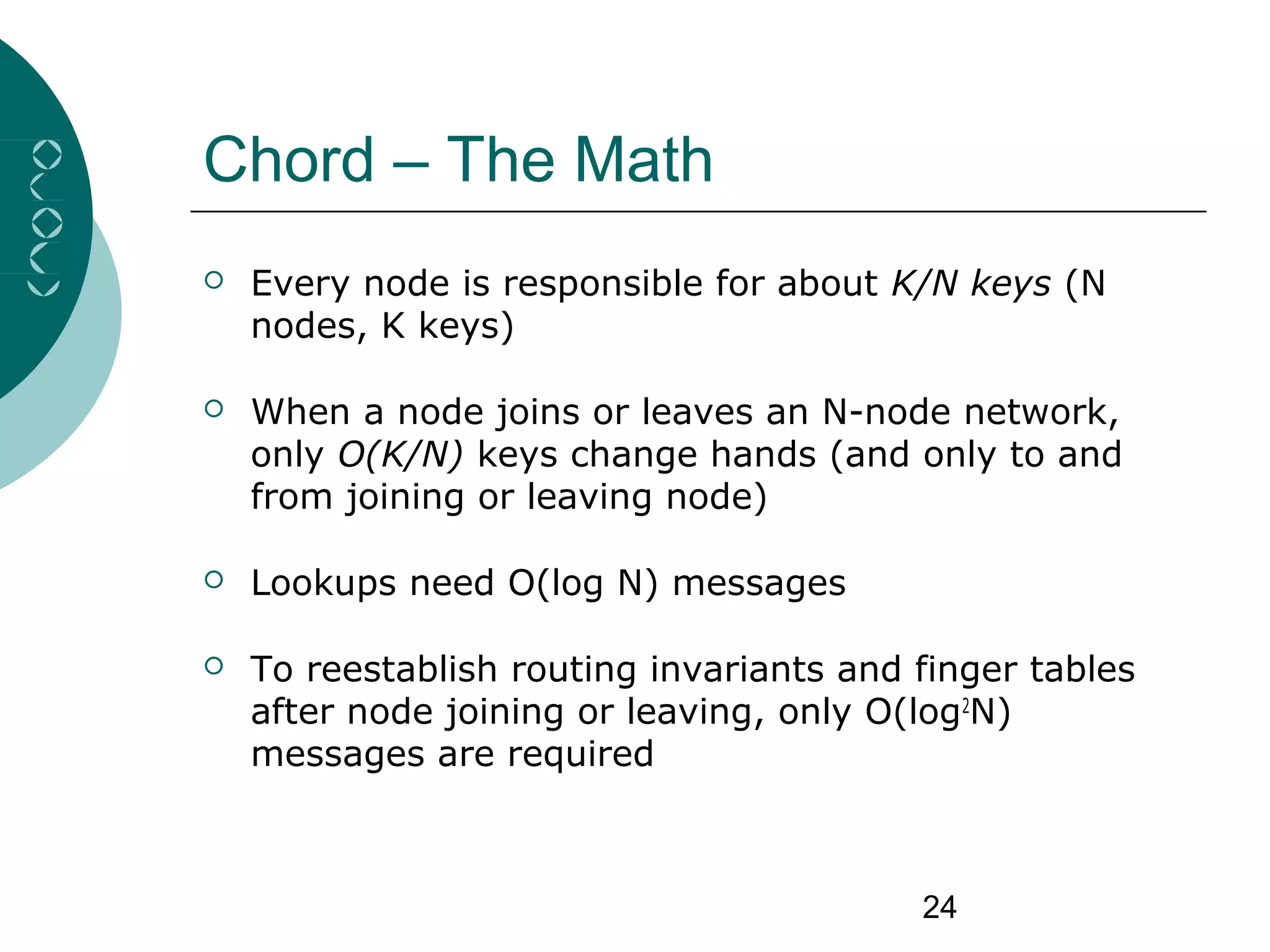

Chord – The Math
 Every node is responsible for about K/N keys (N
nodes, K keys)
 When a node joins or leaves an N-node network,
only O(K/N) keys change hands (and only to and
from joining or leaving node)
 Lookups need O(log N) messages
 To reestablish routing invariants and finger tables
after node joining or leaving, only O(log2
N)
messages are required

25. 25

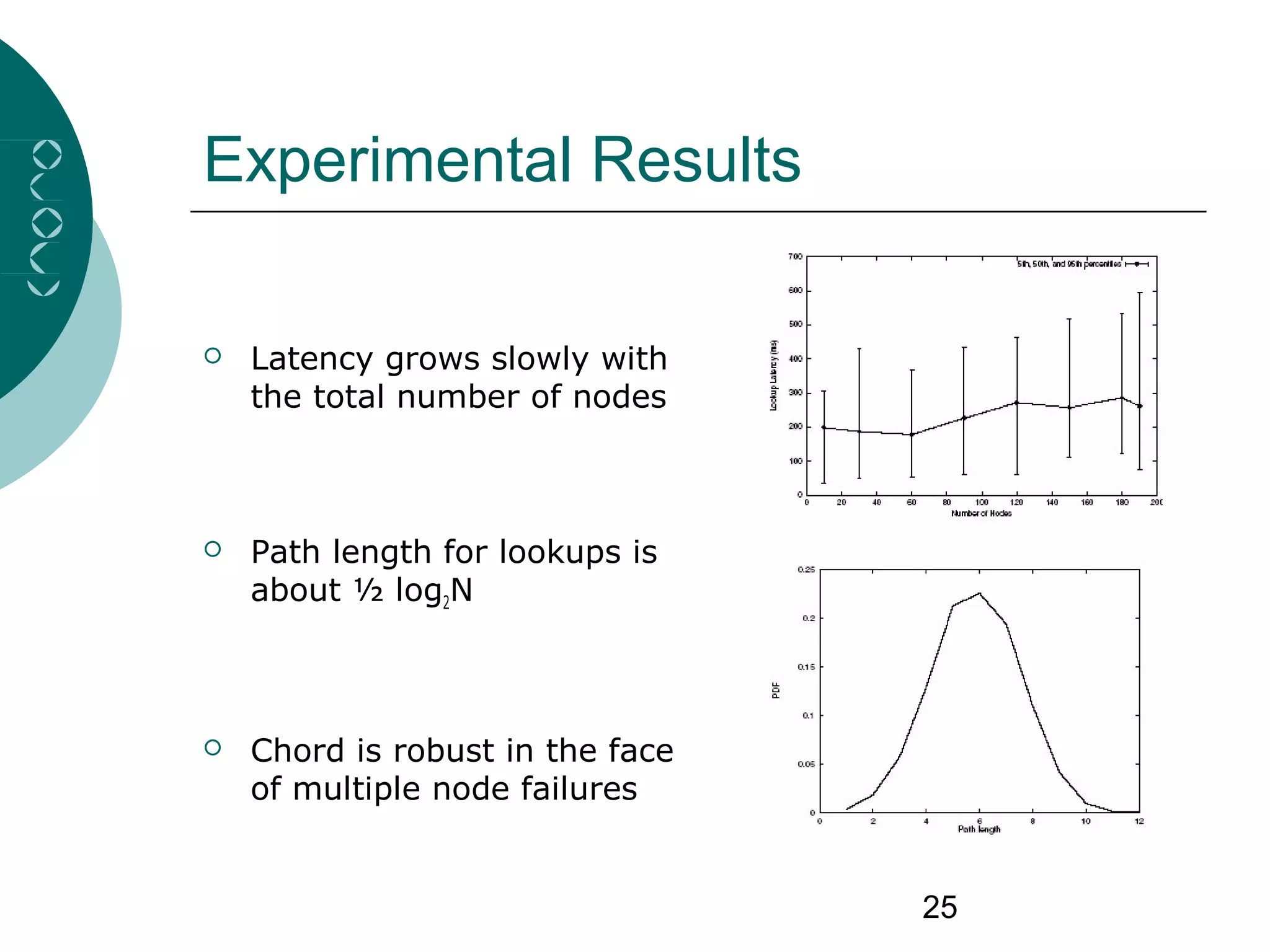

Experimental Results
 Latency grows slowly with
the total number of nodes
 Path length for lookups is
about ½ log2N
 Chord is robust in the face
of multiple node failures
