This document discusses the process of transforming an entity-relationship (ER) diagram into a set of logical relational schemas. It describes mapping regular entities, weak entities, binary relationships, unary relationships, and ternary relationships from an ER diagram into corresponding tables, attributes, primary keys, foreign keys, and relationships in a relational database. The key steps involve mapping entity types to tables, attributes to columns, relationships to primary and foreign keys, and preserving cardinalities between entities and relationships.

1. Logical Design
(Relational Mapping)
DSE003 – DATABASE MANAGEMENT SYSTEM
HASANKA WIJESINGHE M I T, B . S c

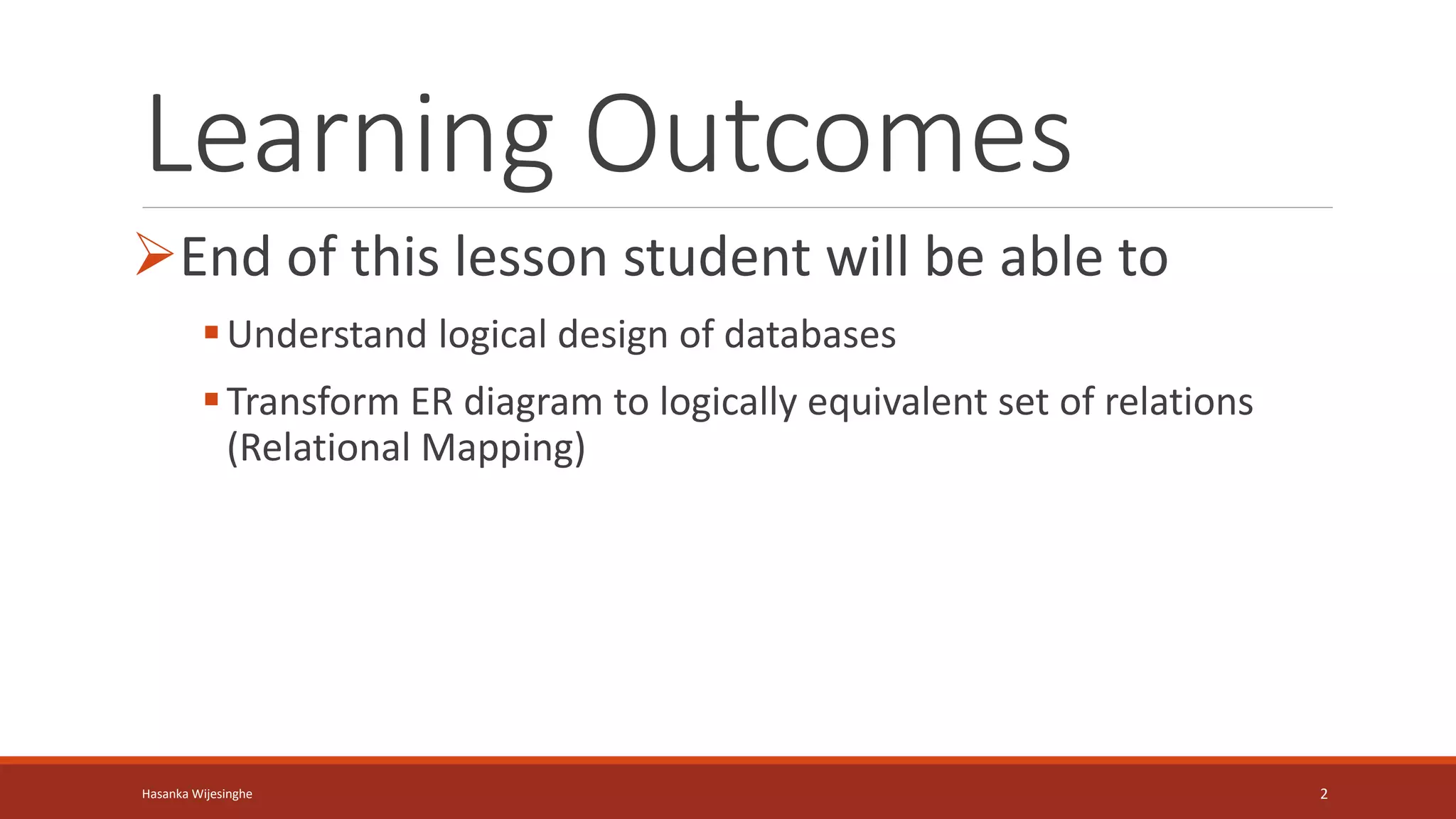

2. Learning Outcomes
End of this lesson student will be able to
Understand logical design of databases
Transform ER diagram to logically equivalent set of relations
(Relational Mapping)
Hasanka Wijesinghe 2

3. Hasanka Wijesinghe 3
What is Relational Data Model?

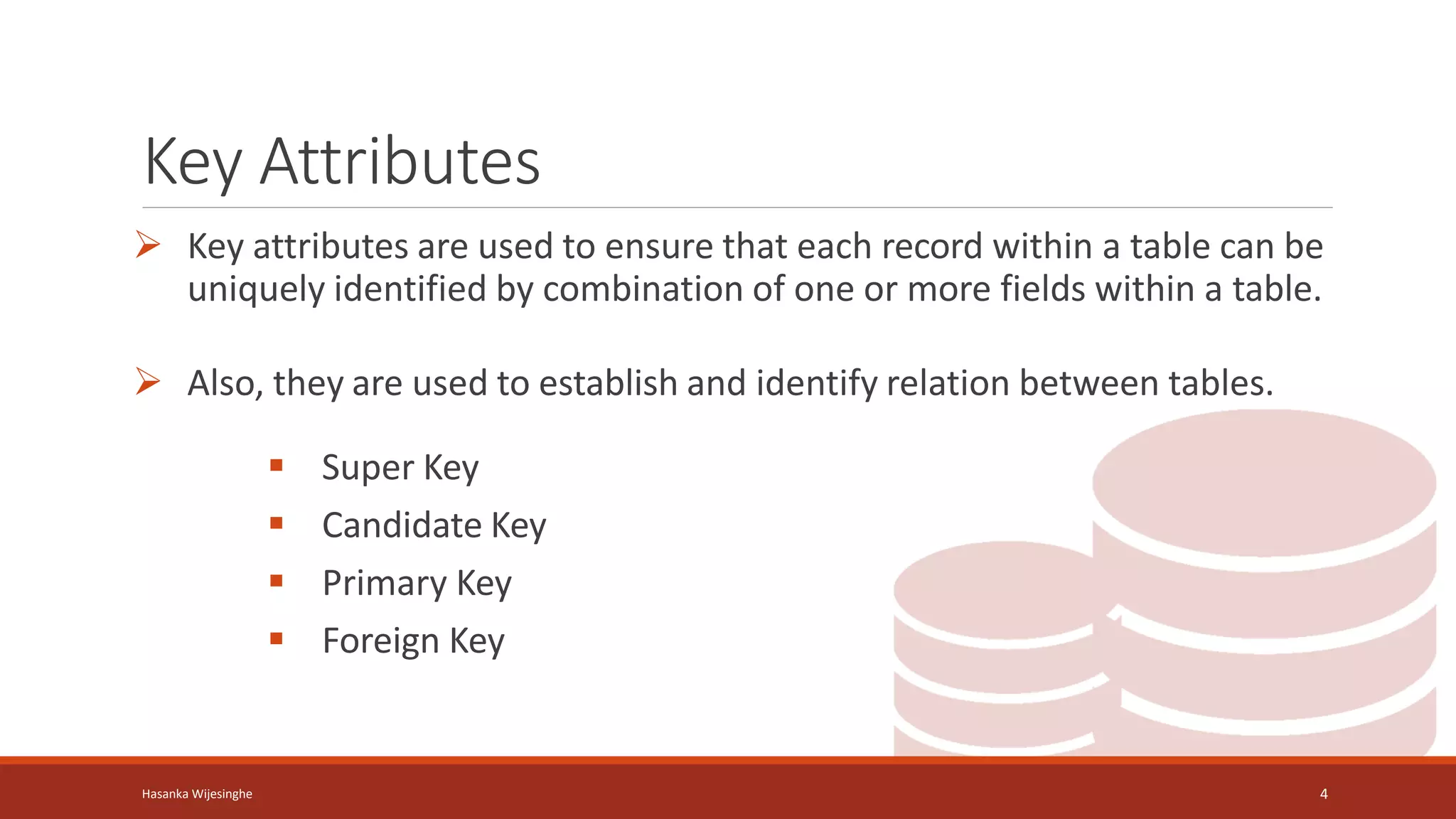

4. Key Attributes
 Key attributes are used to ensure that each record within a table can be
uniquely identified by combination of one or more fields within a table.
 Also, they are used to establish and identify relation between tables.
 Super Key
 Candidate Key
 Primary Key
 Foreign Key
Hasanka Wijesinghe 4

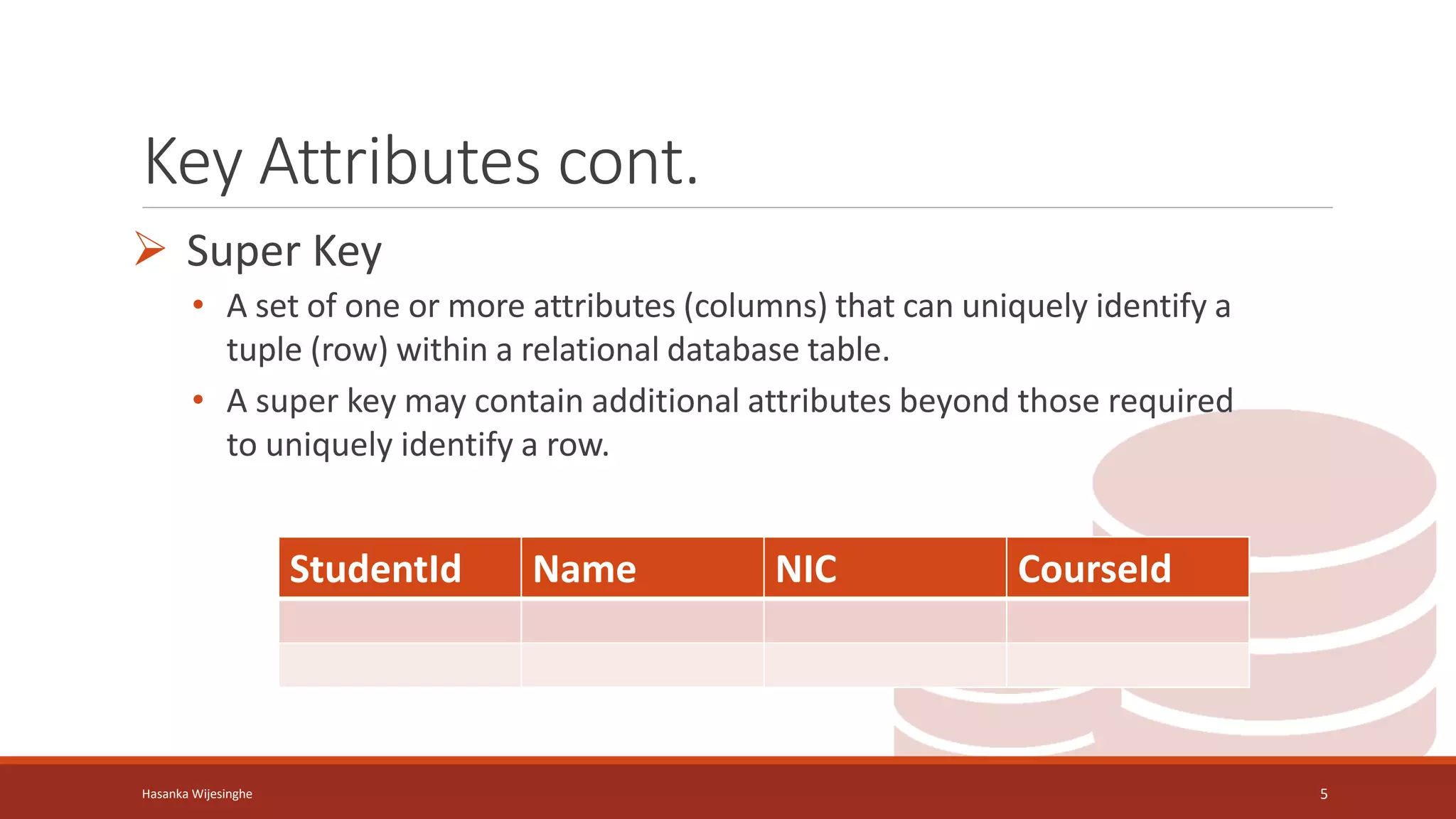

5. Key Attributes cont.
 Super Key
• A set of one or more attributes (columns) that can uniquely identify a
tuple (row) within a relational database table.
• A super key may contain additional attributes beyond those required
to uniquely identify a row.
Hasanka Wijesinghe 5
StudentId Name NIC CourseId

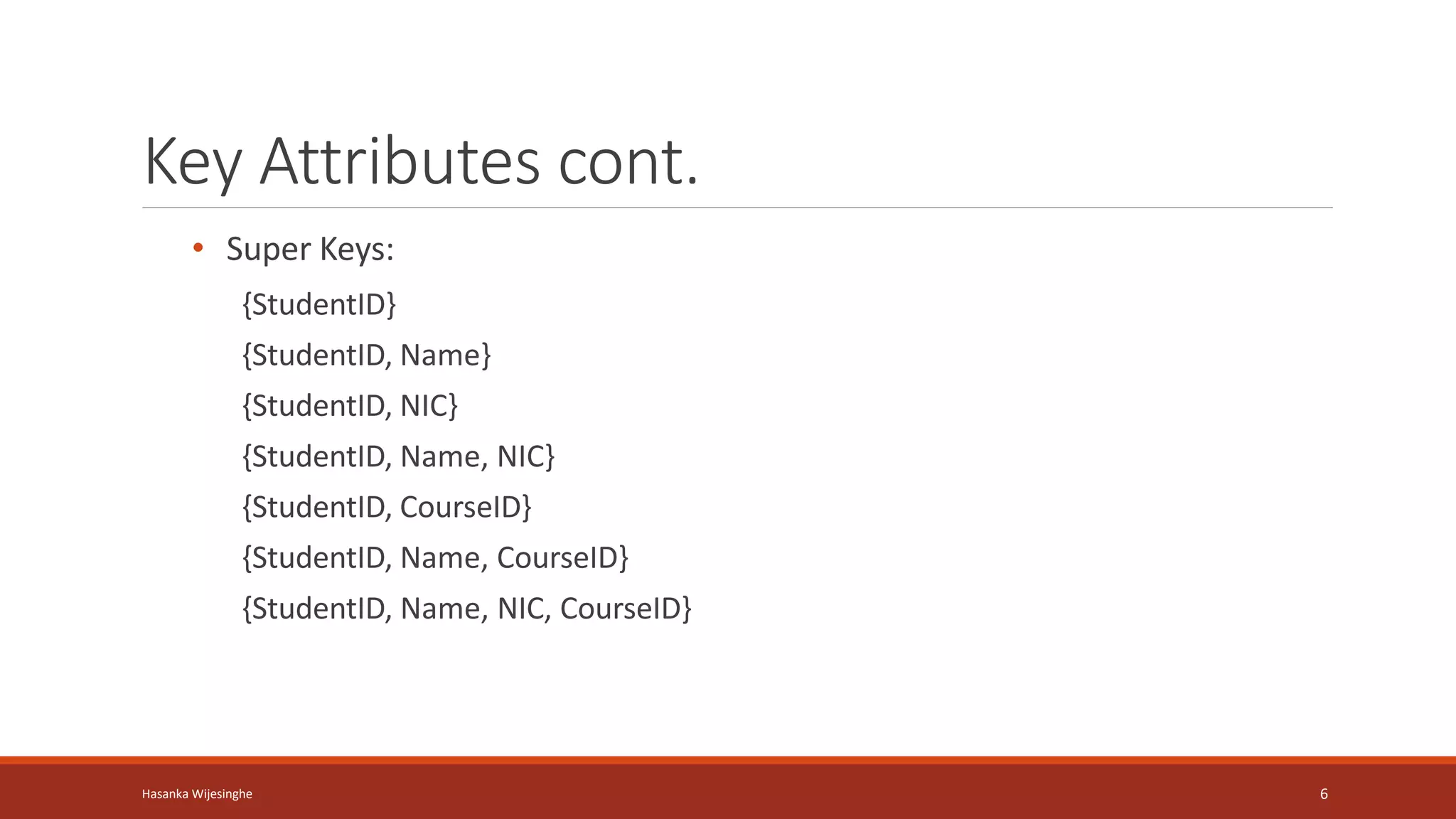

6. Key Attributes cont.
• Super Keys:
{StudentID}
{StudentID, Name}
{StudentID, NIC}
{StudentID, Name, NIC}
{StudentID, CourseID}
{StudentID, Name, CourseID}
{StudentID, Name, NIC, CourseID}
Hasanka Wijesinghe 6

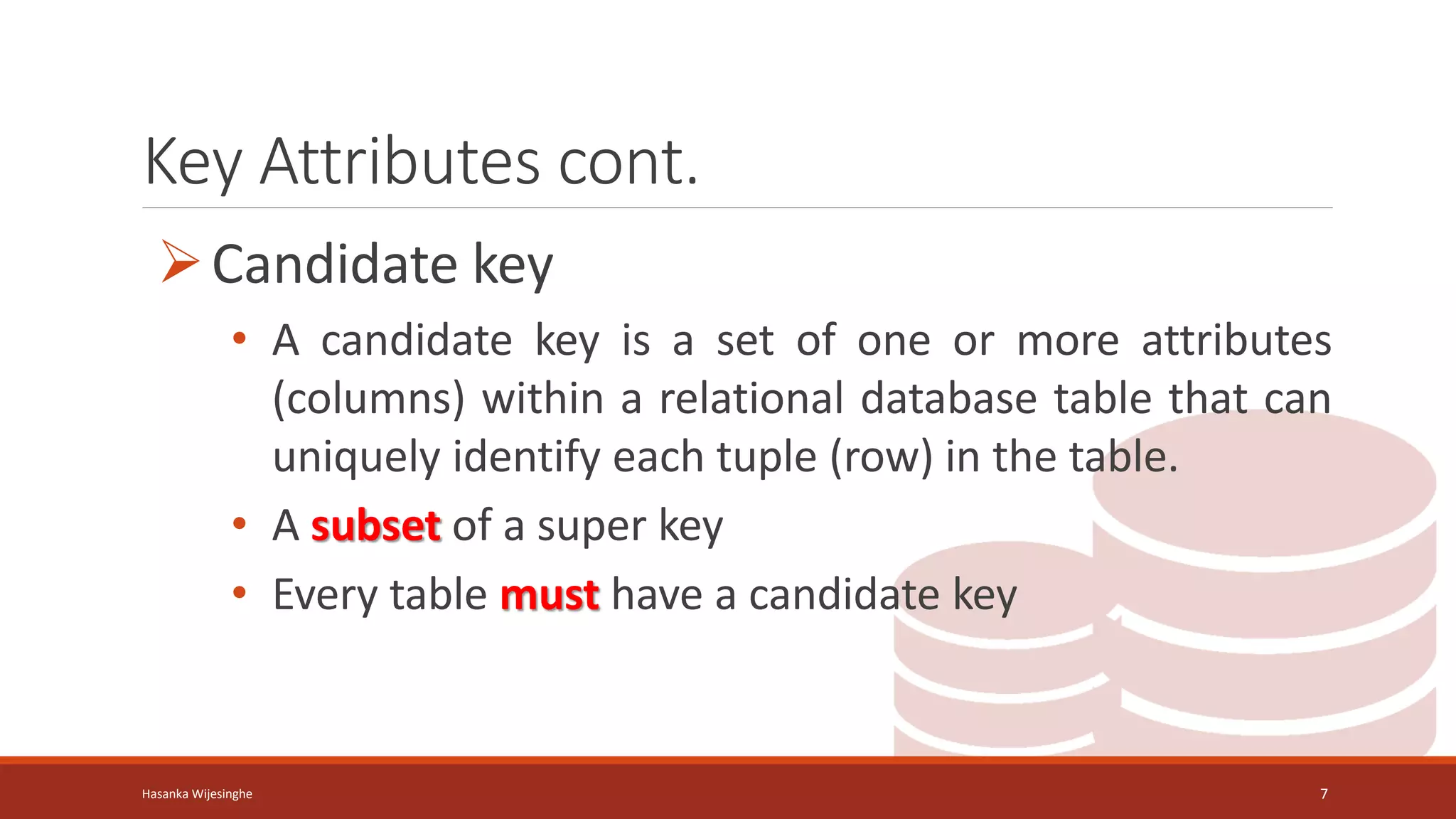

7. Key Attributes cont.
Candidate key
• A candidate key is a set of one or more attributes
(columns) within a relational database table that can
uniquely identify each tuple (row) in the table.
• A subset of a super key
• Every table must have a candidate key
Hasanka Wijesinghe 7

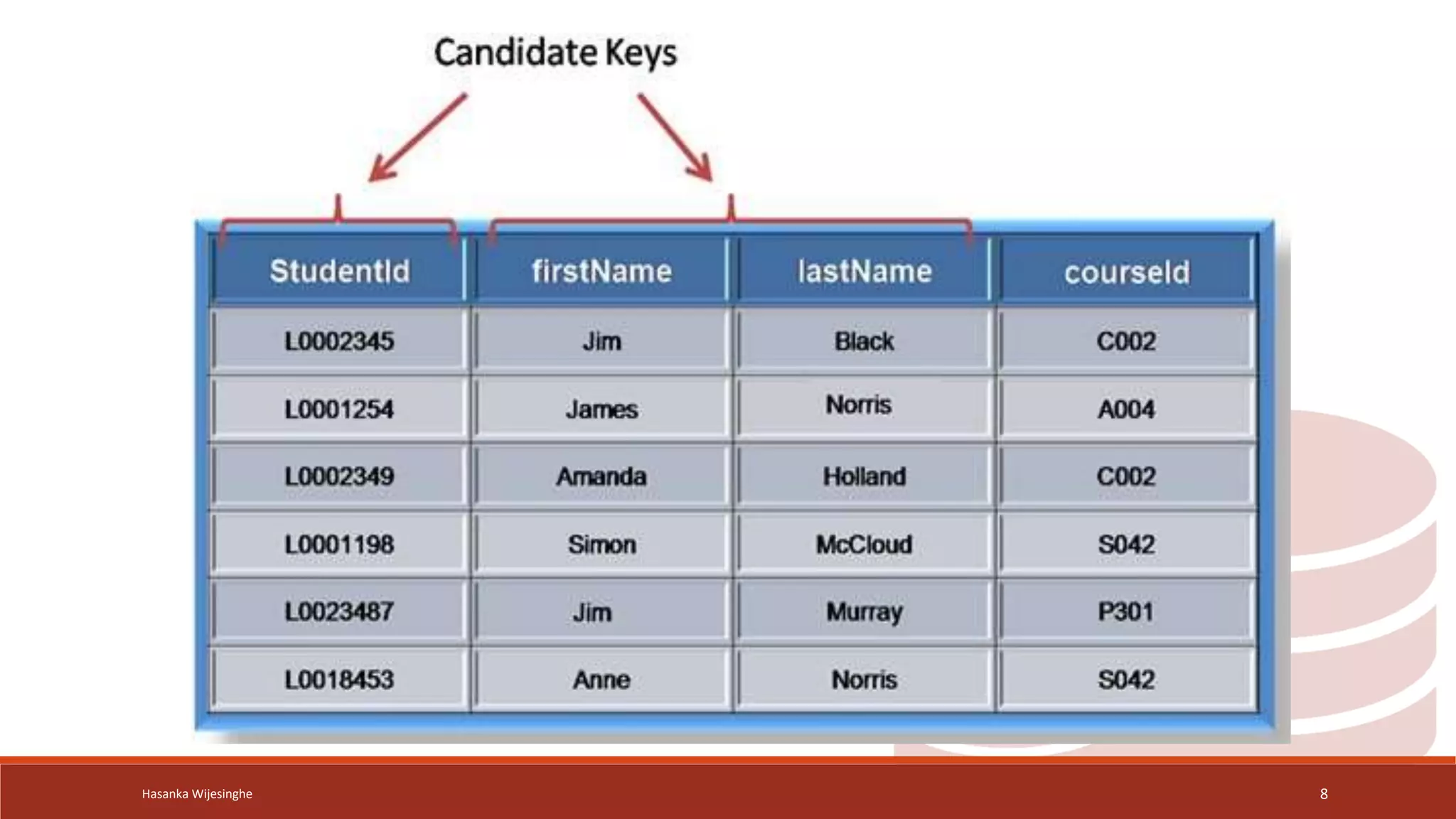

8. Hasanka Wijesinghe 8

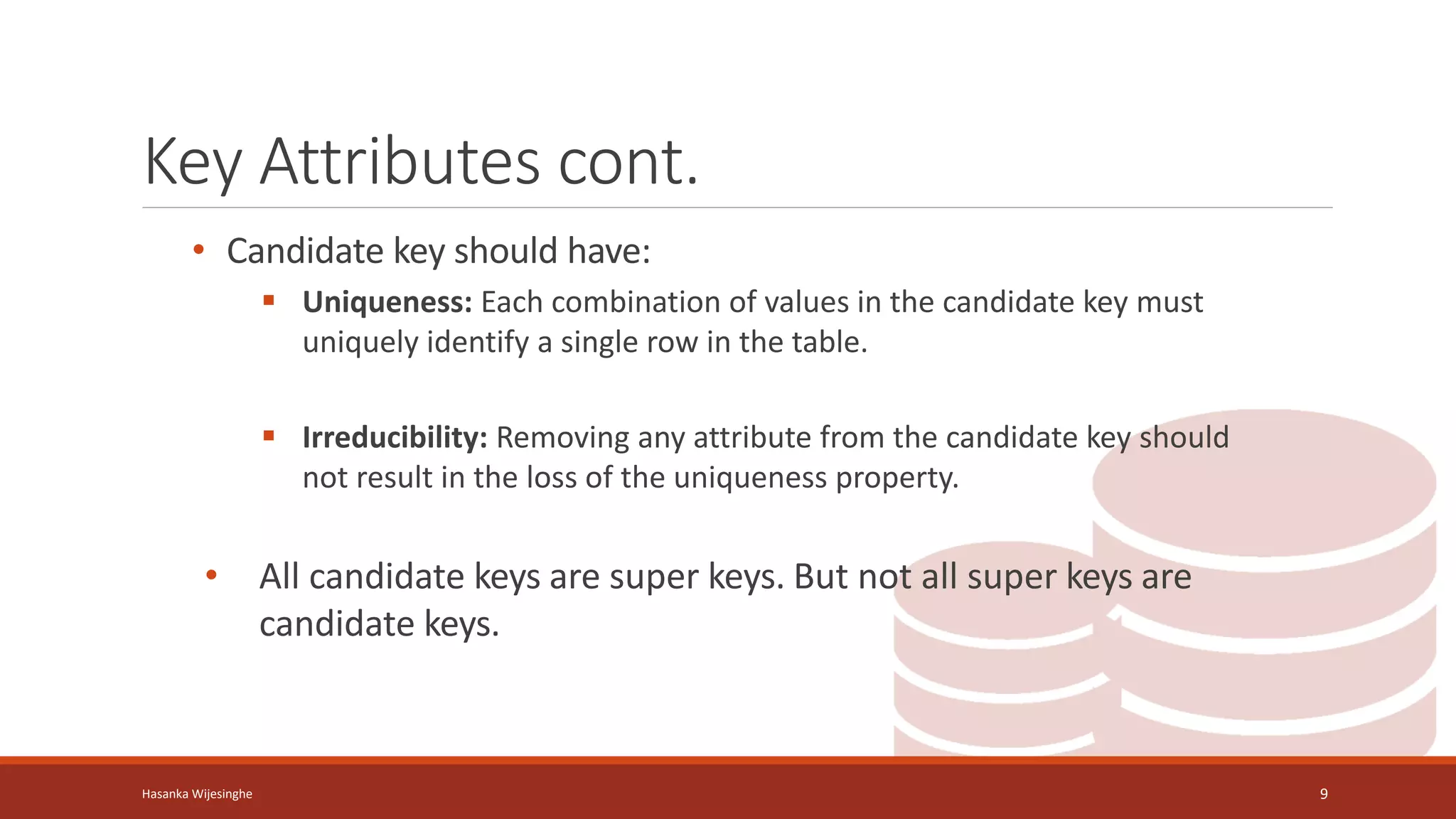

9. Key Attributes cont.
• Candidate key should have:
 Uniqueness: Each combination of values in the candidate key must
uniquely identify a single row in the table.
 Irreducibility: Removing any attribute from the candidate key should
not result in the loss of the uniqueness property.
• All candidate keys are super keys. But not all super keys are
candidate keys.
Hasanka Wijesinghe 9

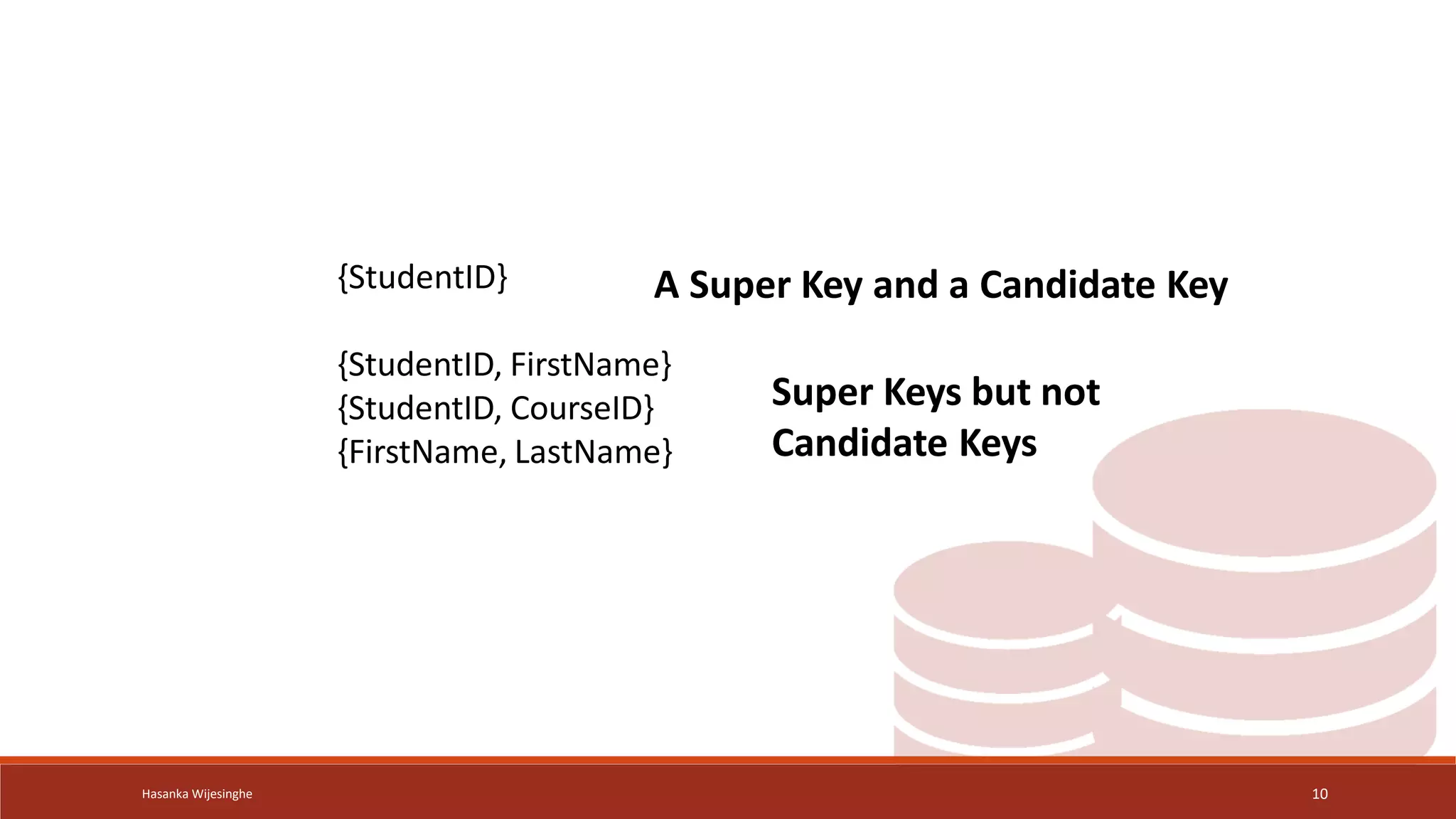

10. Hasanka Wijesinghe 10
{StudentID}
{StudentID, FirstName}
{StudentID, CourseID}
{FirstName, LastName}
A Super Key and a Candidate Key
Super Keys but not
Candidate Keys

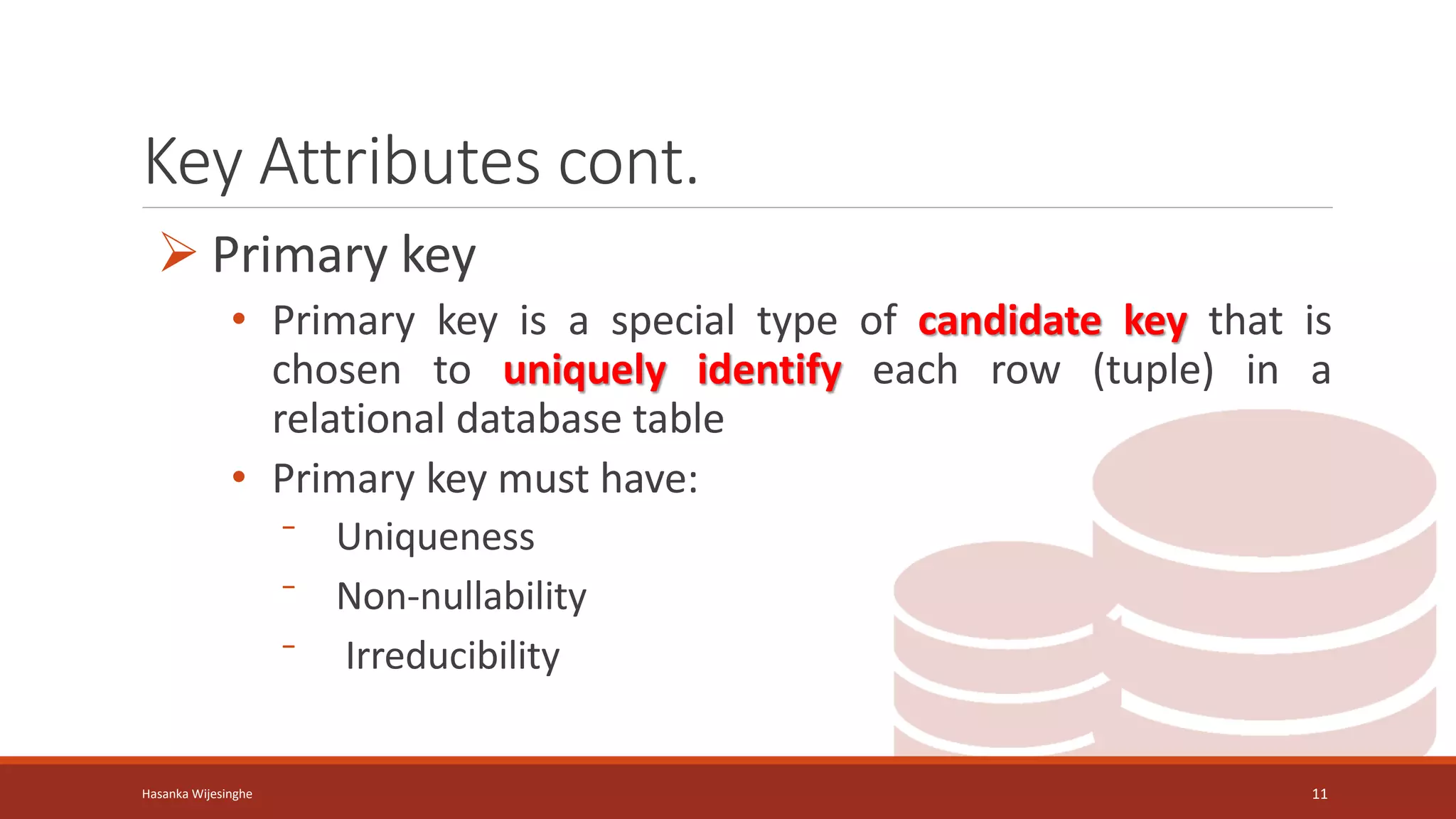

11. Key Attributes cont.
 Primary key
• Primary key is a special type of candidate key that is
chosen to uniquely identify each row (tuple) in a
relational database table
• Primary key must have:
⁻ Uniqueness
⁻ Non-nullability
⁻ Irreducibility
Hasanka Wijesinghe 11

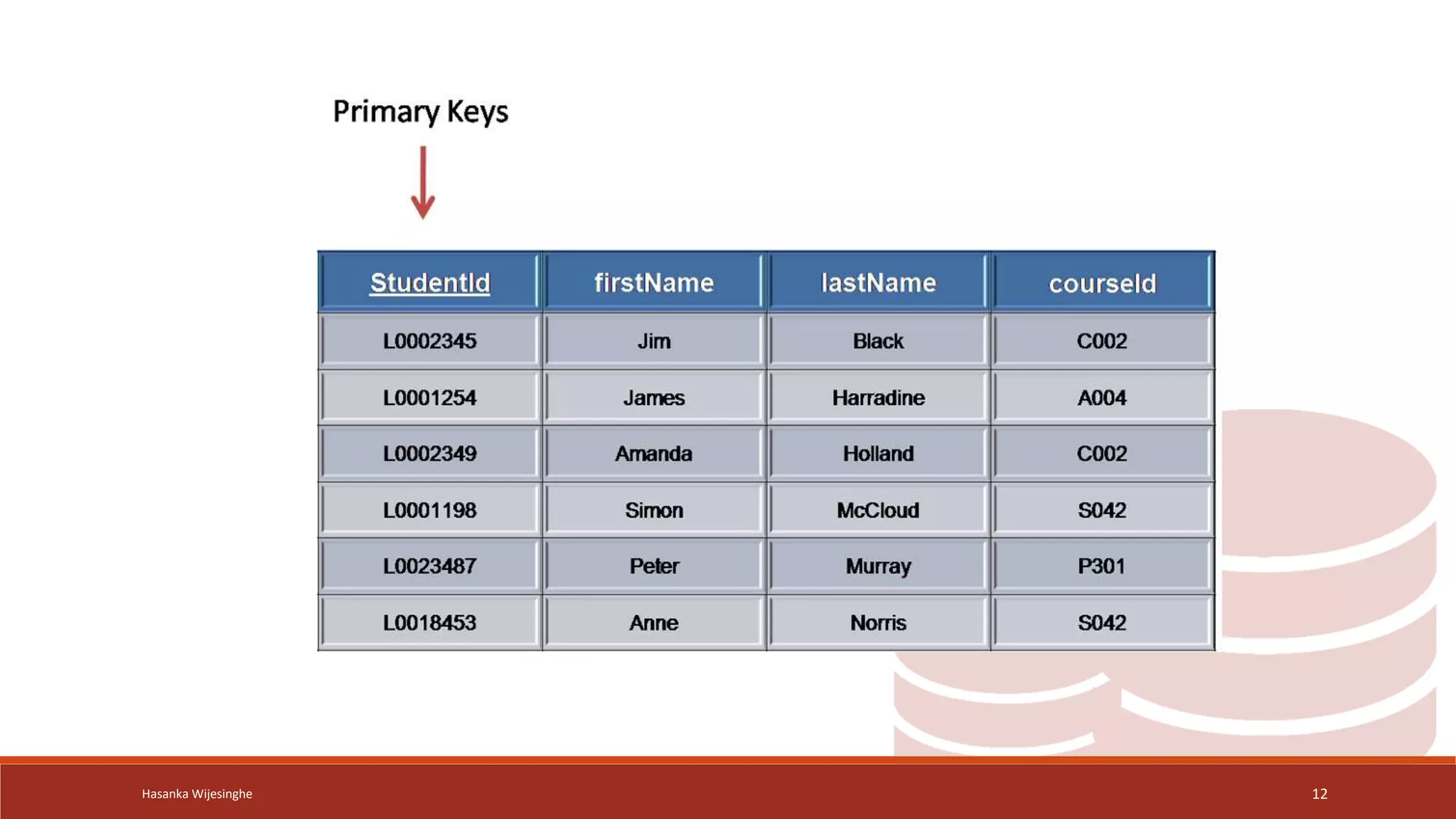

12. Hasanka Wijesinghe 12

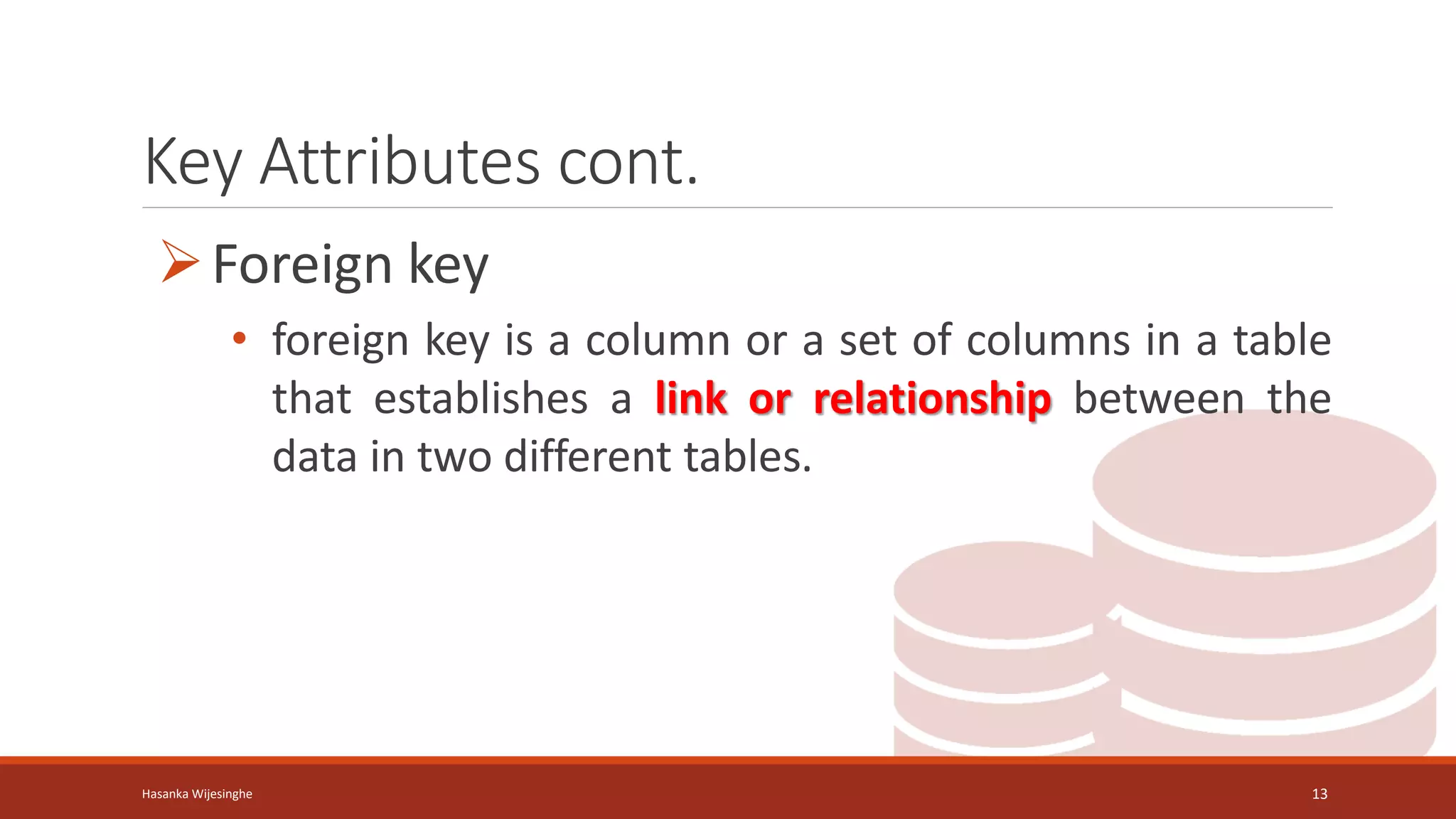

13. Key Attributes cont.
Foreign key
• foreign key is a column or a set of columns in a table
that establishes a link or relationship between the
data in two different tables.
Hasanka Wijesinghe 13

14. Hasanka Wijesinghe 14

15. Hasanka Wijesinghe 15
Converting ER Model to Relational
Schema

16. Hasanka Wijesinghe 16

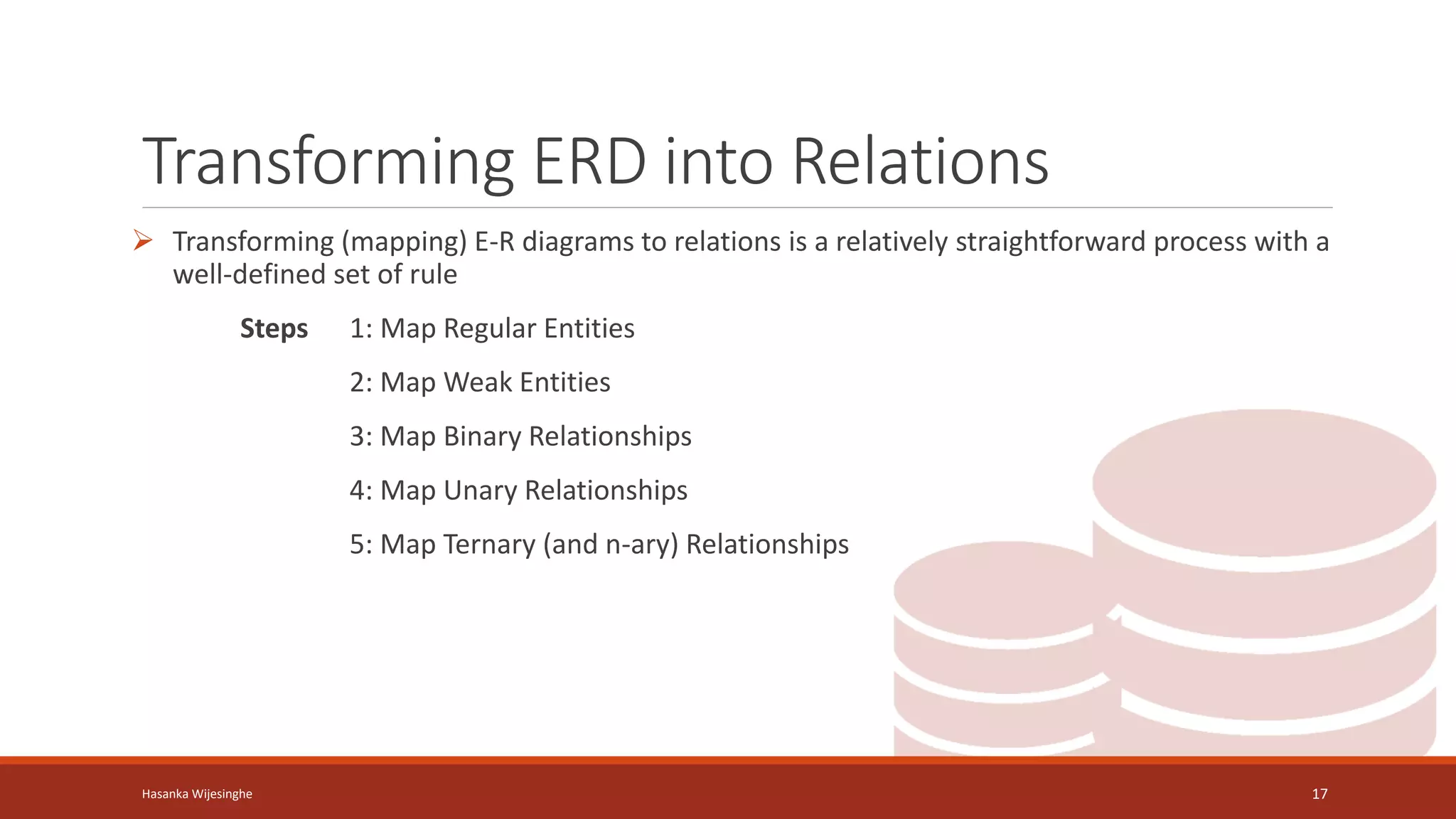

17. Transforming ERD into Relations
 Transforming (mapping) E-R diagrams to relations is a relatively straightforward process with a
well-defined set of rule
Steps 1: Map Regular Entities
2: Map Weak Entities
3: Map Binary Relationships
4: Map Unary Relationships
5: Map Ternary (and n-ary) Relationships
Hasanka Wijesinghe 17

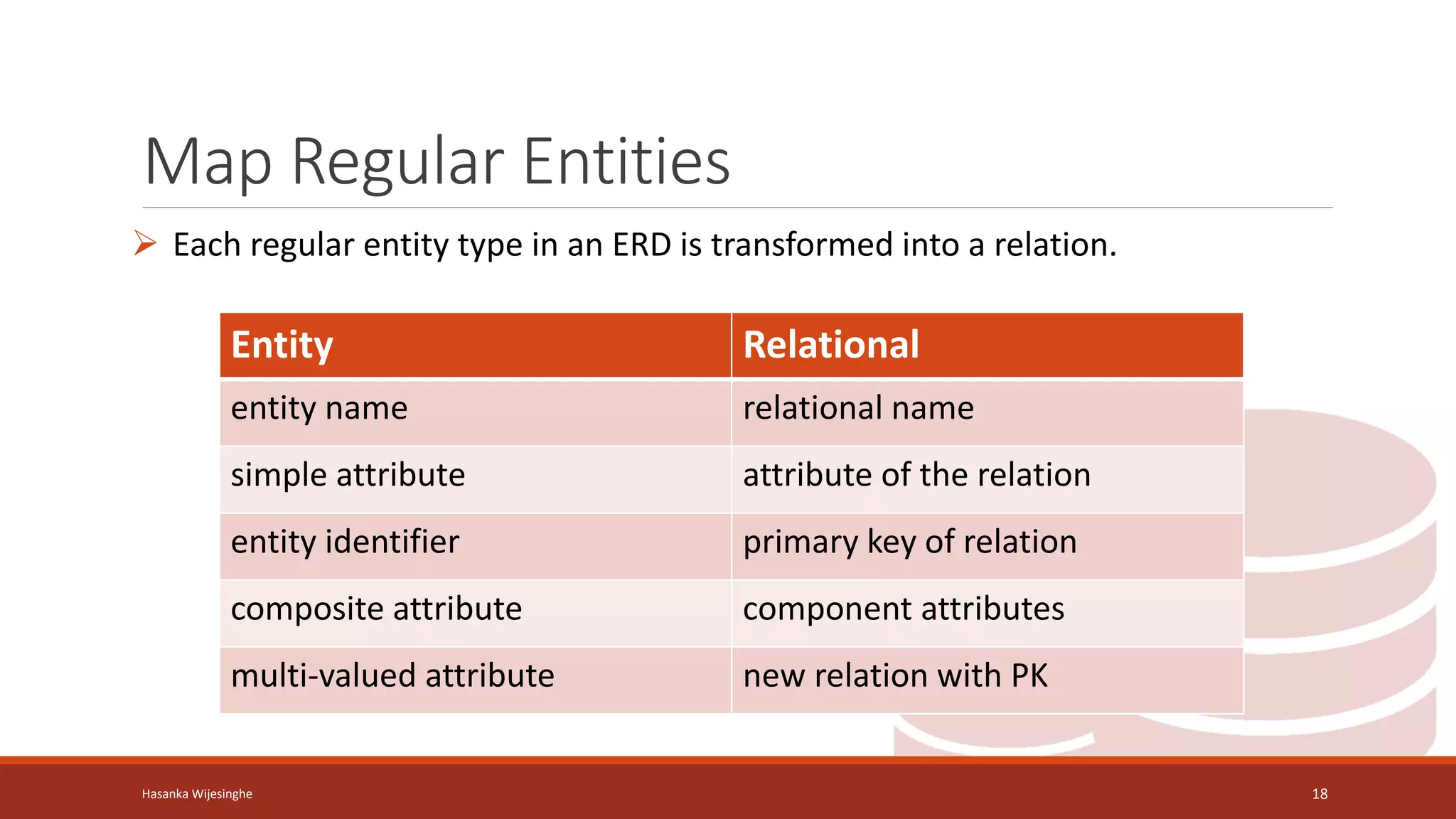

18. Map Regular Entities
 Each regular entity type in an ERD is transformed into a relation.
Hasanka Wijesinghe 18
Entity Relational
entity name relational name
simple attribute attribute of the relation
entity identifier primary key of relation
composite attribute component attributes
multi-valued attribute new relation with PK

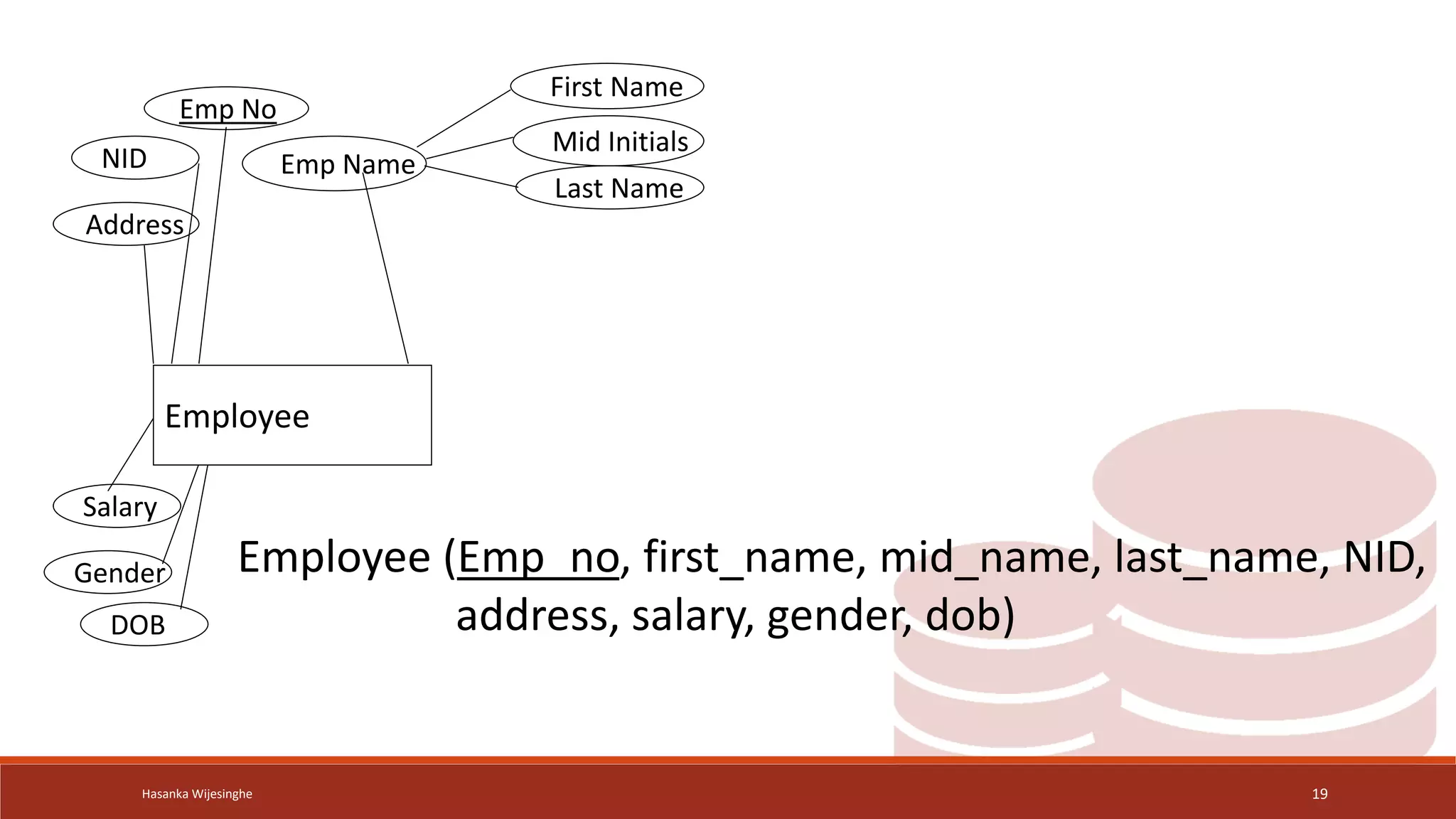

19. Hasanka Wijesinghe 19
Emp No
Emp Name
NID
Salary
Address
Gender
DOB
First Name
Mid Initials
Last Name
Employee
Employee (Emp_no, first_name, mid_name, last_name, NID,
address, salary, gender, dob)

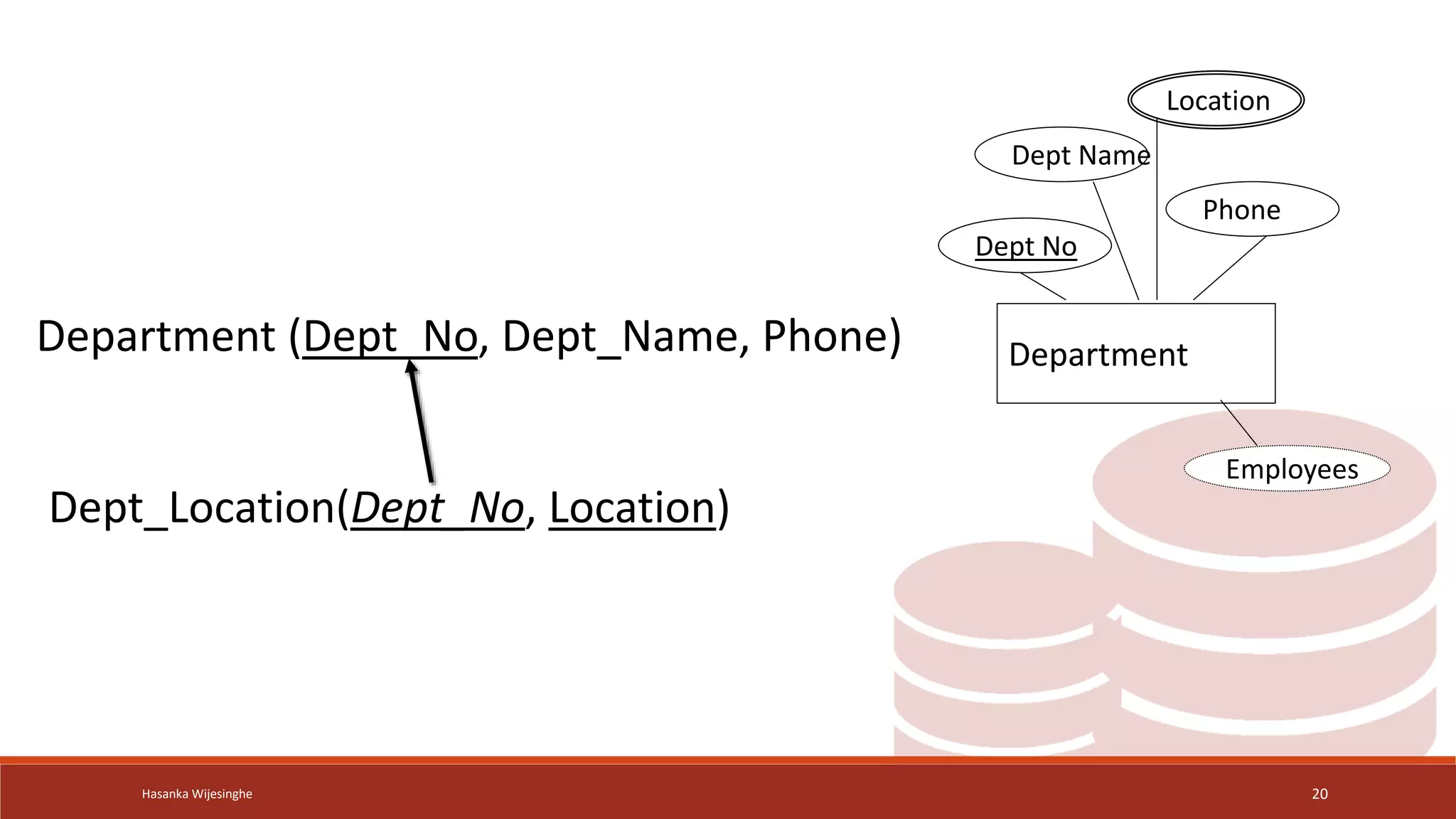

20. Hasanka Wijesinghe 20
Department
Dept No
Dept Name
Location
Employees
Phone
Dept_Location(Dept_No, Location)
Department (Dept_No, Dept_Name, Phone)

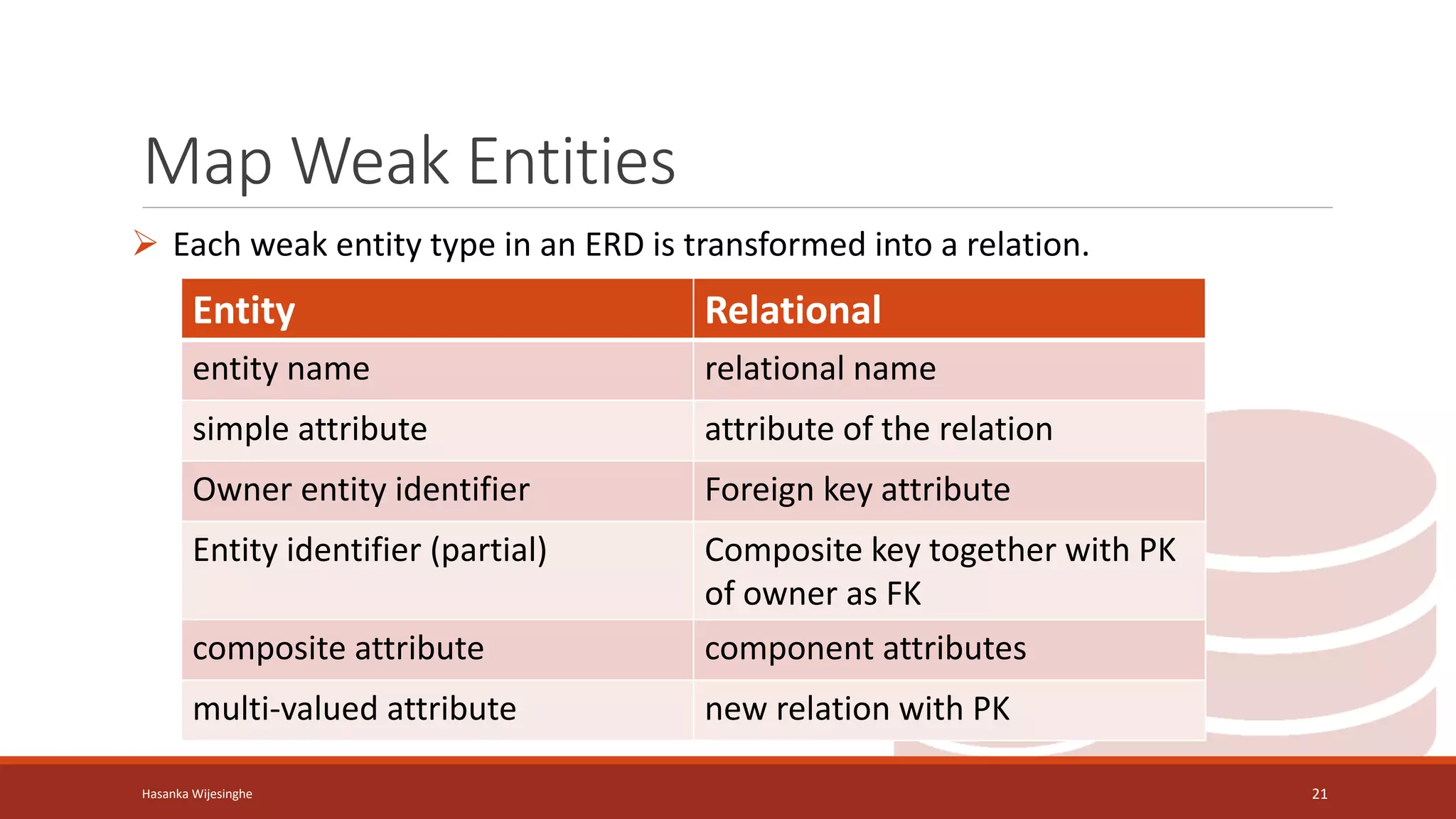

21. Map Weak Entities
 Each weak entity type in an ERD is transformed into a relation.
Hasanka Wijesinghe 21
Entity Relational
entity name relational name
simple attribute attribute of the relation
Owner entity identifier Foreign key attribute
Entity identifier (partial) Composite key together with PK
of owner as FK
composite attribute component attributes
multi-valued attribute new relation with PK

22. Hasanka Wijesinghe 22
Employee
Dependent
has
Depd Name
Gender
DOB
Relation
Emp No
Dependent(Emp_No, Depd_Name, Gender, DOB, Relation)
Employee (Emp_No, ….)
FK/NN
1
m

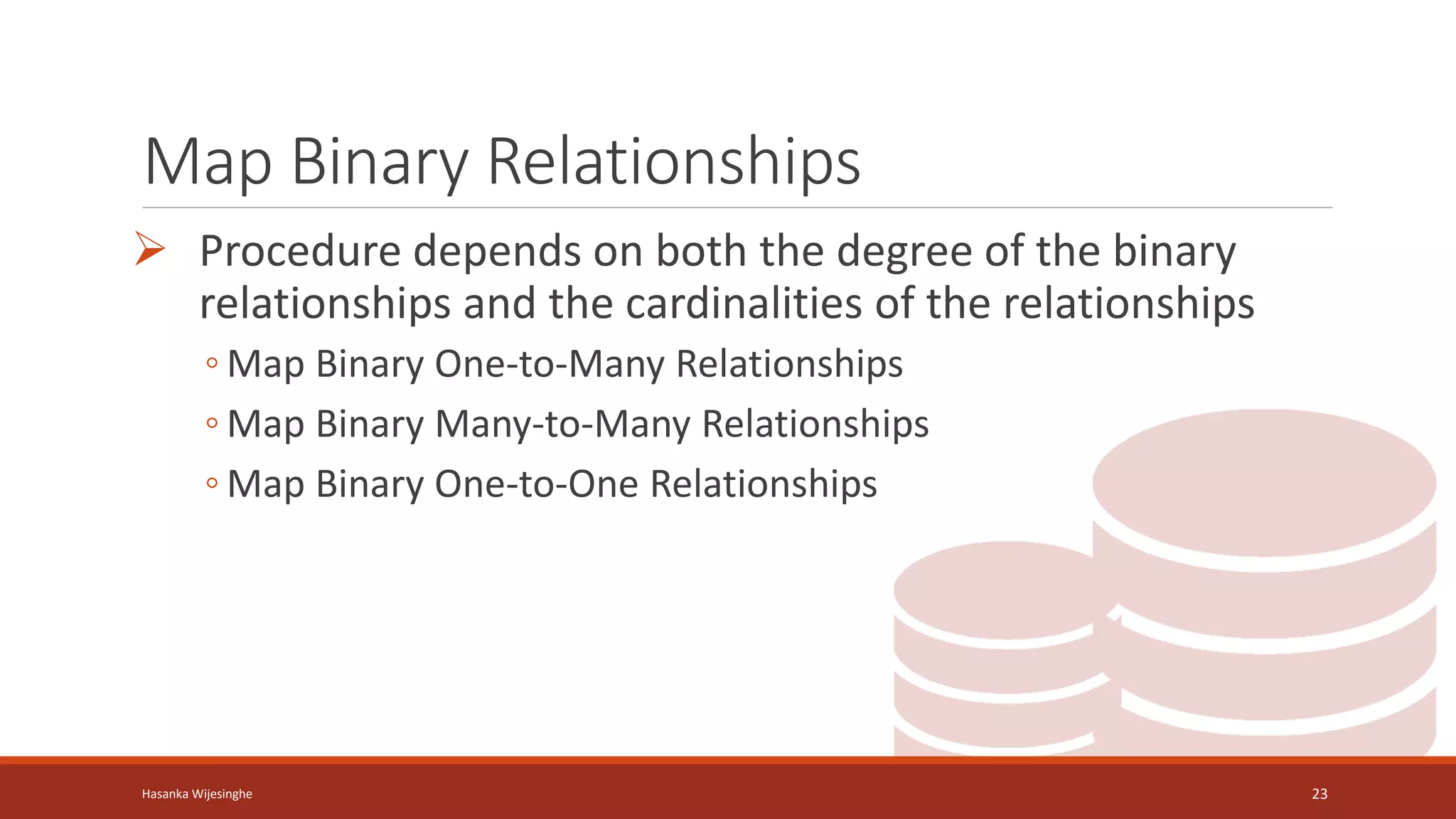

23. Map Binary Relationships
 Procedure depends on both the degree of the binary
relationships and the cardinalities of the relationships
◦ Map Binary One-to-Many Relationships
◦ Map Binary Many-to-Many Relationships
◦ Map Binary One-to-One Relationships
Hasanka Wijesinghe 23

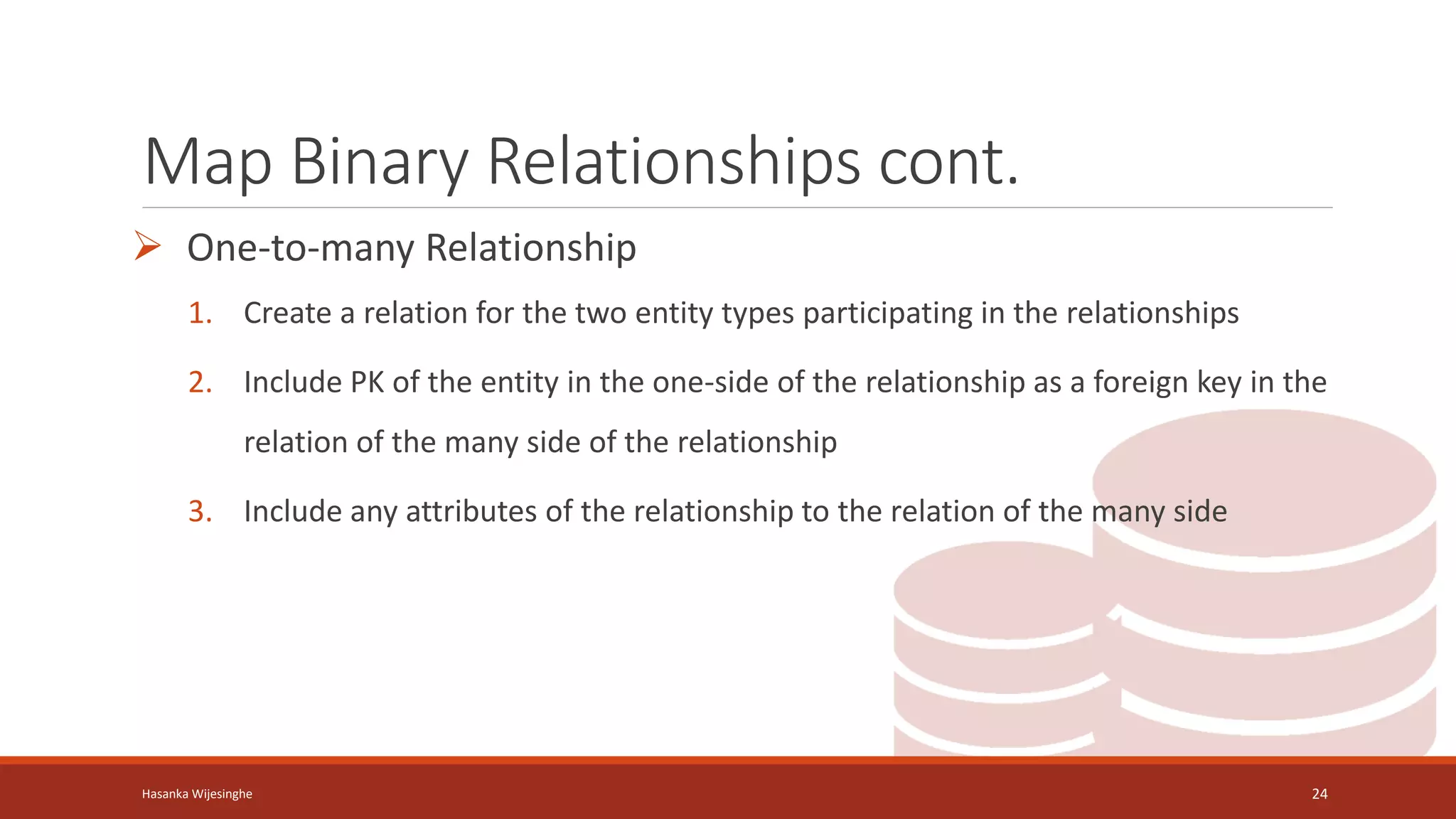

24. Map Binary Relationships cont.
 One-to-many Relationship
1. Create a relation for the two entity types participating in the relationships
2. Include PK of the entity in the one-side of the relationship as a foreign key in the
relation of the many side of the relationship
3. Include any attributes of the relationship to the relation of the many side
Hasanka Wijesinghe 24

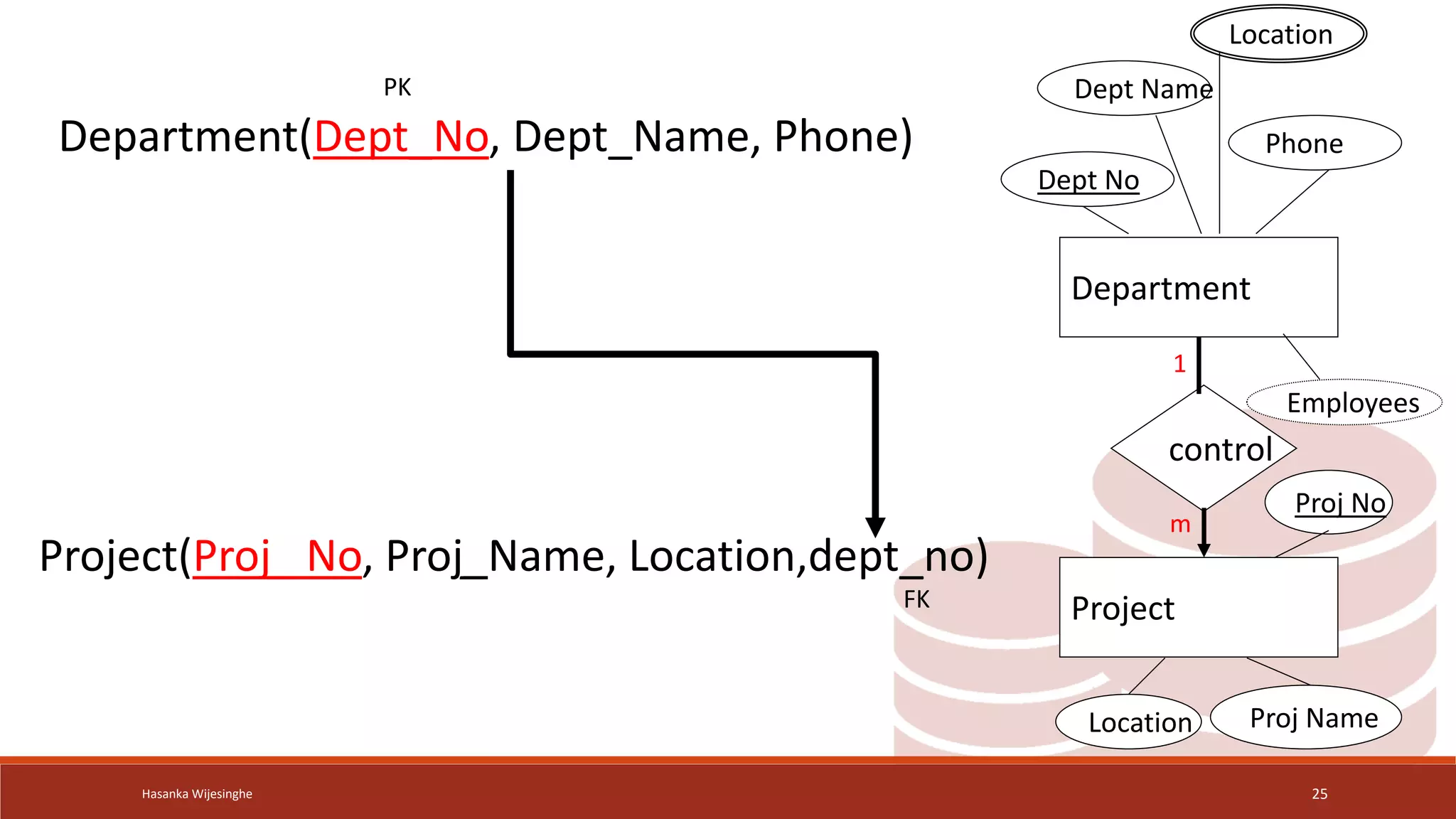

25. Hasanka Wijesinghe 25
Department
Project
control
Proj No
Proj Name
Location
Dept No
Dept Name
Location
Employees
Phone
1
m
Department(Dept_No, Dept_Name, Phone)
Project(Proj_ No, Proj_Name, Location,dept_no)
PK
FK

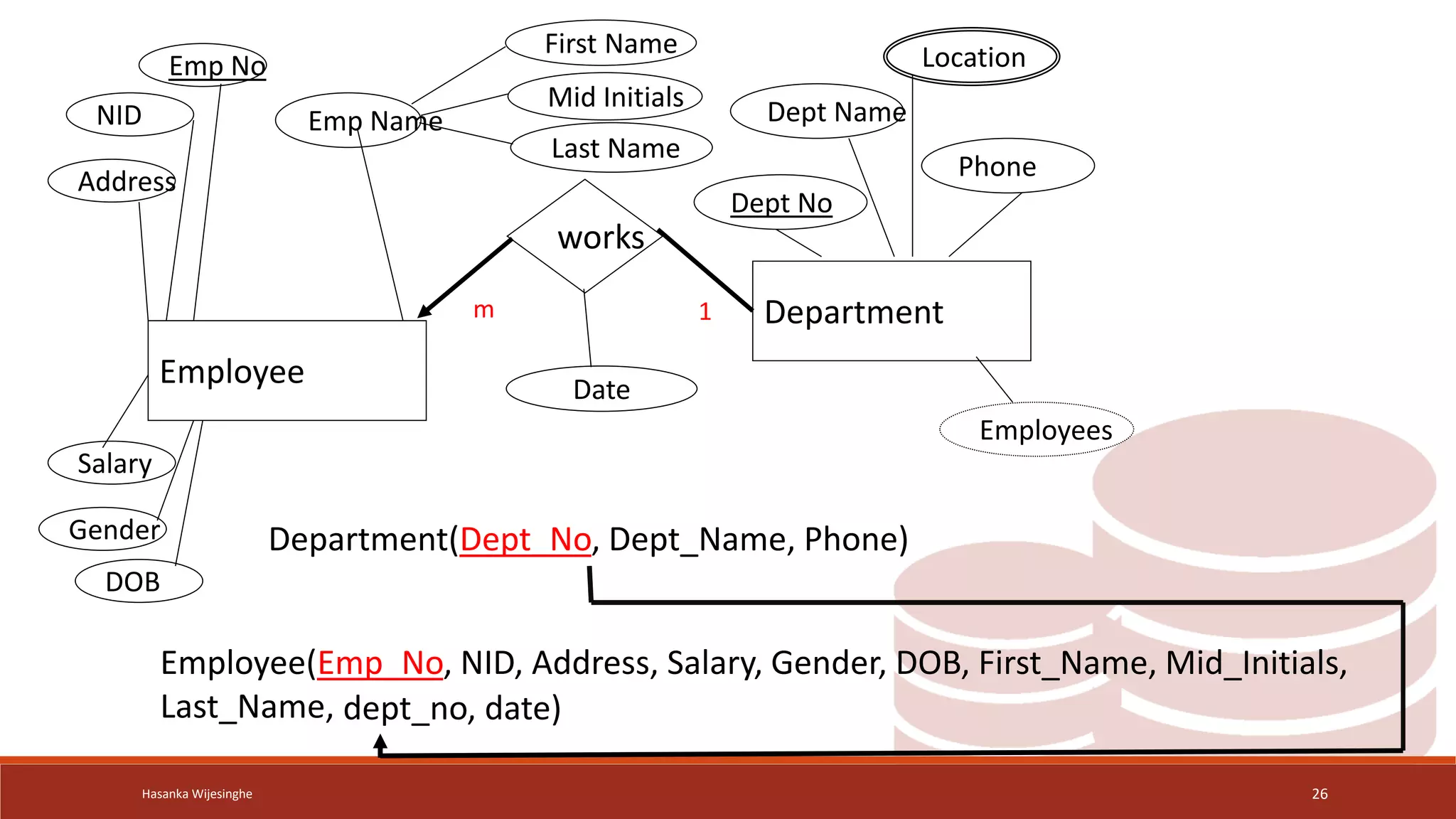

26. Hasanka Wijesinghe 26
Employee
works
Department
Dept No
Dept Name
Location
Employees
Phone
Emp No
Emp Name
NID
Salary
Address
Gender
DOB
First Name
Mid Initials
Last Name
1
m
Employee(Emp_No, NID, Address, Salary, Gender, DOB, First_Name, Mid_Initials,
Last_Name,
Department(Dept_No, Dept_Name, Phone)
dept_no, date)
Date

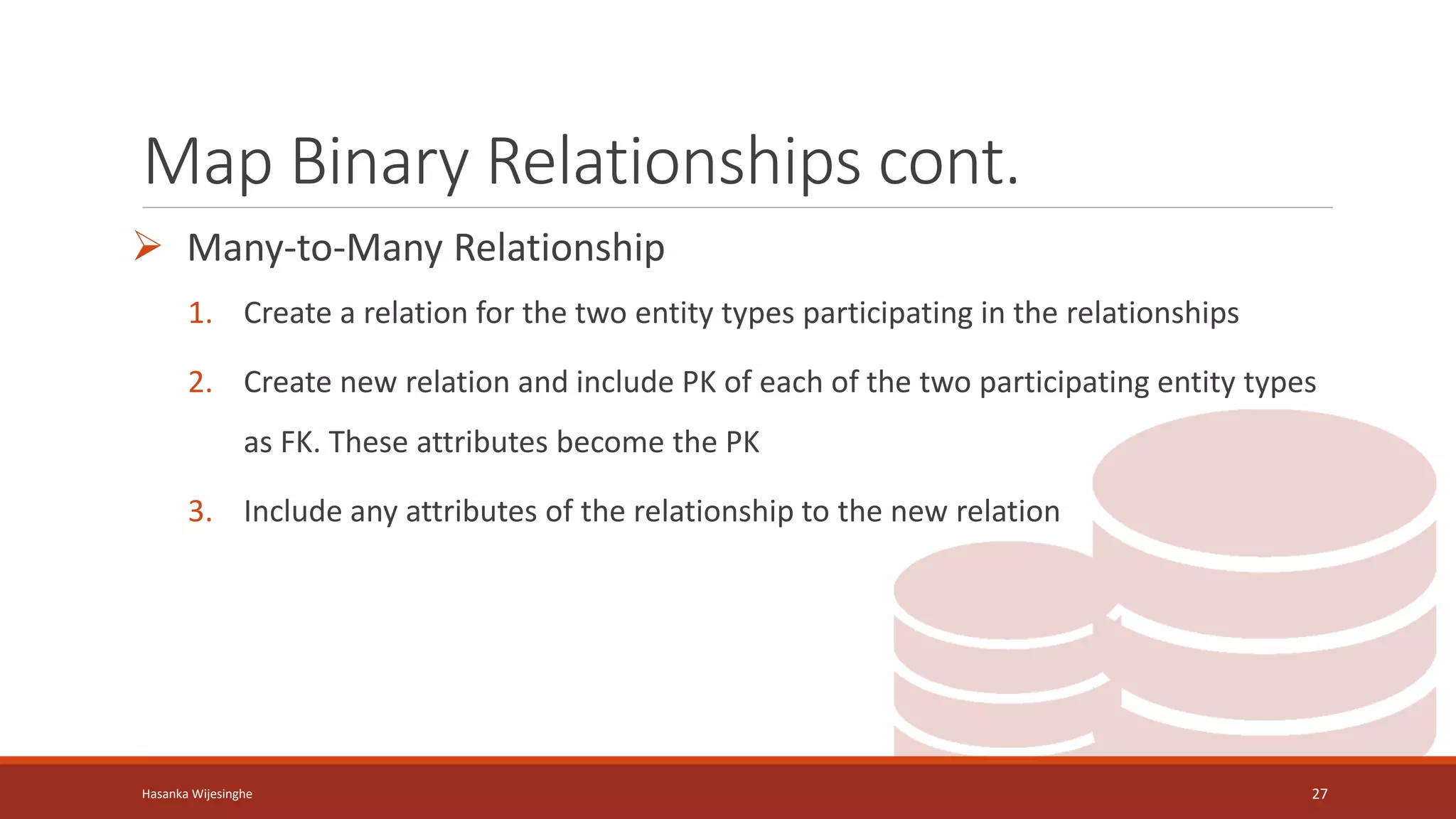

27. Map Binary Relationships cont.
 Many-to-Many Relationship
1. Create a relation for the two entity types participating in the relationships
2. Create new relation and include PK of each of the two participating entity types
as FK. These attributes become the PK
3. Include any attributes of the relationship to the new relation
Hasanka Wijesinghe 27

28. Hasanka Wijesinghe 28
Employee
Project
works on
Emp No
Emp Name
NID
Salary
Address
Gender
DOB
First Name
Mid Initials
Last Name
Proj No
Proj Name
Location
Hours
m
n
Employee(Emp_No, NID, Address,
Salary, Gender, DOB, First_Name,
Mid_Initials, Last_Name, Dept_No)
Project(Proj_ No, Proj_Name,
Location, Dept_No)
Works_On(Emp_No, Proj_No , Hours)

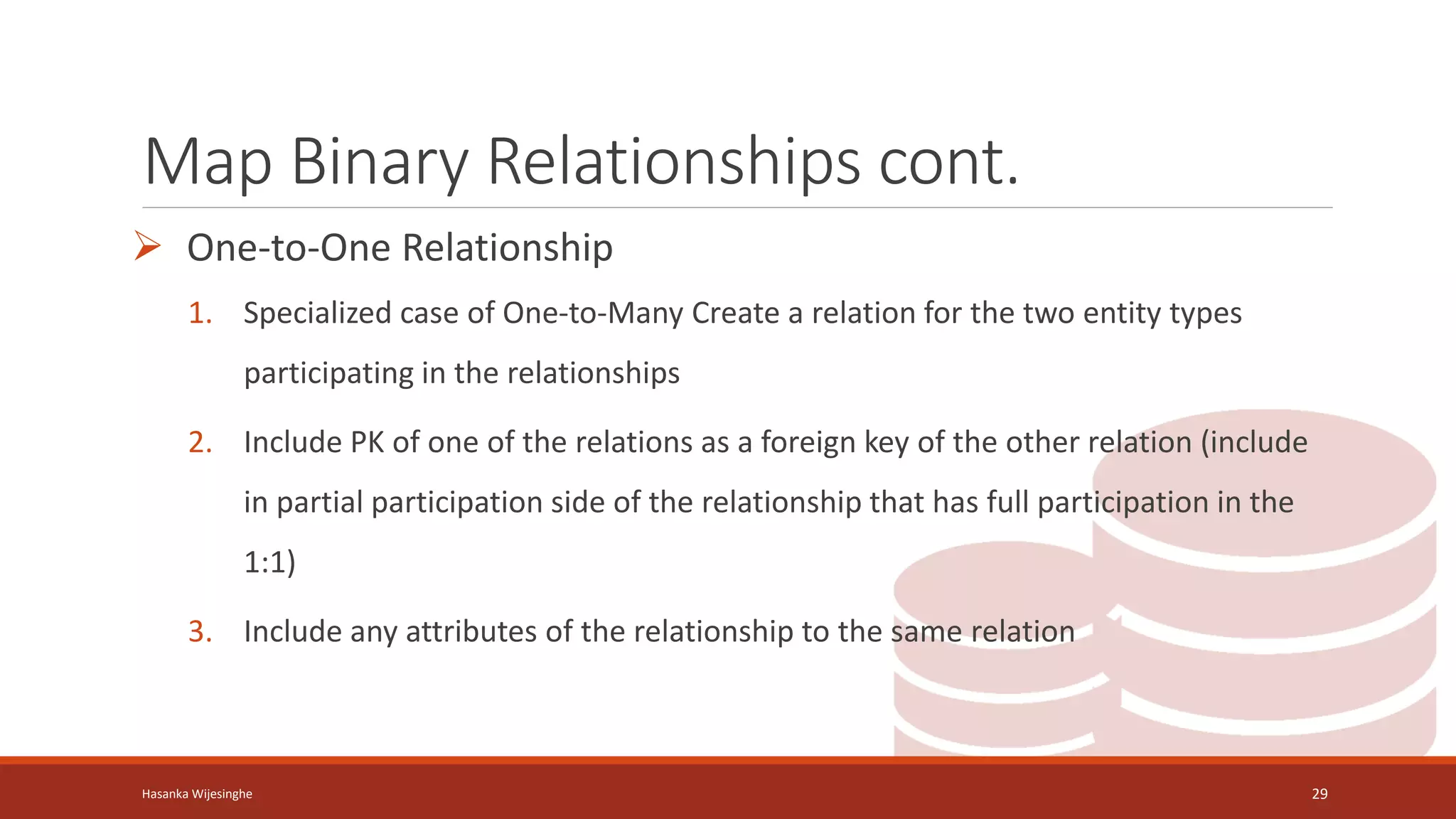

29. Map Binary Relationships cont.
 One-to-One Relationship
1. Specialized case of One-to-Many Create a relation for the two entity types
participating in the relationships
2. Include PK of one of the relations as a foreign key of the other relation (include
in partial participation side of the relationship that has full participation in the
1:1)
3. Include any attributes of the relationship to the same relation
Hasanka Wijesinghe 29

30. Hasanka Wijesinghe 30
Employee Department
manage
Start d
Emp No
Emp Name
NID
Salary
Address
Gender
DOB
First Name
Mid Initials
Last Name
Dept No
Dept Name
Location
Phone
Employee(Emp_No, NID, Address, Salary,
Gender, DOB, First_Name, Mid_Initials,
Last_Name, Dept_No)
Department(Dept_No, Dept_Name, Phone, emp_no
Start_D)

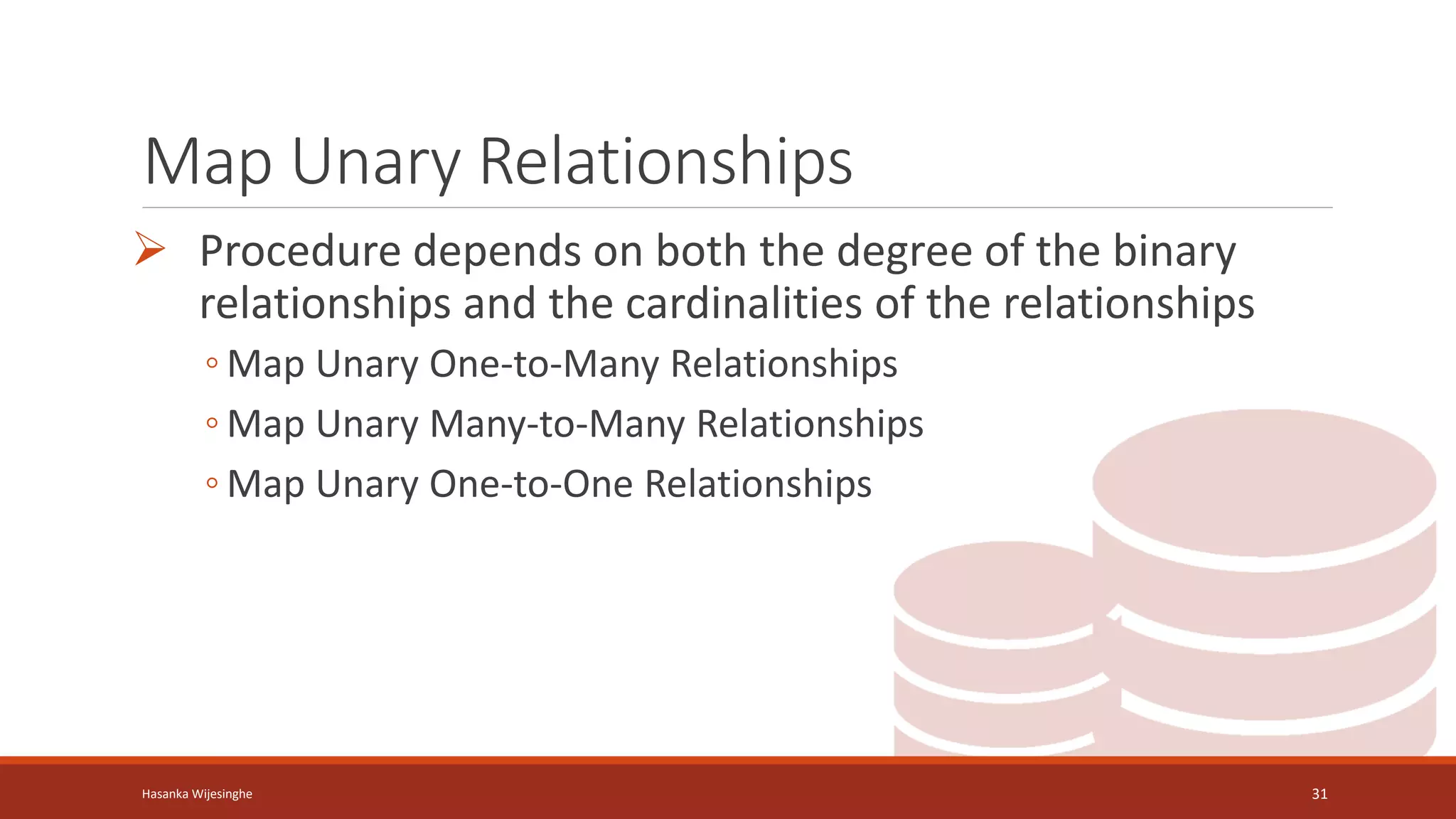

31. Map Unary Relationships
 Procedure depends on both the degree of the binary
relationships and the cardinalities of the relationships
◦ Map Unary One-to-Many Relationships
◦ Map Unary Many-to-Many Relationships
◦ Map Unary One-to-One Relationships
Hasanka Wijesinghe 31

32. Map Unary Relationships cont.
 One-to-many Relationship
1. Create a relation for the entity type
2. Include PK of the entity as a foreign key within the same relation
3. Include any attributes of the relationship to the relation of the many side
Hasanka Wijesinghe 32

33. Hasanka Wijesinghe 33
Employee
supervise
Emp No
Emp Name
NID
Salary
Address
Gender
DOB
First Name
Mid Initials
Last Name
Employee(Emp_No, NID, Address,
Salary, Gender, DOB, First_Name,
Mid_Initials, Last_Name, Dept_No,
Supervisor)
1
m

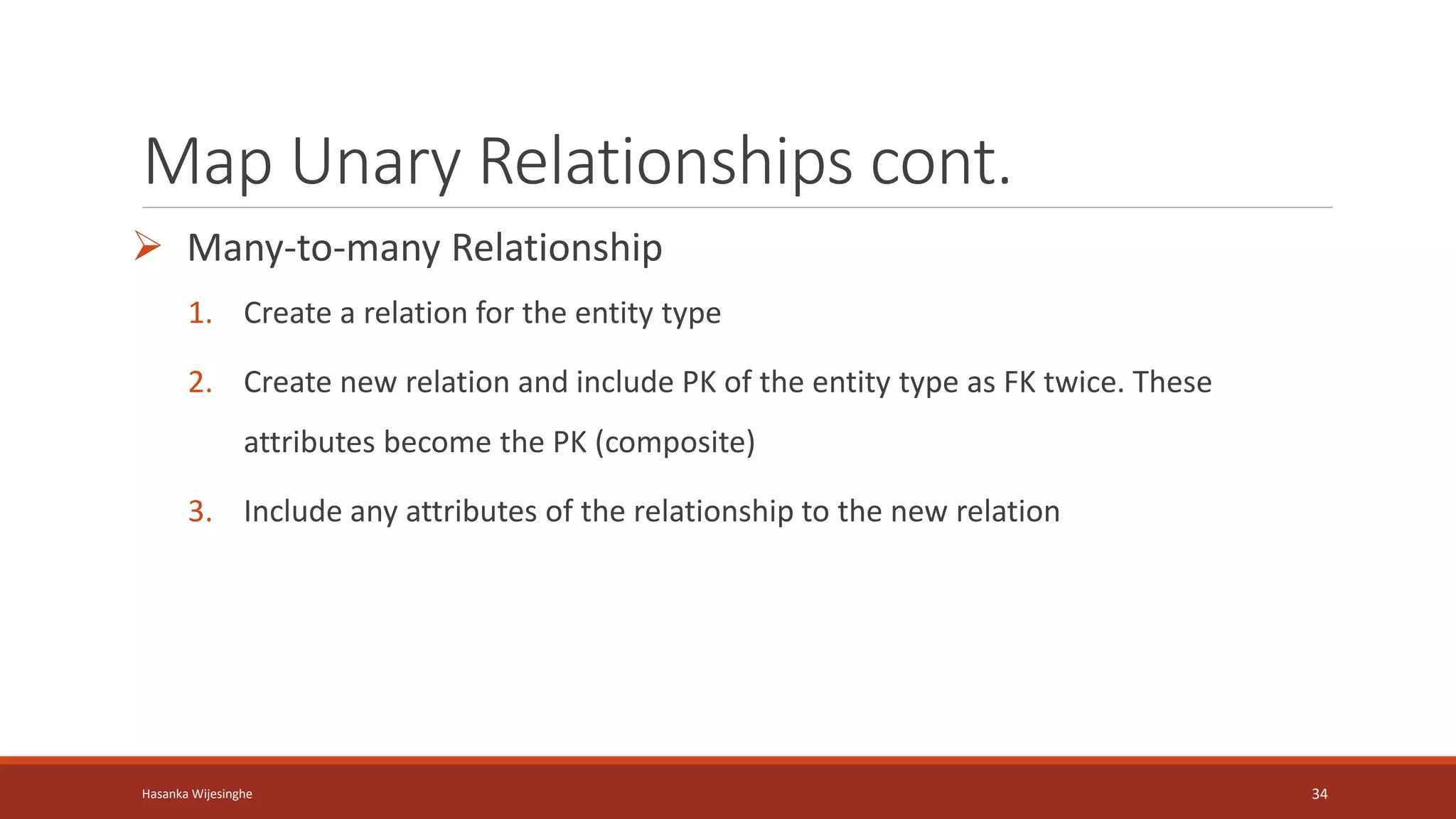

34. Map Unary Relationships cont.
 Many-to-many Relationship
1. Create a relation for the entity type
2. Create new relation and include PK of the entity type as FK twice. These
attributes become the PK (composite)
3. Include any attributes of the relationship to the new relation
Hasanka Wijesinghe 34

35. Hasanka Wijesinghe 35
Item
contain
Item No
Name
Unit Cost
Quantity
m n
Item(Item_No, Name, Unit_Cost)
Component(Item_No, Component_No, Quantity)

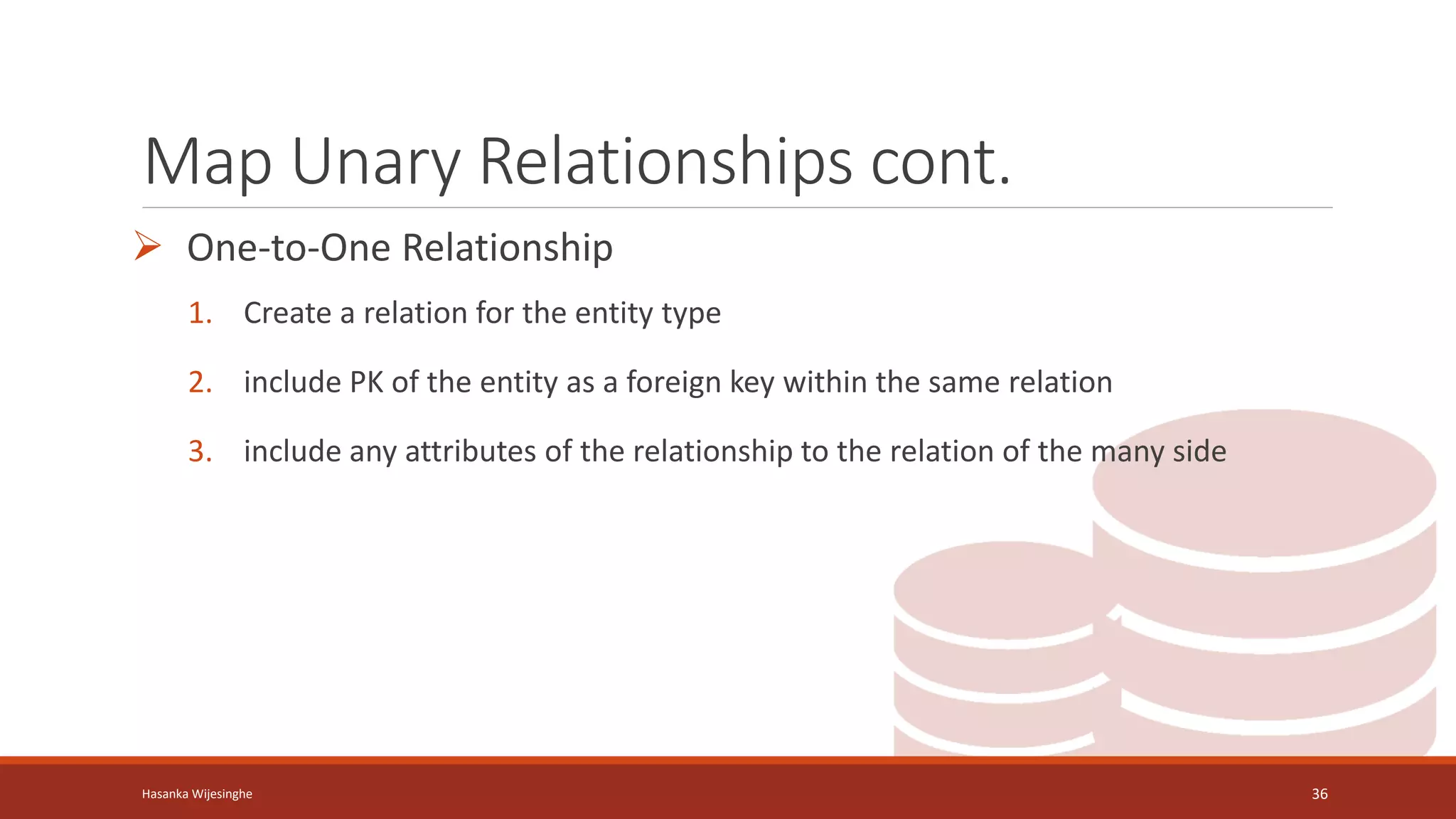

36. Map Unary Relationships cont.
 One-to-One Relationship
1. Create a relation for the entity type
2. include PK of the entity as a foreign key within the same relation
3. include any attributes of the relationship to the relation of the many side
Hasanka Wijesinghe 36

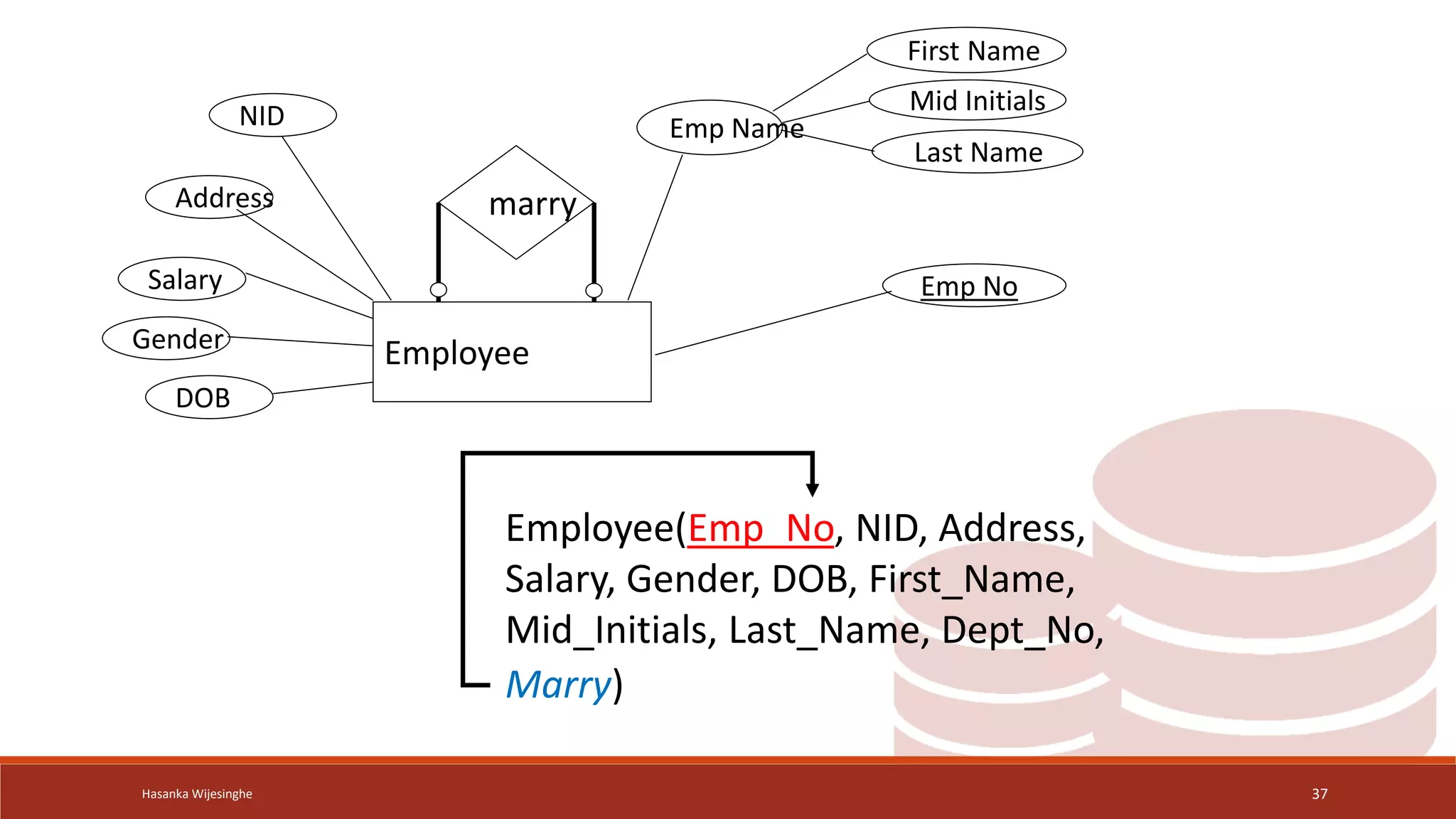

37. Hasanka Wijesinghe 37
Employee
marry
Emp No
Emp Name
NID
Salary
Address
Gender
DOB
First Name
Mid Initials
Last Name
Employee(Emp_No, NID, Address,
Salary, Gender, DOB, First_Name,
Mid_Initials, Last_Name, Dept_No,
Marry)

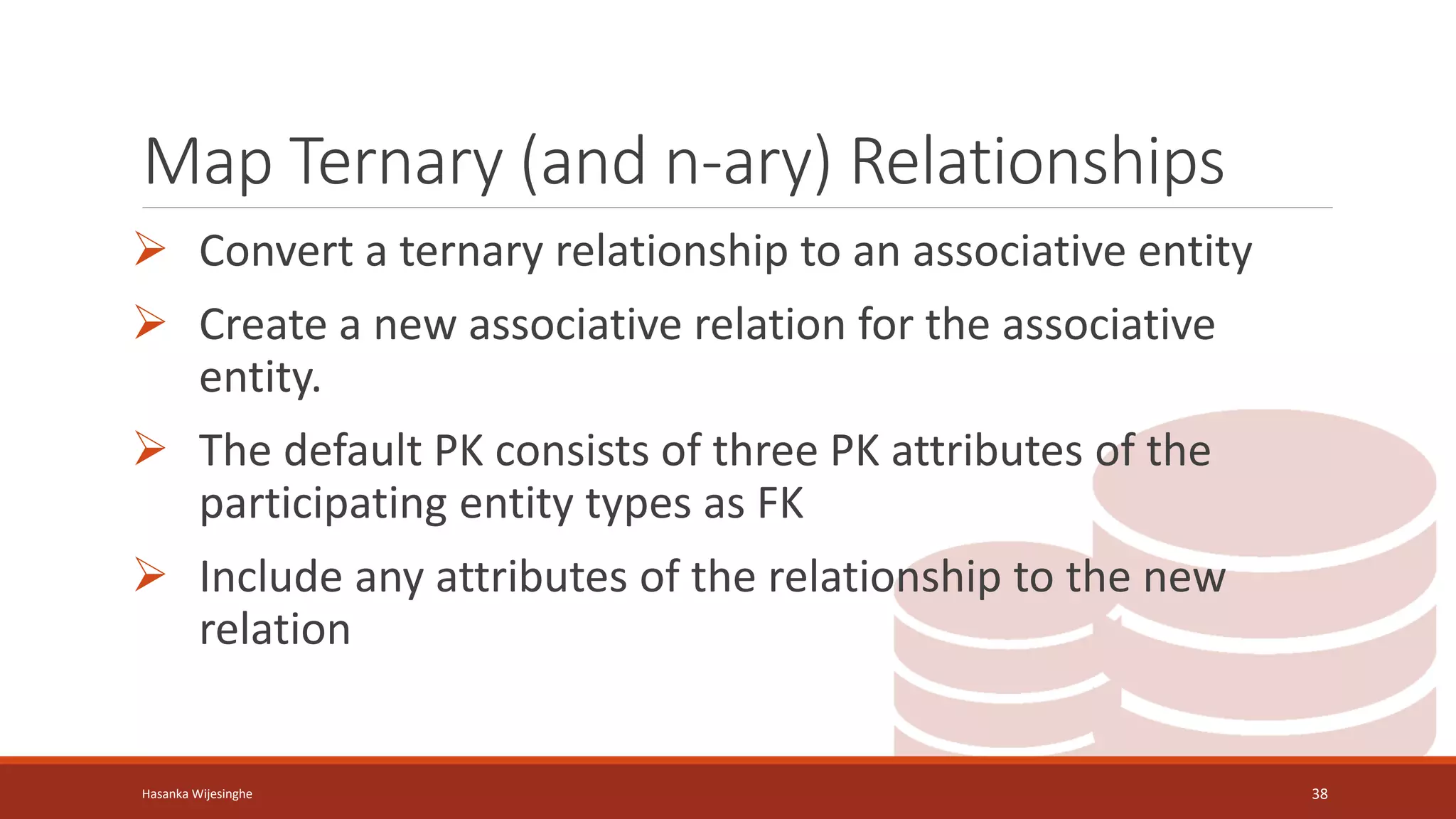

38. Map Ternary (and n-ary) Relationships
 Convert a ternary relationship to an associative entity
 Create a new associative relation for the associative
entity.
 The default PK consists of three PK attributes of the
participating entity types as FK
 Include any attributes of the relationship to the new
relation
Hasanka Wijesinghe 38

39. Hasanka Wijesinghe 39
Part
Warehouse
Supplies
Vendor
Shipping Mode
Unit Cost
Warehouse(warehouse_no, ….)
Vendor(vendor_no, ….)
Part(part_no, ….)
Supply(warehouse_no, vendor_no, part_no, Shipping_mode, Unit_Cost)

40. Hasanka Wijesinghe 40
Q & A

41. Hasanka Wijesinghe 41
Thank You!
