In a simultaneous multithreaded system, a core’s pipeline resources are sometimes partitioned and
otherwise shared amongst numerous active threads. One mutual resource is the write buffer, which acts as
an intermediary between a store instruction’s retirement from the pipeline and the store value being written
to cache. The write buffer takes a completed store instruction from the load/store queue and eventually
writes the value to the level-one data cache. Once a store is buffered with a write-allocate cache policy, the
store must remain in the write buffer until its cache block is in level-one data cache. This latency may vary
from as little as a single clock cycle (in the case of a level-one cache hit) to several hundred clock cycles
(in the case of a cache miss). This paper shows that cache misses routinely dominate the write buffer’s
resources and deny cache hits from being written to memory, thereby degrading performance of
simultaneous multithreaded systems. This paper proposes a technique to reduce denial of resources to
cache hits by limiting the number of cache misses that may concurrently reside in the write buffer and
shows that system performance can be improved by using this technique.
Comparative study on Cache Coherence Protocolsiosrjce
IOSR Journal of Computer Engineering (IOSR-JCE) is a double blind peer reviewed International Journal that provides rapid publication (within a month) of articles in all areas of computer engineering and its applications. The journal welcomes publications of high quality papers on theoretical developments and practical applications in computer technology. Original research papers, state-of-the-art reviews, and high quality technical notes are invited for publications.
Comparative study on Cache Coherence Protocolsiosrjce
IOSR Journal of Computer Engineering (IOSR-JCE) is a double blind peer reviewed International Journal that provides rapid publication (within a month) of articles in all areas of computer engineering and its applications. The journal welcomes publications of high quality papers on theoretical developments and practical applications in computer technology. Original research papers, state-of-the-art reviews, and high quality technical notes are invited for publications.
Compositional Analysis for the Multi-Resource ServerEricsson
The Multi-Resource Server (MRS) technique has been proposed to enable predictable execution of memory intensive real-time applications on COTS multi-core platforms.
Memory system, and not processor speed, is often the bottleneck for many applications.
Memory system performance is largely captured by two parameters, latency and bandwidth.
Latency is the time from the issue of a memory request to the time the data is available at the processor.
Bandwidth is the rate at which data can be pumped to the processor by the memory system.
Cache coherency controller for MESI protocol based on FPGA IJECEIAES
In modern techniques of building processors, manufactures using more than one processor in the integrated circuit (chip) and each processor called a core. The new chips of processors called a multi-core processor. This new design makes the processors to work simultanously for more than one job or all the cores working in parallel for the same job. All cores are similar in their design, and each core has its own cache memory, while all cores shares the same main memory. So if one core requestes a block of data from main memory to its cache, there should be a protocol to declare the situation of this block in the main memory and other cores.This is called the cache coherency or cache consistency of multi-core. In this paper a special circuit is designed using very high speed integrated circuit hardware description language (VHDL) coding and implemented using ISE Xilinx software. The protocol used in this design is the modified, exclusive, shared and invalid (MESI) protocol. Test results were taken by using test bench, and showed all the states of the protocol are working correctly.
There are two primary forms of data exchange between parallel tasks - accessing a shared data space and exchanging messages.
Platforms that provide a shared data space are called shared-address-space machines or multiprocessors.
Platforms that support messaging are also called message passing platforms or multicomputers.
WRITE BUFFER PARTITIONING WITH RENAME REGISTER CAPPING IN MULTITHREADED CORESijdpsjournal
In simultaneous multithreaded systems, there are several pipeline resources that are shared amongst multiple
threads concurrently. Some of these mutual resources to mention are the register-file and the write buffer.
The Physical Register file is a critical shared resource in these types of systems due to the limited number of
rename registers available for renaming. The write buffer, another shared resource, is also crucial since it
serves as an intermediary between the retirement of a store instruction and the writing of its value to cache.
Both components, if not configured accurately, can serve as a bottleneck in inefficient usage of the resources
and output undesirable performance.
However, when configuring both shared components concurrently, there is potential to all eviate common
performance congestion. This paper shows that when implementing a static register capping algorithm
(limiting the number of physical register entries for each thread), there is a byproduct of increased variety
in source for the write buffer. This also presents an opportunity for the write buffer to have a higher variety
to potentially choose for a better suitable thread asit’s source at certain clock cycles. With this presented
opportunity, this paper proposes a technique to allow the write buffer to both prioritize and enforce the
choice for low-latency threads by partitioning the write buffer in two sections; cache-hit priority and cachehit only partitions, showing that system performance and resource efficiency can be further improved by
using this technique in a modified SMT environment.
PERFORMANCE ENHANCEMENT WITH SPECULATIVE-TRACE CAPPING AT DIFFERENT PIPELINE ...caijjournal
Simultaneous Multi-Threading (SMT) processors improve system performance by allowing concurrent execution of multiple independent threads with sharing key datapath components and better utilization of resources. Speculative execution allows modern processors to fetch continuously and reduce the delays of control instructions. However, a significant amount of resources is usually wasted due to miss-speculation, which could have been used by other valid instructions, and such a waste is even more pronounced in an SMT system. In order to minimize the waste of resources, a speculative trace capping technique [1] was proposed to limit the number of speculative instructions in the system. In this paper, a thorough analysis is given to investigate the trade-offs among applying this capping mechanism at different pipeline stages so as to maximize its benefits. Our simulations show that the best choice can improve overall system throughput by a very significant margin (up to 46%) without sacrificing execution fairness among the threads.
Compositional Analysis for the Multi-Resource ServerEricsson
The Multi-Resource Server (MRS) technique has been proposed to enable predictable execution of memory intensive real-time applications on COTS multi-core platforms.
Memory system, and not processor speed, is often the bottleneck for many applications.
Memory system performance is largely captured by two parameters, latency and bandwidth.
Latency is the time from the issue of a memory request to the time the data is available at the processor.
Bandwidth is the rate at which data can be pumped to the processor by the memory system.
Cache coherency controller for MESI protocol based on FPGA IJECEIAES
In modern techniques of building processors, manufactures using more than one processor in the integrated circuit (chip) and each processor called a core. The new chips of processors called a multi-core processor. This new design makes the processors to work simultanously for more than one job or all the cores working in parallel for the same job. All cores are similar in their design, and each core has its own cache memory, while all cores shares the same main memory. So if one core requestes a block of data from main memory to its cache, there should be a protocol to declare the situation of this block in the main memory and other cores.This is called the cache coherency or cache consistency of multi-core. In this paper a special circuit is designed using very high speed integrated circuit hardware description language (VHDL) coding and implemented using ISE Xilinx software. The protocol used in this design is the modified, exclusive, shared and invalid (MESI) protocol. Test results were taken by using test bench, and showed all the states of the protocol are working correctly.
There are two primary forms of data exchange between parallel tasks - accessing a shared data space and exchanging messages.
Platforms that provide a shared data space are called shared-address-space machines or multiprocessors.
Platforms that support messaging are also called message passing platforms or multicomputers.
WRITE BUFFER PARTITIONING WITH RENAME REGISTER CAPPING IN MULTITHREADED CORESijdpsjournal
In simultaneous multithreaded systems, there are several pipeline resources that are shared amongst multiple
threads concurrently. Some of these mutual resources to mention are the register-file and the write buffer.
The Physical Register file is a critical shared resource in these types of systems due to the limited number of
rename registers available for renaming. The write buffer, another shared resource, is also crucial since it
serves as an intermediary between the retirement of a store instruction and the writing of its value to cache.
Both components, if not configured accurately, can serve as a bottleneck in inefficient usage of the resources
and output undesirable performance.
However, when configuring both shared components concurrently, there is potential to all eviate common
performance congestion. This paper shows that when implementing a static register capping algorithm
(limiting the number of physical register entries for each thread), there is a byproduct of increased variety
in source for the write buffer. This also presents an opportunity for the write buffer to have a higher variety
to potentially choose for a better suitable thread asit’s source at certain clock cycles. With this presented
opportunity, this paper proposes a technique to allow the write buffer to both prioritize and enforce the
choice for low-latency threads by partitioning the write buffer in two sections; cache-hit priority and cachehit only partitions, showing that system performance and resource efficiency can be further improved by
using this technique in a modified SMT environment.
PERFORMANCE ENHANCEMENT WITH SPECULATIVE-TRACE CAPPING AT DIFFERENT PIPELINE ...caijjournal
Simultaneous Multi-Threading (SMT) processors improve system performance by allowing concurrent execution of multiple independent threads with sharing key datapath components and better utilization of resources. Speculative execution allows modern processors to fetch continuously and reduce the delays of control instructions. However, a significant amount of resources is usually wasted due to miss-speculation, which could have been used by other valid instructions, and such a waste is even more pronounced in an SMT system. In order to minimize the waste of resources, a speculative trace capping technique [1] was proposed to limit the number of speculative instructions in the system. In this paper, a thorough analysis is given to investigate the trade-offs among applying this capping mechanism at different pipeline stages so as to maximize its benefits. Our simulations show that the best choice can improve overall system throughput by a very significant margin (up to 46%) without sacrificing execution fairness among the threads.
Computer Applications: An International Journal (CAIJ)caijjournal
Computer Applications: An International Journal (CAIJ) is a Quarterly open access peer-reviewed journal that publishes articles which contribute new results in all areas of the Computer Science Applications. The journal is devoted to the publication of high quality papers on theoretical and practical aspects of computer science applications. The goal of this journal is to bring together researchers and practitioners from academia and industry to focus on Computer science application advancements, and establishing new collaborations in these areas. Original research papers, state-of-the-art reviews are invited for publication in all areas of Computer Science Applications.
Authors are solicited to contribute to the journal by submitting articles that illustrate research results, projects, surveying works and industrial experiences that describe significant advances in the areas of Computer Science Applications.
PERFORMANCE ENHANCEMENT WITH SPECULATIVE-TRACE CAPPING AT DIFFERENT PIPELINE ...caijjournal
Simultaneous Multi-Threading (SMT) processors improve system performance by allowing concurrent execution of multiple independent threads with sharing key datapath omponents and better utilization of resources. Speculative execution allows modern processors to fetch continuously and reduce the delays of control instructions. However, a significant amount of resources is usually wasted due to miss- peculation,
which could have been used by other valid instructions, and such a waste is even more pronounced in an SMT system. In order to minimize the waste of resources, a speculative trace capping technique [1] was proposed to limit the number of speculative instructions in the system. In this paper, a thorough analysis is given to investigate the trade-offs among applying this capping mechanism at different pipeline stages so as
to maximize its benefits. Our simulations show that the best choice can improve overall system throughput
by a very significant margin (up to 46%) without sacrificing execution fairness among the threads.
DESIGNED DYNAMIC SEGMENTED LRU AND MODIFIED MOESI PROTOCOL FOR RING CONNECTED...Ilango Jeyasubramanian
• Improved speedup by 3.2%, CPI by 7.68% from regular LRU policy by a new Dynamic SLRU policy Implementation on Gem5 simulator.
• Dynamic segmentation of each cache set was done with cache line access probability based LRU insertion policy and performed block replacement by normal SLRU policy.
• Achieved hit-rate improvement by 2.97%, power reduction by 11% with modified Gem5 Ruby memory system by added instructions in the X86 ISA and additional states in the MOESI protocol for coherence in round-robin ordered ring connected filter caches on Intel X86 processor.
STUDY OF VARIOUS FACTORS AFFECTING PERFORMANCE OF MULTI-CORE PROCESSORSijdpsjournal
Advances in Integrated Circuit processing allow for more microprocessor design options. As Chip Multiprocessor system (CMP) become the predominant topology for leading microprocessors, critical components of the system are now integrated on a single chip. This enables sharing of computation resources that was not previously possible. In addition the virtualization of these computation resources exposes the system to a mix of diverse and competing workloads. On chip Cache memory is a resource of primary concern as it can be dominant in controlling overall throughput. This Paper presents analysis of various parameters affecting the performance of Multi-core Architectures like varying the number of cores, changes L2 cache size, further we have varied directory size from 64 to 2048 entries on a 4 node, 8 node 16 node and 64 node Chip multiprocessor which in turn presents an open area of research on multicore processors with private/shared last level cache as the future trend seems to be towards tiled architecture executing multiple parallel applications with optimized silicon area utilization and excellent performance.
This paper proposes medium access control (MAC) layer protocol for wireless sensor networks.
Sensor nodes are battery operated so the energy efficiency is an important aspect for the wireless sensor
networks WSNs. The protocol aims for achieving energy efficiency to increases network lifetime and
scalability to increase the network capacity. Clustering, synchronization and low duty cycle are some of
the characteristics for utilizing energy efficiently in the network. The protocol is designed with having the
schedules of the clusters to be overlapped in a low duty cycle operation. We have evaluated the
performance of protocol through detailed ns- 2 simulation. The simulation results show that this protocol
outperforms when compared to SMAC. It has reduced schedule updates, power consumption and data
loss.
.
Keywords— Wireless sensor networks, duty-cycle, clustering, schedule, synchronization, energyefficiency
Hardback solution to accelerate multimedia computation through mgp in cmpeSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
International Journal of Engineering Research and Development (IJERD)IJERD Editor
journal publishing, how to publish research paper, Call For research paper, international journal, publishing a paper, IJERD, journal of science and technology, how to get a research paper published, publishing a paper, publishing of journal, publishing of research paper, reserach and review articles, IJERD Journal, How to publish your research paper, publish research paper, open access engineering journal, Engineering journal, Mathemetics journal, Physics journal, Chemistry journal, Computer Engineering, Computer Science journal, how to submit your paper, peer reviw journal, indexed journal, reserach and review articles, engineering journal, www.ijerd.com, research journals,
yahoo journals, bing journals, International Journal of Engineering Research and Development, google journals, hard copy of journal
CS 301 Computer ArchitectureStudent # 1 EID 09Kingdom of .docxfaithxdunce63732
CS 301 Computer Architecture
Student # 1
E
ID: 09
Kingdom of Saudi Arabia Royal Commission at Yanbu Yanbu University College Yanbu Al-Sinaiyah
Student # 2
H
ID: 09
Kingdom of Saudi Arabia Royal Commission at Yanbu Yanbu University College Yanbu Al-Sinaiyah
1
1. Introduction
High-performance processor design has recently taken two distinct approaches. One approach is to increase the execution rate by increasing the clock frequency of the processor or by reducing the execution latency of the operations. While this approach is important, much of its performance gain comes as a consequence of circuit and layout improvements and is beyond the scope of this research. The other approach is to directly exploit the instruction-level parallelism (ILP) in the program and to issue and execute multiple operations concurrently. This approach requires both compiler and microarchitecture support.
Traditional processor designs that issue and execute at most one operation per cycle are often called scalar designs. Static and dynamic scheduling techniques have been used to achieve better-than scalar performance by issuing and executing more than one operation per cycle. While Johnson[7] defines a superscalar processor as a design that achieves better-than scalar performance, popular usage of this term refers exclusively to those processors that use dynamic scheduling techniques. For clarity, we use instruction-level parallel processors to refer to the general class of processors that execute more than one operation per cycle of the computer both at the personal level, or the level of a small network of computers to do not require more of these types.
The primary static scheduling technique uses the compiler to determine sets of operations that have their source operands ready and have no dependencies within the set. These operations can then be scheduled within the same instruction subject only to hardware resource limits. Since each of the operations in an instruction is guaranteed by the compiler to be independent, the hardware is able to is- sue and execute these operations directly with no dynamic analysis. These multi-operation instructions are very long in comparison with traditional single-operation instructions and processors using .
Dominant block guided optimal cache size estimation to maximize ipc of embedd...ijesajournal
Embedded system software is highly constrained from performance, memory footprint, energy consumption and implementing cost view point. It is always desirable to obtain better Instructions per Cycle (IPC). Instruction cache has major contribution in improving IPC. Cache memories are realized on the same chip where the processor is running. This considerably increases the system cost as well. Hence, it is required to maintain a trade-off between cache sizes and performance improvement offered. Determining the number of cache lines and size of cache line are important parameters for cache designing. The design space for cache is quite large. It is time taking to execute the given application with different cache sizes on an instruction set simulator (ISS) to figure out the optimal cache size. In this paper, a technique is proposed to identify a number of cache lines and cache line size for the L1 instruction cache that will offer best or nearly best IPC. Cache size is derived, at a higher abstraction level, from basic block analysis in the Low Level Virtual Machine (LLVM) environment. The cache size estimated from the LLVM environment is cross validated by simulating the set of benchmark applications with different cache sizes in SimpleScalar’s out-of-order simulator. The proposed method seems to be superior in terms of estimation accuracy and/or estimation time as compared to the existing methods for estimation of optimal cache size parameters (cache line size, number of cache lines).
Similar to LATENCY-AWARE WRITE BUFFER RESOURCE CONTROL IN MULTITHREADED CORES (20)
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf

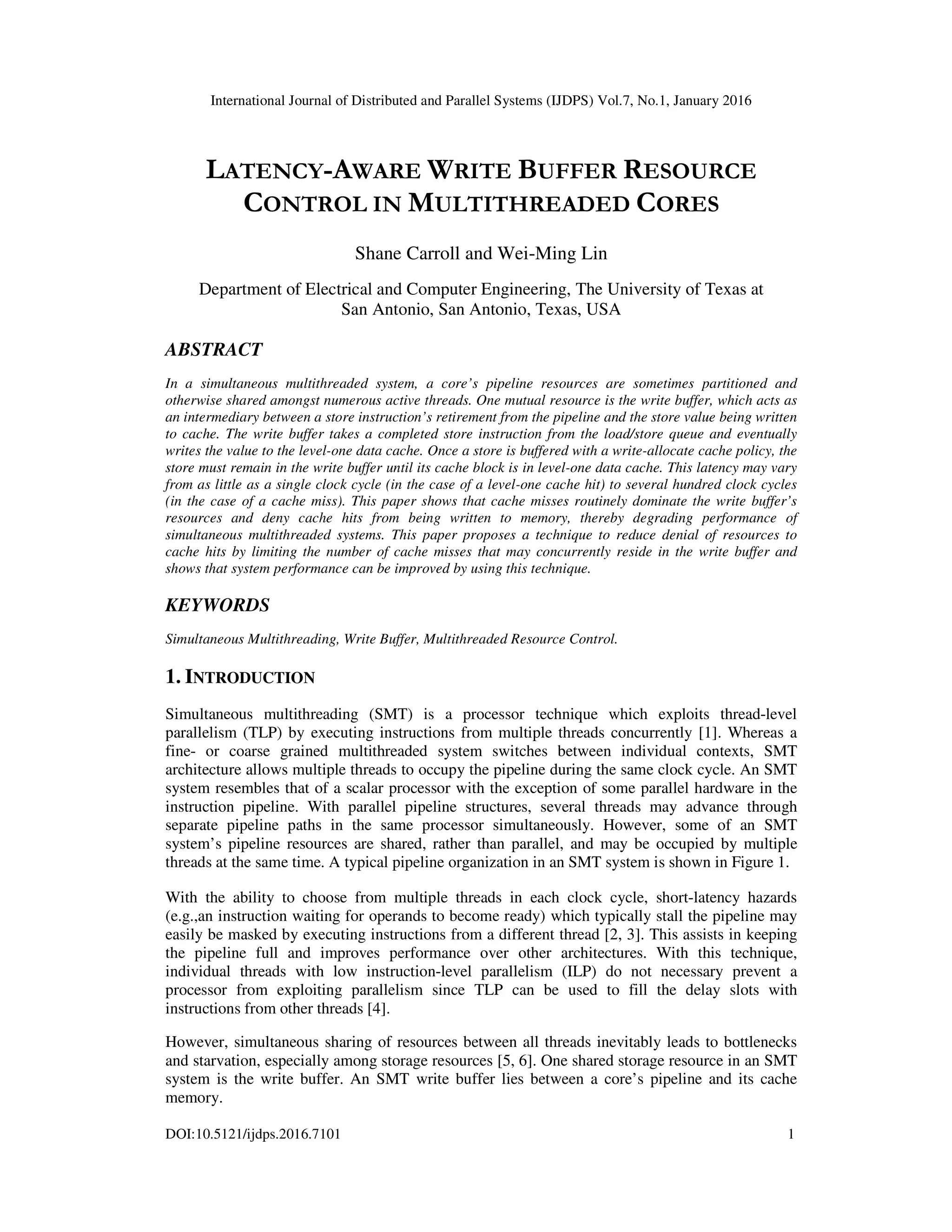

LATENCY-AWARE WRITE BUFFER RESOURCE CONTROL IN MULTITHREADED CORES
1. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
DOI:10.5121/ijdps.2016.7101 1
LATENCY-AWARE WRITE BUFFER RESOURCE
CONTROL IN MULTITHREADED CORES
Shane Carroll and Wei-Ming Lin
Department of Electrical and Computer Engineering, The University of Texas at
San Antonio, San Antonio, Texas, USA
ABSTRACT
In a simultaneous multithreaded system, a core’s pipeline resources are sometimes partitioned and
otherwise shared amongst numerous active threads. One mutual resource is the write buffer, which acts as
an intermediary between a store instruction’s retirement from the pipeline and the store value being written
to cache. The write buffer takes a completed store instruction from the load/store queue and eventually
writes the value to the level-one data cache. Once a store is buffered with a write-allocate cache policy, the
store must remain in the write buffer until its cache block is in level-one data cache. This latency may vary
from as little as a single clock cycle (in the case of a level-one cache hit) to several hundred clock cycles
(in the case of a cache miss). This paper shows that cache misses routinely dominate the write buffer’s
resources and deny cache hits from being written to memory, thereby degrading performance of
simultaneous multithreaded systems. This paper proposes a technique to reduce denial of resources to
cache hits by limiting the number of cache misses that may concurrently reside in the write buffer and
shows that system performance can be improved by using this technique.
KEYWORDS
Simultaneous Multithreading, Write Buffer, Multithreaded Resource Control.
1. INTRODUCTION
Simultaneous multithreading (SMT) is a processor technique which exploits thread-level
parallelism (TLP) by executing instructions from multiple threads concurrently [1]. Whereas a
fine- or coarse grained multithreaded system switches between individual contexts, SMT
architecture allows multiple threads to occupy the pipeline during the same clock cycle. An SMT
system resembles that of a scalar processor with the exception of some parallel hardware in the
instruction pipeline. With parallel pipeline structures, several threads may advance through
separate pipeline paths in the same processor simultaneously. However, some of an SMT
system’s pipeline resources are shared, rather than parallel, and may be occupied by multiple
threads at the same time. A typical pipeline organization in an SMT system is shown in Figure 1.
With the ability to choose from multiple threads in each clock cycle, short-latency hazards
(e.g.,an instruction waiting for operands to become ready) which typically stall the pipeline may
easily be masked by executing instructions from a different thread [2, 3]. This assists in keeping
the pipeline full and improves performance over other architectures. With this technique,
individual threads with low instruction-level parallelism (ILP) do not necessary prevent a
processor from exploiting parallelism since TLP can be used to fill the delay slots with
instructions from other threads [4].
However, simultaneous sharing of resources between all threads inevitably leads to bottlenecks
and starvation, especially among storage resources [5, 6]. One shared storage resource in an SMT
system is the write buffer. An SMT write buffer lies between a core’s pipeline and its cache
memory.
2. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
2

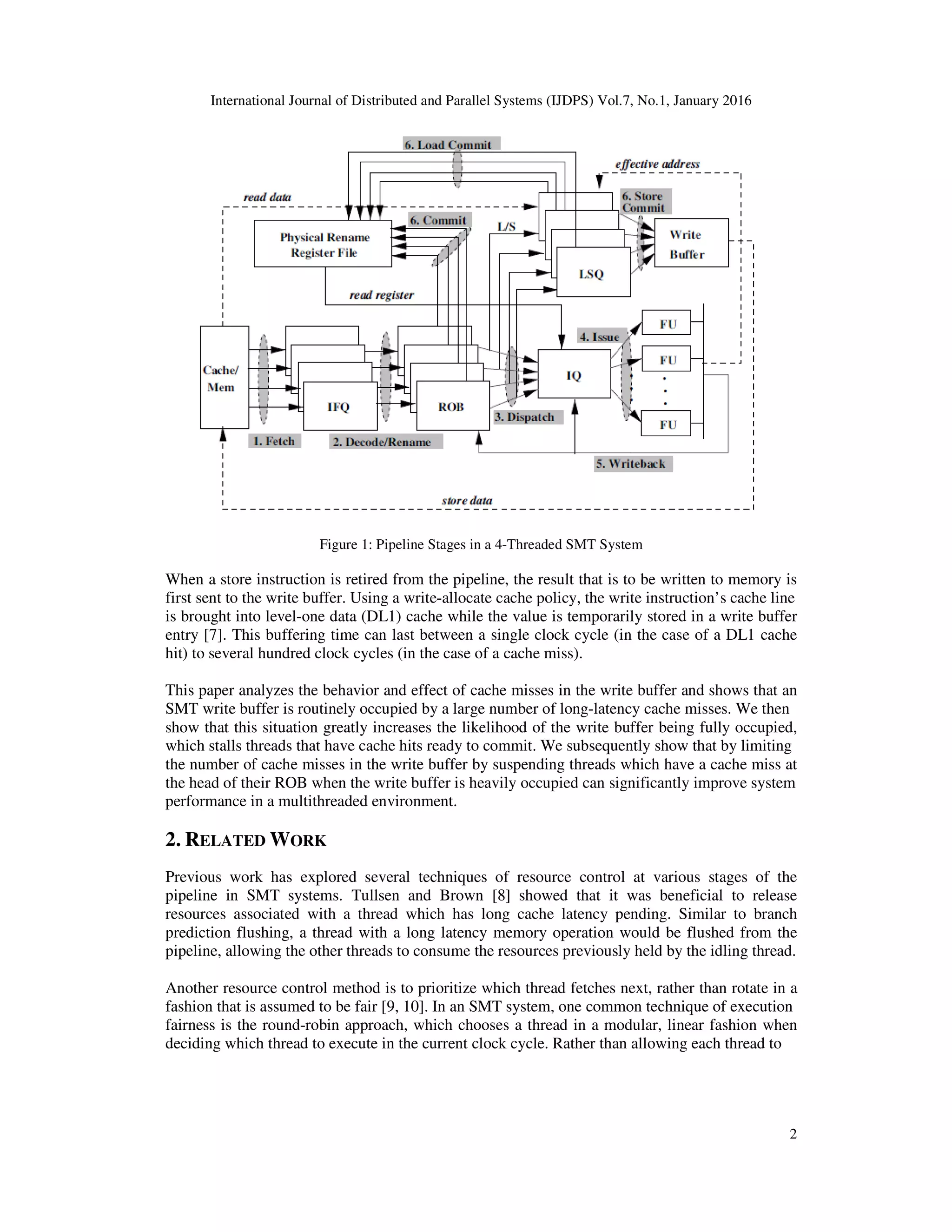

Figure 1: Pipeline Stages in a 4-Threaded SMT System
When a store instruction is retired from the pipeline, the result that is to be written to memory is
first sent to the write buffer. Using a write-allocate cache policy, the write instruction’s cache line
is brought into level-one data (DL1) cache while the value is temporarily stored in a write buffer
entry [7]. This buffering time can last between a single clock cycle (in the case of a DL1 cache
hit) to several hundred clock cycles (in the case of a cache miss).
This paper analyzes the behavior and effect of cache misses in the write buffer and shows that an
SMT write buffer is routinely occupied by a large number of long-latency cache misses. We then
show that this situation greatly increases the likelihood of the write buffer being fully occupied,
which stalls threads that have cache hits ready to commit. We subsequently show that by limiting
the number of cache misses in the write buffer by suspending threads which have a cache miss at
the head of their ROB when the write buffer is heavily occupied can significantly improve system
performance in a multithreaded environment.
2. RELATED WORK
Previous work has explored several techniques of resource control at various stages of the
pipeline in SMT systems. Tullsen and Brown [8] showed that it was beneficial to release
resources associated with a thread which has long cache latency pending. Similar to branch
prediction flushing, a thread with a long latency memory operation would be flushed from the
pipeline, allowing the other threads to consume the resources previously held by the idling thread.
Another resource control method is to prioritize which thread fetches next, rather than rotate in a
fashion that is assumed to be fair [9, 10]. In an SMT system, one common technique of execution
fairness is the round-robin approach, which chooses a thread in a modular, linear fashion when
deciding which thread to execute in the current clock cycle. Rather than allowing each thread to
3. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
3
fetch according to a fair rotation, the technique by Luo et al. [9] aims to predict which thread will
best use the CPU’s resources in the coming clock cycles and choose which thread should fetch
more instructions in the current clock cycle.
An additional resource control method monitors the usage of each thread’s resources and
dynamically limits the resources which are allocated to each thread at runtime [11]. In addition to
resource limiting, if one thread is not using resources they may be given to another thread. This
technique aims to both limit and optimize the distribution of an SMT system’s resources based on
efficient use.
Some resource-partitioning methods [6] separate hardware into clusters and allow certain threads
to occupy a specific cluster. In this manner, threads of different classifications take different paths
through the SMT hardware. This separation of thread classes does not limit a thread within its
assigned hardware and still shows improvement in performance via isolation of threads which
negatively affect each other.
Thread coscheduling techniques [12, 13] have been shown to increase performance in SMT
systems by selectively choosing which threads to run together. Moseley et al. [13] use a technique
to predict the combined instructions per clock cycle (IPC) throughput of multiple threads based
off their resource utilization and use this prediction as a metric for coscheduling. Tullson et al.
[12] dynamically coschedule jobs based off performance, but also consider an assigned priority of
each thread. This coscheduling method increases SMT performance while also assisting the
operating system in achieving priority goals.
Hily and Seznec [14] determined that cache size and workload size have an optimal value pairing
in an SMT system. In their paper, various properties of cache, including block size, associativity,
and size relative to thread count were shown to exhibit beneficial behavior if setup differently
than that of typical architectural configurations.
However, none of these SMT resource control methods attempt to control the write buffer
allocation based on the latency of the next store instruction.
3. SIMULATION ENVIRONMENT
3.1. Simulator
The simulator used in this research is M-Sim [2], an SMT microarchitectural simulator. Based on
SimpleScalar 3.0d and extended for SMT functionality, M-Sim is a cycle-accurate simulator
which models key pipeline structures in an SMT system, including per-thread instruction fetch
queues (IFQs), perthread reorder buffers (ROBs), a shared issue queue (IQ), a shared pool of
functional units (FUs), a shared write buffer, and two levels of cache. M-Sim supports the Alpha
instruction set, a 64-bit RISC architecture.
The parameters used throughout all simulations will be M-Sim’s default configuration, which are
outlined in Table 1. During simulation, write buffer sizes of both 16 and 32 entries will be used.
3.2. Workloads
The workloads used throughout the simulations will be chosen from the SPEC CPU 2006 suite of
benchmarks. To choose workload combinations for multithreaded simulations, the benchmarks
will be partitioned by ILP and chosen in sets of 4 and 8. The benchmarks with the highest IPC
will be rated as H, those with lowest IPC will be rated as L, and those between will be rated as M.
Workloads will be chosen based on a variety of ILP classification combinations. Chosen
4. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
4
workload combinations and their corresponding ILP classes are shown in Tables 2 and 3 for 4-
threaded and 8-threaded workloads, respectively.
4. LONG-LATENCYWRITE ANALYSIS
This section aims to analyze long-latency writes (cache misses) and show that they regularly
occupy a disproportionately large number of write buffer entries, thereby filling up the write
buffer and denying threads with short-latency writes (cache hits) from committing their next
instruction, thus
Table 1: Simulation environment parameter setup
Table 2: 4-threaded workloads chosen from the SPEC CPU2006 suite
5. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
5
stalling otherwise efficient threads. This section examines the write buffer when running
simulations with 4-threaded workloads and using a write buffer with 16 64-byte entries and M-
Sim’s default cache configuration and latencies as described in Section 3.
Figure 2 shows the average write buffer usage of the 10 workloads listed in Table 2. As the data
show, workloads 1 and 3 use the least number of write buffer entries, with average usage of about
1 and 4 entries, respectively. Workload 2 uses about 10 entries on average, and the rest of the
workloads all use between 13 and 16 entries on average. Two notable workloads, 7 and 10, both
use nearly 16 on average, suggesting that these workloads contain write-intensive or cache-miss-
intensive threads.
Table 3: 8-threaded workloads chosen from the SPEC CPU2006 suite
A notable observation is that the 3 workloads which use the least number of write buffer entries
are also the workloads with the highest ILP-rated threads (see Table 2).
Figure 2: Average use of a 16-entry write buffer by 10 4-threaded workloads in a
Simulation environment
6. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
6
To examine what causes high write buffer usage during runtime, the next part of this analysis
looks at the contents of the write buffer when it is full. At the completion of each commit stage of
the pipeline, if the write buffer is full, the contents are examined and grouped by cache-latency
class (level-1 hit, level-2 hit, or cache miss). If, in any clock cycle, the write buffer is not full, its
contents are not considered in this analysis since we aim only to see what causes high usage of
the write buffer. Figure 3 shows the contents of a full write buffer, partitioned by cache latency,
for each workload. Workload 1, the lowest user of the write buffer, never used all 16 entries and
is excluded from Figure 3. Workload 2 had an average of about 15 cache misses in the write
buffer when it was full, while the other 8 workloads had an average of nearly 16 cache misses in
the write buffer when it was full, indicating that a full write buffer is typically caused by cache
misses.
Figure 3: Occupancy of a full, 16-entry write buffer sorted by each instruction’s
cache-access latency in a 4-threaded simulation environment
To see how this impacts performance, we next look at the implications of a full write buffer. To
determine if a full write buffer, likely caused by cache misses (see Figure 3), negatively affects
system performance the following criteria will be sought.
1. The write buffer is full
2. Bandwidth to the write buffer is available
3. A store instruction is ready to be committed
These criteria describe a scenario in which a thread has a store ready to be committed, yet the
thread cannot commit solely due to a lack of resource availability in the write buffer. When this
condition arises, the store instruction mentioned in Criteria 3 will be referred to as a "blocked
store". Since the write buffer is likely full because of cache misses (as shown in Figure 3),
blocked stores which are cache misses will offer little implication of performance impact (as
cache misses waiting for other cache misses are an uninteresting case). However, blocked cache
hits would suggest that cache misses in the write buffer may be preventing non-offending threads
from continuing (cache hits waiting for cache misses).
The next part of this analysis examines how often there is a blocked store instruction in the
pipeline. Figure 4 shows two data plots. The leftmost plot shows the frequency at which Criteria
7. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
7
1 and 2 hold, shown as a percentage of clock cycles. That is, the left plot shows how often the
write buffer fills up before bandwidth is depleted between the LSQ and the write buffer in any
clock cycle. On the right, the frequency at which Criteria 1, 2, and 3 hold is shown as a
percentage of clock cycles. That is, the right plot shows how often a blocked store occurs.
Figure 4 shows that workloads 1, 2 and 3 rarely or never exhibit blocked stores. Most other
threads have a moderate amount of blocked stores, with the exception of workloads 7 and 10.
These two workloads, which also has the highest rate of write buffer use, create a blocked store
instruction in about 90% of all clock cycles. As a workload average, a blocked store instruction
occurs during about 40% of clock cycles.
With the frequency of blocked stores known, their cache-latency class will be examined to
determine what types of store instructions are being blocked. Figure 5 shows the partition of the
blocked stores quantified in Figure 4. As the data show, the majority of blocked instructions are
cache hits. Two notable exceptions are, again, workloads 7 and 10, whose blocked store latency
distribution is less biased than the rest. These two workloads also have the highest ratio of write
buffer usage and the highest frequency of blocked stores. These two workloads’ high blocked-
instruction rate and less biased distribution could both be attributed to these workloads having
many more cache misses than the rest. With more cache misses, the write buffer is full more
often, there are more blocked stores, and more of the blocked stores are cache misses, which is
consistent with the data.
Figure 4: Frequency of store instructions which are blocked by a full write buffer
in a 4-threaded simulation environment
We conclude this section with the observation that, with the simulation environment described in
Section 3 and with 4-threaded workloads described in Table 2, during 40% of clock cycles there
is a completed store instruction which is blocked from being committed solely by a full write
buffer. In about 32% of clock cycles there is a blocked DL1 cache hit and in about 8% of clock
cycles there is a blocked cache miss.
8. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
8
5. PROPOSED WRITE BUFFER ALLOCATION ALGORITHM
In Section 4 it was shown that short-latency cache hits are habitually blocked from being
committed to the write buffer due to long-latency cache misses filling the write buffer. In some
workloads, in nearly 60% of clock cycles a cache hit gets blocked, despite available bandwidth to
the write buffer. This algorithm aims to allow these cache hits to have a reserved place in the
write buffer to prevent blocking and improve system performance.
Figure 6: Typical SMT round robin commit algorithm
Figure 6 describes the procedure normally used by an SMT system when committing store
instructions with a round-robin dispatch. During the commit portion of the pipeline, the system
starts committing instructions from a current context, chosen by the formula c mod N, where N is
the number of active threads and c is the current clock cycle. Instructions are committed starting
from the head of the ROB of the current context. If the current context does not have an
instruction ready to commit at the head of its ROB, the context is removed from consideration for
the rest of the clock cycle and the next thread is checked in the same manner. Otherwise, the head
of the ROB is committed and the head is decremented by one index. If the committed instruction
was a store, its value will be written to the write buffer, given that the write buffer has available
bandwidth and at least one unused entry.
9. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
9
It is the goal of the proposed algorithm to predict and prevent future blocked cache hits. To
accomplish this, the events that cause blocked stores must be prevented, i.e., an excessive number
Figure 7: Modified SMT round robin commit algorithm
of cache misses should not be allowed to occupy the write buffer. The logic to control this will be
executed within the commit algorithm to selectively choose when it is acceptable to send a store
to the write buffer. Specifically, it shall not be acceptable to commit a store when the following
two criteria hold.
1. The next store is a cache miss
2. The write buffer is near capacity
When this condition arises under the normal algorithm, the cache miss would be written to the
nearly-full write buffer. Allowing these cache misses to be committed may subsequently
contribute to a higher number of blocked cache hits, as shown in Section 4. Therefore, not letting
this cache miss get committed may lower the frequency of blocked cache hits. Figure 7 shows the
10. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
10
modifications to the original commit algorithm needed to implement the logic to prevent blocked
cache hits.
This method effectively partitions the write buffer into two sets: general purpose entries and
cache-hit-only entries. The former will be referred to as unreserved entries and the latter reserved
entries. In other words, there is a subset of the write buffer to which any store may be written to
(unreserved) and a subset to which only cache hits may be written to (reserved). When a store is
written to the write buffer, the unreserved entries are used first, regardless of the cache latency.
When only reserved entries remain, no more long-latency writes may be sent to the write buffer
and any threads whose ROB head is a cache miss will be suspended from committing until
unreserved write buffer entries are available.
6. SIMULATION RESULTS
In this section the results of implementing the proposed algorithm in the simulation environment
are examined. 4-thread and 8-thread workloads will be used with both 16-entry and 32-entry
write buffers. All other simulation environment parameters will be held as described in Section 3.
To gauge the performance of the algorithm, workload throughput will be measured in IPC. The
IPC will be compared to that of the baseline as measured in the simulation environment with no
modifications to the commit algorithm. In these results, there will be two types of IPC measured:
arithmetic sum and harmonic mean. The arithmetic sum will gauge the overall throughput and the
harmonic mean will gauge the fairness of thread execution. We define the arithmetic sum as
(1)
and define the harmonic mean as
(2)
where N is the number of concurrent threads and I PCi is the throughput of thread i. To evaluate
the range of the algorithm’s effect, the number of unreserved write buffer entries will be swept
through avast range fine enough to find the value for optimal system performance improvement.
At each value of unreserved entries, the change in IPC metrics will be computed as compared to
the baseline. Each simulation will run up to 1 million instructions, meaning when the fastest
thread completes 1 million instructions the simulation will end. Subsections 6.1 through 6.4 show
the results of evaluating the algorithm with 16- and 32-entry write buffers and with 4- and 8-
threaded workloads.
6.1. 16-Entry, 4-ThreadWorkloads
We begin the performance analysis with a write buffer size of 16 and using 10 4-thread
workloads. Figure 8 shows that the average improvement of the 10 workloads peaks at an
unreserved entry value of 15 with about a 21% gain in arithmetic IPC and a 11% gain in
harmonic mean.
Figure 9 shows the arithmetic IPC change by workload.We see that the 21% increase in average
arithmetic IPC was contributed to primarily by four workloads: 5, 7, 8, and 10. Referring back to
11. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
11
Figure 5, we see that these four workloads also had the highest ratio of blocked DL1 hits, all with
rates of over 50% of clock cycles. The rest of the workloads, despite some having significant
blocked Dl1 hit percentages, showed little to no response to the algorithm.
Figure 10 shows the harmonic IPC change per workload. We see that the 10% gain in average
harmonic IPC was also contributed to primarily by four workloads: 5, 7, 8, and 10. These are the
same workloads that heavily contributed to the average arithmetic IPC improvement. Similarly,
the other 6 workloads showed little to no response in harmonic IPC change at the optimal
unreserved entry count.
It is interesting to note that with as many as 12 reserved entries we see IPC improvement, but
performance peaks at just 1 reserved entry. This is likely due to DL1 cache hits having a 1 clock
cycle
Figure 8: Average performance change vs number of unreserved entries for a
16-entry write buffer and 4-threaded workloads
Figure 9: Per-mix arithmetic IPC change vs number of unreserved entries for a
16-entry write buffer and 4-threaded workloads
12. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
12
latency in our environment and a much higher prevalence of DL1 cache hits than DL2 cache hits.
With such a short latency, cache hits can make efficient use of a small number of reserved entries.
6.2. 16-entry, 8-ThreadWorkloads
The next part of the simulation results looks at the same parameter setup (including a 16-entry
write buffer) but with 8-thread workloads instead of 4-thread. Figure 11 shows the results of
applying the algorithm in the simulation environment with 8-thread workloads. A maximum
improvement in average arithmetic IPC of about 37% was achieved by having 14 of the 16 entries
serve as unreserved entries and 2 reserved. An optimal harmonic IPC change came at a slightly
different value, achieving
Figure 10: Per-mix harmonic IPC change vs number of unreserved entries for a
16-entry write buffer and 4-threaded workloads
about a 25% gain at 15 unreserved entries and just 1 reserved.
Figure 11: Average performance change vs number of unreserved entries for a
16-entry write buffer and 8-threaded workloads
13. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
13
Figure 12 shows the arithmetic IPC changes by workload after applying the algorithm. As in
Section 6.1, we see that some threads had significant responses while others showed little to no
response. In the 4-threaded case, 4 workloads were the main contributors to arithmetic IPC gain.
In this case, 6 of the 10 workloads showed significant improvement. Workloads 4, 5, 7, 8, 9, and
10 all had arithmetic IPC gains of between 15% and 95% at their optimal values. With more
threads per workload and a similarly-sized write buffer, it was expected that more workloads
would respond to the algorithm in this more competitive environment.
Figure 12: Per-mix arithmetic IPC change vs number of unreserved entries for a
16-entry write buffer and 8-threaded workloads
Figure 13 shows the harmonic IPC change per workload after applying the algorithm. We see that
the 6 primary contributors to the arithmetic IPC gain were the same 6 contributors of the
harmonic IPC gain, workloads 4, 5, 7, 8, 9, and 10, all with increases between 10% and 120% at
their optimal values. Two workloads, 8 and 9, dominated the results with gains of about 60% and
120%, respectively.
Figure 13: Per-mix harmonic IPC change vs number of unreserved entries for a
16-entry write buffer and 8-threaded workloads
14. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
14
6.3. 32-entry, 4-ThreadedWorkloads
The next two sections show the results of the algorithm applied with the same workloads but with
a 32-entry write buffer, twice the size of the previous setup. As in the preceding section, 4-
threaded and 8-threaded workloads are evaluated. Figure 14 shows the results of the overall
average of IPC change with 4-threaded workloads. Expectedly, the gains are considerably more
moderate with a write buffer which is double in size. Still, we see an increase in arithmetic IPC of
about 8% and a gain in harmonic IPC by about 6% when just one write buffer entry is reserved
for cache hits. The change in performance becomes positive at 20 reserved entries and peaks at
31. Again, the small number of reserved entries needed to maximize performance gains is likely
due to the relativity of DL1 hits compared to DL2 hits and the speed at which DL1 hits are
committed to cache (1 clock cycle).
Figure 15 shows the arithmetic IPC change by workload for each stage of the parameter sweep.
Similarly to the 16-entry case, workloads 5 and 7, the workloads with the highest rate of blocked
cache hits, dominate the performance gains. With the 16-entry case, the results were primarily
split between 4 workloads. With a larger write buffer and more moderate overall gains, the
number of workloads which saw significant benefits was halved. Most workloads saw little, none,
or negative performance change throughout the parameter sweep.
Figure 14: Average performance change vs number of unreserved entries for a
32-entry write buffer and 4-threaded workloads
Figure 16 shows the harmonic IPC change for each workload during the parameter sweep. In
this case, workloads 5, 7, 8, and 10 received the most benefit from applying the algorithm. These
4 workloads were also the biggest benefiters of the algorithm when using a 16-entry write buffer
(see Figure 10) and had the highest rate of blocked cache hits in the analysis (see Figure 5).
6.4. 32-entry, 8-ThreadedWorkloads
Finally, Figure 17 shows the average IPC change in the 8-threaded workloads with a 32-entry
write buffer with the algorithm applied. Similar to the 4-threaded, 32-entry results, there were
more modest gains in both arithmetic and harmonic IPC of about 8%. Positive change came with
as little as 16 reserved write buffer entries and peaked at 31 unreserved write buffer entries.
15. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
15
Figure 15: Per-mix arithmetic IPC change vs number of unreserved entries for a
32-entry write buffer and 4-threaded workloads
Figure 18 shows the arithmetic IPC change per 4-threaded workload when using the algorithm
with a 32-entry write buffer. Mixes 7, 8, 9, and 10 dominated the improvements with gains
ranging from 12% to 26% at the optimum overall unreserved write buffer entry count. These 4
workloads also saw the most improvement with a 16-entry write buffer. The other 6 workloads
saw almost no change, although 2 of these unresponsive mixes had individual gains of 10% and
25% with a 16-entry write buffer.
Figure 16: Per-mix harmonic IPC change vs number of unreserved entries for a
32-entry write buffer and 4-threaded workloads
Figure 19 shows the harmonic IPC change of each 8-threaded workload with a 32-entry write
buffer. Mixes 7, 8, and 9 showed the greatest increase, all with improvements between 20% and
30%. These workloads were 3 of the 4 highest gainers of arithmetic IPC as well. The fourth
16. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
16
workload that showed significant arithmetic IPC improvement showed a modest improvement of
about 8%, while the other 6 workloads showed virtually no change.
Figure 17: Average performance change vs number of unreserved entries for a
32-entry write buffer and 4-threaded workloads
Figure 18: Per-mix arithmetic IPC change vs number of unreserved entries for a
32-entry write buffer and 8-threaded workloads
6.5. Results Summary
Tables 4 and 5 summarize the maximum performance gains and the corresponding number of
reserved writes buffer entries for the algorithm for every combination of 4- and 8-threaded
workloads and 16- and 32-entry write buffers in the simulation environment.
7. CONCLUSION
This paper showed that store instructions with low cache latency are routinely blocked from being
committed due to a full write buffer in an SMT system. It was shown that the write buffer was
17. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
17
typically full due to an excessive number of long-latency store instructions being committed
unchecked.
Figure 19: Per-mix harmonic IPC change vs number of unreserved entries for a
32-entry write buffer and 8-threaded workloads
Table 4: Summary of maximum arithmetic and harmonic IPC change for 4- and
8-thread workloads with a 16-entry write buffer
Table 5: Summary of maximum arithmetic and harmonic IPC change for 4- and
8-thread workloads with a 32-entry write buffer
This paper proposed an algorithm to reduce the number of long-latency store instructions in the
write buffer by skipping threads with long-latency store instructions when the write buffer was
nearly full. It was shown that this technique increases system performance by keeping some write
buffer entries reserved for threads which have low-latency store instructions ready to be
committed. The proposed algorithm improved system performance on average by 5.5% to 35.9%,
depending on workload size and system configuration, in a simulation environment.
18. International Journal of Distributed and Parallel Systems (IJDPS) Vol.7, No.1, January 2016
18
REFERENCES
[1] S.J.Eggers D. M. Tullsen and H. M. Levy. Simultaneous multithreading: Maximizing on-chip
parallelism. In ACM SIGARCH Computer Architecture News, volume 23, pages 392–403. ACM,
1995.
[2] P.B.Gibbons and S. S. Muchnick. Efficient instruction scheduling for a pipelined architecture. In
ACM SIGPLAN Notices, volume 21, pages 11–16. ACM, 1986.
[3] H.M.Leby J. L. Lo R. L. Stamm S. J. Eggers, J. S. Emer and D. M. Tullsen. Simultaneous
multithreading: A platform for next-generation processors. Micro, IEEE, 17(5):12–19, 1997.
[4] H.M.Levy R. L. Stamm D. M. Tullsen J. L. Lo, J. S. Emer and S. J. Eggers. Converting thread-level
parallelism to instruction-level parallelism via simultaneous multithreading. ACM Transactions on
Computer Systems (TOCS), 15(3):322–354, 1997.
[5] Ulrich Sigmund and Theo Ungerer. Identifying bottlenecks in a multithreaded superscalar
microprocessor. In Euro-Par’96 Parallel Processing, pages 797–800. Springer, 1996.
[6] Steven E Raasch and Steven K Reinhardt. The impact of resource partitioning on smt processors. In
Parallel Architectures and Compilation Techniques, 2003. PACT 2003. Proceedings. 12th
International Conference on, pages 15–25. IEEE, 2003.
[7] N.P.Jouppi. Cache write policies and performance, volume 21. ACM, 1993.
[8] D.M.Tullsen and J.A.Brown. Handling long-latency loads in a simultaneous multithreading processor.
In Proceedings of the 34th annual ACM/IEEE international symposium on Microarchitecture, pages
318–327. IEEE Computer Society, 2001.
[9] Kun Luo, Jayanth Gummaraju, and Manoj Franklin. Balancing thoughput and fairness in smt
processors. In ISPASS, volume 1, pages 164–171, 2001.
[10] Kun Luo, Manoj Franklin, Shubhendu S Mukherjee, and Andre Sezne. Boosting smt performance by
speculation control. In Parallel and Distributed Processing Symposium., Proceedings 15th
International, pages 9–pp. IEEE, 2001.
[11] Francisco J Cazorla, Alex Ramirez, Mateo Valero, and Enrique Fernandez. Dynamically controlled
resource allocation in smt processors. In Microarchitecture, 2004. MICRO-37 2004. 37th
International
Symposium on, pages 171–182. IEEE, 2004.
[12] Allan Snavely, Dean M Tullsen, and Geoff Voelker. Symbiotic jobscheduling with priorities for a
simultaneous multithreading processor. In ACM SIGMETRICS Performance Evaluation Review,
volume 30, pages 66–76. ACM, 2002.
[13] Tipp Moseley, Joshua L Kihm, Daniel Connors, Dirk Grunwald, et al. Methods for modeling resource
contention on simultaneous multithreading processors. In Computer Design: VLSI in Computers and
Processors, 2005. ICCD 2005. Proceedings. 2005 IEEE International Conference on, pages 373–380.
IEEE, 2005.
[14] Sébastien Hily and André Seznec. Contention on 2nd level cache may limit the effectiveness of
simultaneous multithreading. 1997.
AUTHORS
Shane Carroll is a Ph.D. student of Electrical Engineering at The University of Texas at San Antonio
(UTSA) and works as a software engineer. He received his M.S. degree in Computer Engineering from
UTSA and his B.S. degree in Computer Engineering Technology and Mathematics from Central
Connecticut State University. His research interest is computer architecture.
Dr. Wei-Ming Lin is currently a professor of Electrical and Computer Engineering at the University of
Texas at San Antonio (UTSA). He received his Ph.D. degree in Electrical Engineering from the University
of Southern California, Los Angeles, in 1991. Dr. Lin’s research interests are in the areas of distributed and
parallel computing, computer architecture, computer networks, autonomous control and internet security.
He has published over 100 technical papers in various conference proceedings and journals. Dr. Lin’s past
and on-going research has been supported by NSF, DOD, ONR, AFOSR, etc.
