Lacp Agreement

The document describes the Link Aggregation Control Protocol (LACP) agreement process between two devices. LACP allows devices to negotiate the automatic bundling of multiple network links. The process involves 6 steps of exchanging LACP data units (LACPDUs) between the devices. Through the exchange, the devices synchronize state information and verify compatibility to successfully establish a LACP aggregation.

Embed presentation

Download as PDF, PPTX
DYNAMIC LINK AGGREGATION LINK AGGREGATION CONTROL PROTOCOL
plvision.eu LACP FEATURES AUTOMATIC FAILOVER FAILED PORT REPLACEMENT WITH HOT-STANDBY PORT LOAD BALANCING AUTOMATIC LEARNING OF LAG CAPABILITIES AUTOMATIC CONFIGURATION VERIFICATION
LACP AGREEMENT PROCESS
plvision.eu WHAT IS LACP AGREEMENT Link Aggregation Control Protocol (LACP) enables allows a network device to negotiate an automatic bundling of links by sending LACP packets to the peer (directly connected device that also implements LACP).
plvision.eu STEP 1: SENDING THE FIRST LACPDU Actor System: 00:01:02:03:04:05 Actor Key: 1000 ? Port added to LAG Device №1 Device №2 LACPDU
plvision.eu STEP 1: STRUCTURE OF THE FIRST LACPDU Actor information TLV Actor System Priority: 1 Actor System (MAC): 00:01:02:03:04:05 Actor Key: 1000 Actor Port Priority: 1 Actor Port: 1 Actor State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: OUT_OF_SYNC Collecting: Disabled Distributing: Disabled Defaulted: Yes Expired: No Partner information TLV Partner System Priority: 0 Partner System (MAC): 00:00:00:00:00:00 Partner Key: 0 Partner Port Priority: 0 Partner Port: 0 Partner State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: OUT_OF_SYNC Collecting: Disabled Distributing: Disabled Defaulted: Yes Expired: No LACPDU Actor: Device №1

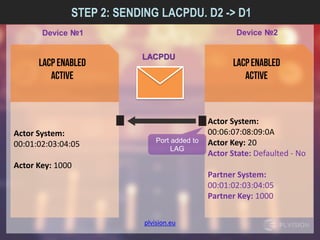

plvision.eu STEP 2: SENDING LACPDU. D2 -> D1 Actor System: 00:01:02:03:04:05 Actor Key: 1000 Actor System: 00:06:07:08:09:0A Actor Key: 20 Actor State: Defaulted - No Partner System: 00:01:02:03:04:05 Partner Key: 1000 Device №1 Device №2 LACPDU Port added to LAG
plvision.eu STEP 2: STRUCTURE OF SENT LACPDU Actor information TLV Actor System Priority: 50 Actor System (MAC): 00:06:07:08:09:0A Actor Key: 20 Actor Port Priority: 50 Actor Port: 1 Actor State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: OUT_OF_SYNC Collecting: Disabled Distributing: Disabled Defaulted: No Expired: No Partner information TLV Partner System Priority: 1 Partner System (MAC): 00:01:02:03:04:05 Partner Key: 1000 Partner Port Priority: 1 Partner Port: 1 Partner State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: OUT_OF_SYNC Collecting: Disabled Distributing: Disabled Defaulted: Yes Expired: No LACPDU Actor: Device №2

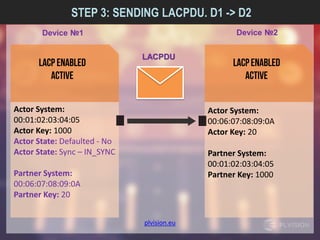

plvision.eu STEP 3: SENDING LACPDU. D1 -> D2 Actor System: 00:01:02:03:04:05 Actor Key: 1000 Actor State: Defaulted - No Actor State: Sync – IN_SYNC Partner System: 00:06:07:08:09:0A Partner Key: 20 Actor System: 00:06:07:08:09:0A Actor Key: 20 Partner System: 00:01:02:03:04:05 Partner Key: 1000 Device №1 Device №2 LACPDU

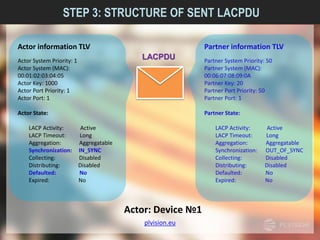

plvision.eu STEP 3: STRUCTURE OF SENT LACPDU Actor information TLV Actor System Priority: 1 Actor System (MAC): 00:01:02:03:04:05 Actor Key: 1000 Actor Port Priority: 1 Actor Port: 1 Actor State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: IN_SYNC Collecting: Disabled Distributing: Disabled Defaulted: No Expired: No Partner information TLV Partner System Priority: 50 Partner System (MAC): 00:06:07:08:09:0A Partner Key: 20 Partner Port Priority: 50 Partner Port: 1 Partner State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: OUT_OF_SYNC Collecting: Disabled Distributing: Disabled Defaulted: No Expired: No LACPDU Actor: Device №1

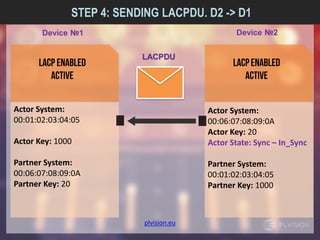

plvision.eu STEP 4: SENDING LACPDU. D2 -> D1 Actor System: 00:01:02:03:04:05 Actor Key: 1000 Partner System: 00:06:07:08:09:0A Partner Key: 20 Actor System: 00:06:07:08:09:0A Actor Key: 20 Actor State: Sync – In_Sync Partner System: 00:01:02:03:04:05 Partner Key: 1000 Device №1 Device №2 LACPDU
plvision.eu STEP 4: STRUCTURE OF SENT LACPDU Actor information TLV Actor System Priority: 50 Actor System (MAC): 00:06:07:08:09:0A Actor Key: 20 Actor Port Priority: 50 Actor Port: 1 Actor State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: IN_SYNC Collecting: Disabled Distributing: Disabled Defaulted: No Expired: No Partner information TLV Partner System Priority: 1 Partner System (MAC): 00:01:02:03:04:05 Partner Key: 1000 Partner Port Priority: 1 Partner Port: 1 Partner State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: IN_SYNC Collecting: Disabled Distributing: Disabled Defaulted: No Expired: No LACPDU Actor: Device №2

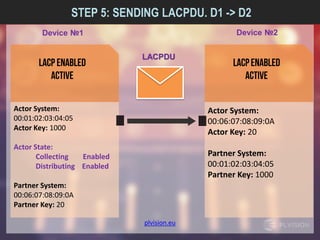

plvision.eu STEP 5: SENDING LACPDU. D1 -> D2 Actor System: 00:01:02:03:04:05 Actor Key: 1000 Actor State: Collecting Enabled Distributing Enabled Partner System: 00:06:07:08:09:0A Partner Key: 20 Actor System: 00:06:07:08:09:0A Actor Key: 20 Partner System: 00:01:02:03:04:05 Partner Key: 1000 Device №1 Device №2 LACPDU
plvision.eu STEP 5: STRUCTURE OF SENT LACPDU Actor information TLV Actor System Priority: 1 Actor System (MAC): 00:01:02:03:04:05 Actor Key: 1000 Actor Port Priority: 1 Actor Port: 1 Actor State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: IN_SYNC Collecting: Enabled Distributing: Enabled Defaulted: No Expired: No Partner information TLV Partner System Priority: 50 Partner System (MAC): 00:06:07:08:09:0A Partner Key: 20 Partner Port Priority: 50 Partner Port: 1 Partner State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: IN_SYNC Collecting: Disabled Distributing: Disabled Defaulted: No Expired: No LACPDU Actor: Device №1
plvision.eu STEP 6: SENDING LACPDU. D2 -> D1 Actor System: 00:01:02:03:04:05 Actor Key: 1000 Partner System: 00:06:07:08:09:0A Partner Key: 20 Actor System: 00:06:07:08:09:0A Actor Key: 20 Actor State: Collecting Enabled Distributing Enabled Partner System: 00:01:02:03:04:05 Partner Key: 1000 Device №1 Device №2 LACPDU

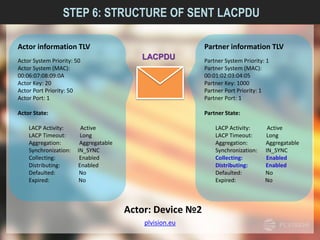

plvision.eu STEP 6: STRUCTURE OF SENT LACPDU Actor information TLV Actor System Priority: 50 Actor System (MAC): 00:06:07:08:09:0A Actor Key: 20 Actor Port Priority: 50 Actor Port: 1 Actor State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: IN_SYNC Collecting: Enabled Distributing: Enabled Defaulted: No Expired: No Partner information TLV Partner System Priority: 1 Partner System (MAC): 00:01:02:03:04:05 Partner Key: 1000 Partner Port Priority: 1 Partner Port: 1 Partner State: LACP Activity: Active LACP Timeout: Long Aggregation: Aggregatable Synchronization: IN_SYNC Collecting: Enabled Distributing: Enabled Defaulted: No Expired: No LACPDU Actor: Device №2
plvision.eu BE WARNED In addition to IEEE standard where LACP operations are described, vendors have their own proprietary aggregation schemes. However, the main principles remain the same.
FIND OUT MORE VISIT OUR BLOG FOR MORE TECH STUFF
Email: sales@plvision.eu Skype: sales.plvision http://plvision.eu/ THANK YOU FOR WATCHING!
