The document describes the steps to complete Lab 4 in an ELEC 101 course. It involves creating a title block, opening an existing circuit file called LAB4A, modifying the circuit by deleting and moving components and wires, correcting layout errors in another circuit called LAB4B by centering and repositioning components, and then saving, printing and closing the files.

1. ELEC 101
Lab 4

2. Lab 4
Create a Title Block

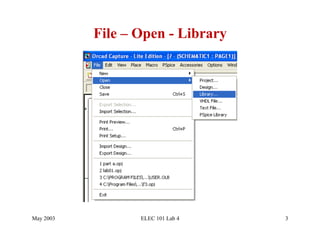

3. File – Open - Library
May 2003 ELEC 101 Lab 4 3

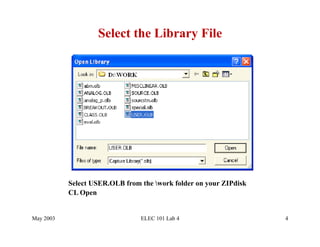

4. Select the Library File
Select USER.OLB from the work folder on your ZIPdisk
CL Open
May 2003 ELEC 101 Lab 4 4

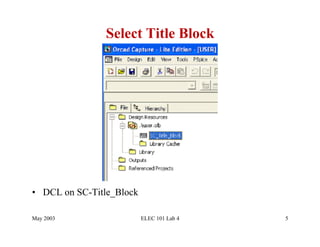

5. Select Title Block
• DCL on SC-Title_Block
May 2003 ELEC 101 Lab 4 5

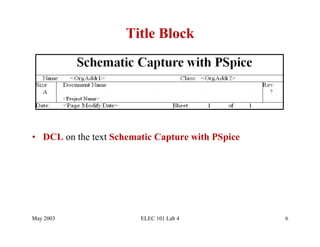

6. Title Block
• DCL on the text Schematic Capture with PSpice
May 2003 ELEC 101 Lab 4 6

7. Modify Title Block Text
• In Place Text box, change the text to Brookdale Community
College and CL on OK
May 2003 ELEC 101 Lab 4 7

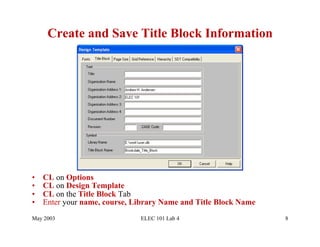

8. Create and Save Title Block Information
• CL on Options
• CL on Design Template
• CL on the Title Block Tab
• Enter your name, course, Library Name and Title Block Name
May 2003 ELEC 101 Lab 4 8

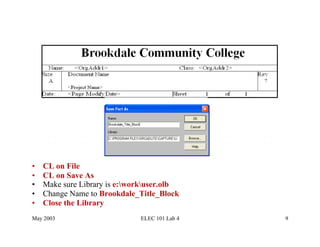

9. • CL on File
• CL on Save As
• Make sure Library is e:workuser.olb
• Change Name to Brookdale_Title_Block
• Close the Library
May 2003 ELEC 101 Lab 4 9

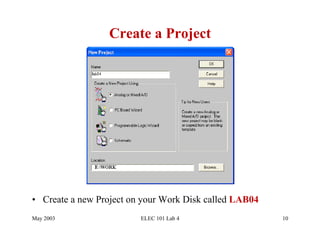

10. Create a Project
• Create a new Project on your Work Disk called LAB04
May 2003 ELEC 101 Lab 4 10

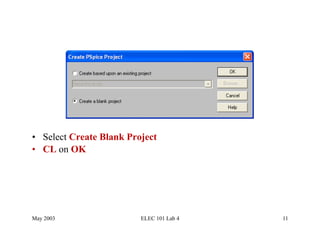

11. • Select Create Blank Project
• CL on OK
May 2003 ELEC 101 Lab 4 11

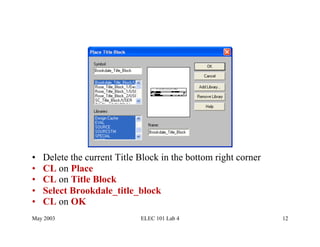

12. • Delete the current Title Block in the bottom right corner
• CL on Place
• CL on Title Block
• Select Brookdale_title_block
• CL on OK
May 2003 ELEC 101 Lab 4 12

13. • CL to Place the Title Block in the Lower right corner
• CR and End Mode to stop entering title blocks
May 2003 ELEC 101 Lab 4 13

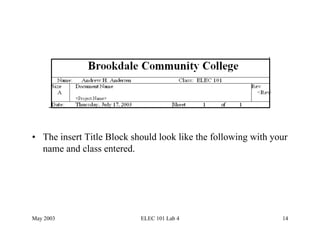

14. • The insert Title Block should look like the following with your
name and class entered.
May 2003 ELEC 101 Lab 4 14

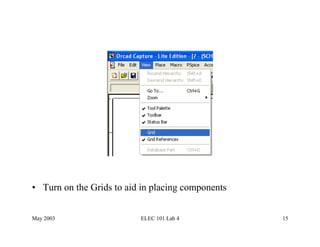

15. • Turn on the Grids to aid in placing components
May 2003 ELEC 101 Lab 4 15

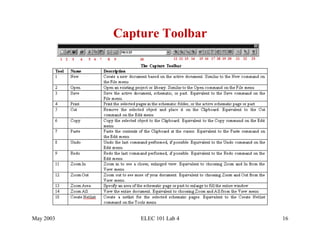

16. Capture Toolbar
May 2003 ELEC 101 Lab 4 16

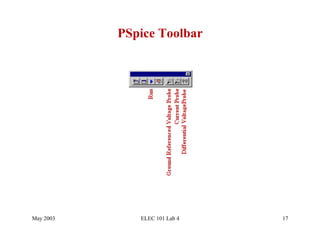

17. PSpice Toolbar
May 2003 ELEC 101 Lab 4 17

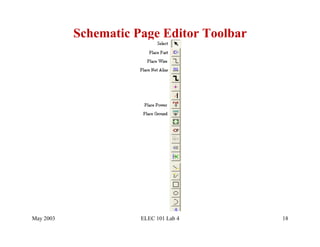

18. Schematic Page Editor Toolbar
May 2003 ELEC 101 Lab 4 18

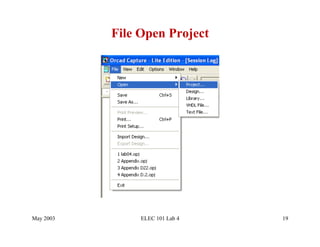

19. File Open Project
May 2003 ELEC 101 Lab 4 19

20. Select File to Open
• From your work disk, open a project called LAB4A
May 2003 ELEC 101 Lab 4 20

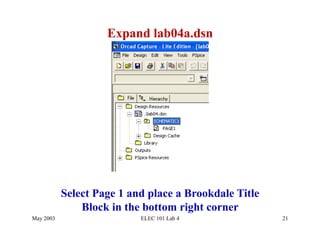

21. Expand lab04a.dsn
Select Page 1 and place a Brookdale Title
Block in the bottom right corner
May 2003 ELEC 101 Lab 4 21

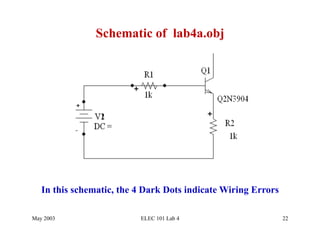

22. Schematic of lab4a.obj
In this schematic, the 4 Dark Dots indicate Wiring Errors
May 2003 ELEC 101 Lab 4 22

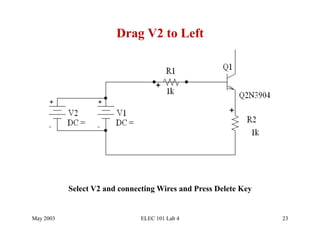

23. Drag V2 to Left
Select V2 and connecting Wires and Press Delete Key
May 2003 ELEC 101 Lab 4 23

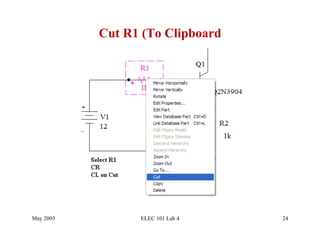

24. Cut R1 (To Clipboard
May 2003 ELEC 101 Lab 4 24

25. Delete Wire Shorting R1
May 2003 ELEC 101 Lab 4 25

26. Paste R1 Back in the Space
May 2003 ELEC 101 Lab 4 26

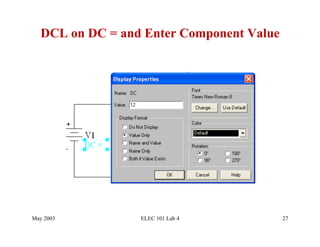

27. DCL on DC = and Enter Component Value
May 2003 ELEC 101 Lab 4 27

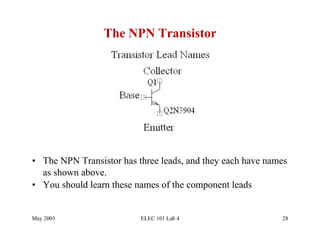

28. The NPN Transistor
• The NPN Transistor has three leads, and they each have names
as shown above.
• You should learn these names of the component leads
May 2003 ELEC 101 Lab 4 28

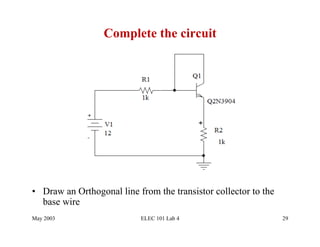

29. Complete the circuit
• Draw an Orthogonal line from the transistor collector to the
base wire
May 2003 ELEC 101 Lab 4 29

30. • Scroll to the Title Block
• DCL on <Project Name> and change it to LAB 04A
May 2003 ELEC 101 Lab 4 30

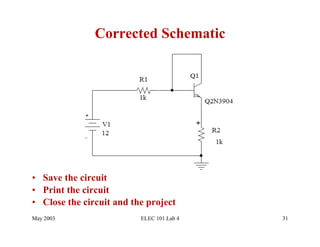

31. Corrected Schematic
• Save the circuit
• Print the circuit
• Close the circuit and the project
May 2003 ELEC 101 Lab 4 31

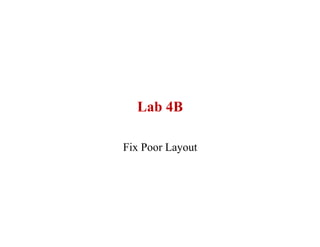

32. Lab 4B
Fix Poor Layout

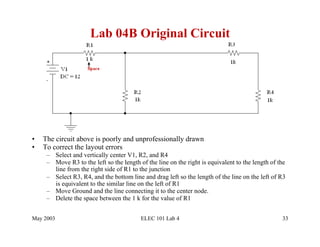

33. Lab 04B Original Circuit
• The circuit above is poorly and unprofessionally drawn
• To correct the layout errors
– Select and vertically center V1, R2, and R4
– Move R3 to the left so the length of the line on the right is equivalent to the length of the
line from the right side of R1 to the junction
– Select R3, R4, and the bottom line and drag left so the length of the line on the left of R3
is equivalent to the similar line on the left of R1
– Move Ground and the line connecting it to the center node.
– Delete the space between the 1 k for the value of R1
May 2003 ELEC 101 Lab 4 33

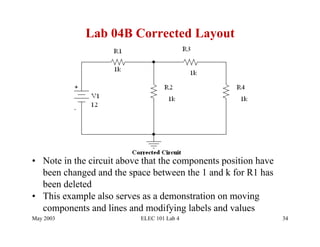

34. Lab 04B Corrected Layout
• Note in the circuit above that the components position have
been changed and the space between the 1 and k for R1 has
been deleted
• This example also serves as a demonstration on moving
components and lines and modifying labels and values
May 2003 ELEC 101 Lab 4 34

35. Lab 04B

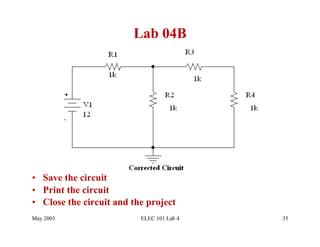

• Save the circuit
• Print the circuit
• Close the circuit and the project
May 2003 ELEC 101 Lab 4 35
