1. Lecture 07
Design Principles

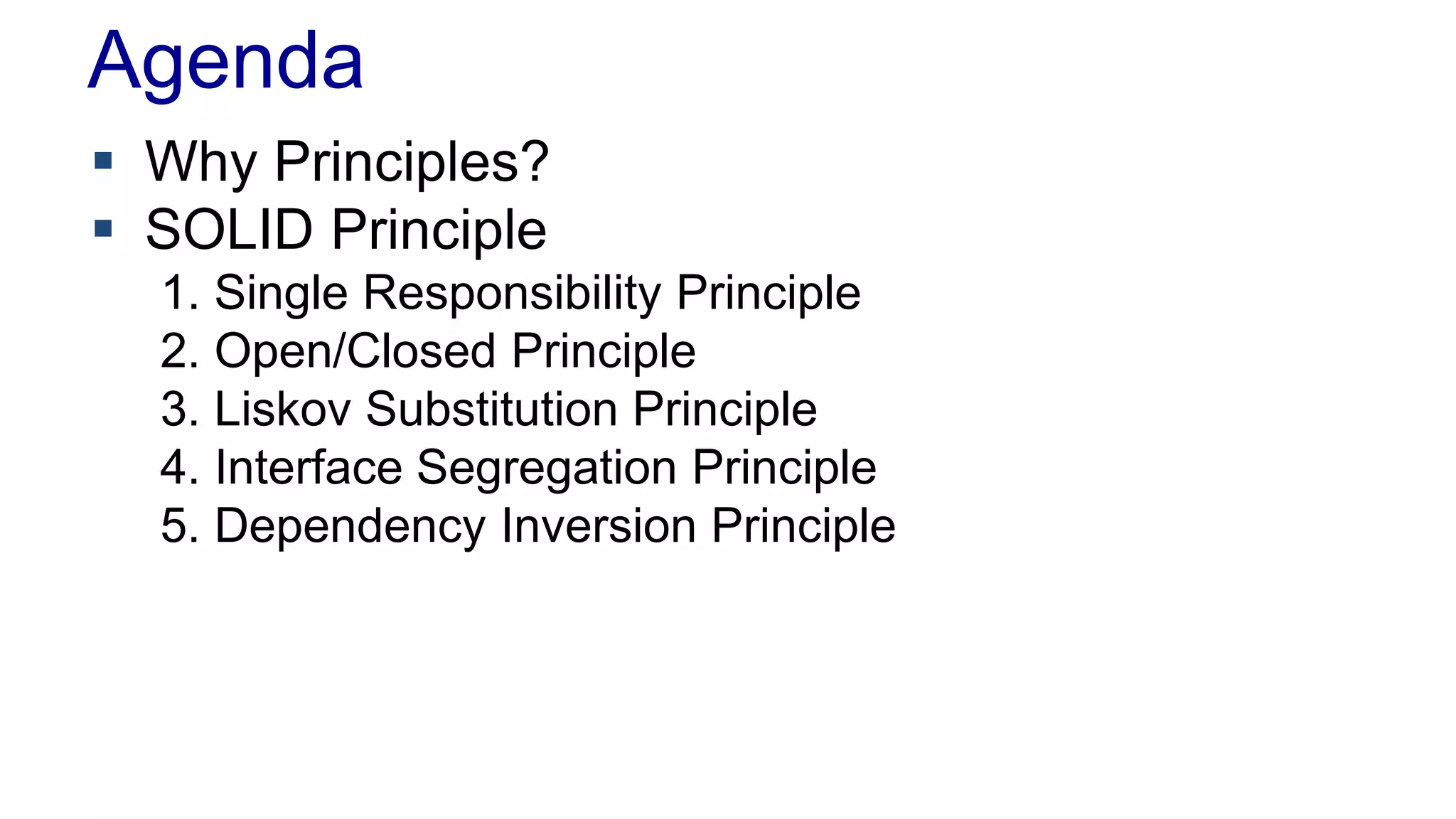

2. Agenda
 Why Principles?
 SOLID Principle
1. Single Responsibility Principle
2. Open/Closed Principle
3. Liskov Substitution Principle
4. Interface Segregation Principle
5. Dependency Inversion Principle

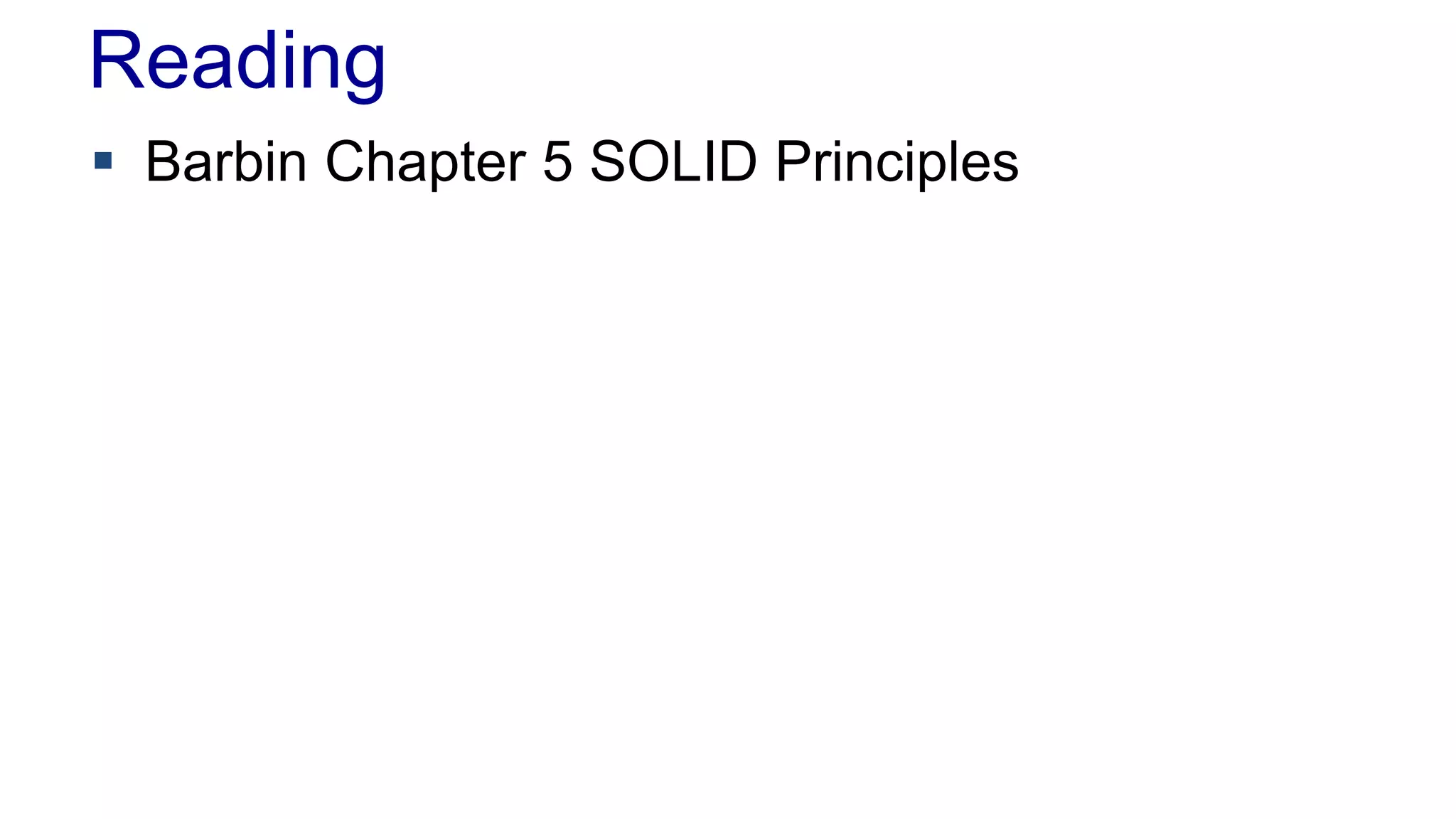

3. Reading
 Barbin Chapter 5 SOLID Principles

4. Big Ball of Mud
 Is this your code?

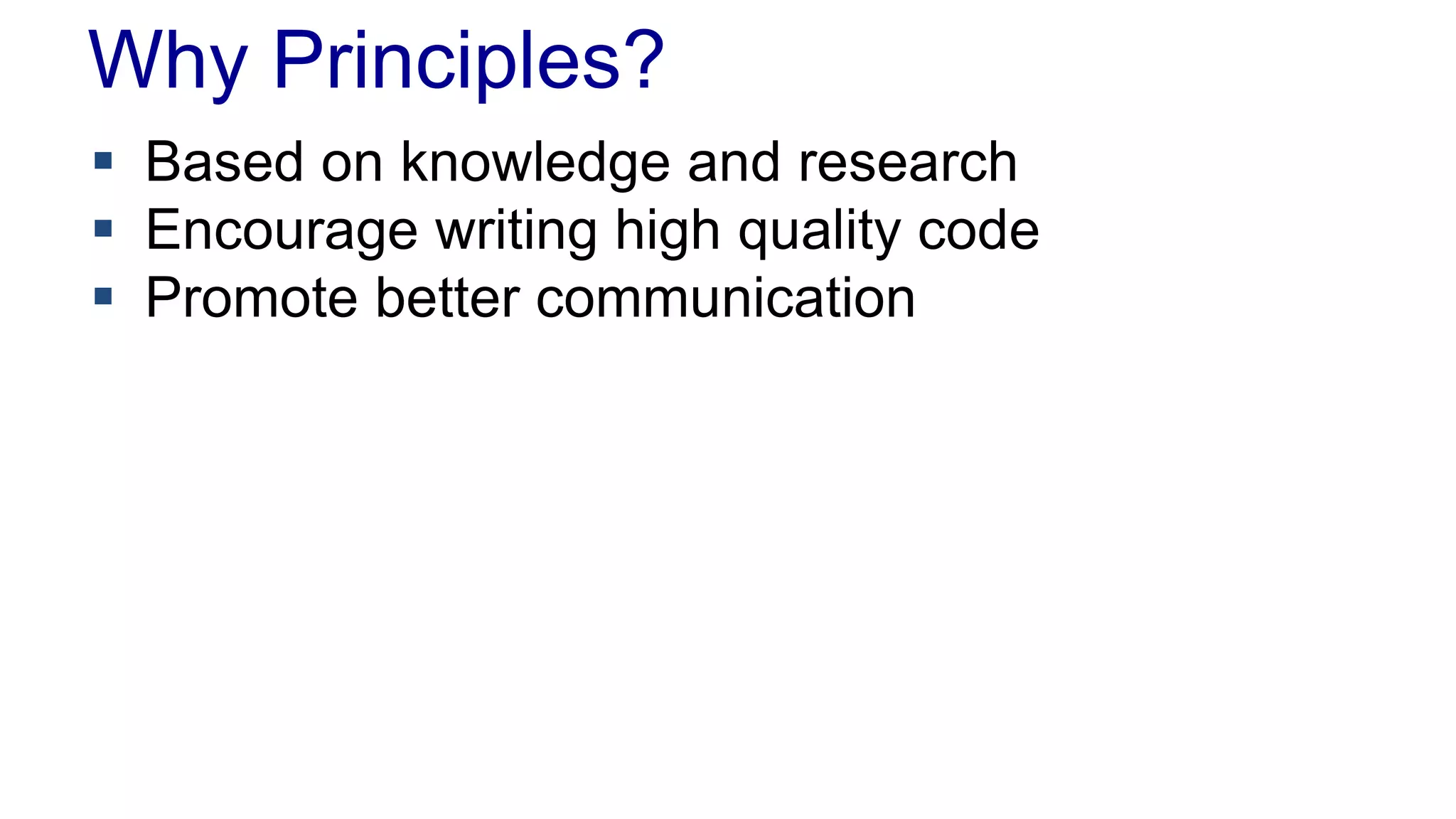

5. Why Principles?
 Based on knowledge and research
 Encourage writing high quality code
 Promote better communication

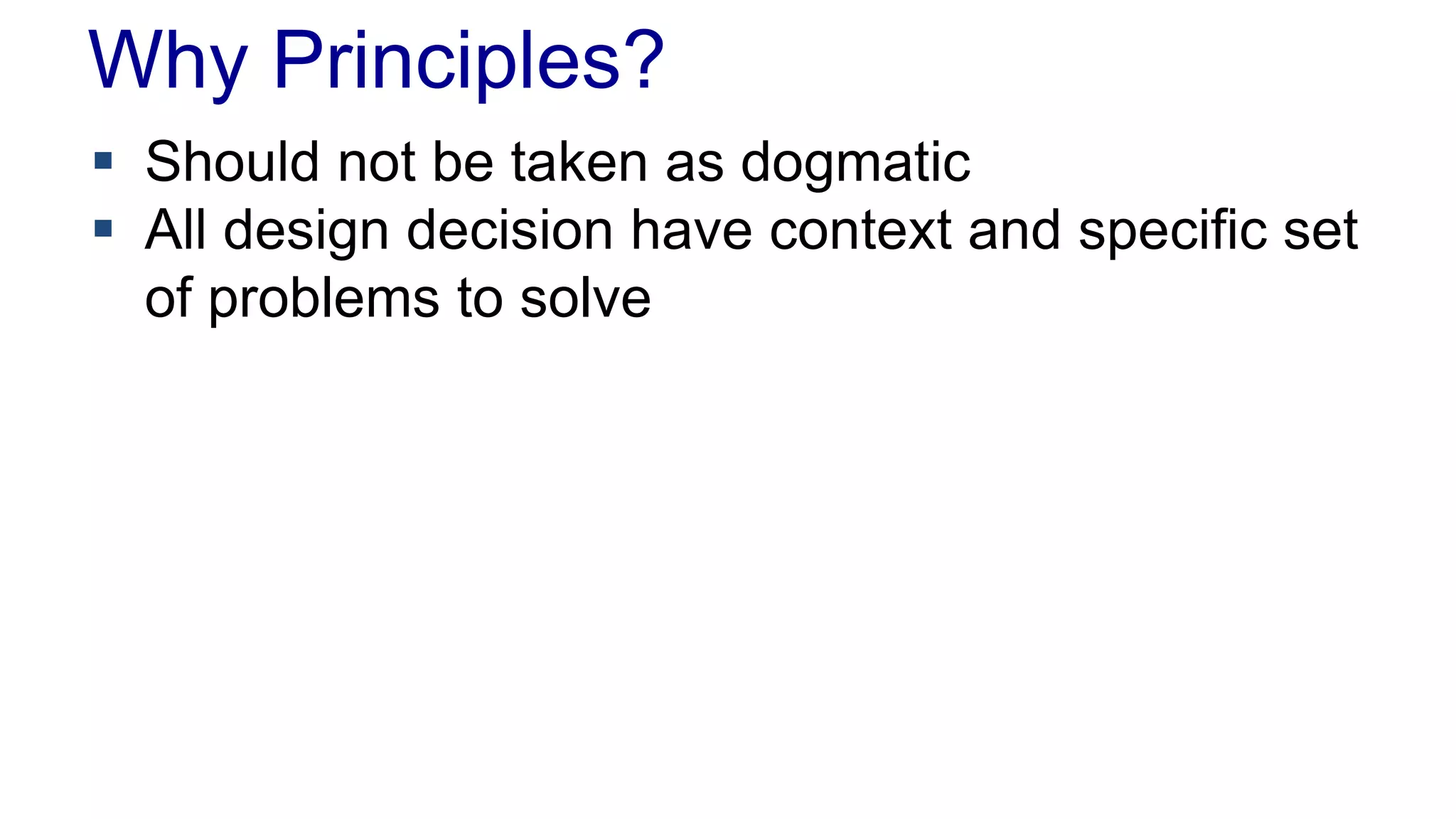

6. Why Principles?
 Should not be taken as dogmatic
 All design decision have context and specific set
of problems to solve

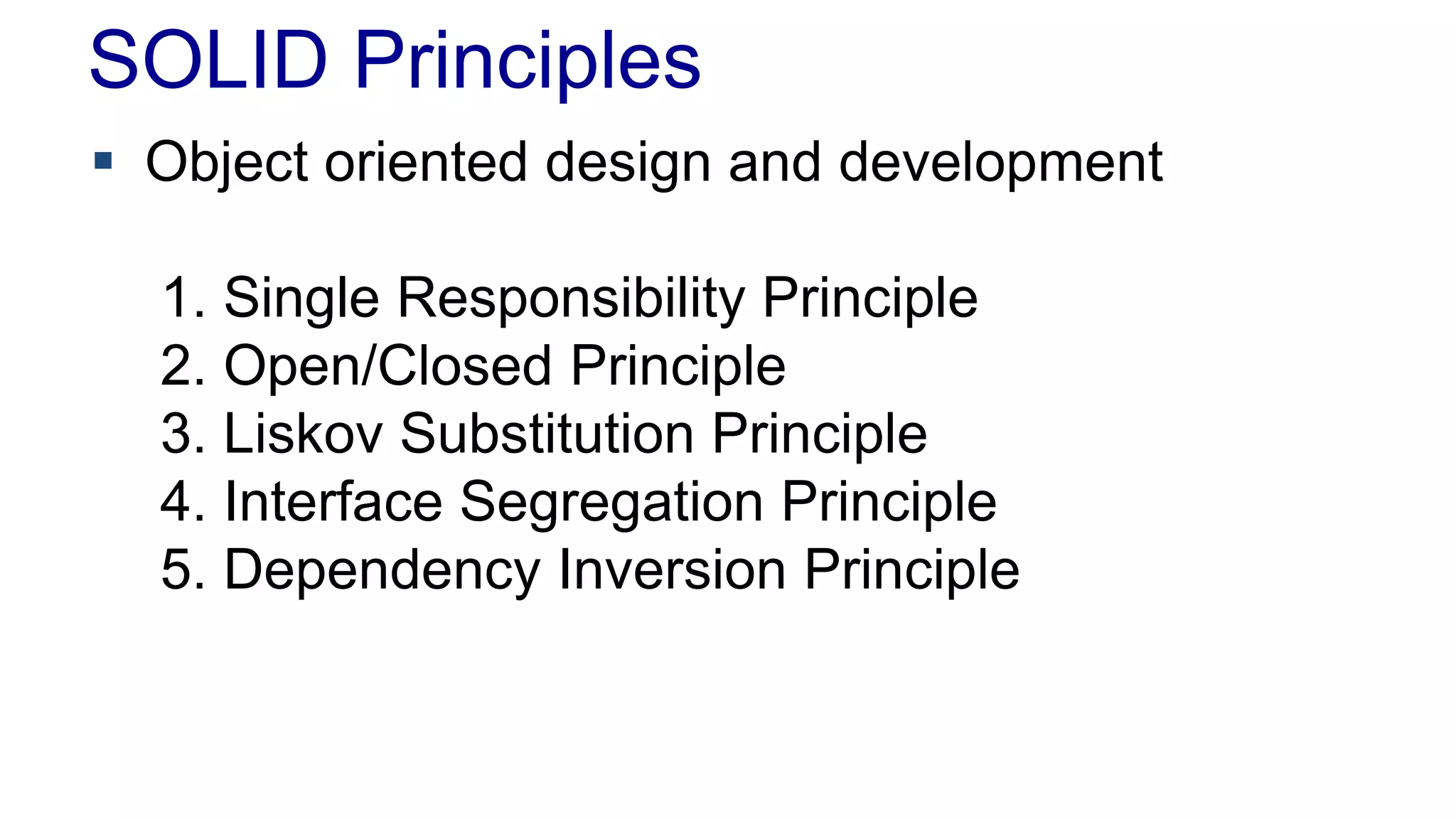

7. SOLID Principles
 Object oriented design and development
1. Single Responsibility Principle
2. Open/Closed Principle
3. Liskov Substitution Principle
4. Interface Segregation Principle
5. Dependency Inversion Principle

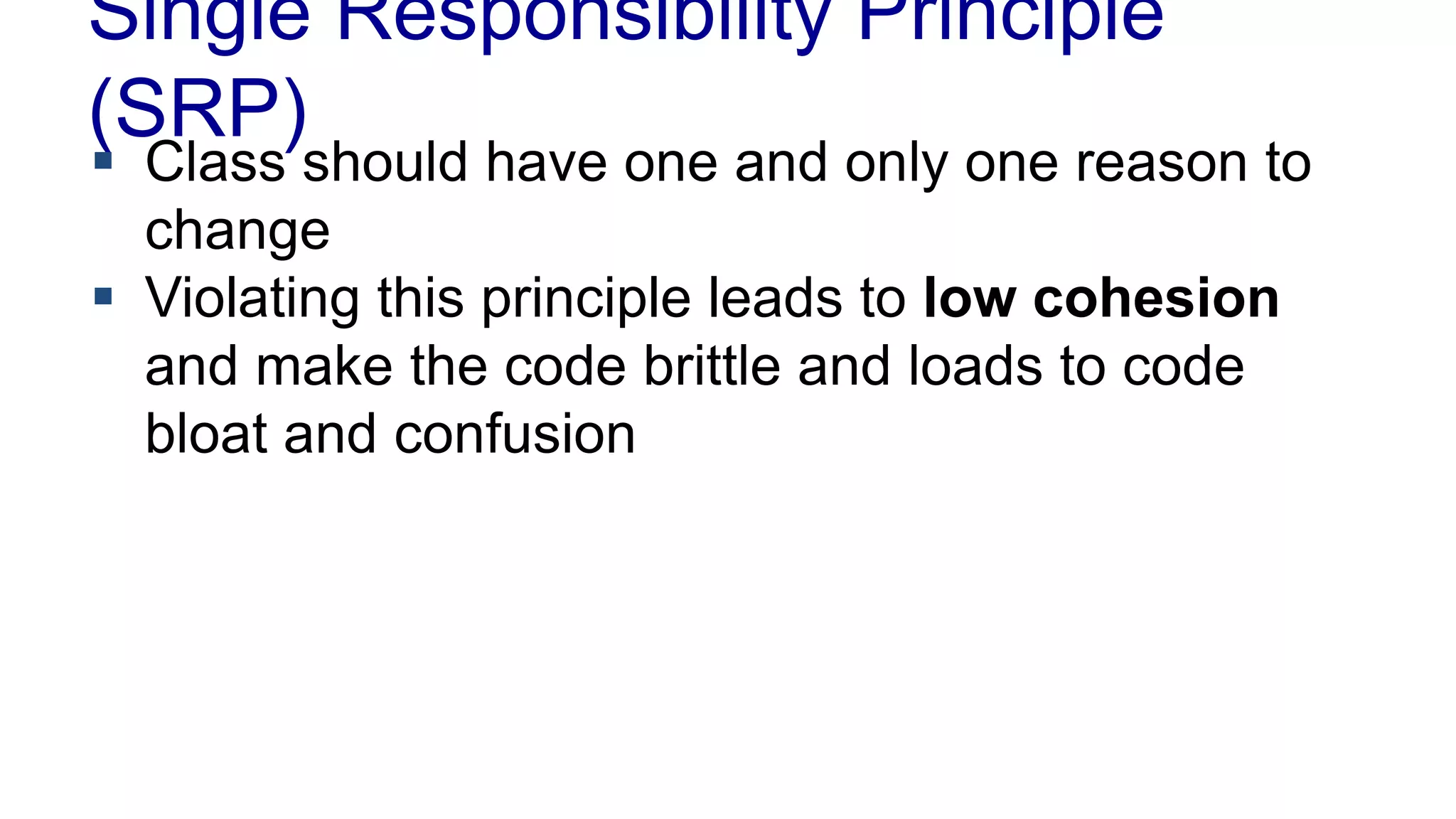

8. Single Responsibility Principle
(SRP)
 Class should have one and only one reason to
change
 Violating this principle leads to low cohesion
and make the code brittle and loads to code
bloat and confusion

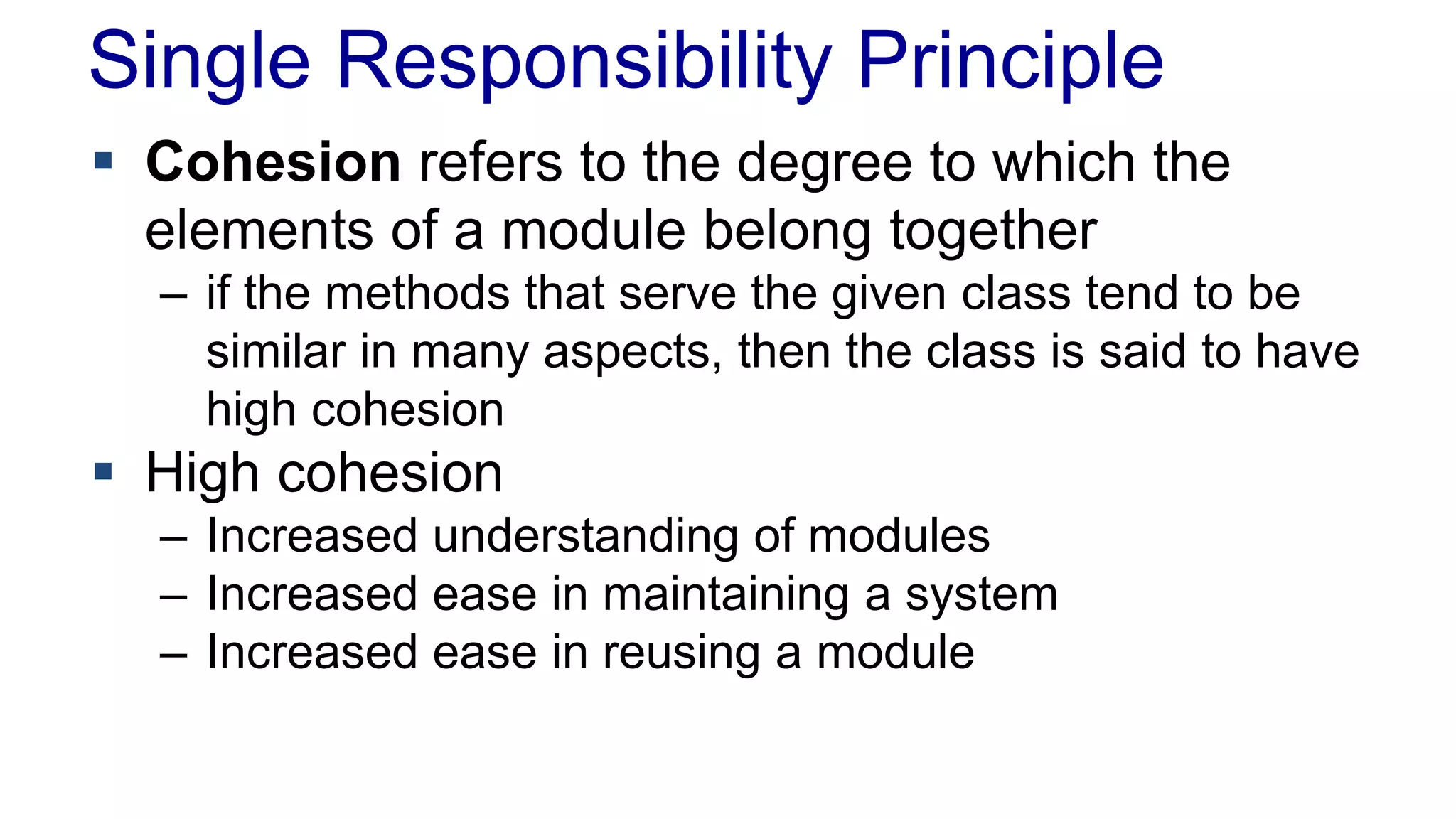

9. Single Responsibility Principle
 Cohesion refers to the degree to which the
elements of a module belong together
– if the methods that serve the given class tend to be
similar in many aspects, then the class is said to have
high cohesion
 High cohesion
– Increased understanding of modules
– Increased ease in maintaining a system
– Increased ease in reusing a module

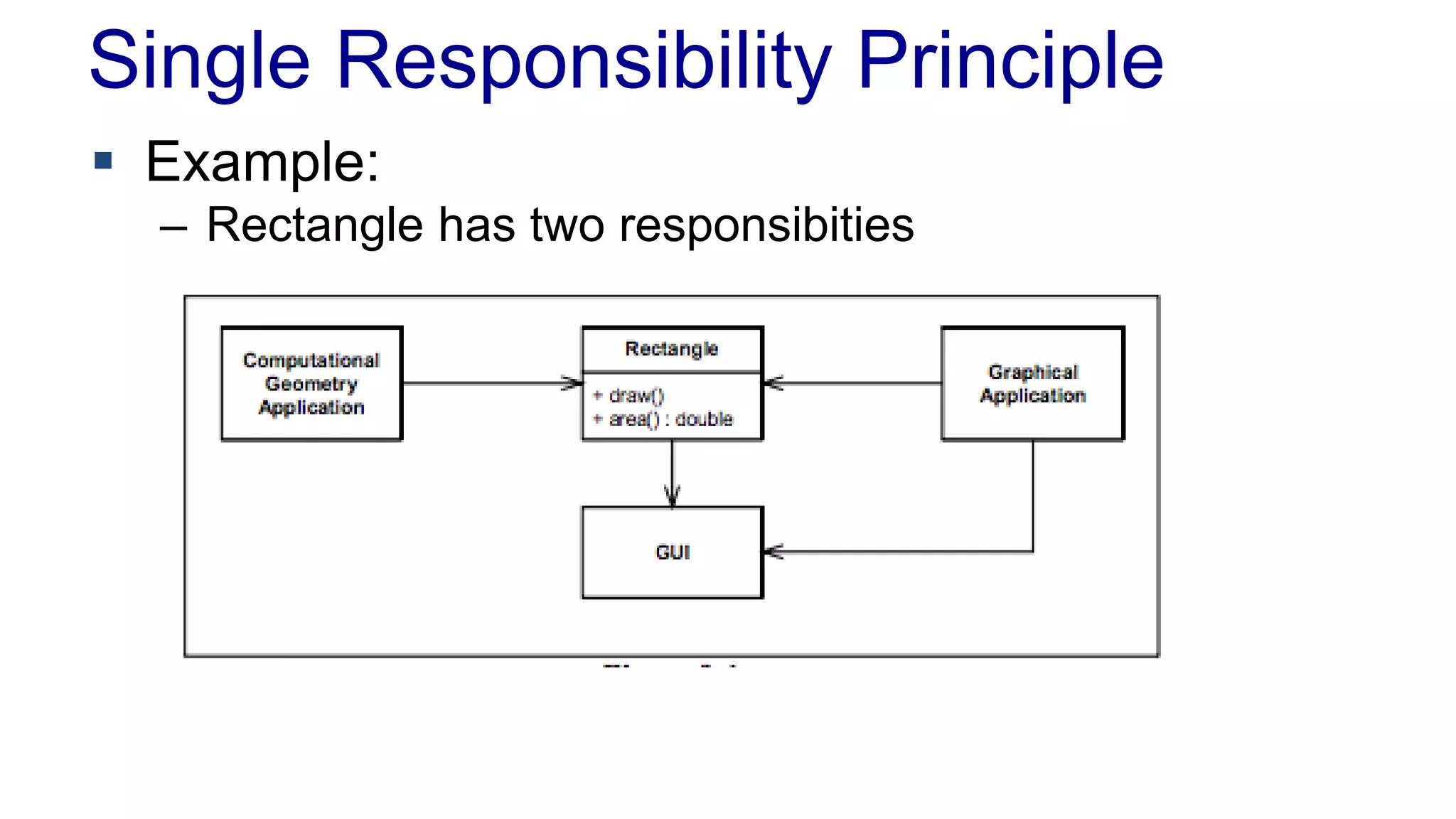

10. Single Responsibility Principle
 Example:
– Rectangle has two responsibities

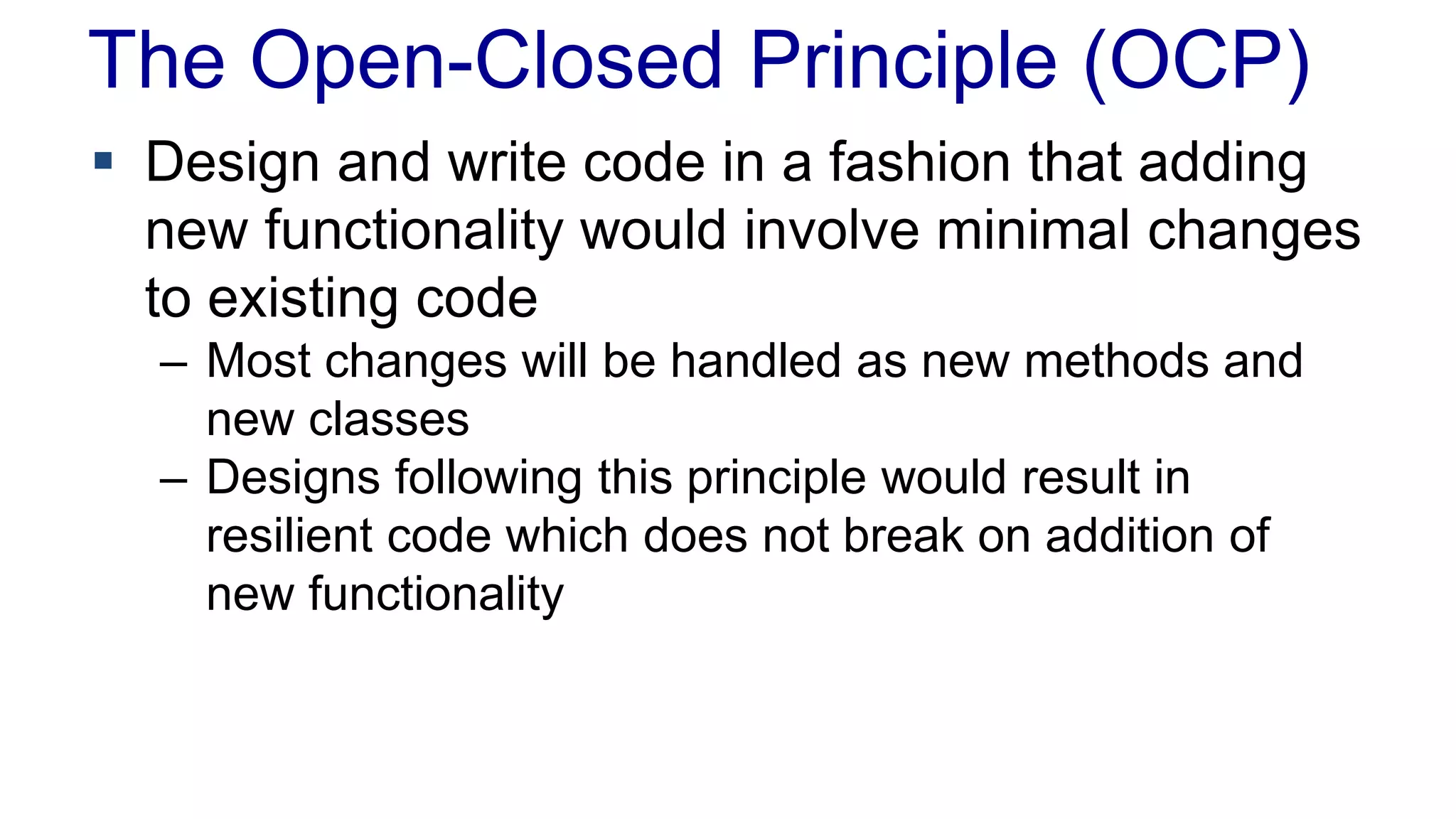

11. The Open-Closed Principle (OCP)
 Design and write code in a fashion that adding
new functionality would involve minimal changes
to existing code
– Most changes will be handled as new methods and
new classes
– Designs following this principle would result in
resilient code which does not break on addition of
new functionality

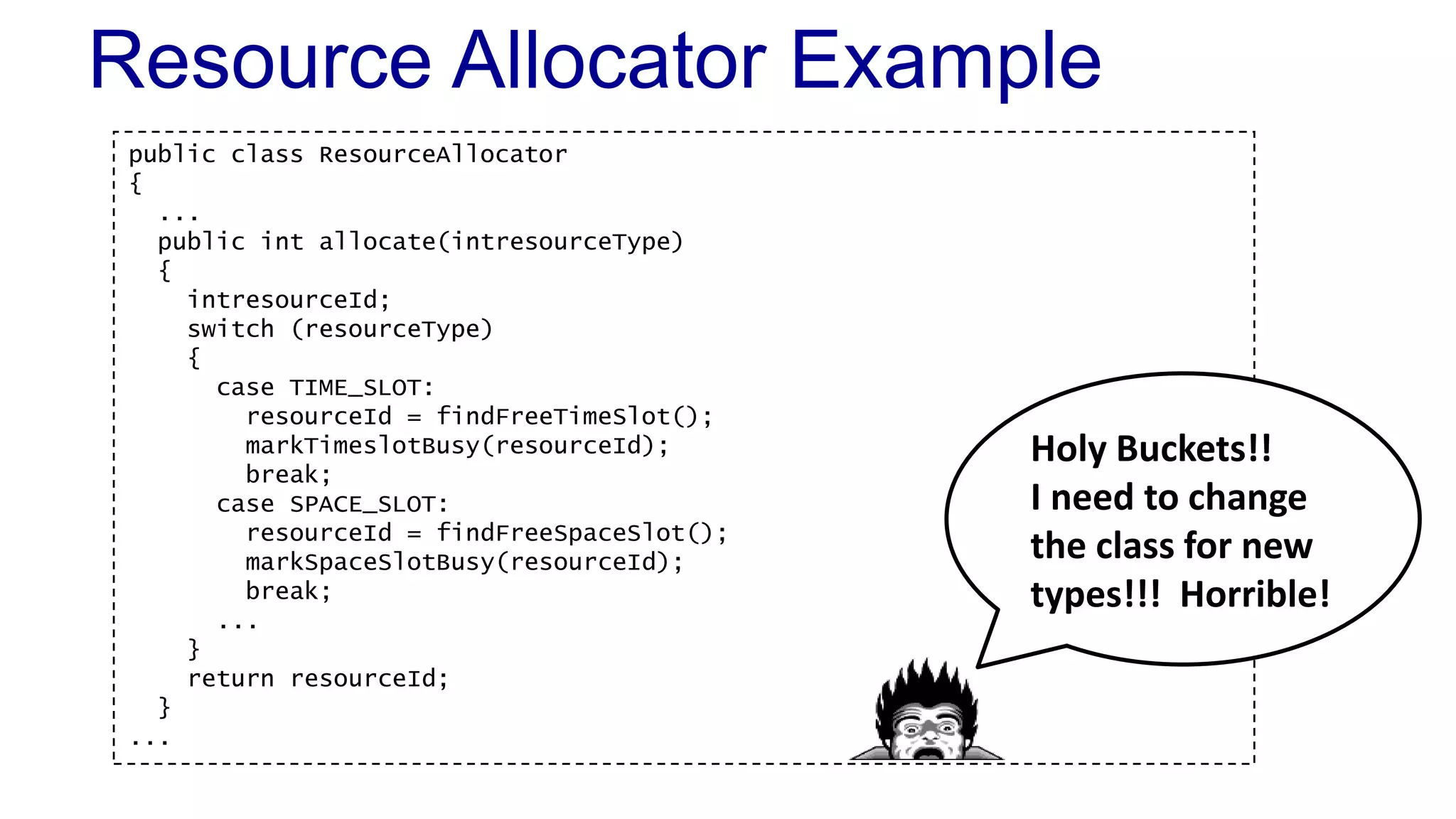

12. public class ResourceAllocator
{
...
public int allocate(intresourceType)
{
intresourceId;
switch (resourceType)
{
case TIME_SLOT:
resourceId = findFreeTimeSlot();
markTimeslotBusy(resourceId);
break;
case SPACE_SLOT:
resourceId = findFreeSpaceSlot();
markSpaceSlotBusy(resourceId);
break;
...
}
return resourceId;
}
...
Resource Allocator Example
Holy Buckets!!
I need to change
the class for new
types!!! Horrible!

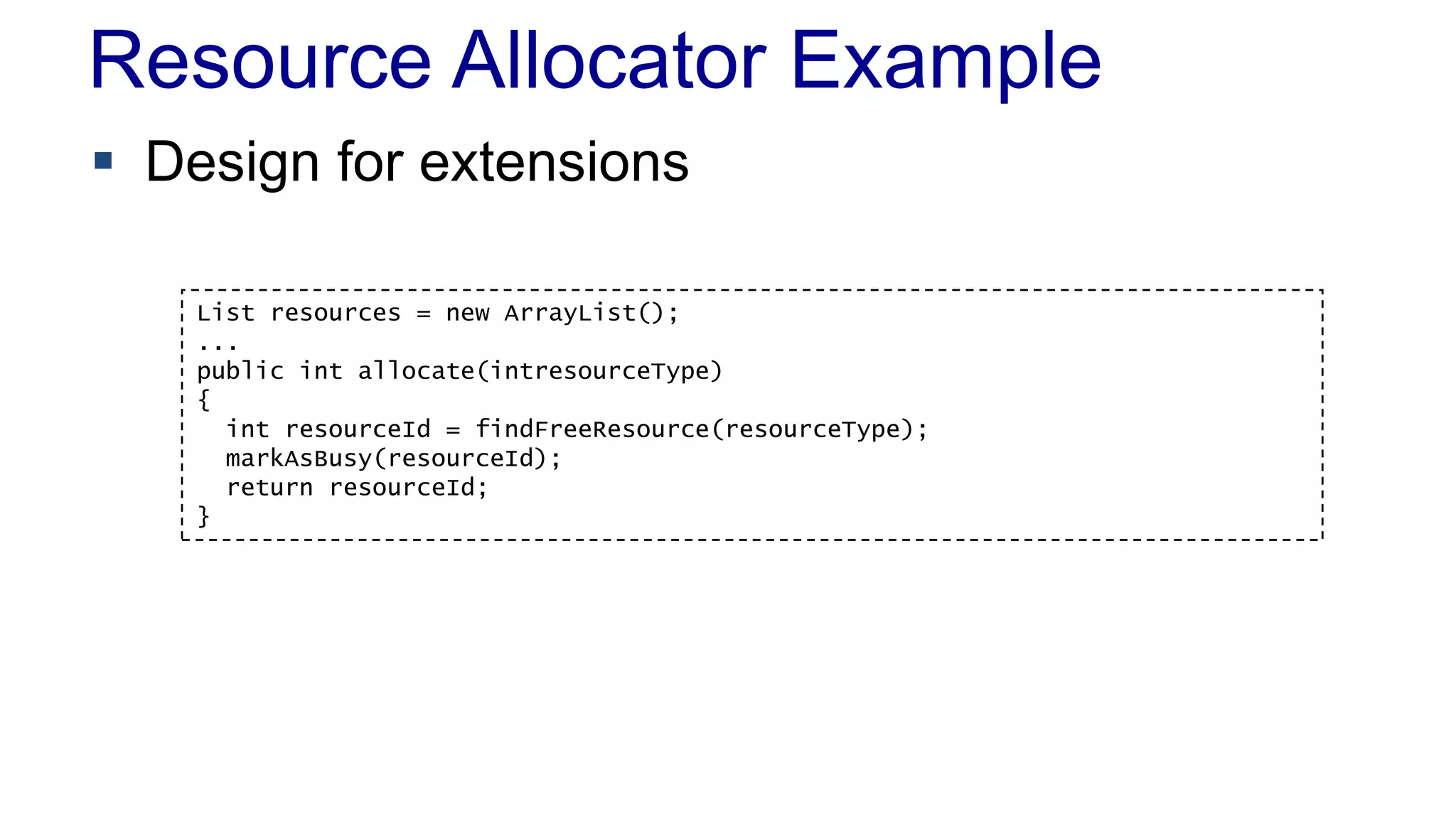

13. Resource Allocator Example
 Design for extensions
List resources = new ArrayList();
...
public int allocate(intresourceType)
{
int resourceId = findFreeResource(resourceType);
markAsBusy(resourceId);
return resourceId;
}

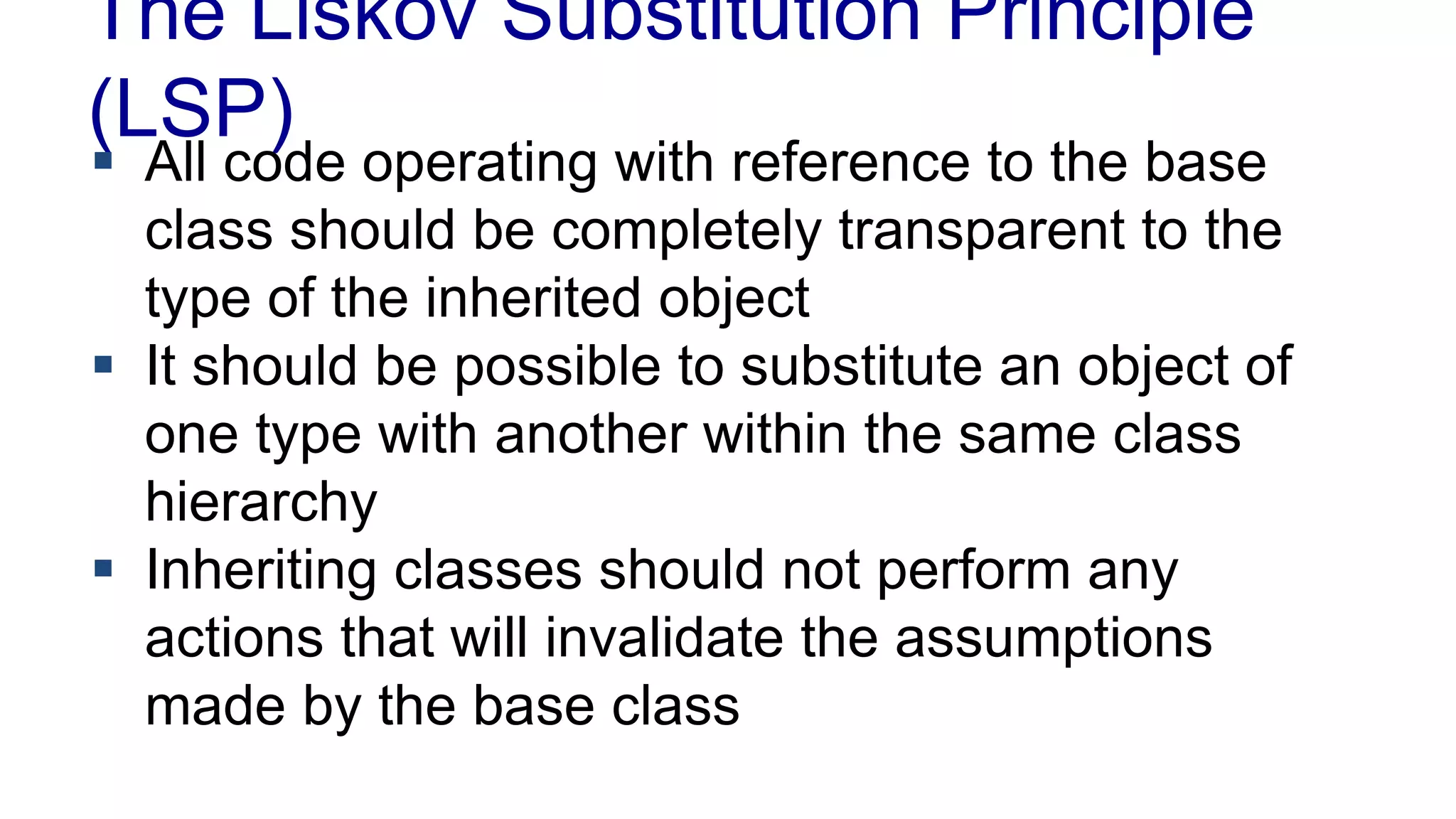

14. The Liskov Substitution Principle
(LSP)
 All code operating with reference to the base
class should be completely transparent to the
type of the inherited object
 It should be possible to substitute an object of
one type with another within the same class
hierarchy
 Inheriting classes should not perform any
actions that will invalidate the assumptions
made by the base class

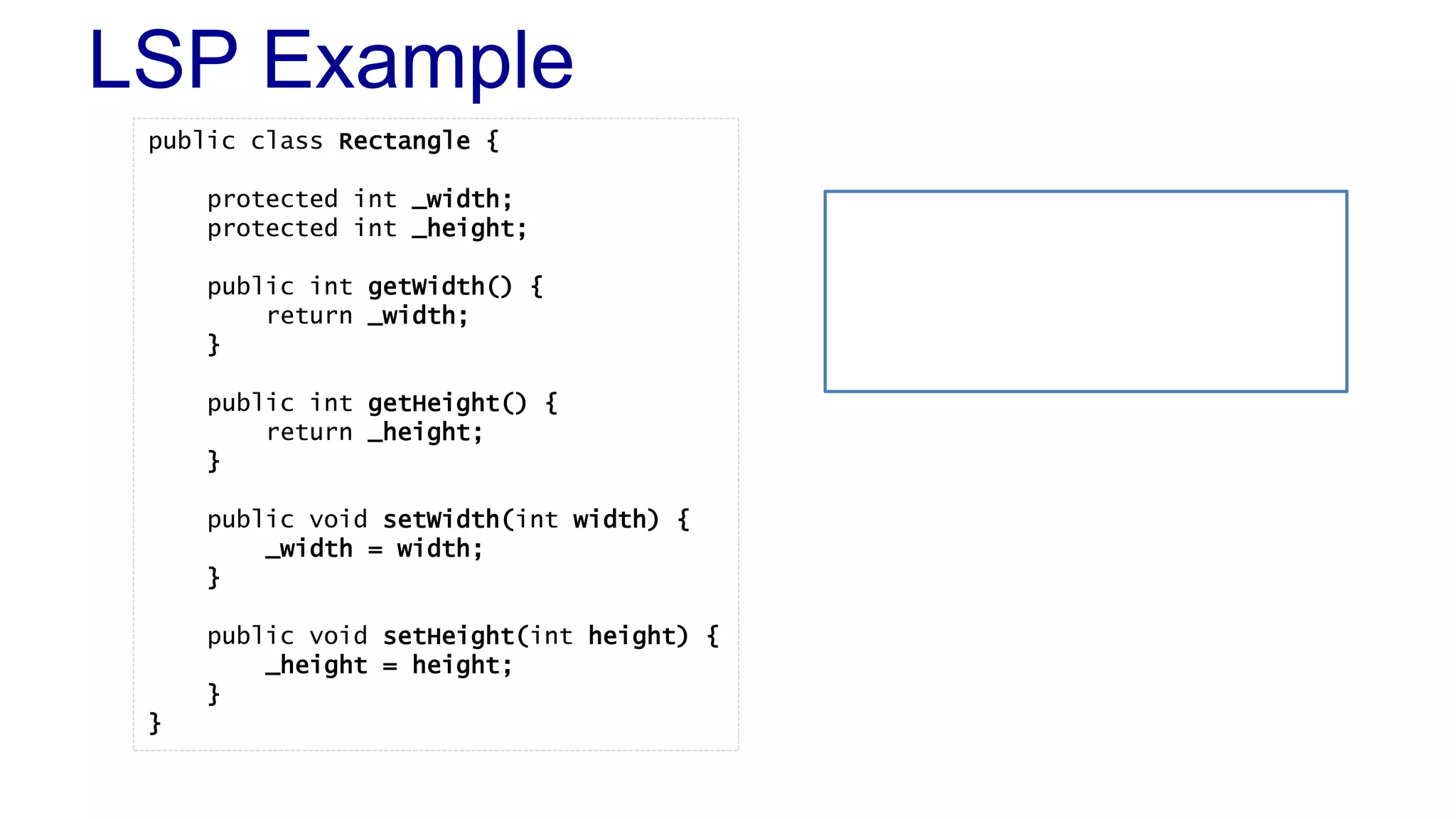

15. LSP Example
public class Rectangle {
protected int _width;
protected int _height;
public int getWidth() {
return _width;
}
public int getHeight() {
return _height;
}
public void setWidth(int width) {
_width = width;
}
public void setHeight(int height) {
_height = height;
}
}

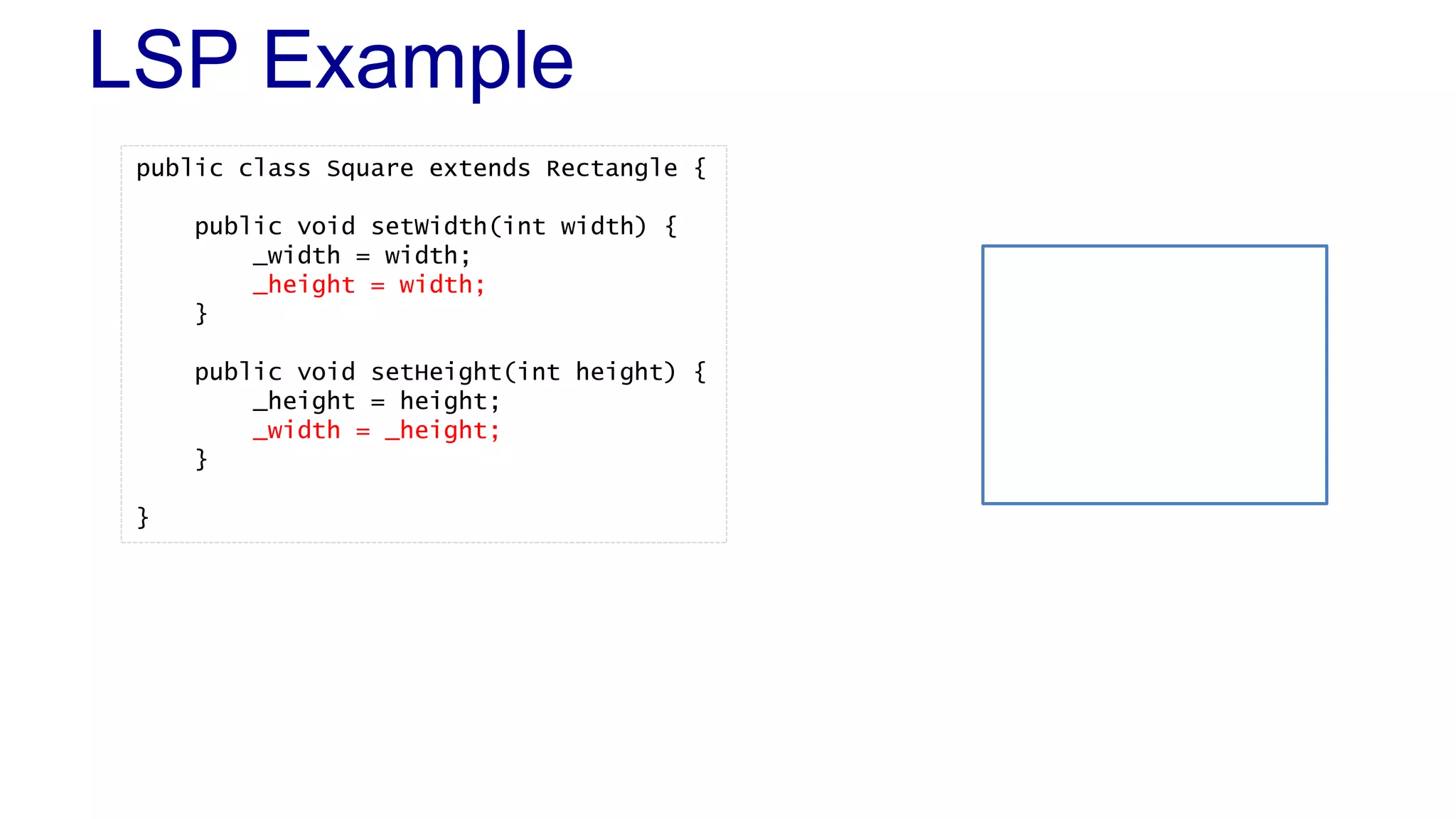

16. LSP Example
public class Square extends Rectangle {
public void setWidth(int width) {
_width = width;
_height = width;
}
public void setHeight(int height) {
_height = height;
_width = _height;
}
}
Implementation convenience

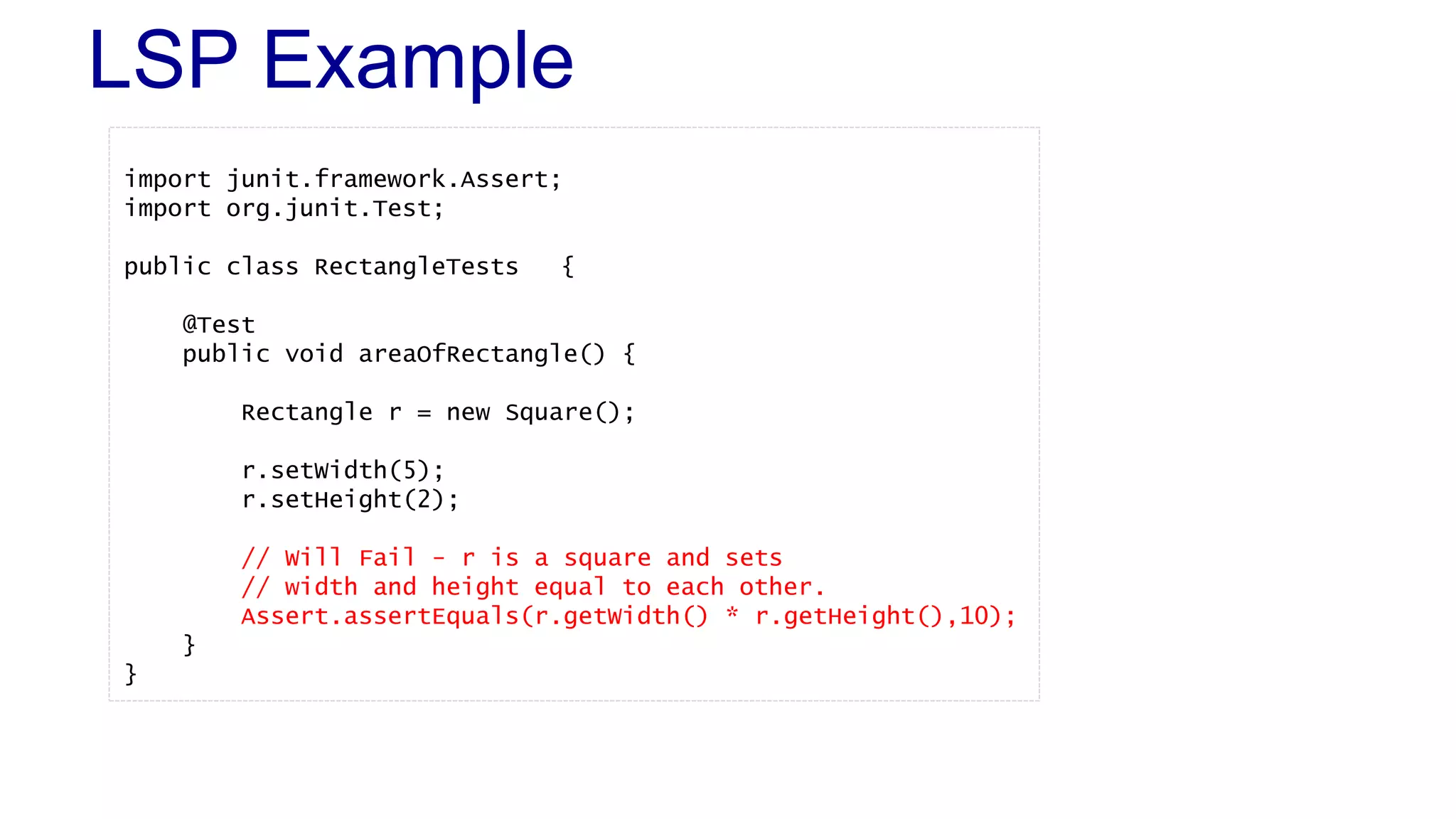

17. LSP Example
import junit.framework.Assert;
import org.junit.Test;
public class RectangleTests {
@Test
public void areaOfRectangle() {
Rectangle r = new Square();
r.setWidth(5);
r.setHeight(2);
// Will Fail - r is a square and sets
// width and height equal to each other.
Assert.assertEquals(r.getWidth() * r.getHeight(),10);
}
}

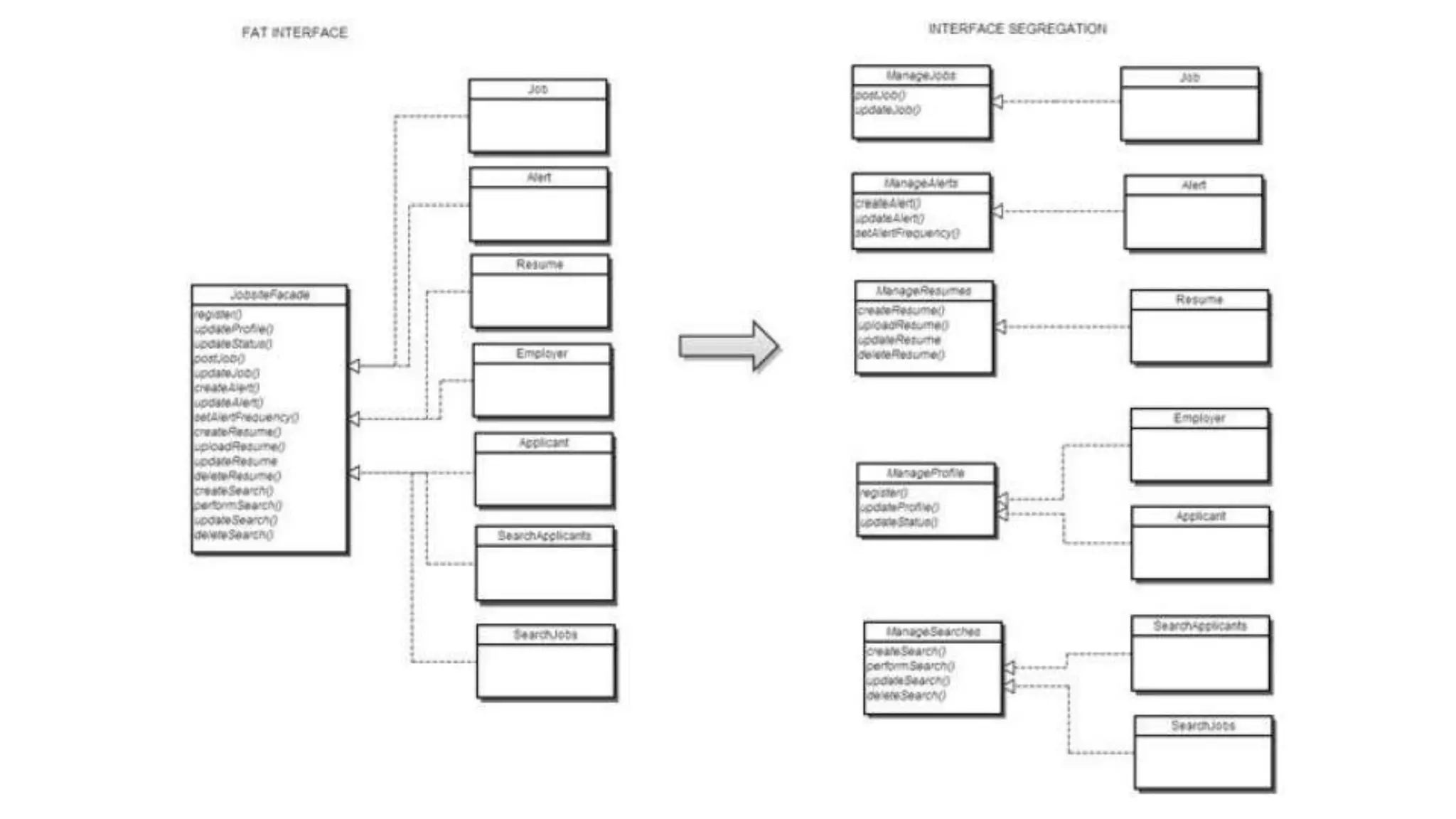

18. Interface Segregation Principle
(ISP)
 Split large interfaces into smaller and more
specific interfaces
– Role interfaces
– The smaller the interface, the better
 Large interfaces
– Fat or polluted interfaces
– Clients are forced to depend on methods they do not
use

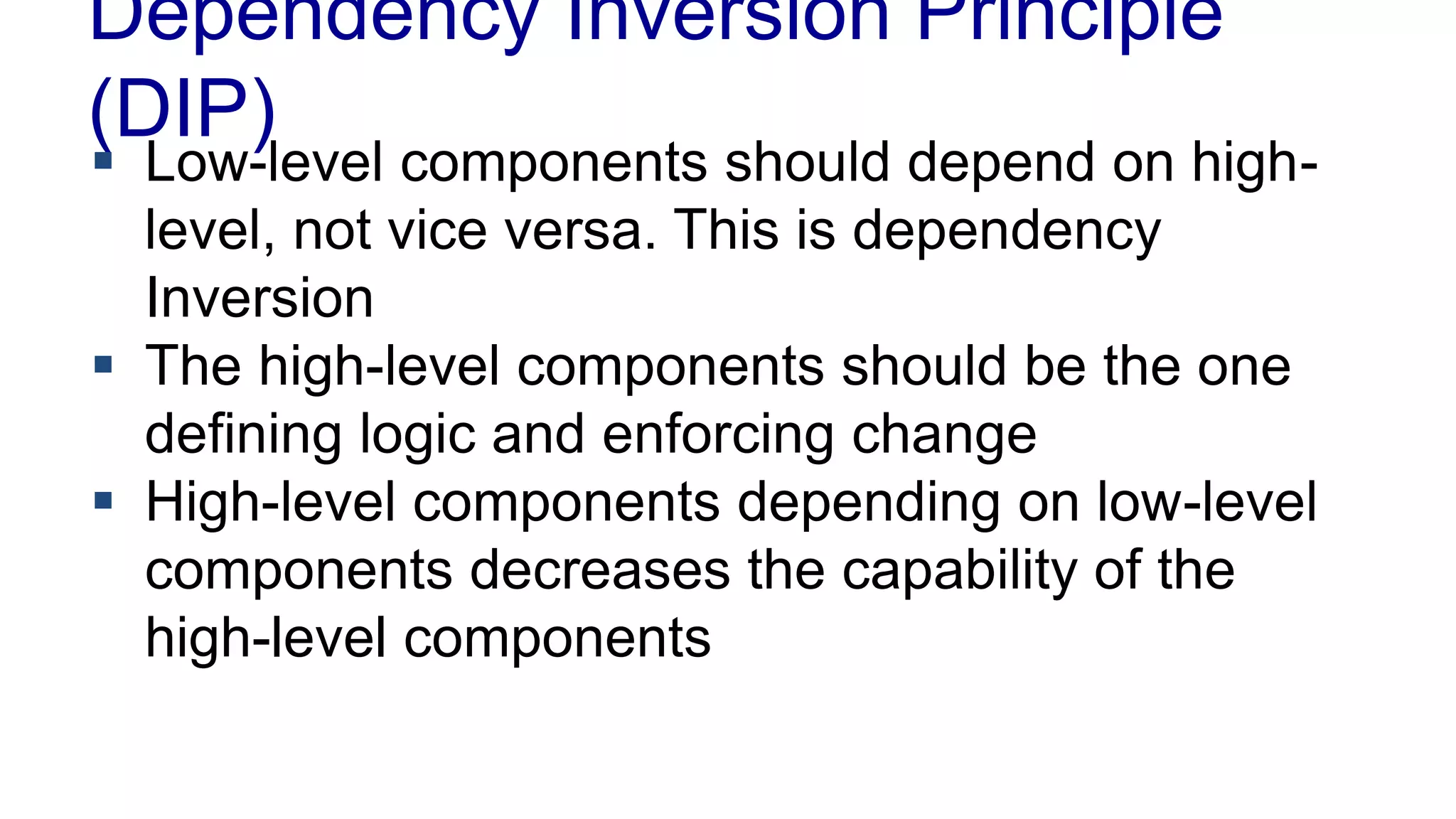

20. Dependency Inversion Principle
(DIP)
 Low-level components should depend on high-
level, not vice versa. This is dependency
Inversion
 The high-level components should be the one
defining logic and enforcing change
 High-level components depending on low-level
components decreases the capability of the
high-level components

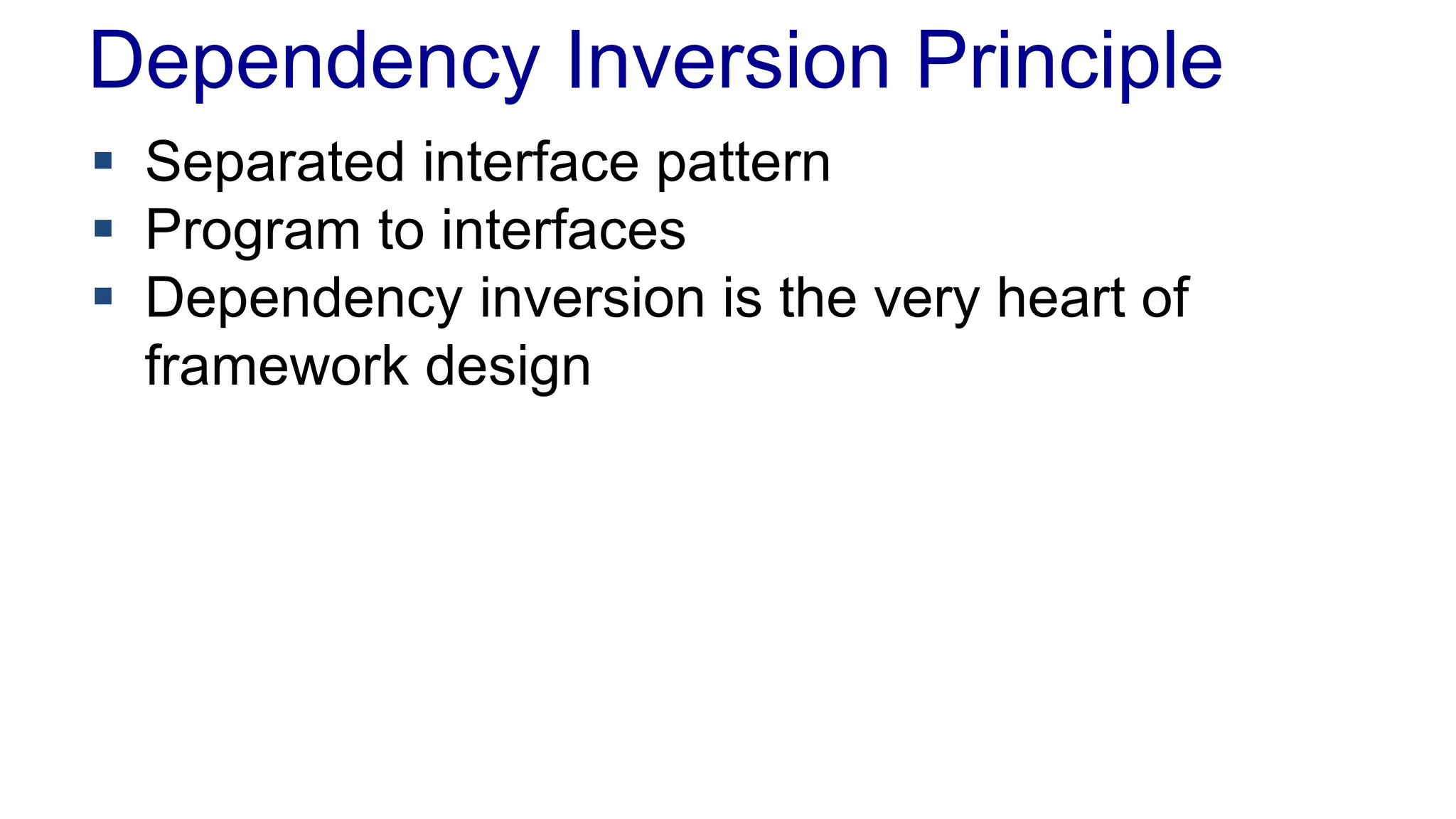

21. Dependency Inversion Principle
 Separated interface pattern
 Program to interfaces
 Dependency inversion is the very heart of
framework design

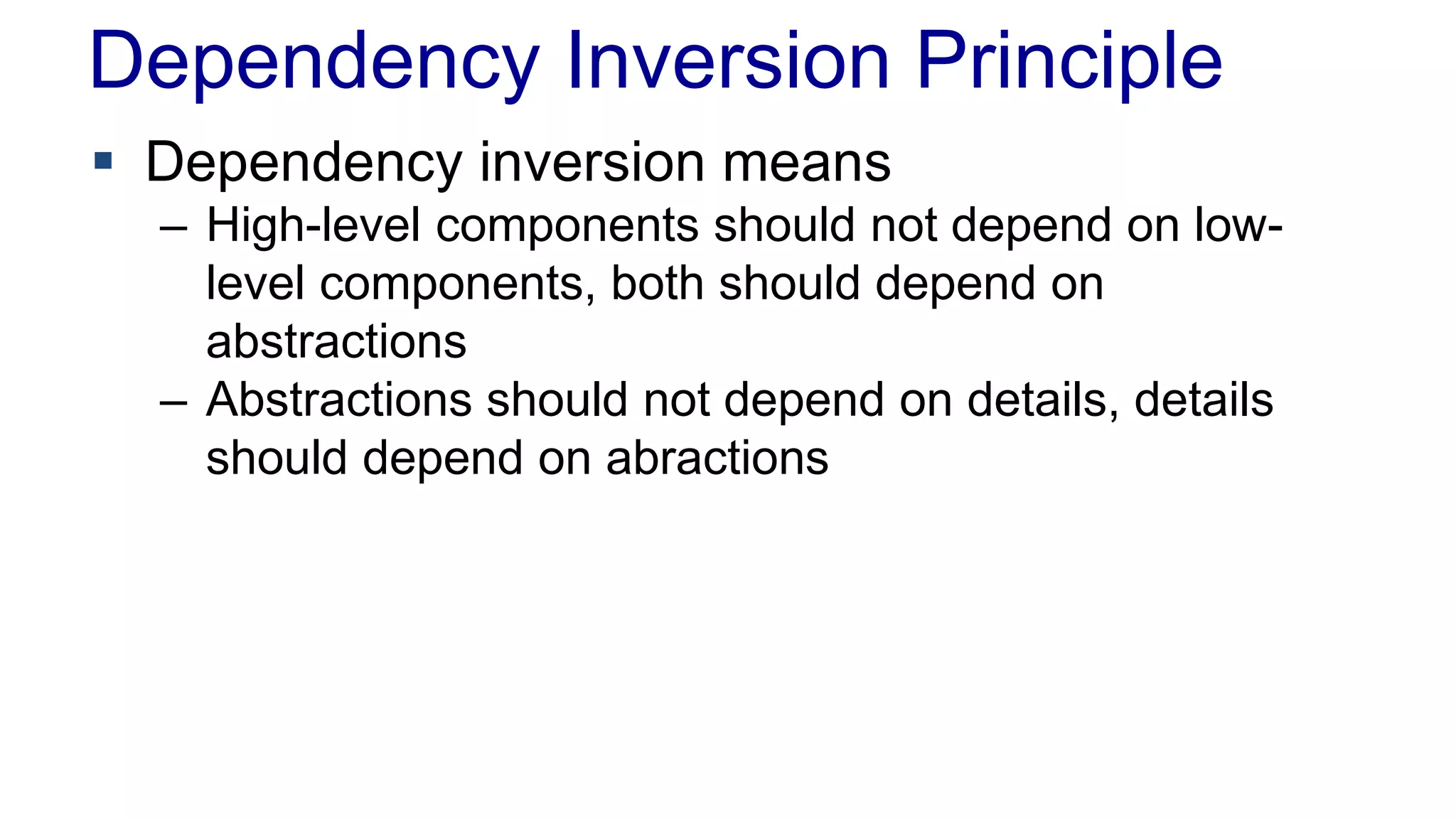

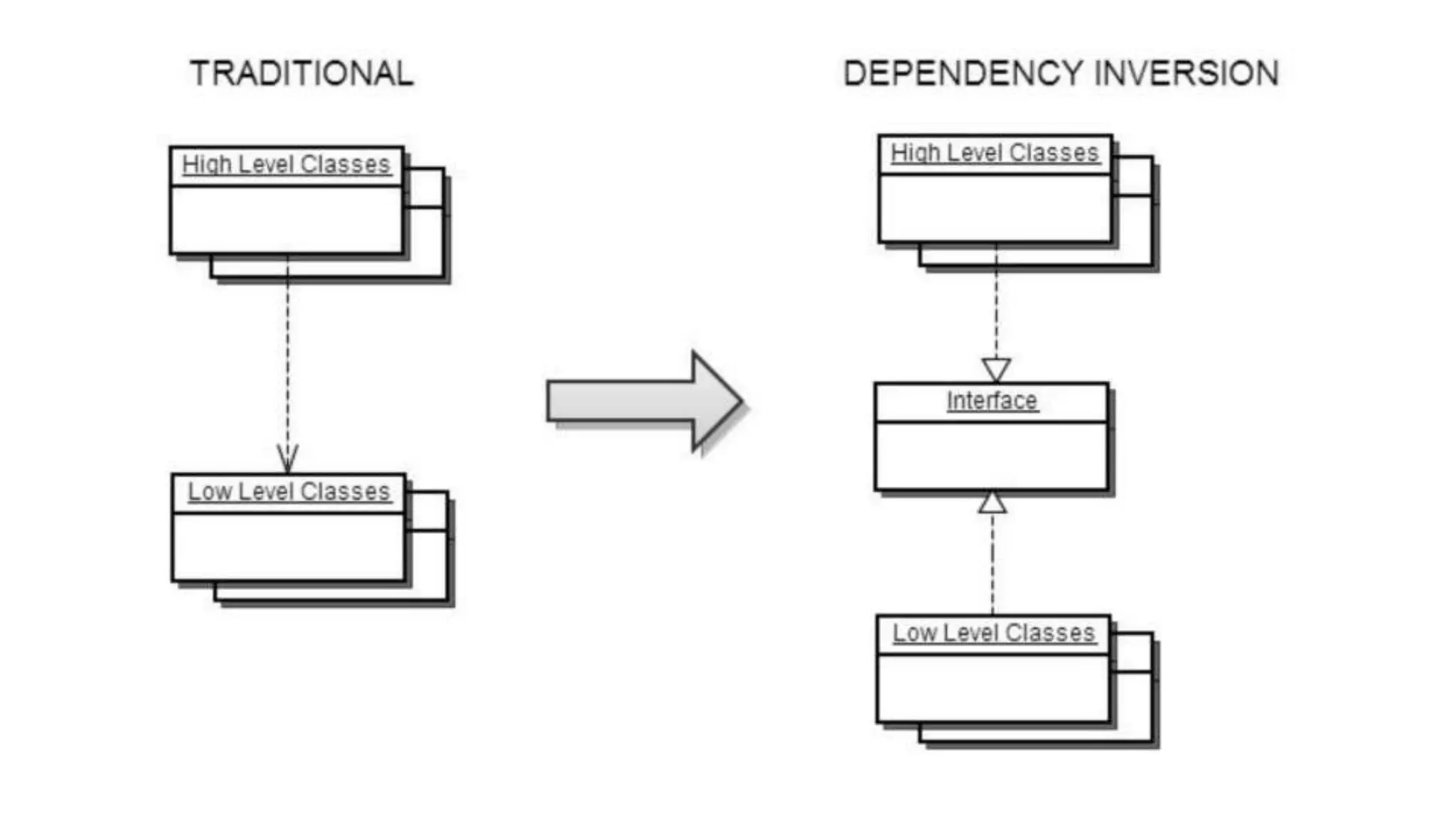

23. Dependency Inversion Principle
 Dependency inversion means
– High-level components should not depend on low-
level components, both should depend on
abstractions
– Abstractions should not depend on details, details
should depend on abractions

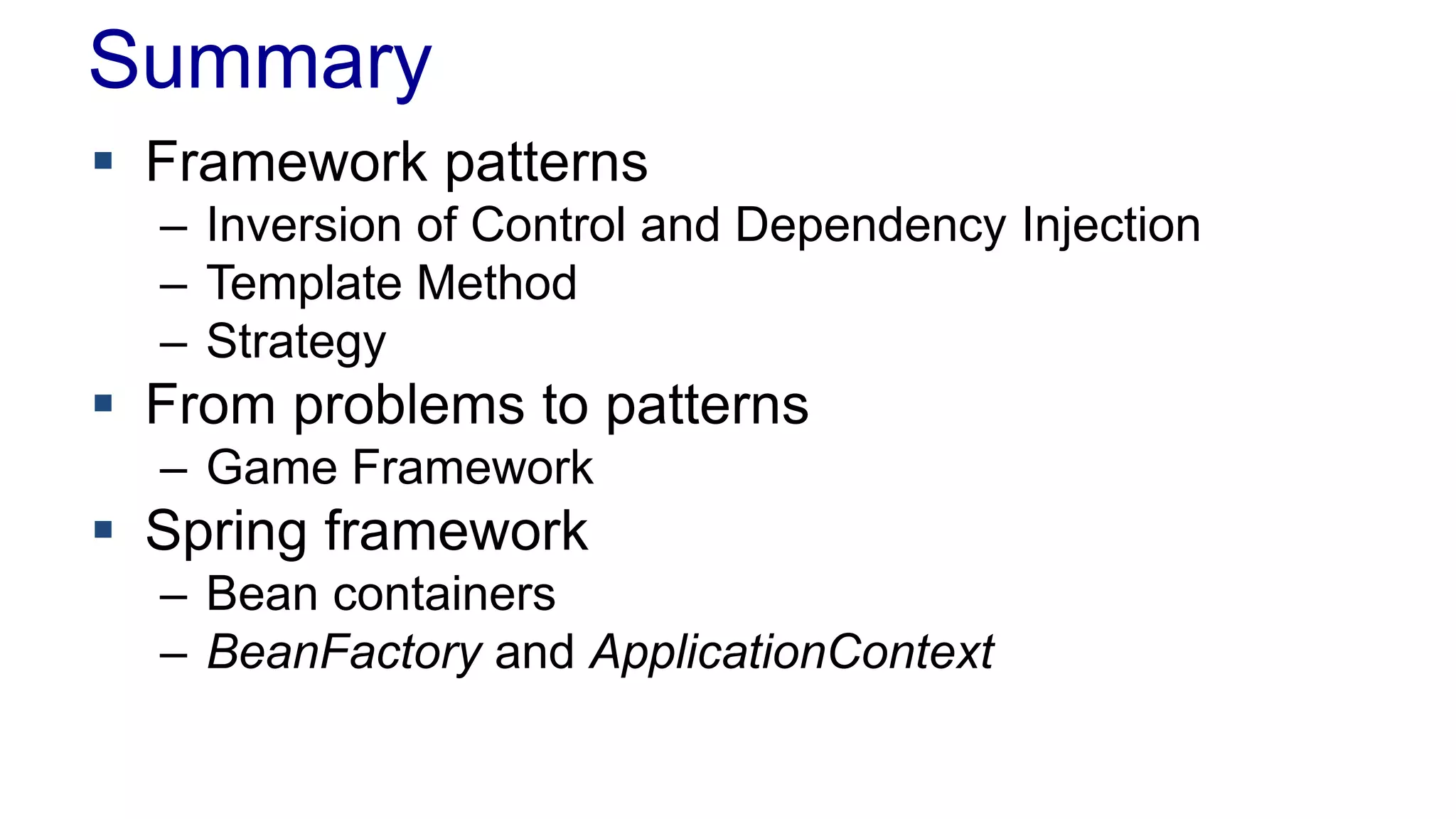

24. Summary
 Framework patterns
– Inversion of Control and Dependency Injection
– Template Method
– Strategy
 From problems to patterns
– Game Framework
 Spring framework
– Bean containers
– BeanFactory and ApplicationContext
