Design Principles and Patterns

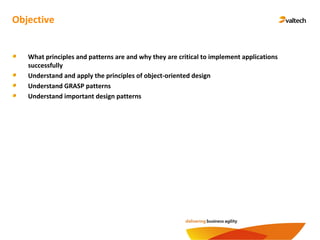

Objective What principles and patterns are and why they are critical to implement applications successfully Understand and apply the principles of object-oriented design Understand GRASP patterns Understand important design patterns
Design Principles
Why Design Principles? All systems change during their life cycle. Symptoms of Rotting Design There are 4 primary symptoms that tell us that our designs are rotting. Rigidity It is hard to change because every change affects too many other parts of the system Fragility When you make a change, unexpected parts of the system break Immobility It is hard to reuse in another application because it cannot be separated from the current application Viscosity Design – Engineers usually find more than one way to make change. Some preserve the design and others do not. When the design preserving methods are harder to employ then the viscosity of the design is high Environment – Development environment is slow and inefficient (e.g. compile times are very long) engineers will be tempted to make changes that don’t force large compiles, even though those changes are not optimal from design point of view

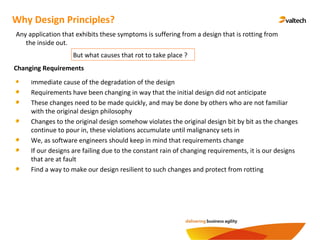

Why Design Principles? Changing Requirements Immediate cause of the degradation of the design Requirements have been changing in way that the initial design did not anticipate These changes need to be made quickly, and may be done by others who are not familiar with the original design philosophy Changes to the original design somehow violates the original design bit by bit as the changes continue to pour in, these violations accumulate until malignancy sets in We, as software engineers should keep in mind that requirements change If our designs are failing due to the constant rain of changing requirements, it is our designs that are at fault Find a way to make our design resilient to such changes and protect from rotting Any application that exhibits these symptoms is suffering from a design that is rotting from the inside out. But what causes that rot to take place ?

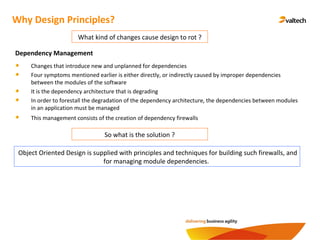

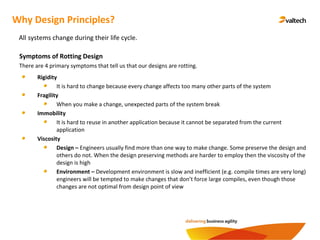

Why Design Principles? What kind of changes cause design to rot ? Dependency Management Changes that introduce new and unplanned for dependencies Four symptoms mentioned earlier is either directly, or indirectly caused by improper dependencies between the modules of the software It is the dependency architecture that is degrading In order to forestall the degradation of the dependency architecture, the dependencies between modules in an application must be managed This management consists of the creation of dependency firewalls So what is the solution ? Object Oriented Design is supplied with principles and techniques for building such firewalls, and for managing module dependencies.

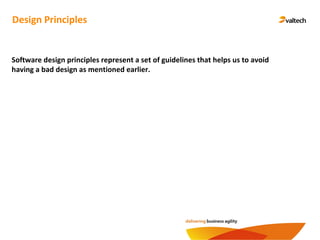

Design Principles Software design principles represent a set of guidelines that helps us to avoid having a bad design as mentioned earlier.

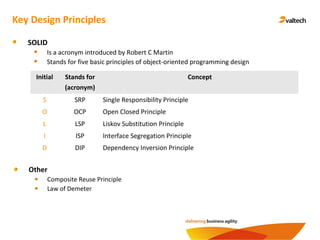

Key Design Principles SOLID Is a acronym introduced by Robert C Martin Stands for five basic principles of object-oriented programming design Initial Stands for (acronym) Concept S SRP Single Responsibility Principle O OCP Open Closed Principle L LSP Liskov Substitution Principle I ISP Interface Segregation Principle D DIP Dependency Inversion Principle Other Composite Reuse Principle Law of Demeter

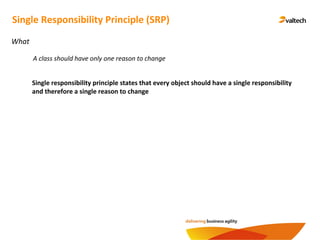

Single Responsibility Principle (SRP) What Single responsibility principle states that every object should have a single responsibility and therefore a single reason to change A class should have only one reason to change

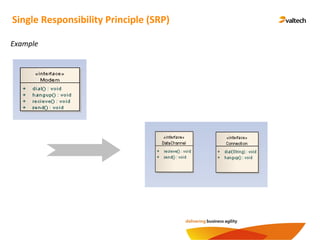

Example Single Responsibility Principle (SRP)

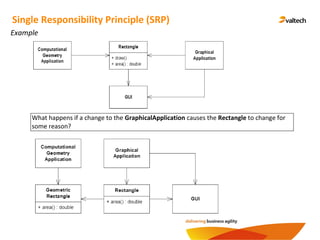

Example Single Responsibility Principle (SRP) What happens if a change to the GraphicalApplication causes the Rectangle to change for some reason?

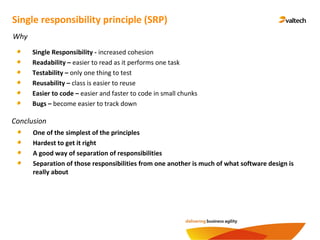

Conclusion Single responsibility principle (SRP) Why Single Responsibility - increased cohesion Readability – easier to read as it performs one task Testability – only one thing to test Reusability – class is easier to reuse Easier to code – easier and faster to code in small chunks Bugs – become easier to track down One of the simplest of the principles Hardest to get it right A good way of separation of responsibilities Separation of those responsibilities from one another is much of what software design is really about

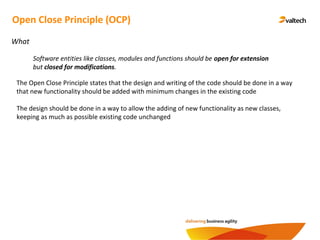

Open Close Principle (OCP) What The Open Close Principle states that the design and writing of the code should be done in a way that new functionality should be added with minimum changes in the existing code Software entities like classes, modules and functions should be open for extension but closed for modifications. The design should be done in a way to allow the adding of new functionality as new classes, keeping as much as possible existing code unchanged

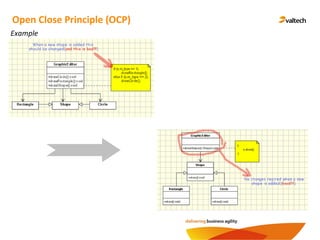

Example Open Close Principle (OCP)

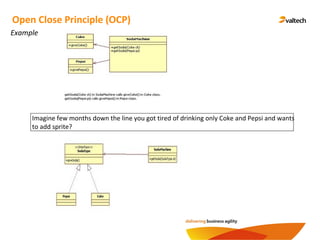

Example Open Close Principle (OCP) Imagine few months down the line you got tired of drinking only Coke and Pepsi and wants to add sprite?

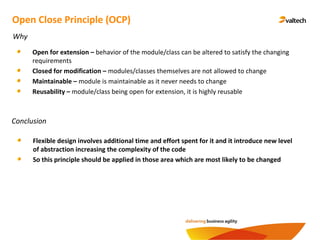

Conclusion Open Close Principle (OCP) Why Open for extension – behavior of the module/class can be altered to satisfy the changing requirements Closed for modification – modules/classes themselves are not allowed to change Maintainable – module is maintainable as it never needs to change Reusability – module/class being open for extension, it is highly reusable Flexible design involves additional time and effort spent for it and it introduce new level of abstraction increasing the complexity of the code So this principle should be applied in those area which are most likely to be changed
Liskov’s Substitution Principle (LSP) What The LSP states that if a program (User) module is using a Base class, then the reference to the Base class can be replaced with a Derived class without affecting the functionality of the program module. Functions that use references to base (Super) classes must be able to use objects of derived (Sub) classes without knowing it All derived classes must honour the contracts of their base classes ISA = same public behavior Pre-conditions can only get weaker Post-conditions can only get stronger
Example Liskov’s Substitution Principle (LSP) Whether Square is a Rectangle? class LspTest { private static Rectangle getNewRectangle() { // it can be an object returned by some factory ... return new Square(); } public static void main (String args[]) { Rectangle r = LspTest.getNewRectangle(); r.setWidth(5); r.setHeight(10); // user knows that r it's a rectangle. It assumes that he's able to set the width and height as for the base class System.out.println(r.getArea()); // now he's surprised to see that the area is 100 instead of 50. } } Rectangle +setHeight() : void +setWidth() : void Square +setHeight() : void +setWidth() : void

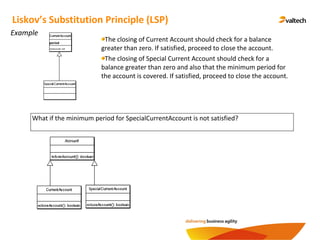

Example Liskov’s Substitution Principle (LSP) What if the minimum period for SpecialCurrentAccount is not satisfied? The closing of Current Account should check for a balance greater than zero. If satisfied, proceed to close the account. The closing of Special Current Account should check for a balance greater than zero and also that the minimum period for the account is covered. If satisfied, proceed to close the account. period closeAccount() : void

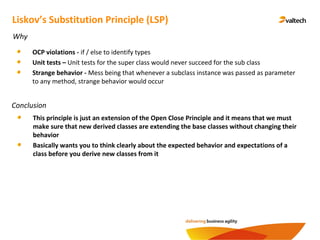

Conclusion Liskov’s Substitution Principle (LSP) Why OCP violations - if / else to identify types Unit tests – Unit tests for the super class would never succeed for the sub class Strange behavior - Mess being that whenever a subclass instance was passed as parameter to any method, strange behavior would occur This principle is just an extension of the Open Close Principle and it means that we must make sure that new derived classes are extending the base classes without changing their behavior Basically wants you to think clearly about the expected behavior and expectations of a class before you derive new classes from it

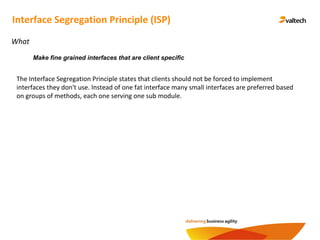

Interface Segregation Principle (ISP) What The Interface Segregation Principle states that clients should not be forced to implement interfaces they don't use. Instead of one fat interface many small interfaces are preferred based on groups of methods, each one serving one sub module. Make fine grained interfaces that are client specific

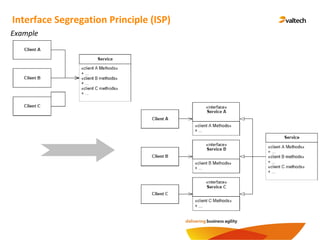

Example Interface Segregation Principle (ISP)
Example Interface Segregation Principle (ISP) What if there is a need to rotate the file data source to a different file once a certain amount of data has been written to the file?

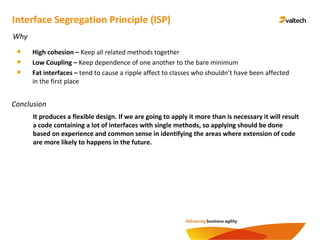

Conclusion Interface Segregation Principle (ISP) Why High cohesion – Keep all related methods together Low Coupling – Keep dependence of one another to the bare minimum Fat interfaces – tend to cause a ripple affect to classes who shouldn’t have been affected in the first place It produces a flexible design. If we are going to apply it more than is necessary it will result a code containing a lot of interfaces with single methods, so applying should be done based on experience and common sense in identifying the areas where extension of code are more likely to happens in the future.
Dependency Inversion Principle (DIP) What Depend on Abstractions. Do not depend on Concrete implementations Design towards Interfaces/Abstract classes rather its implementations. Since implementations are more prone to change and offer less flexibility. High Level Classes --> Abstraction Layer --> Low Level Classes According to this principle the way of designing a class structure is to start from high level modules to the low level modules

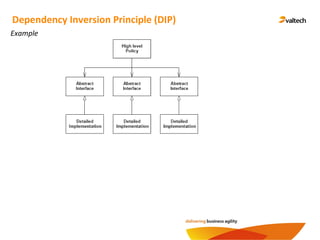

Example Dependency Inversion Principle (DIP)

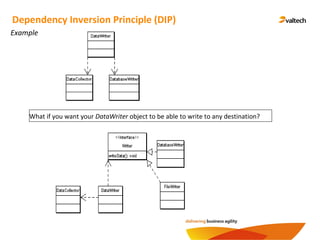

Example Dependency Inversion Principle (DIP) What if you want your DataWriter object to be able to write to any destination?

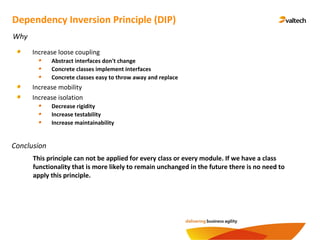

Conclusion Dependency Inversion Principle (DIP) Why Increase loose coupling Abstract interfaces don't change Concrete classes implement interfaces Concrete classes easy to throw away and replace Increase mobility Increase isolation Decrease rigidity Increase testability Increase maintainability This principle can not be applied for every class or every module. If we have a class functionality that is more likely to remain unchanged in the future there is no need to apply this principle.

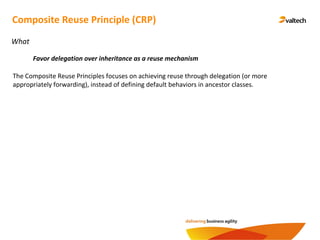

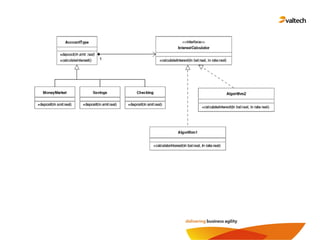

Composite Reuse Principle (CRP) What Favor delegation over inheritance as a reuse mechanism The Composite Reuse Principles focuses on achieving reuse through delegation (or more appropriately forwarding), instead of defining default behaviors in ancestor classes.
Example Composite Reuse Principle (CRP) Subclasses of Employee: Manager, Programmer, Secretary, etc. may want to override this method to reflect the fact that some types of employees (managers) get more generous bonuses than others . . . . Employee +computeBonus() : Money Manager +computeBonus() : Money What if we wanted to change the bonus computation for a particular employee
Example Composite Reuse Principle (CRP) What is the problem and Where can we apply CRP ?

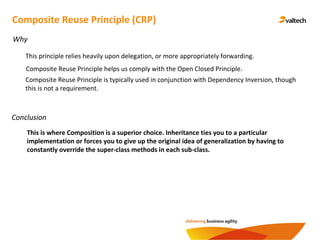

Conclusion Composite Reuse Principle (CRP) Why This principle relies heavily upon delegation, or more appropriately forwarding. Composite Reuse Principle helps us comply with the Open Closed Principle. Composite Reuse Principle is typically used in conjunction with Dependency Inversion, though this is not a requirement. This is where Composition is a superior choice. Inheritance ties you to a particular implementation or forces you to give up the original idea of generalization by having to constantly override the super-class methods in each sub-class.

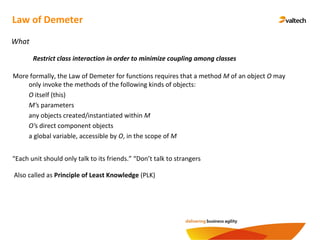

Law of Demeter What Restrict class interaction in order to minimize coupling among classes More formally, the Law of Demeter for functions requires that a method M of an object O may only invoke the methods of the following kinds of objects: O itself (this) M's parameters any objects created/instantiated within M O's direct component objects a global variable, accessible by O, in the scope of M Also called as Principle of Least Knowledge (PLK) “Each unit should only talk to its friends.” “Don’t talk to strangers

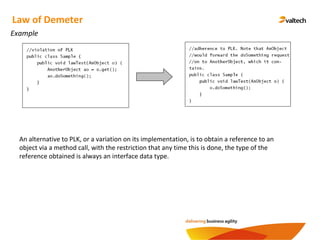

Example Law of Demeter An alternative to PLK, or a variation on its implementation, is to obtain a reference to an object via a method call, with the restriction that any time this is done, the type of the reference obtained is always an interface data type.

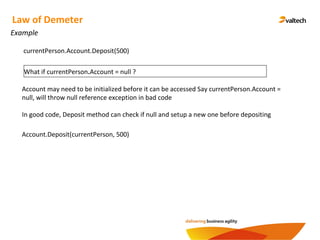

Example Law of Demeter What if currentPerson.Account = null ? currentPerson.Account.Deposit(500) Account may need to be initialized before it can be accessed Say currentPerson.Account = null, will throw null reference exception in bad code In good code, Deposit method can check if null and setup a new one before depositing Account.Deposit(currentPerson, 500)

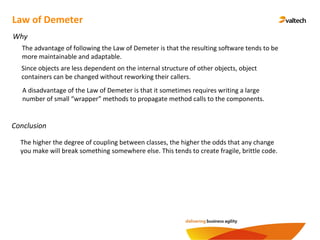

Conclusion Law of Demeter Why The advantage of following the Law of Demeter is that the resulting software tends to be more maintainable and adaptable. Since objects are less dependent on the internal structure of other objects, object containers can be changed without reworking their callers. A disadvantage of the Law of Demeter is that it sometimes requires writing a large number of small “wrapper” methods to propagate method calls to the components. The higher the degree of coupling between classes, the higher the odds that any change you make will break something somewhere else. This tends to create fragile, brittle code.
Design Patterns
Why design patterns ? Developing software is hard, and developing reusable design is even harder Helps in software quality, reduce the development time and improves the shared understanding with in development team Design Pattern = Proven solution to problems for the specific context How do you master these patterns? Simple!! learn rules of the language, then principles/best practices, finally study the patterns used by other masters. Apply these understanding repeatedly in your problem context There are hundreds of patterns do exist in software industry, one must have maturity of selecting appropriate pattern for the context. Care must be taken of applying unnecessary pattern ahead of requirements which would have been solved without it.

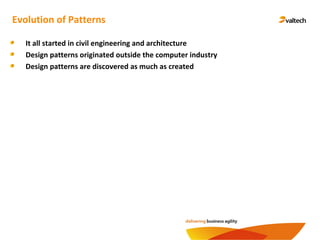

Evolution of Patterns It all started in civil engineering and architecture Design patterns originated outside the computer industry Design patterns are discovered as much as created

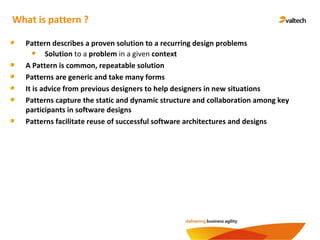

What is pattern ? Pattern describes a proven solution to a recurring design problems Solution to a problem in a given context A Pattern is common, repeatable solution Patterns are generic and take many forms It is advice from previous designers to help designers in new situations Patterns capture the static and dynamic structure and collaboration among key participants in software designs Patterns facilitate reuse of successful software architectures and designs

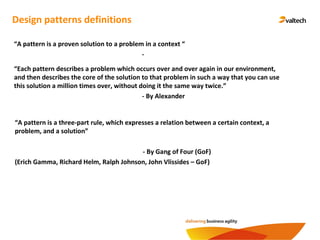

Design patterns definitions “A pattern is a proven solution to a problem in a context “ - “Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem in such a way that you can use this solution a million times over, without doing it the same way twice.” - By Alexander “A pattern is a three-part rule, which expresses a relation between a certain context, a problem, and a solution” - By Gang of Four (GoF) (Erich Gamma, Richard Helm, Ralph Johnson, John Vlissides – GoF)
Properties of patterns Patterns do... provide common vocabulary provide “shorthand” for effectively communicating complex principles help document software architecture capture essential parts of a design in compact form show more than one solution describe software abstractions Patterns do not... provide an exact solution solve all design problems only apply for object-oriented design

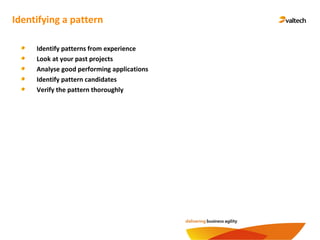

Identifying a pattern Identify patterns from experience Look at your past projects Analyse good performing applications Identify pattern candidates Verify the pattern thoroughly

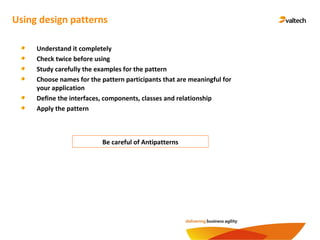

Using design patterns Understand it completely Check twice before using Study carefully the examples for the pattern Choose names for the pattern participants that are meaningful for your application Define the interfaces, components, classes and relationship Apply the pattern Be careful of Antipatterns

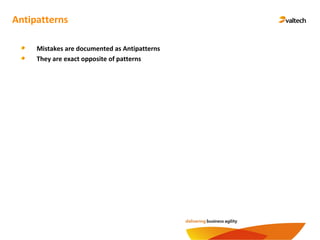

Antipatterns Mistakes are documented as Antipatterns They are exact opposite of patterns

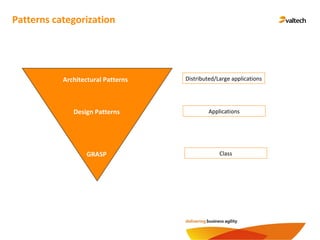

Patterns categorization Distributed/Large applications Applications Class Architectural Patterns Design Patterns GRASP
GRASP
GRASP Patterns GRASP stands for General Responsibility Assignment Software Patterns/Principles. - Craig Larman Responsibility “A contract or obligation of a type or class” Two types of responsibilities - knowing - doing • about private encapsulated data • about related objects • things that can derive or calculate • something itself • initiating action in other objects • controlling and coordinating activities in other objects

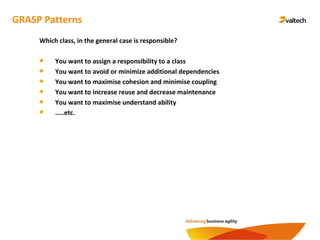

GRASP Patterns Which class, in the general case is responsible? You want to assign a responsibility to a class You want to avoid or minimize additional dependencies You want to maximise cohesion and minimise coupling You want to increase reuse and decrease maintenance You want to maximise understand ability …..etc.

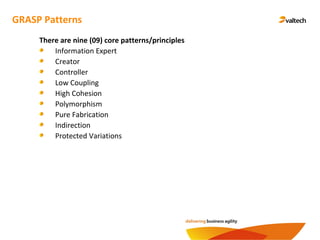

GRASP Patterns There are nine (09) core patterns/principles Information Expert Creator Controller Low Coupling High Cohesion Polymorphism Pure Fabrication Indirection Protected Variations

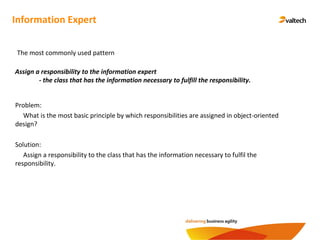

Information Expert Assign a responsibility to the information expert - the class that has the information necessary to fulfill the responsibility. The most commonly used pattern Problem: What is the most basic principle by which responsibilities are assigned in object-oriented design? Solution: Assign a responsibility to the class that has the information necessary to fulfil the responsibility.

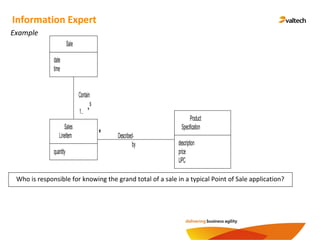

Example Information Expert Who is responsible for knowing the grand total of a sale in a typical Point of Sale application? Sale date time Sales LineItem quantity Product Specification description price UPC Described- by * Contain s 1.. *

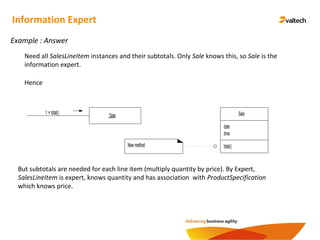

Need all SalesLineItem instances and their subtotals. Only Sale knows this, so Sale is the information expert. Example : Answer Information Expert Hence Sale date time total() :Salet :=total() Newmethod But subtotals are needed for each line item (multiply quantity by price). By Expert, SalesLineItem is expert, knows quantity and has association with ProductSpecification which knows price.

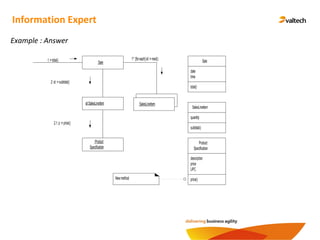

Example : Answer Information Expert Sale date time total() :Salet := total() sli:SalesLineItem SalesLineItem quantity subtotal() 2: st :=subtotal() :Product Specification 2.1: p := price() Product Specification description price UPC price()Newmethod SalesLineItem :SalesLineItem 1*: [foreach]sli :=next()

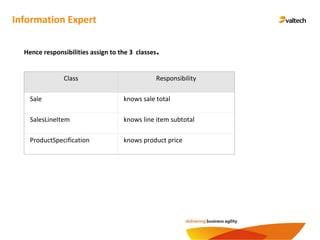

Information Expert Hence responsibilities assign to the 3 classes. Class Responsibility Sale knows sale total SalesLineItem knows line item subtotal ProductSpecification knows product price
Information Expert Maintain encapsulation of information Promotes low coupling Promotes highly cohesive classes Can cause a class to become excessively complex Why

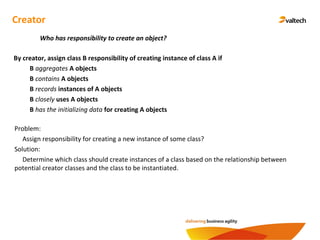

Creator By creator, assign class B responsibility of creating instance of class A if B aggregates A objects B contains A objects B records instances of A objects B closely uses A objects B has the initializing data for creating A objects Who has responsibility to create an object? Problem: Assign responsibility for creating a new instance of some class? Solution: Determine which class should create instances of a class based on the relationship between potential creator classes and the class to be instantiated.

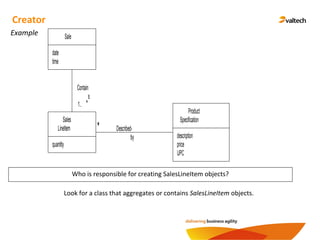

Example Creator Who is responsible for creating SalesLineItem objects? Sale date time Sales LineItem quantity Product Specification description price UPC Described- by * Contain s 1.. * Look for a class that aggregates or contains SalesLineItem objects.

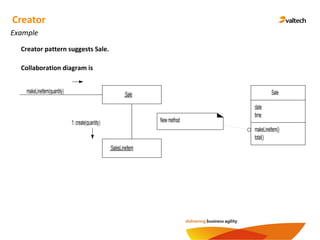

Example Creator Creator pattern suggests Sale. Collaboration diagram is Sale date time makeLineItem() total() :SalemakeLineItem(quantity) :SalesLineItem 1:create(quantity) Newmethod

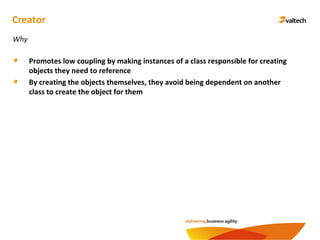

Creator Promotes low coupling by making instances of a class responsible for creating objects they need to reference By creating the objects themselves, they avoid being dependent on another class to create the object for them Why

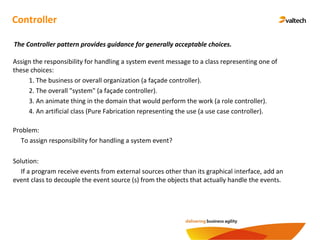

Controller Assign the responsibility for handling a system event message to a class representing one of these choices: 1. The business or overall organization (a façade controller). 2. The overall "system" (a façade controller). 3. An animate thing in the domain that would perform the work (a role controller). 4. An artificial class (Pure Fabrication representing the use (a use case controller). The Controller pattern provides guidance for generally acceptable choices. Problem: To assign responsibility for handling a system event? Solution: If a program receive events from external sources other than its graphical interface, add an event class to decouple the event source (s) from the objects that actually handle the events.

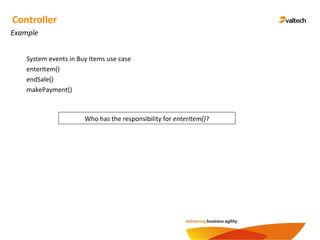

Example Controller System events in Buy Items use case enterItem() endSale() makePayment() Who has the responsibility for enterItem()?

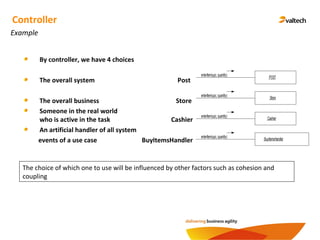

Example Controller By controller, we have 4 choices The overall system Post The overall business Store Someone in the real world who is active in the task Cashier An artificial handler of all system events of a use case BuyItemsHandler :POSTenterItem(upc,quantity) :StoreenterItem(upc,quantity) :CashierenterItem(upc,quantity) :BuyItemsHandlerenterItem(upc,quantity) The choice of which one to use will be influenced by other factors such as cohesion and coupling
Example : Controller - presentation layer coupled to problem domain Object Store Enter Item End Sale UPC Make Payment Total Quantity Tendered Balance Cashier :POSTCommand presses button onEnterItem() :Sale 1:makeLineItem(upc,qty) PresentationLayer (Commandobject) DomainLayer Itisundesirableforapresentation layerobjectssuchasaJavaappletto getinvolvedindecidinghowtohandle domainprocesses. Businesslogicisembeddedinthe presentationlayer,whichisnotuseful. POSTAppletshouldnot sendthismessage. Bad design
Example Controller - presentation layer decoupled from problem domain Object Store Enter Item End Sale UPC Make Payment Total Quantity Tendered Balance :POST Cashier :POSTCommand presses button onEnterItem() 1:enterItem(upc,qty) :Sale1.1:makeLineItem(upc,qty) PresentationLayer (CommandObject) DomainLayer systemeventmessage controller Good design

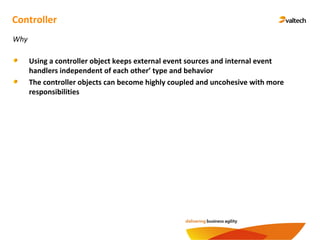

Controller Using a controller object keeps external event sources and internal event handlers independent of each other’ type and behavior The controller objects can become highly coupled and uncohesive with more responsibilities Why

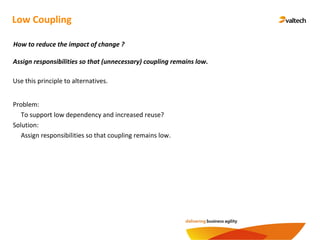

Low Coupling Assign responsibilities so that (unnecessary) coupling remains low. How to reduce the impact of change ? Problem: To support low dependency and increased reuse? Solution: Assign responsibilities so that coupling remains low. Use this principle to alternatives.

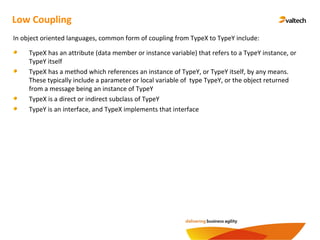

Low Coupling In object oriented languages, common form of coupling from TypeX to TypeY include: TypeX has an attribute (data member or instance variable) that refers to a TypeY instance, or TypeY itself TypeX has a method which references an instance of TypeY, or TypeY itself, by any means. These typically include a parameter or local variable of type TypeY, or the object returned from a message being an instance of TypeY TypeX is a direct or indirect subclass of TypeY TypeY is an interface, and TypeX implements that interface

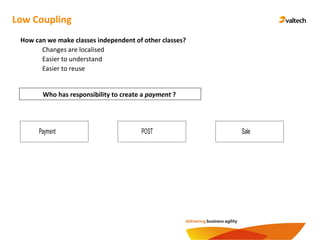

Low Coupling How can we make classes independent of other classes? Changes are localised Easier to understand Easier to reuse Payment POST Sale Who has responsibility to create a payment ?

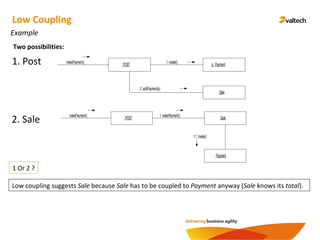

Low Coupling Two possibilities: :POST p :Payment :Sale makePayment() 1:create() 2: addPayment(p) 1. Post 2. Sale :POST :Sale :Payment makePayment() 1:makePayment() 1.1.create() Low coupling suggests Sale because Sale has to be coupled to Payment anyway (Sale knows its total). 1 Or 2 ? Example

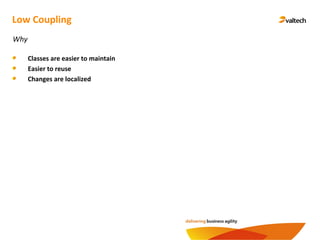

Low Coupling Classes are easier to maintain Easier to reuse Changes are localized Why
High Cohesion Assign responsibilities so that cohesion remains high. How to keep object focused, understandable, and manageable, and as a side-effect , support low coupling ? Problem: To keep complexity manageable? Solution: Assign responsibilities so that cohesion remains high. Use this principle to alternatives.

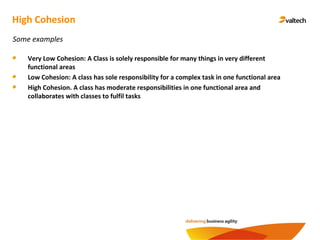

High Cohesion Some examples Very Low Cohesion: A Class is solely responsible for many things in very different functional areas Low Cohesion: A class has sole responsibility for a complex task in one functional area High Cohesion. A class has moderate responsibilities in one functional area and collaborates with classes to fulfil tasks

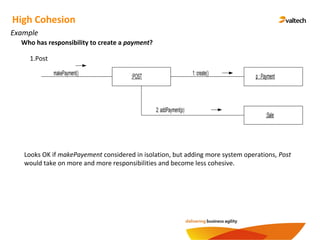

High Cohesion Example Who has responsibility to create a payment? 1.Post :POST p : Payment :Sale makePayment() 1: create() 2: addPayment(p) Looks OK if makePayement considered in isolation, but adding more system operations, Post would take on more and more responsibilities and become less cohesive.

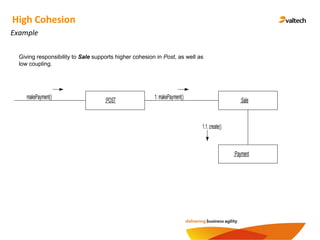

High Cohesion Example Giving responsibility to Sale supports higher cohesion in Post, as well as low coupling. :POST :Sale :Payment makePayment() 1: makePayment() 1.1.create()
High Cohesion Classes are easier to maintain Easier to understand Often support low coupling Supports reuse because of fine grained responsibility Why
Polymorphism When related alternatives or behaviours vary by type (class), assign responsibility for the behaviour using polymorphic operations to the types for which the behaviour varies. Who is responsible when behaviour varies by type ? Problem: To handle alternatives based on types? Solution: When alternate behaviours are selected based on the type of an object, use polymorphic method call to select the behaviour, rather than using if statement to test the type.

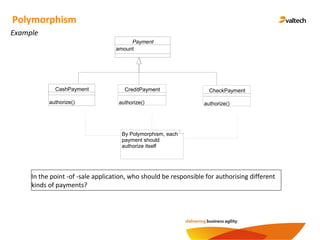

Polymorphism Example By Polymorphism, each payment should authorize itself CreditPayment authorize() CheckPayment authorize() CashPayment authorize() Payment amount In the point -of -sale application, who should be responsible for authorising different kinds of payments?
Polymorphism Easier and more reliable then using explicit selection logic Easier to add additional behaviors later on Increased number classes in a design May make the code less easier to follow Why

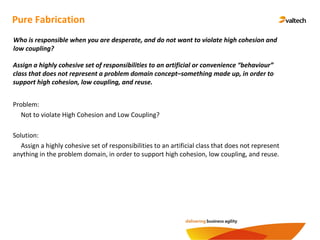

Pure Fabrication Assign a highly cohesive set of responsibilities to an artificial or convenience “behaviour” class that does not represent a problem domain concept–something made up, in order to support high cohesion, low coupling, and reuse. Who is responsible when you are desperate, and do not want to violate high cohesion and low coupling? Problem: Not to violate High Cohesion and Low Coupling? Solution: Assign a highly cohesive set of responsibilities to an artificial class that does not represent anything in the problem domain, in order to support high cohesion, low coupling, and reuse.

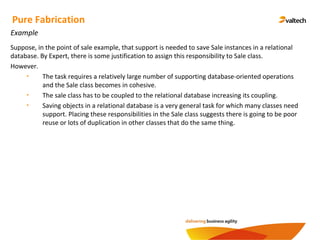

Pure Fabrication Example Suppose, in the point of sale example, that support is needed to save Sale instances in a relational database. By Expert, there is some justification to assign this responsibility to Sale class. However. • The task requires a relatively large number of supporting database-oriented operations and the Sale class becomes in cohesive. • The sale class has to be coupled to the relational database increasing its coupling. • Saving objects in a relational database is a very general task for which many classes need support. Placing these responsibilities in the Sale class suggests there is going to be poor reuse or lots of duplication in other classes that do the same thing.
Pure Fabrication Example The Sale remains well design, with high cohesion and low coupling The PersistentStorageBroker class is itself relatively cohesive The PersistentStorageBroker class is a very generic and reusable object PersistentStorageBroker save() By Pure Fabrication

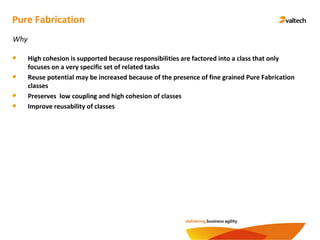

Pure Fabrication High cohesion is supported because responsibilities are factored into a class that only focuses on a very specific set of related tasks Reuse potential may be increased because of the presence of fine grained Pure Fabrication classes Preserves low coupling and high cohesion of classes Improve reusability of classes Why

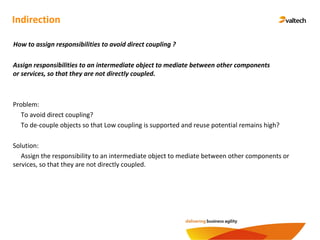

Indirection Assign responsibilities to an intermediate object to mediate between other components or services, so that they are not directly coupled. How to assign responsibilities to avoid direct coupling ? Problem: To avoid direct coupling? To de-couple objects so that Low coupling is supported and reuse potential remains high? Solution: Assign the responsibility to an intermediate object to mediate between other components or services, so that they are not directly coupled.

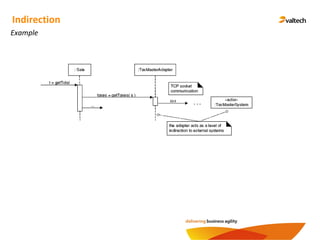

Indirection Example PersistentStorageBroker The Pure fabrication example of de-coupling the Sale from the relational database services through the introduction of a PersistentStorageBroker is also an example of assigning responsibilities to support Indirection. The PersistentStorageBroker acts as a intermediary between the Sale and database

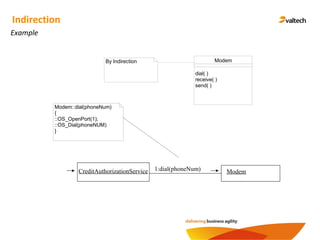

Indirection Example Modem dial( ) receive( ) send( ) By Indirection Modem::dial(phoneNum) { ::OS_OpenPort(1); ::OS_Dial(phoneNUM) } CreditAuthorizationService Modem1:dial(phoneNum)
Indirection Example

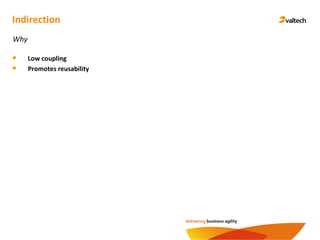

Indirection Low coupling Promotes reusability Why

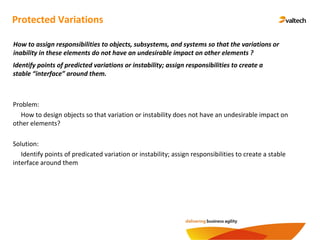

Protected Variations Identify points of predicted variations or instability; assign responsibilities to create a stable “interface” around them. How to assign responsibilities to objects, subsystems, and systems so that the variations or inability in these elements do not have an undesirable impact on other elements ? Problem: How to design objects so that variation or instability does not have an undesirable impact on other elements? Solution: Identify points of predicated variation or instability; assign responsibilities to create a stable interface around them

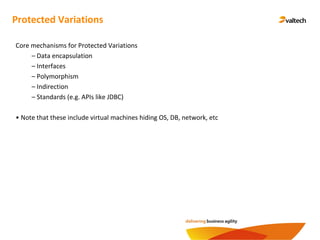

Protected Variations Core mechanisms for Protected Variations – Data encapsulation – Interfaces – Polymorphism – Indirection – Standards (e.g. APIs like JDBC) • Note that these include virtual machines hiding OS, DB, network, etc

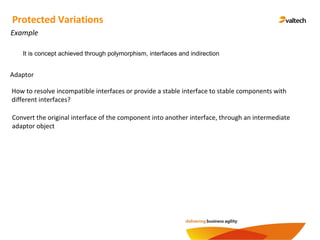

Protected Variations Example Adaptor How to resolve incompatible interfaces or provide a stable interface to stable components with different interfaces? Convert the original interface of the component into another interface, through an intermediate adaptor object It is concept achieved through polymorphism, interfaces and indirection

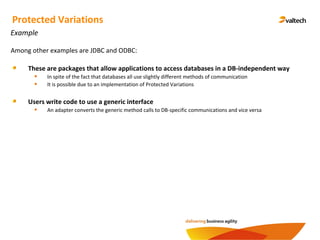

Protected Variations Example Among other examples are JDBC and ODBC: These are packages that allow applications to access databases in a DB-independent way In spite of the fact that databases all use slightly different methods of communication It is possible due to an implementation of Protected Variations Users write code to use a generic interface An adapter converts the generic method calls to DB-specific communications and vice versa
Protected Variations Why Protected variations addresses the problem of assigning responsibilities in such a way that variations that might occur do not have undesirable effects upon other elements in the system.
Design Patterns
Core Design Patterns Classification Creational Patterns Have to do with class instantiation Divided into class creation and object creation Class creation patterns use inheritance effectively Object creation patterns use delegation Structural Patterns Concern class and object composition Use inheritance to compose interfaces Define ways to compose objects to obtain new functionality Behavioral Specifically concerned with communication between objects The Gang of Four (GoF) patterns are generally considered the foundation patterns. There are 23 core design patterns identified by GoF.

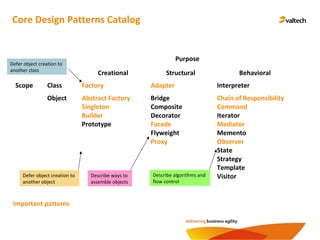

Core Design Patterns Catalog Purpose Creational Structural Behavioral Scope Class Factory Adapter Interpreter Object Abstract Factory Singleton Builder Prototype Bridge Composite Decorator Facade Flyweight Proxy Chain of Responsibility Command Iterator Mediator Memento Observer State Strategy Template Visitor Defer object creation to another class Defer object creation to another object Describe algorithms and flow control Describe ways to assemble objects Important patterns
Factory The Factory pattern provides a way to use an instance as a object factory. The factory can return an instance of one of several possible classes (in a subclass hierarchy), depending on the data provided to it.

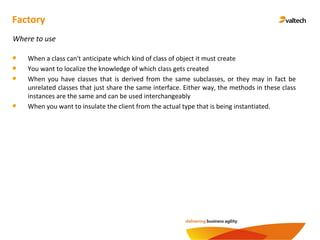

Factory Where to use When a class can't anticipate which kind of class of object it must create You want to localize the knowledge of which class gets created When you have classes that is derived from the same subclasses, or they may in fact be unrelated classes that just share the same interface. Either way, the methods in these class instances are the same and can be used interchangeably When you want to insulate the client from the actual type that is being instantiated.

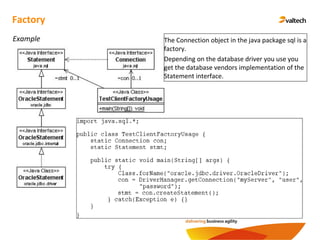

Factory Example The Connection object in the java package sql is a factory. Depending on the database driver you use you get the database vendors implementation of the Statement interface.

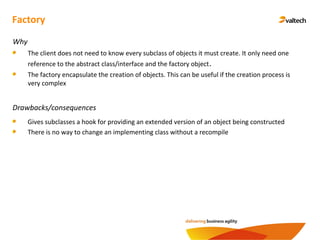

Factory Why The client does not need to know every subclass of objects it must create. It only need one reference to the abstract class/interface and the factory object. The factory encapsulate the creation of objects. This can be useful if the creation process is very complex Drawbacks/consequences Gives subclasses a hook for providing an extended version of an object being constructed There is no way to change an implementing class without a recompile

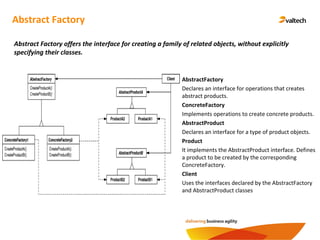

Abstract Factory Abstract Factory offers the interface for creating a family of related objects, without explicitly specifying their classes. AbstractFactory Declares an interface for operations that creates abstract products. ConcreteFactory Implements operations to create concrete products. AbstractProduct Declares an interface for a type of product objects. Product It implements the AbstractProduct interface. Defines a product to be created by the corresponding ConcreteFactory. Client Uses the interfaces declared by the AbstractFactory and AbstractProduct classes

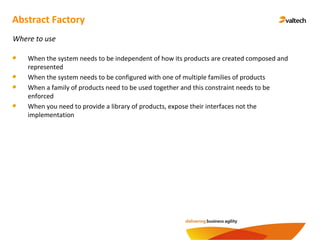

Abstract Factory Where to use When the system needs to be independent of how its products are created composed and represented When the system needs to be configured with one of multiple families of products When a family of products need to be used together and this constraint needs to be enforced When you need to provide a library of products, expose their interfaces not the implementation
Abstract Factory Example We will see code example for better understanding

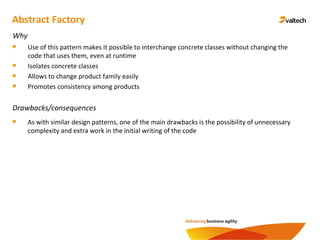

Abstract Factory Why Use of this pattern makes it possible to interchange concrete classes without changing the code that uses them, even at runtime Isolates concrete classes Allows to change product family easily Promotes consistency among products Drawbacks/consequences As with similar design patterns, one of the main drawbacks is the possibility of unnecessary complexity and extra work in the initial writing of the code
Singleton The Singleton pattern provides the possibility to control the number of instances (mostly one) that are allowed to be made. We also receive a global point of access to it (them). Structure Ensure that only one instance of a class is created. Provide a global point of access to the object.

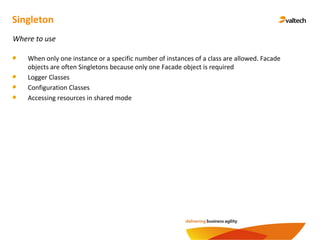

Singleton Where to use When only one instance or a specific number of instances of a class are allowed. Facade objects are often Singletons because only one Facade object is required Logger Classes Configuration Classes Accessing resources in shared mode

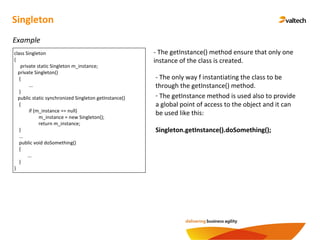

Singleton Example class Singleton { private static Singleton m_instance; private Singleton() { ... } public static synchronized Singleton getInstance() { if (m_instance == null) m_instance = new Singleton(); return m_instance; } ... public void doSomething() { ... } } - The getInstance() method ensure that only one instance of the class is created. - The only way f instantiating the class to be through the getInstance() method. - The getInstance method is used also to provide a global point of access to the object and it can be used like this: Singleton.getInstance().doSomething();

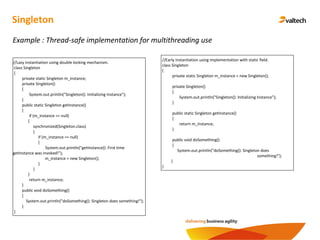

Singleton Example : Thread-safe implementation for multithreading use //Lazy instantiation using double locking mechanism. class Singleton { private static Singleton m_instance; private Singleton() { System.out.println("Singleton(): Initializing Instance"); } public static Singleton getInstance() { if (m_instance == null) { synchronized(Singleton.class) { if (m_instance == null) { System.out.println("getInstance(): First time getInstance was invoked!"); m_instance = new Singleton(); } } } return m_instance; } public void doSomething() { System.out.println("doSomething(): Singleton does something!"); } } //Early instantiation using implementation with static field. class Singleton { private static Singleton m_instance = new Singleton(); private Singleton() { System.out.println("Singleton(): Initializing Instance"); } public static Singleton getInstance() { return m_instance; } public void doSomething() { System.out.println("doSomething(): Singleton does something!"); } }

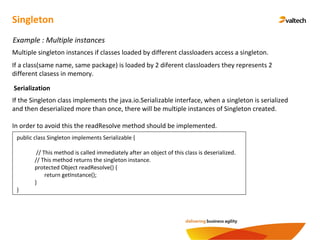

Singleton Example : Multiple instances Multiple singleton instances if classes loaded by different classloaders access a singleton. If a class(same name, same package) is loaded by 2 diferent classloaders they represents 2 different clasess in memory. Serialization If the Singleton class implements the java.io.Serializable interface, when a singleton is serialized and then deserialized more than once, there will be multiple instances of Singleton created. In order to avoid this the readResolve method should be implemented. public class Singleton implements Serializable { // This method is called immediately after an object of this class is deserialized. // This method returns the singleton instance. protected Object readResolve() { return getInstance(); } }
Singleton Why Controlled access to unique instance. Reduced name space. Allows refinement of operations and representations. Drawbacks/consequences Singleton pattern is also considered an anti-pattern by some people, who feel that it is overused, introducing unnecessary limitations in situations where a sole instance of a class is not actually required. The singleton instance is obtained using the class name. At the first view this is an easy way to access it, but it is not very flexible. If we need to replace the Singleton class, all the references in the code should be changed accordingly

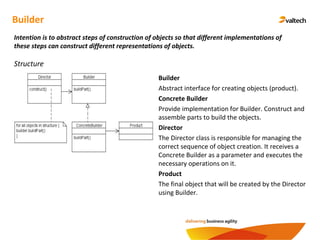

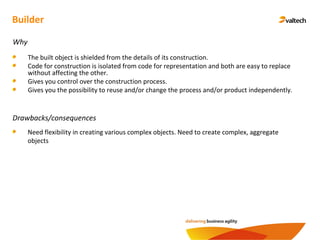

Builder Intention is to abstract steps of construction of objects so that different implementations of these steps can construct different representations of objects. Structure Builder Abstract interface for creating objects (product). Concrete Builder Provide implementation for Builder. Construct and assemble parts to build the objects. Director The Director class is responsible for managing the correct sequence of object creation. It receives a Concrete Builder as a parameter and executes the necessary operations on it. Product The final object that will be created by the Director using Builder.

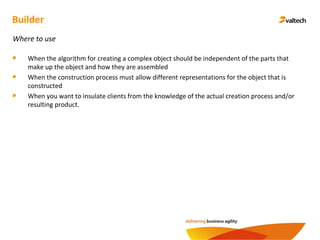

Builder Where to use When the algorithm for creating a complex object should be independent of the parts that make up the object and how they are assembled When the construction process must allow different representations for the object that is constructed When you want to insulate clients from the knowledge of the actual creation process and/or resulting product.

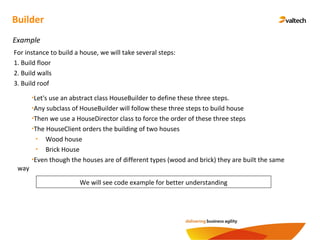

Builder Example We will see code example for better understanding For instance to build a house, we will take several steps: 1. Build floor 2. Build walls 3. Build roof •Let's use an abstract class HouseBuilder to define these three steps. •Any subclass of HouseBuilder will follow these three steps to build house •Then we use a HouseDirector class to force the order of these three steps •The HouseClient orders the building of two houses • Wood house • Brick House •Even though the houses are of different types (wood and brick) they are built the same way
Builder Why The built object is shielded from the details of its construction. Code for construction is isolated from code for representation and both are easy to replace without affecting the other. Gives you control over the construction process. Gives you the possibility to reuse and/or change the process and/or product independently. Drawbacks/consequences Need flexibility in creating various complex objects. Need to create complex, aggregate objects

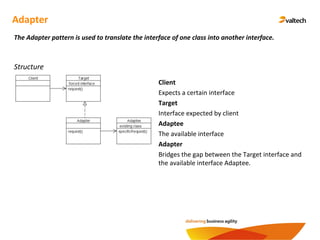

Adapter The Adapter pattern is used to translate the interface of one class into another interface. Structure Client Expects a certain interface Target Interface expected by client Adaptee The available interface Adapter Bridges the gap between the Target interface and the available interface Adaptee.
Adapter Where to use When you want to use an existing class, and its interface does not match the one you need When you want to create a reusable class that cooperates with unrelated or unforeseen classes, that is, classes that don't necessarily have compatible interfaces When you want to increase transparency of classes When you want to make a pluggable kit

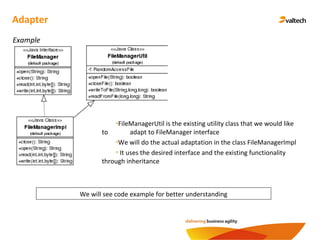

Adapter Example We will see code example for better understanding •FileManagerUtil is the existing utility class that we would like to adapt to FileManager interface •We will do the actual adaptation in the class FileManagerImpl • It uses the desired interface and the existing functionality through inheritance
Adapter Why Highly reusable Introduces only one object Drawbacks/consequences Target must be an interface
Facade Provides a unified interface to a set of interfaces in a subsystem. It defines a higher-level interface that makes the subsystem easier to use. Structure Client The object using the facade to access resources Facade Abstracts the internal resources from the rest of the application
Facade Where to use When you want to use an existing class, and its interface does not match the one you need When you want to create a reusable class that cooperates with unrelated or unforeseen classes, that is, classes that don't necessarily have compatible interfaces When you want to increase transparency of classes When you want to make a pluggable kit

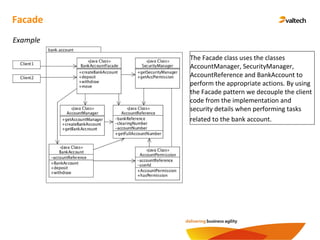

Facade Example The Facade class uses the classes AccountManager, SecurityManager, AccountReference and BankAccount to perform the appropriate actions. By using the Facade pattern we decouple the client code from the implementation and security details when performing tasks related to the bank account.

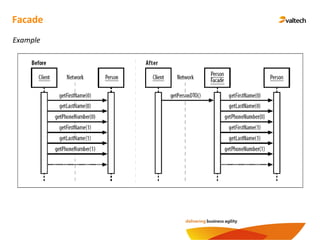

Facade Example

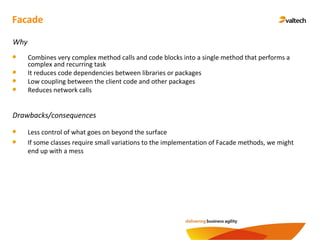

Facade Why Combines very complex method calls and code blocks into a single method that performs a complex and recurring task It reduces code dependencies between libraries or packages Low coupling between the client code and other packages Reduces network calls Drawbacks/consequences Less control of what goes on beyond the surface If some classes require small variations to the implementation of Facade methods, we might end up with a mess

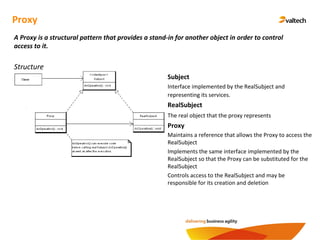

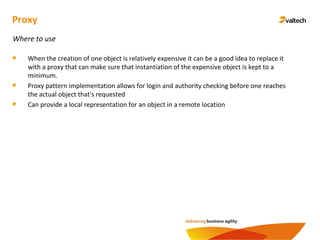

Proxy A Proxy is a structural pattern that provides a stand-in for another object in order to control access to it. Structure Subject Interface implemented by the RealSubject and representing its services. RealSubject The real object that the proxy represents Proxy Maintains a reference that allows the Proxy to access the RealSubject Implements the same interface implemented by the RealSubject so that the Proxy can be substituted for the RealSubject Controls access to the RealSubject and may be responsible for its creation and deletion
Proxy Where to use When the creation of one object is relatively expensive it can be a good idea to replace it with a proxy that can make sure that instantiation of the expensive object is kept to a minimum. Proxy pattern implementation allows for login and authority checking before one reaches the actual object that's requested Can provide a local representation for an object in a remote location

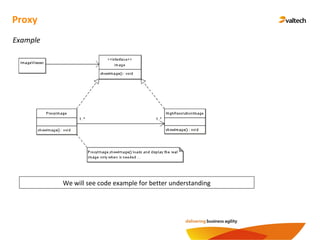

Proxy Example We will see code example for better understanding

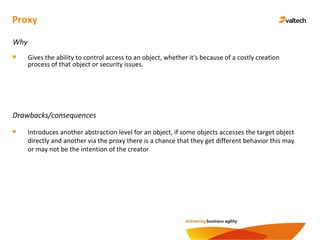

Proxy Why Gives the ability to control access to an object, whether it's because of a costly creation process of that object or security issues. Drawbacks/consequences Introduces another abstraction level for an object, if some objects accesses the target object directly and another via the proxy there is a chance that they get different behavior this may or may not be the intention of the creator

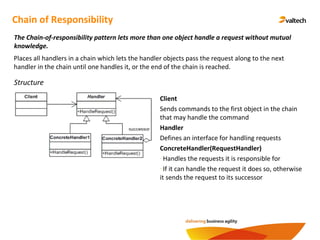

Chain of Responsibility The Chain-of-responsibility pattern lets more than one object handle a request without mutual knowledge. Structure Client Sends commands to the first object in the chain that may handle the command Handler Defines an interface for handling requests ConcreteHandler(RequestHandler) - Handles the requests it is responsible for - If it can handle the request it does so, otherwise it sends the request to its successor Places all handlers in a chain which lets the handler objects pass the request along to the next handler in the chain until one handles it, or the end of the chain is reached.
Chain of Responsibility Where to use When more than one object may handle a request, and the handler isn't known When you want to issue a request to one of several objects without specifying the receiver explicitly When the set of objects that can handle a request should be specified dynamically

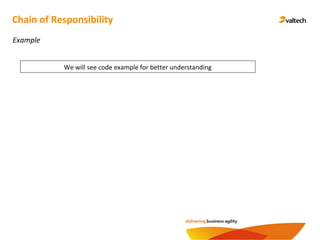

Chain of Responsibility Example We will see code example for better understanding

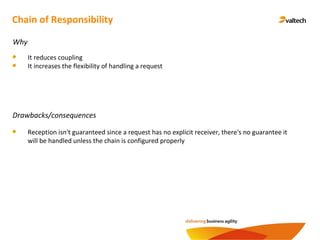

Chain of Responsibility Why It reduces coupling It increases the flexibility of handling a request Drawbacks/consequences Reception isn't guaranteed since a request has no explicit receiver, there's no guarantee it will be handled unless the chain is configured properly

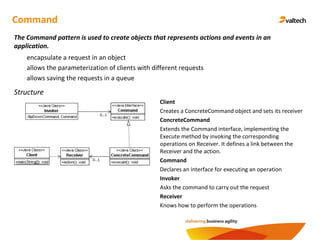

Command The Command pattern is used to create objects that represents actions and events in an application. Structure Client Creates a ConcreteCommand object and sets its receiver ConcreteCommand Extends the Command interface, implementing the Execute method by invoking the corresponding operations on Receiver. It defines a link between the Receiver and the action. Command Declares an interface for executing an operation Invoker Asks the command to carry out the request Receiver Knows how to perform the operations - encapsulate a request in an object - allows the parameterization of clients with different requests - allows saving the requests in a queue
Command Where to use Where you want a action that can be represented in many ways, like dropdown menu, buttons and popup menu To create undo/redo functionality
Command Example We will see code example for better understanding

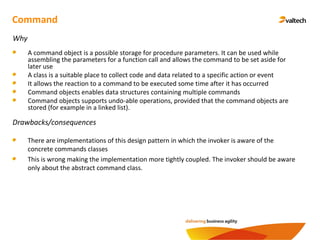

Command Why A command object is a possible storage for procedure parameters. It can be used while assembling the parameters for a function call and allows the command to be set aside for later use A class is a suitable place to collect code and data related to a specific action or event It allows the reaction to a command to be executed some time after it has occurred Command objects enables data structures containing multiple commands Command objects supports undo-able operations, provided that the command objects are stored (for example in a linked list). Drawbacks/consequences There are implementations of this design pattern in which the invoker is aware of the concrete commands classes This is wrong making the implementation more tightly coupled. The invoker should be aware only about the abstract command class.
Mediator Define an object that encapsulates how a set of objects interact. Structure Mediator Defines an interface for communicating colleague objects. ConcreteMediator Knows the colleague classes and keep a reference to the colleague classes. - Implements the communication and transfer the message between the colleague classes Colleague classes Keep a reference to its Mediator object - Communicates with the Mediator whenever it would have otherwise communicated with another Colleague With the mediator pattern communication between objects is encapsulated with a mediator object. Objects no longer communicate directly with each other, but instead communicate through the mediator.
Mediator Where to use The Mediator pattern can be used when a set of objects communicate in well-specified but complex ways and the resulting interdependencies are unstructured and hard to grasp If it is difficult to reuse an object because it refers to and communicates with many other objects this pattern is a good solution A behavior that is distributed between several classes should be customizable without a lot of subclassing
Mediator Example We will see code example for better understanding

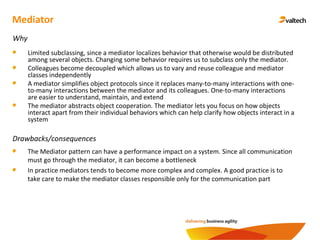

Mediator Why Limited subclassing, since a mediator localizes behavior that otherwise would be distributed among several objects. Changing some behavior requires us to subclass only the mediator. Colleagues become decoupled which allows us to vary and reuse colleague and mediator classes independently A mediator simplifies object protocols since it replaces many-to-many interactions with one- to-many interactions between the mediator and its colleagues. One-to-many interactions are easier to understand, maintain, and extend The mediator abstracts object cooperation. The mediator lets you focus on how objects interact apart from their individual behaviors which can help clarify how objects interact in a system Drawbacks/consequences The Mediator pattern can have a performance impact on a system. Since all communication must go through the mediator, it can become a bottleneck In practice mediators tends to become more complex and complex. A good practice is to take care to make the mediator classes responsible only for the communication part

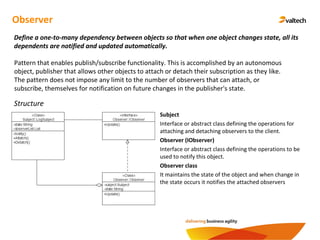

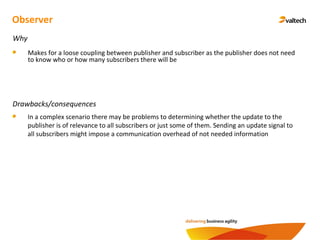

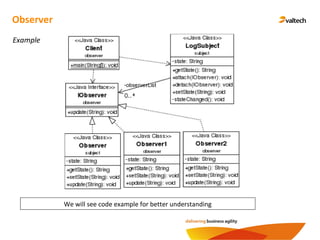

Observer Define a one-to-many dependency between objects so that when one object changes state, all its dependents are notified and updated automatically. Structure Subject Interface or abstract class defining the operations for attaching and detaching observers to the client. Observer (IObserver) Interface or abstract class defining the operations to be used to notify this object. Observer class It maintains the state of the object and when change in the state occurs it notifies the attached observers Pattern that enables publish/subscribe functionality. This is accomplished by an autonomous object, publisher that allows other objects to attach or detach their subscription as they like. The pattern does not impose any limit to the number of observers that can attach, or subscribe, themselves for notification on future changes in the publisher's state.
Observer Where to use When an object wants to publish information and many objects will need to receive that information The change of a state in one object must be reflected in another object without keeping the objects tightly coupled The framework needs to be enhanced in future with new observers with minimal changes
Observer Example We will see code example for better understanding
Observer Why Makes for a loose coupling between publisher and subscriber as the publisher does not need to know who or how many subscribers there will be Drawbacks/consequences In a complex scenario there may be problems to determining whether the update to the publisher is of relevance to all subscribers or just some of them. Sending an update signal to all subscribers might impose a communication overhead of not needed information

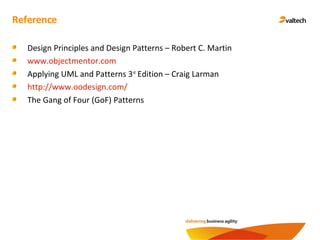

Reference Design Principles and Design Patterns – Robert C. Martin www.objectmentor.com Applying UML and Patterns 3rd Edition – Craig Larman http://www.oodesign.com/ The Gang of Four (GoF) Patterns
Thank You

More Related Content

PPT
Six Principles of Software Design to Empower Scientists
byDavid De Roure

PDF
OO Inheritance - Not Always Evil - Refactoring to Open-Closed with Inheritance
byPhilip Schwarz

PPTX
From catalogues to models: transitioning from existing requirements technique...
byJames Towers

PPTX
L12 GRASP
byÓlafur Andri Ragnarsson

PPTX
Lean Enterprise, A Definitive Approach in Software Development Production
byBerk Dülger

PPTX
DevOps Tactical Adoption Theory - DevOpsDays istanbul 2016
byBerk Dülger

PPTX
Grasp principles
byYuriy Shapovalov

PPT
Software testing
bythaneofife

Six Principles of Software Design to Empower Scientists
byDavid De Roure

OO Inheritance - Not Always Evil - Refactoring to Open-Closed with Inheritance
byPhilip Schwarz

From catalogues to models: transitioning from existing requirements technique...
byJames Towers

L12 GRASP
byÓlafur Andri Ragnarsson

Lean Enterprise, A Definitive Approach in Software Development Production
byBerk Dülger

DevOps Tactical Adoption Theory - DevOpsDays istanbul 2016
byBerk Dülger

Grasp principles
byYuriy Shapovalov

Software testing
bythaneofife


Viewers also liked

PPTX
Audience response to the film industry my questionnaire
byAa-bee ×lala

PDF
2011 Delta Township Accomplishments
byJeffrey C. Hicks

PPTX
Citizenship project
byRicardo Lozano

PPTX
http://chiropractor.nearyoungstownohio.com
by1oldcrow74

PPT
Teachmeet international Julian S Wood
byJulian S Wood

PPT
Presentatie Jurgens Partners
byfritsjjansen

PPTX
Правила перевозки багажа в самолете
byKupibilet

Audience response to the film industry my questionnaire
byAa-bee ×lala

2011 Delta Township Accomplishments
byJeffrey C. Hicks

Citizenship project
byRicardo Lozano

http://chiropractor.nearyoungstownohio.com
by1oldcrow74

Teachmeet international Julian S Wood
byJulian S Wood

Presentatie Jurgens Partners
byfritsjjansen

Правила перевозки багажа в самолете
byKupibilet


Similar to DesignPrinciples-and-DesignPatterns

PPTX
Lecture 09-10 Design Principle.pptxfgsdsd
byamanishfaq678

PPTX
Soild principles
byAvidnyat Chiddarwar

PPTX
Object Oriented Design SOLID Principles
byrainynovember12

PPTX
SOLID Principles
byakbarashaikh

PPT
The OO Design Principles
bySteve Zhang

PDF
Object-oriented design principles
byXiaoyan Chen

PDF
L22 Design Principles
byÓlafur Andri Ragnarsson

PDF
Solid principles
byKumaresh Chandra Baruri

PPTX
An ultimate guide to SOLID Principles, developers must know.
byONE BCG

PPT
principles of object oriented class design
byNeetu Mishra

PPTX
Solid principles
byViet Vu

PDF
Solid Principle
byMurali Pachiyappan

PDF
SOLID Design Principle
byGanesan Dharmalingam

PDF
Software design principles - jinal desai
byjinaldesailive

PDF
How to Master Development's Solid Principles | Tutort Academy
byTutort Academy

PPTX
Object Oriented Principle’s
byvivek p s

PPTX
L07 Design Principles
byÓlafur Andri Ragnarsson

PPTX
Becoming a better developer by using the SOLID design principles
byKaterina Trajchevska

PPTX
slide23-soliddddddddddddddddddddddddd.pptx
bynazircse

PPTX
Learning solid principles using c#
byAditya Kumar Rajan

Lecture 09-10 Design Principle.pptxfgsdsd
byamanishfaq678

Soild principles
byAvidnyat Chiddarwar

Object Oriented Design SOLID Principles
byrainynovember12

SOLID Principles
byakbarashaikh

The OO Design Principles
bySteve Zhang

Object-oriented design principles
byXiaoyan Chen

L22 Design Principles
byÓlafur Andri Ragnarsson

Solid principles
byKumaresh Chandra Baruri

An ultimate guide to SOLID Principles, developers must know.
byONE BCG

principles of object oriented class design
byNeetu Mishra

Solid principles
byViet Vu

Solid Principle
byMurali Pachiyappan

SOLID Design Principle
byGanesan Dharmalingam

Software design principles - jinal desai
byjinaldesailive

How to Master Development's Solid Principles | Tutort Academy
byTutort Academy

Object Oriented Principle’s
byvivek p s

L07 Design Principles
byÓlafur Andri Ragnarsson

Becoming a better developer by using the SOLID design principles
byKaterina Trajchevska

slide23-soliddddddddddddddddddddddddd.pptx
bynazircse

Learning solid principles using c#
byAditya Kumar Rajan


Recently uploaded

DOCX
The Rise of Headless CMS in Modern Web Development.docx
bywork4noahmiller

PDF
LogiNext Media Kit & Company Overview 2025
bysmritipatil055

PDF
Manual Testing Still Matters: 7 Areas Where Humans Beat Automation
byKiwiQA Services

PDF
Visualizing Your Data Lake with Grafana - Amsterdam
byImma Valls Bernaus

PDF
Build a Scalable On-Demand Courier Service App.pdf
byV3CUBE TECHNOLABS

PDF
The Growing Impact of Blockchain and Web3 on Digital Ownership With Paul Inou...
byPaul Inouye

PDF
Windows Server 2025 Administration Fundamentals 4ED
byraynasolomon136

PDF
AI-native development: from Prompt to Platform
byMaxim Salnikov

PDF
Phone Tracker App for Family (2026)_ The Safe, Legit Way to Protect Loved One...
byMia Taylor

PDF
LogiNext Media Kit & Company Overview 2025
bydhrutipatelk5617

PPTX
Marketo API Deep Dive From Basics to AI-Ready Foundations - January 2026.pptx
bybbedford2

PDF
Accelerating Data Validation with QuerySurge AI
byRTTS

PPTX
Applicius Technologies: Full Service Overview for Branding, SEO, Web & App De...
byappliciustech

PDF
ChampionMATES – Compete With Friends. Predict Sports. Become the Champion.
byRafal Ksiazek

PDF
Why I Volunteer at FOSDEM and You Should Too
byImma Valls Bernaus

PDF
Physiotherapist App Development for Modern Rehabilitation
byV3CUBE TECHNOLABS

PDF
LogiNext Media Kit & Company Overview 2025
bysanikaroy72

PDF
Image and video processing: From Mars to Hollywood with a stop at the hospita...
byHarinath Palavalli

PDF
LogiNext Media Kit & Company Overview 2025
bypriyajoshi2929

PDF
Smart ways to se AI in your business , presentation
byAI n Dot Net

The Rise of Headless CMS in Modern Web Development.docx
bywork4noahmiller

LogiNext Media Kit & Company Overview 2025
bysmritipatil055

Manual Testing Still Matters: 7 Areas Where Humans Beat Automation
byKiwiQA Services

Visualizing Your Data Lake with Grafana - Amsterdam
byImma Valls Bernaus

Build a Scalable On-Demand Courier Service App.pdf
byV3CUBE TECHNOLABS

The Growing Impact of Blockchain and Web3 on Digital Ownership With Paul Inou...
byPaul Inouye

Windows Server 2025 Administration Fundamentals 4ED
byraynasolomon136

AI-native development: from Prompt to Platform
byMaxim Salnikov

Phone Tracker App for Family (2026)_ The Safe, Legit Way to Protect Loved One...
byMia Taylor

LogiNext Media Kit & Company Overview 2025
bydhrutipatelk5617

Marketo API Deep Dive From Basics to AI-Ready Foundations - January 2026.pptx
bybbedford2

Accelerating Data Validation with QuerySurge AI
byRTTS

Applicius Technologies: Full Service Overview for Branding, SEO, Web & App De...
byappliciustech

ChampionMATES – Compete With Friends. Predict Sports. Become the Champion.
byRafal Ksiazek

Why I Volunteer at FOSDEM and You Should Too
byImma Valls Bernaus

Physiotherapist App Development for Modern Rehabilitation
byV3CUBE TECHNOLABS

LogiNext Media Kit & Company Overview 2025
bysanikaroy72

Image and video processing: From Mars to Hollywood with a stop at the hospita...
byHarinath Palavalli

LogiNext Media Kit & Company Overview 2025
bypriyajoshi2929

Smart ways to se AI in your business , presentation
byAI n Dot Net


DesignPrinciples-and-DesignPatterns

  • 1.
  • 2.
    Objective What principles andpatterns are and why they are critical to implement applications successfully Understand and apply the principles of object-oriented design Understand GRASP patterns Understand important design patterns
  • 3.
  • 4.
    Why Design Principles? Allsystems change during their life cycle. Symptoms of Rotting Design There are 4 primary symptoms that tell us that our designs are rotting. Rigidity It is hard to change because every change affects too many other parts of the system Fragility When you make a change, unexpected parts of the system break Immobility It is hard to reuse in another application because it cannot be separated from the current application Viscosity Design – Engineers usually find more than one way to make change. Some preserve the design and others do not. When the design preserving methods are harder to employ then the viscosity of the design is high Environment – Development environment is slow and inefficient (e.g. compile times are very long) engineers will be tempted to make changes that don’t force large compiles, even though those changes are not optimal from design point of view
  • 5.
    Why Design Principles? ChangingRequirements Immediate cause of the degradation of the design Requirements have been changing in way that the initial design did not anticipate These changes need to be made quickly, and may be done by others who are not familiar with the original design philosophy Changes to the original design somehow violates the original design bit by bit as the changes continue to pour in, these violations accumulate until malignancy sets in We, as software engineers should keep in mind that requirements change If our designs are failing due to the constant rain of changing requirements, it is our designs that are at fault Find a way to make our design resilient to such changes and protect from rotting Any application that exhibits these symptoms is suffering from a design that is rotting from the inside out. But what causes that rot to take place ?
  • 6.
    Why Design Principles? Whatkind of changes cause design to rot ? Dependency Management Changes that introduce new and unplanned for dependencies Four symptoms mentioned earlier is either directly, or indirectly caused by improper dependencies between the modules of the software It is the dependency architecture that is degrading In order to forestall the degradation of the dependency architecture, the dependencies between modules in an application must be managed This management consists of the creation of dependency firewalls So what is the solution ? Object Oriented Design is supplied with principles and techniques for building such firewalls, and for managing module dependencies.
  • 7.
    Design Principles Software designprinciples represent a set of guidelines that helps us to avoid having a bad design as mentioned earlier.
  • 8.
    Key Design Principles SOLID Isa acronym introduced by Robert C Martin Stands for five basic principles of object-oriented programming design Initial Stands for (acronym) Concept S SRP Single Responsibility Principle O OCP Open Closed Principle L LSP Liskov Substitution Principle I ISP Interface Segregation Principle D DIP Dependency Inversion Principle Other Composite Reuse Principle Law of Demeter
  • 9.
    Single Responsibility Principle(SRP) What Single responsibility principle states that every object should have a single responsibility and therefore a single reason to change A class should have only one reason to change
  • 10.
  • 11.
    Example Single Responsibility Principle(SRP) What happens if a change to the GraphicalApplication causes the Rectangle to change for some reason?
  • 12.
    Conclusion Single responsibility principle(SRP) Why Single Responsibility - increased cohesion Readability – easier to read as it performs one task Testability – only one thing to test Reusability – class is easier to reuse Easier to code – easier and faster to code in small chunks Bugs – become easier to track down One of the simplest of the principles Hardest to get it right A good way of separation of responsibilities Separation of those responsibilities from one another is much of what software design is really about
  • 13.
    Open Close Principle(OCP) What The Open Close Principle states that the design and writing of the code should be done in a way that new functionality should be added with minimum changes in the existing code Software entities like classes, modules and functions should be open for extension but closed for modifications. The design should be done in a way to allow the adding of new functionality as new classes, keeping as much as possible existing code unchanged
  • 14.
  • 15.
    Example Open Close Principle(OCP) Imagine few months down the line you got tired of drinking only Coke and Pepsi and wants to add sprite?
  • 16.
    Conclusion Open Close Principle(OCP) Why Open for extension – behavior of the module/class can be altered to satisfy the changing requirements Closed for modification – modules/classes themselves are not allowed to change Maintainable – module is maintainable as it never needs to change Reusability – module/class being open for extension, it is highly reusable Flexible design involves additional time and effort spent for it and it introduce new level of abstraction increasing the complexity of the code So this principle should be applied in those area which are most likely to be changed
  • 17.
    Liskov’s Substitution Principle(LSP) What The LSP states that if a program (User) module is using a Base class, then the reference to the Base class can be replaced with a Derived class without affecting the functionality of the program module. Functions that use references to base (Super) classes must be able to use objects of derived (Sub) classes without knowing it All derived classes must honour the contracts of their base classes ISA = same public behavior Pre-conditions can only get weaker Post-conditions can only get stronger
  • 18.
    Example Liskov’s Substitution Principle(LSP) Whether Square is a Rectangle? class LspTest { private static Rectangle getNewRectangle() { // it can be an object returned by some factory ... return new Square(); } public static void main (String args[]) { Rectangle r = LspTest.getNewRectangle(); r.setWidth(5); r.setHeight(10); // user knows that r it's a rectangle. It assumes that he's able to set the width and height as for the base class System.out.println(r.getArea()); // now he's surprised to see that the area is 100 instead of 50. } } Rectangle +setHeight() : void +setWidth() : void Square +setHeight() : void +setWidth() : void
  • 19.
    Example Liskov’s Substitution Principle(LSP) What if the minimum period for SpecialCurrentAccount is not satisfied? The closing of Current Account should check for a balance greater than zero. If satisfied, proceed to close the account. The closing of Special Current Account should check for a balance greater than zero and also that the minimum period for the account is covered. If satisfied, proceed to close the account. period closeAccount() : void
  • 20.
    Conclusion Liskov’s Substitution Principle(LSP) Why OCP violations - if / else to identify types Unit tests – Unit tests for the super class would never succeed for the sub class Strange behavior - Mess being that whenever a subclass instance was passed as parameter to any method, strange behavior would occur This principle is just an extension of the Open Close Principle and it means that we must make sure that new derived classes are extending the base classes without changing their behavior Basically wants you to think clearly about the expected behavior and expectations of a class before you derive new classes from it
  • 21.
    Interface Segregation Principle(ISP) What The Interface Segregation Principle states that clients should not be forced to implement interfaces they don't use. Instead of one fat interface many small interfaces are preferred based on groups of methods, each one serving one sub module. Make fine grained interfaces that are client specific
  • 22.
  • 23.
    Example Interface Segregation Principle(ISP) What if there is a need to rotate the file data source to a different file once a certain amount of data has been written to the file?
  • 24.
    Conclusion Interface Segregation Principle(ISP) Why High cohesion – Keep all related methods together Low Coupling – Keep dependence of one another to the bare minimum Fat interfaces – tend to cause a ripple affect to classes who shouldn’t have been affected in the first place It produces a flexible design. If we are going to apply it more than is necessary it will result a code containing a lot of interfaces with single methods, so applying should be done based on experience and common sense in identifying the areas where extension of code are more likely to happens in the future.
  • 25.
    Dependency Inversion Principle(DIP) What Depend on Abstractions. Do not depend on Concrete implementations Design towards Interfaces/Abstract classes rather its implementations. Since implementations are more prone to change and offer less flexibility. High Level Classes --> Abstraction Layer --> Low Level Classes According to this principle the way of designing a class structure is to start from high level modules to the low level modules
  • 26.
  • 27.
    Example Dependency Inversion Principle(DIP) What if you want your DataWriter object to be able to write to any destination?
  • 28.
    Conclusion Dependency Inversion Principle(DIP) Why Increase loose coupling Abstract interfaces don't change Concrete classes implement interfaces Concrete classes easy to throw away and replace Increase mobility Increase isolation Decrease rigidity Increase testability Increase maintainability This principle can not be applied for every class or every module. If we have a class functionality that is more likely to remain unchanged in the future there is no need to apply this principle.
  • 29.
    Composite Reuse Principle(CRP) What Favor delegation over inheritance as a reuse mechanism The Composite Reuse Principles focuses on achieving reuse through delegation (or more appropriately forwarding), instead of defining default behaviors in ancestor classes.
  • 30.
    Example Composite Reuse Principle(CRP) Subclasses of Employee: Manager, Programmer, Secretary, etc. may want to override this method to reflect the fact that some types of employees (managers) get more generous bonuses than others . . . . Employee +computeBonus() : Money Manager +computeBonus() : Money What if we wanted to change the bonus computation for a particular employee
  • 31.
    Example Composite Reuse Principle(CRP) What is the problem and Where can we apply CRP ?
  • 33.
    Conclusion Composite Reuse Principle(CRP) Why This principle relies heavily upon delegation, or more appropriately forwarding. Composite Reuse Principle helps us comply with the Open Closed Principle. Composite Reuse Principle is typically used in conjunction with Dependency Inversion, though this is not a requirement. This is where Composition is a superior choice. Inheritance ties you to a particular implementation or forces you to give up the original idea of generalization by having to constantly override the super-class methods in each sub-class.
  • 34.
    Law of Demeter What Restrictclass interaction in order to minimize coupling among classes More formally, the Law of Demeter for functions requires that a method M of an object O may only invoke the methods of the following kinds of objects: O itself (this) M's parameters any objects created/instantiated within M O's direct component objects a global variable, accessible by O, in the scope of M Also called as Principle of Least Knowledge (PLK) “Each unit should only talk to its friends.” “Don’t talk to strangers
  • 35.
    Example Law of Demeter Analternative to PLK, or a variation on its implementation, is to obtain a reference to an object via a method call, with the restriction that any time this is done, the type of the reference obtained is always an interface data type.
  • 36.
    Example Law of Demeter Whatif currentPerson.Account = null ? currentPerson.Account.Deposit(500) Account may need to be initialized before it can be accessed Say currentPerson.Account = null, will throw null reference exception in bad code In good code, Deposit method can check if null and setup a new one before depositing Account.Deposit(currentPerson, 500)
  • 37.
    Conclusion Law of Demeter Why Theadvantage of following the Law of Demeter is that the resulting software tends to be more maintainable and adaptable. Since objects are less dependent on the internal structure of other objects, object containers can be changed without reworking their callers. A disadvantage of the Law of Demeter is that it sometimes requires writing a large number of small “wrapper” methods to propagate method calls to the components. The higher the degree of coupling between classes, the higher the odds that any change you make will break something somewhere else. This tends to create fragile, brittle code.
  • 38.
  • 39.
    Why design patterns? Developing software is hard, and developing reusable design is even harder Helps in software quality, reduce the development time and improves the shared understanding with in development team Design Pattern = Proven solution to problems for the specific context How do you master these patterns? Simple!! learn rules of the language, then principles/best practices, finally study the patterns used by other masters. Apply these understanding repeatedly in your problem context There are hundreds of patterns do exist in software industry, one must have maturity of selecting appropriate pattern for the context. Care must be taken of applying unnecessary pattern ahead of requirements which would have been solved without it.
  • 40.
    Evolution of Patterns Itall started in civil engineering and architecture Design patterns originated outside the computer industry Design patterns are discovered as much as created
  • 41.
    What is pattern? Pattern describes a proven solution to a recurring design problems Solution to a problem in a given context A Pattern is common, repeatable solution Patterns are generic and take many forms It is advice from previous designers to help designers in new situations Patterns capture the static and dynamic structure and collaboration among key participants in software designs Patterns facilitate reuse of successful software architectures and designs
  • 42.
    Design patterns definitions “Apattern is a proven solution to a problem in a context “ - “Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem in such a way that you can use this solution a million times over, without doing it the same way twice.” - By Alexander “A pattern is a three-part rule, which expresses a relation between a certain context, a problem, and a solution” - By Gang of Four (GoF) (Erich Gamma, Richard Helm, Ralph Johnson, John Vlissides – GoF)
  • 43.
    Properties of patterns Patternsdo... provide common vocabulary provide “shorthand” for effectively communicating complex principles help document software architecture capture essential parts of a design in compact form show more than one solution describe software abstractions Patterns do not... provide an exact solution solve all design problems only apply for object-oriented design
  • 44.
    Identifying a pattern Identifypatterns from experience Look at your past projects Analyse good performing applications Identify pattern candidates Verify the pattern thoroughly
  • 45.
    Using design patterns Understandit completely Check twice before using Study carefully the examples for the pattern Choose names for the pattern participants that are meaningful for your application Define the interfaces, components, classes and relationship Apply the pattern Be careful of Antipatterns
  • 46.
    Antipatterns Mistakes are documentedas Antipatterns They are exact opposite of patterns
  • 47.
  • 48.
  • 49.
    GRASP Patterns GRASP standsfor General Responsibility Assignment Software Patterns/Principles. - Craig Larman Responsibility “A contract or obligation of a type or class” Two types of responsibilities - knowing - doing • about private encapsulated data • about related objects • things that can derive or calculate • something itself • initiating action in other objects • controlling and coordinating activities in other objects
  • 50.
    GRASP Patterns Which class,in the general case is responsible? You want to assign a responsibility to a class You want to avoid or minimize additional dependencies You want to maximise cohesion and minimise coupling You want to increase reuse and decrease maintenance You want to maximise understand ability …..etc.
  • 51.
    GRASP Patterns There arenine (09) core patterns/principles Information Expert Creator Controller Low Coupling High Cohesion Polymorphism Pure Fabrication Indirection Protected Variations
  • 52.
    Information Expert Assign aresponsibility to the information expert - the class that has the information necessary to fulfill the responsibility. The most commonly used pattern Problem: What is the most basic principle by which responsibilities are assigned in object-oriented design? Solution: Assign a responsibility to the class that has the information necessary to fulfil the responsibility.
  • 53.
    Example Information Expert Who isresponsible for knowing the grand total of a sale in a typical Point of Sale application? Sale date time Sales LineItem quantity Product Specification description price UPC Described- by * Contain s 1.. *
  • 54.
    Need all SalesLineIteminstances and their subtotals. Only Sale knows this, so Sale is the information expert. Example : Answer Information Expert Hence Sale date time total() :Salet :=total() Newmethod But subtotals are needed for each line item (multiply quantity by price). By Expert, SalesLineItem is expert, knows quantity and has association with ProductSpecification which knows price.
  • 55.
    Example : Answer InformationExpert Sale date time total() :Salet := total() sli:SalesLineItem SalesLineItem quantity subtotal() 2: st :=subtotal() :Product Specification 2.1: p := price() Product Specification description price UPC price()Newmethod SalesLineItem :SalesLineItem 1*: [foreach]sli :=next()
  • 56.
    Information Expert Hence responsibilitiesassign to the 3 classes. Class Responsibility Sale knows sale total SalesLineItem knows line item subtotal ProductSpecification knows product price
  • 57.
    Information Expert Maintain encapsulationof information Promotes low coupling Promotes highly cohesive classes Can cause a class to become excessively complex Why
  • 58.
    Creator By creator, assignclass B responsibility of creating instance of class A if B aggregates A objects B contains A objects B records instances of A objects B closely uses A objects B has the initializing data for creating A objects Who has responsibility to create an object? Problem: Assign responsibility for creating a new instance of some class? Solution: Determine which class should create instances of a class based on the relationship between potential creator classes and the class to be instantiated.
  • 59.
    Example Creator Who is responsiblefor creating SalesLineItem objects? Sale date time Sales LineItem quantity Product Specification description price UPC Described- by * Contain s 1.. * Look for a class that aggregates or contains SalesLineItem objects.
  • 60.
    Example Creator Creator pattern suggestsSale. Collaboration diagram is Sale date time makeLineItem() total() :SalemakeLineItem(quantity) :SalesLineItem 1:create(quantity) Newmethod
  • 61.
    Creator Promotes low couplingby making instances of a class responsible for creating objects they need to reference By creating the objects themselves, they avoid being dependent on another class to create the object for them Why
  • 62.
    Controller Assign the responsibilityfor handling a system event message to a class representing one of these choices: 1. The business or overall organization (a façade controller). 2. The overall "system" (a façade controller). 3. An animate thing in the domain that would perform the work (a role controller). 4. An artificial class (Pure Fabrication representing the use (a use case controller). The Controller pattern provides guidance for generally acceptable choices. Problem: To assign responsibility for handling a system event? Solution: If a program receive events from external sources other than its graphical interface, add an event class to decouple the event source (s) from the objects that actually handle the events.
  • 63.
    Example Controller System events inBuy Items use case enterItem() endSale() makePayment() Who has the responsibility for enterItem()?
  • 64.
    Example Controller By controller, wehave 4 choices The overall system Post The overall business Store Someone in the real world who is active in the task Cashier An artificial handler of all system events of a use case BuyItemsHandler :POSTenterItem(upc,quantity) :StoreenterItem(upc,quantity) :CashierenterItem(upc,quantity) :BuyItemsHandlerenterItem(upc,quantity) The choice of which one to use will be influenced by other factors such as cohesion and coupling
  • 65.
    Example : Controller - presentationlayer coupled to problem domain Object Store Enter Item End Sale UPC Make Payment Total Quantity Tendered Balance Cashier :POSTCommand presses button onEnterItem() :Sale 1:makeLineItem(upc,qty) PresentationLayer (Commandobject) DomainLayer Itisundesirableforapresentation layerobjectssuchasaJavaappletto getinvolvedindecidinghowtohandle domainprocesses. Businesslogicisembeddedinthe presentationlayer,whichisnotuseful. POSTAppletshouldnot sendthismessage. Bad design
  • 66.
    Example Controller - presentation layerdecoupled from problem domain Object Store Enter Item End Sale UPC Make Payment Total Quantity Tendered Balance :POST Cashier :POSTCommand presses button onEnterItem() 1:enterItem(upc,qty) :Sale1.1:makeLineItem(upc,qty) PresentationLayer (CommandObject) DomainLayer systemeventmessage controller Good design
  • 67.
    Controller Using a controllerobject keeps external event sources and internal event handlers independent of each other’ type and behavior The controller objects can become highly coupled and uncohesive with more responsibilities Why
  • 68.
    Low Coupling Assign responsibilitiesso that (unnecessary) coupling remains low. How to reduce the impact of change ? Problem: To support low dependency and increased reuse? Solution: Assign responsibilities so that coupling remains low. Use this principle to alternatives.
  • 69.
    Low Coupling In objectoriented languages, common form of coupling from TypeX to TypeY include: TypeX has an attribute (data member or instance variable) that refers to a TypeY instance, or TypeY itself TypeX has a method which references an instance of TypeY, or TypeY itself, by any means. These typically include a parameter or local variable of type TypeY, or the object returned from a message being an instance of TypeY TypeX is a direct or indirect subclass of TypeY TypeY is an interface, and TypeX implements that interface
  • 70.
    Low Coupling How canwe make classes independent of other classes? Changes are localised Easier to understand Easier to reuse Payment POST Sale Who has responsibility to create a payment ?
  • 71.
    Low Coupling Two possibilities: :POSTp :Payment :Sale makePayment() 1:create() 2: addPayment(p) 1. Post 2. Sale :POST :Sale :Payment makePayment() 1:makePayment() 1.1.create() Low coupling suggests Sale because Sale has to be coupled to Payment anyway (Sale knows its total). 1 Or 2 ? Example
  • 72.
    Low Coupling Classes areeasier to maintain Easier to reuse Changes are localized Why
  • 73.
    High Cohesion Assign responsibilitiesso that cohesion remains high. How to keep object focused, understandable, and manageable, and as a side-effect , support low coupling ? Problem: To keep complexity manageable? Solution: Assign responsibilities so that cohesion remains high. Use this principle to alternatives.
  • 74.
    High Cohesion Some examples VeryLow Cohesion: A Class is solely responsible for many things in very different functional areas Low Cohesion: A class has sole responsibility for a complex task in one functional area High Cohesion. A class has moderate responsibilities in one functional area and collaborates with classes to fulfil tasks
  • 75.
    High Cohesion Example Who hasresponsibility to create a payment? 1.Post :POST p : Payment :Sale makePayment() 1: create() 2: addPayment(p) Looks OK if makePayement considered in isolation, but adding more system operations, Post would take on more and more responsibilities and become less cohesive.
  • 76.
    High Cohesion Example Giving responsibilityto Sale supports higher cohesion in Post, as well as low coupling. :POST :Sale :Payment makePayment() 1: makePayment() 1.1.create()
  • 77.
    High Cohesion Classes areeasier to maintain Easier to understand Often support low coupling Supports reuse because of fine grained responsibility Why
  • 78.
    Polymorphism When related alternativesor behaviours vary by type (class), assign responsibility for the behaviour using polymorphic operations to the types for which the behaviour varies. Who is responsible when behaviour varies by type ? Problem: To handle alternatives based on types? Solution: When alternate behaviours are selected based on the type of an object, use polymorphic method call to select the behaviour, rather than using if statement to test the type.
  • 79.
    Polymorphism Example By Polymorphism, each paymentshould authorize itself CreditPayment authorize() CheckPayment authorize() CashPayment authorize() Payment amount In the point -of -sale application, who should be responsible for authorising different kinds of payments?
  • 80.
    Polymorphism Easier and morereliable then using explicit selection logic Easier to add additional behaviors later on Increased number classes in a design May make the code less easier to follow Why
  • 81.
    Pure Fabrication Assign ahighly cohesive set of responsibilities to an artificial or convenience “behaviour” class that does not represent a problem domain concept–something made up, in order to support high cohesion, low coupling, and reuse. Who is responsible when you are desperate, and do not want to violate high cohesion and low coupling? Problem: Not to violate High Cohesion and Low Coupling? Solution: Assign a highly cohesive set of responsibilities to an artificial class that does not represent anything in the problem domain, in order to support high cohesion, low coupling, and reuse.
  • 82.
    Pure Fabrication Example Suppose, inthe point of sale example, that support is needed to save Sale instances in a relational database. By Expert, there is some justification to assign this responsibility to Sale class. However. • The task requires a relatively large number of supporting database-oriented operations and the Sale class becomes in cohesive. • The sale class has to be coupled to the relational database increasing its coupling. • Saving objects in a relational database is a very general task for which many classes need support. Placing these responsibilities in the Sale class suggests there is going to be poor reuse or lots of duplication in other classes that do the same thing.
  • 83.
    Pure Fabrication Example The Saleremains well design, with high cohesion and low coupling The PersistentStorageBroker class is itself relatively cohesive The PersistentStorageBroker class is a very generic and reusable object PersistentStorageBroker save() By Pure Fabrication
  • 84.
    Pure Fabrication High cohesionis supported because responsibilities are factored into a class that only focuses on a very specific set of related tasks Reuse potential may be increased because of the presence of fine grained Pure Fabrication classes Preserves low coupling and high cohesion of classes Improve reusability of classes Why
  • 85.
    Indirection Assign responsibilities toan intermediate object to mediate between other components or services, so that they are not directly coupled. How to assign responsibilities to avoid direct coupling ? Problem: To avoid direct coupling? To de-couple objects so that Low coupling is supported and reuse potential remains high? Solution: Assign the responsibility to an intermediate object to mediate between other components or services, so that they are not directly coupled.
  • 86.
    Indirection Example PersistentStorageBroker The Pure fabricationexample of de-coupling the Sale from the relational database services through the introduction of a PersistentStorageBroker is also an example of assigning responsibilities to support Indirection. The PersistentStorageBroker acts as a intermediary between the Sale and database
  • 87.
    Indirection Example Modem dial( ) receive( ) send() By Indirection Modem::dial(phoneNum) { ::OS_OpenPort(1); ::OS_Dial(phoneNUM) } CreditAuthorizationService Modem1:dial(phoneNum)
  • 88.
  • 89.
  • 90.
    Protected Variations Identify pointsof predicted variations or instability; assign responsibilities to create a stable “interface” around them. How to assign responsibilities to objects, subsystems, and systems so that the variations or inability in these elements do not have an undesirable impact on other elements ? Problem: How to design objects so that variation or instability does not have an undesirable impact on other elements? Solution: Identify points of predicated variation or instability; assign responsibilities to create a stable interface around them
  • 91.
    Protected Variations Core mechanismsfor Protected Variations – Data encapsulation – Interfaces – Polymorphism – Indirection – Standards (e.g. APIs like JDBC) • Note that these include virtual machines hiding OS, DB, network, etc
  • 92.
    Protected Variations Example Adaptor How toresolve incompatible interfaces or provide a stable interface to stable components with different interfaces? Convert the original interface of the component into another interface, through an intermediate adaptor object It is concept achieved through polymorphism, interfaces and indirection
  • 93.
    Protected Variations Example Among otherexamples are JDBC and ODBC: These are packages that allow applications to access databases in a DB-independent way In spite of the fact that databases all use slightly different methods of communication It is possible due to an implementation of Protected Variations Users write code to use a generic interface An adapter converts the generic method calls to DB-specific communications and vice versa
  • 94.
    Protected Variations Why Protected variationsaddresses the problem of assigning responsibilities in such a way that variations that might occur do not have undesirable effects upon other elements in the system.
  • 95.
  • 96.
    Core Design PatternsClassification Creational Patterns Have to do with class instantiation Divided into class creation and object creation Class creation patterns use inheritance effectively Object creation patterns use delegation Structural Patterns Concern class and object composition Use inheritance to compose interfaces Define ways to compose objects to obtain new functionality Behavioral Specifically concerned with communication between objects The Gang of Four (GoF) patterns are generally considered the foundation patterns. There are 23 core design patterns identified by GoF.
  • 97.
    Core Design PatternsCatalog Purpose Creational Structural Behavioral Scope Class Factory Adapter Interpreter Object Abstract Factory Singleton Builder Prototype Bridge Composite Decorator Facade Flyweight Proxy Chain of Responsibility Command Iterator Mediator Memento Observer State Strategy Template Visitor Defer object creation to another class Defer object creation to another object Describe algorithms and flow control Describe ways to assemble objects Important patterns
  • 98.
    Factory The Factory patternprovides a way to use an instance as a object factory. The factory can return an instance of one of several possible classes (in a subclass hierarchy), depending on the data provided to it.
  • 99.
    Factory Where to use Whena class can't anticipate which kind of class of object it must create You want to localize the knowledge of which class gets created When you have classes that is derived from the same subclasses, or they may in fact be unrelated classes that just share the same interface. Either way, the methods in these class instances are the same and can be used interchangeably When you want to insulate the client from the actual type that is being instantiated.
  • 100.
    Factory Example The Connectionobject in the java package sql is a factory. Depending on the database driver you use you get the database vendors implementation of the Statement interface.
  • 101.
    Factory Why The client doesnot need to know every subclass of objects it must create. It only need one reference to the abstract class/interface and the factory object. The factory encapsulate the creation of objects. This can be useful if the creation process is very complex Drawbacks/consequences Gives subclasses a hook for providing an extended version of an object being constructed There is no way to change an implementing class without a recompile
  • 102.
    Abstract Factory Abstract Factoryoffers the interface for creating a family of related objects, without explicitly specifying their classes. AbstractFactory Declares an interface for operations that creates abstract products. ConcreteFactory Implements operations to create concrete products. AbstractProduct Declares an interface for a type of product objects. Product It implements the AbstractProduct interface. Defines a product to be created by the corresponding ConcreteFactory. Client Uses the interfaces declared by the AbstractFactory and AbstractProduct classes
  • 103.
    Abstract Factory Where touse When the system needs to be independent of how its products are created composed and represented When the system needs to be configured with one of multiple families of products When a family of products need to be used together and this constraint needs to be enforced When you need to provide a library of products, expose their interfaces not the implementation
  • 104.
    Abstract Factory Example We willsee code example for better understanding
  • 105.
    Abstract Factory Why Use ofthis pattern makes it possible to interchange concrete classes without changing the code that uses them, even at runtime Isolates concrete classes Allows to change product family easily Promotes consistency among products Drawbacks/consequences As with similar design patterns, one of the main drawbacks is the possibility of unnecessary complexity and extra work in the initial writing of the code
  • 106.
    Singleton The Singleton patternprovides the possibility to control the number of instances (mostly one) that are allowed to be made. We also receive a global point of access to it (them). Structure Ensure that only one instance of a class is created. Provide a global point of access to the object.
  • 107.
    Singleton Where to use Whenonly one instance or a specific number of instances of a class are allowed. Facade objects are often Singletons because only one Facade object is required Logger Classes Configuration Classes Accessing resources in shared mode
  • 108.
    Singleton Example class Singleton { private staticSingleton m_instance; private Singleton() { ... } public static synchronized Singleton getInstance() { if (m_instance == null) m_instance = new Singleton(); return m_instance; } ... public void doSomething() { ... } } - The getInstance() method ensure that only one instance of the class is created. - The only way f instantiating the class to be through the getInstance() method. - The getInstance method is used also to provide a global point of access to the object and it can be used like this: Singleton.getInstance().doSomething();
  • 109.
    Singleton Example : Thread-safeimplementation for multithreading use //Lazy instantiation using double locking mechanism. class Singleton { private static Singleton m_instance; private Singleton() { System.out.println("Singleton(): Initializing Instance"); } public static Singleton getInstance() { if (m_instance == null) { synchronized(Singleton.class) { if (m_instance == null) { System.out.println("getInstance(): First time getInstance was invoked!"); m_instance = new Singleton(); } } } return m_instance; } public void doSomething() { System.out.println("doSomething(): Singleton does something!"); } } //Early instantiation using implementation with static field. class Singleton { private static Singleton m_instance = new Singleton(); private Singleton() { System.out.println("Singleton(): Initializing Instance"); } public static Singleton getInstance() { return m_instance; } public void doSomething() { System.out.println("doSomething(): Singleton does something!"); } }
  • 110.
    Singleton Example : Multipleinstances Multiple singleton instances if classes loaded by different classloaders access a singleton. If a class(same name, same package) is loaded by 2 diferent classloaders they represents 2 different clasess in memory. Serialization If the Singleton class implements the java.io.Serializable interface, when a singleton is serialized and then deserialized more than once, there will be multiple instances of Singleton created. In order to avoid this the readResolve method should be implemented. public class Singleton implements Serializable { // This method is called immediately after an object of this class is deserialized. // This method returns the singleton instance. protected Object readResolve() { return getInstance(); } }
  • 111.
    Singleton Why Controlled access tounique instance. Reduced name space. Allows refinement of operations and representations. Drawbacks/consequences Singleton pattern is also considered an anti-pattern by some people, who feel that it is overused, introducing unnecessary limitations in situations where a sole instance of a class is not actually required. The singleton instance is obtained using the class name. At the first view this is an easy way to access it, but it is not very flexible. If we need to replace the Singleton class, all the references in the code should be changed accordingly
  • 112.
    Builder Intention is toabstract steps of construction of objects so that different implementations of these steps can construct different representations of objects. Structure Builder Abstract interface for creating objects (product). Concrete Builder Provide implementation for Builder. Construct and assemble parts to build the objects. Director The Director class is responsible for managing the correct sequence of object creation. It receives a Concrete Builder as a parameter and executes the necessary operations on it. Product The final object that will be created by the Director using Builder.
  • 113.
    Builder Where to use Whenthe algorithm for creating a complex object should be independent of the parts that make up the object and how they are assembled When the construction process must allow different representations for the object that is constructed When you want to insulate clients from the knowledge of the actual creation process and/or resulting product.
  • 114.
    Builder Example We will seecode example for better understanding For instance to build a house, we will take several steps: 1. Build floor 2. Build walls 3. Build roof •Let's use an abstract class HouseBuilder to define these three steps. •Any subclass of HouseBuilder will follow these three steps to build house •Then we use a HouseDirector class to force the order of these three steps •The HouseClient orders the building of two houses • Wood house • Brick House •Even though the houses are of different types (wood and brick) they are built the same way
  • 115.
    Builder Why The built objectis shielded from the details of its construction. Code for construction is isolated from code for representation and both are easy to replace without affecting the other. Gives you control over the construction process. Gives you the possibility to reuse and/or change the process and/or product independently. Drawbacks/consequences Need flexibility in creating various complex objects. Need to create complex, aggregate objects
  • 116.
    Adapter The Adapter patternis used to translate the interface of one class into another interface. Structure Client Expects a certain interface Target Interface expected by client Adaptee The available interface Adapter Bridges the gap between the Target interface and the available interface Adaptee.
  • 117.
    Adapter Where to use Whenyou want to use an existing class, and its interface does not match the one you need When you want to create a reusable class that cooperates with unrelated or unforeseen classes, that is, classes that don't necessarily have compatible interfaces When you want to increase transparency of classes When you want to make a pluggable kit
  • 118.
    Adapter Example We will seecode example for better understanding •FileManagerUtil is the existing utility class that we would like to adapt to FileManager interface •We will do the actual adaptation in the class FileManagerImpl • It uses the desired interface and the existing functionality through inheritance
  • 119.
    Adapter Why Highly reusable Introduces onlyone object Drawbacks/consequences Target must be an interface
  • 120.
    Facade Provides a unifiedinterface to a set of interfaces in a subsystem. It defines a higher-level interface that makes the subsystem easier to use. Structure Client The object using the facade to access resources Facade Abstracts the internal resources from the rest of the application
  • 121.
    Facade Where to use Whenyou want to use an existing class, and its interface does not match the one you need When you want to create a reusable class that cooperates with unrelated or unforeseen classes, that is, classes that don't necessarily have compatible interfaces When you want to increase transparency of classes When you want to make a pluggable kit
  • 122.
    Facade Example The Facade classuses the classes AccountManager, SecurityManager, AccountReference and BankAccount to perform the appropriate actions. By using the Facade pattern we decouple the client code from the implementation and security details when performing tasks related to the bank account.
  • 123.
  • 124.
    Facade Why Combines very complexmethod calls and code blocks into a single method that performs a complex and recurring task It reduces code dependencies between libraries or packages Low coupling between the client code and other packages Reduces network calls Drawbacks/consequences Less control of what goes on beyond the surface If some classes require small variations to the implementation of Facade methods, we might end up with a mess
  • 125.
    Proxy A Proxy isa structural pattern that provides a stand-in for another object in order to control access to it. Structure Subject Interface implemented by the RealSubject and representing its services. RealSubject The real object that the proxy represents Proxy Maintains a reference that allows the Proxy to access the RealSubject Implements the same interface implemented by the RealSubject so that the Proxy can be substituted for the RealSubject Controls access to the RealSubject and may be responsible for its creation and deletion
  • 126.
    Proxy Where to use Whenthe creation of one object is relatively expensive it can be a good idea to replace it with a proxy that can make sure that instantiation of the expensive object is kept to a minimum. Proxy pattern implementation allows for login and authority checking before one reaches the actual object that's requested Can provide a local representation for an object in a remote location
  • 127.
    Proxy Example We will seecode example for better understanding
  • 128.
    Proxy Why Gives the abilityto control access to an object, whether it's because of a costly creation process of that object or security issues. Drawbacks/consequences Introduces another abstraction level for an object, if some objects accesses the target object directly and another via the proxy there is a chance that they get different behavior this may or may not be the intention of the creator
  • 129.
    Chain of Responsibility TheChain-of-responsibility pattern lets more than one object handle a request without mutual knowledge. Structure Client Sends commands to the first object in the chain that may handle the command Handler Defines an interface for handling requests ConcreteHandler(RequestHandler) - Handles the requests it is responsible for - If it can handle the request it does so, otherwise it sends the request to its successor Places all handlers in a chain which lets the handler objects pass the request along to the next handler in the chain until one handles it, or the end of the chain is reached.
  • 130.
    Chain of Responsibility Whereto use When more than one object may handle a request, and the handler isn't known When you want to issue a request to one of several objects without specifying the receiver explicitly When the set of objects that can handle a request should be specified dynamically
  • 131.
    Chain of Responsibility Example Wewill see code example for better understanding
  • 132.
    Chain of Responsibility Why Itreduces coupling It increases the flexibility of handling a request Drawbacks/consequences Reception isn't guaranteed since a request has no explicit receiver, there's no guarantee it will be handled unless the chain is configured properly
  • 133.
    Command The Command patternis used to create objects that represents actions and events in an application. Structure Client Creates a ConcreteCommand object and sets its receiver ConcreteCommand Extends the Command interface, implementing the Execute method by invoking the corresponding operations on Receiver. It defines a link between the Receiver and the action. Command Declares an interface for executing an operation Invoker Asks the command to carry out the request Receiver Knows how to perform the operations - encapsulate a request in an object - allows the parameterization of clients with different requests - allows saving the requests in a queue
  • 134.
    Command Where to use Whereyou want a action that can be represented in many ways, like dropdown menu, buttons and popup menu To create undo/redo functionality
  • 135.
    Command Example We will seecode example for better understanding
  • 136.
    Command Why A command objectis a possible storage for procedure parameters. It can be used while assembling the parameters for a function call and allows the command to be set aside for later use A class is a suitable place to collect code and data related to a specific action or event It allows the reaction to a command to be executed some time after it has occurred Command objects enables data structures containing multiple commands Command objects supports undo-able operations, provided that the command objects are stored (for example in a linked list). Drawbacks/consequences There are implementations of this design pattern in which the invoker is aware of the concrete commands classes This is wrong making the implementation more tightly coupled. The invoker should be aware only about the abstract command class.
  • 137.
    Mediator Define an objectthat encapsulates how a set of objects interact. Structure Mediator Defines an interface for communicating colleague objects. ConcreteMediator Knows the colleague classes and keep a reference to the colleague classes. - Implements the communication and transfer the message between the colleague classes Colleague classes Keep a reference to its Mediator object - Communicates with the Mediator whenever it would have otherwise communicated with another Colleague With the mediator pattern communication between objects is encapsulated with a mediator object. Objects no longer communicate directly with each other, but instead communicate through the mediator.
  • 138.
    Mediator Where to use TheMediator pattern can be used when a set of objects communicate in well-specified but complex ways and the resulting interdependencies are unstructured and hard to grasp If it is difficult to reuse an object because it refers to and communicates with many other objects this pattern is a good solution A behavior that is distributed between several classes should be customizable without a lot of subclassing
  • 139.
    Mediator Example We will seecode example for better understanding
  • 140.
    Mediator Why Limited subclassing, sincea mediator localizes behavior that otherwise would be distributed among several objects. Changing some behavior requires us to subclass only the mediator. Colleagues become decoupled which allows us to vary and reuse colleague and mediator classes independently A mediator simplifies object protocols since it replaces many-to-many interactions with one- to-many interactions between the mediator and its colleagues. One-to-many interactions are easier to understand, maintain, and extend The mediator abstracts object cooperation. The mediator lets you focus on how objects interact apart from their individual behaviors which can help clarify how objects interact in a system Drawbacks/consequences The Mediator pattern can have a performance impact on a system. Since all communication must go through the mediator, it can become a bottleneck In practice mediators tends to become more complex and complex. A good practice is to take care to make the mediator classes responsible only for the communication part
  • 141.
    Observer Define a one-to-manydependency between objects so that when one object changes state, all its dependents are notified and updated automatically. Structure Subject Interface or abstract class defining the operations for attaching and detaching observers to the client. Observer (IObserver) Interface or abstract class defining the operations to be used to notify this object. Observer class It maintains the state of the object and when change in the state occurs it notifies the attached observers Pattern that enables publish/subscribe functionality. This is accomplished by an autonomous object, publisher that allows other objects to attach or detach their subscription as they like. The pattern does not impose any limit to the number of observers that can attach, or subscribe, themselves for notification on future changes in the publisher's state.
  • 142.
    Observer Where to use Whenan object wants to publish information and many objects will need to receive that information The change of a state in one object must be reflected in another object without keeping the objects tightly coupled The framework needs to be enhanced in future with new observers with minimal changes
  • 143.
    Observer Example We will seecode example for better understanding
  • 144.
    Observer Why Makes for aloose coupling between publisher and subscriber as the publisher does not need to know who or how many subscribers there will be Drawbacks/consequences In a complex scenario there may be problems to determining whether the update to the publisher is of relevance to all subscribers or just some of them. Sending an update signal to all subscribers might impose a communication overhead of not needed information
  • 145.
    Reference Design Principles andDesign Patterns – Robert C. Martin www.objectmentor.com Applying UML and Patterns 3rd Edition – Craig Larman http://www.oodesign.com/ The Gang of Four (GoF) Patterns
  • 146.

Editor's Notes

  • #5 There are four primary symptoms that tell us that our designs are rotting. They are not orthogonal, but are related to each other in ways that will become obvious. they are: rigidity, fragility, immobility, and viscosity. Rigidity - It is hard to change because every change affects too many other parts of the system Fragility - When you make a change, unexpected parts of the system break Immobility - It is hard to reuse in another application because it cannot be disentangled from the current application Viscosity - Viscosity comes in two forms: viscosity of the design - When faced with a change, engineers usually find more than one way to make the change. Some of the ways preserve the design, others do not (i.e. they are hacks.) When the design preserving methods are harder to employ than the hacks, then the viscosity of the design is high. It is easy to do the wrong thing, but hard to do the right thing. viscosity of the environment. Viscosity of environment comes about when the development environment is slow and inefficient. For example, if compile times are very long, engineers will be tempted to make changes that don’t force large recompiles, even though those changes are not optiimal from a design point of view. If the source code control system requires hours to check in just a few files, then engineers will be tempted to make changes that require as few check-ins as possible, regardless of whether the design is preserved. These four symptoms are the tell-tale signs of poor architecture.
  • #6 The immediate cause of the degradation of the design is well understood. The requirements have been changing in ways that the initial design did not anticipate. Often these changes need to be made quickly, and may be made by engineers who are not familiar with the original design philosophy. So, though the change to the design works, it somehow violates the original design. Bit by bit, as the changes continue to pour in, these violations accumulate until malignancy sets in. However, we cannot blame the drifting of the requirements for the degradation of the design. We, as software engineers, know full well that requirements change. Indeed, most of us realize that the requirements document is the most volatile document in the project. If our designs are failing due to the constant rain of changing requirements, it is our designs that are at fault. We must somehow find a way to make our designs resilient to such changes and protect them from rotting.
  • #7 What kind of changes cause designs to rot? Changes that introduce new and unplanned for dependencies. Each of the four symptoms mentioned above is either directly, or indirectly caused by improper dependencies between the modules of the software. It is the dependency architecture that is degrading, and with it the ability of the software to be maintained. In order to forestall the degradation of the dependency architecture, the dependencies between modules in an application must be managed. This management consists of the creation of dependency firewalls. Accross such firewalls, dependencies do not propogate. Object Oriented Design is replete with principles and techniques for building such firewalls, and for managing module dependencies. It is these principles and techniques that will be discussed in the remainder of this chapter. First we will examine the principles, and then the techniques, or design patterns, that help maintain the dependency architecture of an application.
  • #17 The major benefits received from the open-closed principle are modules that are open for extension, yet closed for modification. Why are these benefits so big? They are big because they seek to achieve two goals of object-oriented programming. With the module being open for extension, it is highly reusable and can be used to satisfy a ever changing list of requirements. Also, the module is extremely maintainable, as it never needs to change.
  • #18 Further, the Liskov Substitution Principle states that by inheriting you shouldn’t weaken the post conditions nor should you strengthen the pre conditions and you also shouldn’t change expected behavior.
  • #19 Let's assume that the Rectangle object is used somewhere in the application. We extend the application and add the Square class. The square class is returned by a factory pattern, based on some conditions and we don't know the exact what type of object will be returned. But we know it's a Rectangle. We get the rectangle object, set the width to 5 and height to 10 and get the area. For a rectangle with width 5 and height 10 the area should be 50. Instead the result will be 100
  • #20 With this hierarchy, what may surprise you is that we have not changed the implementation of the closeAccount() method in any of the classes. The pre-conditions and the post-conditions remain the same. But in essence, what has happened is that the user will not make any assumption about the behaviour of the account object he is dealing with. This makes the module more maintainable and reusable in the sense that now it is very easy to add another type of account which may impose some other pre-condition and post-condition without breaking the LSP and Design by Contract.
  • #21 ConclusionIt may seem from the above discussion that overriding is the main problem with LSP and in that case inheritance makes no sense. To some extent, it is puzzling but always keep the Design by Contract principle in mind before you override. If you are unable to comply with the same, then it might be worth revisiting your class diagrams. Always make sure that the derived class must enforce less strict pre-conditions while overriding any base class method. Try to think about the situation on your own and surely you will come up with some logic why LSP is so important for a good OO design.
  • #22 Many client specific interfaces are better than one general purpose interface Create an interface per client type not per client Avoid needless coupling to clients
  • #24 There's another aspect that needs be to considered. What happens if the data source is read-only? The methods for inserting and updating data are not needed. On the other hand, if the DAO object should implement the DAO interface, it will have to provide a null implementation for those methods defined in the interface. This is still acceptable, but the design is gradually going wrong. What if there is a need to rotate the file data source to a different file once a certain amount of data has been written to the file? That will require a separate method to add to the DAO interface. This is just to add the flexibility to the clients using this FileDAO object to enable them to choose either the normal append feature to the file data source or to make use of the improved file rotation feature.
  • #25 Like every principle Interface Segregation Principle is one principle which require additional time and effort spent to apply it during the design time and increase the complexity of code. But it produce a flexible design. If we are going to apply it more than is necessary it will result a code containing a lot of interfaces with single methods, so applying should be done based on experience and common sense in identifying the areas where extension of code are more likely to happens in the future.
  • #26 High-level modules should not depend on low-level modules. Both should depend on abstractions. Abstractions should not depend on details. Details should depend on abstractions.
  • #28 The DataWriter class uses the DataCollector class. The DataCollector class is responsible for collecting the data from some data source and passing the required object to the DataWriter class. The DataWriter class in turn accepts the passed object and uses another class DatabaseWriter to write data to the database. it is tied to the implementation of the DatabaseWriter object
  • #29 When this principle is applied it means that the high level classes are not working directly with low level classes, they are using interfaces as an abstract layer. In that case the creation of new low level objects inside the high level classes(if necessary) can not be done using the operator new. Instead, some of the Creational design patterns can be used, such as Factory Method, Abstract Factory, Prototype. The Template Design Pattern is an example where the DIP principle is applied. Of course, using this principle implies an increased effort and a more complex code, but more flexible. This principle can not be applied for every class or every module. If we have a class functionality that is more likely to remain unchanged in the future there is not need to apply this principle.
  • #31 For example, suppose an Employee class has a method for computing the employee's annual bonus: class Employee {   Money computeBonus() { /* skimpy default bonus */ }   // etc.} Different subclasses of Employee: Manager, Programmer, Secretary, etc. may want to override this method to reflect the fact that some types of employees (managers) get more generous bonuses than others (secretaries and programmers): class Manager extends Employee {   Money computeBonus() { /* gerenous bonus */ }   // etc.} There are several problems with this solution. 1. All programmers get the same bonus. What if we wanted to vary the bonus computation among programmers? Would we need to introduce a special subclass of Programmer? class SeniorProgrammer extends Programmer {   Money computeBonus() { /* gerenous bonus */ }   // etc.} Note also that this leads to code duplication. 2. What if we wanted to change the bonus computation for a particular employee? For example, what if we wanted to promote Smith from programmer to senior programmer? Would this require us to recompile any code? 3. What if we decided to give all programmers the same generous bonus that managers get? What changes would we need to make? Should "generous bonus" become the new default algorithm that is overridden in the Secretary class with the skimpy bonus algorithm? Should we copy and paste the "generous bonus" algorithm from manager to Programmer? Alternatively, we can use the Strategy pattern and introduce a separate hierarchy of bonus calculators:
  • #41 It all started in civil engineering and architecture. In the seventies, architecture was considered as a discipline that required a lot of experience. But over a period of time, people like Christopher Alexander surprised the community by publishing books on architecture, there by they made it possible for people who are even without specialized knowledge and experience to give architectural solutions. The idea was simple, he identified the similarities between architectures that proved to be good, and identified the principles and wrote them as solutions to common design problems. These were named as PATTERNS in architecture. The simplest patterns may be summed up in no more than a sentence or two. For ex: Using a database to store information for a website is a pattern. A complex one perhaps require more explanation. Note: UML is widely used to describe patterns In fact any developer who as build anything with J2EE, or even with significant components of J2EE has probably discovered at least one ore two of the patterns already.
  • #43 Design Patterns are recurring solutions to recurring problems. Patterns are gathered through experience and are based on proven solutions. A pattern becomes a pattern only after it has been verified several times in real world systems. Hence patterns gives us the following advantages. 1. It promotes reuse. 2. It prevent us from reinventing the wheel 3. It improves our productivity by making us work faster and efficiently. 4. Patterns also give us vocabulary, which improves communication between architects and designers. 5. Patterns encourage us to combine them to solve larger problems. Note: Finding patterns is a matter of experience and thought process and not novelty.
  • #44 Design Patterns are recurring solutions to recurring problems. Patterns are gathered through experience and are based on proven solutions. A pattern becomes a pattern only after it has been verified several times in real world systems. Hence patterns gives us the following advantages. 1. It promotes reuse. 2. It prevent us from reinventing the wheel 3. It improves our productivity by making us work faster and efficiently. 4. Patterns also give us vocabulary, which improves communication between architects and designers. 5. Patterns encourage us to combine them to solve larger problems. Note: Finding patterns is a matter of experience and thought process and not novelty.
  • #45 We identify patterns from experience. Every experienced architect or designer has figured out that in all the majority of projects, similar problems occur and most interestingly, solutions to these problems are also similar. This does not mean that the actual solution will be exactly the same. However, it does mean that all solutions share basic concepts. When looked at from a point of abstraction, we could say that all these solutions and problems represent a common abstract problem with a common abstract solution. However, a set of solutions becomes a pattern only after they have been verified. Of-course verifying complex patterns in software engineering might be a little more difficult than verifying simpler architectural patterns. So don’t identify patterns directly, first identify pattern candidates. Pattern candidates should be standalone solutions with as few connections to the outer world as possible. We have to validate the pattern candidates. The thumb rule in validating the pattern is 1. The pattern should be proved in at least three different systems. Basically which means that the pattern should be verified thoroughly as possible. Pls Note: A pattern that cannot fulfill the goals can do more damage, and can bring bad reputation to patterns.
  • #46 Before using a pattern, understand it completely. This requires that we study the solutions section, problem section, and the example section etc. Then we should understand all the components , classes, interfaces and objects that take part in the pattern and their relationships. We should check once again that whether we have selected the appropriate pattern. Note: Learning many patterns is not sufficient for becoming a good designer. We have to understand every pattern we learn and we should be clear on when to use which pattern.
  • #47 Antipatterns describe negative solutions, which cause more problems than they address. Antipatterns describes design solutions that do not work in practice due to unintended and unforeseen negative consequences. For example, a typical wrong decision made in the first J2EE applications was to model entity beans with a fine grained interfaces and accessing them directly. This added a considerable remote method invocation and transaction management overhead, which resulted in poorly performing and unscalable application.
  • #50 There are different types of patterns that we will look at. The majority of them are design patterns that help us structure our components and code in order to solve specific problems. However, before looking at some of the design patterns, we will look at a different type of pattern. Some might call them process patterns. They describe an appropriate way of performing tasks. We will look at the GRASP patterns described by Craig Larman in his book: Applying UML and Patterns, 3ed. GRASP stands for General Responsibility Assignment Software Patterns. There are several GRASP patterns, but we will only look at a few of the more important ones. Some of them are simply good design principles, and one can argue whether they are really patterns. For example, High Cohesion and Low Coupling are two that are well known design principles and not really patterns.
  • #54 Expert Which class, in the general case is responsible? .         You want to assign a responsibility to a class         You want to assign the responsibility to a class that is already present in your design if possible         A class already has access to the information required to carry out the responsibility         You want to avoid or minimize additional dependencies
  • #80 In the point -of -sale application, who should be responsible for authorising different kinds of payments? – Note: Payments may be in • cash (authorising involves determining if it is counterfeit) • credit (authorising involves communication with bank) • check (authorising involves driver license record)
  • #88 Assume that : A point-of-sale terminal application needs to manipulate a modem in order to transmit credit payment request The operating system provides a low-level function call API for doing so. A class called CreditAuthorizationService is responsible for talking to the modem If CreditAuthorizationService invokes the low –level API function calls directly, it is highly coupled to the API of the particular operating system. If the class needs to be ported to another operating system, then it will requiure modification. Add an intermediate Modem class between the CreditAuthorizationService and the modem API. It is responsible for translating abstract modem requests to the API and creating an Indirection between the CreditAuthorizationService and the modem.
  • #89 Assume that : A point-of-sale terminal application needs to manipulate a modem in order to transmit credit payment request The operating system provides a low-level function call API for doing so. A class called CreditAuthorizationService is responsible for talking to the modem If CreditAuthorizationService invokes the low –level API function calls directly, it is highly coupled to the API of the particular operating system. If the class needs to be ported to another operating system, then it will requiure modification. Add an intermediate Modem class between the CreditAuthorizationService and the modem API. It is responsible for translating abstract modem requests to the API and creating an Indirection between the CreditAuthorizationService and the modem.
  • #115 Builder Pattern Motivation The more complex an application is the complexity of classes and objects used increases. Complex objects are made of parts produced by other objects that need special care when being built. An application might need a mechanism for building complex objects that is independent from the ones that make up the object. If this is the problem you are being confronted with, you might want to try using the Builder (or Adaptive Builder) design pattern. This pattern allows a client object to construct a complex object by specifying only its type and content, being shielded from the details related to the object’s representation. This way the construction process can be used to create different representations. The logic of this process is isolated form the actual steps used in creating the complex object, so the process can be used again to create a different object form the same set of simple objects as the first one.Intent Defines an instance for creating an object but letting subclasses decide which class to instantiate Refers to the newly created object through a common interface Implementation The Builder design pattern uses the Factory Builder pattern to decide which concrete class to initiate in order to build the desired type of object, as we will see below in the UML diagram: The participants classes in this pattern are: The Builder class specifies an abstract interface for creating parts of a Product object. The ConcreteBuilder constructs and puts together parts of the product by implementing the Builder interface. It defines and keeps track of the representation it creates and provides an interface for saving the product. The Director class constructs the complex object using the Builder interface. The Product represents the complex object that is being built. The client, that may be either another object or the actual client that calls the main() method of the application, initiates the Builder and Director class. The Builder represents the complex object that needs to be built in terms of simpler objects and types. The constructor in the Director class receives a Builder object as a parameter from the Client and is responsible for calling the appropriate methods of the Builder class. In order to provide the Client with an interface for all concrete Builders, the Builder class should be an abstract one. This way you can add new types of complex objects by only defining the structure and reusing the logic for the actual construction process. The Client is the only one that needs to know about the new types, the Director needing to know which methods of the Builder to call.The following example discusses the case of a text converting application: The Client needs to convert a document from RTF format to ASCII format. There for, it calls the method createASCIIText that takes as a parameter the document that will be converted. This method calls the concrete builder, ASCIIConverter, that extends the Builder, TextConverter, and overrides its two methods for converting characters and paragraphs, and also the Director, RTFReader, that parses the document and calls the builder’s methods depending on the type of token encountered. The product, the ASCIIText, is built step by step, by appending converted characters. //Abstract Builder class abstract class TextConverter{ abstract void convertCharacter(char c); abstract void convertParagraph(); } // Product class ASCIIText{ public void append(char c){ //Implement the code here } } //Concrete Builder class ASCIIConverter extends TextConverter{ ASCIIText asciiTextObj;//resulting product /*converts a character to target representation and appends to the resulting*/ object void convertCharacter(char c){ char asciiChar = new Character(c).charValue(); //gets the ascii character asciiTextObj.append(asciiChar); } void convertParagraph(){} ASCIIText getResult(){ return asciiTextObj; } } //This class abstracts the document object class Document{ static int value; char token; public char getNextToken(){ //Get the next token return token; } } //Director class RTFReader{ private static final char EOF='0'; //Delimitor for End of File final char CHAR='c'; final char PARA='p'; char t; TextConverter builder; RTFReader(TextConverter obj){ builder=obj; } void parseRTF(Document doc){ while ((t=doc.getNextToken())!= EOF){ switch (t){ case CHAR: builder.convertCharacter(t); case PARA: builder.convertParagraph(); } } } } //Client public class Client{ void createASCIIText(Document doc){ ASCIIConverter asciiBuilder = new ASCIIConverter(); RTFReader rtfReader = new RTFReader(asciiBuilder); rtfReader.parseRTF(doc); ASCIIText asciiText = asciiBuilder.getResult(); } public static void main(String args[]){ Client client=new Client(); Document doc=new Document(); client.createASCIIText(doc); system.out.println("This is an example of Builder Pattern"); } } Applicability & Examples Builder Pattern is used when: the creation algorithm of a complex object is independent from the parts that actually compose the object the system needs to allow different representations for the objects that are being built Example 1 - Vehicle Manufacturer. Let us take the case of a vehicle manufacturer that, from a set of parts, can build a car, a bicycle, a motorcycle or a scooter. In this case the Builder will become the VehicleBuilder. It specifies the interface for building any of the vehicles in the list above, using the same set of parts and a different set of rules for every type of type of vehicle. The ConcreteBuilders will be the builders attached to each of the objects that are being under construction. The Product is of course the vehicle that is being constructed and the Director is the manufacturer and its shop. Example 1 - Students Exams. If we have an application that can be used by the students of a University to provide them with the list of their grades for their exams, this application needs to run in different ways depending on the user that is using it, user that has to log in. This means that, for example, the admin needs to have some buttons enabled, buttons that needs to be disabled for the student, the common user. The Builder provides the interface for building form depending on the login information. The ConcreteBuilders are the specific forms for each type of user. The Product is the final form that the application will use in the given case and the Director is the application that, based on the login information, needs a specific form. Specific problems and implementation Builder and Abstract Factory The Builder design pattern is very similar, at some extent, to the Abstract Factory pattern. That’s why it is important to be able to make the difference between the situations when one or the other is used. In the case of the Abstract Factory, the client uses the factory’s methods to create its own objects. In the Builder’s case, the Builder class is instructed on how to create the object and then it is asked for it, but the way that the class is put together is up to the Builder class, this detail making the difference between the two patterns. Common interface for products In practice the products created by the concrete builders have a structure significantly different, so if there is not a reason to derive different products a common parent class. This also distinguishes the Builder pattern from the Abstract Factory pattern which creates objects derived from a common type.
  • #123 Consider the graphics above, where the Client classes makes calls to the BankAccountFacade class. The Facade class uses the classes AccountManager, SecurityManager, AccountReference and BankAccount to perform the appropriate actions. By using the Facade pattern we decouple the client code from the implementation and security details when performing tasks related to the bank account.
