1. Lecture 03
Software Design 1

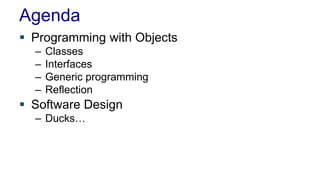

2. Agenda
 Programming with Objects
– Classes
– Interfaces
– Generic programming
– Reflection
 Software Design
– Ducks…

3. Reading
 Barbin Introduction, 1 Core Principles
– Separation of concerns (SoC)
– Coupling
– Cohesion
– Information Hiding
 Don’t Repeat Yourself
 Polymorphism
 Optional:
– http://docs.oracle.com/javase/tutorial/

4. Programming with Objects

5. Object Oriented Programming
 Object Oriented programming can be powerful
– One of the best ways for general purpose computing
 But
– The power of object oriented languages needs to be
used properly!
 However
– Programmers tend to forget the power of OO

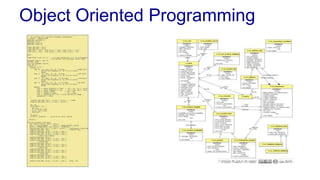

6. Object Oriented Programming

7. Object Oriented Programming

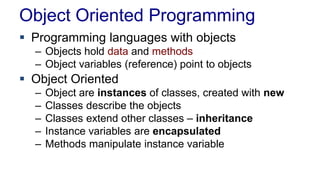

 Programming languages with objects
– Objects hold data and methods
– Object variables (reference) point to objects
 Object Oriented
– Object are instances of classes, created with new
– Classes describe the objects
– Classes extend other classes – inheritance
– Instance variables are encapsulated
– Methods manipulate instance variable

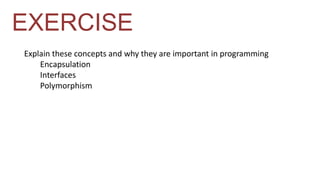

8. EXERCISE
Explain these concepts and why they are important in programming
Encapsulation
Interfaces
Polymorphism

9. Think About This!
 Object-oriented programming
– Is not about class inheritance and creating advanced
class diagrams
 Remember
– Encapsulation – Hiding data
– Interfaces – Hiding implementation
– Polymorphism – Flexible and Generic Programming
 Powerful programming
– Separation of concerns
– Separating what varies from what stays the same

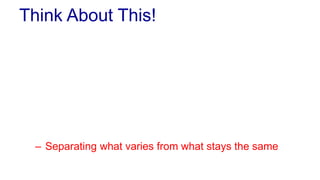

10. Think About This!
 Object-oriented programming
– Is not about class inheritance and creating advanced
class diagrams
 Remember
– Encapsulation – Hiding data
– Interfaces – Hiding implementation
– Polymorphism – Flexible and Generic Programming
 Powerful programming
– Separation of concerns
– Separating what varies from what stays the same

11. Separate Variations Design Principle
Identify the aspects of
your application that
vary and separate
them from what stays the
same

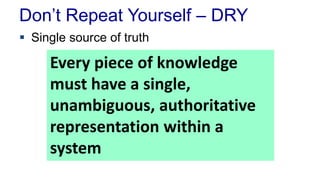

12. Don’t Repeat Yourself – DRY
 Single source of truth
Every piece of knowledge
must have a single,
unambiguous, authoritative
representation within a
system

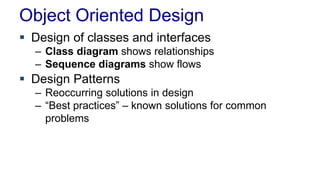

13. Object Oriented Design
 Design of classes and interfaces
– Class diagram shows relationships
– Sequence diagrams show flows
 Design Patterns
– Reoccurring solutions in design
– “Best practices” – known solutions for common
problems

14. Classes

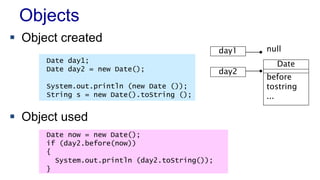

15. Objects
 Object created
Date day1;
Date day2 = new Date();
System.out.println (new Date ());
String s = new Date().toString ();
 Object used
day1 null
day2
Date
Date now = new Date();
if (day2.before(now))
{
System.out.println (day2.toString());
}
before
tostring
...

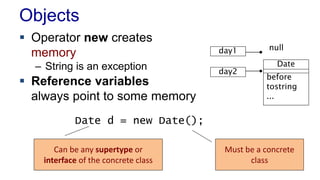

16. Objects
 Operator new creates
memory
– String is an exception
 Reference variables
always point to some memory
day1 null
day2
Date
before
tostring
...
Date d = new Date();
Must be a concrete
class
Can be any supertype or
interface of the concrete class

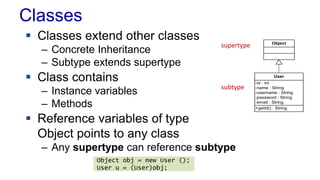

17. Classes
Object
User
-id : int
-name : String
-username : String
-password : String
-email : String
+getId() : String
 Classes extend other classes
– Concrete Inheritance
– Subtype extends supertype
 Class contains
– Instance variables
– Methods
 Reference variables of type
Object points to any class
– Any supertype can reference subtype
Object obj = new User ();
User u = (User)obj;
supertype
subtype

18. Class methods
 Methods can be overridden
– Class extends a class and overrides a method
 Methods can be overloaded
– Same method with different parameters
 Methods can be
– public – any class can call the method
– private – only available within the class
– protected – only available within the class and
extended classes

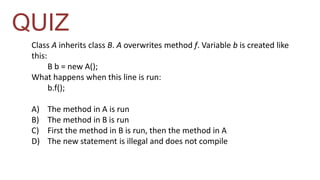

19. QUIZ
Class A inherits class B. A overwrites method f. Variable b is created like
this:
B b = new A();
What happens when this line is run:
b.f();
A) The method in A is run
B) The method in B is run
C) First the method in B is run, then the method in A
D) The new statement is illegal and does not compile

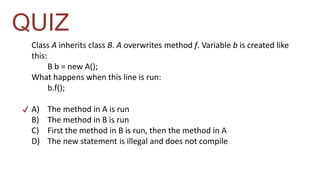

20. QUIZ
Class A inherits class B. A overwrites method f. Variable b is created like
this:
B b = new A();
What happens when this line is run:
b.f();
A) The method in A is run
B) The method in B is run
C) First the method in B is run, then the method in A
D) The new statement is illegal and does not compile
✔

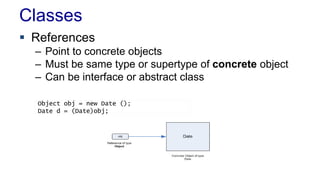

21. Classes
 References
– Point to concrete objects
– Must be same type or supertype of concrete object
– Can be interface or abstract class
Object obj = new Date ();
Date d = (Date)obj;

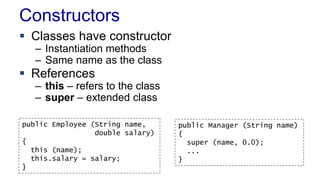

22. Constructors
 Classes have constructor
– Instantiation methods
– Same name as the class
 References
– this – refers to the class
– super – extended class
public Employee (String name,
double salary)
{
this (name);
this.salary = salary;
}
public Manager (String name)
{
super (name, 0.0);
...
}

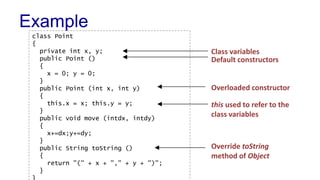

23. class Point
{
private int x, y;
public Point ()
{
x = 0; y = 0;
}
public Point (int x, int y)
{
this.x = x; this.y = y;
}
public void move (intdx, intdy)
{
x+=dx;y+=dy;
}
public String toString ()
{
return "(" + x + "," + y + ")";
}
}
Class variables
Default constructors
Overloaded constructor
this used to refer to the
class variables
Override toString
method of Object
Example

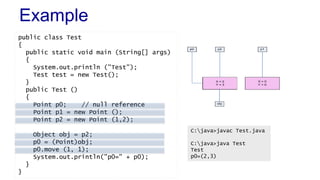

24. Example
Bla
public class Test
{
public static void main (String[] args)
{
System.out.println ("Test");
Test test = new Test();
}
public Test ()
{
Point p0; // null reference
Point p1 = new Point ();
Point p2 = new Point (1,2);
Object obj = p2;
p0 = (Point)obj;
p0.move (1, 1);
System.out.println("p0=" + p0);
}
}
X = 2
Y = 3
C:java>javac Test.java
C:java>java Test
Test
p0=(2,3)

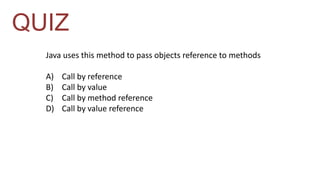

25. QUIZ
Java uses this method to pass objects reference to methods
A) Call by reference
B) Call by value
C) Call by method reference
D) Call by value reference

26. QUIZ
Java uses this method to pass objects reference to methods
A) Call by reference
B) Call by value
C) Call by method reference
D) Call by value reference
✔

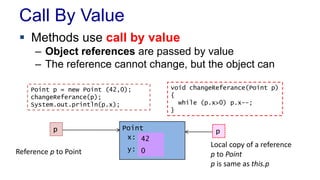

27. Call By Value
 Methods use call by value
– Object references are passed by value
– The reference cannot change, but the object can
Point p = new Point (42,0);
changeReferance(p);
System.out.println(p.x);
Point
x:
y:
42
0
void changeReferance(Point p)
{
while (p.x>0) p.x--;
}
p
Reference p to Point
p
Local copy of a reference
p to Point
p is same as this.p

28. Inheritance
 Classes extend other classes
– Subclasses extend superclasses
class Manager extends Employee
{ ... }
 Reference variables of super types can
reference objects of subtypes
Employee
Manager
Empolyee e;
e = new Employee(. . .)
e = new Manager(. . .)
Polymorphism

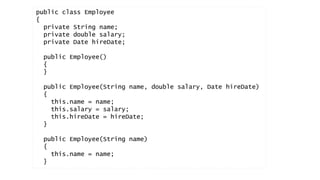

29. public class Employee
{
private String name;
private double salary;
private Date hireDate;
public Employee()
{
}
public Employee(String name, double salary, Date hireDate)
{
this.name = name;
this.salary = salary;
this.hireDate = hireDate;
}
public Employee(String name)
{
this.name = name;
}

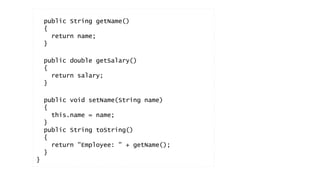

30. public String getName()
{
return name;
}
public double getSalary()
{
return salary;
}
public void setName(String name)
{
this.name = name;
}
public String toString()
{
return "Employee: " + getName();
}
}

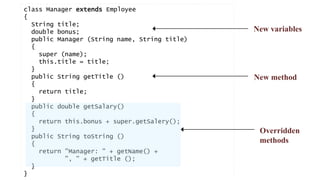

31. class Manager extends Employee
{
String title;
double bonus;
public Manager (String name, String title)
{
Bla
super (name);
this.title = title;
}
public String getTitle ()
{
return title;
}
public double getSalary()
{
return this.bonus + super.getSalery();
}
public String toString ()
{
return "Manager: " + getName() +
", " + getTitle ();
}
}
New variables
New method
Overridden
methods

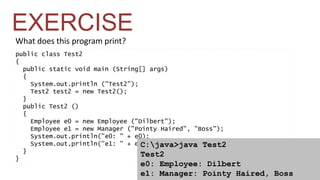

32. What does this program print?
public class Test2
{
public static void main (String[] args)
{
System.out.println ("Test2");
Test2 test2 = new Test2();
}
public Test2 ()
{
Employee e0 = new Employee ("Dilbert");
Employee e1 = new Manager ("Pointy Haired", "Boss");
System.out.println("e0: " + e0);
System.out.println("e1: " + e1);
}
}
C:java>java Test2
Test2
e0: Employee: Dilbert
e1: Manager: Pointy Haired, Boss
EXERCISE

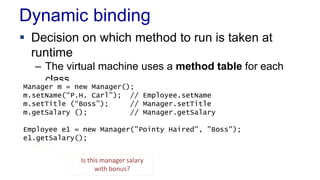

33. Dynamic binding
 Decision on which method to run is taken at
runtime
– The virtual machine uses a method table for each
class
Manager m = new Manager();
m.setName(“P.H. Carl”); // Employee.setName
m.setTitle (“Boss”); // Manager.setTitle
m.getSalary (); // Manager.getSalary
Employee e1 = new Manager("Pointy Haired", "Boss");
e1.getSalary();
Is this manager salary
with bonus?

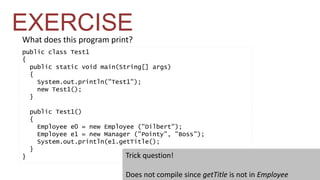

34. EXERCISE
What does this program print?
public class Test1
{
public static void main(String[] args)
{
System.out.println("Test1");
new Test1();
}
public Test1()
{
Employee e0 = new Employee ("Dilbert");
Employee e1 = new Manager ("Pointy", "Boss");
System.out.println(e1.getTitle();
}
} Trick question!
Does not compile since getTitle is not in Employee

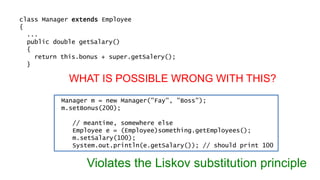

35. class Manager extends Employee
{
...
public double getSalary()
{
return this.bonus + super.getSalery();
}
WHAT IS POSSIBLE WRONG WITH THIS?
Manager m = new Manager("Fay", "Boss");
m.setBonus(200);
// meantime, somewhere else
Employee e = (Employee)something.getEmployees();
m.setSalary(100);
System.out.println(e.getSalary()); // should print 100
Violates the Liskov substitution principle

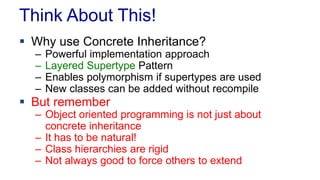

36. Think About This!
 Why use Concrete Inheritance?
– Powerful implementation approach
– Layered Supertype Pattern
– Enables polymorphism if supertypes are used
– New classes can be added without recompile
 But remember
– Object oriented programming is not just about
concrete inheritance
– It has to be natural!
– Class hierarchies are rigid
– Not always good to force others to extend

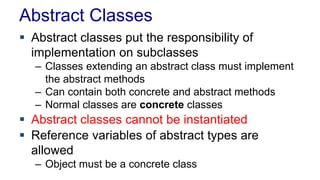

37. Abstract Classes
 Abstract classes put the responsibility of
implementation on subclasses
– Classes extending an abstract class must implement
the abstract methods
– Can contain both concrete and abstract methods
– Normal classes are concrete classes
 Abstract classes cannot be instantiated
 Reference variables of abstract types are
allowed
– Object must be a concrete class

38. Abstract Example
abstract class Person
{
private String name;
public Person(String name)
{
this.name = name;
}
// get and set methods ...
public abstract String getDescription ();
}
class Employee extends Person
{
public String getDescription()
{
return "Employee called " + super.getName();
}
}
// Person p1 = new Person (); Does not work!
Person p2;
Person p3 = new Employee ("Dilbert");
System.out.println (p3.getDescription());
Key Concept: Polymorphism

39. Interfaces

40. Interfaces
 Interface is a class without implementation
– Declaration of how to implement class
– All methods and variables are static final
 Classes implement interfaces
– implements keyword
– Must implement all the methods – or be abstract

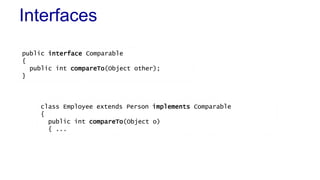

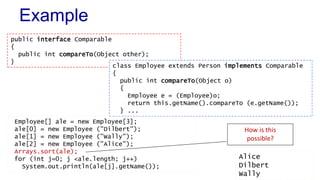

41. Interfaces
public interface Comparable
{
public int compareTo(Object other);
}
class Employee extends Person implements Comparable
{
public int compareTo(Object o)
{ ...

42. Example
public interface Comparable
{
public int compareTo(Object other);
}
class Employee extends Person implements Comparable
{
public int compareTo(Object o)
{
Employee e = (Employee)o;
return this.getName().compareTo (e.getName());
} ...
Employee[] ale = new Employee[3];
ale[0] = new Employee ("Dilbert");
ale[1] = new Employee ("Wally");
ale[2] = new Employee ("Alice");
Arrays.sort(ale);
for (int j=0; j <ale.length; j++)
System.out.println(ale[j].getName());
How is this
possible?
Alice
Dilbert
Wally

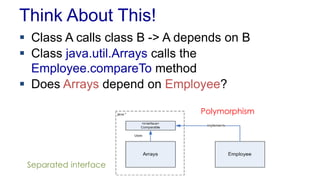

43. Think About This!
 Class A calls class B -> A depends on B
 Class java.util.Arrays calls the
Employee.compareTo method
 Does Arrays depend on Employee?
Polymorphism
Separated interface

44. Many Faces
 Arrays looks at the class as Comparable, while
we regard it as Employee
Class Employee
implements Comparable
{
...
compare
Class Arrays
...
sort(Object[]
{
Comparable c ...
Test...
Arrays.sort(persons
Arrays does NOT call Employee.compareTo,
it calls Comaparable.compareTo
which happens to be Employee Polymorphism

45. Objects
abstract class Person implements Comparable
class Employee extends Person
class Manager extends Employee
Must be
concrete class
Object o = new Manager()
Person p = new Manager()
Comparable c = new Manager()
Employee e = new Manager()
Manager m = new Manager()
Memory for Manager
reference
Can be any
supertype

46. Using Interfaces
 Interfaces cannot be instantiated
– Variables of interface types can reference objects that
implement the interface
Comarable c = new Comparable (); // NO!!!
Comarable c = new Employee (); // OK!
 Interface can extend interfaces
public interface Powered extends Movable
{
double milesPerGallon();
double SPEED_LIMIT = 95;
}

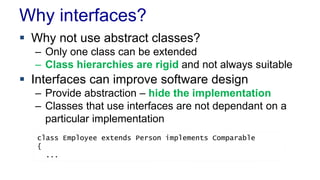

47. Why interfaces?
 Why not use abstract classes?
– Only one class can be extended
– Class hierarchies are rigid and not always suitable
 Interfaces can improve software design
– Provide abstraction – hide the implementation
– Classes that use interfaces are not dependant on a
particular implementation
class Employee extends Person implements Comparable
{
...

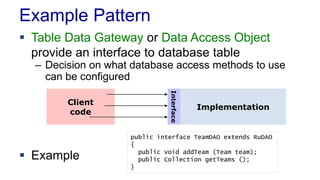

48. Example Pattern
 Table Data Gateway or Data Access Object
provide an interface to database table
– Decision on what database access methods to use
can be configured
 Example
public interface TeamDAO extends RuDAO
{
public void addTeam (Team team);
public Collection getTeams ();
}
Interface
Implementation
Client
code

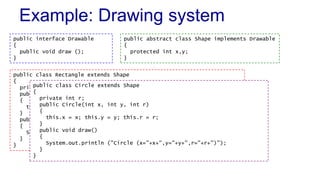

49. Example: Drawing system
public interface Drawable
{
public void draw ();
}
public class Rectangle extends Shape
{
private int h, w;
public Rectangle (int x, int y, int h, int w)
{
this.x=x; this.y=y; this.h=h; this.w=w;
}
public void draw ()
{
System.out.println ("Rectange (x="+x+",y="+y+",h="+h+",w="+w+")");
}
}
public abstract class Shape implements Drawable
{
protected int x,y;
}
public class Circle extends Shape
{
private int r;
public Circle(int x, int y, int r)
{
this.x = x; this.y = y; this.r = r;
}
public void draw()
{
System.out.println ("Circle (x="+x+",y="+y+",r="+r+")");
}
}

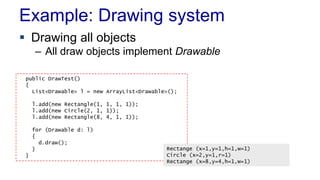

50. Example: Drawing system
 Drawing all objects
– All draw objects implement Drawable
public DrawTest()
{
List<Drawable> l = new ArrayList<Drawable>();
l.add(new Rectangle(1, 1, 1, 1));
l.add(new Circle(2, 1, 1));
l.add(new Rectangle(8, 4, 1, 1));
for (Drawable d: l)
{
d.draw();
}
}
Rectange (x=1,y=1,h=1,w=1)
Circle (x=2,y=1,r=1)
Rectange (x=8,y=4,h=1,w=1)

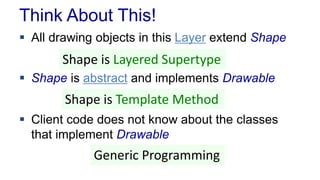

51. Think About This!
 All drawing objects in this Layer extend Shape
Shape is Layered Supertype
 Shape is abstract and implements Drawable
Shape is Template Method
 Client code does not know about the classes
that implement Drawable
Generic Programming

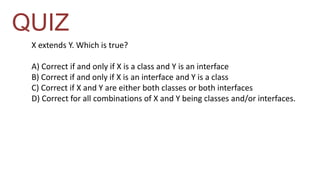

52. QUIZ
X extends Y. Which is true?
A) Correct if and only if X is a class and Y is an interface
B) Correct if and only if X is an interface and Y is a class
C) Correct if X and Y are either both classes or both interfaces
D) Correct for all combinations of X and Y being classes and/or interfaces.

53. QUIZ
X extends Y. Which is true?
A) Correct if and only if X is a class and Y is an interface
B) Correct if and only if X is an interface and Y is a class
C) Correct if X and Y are either both classes or both interfaces
D) Correct for all combinations of X and Y being classes and/or interfaces.
✔
