KrakenJS

Tim Messerschmidt
@SeraAndroid
LondonJS Conf 2014

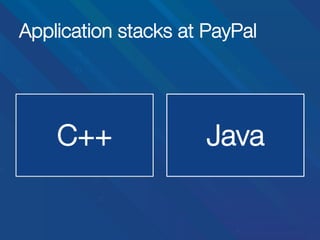

Application stacks at PayPal

C++

Java

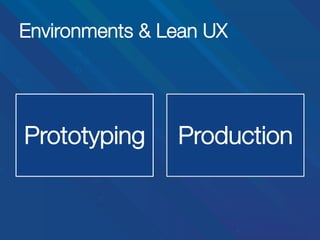

Environments & Lean UX

Prototyping

Production

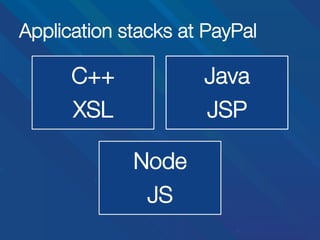

Application stacks at PayPal

C++
XSL

Java
JSP
Node
JS

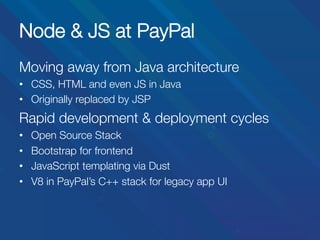

Node & JS at PayPal
Moving away from Java architecture
•  CSS, HTML and even JS in Java
•  Originally replaced by JSP

Rapid development & deployment cycles
• 
• 
• 
• 

Open Source Stack
Bootstrap for frontend
JavaScript templating via Dust
V8 in PayPal’s C++ stack for legacy app UI

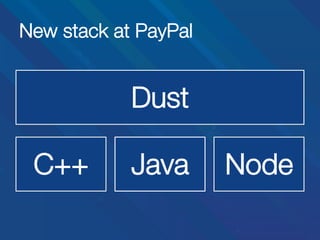

New stack at PayPal

Dust
C++

Java
Node

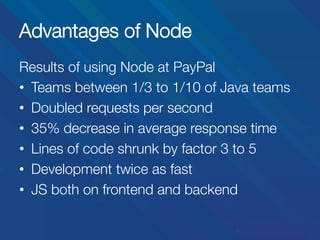

Advantages of Node
Results of using Node at PayPal
•  Teams between 1/3 to 1/10 of Java teams
•  Doubled requests per second
•  35% decrease in average response time
•  Lines of code shrunk by factor 3 to 5
•  Development twice as fast
•  JS both on frontend and backend

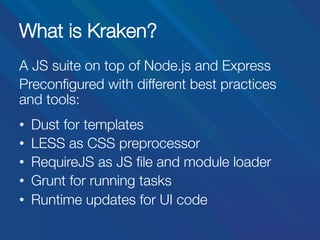

What is Kraken?
A JS suite on top of Node.js and Express
Preconﬁgured with different best practices
and tools:

• 
• 
• 
• 
• 

Dust for templates
LESS as CSS preprocessor
RequireJS as JS ﬁle and module loader
Grunt for running tasks
Runtime updates for UI code

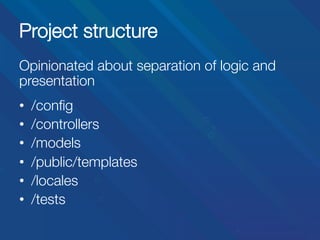

Project structure
Opinionated about separation of logic and
presentation

• 
• 
• 
• 
• 
• 

/conﬁg
/controllers
/models
/public/templates
/locales
/tests

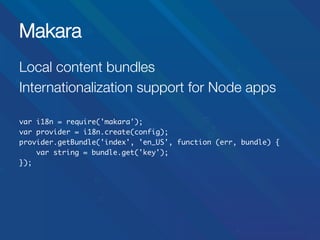

Makara
Local content bundles
Internationalization support for Node apps

var i18n = require('makara');
var provider = i18n.create(config);
provider.getBundle('index', 'en_US', function (err, bundle) {
var string = bundle.get('key');
});

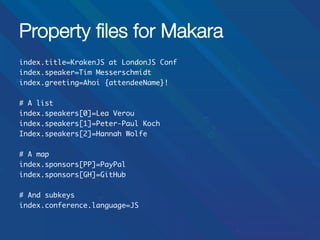

Property ﬁles for Makara
index.title=KrakenJS at LondonJS Conf
index.speaker=Tim Messerschmidt
index.greeting=Ahoi {attendeeName}!

# A list
index.speakers[0]=Lea Verou
index.speakers[1]=Peter-Paul Koch
Index.speakers[2]=Hannah Wolfe

# A map
index.sponsors[PP]=PayPal
index.sponsors[GH]=GitHub

# And subkeys
index.conference.language=JS

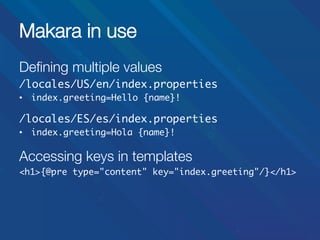

Makara in use
Deﬁning multiple values
/locales/US/en/index.properties
•  index.greeting=Hello {name}!

/locales/ES/es/index.properties
•  index.greeting=Hola {name}!

Accessing keys in templates
<h1>{@pre type="content" key="index.greeting"/}</h1>

Lusca
Security settings against various vulnerabilities

Cross-site request forgery support
Clickjacking / X-Frame-Options
Output escaping against XSS via Dust
Content Security Policy

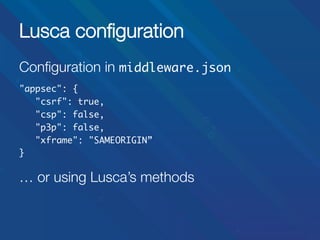

Lusca conﬁguration
Conﬁguration in middleware.json

"appsec": {
"csrf": true,
"csp": false,
"p3p": false,
"xframe": "SAMEORIGIN”
}

… or using Lusca’s methods

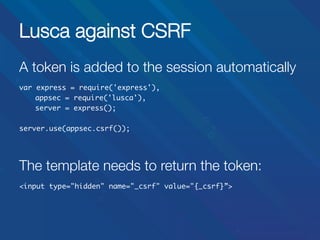

Lusca against CSRF
A token is added to the session automatically

var express = require('express'),
appsec = require('lusca'),

server = express();

server.use(appsec.csrf());

The template needs to return the token:

<input type="hidden" name="_csrf" value="{_csrf}”>

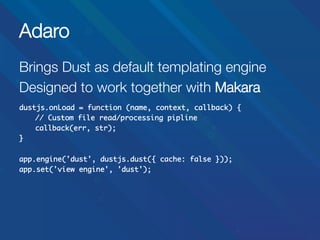

Adaro
Brings Dust as default templating engine
Designed to work together with Makara

dustjs.onLoad = function (name, context, callback) {
// Custom file read/processing pipline
callback(err, str);
}

app.engine('dust', dustjs.dust({ cache: false }));
app.set('view engine', 'dust');

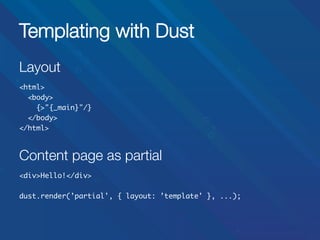

Templating with Dust
Layout

<html>
<body>
{>"{_main}"/}
</body>
</html>

Content page as partial

<div>Hello!</div>

dust.render(’partial', { layout: ’template' }, ...);

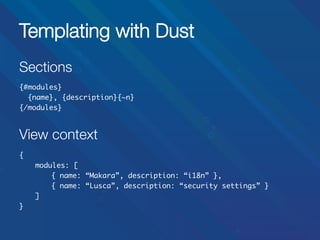

Sections

{#modules}
{name}, {description}{~n}
{/modules}

View context

{
modules: [

{ name: “Makara”, description: “i18n” },

{ name: “Lusca”, description: “security settings” }
]
}

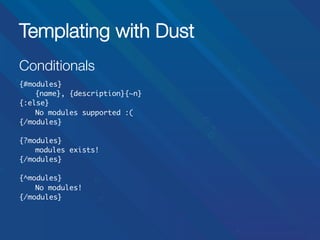

Conditionals

{#modules}
{name}, {description}{~n}
{:else}
No modules supported :(
{/modules}

{?modules}
modules exists!
{/modules}

{^modules}
No modules!
{/modules}

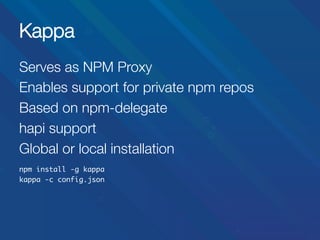

Kappa
Serves as NPM Proxy
Enables support for private npm repos
Based on npm-delegate
hapi support
Global or local installation

npm install -g kappa
kappa -c config.json

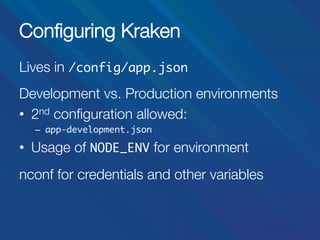

Conﬁguring Kraken
Lives in /config/app.json

Development vs. Production environments
•  2nd conﬁguration allowed:
–  app-development.json

•  Usage of NODE_ENV for environment
nconf for credentials and other variables

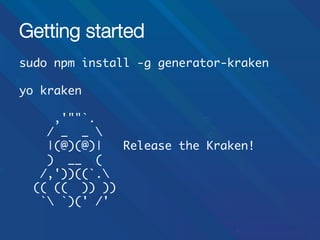

Getting started
sudo npm install -g generator-kraken

yo kraken

,'""`.
/ _ _
|(@)(@)|
Release the Kraken!
) __ (
/,'))((`.
(( (( )) ))
` `)(' /'

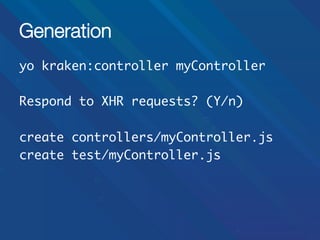

Generation
yo kraken:controller myController

Respond to XHR requests? (Y/n)

create controllers/myController.js
create test/myController.js

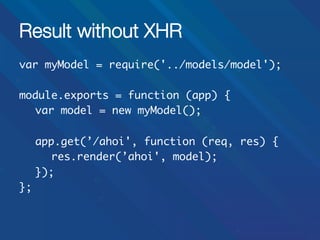

Result without XHR
var myModel = require('../models/model');

module.exports = function (app) {
var model = new myModel();

app.get(’/ahoi', function (req, res) {
res.render(’ahoi', model);
});
};

Result with XHR
app.get('/ahoiXHR', function (req, res) {
res.format({
json: function () {
res.json(model);
},
html: function () {
res.render(’ahoiXHR', model);
}
});
});

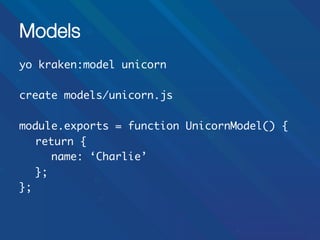

Models
yo kraken:model unicorn

create models/unicorn.js

module.exports = function UnicornModel() {
return {
name: ‘Charlie’
};
};

Thanks!

Tim Messerschmidt
@SeraAndroid
tmesserschmidt@paypal.com
slideshare.com/paypal
