1. Caanoo Version
1.0.6
Emulator Fact Sheets
by Yoshi Version 0.3
1

2. Table of contents
Emulator System Page
Getting started 3
CPS2Emu Capcom CPS2 (Arcade) 4
DrSMS Sega Master System 5
GnGeo SNK Neo Geo AES 6
gpFCE Nintendo NES 7
gpSP Nintendo Game Boy Advance 8
HuGo NEC PC Engine / TG-16 9
MAME4ALL Arcade 10
NeoCD2x SNK Neo Geo CD 11
OhBoy Nintendo Game Boy Color 12
PCSX4ALL Sony Playstation 13
PicoDrive Sega Mega Drive / Genesis / CD / 32X 14
PocketSNES Nintendo SNES 15
ScummVM Classic Adventure Games 16
Snes9x4C Nintendo SNES 17
Temper Wiz NEC PC Engine / TG-16 / CD 18
Quick Reference 19
2

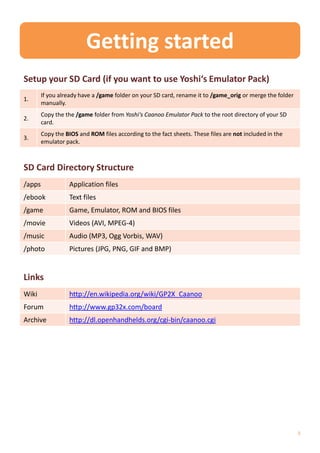

3. Getting started
Setup your SD Card (if you want to use Yoshi‘s Emulator Pack)
If you already have a /game folder on your SD card, rename it to /game_orig or merge the folder
1.
manually.
Copy the the /game folder from Yoshi‘s Caanoo Emulator Pack to the root directory of your SD
2.
card.
Copy the BIOS and ROM files according to the fact sheets. These files are not included in the
3.
emulator pack.
SD Card Directory Structure
/apps Application files
/ebook Text files
/game Game, Emulator, ROM and BIOS files
/movie Videos (AVI, MPEG-4)
/music Audio (MP3, Ogg Vorbis, WAV)
/photo Pictures (JPG, PNG, GIF and BMP)
Links
Wiki http://en.wikipedia.org/wiki/GP2X_Caanoo
Forum http://www.gp32x.com/board
Archive http://dl.openhandhelds.org/cgi-bin/caanoo.cgi
3

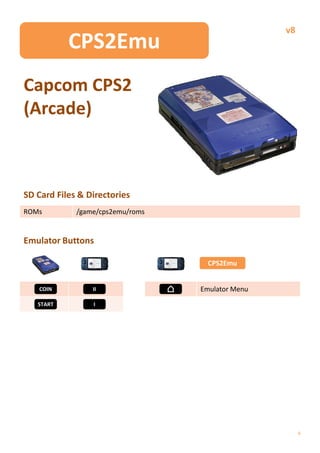

4. v8
CPS2Emu
Capcom CPS2
(Arcade)
SD Card Files & Directories
ROMs /game/cps2emu/roms
Emulator Buttons
CPS2Emu
COIN II Emulator Menu
START I
4

5. v2
DrSMS
Sega Master System
SD Card Files & Directories
ROMs /game/drsms/sms
/game/drsms/gg
Emulator Buttons
DrSMS
GG
START I L Load State
MS
PAUSE I R Save State
1 X Emulator Menu
2 B
5

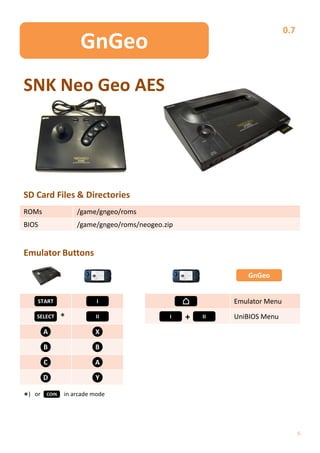

6. 0.7
GnGeo
SNK Neo Geo AES
SD Card Files & Directories
ROMs /game/gngeo/roms
BIOS /game/gngeo/roms/neogeo.zip
Emulator Buttons
GnGeo
START I Emulator Menu
SELECT * II I + II UniBIOS Menu
A X
B B
C A
D Y
*) or COIN in arcade mode
6

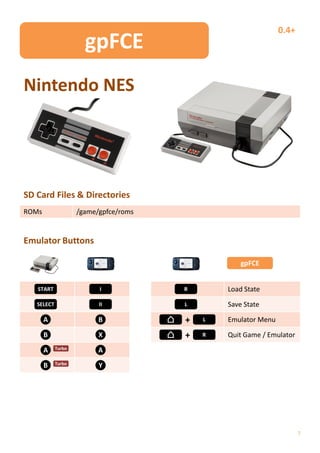

7. 0.4+
gpFCE
Nintendo NES
SD Card Files & Directories
ROMs /game/gpfce/roms
Emulator Buttons
gpFCE
START I R Load State
SELECT II L Save State
A B + L Emulator Menu
B X + R Quit Game / Emulator
Turbo
A A
Turbo
B Y
7

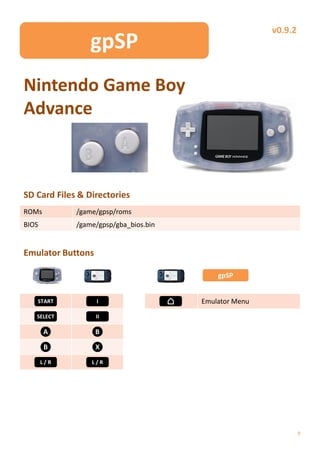

8. v0.9.2
gpSP
Nintendo Game Boy
Advance
SD Card Files & Directories
ROMs /game/gpsp/roms
BIOS /game/gpsp/gba_bios.bin
Emulator Buttons
gpSP
START I Emulator Menu
SELECT II
A B
B X
L/R L/R
8

9. v1.1.0
HuGo
NEC PC Engine / TG-16
SD Card Files & Directories
ROMs /game/hugo/roms
Emulator Buttons
HuGo
RUN Y L + Y Load State
SELECT A L + X Save State
I B L + A Show FPS Rate
II X I Emulator Menu
9

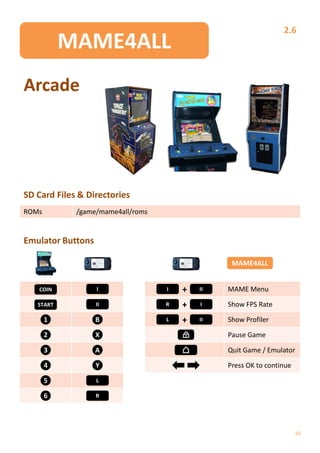

10. 2.6
MAME4ALL
Arcade
SD Card Files & Directories
ROMs /game/mame4all/roms
Emulator Buttons
MAME4ALL
COIN I I + II MAME Menu
START II R + I Show FPS Rate
1 B L + II Show Profiler
2 X Pause Game
3 A Quit Game / Emulator
4 Y Press OK to continue
5 L
6 R
10

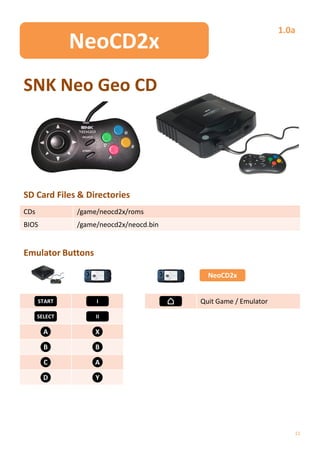

11. 1.0a
NeoCD2x
SNK Neo Geo CD
SD Card Files & Directories
CDs /game/neocd2x/roms
BIOS /game/neocd2x/neocd.bin
Emulator Buttons
NeoCD2x
START I Quit Game / Emulator
SELECT II
A X
B B
C A
D Y
11

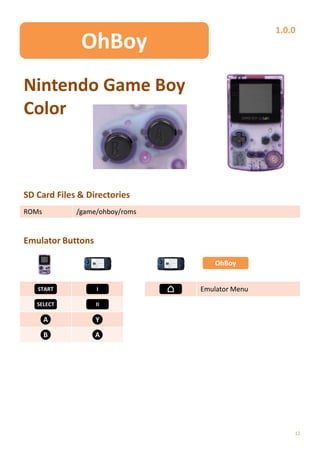

12. 1.0.0
OhBoy
Nintendo Game Boy
Color
SD Card Files & Directories
ROMs /game/ohboy/roms
Emulator Buttons
OhBoy
START I Emulator Menu
SELECT II
A Y
B A
12

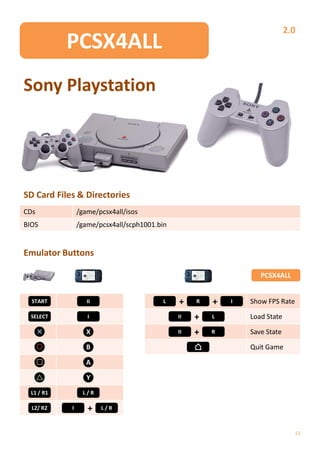

13. 2.0
PCSX4ALL
Sony Playstation
SD Card Files & Directories
CDs /game/pcsx4all/isos
BIOS /game/pcsx4all/scph1001.bin
Emulator Buttons
PCSX4ALL
START II L + R + I Show FPS Rate
SELECT I II + L Load State
X II + R Save State
 B Quit Game
A
Y
L1 / R1 L/R
L2/ R2 I + L/R
13

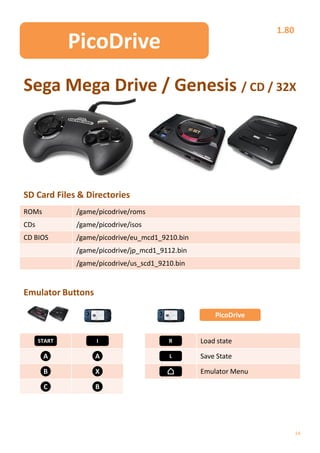

14. 1.80
PicoDrive
Sega Mega Drive / Genesis / CD / 32X
SD Card Files & Directories
ROMs /game/picodrive/roms
CDs /game/picodrive/isos
CD BIOS /game/picodrive/eu_mcd1_9210.bin
/game/picodrive/jp_mcd1_9112.bin
/game/picodrive/us_scd1_9210.bin
Emulator Buttons
PicoDrive
START I R Load state
A A L Save State
B X Emulator Menu
C B
14

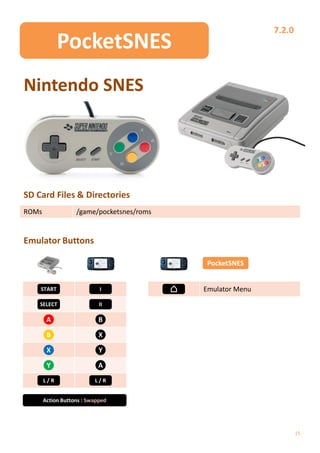

15. 7.2.0
PocketSNES
Nintendo SNES
SD Card Files & Directories
ROMs /game/pocketsnes/roms
Emulator Buttons
PocketSNES
START I Emulator Menu
SELECT II
A B
B X
X Y
Y A
L/R L/R
Action Buttons : Swapped
15

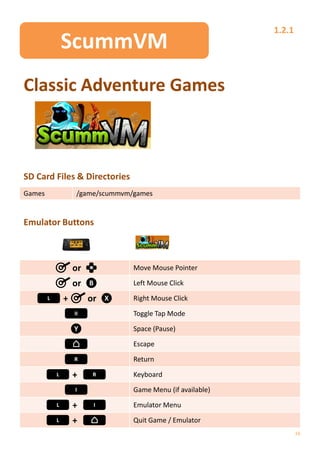

16. 1.2.1
ScummVM
Classic Adventure Games
SD Card Files & Directories
Games /game/scummvm/games
Emulator Buttons
or Move Mouse Pointer
or B Left Mouse Click
L + or X Right Mouse Click
II Toggle Tap Mode
Y Space (Pause)
Escape
R Return
L + R Keyboard
I Game Menu (if available)
L + I Emulator Menu
L + Quit Game / Emulator
16

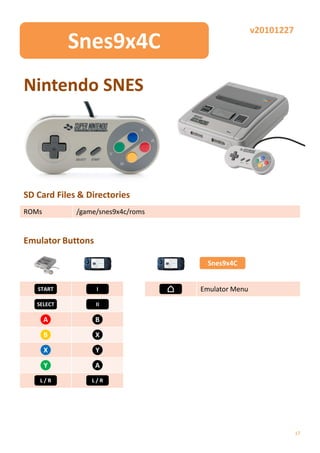

17. v20101227
Snes9x4C
Nintendo SNES
SD Card Files & Directories
ROMs /game/snes9x4c/roms
Emulator Buttons
Snes9x4C
START I Emulator Menu
SELECT II
A B
B X
X Y
Y A
L/R L/R
17

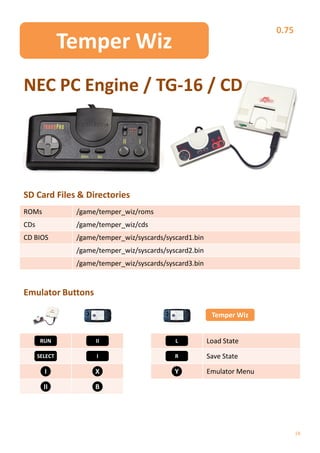

18. 0.75
Temper Wiz
NEC PC Engine / TG-16 / CD
SD Card Files & Directories
ROMs /game/temper_wiz/roms
CDs /game/temper_wiz/cds
CD BIOS /game/temper_wiz/syscards/syscard1.bin
/game/temper_wiz/syscards/syscard2.bin
/game/temper_wiz/syscards/syscard3.bin
Emulator Buttons
Temper Wiz
RUN II L Load State
SELECT I R Save State
I X Y Emulator Menu
II B
18

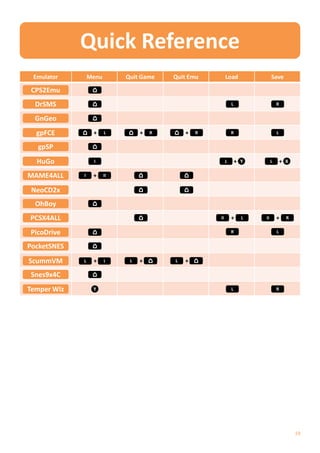

19. Quick Reference
Emulator Menu Quit Game Quit Emu Load Save
CPS2Emu
DrSMS L R
GnGeo
gpFCE + L + R + R R L
gpSP
HuGo I L + Y L + X
MAME4ALL I + II
NeoCD2x
OhBoy
PCSX4ALL II + L II + R
PicoDrive R L
PocketSNES
ScummVM L + I L + L +
Snes9x4C
Temper Wiz Y L R
19
