1. 1

2. 22 v1.0
IXP & Peering
Che-Hoo Cheng
Infrastructure & Development Director, APNIC
2019-11-04

3. 3 v1.03
Disclaimer
• This talk includes my personal experience and observations from operating the
IXP in HK before joining APNIC in Apr 2017
o Plus a bit of my additional experience and observations from helping the development of a
few IXPs in the region
• Some of the points to be presented may NOT represent the viewpoints of
APNIC
• Try not to name names, if at all possible
• Try to be more interesting, and educational
• There is no “One Size Fits All”
o Just to provide hints, not answers
• Cannot cover all scenarios here because of limited time

4. 4 v1.04
How Does Internet Operates?
• Internet is a network of networks, composed of networks of ISPs and users
• User networks connect to ISPs
• Small ISPs connect to large ISPs
• Various networks (large or small) are interconnected with one another to
form Internet

5. 5 v1.05

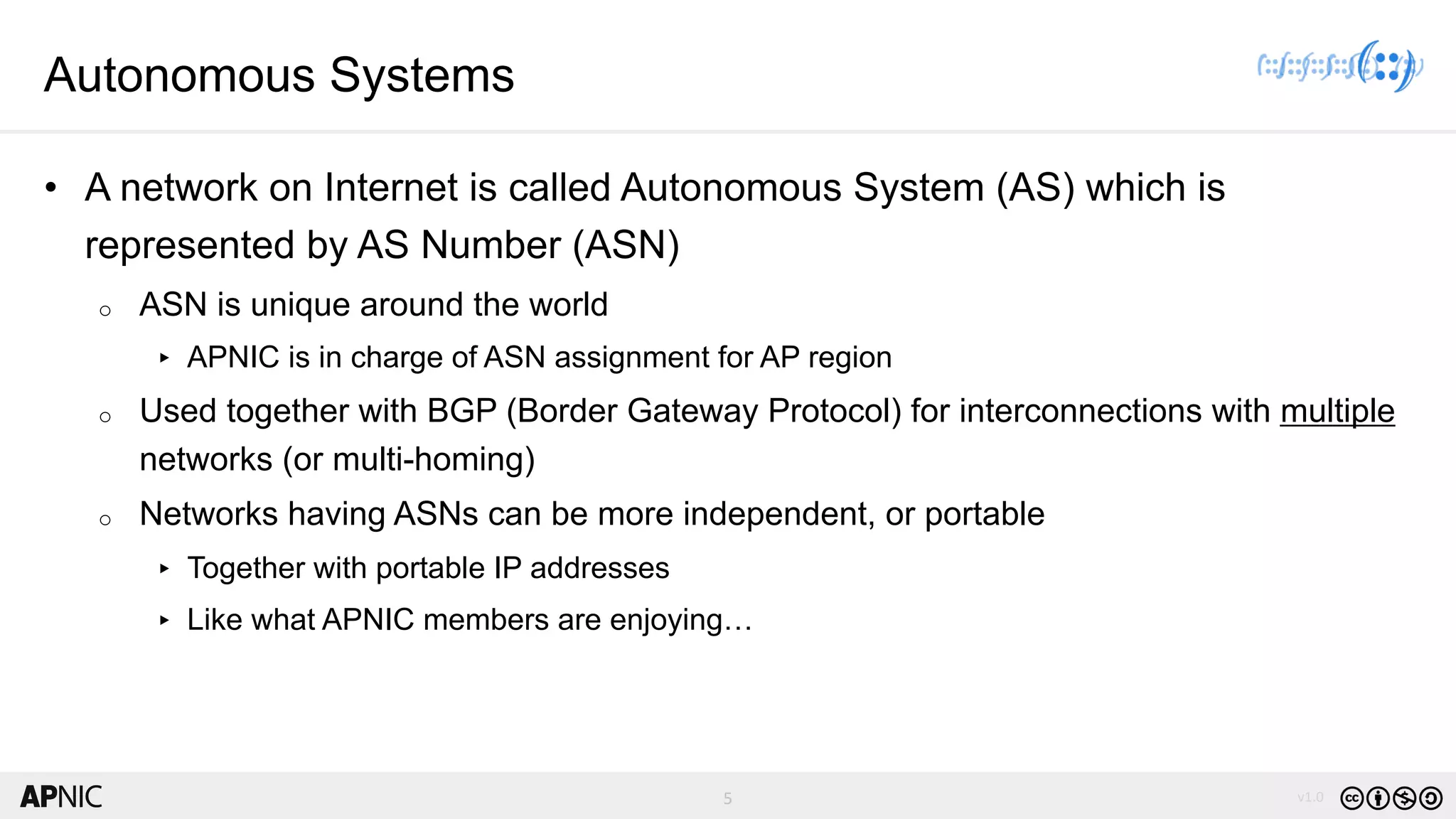

Autonomous Systems
• A network on Internet is called Autonomous System (AS) which is
represented by AS Number (ASN)
o ASN is unique around the world
▸ APNIC is in charge of ASN assignment for AP region
o Used together with BGP (Border Gateway Protocol) for interconnections with multiple
networks (or multi-homing)
o Networks having ASNs can be more independent, or portable
▸ Together with portable IP addresses
▸ Like what APNIC members are enjoying…

6. 6 v1.06
Transit Provider
(Upstream)
Global Internet
Downstream
Customer
Customer
routes only
Routes of
the whole world
All customer routes
Ordinary Transit Model

7. 7 v1.07

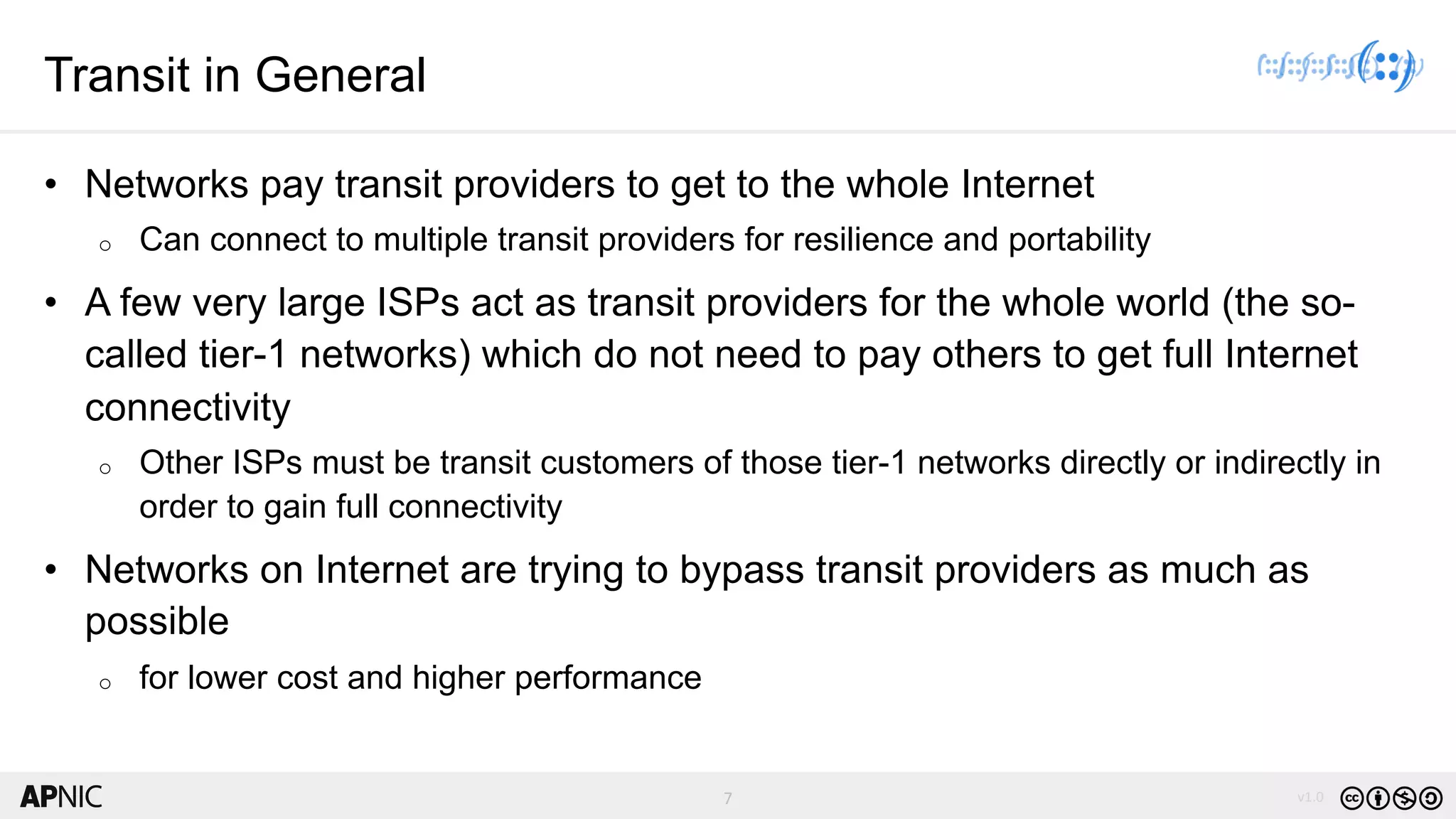

Transit in General
• Networks pay transit providers to get to the whole Internet
o Can connect to multiple transit providers for resilience and portability
• A few very large ISPs act as transit providers for the whole world (the so-
called tier-1 networks) which do not need to pay others to get full Internet
connectivity
o Other ISPs must be transit customers of those tier-1 networks directly or indirectly in
order to gain full connectivity
• Networks on Internet are trying to bypass transit providers as much as
possible
o for lower cost and higher performance

8. 8 v1.08
Transit Provider A
(Upstream)
Transit Provider B
(Upstream)
Downstream
Customer
Downstream
Customer
Downstream
Customer
Downstream
Customer
Routes of A and
its customers
Routes of B and
its customers
Ordinary Peering Model

9. 9 v1.09
Peering in General
• ASes are interconnected/peered at Internet exchanges points (IXPs) or privately
• Interconnection/peering is among ISPs / data centres / content providers / cloud services providers
which have different ASNs using BGP protocol
• For higher performance, lower latency and lower cost
• Usually no settlement between peers and cost is shared
For mutual benefits
• Local-to-local traffic do NOT need to route through overseas
• Important to local Internet development
Local Peering
• BLPA (Bi-Lateral Peering Agreement)Between 2 ASes
• MLPA (Multi-Lateral Peering Agreement)Among > 2 ASes

10. 10 v1.010
Private Peering
• A form of BLPA having dedicated point-to-point connection between 2 ASes
• Using cross-connect or local loop or IPL to interconnect
o Cost is usually shared between 2 peers
• May have multiple connections between 2 ASes for resiliency
• Not quite cost-effective
o Spare bandwidth cannot be used for other traffic
• Not very scalable
o nC2 physical connections for n ASes to peer fully with one another

11. 11 v1.011
What is an Internet eXchange Point (IXP)?
• An IXP is a shared physical network infrastructure over which various Autonomous
Systems can do easy peering with one another
One physical connection to IXP can be used for interconnections with multiple
networks
More cost-effective and scalable
ASes to be served by IXP include Internet Gateways, Internet Service Providers
(ISPs), Research & Education (R&E) Networks, Cloud Service Providers, Content
Providers and Content Delivery Network (CDN) Service Providers

12. 12 v1.012
Benefits of IXP
• One main objective of an IXP is to keep local traffic local
o Important to local Internet development
• Helps bypass 3rd-party network infrastructure for easy interconnection and direct traffic exchange
among participating networks
o Reduced cost – cheaper connectivity
o Enhanced network performance – faster speed
o Reduced latency – lower delay
• Helps encourage development of more local content and local applications
o Helps local data centre business and other businesses
• Everybody is benefited
o The gain for each may be different but all will gain
o At the end, it is the most important that end users or consumers are benefited
• Often considered as Critical Internet Infrastructure locally, regionally or globally

13. 13 v1.013
IXPs are Layer-2 Networks
• Switched Ethernet
o One physical connection for interconnections with multiple networks
o Only routers are allowed to connect to the switching fabric directly
• IXP participants can do direct Bilateral Peering (BLPA) over the layer 2
infrastructure anytime
• With Route Server added to the layer 2 infrastructure, IXP participants can
also do Multilateral Peering (MLPA) for easier interconnections among
everybody
o Traffic exchange is not going through the route server but direct
• Those called themselves “IXes” but serving layer-3 services are mostly
transit providers

14. 14 v1.014
Value and Attractiveness of an IXP
• Proportional to the number of different networks (ASNs) connected and also
the traffic volume
• Snowball effect after reaching critical mass
o The initial period usually is the hardest
▸ Most will take wait-and-see approach
o Gradually will have good mix of networks of different types
▸ E.g. Eyeballs vs Content

15. 15 v1.015
Evolution
• IXP development is an evolutionary process done step by step
• It can be improved over time, but picking the right initial neutral organisation
/ governance model and a neutral site at the start is important for future
success

16. 16 v1.016

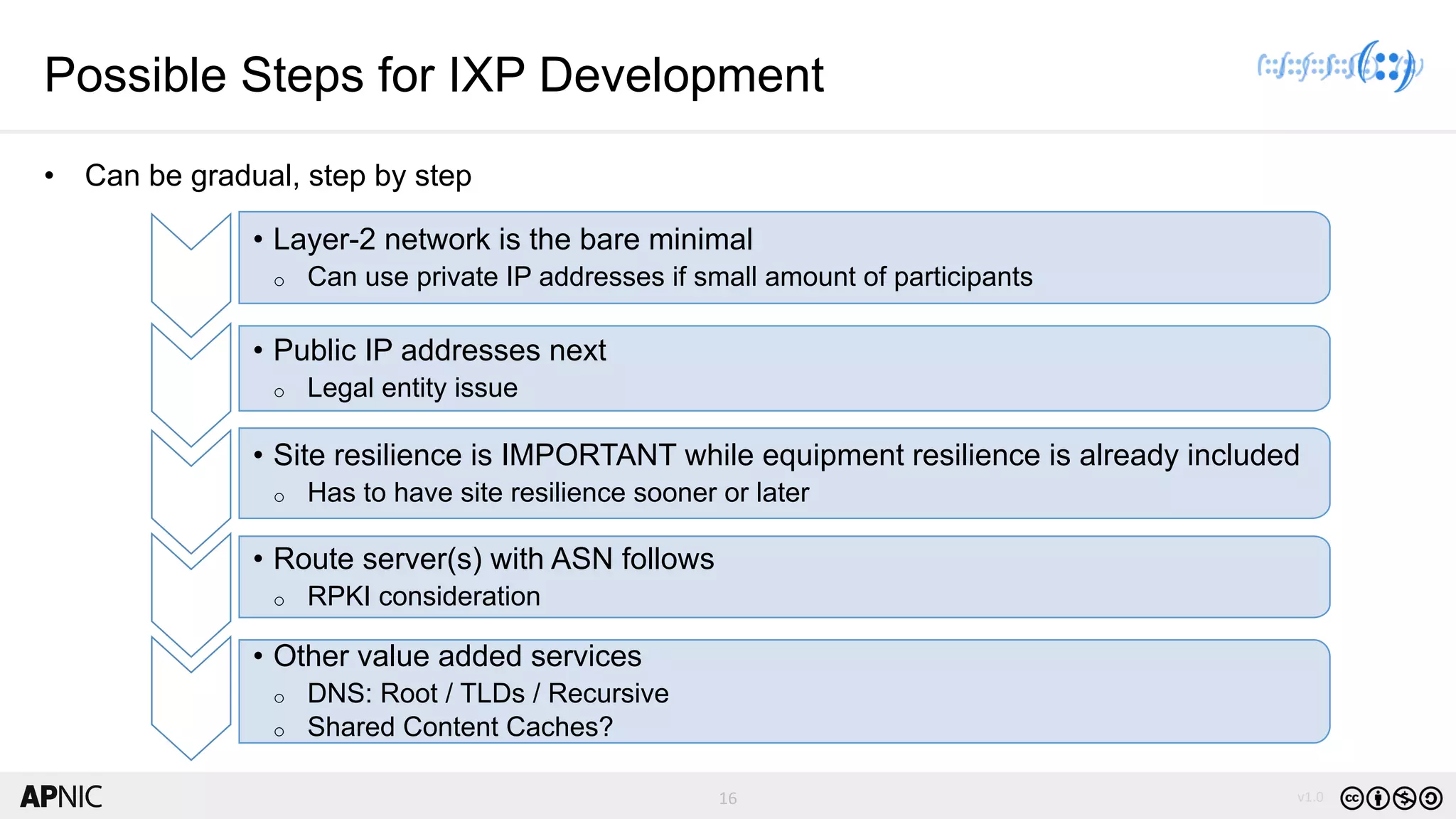

Possible Steps for IXP Development
• Can be gradual, step by step
• Layer-2 network is the bare minimal
o Can use private IP addresses if small amount of participants
• Public IP addresses next
o Legal entity issue
• Site resilience is IMPORTANT while equipment resilience is already included
o Has to have site resilience sooner or later
• Route server(s) with ASN follows
o RPKI consideration
• Other value added services
o DNS: Root / TLDs / Recursive
o Shared Content Caches?

17. 17 v1.017
IP/ASN Resources for an IXP
• Considered as Critical Infrastructure under APNIC Policy
o Using public IP addresses and ASN is recommended
o IPv4: /24
o IPv6: /48
o ASN: 1 (for route server)
• But IXP may need another network to provide transit
o Own servers such as network management & monitoring
o DNS anycast servers: Authoritative or Cache/Resolving/Recursive
o Shared Content Caches for Participants
o Usually small

18. 18 v1.018
Neutral Location is Good Starting Point
• May choose one of the followings as starting point:
o University
o Technology Park
o Carrier Neutral Data Center
o Government Data Center
• Having multiple carrier options with easy access is important
• Should maintain neutrality continuously
• Expansion to multiple sites within the same metro area can be done
gradually, coupled with growth

19. 19 v1.019
Governance
• Multi-stakeholder bottom-up approach is the preferred approach for
maximum acceptance of the community
• Government support is also important
• Be as inclusive as possible in order to provide maximum benefits to the
whole community which it serves
• Should be fair and consistent to every participant
• Should be open and transparent as much as possible

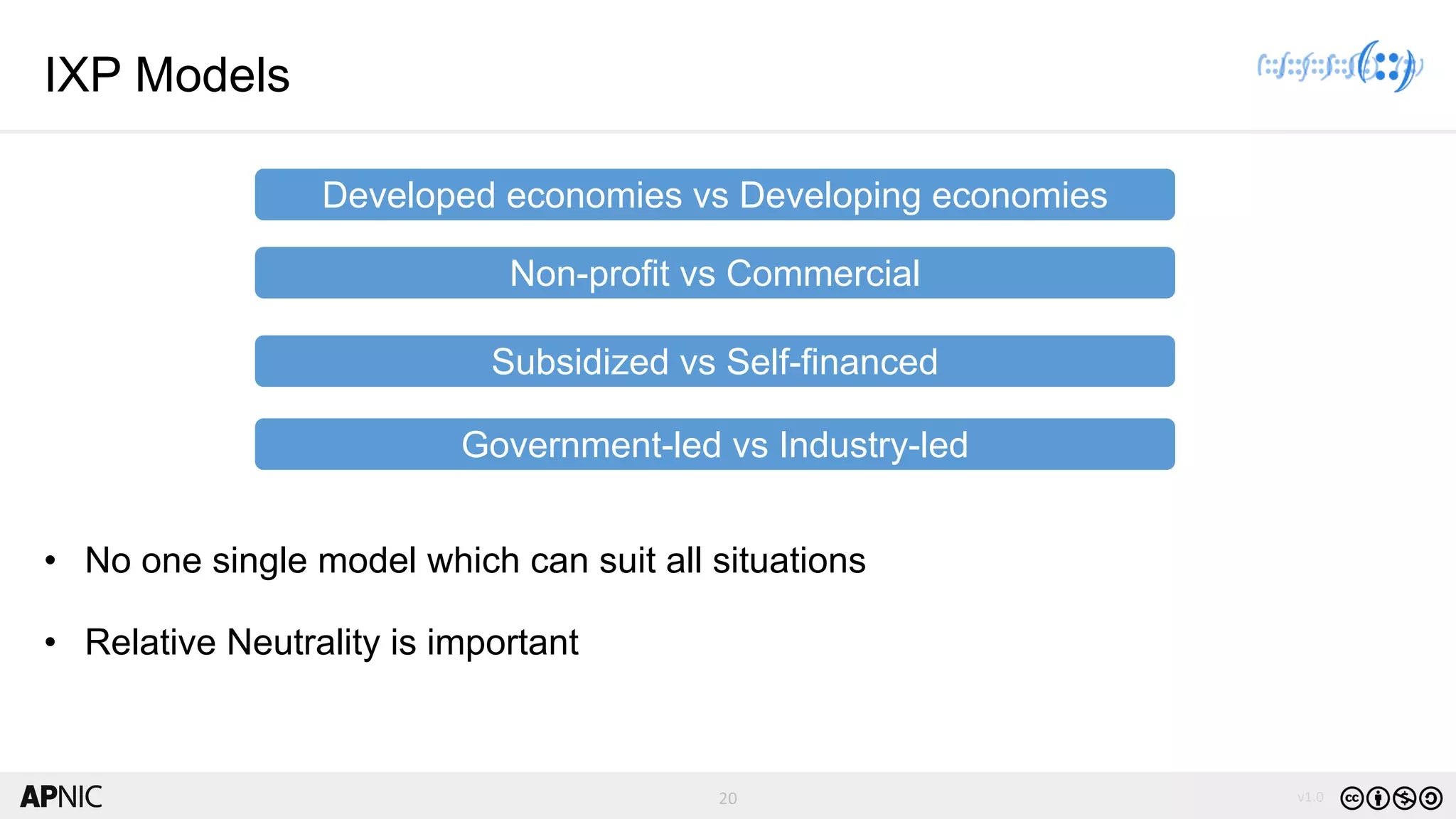

20. 20 v1.020
Government-led vs Industry-led
Subsidized vs Self-financed
Non-profit vs Commercial
Developed economies vs Developing economies
IXP Models
• No one single model which can suit all situations
• Relative Neutrality is important

21. 21 v1.021
Commercial vs Non-Profit
• Commercial set-up is free to do anything
o No need to care about neutrality too much
o IXP is mostly a service to help other business
• Non-profit set-up tends to be more cautious
o Neutrality is more important, at least to the target participants
o Tend to be more independent
o Tend to offer fewer services

22. 22 v1.022
Advanced / Developed Economies
• IXPs are business
o Even for not-for-profit set-up
o Less government involvement
• Multiple IXPs
o Keen competition
• But if they cannot keep intra-economy traffic local, someone needs to step
up
o Government? Industry group? Customer pressure?

23. 23 v1.023
Developing Economies
• Some do not have any IXPs yet
• Local traffic does not stay local
o A lose-lose situation for everybody
• IXPs can help Internet development a lot
o Better to be non-for-profit set-up
o May need to start with subsidized model
o May not be a business at all
o Help from government is mostly needed
o Active participation of the biggest players is also very important

24. 24 v1.024
Examples of Pacific Islands
• Far from any other places
• External connectivity is very expensive
o More submarine cables are being built for them
• Small markets because of small population
• Usually just a few ISPs but they may not be interconnected locally
• Local traffic across ISPs usually routed through US or Australia
• Local IXP is very much needed for helping Internet development
• Observed immediate benefits on Day 1 of set-up of one Pacific Island IXP
o Much improved latency and high volume of traffic
• Small land-locked economies have more or less similar issues

25. 25 v1.025
Politics Involved in Early IXP Development
• Usually larger ISPs like IXP less than smaller ISPs because smaller ISPs are
mostly target customers of larger ISPs
• Larger ISPs refuse to connect to IXP making the value of IXP lower
• There are multiple possible mitigation options for that but in any case, larger ISPs
need to collaborate
o E.g. separating access networks from Internet gateway or transit network
• If hurting the goal of “Keeping Local Traffic Local”, then it is lose-lose to everybody
• Government involvement may help or may hurt the case
o It depends on the relationship between the industry and the government
o Forcing large ISPs to do peering may not achieve the expected outcomes
• But having an IXP is NOT a magic wand to solve all the issues
o But collaborative spirit is

26. 26 v1.026
Government Funding for IXPs?
• Is it good or bad?
• More needed during infancy stage of IXP development
• But for long-term, it is probably better to have bottom-up industry-led
governance for IXP
o Align with bottom-up multi-stakeholder approach
o Need to have a long-term sustainable financial model

27. 27 v1.027
Which Models Can Sustain?
• IXP alone cannot make big money
• Or IXP may just be a value added service
Pure Business Model
• Government funding may or may not be more reliableSubsidized Model
• Most risky as sponsorship or support of volunteers is
not guaranteed
Model relying on
sponsorship and/or
volunteers
• Open Membership vs Closed Membership
• Proper governance is important
• Most neutral but still need to have good financial
model for long-term sustainability
Membership-based
Model

28. 28 v1.028
Geography
• IXP usually is not expanded beyond a metro area so as to avoid competing
with IXP participants and to maintain neutrality
• Should start with the biggest city first and gradually set up separate
infrastructure in other bigger cities one by one

29. 29 v1.029
To Leverage the Position of & to Add Value to an IXP
• Domain Name Infrastructure: DNS infrastructure is very important to Internet
operations so Root/TLD DNS server instance(s) should be connected directly to
IXP for direct peering in order to benefit all participants for better DNS
performance and resilience
• Shared Cache: Connecting cache servers of popular content to the IXP will help
everyone save bandwidth, but the cost of the bandwidth for cache-fill has to be
properly shared by the ISPs benefited
o Different cache service providers have different supported models
o Need to think about long-term sustainability
• NOTE: Transit for the above should NOT be used for providing usual transit
service to IXP participants so as to maintain neutrality

30. 30 v1.030
IXP Participants
• Unfortunately, a lot of IXP participants do not make the best use of the
IXP(s) they have connected
• IXP Participants without enough knowledge and skills may disrupt the
operations of IXP from time to time
• IXP operators need to do a lot of education or push to their participants
• So, IXP engineers would be busy and dedicated resources would be
needed
o Volunteering type of operations mode cannot sustain for too long

31. 31 v1.031
Success Factors of the IXP in HK
• Helped gain trust from the participants especially the early ones
• But there is no 100% neutrality…
o Competition from another university
• After gaining critical mass, things are much easier
• No need to do sales work at all
Neutrality
• In the first 10 years or so
• Little hesitation for participants to connect
• But cannot be free forever
Free Service
Initially
• Earlier than the incumbent telco starting its ISP business
o They even asked for joining before they launched the
service
• History cannot be repeated that easily…
Started Early

32. 32 v1.032

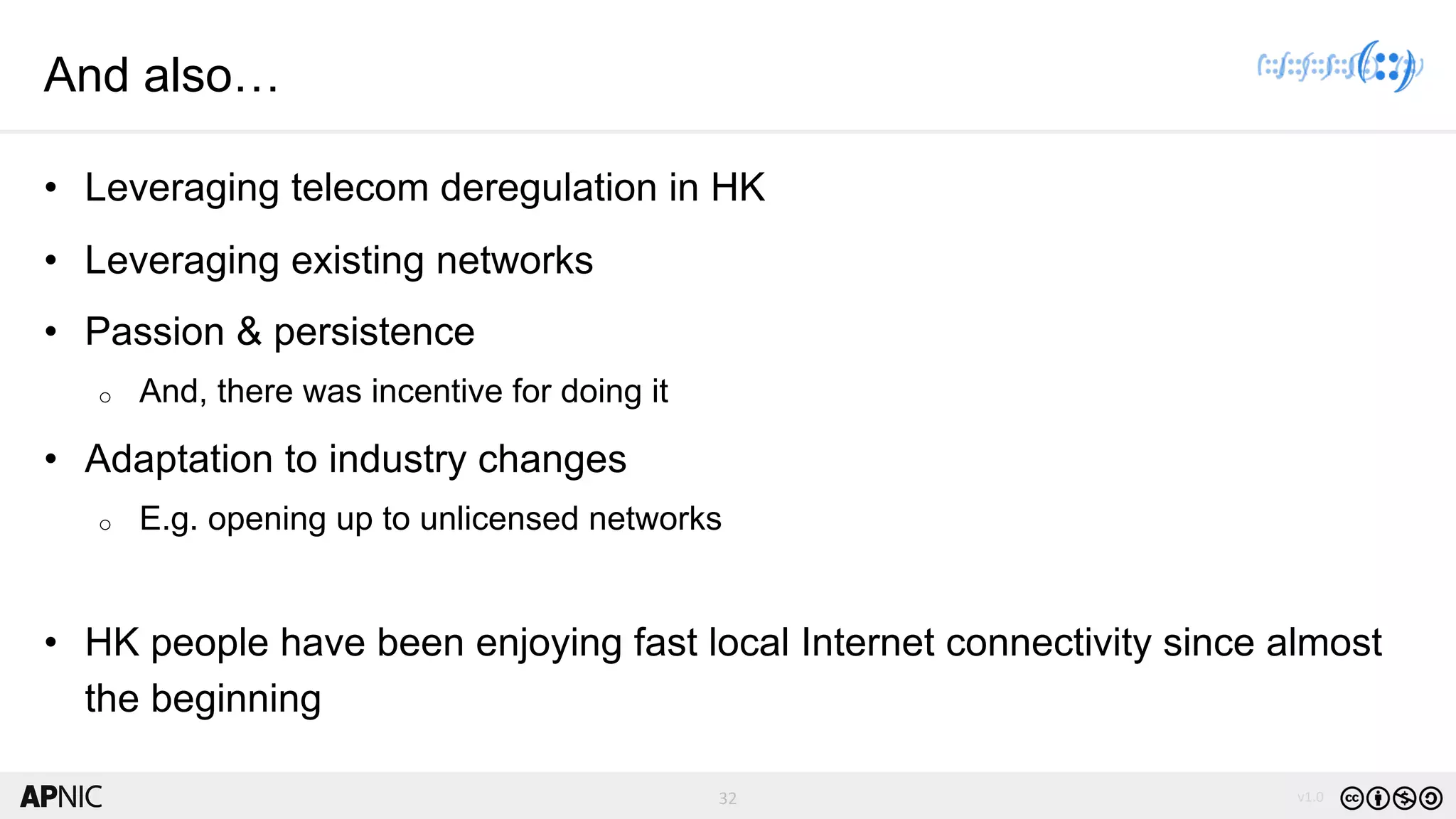

And also…
• Leveraging telecom deregulation in HK
• Leveraging existing networks
• Passion & persistence
o And, there was incentive for doing it
• Adaptation to industry changes
o E.g. opening up to unlicensed networks
• HK people have been enjoying fast local Internet connectivity since almost
the beginning

33. 33 v1.033

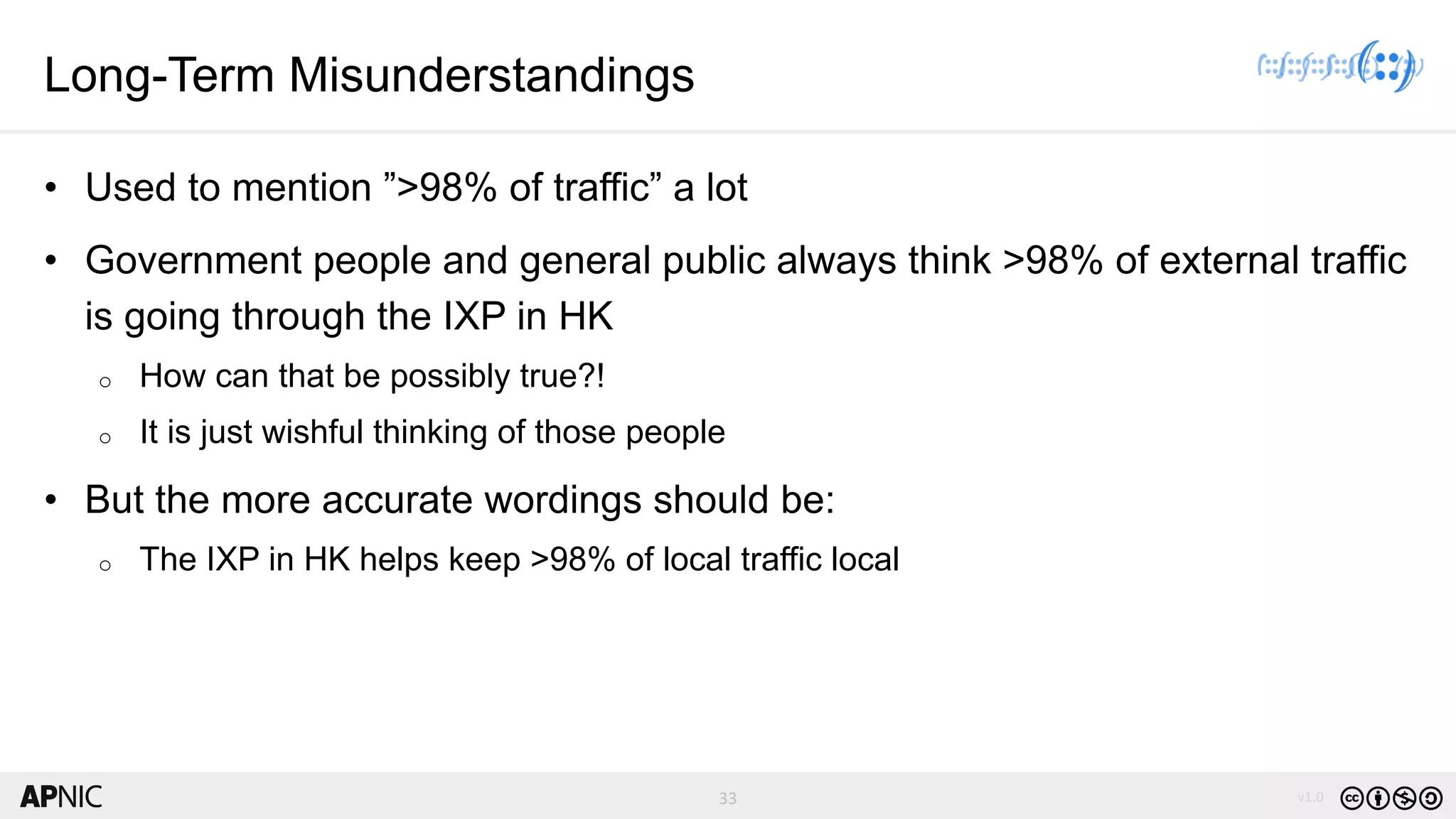

Long-Term Misunderstandings
• Used to mention ”>98% of traffic” a lot
• Government people and general public always think >98% of external traffic
is going through the IXP in HK
o How can that be possibly true?!
o It is just wishful thinking of those people
• But the more accurate wordings should be:
o The IXP in HK helps keep >98% of local traffic local

34. 34 v1.034
Other Misunderstandings
• The IXP supports Bilateral Peering since the beginning
o Although it did emphasise Multilateral Peering in the early days
• The IXP is NOT the only IXP in HK
o There are in fact multiple IXPs
o The IXP is just the earliest and the biggest
o The other IXPs together are not really small
▸ Perhaps 70:30 in terms of traffic volume
o But the IXP is the focus of people, most of the time

35. 35 v1.035

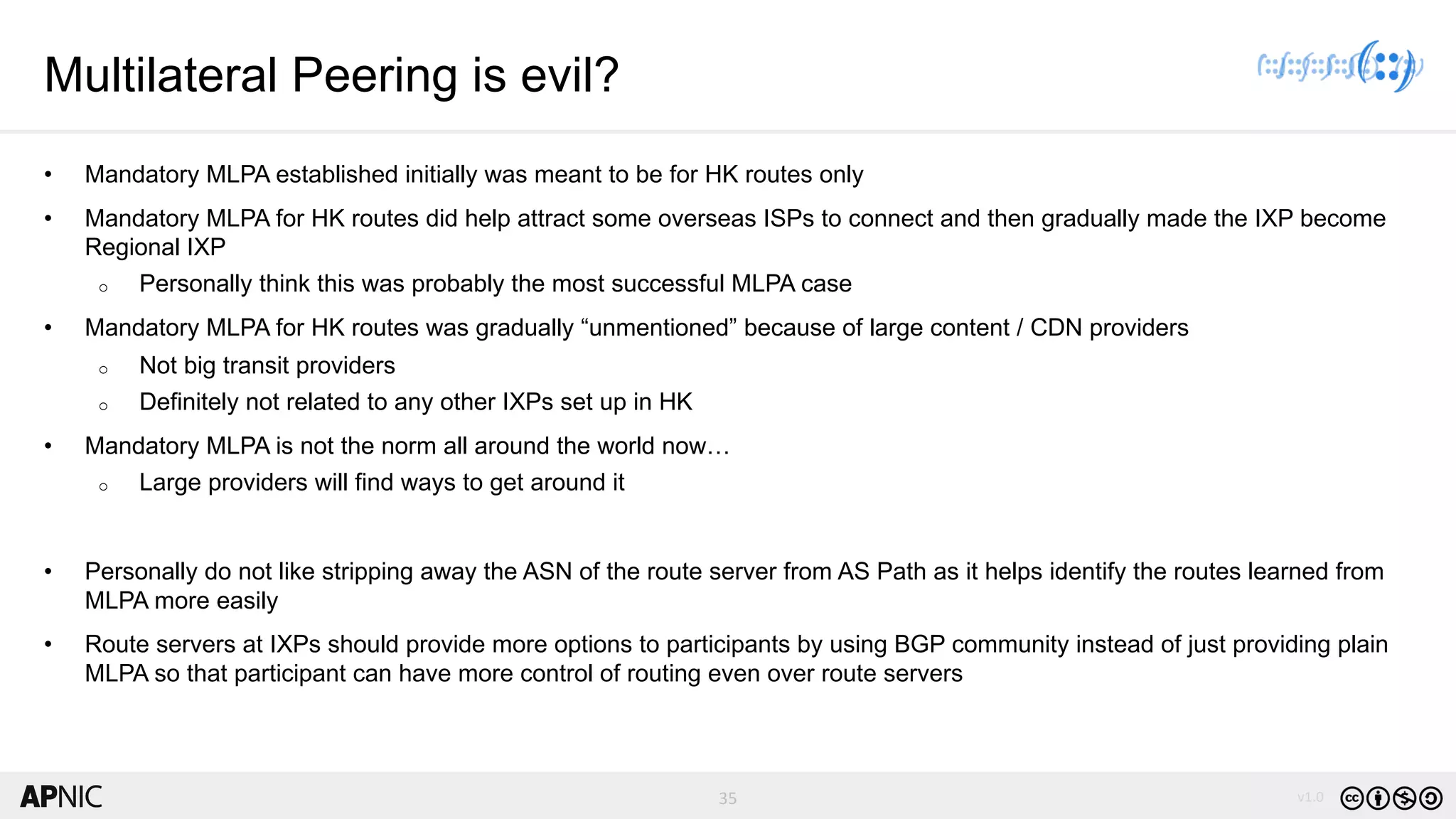

Multilateral Peering is evil?
• Mandatory MLPA established initially was meant to be for HK routes only
• Mandatory MLPA for HK routes did help attract some overseas ISPs to connect and then gradually made the IXP become
Regional IXP
o Personally think this was probably the most successful MLPA case
• Mandatory MLPA for HK routes was gradually “unmentioned” because of large content / CDN providers
o Not big transit providers
o Definitely not related to any other IXPs set up in HK
• Mandatory MLPA is not the norm all around the world now…
o Large providers will find ways to get around it
• Personally do not like stripping away the ASN of the route server from AS Path as it helps identify the routes learned from
MLPA more easily
• Route servers at IXPs should provide more options to participants by using BGP community instead of just providing plain
MLPA so that participant can have more control of routing even over route servers

36. 36 v1.036
Vulnerabilities of IXPs
• Why can’t all router vendors have Proxy ARP disabled as default?
• Cannot stop it totally because of possible human errors
• Can only do regular monitoring by checking the ARP table
• EVPN over VxLAN technology should be able to help but it is not a simple technology
Proxy ARP
• May happen when there is asymmetric routing seen from an IXP
• Can be mitigated by sending proactive ARP check to all active addresses every hour or so
• EVPN over VxLAN technology should be able to help but it is not a simple technology
Unknown Unicast Flooding
• Can cause trouble to multiple connections when there is big congestion on one port
o Unknown to innocent participants which do not have any congestion
• Just be careful when choosing switch models
o Also avoid switch models with small buffer
Shared Buffer over Multiple Switch Ports

37. 37 v1.037

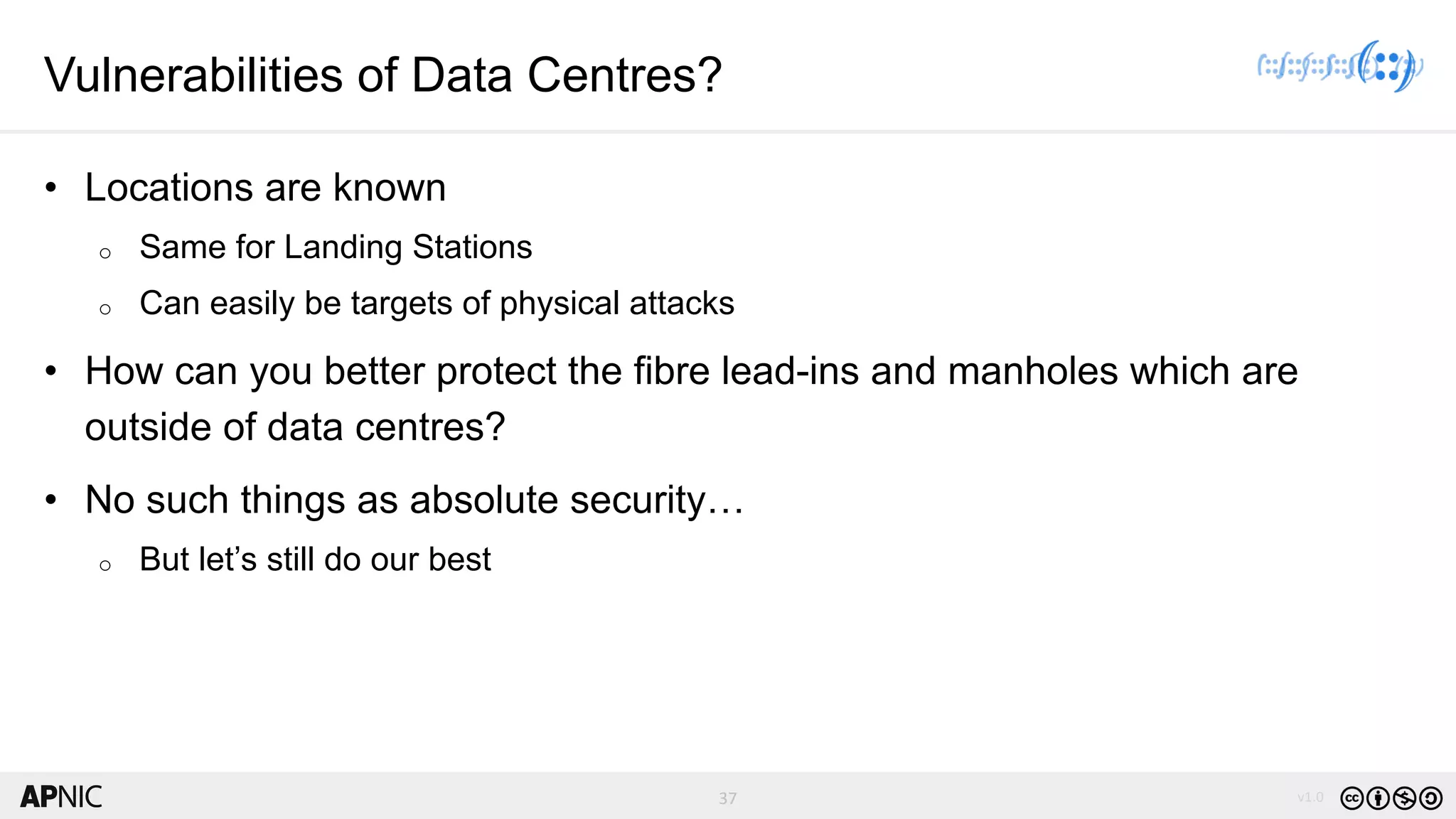

Vulnerabilities of Data Centres?
• Locations are known
o Same for Landing Stations
o Can easily be targets of physical attacks
• How can you better protect the fibre lead-ins and manholes which are
outside of data centres?
• No such things as absolute security…
o But let’s still do our best

38. 38 v1.038
Visibility of Traffic?
• Support of layer-3 sFlow/NetFlow highly desirable for better visibility of
traffic going through the IXP
o It helps trouble-shooting and understanding of traffic profile/pattern a lot
o Having visibility of just layer-2 data is of less use
• But participants and general public would be concerned about the
perceived surveillance or monitoring
o Should do the best not to give data away to 3rd-parties
o IXP needs to maintain trust with the participants

39. 39 v1.039

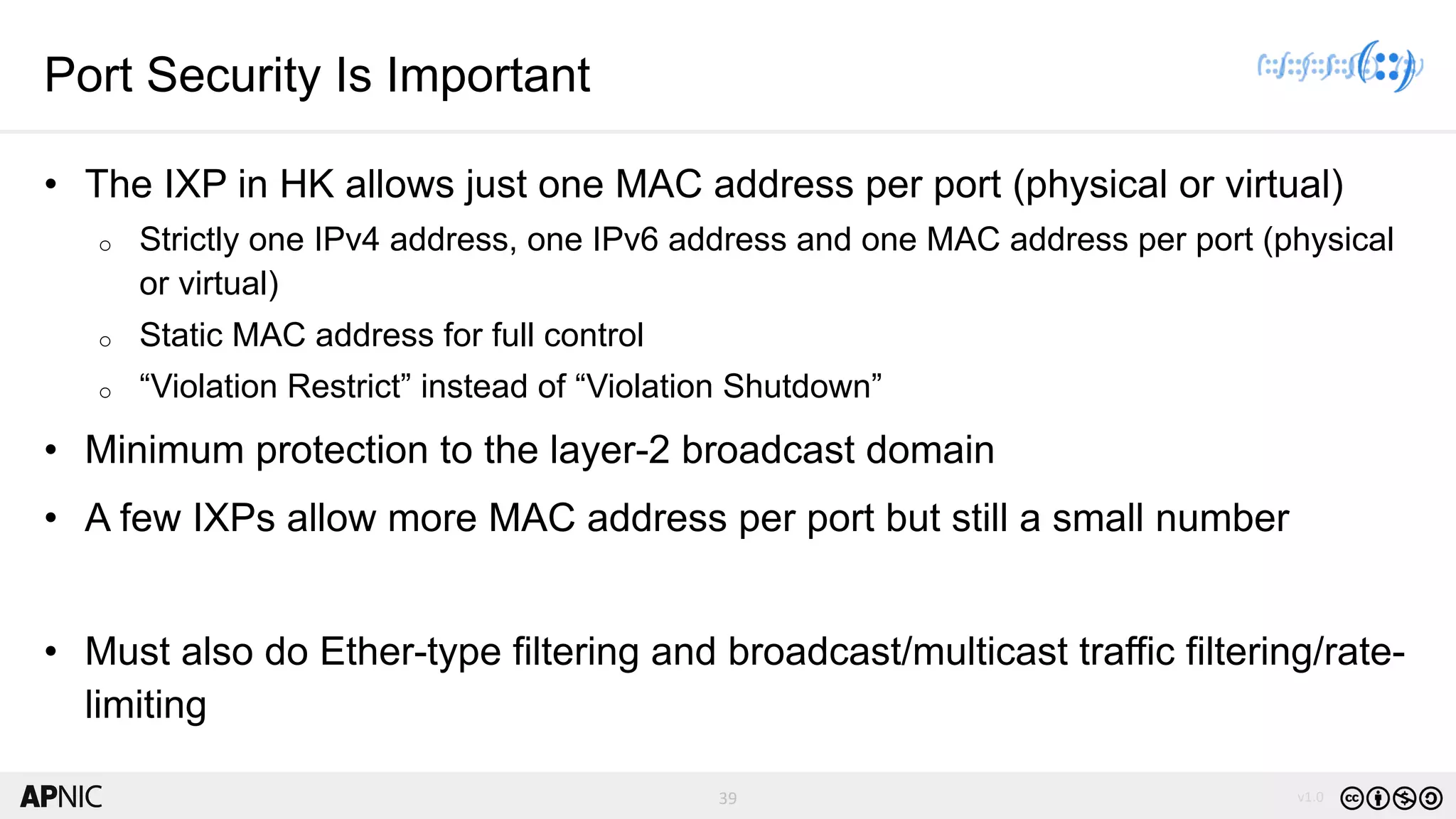

Port Security Is Important
• The IXP in HK allows just one MAC address per port (physical or virtual)
o Strictly one IPv4 address, one IPv6 address and one MAC address per port (physical
or virtual)
o Static MAC address for full control
o “Violation Restrict” instead of “Violation Shutdown”
• Minimum protection to the layer-2 broadcast domain
• A few IXPs allow more MAC address per port but still a small number
• Must also do Ether-type filtering and broadcast/multicast traffic filtering/rate-
limiting

40. 40 v1.040

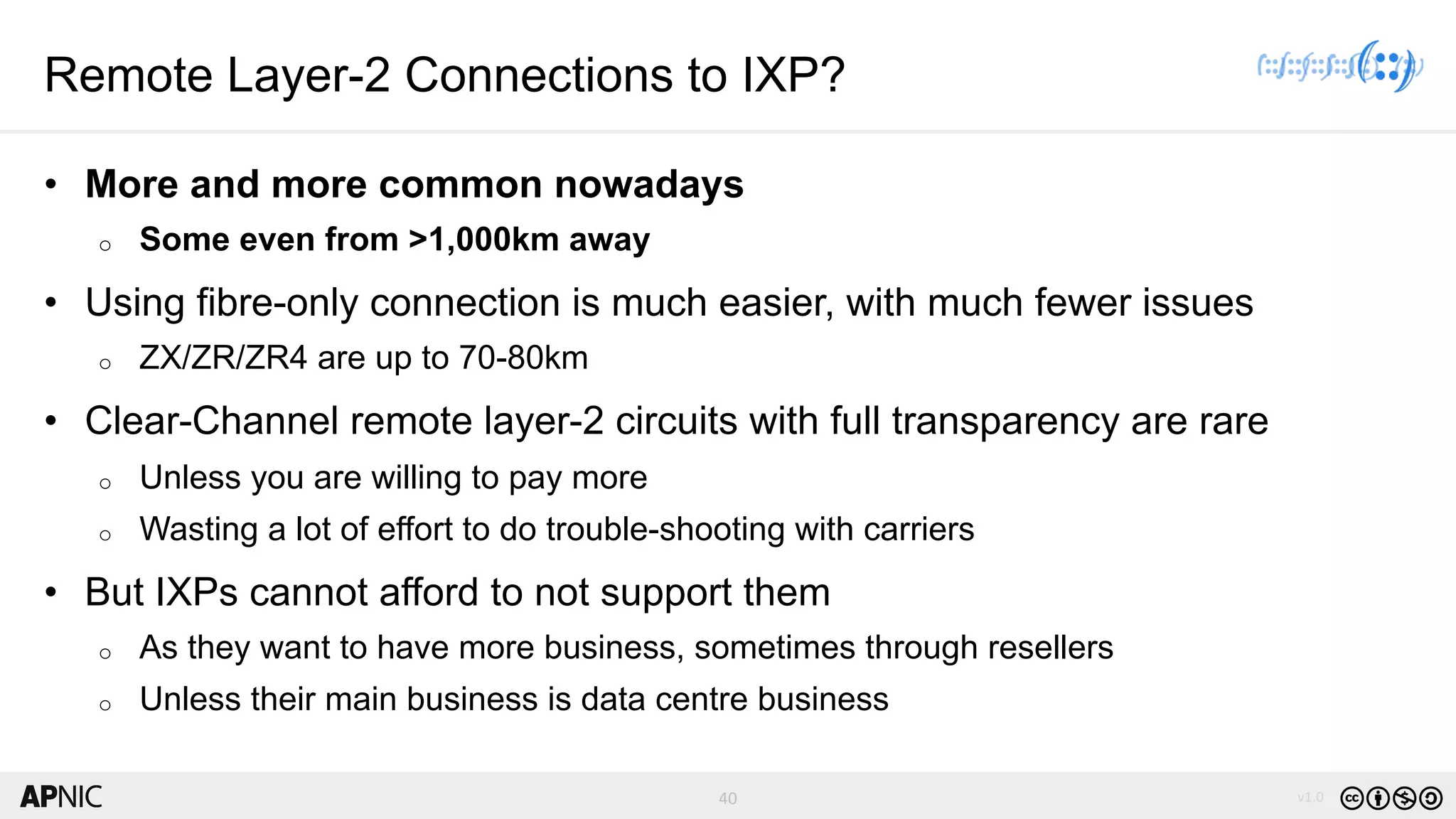

Remote Layer-2 Connections to IXP?
• More and more common nowadays
o Some even from >1,000km away
• Using fibre-only connection is much easier, with much fewer issues
o ZX/ZR/ZR4 are up to 70-80km
• Clear-Channel remote layer-2 circuits with full transparency are rare
o Unless you are willing to pay more
o Wasting a lot of effort to do trouble-shooting with carriers
• But IXPs cannot afford to not support them
o As they want to have more business, sometimes through resellers
o Unless their main business is data centre business

41. 41 v1.041

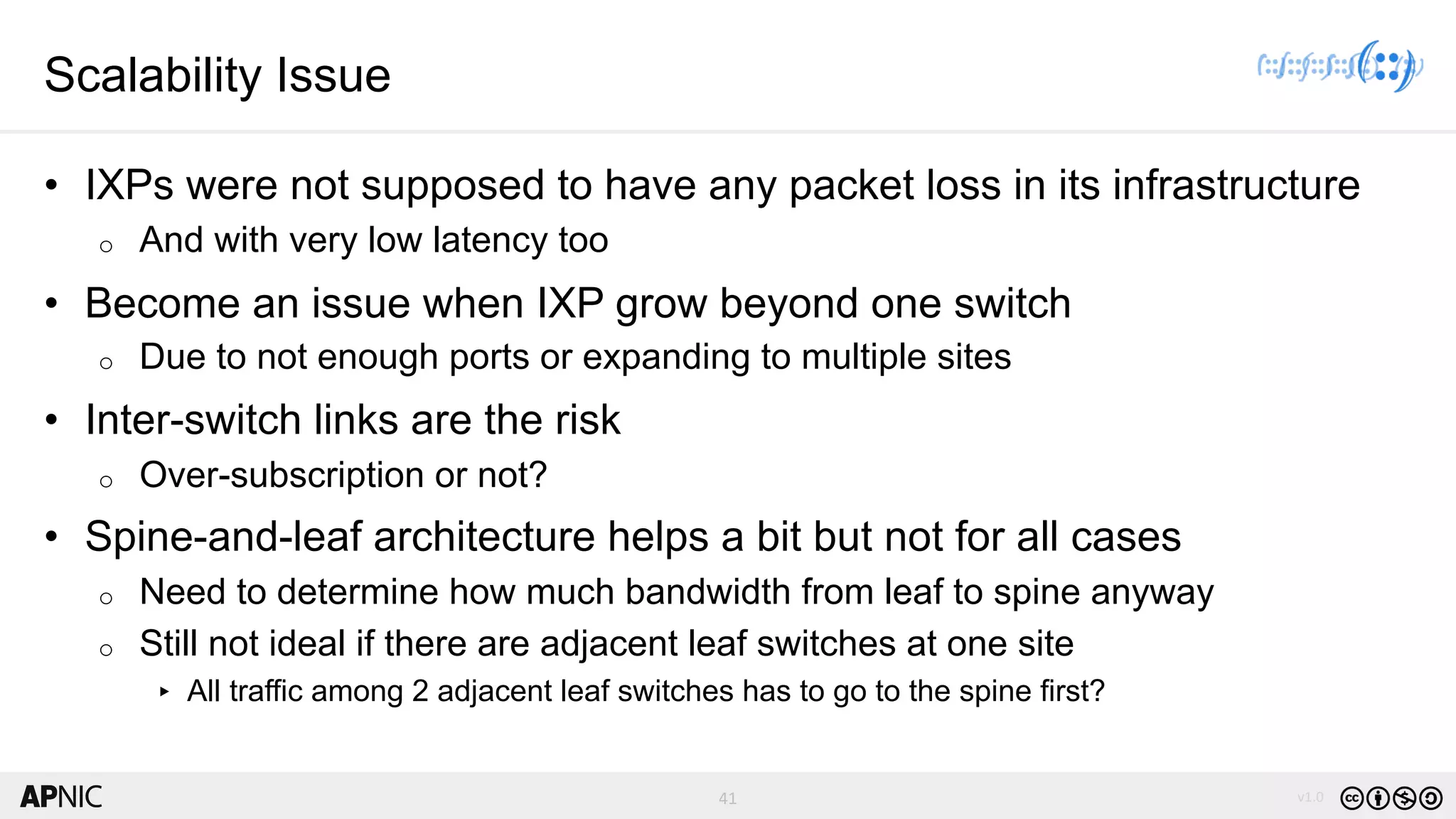

Scalability Issue
• IXPs were not supposed to have any packet loss in its infrastructure
o And with very low latency too
• Become an issue when IXP grow beyond one switch
o Due to not enough ports or expanding to multiple sites
• Inter-switch links are the risk
o Over-subscription or not?
• Spine-and-leaf architecture helps a bit but not for all cases
o Need to determine how much bandwidth from leaf to spine anyway
o Still not ideal if there are adjacent leaf switches at one site
▸ All traffic among 2 adjacent leaf switches has to go to the spine first?

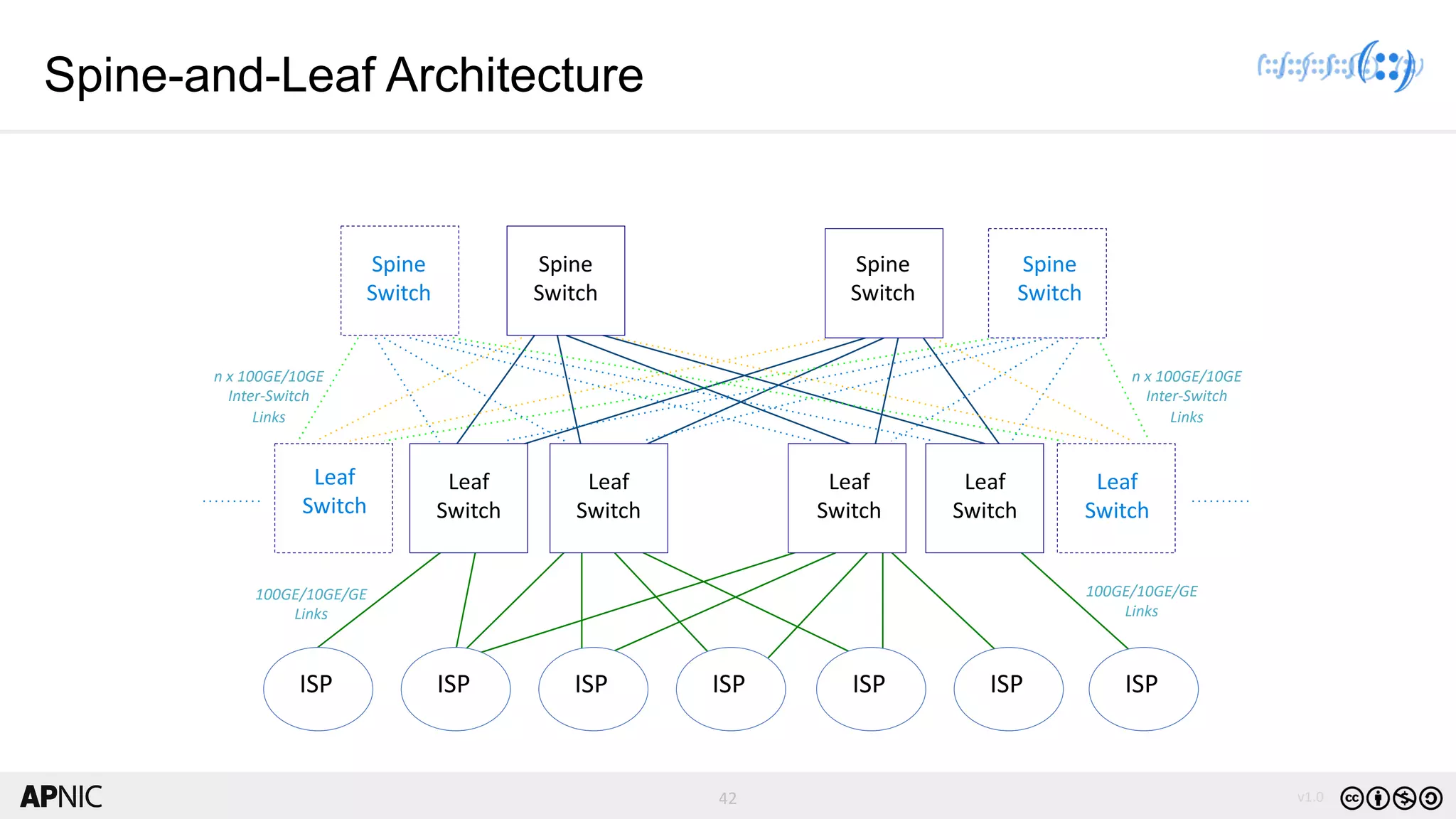

42. 42 v1.042
Spine
Switch
Spine
Switch
Leaf
Switch
Leaf
Switch
Leaf
Switch
n x 100GE/10GE
Inter-Switch
Links
n x 100GE/10GE
Inter-Switch
Links
ISP ISP ISP ISP ISP ISP ISP
Spine
Switch
Spine
Switch
Leaf
Switch
Leaf
Switch
100GE/10GE/GE
Links
100GE/10GE/GE
Links
Leaf
Switch
Spine-and-Leaf Architecture

43. 43 v1.043
MRTG of Aggregate Traffic
• It is less sensitive of course
o More an indication of the importance and the growth of an IXP
o Should not neglect the huge difference between showing 5-min data and 1-min data
o Should not neglect what traffic data is included – just the main broadcast domain or what?
Usually incoming = outgoing
If incoming > outgoing Congestion at at least one port
• May be DDoS attacks
If outgoing > incoming May have Unknown Unicast Flooding
If sudden drop of large traffic
volume
May have Proxy ARP problem
• Usually happens when change of router / router software /
router config

44. 44 v1.044
Other Observations from MRTG
• Situation in HK
o Holiday Effect
o Soccer Games Effect
o Typhoon Effect
• Difference of Culture / Practices
o E.g. HK vs Japan

45. 45 v1.045
IXPs and Data Centres
• They are natural partners
• Common situation in advanced metro cities
o Multiple IXPs in one Data Centre
o One IXP in multiple Data Centres
▸ Should be the same layer-2 broadcast domain
▸ Circuit cost is a burden
o Healthy competition would be good
▸ Customers have choices
▸ Also for better resilience

46. 46 v1.046

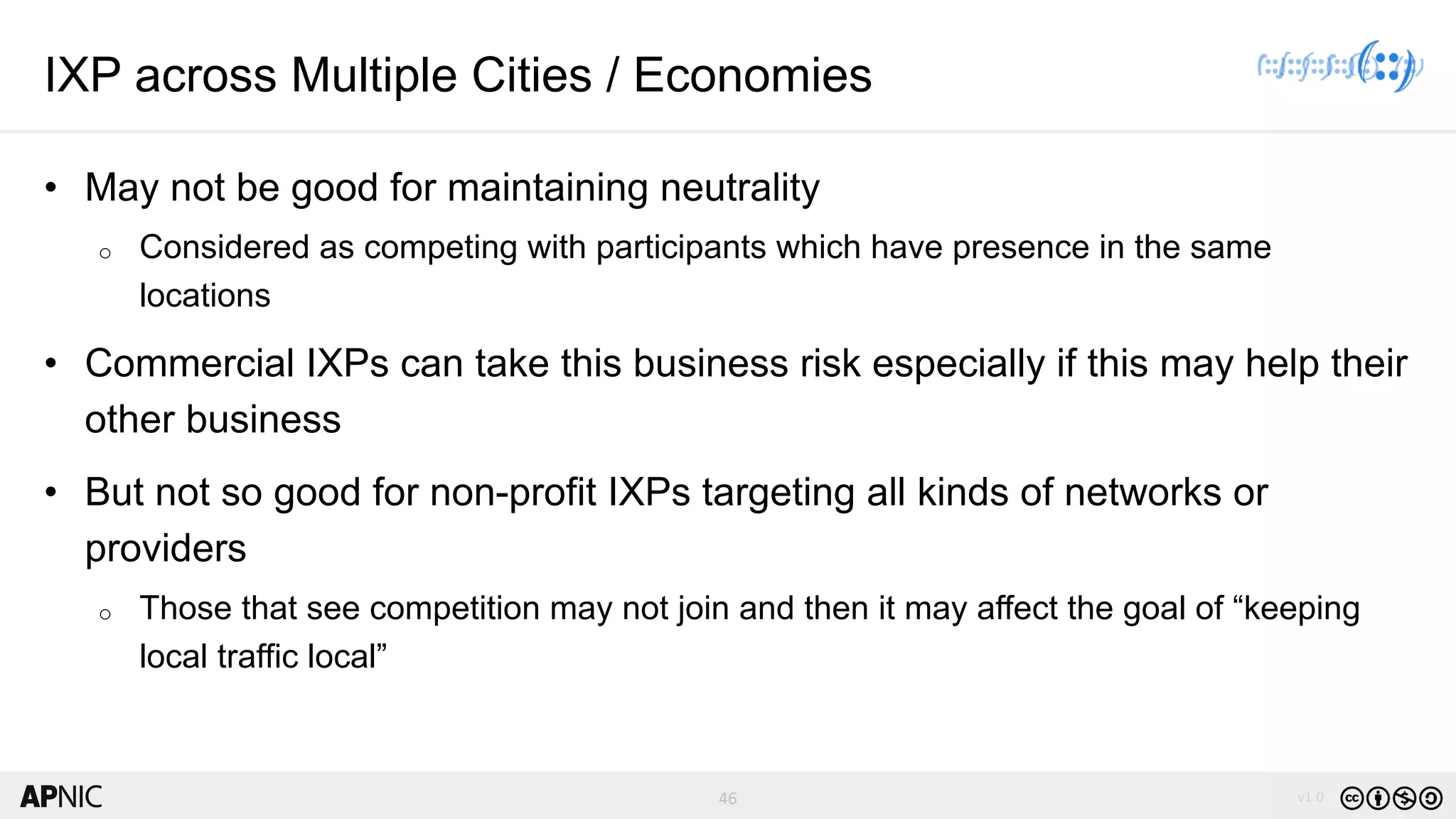

IXP across Multiple Cities / Economies
• May not be good for maintaining neutrality
o Considered as competing with participants which have presence in the same
locations
• Commercial IXPs can take this business risk especially if this may help their
other business
• But not so good for non-profit IXPs targeting all kinds of networks or
providers
o Those that see competition may not join and then it may affect the goal of “keeping
local traffic local”

47. 47 v1.047
Interconnections of 2 or More IXPs
• What are the purposes of doing this?
• Not considered a good idea at Layer-2, especially if across cities or
countries/economies
• Even at Layer-3, still need to be mindful of whether it affects the original
purposes of each IXP involved

48. 48 v1.048
Shared Content Caches Offered by IXP?
• A lot of misunderstandings about the use of caches
o Caches may not always help save cost or improve performance
• A lot of local IXPs want to provide shared caches for their participants to
increase their value
o Cost recovery and cost sharing / accounting are major issues to them though
• Content / CDN providers are still sceptical about this model
o They still mostly look at cache efficiency (cache hit ratio) and traffic volume for
justifications
• But it is still good to consider it

49. 49 v1.049

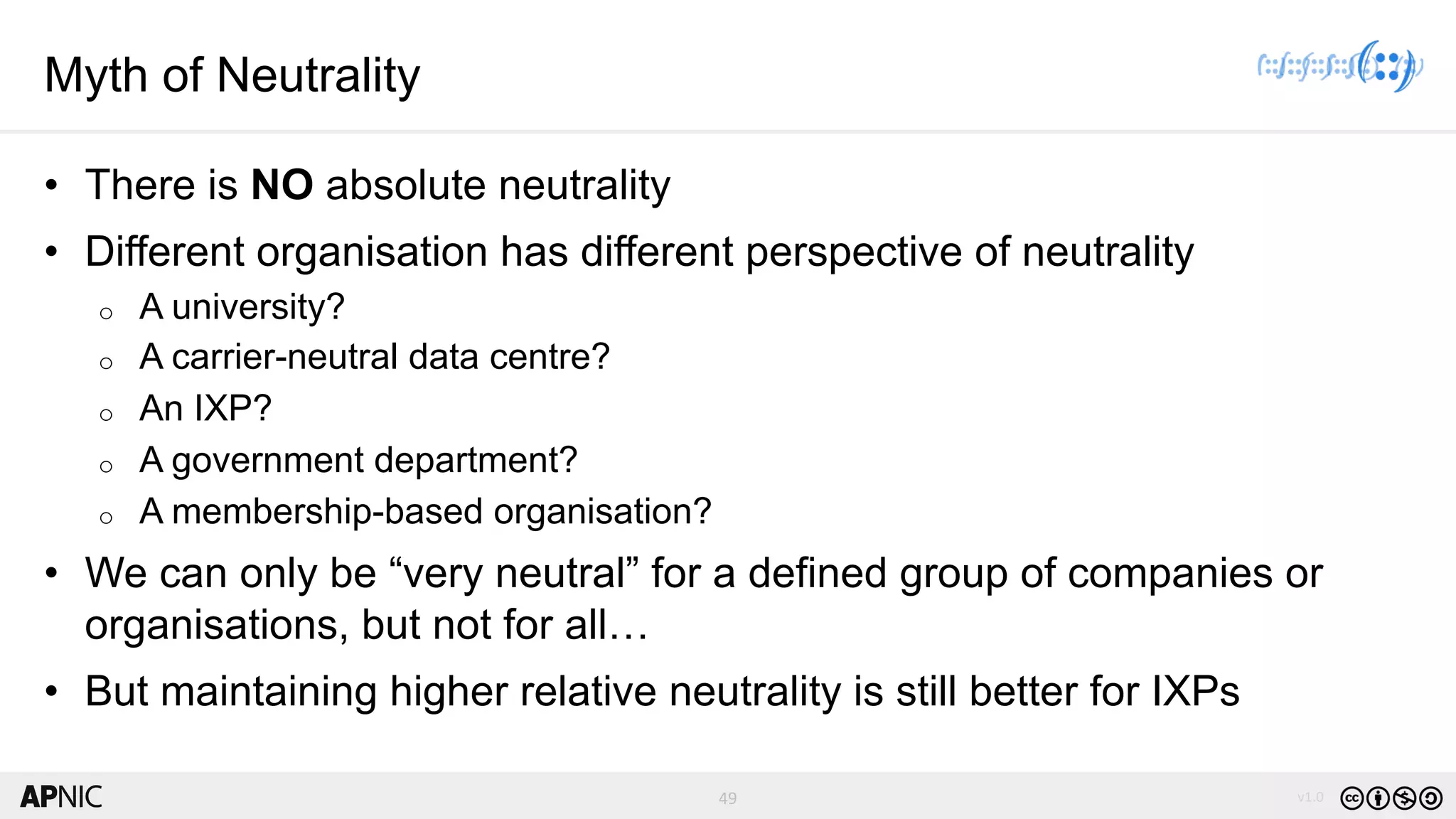

Myth of Neutrality
• There is NO absolute neutrality
• Different organisation has different perspective of neutrality
o A university?
o A carrier-neutral data centre?
o An IXP?
o A government department?
o A membership-based organisation?
• We can only be “very neutral” for a defined group of companies or
organisations, but not for all…
• But maintaining higher relative neutrality is still better for IXPs

50. 50 v1.050
Competition / Comparison among IXPs
• Especially when they are in the same metro area
• Traffic Volume
o Apple-to-apple?
o 5-min vs 1-min?
o One broadcast domain vs multiple broadcast domains?
o PNNI traffic added?
o 1Tbps Club…
• Number of ASNs connected
• Number of Ports connected
• Amount of total connected customer bandwidth
• #1 IXP in Asia???

51. 51 v1.051
Threats to IXP Business
• /Mbps pricing of IP transit bandwidth is dropping continuously
o Partly because of price drop of submarine cable capacity
o /Mbps pricing of IXPs cannot be dropped as fast because of different cost base
▸ Equipment cost doesn’t drop a lot especially for high-end switches
▸ Local loop cost involved for interconnecting multiple sites does not drop as fast
• More and more content caches are being set up inside the access networks
o But bandwidth is still needed for cache-fill
• Private peering will take away traffic from IXPs
o If traffic volume warrants between any two parties

52. 52 v1.052
The Way Forward for IXP Business
• It is tough business if you only do IXP business
o Fighting for survival
• Adding Value Added Services may help
o PNNI over VLANs, GRX, Cloud Exchange, GXP and etc
• Partnership
o Partnering with multiple Data Centres
o Partnering with multiple local loop providers
o Recruit resellers – local & overseas/global
• Expand overseas
o A few European IXPs are doing this
• Merger and Acquisition
o Even non-profit set-up should get ready for this

53. 53 v1.053
IXP Development Work of APNIC
• APNIC strongly believes IXPs help Internet development
o That is why we support APIX and related activities
o After all, IXPs serve and benefit APNIC members
o In fact, IXPs need IP addresses and ASNs and so are APNIC members themselves
• Do more on helping those developing economies
o Especially those which do not have any IXP yet
o Or those which their only IXP is not functioning
• Training and Technical Assistance work primarily
o Not just for IXP operators but also for IXP participants
o Also help talk to major stakeholders to convince them of the benefits of having a local IXP while maintaining neutrality
o May need help of Community Trainers and Consultants from time to time
• Having been supporting IXP development in Fiji, PNG, Vanuatu, Mongolia, Bhutan, Myanmar, some
cities in India and others

54. 54 v1.054

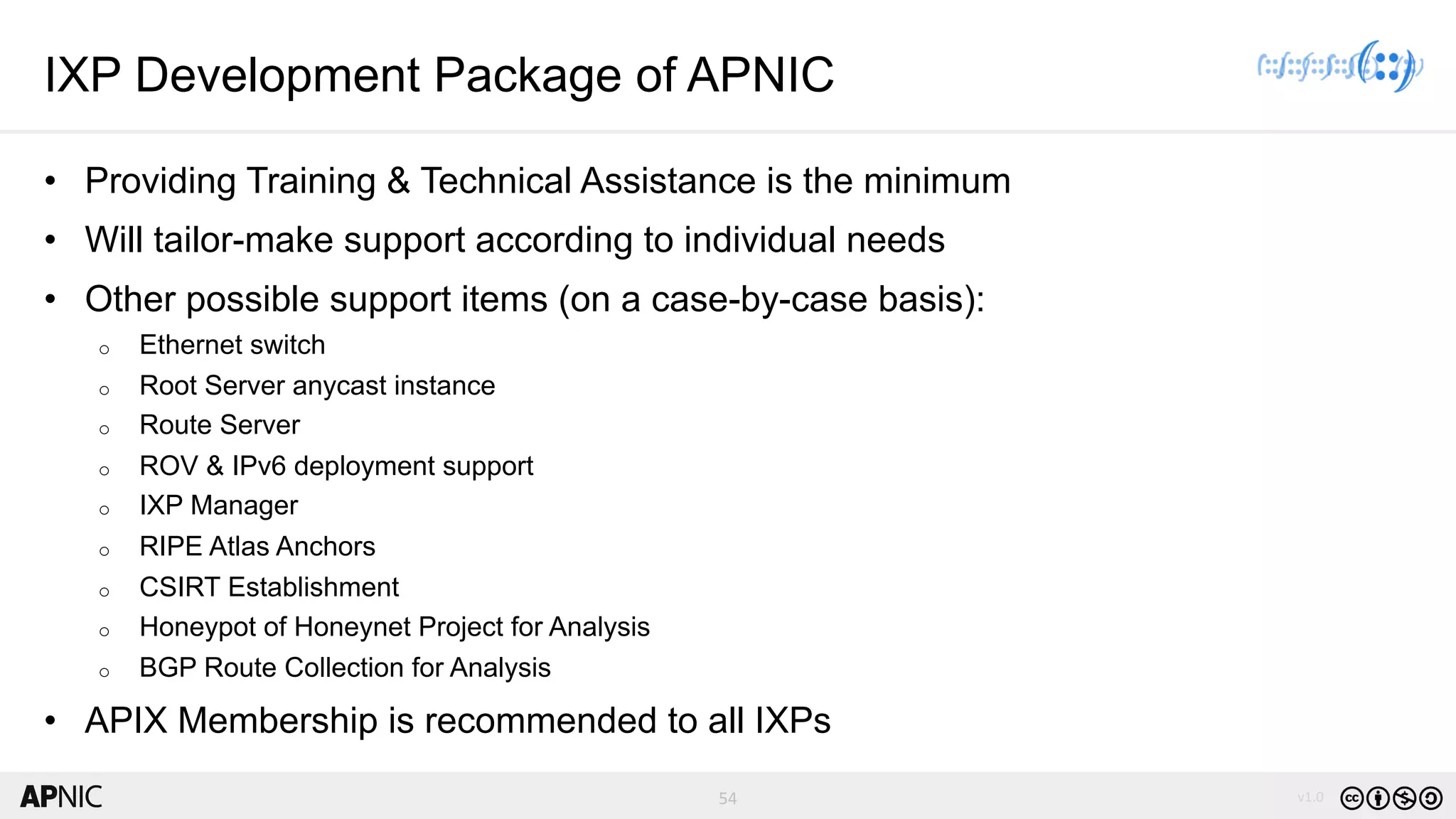

IXP Development Package of APNIC
• Providing Training & Technical Assistance is the minimum
• Will tailor-make support according to individual needs
• Other possible support items (on a case-by-case basis):
o Ethernet switch
o Root Server anycast instance
o Route Server
o ROV & IPv6 deployment support
o IXP Manager
o RIPE Atlas Anchors
o CSIRT Establishment
o Honeypot of Honeynet Project for Analysis
o BGP Route Collection for Analysis
• APIX Membership is recommended to all IXPs

55. 55 v1.055
Route Origin Validation (ROV) at IXP
– via Route Server and/or Shared Validator
Validated
cache
Validator
RPKI-to-Router (RTR)
Routes
Tagged/filtered
routes
RS

56. 56 v1.056

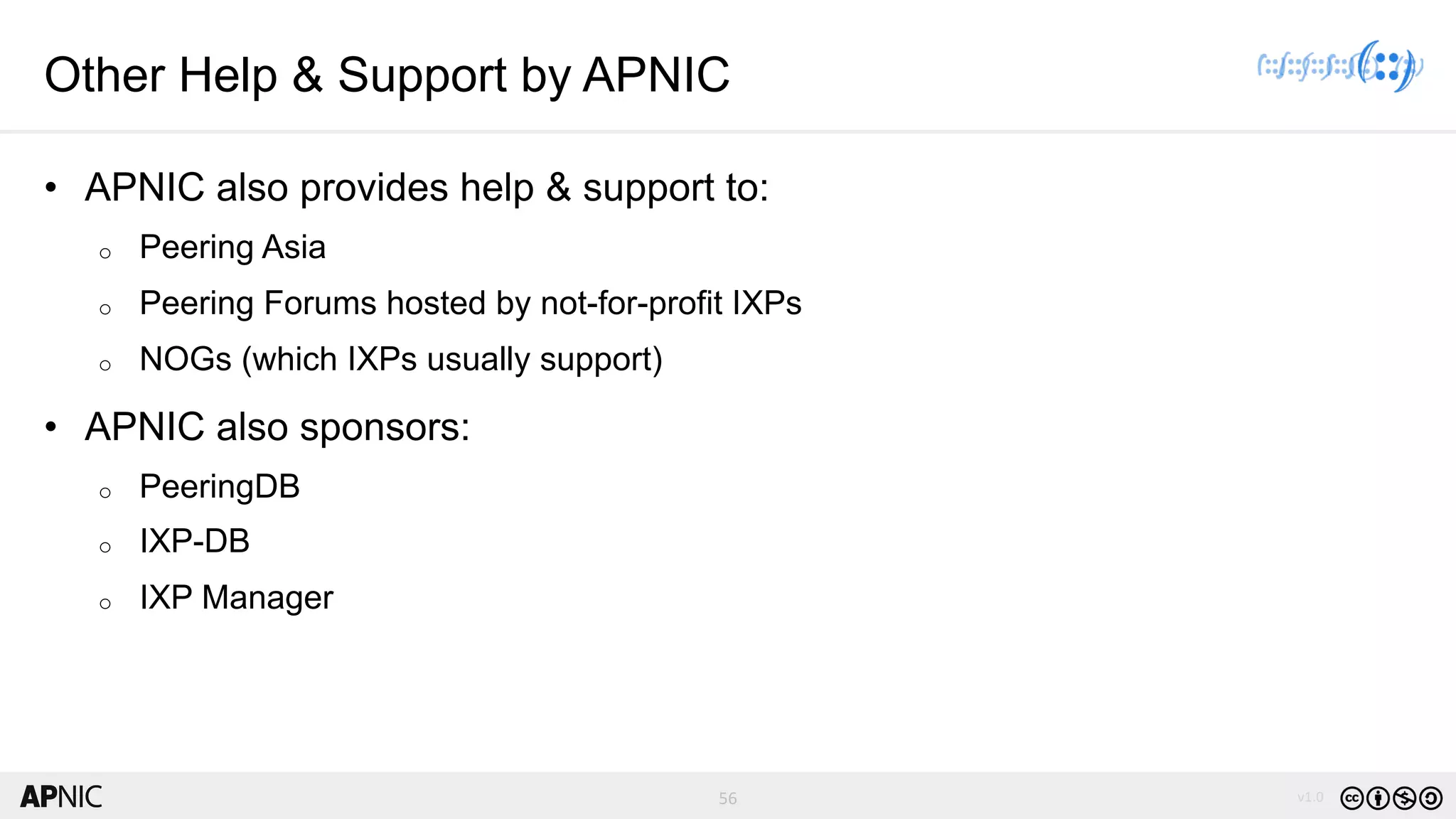

Other Help & Support by APNIC
• APNIC also provides help & support to:
o Peering Asia
o Peering Forums hosted by not-for-profit IXPs
o NOGs (which IXPs usually support)
• APNIC also sponsors:
o PeeringDB
o IXP-DB
o IXP Manager

57. 57 v1.057

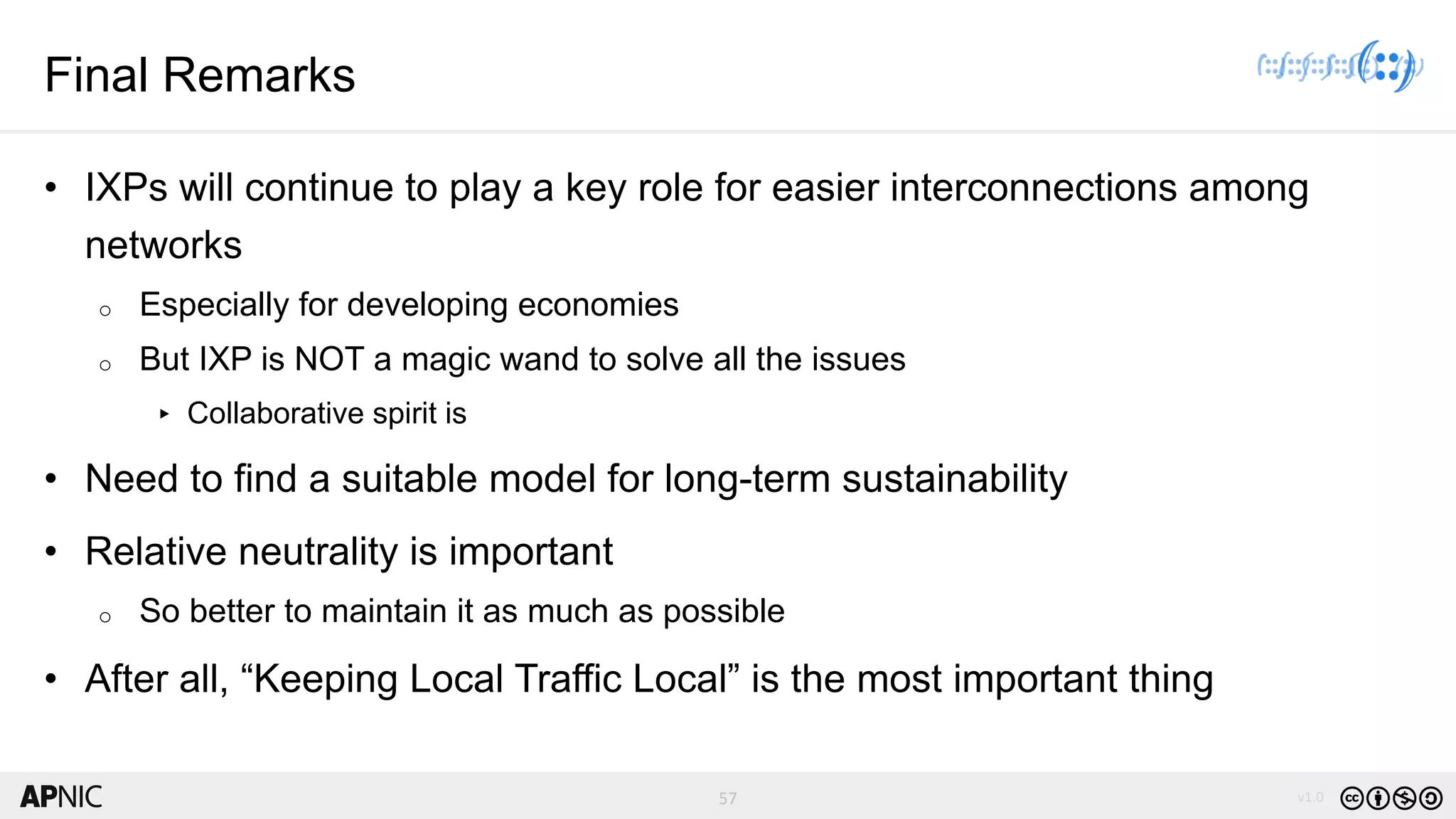

Final Remarks
• IXPs will continue to play a key role for easier interconnections among
networks
o Especially for developing economies
o But IXP is NOT a magic wand to solve all the issues
▸ Collaborative spirit is
• Need to find a suitable model for long-term sustainability
• Relative neutrality is important
o So better to maintain it as much as possible
• After all, “Keeping Local Traffic Local” is the most important thing

58. 58 v1.058
Thank You!END OF SESSIONThank You!END OF SESSION

59. 59
