Kavitsu is an Indian company established in 1992 that manufactures planetary gear boxes, slew ring bearings, and electric motors. It has a 90,000 square foot manufacturing facility with various machinery. Kavitsu supplies products for the sugar industry such as mill drives, crystallizer drives, and electric motors. It has domestic and international clients in countries like Uganda, Kenya, Ethiopia, and Saudi Arabia.

1. kavitsu
TAKING SUGAR INDUSTRY TO A NEW LEVEL

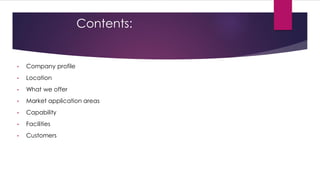

2. Contents:
• Company profile
• Location
• What we offer
• Market application areas
• Capability
• Facilities
• Customers

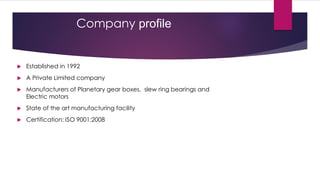

3. Company profile
 Established in 1992
 A Private Limited company
 Manufacturers of Planetary gear boxes, slew ring bearings and
Electric motors
 State of the art manufacturing facility
 Certification: ISO 9001:2008

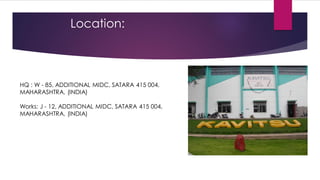

4. Location:
HQ : W - 85, ADDITIONAL MIDC, SATARA 415 004,
MAHARASHTRA, (INDIA)
Works: J - 12, ADDITIONAL MIDC, SATARA 415 004,
MAHARASHTRA, (INDIA)

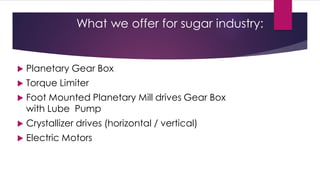

5. What we offer for sugar industry:
 Planetary Gear Box
 Torque Limiter
 Foot Mounted Planetary Mill drives Gear Box
with Lube Pump
 Crystallizer drives (horizontal / vertical)
 Electric Motors

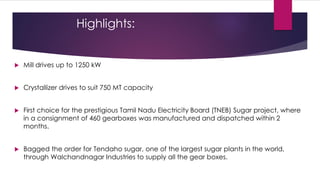

6. Highlights:
 Mill drives up to 1250 kW
 Crystallizer drives to suit 750 MT capacity
 First choice for the prestigious Tamil Nadu Electricity Board (TNEB) Sugar project, where
in a consignment of 460 gearboxes was manufactured and dispatched within 2
months.
 Bagged the order for Tendaho sugar, one of the largest sugar plants in the world,
through Walchandnagar Industries to supply all the gear boxes.

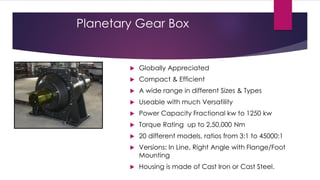

7. Planetary Gear Box
 Globally Appreciated
 Compact & Efficient
 A wide range in different Sizes & Types
 Useable with much Versatility
 Power Capacity Fractional kw to 1250 kw
 Torque Rating up to 2,50,000 Nm
 20 different models, ratios from 3:1 to 45000:1
 Versions: In Line, Right Angle with Flange/Foot
Mounting
 Housing is made of Cast Iron or Cast Steel.

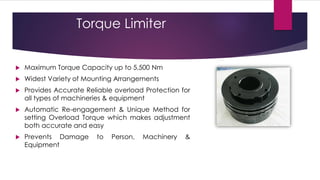

8. Torque Limiter
 Maximum Torque Capacity up to 5,500 Nm
 Widest Variety of Mounting Arrangements
 Provides Accurate Reliable overload Protection for
all types of machineries & equipment
 Automatic Re-engagement & Unique Method for
setting Overload Torque which makes adjustment
both accurate and easy
 Prevents Damage to Person, Machinery &
Equipment

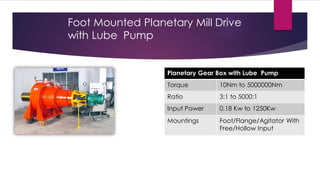

9. Foot Mounted Planetary Mill Drive
with Lube Pump
Planetary Gear Box with Lube Pump
Torque 10Nm to 5000000Nm
Ratio 3:1 to 5000:1
Input Power 0.18 Kw to 1250Kw
Mountings Foot/Flange/Agitator With
Free/Hollow Input

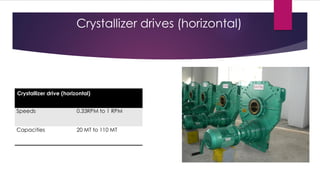

10. Crystallizer drives (horizontal)
Crystallizer drive (horizontal)
Speeds 0.33RPM to 1 RPM
Capacities 20 MT to 110 MT

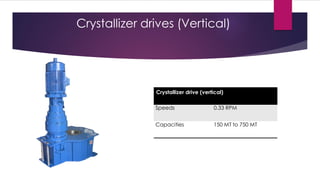

11. Crystallizer drives (Vertical)
Crystallizer drive (vertical)
Speeds 0.33 RPM
Capacities 150 MT to 750 MT

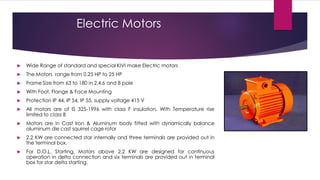

12. Electric Motors
 Wide Range of standard and special KIVI make Electric motors
 The Motors range from 0.25 HP to 25 HP
 Frame Size from 63 to 180 in 2,4,6 and 8 pole
 With Foot, Flange & Face Mounting
 Protection IP 44, IP 54, IP 55, supply voltage 415 V
 All motors are of IS 325-1996 with class F insulation, With Temperature rise
limited to class B
 Motors are in Cast Iron & Aluminum body fitted with dynamically balance
aluminum die cast squirrel cage rotor
 2.2 KW are connected star internally and three terminals are provided out in
the terminal box.
 For D.O.L. Starting, Motors above 2.2 KW are designed for continuous
operation in delta connection and six terminals are provided out in terminal
box for star delta starting.

13. Market Application Areas:
Sugar industry:
 Mechanical Pan ► Sugar Melting Tank
Circulator
► TRPF / GRPF Drive
 Molasses
Conditioner
► Cane Carrier
 Milk of Lime Tank
Mixer ► Bagasse elevator
 Magma Mixer
► Conveyor Dive
 Mud Mixer
 Mill Drive ► Ash Traveling Grate
 Magma Pump Drive ► Sugar Elevator
 Screw Conveyor

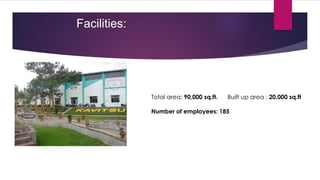

14. Facilities:
Total area: 90,000 sq.ft. Built up area : 20,000 sq.ft
Number of employees: 185

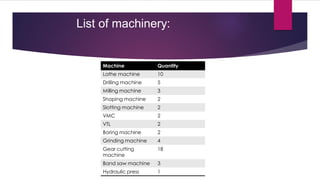

15. List of machinery:
Machine Quantity
Lathe machine 10
Drilling machine 5
Milling machine 3
Shaping machine 2
Slotting machine 2
VMC 2
VTL 2
Boring machine 2
Grinding machine 4
Gear cutting 18
machine
Band saw machine 3
Hydraulic press 1

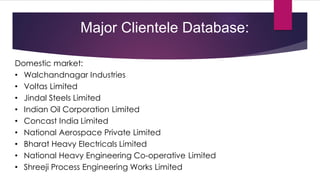

16. Major Clientele Database:
Domestic market:
• Walchandnagar Industries
• Voltas Limited
• Jindal Steels Limited
• Indian Oil Corporation Limited
• Concast India Limited
• National Aerospace Private Limited
• Bharat Heavy Electricals Limited
• National Heavy Engineering Co-operative Limited
• Shreeji Process Engineering Works Limited

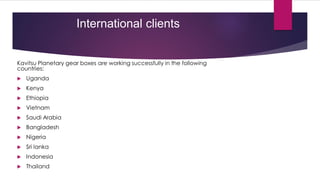

17. International clients
Kavitsu Planetary gear boxes are working successfully in the following
countries:
 Uganda
 Kenya
 Ethiopia
 Vietnam
 Saudi Arabia
 Bangladesh
 Nigeria
 Sri lanka
 Indonesia
 Thailand
