The document provides detailed information about Jinyun's YLB series mobile asphalt mixing plants, which are designed for improved transportation and installation efficiency. It outlines specific models (YL700, YL1000, YL1500, YL2000) with capacities ranging from 56 to 160 tons per hour and highlights features such as accurate weighing, modular design, and certifications for quality and safety. The plants use renowned international components to ensure reliability and include an energy-saving dust collection system.

1. E-mail: info@jinyun.us
Tel: 0086-371-55090778
Web: www.jin-yun.net

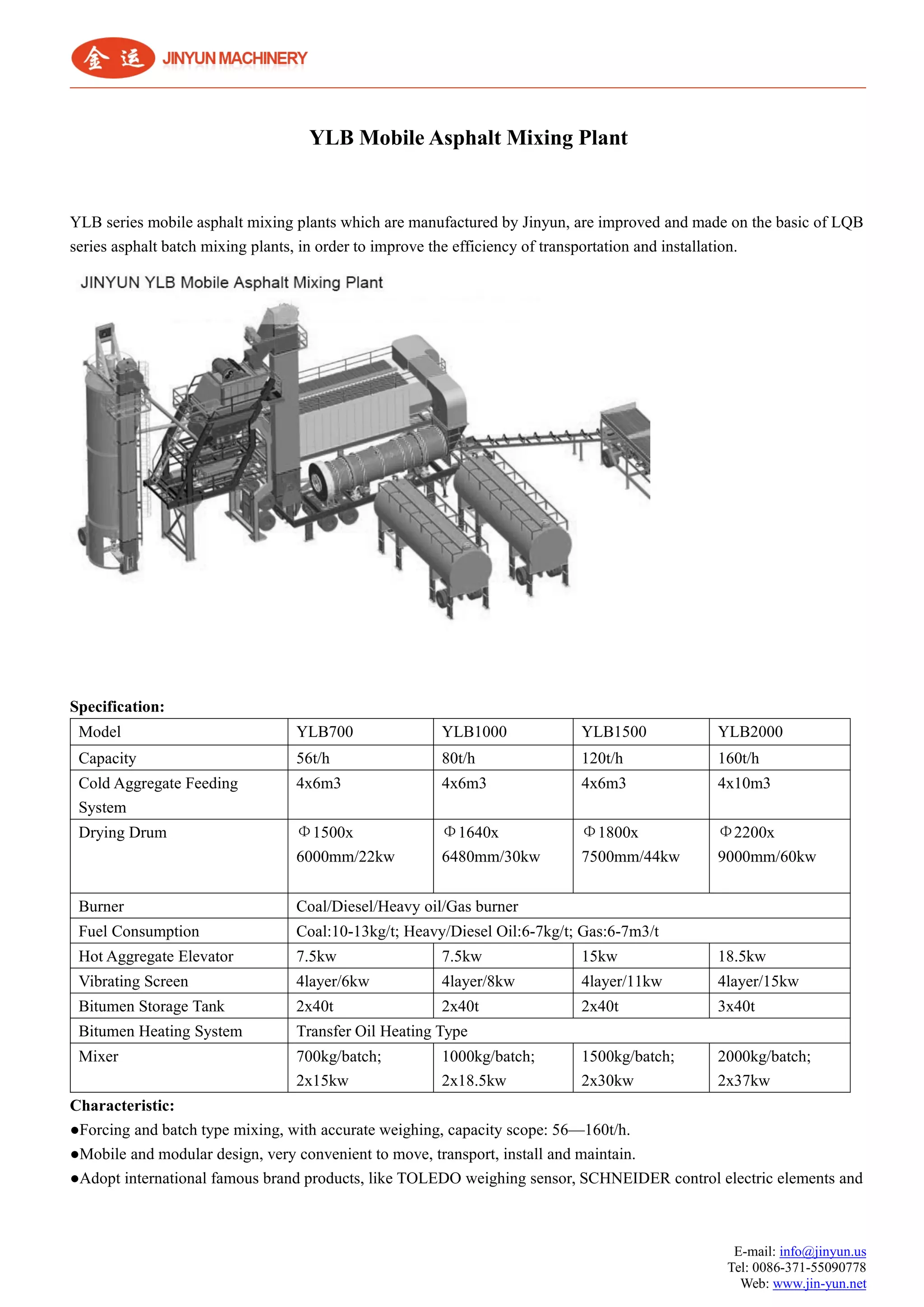

YLB Mobile Asphalt Mixing Plant
YLB series mobile asphalt mixing plants which are manufactured by Jinyun, are improved and made on the basic of LQB
series asphalt batch mixing plants, in order to improve the efficiency of transportation and installation.
Specification:
Model YLB700 YLB1000 YLB1500 YLB2000
Capacity 56t/h 80t/h 120t/h 160t/h
Cold Aggregate Feeding
System
4x6m3 4x6m3 4x6m3 4x10m3
Drying Drum Φ1500x
6000mm/22kw
Φ1640x
6480mm/30kw
Φ1800x
7500mm/44kw
Φ2200x
9000mm/60kw
Burner Coal/Diesel/Heavy oil/Gas burner
Fuel Consumption Coal:10-13kg/t; Heavy/Diesel Oil:6-7kg/t; Gas:6-7m3/t
Hot Aggregate Elevator 7.5kw 7.5kw 15kw 18.5kw
Vibrating Screen 4layer/6kw 4layer/8kw 4layer/11kw 4layer/15kw
Bitumen Storage Tank 2x40t 2x40t 2x40t 3x40t
Bitumen Heating System Transfer Oil Heating Type
Mixer 700kg/batch;
2x15kw
1000kg/batch;
2x18.5kw
1500kg/batch;
2x30kw
2000kg/batch;
2x37kw
Characteristic:
●Forcing and batch type mixing, with accurate weighing, capacity scope: 56—160t/h.
●Mobile and modular design, very convenient to move, transport, install and maintain.
●Adopt international famous brand products, like TOLEDO weighing sensor, SCHNEIDER control electric elements and

2. E-mail: info@jinyun.us
Tel: 0086-371-55090778
Web: www.jin-yun.net
so on.. to ensure the reliability and stability.
●CE and GOST certifications, mobile asphalt plant is up to the best standard of quality, safety and environment in world.
●Energy saving integrated dust collecting system, supporting a large closed-loop automatic temperature control and
monitoring system.
Project Case:
Detail Pictures:
1. Cold Aggregate Batching Machine
2. Drying Drum

3. E-mail: info@jinyun.us
Tel: 0086-371-55090778
Web: www.jin-yun.net

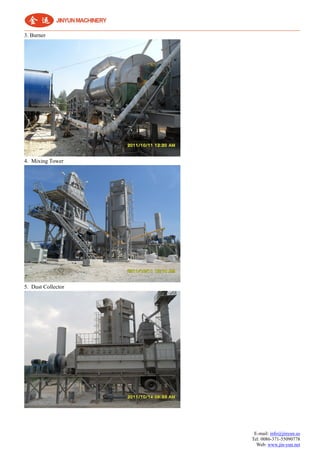

3. Burner
4. Mixing Tower
5. Dust Collector

4. E-mail: info@jinyun.us
Tel: 0086-371-55090778
Web: www.jin-yun.net

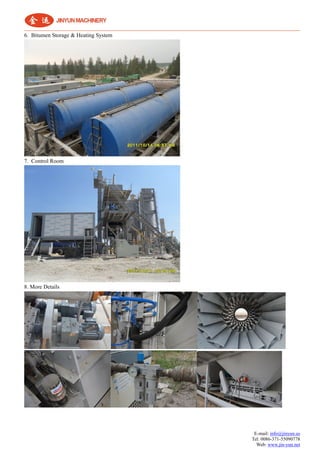

6. Bitumen Storage & Heating System
7. Control Room
8. More Details
