The document summarizes a presentation on using the Jenkins XML API. It describes the Jenkins remote API and why the XML API is useful, allowing scripts to retrieve information, trigger jobs, and create custom reports. It provides examples of using XPath queries and the <cause> and <changeSet> tags to extract data like the job cause, status, and list of code changes from build outputs.

1. Jenkins User Conference
Herzelia, July 5 2012
Using Jenkins XML API
Anton Weiss
AT&T Israel
#jenkinsconf

2. Jenkins User Conference
Herzelia, July 5 2012

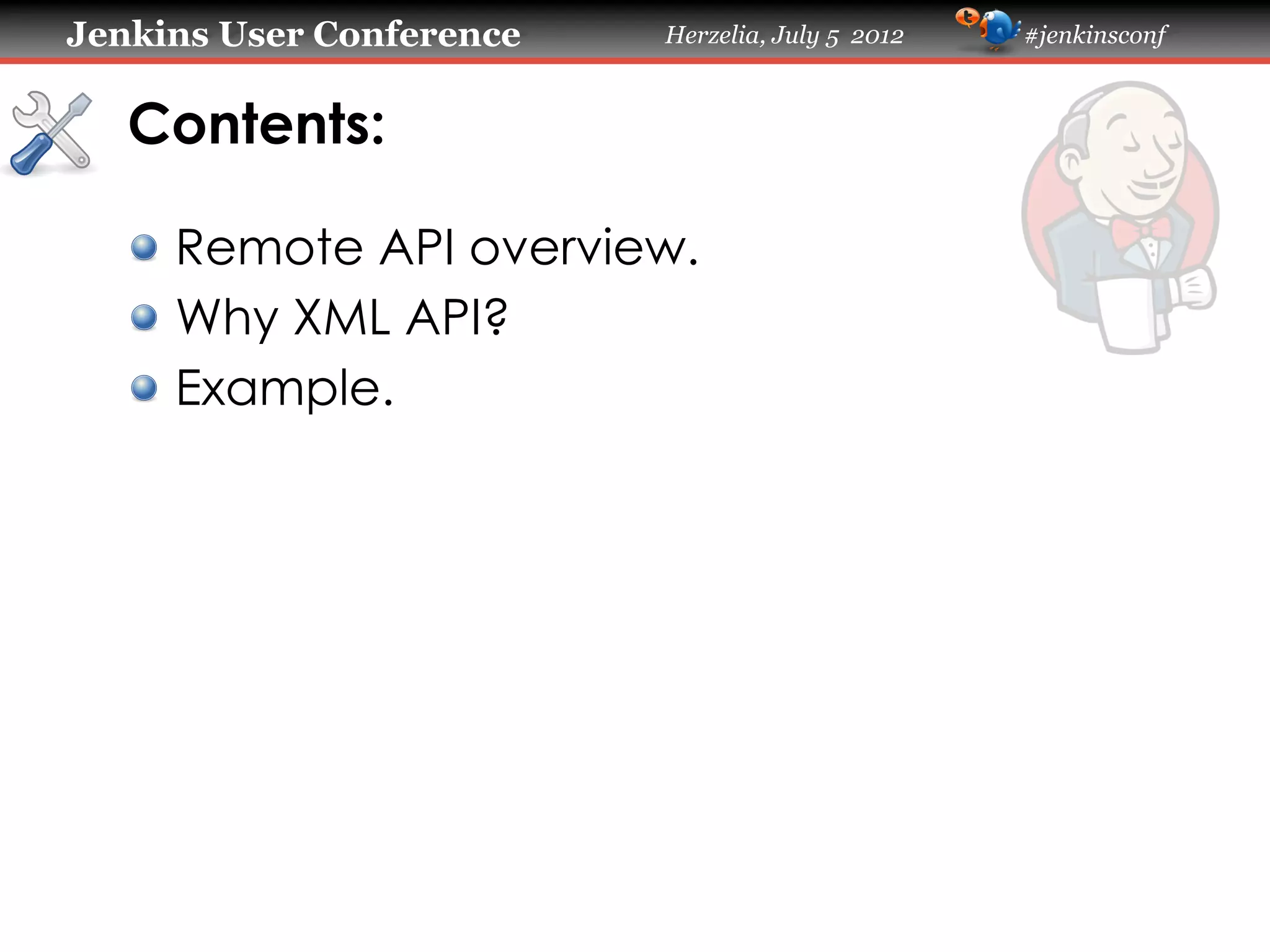

Contents:
! Remote API overview.
! Why XML API?
! Example.
#jenkinsconf

3. Jenkins User Conference
Herzelia, July 5 2012

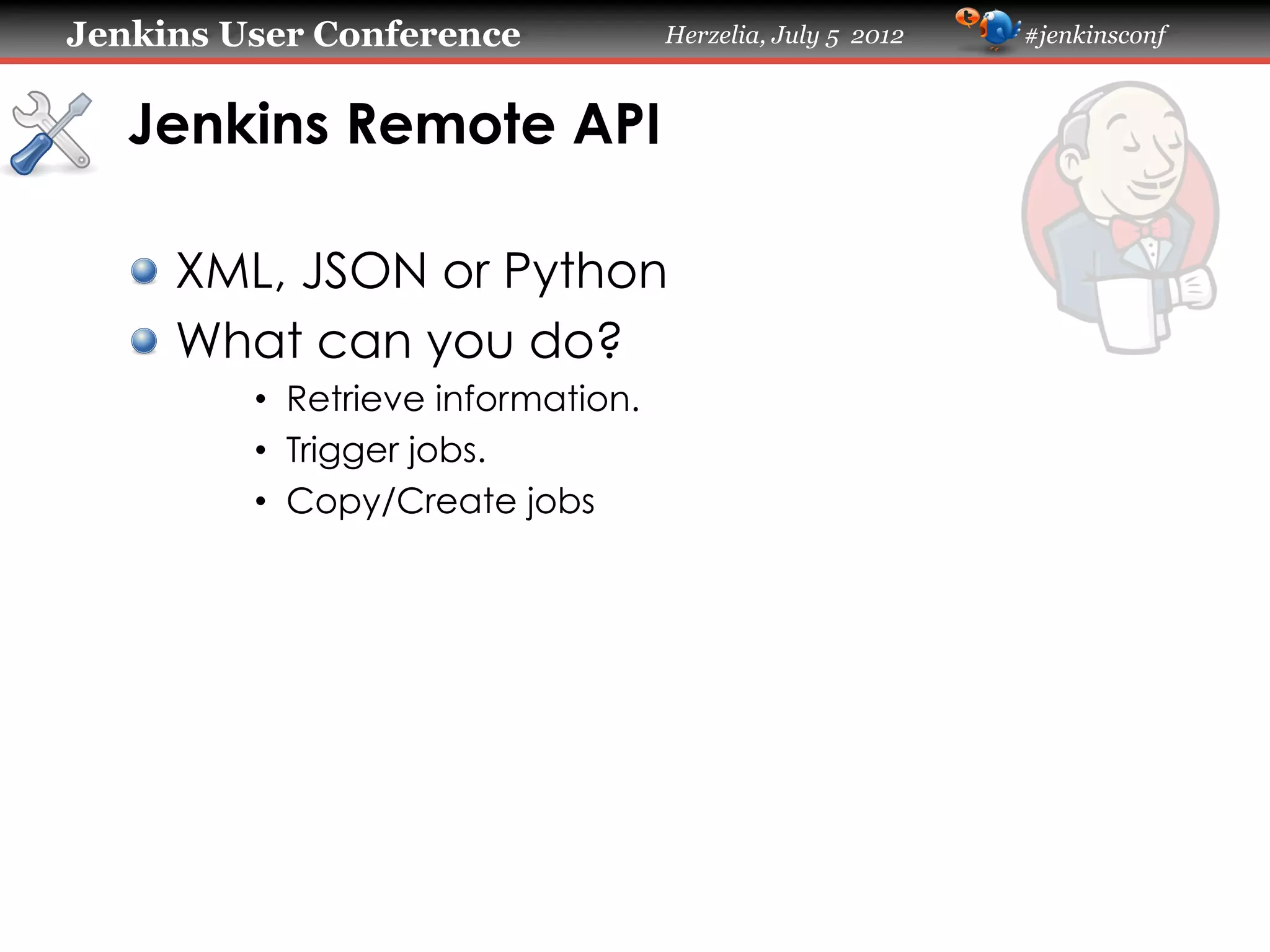

Jenkins Remote API
! XML, JSON or Python
! What can you do?
• Retrieve information.
• Trigger jobs.
• Copy/Create jobs
#jenkinsconf

4. Jenkins User Conference
Herzelia, July 5 2012
#jenkinsconf

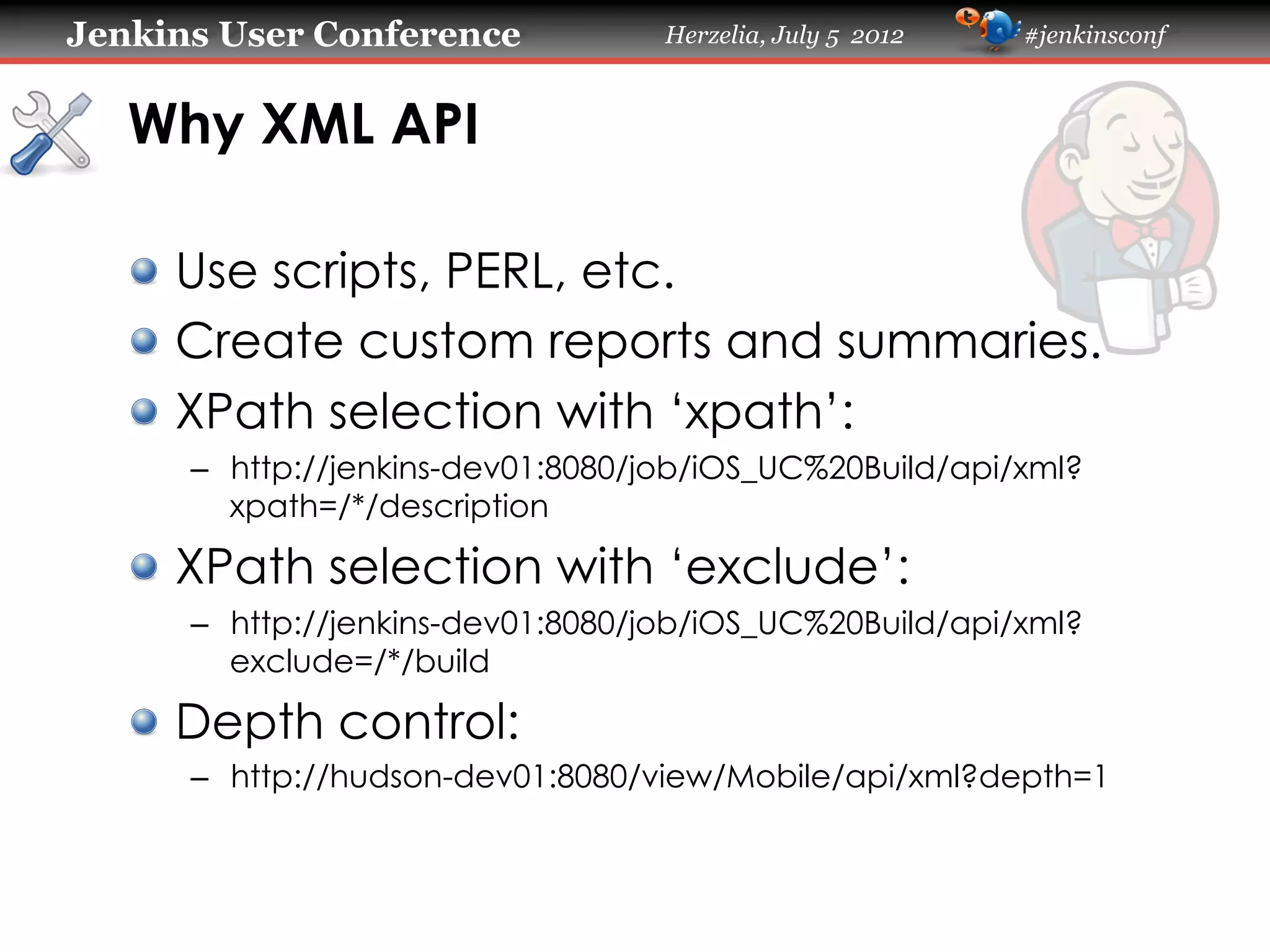

Why XML API
! Use scripts, PERL, etc.
! Create custom reports and summaries.
! XPath selection with ‘xpath’:
– http://jenkins-dev01:8080/job/iOS_UC%20Build/api/xml?
xpath=/*/description
! XPath selection with ‘exclude’:
– http://jenkins-dev01:8080/job/iOS_UC%20Build/api/xml?
exclude=/*/build
! Depth control:
– http://hudson-dev01:8080/view/Mobile/api/xml?depth=1

5. Jenkins User Conference
Herzelia, July 5 2012

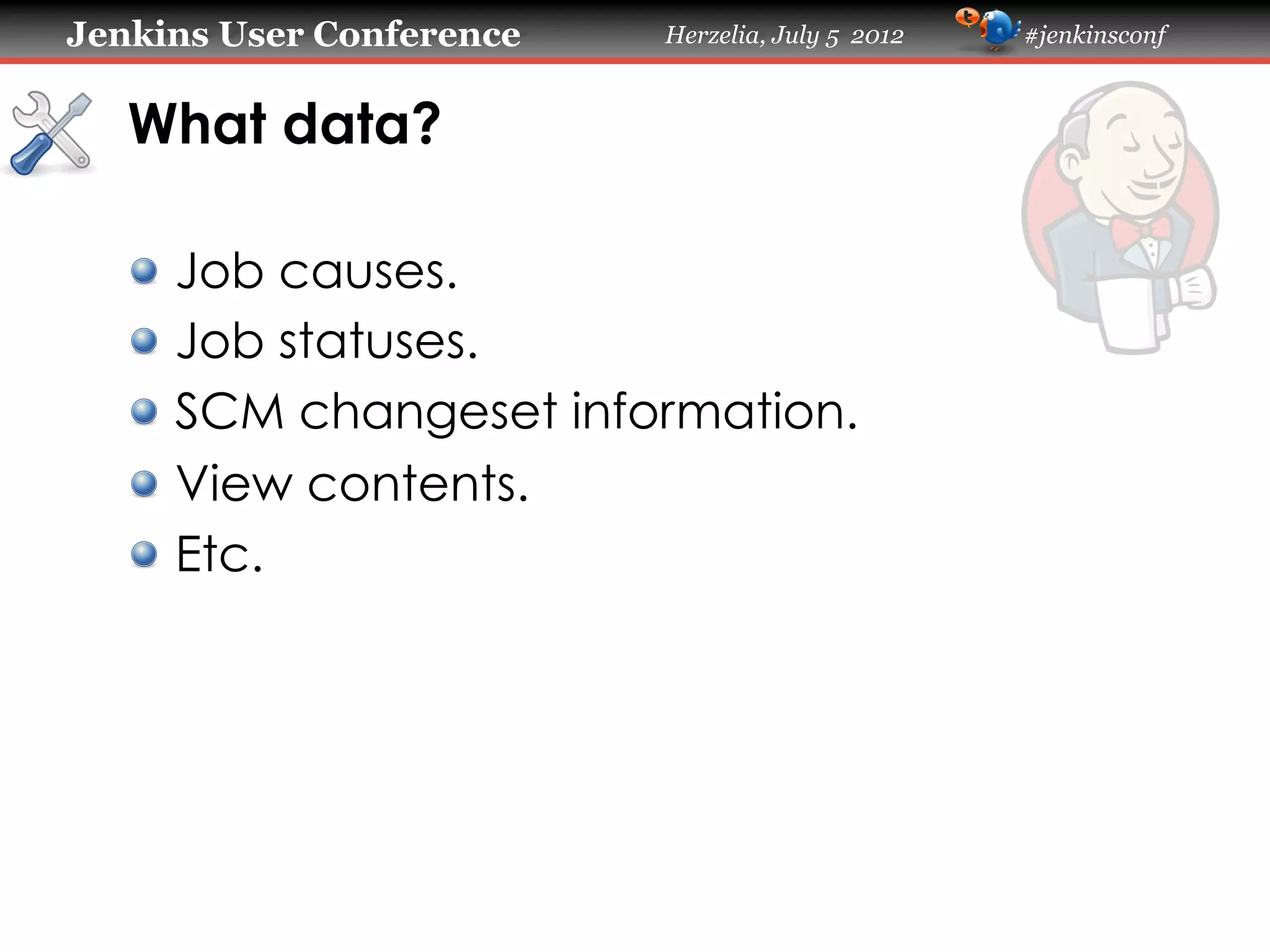

What data?
!
!
!
!
!
Job causes.
Job statuses.
SCM changeset information.
View contents.
Etc.
#jenkinsconf

6. Jenkins User Conference
Herzelia, July 5 2012

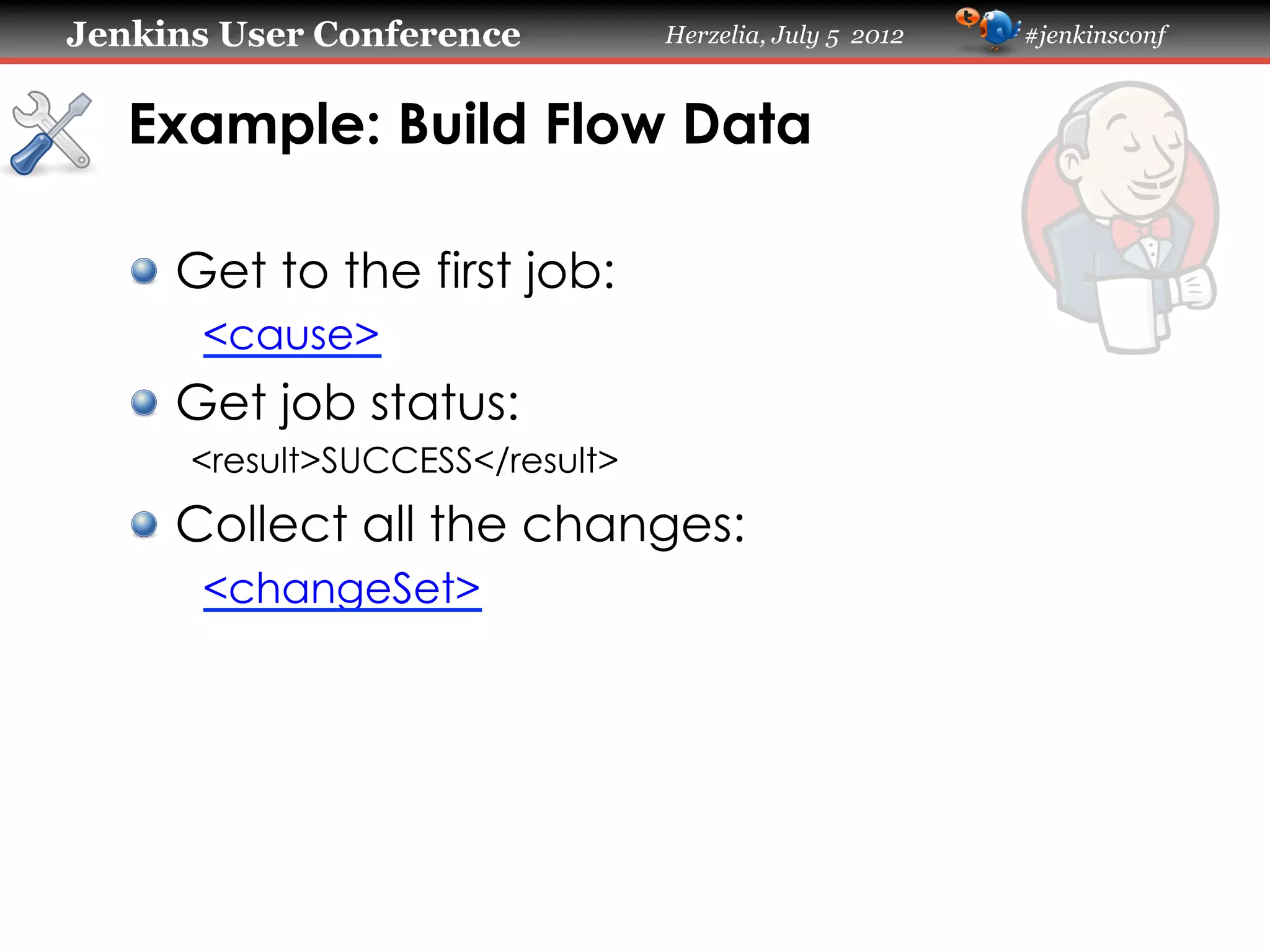

Example: Build Flow Data
! Get to the first job:
<cause>
! Get job status:
<result>SUCCESS</result>
! Collect all the changes:
<changeSet>
#jenkinsconf

7. Jenkins User Conference
Herzelia, July 5 2012
#jenkinsconf

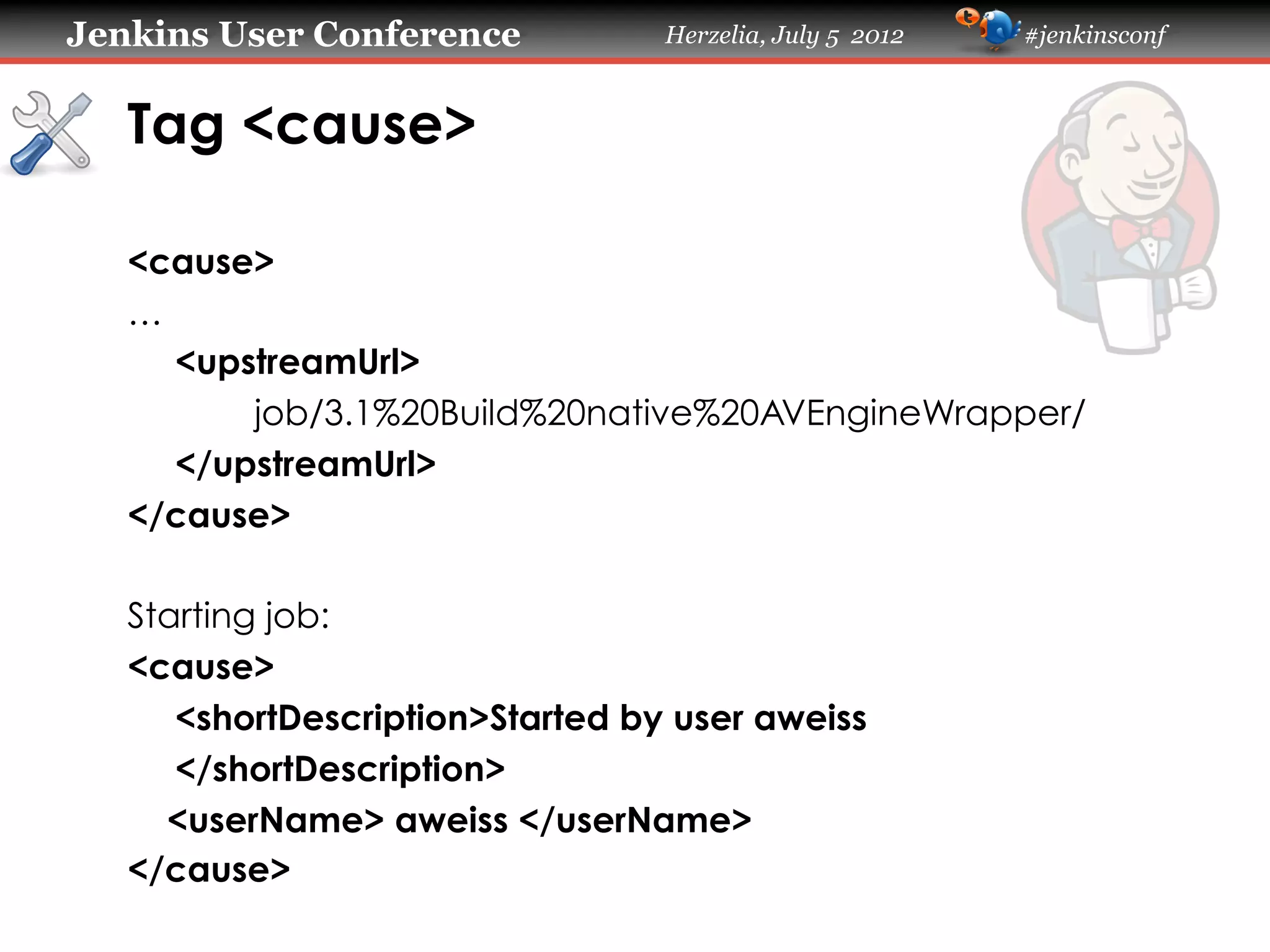

Tag <cause>
<cause>
…
<upstreamUrl>
job/3.1%20Build%20native%20AVEngineWrapper/
</upstreamUrl>
</cause>
Starting job:
<cause>
<shortDescription>Started by user aweiss
</shortDescription>
<userName> aweiss </userName>
</cause>

8. Jenkins User Conference
Herzelia, July 5 2012
#jenkinsconf

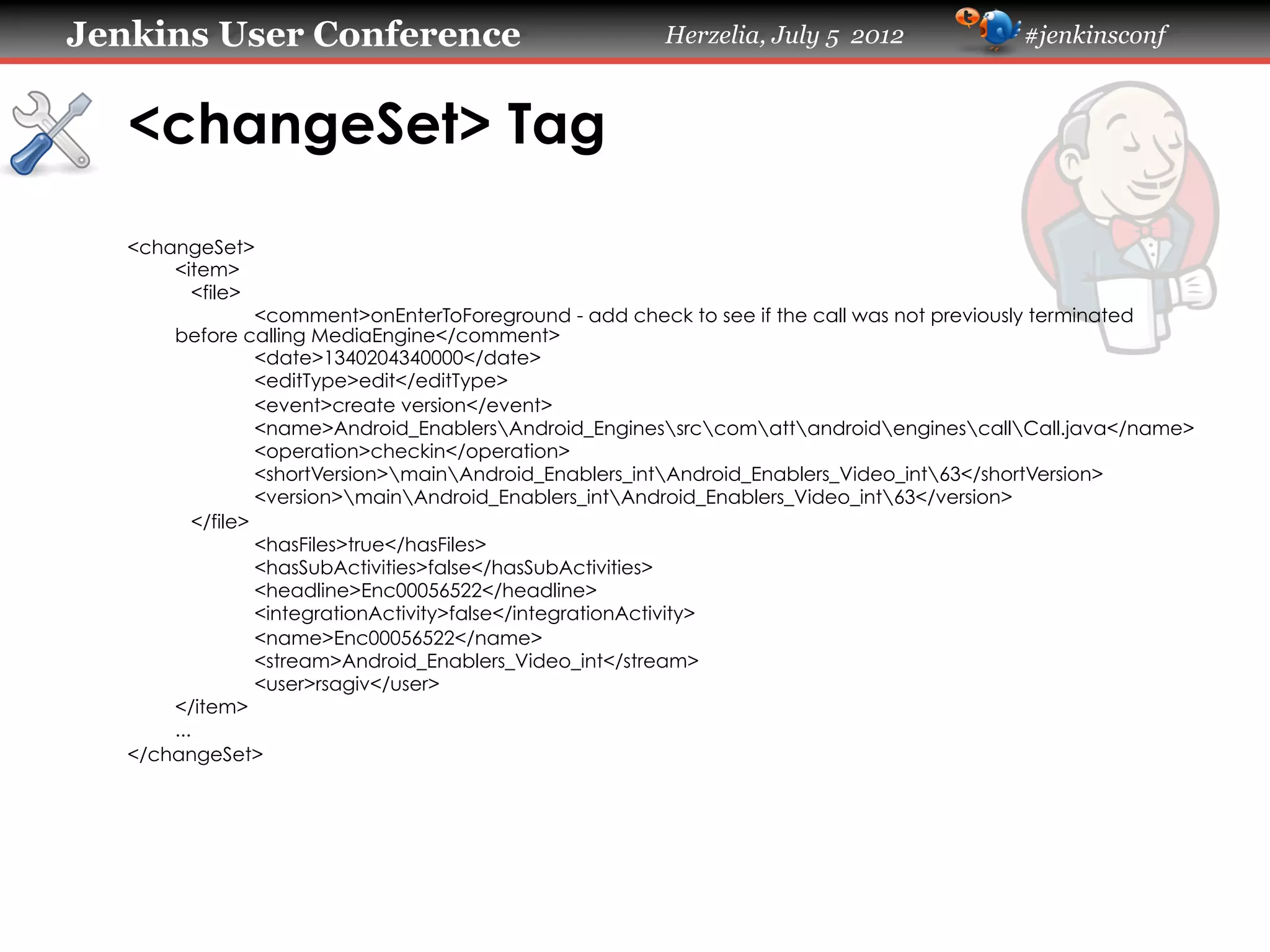

<changeSet> Tag
<changeSet>
<item>
<file>
<comment>onEnterToForeground - add check to see if the call was not previously terminated
before calling MediaEngine</comment>
<date>1340204340000</date>
<editType>edit</editType>
<event>create version</event>
<name>Android_EnablersAndroid_EnginessrccomattandroidenginescallCall.java</name>
<operation>checkin</operation>
<shortVersion>mainAndroid_Enablers_intAndroid_Enablers_Video_int63</shortVersion>
<version>mainAndroid_Enablers_intAndroid_Enablers_Video_int63</version>
</file>
<hasFiles>true</hasFiles>
<hasSubActivities>false</hasSubActivities>
<headline>Enc00056522</headline>
<integrationActivity>false</integrationActivity>
<name>Enc00056522</name>
<stream>Android_Enablers_Video_int</stream>
<user>rsagiv</user>
</item>
...
</changeSet>

9. Jenkins User Conference
Herzelia, July 5 2012
Questions?
?
#jenkinsconf

10. Jenkins User Conference
Herzelia, July 5 2012
Thank You To Our Sponsors
Platinum
Sponsors
Silver
Sponsor
#jenkinsconf
