Uploaded byAnton Weiss
Escaping the Jungle - Migrating to Cloud Native CI/CD
The document discusses migrating from a complex "jungle" of tools and technologies for continuous integration and continuous delivery (CI/CD) to a cloud-native approach. It describes some of the challenges of the jungle model, including decision waste, integration pains, and lack of common standards. The document then outlines key aspects of a cloud-native CI/CD model, including using Kubernetes as the integration platform, dynamic agents and environments, and decoupling delivery from release. It provides examples of implementing such a model using shared libraries, Jenkinsfiles, containerized agents, and standardized pipelines and workflows.
More Related Content
Similar to Escaping the Jungle - Migrating to Cloud Native CI/CD
Escaping the Jungle - Migrating to Cloud Native CI/CD
- 1. @antweiss Escaping the Jungle Or Migratingto Cloud- Native CI/CD Anton Weiss, Otomato Software @antweiss, @otomato_sw https://otomato.io https://devopstrain.pro
- 2.
- 3.
- 4.
- 5.
- 6. @antweiss The Adventure Begins! ●Motivation!
- 7. @antweiss The Adventure Begins! ●Motivation! ● Autonomy!
- 8. @antweiss The Adventure Begins! ●Motivation! ● Autonomy! ● Inherent Agility!
- 9. @antweiss The Adventure Begins! ●Motivation! ● Autonomy! ● Inherent Agility! ● Success!
- 10. @antweiss The Adventure Begins! ●Motivation! ● Autonomy! ● Inherent Agility! ● Success! ● Explosive Growth!
- 11. @antweiss The Adventure Begins! ●Motivation! ● Autonomy! ● Inherent Agility! ● Success! ● Explosive Growth! ● Everything Happens So Fast!
- 12. @antweiss Welcome to theJungle! - All the Languages - All the Frameworks - All the DataBases - All the Message Queues - Dozens of Cloud Services - 100s of CI Jobs - Technical Debt All Around
- 13.
- 14. @antweiss Jungle Reality ● (In)DecisionWaste ● Integration Pains
- 15. @antweiss Jungle Reality ● (In)DecisionWaste ● Integration Pains ● Onboarding is Hard
- 16. @antweiss Jungle Reality ● (In)DecisionWaste ● Integration Pains ● Onboarding is Hard ● No common language
- 17.
- 18.
- 19.
- 20. @antweiss The Golden Path CharityMajors: Software Sprawl and the Golden Path@mipsytipsy

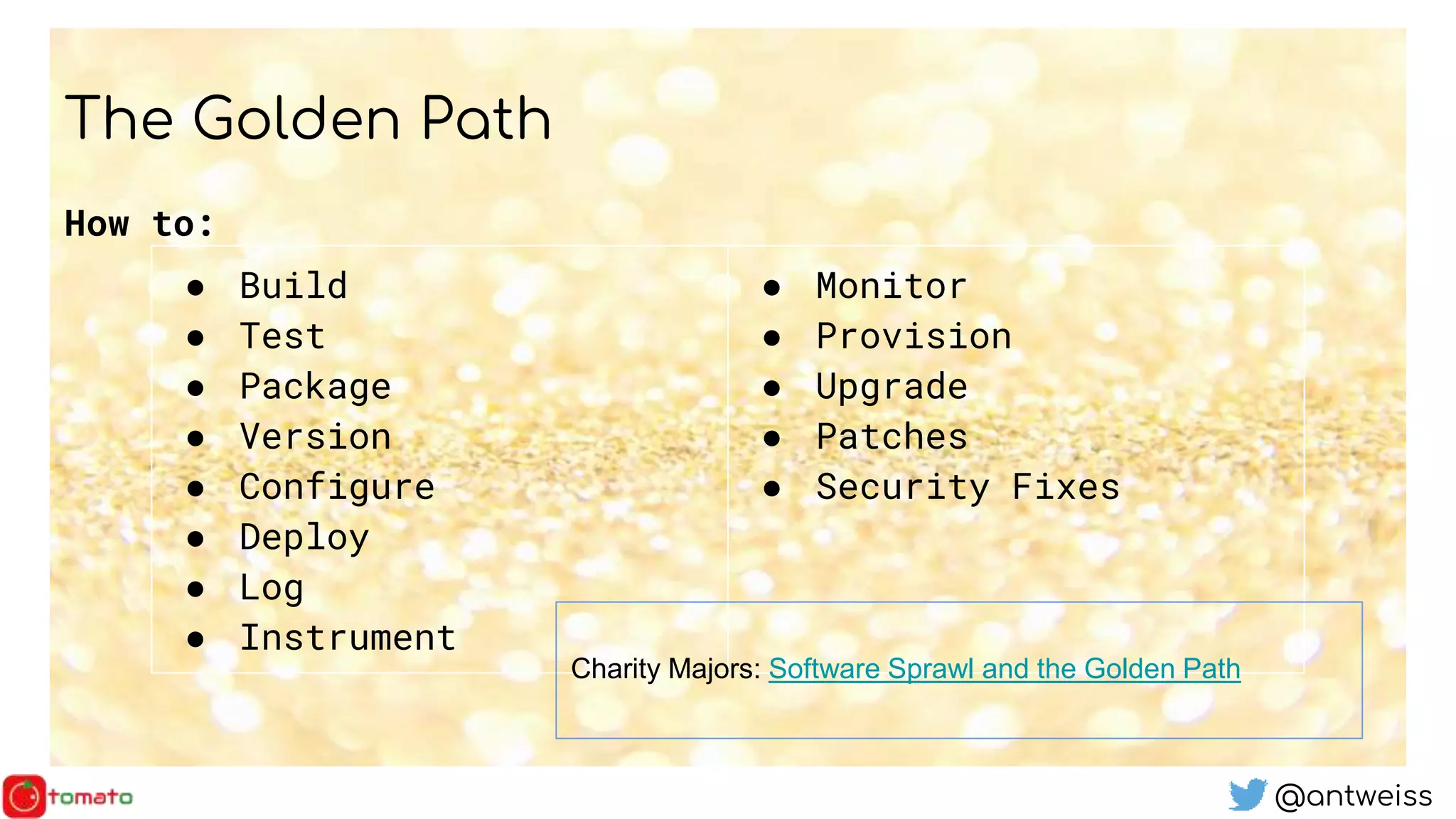

- 21. @antweiss The Golden Path Howto: ● Build ● Test ● Package ● Version ● Configure ● Deploy ● Log ● Instrument ● Monitor ● Provision ● Upgrade ● Patches ● Security Fixes Charity Majors: Software Sprawl and the Golden Path

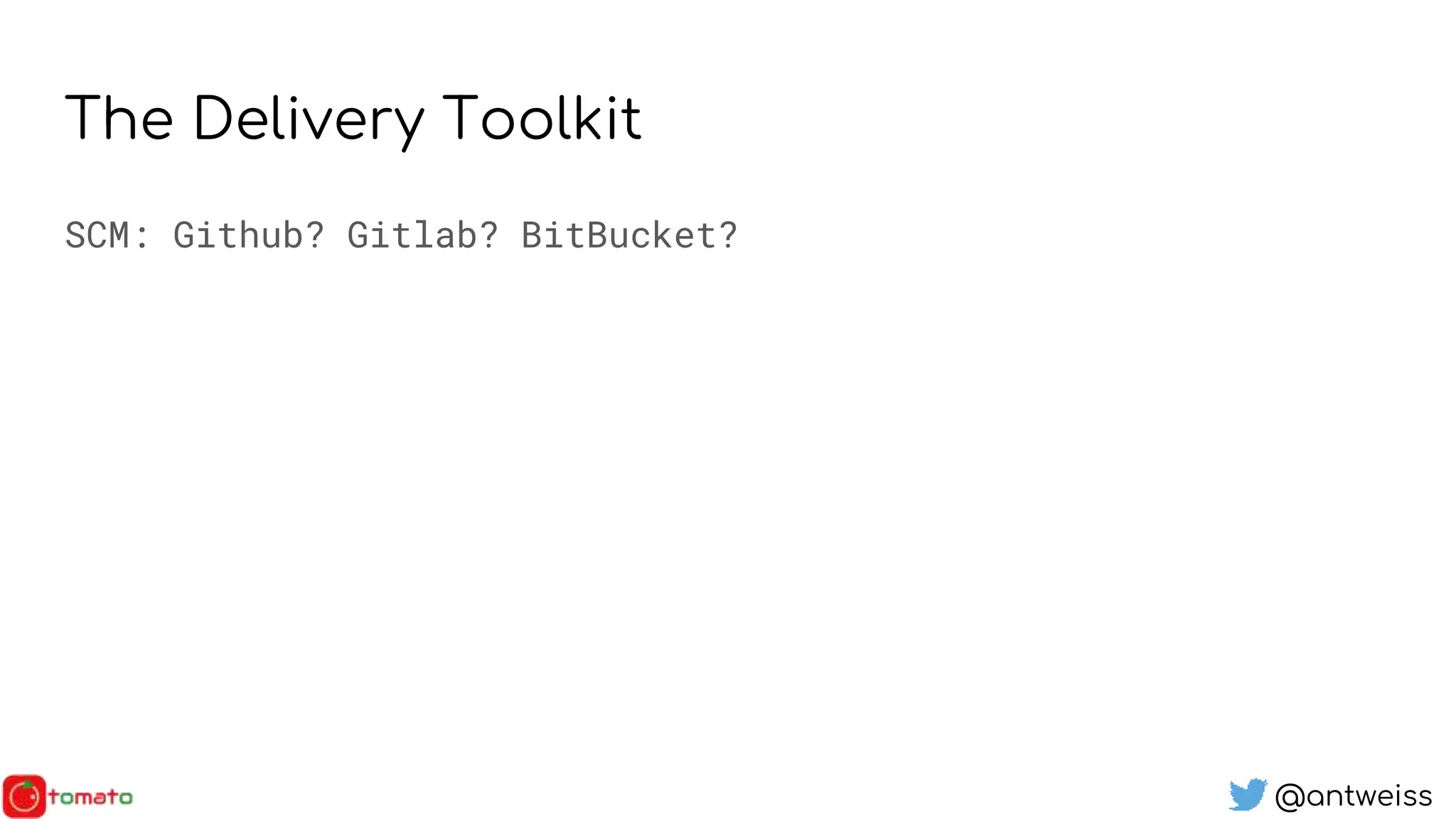

- 22. @antweiss The Delivery Toolkit SCM:Github? Gitlab? BitBucket?

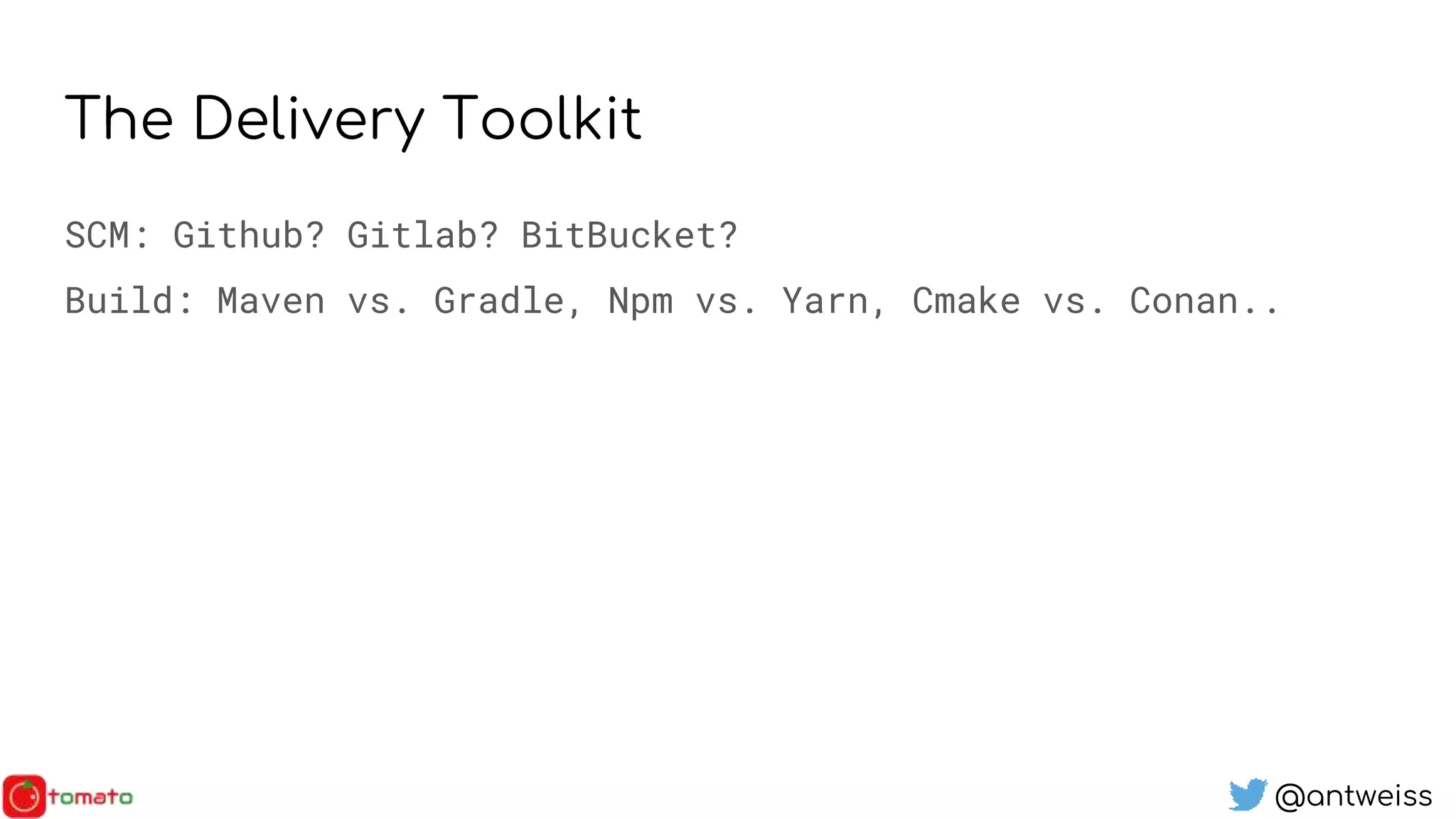

- 23. @antweiss The Delivery Toolkit SCM:Github? Gitlab? BitBucket? Build: Maven vs. Gradle, Npm vs. Yarn, Cmake vs. Conan..

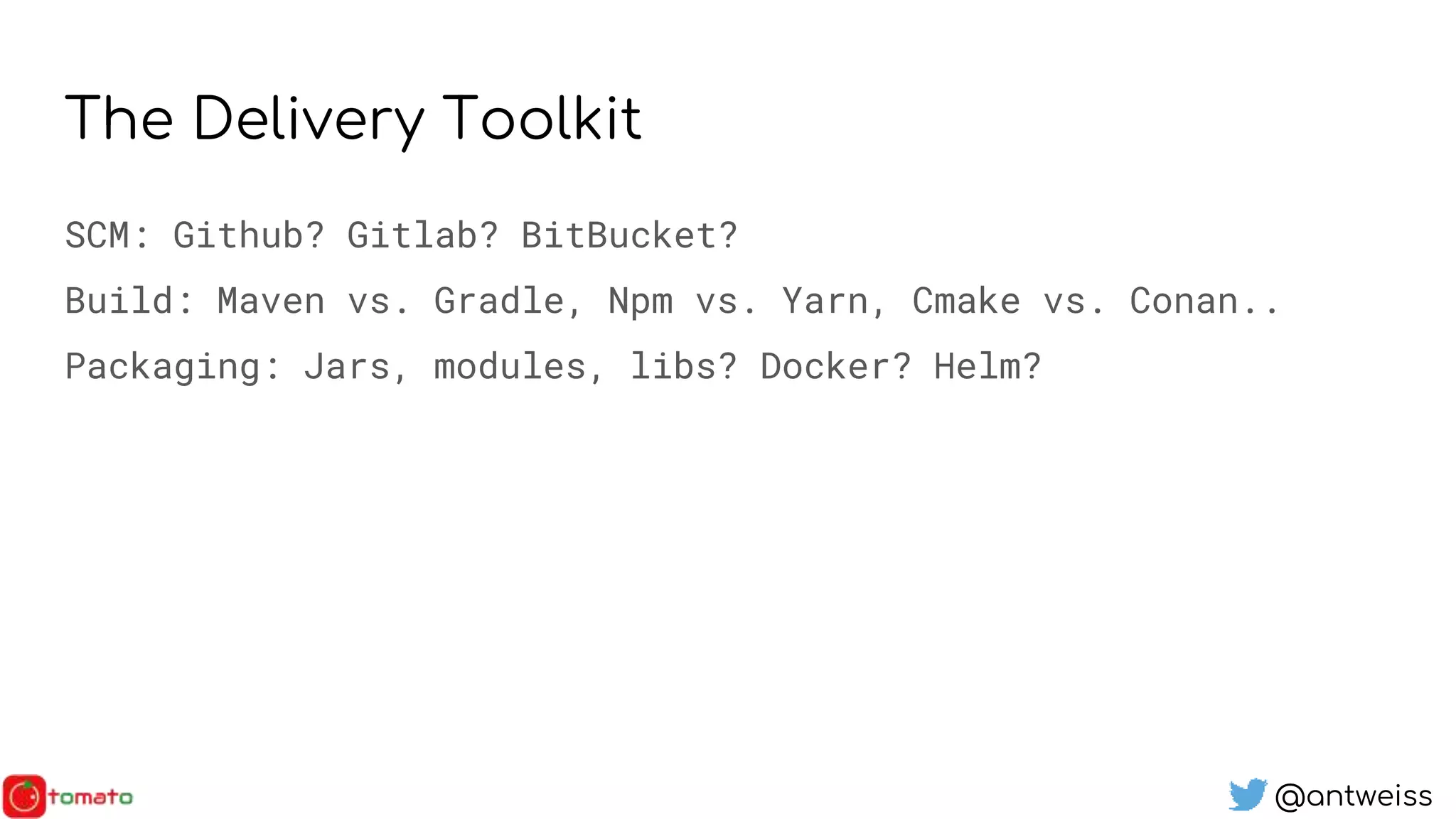

- 24. @antweiss The Delivery Toolkit SCM:Github? Gitlab? BitBucket? Build: Maven vs. Gradle, Npm vs. Yarn, Cmake vs. Conan.. Packaging: Jars, modules, libs? Docker? Helm?

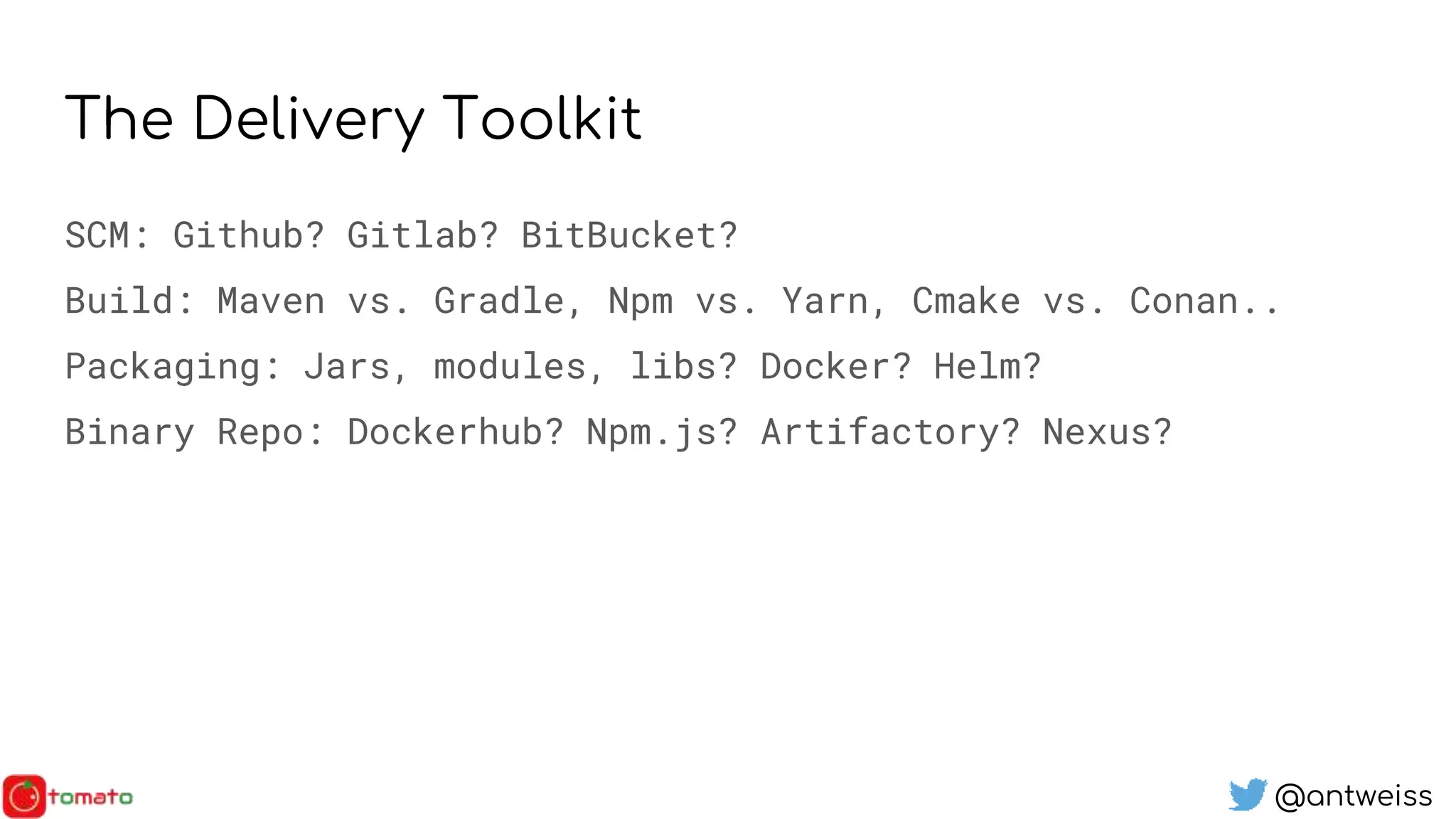

- 25. @antweiss The Delivery Toolkit SCM:Github? Gitlab? BitBucket? Build: Maven vs. Gradle, Npm vs. Yarn, Cmake vs. Conan.. Packaging: Jars, modules, libs? Docker? Helm? Binary Repo: Dockerhub? Npm.js? Artifactory? Nexus?

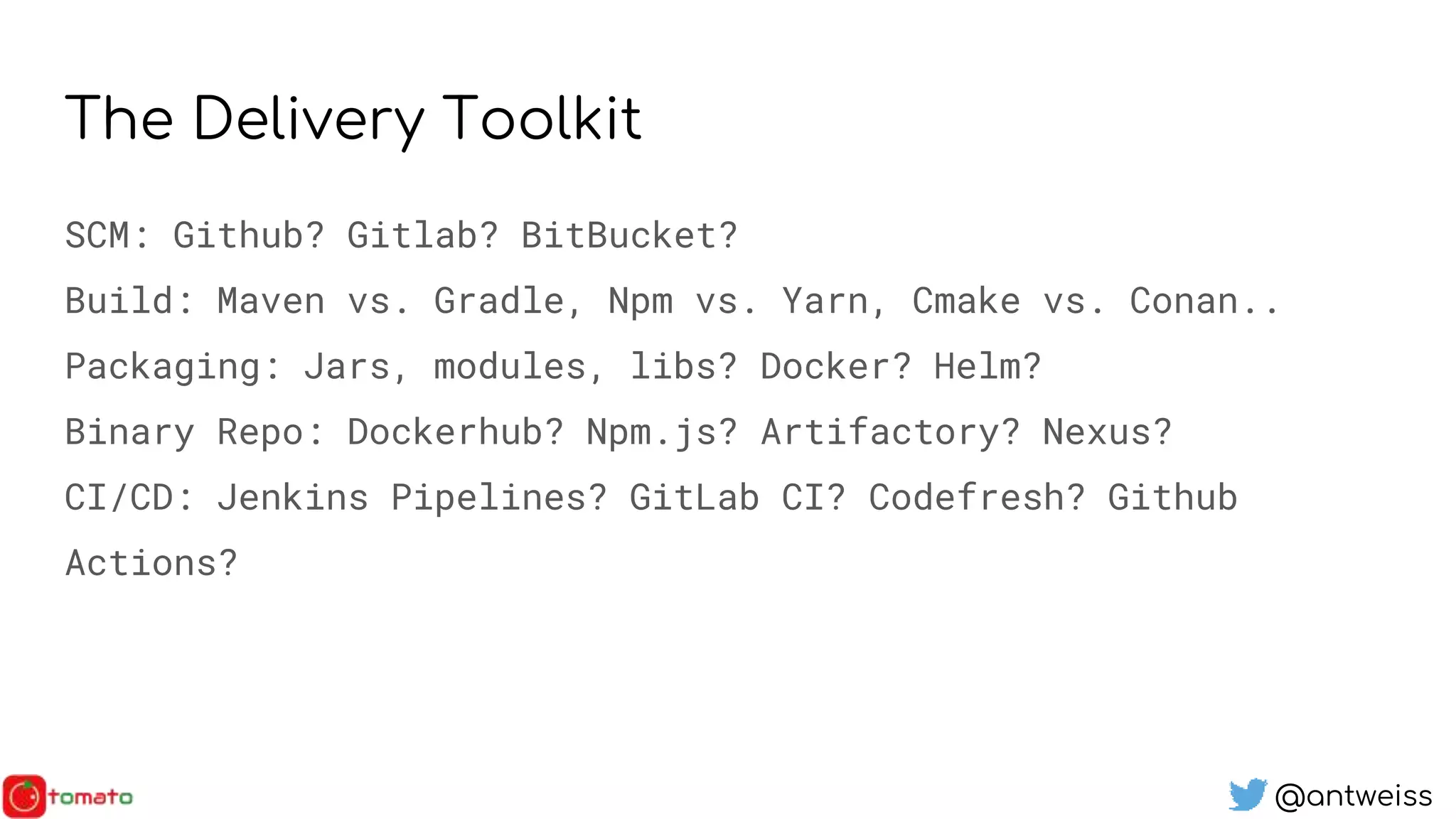

- 26. @antweiss The Delivery Toolkit SCM:Github? Gitlab? BitBucket? Build: Maven vs. Gradle, Npm vs. Yarn, Cmake vs. Conan.. Packaging: Jars, modules, libs? Docker? Helm? Binary Repo: Dockerhub? Npm.js? Artifactory? Nexus? CI/CD: Jenkins Pipelines? GitLab CI? Codefresh? Github Actions?

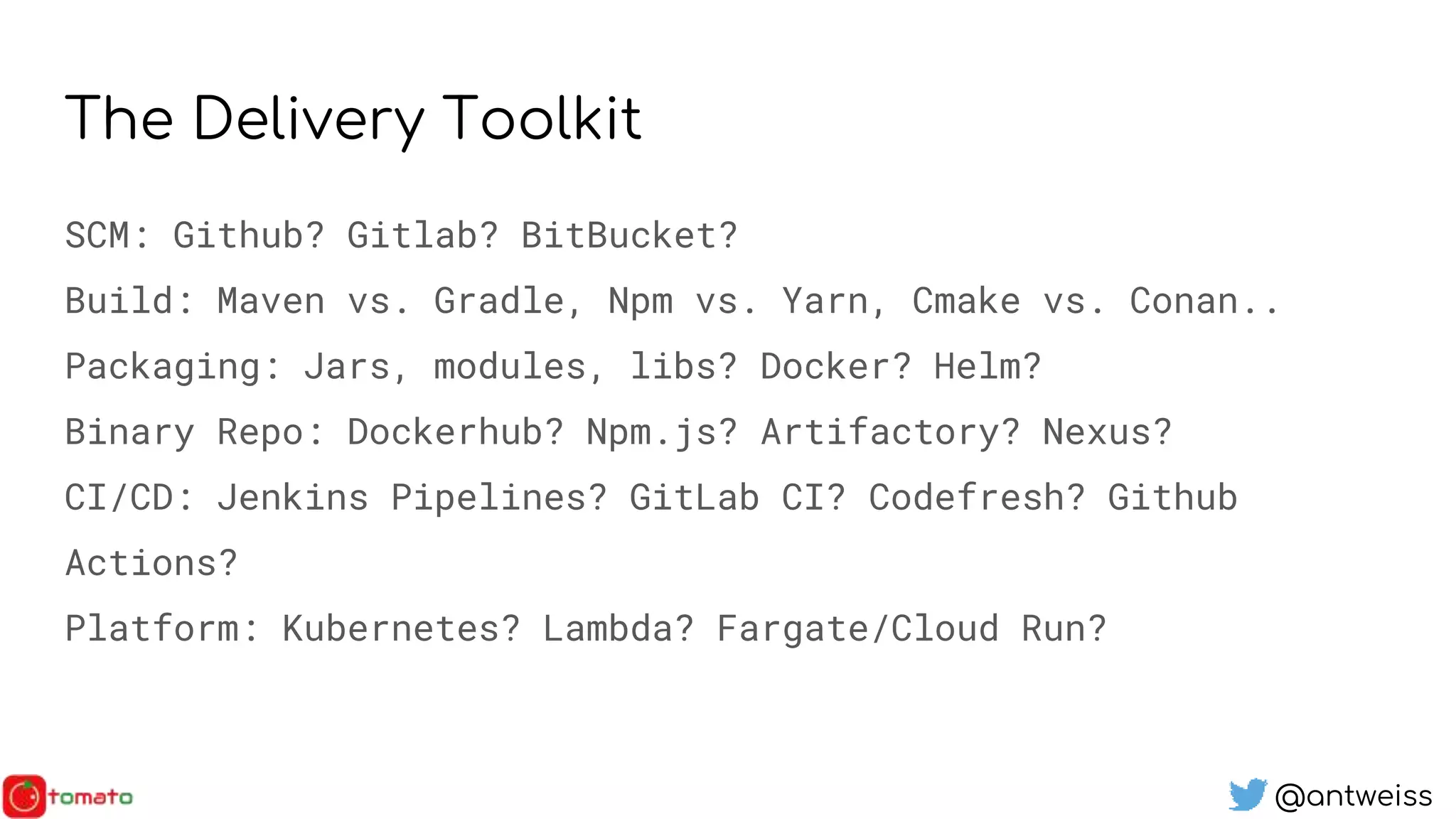

- 27. @antweiss The Delivery Toolkit SCM:Github? Gitlab? BitBucket? Build: Maven vs. Gradle, Npm vs. Yarn, Cmake vs. Conan.. Packaging: Jars, modules, libs? Docker? Helm? Binary Repo: Dockerhub? Npm.js? Artifactory? Nexus? CI/CD: Jenkins Pipelines? GitLab CI? Codefresh? Github Actions? Platform: Kubernetes? Lambda? Fargate/Cloud Run?
- 28. @antweiss The Delivery Toolkit SCM:Github? Gitlab? BitBucket? Build: Maven vs. Gradle, Npm vs. Yarn, Cmake vs. Conan.. Packaging: Jars, modules, libs? Docker? Helm? Binary Repo: Dockerhub? Npm.js? Artifactory? Nexus? CI/CD: Jenkins Pipelines? GitLab CI? Codefresh? Github Actions? Platform: Kubernetes? Lambda? Fargate/Cloud Run? Configuration/Secrets: ?

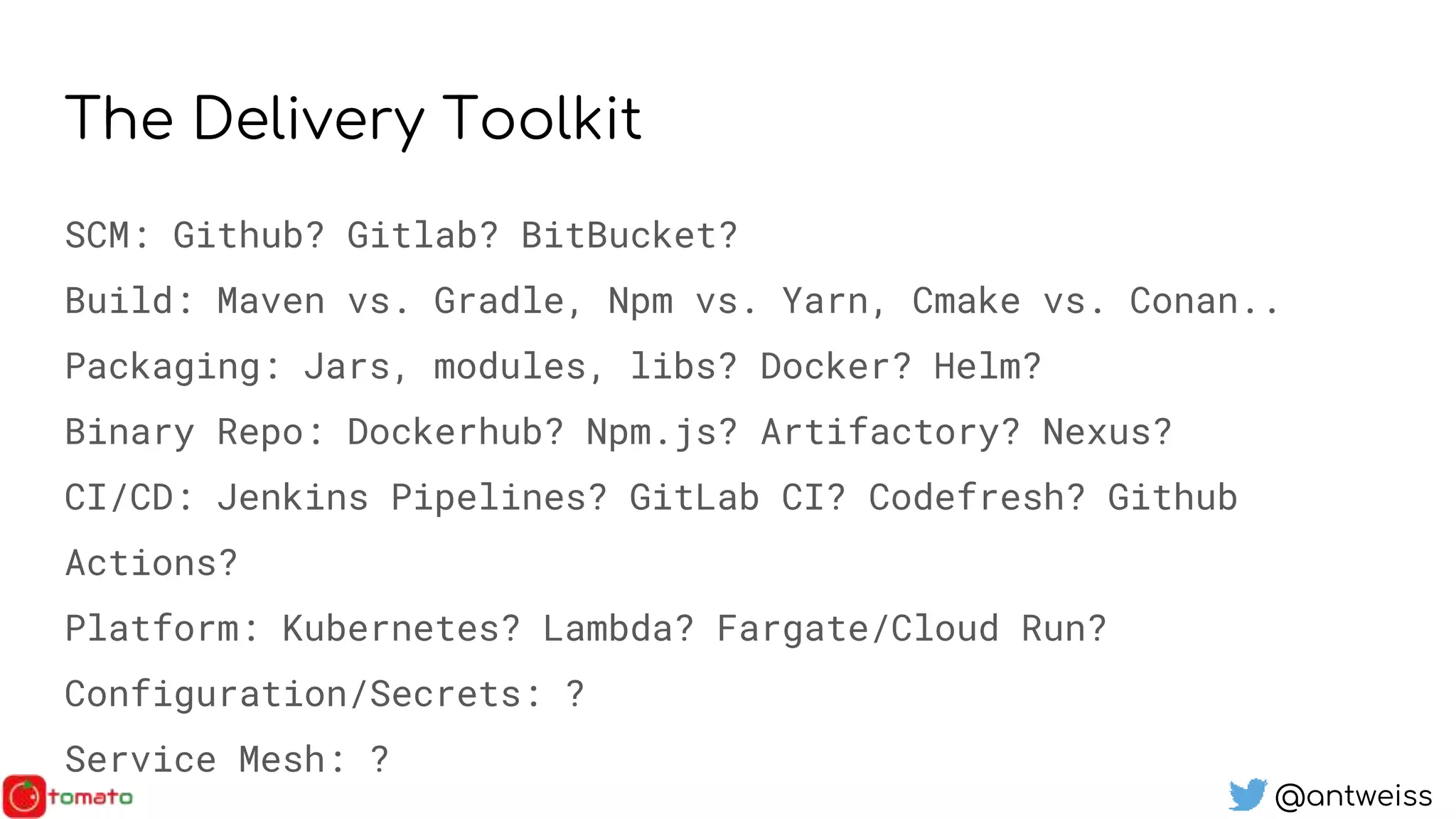

- 29. @antweiss The Delivery Toolkit SCM:Github? Gitlab? BitBucket? Build: Maven vs. Gradle, Npm vs. Yarn, Cmake vs. Conan.. Packaging: Jars, modules, libs? Docker? Helm? Binary Repo: Dockerhub? Npm.js? Artifactory? Nexus? CI/CD: Jenkins Pipelines? GitLab CI? Codefresh? Github Actions? Platform: Kubernetes? Lambda? Fargate/Cloud Run? Configuration/Secrets: ? Service Mesh: ?

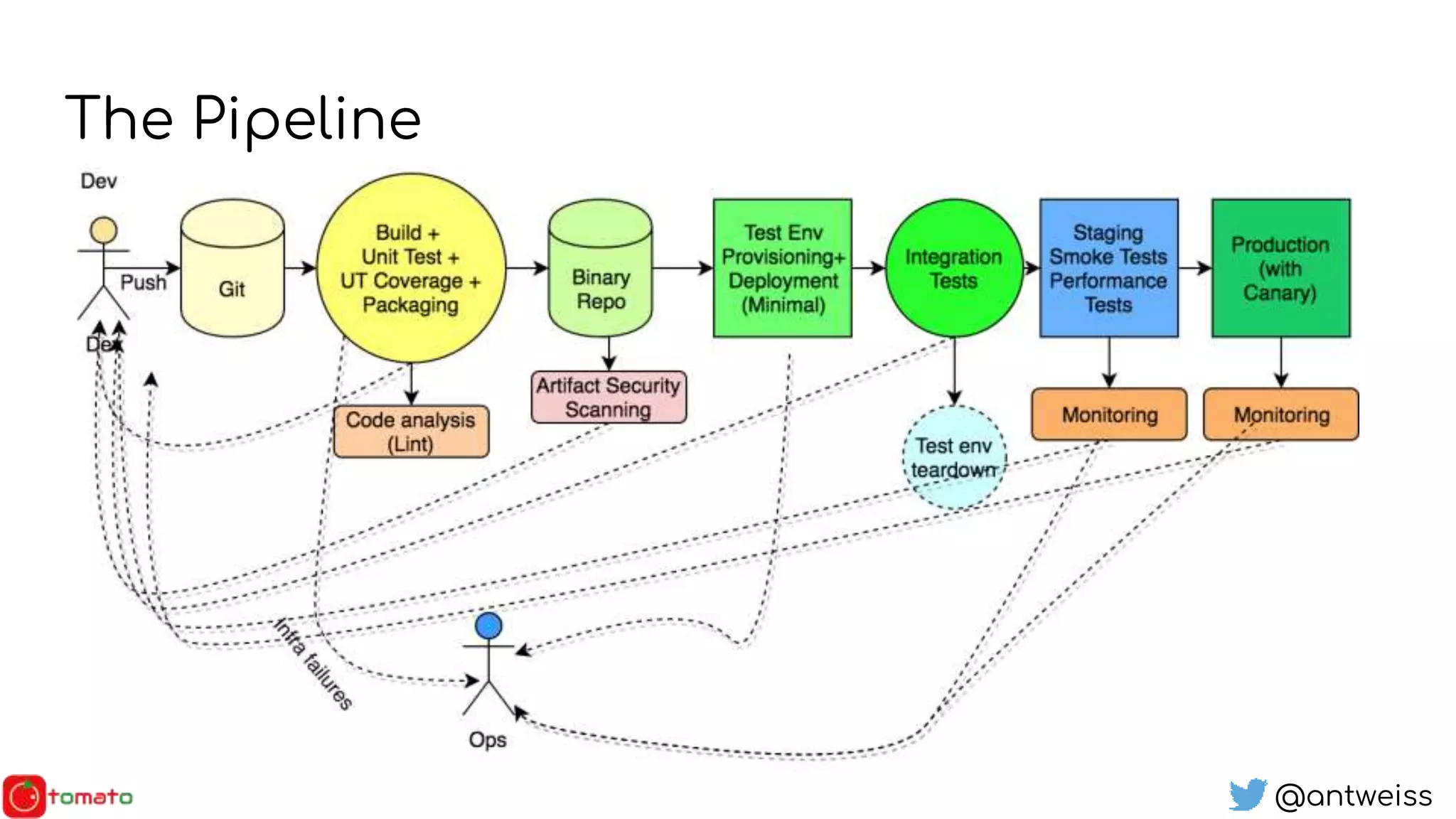

- 30.
- 31.

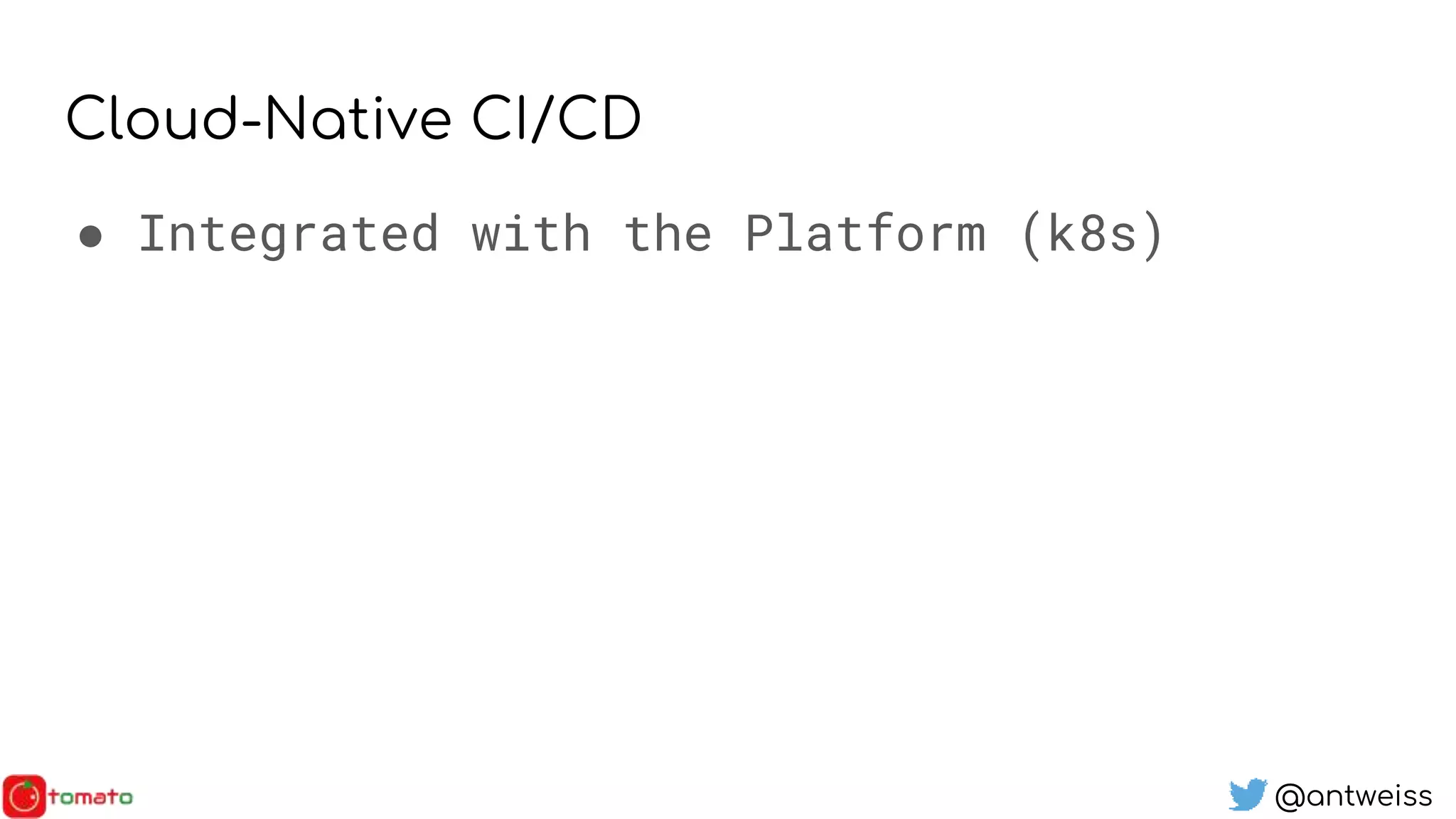

- 32. @antweiss Cloud-Native CI/CD ● Integratedwith the Platform (k8s)

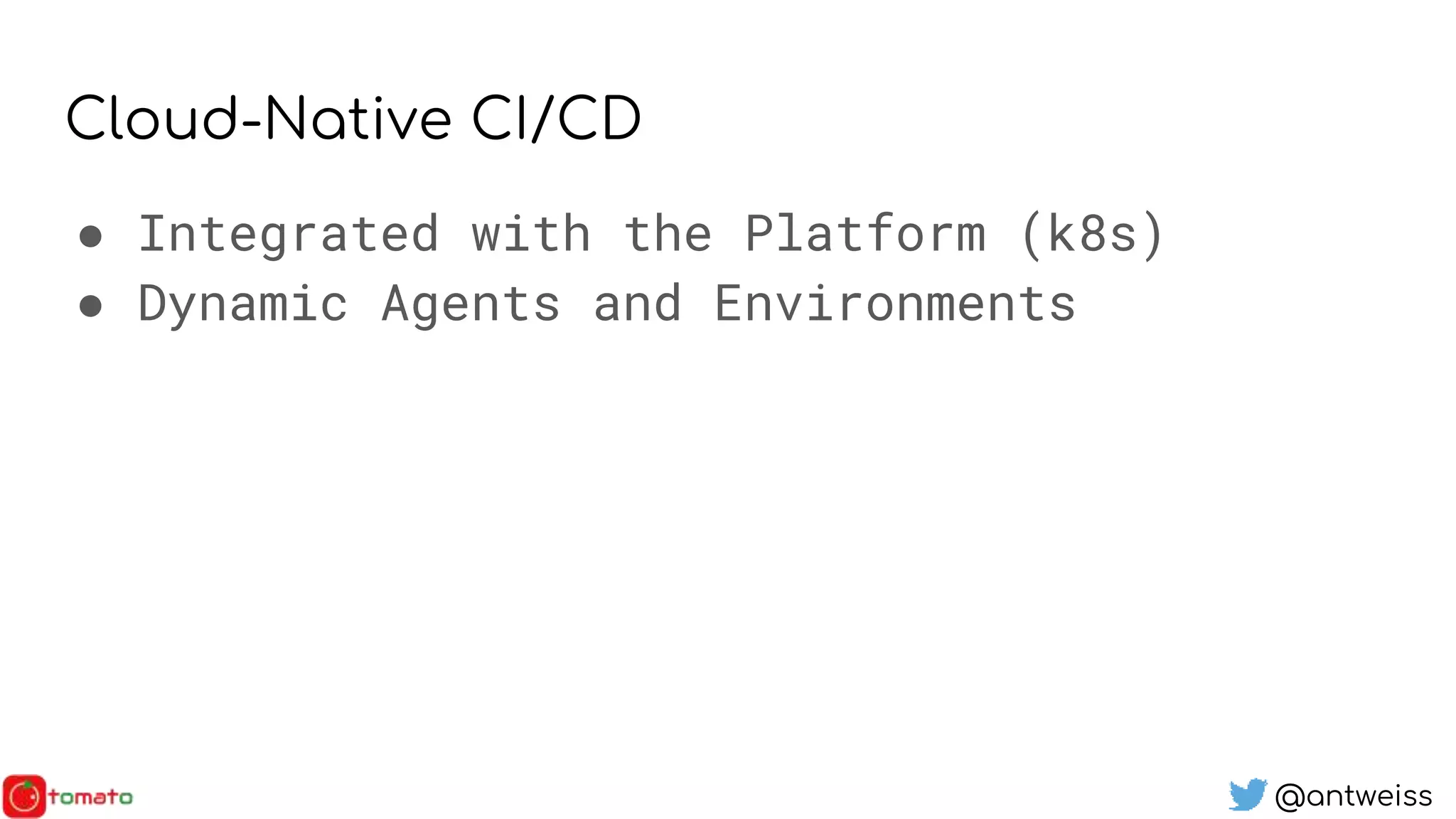

- 33. @antweiss Cloud-Native CI/CD ● Integratedwith the Platform (k8s) ● Dynamic Agents and Environments

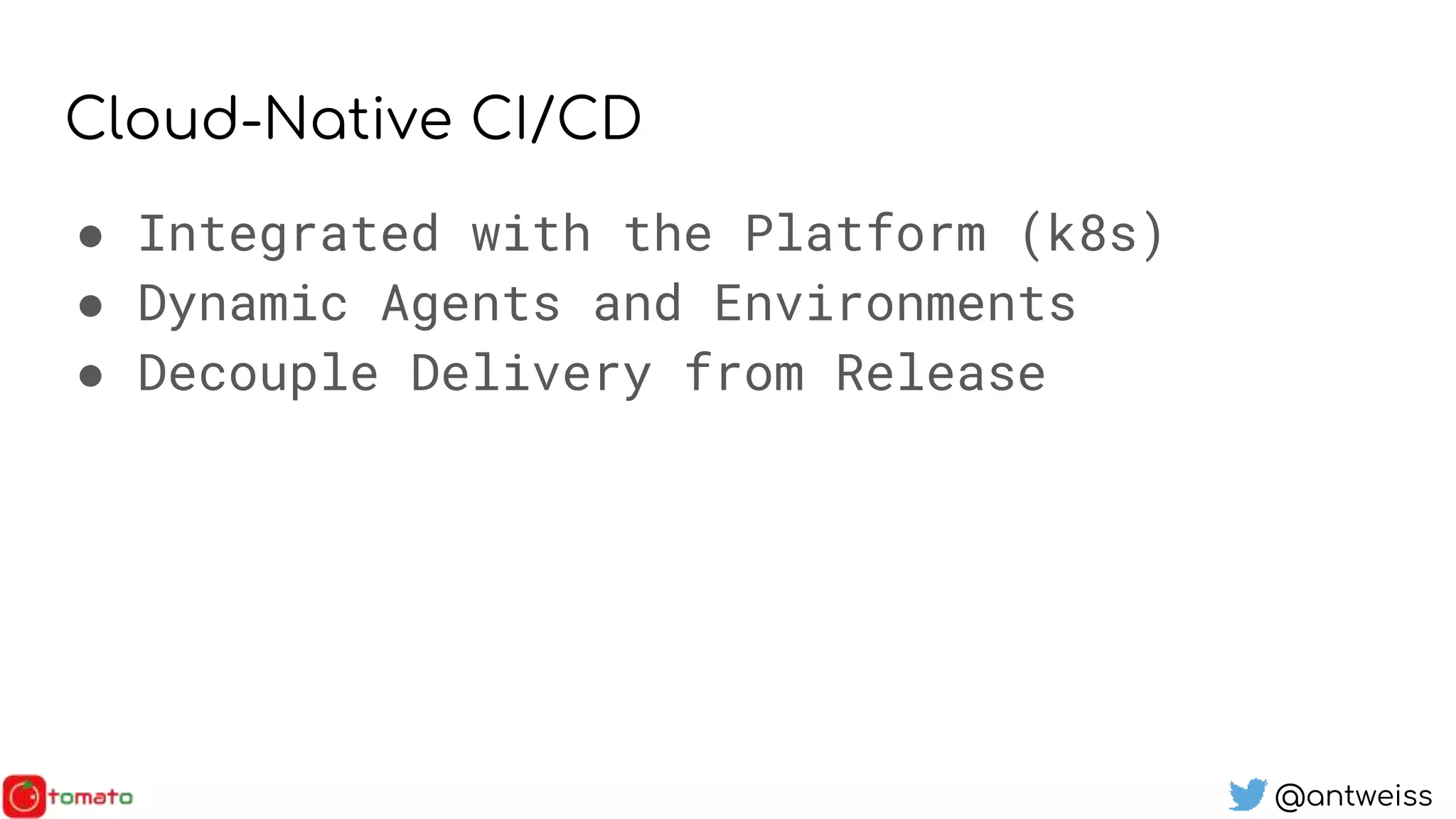

- 34. @antweiss Cloud-Native CI/CD ● Integratedwith the Platform (k8s) ● Dynamic Agents and Environments ● Decouple Delivery from Release

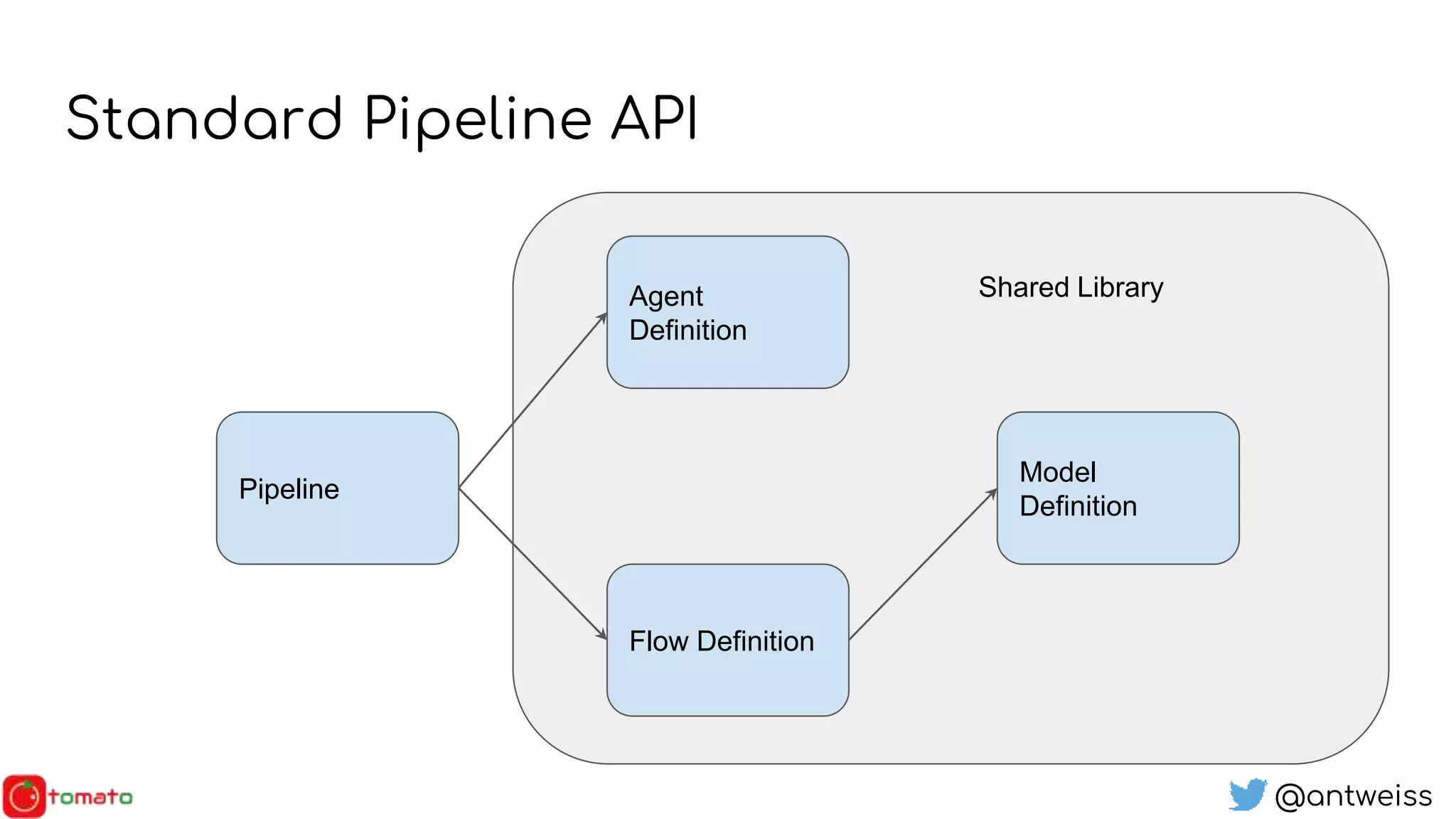

- 35. @antweiss Standard Pipeline API Pipeline Agent Definition FlowDefinition Model Definition Shared Library

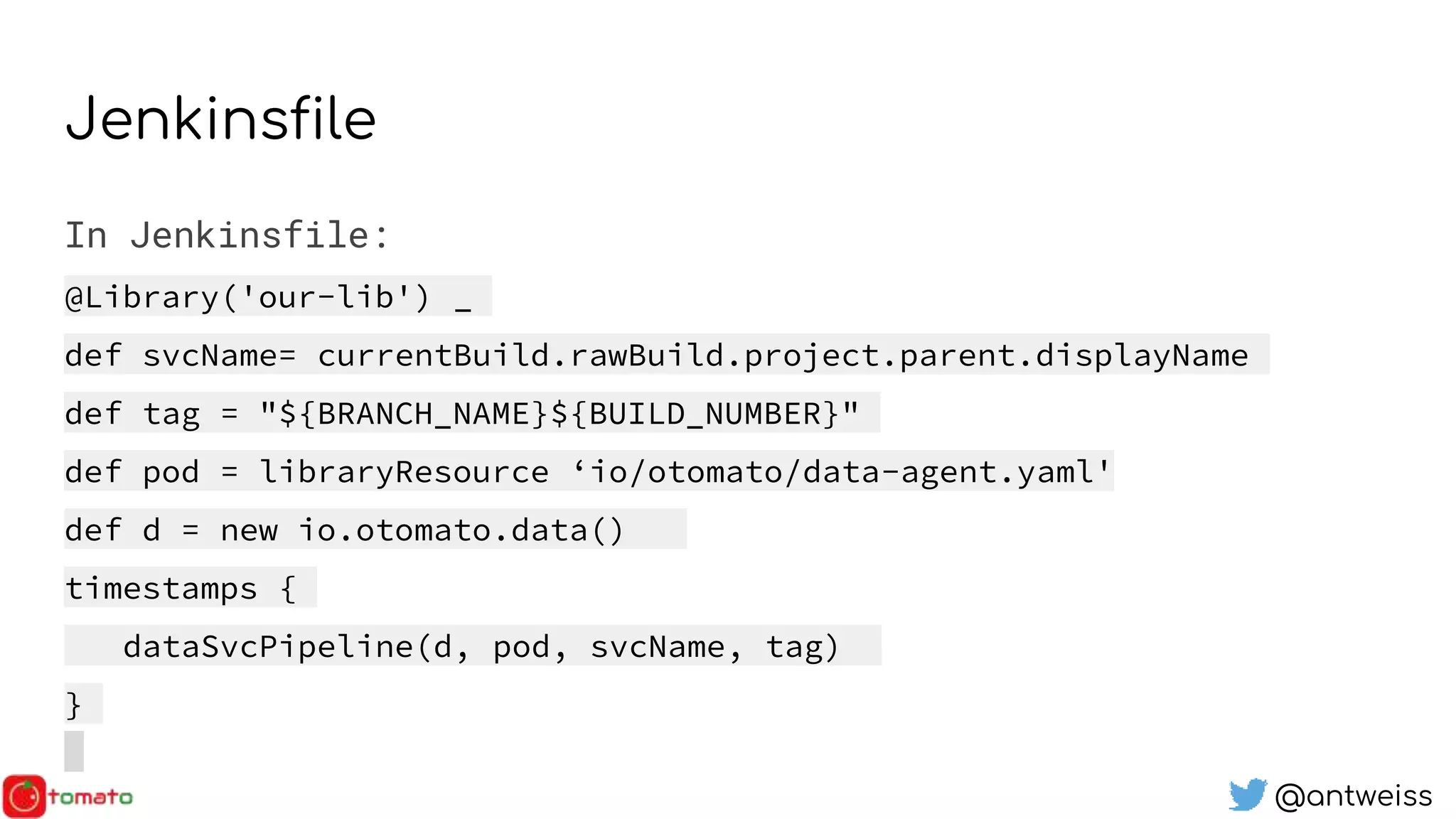

- 36. @antweiss Jenkinsfile In Jenkinsfile: @Library('our-lib') _ defsvcName= currentBuild.rawBuild.project.parent.displayName def tag = "${BRANCH_NAME}${BUILD_NUMBER}" def pod = libraryResource ‘io/otomato/data-agent.yaml' def d = new io.otomato.data() timestamps { dataSvcPipeline(d, pod, svcName, tag) }
- 37. @antweiss Jenkinsfile In Jenkinsfile: @Library('our-lib') _ defsvcName= currentBuild.rawBuild.project.parent.displayName def tag = "${BRANCH_NAME}${BUILD_NUMBER}" def pod = libraryResource ‘io/otomato/data-agent.yaml' <-Agent def d = new io.otomato.data() timestamps { dataSvcPipeline(d, pod, svcName, tag) }

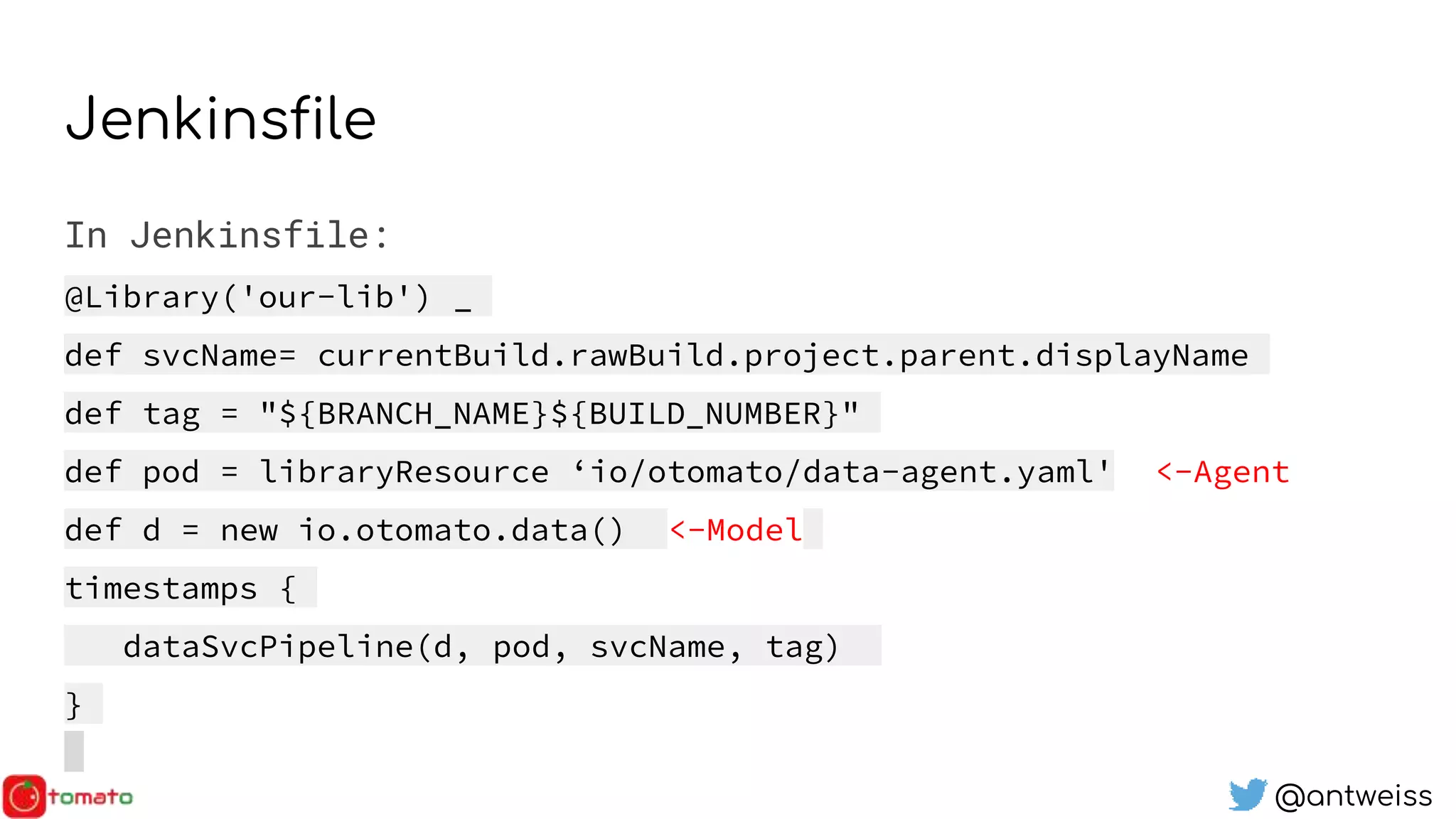

- 38. @antweiss Jenkinsfile In Jenkinsfile: @Library('our-lib') _ defsvcName= currentBuild.rawBuild.project.parent.displayName def tag = "${BRANCH_NAME}${BUILD_NUMBER}" def pod = libraryResource ‘io/otomato/data-agent.yaml' <-Agent def d = new io.otomato.data() <-Model timestamps { dataSvcPipeline(d, pod, svcName, tag) }

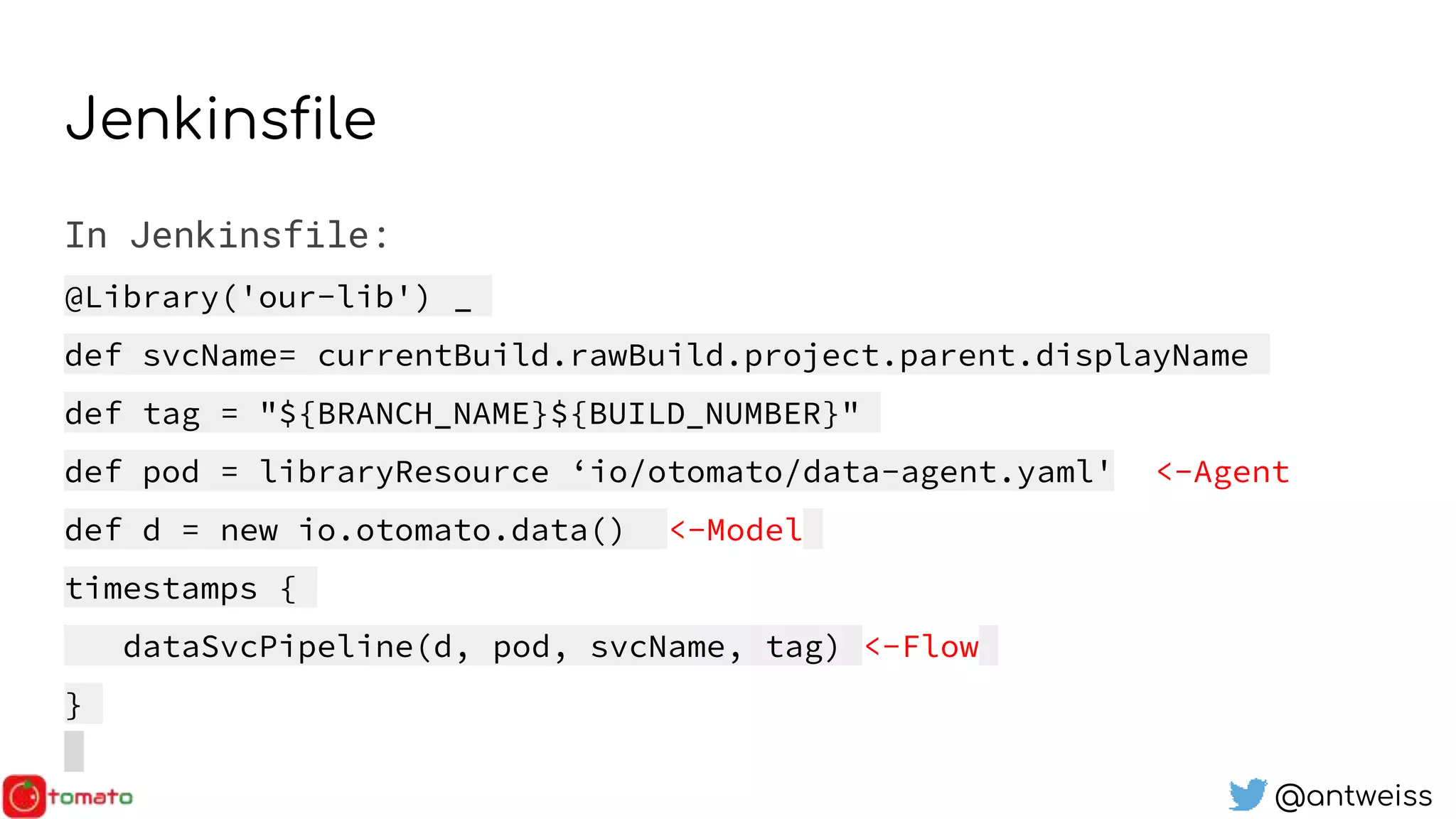

- 39. @antweiss Jenkinsfile In Jenkinsfile: @Library('our-lib') _ defsvcName= currentBuild.rawBuild.project.parent.displayName def tag = "${BRANCH_NAME}${BUILD_NUMBER}" def pod = libraryResource ‘io/otomato/data-agent.yaml' <-Agent def d = new io.otomato.data() <-Model timestamps { dataSvcPipeline(d, pod, svcName, tag) <-Flow }

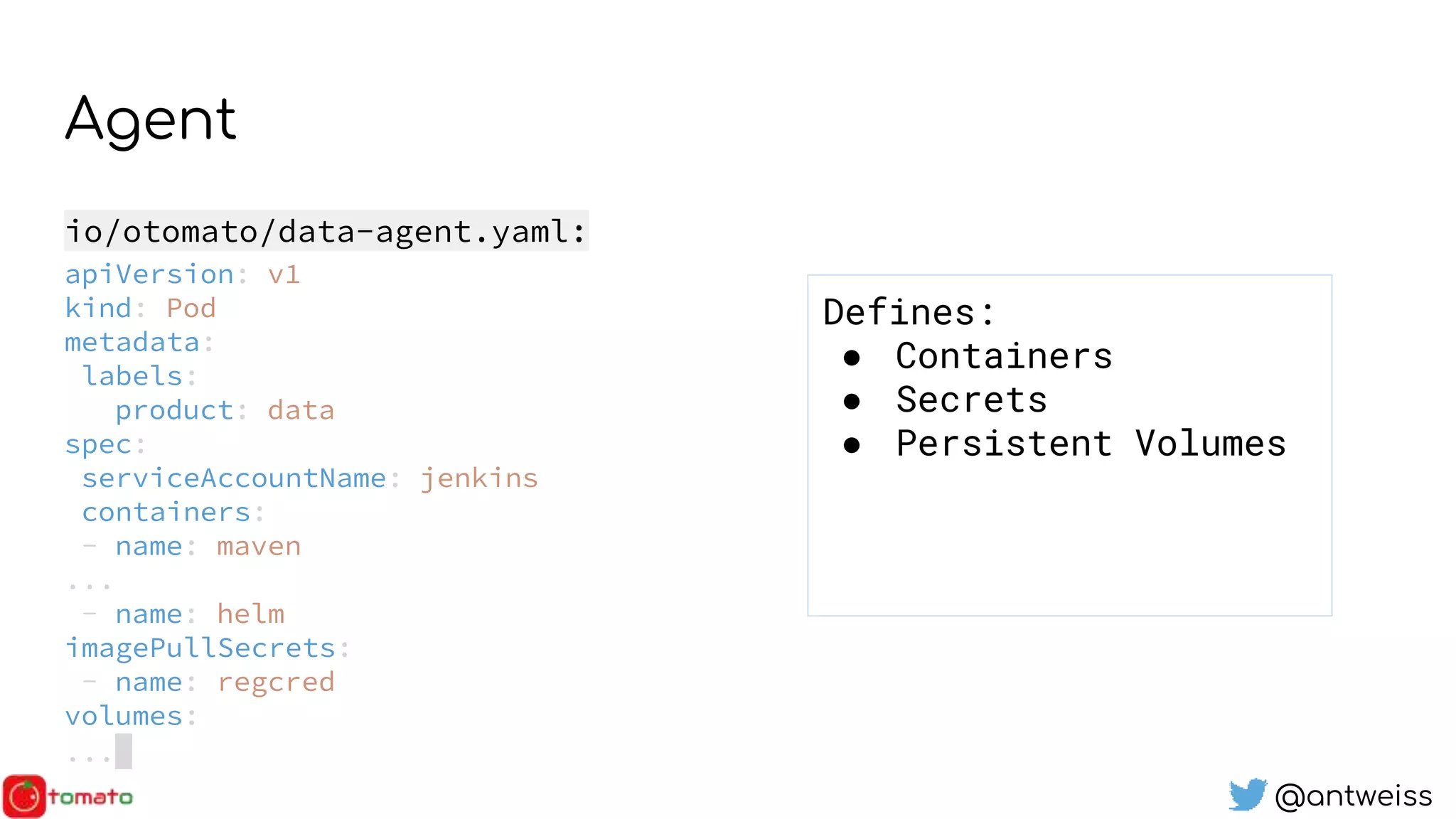

- 40. @antweiss Agent io/otomato/data-agent.yaml: apiVersion: v1 kind: Pod metadata: labels: product:data spec: serviceAccountName: jenkins containers: - name: maven ... - name: helm imagePullSecrets: - name: regcred volumes: ... Defines: ● Containers ● Secrets ● Persistent Volumes

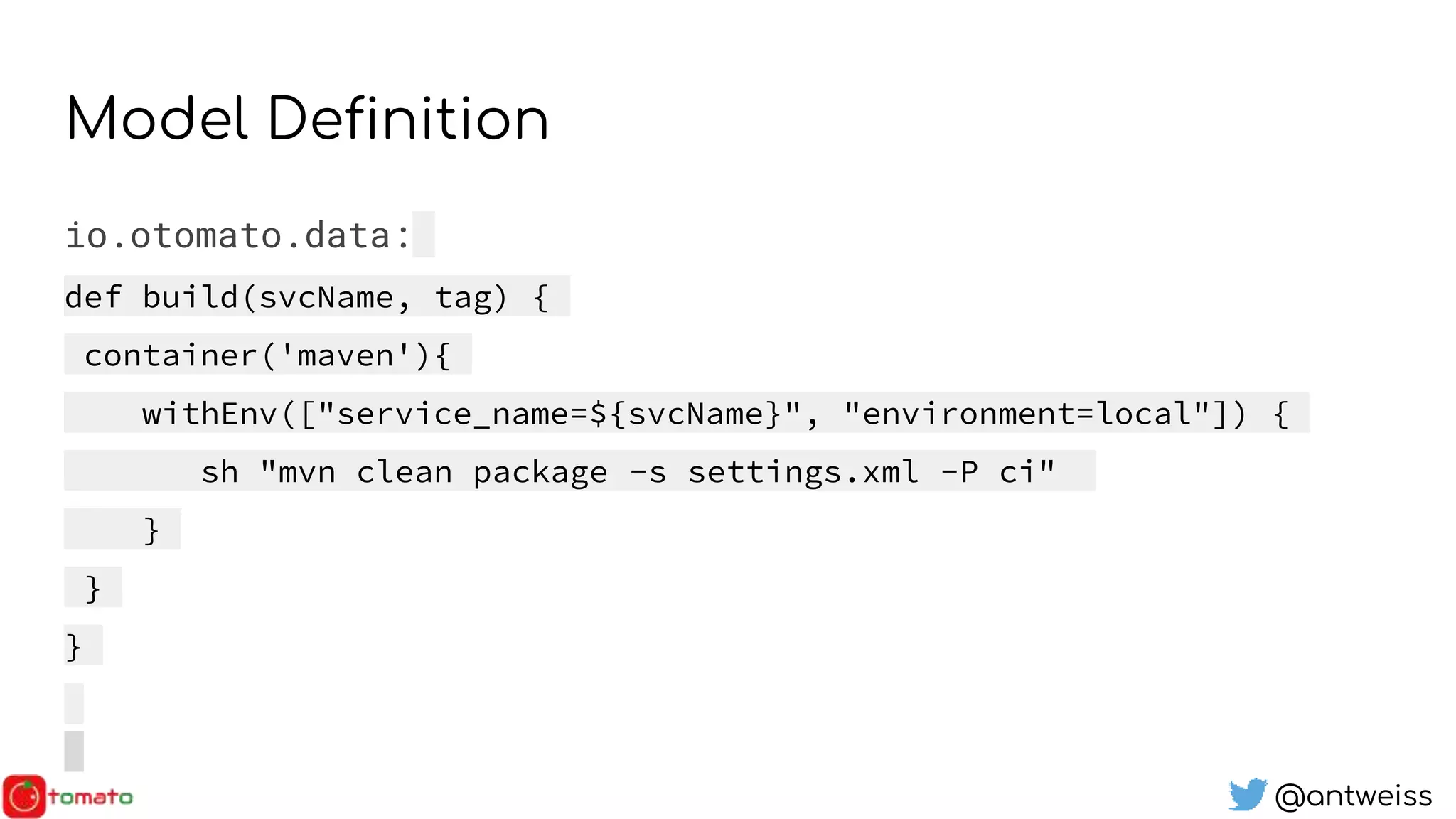

- 41. @antweiss Model Definition io.otomato.data: def build(svcName,tag) { container('maven'){ withEnv(["service_name=${svcName}", "environment=local"]) { sh "mvn clean package -s settings.xml -P ci" } } }

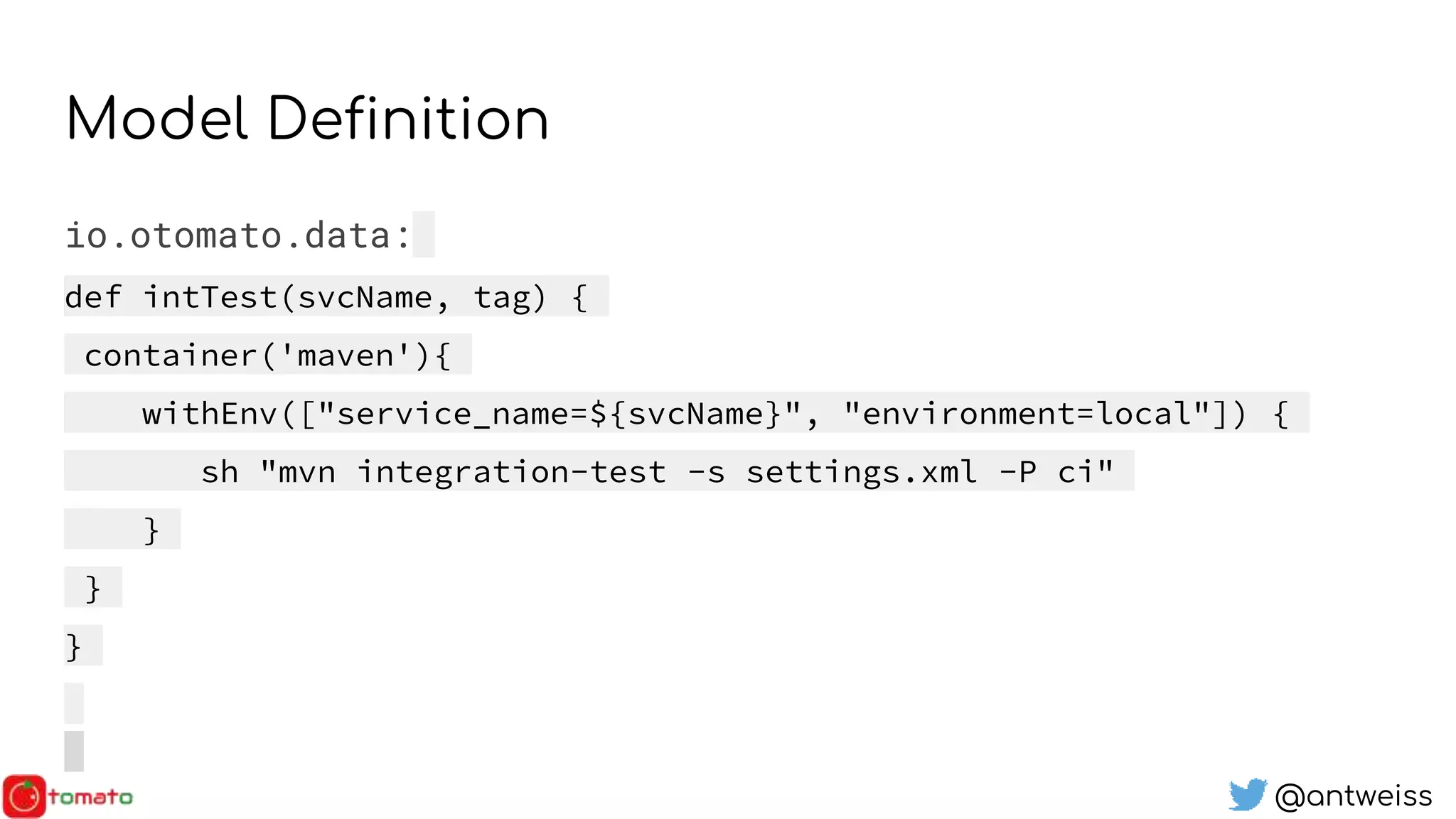

- 42. @antweiss Model Definition io.otomato.data: def intTest(svcName,tag) { container('maven'){ withEnv(["service_name=${svcName}", "environment=local"]) { sh "mvn integration-test -s settings.xml -P ci" } } }

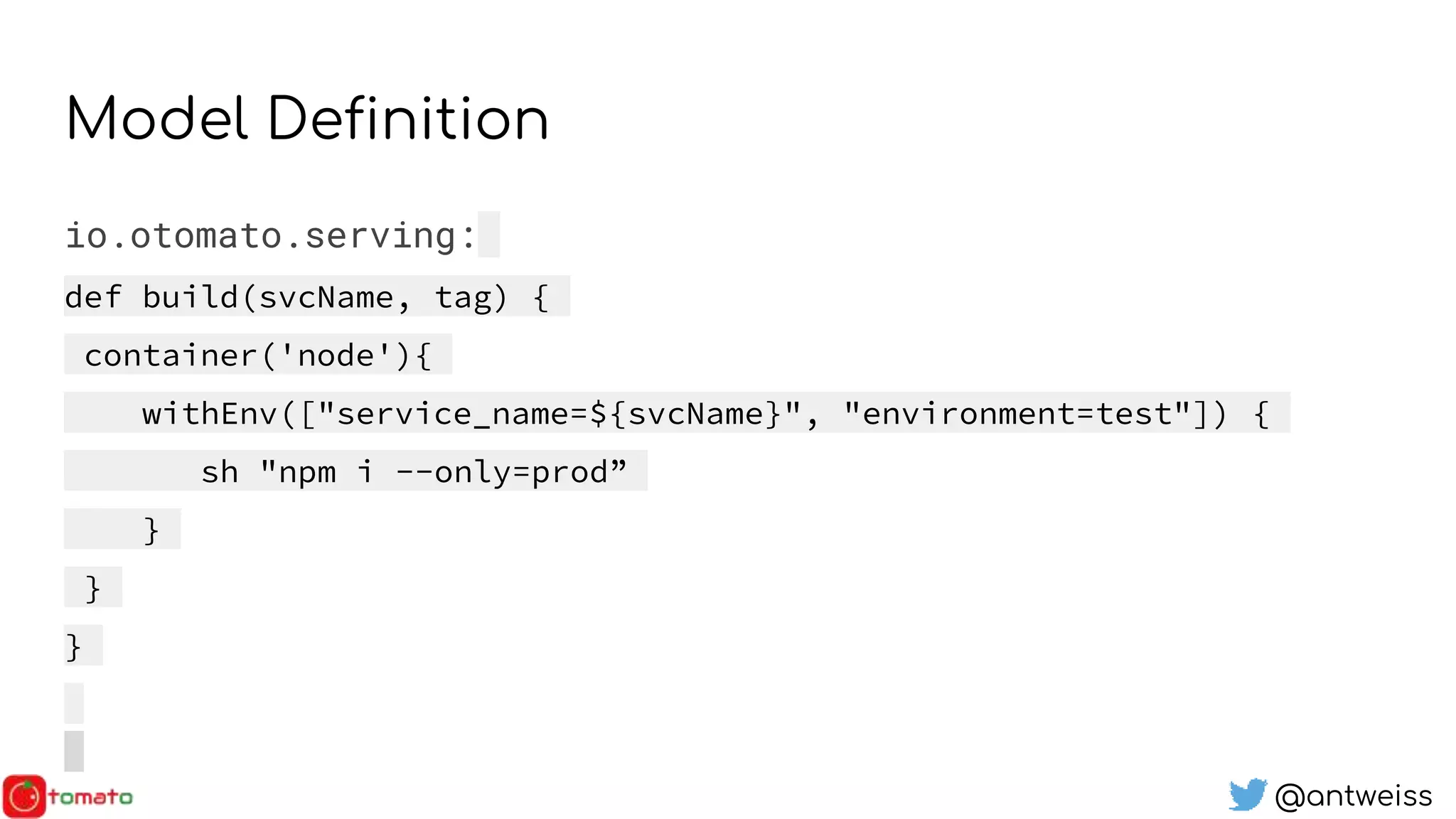

- 43. @antweiss Model Definition io.otomato.serving: def build(svcName,tag) { container('node'){ withEnv(["service_name=${svcName}", "environment=test"]) { sh "npm i --only=prod” } } }

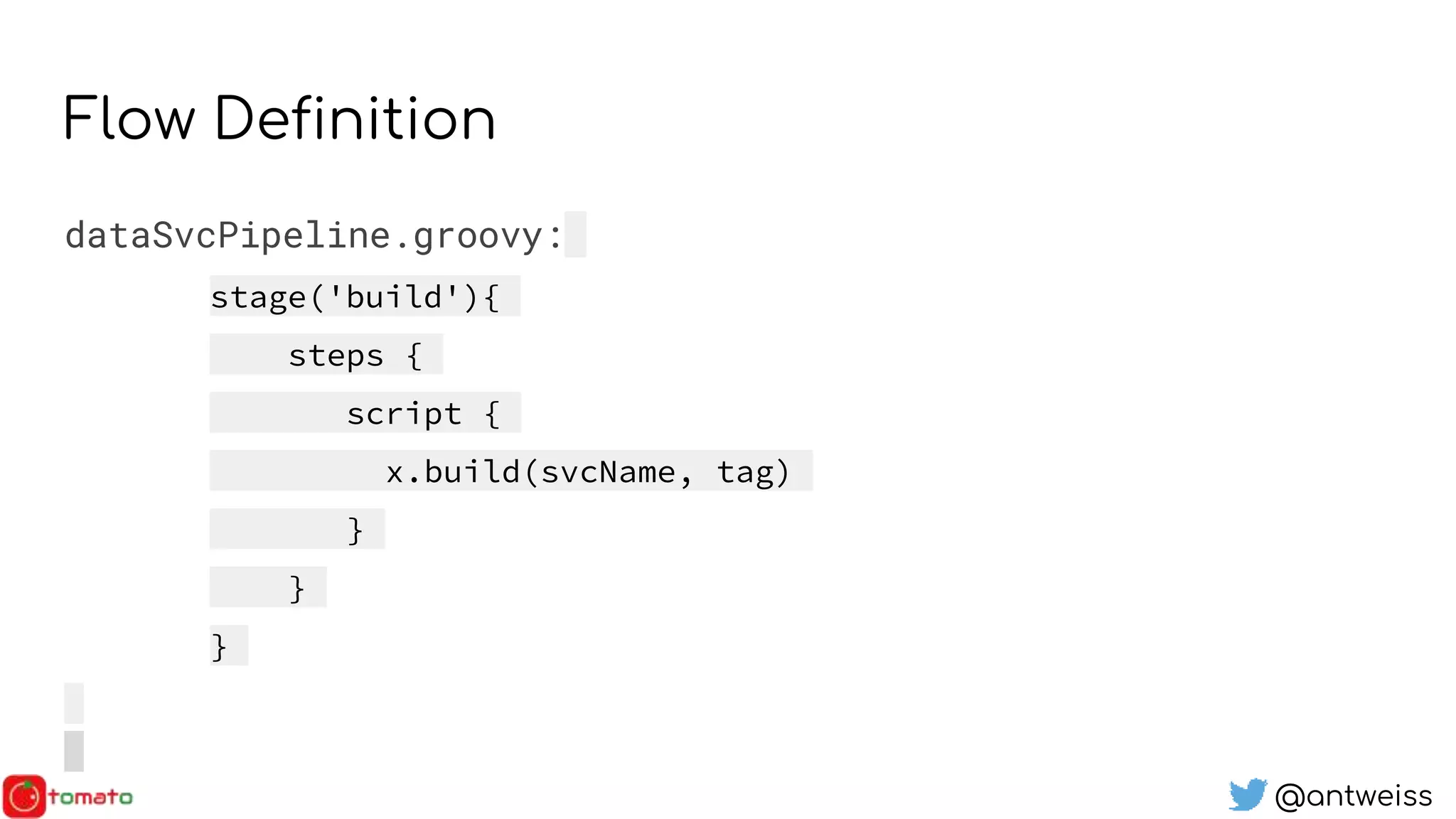

- 44. @antweiss Flow Definition dataSvcPipeline.groovy: stage('build'){ steps { script{ x.build(svcName, tag) } } }
- 45.
- 46.

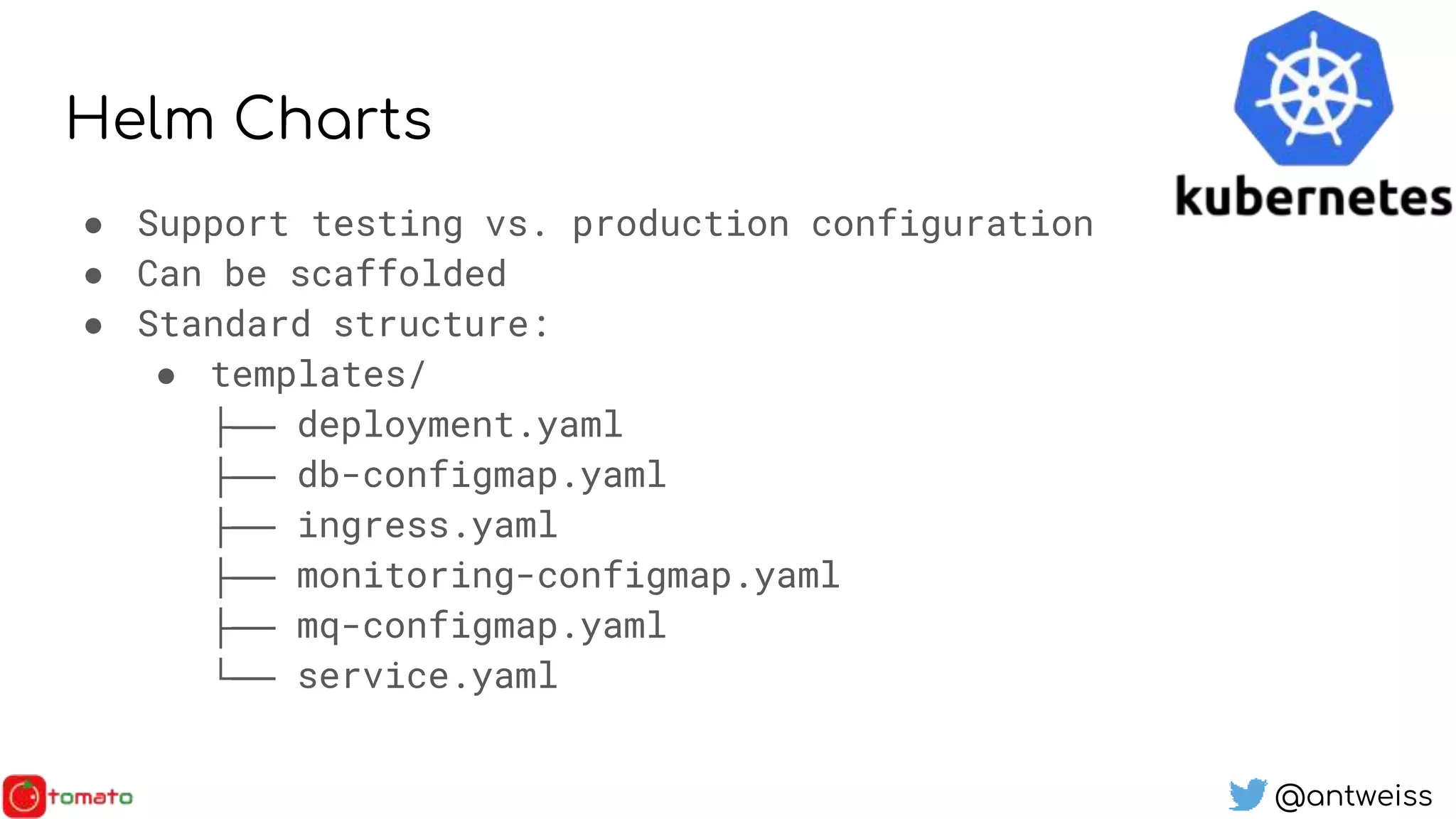

- 47. @antweiss Helm Charts ● Supporttesting vs. production configuration ● Can be scaffolded ● Standard structure: ● templates/ ├── deployment.yaml ├── db-configmap.yaml ├── ingress.yaml ├── monitoring-configmap.yaml ├── mq-configmap.yaml └── service.yaml
- 48. @antweiss The Vision ofa Stress-free Release Argo-Flux and the GitOps Engine SMI Spec The Meshes

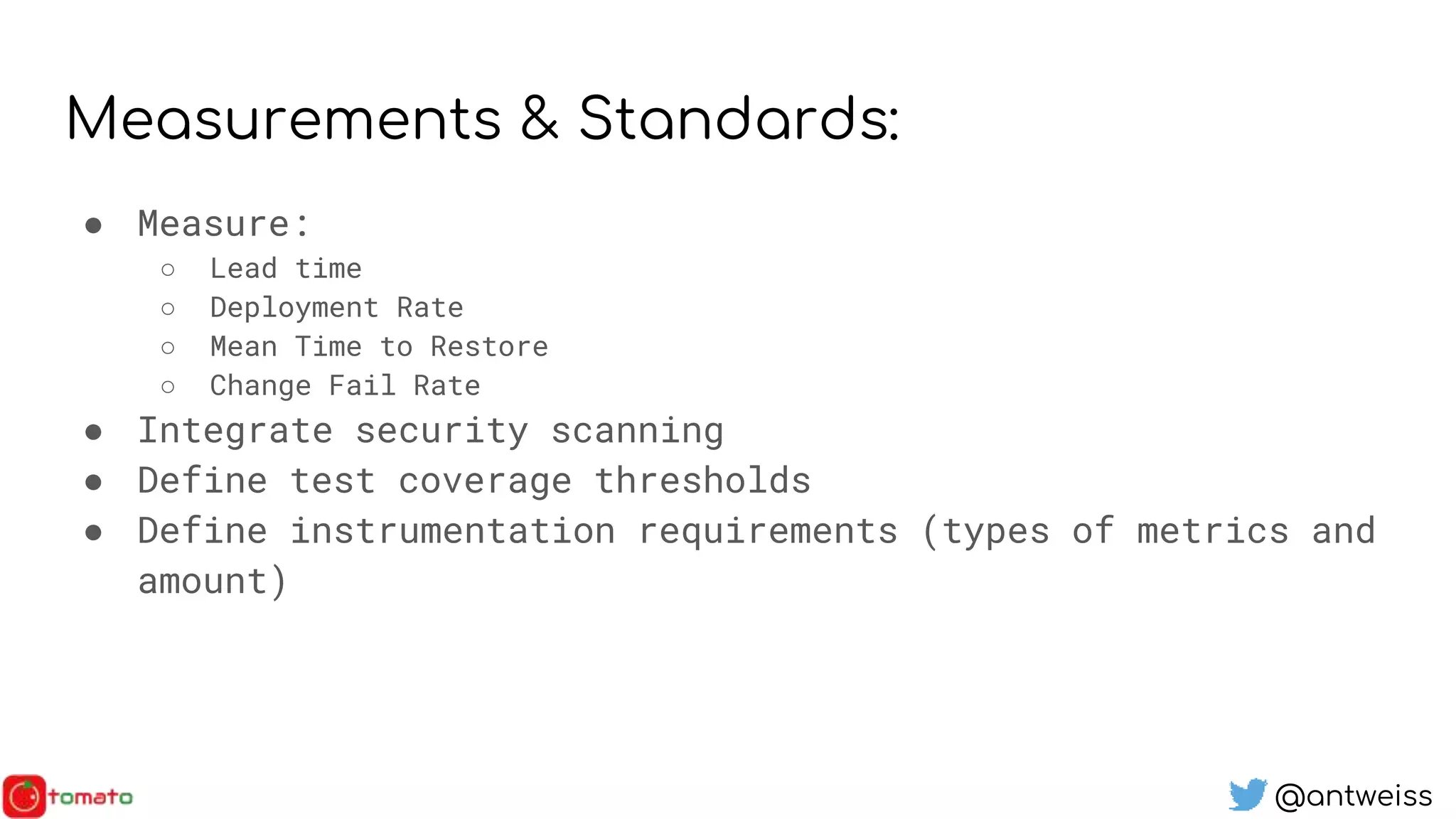

- 49. @antweiss Measurements & Standards: ●Measure: ○ Lead time ○ Deployment Rate ○ Mean Time to Restore ○ Change Fail Rate ● Integrate security scanning ● Define test coverage thresholds ● Define instrumentation requirements (types of metrics and amount)
- 50. @antweiss Jungle is AlwaysCalling
