The document outlines a presentation by Luca Milanesio at the Jenkins User Conference in Palo Alto on October 23, 2013, focusing on the mobile application lifecycle and the integration of Jenkins and Git for agile development. It discusses the challenges faced in deploying a mobile app across multiple European countries and emphasizes the need for continuous delivery in mobile application lifecycle management. Key topics include the development workflow, real-life success and failure stories, and the role of Jenkins in facilitating mobile application development and deployment.

1. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Mobile Application Lifecycle
Luca Milanesio
www.gerritforge.com
@jenkinsconf

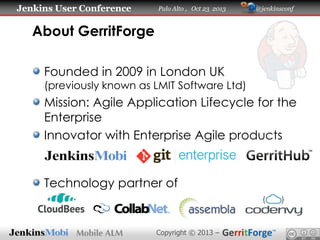

2. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
About GerritForge
Founded in 2009 in London UK
(previously known as LMIT Software Ltd)
Mission: Agile Application Lifecycle for the
Enterprise
Innovator with Enterprise Agile products
Technology partner of
Copyright © 2013 –

3. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
About the speaker
Luca Milanesio
Director and co-founder of GerritForge
Over 20 years of experience
in Agile Development Management, SCM and
ALM in large Enterprises worldwide
Contributor to Jenkins
since 2007 (and previously Hudson)
Git SCM mentor
for the Enterprise since 2009
Contributors to Gerrit Code Review
community since 2011
Copyright © 2013 –

4. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

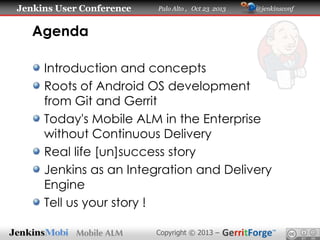

Agenda
Introduction and concepts
Roots of Android OS development
from Git and Gerrit
Today's Mobile ALM in the Enterprise
without Continuous Delivery
Real life [un]success story
Jenkins as an Integration and Delivery
Engine
Tell us your story !
Copyright © 2013 –

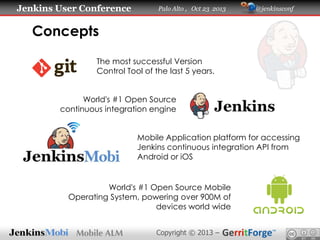

5. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Concepts
The most successful Version
Control Tool of the last 5 years.
World's #1 Open Source
continuous integration engine
Mobile Application platform for accessing
Jenkins continuous integration API from
Android or iOS
World's #1 Open Source Mobile
Operating System, powering over 900M of
devices world wide
Copyright © 2013 –

6. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Where is Apple iOS ?
Source:
http://www.gartner.com/newsroom/id/2482816
Copyright © 2013 –
Android = world's
mobile platform
leader
Android historically
linked to the Open
Source community
Concepts explored
may be applied to
iOS as well

7. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Why Android on Git ?
Google's internal VC not suitable for
external contributors
OpenSource VC needed
– Scalable and distributed
– Widely used by Linux community
– Strong branch and merge capabilities
Linux kernel was on Git since 2005
Copyright © 2013 –

8. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

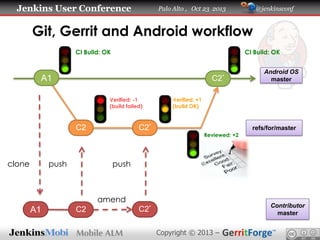

Git, Gerrit and Android workflow
CI Build: OK
CI Build: OK
A1
C2*
Verified: -1
(build failed)
C2*
C2
clone
push
Verified: +1
(build OK)
refs/for/master
Reviewed: +2
push
amend
A1
Android OS
master
C2
Contributor
master
C2*
Copyright © 2013 –

9. Jenkins User Conference
Palo Alto , Oct 23 2013

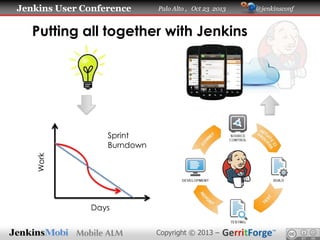

Putting all together with Jenkins
Work
Sprint
Burndown
Days
Copyright © 2013 –
@jenkinsconf

10. Jenkins User Conference
Palo Alto , Oct 23 2013

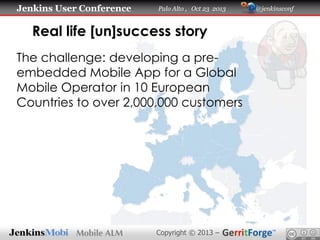

Real life [un]success story
The challenge: developing a preembedded Mobile App for a Global
Mobile Operator in 10 European
Countries to over 2,000,000 customers
Copyright © 2013 –
@jenkinsconf

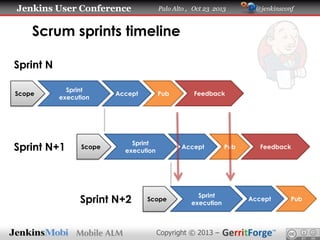

11. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Scrum sprints timeline
Sprint N
Scope
Sprint
execution
Sprint N+1
Scope
Accept
Pub
Sprint
execution
Sprint N+2
Feedback
Accept
Scope
Sprint
execution
Copyright © 2013 –
Pub
Feedback
Accept
Pub

12. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

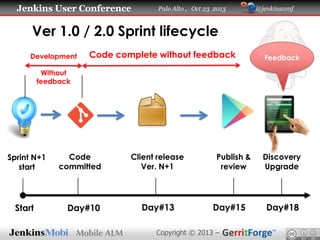

Ver 1.0 / 2.0 Sprint lifecycle
Development
Code complete without feedback
Feedback
Without
feedback
Sprint N+1
start
Start
Code
committed
Day#10
Client release
Ver. N+1
Day#13
Publish &
review
Day#15
Copyright © 2013 –
Discovery
Upgrade
Day#18

13. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

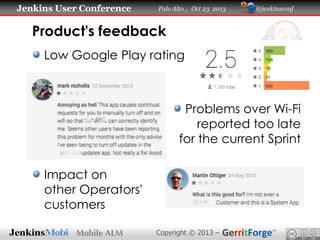

Product's feedback
Low Google Play rating
Problems over Wi-Fi
reported too late
for the current Sprint
Impact on
other Operators'
customers
Copyright © 2013 –

14. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

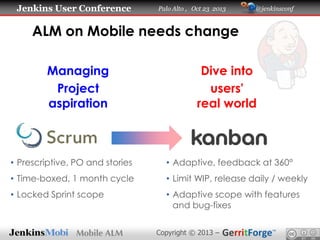

ALM on Mobile needs change
Managing
Project
aspiration
Dive into
users'
real world
• Prescriptive, PO and stories
• Adaptive, feedback at 360°
• Time-boxed, 1 month cycle
• Limit WIP, release daily / weekly
• Locked Sprint scope
• Adaptive scope with features
and bug-fixes
Copyright © 2013 –

15. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

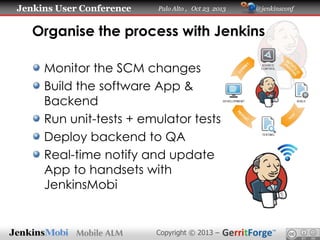

Organise the process with Jenkins
Monitor the SCM changes
Build the software App &
Backend
Run unit-tests + emulator tests
Deploy backend to QA
Real-time notify and update
App to handsets with
JenkinsMobi
Copyright © 2013 –

16. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

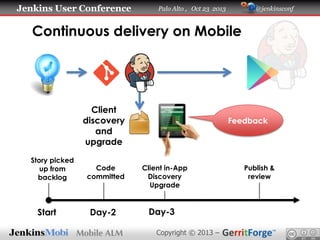

Continuous delivery on Mobile
Client
discovery
and
upgrade
Story picked
up from
backlog
Start
Code
committed
Day-2
Feedback
Client in-App
Discovery
Upgrade
Day-3
Copyright © 2013 –
Publish &
review

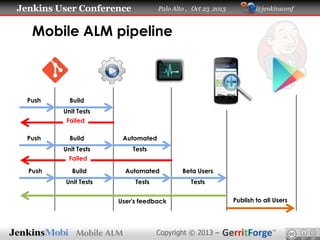

17. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Mobile ALM pipeline
Push
Build
Unit Tests
Failed
Push
Automated
Unit Tests
Failed
Push
Build
Tests
Build
Automated
Beta Users
Unit Tests
Tests
Tests
User's feedback
Copyright © 2013 –
Publish to all Users

18. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

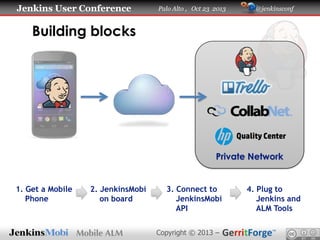

Building blocks
Private Network
1. Get a Mobile
Phone
2. JenkinsMobi
on board
3. Connect to
JenkinsMobi
API
Copyright © 2013 –
4. Plug to
Jenkins and
ALM Tools

19. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Jenkins plugins for Mobile ALM
Run Android emulator during build
Execute Monkeyrunner
Validate
changes before
Review
Orchestrate with
TeamForge
Issue planning, Build
and Test feedback loop
Fetch code from Git
Trigger build on
changes
Progress
Continuous
Delivery phase
Build Android
Gradle Projects
Copyright © 2013 –

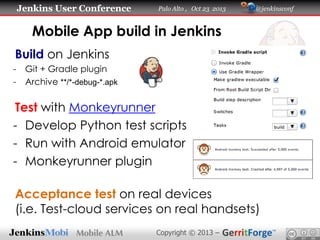

20. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Mobile App build in Jenkins
Build on Jenkins
-
Git + Gradle plugin
Archive **/*-debug-*.apk
Test with Monkeyrunner
- Develop Python test scripts
- Run with Android emulator
- Monkeyrunner plugin
Acceptance test on real devices
(i.e. Test-cloud services on real handsets)
Copyright © 2013 –

21. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

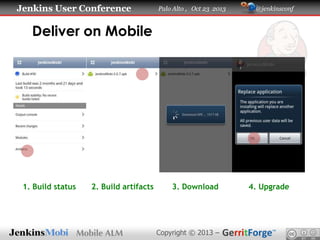

Deliver on Mobile
1. Build status
2. Build artifacts
3. Download
Copyright © 2013 –
4. Upgrade

22. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Inform Beta adopters on what's new
Copyright © 2013 –

23. Jenkins User Conference
Palo Alto , Oct 23 2013
Bring teams together
Copyright © 2013 –
@jenkinsconf

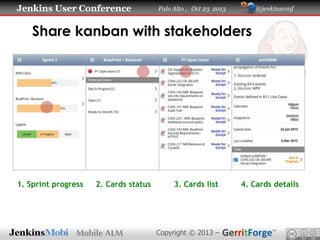

24. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Share kanban with stakeholders
1. Sprint progress
2. Cards status
3. Cards list
Copyright © 2013 –
4. Cards details

25. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

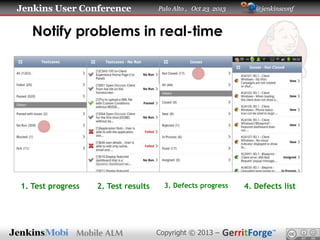

Notify problems in real-time
1. Test progress
2. Test results
3. Defects progress
Copyright © 2013 –
4. Defects list

26. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

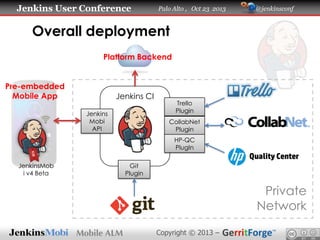

Overall deployment
Platform Backend
Pre-embedded
Mobile App
Jenkins CI
Jenkins
Mobi
API
Trello
Plugin
CollabNet
Plugin
HP-QC
PlugIn
JenkinsMob
i v4 Beta
Git
Plugin
Private
Network
Copyright © 2013 –

27. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Challenges
Private vs Public network
Jenkins and other ALM hardened in Local Net
Public gateway for JenkinsMobi API
Provisioning to JenkinsMobi clients
Application upgrade (outside Google Play)
In-App notification and steps
Managing feedback loop to tickets
In-App feedback request with JenkinsMobi API
Education for high level stakeholders
Copyright © 2013 –

28. Jenkins User Conference
Palo Alto , Oct 23 2013
Q&A – share your experience
Copyright © 2013 –
@jenkinsconf

29. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf

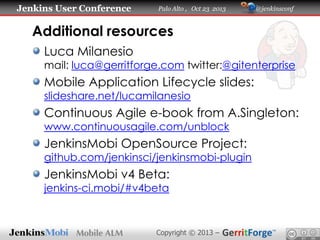

Additional resources
Luca Milanesio
mail: luca@gerritforge.com twitter:@gitenterprise
Mobile Application Lifecycle slides:
slideshare.net/lucamilanesio
Continuous Agile e-book from A.Singleton:
www.continuousagile.com/unblock
JenkinsMobi OpenSource Project:
github.com/jenkinsci/jenkinsmobi-plugin
JenkinsMobi v4 Beta:
jenkins-ci.mobi/#v4beta
Copyright © 2013 –

30. Jenkins User Conference
Palo Alto , Oct 23 2013
@jenkinsconf
Plus exclusively for the JUC 2013
+
=
Continuous agile on a stick
gerritforge.com/contagile.vm.zip
Copyright © 2013 –

31. Jenkins User Conference
Palo Alto , Oct 23 2013
