Delivered at Jenkins World 2017. https://jenkinsworld20162017.sched.com/event/ALN6/bringing-jenkins-remote-access-api-to-the-masses

1. Bringing Jenkins Remote Access API To The Masses
Cliffano Subagio (@cliffano) - Shine Solutions

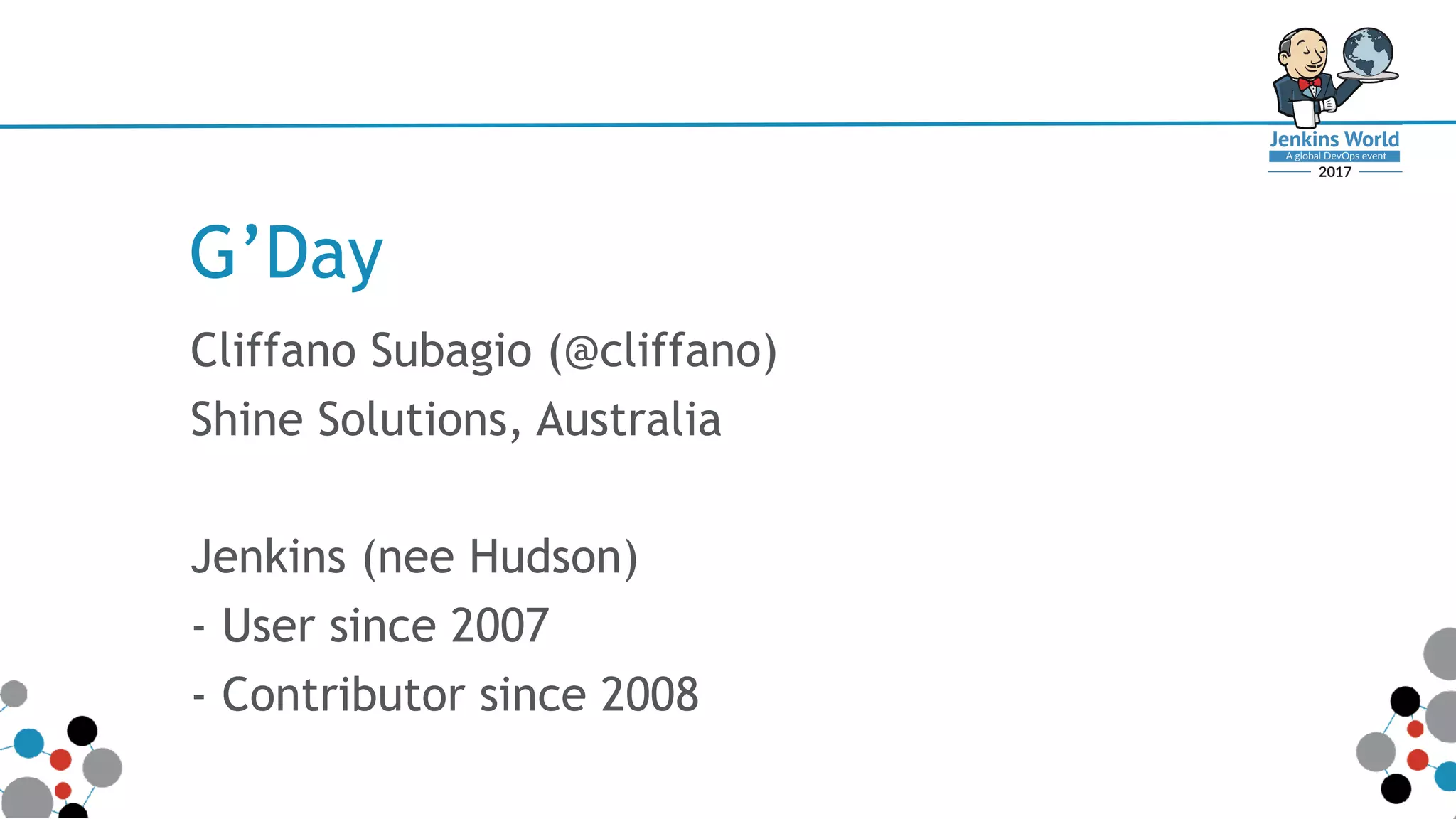

2. G’Day
Cliffano Subagio (@cliffano)
Shine Solutions, Australia
Jenkins (nee Hudson)
- User since 2007
- Contributor since 2008

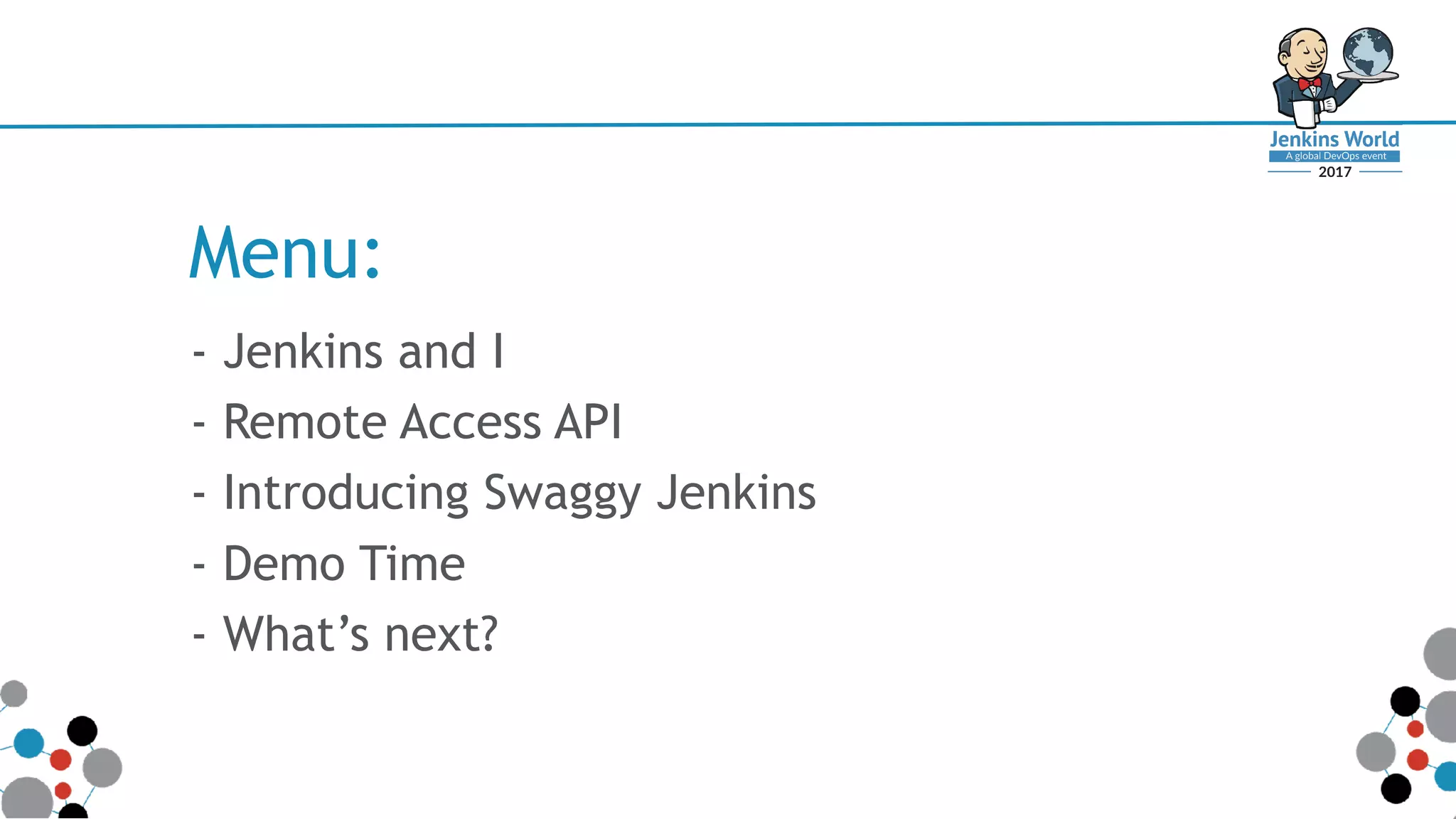

3. Menu:
- Jenkins and I
- Remote Access API
- Introducing Swaggy Jenkins
- Demo Time
- What’s next?

4. Once upon a time…

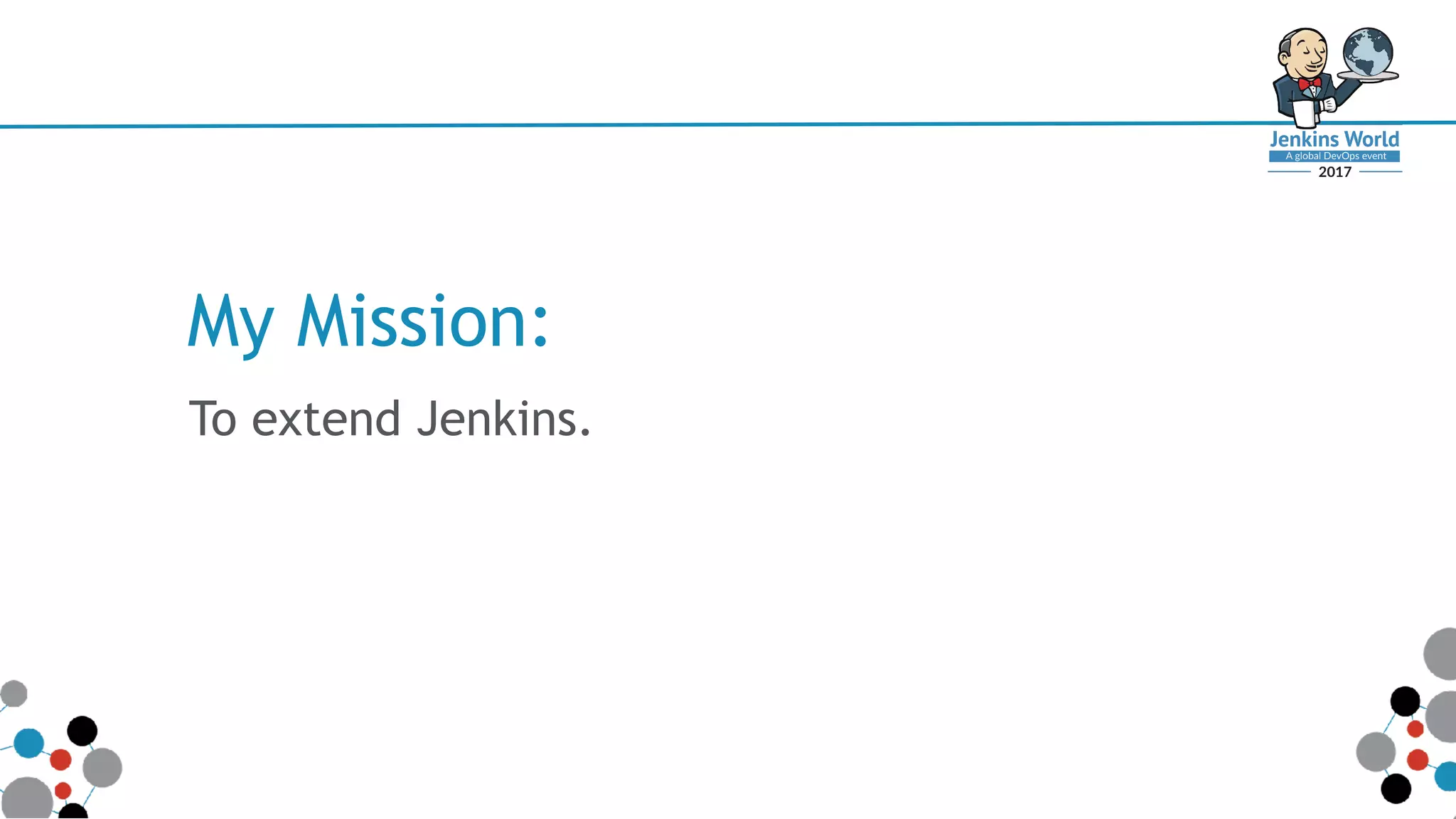

5. My Mission:
To extend Jenkins.

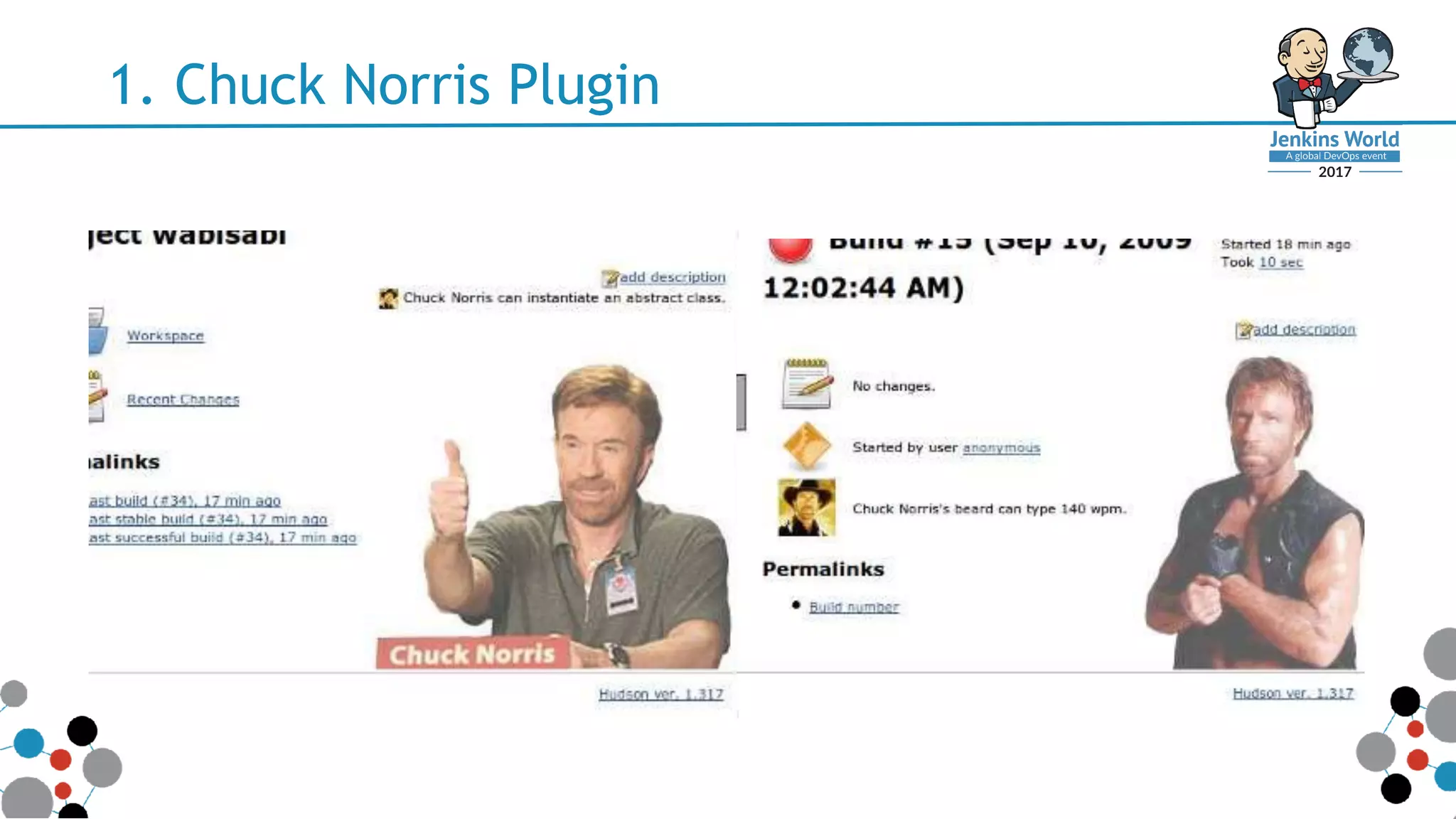

6. 1. Chuck Norris Plugin

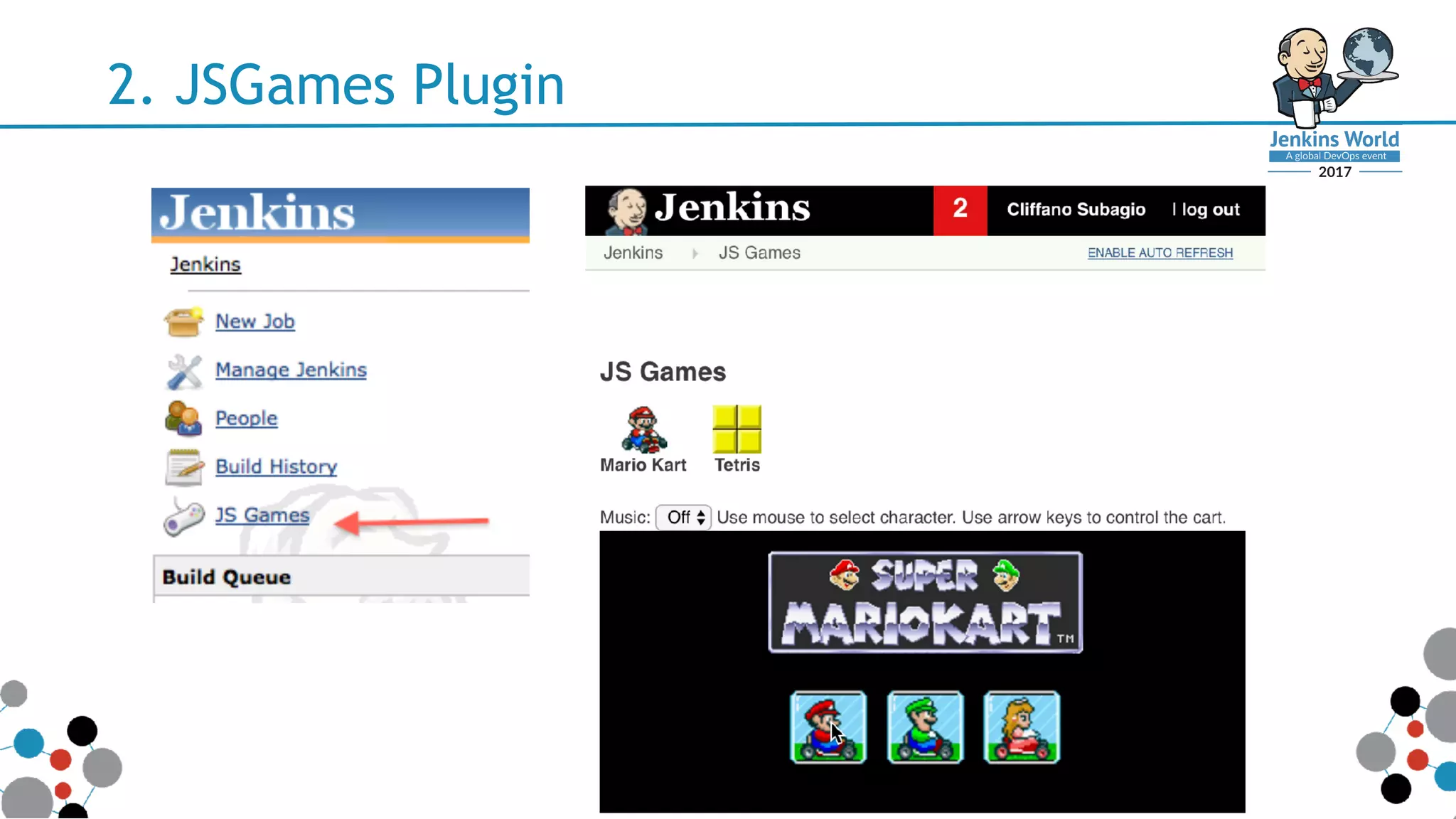

7. 2. JSGames Plugin

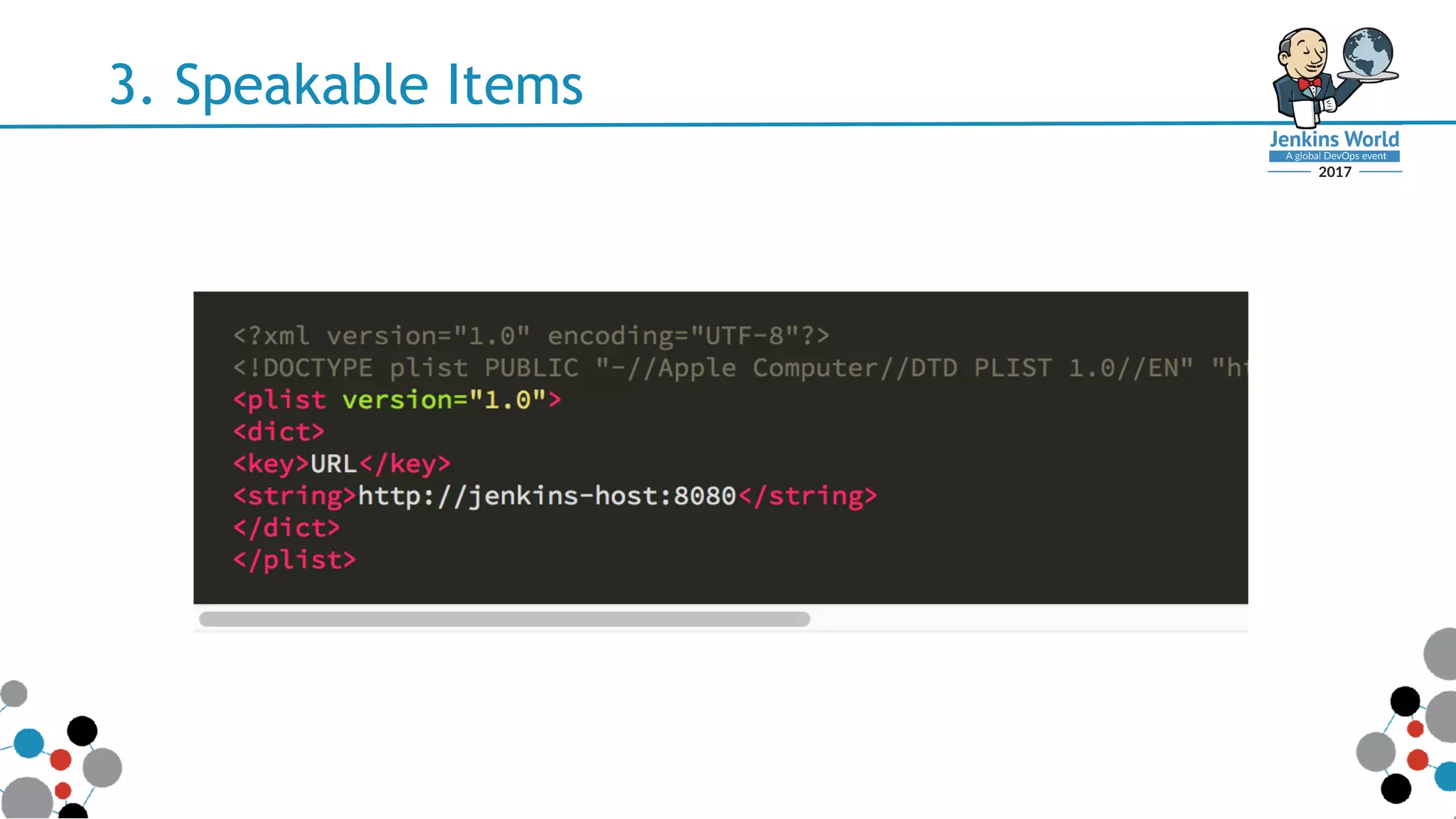

8. 3. Speakable Items

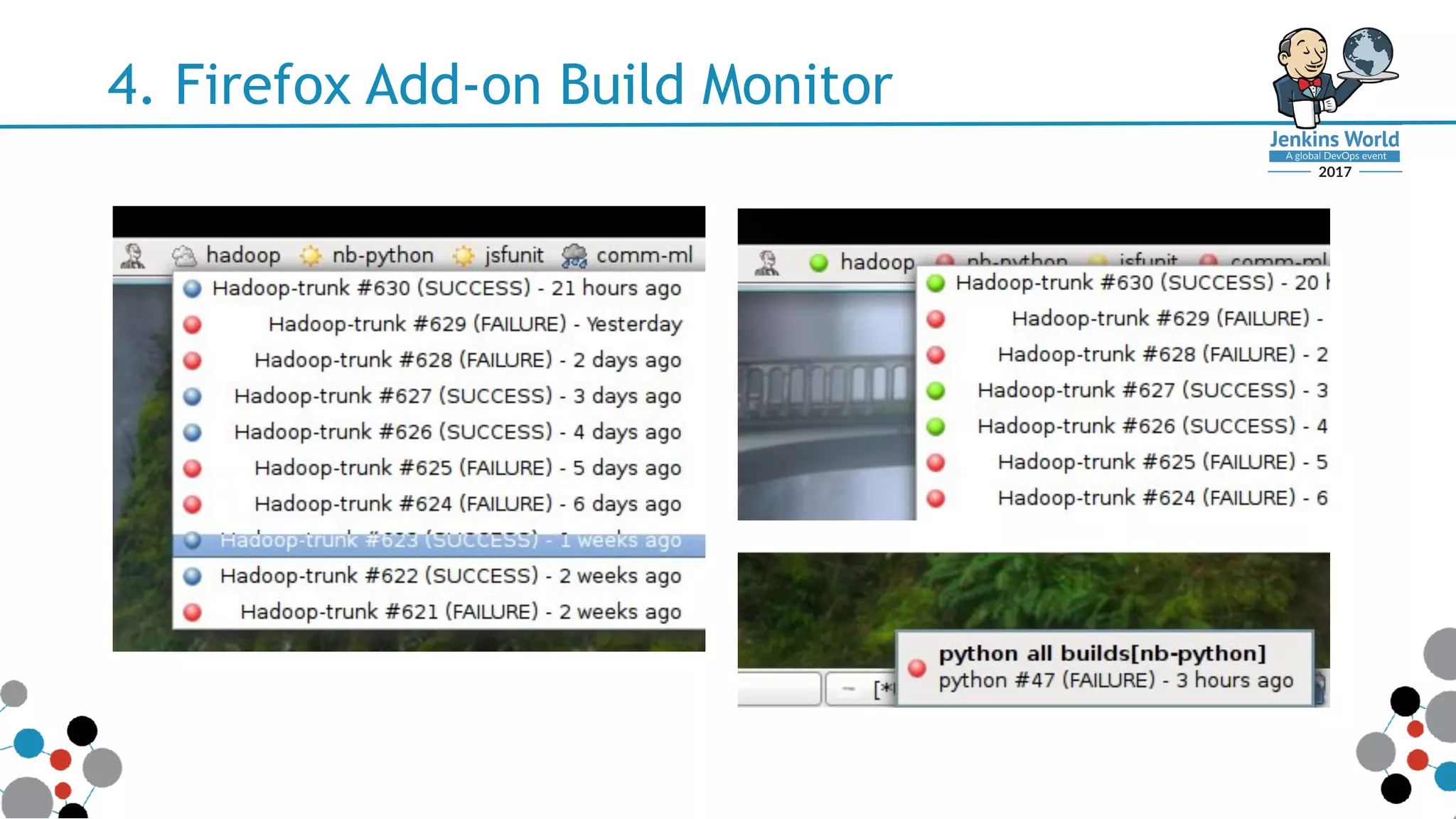

9. 4. Firefox Add-on Build Monitor

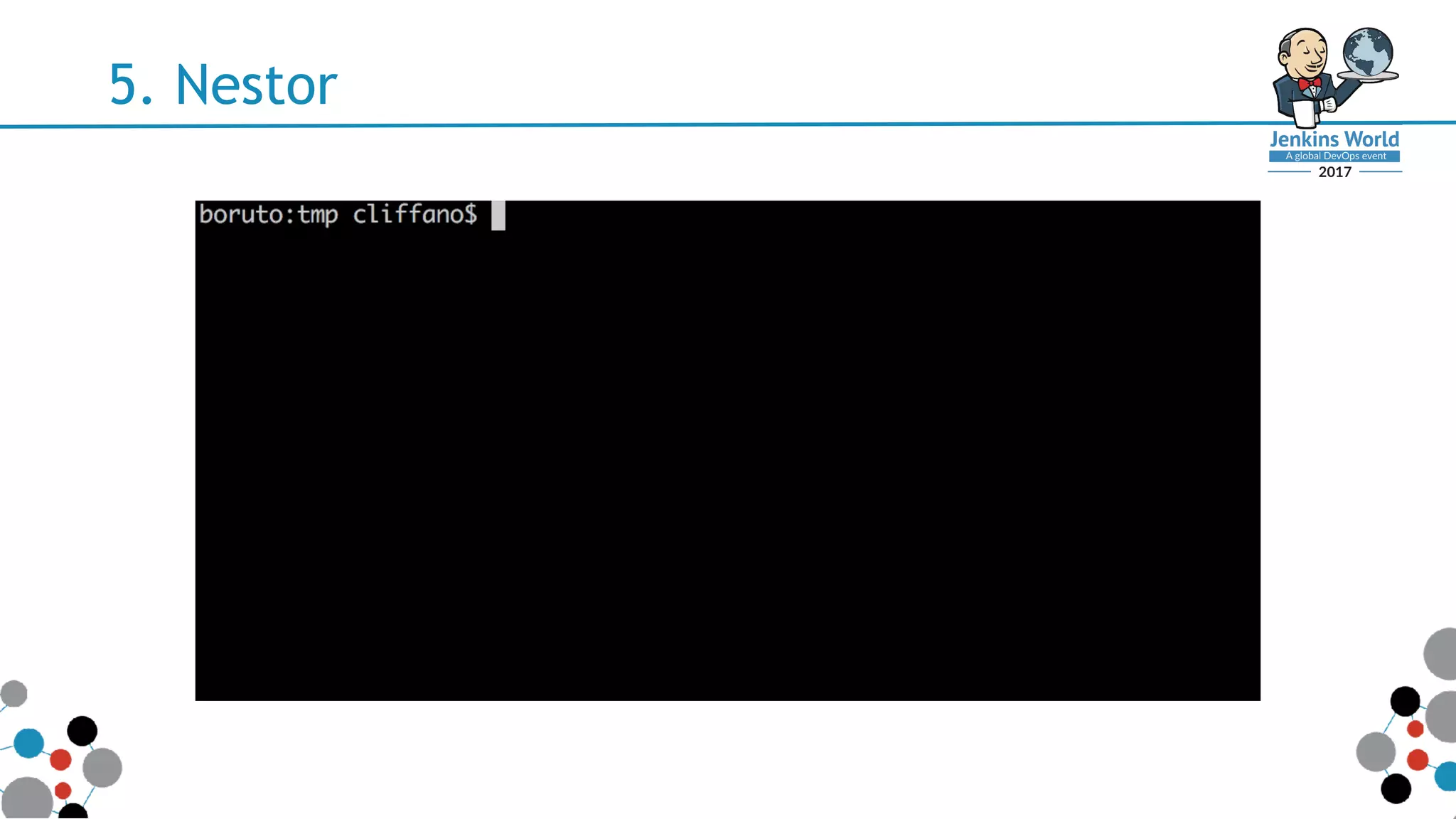

10. 5. Nestor

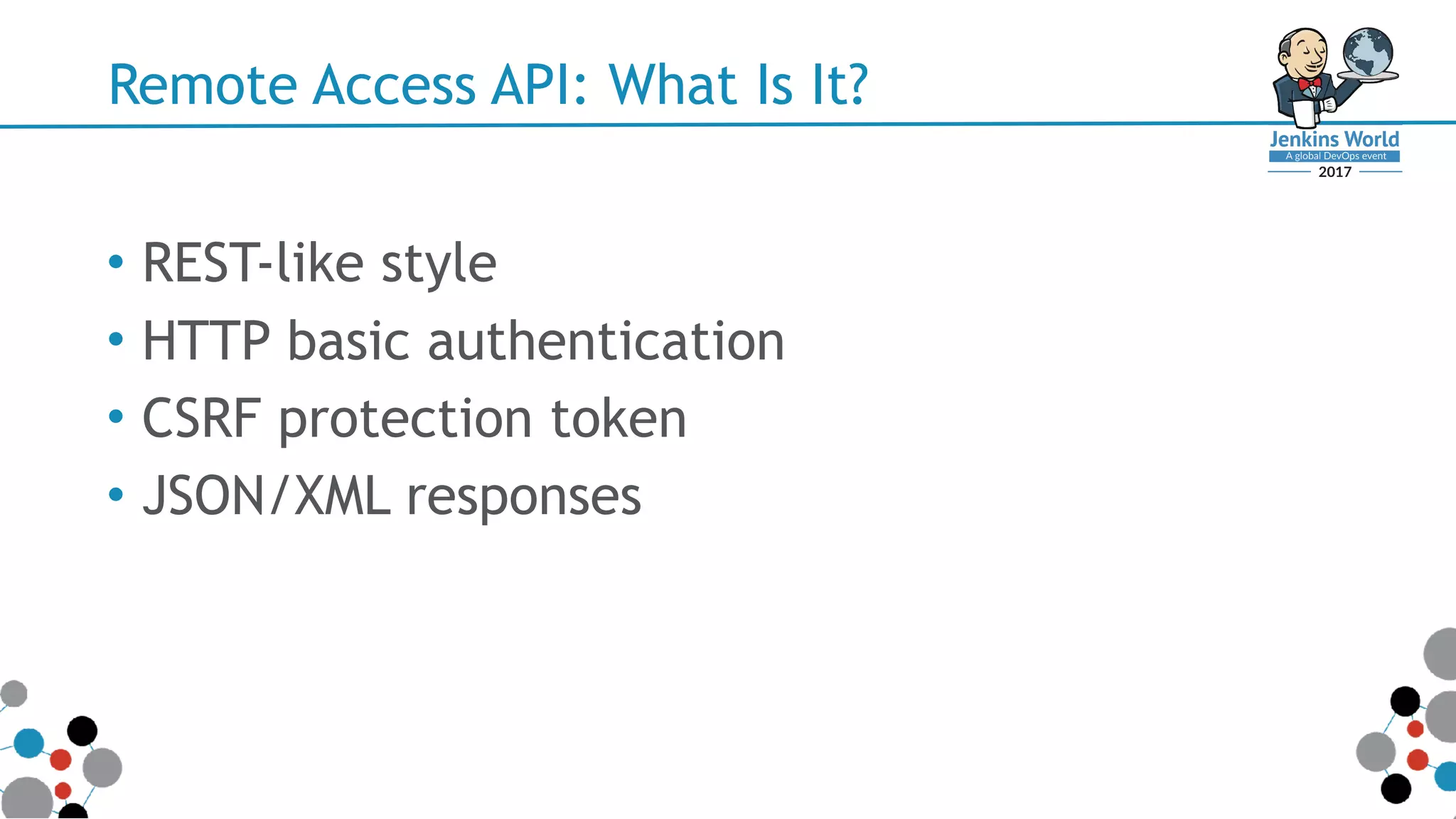

11. Remote Access API: What Is It?
• REST-like style
• HTTP basic authentication
• CSRF protection token
• JSON/XML responses

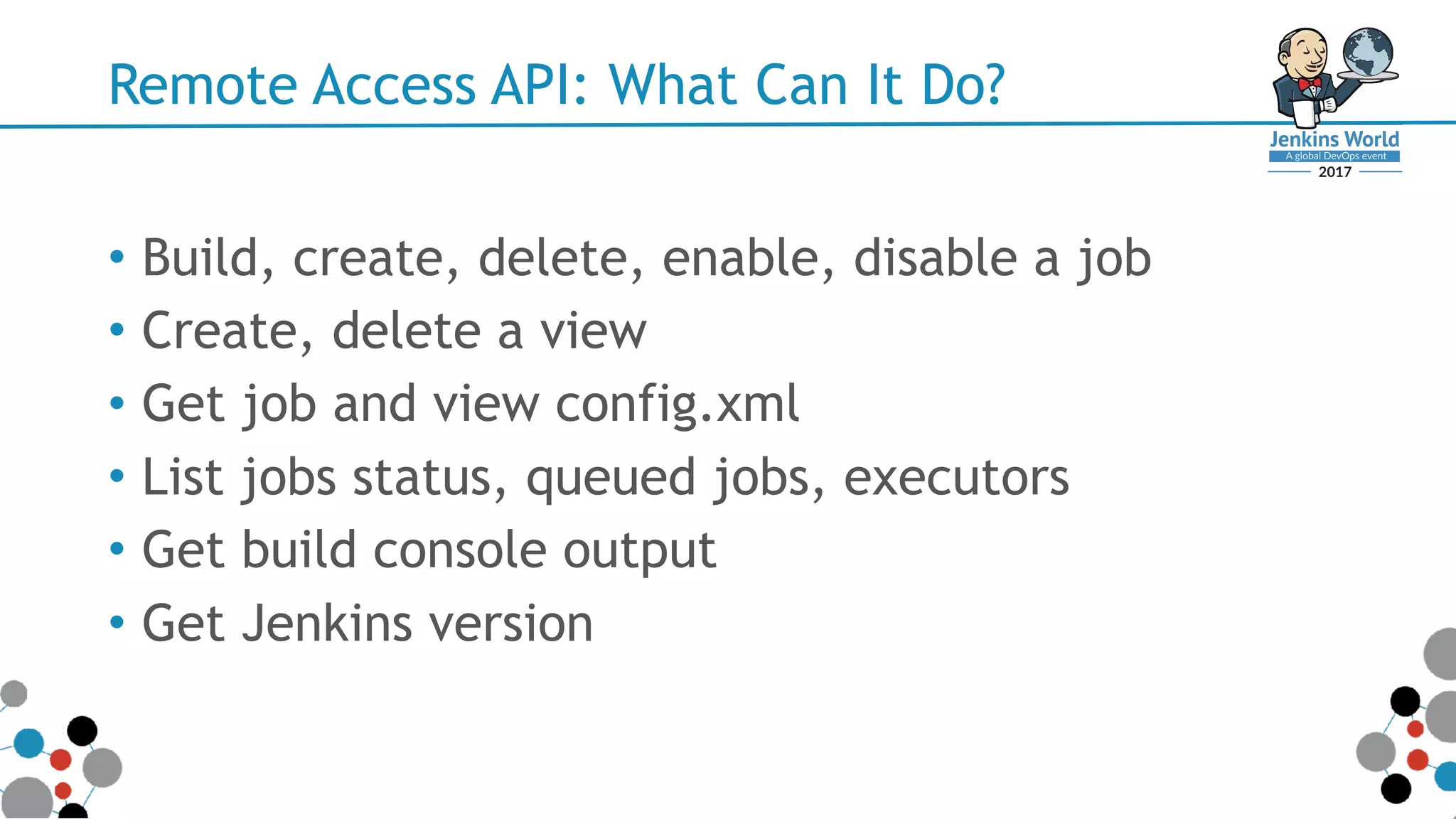

12. Remote Access API: What Can It Do?
• Build, create, delete, enable, disable a job
• Create, delete a view
• Get job and view config.xml
• List jobs status, queued jobs, executors
• Get build console output
• Get Jenkins version

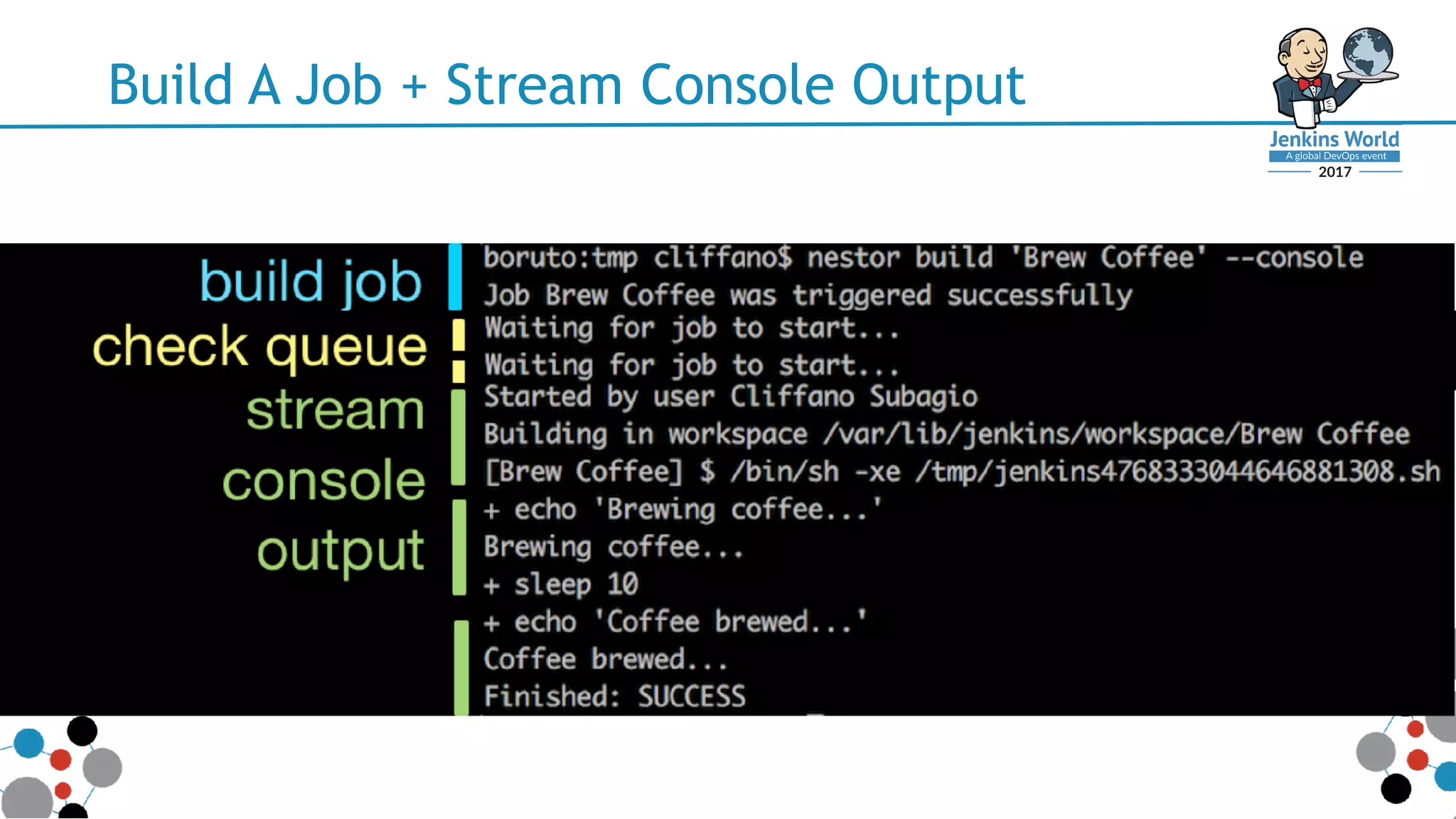

13. Build A Job + Stream Console Output

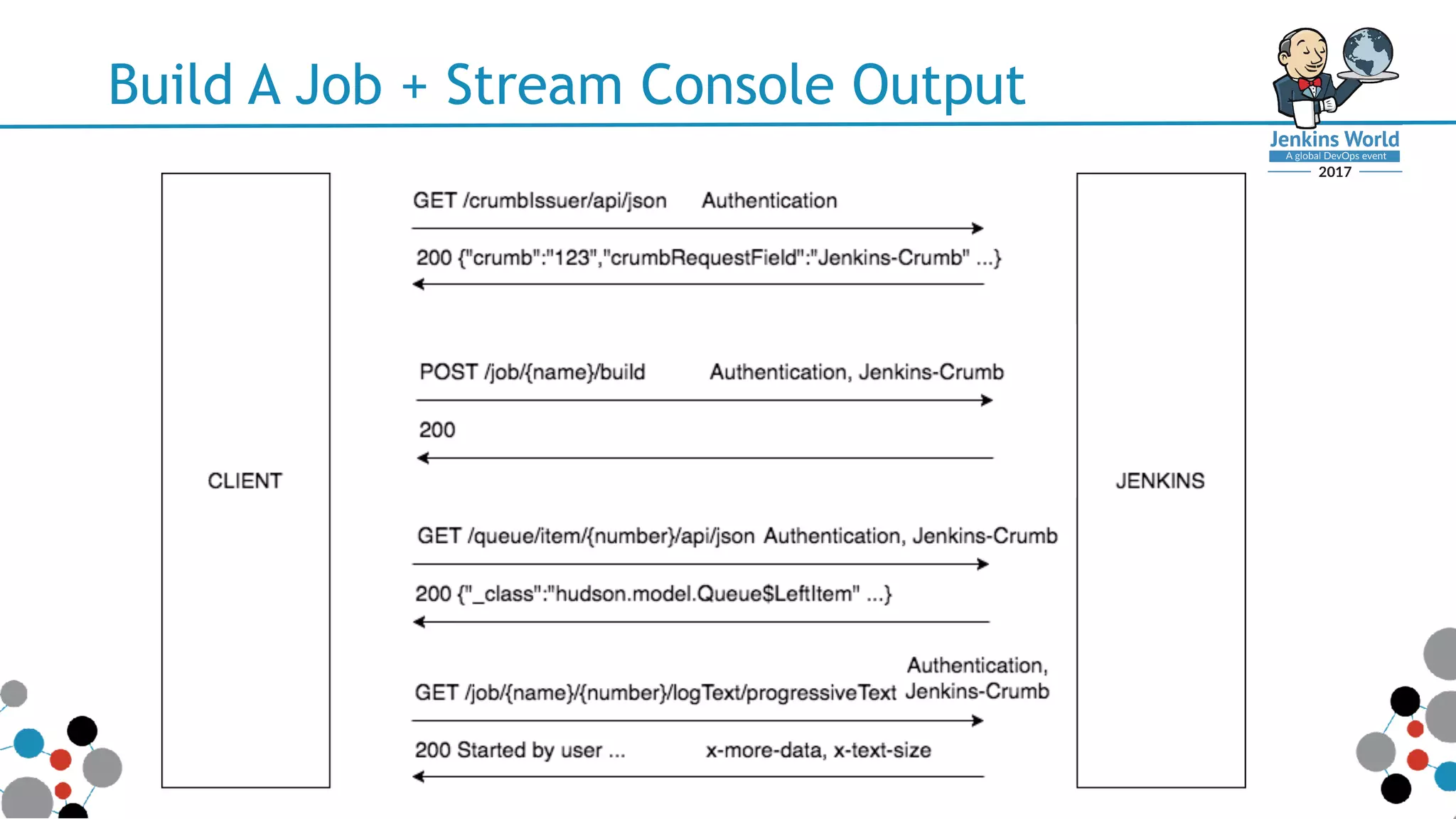

14. Build A Job + Stream Console Output

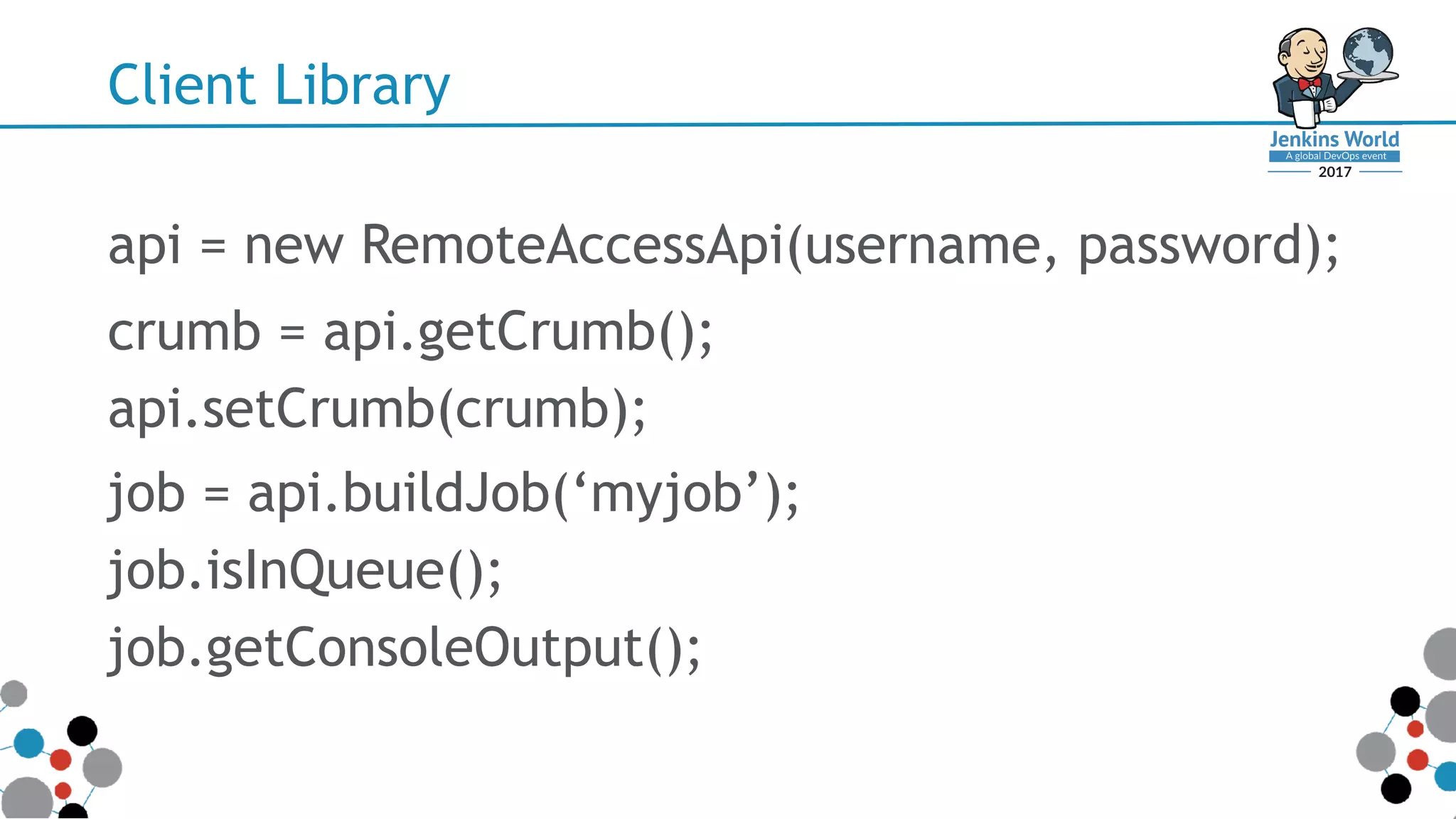

15. Client Library
api = new RemoteAccessApi(username, password);
crumb = api.getCrumb();
api.setCrumb(crumb);
job = api.buildJob(‘myjob’);
job.isInQueue();
job.getConsoleOutput();

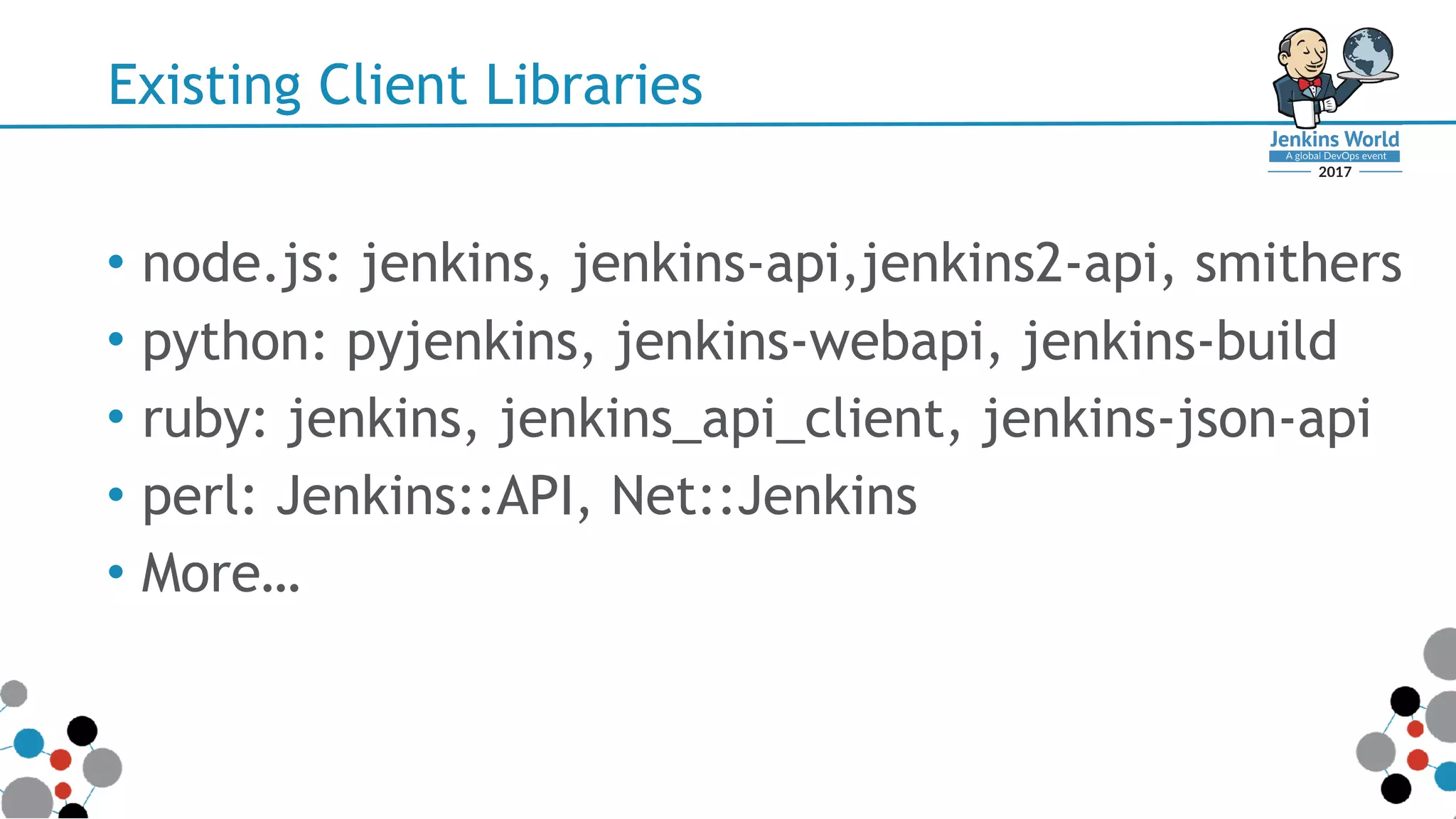

16. Existing Client Libraries
• node.js: jenkins, jenkins-api,jenkins2-api, smithers
• python: pyjenkins, jenkins-webapi, jenkins-build
• ruby: jenkins, jenkins_api_client, jenkins-json-api
• perl: Jenkins::API, Net::Jenkins
• More…

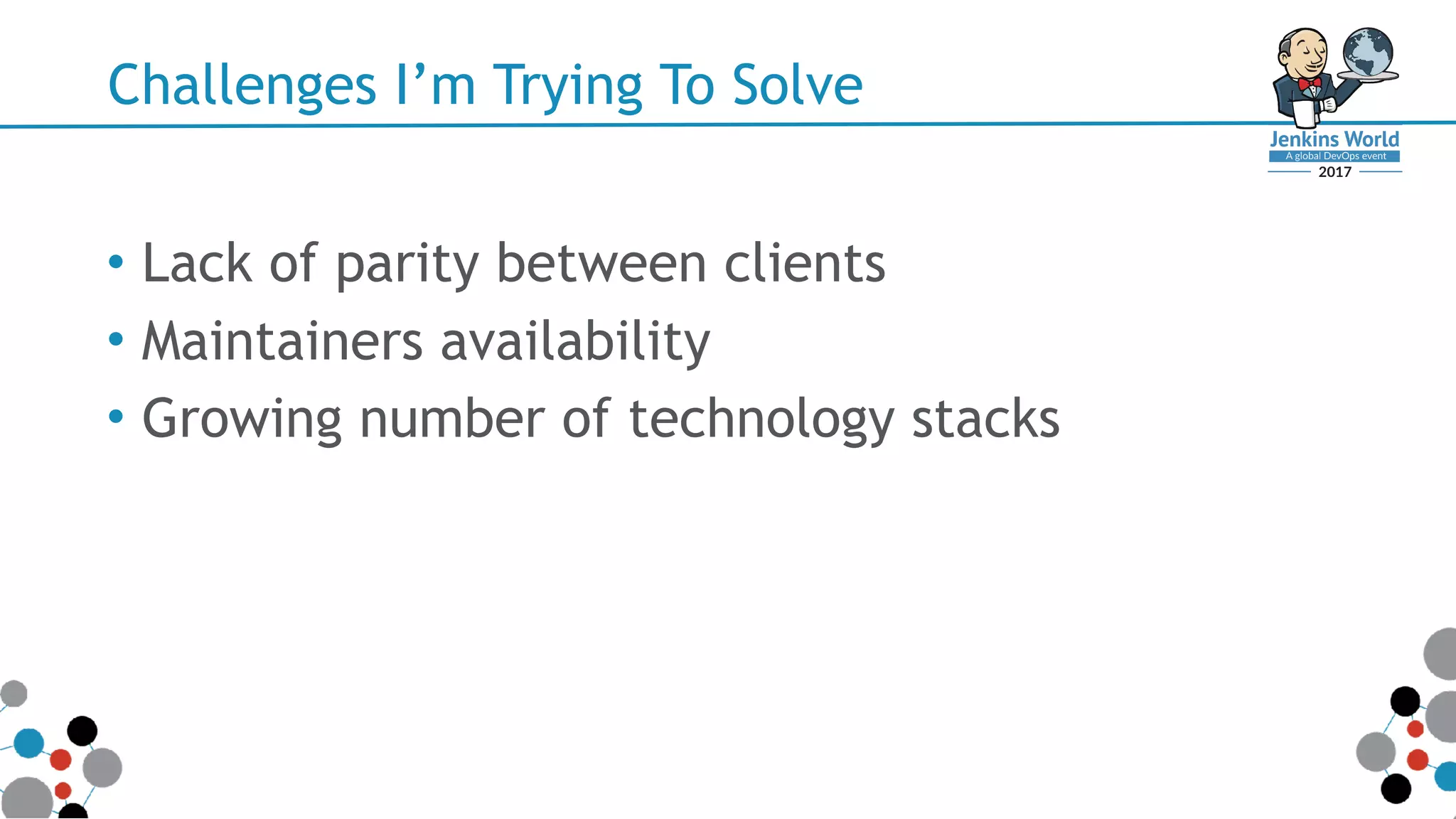

17. Challenges I’m Trying To Solve
• Lack of parity between clients
• Maintainers availability
• Growing number of technology stacks

18. Introducing Swagger CodeGen
• Generates code from an OpenAPI specification
• Endpoints, parameters, models
• Support 70+ technology stacks
and counting…

19. Supported Technology Stacks

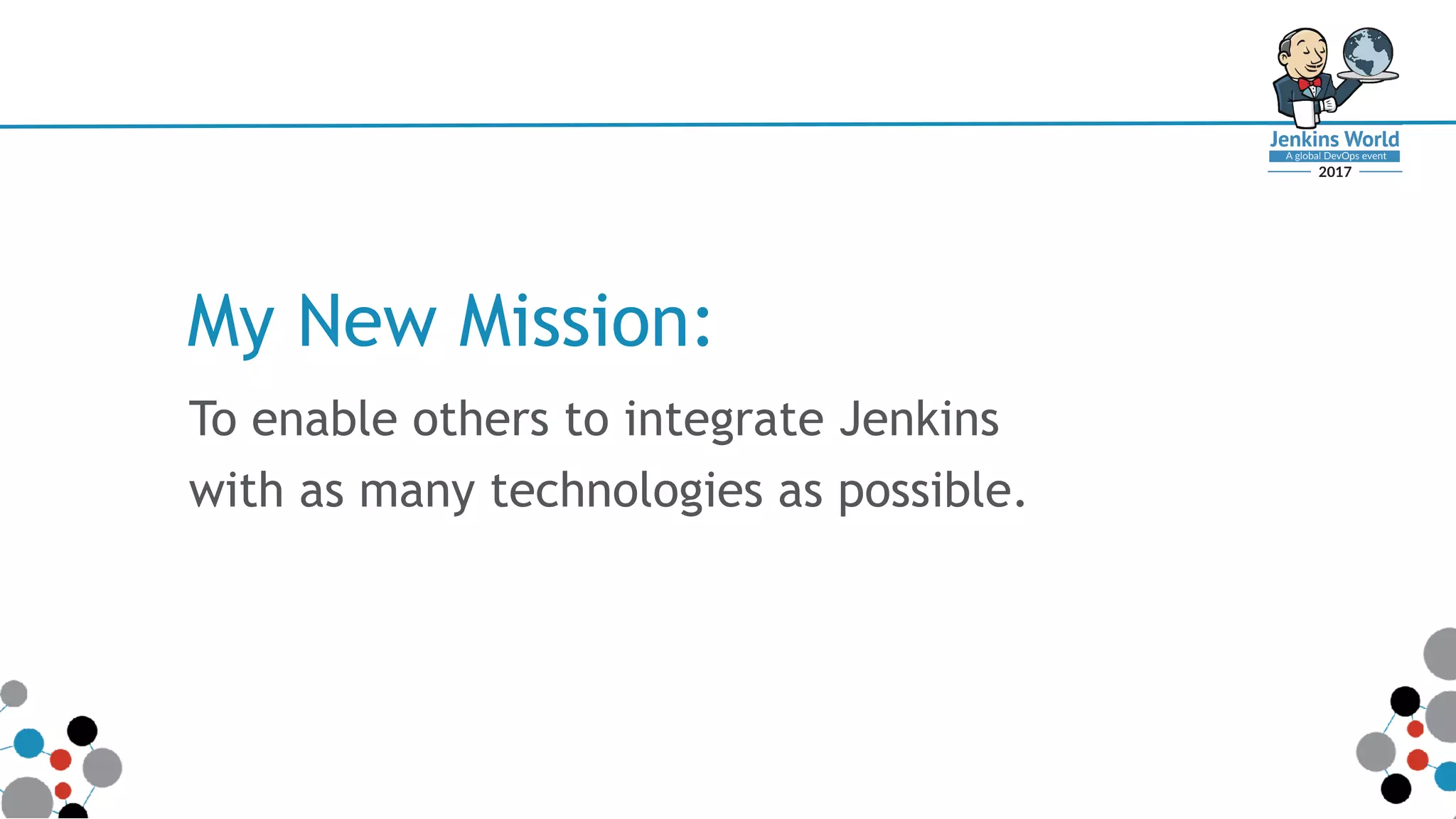

20. My New Mission:
To enable others to integrate Jenkins
with as many technologies as possible.

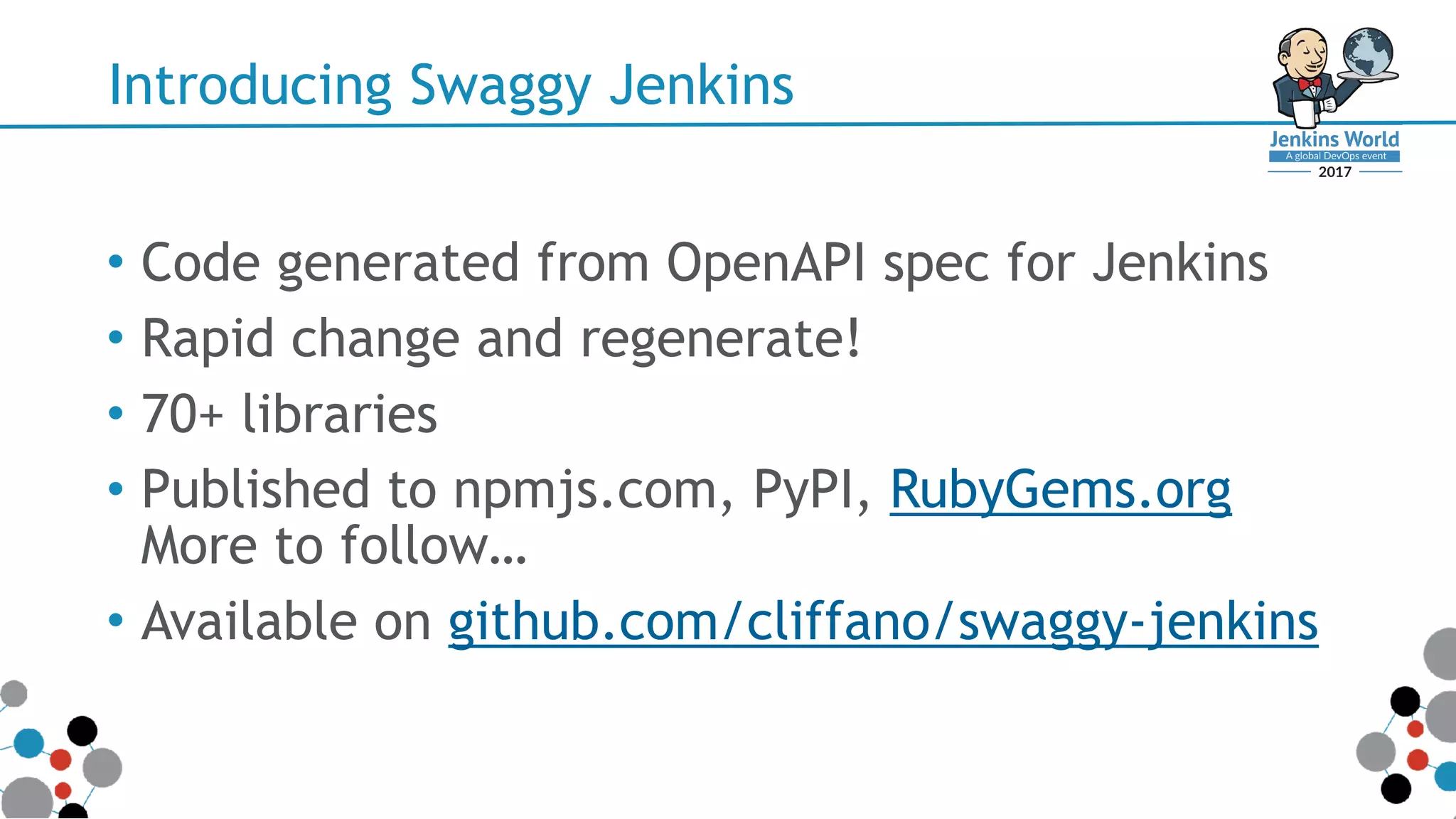

21. Introducing Swaggy Jenkins
• Code generated from OpenAPI spec for Jenkins
• Rapid change and regenerate!
• 70+ libraries
• Published to npmjs.com, PyPI, RubyGems.org
More to follow…
• Available on github.com/cliffano/swaggy-jenkins

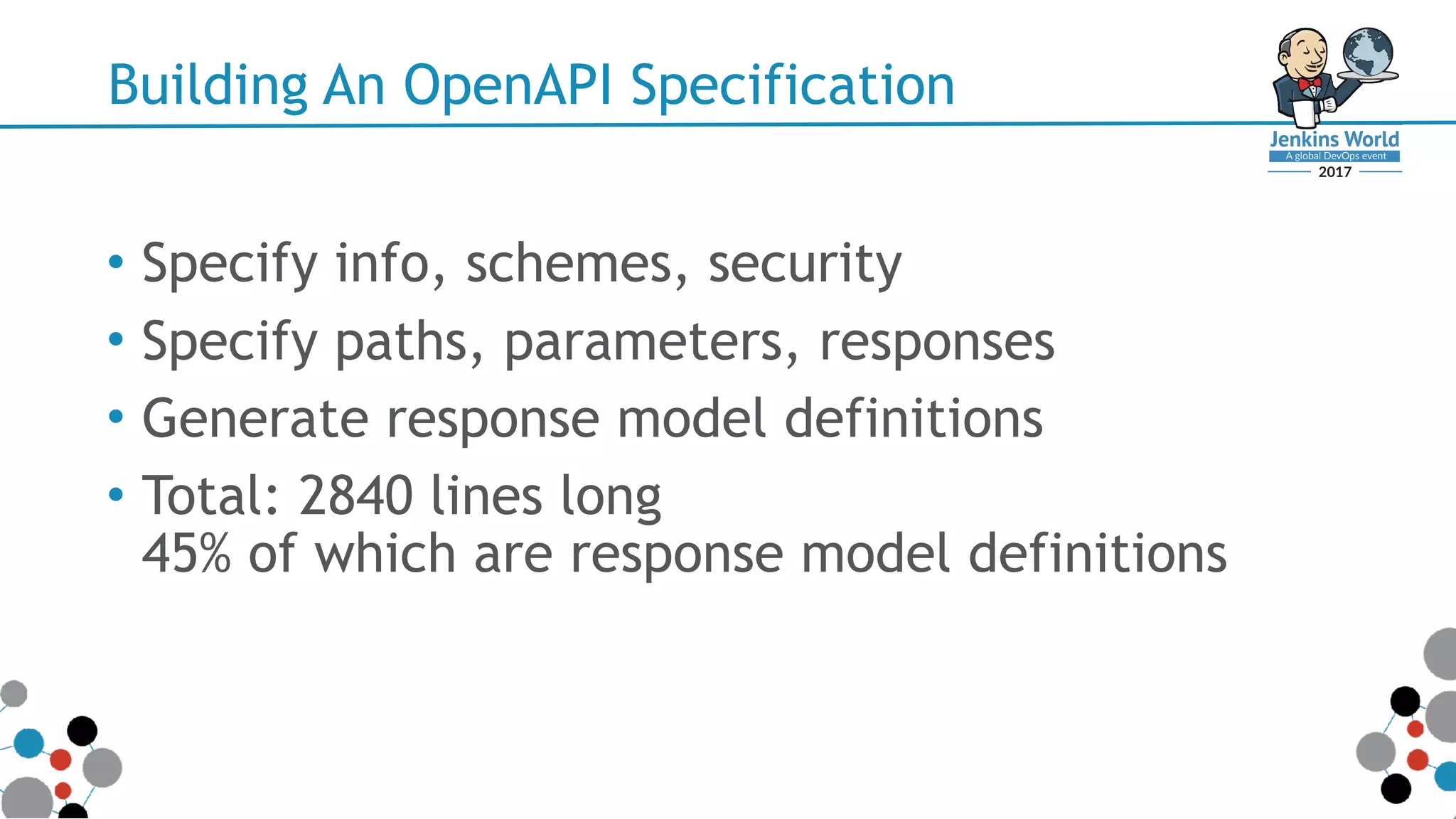

22. Building An OpenAPI Specification
• Specify info, schemes, security
• Specify paths, parameters, responses
• Generate response model definitions
• Total: 2840 lines long
45% of which are response model definitions

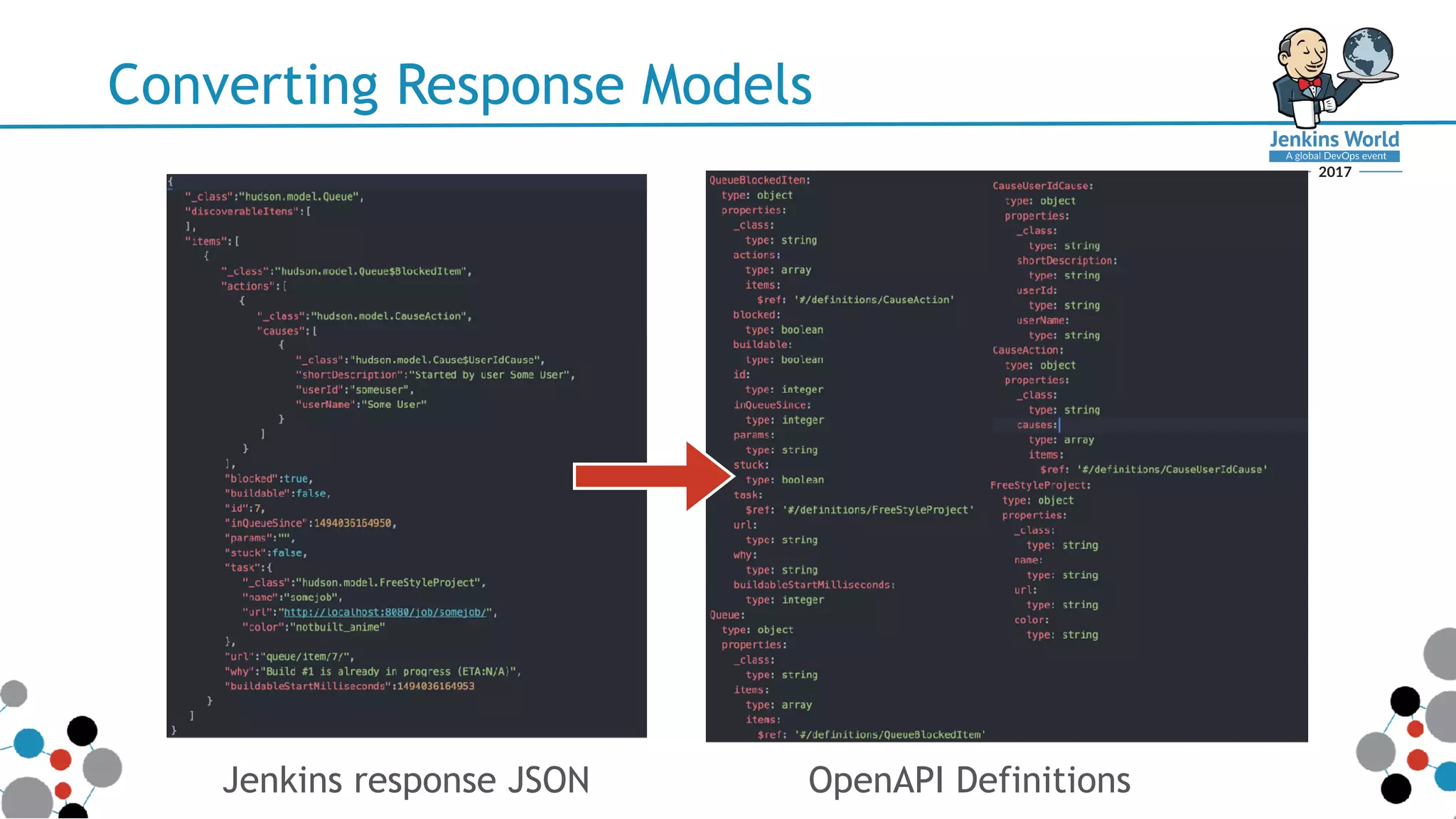

23. Converting Response Models
Jenkins response JSON OpenAPI Definitions

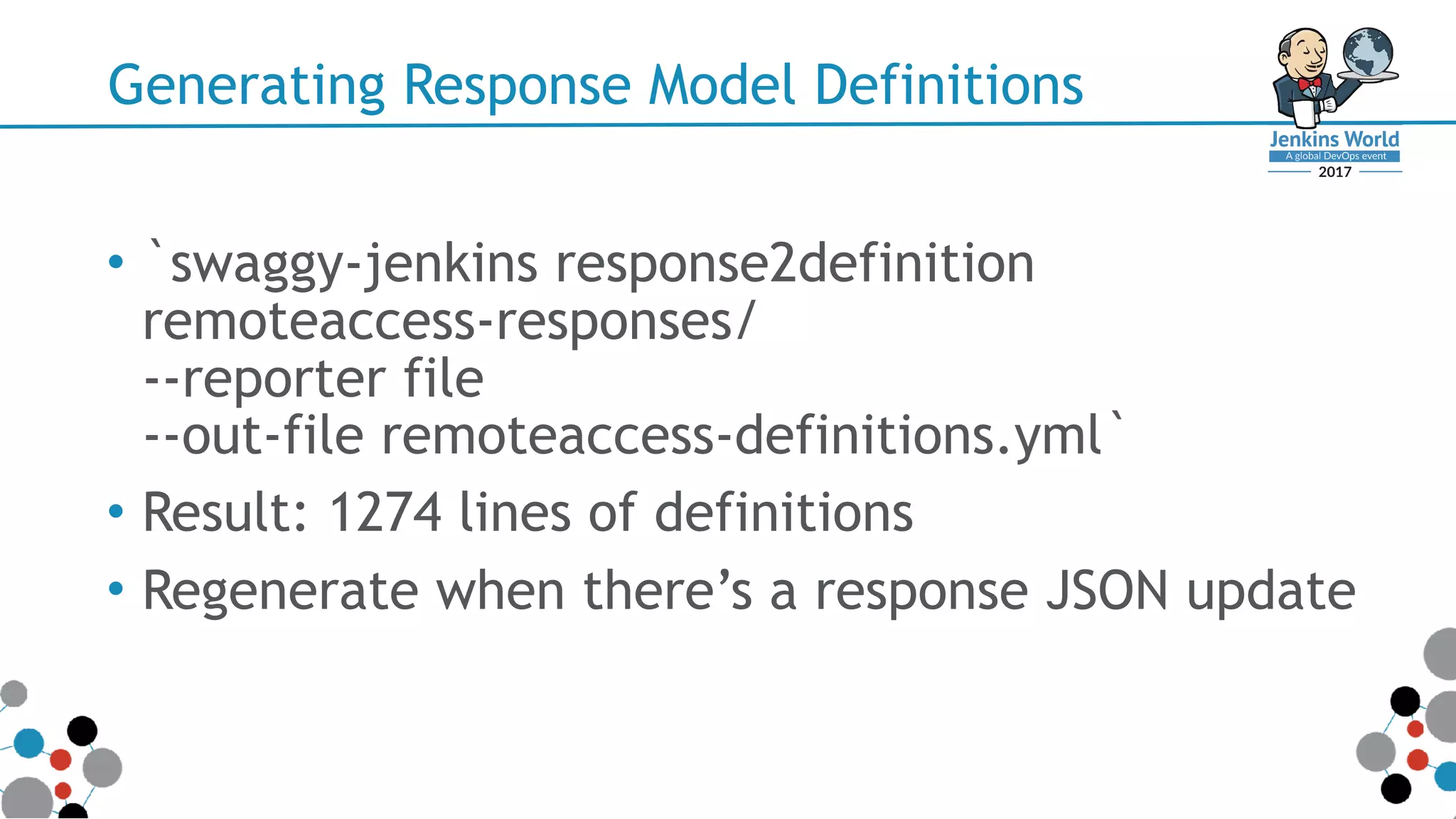

24. Generating Response Model Definitions
• `swaggy-jenkins response2definition
remoteaccess-responses/
--reporter file
--out-file remoteaccess-definitions.yml`
• Result: 1274 lines of definitions
• Regenerate when there’s a response JSON update

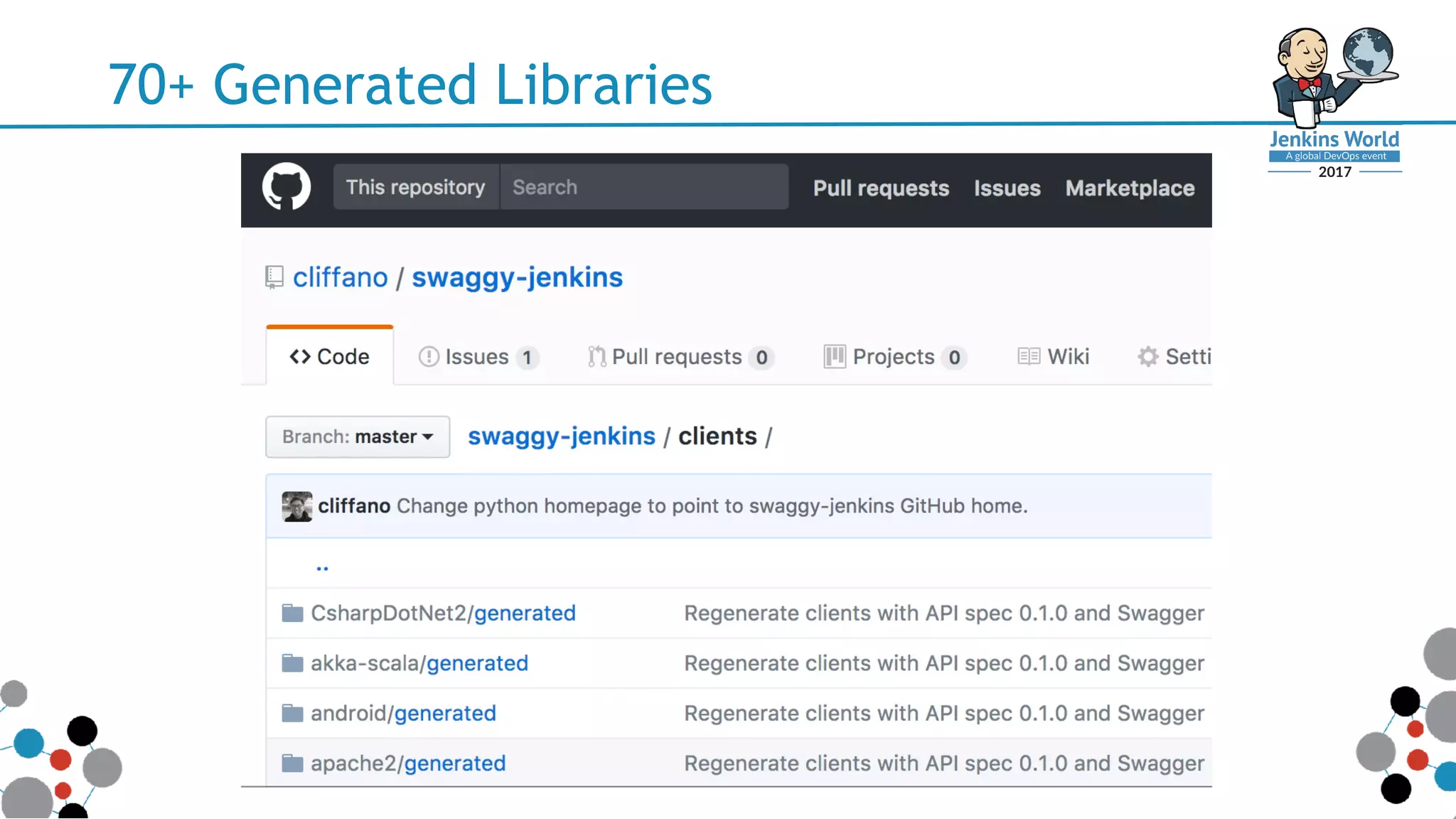

25. 70+ Generated Libraries

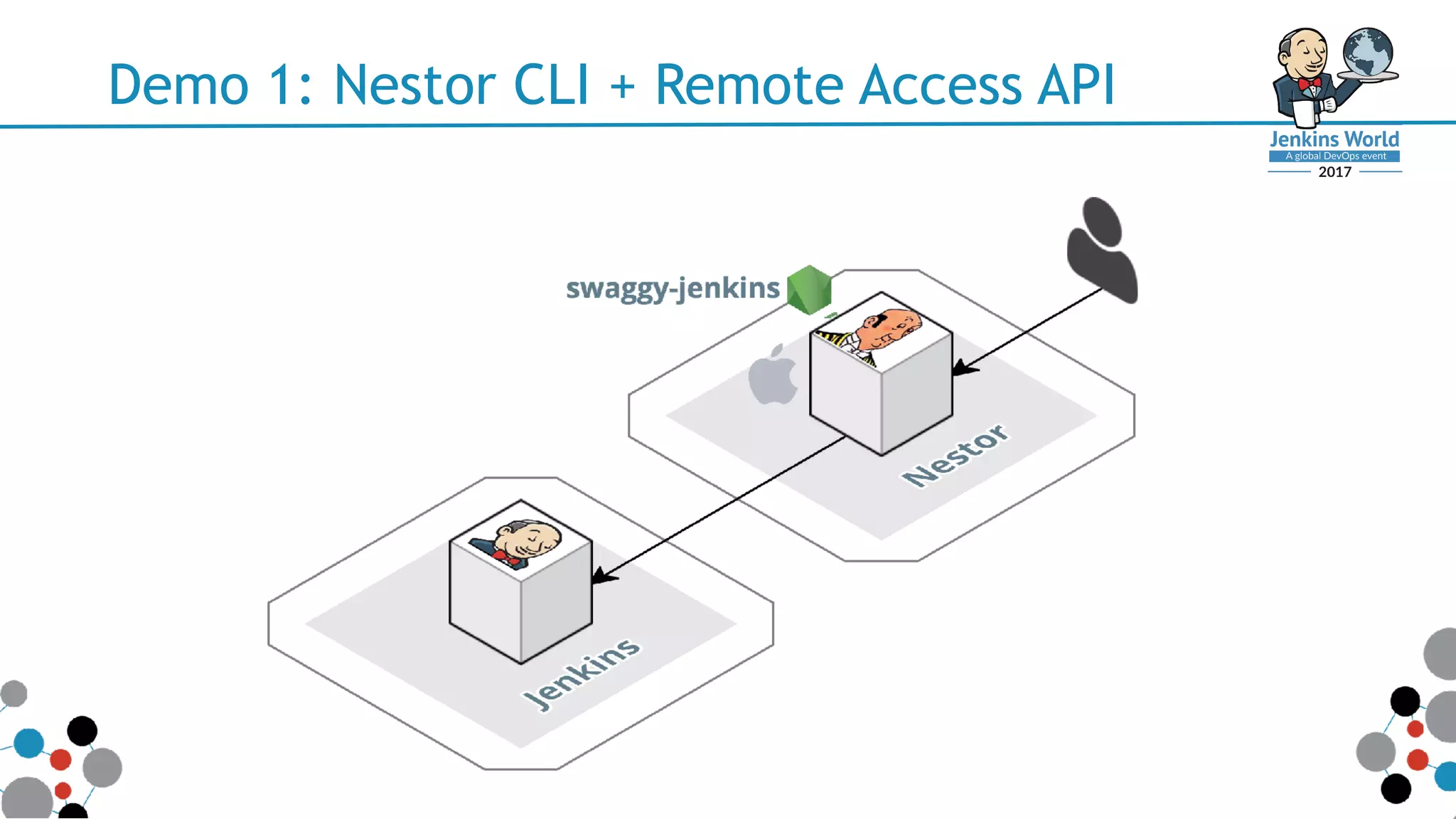

26. Demo 1: Nestor CLI + Remote Access API

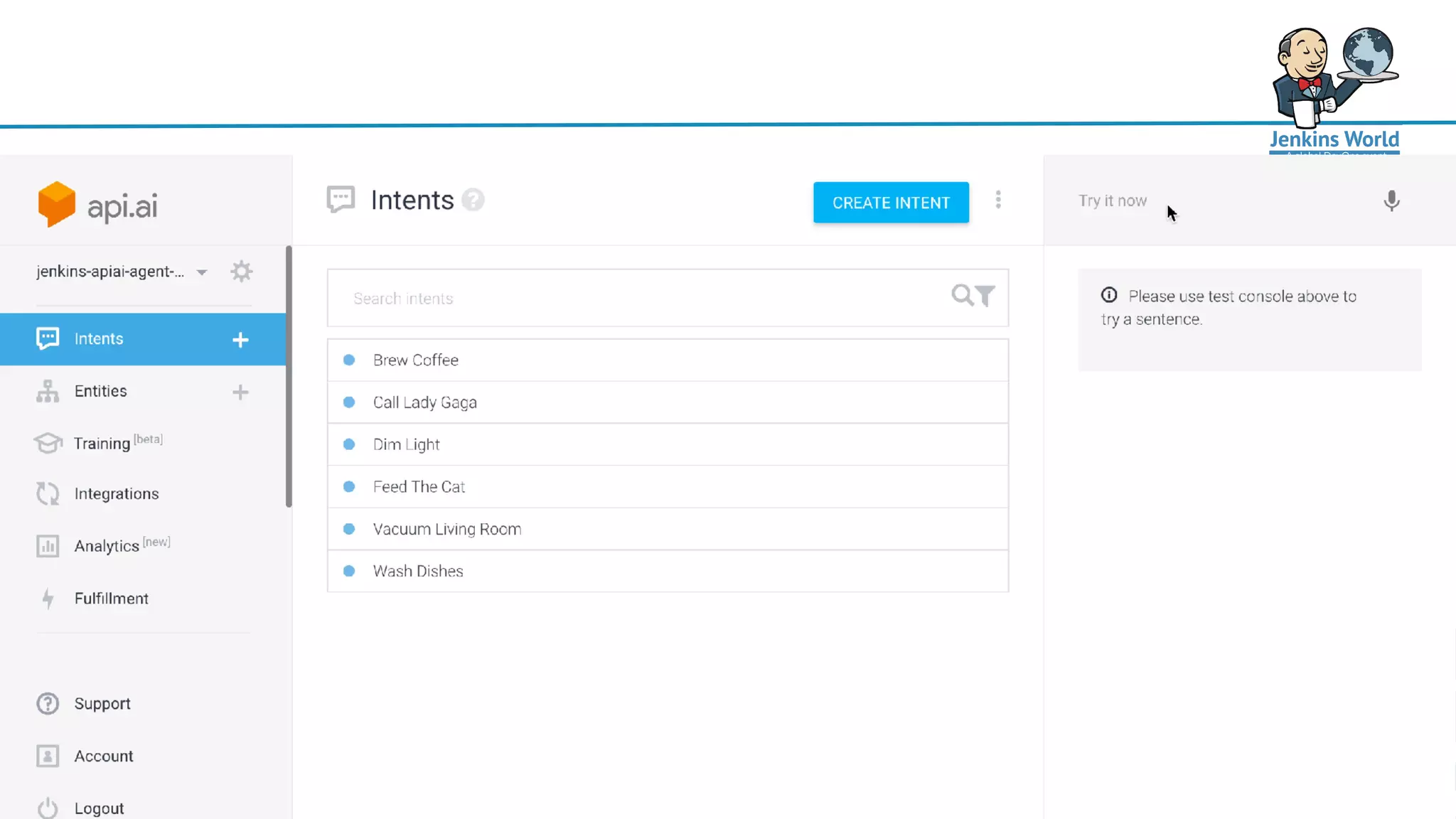

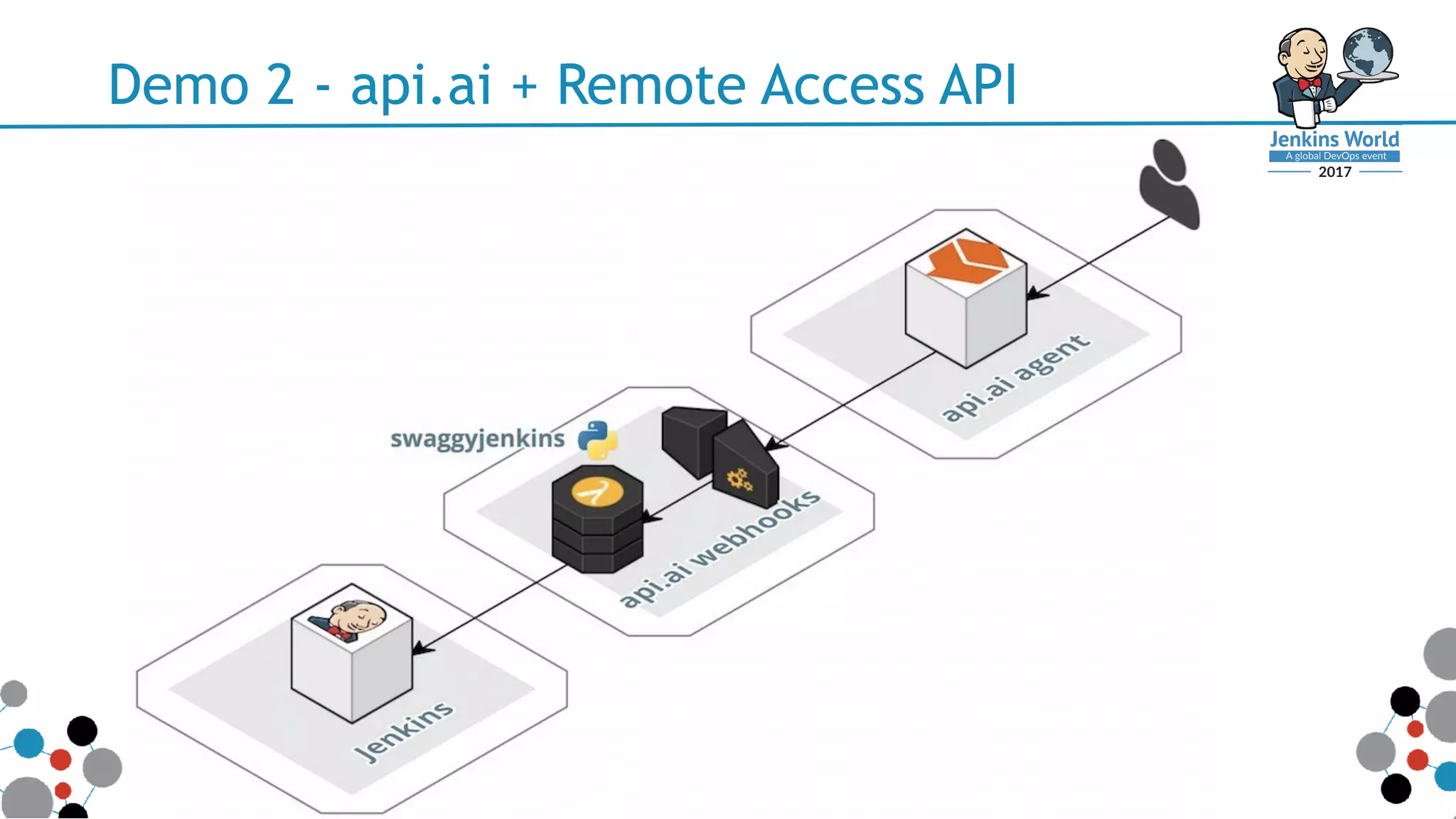

28. Demo 2 - api.ai + Remote Access API

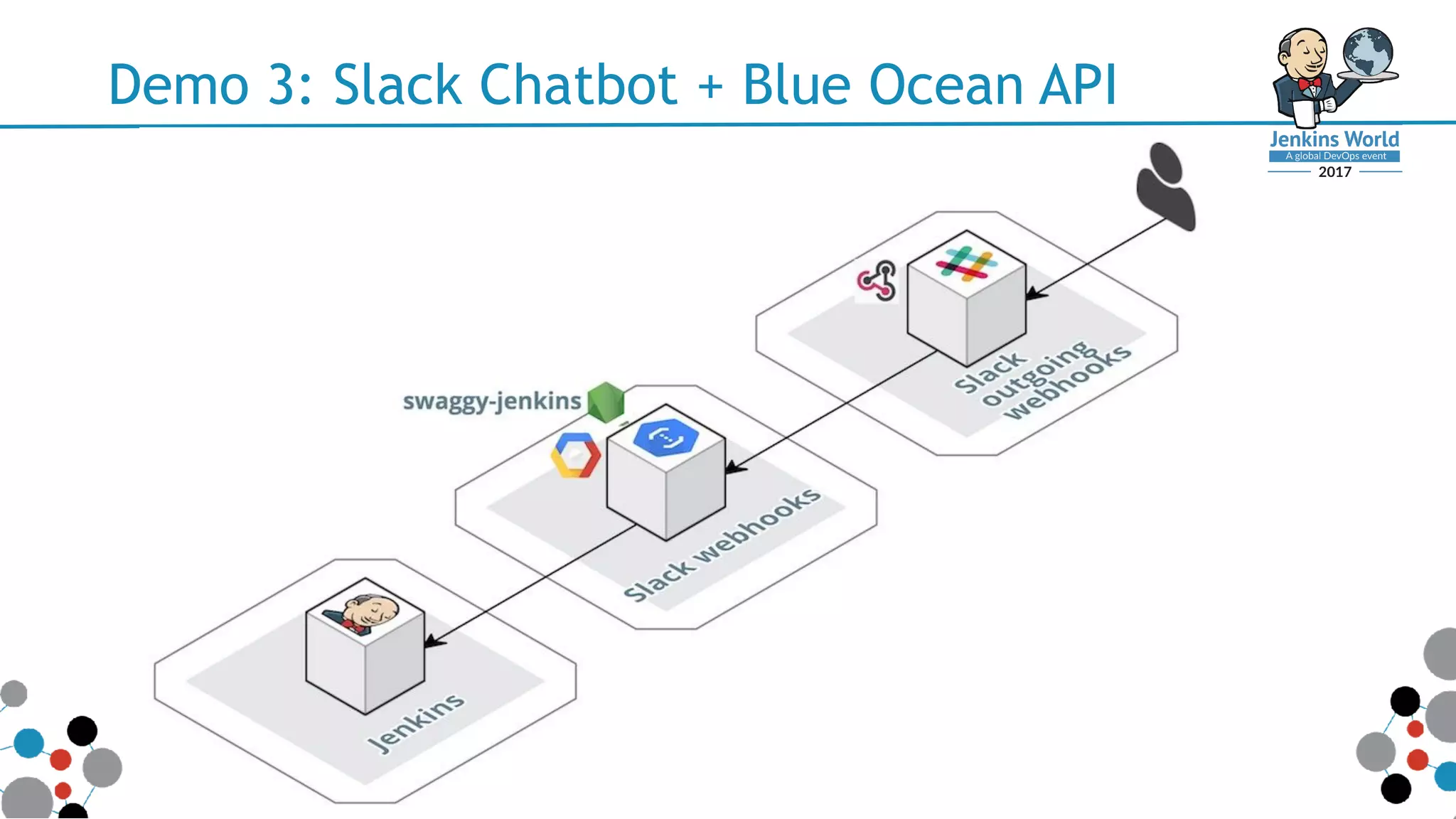

30. Demo 3: Slack Chatbot + Blue Ocean API

31. What Is Blue Ocean API?
• Used by Blue Ocean UX
• Private API
• JSON Web Token
• Pipeline, run, queue, log
• User, organisation, SCM

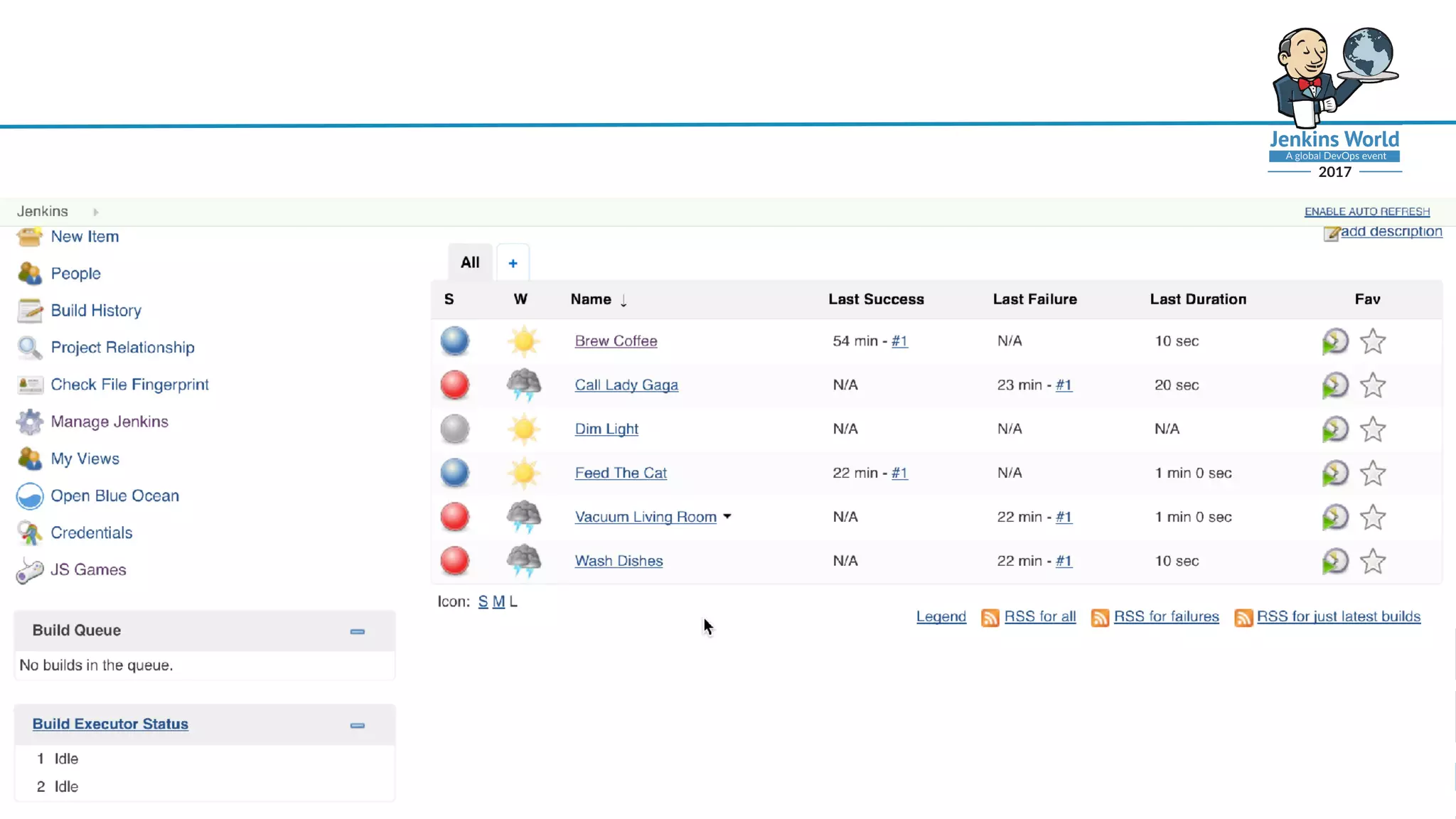

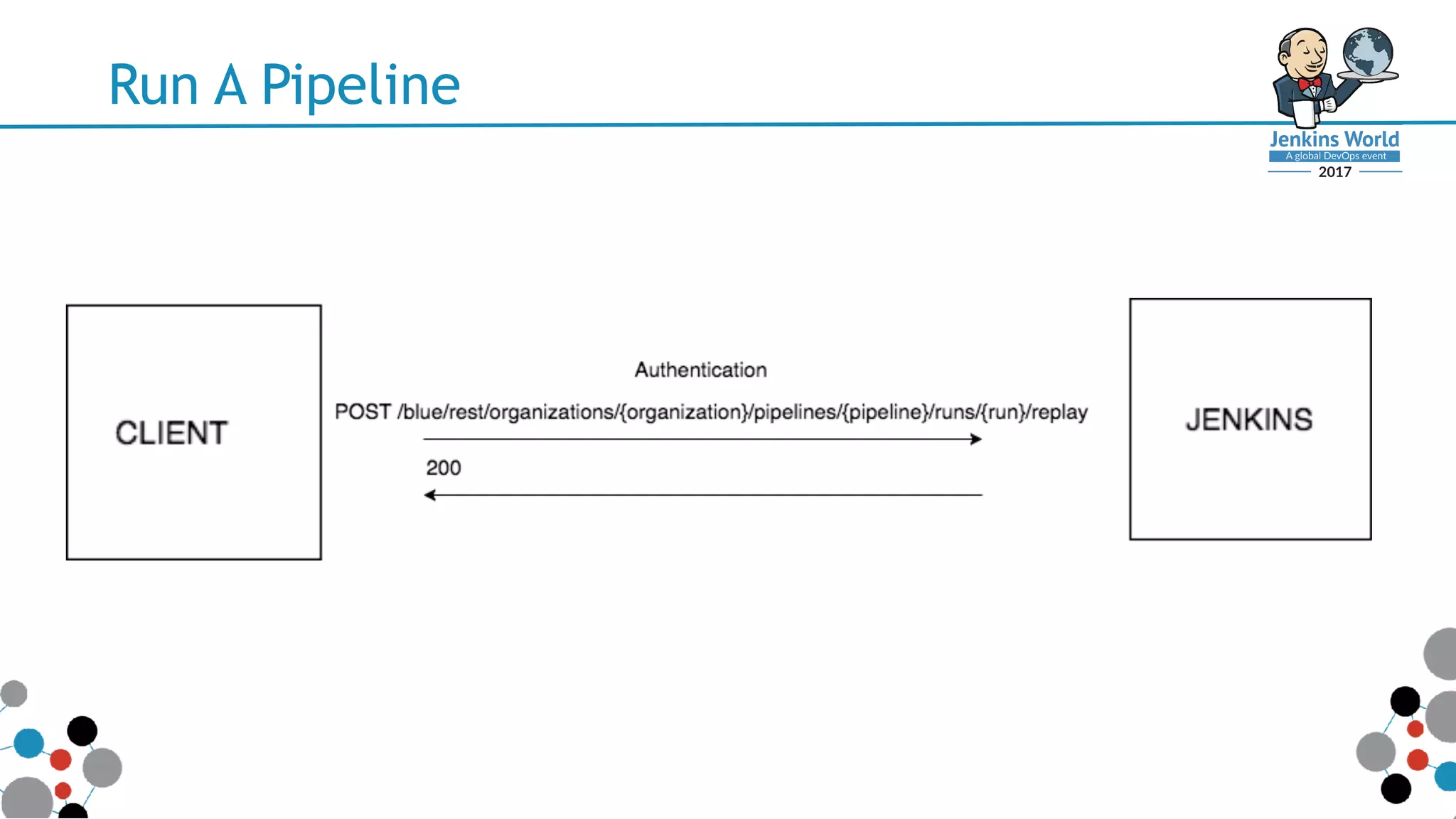

33. Run A Pipeline

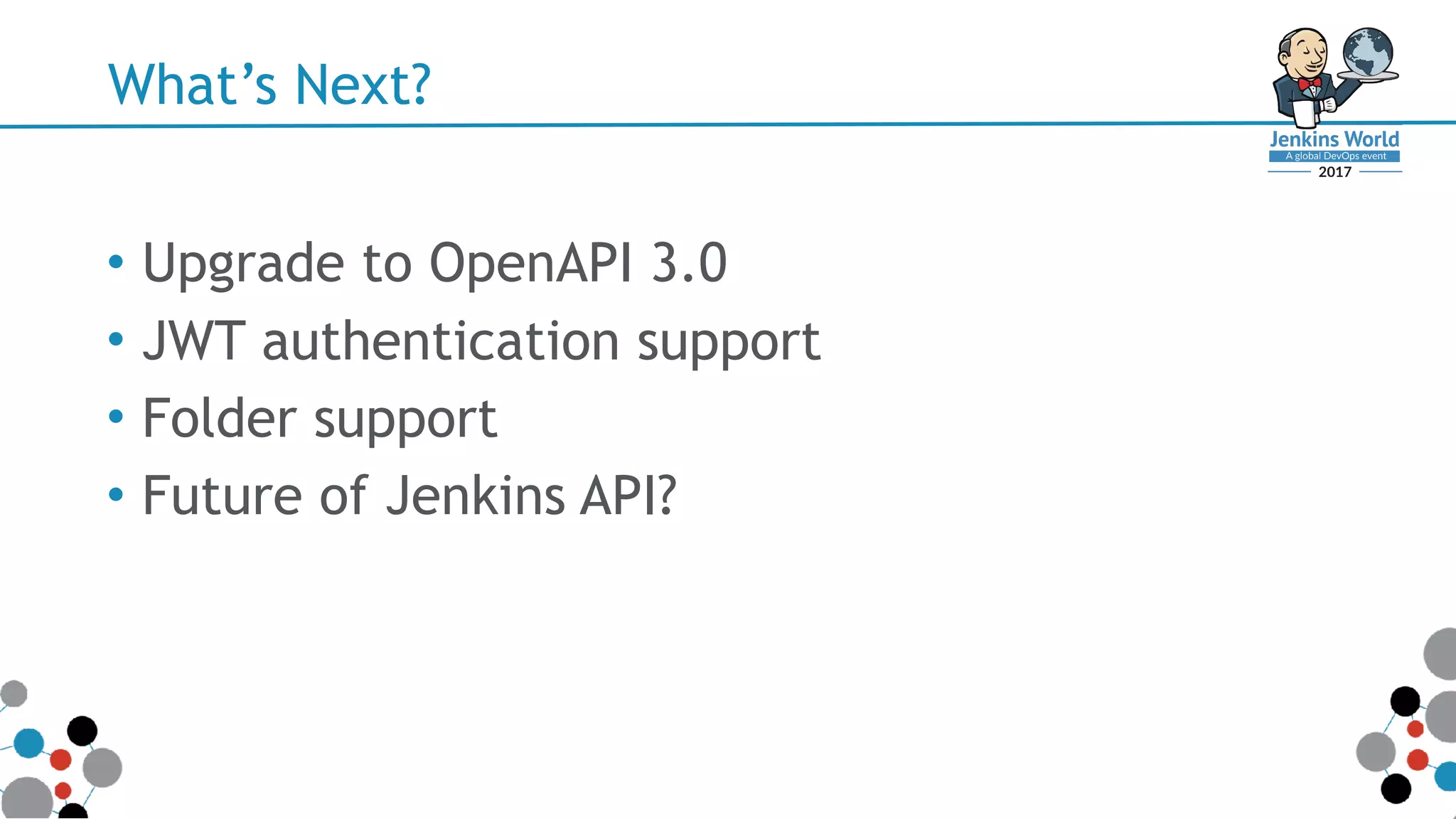

34. What’s Next?
• Upgrade to OpenAPI 3.0
• JWT authentication support
• Folder support
• Future of Jenkins API?

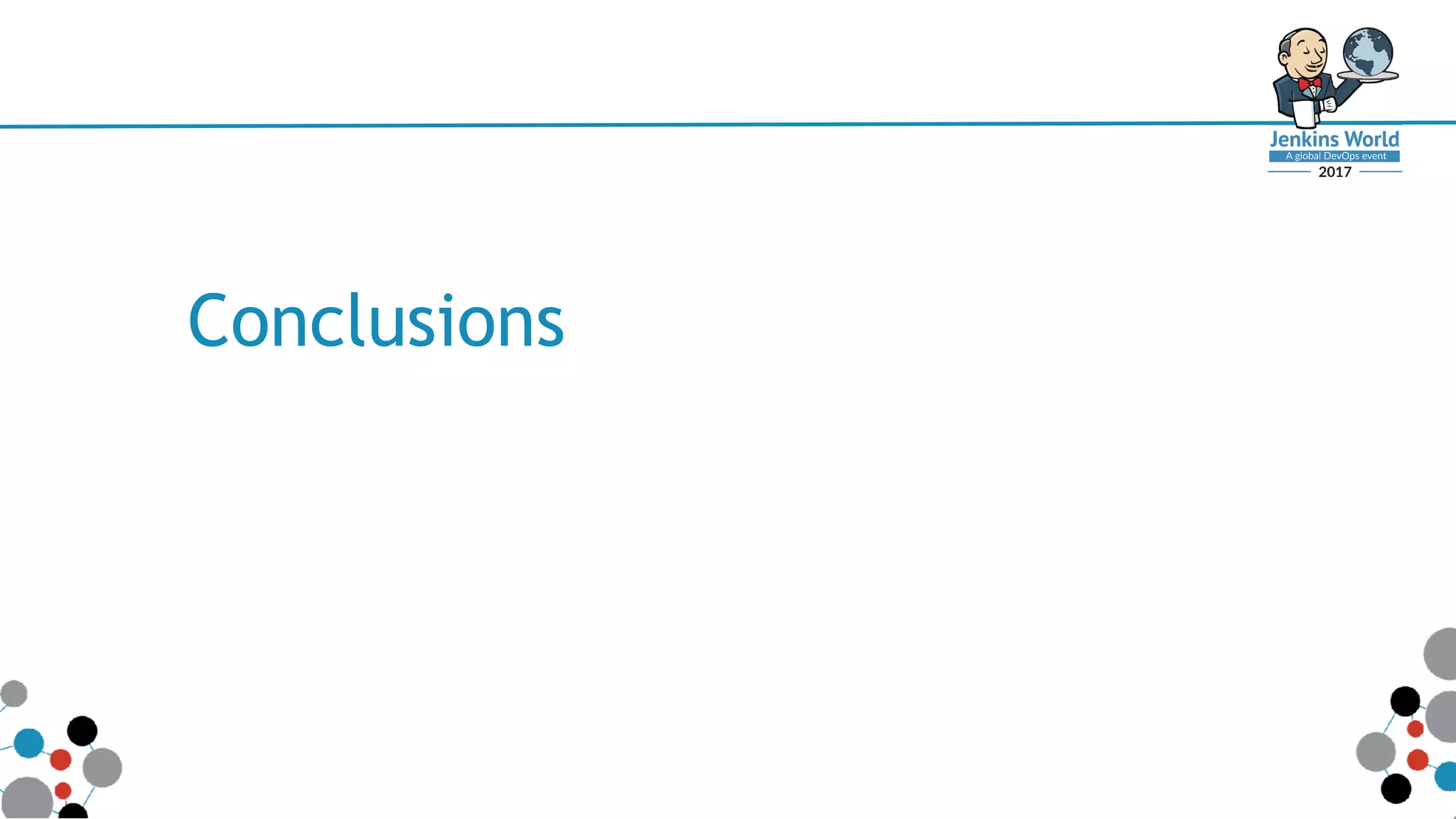

35. Conclusions

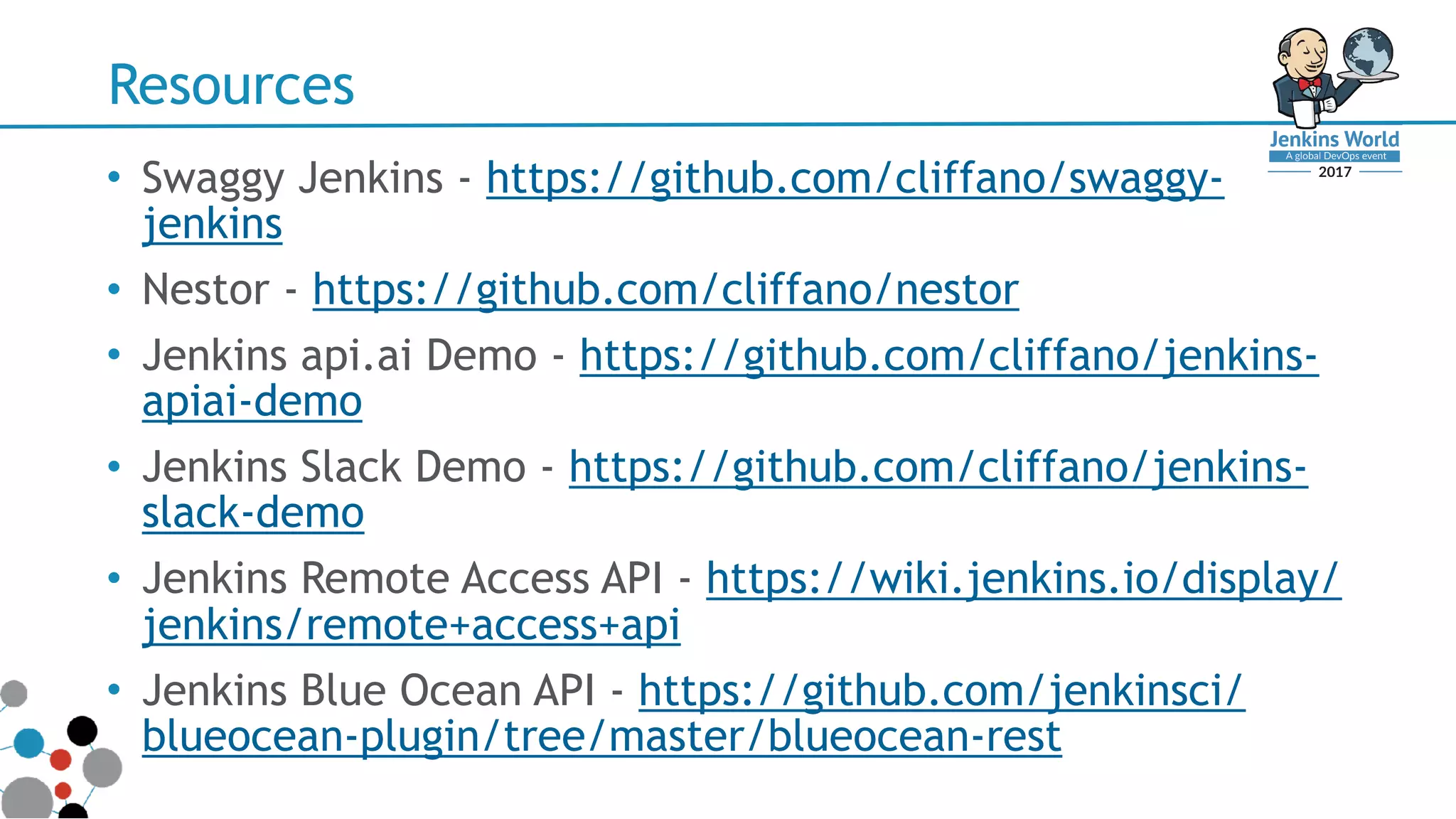

36. Resources
• Swaggy Jenkins - https://github.com/cliffano/swaggy-
jenkins
• Nestor - https://github.com/cliffano/nestor
• Jenkins api.ai Demo - https://github.com/cliffano/jenkins-
apiai-demo
• Jenkins Slack Demo - https://github.com/cliffano/jenkins-
slack-demo
• Jenkins Remote Access API - https://wiki.jenkins.io/display/
jenkins/remote+access+api
• Jenkins Blue Ocean API - https://github.com/jenkinsci/
blueocean-plugin/tree/master/blueocean-rest

37. Questions?
