This document discusses using Docker and Bamboo for continuous integration and deployment pipelines. It provides examples of configuring Bamboo to build, test, and deploy Docker images and applications. It also describes using Docker Compose in Bamboo pipelines and customizing Bamboo virtual machines with Packer and Ansible to have Docker pre-installed.

1. STEVE SMITH • DEVOPS ADVOCATE • ATLASSIAN • @TARKASTEVE
Docker, Bamboo and the Pipeline
https://bitbucket.org/ssmith/dockercon2015-docker-bamboo

2. Good WP

3. Testing with Docker

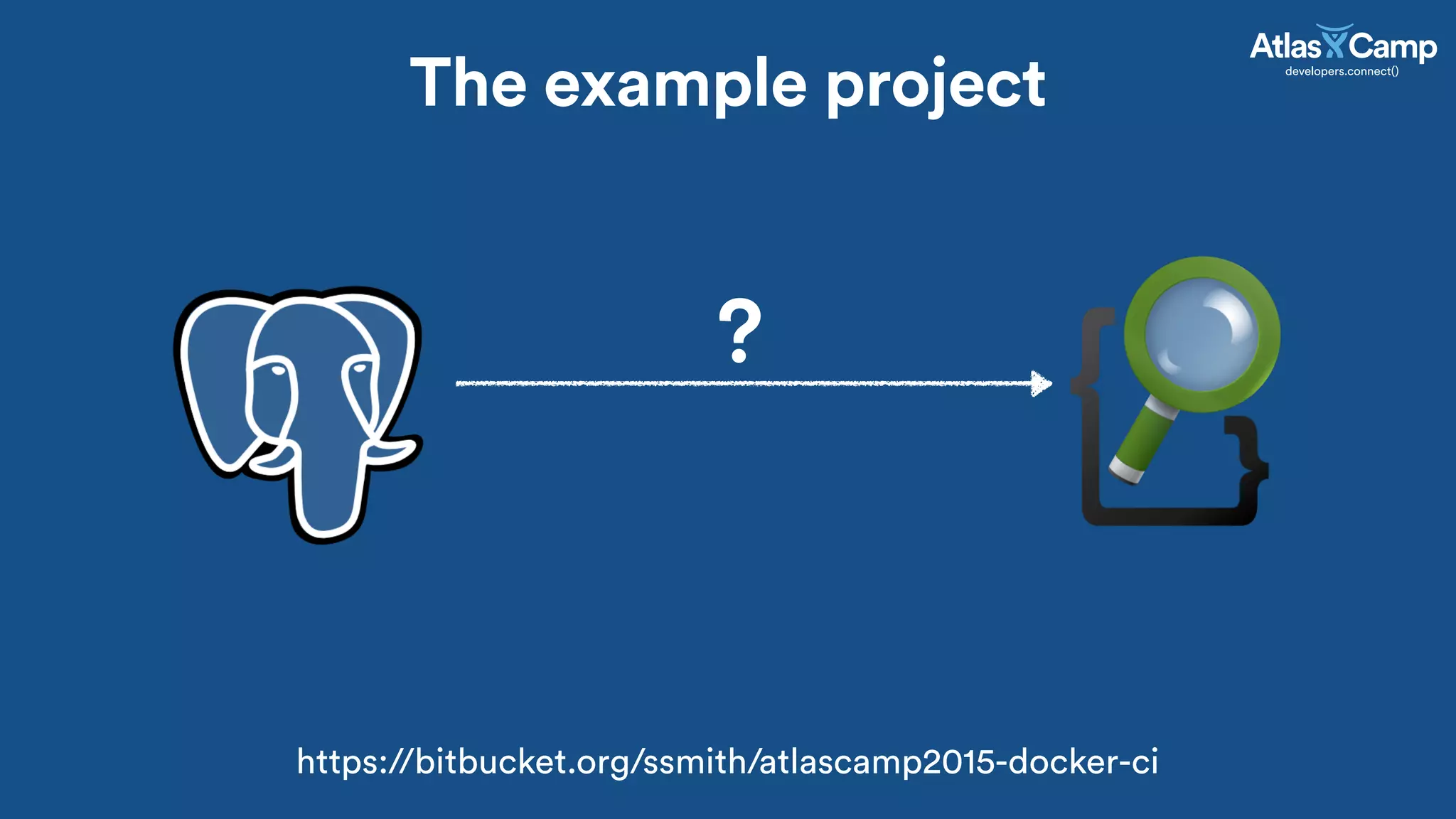

4. The example project
?
https://bitbucket.org/ssmith/atlascamp2015-docker-ci

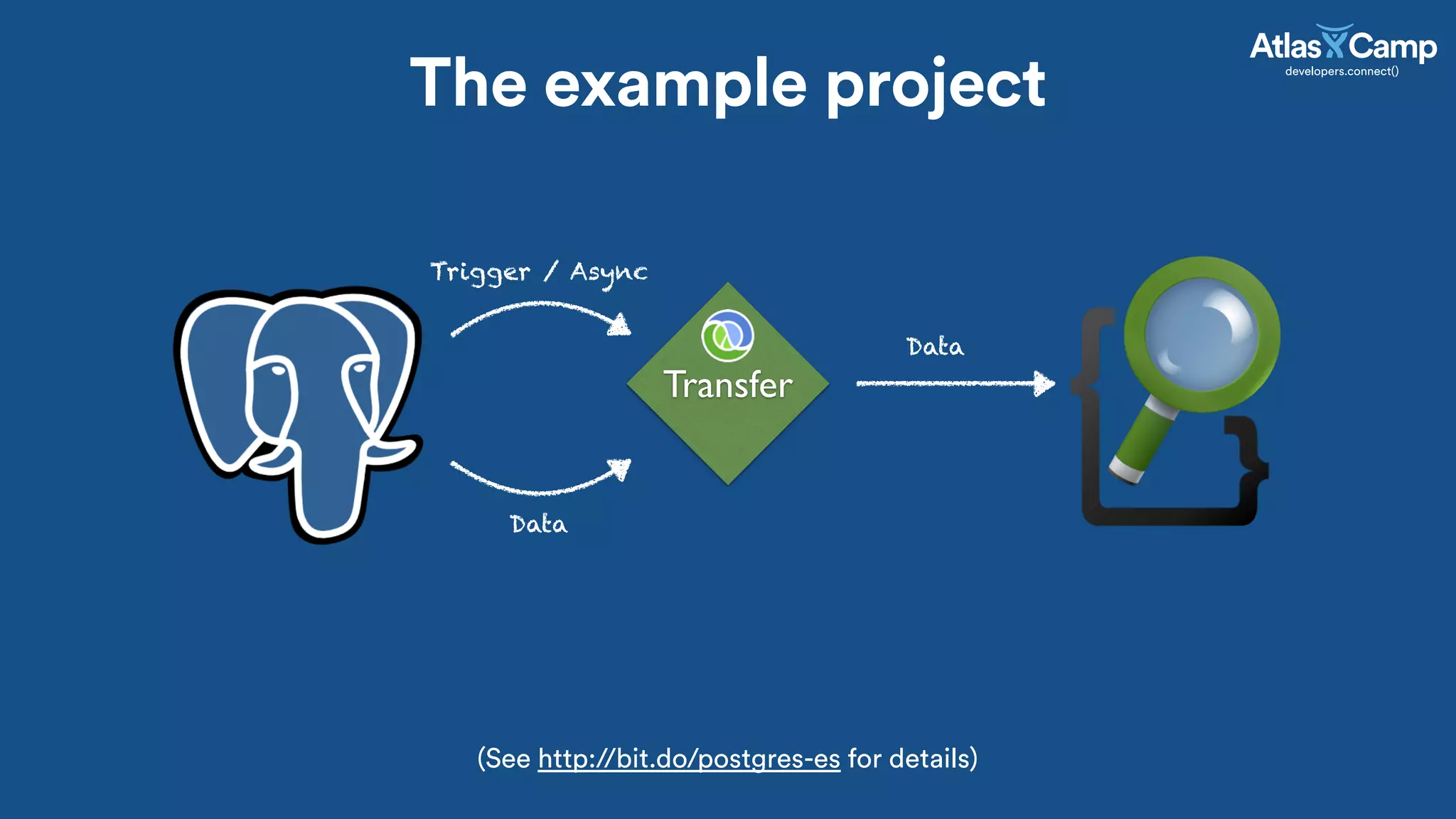

5. The example project
Transfer
Trigger / Async
Data
Data
(See http://bit.do/postgres-es for details)

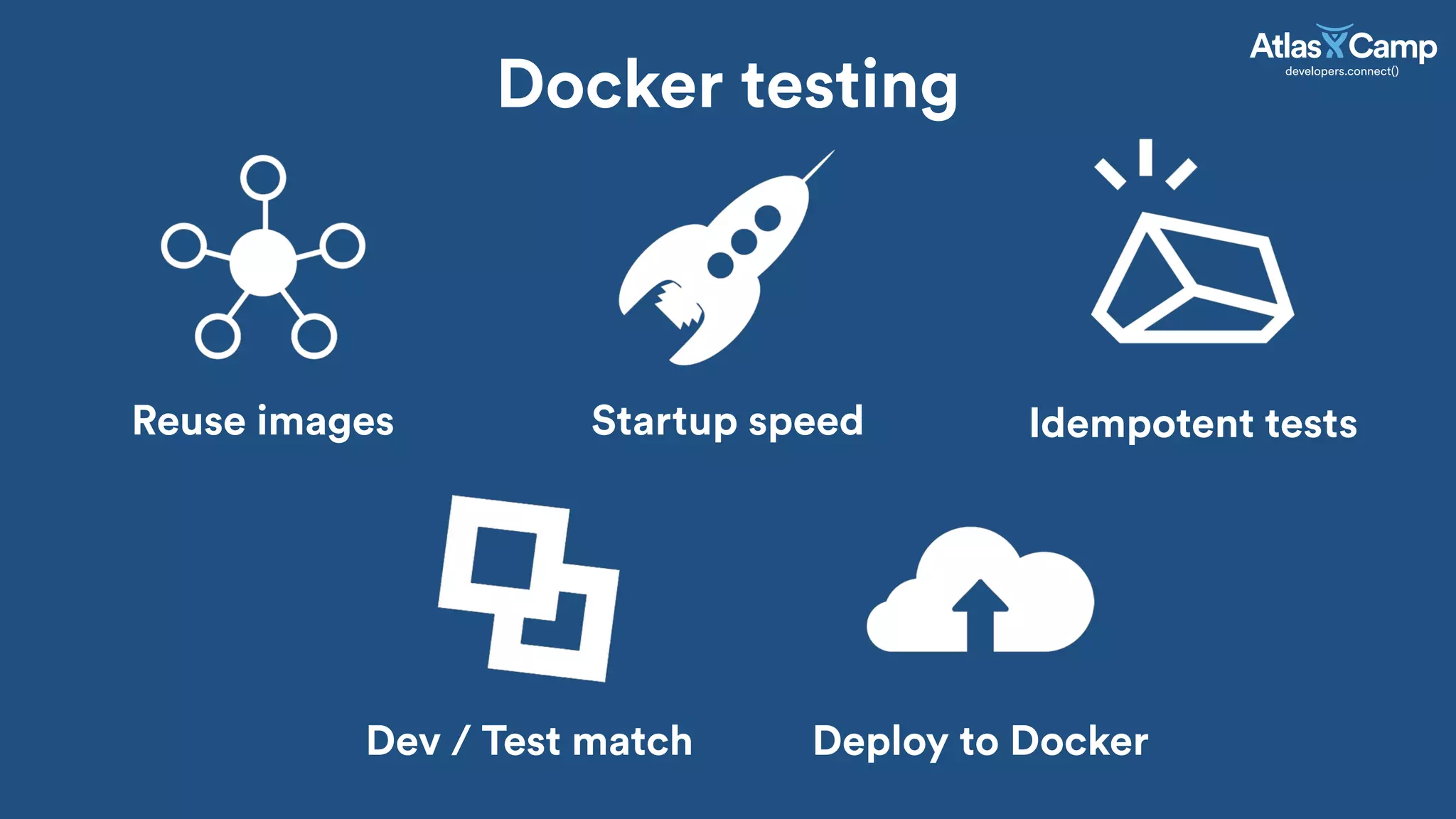

6. Docker testing
Reuse images Startup speed Idempotent tests
Dev / Test match Deploy to Docker

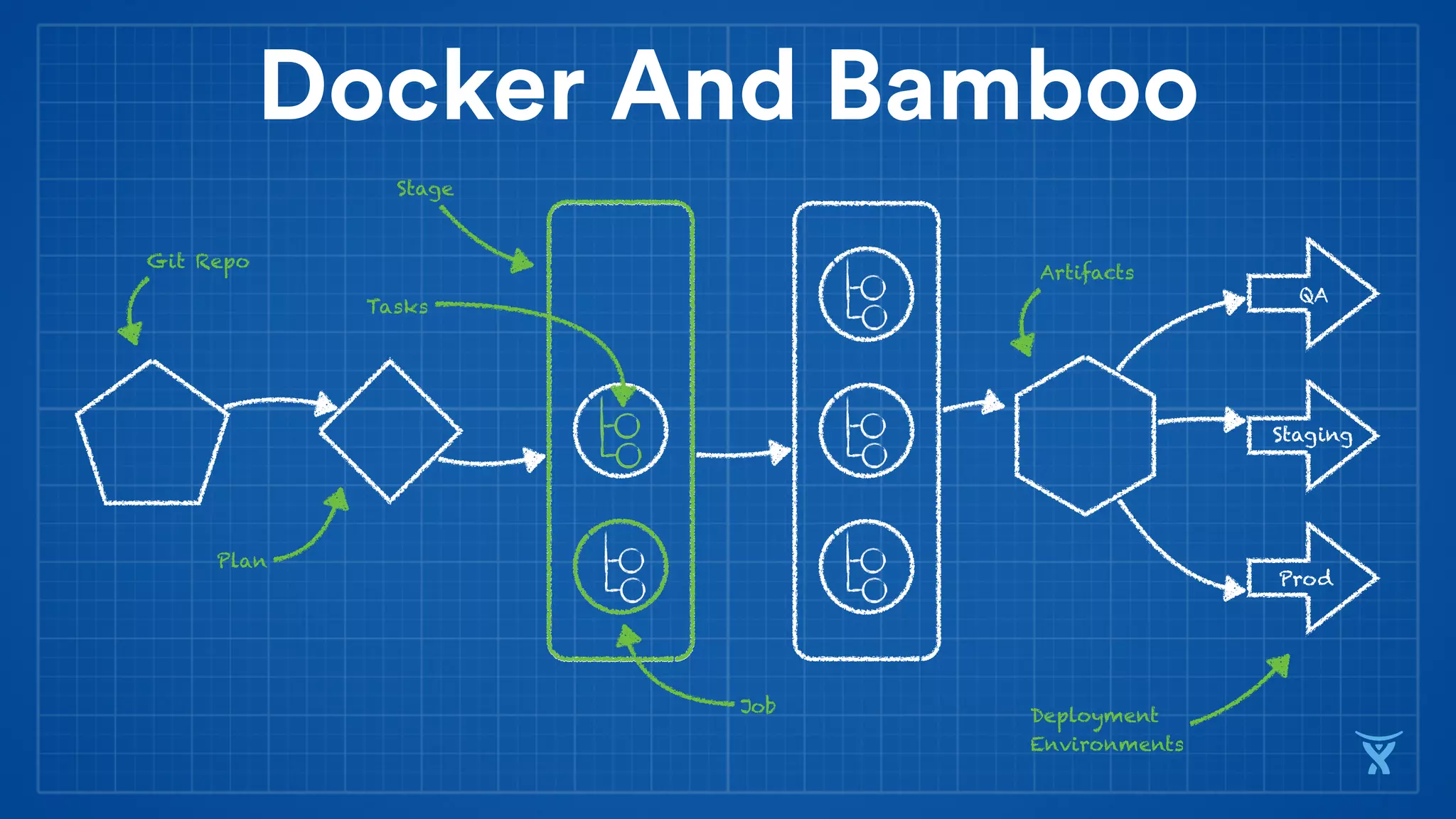

7. Docker And Bamboo
Plan
Stage
Job
Tasks
QA
Staging
Prod
Artifacts
Deployment
Environments
Git Repo

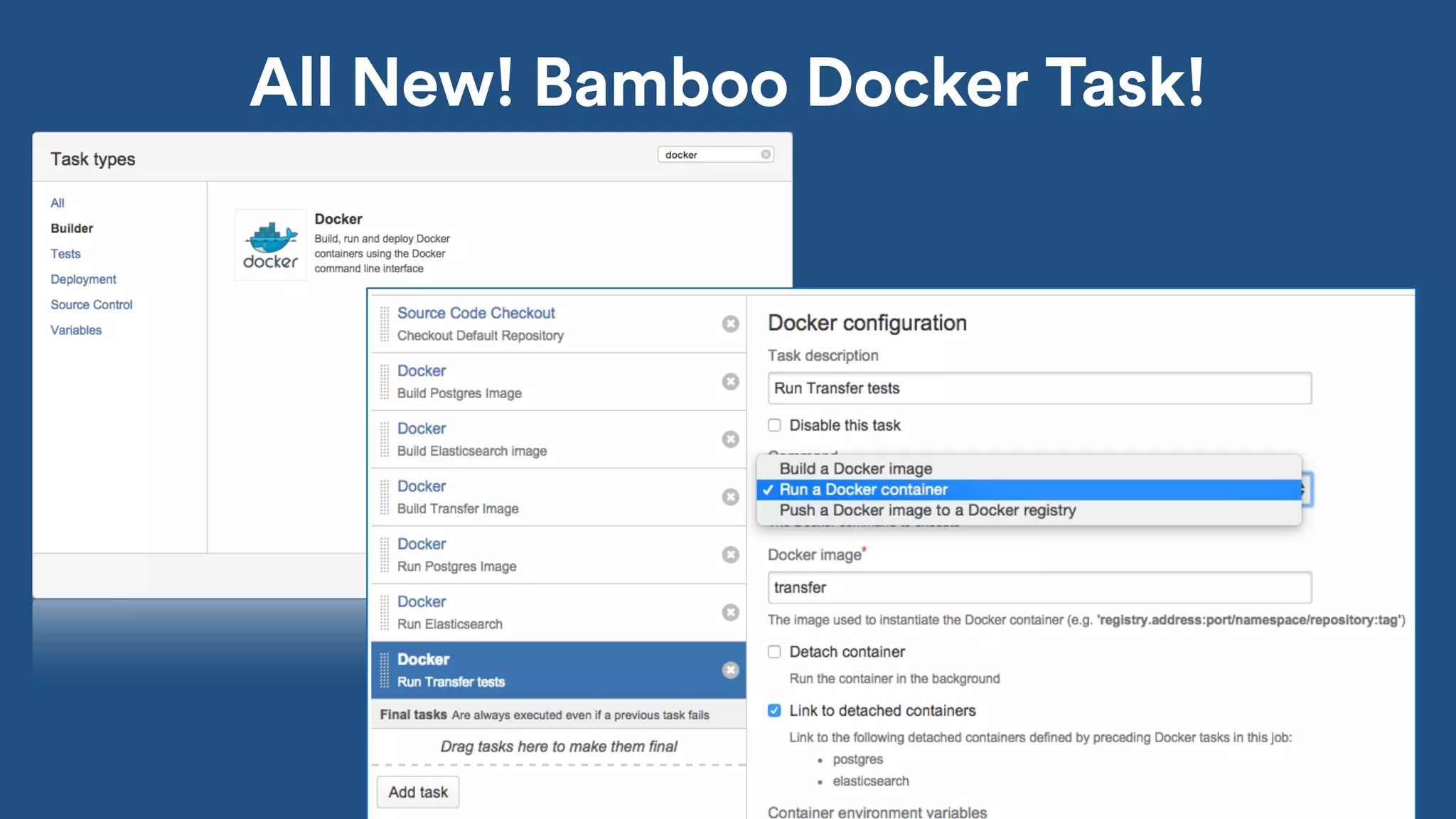

8. All New! Bamboo Docker Task!

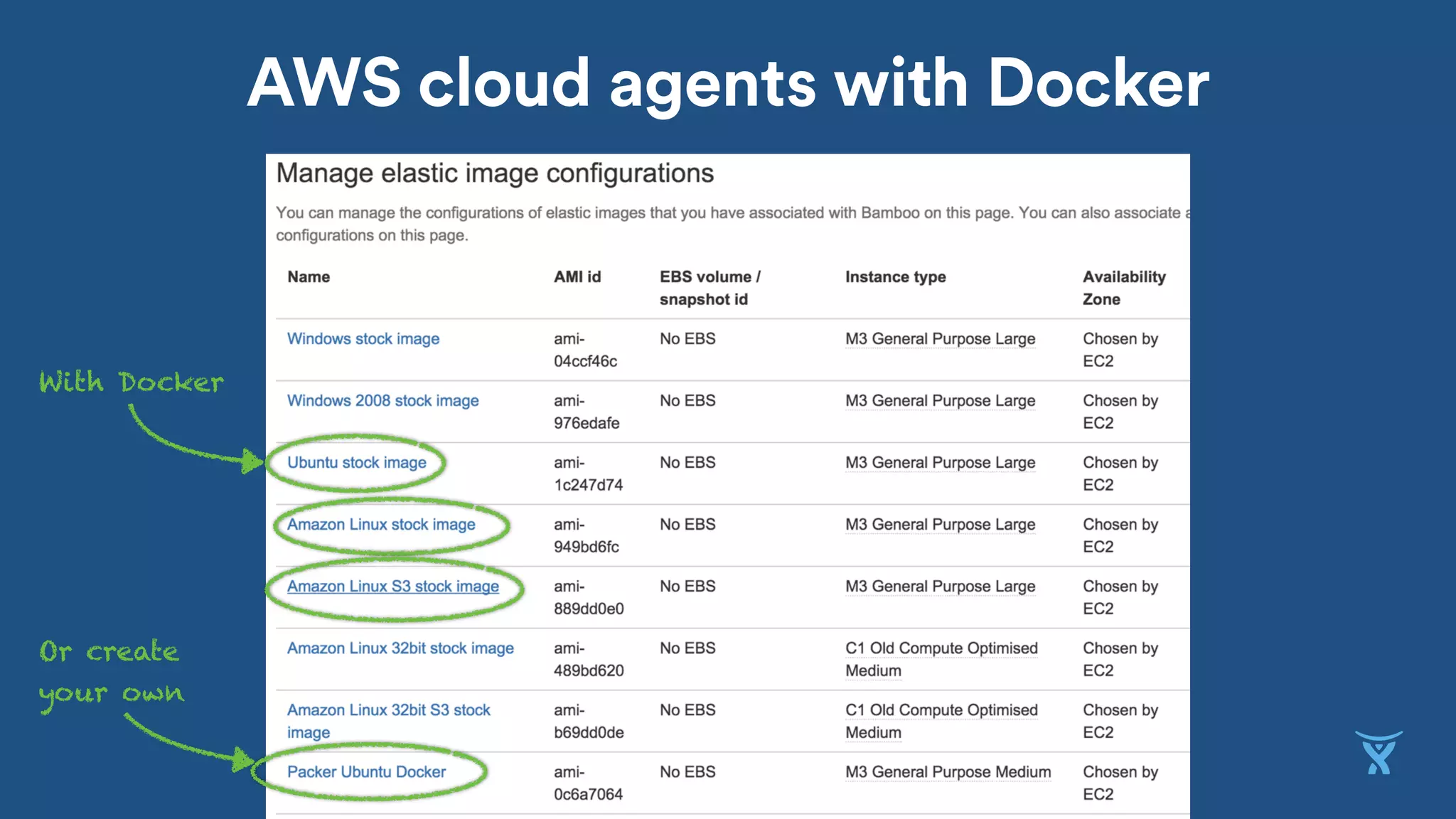

9. AWS cloud agents with Docker
With Docker
Or create
your own

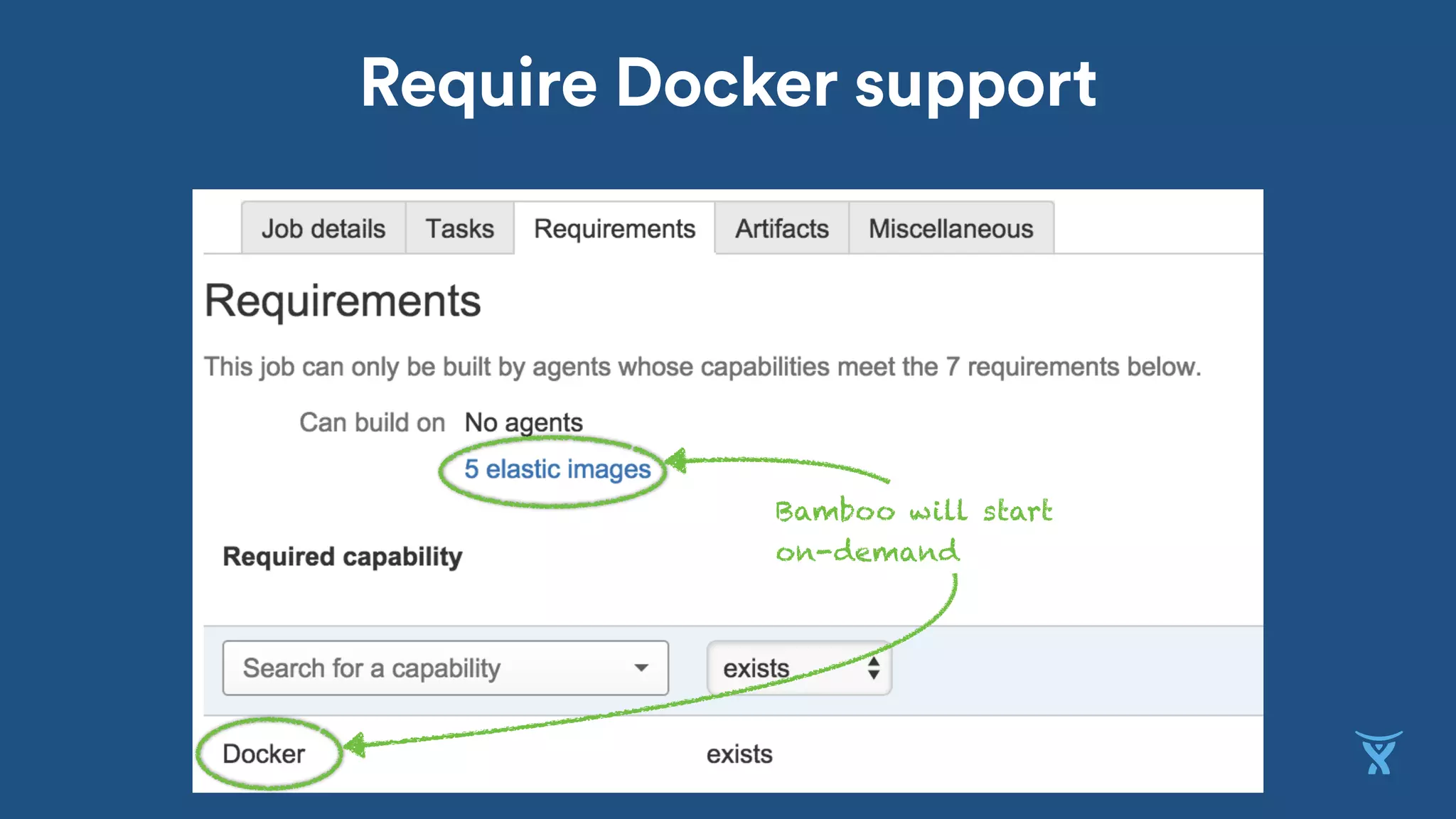

10. Require Docker support
Bamboo will start
on-demand

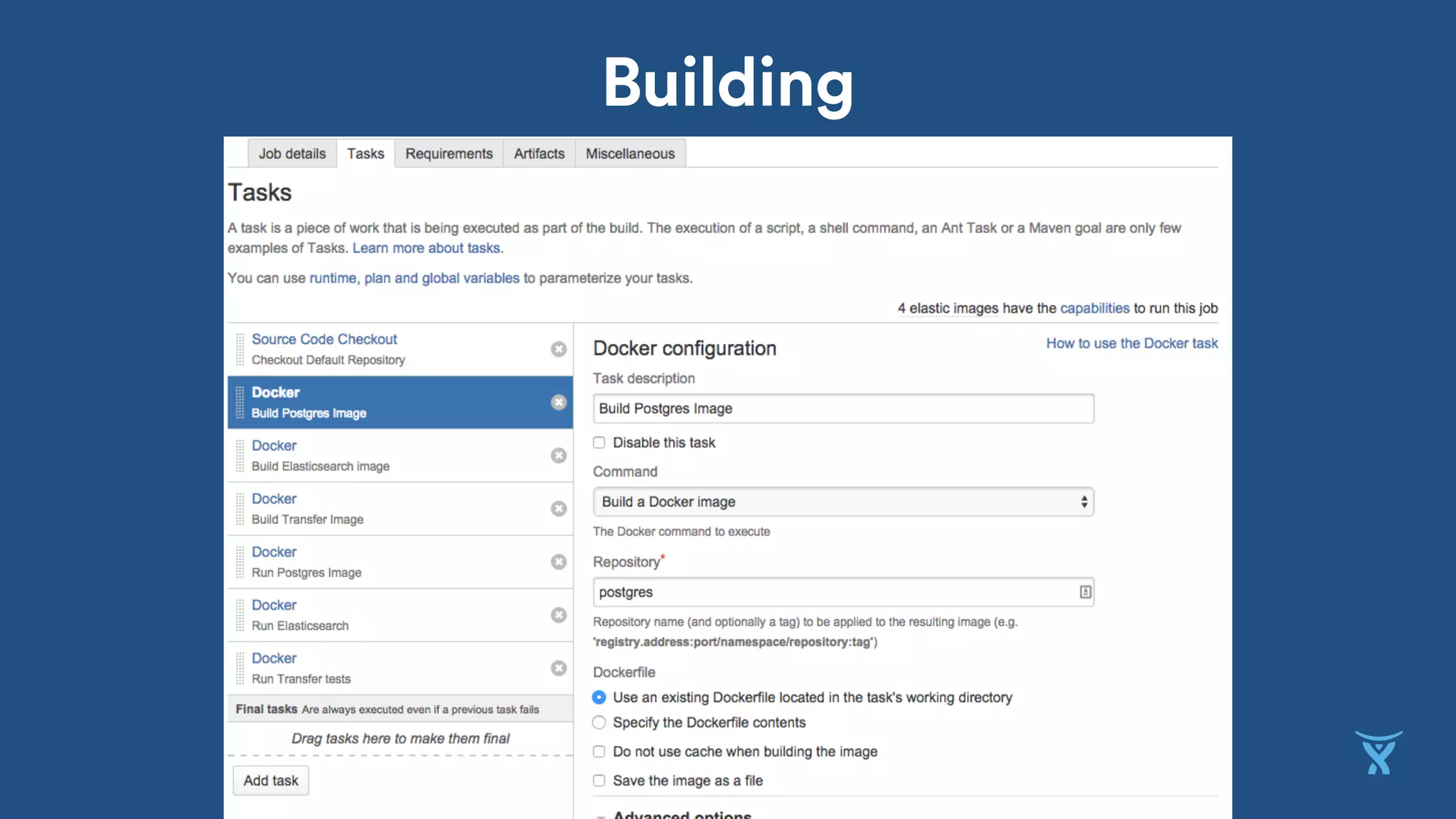

11. Building

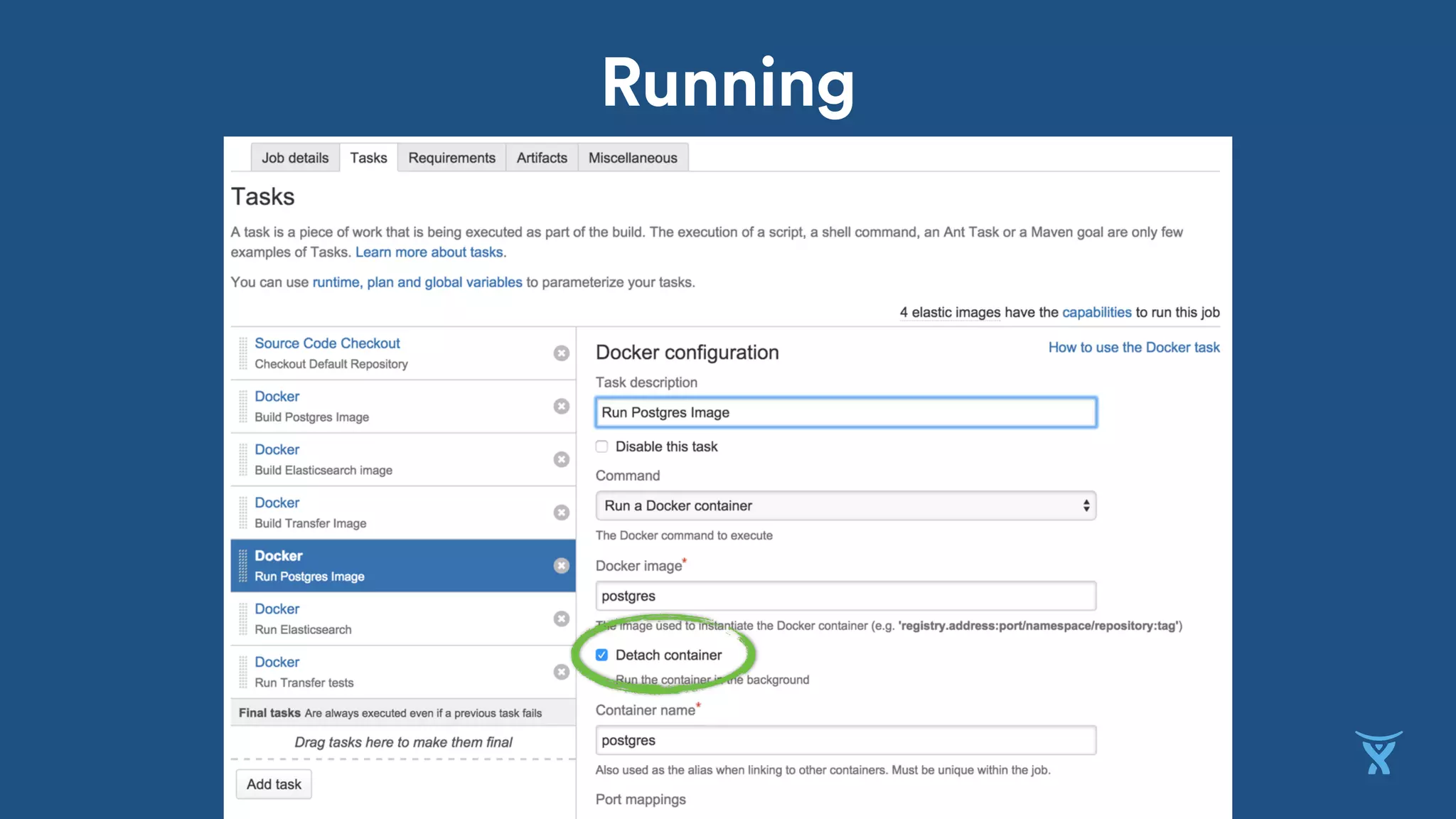

12. Running

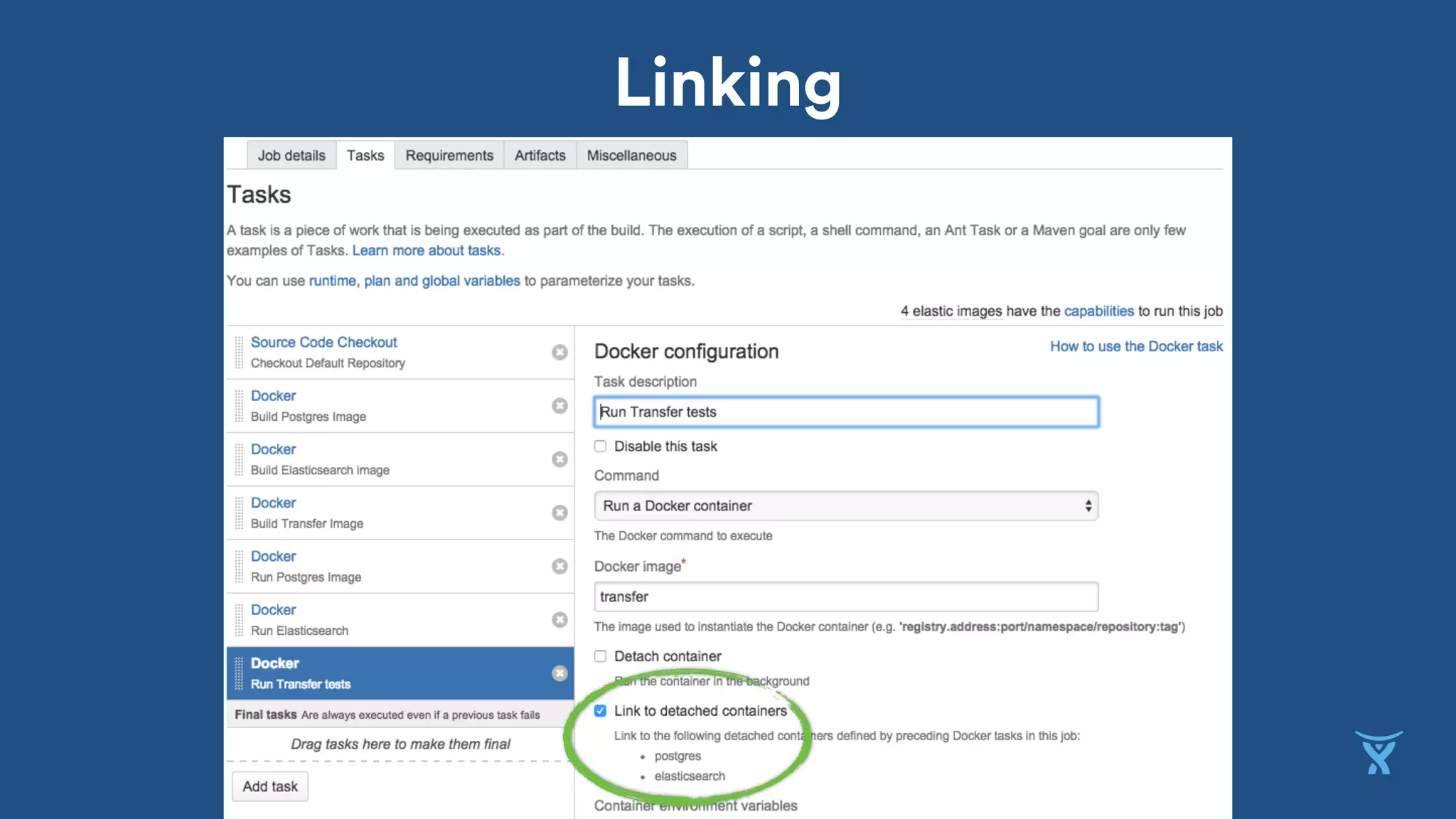

13. Linking

14. Compose with BambooSouth Florida
Classical Review

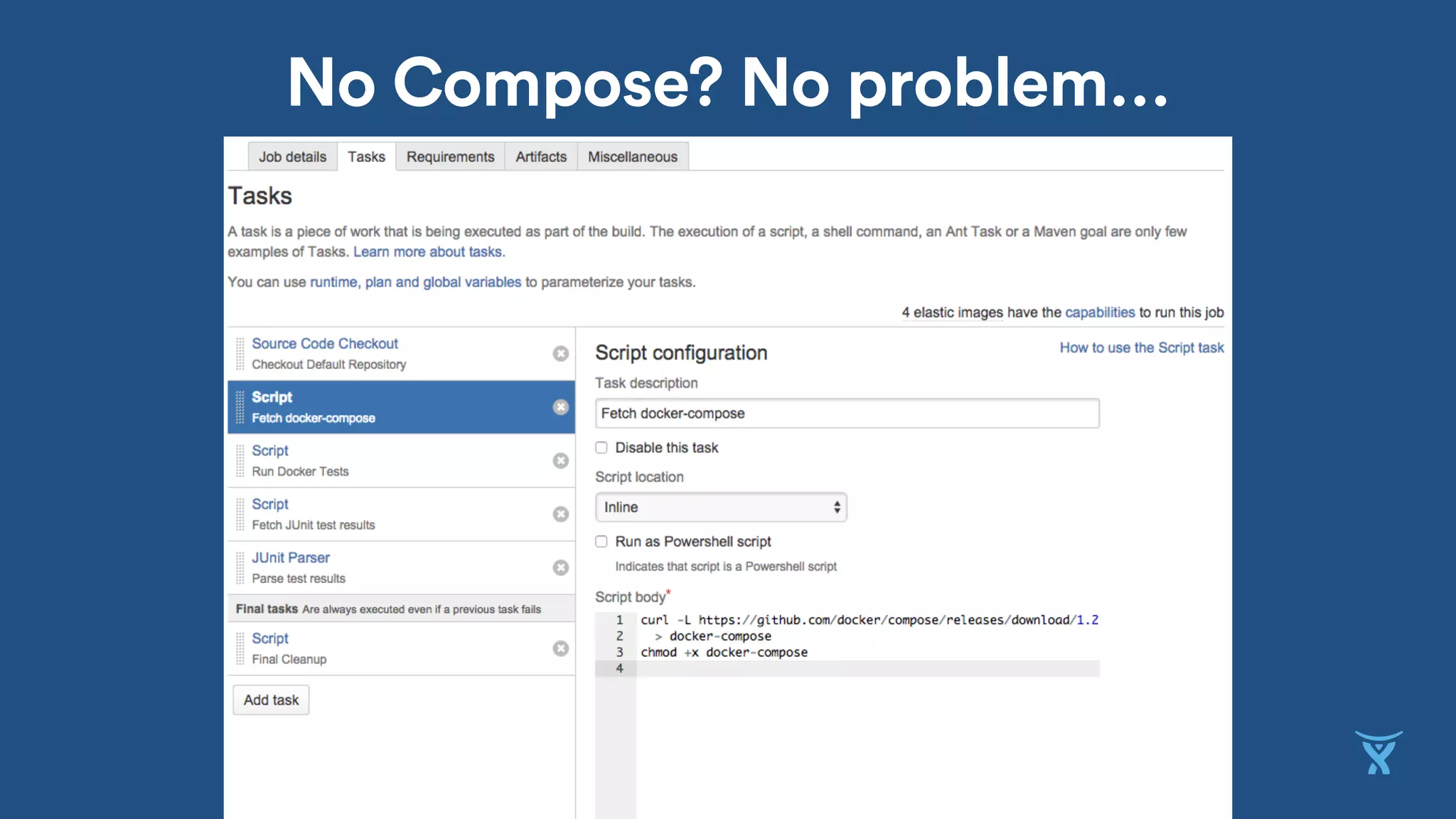

15. No Compose? No problem…

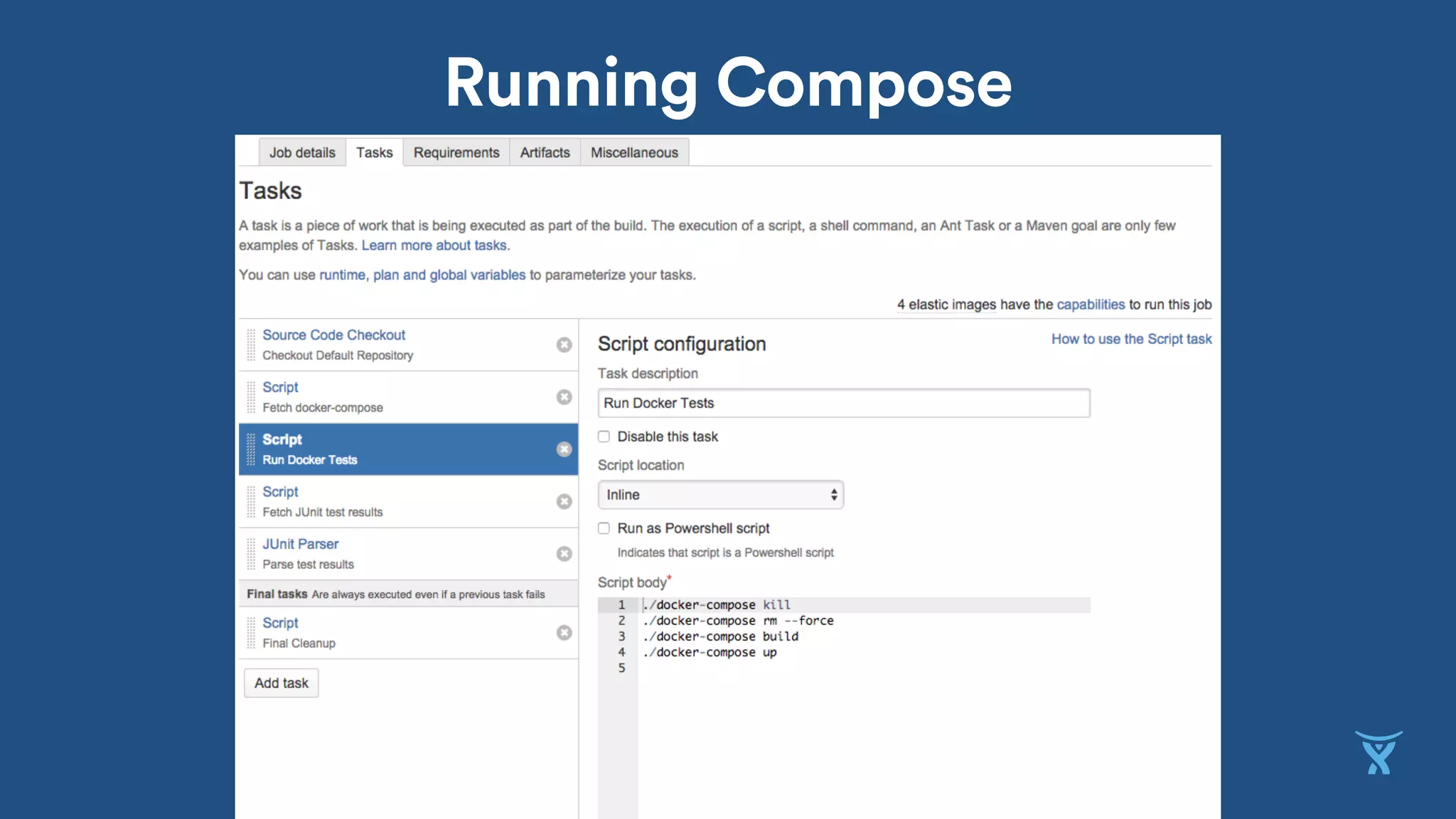

16. Running Compose

17. Cleaning up

18. Extracting ResultsAtlantic Sentinel

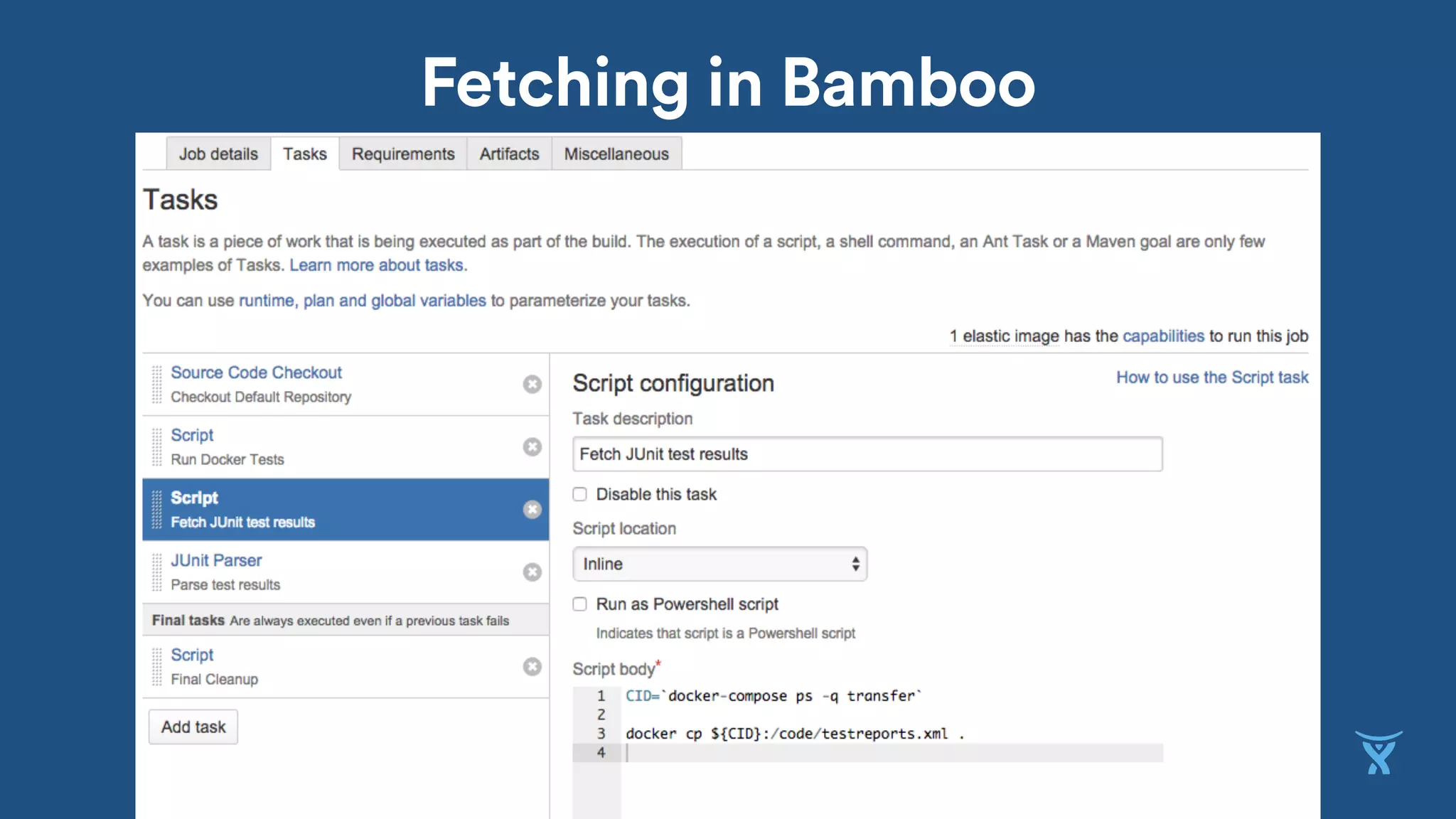

19. Fetching in Bamboo

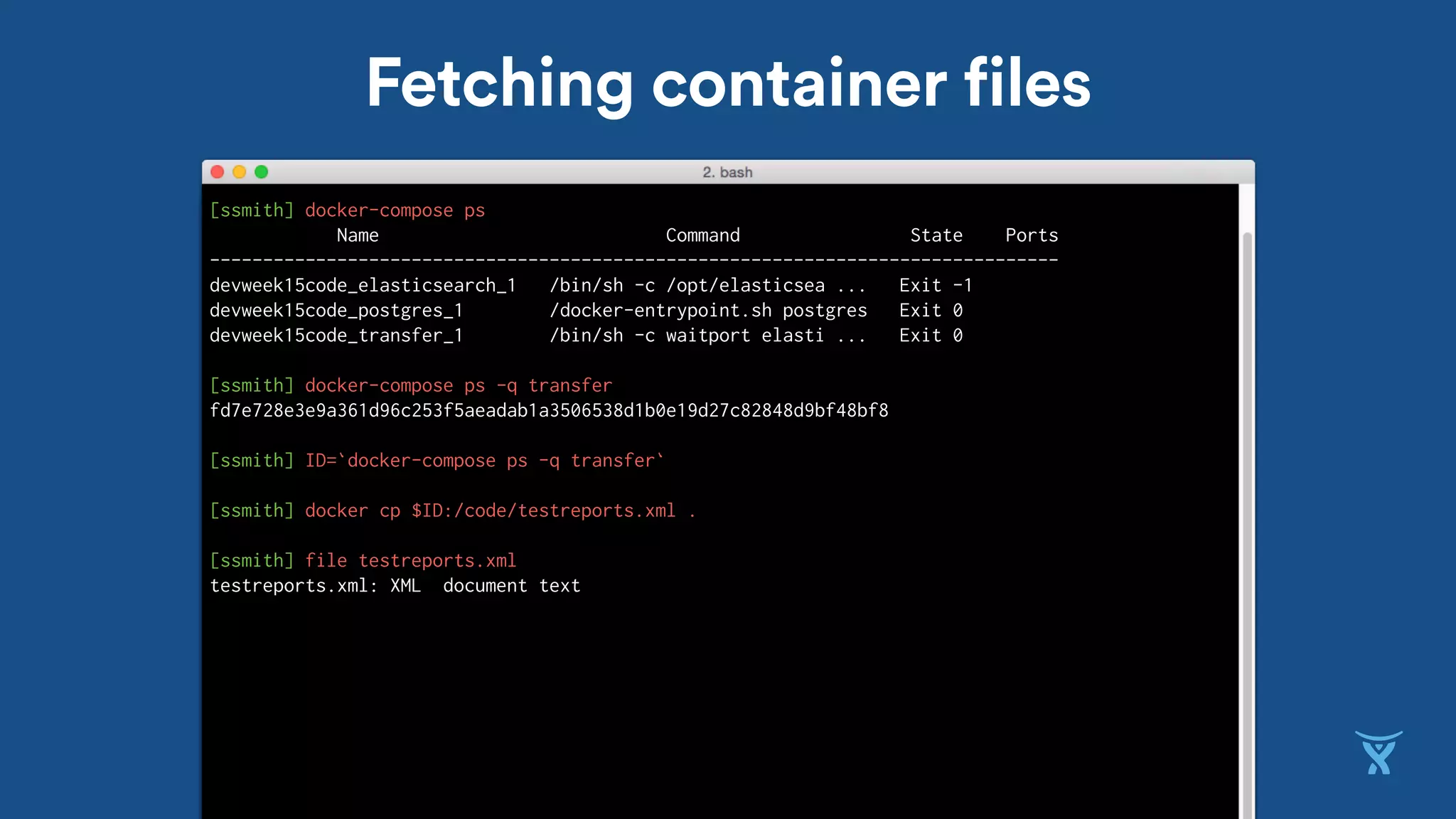

20. Fetching container files
[ssmith] docker-compose ps
Name Command State Ports
--------------------------------------------------------------------------------
devweek15code_elasticsearch_1 /bin/sh -c /opt/elasticsea ... Exit -1
devweek15code_postgres_1 /docker-entrypoint.sh postgres Exit 0
devweek15code_transfer_1 /bin/sh -c waitport elasti ... Exit 0
[ssmith] docker-compose ps -q transfer
fd7e728e3e9a361d96c253f5aeadab1a3506538d1b0e19d27c82848d9bf48bf8
[ssmith] ID=`docker-compose ps -q transfer`
[ssmith] docker cp $ID:/code/testreports.xml .
[ssmith] file testreports.xml
testreports.xml: XML document text

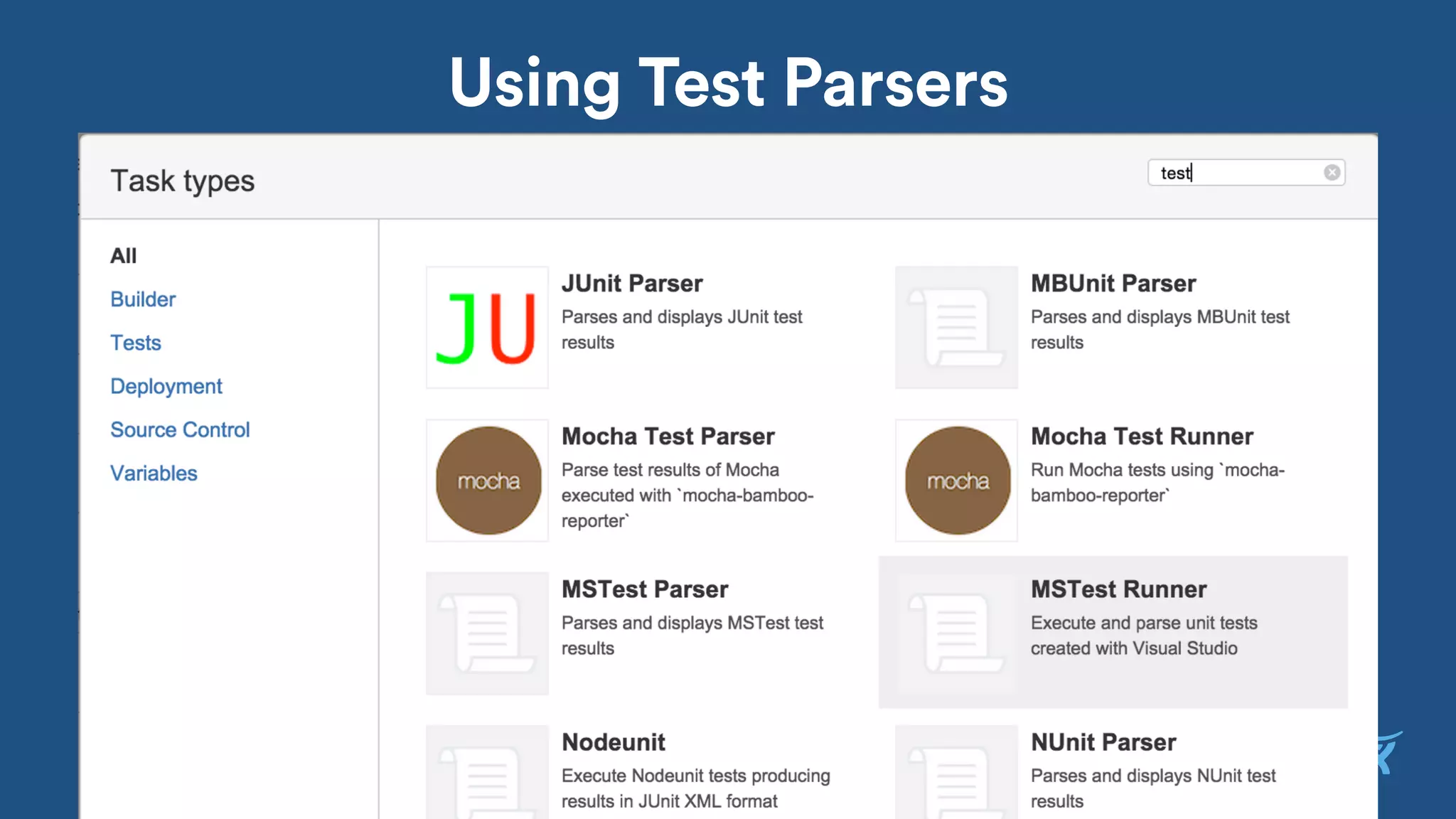

21. Using Test Parsers

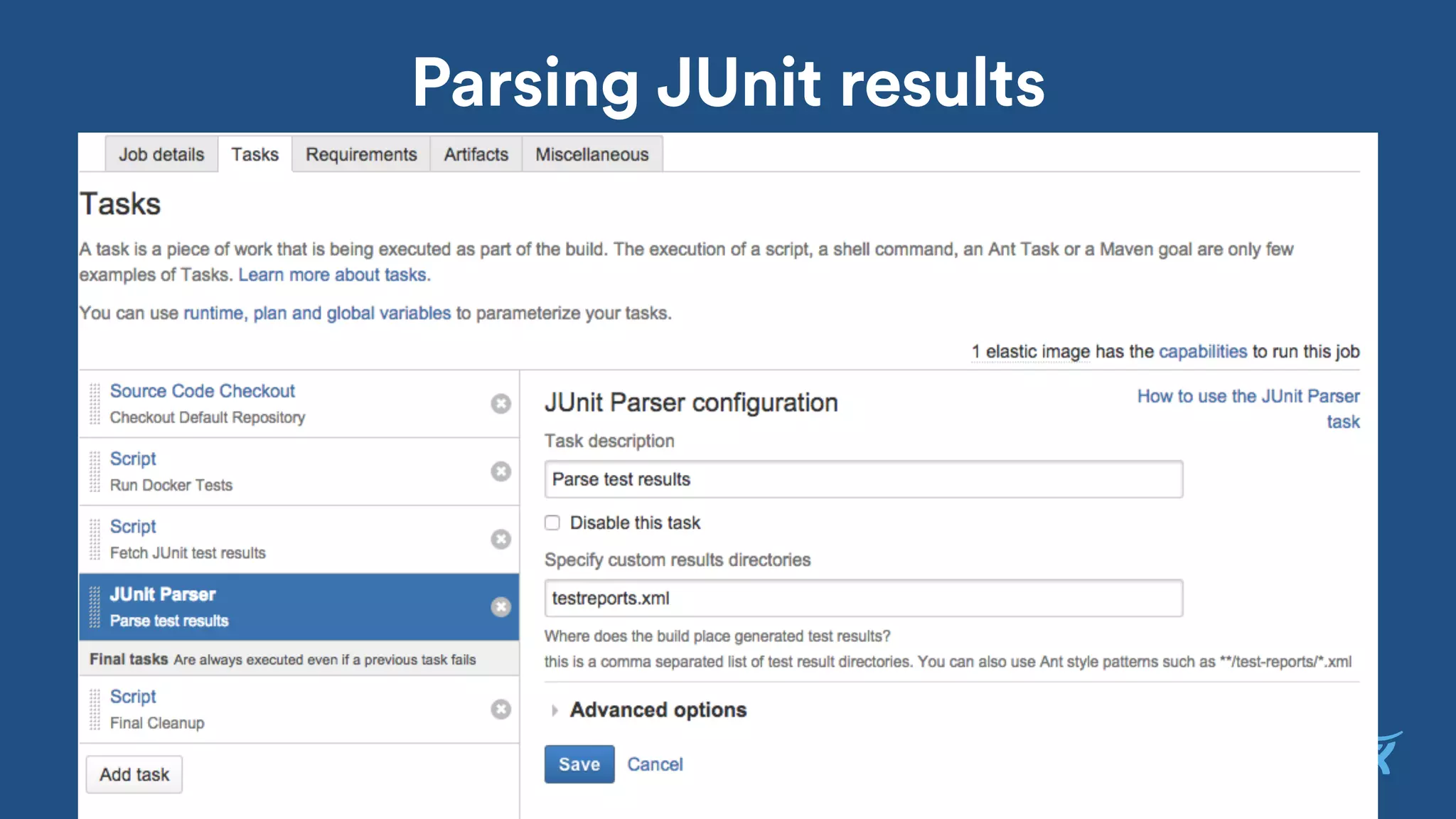

22. Parsing JUnit results

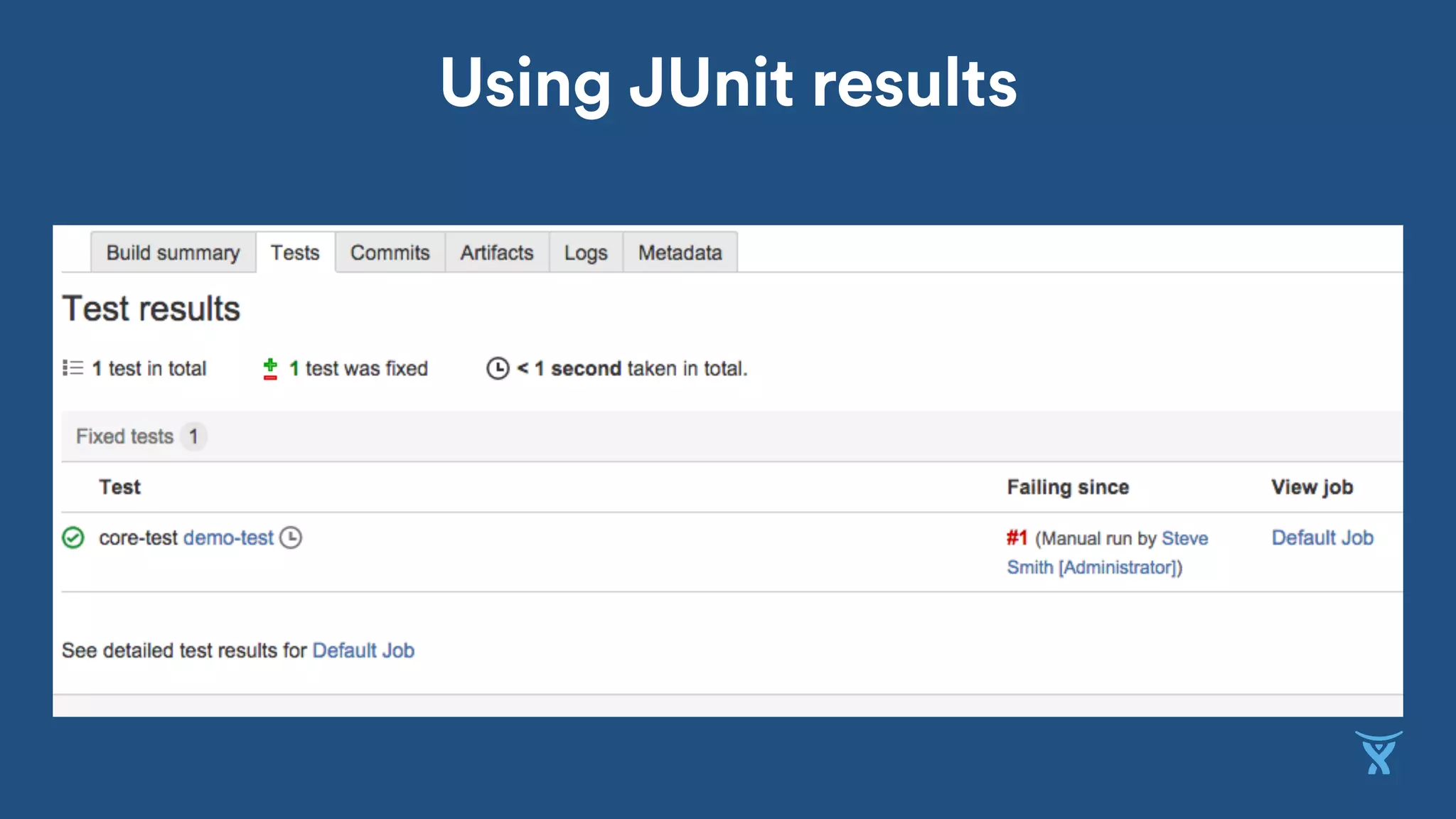

23. Using JUnit results

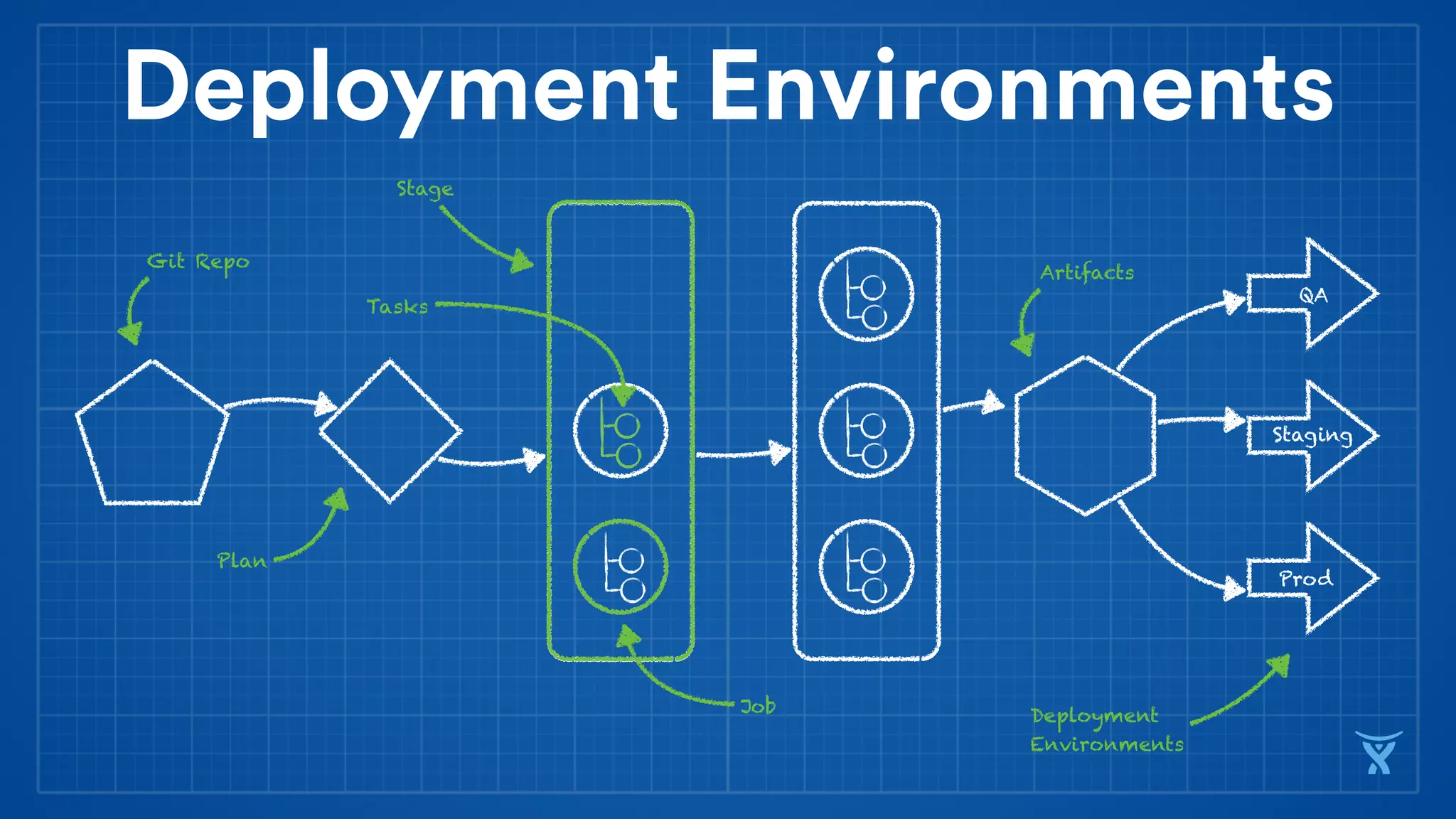

24. Deployment Environments
Plan
Stage
Job
Tasks
QA
Staging
Prod
Artifacts
Deployment
Environments
Git Repo

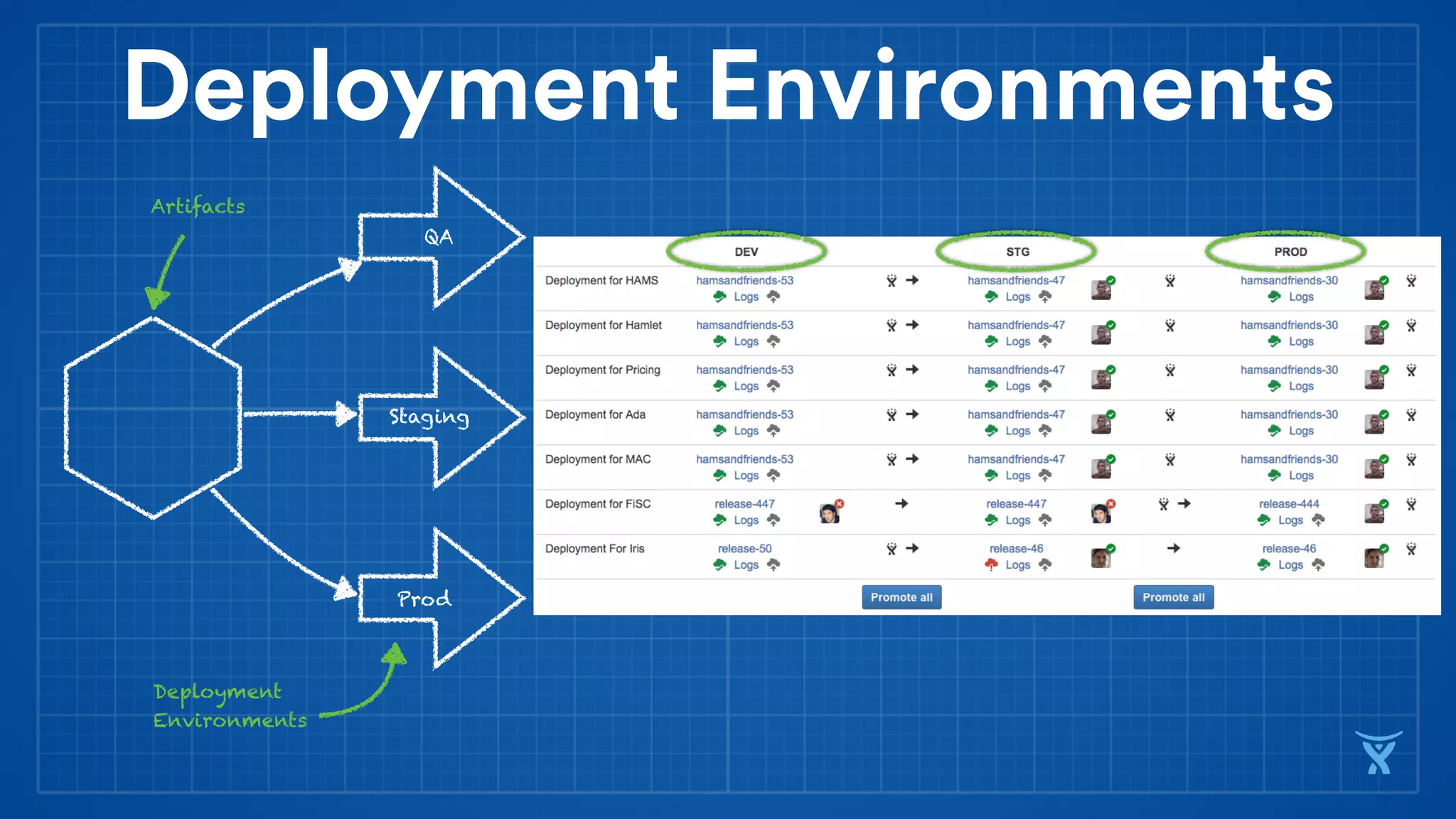

25. Deployment Environments
QA
Staging
Prod
Artifacts
Deployment
Environments

26. Sharing Artifacts

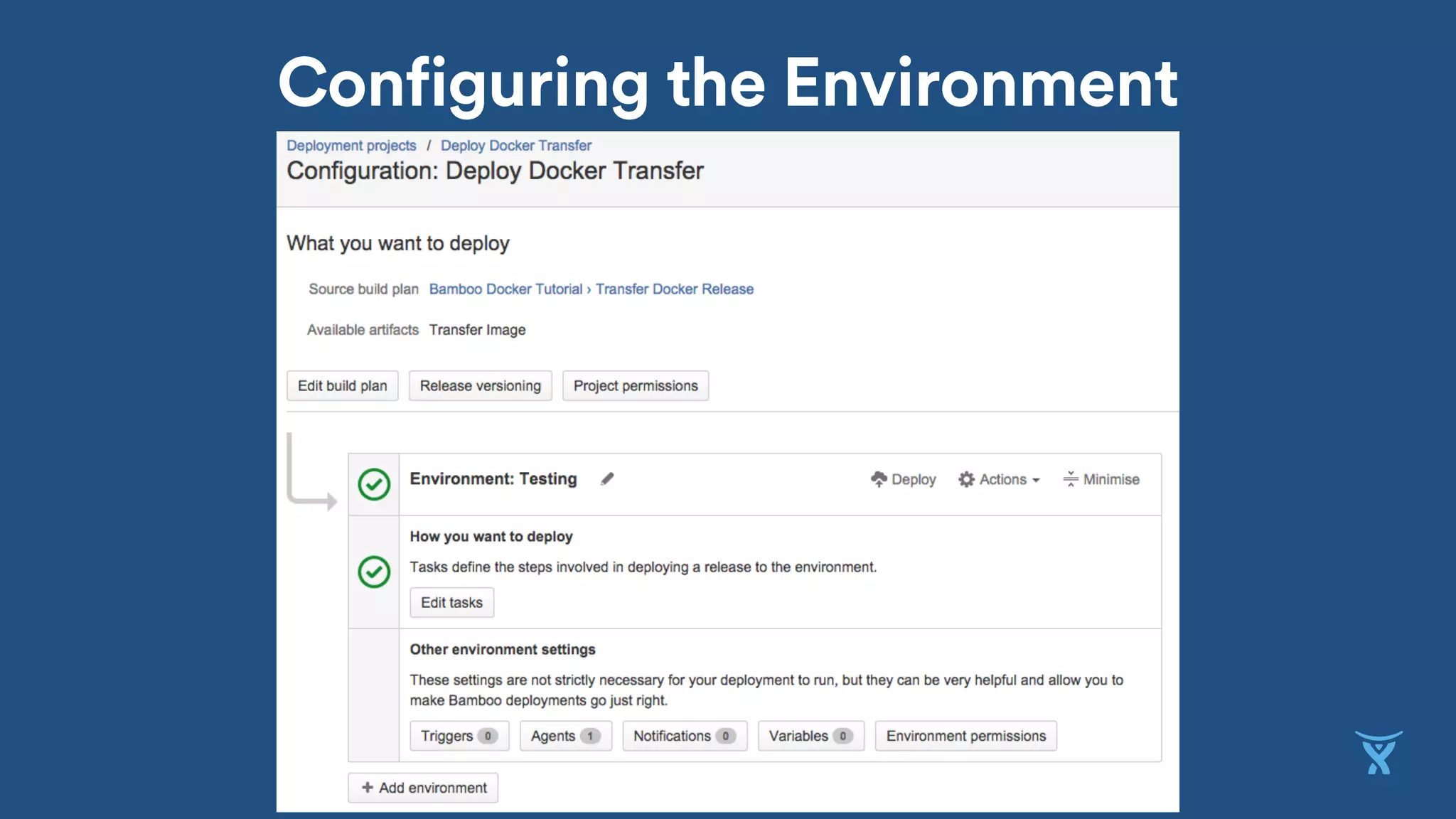

27. Configuring the Environment

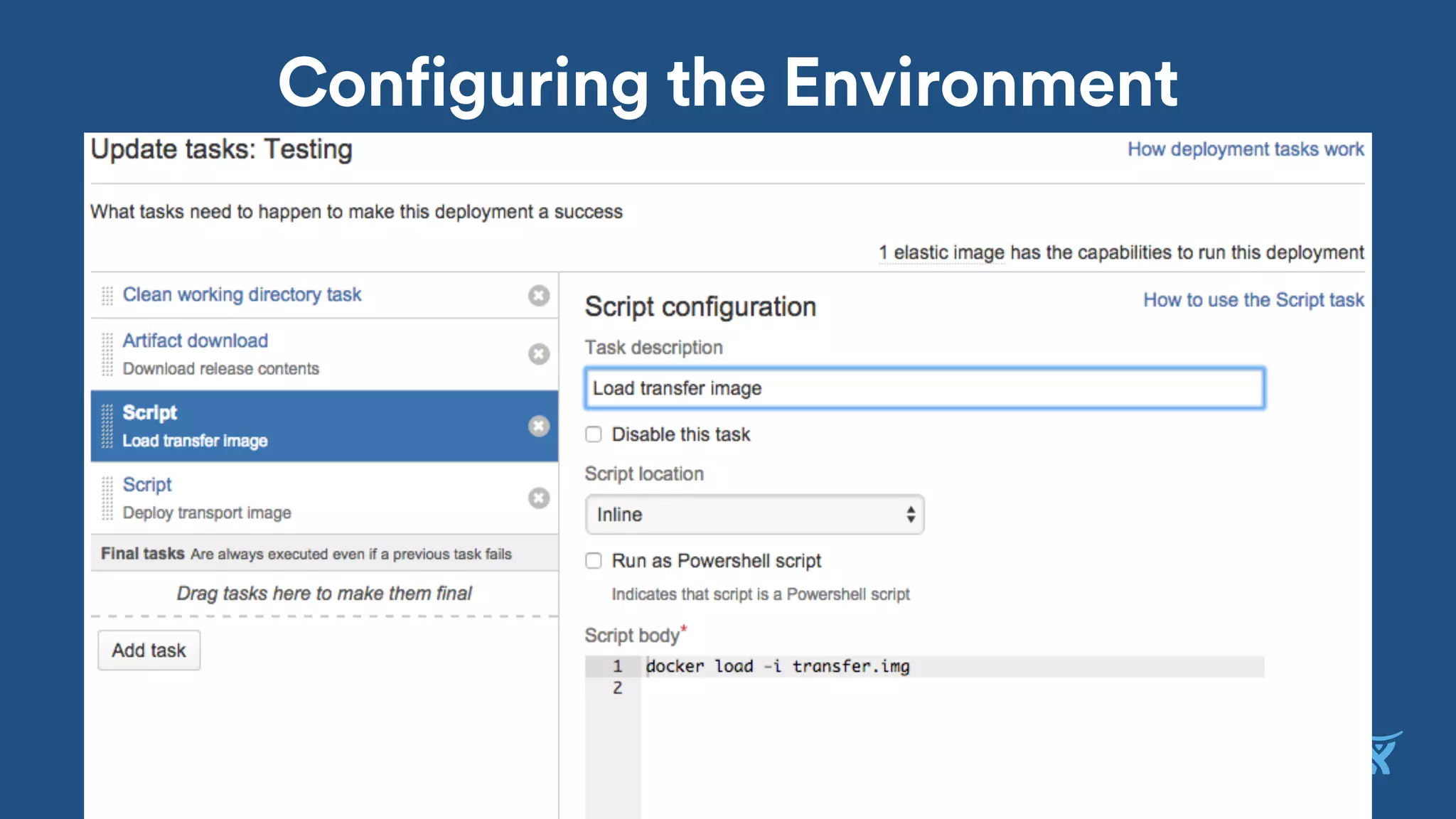

28. Configuring the Environment

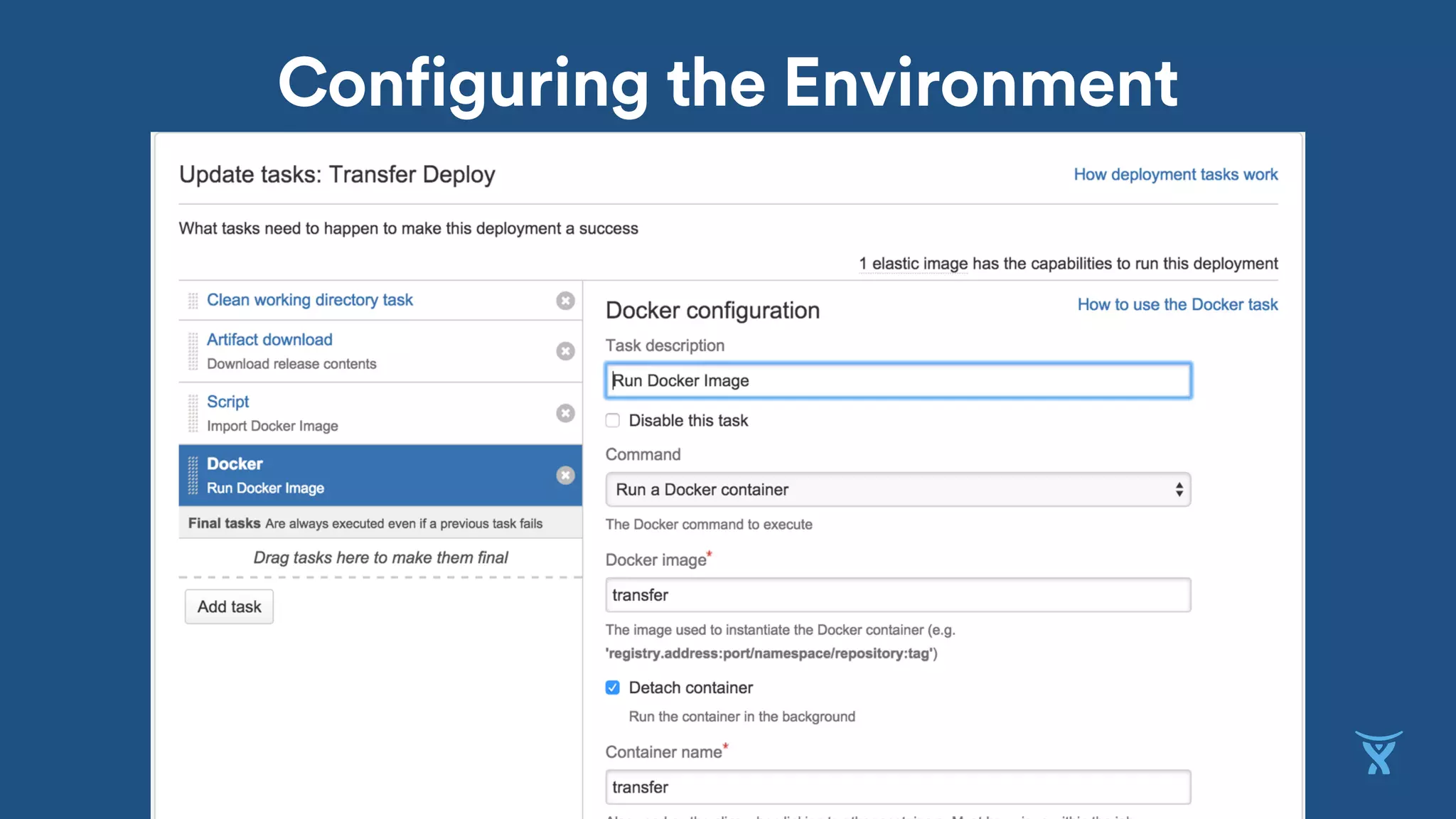

29. Configuring the Environment

30. Custom Bamboo VMs
Hodinkee

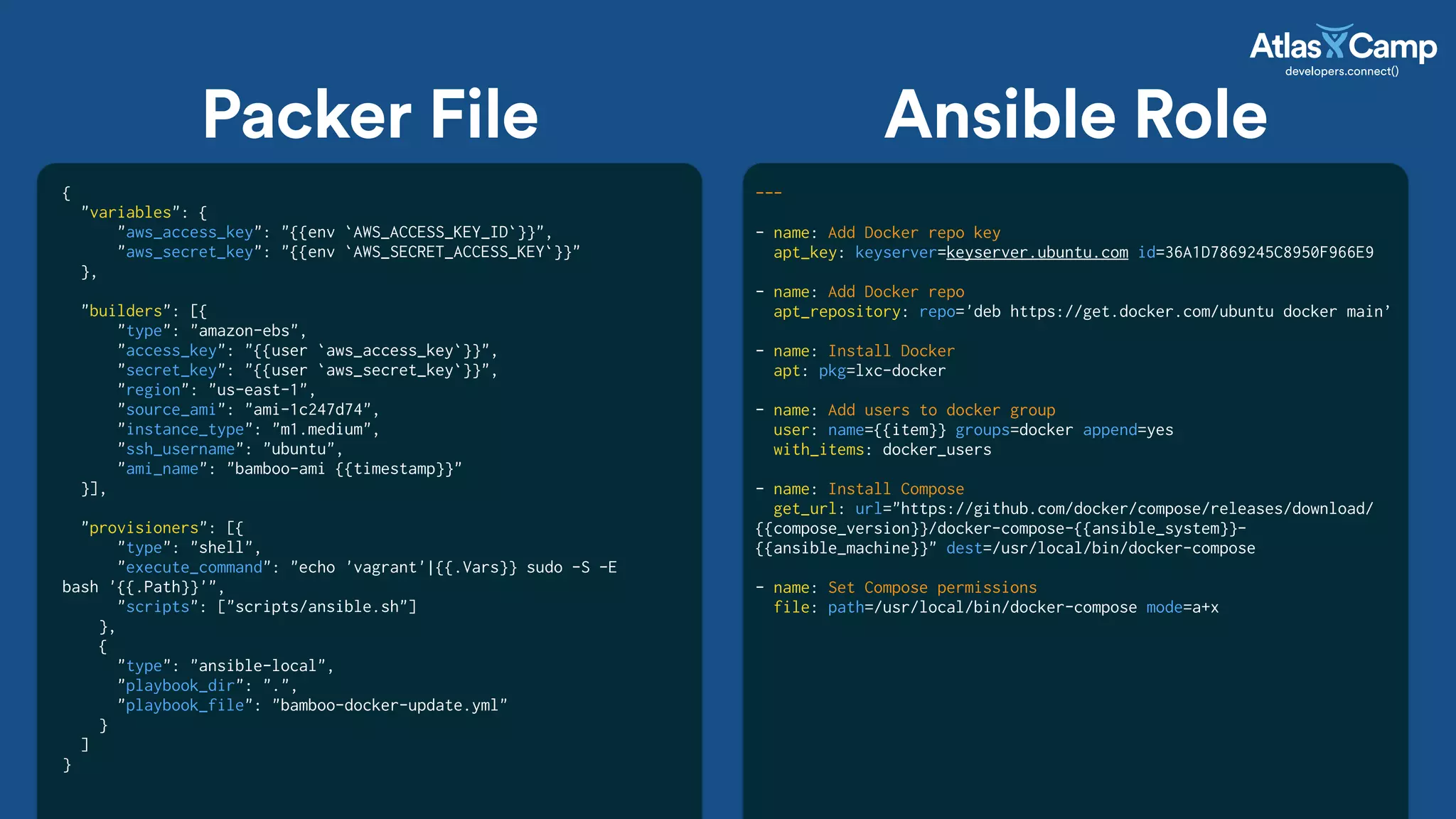

31. Packer File
{
"variables": {
"aws_access_key": "{{env `AWS_ACCESS_KEY_ID`}}",
"aws_secret_key": "{{env `AWS_SECRET_ACCESS_KEY`}}"
},
"builders": [{
"type": "amazon-ebs",
"access_key": "{{user `aws_access_key`}}",
"secret_key": "{{user `aws_secret_key`}}",
"region": "us-east-1",
"source_ami": "ami-1c247d74",
"instance_type": "m1.medium",
"ssh_username": "ubuntu",
"ami_name": "bamboo-ami {{timestamp}}"
}],
"provisioners": [{
"type": "shell",
"execute_command": "echo 'vagrant'|{{.Vars}} sudo -S -E
bash '{{.Path}}'",
"scripts": ["scripts/ansible.sh"]
},
{
"type": "ansible-local",
"playbook_dir": ".",
"playbook_file": "bamboo-docker-update.yml"
}
]
}
---
- name: Add Docker repo key
apt_key: keyserver=keyserver.ubuntu.com id=36A1D7869245C8950F966E9
- name: Add Docker repo
apt_repository: repo='deb https://get.docker.com/ubuntu docker main’
- name: Install Docker
apt: pkg=lxc-docker
- name: Add users to docker group
user: name={{item}} groups=docker append=yes
with_items: docker_users
- name: Install Compose
get_url: url="https://github.com/docker/compose/releases/download/
{{compose_version}}/docker-compose-{{ansible_system}}-
{{ansible_machine}}" dest=/usr/local/bin/docker-compose
- name: Set Compose permissions
file: path=/usr/local/bin/docker-compose mode=a+x
Ansible Role

32. STEVE SMITH • DEVOPS ADVOCATE • ATLASSIAN • @TARKASTEVE
Thank you!
