Japan eq and tsunami
- 1. TSUNAMI QUAKE… 8.9 Earthquakeoff the coast of Japan triggers huge Tsunami 11th March 2011
- 2. Facts and Causes…. Primary impacts…. Secondary impacts…. Responses…. How were many lives saved?

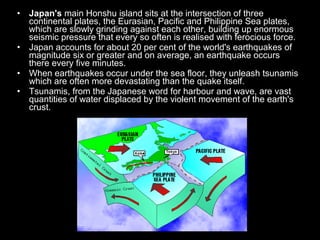

- 4. • Japan's main Honshu island sits at the intersection of three continental plates, the Eurasian, Pacific and Philippine Sea plates, which are slowly grinding against each other, building up enormous seismic pressure that every so often is realised with ferocious force. • Japan accounts for about 20 per cent of the world's earthquakes of magnitude six or greater and on average, an earthquake occurs there every five minutes. • When earthquakes occur under the sea floor, they unleash tsunamis which are often more devastating than the quake itself. • Tsunamis, from the Japanese word for harbour and wave, are vast quantities of water displaced by the violent movement of the earth's crust.
- 5. As the epicentrewas so close to the coast it gave people very little warning time before the tsunami hit.

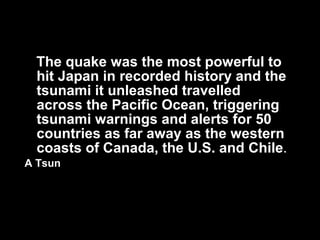

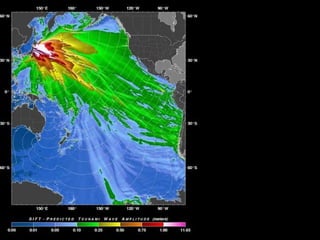

- 7. The quake wasthe most powerful to hit Japan in recorded history and the tsunami it unleashed travelled across the Pacific Ocean, triggering tsunami warnings and alerts for 50 countries as far away as the western coasts of Canada, the U.S. and Chile . A Tsun
- 10. The quake triggeredmore than 160 aftershocks in the first 24 hours -- 141 measuring 5.0-magnitude or more.

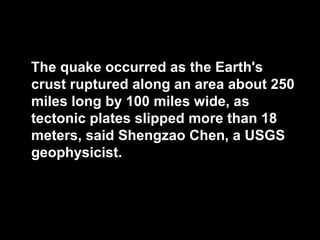

- 11. The quake occurredas the Earth's crust ruptured along an area about 250 miles long by 100 miles wide, as tectonic plates slipped more than 18 meters, said Shengzao Chen, a USGS geophysicist.

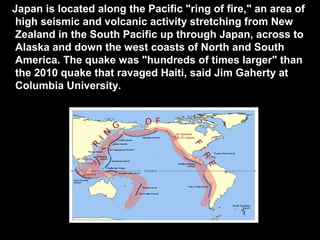

- 12. Japan is locatedalong the Pacific "ring of fire," an area of high seismic and volcanic activity stretching from New Zealand in the South Pacific up through Japan, across to Alaska and down the west coasts of North and South America. The quake was "hundreds of times larger" than the 2010 quake that ravaged Haiti, said Jim Gaherty at Columbia University.
- 13.
- 14.

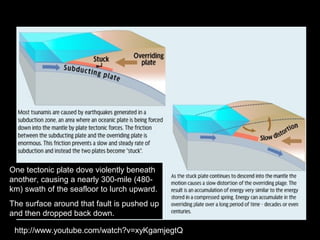

- 15. One tectonic platedove violently beneath another, causing a nearly 300-mile (480- km) swath of the seafloor to lurch upward. The surface around that fault is pushed up and then dropped back down. http://www.youtube.com/watch?v=xyKgamjegtQ

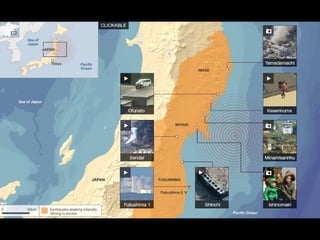

- 16.

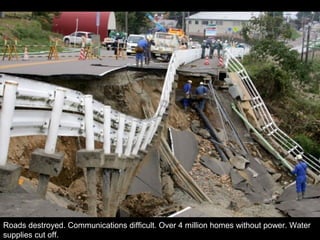

- 21. Roads destroyed. Communicationsdifficult. Over 4 million homes without power. Water supplies cut off.
- 22. TSUNAMI… 24 foot wall of water. 4 times as big as a 6 foot man. • http://video.nationalgeographic.com/video/player/environment/env ironment-natural-disasters/tsunamis/tsunami-101.html? source=link_tw20110311tsunamivideo • http://www.bbc.co.uk/news/world-asia-pacific-12725646
- 23.

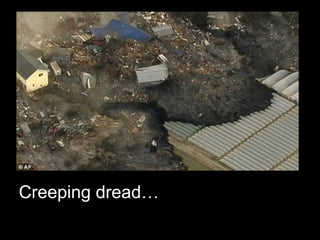

- 24.

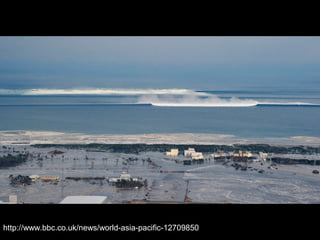

- 25.

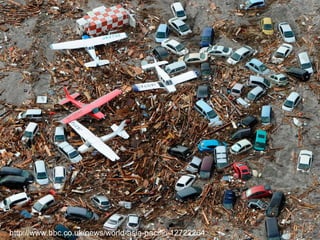

- 28.
- 30.

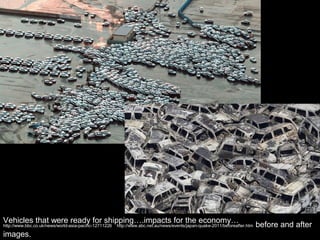

- 31. Vehicles that wereready for shipping….impacts for the economy… http://www.bbc.co.uk/news/world-asia-pacific-12711226 http://www.abc.net.au/news/events/japan-quake-2011/beforeafter.htm before and after images.

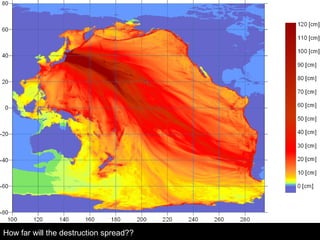

- 32. How far willthe destruction spread??

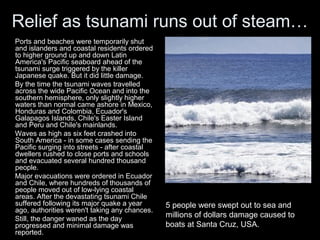

- 33. Relief as tsunamiruns out of steam… Ports and beaches were temporarily shut and islanders and coastal residents ordered to higher ground up and down Latin America's Pacific seaboard ahead of the tsunami surge triggered by the killer Japanese quake. But it did little damage. By the time the tsunami waves travelled across the wide Pacific Ocean and into the southern hemisphere, only slightly higher waters than normal came ashore in Mexico, Honduras and Colombia, Ecuador's Galapagos Islands, Chile's Easter Island and Peru and Chile's mainlands. Waves as high as six feet crashed into South America - in some cases sending the Pacific surging into streets - after coastal dwellers rushed to close ports and schools and evacuated several hundred thousand people. Major evacuations were ordered in Ecuador and Chile, where hundreds of thousands of people moved out of low-lying coastal areas. After the devastating tsunami Chile suffered following its major quake a year 5 people were swept out to sea and ago, authorities weren't taking any chances. Still, the danger waned as the day millions of dollars damage caused to progressed and minimal damage was boats at Santa Cruz, USA. reported.
- 34.
- 35.
- 37.

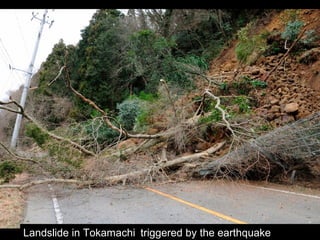

- 38. Landslide in Tokamachitriggered by the earthquake
- 39.

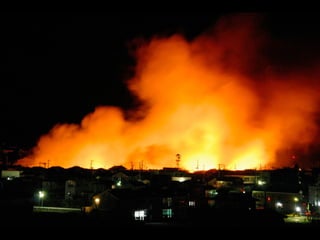

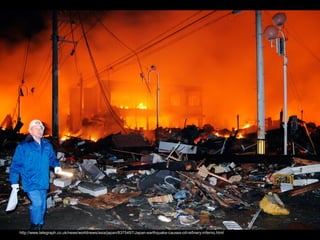

- 40. Fire at anoil refinery….
- 43.
- 44.

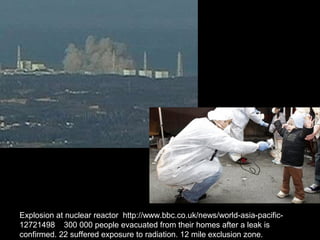

- 45. Explosion at nuclearreactor http://www.bbc.co.uk/news/world-asia-pacific- 12721498 300 000 people evacuated from their homes after a leak is confirmed. 22 suffered exposure to radiation. 12 mile exclusion zone.

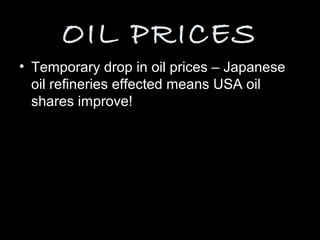

- 46. OIL PRICES • Temporarydrop in oil prices – Japanese oil refineries effected means USA oil shares improve!
- 47. Japan’s industrial heartescapes the heaviest blows • Toyota close all plants in Japan. Honda and Nissan also affected. • Sony suspended production at 8 plants. • As bad as the toll might eventually be in lives and property from Japan’s earthquake and tsunami, the fact that the disaster hit far from Japan’s industrial heartland will at least soften the economic blow, both at home and abroad. • “If this had been a couple hundred miles to the south, the economic and human toll would have been almost incomprehensible,” said Marcus Noland, a senior fellow at the Peterson Institute for International Economics. “In that respect, Japan dodged an enormous bullet here.” • The rebuilding boom will be good news for the construction industry.

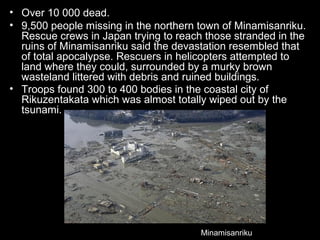

- 48. • Over 10000 dead. • 9,500 people missing in the northern town of Minamisanriku. Rescue crews in Japan trying to reach those stranded in the ruins of Minamisanriku said the devastation resembled that of total apocalypse. Rescuers in helicopters attempted to land where they could, surrounded by a murky brown wasteland littered with debris and ruined buildings. • Troops found 300 to 400 bodies in the coastal city of Rikuzentakata which was almost totally wiped out by the tsunami. Minamisanriku
- 49. Japanese earthquake causesthe day to get a tiny bit shorter…. • You won't notice it, but the day just got a tiny bit shorter because of Friday's giant earthquake off the coast of Japan. • NASA geophysicist Richard Gross calculated that Earth's rotation sped up by 1.6 microseconds. That's because of the shift in Earth's mass caused by the 8.9-magnitude earthquake. A microsecond is one-millionth of a second. • That change in rotation speed is slightly more than the one caused by last year's larger Chile earthquake. But 2004's bigger Sumatra earthquake caused a 6.8- microsecond shortening of the day.
- 50.
- 51. Japan has highlytrained medical and search and rescue teams ready for such a disaster. Japanese rescue teams were some of the first on the ground to help with the aftermath of the Haiti earthquake in 2010.
- 52. A border collienamed Byron trained to detect the scent of live casualties was part of a 59-strong group of specialists from the UK International Search and Rescue (UK-ISAR) team jetting off to Japan the day after the disaster, carrying with them 11 tons of equipment. http://www.bbc.co.uk/news/world-asia-pacific-12725504

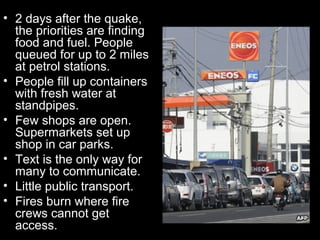

- 53. • 2 daysafter the quake, the priorities are finding food and fuel. People queued for up to 2 miles at petrol stations. • People fill up containers with fresh water at standpipes. • Few shops are open. Supermarkets set up shop in car parks. • Text is the only way for many to communicate. • Little public transport. • Fires burn where fire crews cannot get access.

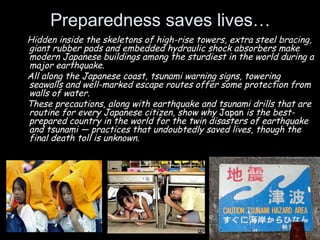

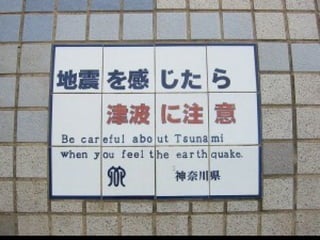

- 55. Preparedness saves lives… Hiddeninside the skeletons of high-rise towers, extra steel bracing, giant rubber pads and embedded hydraulic shock absorbers make modern Japanese buildings among the sturdiest in the world during a major earthquake. All along the Japanese coast, tsunami warning signs, towering seawalls and well-marked escape routes offer some protection from walls of water. These precautions, along with earthquake and tsunami drills that are routine for every Japanese citizen, show why Japan is the best- prepared country in the world for the twin disasters of earthquake and tsunami — practices that undoubtedly saved lives, though the final death toll is unknown.
- 58. – In Japan,where earthquakes are common, building codes are extremely stringent on specific matters like how much a building may sway during a quake. – After the Kobe earthquake in 1995, which killed about 6,000 people and injured 26,000, Japan put enormous resources into new research on protecting structures, as well as retrofitting the country’s older and more vulnerable structures. Japan has spent billions of dollars developing the most advanced technology against earthquakes and tsunamis. – Japan has gone much further than the United States in outfitting new buildings with advanced devices called base isolation pads and energy dissipation units to dampen the ground’s shaking during an earthquake. The isolation devices are essentially giant rubber-and-steel pads that are installed at the very bottom of the excavation for a building, which then simply sits on top of the pads. The dissipation units are built into a building’s structural skeleton. They are hydraulic cylinders that elongate and contract as the building sways, sapping the motion of energy.

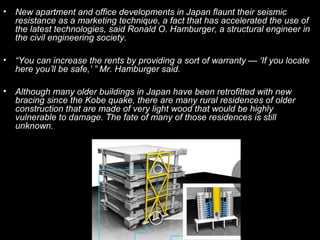

- 59. • New apartment and office developments in Japan flaunt their seismic resistance as a marketing technique, a fact that has accelerated the use of the latest technologies, said Ronald O. Hamburger, a structural engineer in the civil engineering society. • “You can increase the rents by providing a sort of warranty — ‘If you locate here you’ll be safe,’ ” Mr. Hamburger said. • Although many older buildings in Japan have been retrofitted with new bracing since the Kobe quake, there are many rural residences of older construction that are made of very light wood that would be highly vulnerable to damage. The fate of many of those residences is still unknown.
- 60. Unlike Haiti, whereshoddy construction vastly increased the death toll last year, or China, where failure to follow construction codes worsened the death toll in the devastating 2008 Sichuan earthquake, Japan enforces some of the world’s most stringent building codes. Japanese buildings tend to be much stiffer and stouter than similar structures in earthquake- prone areas in California as well, said Mr. Moehle, the Berkeley engineer: Japan’s building code allows for roughly half as much sway back and forth at the top of a high rise during a major quake.

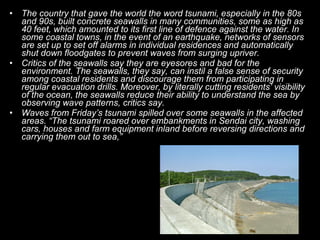

- 61. • The countrythat gave the world the word tsunami, especially in the 80s and 90s, built concrete seawalls in many communities, some as high as 40 feet, which amounted to its first line of defence against the water. In some coastal towns, in the event of an earthquake, networks of sensors are set up to set off alarms in individual residences and automatically shut down floodgates to prevent waves from surging upriver. • Critics of the seawalls say they are eyesores and bad for the environment. The seawalls, they say, can instil a false sense of security among coastal residents and discourage them from participating in regular evacuation drills. Moreover, by literally cutting residents’ visibility of the ocean, the seawalls reduce their ability to understand the sea by observing wave patterns, critics say. • Waves from Friday’s tsunami spilled over some seawalls in the affected areas. “The tsunami roared over embankments in Sendai city, washing cars, houses and farm equipment inland before reversing directions and carrying them out to sea,”

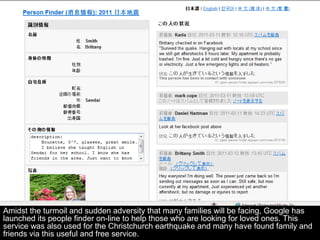

- 62. Amidst the turmoiland sudden adversity that many families will be facing, Google has launched its people finder on-line to help those who are looking for loved ones. This service was also used for the Christchurch earthquake and many have found family and friends via this useful and free service.

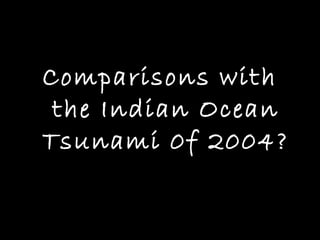

- 63. Comparisons with theIndian Ocean Tsunami 0f 2004?

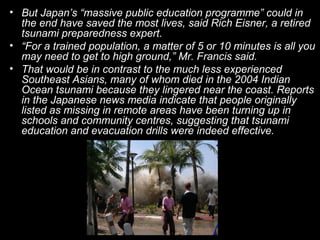

- 64. • But Japan’s“massive public education programme” could in the end have saved the most lives, said Rich Eisner, a retired tsunami preparedness expert. • “For a trained population, a matter of 5 or 10 minutes is all you may need to get to high ground,” Mr. Francis said. • That would be in contrast to the much less experienced Southeast Asians, many of whom died in the 2004 Indian Ocean tsunami because they lingered near the coast. Reports in the Japanese news media indicate that people originally listed as missing in remote areas have been turning up in schools and community centres, suggesting that tsunami education and evacuation drills were indeed effective.
- 65. Your task: • Producea newspaper front page/report about the Japanese earthquake/tsunami disaster of March 2011. • You should include information about What caused the disaster (include a diagram) What were the impacts – primary, secondary, short term, longer term, social, economic, environmental? What were the responses in terms of aid? How were many lives saved due to the actions of Japan before the disaster struck?

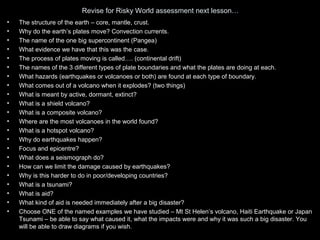

- 66. Revise for RiskyWorld assessment next lesson… • The structure of the earth – core, mantle, crust. • Why do the earth’s plates move? Convection currents. • The name of the one big supercontinent (Pangea) • What evidence we have that this was the case. • The process of plates moving is called…. (continental drift) • The names of the 3 different types of plate boundaries and what the plates are doing at each. • What hazards (earthquakes or volcanoes or both) are found at each type of boundary. • What comes out of a volcano when it explodes? (two things) • What is meant by active, dormant, extinct? • What is a shield volcano? • What is a composite volcano? • Where are the most volcanoes in the world found? • What is a hotspot volcano? • Why do earthquakes happen? • Focus and epicentre? • What does a seismograph do? • How can we limit the damage caused by earthquakes? • Why is this harder to do in poor/developing countries? • What is a tsunami? • What is aid? • What kind of aid is needed immediately after a big disaster? • Choose ONE of the named examples we have studied – Mt St Helen’s volcano, Haiti Earthquake or Japan Tsunami – be able to say what caused it, what the impacts were and why it was such a big disaster. You will be able to draw diagrams if you wish.
