This document provides an overview of the November 2000 issue of JALA (Journal of Analytical Laboratories Automation). It describes the development of a novel robotic system for the New York Cancer Project biorepository in collaboration with the Medical Automation Research Center. The biorepository receives 50-100 blood samples per day which are processed robotically to extract, quantify, aliquot and store DNA, plasma and RNA to be accessible to investigators. The robotic system aims to provide rapid random access to the hundreds of thousands of DNA samples stored for high-throughput analysis in studies of gene-environment interactions and cancer risk.

1. volume 5
number 5
November 2000
The Incredibly Shrinking
Laboratory Reactions,
Separations and Detections
page 40
Testing Data Management by
“the Zone Verification
Method on Results
Distribution”
page 46
Progress in Laboratory
Automation at
Akita University Hospital
page 51
Data Management and
Integration of Clinical
Laboratory Information:
Current Status and Future
Perspectives of Physiological
Function Examination
Systems in Japan
page 53
ASTM Protocols for
Analytical
Data Interchange
page 60
Tools for Analyzing
Microarray Expression Data
page 62
High-speed Flow Sensing as
a Diagnostic Tool in the
Development of Microfluidic
Systems
page 65
Automation in Microarray
Image Analysis with
AutoGene™
page 67
Generalized Dynamic Models
of Gene Expression and Gene
Classification
page 71
NanoArrays, The Next
Generation Molecular Array
Format for High Throughput
Proteomics, Diagnostics and
Drug Discovery
page 75
Index
page 82
I N S I D E
JALA
A n n u a l C o n f e r e n c e a n d E x h i b i t i o n
J a n u a r y 2 7 – 3 1 , 2 0 0 1
LabAutomation
2001Mini-Preview
page 32

2. 2 JALA • Vol 5, No. 5, November 2000

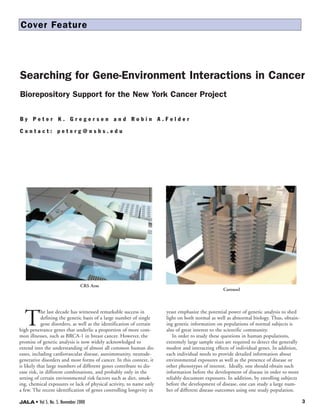

3. 3JALA • Vol 5, No. 5, November 2000
yeast emphasize the potential power of genetic analysis to shed
light on both normal as well as abnormal biology. Thus, obtain-
ing genetic information on populations of normal subjects is
also of great interest to the scientific community.
In order to study these questions in human populations,
extremely large sample sizes are required to detect the generally
modest and interacting effects of individual genes. In addition,
each individual needs to provide detailed information about
environmental exposures as well as the presence of disease or
other phenotypes of interest. Ideally, one should obtain such
information before the development of disease in order to more
reliably document exposures. In addition, by enrolling subjects
before the development of disease, one can study a large num-
ber of different disease outcomes using one study population.
T
he last decade has witnessed remarkable success in
defining the genetic basis of a large number of single
gene disorders, as well as the identification of certain
high penetrance genes that underlie a proportion of more com-
mon illnesses, such as BRCA-1 in breast cancer. However, the
promise of genetic analysis is now widely acknowledged to
extend into the understanding of almost all common human dis-
eases, including cardiovascular disease, autoimmunity, neurode-
generative disorders and most forms of cancer. In this context, it
is likely that large numbers of different genes contribute to dis-
ease risk, in different combinations, and probably only in the
setting of certain environmental risk factors such as diet, smok-
ing, chemical exposures or lack of physical activity, to name only
a few. The recent identification of genes controlling longevity in
Cover Feature
Searching for Gene-Environment Interactions in Cancer
Biorepository Support for the New York Cancer Project
B y P e t e r K . G r e g e r s e n a n d R o b i n A . F e l d e r
C o n t a c t : p e t e r g @ n s h s . e d u
CRS Arm
Carousel

4. 4 JALA • Vol 5, No. 5, November 2000
OmniGrid
TecanGenesis
Cover Feature Continued
This approach, known as a cohort study, comprises the study
design of the New York Cancer Project.
The New York Cancer Project was launched in November of
1998 with a $12 million pilot grant from the City of New York.
The goal of this project is to enroll up to 300,000 New Yorkers
in a long term cohort study of cancer risk, with an emphasis on
gene-gene and gene environment interactions. This ambitious
project was initiated by the Academic Medicine Development
Corporation (AMDeC), in collaboration with New York area
researchers and institutions. AMDeC is a unique non-profit
organization whose mission is to support biomedical research
in New York State through collaboration with 36 New York aca-
demic health centers, research institutions and medical schools.
AMDeC’s President, Dr. Maria Mitchell, has been instrumental
in fostering a number initiatives to increase the ability of these
institutions to pursue large collaborative projects, many of which
are focused on human genetics and functional genomics. The
New York Cancer Project itself is headed by Dr. Tom Rohan,
Chairman of the Department of Epidemiology at the Albert
Einstein College of Medicine.
In addition to the recruitment and characterization of study
subjects, a major challenge for large population studies is the
proper preparation and storage of biological materials, particu-
larly DNA and RNA, in a biorepository. Broadly, a biorepository
is a biological specimen bank which will store one or more types
of biological specimens under conditions which permit rapid
retrieval and optimum stability. Robotic systems are highly desir-
able in this context, in order to eliminate the errors associated
with human handling of vast numbers of visually identical sam-
ples, and to provide continuous monitoring of sample quality
and storage conditions.
The need for such biorepository facilities is clear when one
considers the increasing number of large scale projects that are
underway which require storage of DNA and other biological
materials (see boxed inset). The New York Cancer Project has
approached this problem by developing a novel robotic system in
collaboration with the Medical Automation Research Center
(MARC) at the University of Virginia. The overall design of this
system has been a product of over a year of planning by the
authors. Robin A Felder, Ph.D., is the Director of MARC, and
Peter K. Gregersen, M.D., serves as the Director of the NYCP
Biorepository. Other participants in the system development
include Robert Lundsten, Assistant Director of the NYCP
Biorepository, Sean Graves, Ph.D., Director of MARC’s robotics
division, and Theodore E. Mifflin, Ph.D., Director of MARC’s
molecular automation division.
The NYCP Biorepository facility is located at the North Shore
University Hospital in Manhasset, New York. This facility cur-
rently receives 50-100 blood specimens per day from NYCP
recruitment sites. After a streamlined process of manual sample
preparation, DNA, plasma and RNA derived from these samples
are handled robotically for specimen aliquoting and storage.
Extracted DNA, plasma and sources of RNA will be automati-
cally quantitated by the robotic system so that aliquots of similar
concentration and volume may be stored in individually retriev-
able aliquots for studies. For short to intermediate term storage,
ReGripper
MoleBank
Sealer

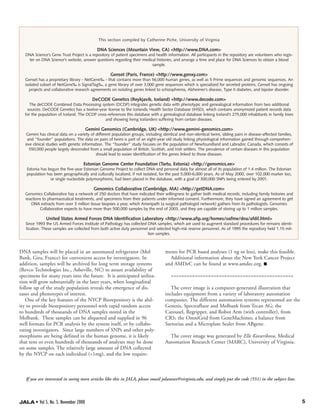

5. 5JALA • Vol 5, No. 5, November 2000
DNA samples will be placed in an automated refrigerator (Mol
Bank, Gira, France) for convenient access by investigators. In
addition, samples will be archived for long term storage systems
(Revco Technologies Inc., Asheville, NC) to assure availability of
specimens for many years into the future. It is anticipated utiliza-
tion will grow substantially in the later years, when longitudinal
follow up of the study population reveals the emergence of dis-
eases and phenotypes of interest.
One of the key features of the NYCP Biorepository is the abil-
ity to provide biorepository personnel with rapid random access
to hundreds of thousands of DNA samples stored in the
Molbank. These samples can be aliquoted and supplied in 96
well formats for PCR analysis by the system itself, or by collabo-
rating investigators. Since large numbers of SNPs and other poly-
morphisms are being defined in the human genome, it is likely
that tens or even hundreds of thousands of analyses may be done
on some samples. The relatively large amount of DNA collected
by the NYCP on each individual (>1mg), and the low require-
ments for PCR based analyses (1 ng or less), make this feasible.
Additional information about the New York Cancer Project
and AMDeC can be found at www.amdec.org. s
==============================================
The cover image is a computer-generated illustration that
includes equipment from a variety of laboratory automation
companies. The different automation systems represented are the
Genesis, Spectrafluor and Molbank from Tecan AG; the
Carousel, Regripper, and Robot Arm (with controller), from
CRS; the OmniGrid from GeneMachines; a balance from
Sartorius and a Microplate Sealer from ABgene.
The cover image was generated by Elle Kovarikova, Medical
Automation Research Center (MARC), University of Virginia.
If you are interested in seeing more articles like this in JALA, please email jalanews@virginia.edu, and simply put the code (551) in the subject line.
This section compiled by Catherine Piche, University of Virginia
DNA Sciences (Mountain View, CA) <http://www.DNA.com>
DNA Science’s Gene Trust Project is a repository of patient specimens and health information. All participants in the repository are volunteers who regis-
ter on DNA Science’s website, answer questions regarding their medical histories, and arrange a time and place for DNA Sciences to obtain a blood
sample.
Genset (Paris, France) <http://www.genxy.com>
Genset has a proprietary library - NetGene‰ - that contains more than 56,000 human genes, as well as 5 Prime sequences and genomic sequences. An
isolated subset of NetGene‰ is SignalTag‰, a gene library of over 3,000 gene sequences which is specialized for secreted proteins. Genset has ongoing
projects and collaborative research agreements on isolating genes linked to schizophrenia, Alzheimer’s disease, Type II diabetes, and bipolar disorder.
DeCODE Genetics (Reykjavik, Iceland) <http://www.decode.com>
The deCODE Combined Data Processing system (DCDP) integrates genetic data with phenotypic and genealogical information from two additional
sources. DeCODE Genetics has a twelve-year license to the Icelandic Health Sector Database (IHSD), which contains anonymized patient records data
for the population of Iceland. The DCDP cross-references this database with a genealogical database linking Iceland’s 275,000 inhabitants in family trees
and showing living Icelanders suffering from certain diseases.
Gemini Genomics (Cambridge, UK) <http://www.gemini-genomics.com>
Gemini has clinical data on a variety of different population groups, including identical and non-identical twins, sibling pairs in disease-affected families,
and “founder” populations. The data on pairs of twins is part of an eight-year old study linking physiological information gained through comprehen-
sive clinical studies with genetic information. The “founder” study focuses on the population of Newfoundland and Labrador, Canada, which consists of
550,000 people largely descended from a small population of British, Scottish, and Irish settlers. The prevalence of certain diseases in this population
should lead to easier identification of the genes linked to those diseases.
Estonian Genome Center Foundation (Tartu, Estonia) <http://genomics.ee>
Estonia has begun the five-year Estonian Genome Project to collect DNA and personal data for almost all of its population of 1.4 million. The Estonian
population has been geographically and culturally localized, if not isolated, for the past 5,000-6,000 years. As of May 2000, over 102,000 marker loci,
or single nucleotide polymorphisms, had been placed in the database, with a goal of 300,000 SNPs being entered by 2001.
Genomics Collaborative (Cambridge, MA) <http://getDNA.com>
Genomics Collaborative has a network of 250 doctors that have indicated their willingness to gather both medical records, including family histories and
reactions to pharmaceutical treatments, and specimens from their patients under informed consent. Furthermore, they have signed an agreement to get
DNA extracts from over 3 million tissue biopsies a year, which Ameripath (a surgical pathologist network) gathers from its pathologists. Genomics
Collaborative expects to have more than 500,000 samples by the end of 2003, and they are capable of storing up to 1 million samples.
United States Armed Forces DNA Identification Laboratory <http://www.afip.org/homes/oafme/dna/afdil.html>
Since 1993 the US Armed Forces Institute of Pathology has collected DNA samples, which are used to augment standard procedures for remains identi-
fication. These samples are collected from both active duty personnel and selected high-risk reserve personnel. As of 1995 the repository held 1.15 mil-
lion samples.
