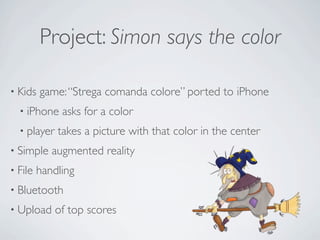

2. Project: Simon says the color
• Kids game: “Strega comanda colore” ported to iPhone
• iPhone asks for a color
• player takes a picture with that color in the center
• Simple augmented reality
• File handling
• Bluetooth
• Upload of top scores

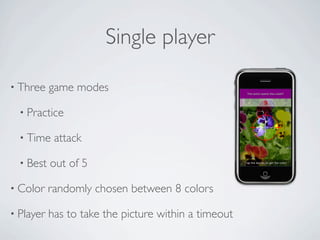

3. Single player
• Three game modes
• Practice
• Time attack
• Best out of 5
• Color randomly chosen between 8 colors
• Player has to take the picture within a timeout

4. Multiplayer
•A player is the Witch
• He/she choose the color
• He/she sets the difficulty (timeout)
• Up to six players
• Communication over bluetooth
• Client-Server architecture

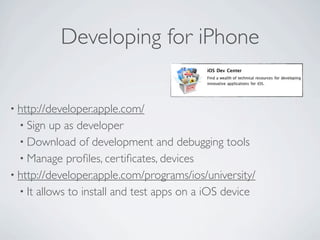

5. Developing for iPhone
• http://developer.apple.com/
• Sign up as developer
• Download of development and debugging tools
• Manage profiles, certificates, devices
• http://developer.apple.com/programs/ios/university/
• It allows to install and test apps on a iOS device

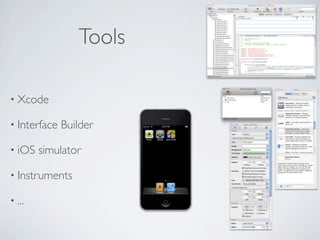

6. Tools
• Xcode
• Interface Builder
• iOS simulator
• Instruments
• ...

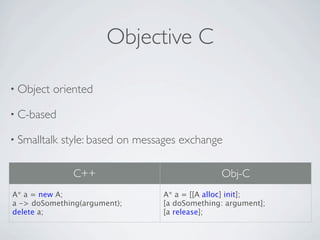

7. Objective C
• Object oriented
• C-based
• Smalltalk style: based on messages exchange
C++ Obj-C
A* a = new A; A* a = [[A alloc] init];
a -> doSomething(argument); [a doSomething: argument];
delete a; [a release];

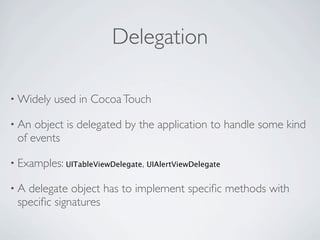

8. Delegation
• Widely used in Cocoa Touch
• An object is delegated by the application to handle some kind
of events
• Examples: UITableViewDelegate, UIAlertViewDelegate
•A delegate object has to implement specific methods with
specific signatures

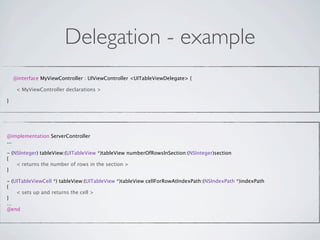

9. Delegation - example
@interface MyViewController : UIViewController <UITableViewDelegate> {
< MyViewController declarations >
}
@implementation ServerController
...
- (NSInteger) tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section
{
< returns the number of rows in the section >
}
- (UITableViewCell *) tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath
{
< sets up and returns the cell >
}
...
@end

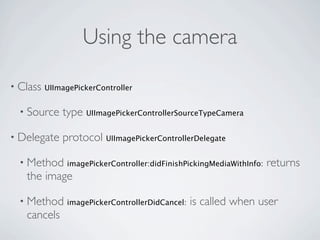

10. Using the camera
• Class UIImagePickerController
• Source type UIImagePickerControllerSourceTypeCamera
• Delegate protocol UIImagePickerControllerDelegate
• Method imagePickerController:didFinishPickingMediaWithInfo: returns
the image
• Method imagePickerControllerDidCancel: is called when user
cancels

11. Augmented reality
• Create an UIView object or a UIView subclass object
• Assign that object to cameraOverlayView property of the
UIImagePickerController

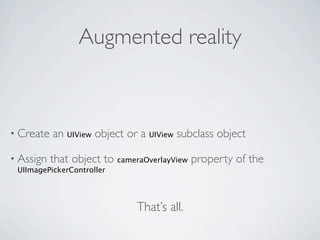

12. Augmented reality
• Create an UIView object or a UIView subclass object
• Assign that object to cameraOverlayView property of the
UIImagePickerController
That’s all.

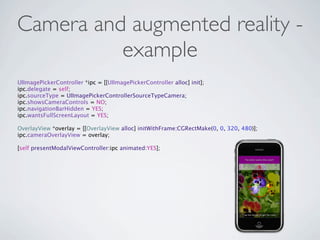

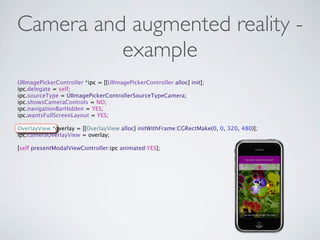

13. Camera and augmented reality -
example
UIImagePickerController *ipc = [[UIImagePickerController alloc] init];
ipc.delegate = self;
ipc.sourceType = UIImagePickerControllerSourceTypeCamera;
ipc.showsCameraControls = NO;
ipc.navigationBarHidden = YES;
ipc.wantsFullScreenLayout = YES;
OverlayView *overlay = [[OverlayView alloc] initWithFrame:CGRectMake(0, 0, 320, 480)];
ipc.cameraOverlayView = overlay;
[self presentModalViewController:ipc animated:YES];

14. Camera and augmented reality -
example
UIImagePickerController *ipc = [[UIImagePickerController alloc] init];
ipc.delegate = self;
ipc.sourceType = UIImagePickerControllerSourceTypeCamera;
ipc.showsCameraControls = NO;
ipc.navigationBarHidden = YES;
ipc.wantsFullScreenLayout = YES;
OverlayView *overlay = [[OverlayView alloc] initWithFrame:CGRectMake(0, 0, 320, 480)];
ipc.cameraOverlayView = overlay;
[self presentModalViewController:ipc animated:YES];

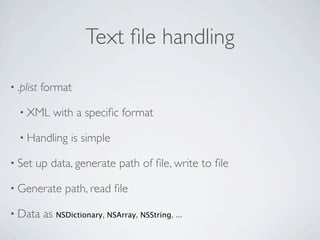

15. Text file handling
• .plist format
• XML with a specific format
• Handling is simple
• Set up data, generate path of file, write to file
• Generate path, read file
• Data as NSDictionary, NSArray, NSString, ...

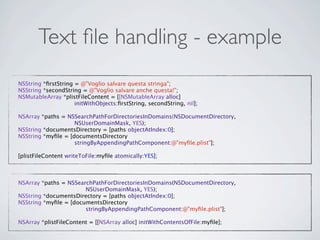

16. Text file handling - example
NSString *firstString = @"Voglio salvare questa stringa";
NSString *secondString = @"Voglio salvare anche questa!";
NSMutableArray *plistFileContent = [[NSMutableArray alloc]
initWithObjects:firstString, secondString, nil];
NSArray *paths = NSSearchPathForDirectoriesInDomains(NSDocumentDirectory,
NSUserDomainMask, YES);
NSString *documentsDirectory = [paths objectAtIndex:0];
NSString *myfile = [documentsDirectory
stringByAppendingPathComponent:@"myfile.plist"];
[plistFileContent writeToFile:myfile atomically:YES];
NSArray *paths = NSSearchPathForDirectoriesInDomains(NSDocumentDirectory,
NSUserDomainMask, YES);
NSString *documentsDirectory = [paths objectAtIndex:0];
NSString *myfile = [documentsDirectory
stringByAppendingPathComponent:@"myfile.plist"];
NSArray *plistFileContent = [[NSArray alloc] initWithContentsOfFile:myfile];

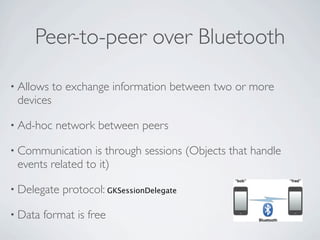

17. Peer-to-peer over Bluetooth
• Allows to exchange information between two or more
devices
• Ad-hoc network between peers
• Communication is through sessions (Objects that handle
events related to it)
• Delegate protocol: GKSessionDelegate
• Data format is free

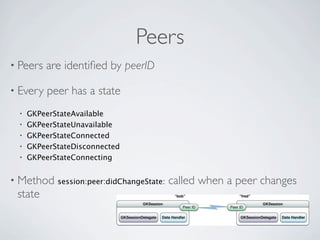

18. Peers
• Peers are identified by peerID
• Every peer has a state
• GKPeerStateAvailable
• GKPeerStateUnavailable
• GKPeerStateConnected
• GKPeerStateDisconnected
• GKPeerStateConnecting
• Method session:peer:didChangeState: called when a peer changes
state

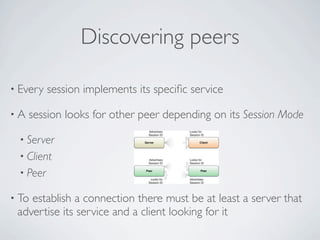

19. Discovering peers
• Every session implements its specific service
•A session looks for other peer depending on its Session Mode
• Server
• Client
• Peer
• Toestablish a connection there must be at least a server that
advertise its service and a client looking for it

20. Implementing a Server
• Initialize the session: initWithSessionID:displayName:sessionMode:
• Session mode GKSessionModeServer or GKSessionModePeer
• Set property available = YES to advertise the service
• The service has its own Id
• Method session:didReceiveConnectionRequestFromPeer: notifies a
connection request
• Server decides whether to accept the request or not
• When the session is created session:peer:didChangeState: method is
called

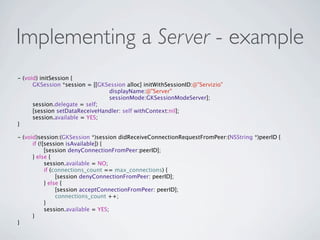

21. Implementing a Server - example
- (void) initSession {
GKSession *session = [[GKSession alloc] initWithSessionID:@"Servizio"
displayName:@"Server"
sessionMode:GKSessionModeServer];
session.delegate = self;
[session setDataReceiveHandler: self withContext:nil];
session.available = YES;
}
- (void)session:(GKSession *)session didReceiveConnectionRequestFromPeer:(NSString *)peerID {
if (![session isAvailable]) {
[session denyConnectionFromPeer:peerID];
} else {
session.available = NO;
if (connections_count == max_connections) {
[session denyConnectionFromPeer: peerID];
} else {
[session acceptConnectionFromPeer: peerID];
connections_count ++;
}
session.available = YES;
}
}

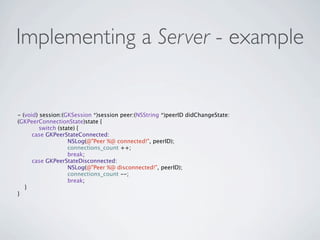

22. Implementing a Server - example
- (void) session:(GKSession *)session peer:(NSString *)peerID didChangeState:
(GKPeerConnectionState)state {
switch (state) {
case GKPeerStateConnected:
NSLog(@"Peer %@ connected!", peerID);
connections_count ++;
break;
case GKPeerStateDisconnected:
NSLog(@"Peer %@ disconnected!", peerID);
connections_count --;
break;
}
}

23. Connecting to a service
• Initialize the session: initWithSessionID:displayName:sessionMode:
• Session mode GKSessionModeClient or GKSessionModePeer
• Set property available = YES to look for the service
• Only service with the same sessionID are found
• Method session:peer:didChangeState: called when a server has been
found
• Method connectToPeer:withTimeout: to request connection
• Method session:peer:didChangeState: called when the session has
been created

24. Connecting to a service -
example
- (GKSession *) initSession {
GKSession *session = [[GKSession alloc] initWithSessionID:@"Servizio"
displayName:@"Client"
sessionMode:GKSessionModeClient];
session.delegate = self;
[session setDataReceiveHandler: self withContext:nil];
session.available = YES;
return session;
}
- (void) session:(GKSession *)session peer:(NSString *)peerID didChangeState:
(GKPeerConnectionState)state {
switch (state) {
case GKPeerStateAvailable:
NSLog(@"Trovato servizio!");
[session connectToPeer:peerID withTimeout:5.0];
break;
case GKPeerStateConnected:
NSLog(@"Connessione avvenuta!");
session.available = NO;
break;
case GKPeerStateDisconnected:
NSLog(@"Disconnesso");
break;
}

25. Exchanging data
• Connected peers can exchange data
• Method sendDataToAllPeers:WithDataMode:error: sends to all peers
• Method sendData:toPeers:WithDataMode:error: sends to some peers
• Dataformat is not fixed, but they have to be encapsulated in
an NSData object

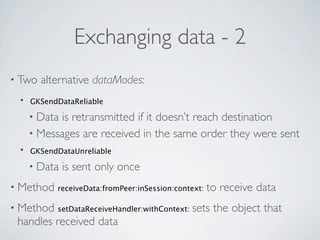

26. Exchanging data - 2
• Two alternative dataModes:
• GKSendDataReliable
• Datais retransmitted if it doesn’t reach destination
• Messages are received in the same order they were sent
• GKSendDataUnreliable
• Data is sent only once
• Method receiveData:fromPeer:inSession:context: to receive data
• Method setDataReceiveHandler:withContext: sets the object that
handles received data

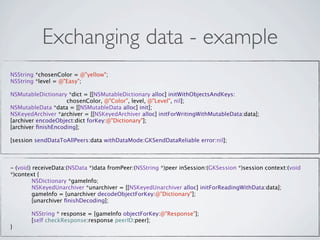

27. Exchanging data - example
NSString *chosenColor = @"yellow";
NSString *level = @"Easy";
NSMutableDictionary *dict = [[NSMutableDictionary alloc] initWithObjectsAndKeys:
chosenColor, @"Color", level, @"Level", nil];
NSMutableData *data = [[NSMutableData alloc] init];
NSKeyedArchiver *archiver = [[NSKeyedArchiver alloc] initForWritingWithMutableData:data];
[archiver encodeObject:dict forKey:@"Dictionary"];
[archiver finishEncoding];
[session sendDataToAllPeers:data withDataMode:GKSendDataReliable error:nil];
- (void) receiveData:(NSData *)data fromPeer:(NSString *)peer inSession:(GKSession *)session context:(void
*)context {
NSDictionary *gameInfo;
NSKeyedUnarchiver *unarchiver = [[NSKeyedUnarchiver alloc] initForReadingWithData:data];
gameInfo = [unarchiver decodeObjectForKey:@"Dictionary"];
[unarchiver finishDecoding];
NSString * response = [gameInfo objectForKey:@"Response"];
[self checkResponse:response peerID:peer];
}

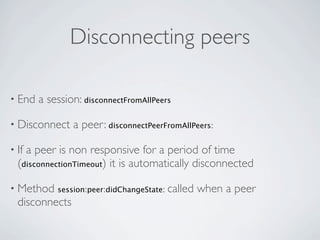

28. Disconnecting peers
• End a session: disconnectFromAllPeers
• Disconnect a peer: disconnectPeerFromAllPeers:
• Ifa peer is non responsive for a period of time
(disconnectionTimeout) it is automatically disconnected
• Method session:peer:didChangeState: called when a peer
disconnects

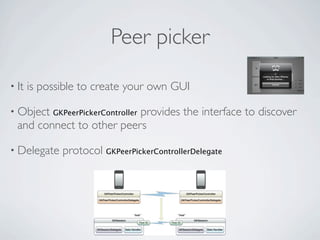

29. Peer picker
• It is possible to create your own GUI
• Object provides the interface to discover
GKPeerPickerController
and connect to other peers
• Delegate protocol GKPeerPickerControllerDelegate

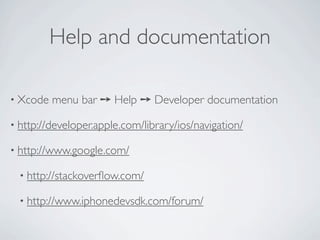

30. Help and documentation
• Xcode menu bar ➙ Help ➙ Developer documentation
• http://developer.apple.com/library/ios/navigation/
• http://www.google.com/
• http://stackoverflow.com/
• http://www.iphonedevsdk.com/forum/

31. References
• “Simon says the color”, S. Daminato, A. Giavatto, Progetto di
Reti Wireless 2009/2010
• http://developer.apple.com/library/ios/navigation/
• “Game Kit Programming Guide”, Apple Inc.
