1. iOS Development
Lecture 2 - The practical stuff
Petr Dvořák
Partner & iOS Development Lead
@joshis_tweets

2. Outline

3. Outline
• Network Aware Applications
• Connecting to the server
• Processing data from the server
• Working with UIWebView

4. Outline
• Using system dialogs
• Picking a contact
• Taking a photo
• Composing an e-mail or SMS
• Social networks

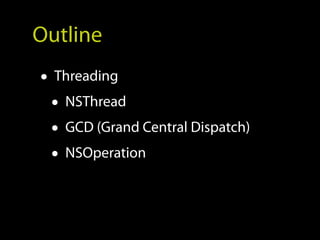

5. Outline
• Threading
• NSThread
• GCD (Grand Central Dispatch)
• NSOperation

6. Network Aware Apps

7. Networking
• Three classes to make it work
• [NSURL URLWithString:@”http://google.com”];
• [NSURLRequest requestWithUrl:url];
• [NSURLConnection connectionWithRequest:request
delegate:self]

8. Connection callbacks
// NSURLConnectionDataDelegate formal protocol since iOS 5
// HTTP response
- (void) connection:(NSURLConnection *)connection
didReceiveResponse:(NSURLResponse *)response;
// Data chunk received
- (void) connection:(NSURLConnection *)connection
didReceiveData:(NSData *)data;
// All done
- (void) connectionDidFinishLoading:(NSURLConnection *)conn;
// Problem with connection
- (void) connection:(NSURLConnection *)connection
didFailWithError:(NSError *)error;

9. Processing JSON
• JSON-Framework
• New BSD Licence
• JSON parser and generator
• http://stig.github.com/json-
framework/

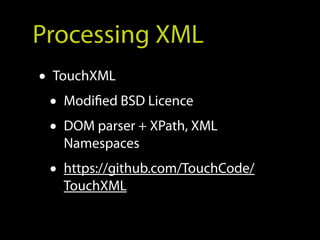

10. Processing XML
• TouchXML
• Modified BSD Licence
• DOM parser + XPath, XML
Namespaces
• https://github.com/TouchCode/
TouchXML

11. System dialogs

12. System dialogs
• Allow performing usual tasks in
a consistent manner
• Complete process handling
• Delegate based

13. MFMailComposeViewController
• System dialog for composing an
e-mail message
• May be pre-filled with e-mail data
• Support for attachments
• + (BOOL) canSendMail;

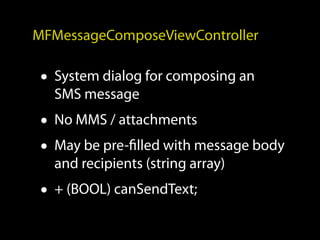

14. MFMessageComposeViewController
• System dialog for composing an
SMS message
• No MMS / attachments
• May be pre-filled with message body
and recipients (string array)
• + (BOOL) canSendText;

15. UIImagePickerController
• System dialog for picking a photo
• Uses “sourceType” flag to determine
source
• camera, library, saved photos
• Check for camera before touching it
• Delegate based

16. Address Book
• Creating and searching contacts
• Allows manual access via C API
• ABAddressBookCreate
• ABAddressBookCopyArrayOfAllPeople
• ABAddressBookSave
• Contains predefined dialogs

17. ABPeoplePickerNavigationController
• System dialog for picking a contact
• Allows picking a contact or a contact
property

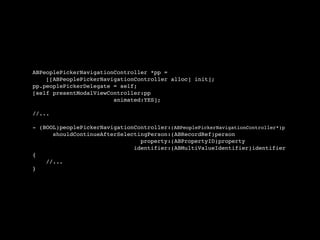

18. ABPeoplePickerNavigationController *pp =
[[ABPeoplePickerNavigationController alloc] init];
pp.peoplePickerDelegate = self;
[self presentModalViewController:pp
animated:YES];
//...
- (BOOL)peoplePickerNavigationController:(ABPeoplePickerNavigationController*)p
shouldContinueAfterSelectingPerson:(ABRecordRef)person
property:(ABPropertyID)property
identifier:(ABMultiValueIdentifier)identifier
{
//...
}

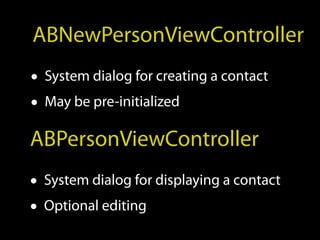

19. ABNewPersonViewController
• System dialog for creating a contact
• May be pre-initialized
ABPersonViewController
• System dialog for displaying a contact
• Optional editing

20. Twitter API
• Native Twitter&Facebook
support since iOS 6
• SocialFramework
• No need to reimplement
authentication =>
• Reasonably secure

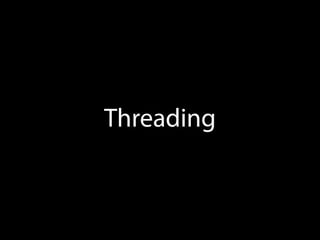

21. Threading

22. Why threads?
• Slow operations must not block UI
• Network operations
• Computations
• Filesystem operations

23. NSThread
• Low level thread abstraction
• Requires you to do all the
synchronization manually

24. - (void) detachAsyncOperation {
[NSThread detachNewThreadSelector:@selector(operation:)
toTarget:self
withObject:contextData];
}
- (void) operation:(id)contextData {
@autorelease {
// slow code here
// ...
[self performSelectorOnMainThread:@selector(updateUI:)
withObject:contextData
waitUntilDone:NO];
}
}

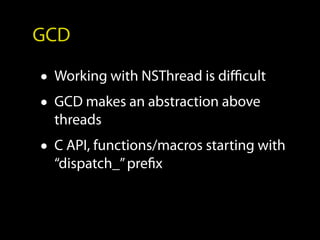

25. GCD
• Working with NSThread is difficult
• GCD makes an abstraction above
threads
• C API, functions/macros starting with
“dispatch_” prefix

26. Dispatch Queue
• Queue of blocks to be performed
• FIFO, synchronized
• Reference-counted
• dispatch_queue_create ➞ dispatch_release
• One queue per use-case

27. dispatch_queue_t main_queue = dispatch_get_main_queue()
dispatch_queue_t network_queue = dispatch_get_global_queue(priority, 0);
// dispatch_queue_t network_queue2 =
// dispatch_queue_create("eu.inmite.net", NULL);
dispatch_async(network_queue, ^ {
// some slow code
dispatch_async(main_queue, ^{
// update UI
});
// dispatch_release(network_queue2);
});

28. Dispatch Semaphore
• dispatch_semaphore_create
• dispatch_semaphore_wait
• dispatch_semaphore_signal

29. Dispatch After
int64_t delayInSeconds = 2.0;
dispatch_time_t popTime = dispatch_time(
DISPATCH_TIME_NOW,
delayInSeconds * NSEC_PER_SEC
);
dispatch_after(popTime, dispatch_get_main_queue(), ^{
// executed on the main queue after delay
});

30. Singleton Pattern
// within class Foo
+ (Foo*) getDefault {
static dispatch_once_t pred;
static Foo *inst;
dispatch_once(&pred, ^ {
inst = [[Foo alloc] init];
});
return inst;
}

31. NSOperation
• Abstraction above “operation”
• Meant to be subclassed
• main - code to be executed
• start - start the operation
• cancel - set the cancel flag
• Operation priority
• Dependencies
• [op1 addDependency:op2];

32. NSInvocationOperation
• NSOperation subclass
• Operation based on target & selector
[[NSInvocationOperation alloc] initWithTarget:target
selector:selector
object:context];

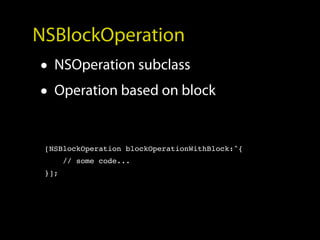

33. NSBlockOperation
• NSOperation subclass
• Operation based on block
[NSBlockOperation blockOperationWithBlock:^{
// some code...
}];

34. NSOperationQueue
• NSOperations are not meant to be
run directly
• NSOperationQueue runs the
operations correctly
• Configurable number of concurrent
operations

35. NSOperationQueue
NSOperationQueue *queue = [NSOperationQueue mainQueue];
// queue = [NSOperationQueue currentQueue];
// queue = [[NSOperationQueue alloc] init];
[queue addOperation:anOperation];

36. Threading summary
• UI must run on main thread
• Slow task must run on the separate
thread
• Practically, the most convenient way
is using GCD & blocks

37. Thank you
http://www.inmite.eu/talks
Petr Dvořák
Partner & iOS Development Lead
@joshis_tweets
