Ip header
•
1 like•2,077 views

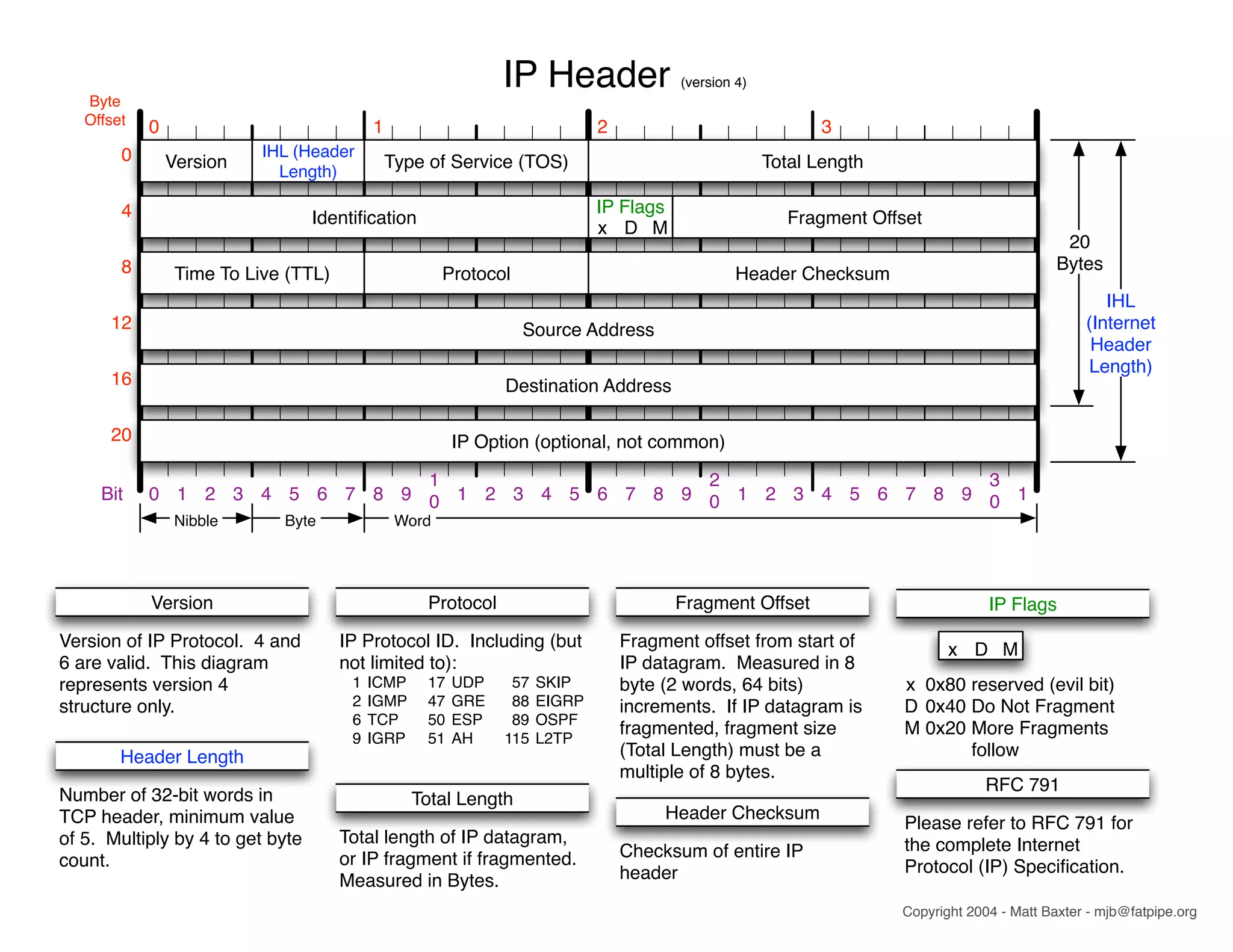

This document summarizes the key fields in an IP version 4 packet header: 1) It contains fields for the version number, header length, type of service, total length, identification, flags, fragment offset, time to live, protocol, header checksum, source address, and destination address. 2) The version field indicates the IP protocol version (4 or 6). The header length field specifies the length of the IP header in 32-bit words. The total length field specifies the length of the entire IP packet or fragment. 3) The flags field contains bits for "Do not fragment", "More fragments", and reserved fields. This provides information about fragmentation of large packets.
