KALINGA INSTITUTE OF INDUSTRIAL
TECHNOLOGY
Cloud Computing
3 Credit School of Computer Engineering
Virtualization
Unit-III
2

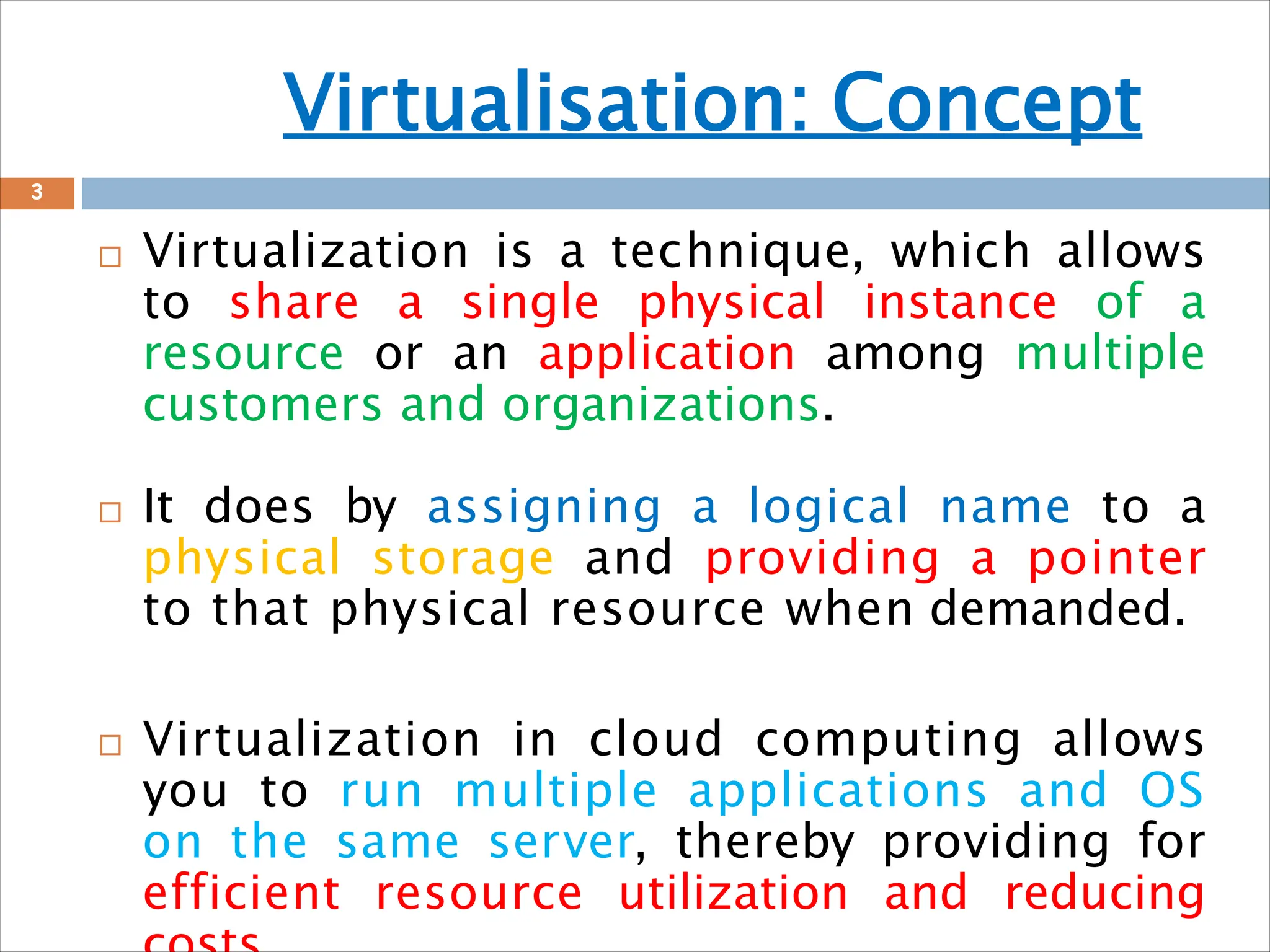

Virtualisation: Concept
3
 Virtualization is a technique, which allows
to share a single physical instance of a
resource or an application among multiple
customers and organizations.
 It does by assigning a logical name to a
physical storage and providing a pointer
to that physical resource when demanded.
 Virtualization in cloud computing allows
you to run multiple applications and OS
on the same server, thereby providing for
efficient resource utilization and reducing

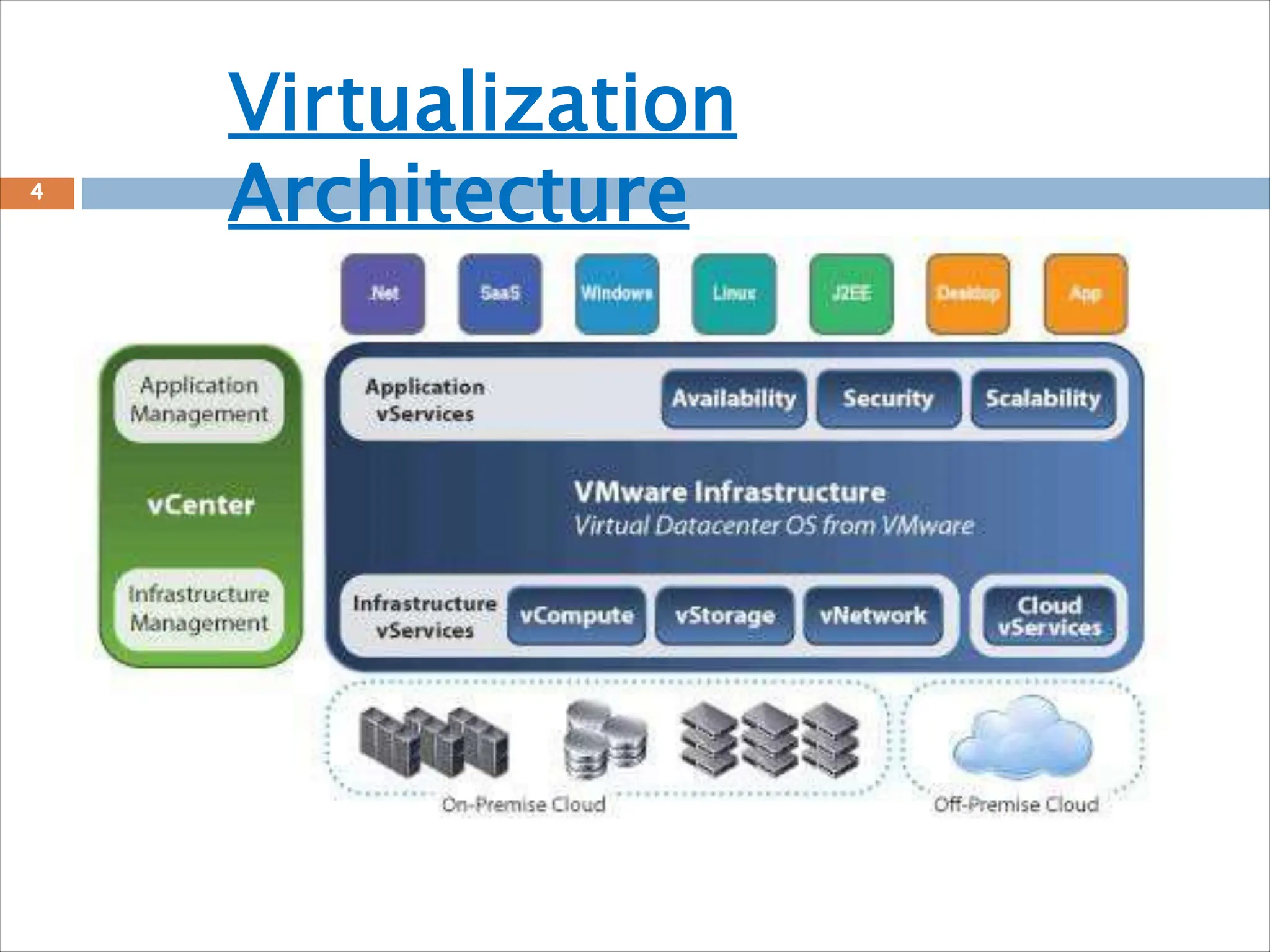

Virtualization
Architecture
4

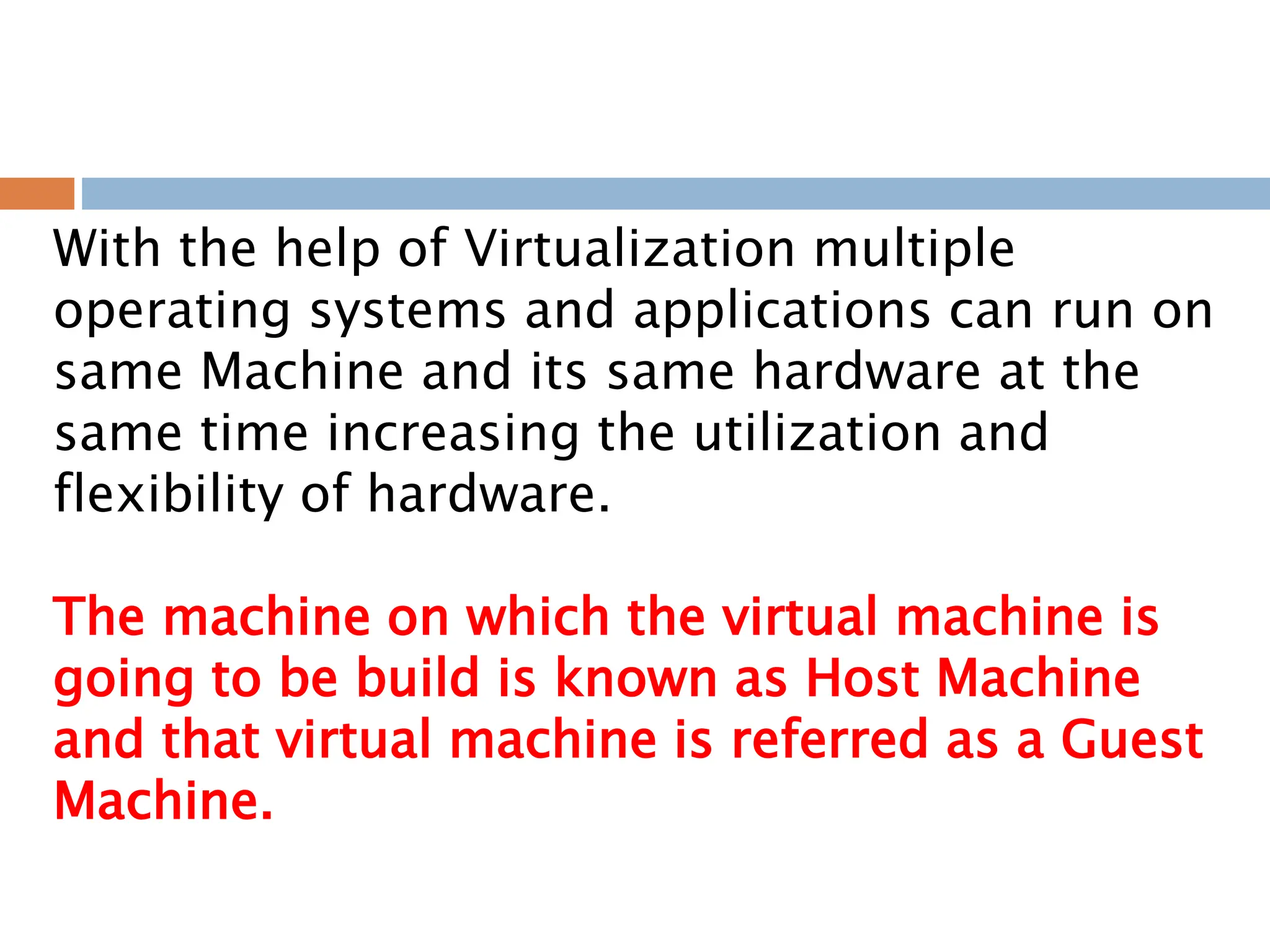

With the help of Virtualization multiple
operating systems and applications can run on
same Machine and its same hardware at the
same time increasing the utilization and
flexibility of hardware.
The machine on which the virtual machine is
going to be build is known as Host Machine
and that virtual machine is referred as a Guest
Machine.

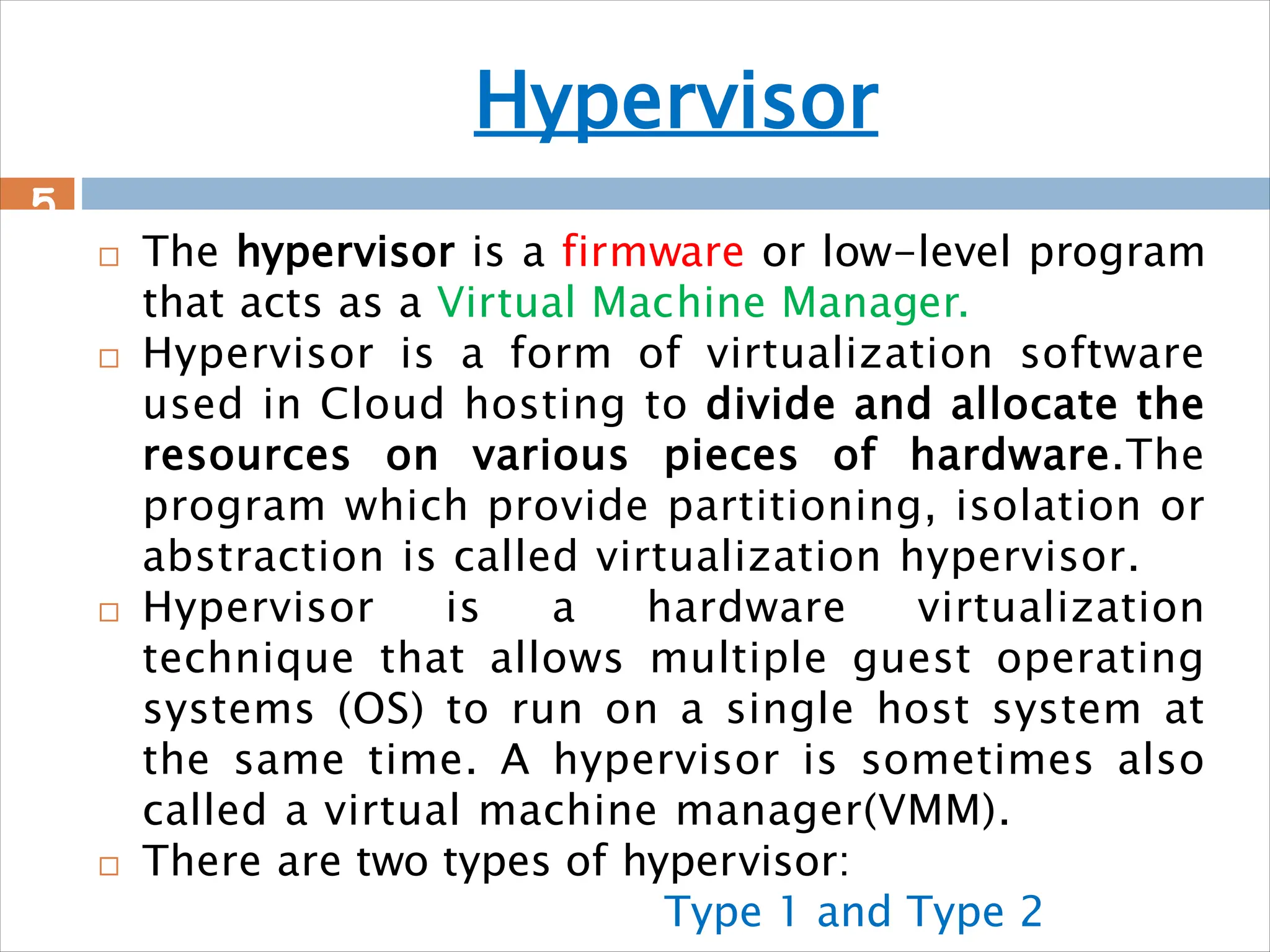

Hypervisor
5
 The hypervisor is a firmware or low-level program
that acts as a Virtual Machine Manager.
 Hypervisor is a form of virtualization software
used in Cloud hosting to divide and allocate the
resources on various pieces of hardware.The
program which provide partitioning, isolation or
abstraction is called virtualization hypervisor.
 Hypervisor is a hardware virtualization
technique that allows multiple guest operating
systems (OS) to run on a single host system at
the same time. A hypervisor is sometimes also
called a virtual machine manager(VMM).
 There are two types of hypervisor:
Type 1 and Type 2

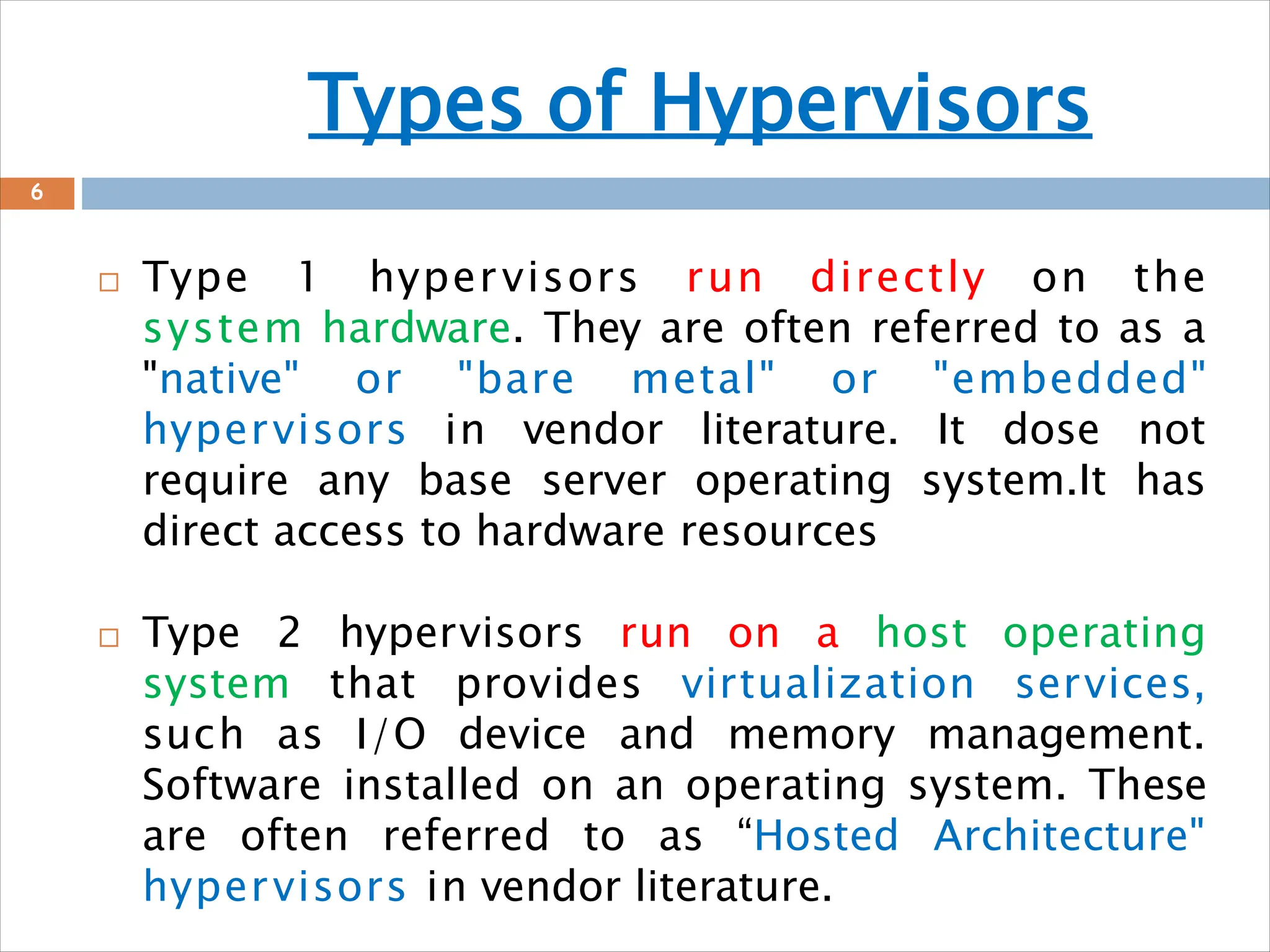

Types of Hypervisors
6
 Type 1 hypervisors run directly on the
system hardware. They are often referred to as a
"native" or "bare metal" or "embedded"
hypervisors in vendor literature. It dose not
require any base server operating system.It has
direct access to hardware resources
 Type 2 hypervisors run on a host operating
system that provides virtualization services,
such as I/O device and memory management.
Software installed on an operating system. These
are often referred to as “Hosted Architecture"
hypervisors in vendor literature.

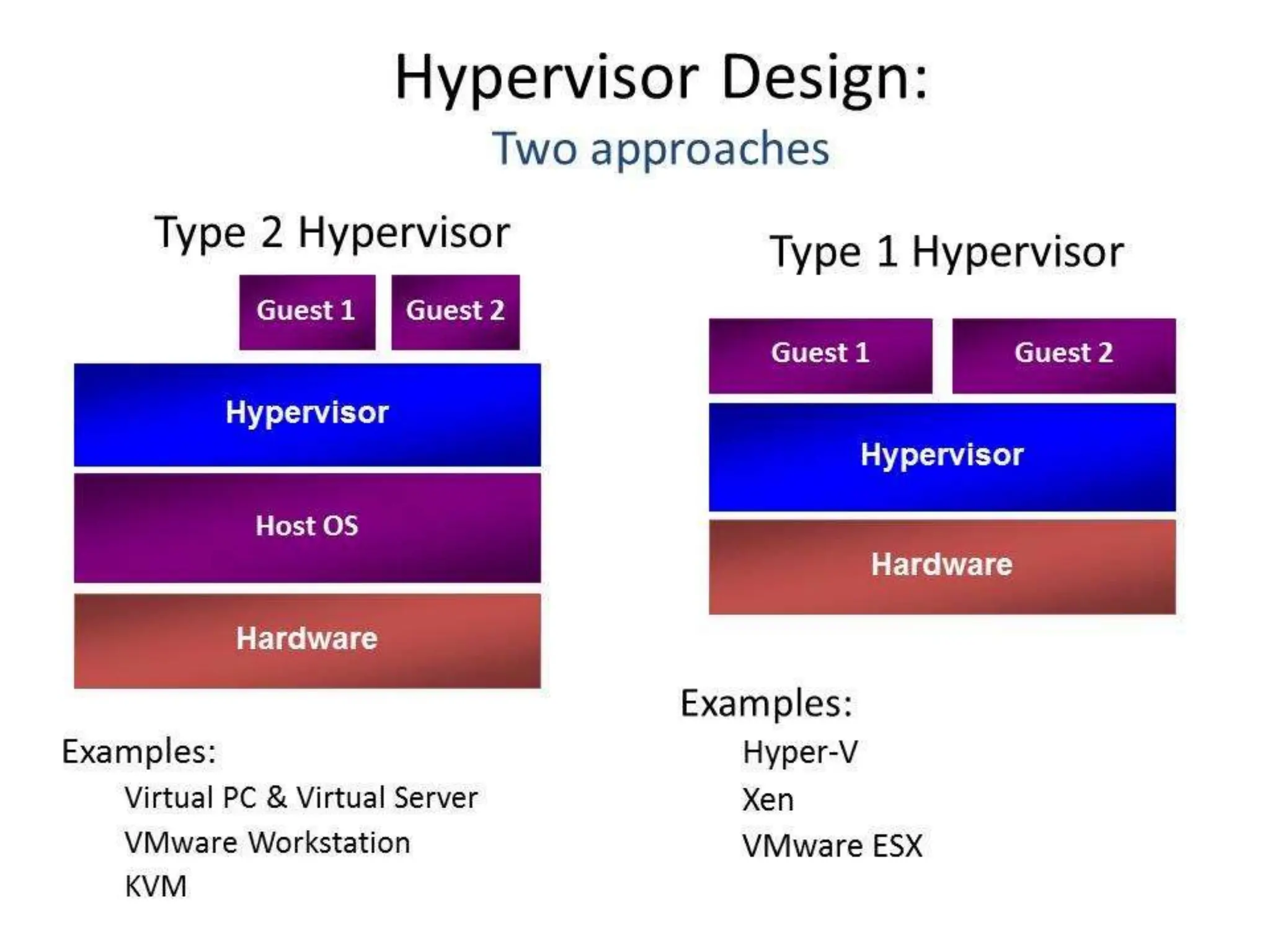

Type-1 Hypervisor
7

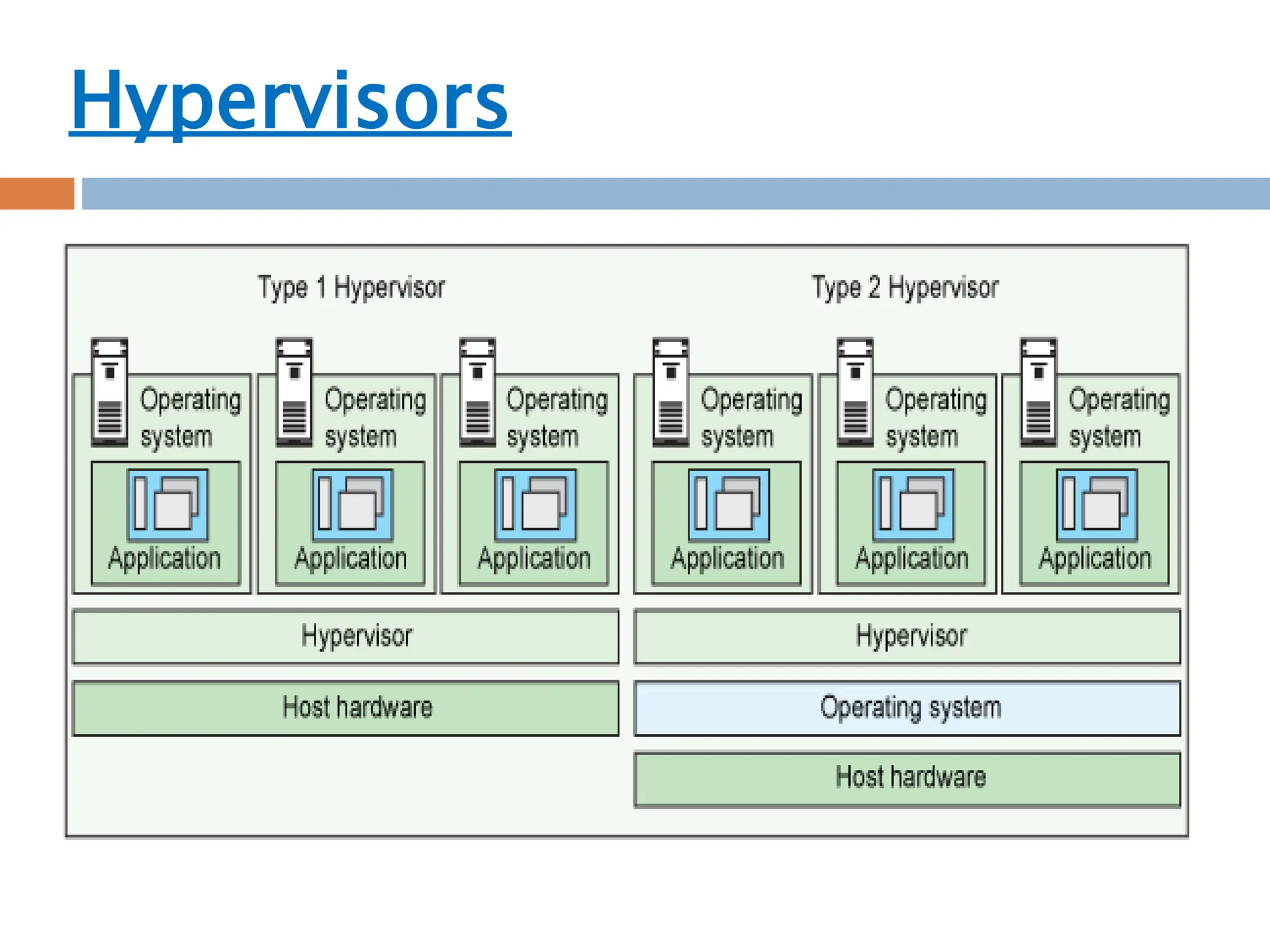

Hypervisors
Type 1 and Type 2

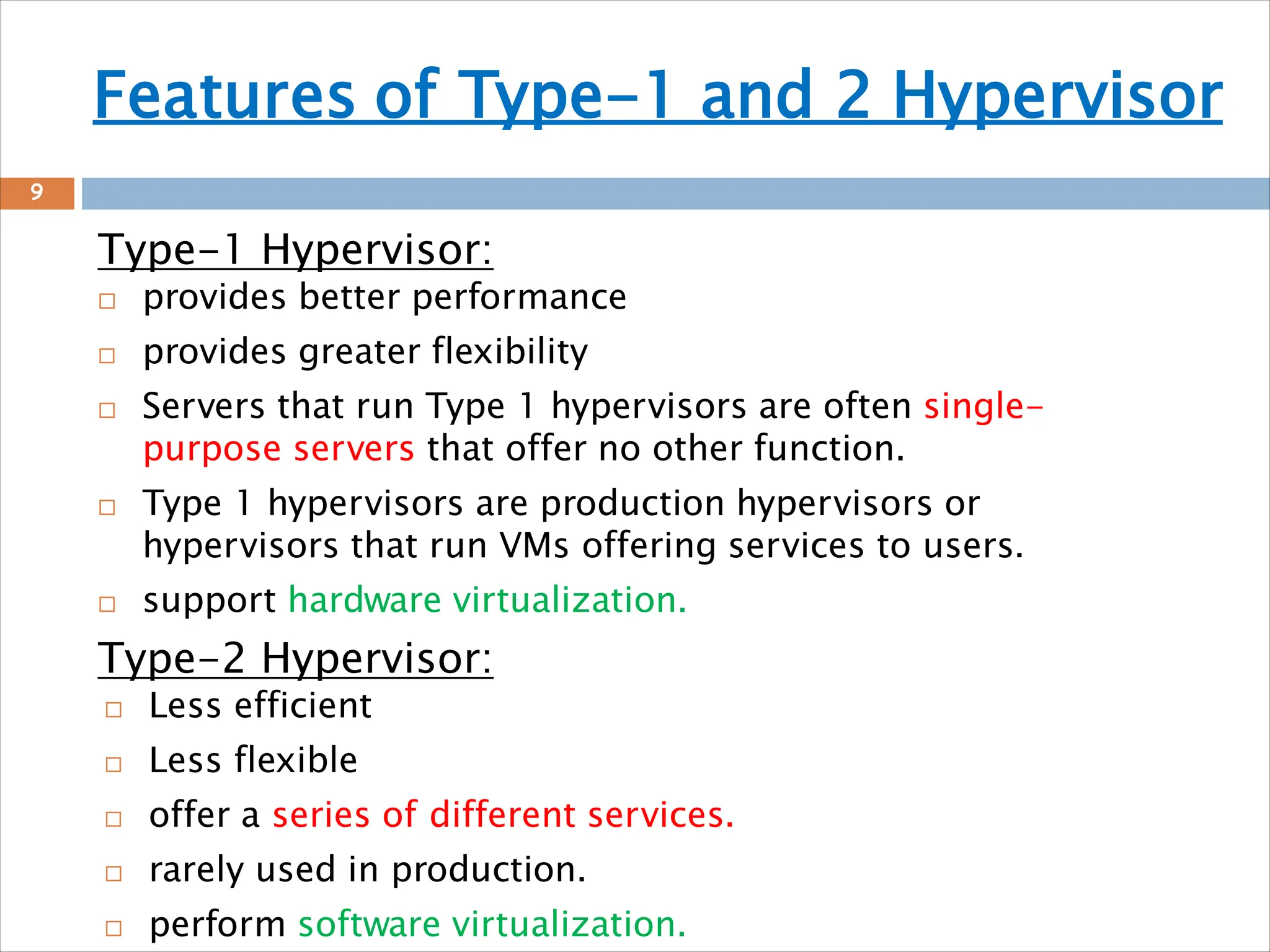

Features of Type-1 and 2 Hypervisor
9
Type-1 Hypervisor:
 provides better performance
 provides greater flexibility
 Servers that run Type 1 hypervisors are often single-
purpose servers that offer no other function.
 Type 1 hypervisors are production hypervisors or
hypervisors that run VMs offering services to users.
 support hardware virtualization.
Type-2 Hypervisor:
 Less efficient
 Less flexible
 offer a series of different services.
 rarely used in production.
 perform software virtualization.

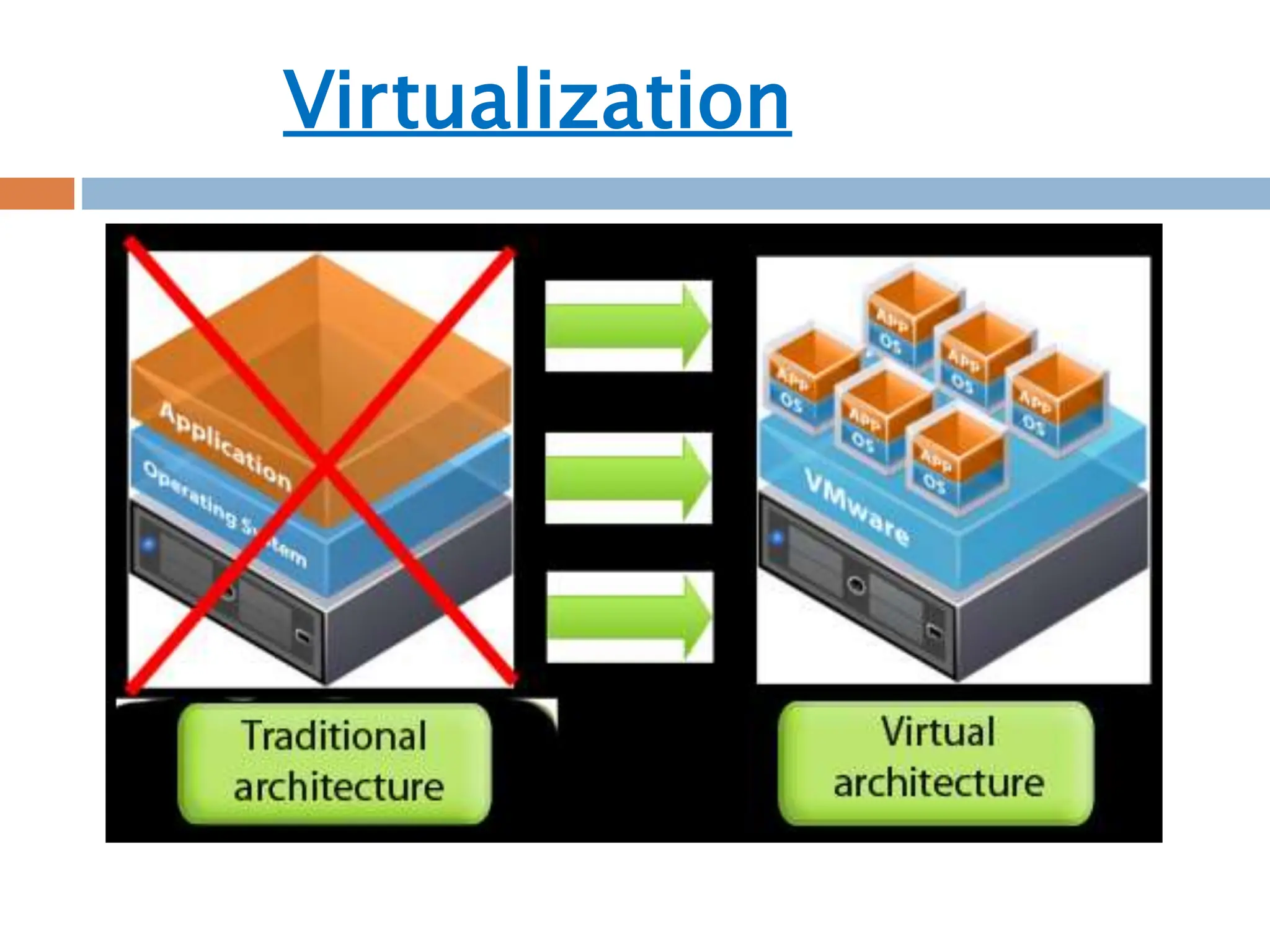

Virtualization

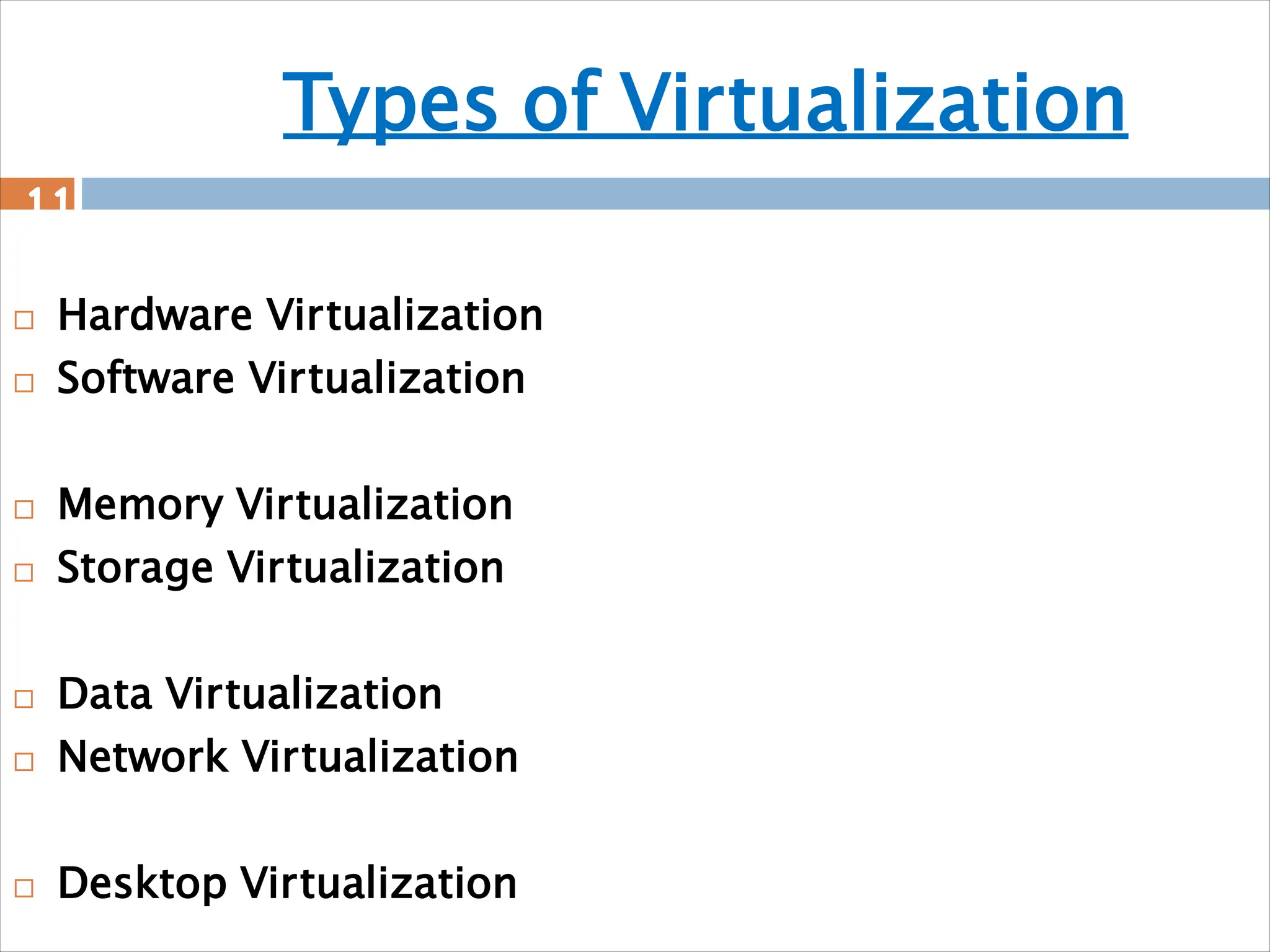

Types of Virtualization
11
 Hardware Virtualization
 Software Virtualization
 Memory Virtualization
 Storage Virtualization
 Data Virtualization
 Network Virtualization
 Desktop Virtualization

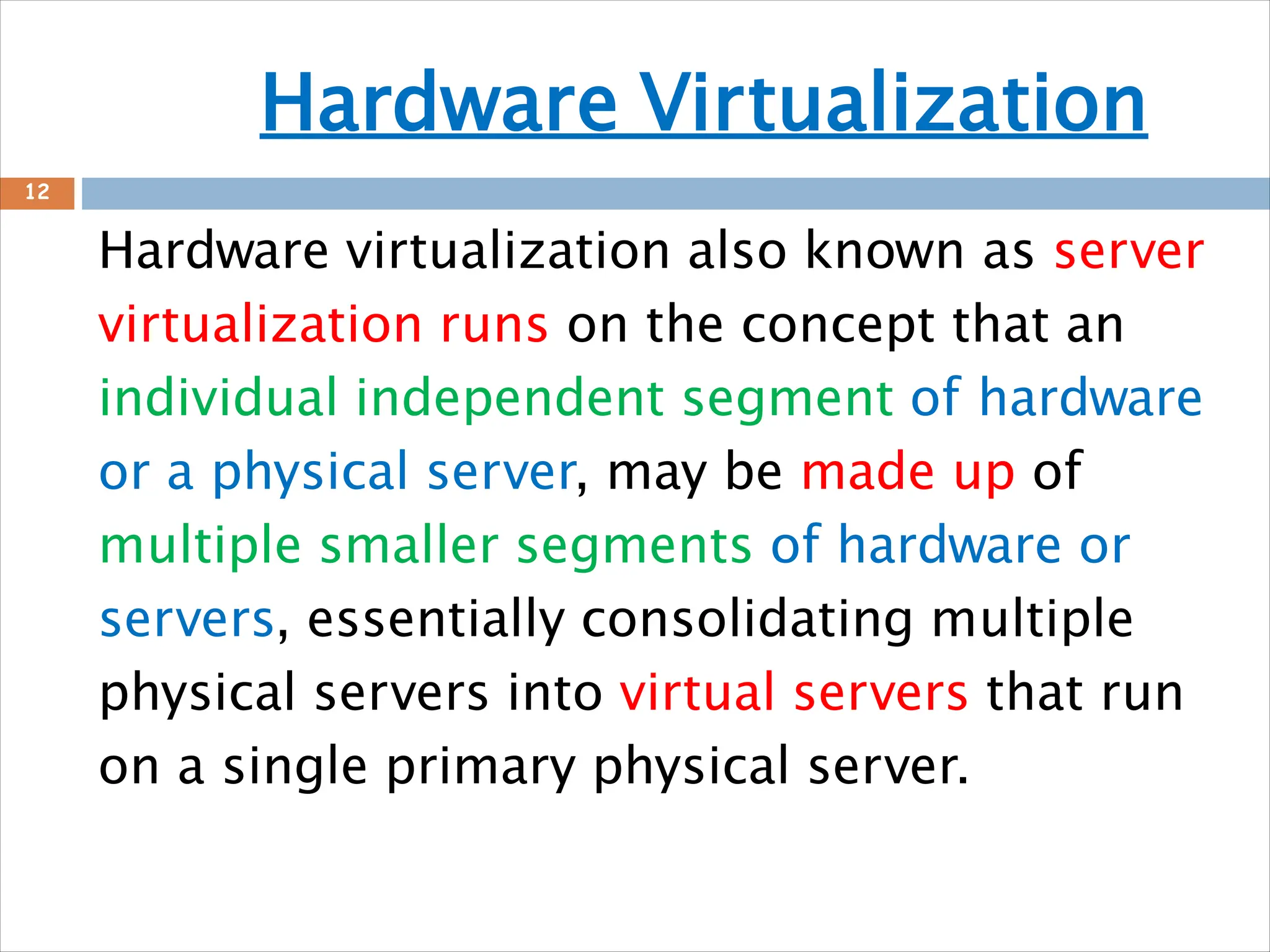

Hardware Virtualization
12
Hardware virtualization also known as server
virtualization runs on the concept that an
individual independent segment of hardware
or a physical server, may be made up of
multiple smaller segments of hardware or
servers, essentially consolidating multiple
physical servers into virtual servers that run
on a single primary physical server.

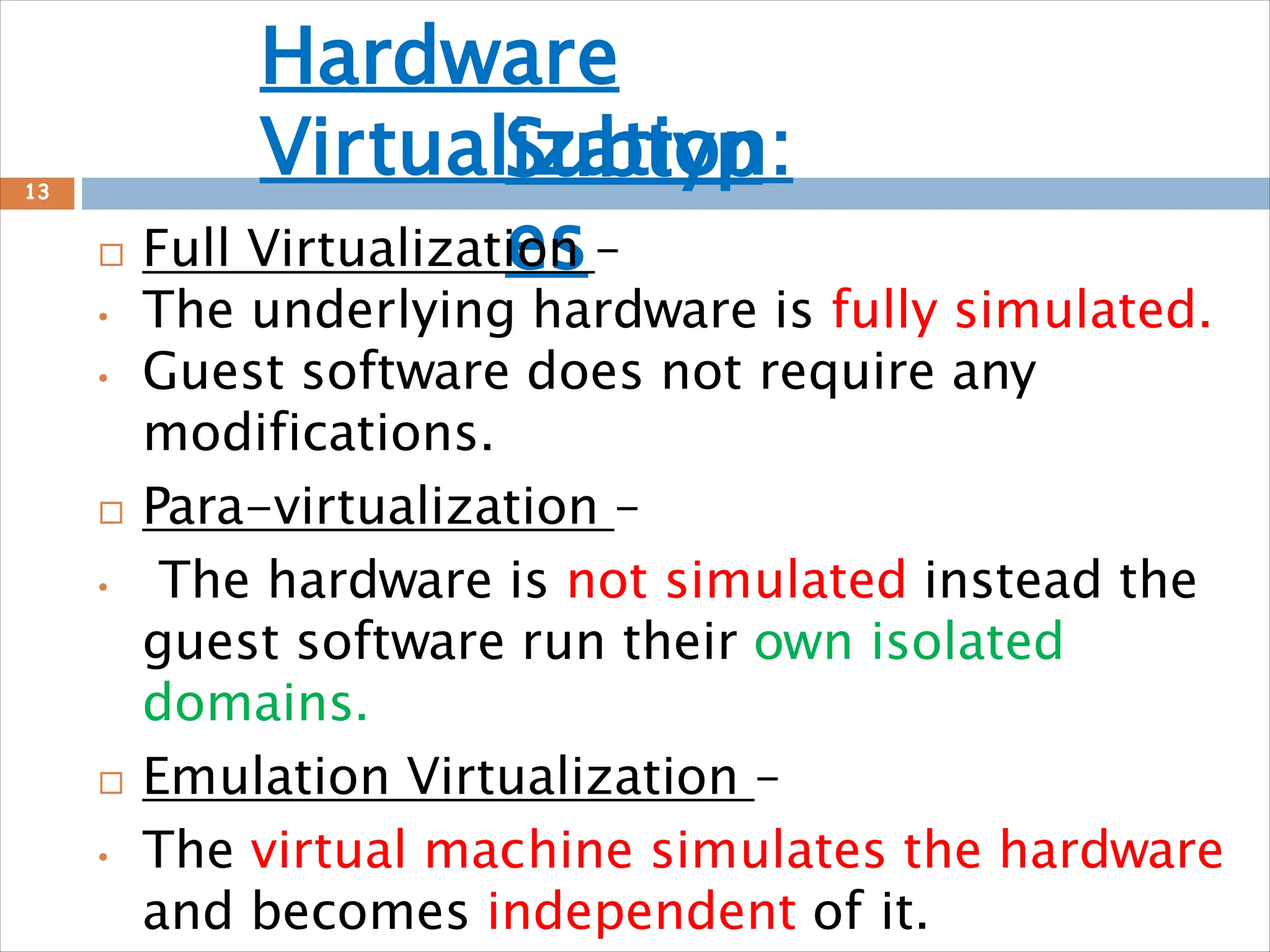

Hardware
Virtualization:
Subtyp
es
 Full Virtualization –
• The underlying hardware is fully simulated.
• Guest software does not require any
modifications.
 Para-virtualization –
• The hardware is not simulated instead the
guest software run their own isolated
domains.
 Emulation Virtualization –
• The virtual machine simulates the hardware
and becomes independent of it.
13

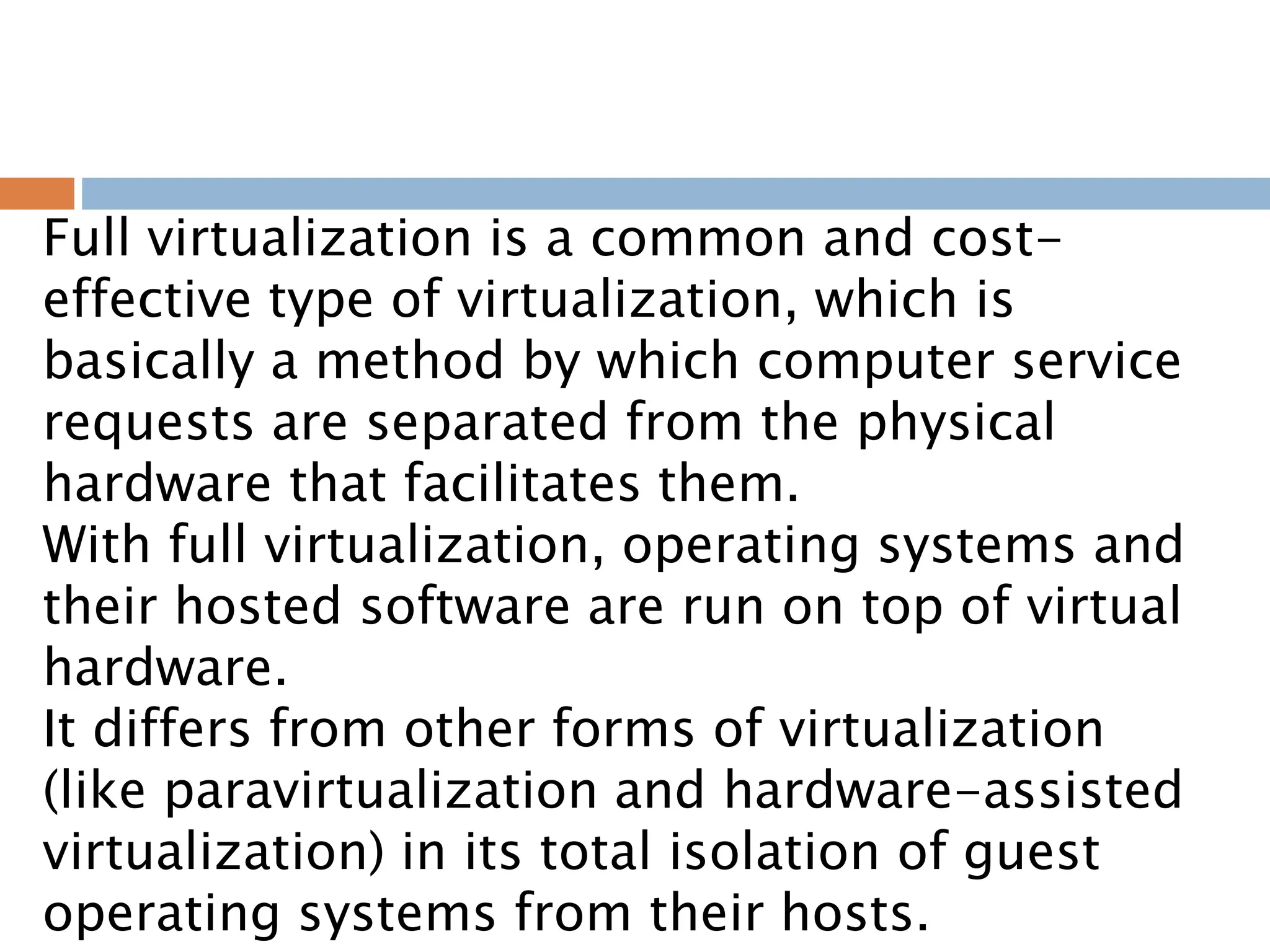

Full virtualization is a common and cost-
effective type of virtualization, which is
basically a method by which computer service
requests are separated from the physical
hardware that facilitates them.
With full virtualization, operating systems and
their hosted software are run on top of virtual
hardware.
It differs from other forms of virtualization
(like paravirtualization and hardware-assisted
virtualization) in its total isolation of guest
operating systems from their hosts.

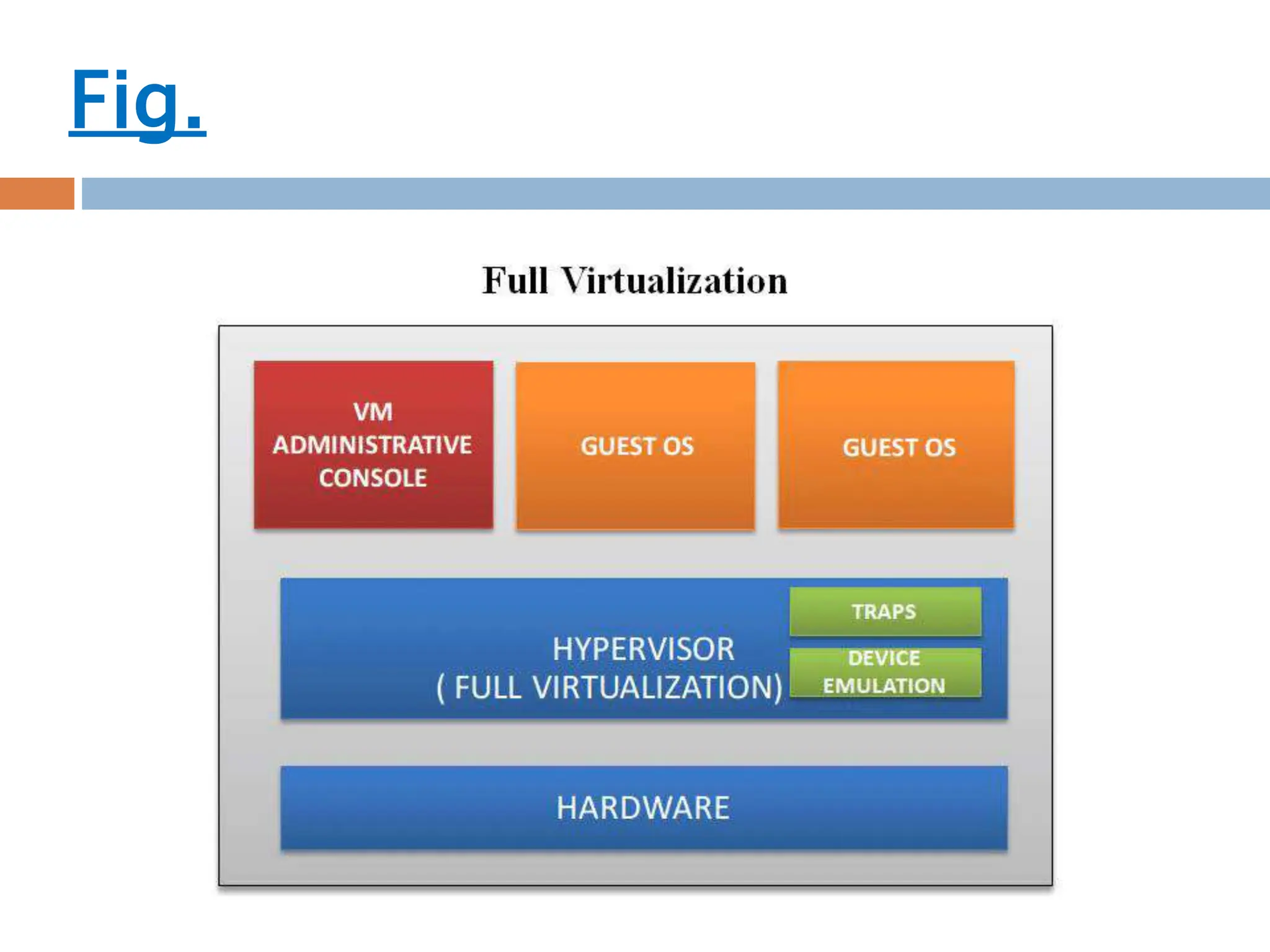

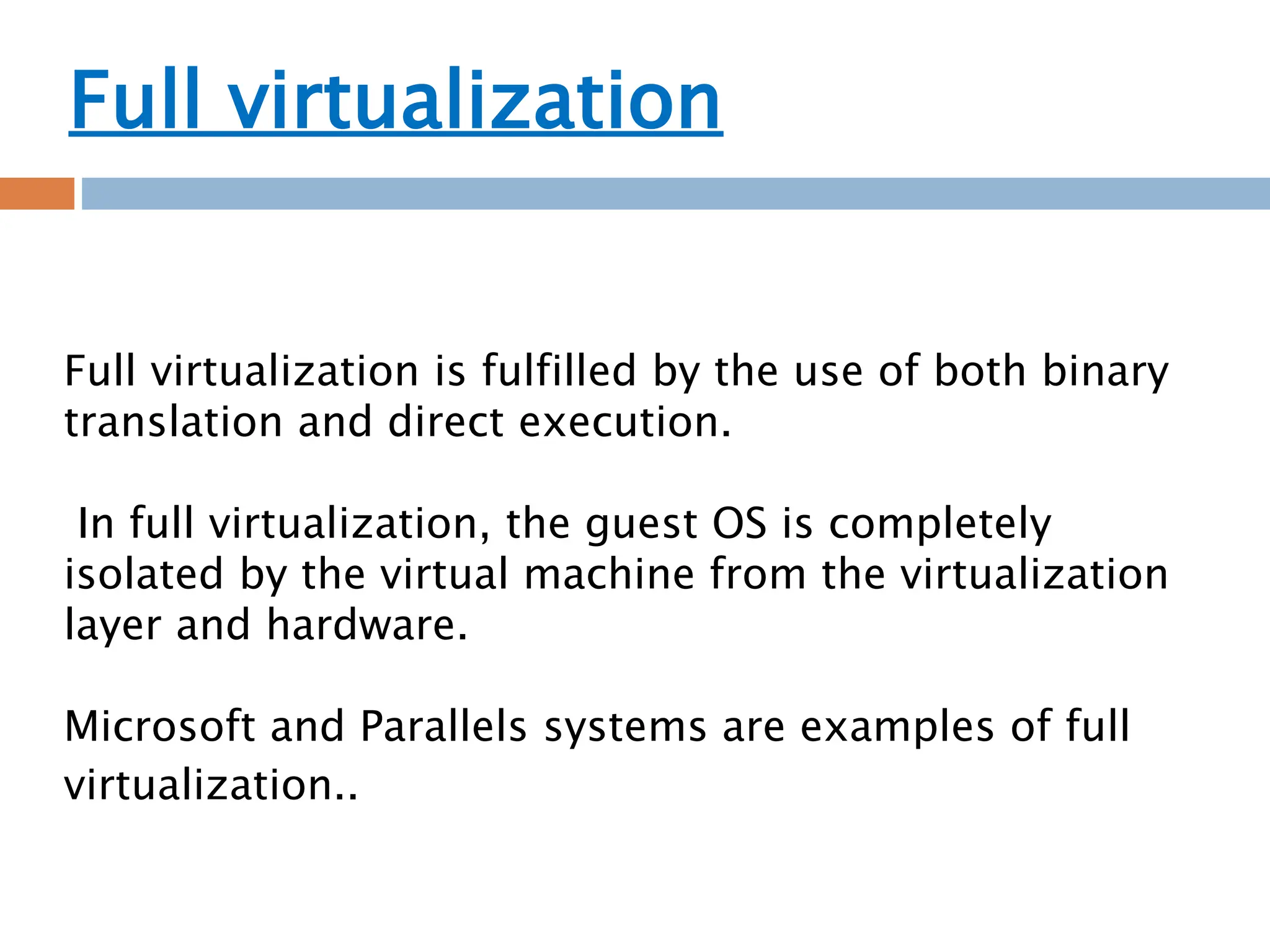

Full virtualization
Full virtualization is fulfilled by the use of both binary
translation and direct execution.
In full virtualization, the guest OS is completely
isolated by the virtual machine from the virtualization
layer and hardware.
Microsoft and Parallels systems are examples of full
virtualization..
Fig.

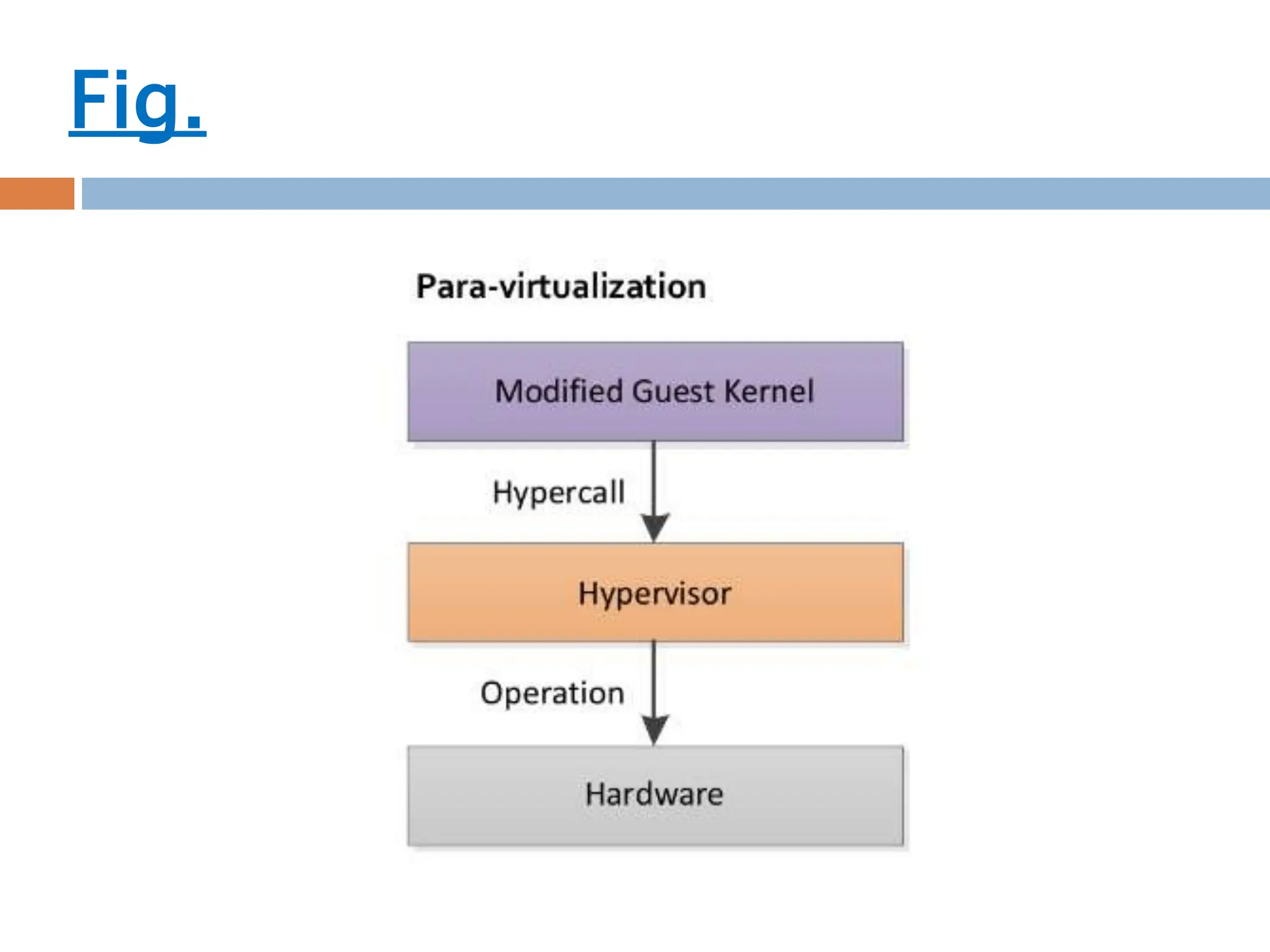

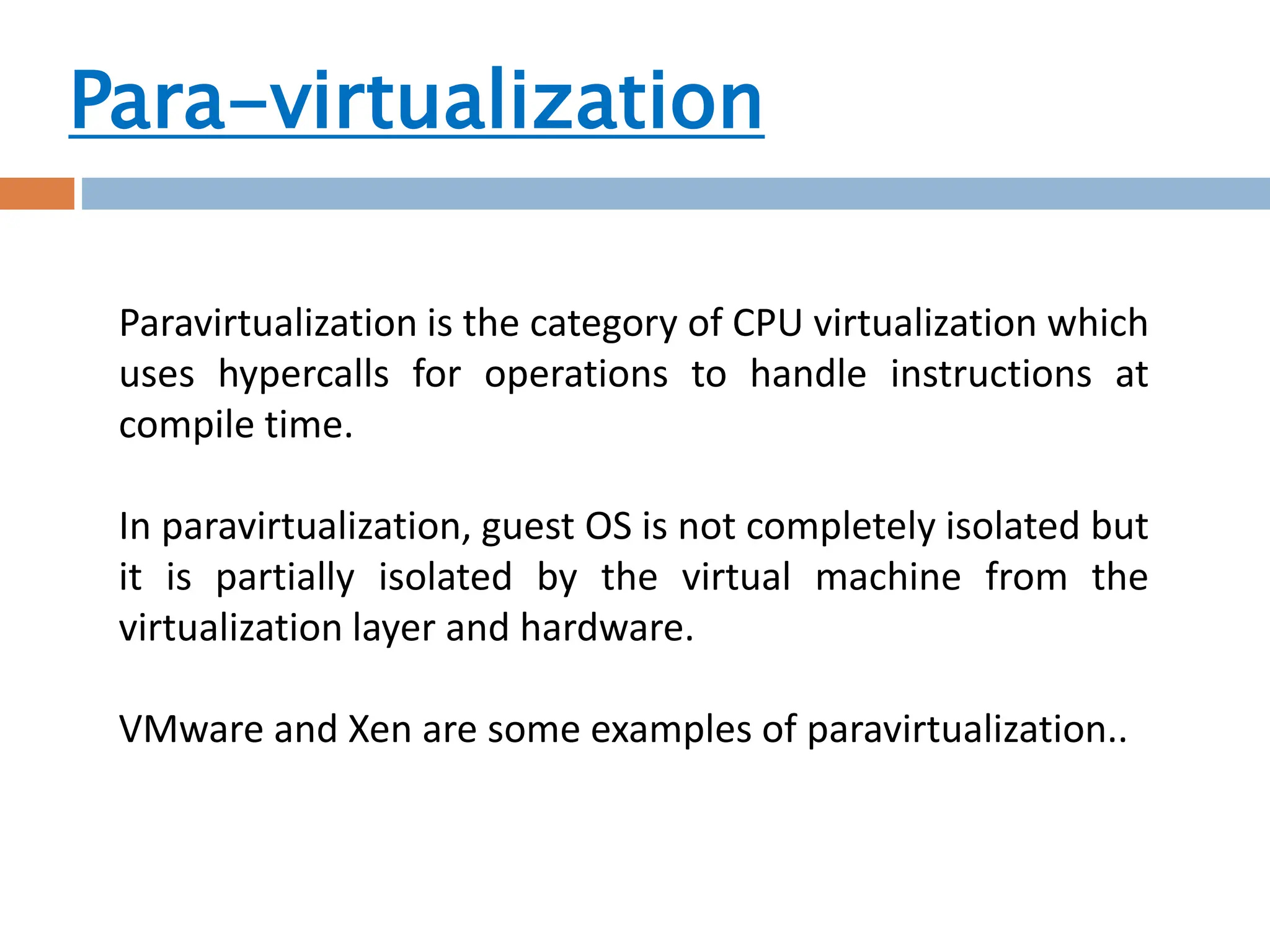

Para-virtualization
Paravirtualization is the category of CPU virtualization which
uses hypercalls for operations to handle instructions at
compile time.
In paravirtualization, guest OS is not completely isolated but
it is partially isolated by the virtual machine from the
virtualization layer and hardware.
VMware and Xen are some examples of paravirtualization..
Fig.
14

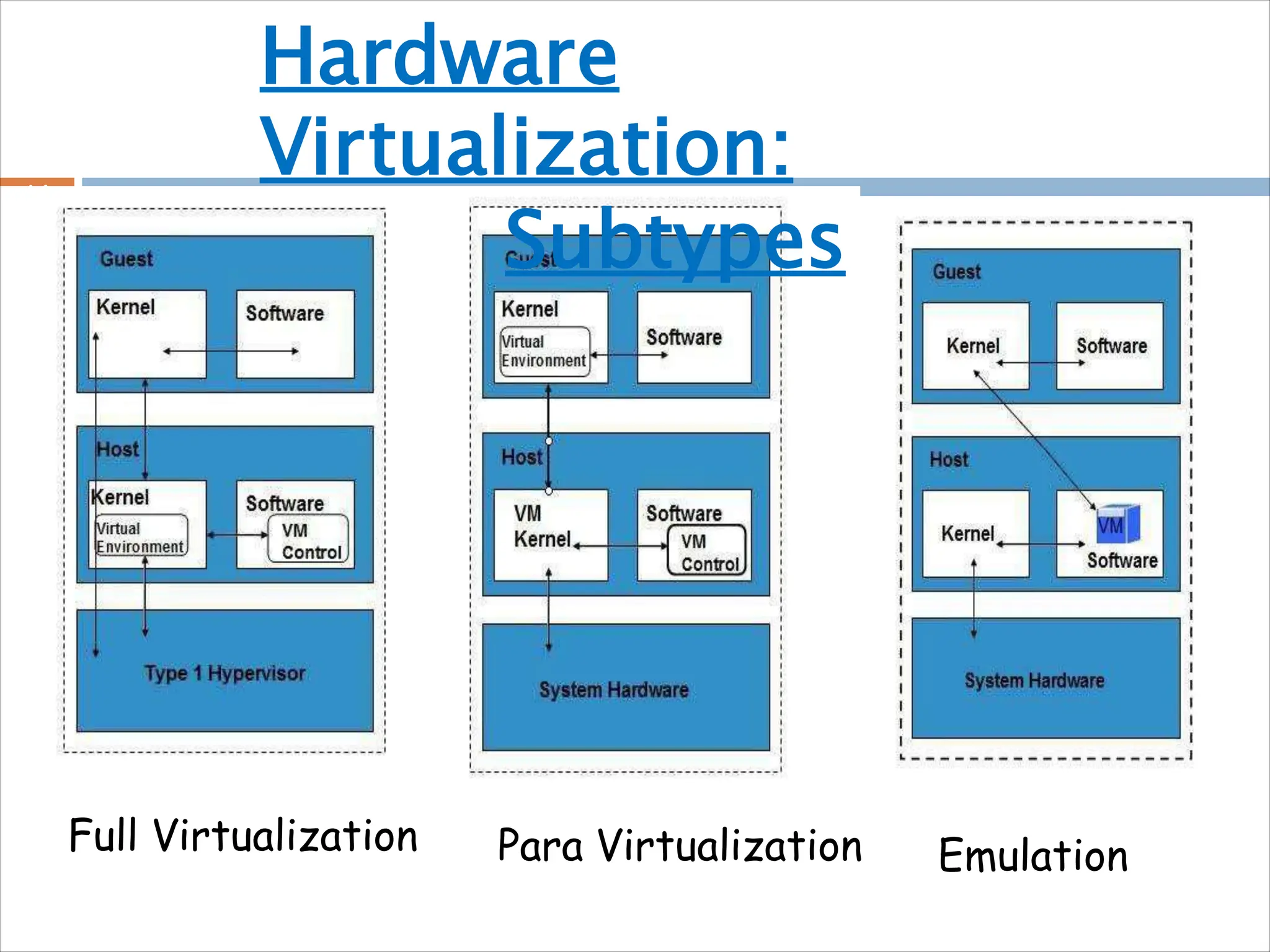

Full Virtualization Emulation
Para Virtualization
Hardware
Virtualization:
Subtypes

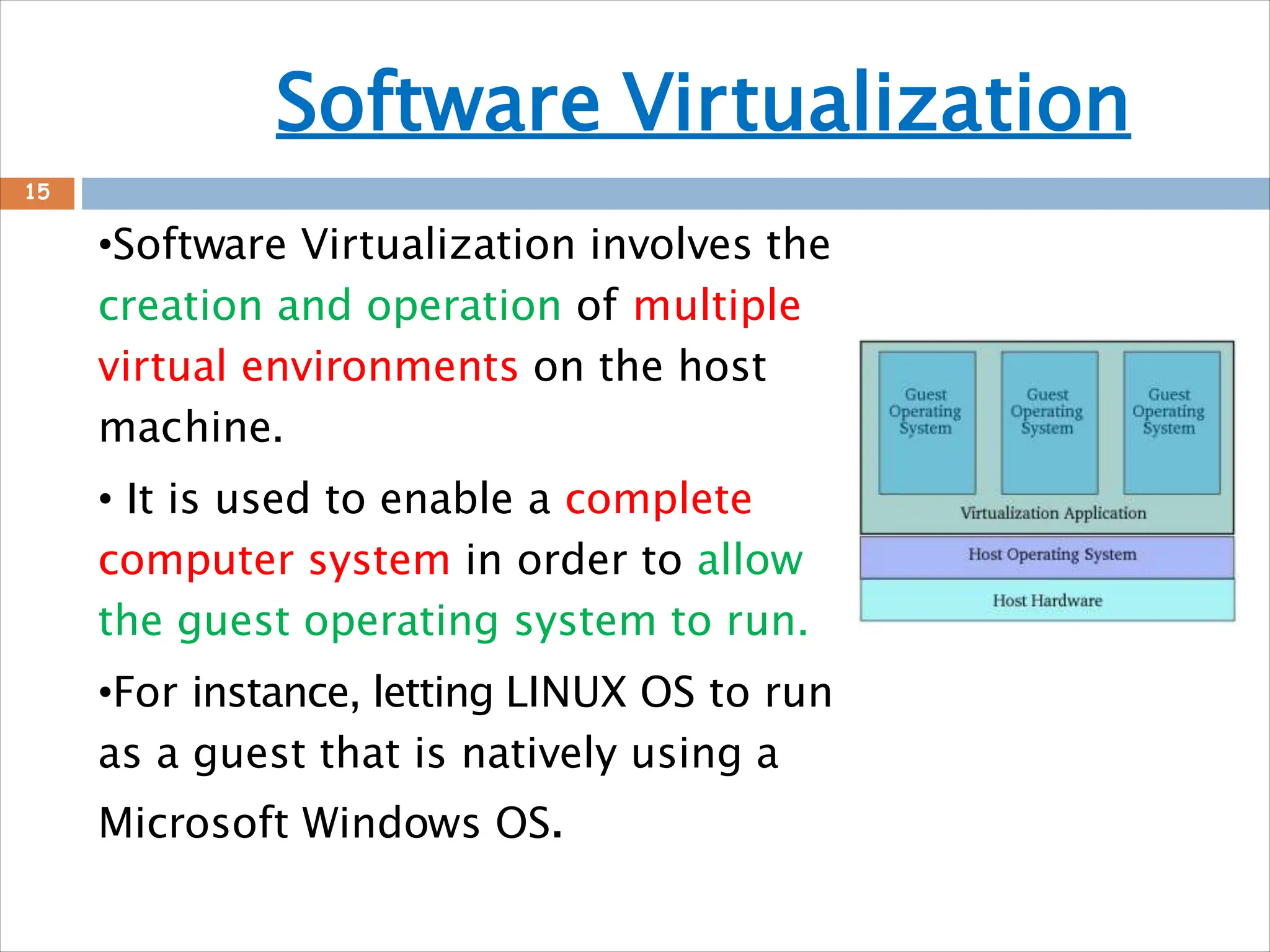

Software Virtualization
15
•Software Virtualization involves the
creation and operation of multiple
virtual environments on the host
machine.
• It is used to enable a complete
computer system in order to allow
the guest operating system to run.
•For instance, letting LINUX OS to run
as a guest that is natively using a
Microsoft Windows OS.

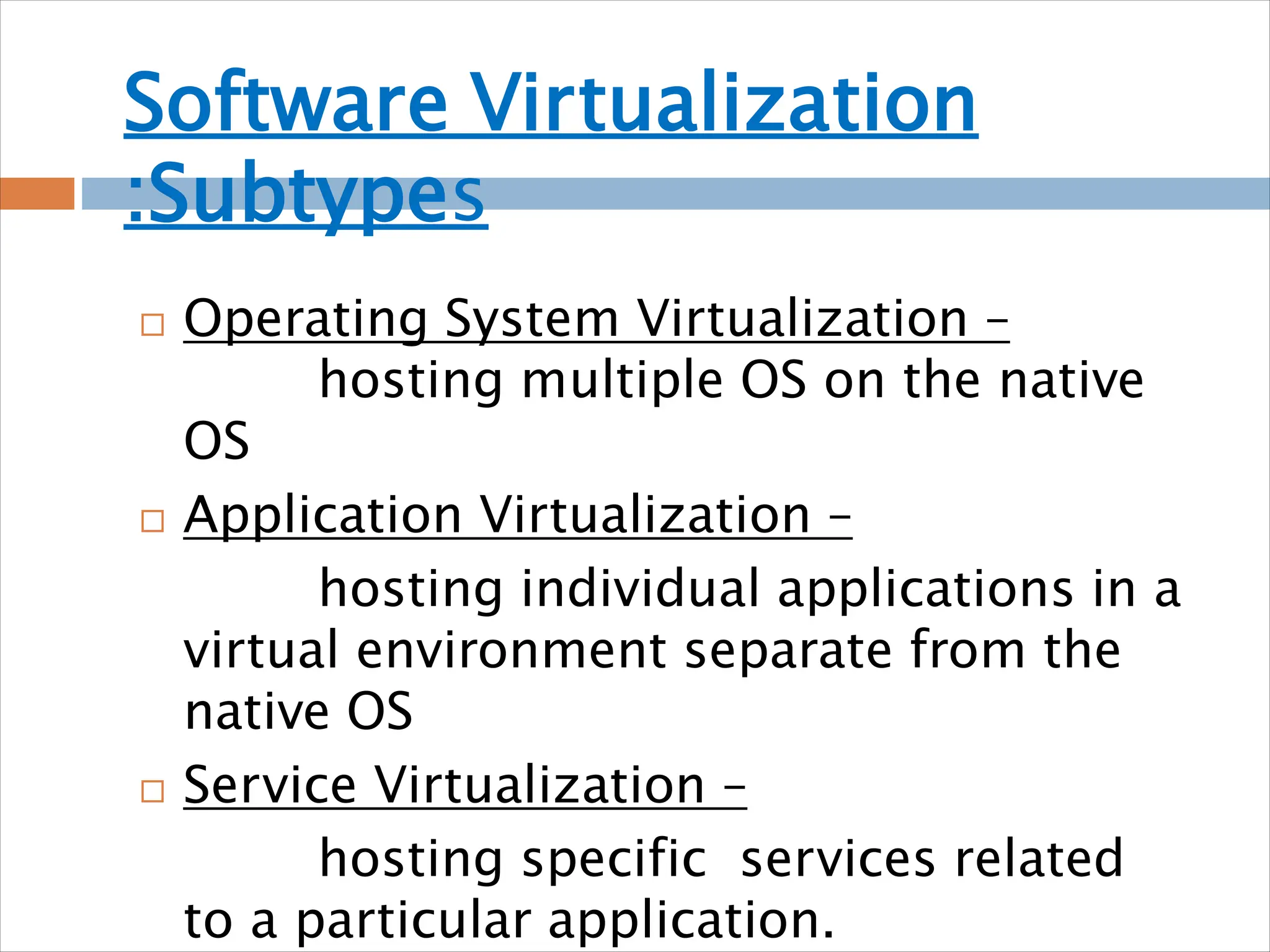

Software Virtualization
:Subtypes
16
 Operating System Virtualization –
hosting multiple OS on the native
OS
 Application Virtualization –
hosting individual applications in a
virtual environment separate from the
native OS
 Service Virtualization –
hosting specific services related
to a particular application.

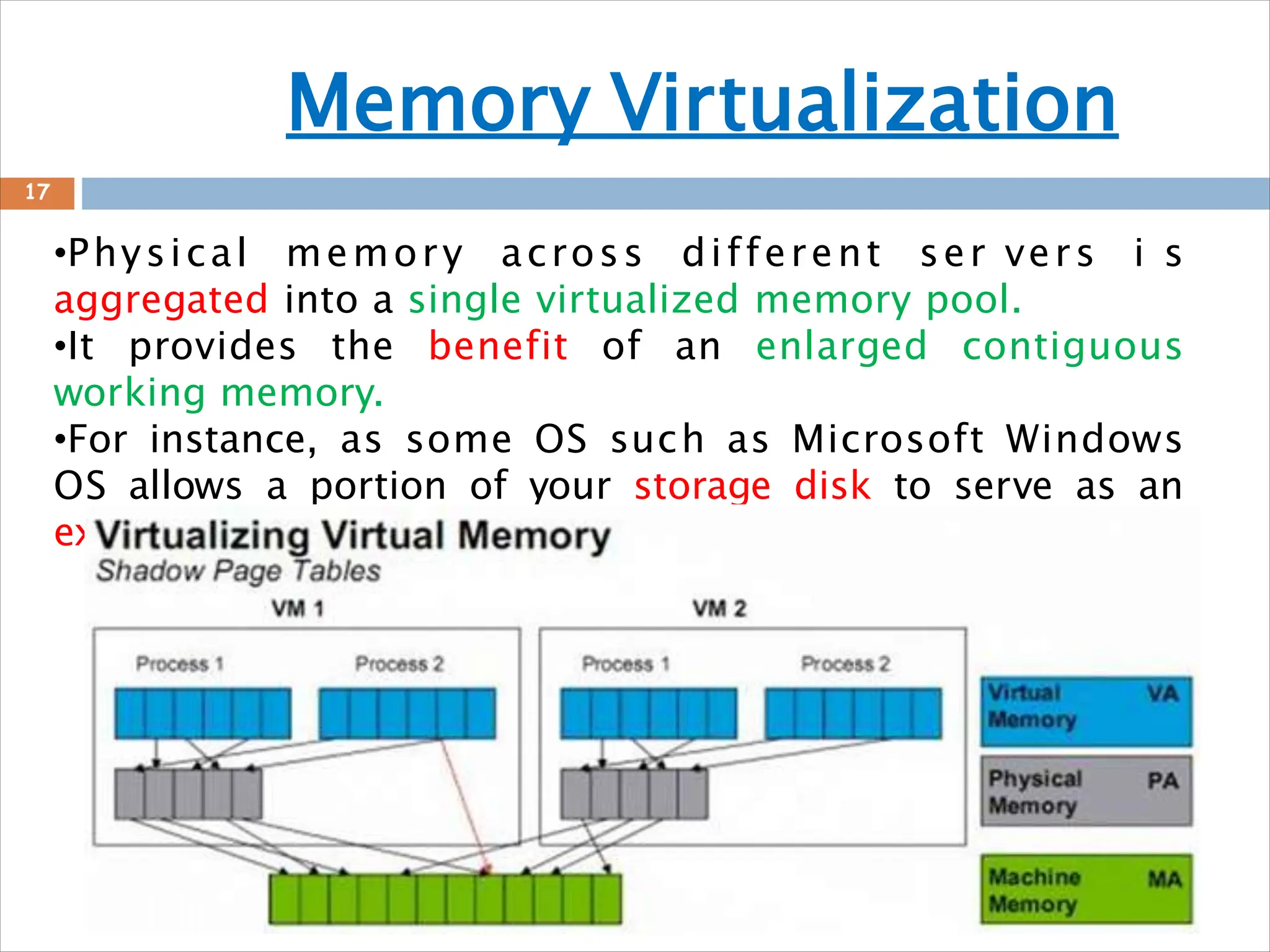

Memory Virtualization
•Physical memory across different ser vers i s
aggregated into a single virtualized memory pool.
•It provides the benefit of an enlarged contiguous
working memory.
•For instance, as some OS such as Microsoft Windows
OS allows a portion of your storage disk to serve as an
extension of your RAM.
17

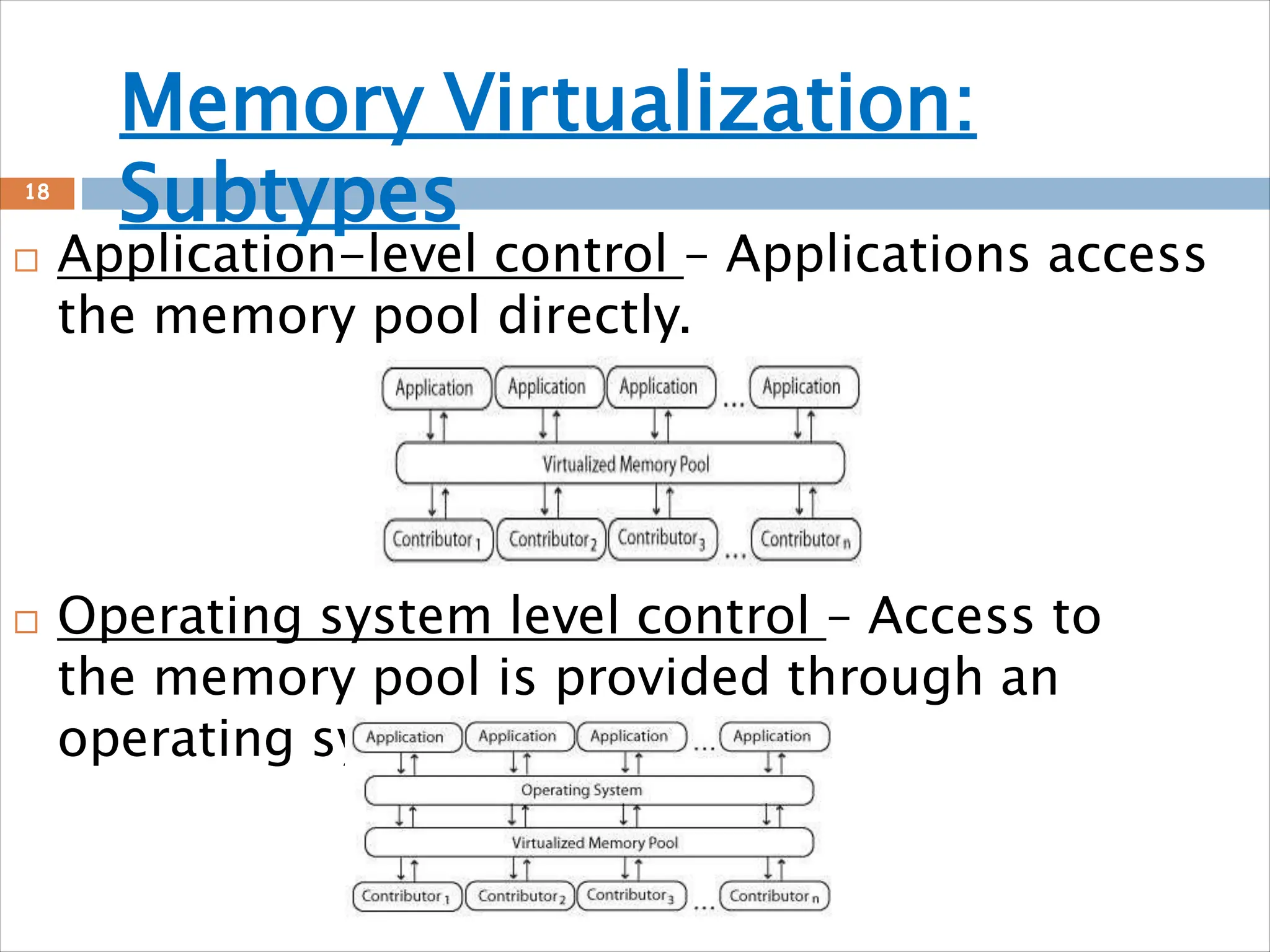

Memory Virtualization:
Subtypes
18
 Application-level control – Applications access
the memory pool directly.
 Operating system level control – Access to
the memory pool is provided through an
operating system.

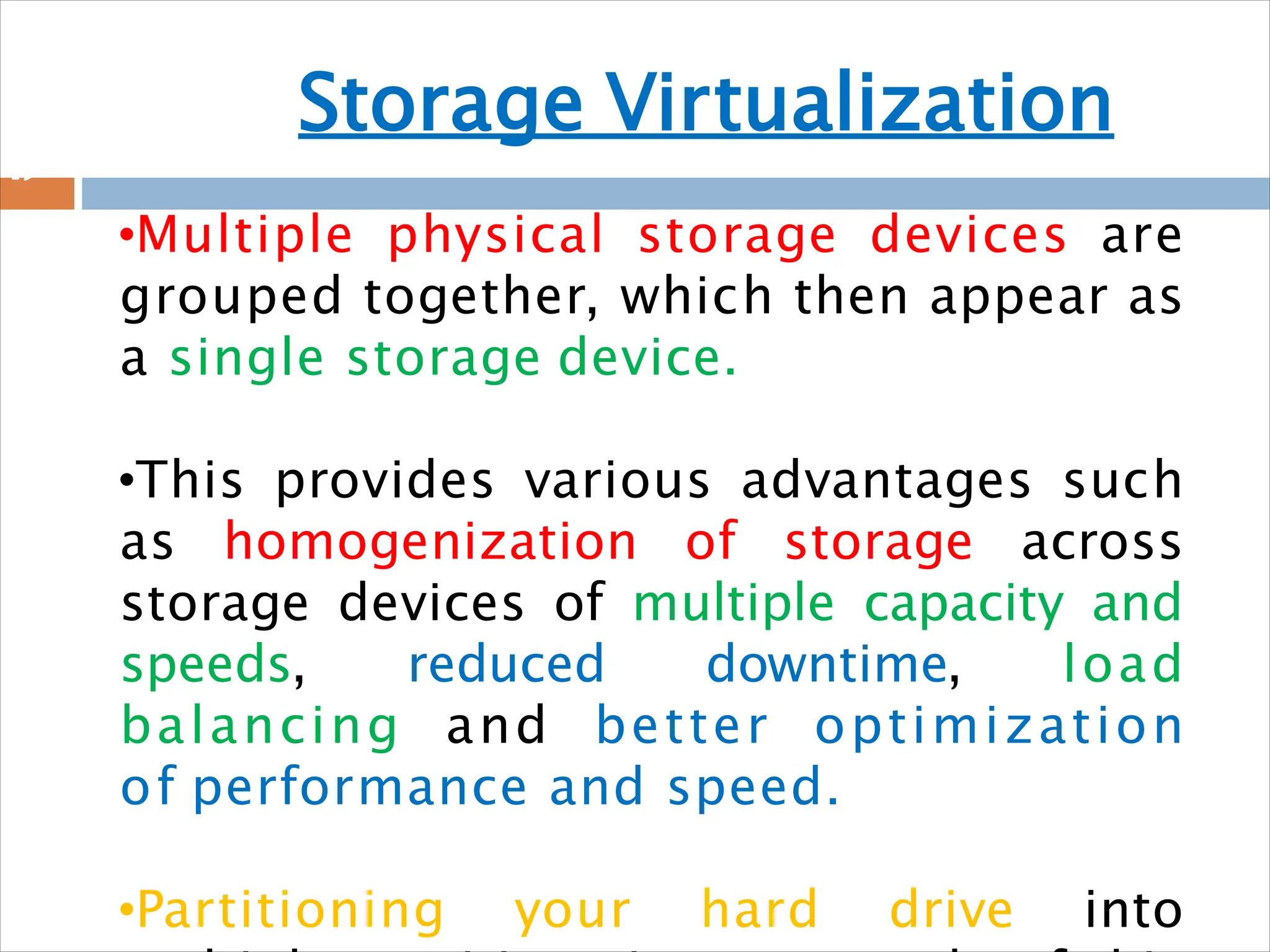

Storage Virtualization
•19
•Multiple physical storage devices are
grouped together, which then appear as
a single storage device.
•This provides various advantages such
as homogenization of storage across
storage devices of multiple capacity and
speeds, reduced downtime, load
balancing and better optimization
of performance and speed.
•Partitioning your hard drive into

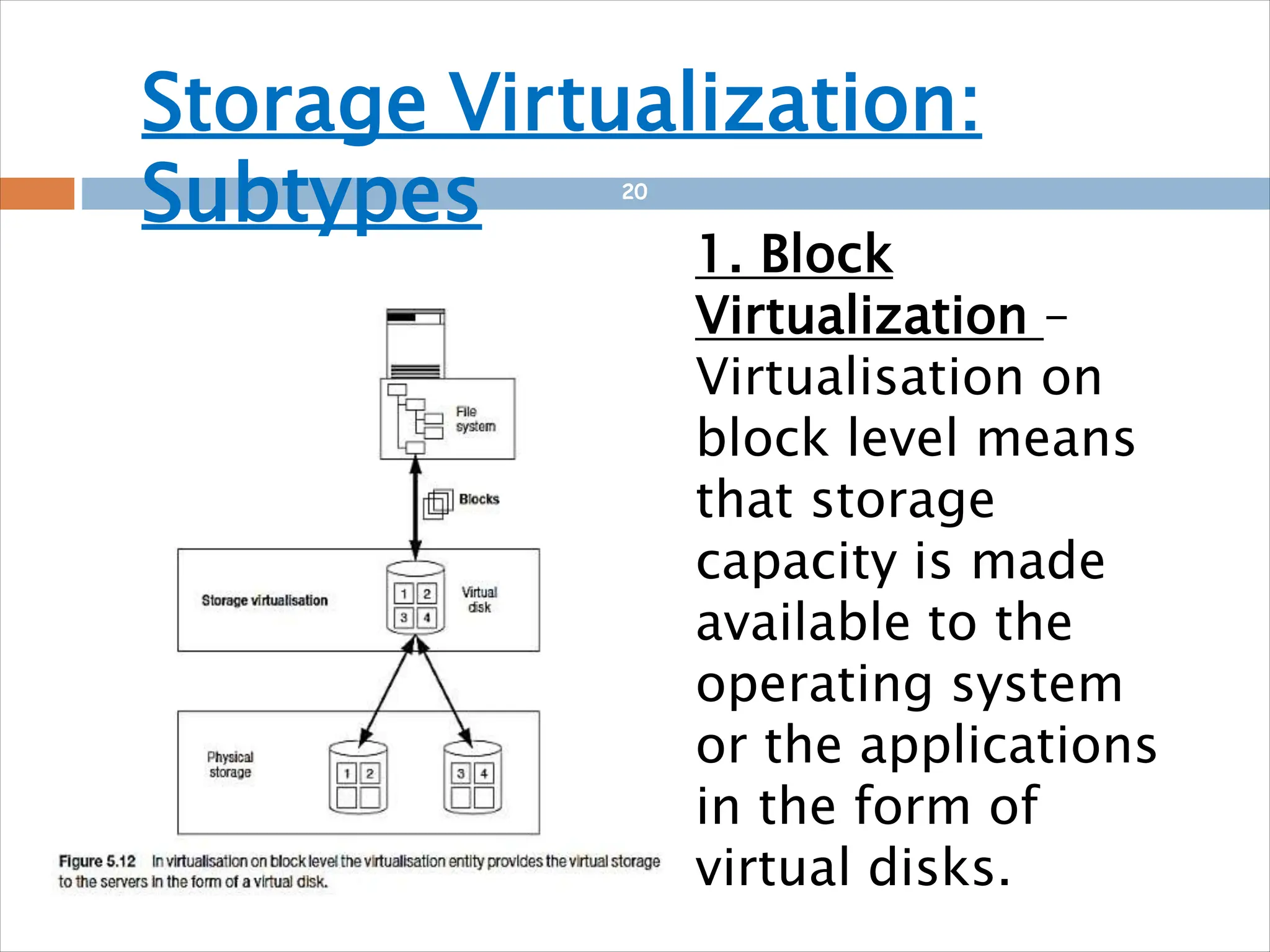

Storage Virtualization:
Subtypes 20
1. Block
Virtualization –
Virtualisation on
block level means
that storage
capacity is made
available to the
operating system
or the applications
in the form of
virtual disks.

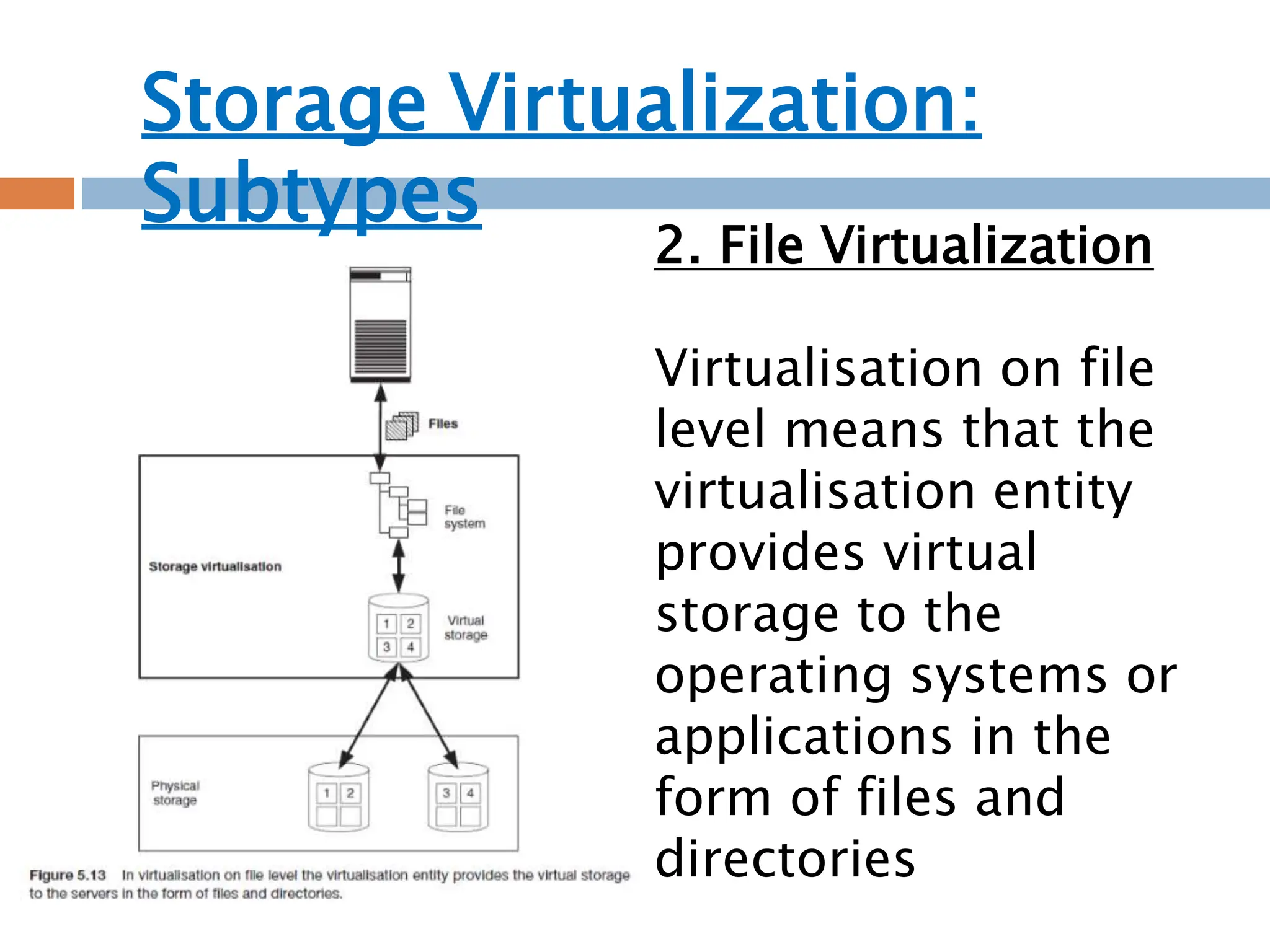

2. File Virtualization
Virtualisation on file
level means that the
virtualisation entity
provides virtual
storage to the
operating systems or
applications in the
form of files and
directories
Storage Virtualization:
Subtypes

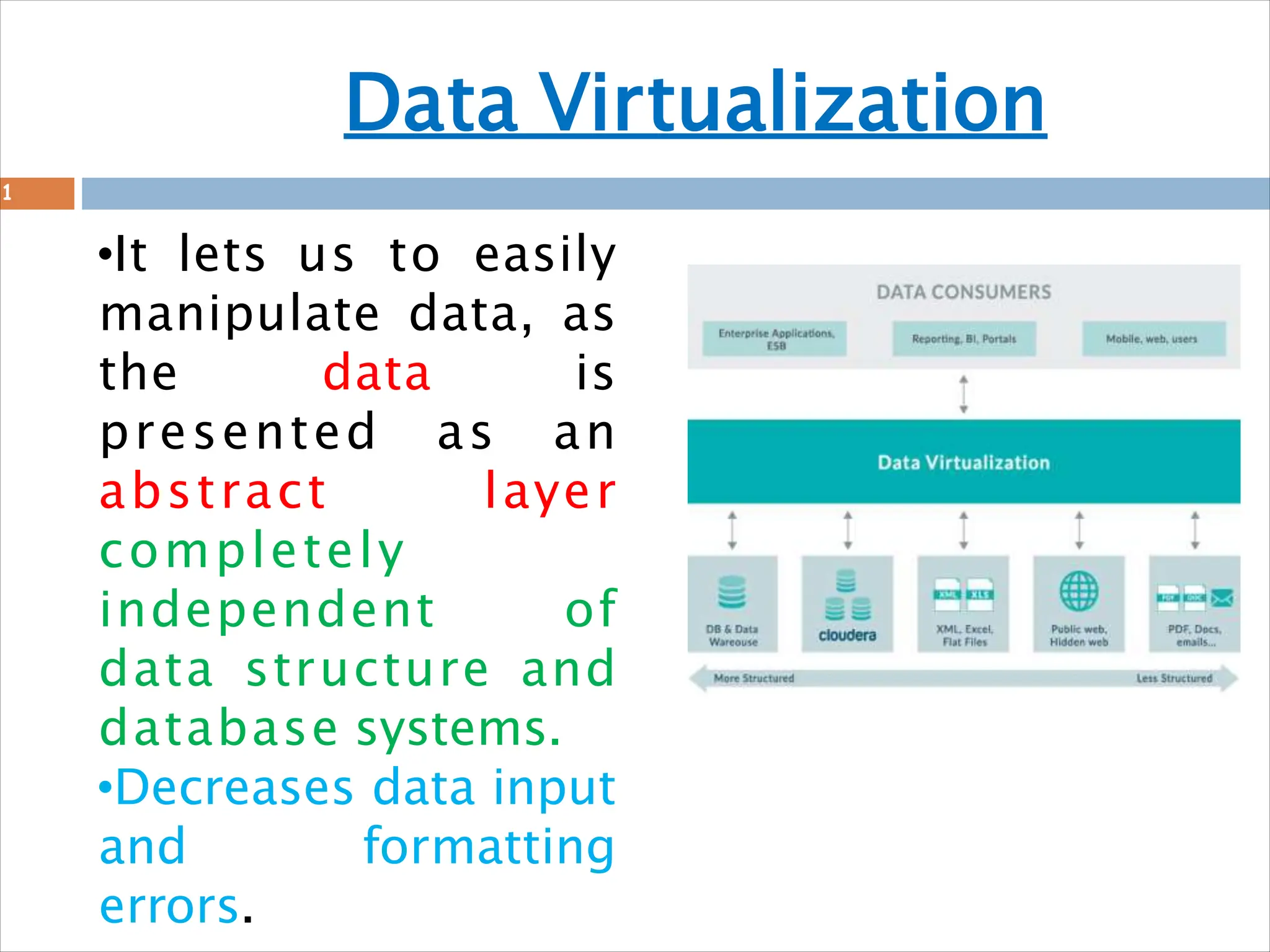

Data Virtualization
21
•It lets us to easily
manipulate data, as
the data is
presented as an
abstract layer
completely
independent of
data structure and
database systems.
•Decreases data input
and formatting
errors.

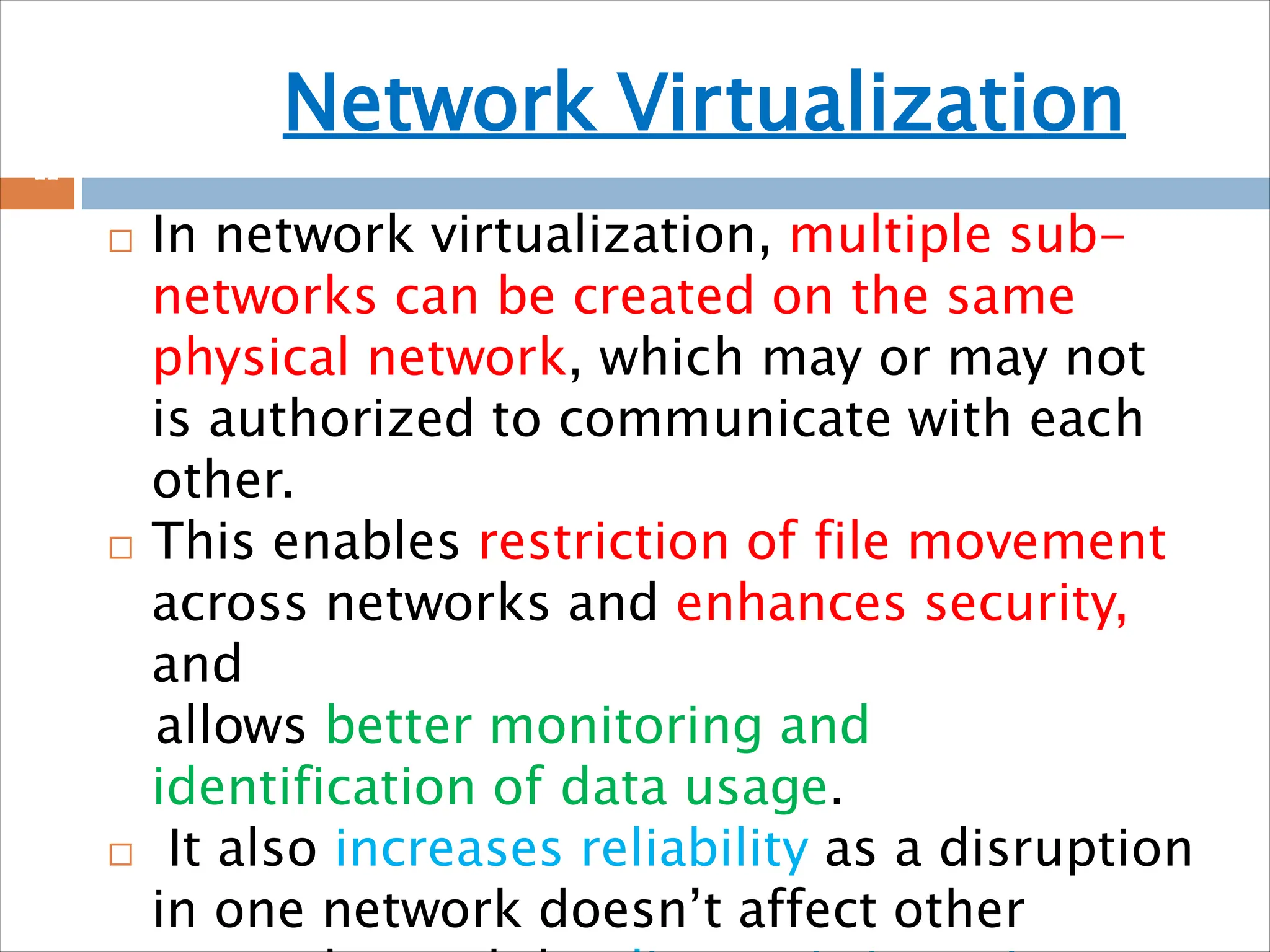

Network Virtualization
22
 In network virtualization, multiple sub-
networks can be created on the same
physical network, which may or may not
is authorized to communicate with each
other.
 This enables restriction of file movement
across networks and enhances security,
and
allows better monitoring and
identification of data usage.
 It also increases reliability as a disruption
in one network doesn’t affect other

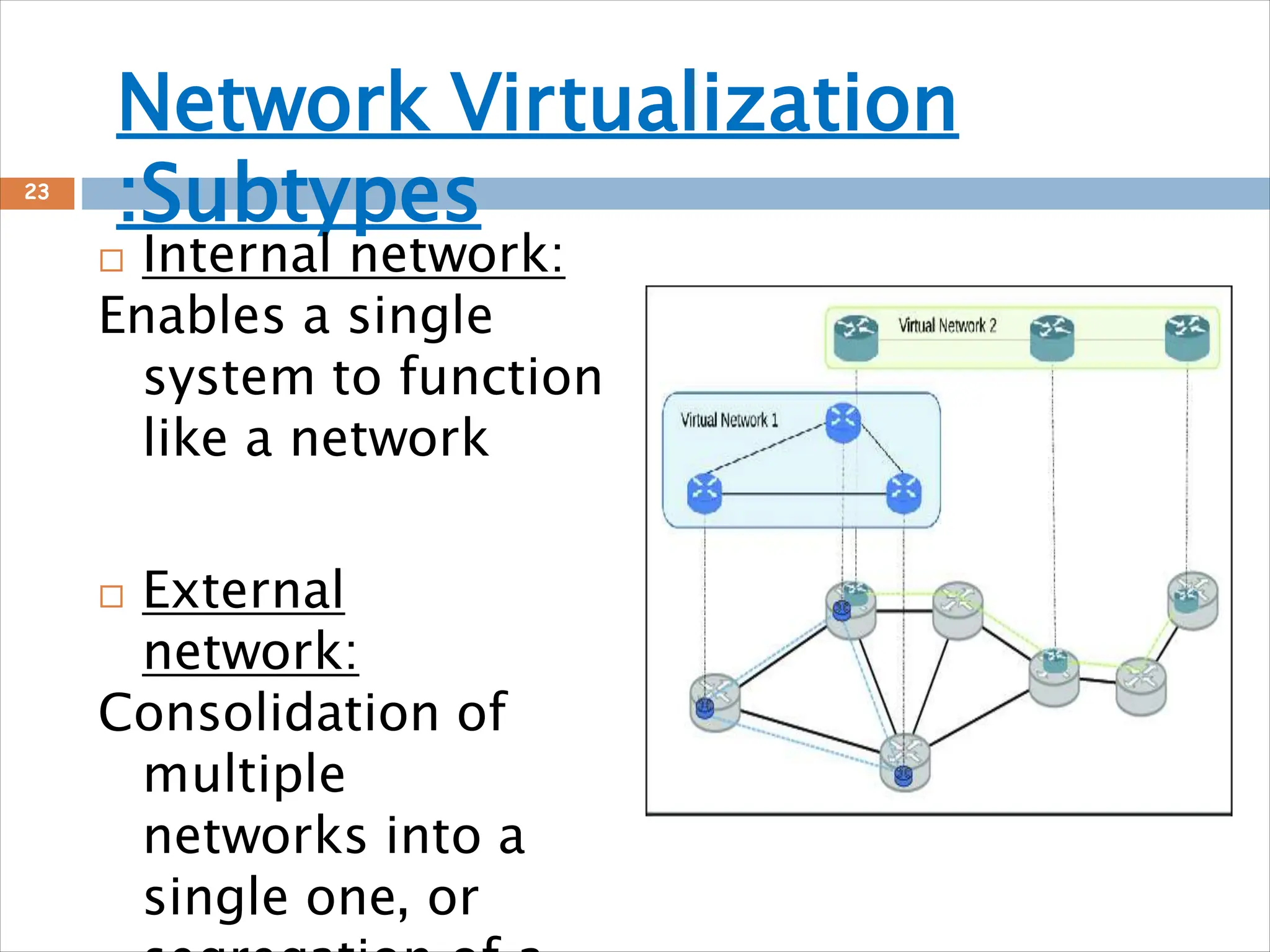

Network Virtualization
:Subtypes
23
 Internal network:
Enables a single
system to function
like a network
 External
network:
Consolidation of
multiple
networks into a
single one, or

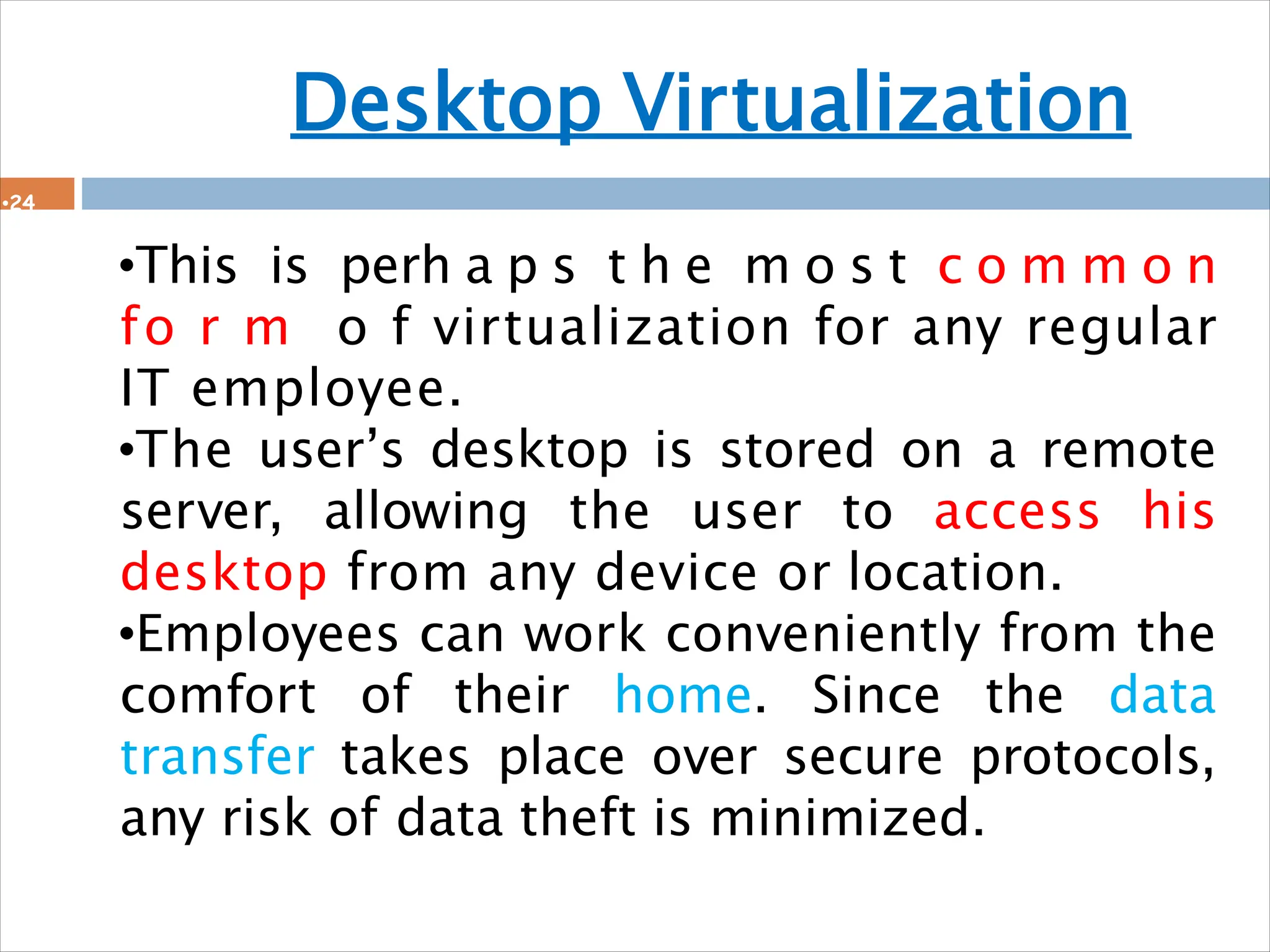

Desktop Virtualization
•24
•This is perh a p s t h e m o s t c o m m o n
fo r m o f virtualization for any regular
IT employee.
•The user’s desktop is stored on a remote
server, allowing the user to access his
desktop from any device or location.
•Employees can work conveniently from the
comfort of their home. Since the data
transfer takes place over secure protocols,
any risk of data theft is minimized.
25

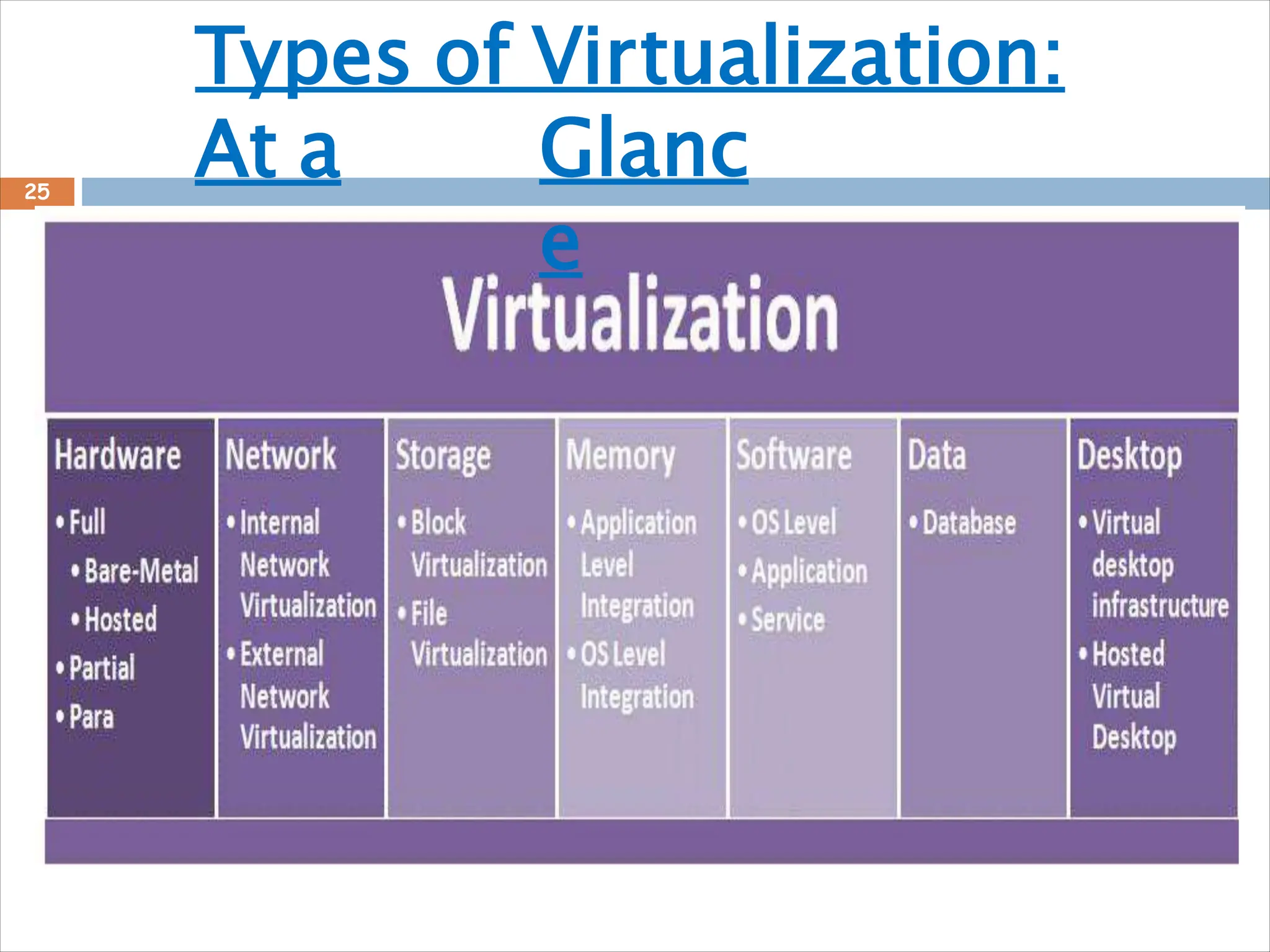

Types of Virtualization:
At a Glanc
e

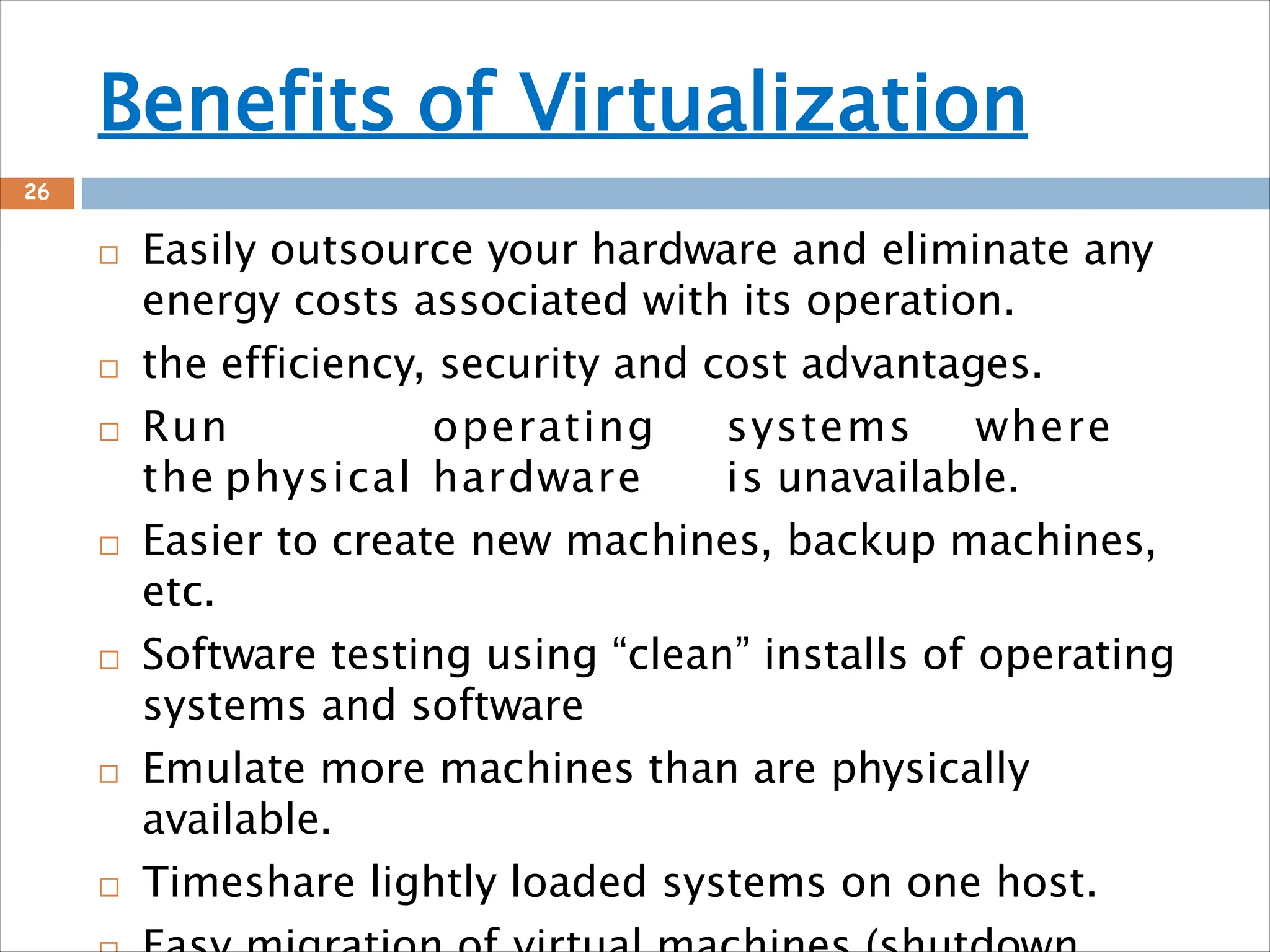

Benefits of Virtualization
26
 Easily outsource your hardware and eliminate any
energy costs associated with its operation.
 the efficiency, security and cost advantages.
 Run operating systems where
the physical hardware is unavailable.
 Easier to create new machines, backup machines,
etc.
 Software testing using “clean” installs of operating
systems and software
 Emulate more machines than are physically
available.
 Timeshare lightly loaded systems on one host.

More Related Content

Similar to Virtualization: A Key to Efficient Cloud Computing

Virtualization and cloud Computing
Virtualization and cloud ComputingVirtualization and cloud Computing
Virtualization and cloud Computing
Rishikese MR

Virtualization and its Types
Virtualization and its TypesVirtualization and its Types
Virtualization and its Types
HTS Hosting

Lecture5 virtualization
Lecture5 virtualizationLecture5 virtualization
Lecture5 virtualization
hktripathy

Sneak peak of Cloud Computing
Sneak peak of Cloud ComputingSneak peak of Cloud Computing
Sneak peak of Cloud Computing
Jamie Shoup

VIRTUALIZATION for computer science.pptx
VIRTUALIZATION for computer science.pptxVIRTUALIZATION for computer science.pptx
VIRTUALIZATION for computer science.pptx
KelvinBakespear

Cloud Computing Virtualization and containers
Cloud Computing Virtualization and containersCloud Computing Virtualization and containers
Cloud Computing Virtualization and containers
Selvaraj Kesavan

cloud concepts and technologies
cloud concepts and technologiescloud concepts and technologies
cloud concepts and technologies
Kalai Selvi

aravind_kmdfdgmfmfmmfmkmkmmgmbmgmbmgbmgmkm.pptx
aravind_kmdfdgmfmfmmfmkmkmmgmbmgmbmgbmgmkm.pptxaravind_kmdfdgmfmfmmfmkmkmmgmbmgmbmgbmgmkm.pptx
aravind_kmdfdgmfmfmmfmkmkmmgmbmgmbmgbmgmkm.pptx
aravym456

Virtualization for Cloud Environment
Virtualization for Cloud EnvironmentVirtualization for Cloud Environment
Virtualization for Cloud Environment
Dr. Sunil Kr. Pandey

virtualizationcloudcomputing-140813101008-phpapp02.pdf
virtualizationcloudcomputing-140813101008-phpapp02.pdfvirtualizationcloudcomputing-140813101008-phpapp02.pdf
virtualizationcloudcomputing-140813101008-phpapp02.pdf
AkshithaReddy42848

Virtualization & cloud computing
Virtualization & cloud computingVirtualization & cloud computing
Virtualization & cloud computing
Soumyajit Basu

Virtualization
VirtualizationVirtualization
Virtualization
vishnurk

Cloud Computing using virtulization
Cloud Computing using virtulizationCloud Computing using virtulization
Cloud Computing using virtulization
AJIT NEGI

Virtualization concepts in cloud computing
Virtualization concepts in cloud computingVirtualization concepts in cloud computing
Virtualization concepts in cloud computing
Integral university, India

virtualization-220403085202_Chapter1.pptx
virtualization-220403085202_Chapter1.pptxvirtualization-220403085202_Chapter1.pptx
virtualization-220403085202_Chapter1.pptx
XanGwaps

virtualization-190329110832.pdf
virtualization-190329110832.pdfvirtualization-190329110832.pdf
virtualization-190329110832.pdf
AkshithaReddy42848

Virtualization
VirtualizationVirtualization
Virtualization
Utkarsh Soni

1-Introduction to Virtualization.docx
1-Introduction to Virtualization.docx1-Introduction to Virtualization.docx
1-Introduction to Virtualization.docx
shruti533256

lect 1TO 5.pptx
lect 1TO 5.pptxlect 1TO 5.pptx
lect 1TO 5.pptx
SumitKumar918321

Server Virtualization
Server VirtualizationServer Virtualization
Server Virtualization
Siddharth Bhatt


Similar to Virtualization: A Key to Efficient Cloud Computing (20)

Virtualization and cloud Computing
Virtualization and cloud ComputingVirtualization and cloud Computing
Virtualization and cloud Computing

Virtualization and its Types
Virtualization and its TypesVirtualization and its Types
Virtualization and its Types

Lecture5 virtualization
Lecture5 virtualizationLecture5 virtualization
Lecture5 virtualization

Sneak peak of Cloud Computing
Sneak peak of Cloud ComputingSneak peak of Cloud Computing
Sneak peak of Cloud Computing

VIRTUALIZATION for computer science.pptx
VIRTUALIZATION for computer science.pptxVIRTUALIZATION for computer science.pptx
VIRTUALIZATION for computer science.pptx

Cloud Computing Virtualization and containers
Cloud Computing Virtualization and containersCloud Computing Virtualization and containers
Cloud Computing Virtualization and containers

cloud concepts and technologies
cloud concepts and technologiescloud concepts and technologies
cloud concepts and technologies

aravind_kmdfdgmfmfmmfmkmkmmgmbmgmbmgbmgmkm.pptx
aravind_kmdfdgmfmfmmfmkmkmmgmbmgmbmgbmgmkm.pptxaravind_kmdfdgmfmfmmfmkmkmmgmbmgmbmgbmgmkm.pptx
aravind_kmdfdgmfmfmmfmkmkmmgmbmgmbmgbmgmkm.pptx

Virtualization for Cloud Environment
Virtualization for Cloud EnvironmentVirtualization for Cloud Environment
Virtualization for Cloud Environment

virtualizationcloudcomputing-140813101008-phpapp02.pdf
virtualizationcloudcomputing-140813101008-phpapp02.pdfvirtualizationcloudcomputing-140813101008-phpapp02.pdf
virtualizationcloudcomputing-140813101008-phpapp02.pdf

Virtualization & cloud computing
Virtualization & cloud computingVirtualization & cloud computing
Virtualization & cloud computing

Virtualization
VirtualizationVirtualization
Virtualization

Cloud Computing using virtulization
Cloud Computing using virtulizationCloud Computing using virtulization
Cloud Computing using virtulization

Virtualization concepts in cloud computing
Virtualization concepts in cloud computingVirtualization concepts in cloud computing
Virtualization concepts in cloud computing

virtualization-220403085202_Chapter1.pptx
virtualization-220403085202_Chapter1.pptxvirtualization-220403085202_Chapter1.pptx
virtualization-220403085202_Chapter1.pptx

virtualization-190329110832.pdf
virtualization-190329110832.pdfvirtualization-190329110832.pdf
virtualization-190329110832.pdf

Virtualization
VirtualizationVirtualization
Virtualization

1-Introduction to Virtualization.docx
1-Introduction to Virtualization.docx1-Introduction to Virtualization.docx
1-Introduction to Virtualization.docx

lect 1TO 5.pptx
lect 1TO 5.pptxlect 1TO 5.pptx
lect 1TO 5.pptx

Server Virtualization
Server VirtualizationServer Virtualization
Server Virtualization


More from Hitesh Mohapatra

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content
Hitesh Mohapatra

Automating the Cloud: A Deep Dive into Virtual Machine Provisioning
Automating the Cloud: A Deep Dive into Virtual Machine ProvisioningAutomating the Cloud: A Deep Dive into Virtual Machine Provisioning
Automating the Cloud: A Deep Dive into Virtual Machine Provisioning
Hitesh Mohapatra

Harnessing the Power of Google Cloud Platform: Strategies and Applications
Harnessing the Power of Google Cloud Platform: Strategies and ApplicationsHarnessing the Power of Google Cloud Platform: Strategies and Applications
Harnessing the Power of Google Cloud Platform: Strategies and Applications
Hitesh Mohapatra

Scheduling in Cloud Computing
Scheduling in Cloud ComputingScheduling in Cloud Computing
Scheduling in Cloud Computing
Hitesh Mohapatra

Cloud-Case study
Cloud-Case study Cloud-Case study
Cloud-Case study
Hitesh Mohapatra

RAID
RAIDRAID
Load balancing in cloud computing.pptx
Load balancing in cloud computing.pptxLoad balancing in cloud computing.pptx
Load balancing in cloud computing.pptx
Hitesh Mohapatra

Cluster Computing
Cluster ComputingCluster Computing
Cluster Computing
Hitesh Mohapatra

ITU-T requirement for cloud and cloud deployment model
ITU-T requirement for cloud and cloud deployment modelITU-T requirement for cloud and cloud deployment model
ITU-T requirement for cloud and cloud deployment model
Hitesh Mohapatra

Leetcode Problem Solution
Leetcode Problem SolutionLeetcode Problem Solution
Leetcode Problem Solution
Hitesh Mohapatra

Leetcode Problem Solution
Leetcode Problem SolutionLeetcode Problem Solution
Leetcode Problem Solution
Hitesh Mohapatra

Trie Data Structure
Trie Data Structure Trie Data Structure
Trie Data Structure
Hitesh Mohapatra

Reviewing basic concepts of relational database
Reviewing basic concepts of relational databaseReviewing basic concepts of relational database
Reviewing basic concepts of relational database
Hitesh Mohapatra

Reviewing SQL Concepts
Reviewing SQL ConceptsReviewing SQL Concepts
Reviewing SQL Concepts
Hitesh Mohapatra

Advanced database protocols
Advanced database protocolsAdvanced database protocols
Advanced database protocols
Hitesh Mohapatra

Measures of query cost
Measures of query costMeasures of query cost
Measures of query cost
Hitesh Mohapatra

Involvement of WSN in Smart Cities
Involvement of WSN in Smart CitiesInvolvement of WSN in Smart Cities
Involvement of WSN in Smart Cities
Hitesh Mohapatra

Data Structure and its Fundamentals
Data Structure and its FundamentalsData Structure and its Fundamentals
Data Structure and its Fundamentals
Hitesh Mohapatra

WORKING WITH FILE AND PIPELINE PARAMETER BINDING
WORKING WITH FILE AND PIPELINE PARAMETER BINDINGWORKING WITH FILE AND PIPELINE PARAMETER BINDING
WORKING WITH FILE AND PIPELINE PARAMETER BINDING
Hitesh Mohapatra

Basic commands for powershell : Configuring Windows PowerShell and working wi...
Basic commands for powershell : Configuring Windows PowerShell and working wi...Basic commands for powershell : Configuring Windows PowerShell and working wi...
Basic commands for powershell : Configuring Windows PowerShell and working wi...
Hitesh Mohapatra


More from Hitesh Mohapatra (20)

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content

Automating the Cloud: A Deep Dive into Virtual Machine Provisioning
Automating the Cloud: A Deep Dive into Virtual Machine ProvisioningAutomating the Cloud: A Deep Dive into Virtual Machine Provisioning
Automating the Cloud: A Deep Dive into Virtual Machine Provisioning

Harnessing the Power of Google Cloud Platform: Strategies and Applications
Harnessing the Power of Google Cloud Platform: Strategies and ApplicationsHarnessing the Power of Google Cloud Platform: Strategies and Applications
Harnessing the Power of Google Cloud Platform: Strategies and Applications

Scheduling in Cloud Computing
Scheduling in Cloud ComputingScheduling in Cloud Computing
Scheduling in Cloud Computing

Cloud-Case study
Cloud-Case study Cloud-Case study
Cloud-Case study

RAID
RAIDRAID
RAID

Load balancing in cloud computing.pptx
Load balancing in cloud computing.pptxLoad balancing in cloud computing.pptx
Load balancing in cloud computing.pptx

Cluster Computing
Cluster ComputingCluster Computing
Cluster Computing

ITU-T requirement for cloud and cloud deployment model
ITU-T requirement for cloud and cloud deployment modelITU-T requirement for cloud and cloud deployment model
ITU-T requirement for cloud and cloud deployment model

Leetcode Problem Solution
Leetcode Problem SolutionLeetcode Problem Solution
Leetcode Problem Solution

Leetcode Problem Solution
Leetcode Problem SolutionLeetcode Problem Solution
Leetcode Problem Solution

Trie Data Structure
Trie Data Structure Trie Data Structure
Trie Data Structure

Reviewing basic concepts of relational database
Reviewing basic concepts of relational databaseReviewing basic concepts of relational database
Reviewing basic concepts of relational database

Reviewing SQL Concepts
Reviewing SQL ConceptsReviewing SQL Concepts
Reviewing SQL Concepts

Advanced database protocols
Advanced database protocolsAdvanced database protocols
Advanced database protocols

Measures of query cost
Measures of query costMeasures of query cost
Measures of query cost

Involvement of WSN in Smart Cities
Involvement of WSN in Smart CitiesInvolvement of WSN in Smart Cities
Involvement of WSN in Smart Cities

Data Structure and its Fundamentals
Data Structure and its FundamentalsData Structure and its Fundamentals
Data Structure and its Fundamentals

WORKING WITH FILE AND PIPELINE PARAMETER BINDING
WORKING WITH FILE AND PIPELINE PARAMETER BINDINGWORKING WITH FILE AND PIPELINE PARAMETER BINDING
WORKING WITH FILE AND PIPELINE PARAMETER BINDING

Basic commands for powershell : Configuring Windows PowerShell and working wi...
Basic commands for powershell : Configuring Windows PowerShell and working wi...Basic commands for powershell : Configuring Windows PowerShell and working wi...
Basic commands for powershell : Configuring Windows PowerShell and working wi...


Recently uploaded

一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理
一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理
一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理
nedcocy

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx
VANDANAMOHANGOUDA

Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...
ijseajournal

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
VICTOR MAESTRE RAMIREZ

morris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdfmorris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdf
ycwu0509

Gas agency management system project report.pdf
Gas agency management system project report.pdfGas agency management system project report.pdf
Gas agency management system project report.pdf
Kamal Acharya

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理
uqyfuc

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx
CVCSOfficial

Applications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdfApplications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdf
Atif Razi

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation
kandramariana6

Design and optimization of ion propulsion drone
Design and optimization of ion propulsion droneDesign and optimization of ion propulsion drone
Design and optimization of ion propulsion drone
bjmsejournal

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...
Prakhyath Rai

Introduction to Computer Networks & OSI MODEL.ppt
Introduction to Computer Networks & OSI MODEL.pptIntroduction to Computer Networks & OSI MODEL.ppt
Introduction to Computer Networks & OSI MODEL.ppt
Dwarkadas J Sanghvi College of Engineering

一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
upoux

Mechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdfMechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdf
21UME003TUSHARDEB

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
shadow0702a

Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...
cannyengineerings

Supermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdfSupermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdf
Kamal Acharya

Digital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptxDigital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptx
aryanpankaj78

AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
Paris Salesforce Developer Group


Recently uploaded (20)

一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理
一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理
一比一原版(爱大毕业证书)爱荷华大学毕业证如何办理

ITSM Integration with MuleSoft.pptx
ITSM  Integration with MuleSoft.pptxITSM  Integration with MuleSoft.pptx
ITSM Integration with MuleSoft.pptx

Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...Call For Paper -3rd International Conference on Artificial Intelligence Advan...
Call For Paper -3rd International Conference on Artificial Intelligence Advan...

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member

morris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdfmorris_worm_intro_and_source_code_analysis_.pdf
morris_worm_intro_and_source_code_analysis_.pdf

Gas agency management system project report.pdf
Gas agency management system project report.pdfGas agency management system project report.pdf
Gas agency management system project report.pdf

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理

TIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptxTIME TABLE MANAGEMENT SYSTEM testing.pptx
TIME TABLE MANAGEMENT SYSTEM testing.pptx

Applications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdfApplications of artificial Intelligence in Mechanical Engineering.pdf
Applications of artificial Intelligence in Mechanical Engineering.pdf

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation

Design and optimization of ion propulsion drone
Design and optimization of ion propulsion droneDesign and optimization of ion propulsion drone
Design and optimization of ion propulsion drone

Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...Software Engineering and Project Management - Software Testing + Agile Method...
Software Engineering and Project Management - Software Testing + Agile Method...

Introduction to Computer Networks & OSI MODEL.ppt
Introduction to Computer Networks & OSI MODEL.pptIntroduction to Computer Networks & OSI MODEL.ppt
Introduction to Computer Networks & OSI MODEL.ppt

一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理
一比一原版(osu毕业证书)美国俄勒冈州立大学毕业证如何办理

Mechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdfMechanical Engineering on AAI Summer Training Report-003.pdf
Mechanical Engineering on AAI Summer Training Report-003.pdf

Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...
Use PyCharm for remote debugging of WSL on a Windo cf5c162d672e4e58b4dde5d797...

Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...Pressure Relief valve used in flow line to release the over pressure at our d...
Pressure Relief valve used in flow line to release the over pressure at our d...

Supermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdfSupermarket Management System Project Report.pdf
Supermarket Management System Project Report.pdf

Digital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptxDigital Twins Computer Networking Paper Presentation.pptx
Digital Twins Computer Networking Paper Presentation.pptx

AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...
AI + Data Community Tour - Build the Next Generation of Apps with the Einstei...


Virtualization: A Key to Efficient Cloud Computing

  • 1. KALINGA INSTITUTE OF INDUSTRIAL TECHNOLOGY Cloud Computing 3 Credit School of Computer Engineering
  • 3. Virtualisation: Concept 3  Virtualization is a technique, which allows to share a single physical instance of a resource or an application among multiple customers and organizations.  It does by assigning a logical name to a physical storage and providing a pointer to that physical resource when demanded.  Virtualization in cloud computing allows you to run multiple applications and OS on the same server, thereby providing for efficient resource utilization and reducing
  • 5. With the help of Virtualization multiple operating systems and applications can run on same Machine and its same hardware at the same time increasing the utilization and flexibility of hardware. The machine on which the virtual machine is going to be build is known as Host Machine and that virtual machine is referred as a Guest Machine.
  • 6. Hypervisor 5  The hypervisor is a firmware or low-level program that acts as a Virtual Machine Manager.  Hypervisor is a form of virtualization software used in Cloud hosting to divide and allocate the resources on various pieces of hardware.The program which provide partitioning, isolation or abstraction is called virtualization hypervisor.  Hypervisor is a hardware virtualization technique that allows multiple guest operating systems (OS) to run on a single host system at the same time. A hypervisor is sometimes also called a virtual machine manager(VMM).  There are two types of hypervisor: Type 1 and Type 2
  • 7. Types of Hypervisors 6  Type 1 hypervisors run directly on the system hardware. They are often referred to as a "native" or "bare metal" or "embedded" hypervisors in vendor literature. It dose not require any base server operating system.It has direct access to hardware resources  Type 2 hypervisors run on a host operating system that provides virtualization services, such as I/O device and memory management. Software installed on an operating system. These are often referred to as “Hosted Architecture" hypervisors in vendor literature.
  • 10. Type 1 and Type 2
  • 11. Features of Type-1 and 2 Hypervisor 9 Type-1 Hypervisor:  provides better performance  provides greater flexibility  Servers that run Type 1 hypervisors are often single- purpose servers that offer no other function.  Type 1 hypervisors are production hypervisors or hypervisors that run VMs offering services to users.  support hardware virtualization. Type-2 Hypervisor:  Less efficient  Less flexible  offer a series of different services.  rarely used in production.  perform software virtualization.
  • 13. Types of Virtualization 11  Hardware Virtualization  Software Virtualization  Memory Virtualization  Storage Virtualization  Data Virtualization  Network Virtualization  Desktop Virtualization
  • 14. Hardware Virtualization 12 Hardware virtualization also known as server virtualization runs on the concept that an individual independent segment of hardware or a physical server, may be made up of multiple smaller segments of hardware or servers, essentially consolidating multiple physical servers into virtual servers that run on a single primary physical server.
  • 15. Hardware Virtualization: Subtyp es  Full Virtualization – • The underlying hardware is fully simulated. • Guest software does not require any modifications.  Para-virtualization – • The hardware is not simulated instead the guest software run their own isolated domains.  Emulation Virtualization – • The virtual machine simulates the hardware and becomes independent of it. 13
  • 16. Full virtualization is a common and cost- effective type of virtualization, which is basically a method by which computer service requests are separated from the physical hardware that facilitates them. With full virtualization, operating systems and their hosted software are run on top of virtual hardware. It differs from other forms of virtualization (like paravirtualization and hardware-assisted virtualization) in its total isolation of guest operating systems from their hosts.
  • 17. Full virtualization Full virtualization is fulfilled by the use of both binary translation and direct execution. In full virtualization, the guest OS is completely isolated by the virtual machine from the virtualization layer and hardware. Microsoft and Parallels systems are examples of full virtualization..
  • 18. Fig.
  • 19. Para-virtualization Paravirtualization is the category of CPU virtualization which uses hypercalls for operations to handle instructions at compile time. In paravirtualization, guest OS is not completely isolated but it is partially isolated by the virtual machine from the virtualization layer and hardware. VMware and Xen are some examples of paravirtualization..
  • 20. Fig.
  • 21. 14 Full Virtualization Emulation Para Virtualization Hardware Virtualization: Subtypes
  • 22. Software Virtualization 15 •Software Virtualization involves the creation and operation of multiple virtual environments on the host machine. • It is used to enable a complete computer system in order to allow the guest operating system to run. •For instance, letting LINUX OS to run as a guest that is natively using a Microsoft Windows OS.
  • 23. Software Virtualization :Subtypes 16  Operating System Virtualization – hosting multiple OS on the native OS  Application Virtualization – hosting individual applications in a virtual environment separate from the native OS  Service Virtualization – hosting specific services related to a particular application.
  • 24. Memory Virtualization •Physical memory across different ser vers i s aggregated into a single virtualized memory pool. •It provides the benefit of an enlarged contiguous working memory. •For instance, as some OS such as Microsoft Windows OS allows a portion of your storage disk to serve as an extension of your RAM. 17
  • 25. Memory Virtualization: Subtypes 18  Application-level control – Applications access the memory pool directly.  Operating system level control – Access to the memory pool is provided through an operating system.
  • 26. Storage Virtualization •19 •Multiple physical storage devices are grouped together, which then appear as a single storage device. •This provides various advantages such as homogenization of storage across storage devices of multiple capacity and speeds, reduced downtime, load balancing and better optimization of performance and speed. •Partitioning your hard drive into
  • 27. Storage Virtualization: Subtypes 20 1. Block Virtualization – Virtualisation on block level means that storage capacity is made available to the operating system or the applications in the form of virtual disks.
  • 28. 2. File Virtualization Virtualisation on file level means that the virtualisation entity provides virtual storage to the operating systems or applications in the form of files and directories Storage Virtualization: Subtypes
  • 29. Data Virtualization 21 •It lets us to easily manipulate data, as the data is presented as an abstract layer completely independent of data structure and database systems. •Decreases data input and formatting errors.
  • 30. Network Virtualization 22  In network virtualization, multiple sub- networks can be created on the same physical network, which may or may not is authorized to communicate with each other.  This enables restriction of file movement across networks and enhances security, and allows better monitoring and identification of data usage.  It also increases reliability as a disruption in one network doesn’t affect other
  • 31. Network Virtualization :Subtypes 23  Internal network: Enables a single system to function like a network  External network: Consolidation of multiple networks into a single one, or
  • 32. Desktop Virtualization •24 •This is perh a p s t h e m o s t c o m m o n fo r m o f virtualization for any regular IT employee. •The user’s desktop is stored on a remote server, allowing the user to access his desktop from any device or location. •Employees can work conveniently from the comfort of their home. Since the data transfer takes place over secure protocols, any risk of data theft is minimized.
  • 34. Benefits of Virtualization 26  Easily outsource your hardware and eliminate any energy costs associated with its operation.  the efficiency, security and cost advantages.  Run operating systems where the physical hardware is unavailable.  Easier to create new machines, backup machines, etc.  Software testing using “clean” installs of operating systems and software  Emulate more machines than are physically available.  Timeshare lightly loaded systems on one host.
