INTRODUCTION TO X5 MDVR
MDVR from Mobile CCTV Systems

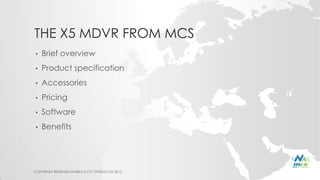

THE X5 MDVR FROM MCS
• Brief overview
• Product specification
• Accessories
• Pricing
• Software
• Benefits
COPYRIGHT RESERVED MOBILE CCTV SYSTEMS LTD 2013

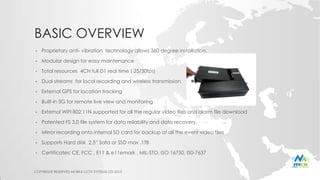

BASIC OVERVIEW
• Proprietary anti- vibration technology allows 360 degree installation.
• Modular design for easy maintenance
• Total resources 4CH full D1 real time ( 25/30fps)
• Dual streams for local recording and wireless transmission.
• External GPS for location tracking
• Built-in 3G for remote live view and monitoring
• External WIFI 802.11N supported for all the regular video flies and alarm file download
• Patented FS 3.0 file system for data reliability and data recovery.
• Mirror recording onto internal SD card for backup of all the event video files
• Supports Hard disk 2.5” Sata or SSD max .1TB
• Certificates: CE, FCC , E11 & e11emark , MIL-STO, ISO 16750, IS0-7637
COPYRIGHT RESERVED MOBILE CCTV SYSTEMS LTD 2013

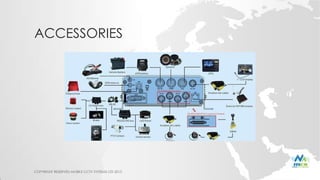

ACCESSORIES
COPYRIGHT RESERVED MOBILE CCTV SYSTEMS LTD 2013
MCS-X5-4CH PRICING
Item Description MCS Part Code Picture MSRP TRADE PARTNER
1
MDVR-X5II-4CH, built-in Inertial
sensor
MCS-X5-4CH £729.35 £486.24 £442.03
2 Built-in GPS with antenna Option £51.48 £34.32 £31.20
3 Built-in WIFI with antenna Option £68.65 £45.76 £41.60
4 Built-in HSPA with antenna Option £128.71 £85.81 £78.01
5
DB26: Alarm box & RS232/485
expanded box
03.06.09.08.26 £34.32 £22.88 £20.80
CP3 with 3.5inch screen
monitor, control panel and
speaker 3 in 1 design
03.06.09.04.38
Extension cable for CP3 01.05.01.13.181
Speaker for CP3 01.08.10.284
cable for connecting CP3 with
Speaker
01.05.01.13.38
8 Bracket for CP3 03.06.09.01.06 £5.15 £3.43 £3.12
9
UPS - To stabilise vehicle power
when idling
03.06.09.05.37 £111.55 £74.37 £67.60
10 7inch LCD monitor 01.08.02.17 £102.97 £68.65 £62.40
11 bracket for LCD monitor 01.09.99.96 £5.15 £3.43 £3.12
12
Mini LED panel with Panic
button
03.06.09.12.13 £51.48 £34.32 £31.20
7
£102.97
£34.32 £22.88 £20.80
£169.90 £113.26
X5 4 Channel MDVR
6
COPYRIGHT RESERVED MOBILE CCTV SYSTEMS LTD 2013
SOFTWARE
• CEIBA ( Local Viewing) • CMS (Remote Viewing)
COPYRIGHT RESERVED MOBILE CCTV SYSTEMS LTD 2013
• Playback directly from the Unit or Hard drive
• Search by date or event
• See all meta data GPS, Speed, Temp etc.
• Take still snapshots from video
• Select and export video selection
• Click on map to view video from location
• Simple to install and use
• Live view directly from the Unit or Hard drive
• See actual position on map overview
• See all meta data GPS, Speed, Temp etc.
• See location from over 256 vehicles
• Click on vehicle for live view
• Click on map to view video from location
• Server and workstation applications

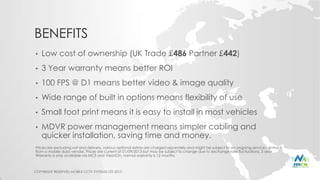

BENEFITS
• Low cost of ownership (UK Trade £486 Partner £442)
• 3 Year warranty means better ROI
• 100 FPS @ D1 means better video & image quality
• Wide range of built in options means flexibility of use
• Small foot print means it is easy to install in most vehicles
• MDVR power management means simpler cabling and
quicker installation, saving time and money.
Prices are excluding vat and delivery, various optional extras are charged separately and might be subject to an ongoing service contract
from a mobile data vendor. Prices are current at 01/09/2013 but may be subject to change due to exchange rate fluctuations. 3 year
Warranty is only available via MCS and VisionOn, normal warranty is 12 months.
COPYRIGHT RESERVED MOBILE CCTV SYSTEMS LTD 2013
