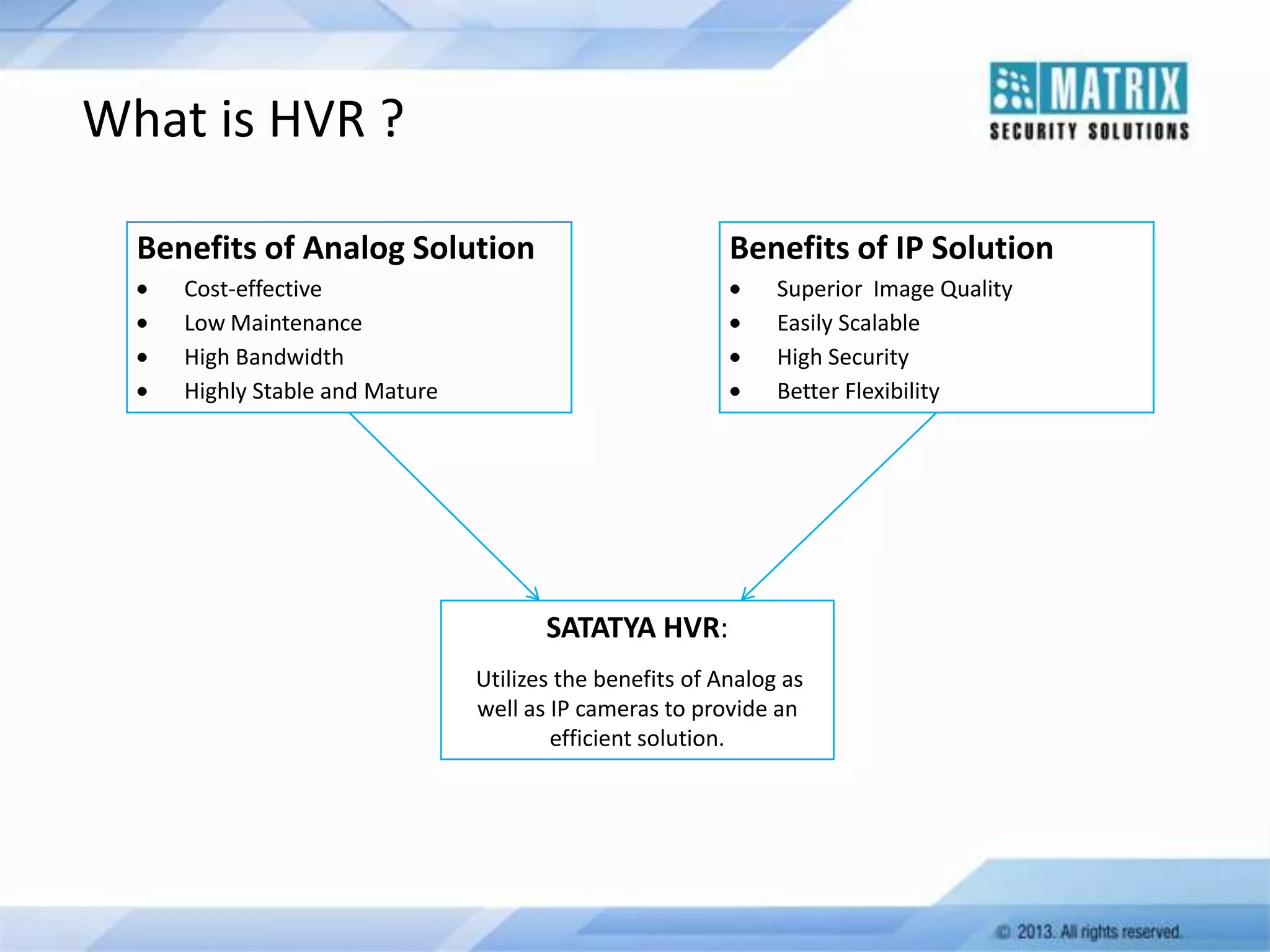

3. What is HVR ?
Benefits of Analog Solution
Benefits of IP Solution
Cost-effective
Low Maintenance
High Bandwidth
Highly Stable and Mature
Superior Image Quality
Easily Scalable
High Security
Better Flexibility
SATATYA HVR:
Utilizes the benefits of Analog as
well as IP cameras to provide an
efficient solution.

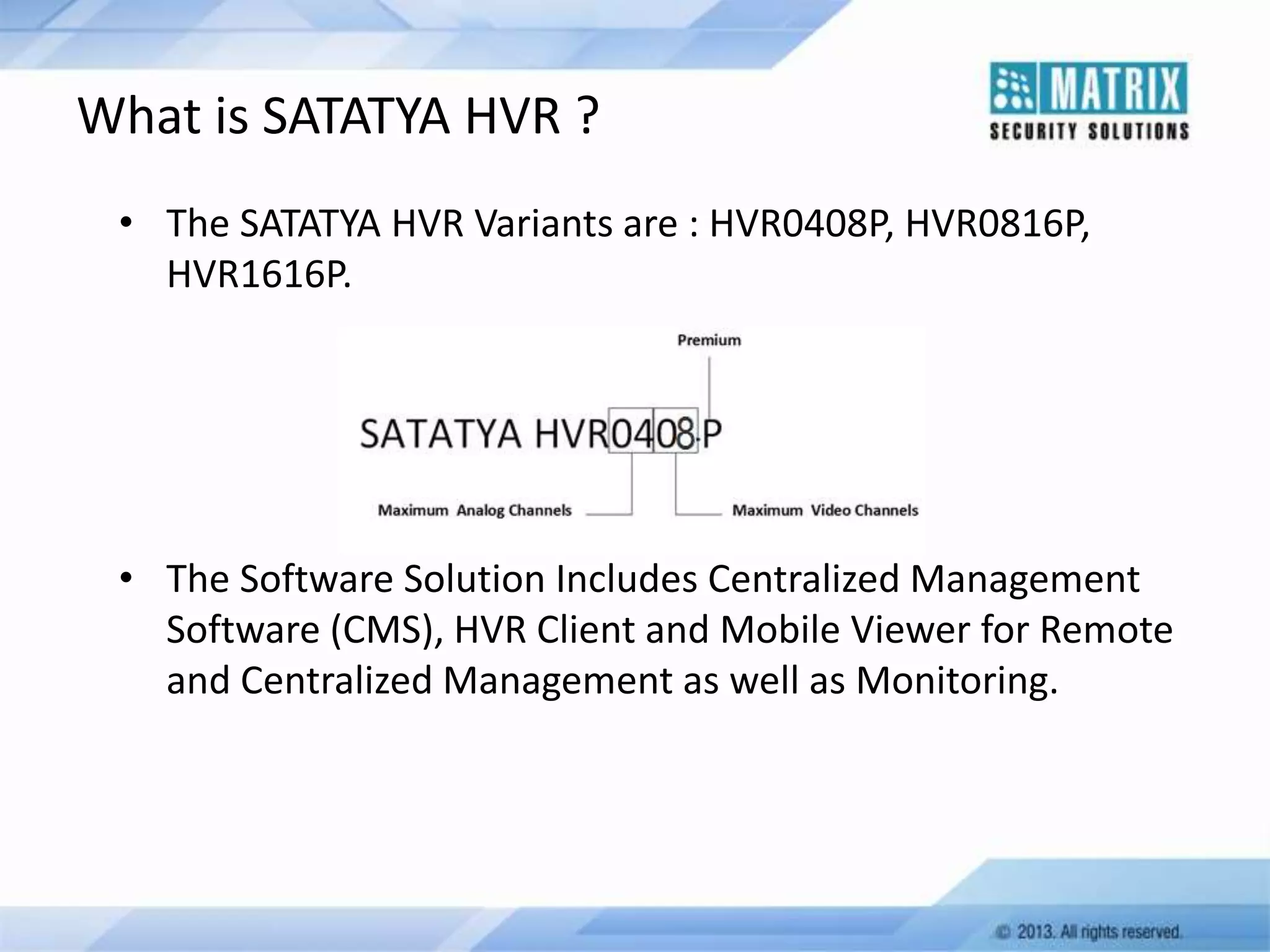

4. What is SATATYA HVR ?
• The SATATYA HVR Variants are : HVR0408P, HVR0816P,
HVR1616P.
• The Software Solution Includes Centralized Management
Software (CMS), HVR Client and Mobile Viewer for Remote
and Centralized Management as well as Monitoring.

5. Key Differentiators

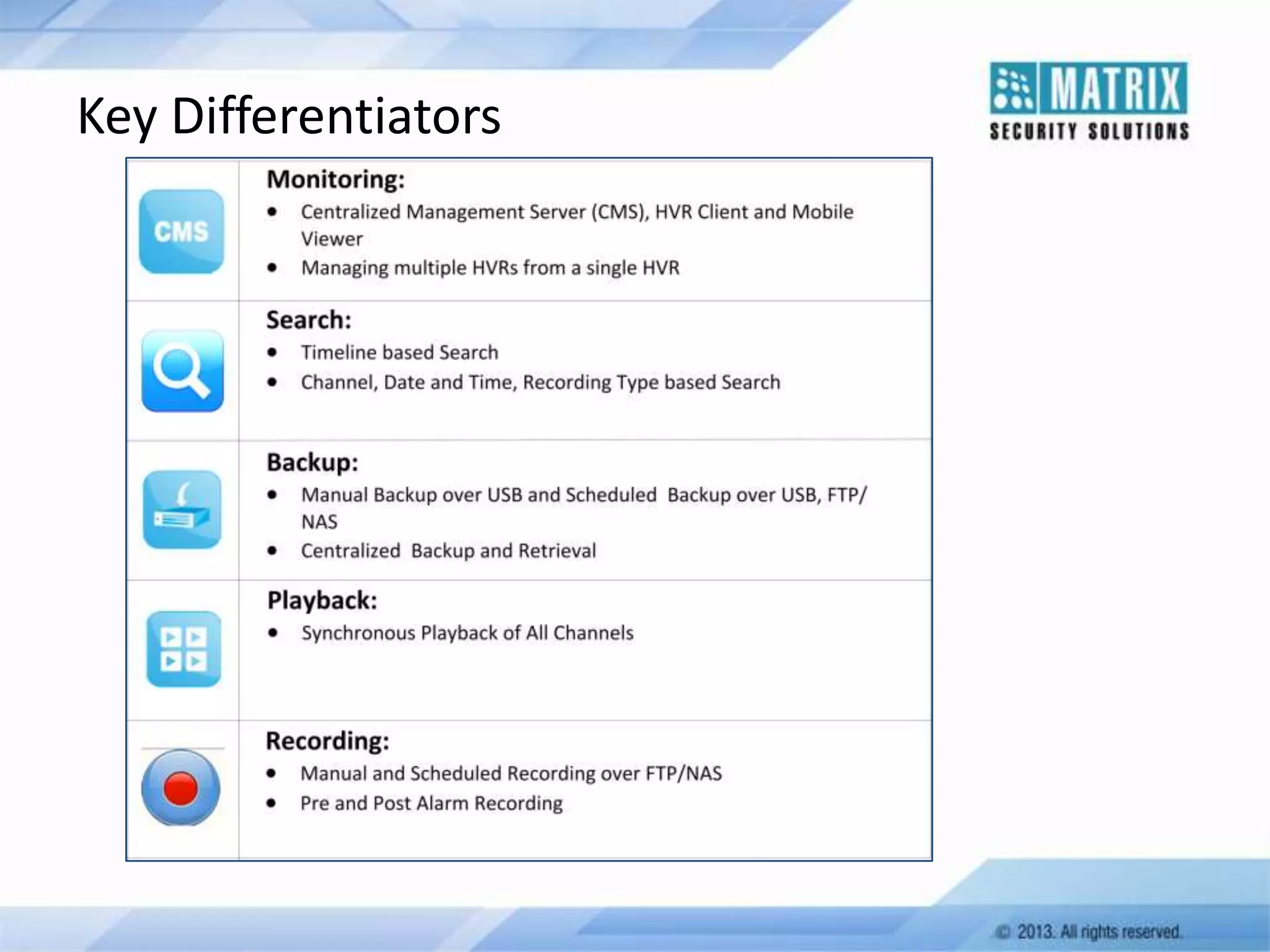

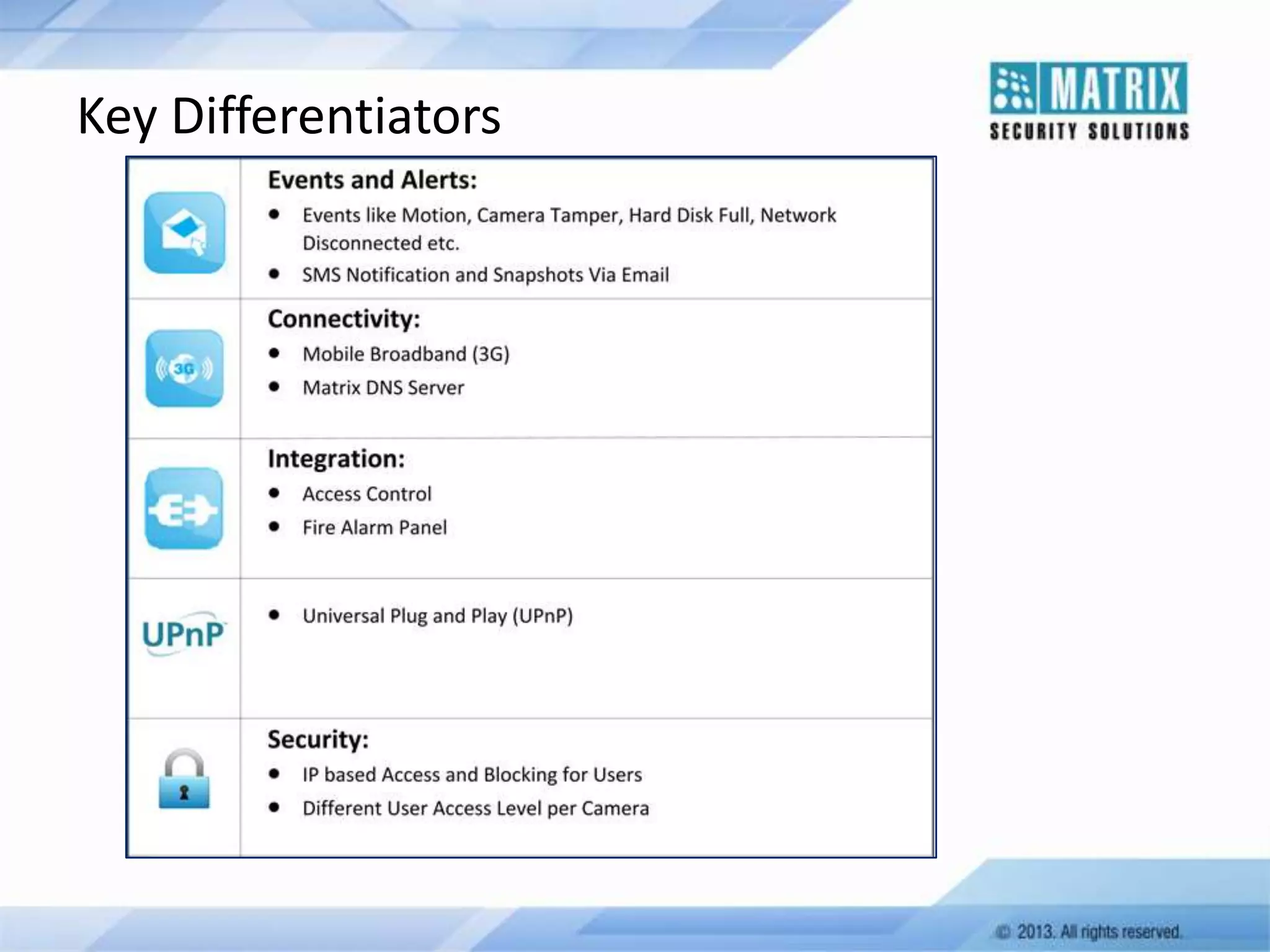

6. Key Differentiators

7. Target Customers
Large
Enterprises
Corporates
Hotels
Retail Stores
Clubs
Residential
Areas
Private
Offices
Financial
Institutes
And
Many
More
Shopping
Malls

8. SATATYA HVR Solution

9. Hardware

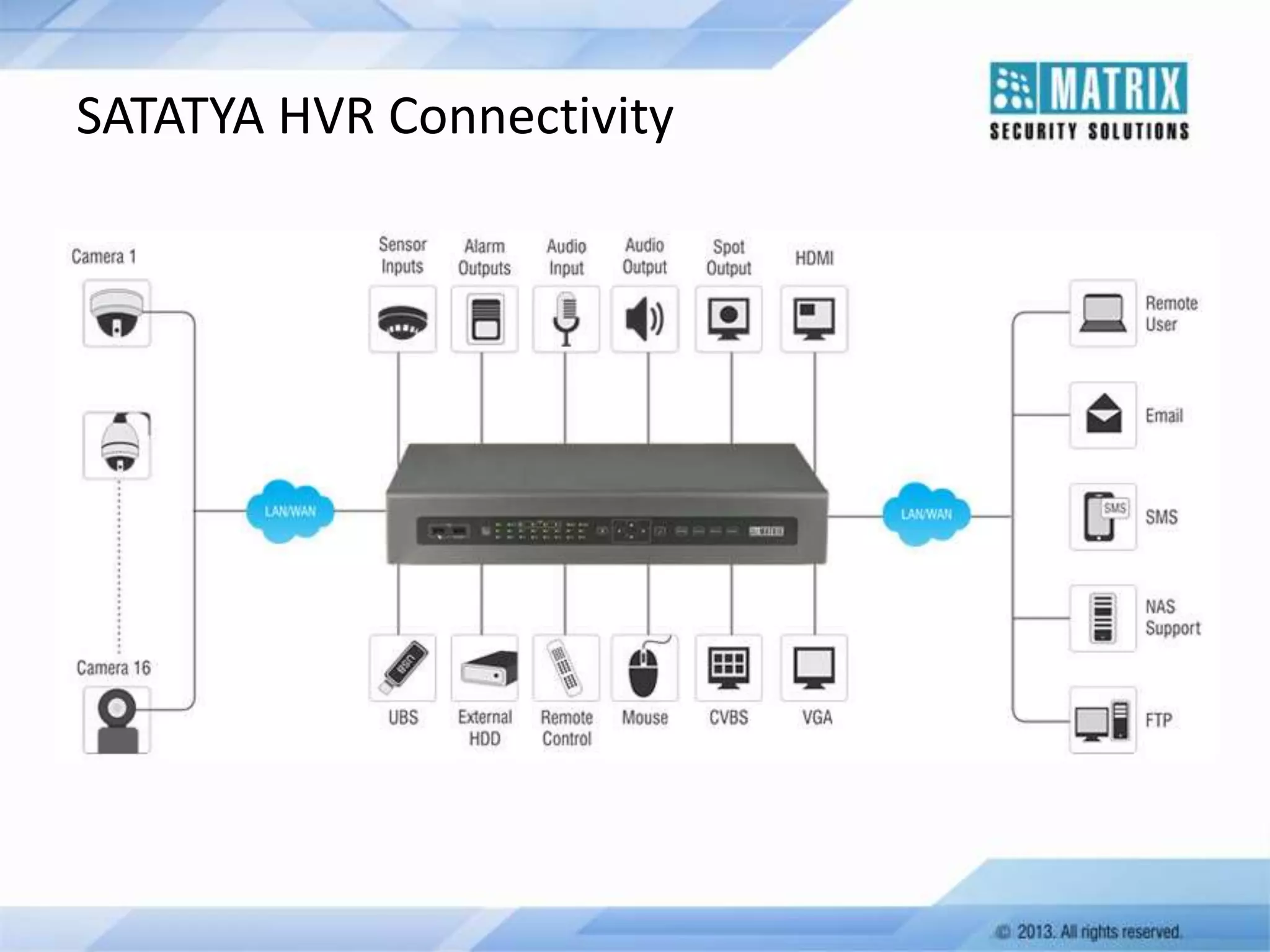

10. SATATYA HVR Connectivity

11. Technical Specifications
Model
Compression
Default Analog Input
Maximum Expandable IP
Channels
Video
Standard
Output
Loop Output
Compression
Audio
Input
Output
Input
SATATYA HVR0408P
4 Channel, BNC
Up to 4 Channels
SATATYA HVR0816P
SATATYA HVR1616P
H.264/MPEG4/Motion JPEG
8 Channel, BNC
Up to 16 Channels
16 Channel, BNC
Up to 16 Channels
PAL (704x576) and NTSC (704x480)
1 HDMI, 1 VGA, 1 CVBS
2 HDMI, 1 VGA, 1 CVBS Main, 1 CVBS Spot
Main, 1 CVBS Spot
No
8
16
Analog: G.711 and IP Input: G.711, G.726, G.729 and AAC (Depending on
Camera)
4 Channel, Loop Input
8 Channel, Loop Input
16 Channel, Loop Input
1 Channel, RCA Port
1 Channel, RCA Port
1 Channel, RCA Port
2
8
8
Interface
Output
1
SATA Port (4 TB Per Port)
1
4
Communication Interface
Alarm
Storage
1×Gigabit RJ45 Ethernet
Interface
2×Gigabit RJ45 Ethernet Interface
2 Ports
4 Ports
USB 2.0 Interface
RS-485
3
1 Port (PTZ Control)
3

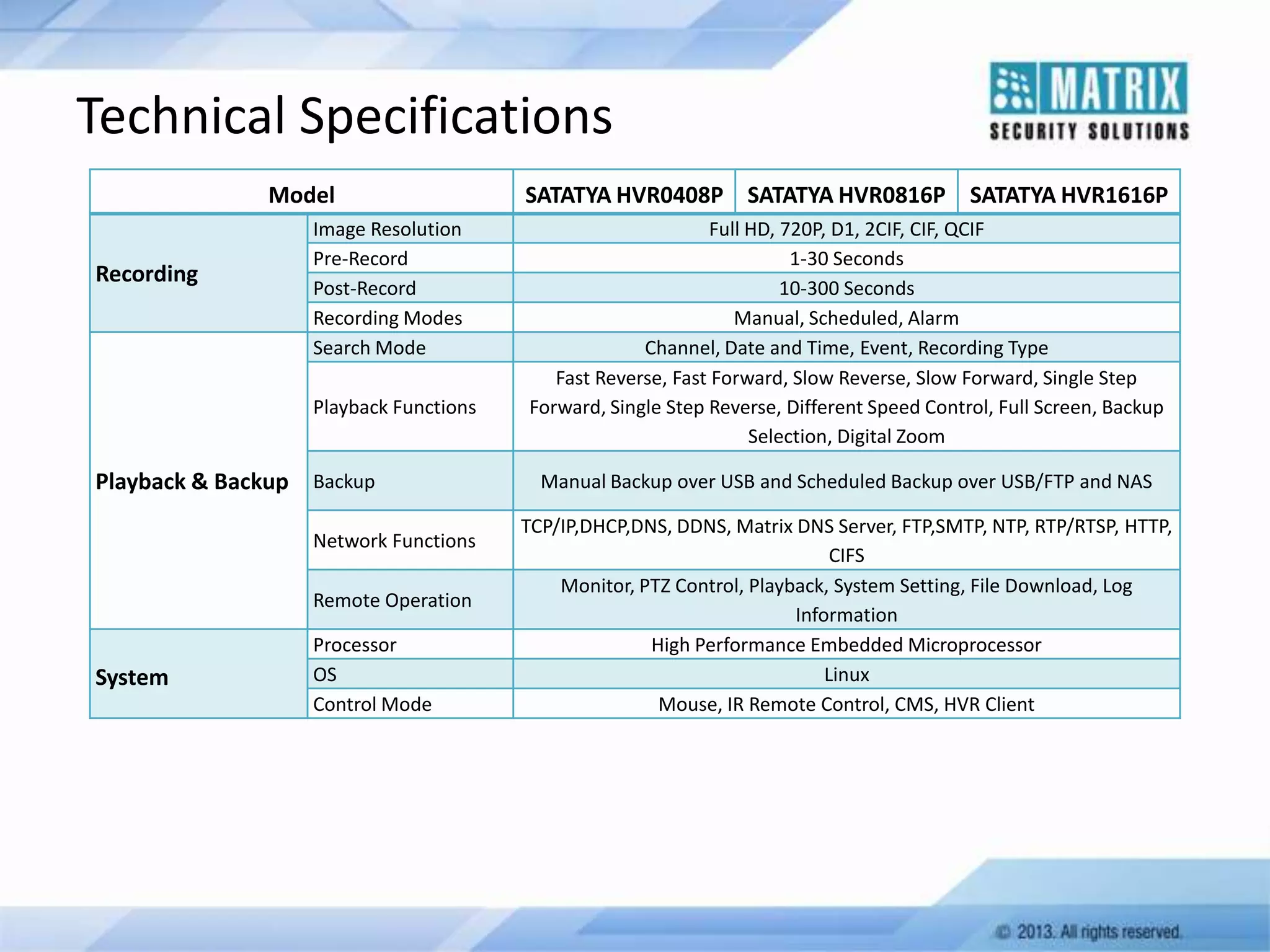

12. Technical Specifications
Model
Recording
Image Resolution
Pre-Record
Post-Record
Recording Modes
Search Mode
Playback Functions
Playback & Backup Backup
Network Functions
Remote Operation
System
Processor
OS
Control Mode
SATATYA HVR0408P SATATYA HVR0816P SATATYA HVR1616P
Full HD, 720P, D1, 2CIF, CIF, QCIF
1-30 Seconds
10-300 Seconds
Manual, Scheduled, Alarm
Channel, Date and Time, Event, Recording Type
Fast Reverse, Fast Forward, Slow Reverse, Slow Forward, Single Step
Forward, Single Step Reverse, Different Speed Control, Full Screen, Backup
Selection, Digital Zoom
Manual Backup over USB and Scheduled Backup over USB/FTP and NAS
TCP/IP,DHCP,DNS, DDNS, Matrix DNS Server, FTP,SMTP, NTP, RTP/RTSP, HTTP,
CIFS
Monitor, PTZ Control, Playback, System Setting, File Download, Log
Information
High Performance Embedded Microprocessor
Linux
Mouse, IR Remote Control, CMS, HVR Client

13. Software Solution

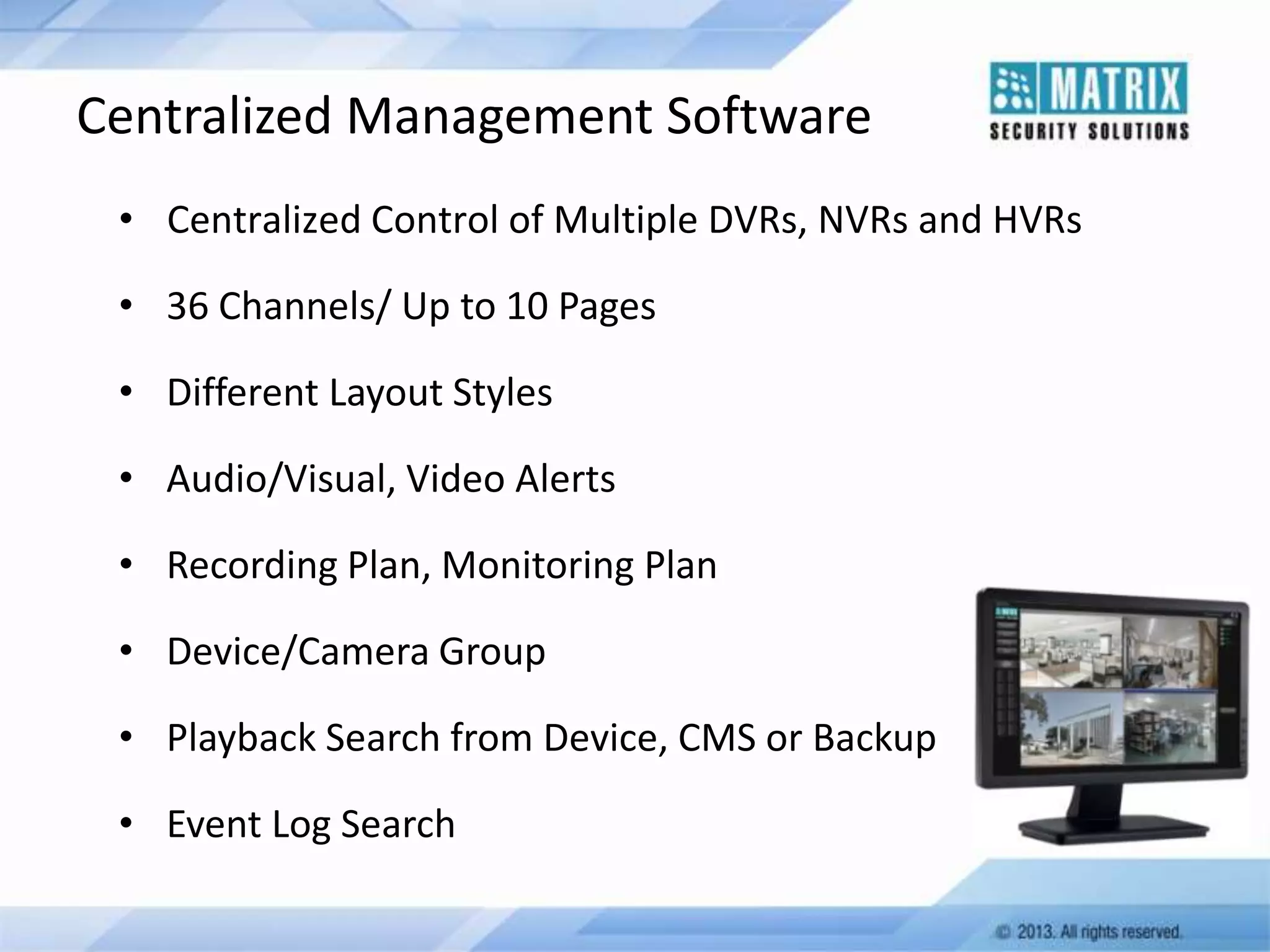

14. Centralized Management Software
• Centralized Control of Multiple DVRs, NVRs and HVRs
• 36 Channels/ Up to 10 Pages
• Different Layout Styles
• Audio/Visual, Video Alerts
• Recording Plan, Monitoring Plan
• Device/Camera Group
• Playback Search from Device, CMS or Backup
• Event Log Search

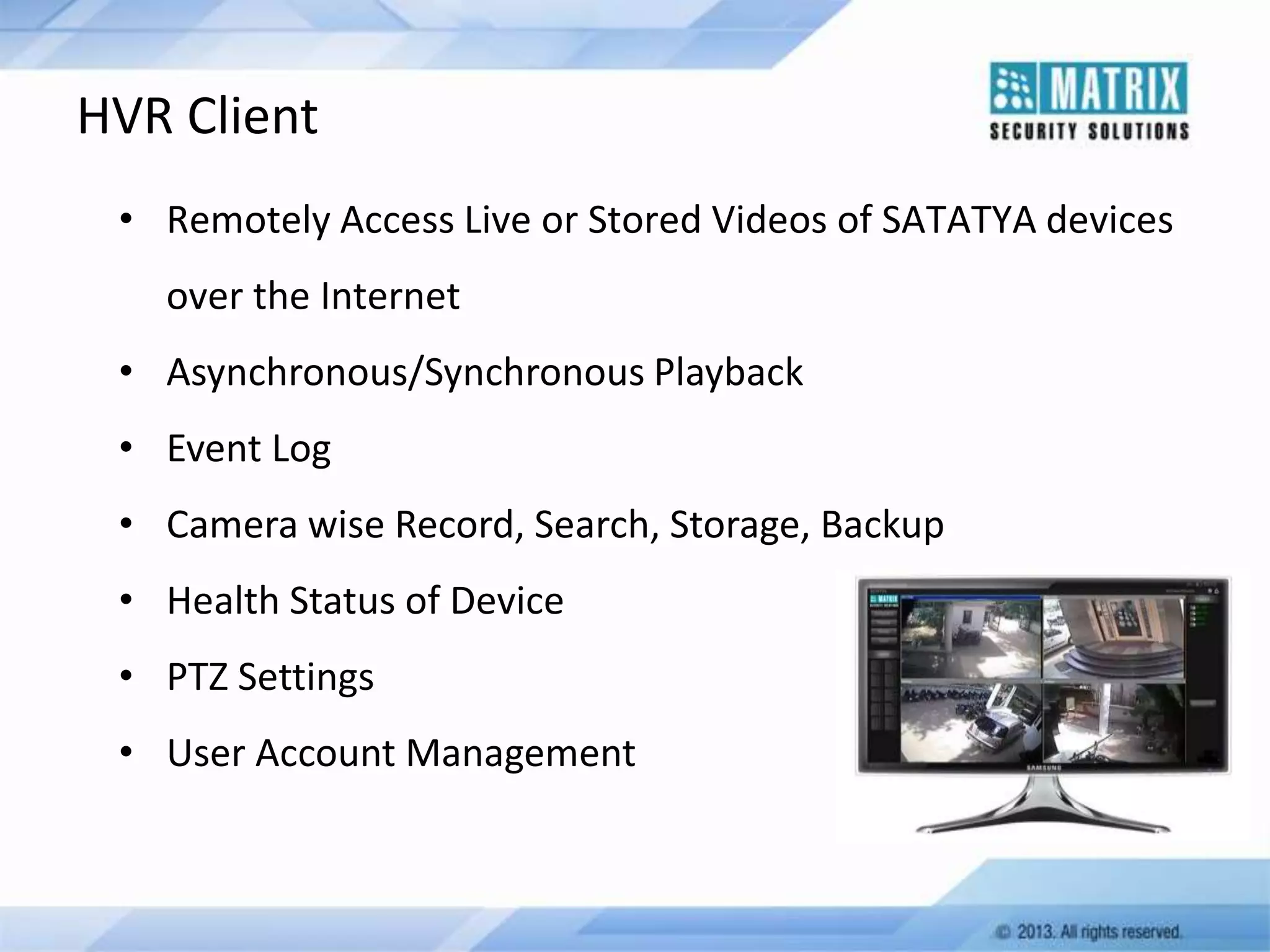

15. HVR Client
• Remotely Access Live or Stored Videos of SATATYA devices
over the Internet
• Asynchronous/Synchronous Playback
• Event Log
• Camera wise Record, Search, Storage, Backup
• Health Status of Device
• PTZ Settings
• User Account Management

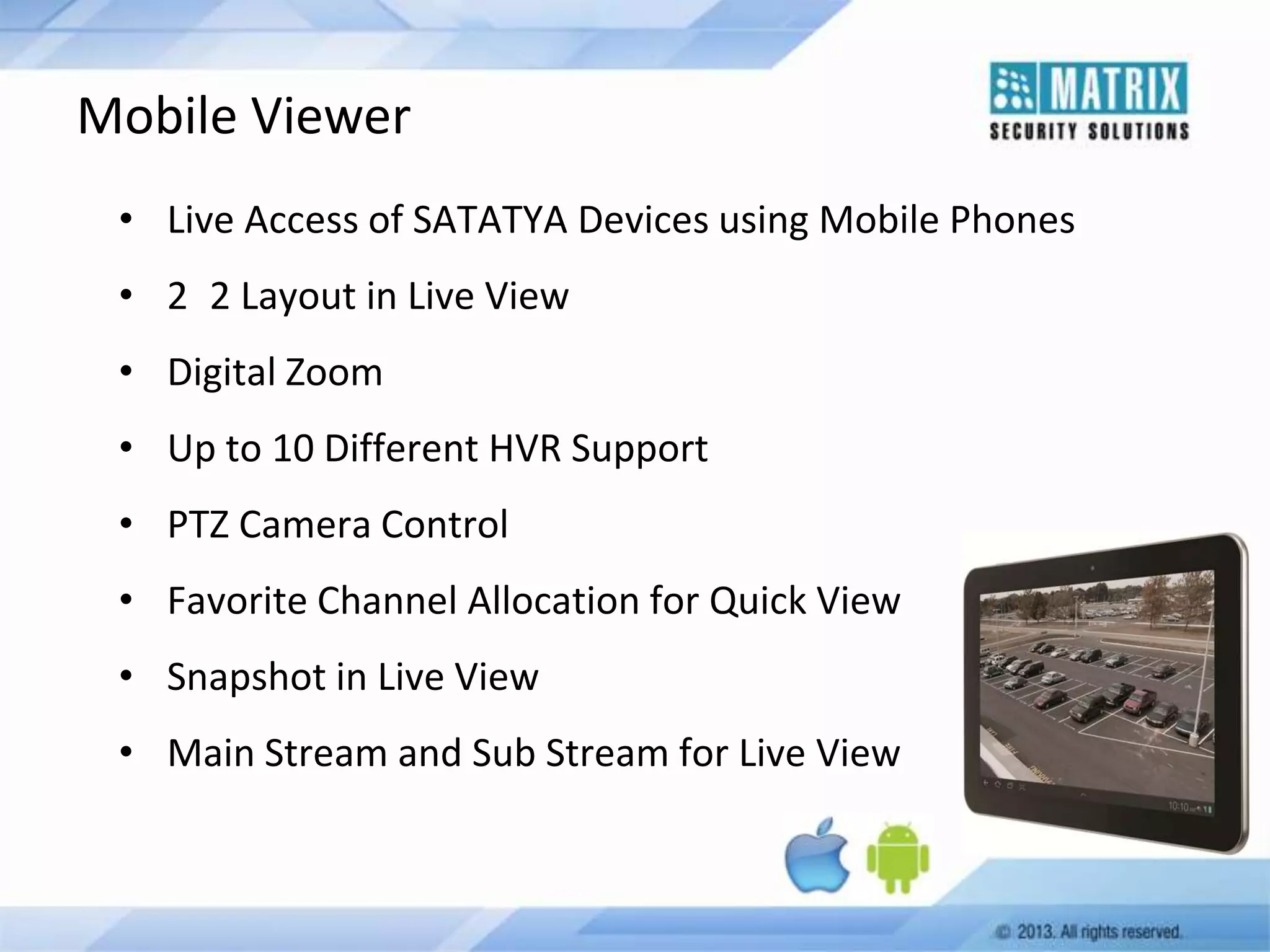

16. Mobile Viewer
• Live Access of SATATYA Devices using Mobile Phones
• 2 2 Layout in Live View
• Digital Zoom
• Up to 10 Different HVR Support
• PTZ Camera Control
• Favorite Channel Allocation for Quick View
• Snapshot in Live View
• Main Stream and Sub Stream for Live View

17. Key Features

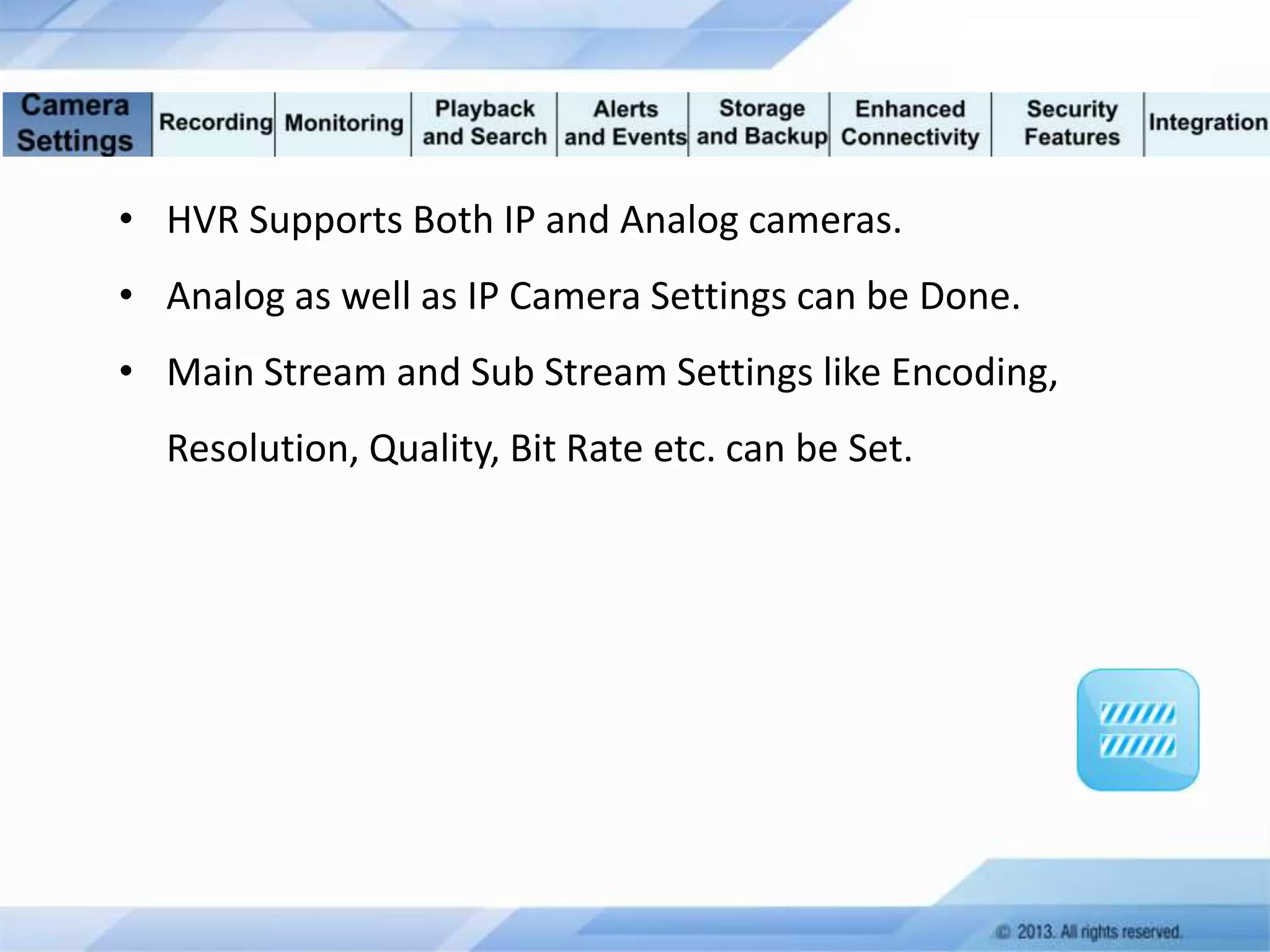

18. • HVR Supports Both IP and Analog cameras.
• Analog as well as IP Camera Settings can be Done.
• Main Stream and Sub Stream Settings like Encoding,
Resolution, Quality, Bit Rate etc. can be Set.

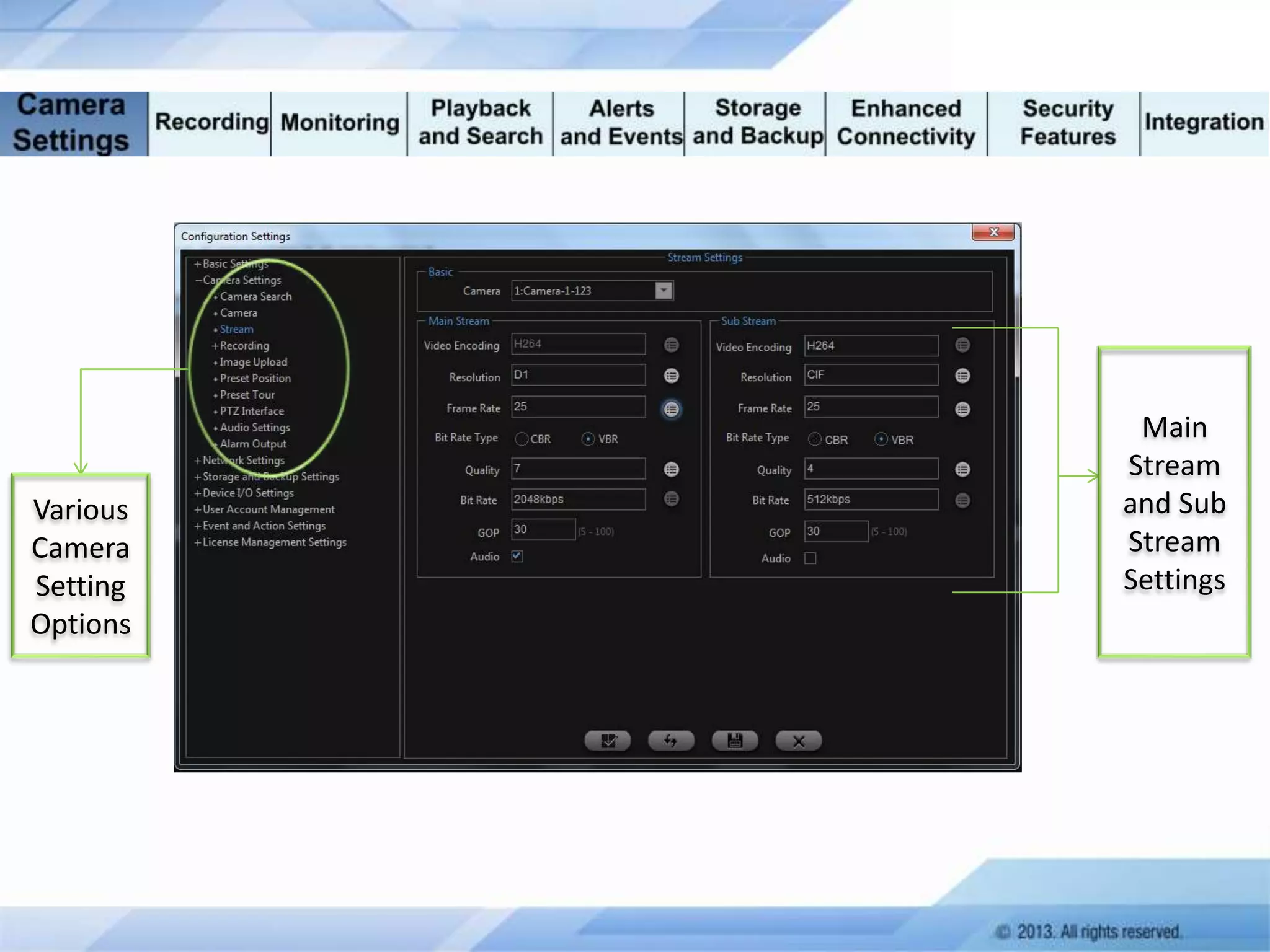

19. Various
Camera
Setting
Options
Main
Stream
and Sub
Stream
Settings

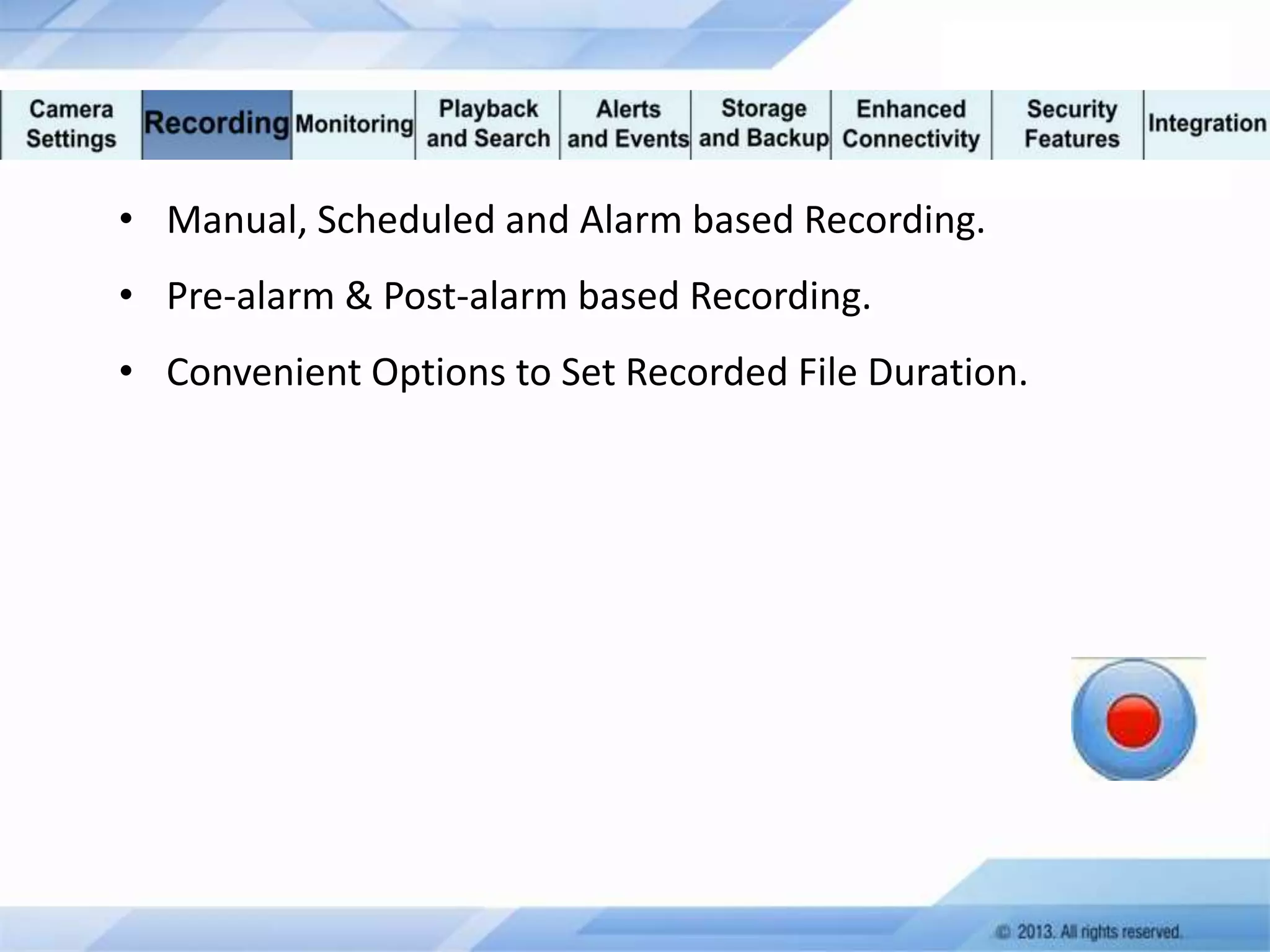

20. • Manual, Scheduled and Alarm based Recording.
• Pre-alarm & Post-alarm based Recording.
• Convenient Options to Set Recorded File Duration.

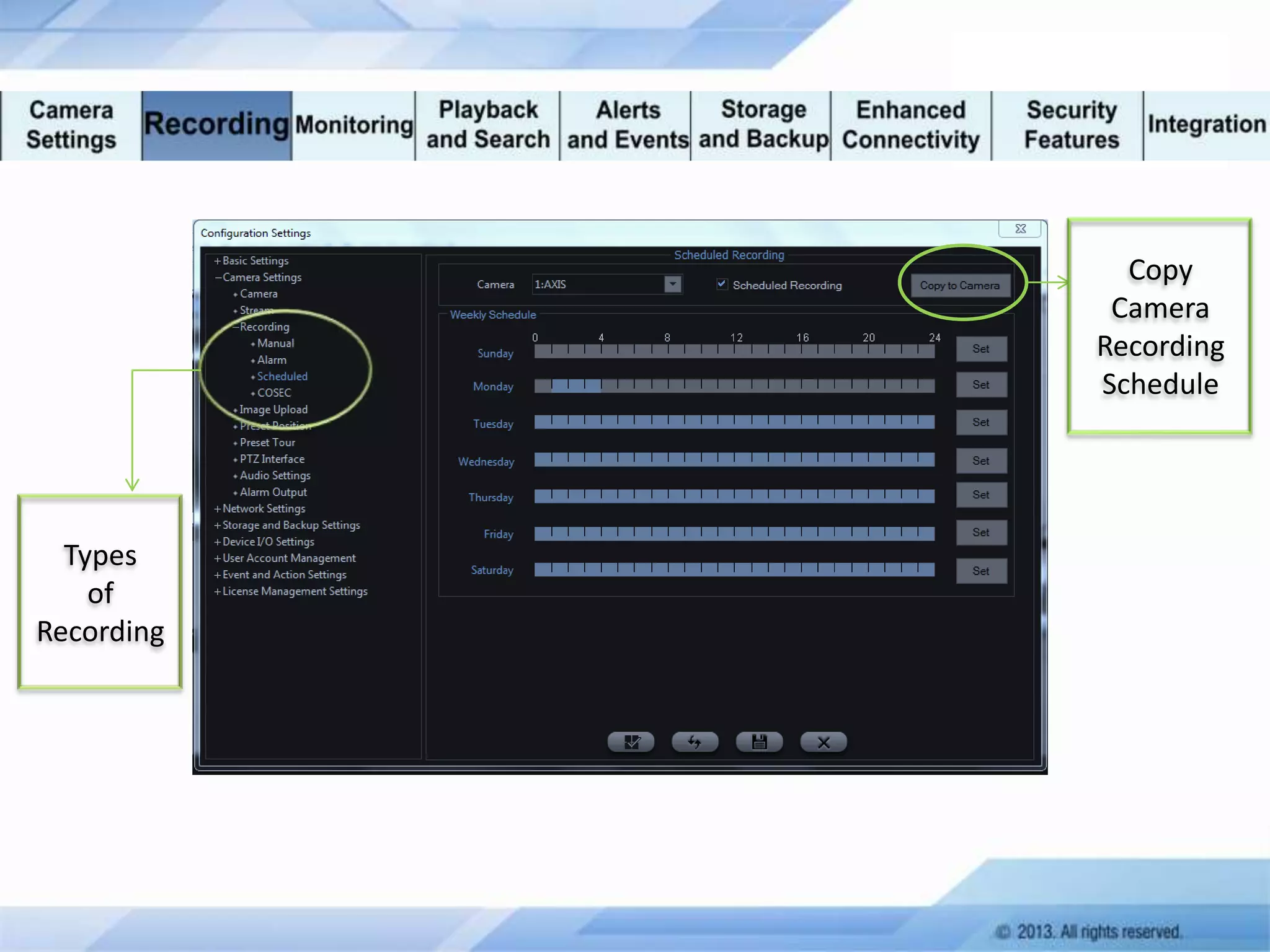

21. Copy
Camera
Recording
Schedule
Types
of
Recording

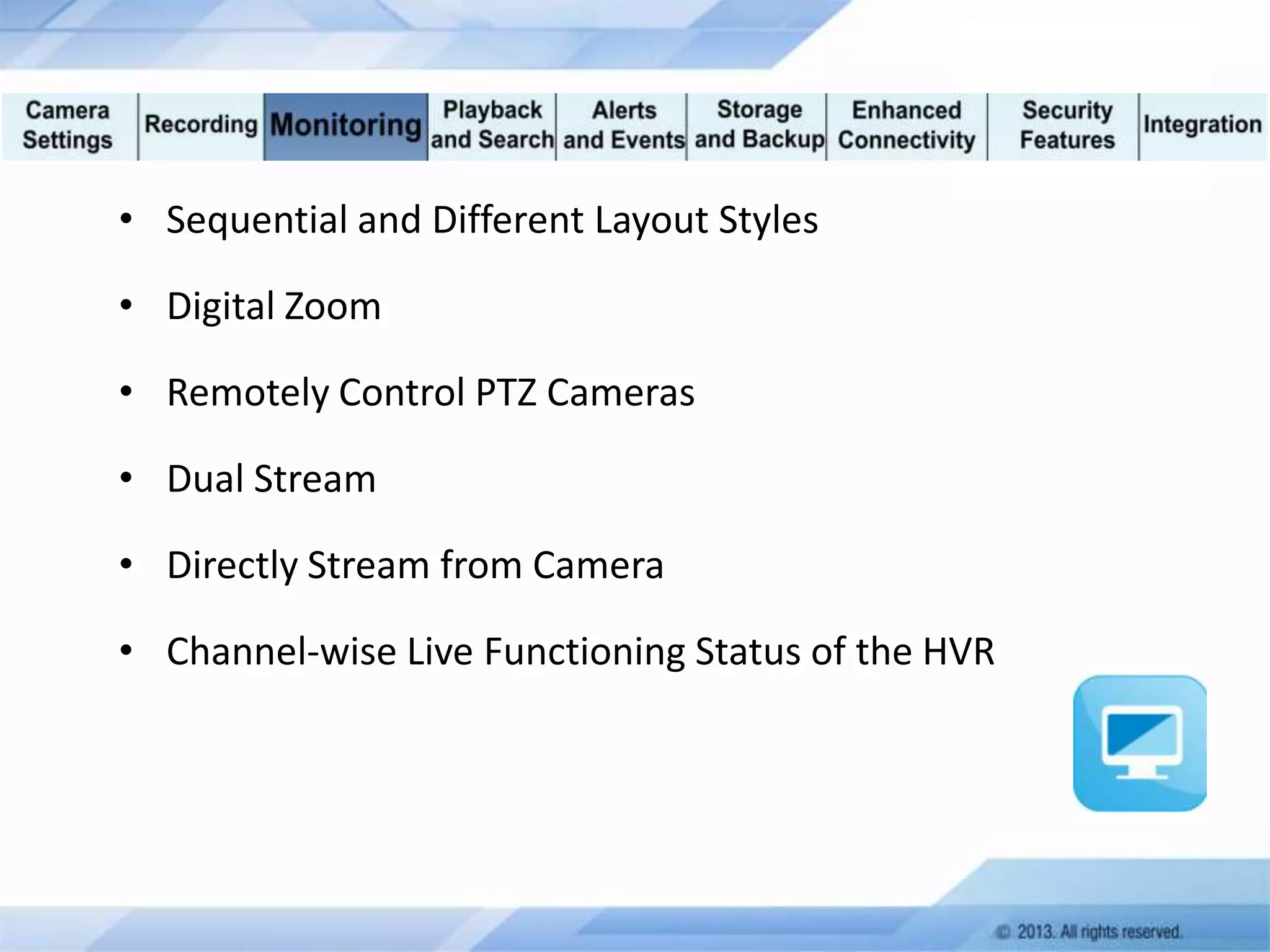

22. • Sequential and Different Layout Styles
• Digital Zoom
• Remotely Control PTZ Cameras
• Dual Stream
• Directly Stream from Camera
• Channel-wise Live Functioning Status of the HVR

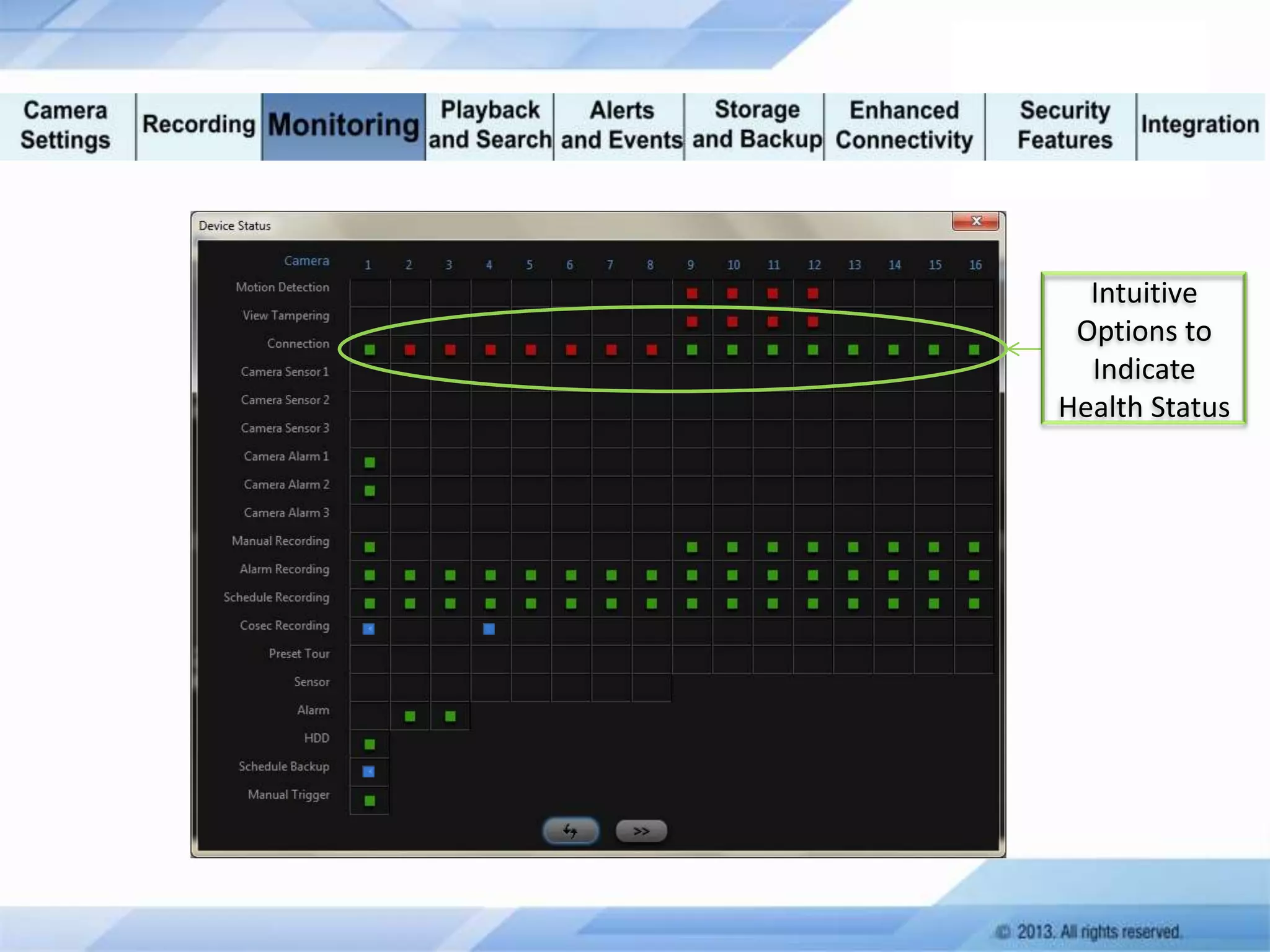

23. Intuitive
Options to
Indicate
Health Status

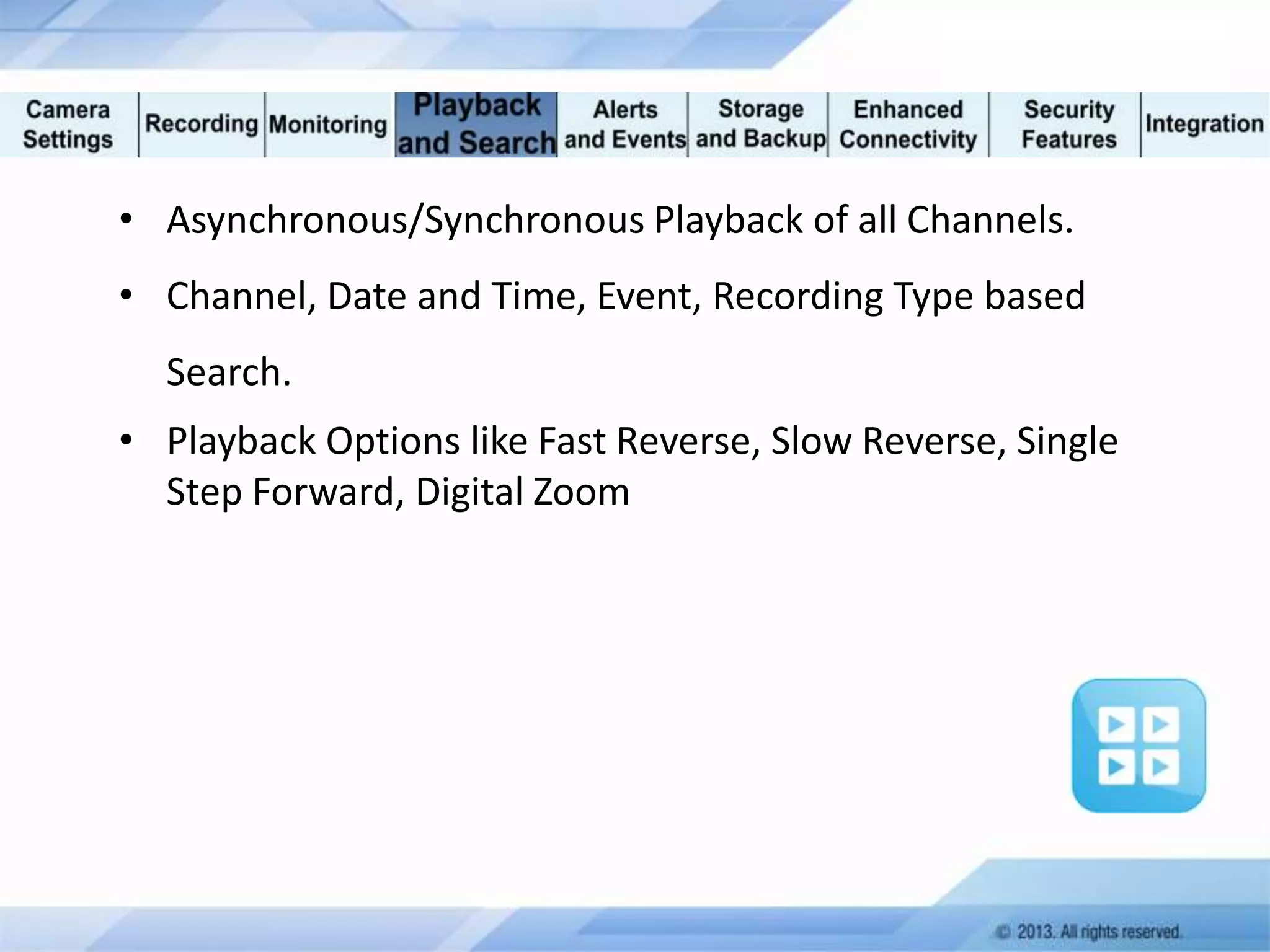

24. • Asynchronous/Synchronous Playback of all Channels.
• Channel, Date and Time, Event, Recording Type based
Search.
• Playback Options like Fast Reverse, Slow Reverse, Single
Step Forward, Digital Zoom

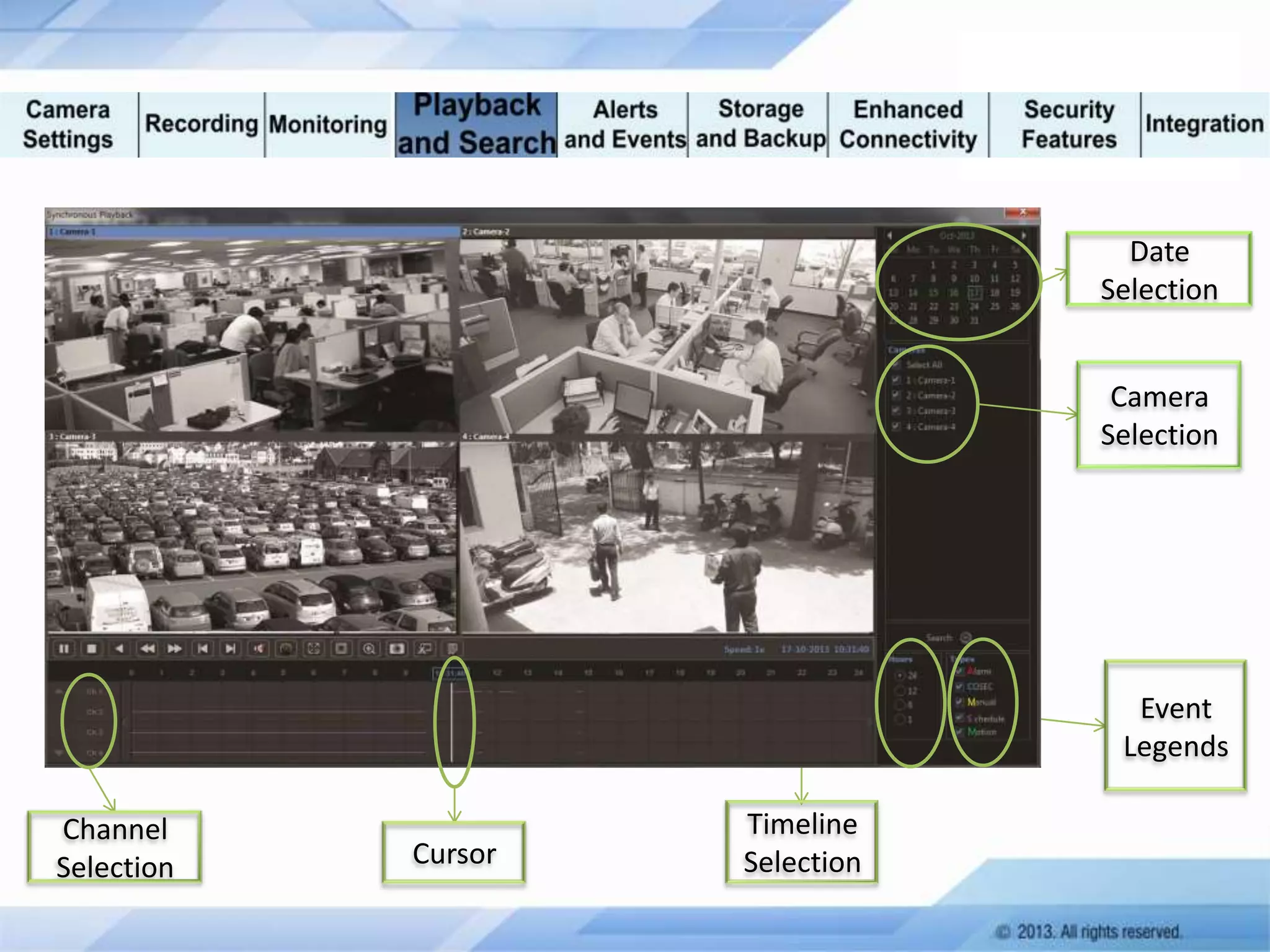

25. Date
Selection
Camera
Selection
Event
Legends
Channel
Selection
Cursor
Timeline
Selection

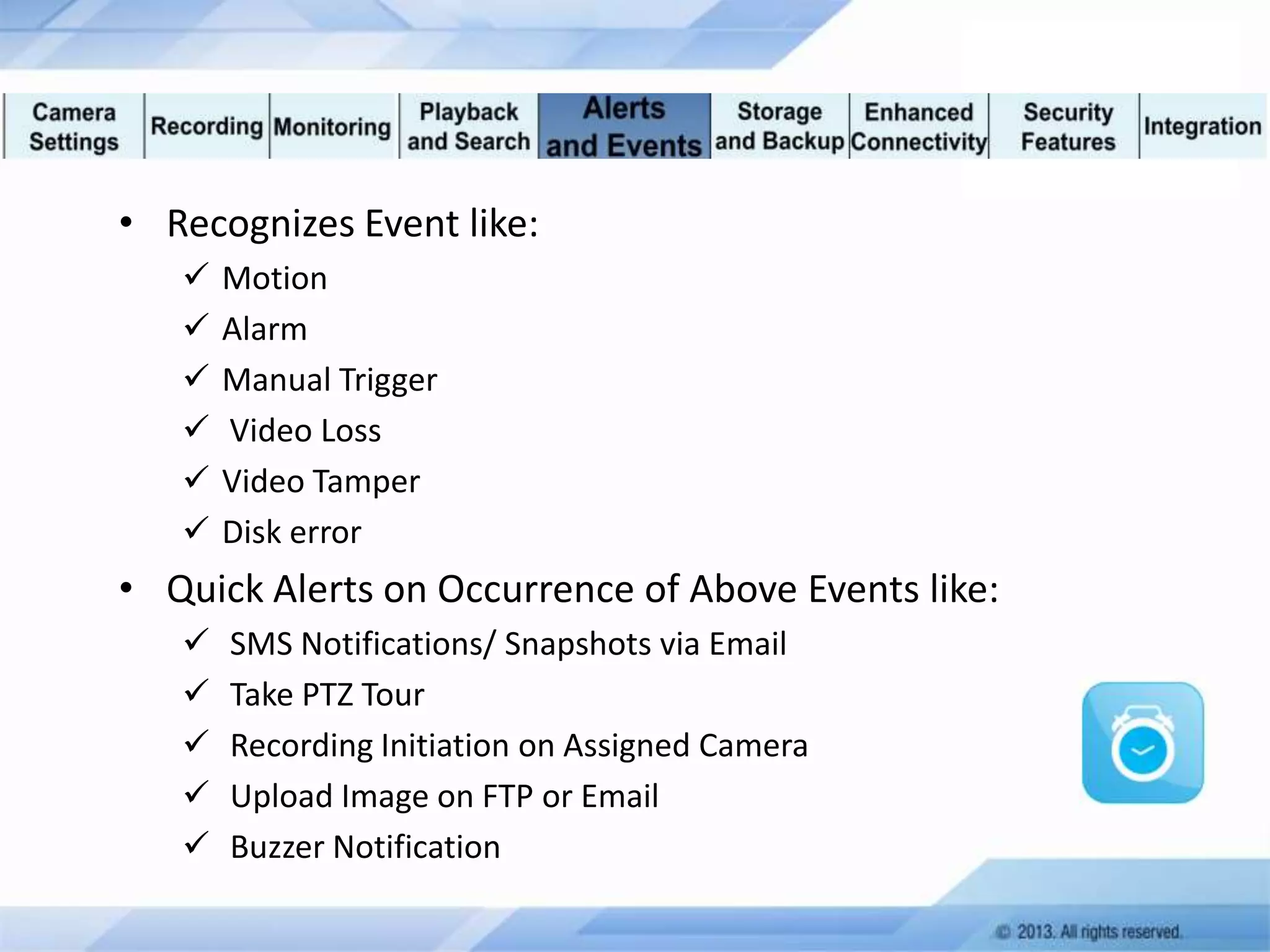

26. • Recognizes Event like:






Motion
Alarm
Manual Trigger
Video Loss
Video Tamper
Disk error
• Quick Alerts on Occurrence of Above Events like:





SMS Notifications/ Snapshots via Email
Take PTZ Tour
Recording Initiation on Assigned Camera
Upload Image on FTP or Email
Buzzer Notification

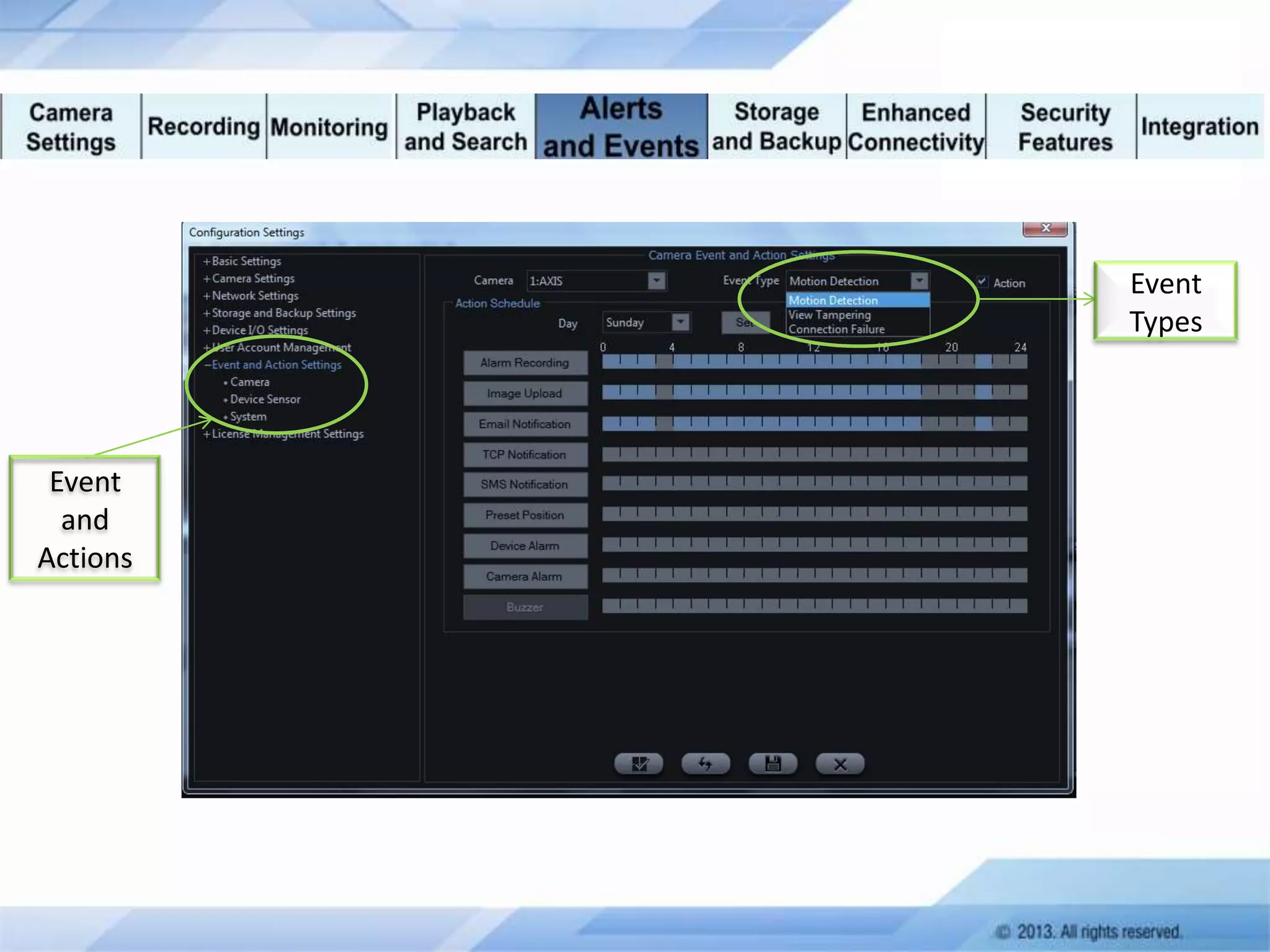

27. Event
Types
Event
and
Actions

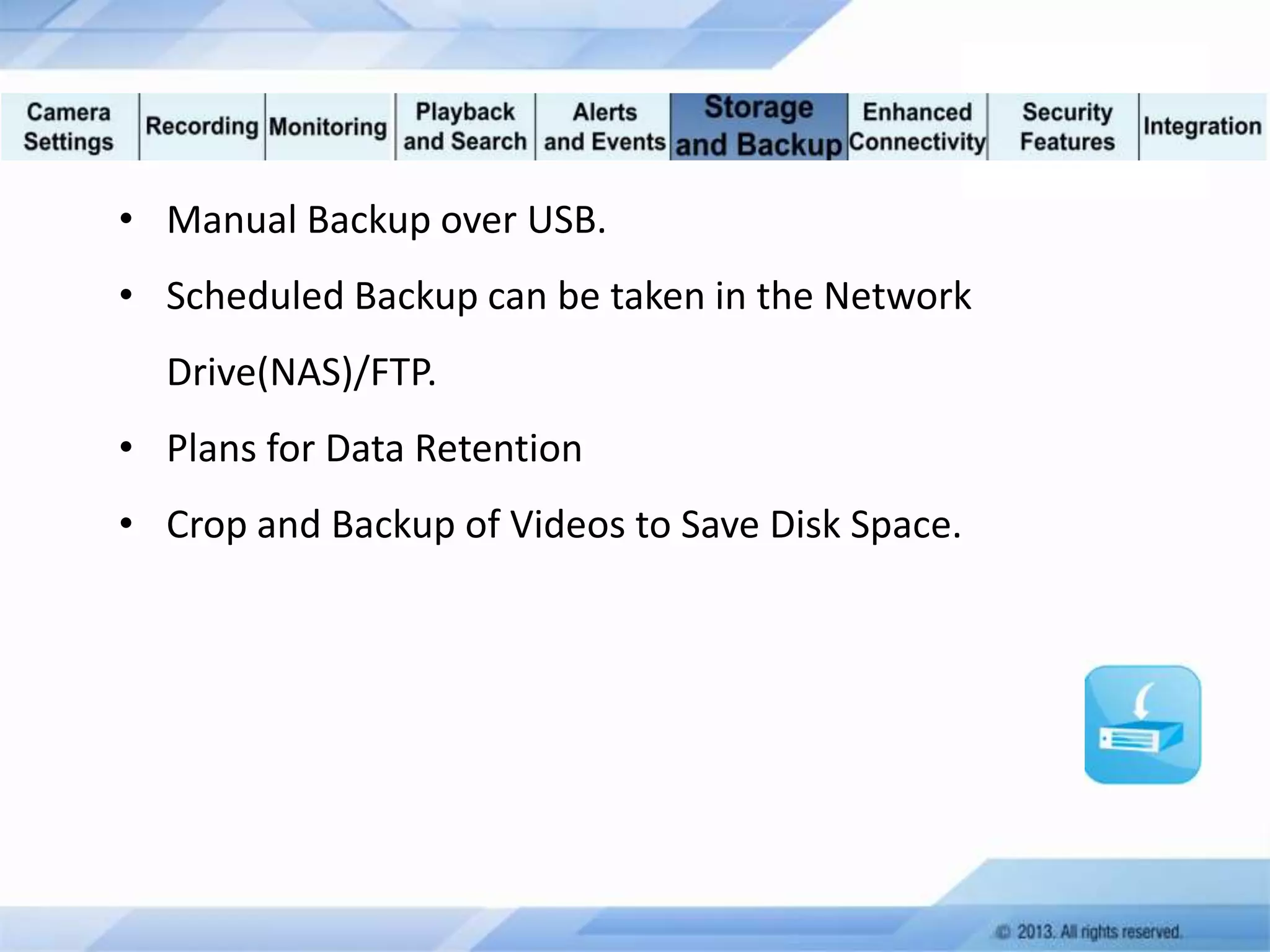

28. • Manual Backup over USB.
• Scheduled Backup can be taken in the Network
Drive(NAS)/FTP.
• Plans for Data Retention
• Crop and Backup of Videos to Save Disk Space.

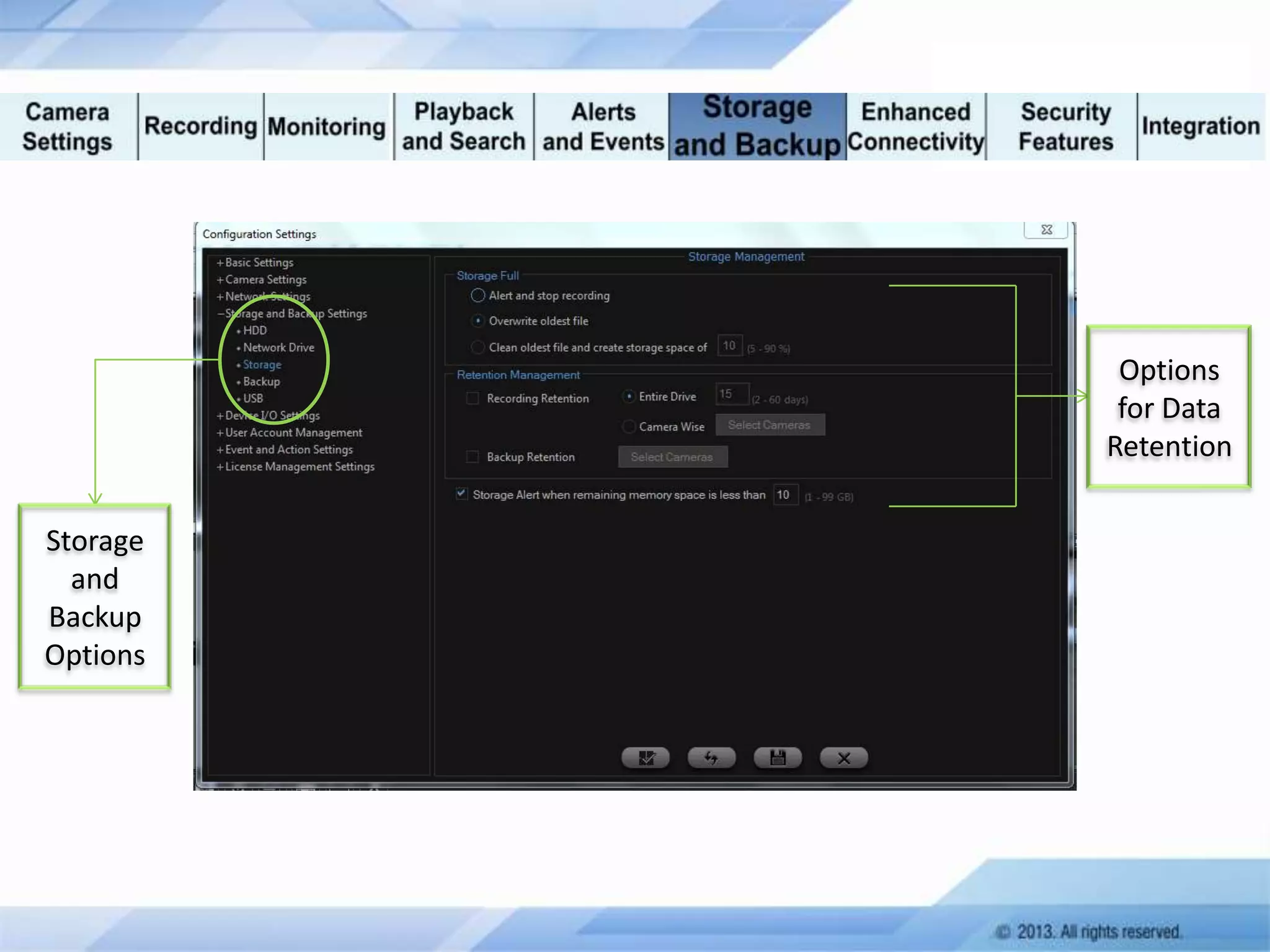

29. Options
for Data
Retention
Storage
and
Backup
Options

30. • 3G Support over USB
• Free Matrix DNS Server Support
• Dynamic and Static IP Support

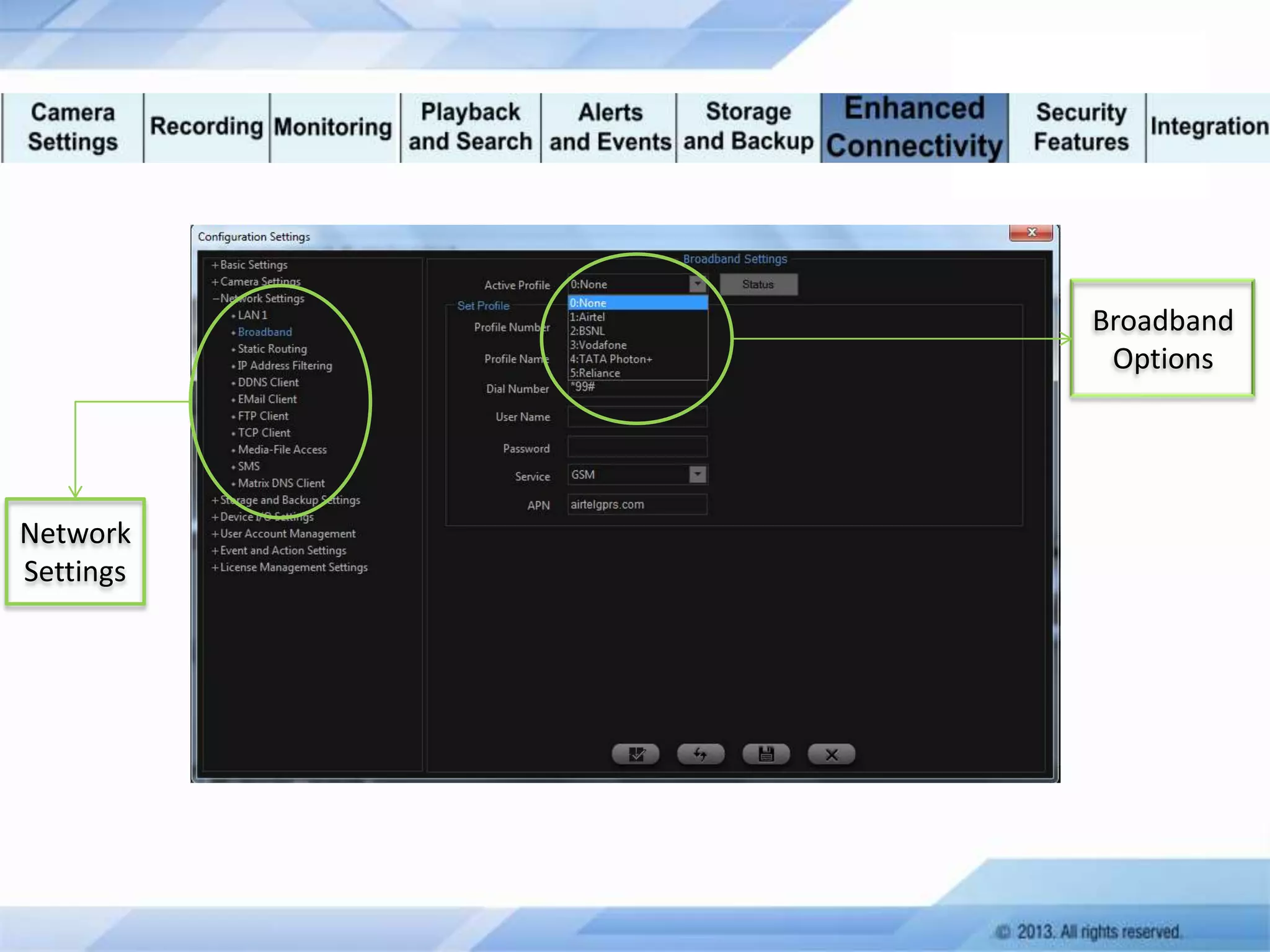

31. Broadband
Options
Network
Settings

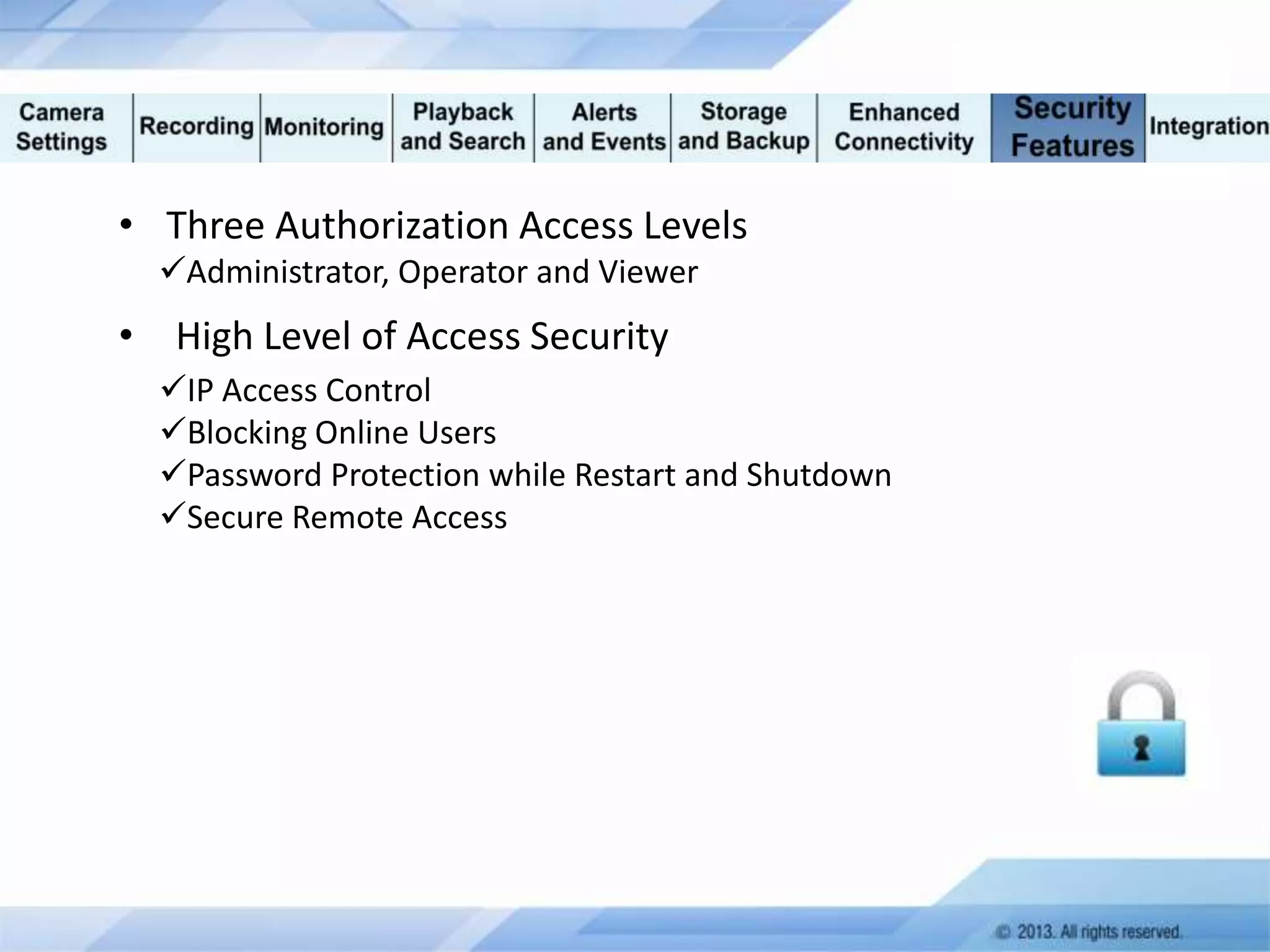

32. • Three Authorization Access Levels
Administrator, Operator and Viewer
• High Level of Access Security
IP Access Control
Blocking Online Users
Password Protection while Restart and Shutdown
Secure Remote Access

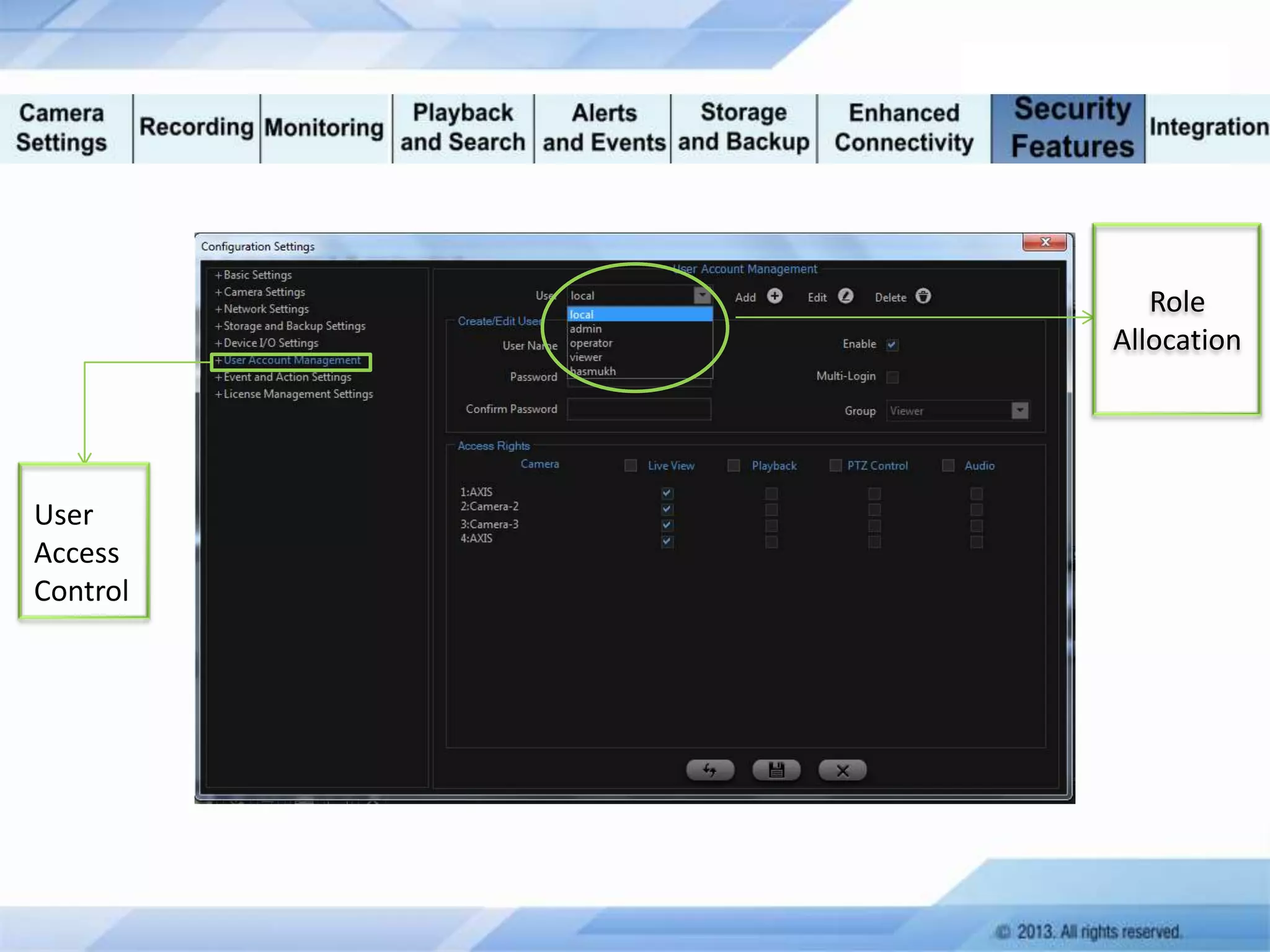

33. Role
Allocation
User
Access
Control

34. • Matrix Access Control can be Integrated to the HVRs through
the Ethernet Port.
• Multiple Doors can be Integrated with SATATYA HVR.
• Door Controllers with Cameras can take Snapshots in case of
Any Event.
• Snapshots via Email can be Sent and Evidence can be
Preserved.

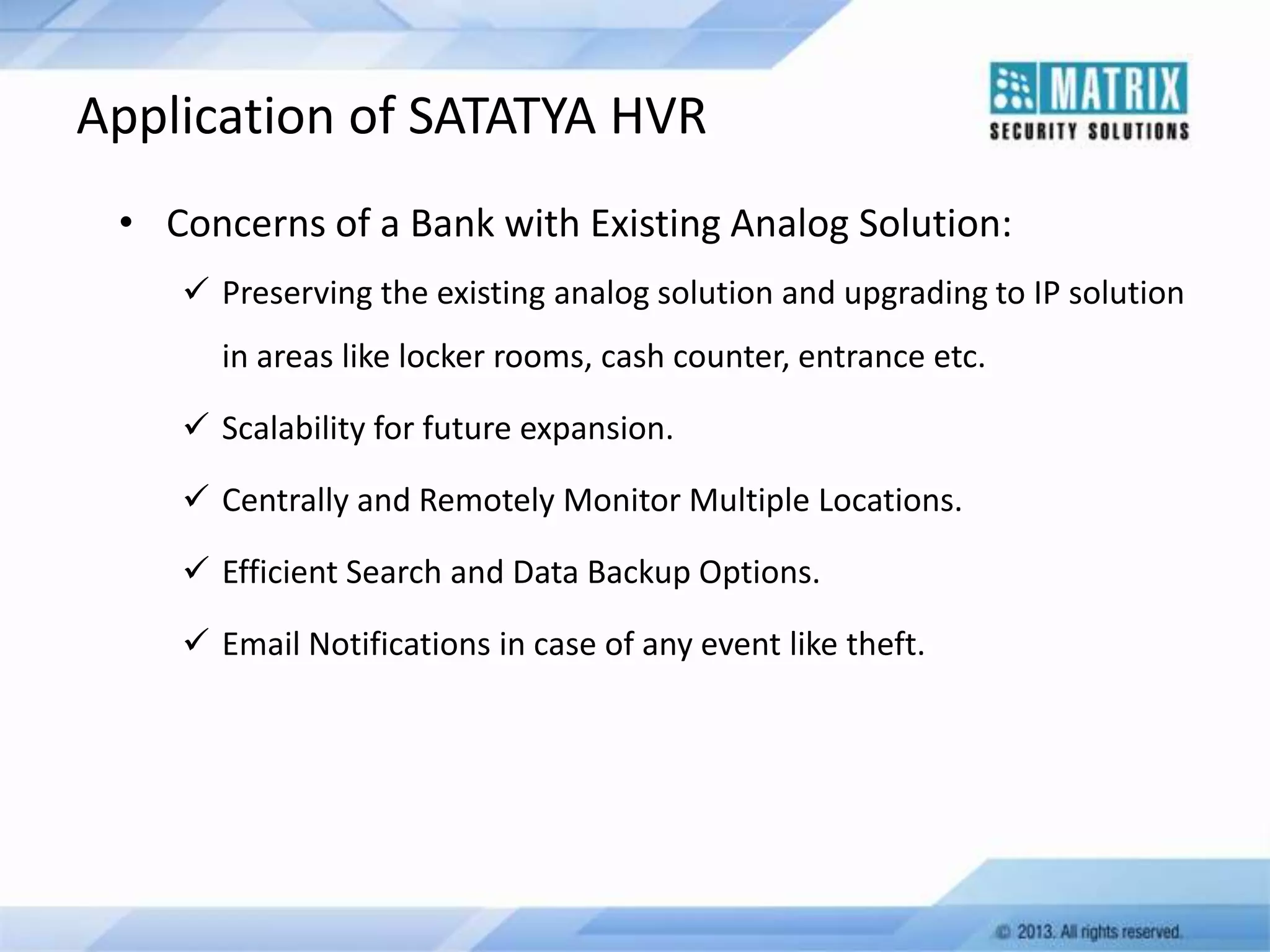

35. Application of SATATYA HVR
• Concerns of a Bank with Existing Analog Solution:
 Preserving the existing analog solution and upgrading to IP solution
in areas like locker rooms, cash counter, entrance etc.
 Scalability for future expansion.
 Centrally and Remotely Monitor Multiple Locations.
 Efficient Search and Data Backup Options.
 Email Notifications in case of any event like theft.

36. Application of SATATYA HVR

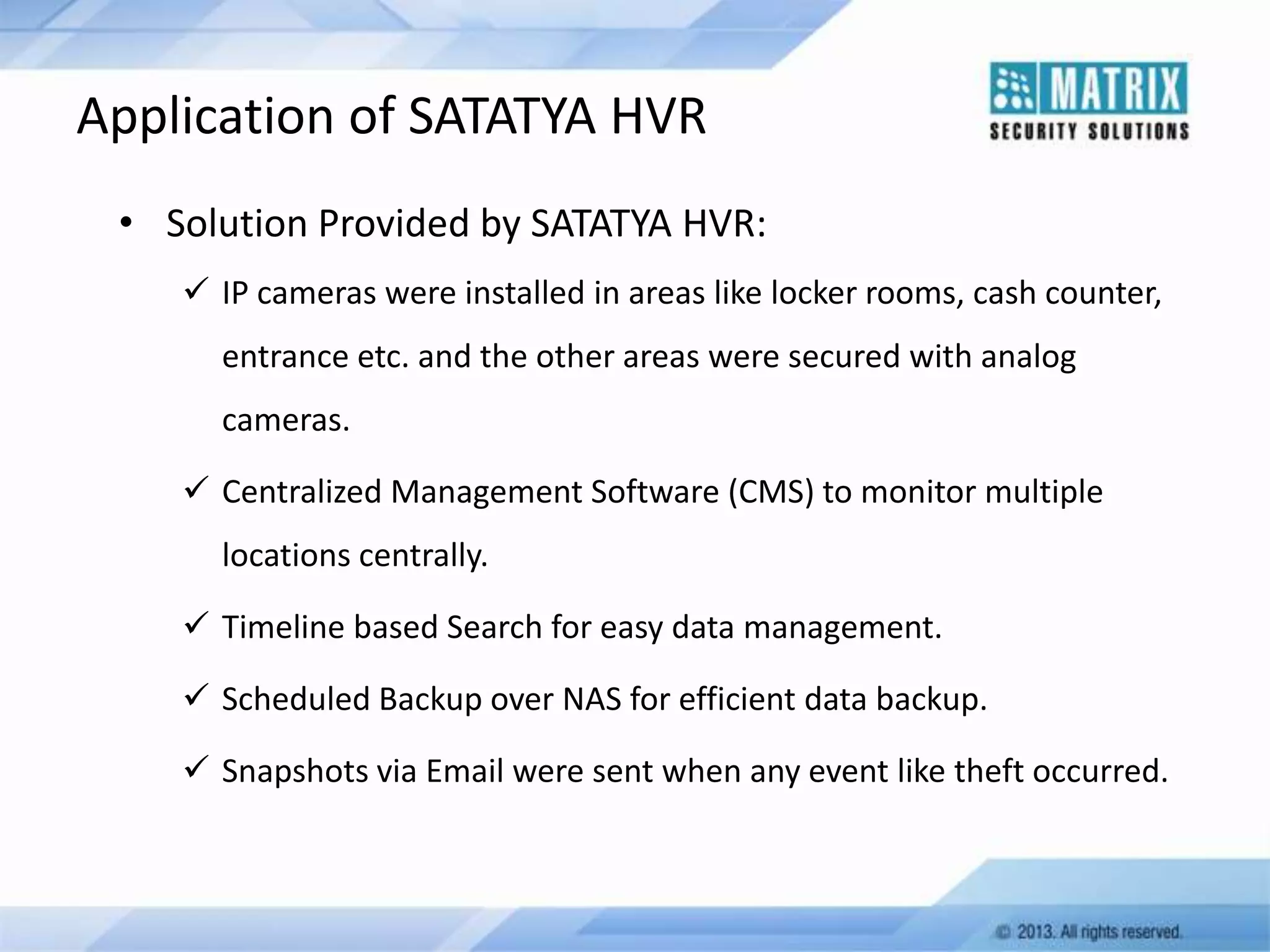

• Solution Provided by SATATYA HVR:
 IP cameras were installed in areas like locker rooms, cash counter,
entrance etc. and the other areas were secured with analog
cameras.
 Centralized Management Software (CMS) to monitor multiple
locations centrally.
 Timeline based Search for easy data management.
 Scheduled Backup over NAS for efficient data backup.
 Snapshots via Email were sent when any event like theft occurred.

37. Application of SATATYA HVR

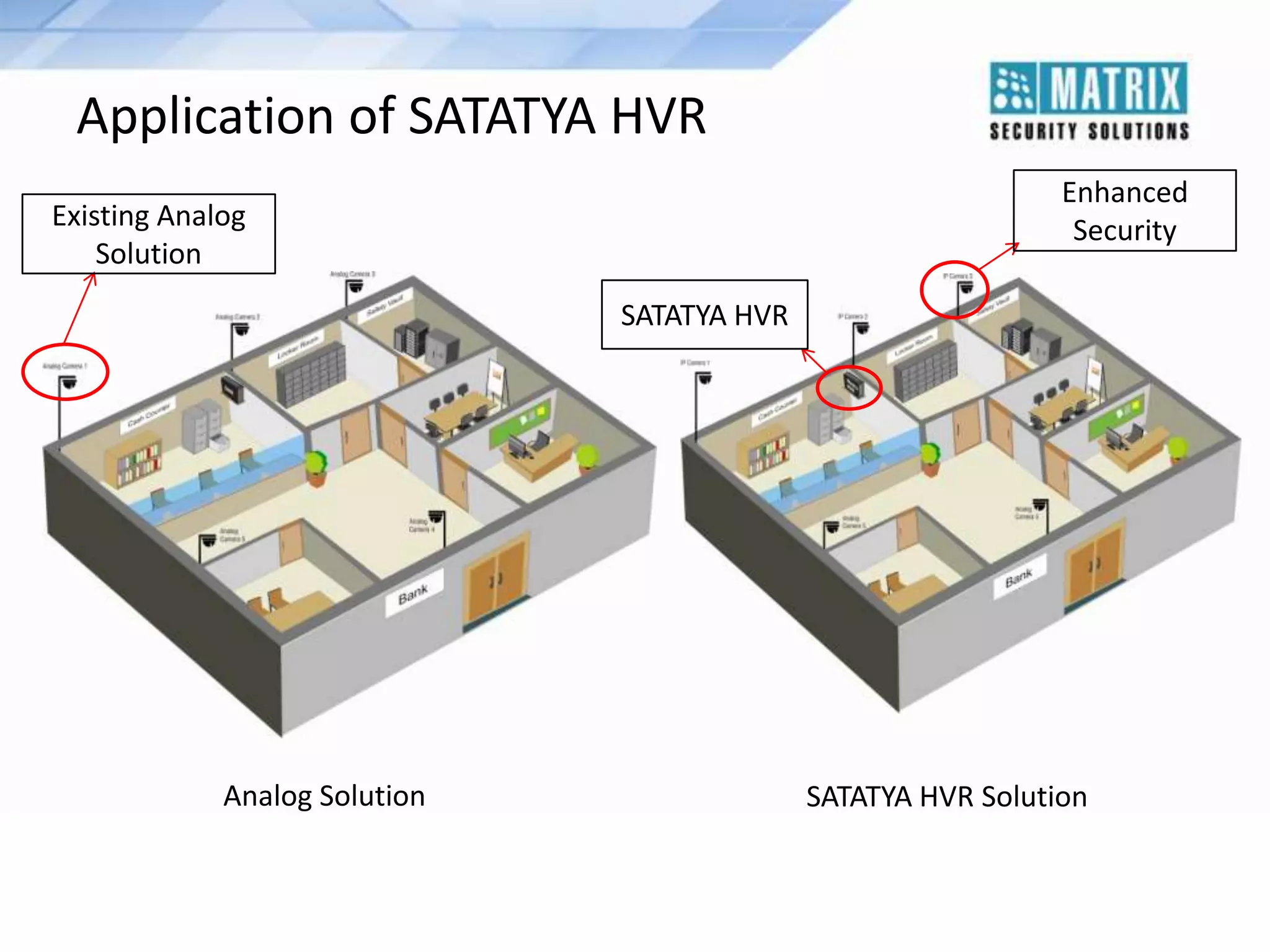

Enhanced
Security
Existing Analog
Solution
SATATYA HVR
Analog Solution
SATATYA HVR Solution

38. Application of SATATYA HVR

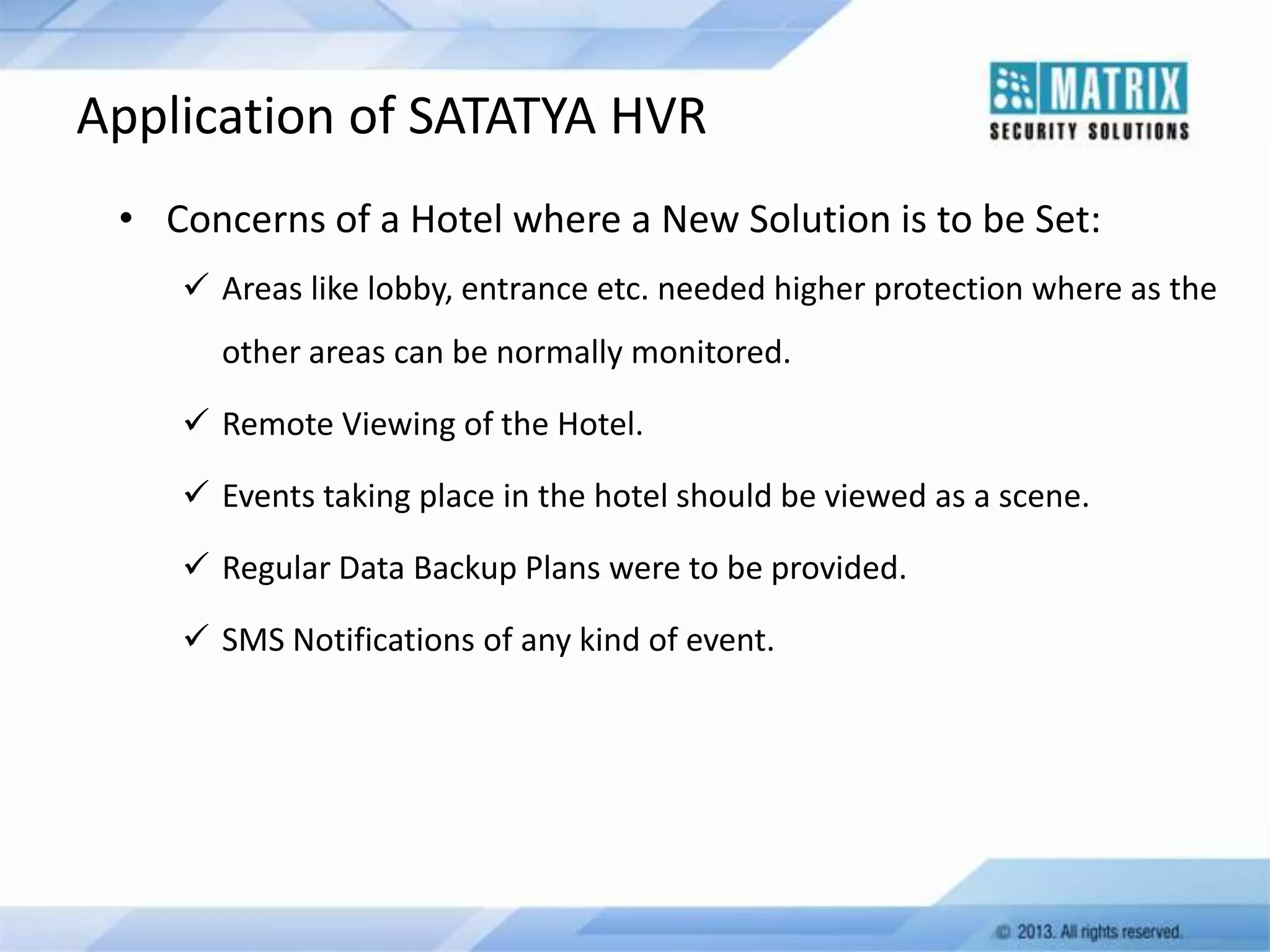

• Concerns of a Hotel where a New Solution is to be Set:
 Areas like lobby, entrance etc. needed higher protection where as the
other areas can be normally monitored.
 Remote Viewing of the Hotel.
 Events taking place in the hotel should be viewed as a scene.
 Regular Data Backup Plans were to be provided.
 SMS Notifications of any kind of event.

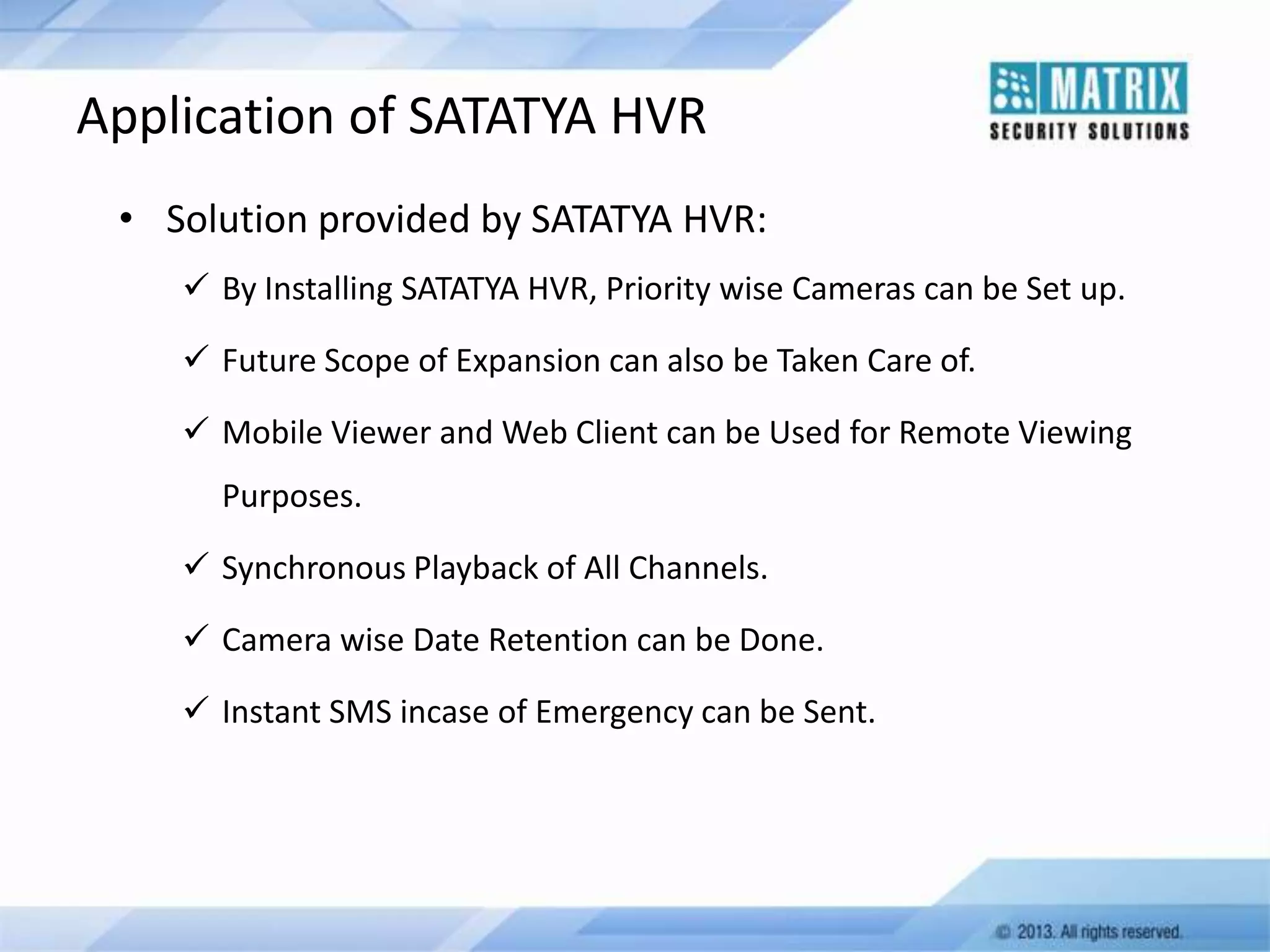

39. Application of SATATYA HVR
• Solution provided by SATATYA HVR:
 By Installing SATATYA HVR, Priority wise Cameras can be Set up.
 Future Scope of Expansion can also be Taken Care of.
 Mobile Viewer and Web Client can be Used for Remote Viewing
Purposes.
 Synchronous Playback of All Channels.
 Camera wise Date Retention can be Done.
 Instant SMS incase of Emergency can be Sent.

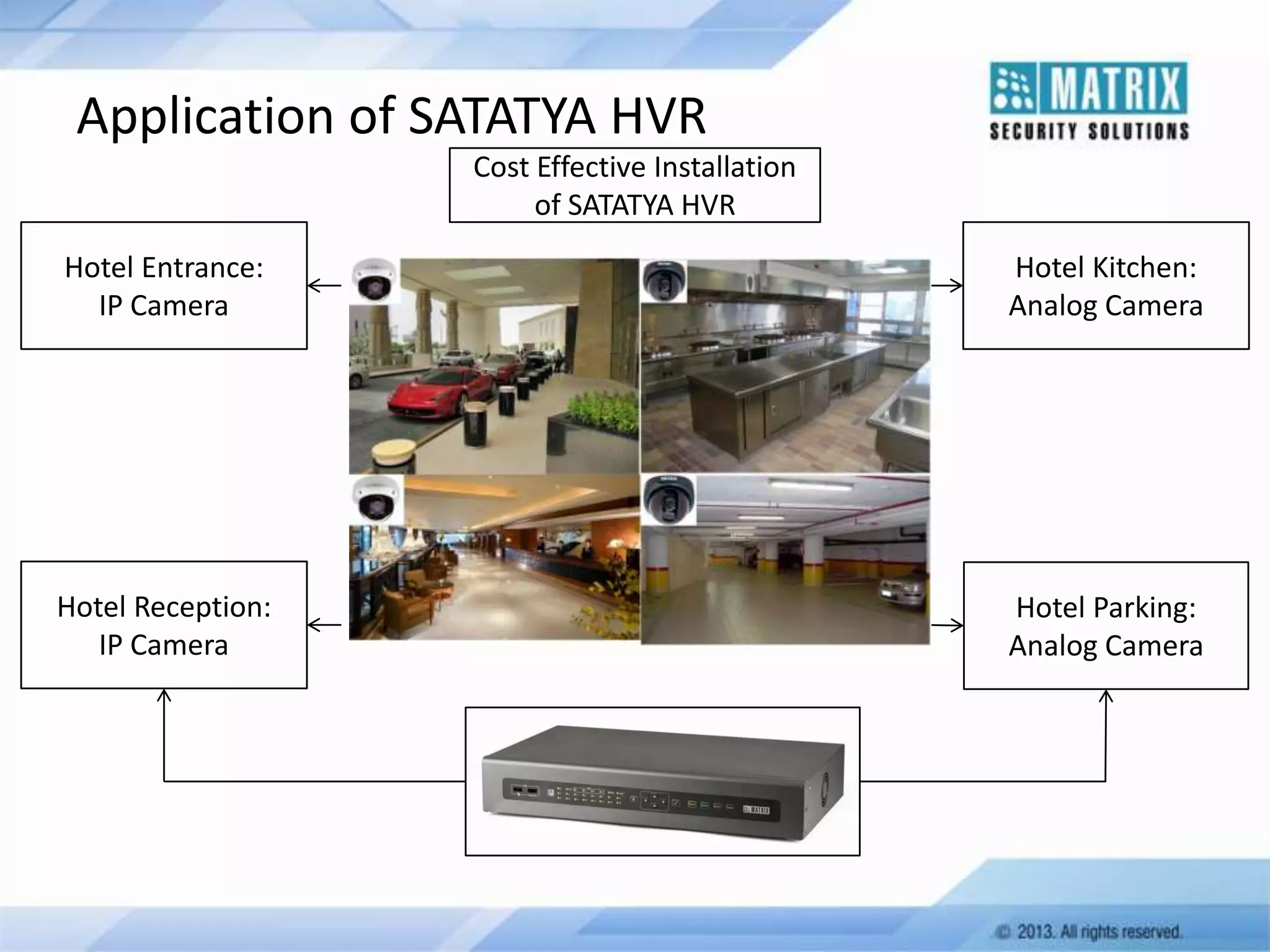

40. Application of SATATYA HVR
Cost Effective Installation
of SATATYA HVR
Hotel Entrance:
IP Camera
Hotel Kitchen:
Analog Camera
Hotel Reception:
IP Camera
Hotel Parking:
Analog Camera

41. Feature List

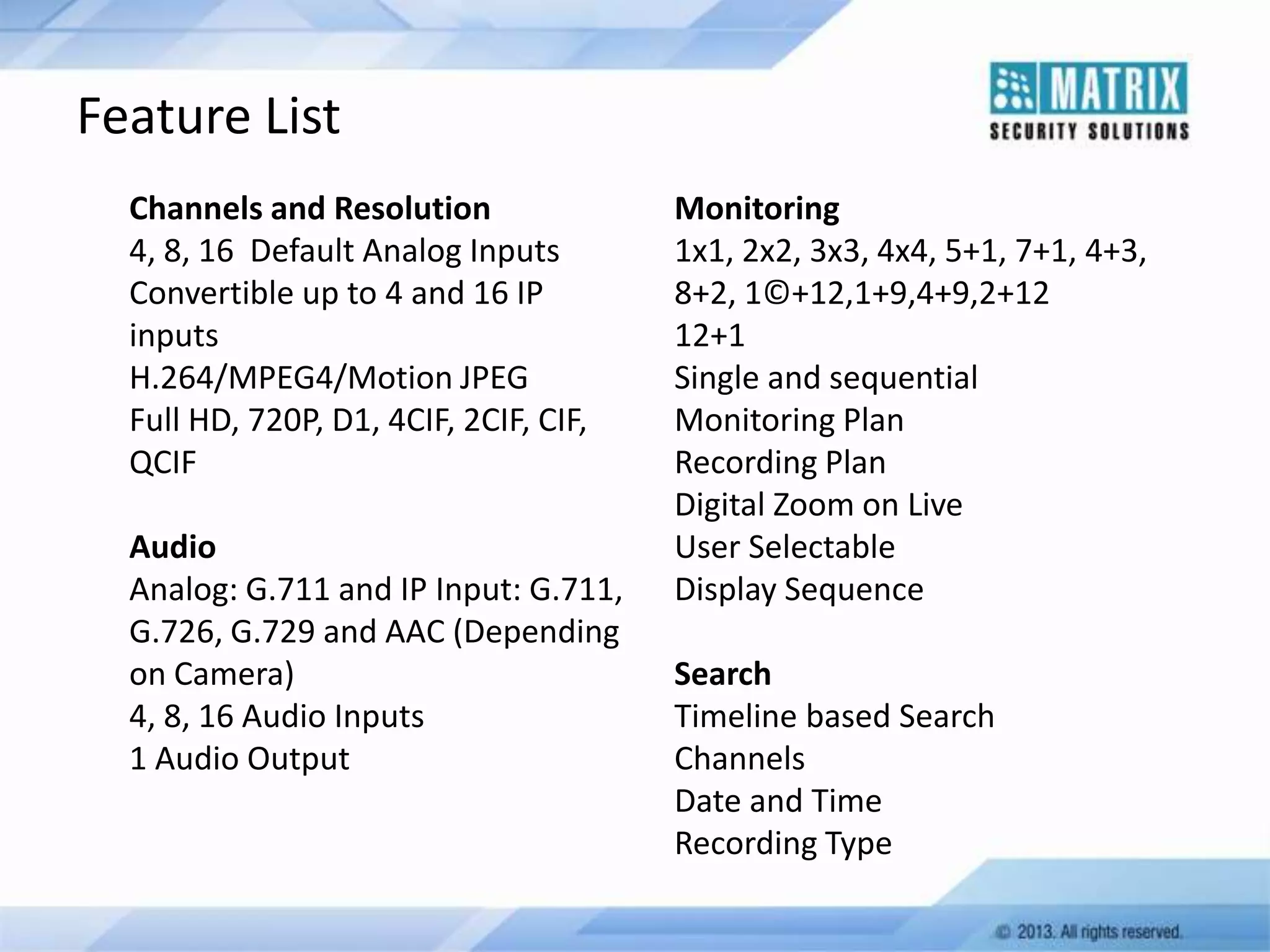

42. Feature List
Channels and Resolution
4, 8, 16 Default Analog Inputs
Convertible up to 4 and 16 IP
inputs
H.264/MPEG4/Motion JPEG
Full HD, 720P, D1, 4CIF, 2CIF, CIF,
QCIF
Audio
Analog: G.711 and IP Input: G.711,
G.726, G.729 and AAC (Depending
on Camera)
4, 8, 16 Audio Inputs
1 Audio Output
Monitoring
1x1, 2x2, 3x3, 4x4, 5+1, 7+1, 4+3,
8+2, 1©+12,1+9,4+9,2+12
12+1
Single and sequential
Monitoring Plan
Recording Plan
Digital Zoom on Live
User Selectable
Display Sequence
Search
Timeline based Search
Channels
Date and Time
Recording Type

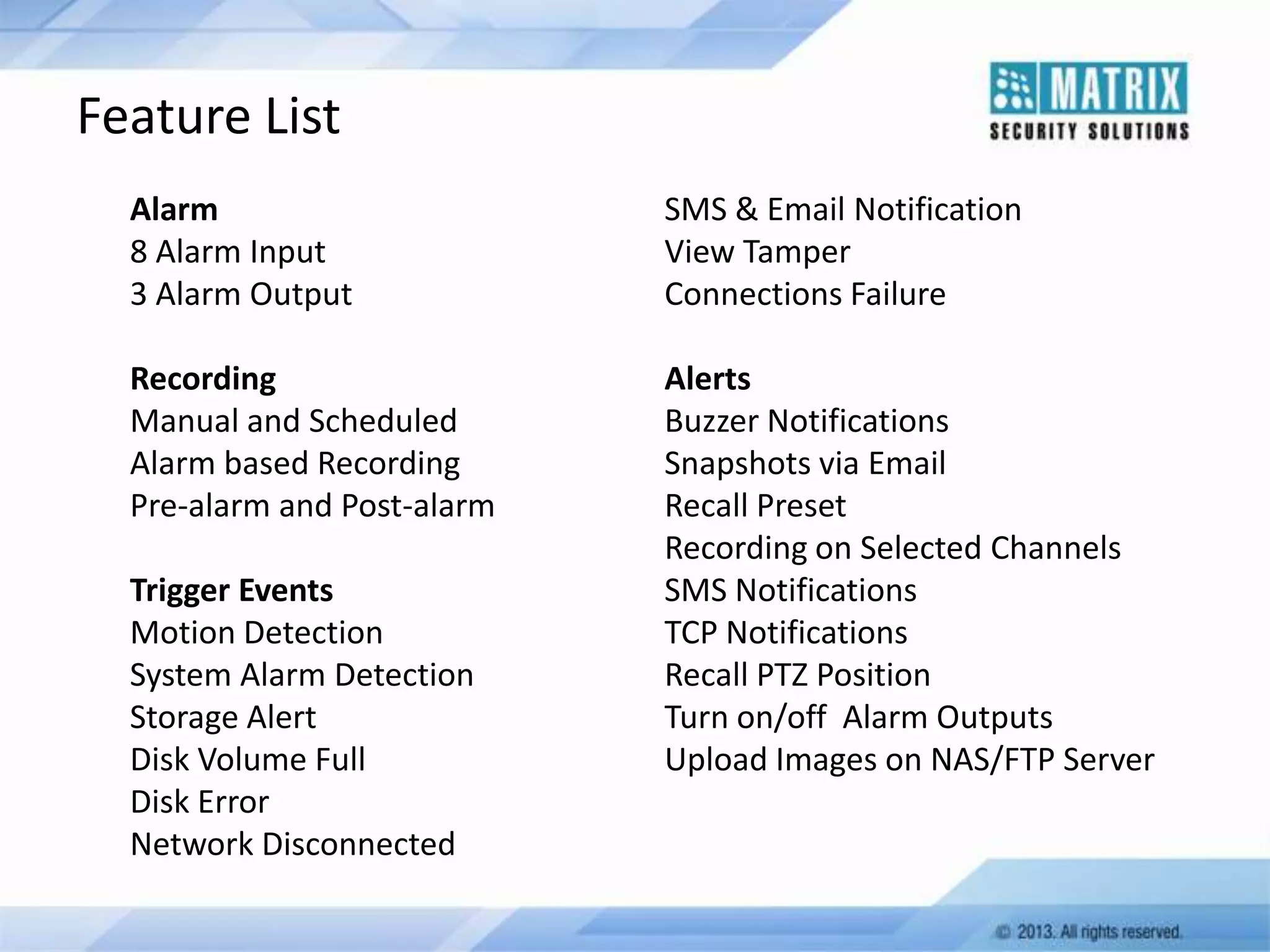

43. Feature List
Alarm
8 Alarm Input
3 Alarm Output
SMS & Email Notification
View Tamper
Connections Failure
Recording
Manual and Scheduled
Alarm based Recording
Pre-alarm and Post-alarm
Alerts
Buzzer Notifications
Snapshots via Email
Recall Preset
Recording on Selected Channels
SMS Notifications
TCP Notifications
Recall PTZ Position
Turn on/off Alarm Outputs
Upload Images on NAS/FTP Server
Trigger Events
Motion Detection
System Alarm Detection
Storage Alert
Disk Volume Full
Disk Error
Network Disconnected

44. Feature List
Remote Functions
Live Camera Monitoring with PTZ
Control
Menu Configuration
Record Video
Live View and Playback
Firmware Upgrade
Control
IR Remote Control
Front Panel Keypad
Mouse
Security
IP Access Control List
Block Online Users
Secure Remote Access
User Access Rights
