1. Mobile DVR Introduction
Myler
May.27.2012

2. Contents
Requirements
1
2 Product Line
3 Selling Points
4 CMS

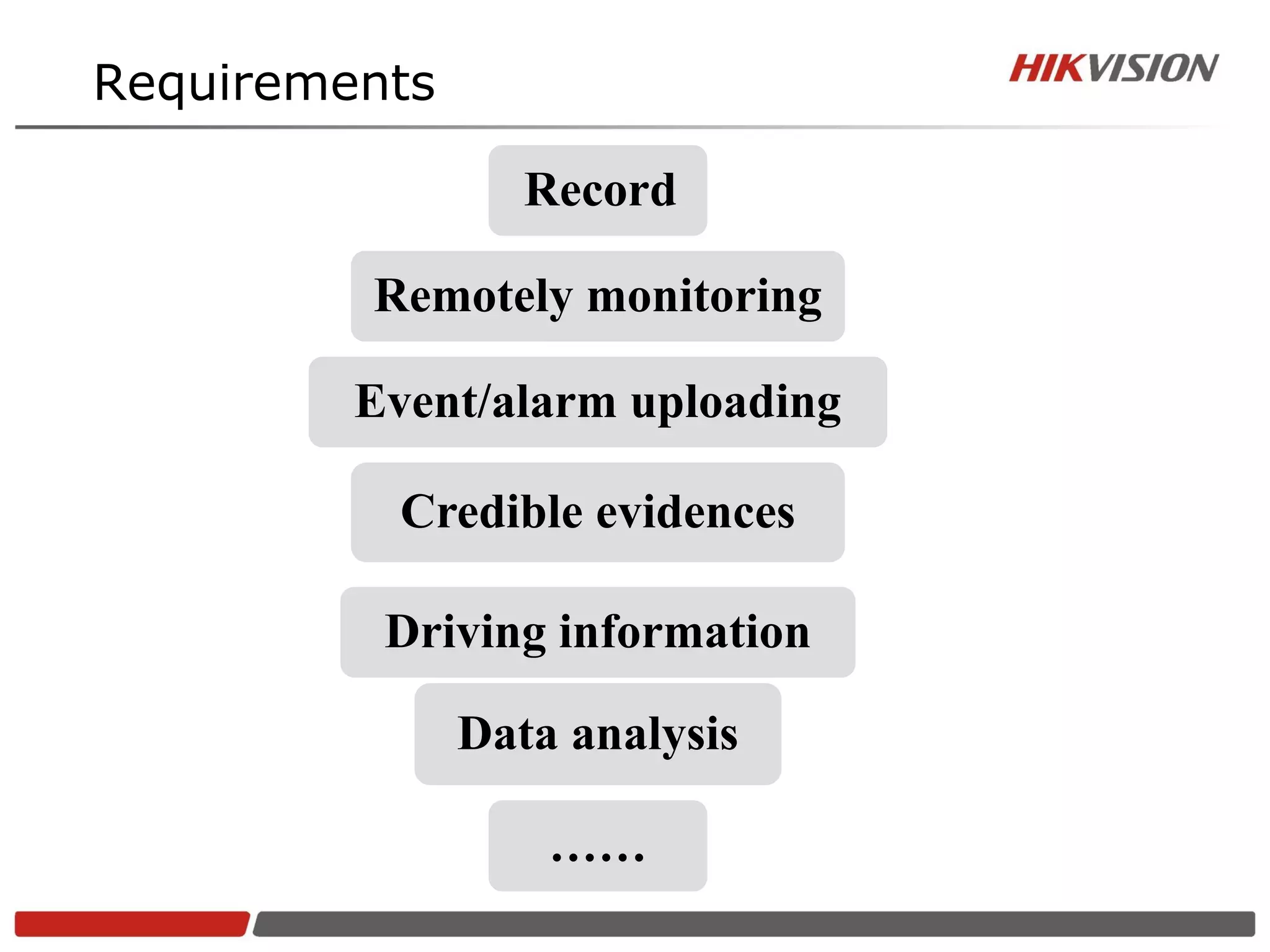

3. Requirements
Record
Remotely monitoring
Event/alarm uploading
Credible evidences
Driving information
Data analysis
……

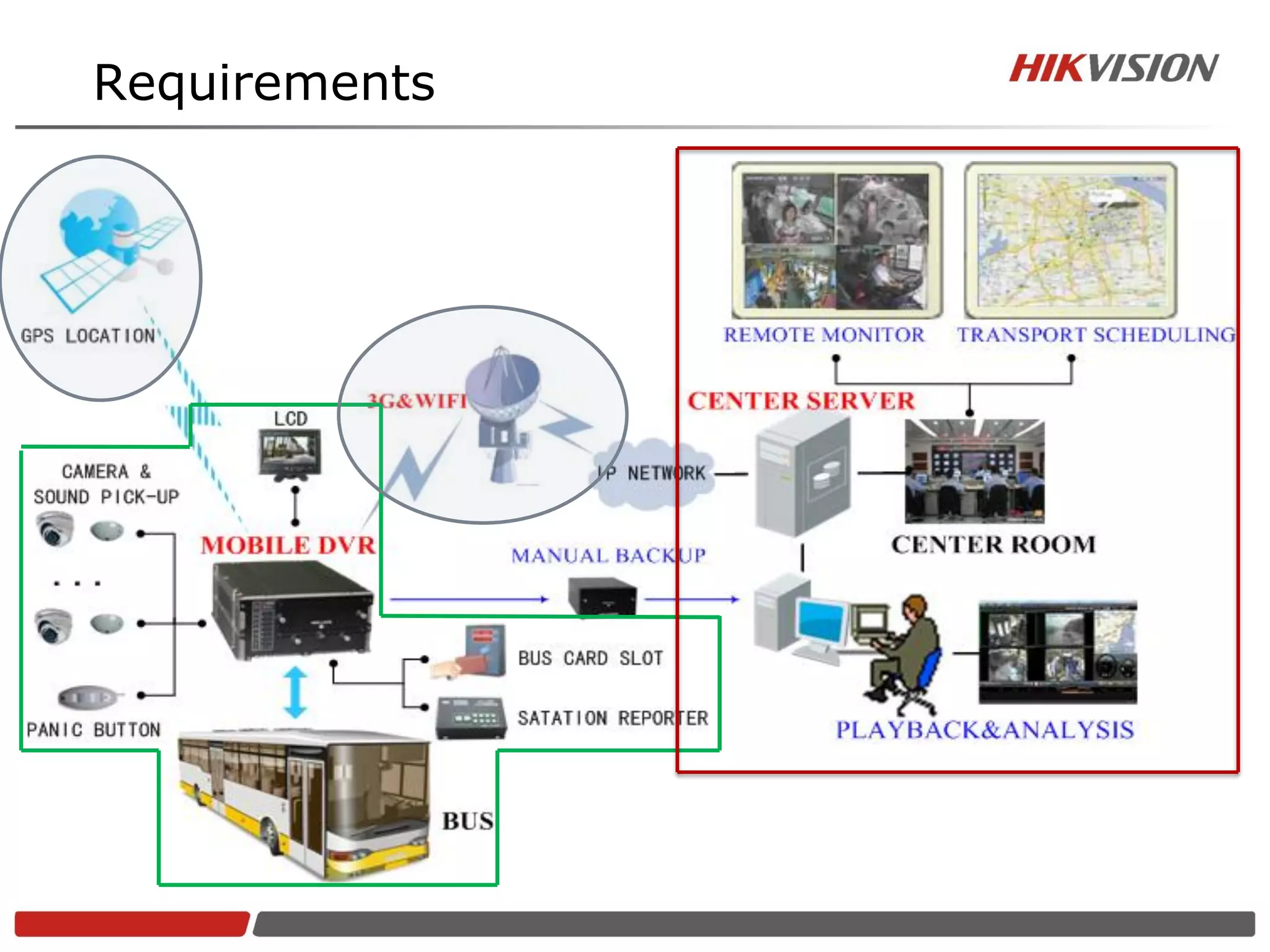

4. Requirements

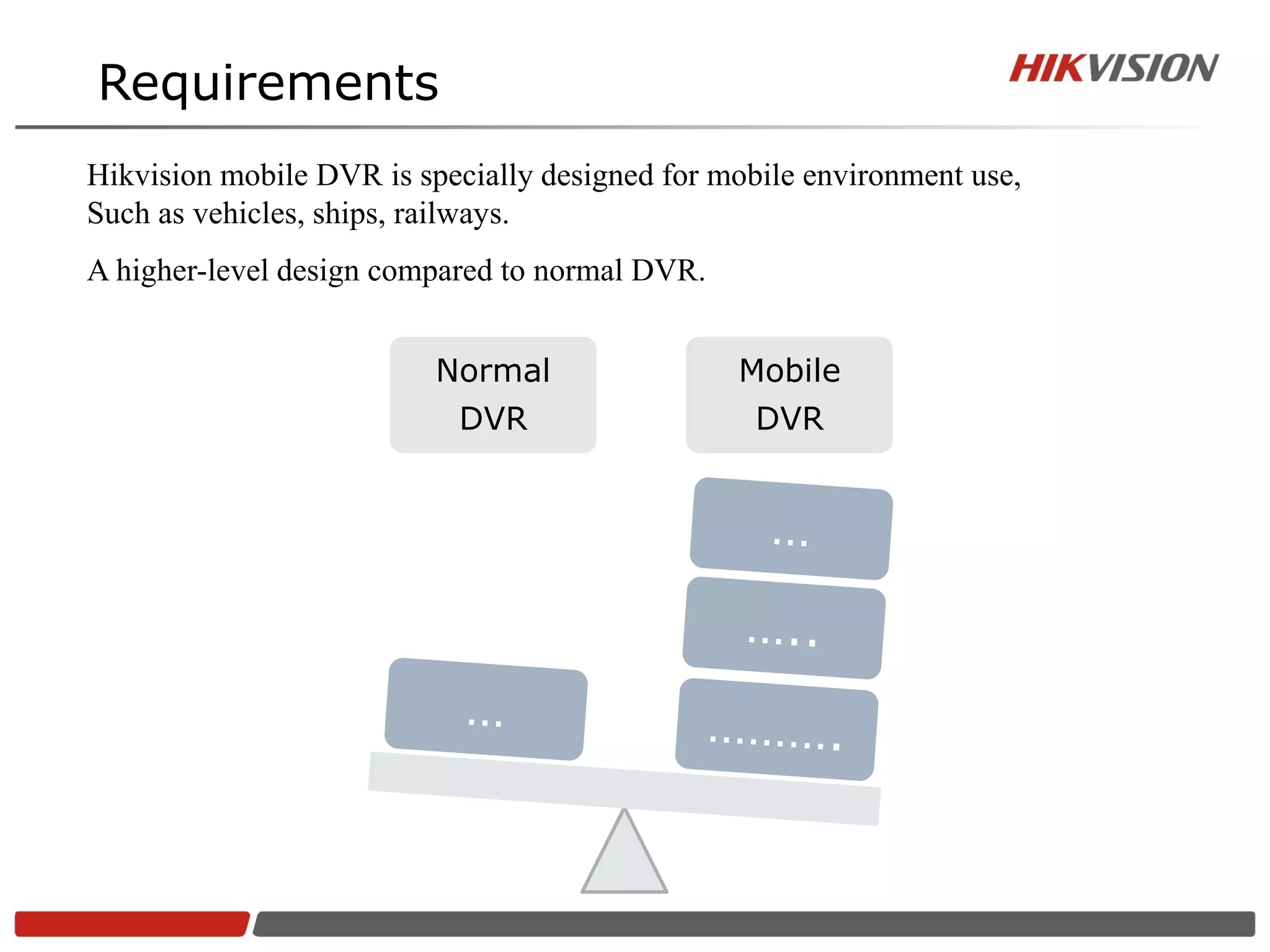

5. Requirements
Hikvision mobile DVR is specially designed for mobile environment use,
Such as vehicles, ships, railways.
A higher-level design compared to normal DVR.
Normal Mobile
DVR DVR

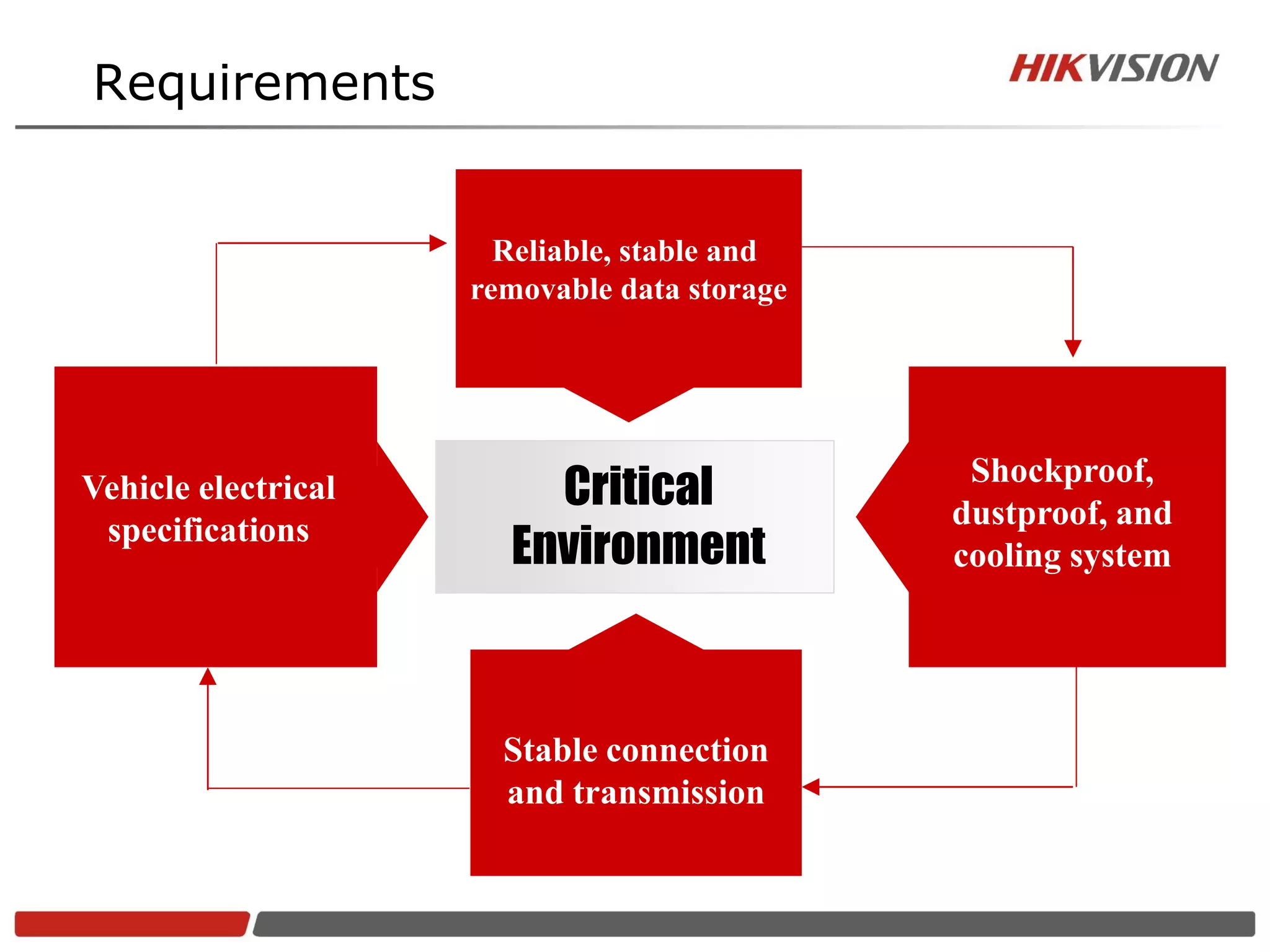

6. Requirements
Reliable, stable and
removable data storage
Vehicle electrical Critical Shockproof,
dustproof, and
specifications
Environment cooling system
Stable connection
and transmission

7. Contents
1 Requirements
New Product Line
2
3 Selling Points
4 CMS

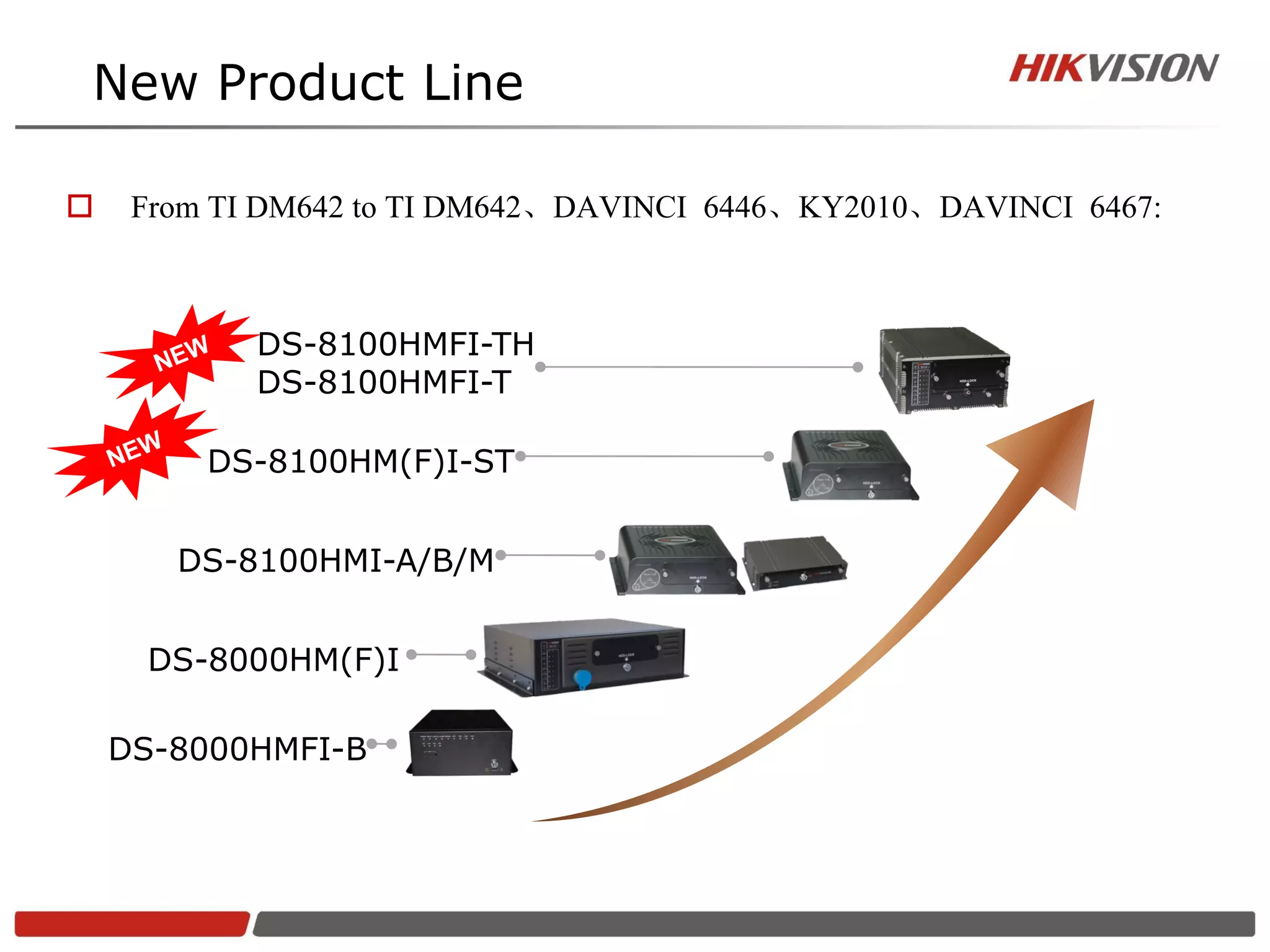

8. New Product Line
 From TI DM642 to TI DM642、DAVINCI 6446、KY2010、DAVINCI 6467:
DS-8100HMFI-TH
DS-8100HMFI-T
DS-8100HM(F)I-ST
DS-8100HMI-A/B/M
DS-8000HM(F)I
DS-8000HMFI-B

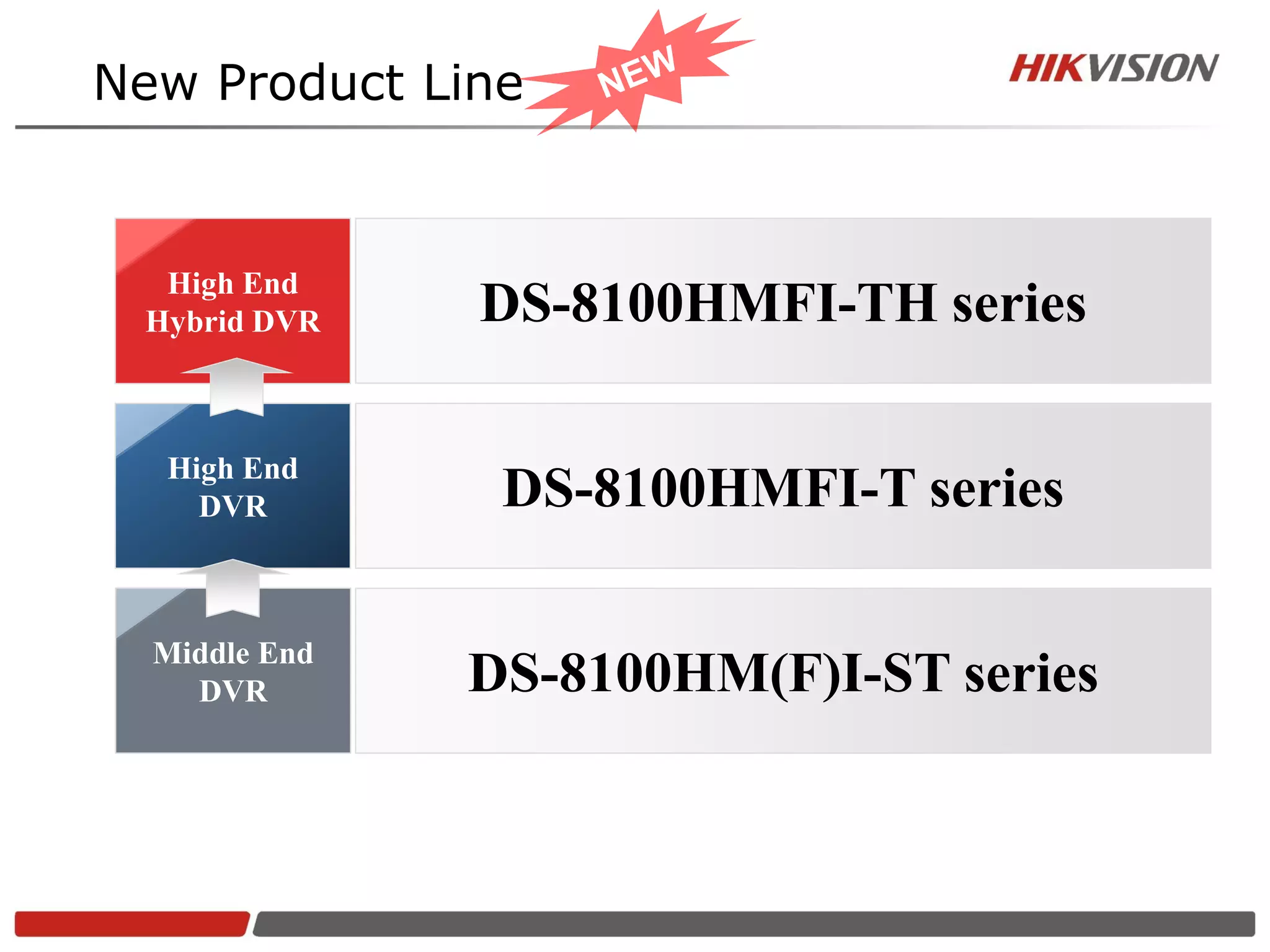

9. New Product Line
High End
Hybrid DVR DS-8100HMFI-TH series
High End
DVR DS-8100HMFI-T series
Middle End
DVR DS-8100HM(F)I-ST series

10. New Product: DS-8100HMFI-TH series
• Apply to buses, passenger vehicles, special vehicles
Professional mobile Hybrid DVR and railway, subway, etc.
for high-end market.
• 4、8、12、16 CH analog input + 4 CH IPC input,
POE.
• 4CIF real-time encoding for each analog channel.
• 720P real-time encoding for each IP channel.
• Pre-posed eSATA/USB, AV OUT, SIM, LAN
interfaces.

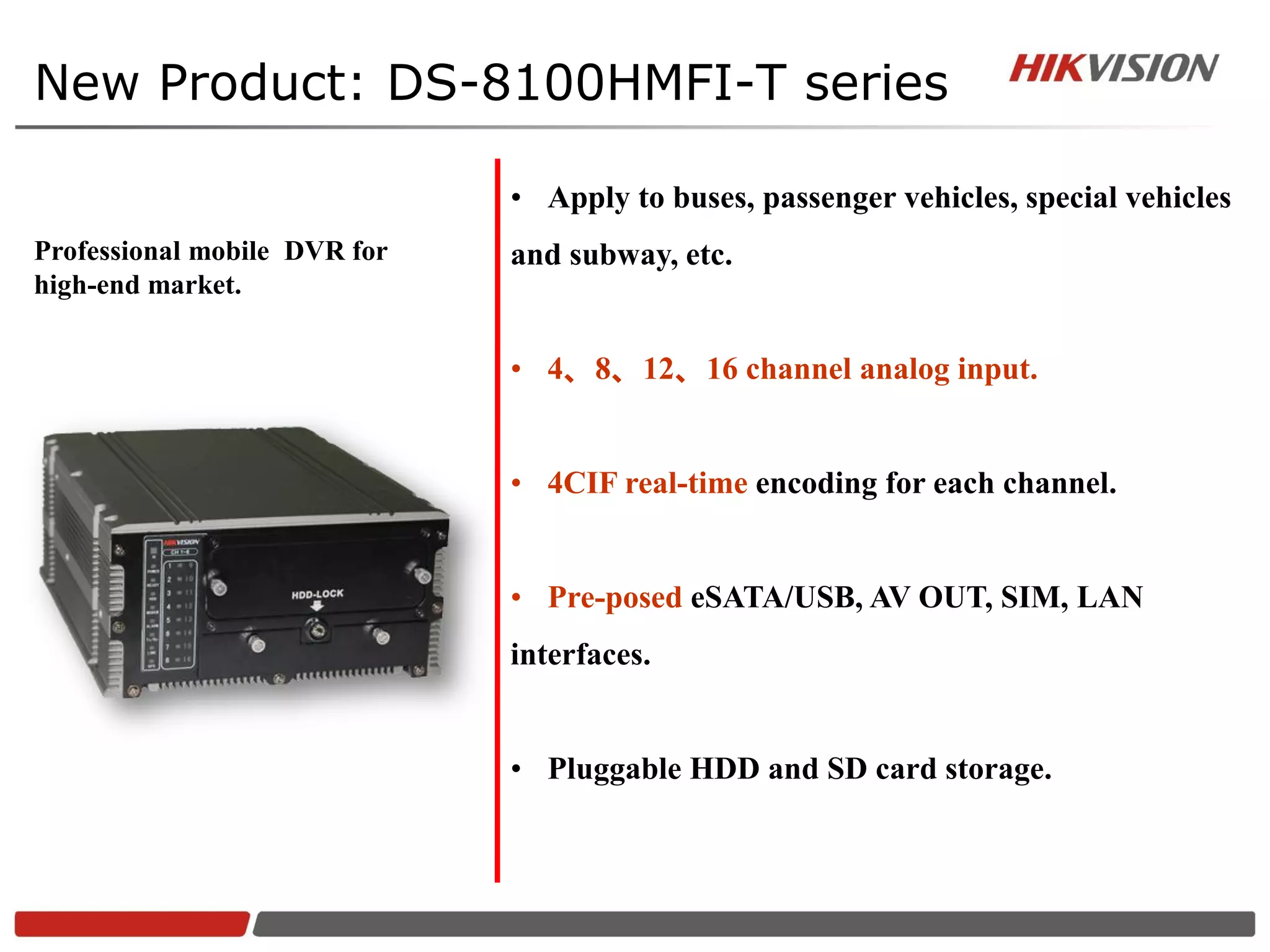

11. New Product: DS-8100HMFI-T series
• Apply to buses, passenger vehicles, special vehicles
Professional mobile DVR for and subway, etc.
high-end market.
• 4、8、12、16 channel analog input.
• 4CIF real-time encoding for each channel.
• Pre-posed eSATA/USB, AV OUT, SIM, LAN
interfaces.
• Pluggable HDD and SD card storage.

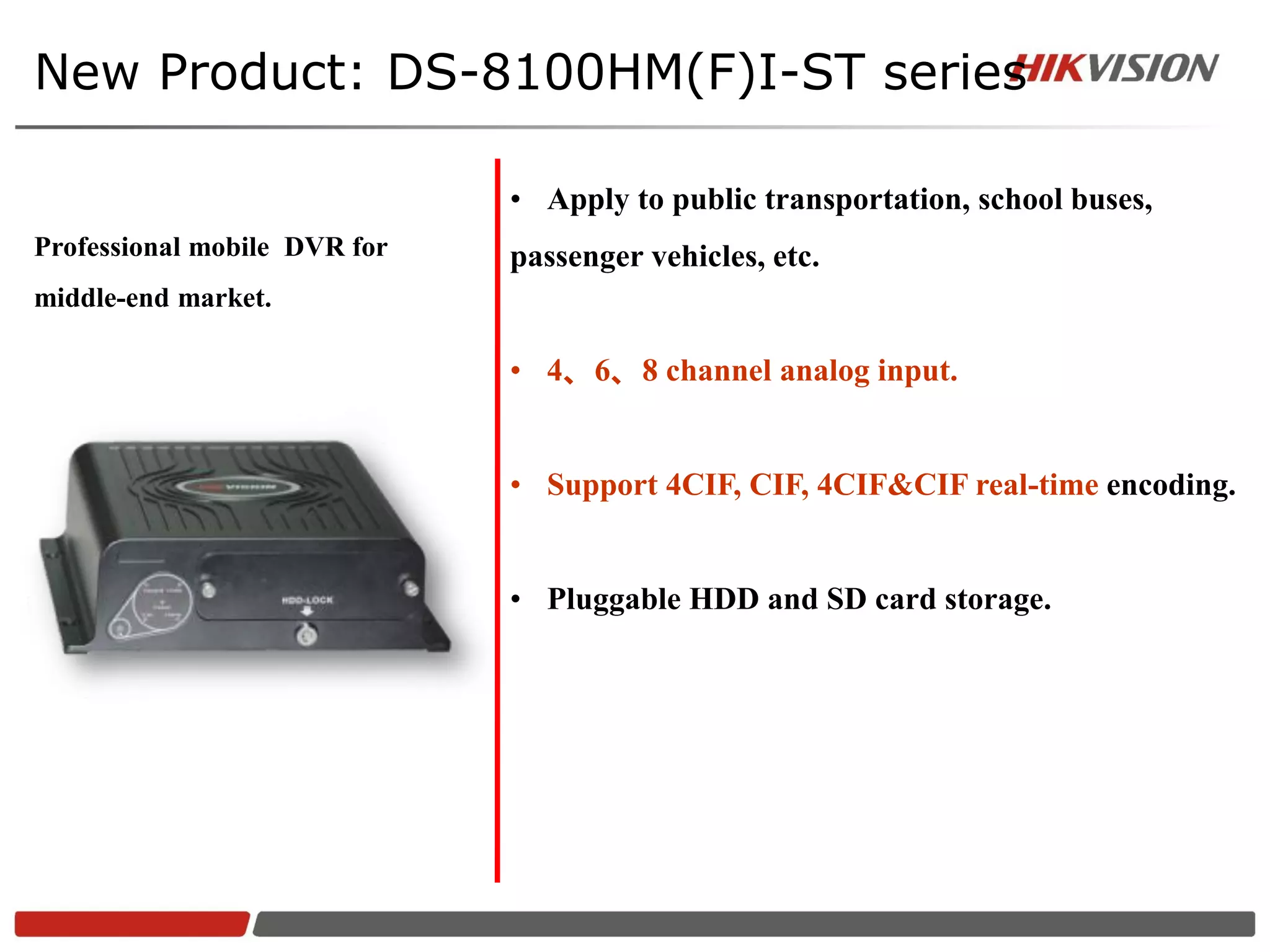

12. New Product: DS-8100HM(F)I-ST series
• Apply to public transportation, school buses,
Professional mobile DVR for passenger vehicles, etc.
middle-end market.
• 4、6、8 channel analog input.
• Support 4CIF, CIF, 4CIF&CIF real-time encoding.
• Pluggable HDD and SD card storage.

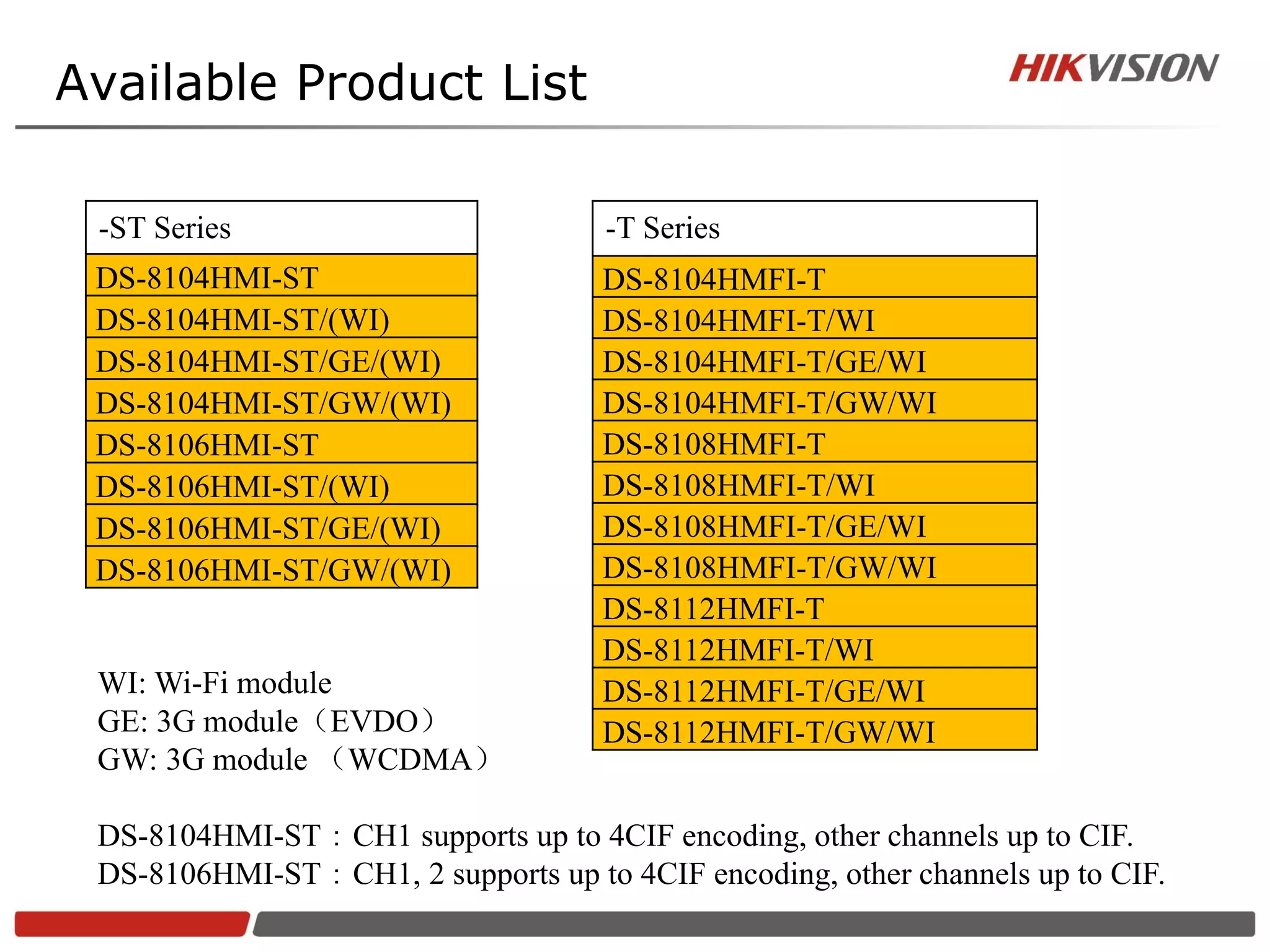

13. Available Product List
-ST Series -T Series
DS-8104HMI-ST DS-8104HMFI-T
DS-8104HMI-ST/(WI) DS-8104HMFI-T/WI
DS-8104HMI-ST/GE/(WI) DS-8104HMFI-T/GE/WI
DS-8104HMI-ST/GW/(WI) DS-8104HMFI-T/GW/WI
DS-8106HMI-ST DS-8108HMFI-T
DS-8106HMI-ST/(WI) DS-8108HMFI-T/WI
DS-8106HMI-ST/GE/(WI) DS-8108HMFI-T/GE/WI
DS-8106HMI-ST/GW/(WI) DS-8108HMFI-T/GW/WI
DS-8112HMFI-T
DS-8112HMFI-T/WI
WI: Wi-Fi module DS-8112HMFI-T/GE/WI
GE: 3G module（EVDO） DS-8112HMFI-T/GW/WI
GW: 3G module （WCDMA）
DS-8104HMI-ST：CH1 supports up to 4CIF encoding, other channels up to CIF.
DS-8106HMI-ST：CH1, 2 supports up to 4CIF encoding, other channels up to CIF.

14. Contents
1 Requirements
2 New Product Line
Selling Points
3
4 CMS

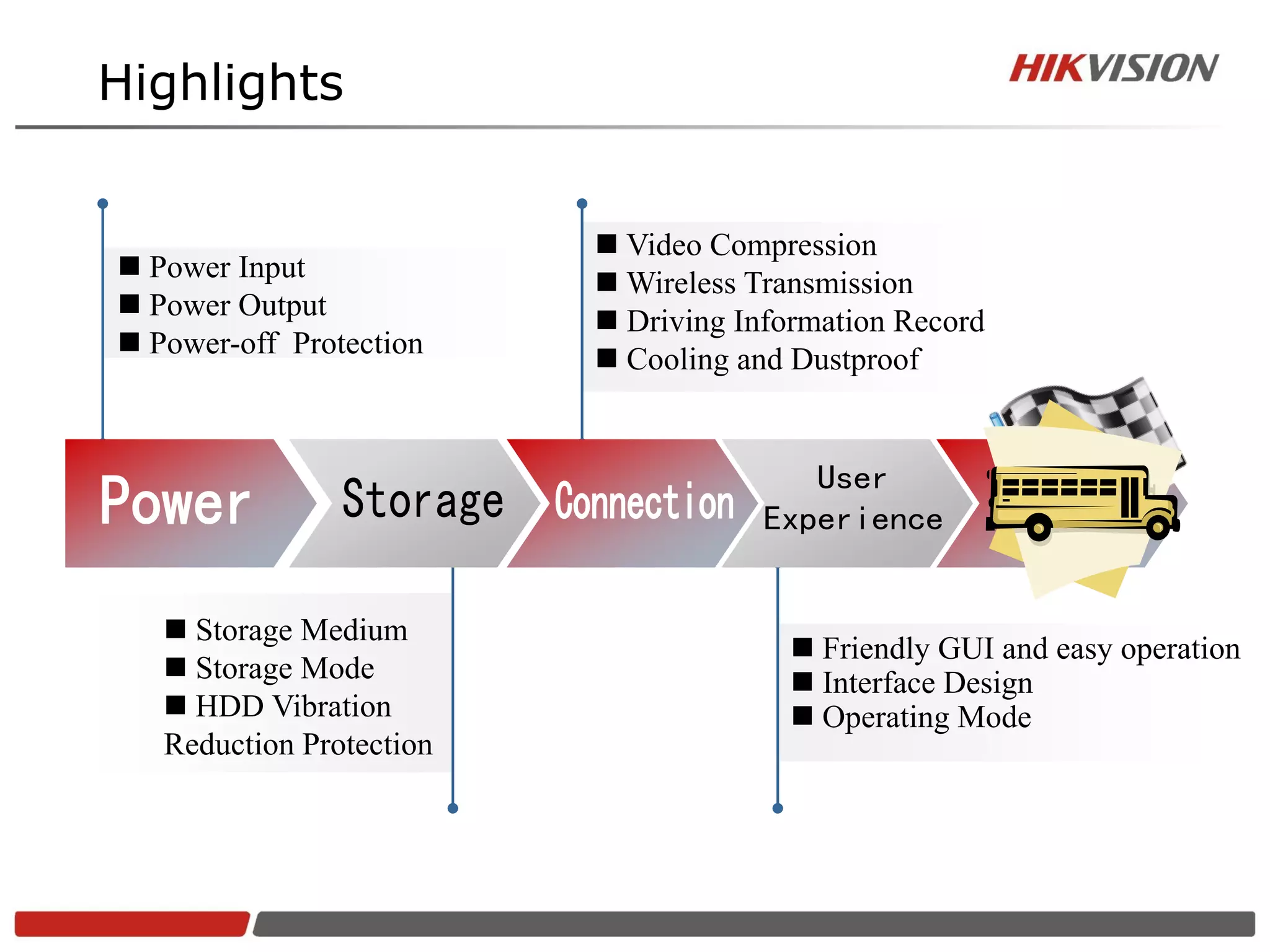

15. Highlights
 Video Compression
 Power Input
 Wireless Transmission
 Power Output
 Driving Information Record
 Power-off Protection
 Cooling and Dustproof
 Storage Medium
 Friendly GUI and easy operation
 Storage Mode  Interface Design
 HDD Vibration  Operating Mode
Reduction Protection

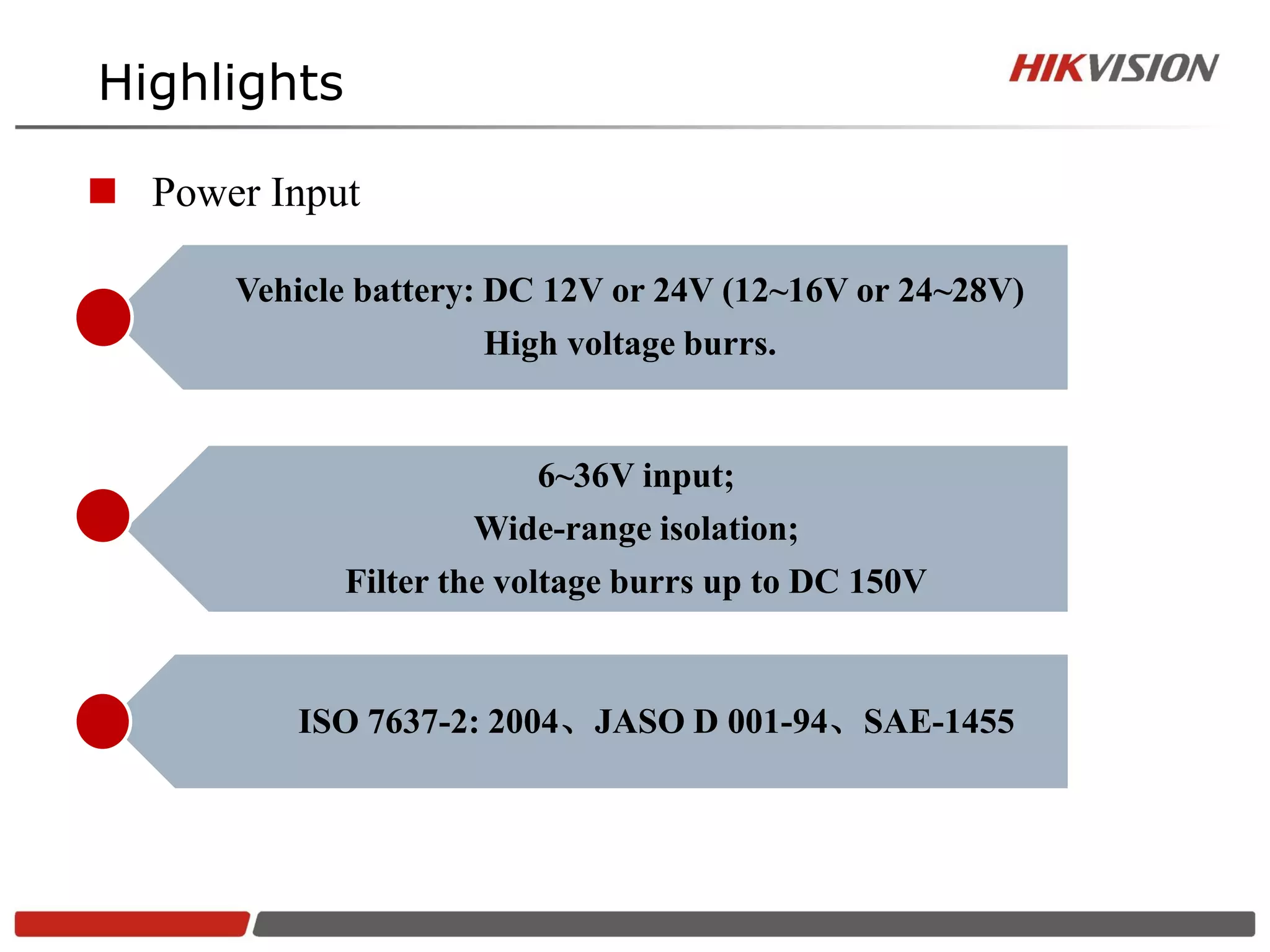

16. Highlights
 Power Input
Vehicle battery: DC 12V or 24V (12~16V or 24~28V)
High voltage burrs.
6~36V input;
Wide-range isolation;
Filter the voltage burrs up to DC 150V
ISO 7637-2: 2004、JASO D 001-94、SAE-1455

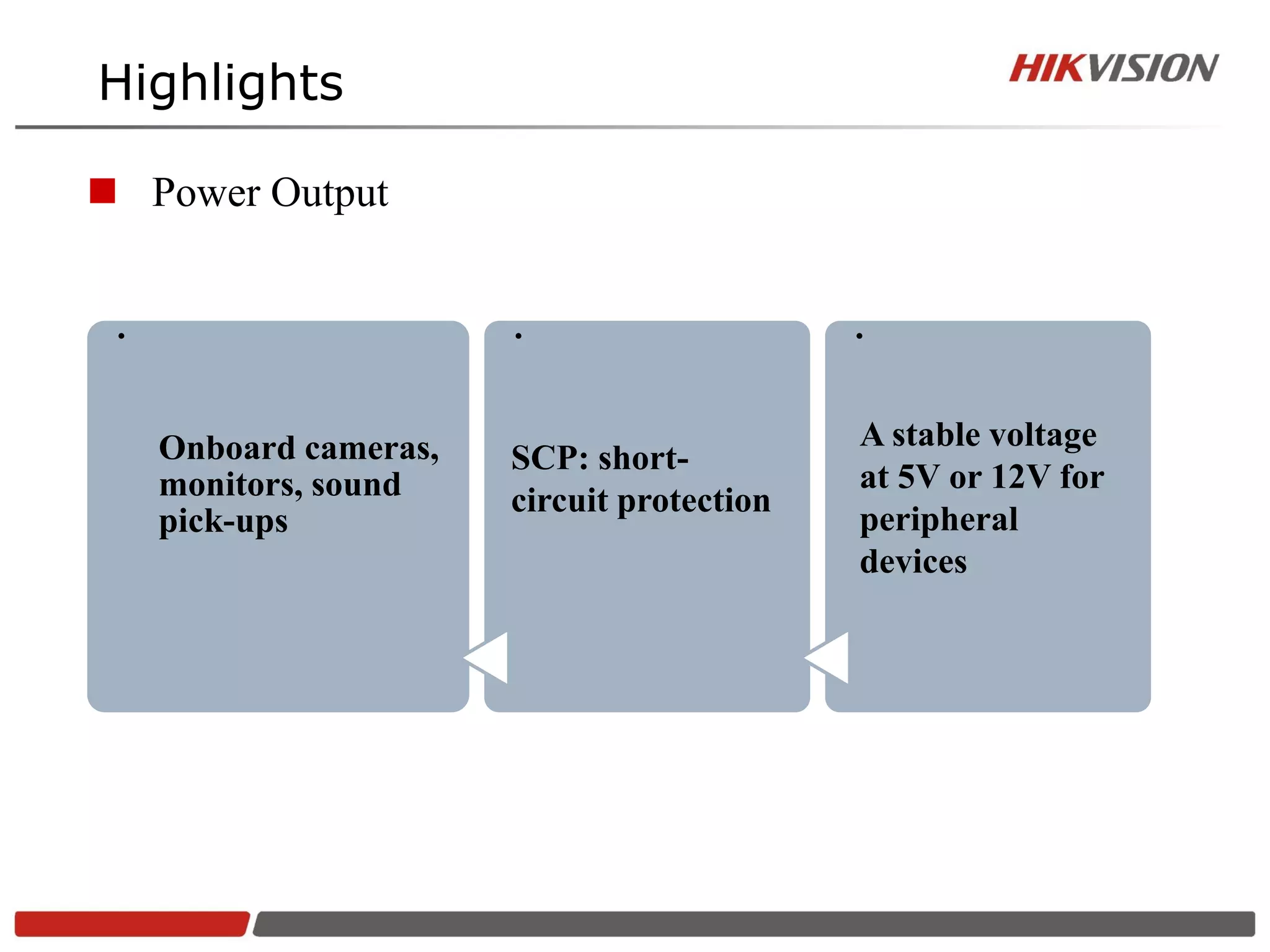

17. Highlights
 Power Output
.
.
.
Onboard cameras, A stable voltage
SCP: short-
monitors, sound at 5V or 12V for
circuit protection
pick-ups peripheral
devices

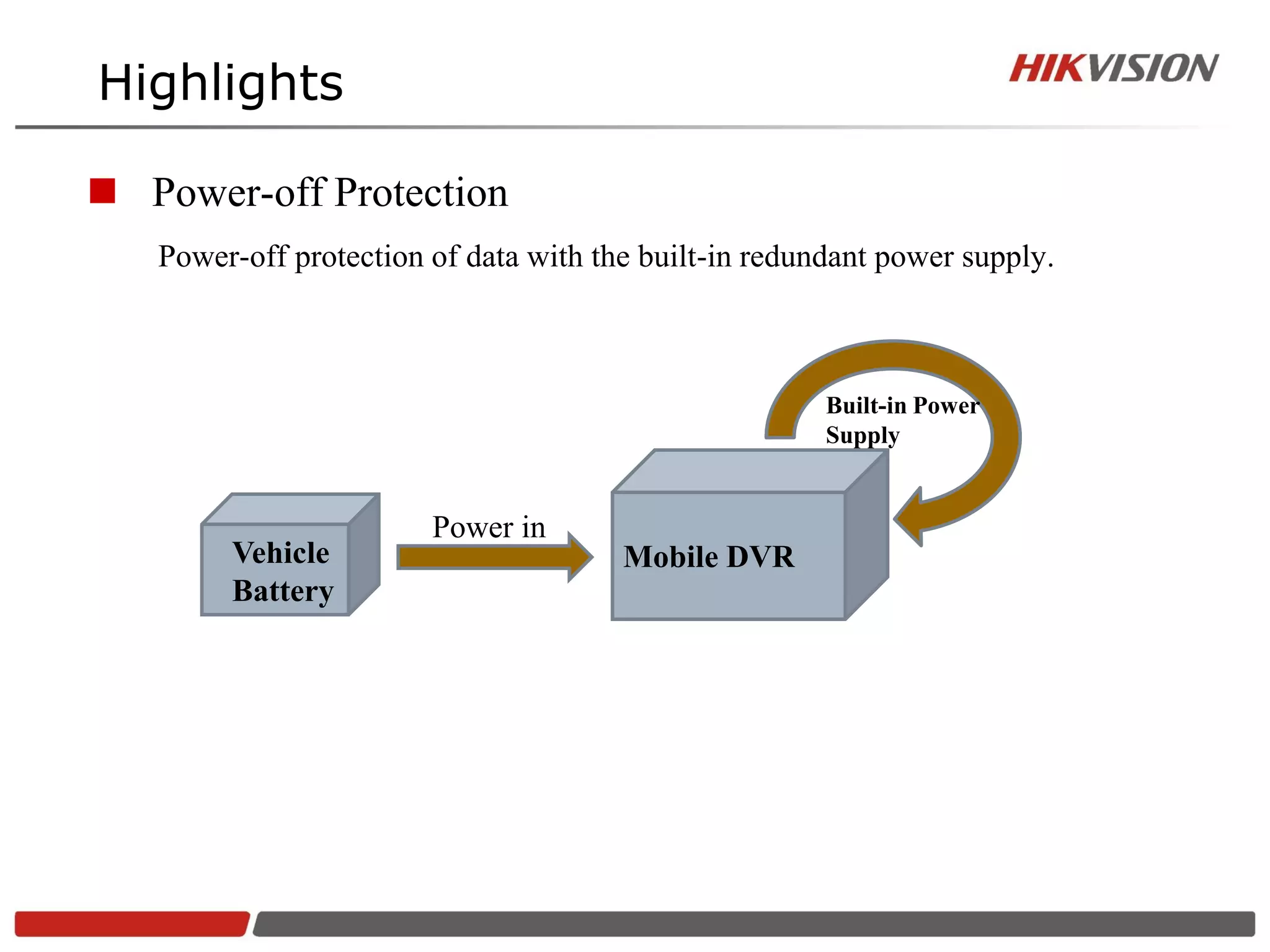

18. Highlights
 Power-off Protection
Power-off protection of data with the built-in redundant power supply.
Built-in Power
Supply
Power in
Vehicle Mobile DVR
Battery

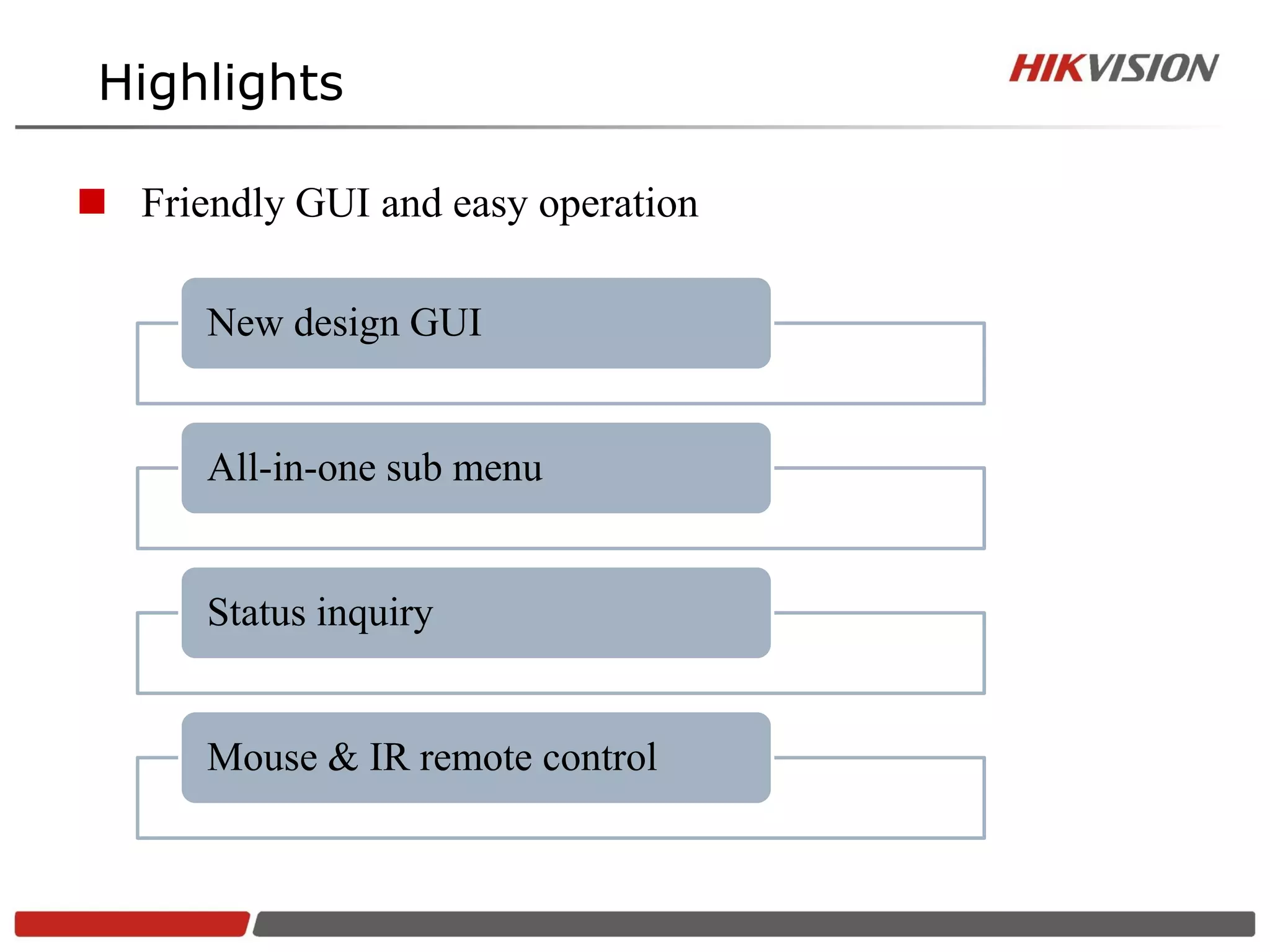

19. Highlights
 Friendly GUI and easy operation
New design GUI
All-in-one sub menu
Status inquiry
Mouse & IR remote control

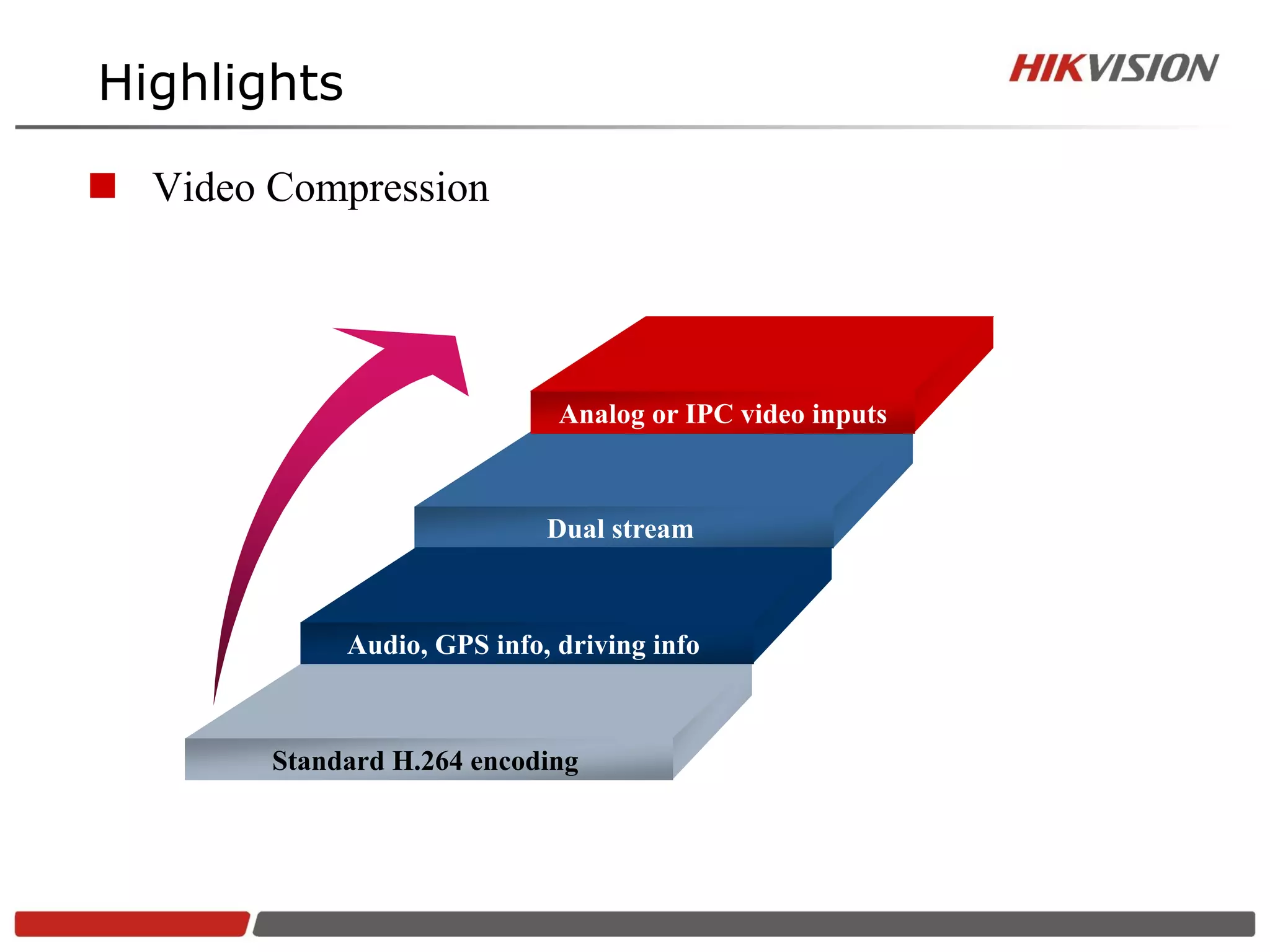

20. Highlights
 Video Compression
Analog or IPC video inputs
Dual stream
Audio, GPS info, driving info
Standard H.264 encoding

21. Highlights

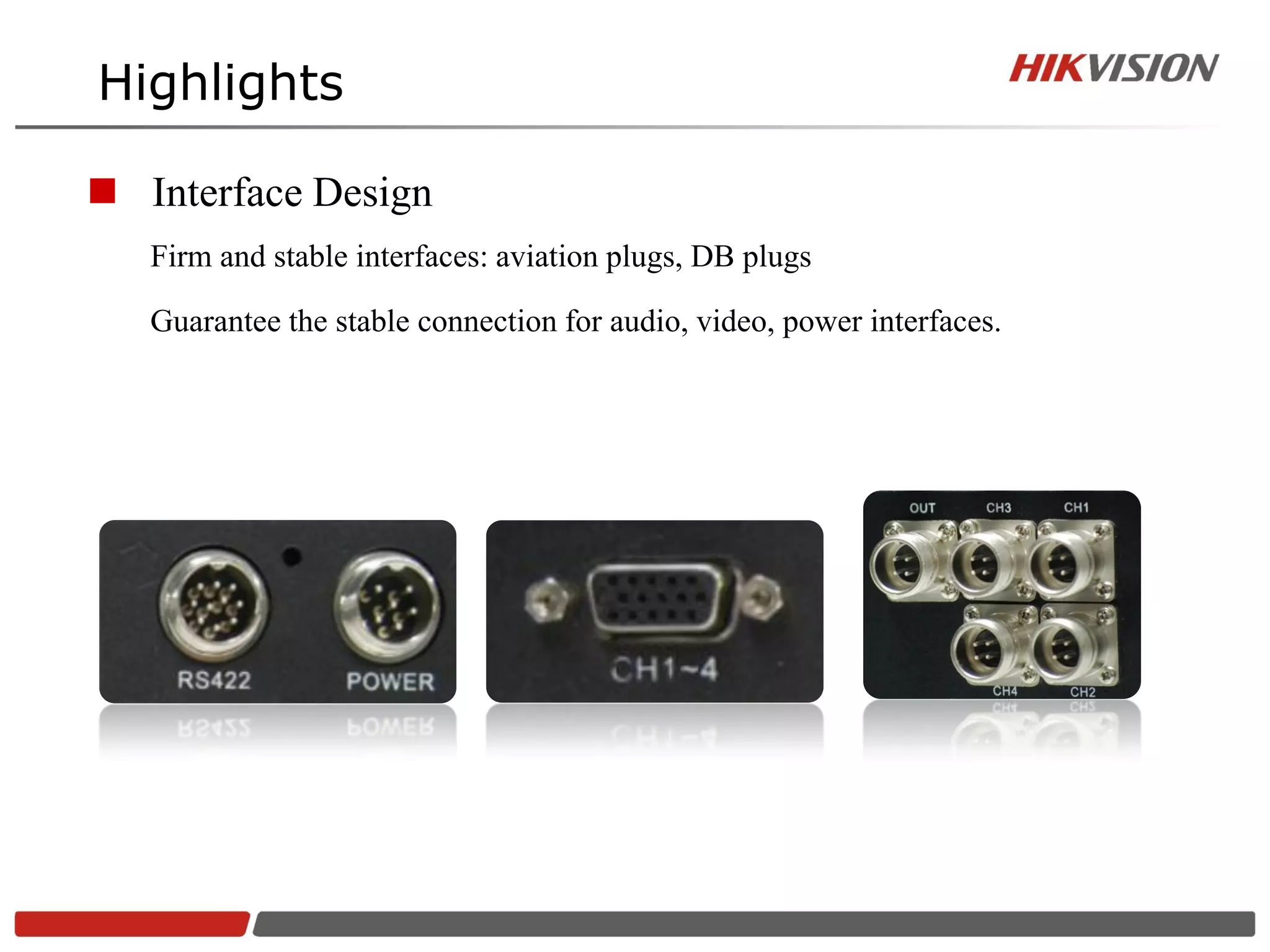

 Interface Design
Firm and stable interfaces: aviation plugs, DB plugs
Guarantee the stable connection for audio, video, power interfaces.

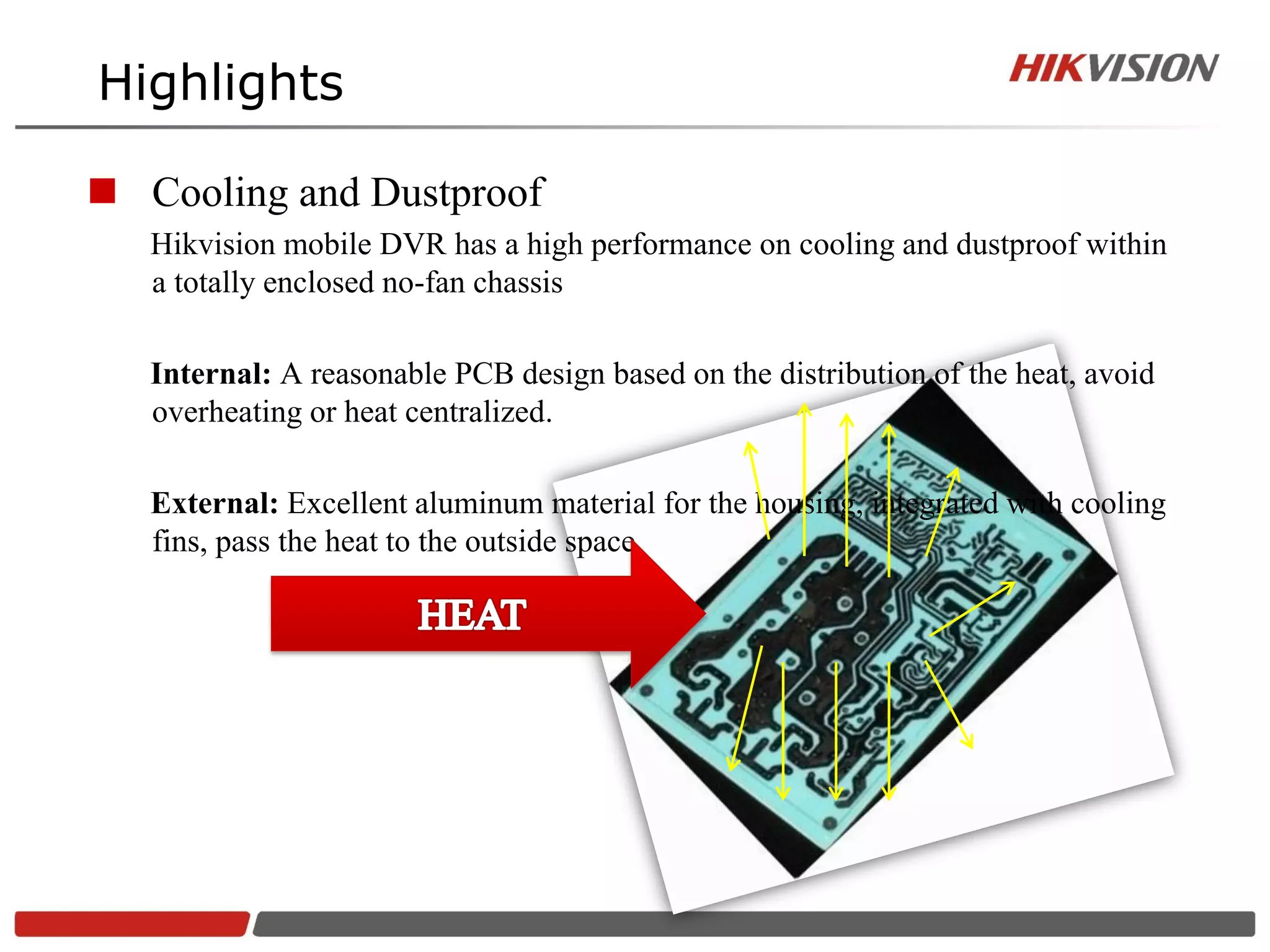

22. Highlights
 Cooling and Dustproof
Hikvision mobile DVR has a high performance on cooling and dustproof within
a totally enclosed no-fan chassis
Internal: A reasonable PCB design based on the distribution of the heat, avoid
overheating or heat centralized.
External: Excellent aluminum material for the housing, integrated with cooling
fins, pass the heat to the outside space.

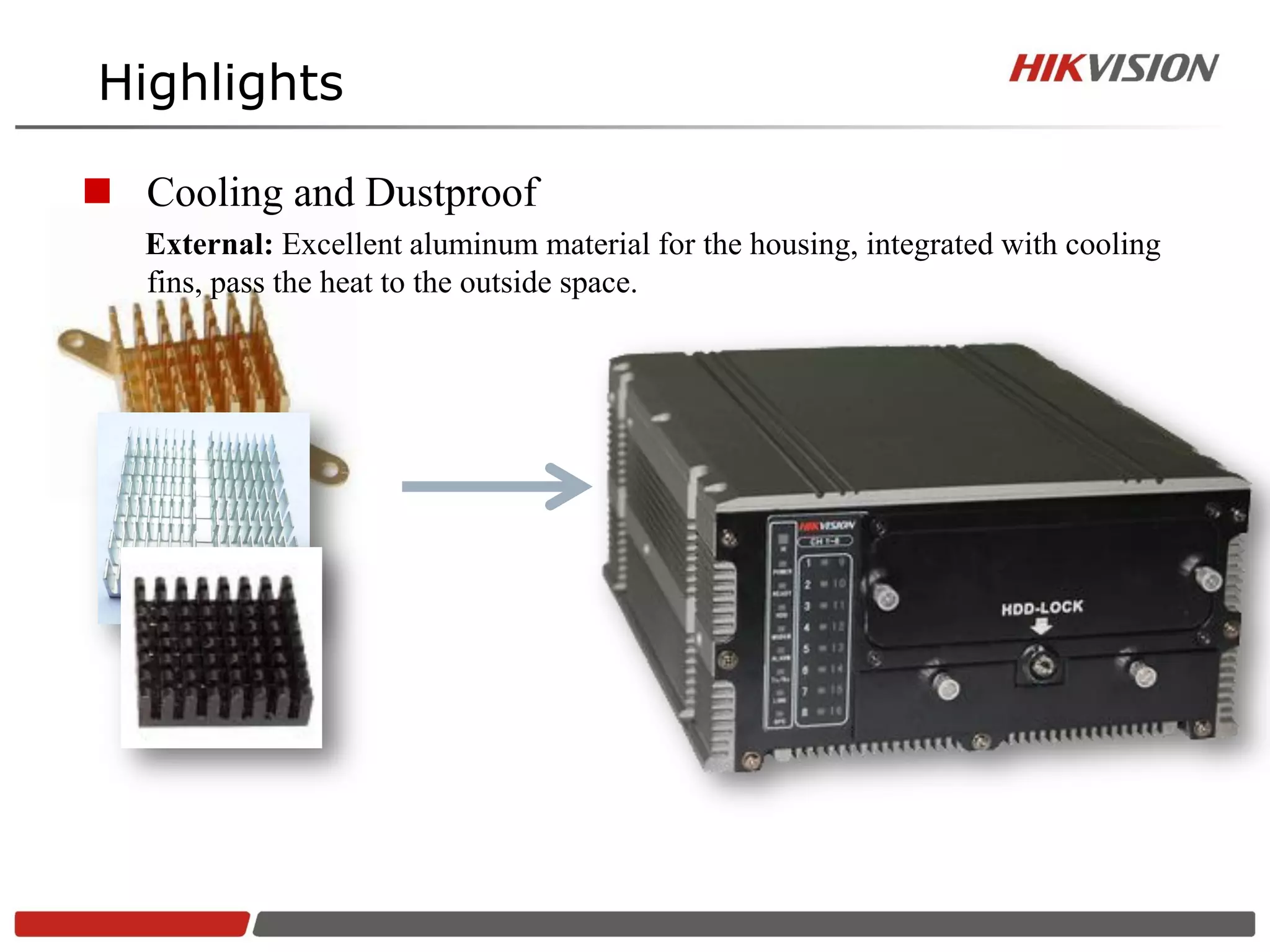

23. Highlights
 Cooling and Dustproof
External: Excellent aluminum material for the housing, integrated with cooling
fins, pass the heat to the outside space.

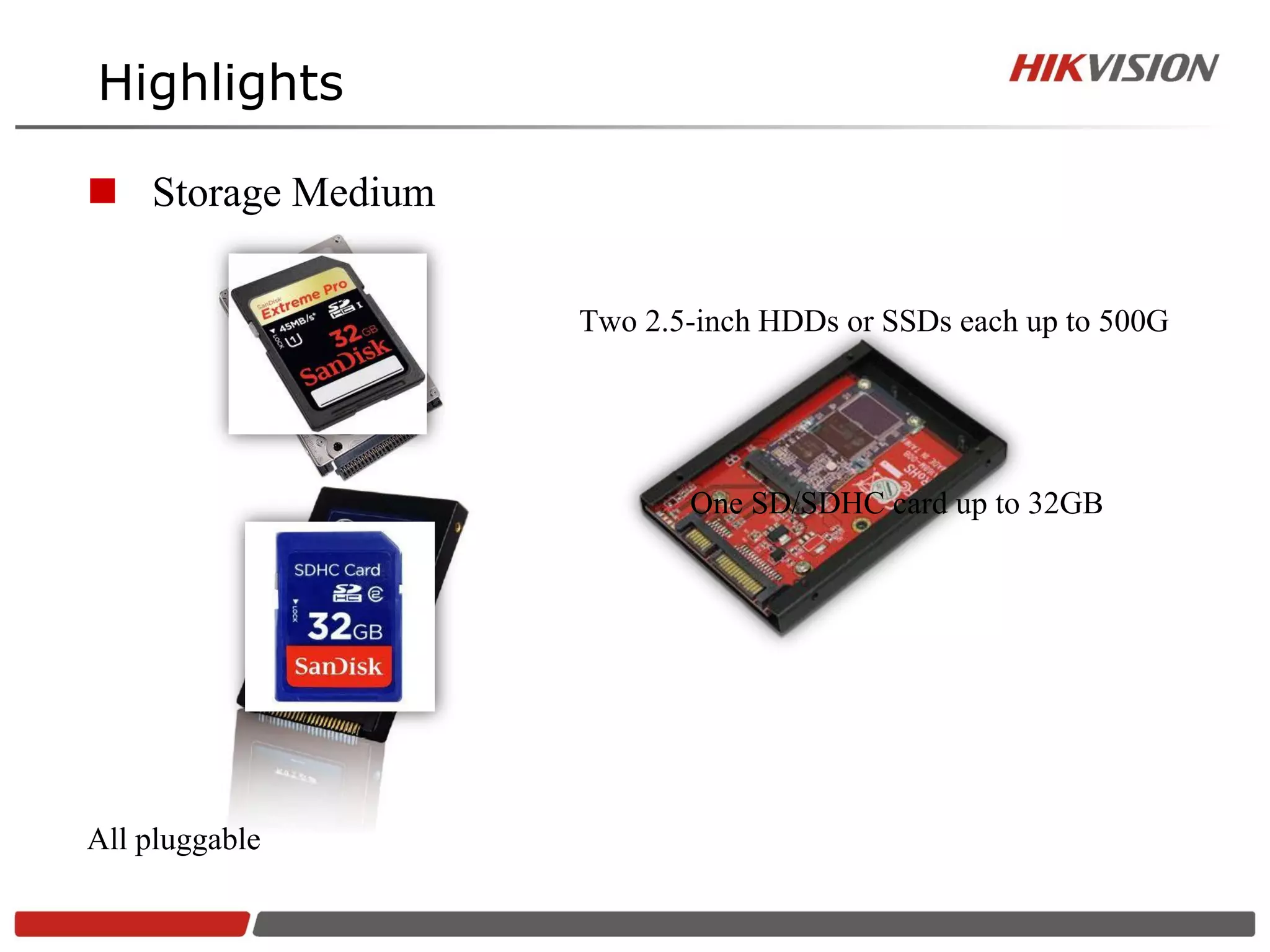

24. Highlights
 Storage Medium
Two 2.5-inch HDDs or SSDs each up to 500G
One SD/SDHC card up to 32GB
All pluggable

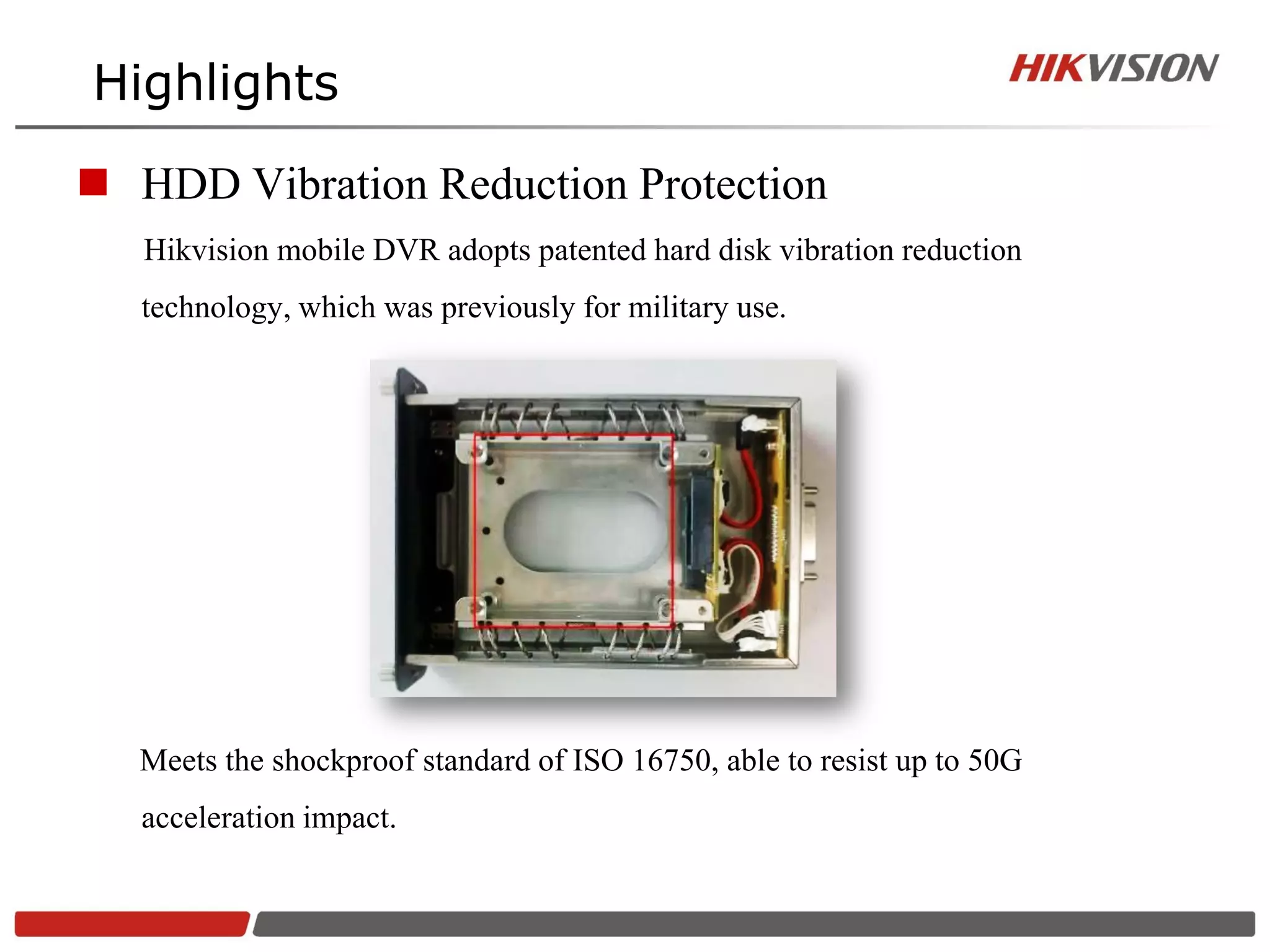

25. Highlights
 HDD Vibration Reduction Protection
Hikvision mobile DVR adopts patented hard disk vibration reduction
technology, which was previously for military use.
Meets the shockproof standard of ISO 16750, able to resist up to 50G
acceleration impact.

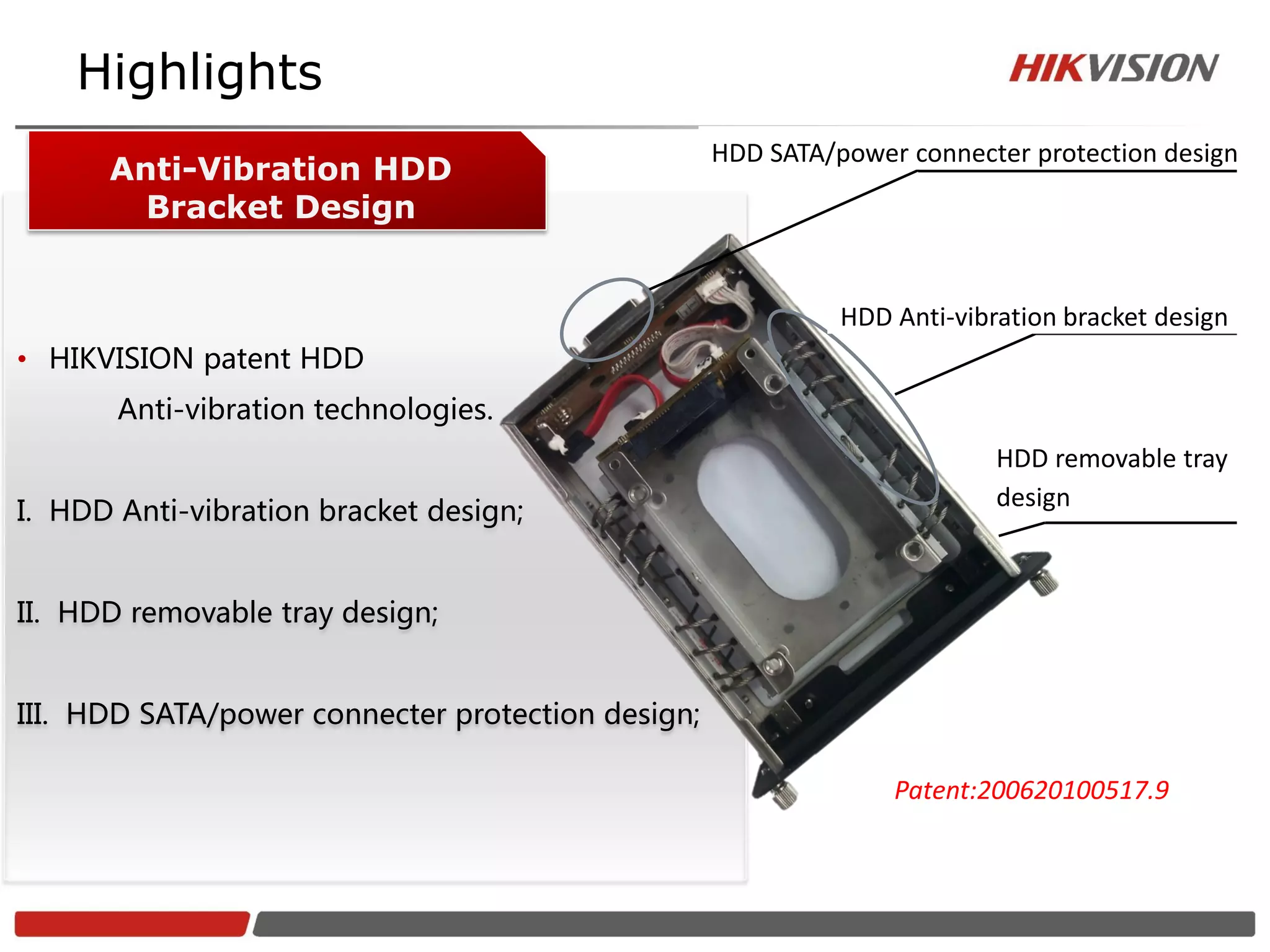

26. Highlights
HDD SATA/power connecter protection design
Anti-Vibration HDD
Bracket Design
HDD Anti-vibration bracket design
• HIKVISION patent HDD
Anti-vibration technologies.
HDD removable tray
design
I. HDD Anti-vibration bracket design;
II. HDD removable tray design;
III. HDD SATA/power connecter protection design;
Patent:200620100517.9

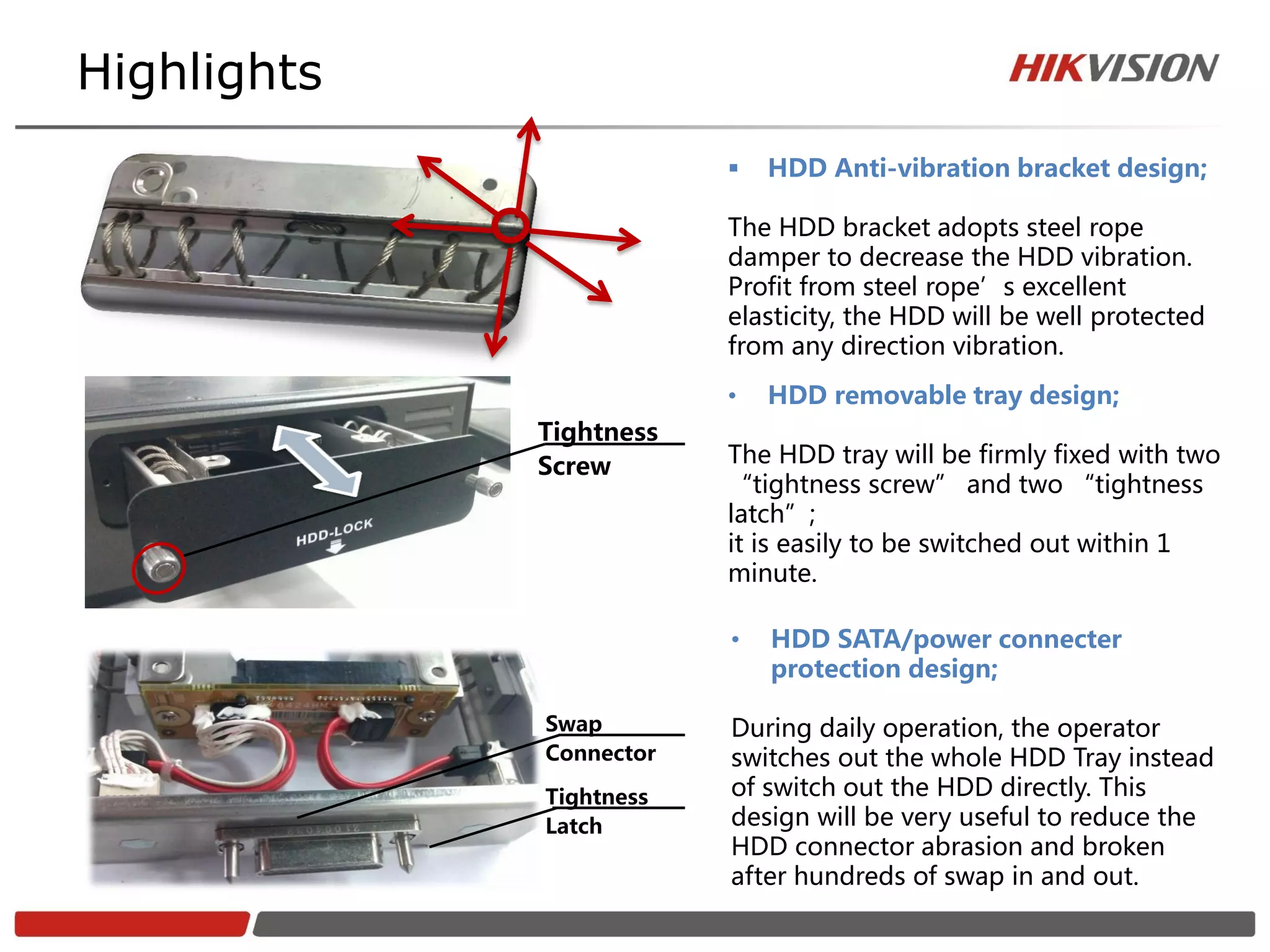

27. Highlights
 HDD Anti-vibration bracket design;
The HDD bracket adopts steel rope
damper to decrease the HDD vibration.
Profit from steel rope’s excellent
elasticity, the HDD will be well protected
from any direction vibration.
• HDD removable tray design;
Tightness
Screw The HDD tray will be firmly fixed with two
“tightness screw” and two “tightness
latch”;
it is easily to be switched out within 1
minute.
• HDD SATA/power connecter
protection design;
Swap During daily operation, the operator
Connector switches out the whole HDD Tray instead
Tightness of switch out the HDD directly. This
Latch design will be very useful to reduce the
HDD connector abrasion and broken
after hundreds of swap in and out.

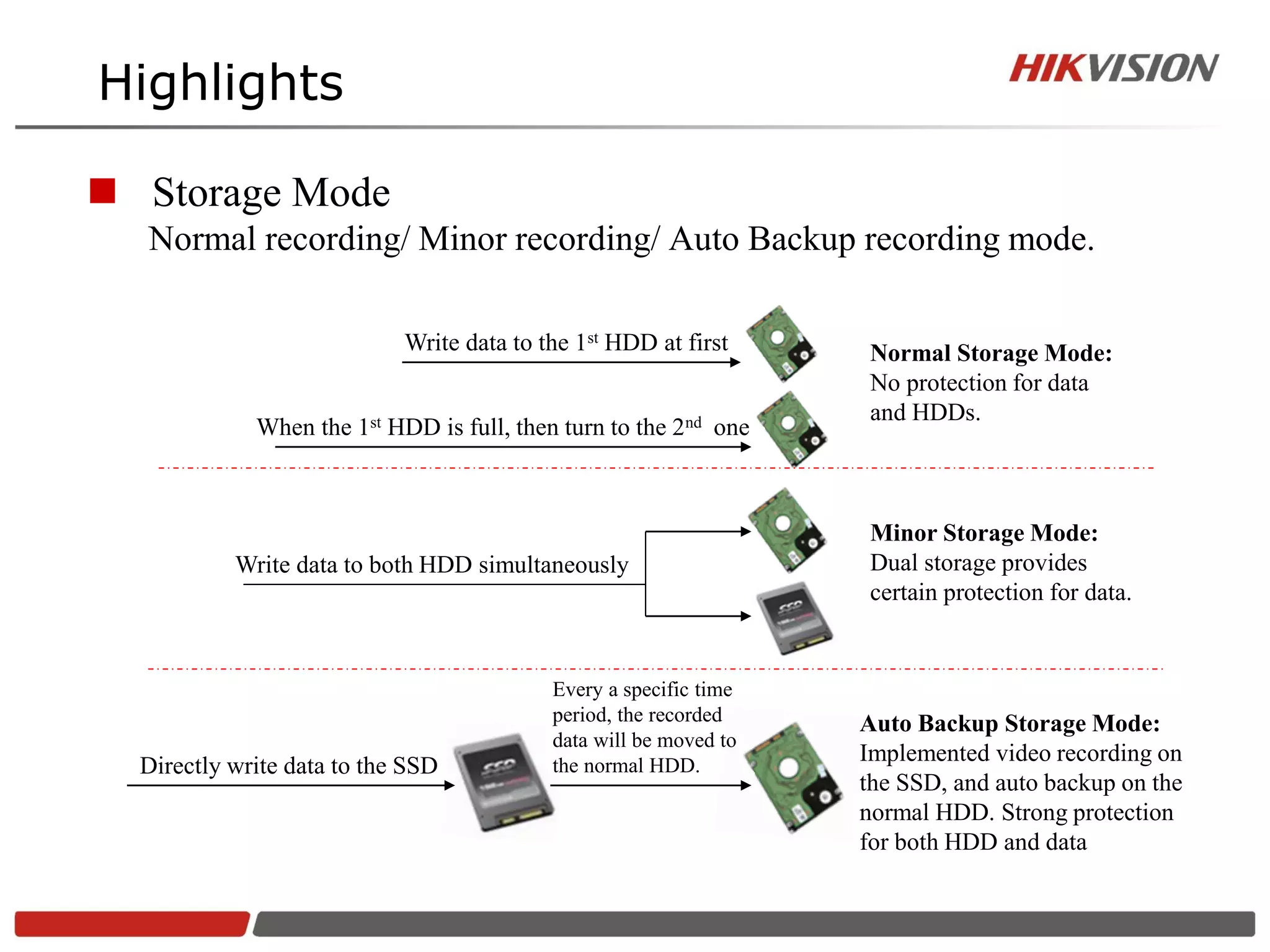

28. Highlights
 Storage Mode
Normal recording/ Minor recording/ Auto Backup recording mode.
Write data to the 1st HDD at first Normal Storage Mode:
No protection for data
and HDDs.
When the 1st HDD is full, then turn to the 2nd one
Minor Storage Mode:
Write data to both HDD simultaneously Dual storage provides
certain protection for data.
Every a specific time
period, the recorded Auto Backup Storage Mode:
data will be moved to
Implemented video recording on
Directly write data to the SSD the normal HDD.
the SSD, and auto backup on the
normal HDD. Strong protection
for both HDD and data

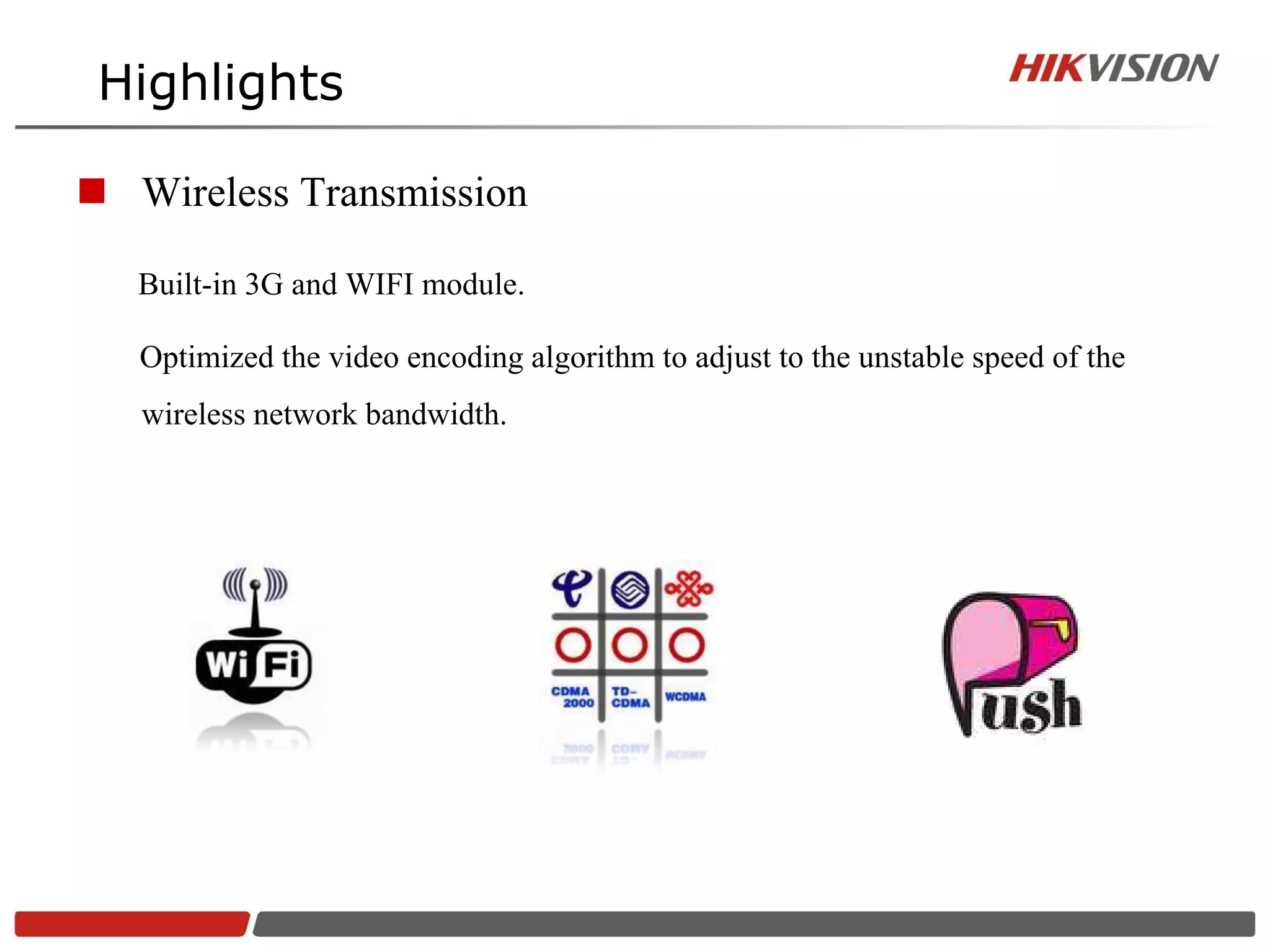

29. Highlights
 Wireless Transmission
Built-in 3G and WIFI module.
Optimized the video encoding algorithm to adjust to the unstable speed of the
wireless network bandwidth.

30. Highlights

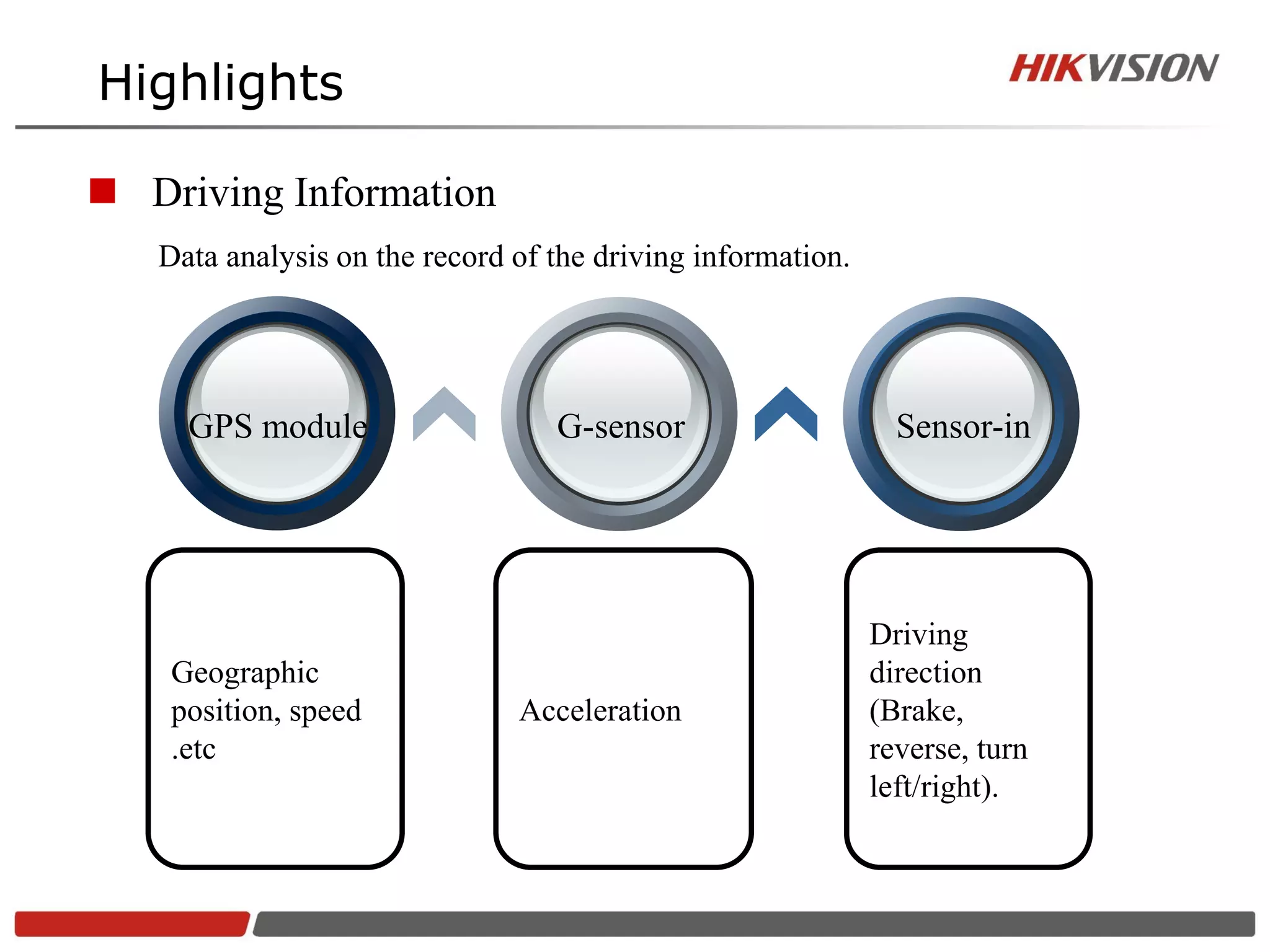

 Driving Information
Data analysis on the record of the driving information.
GPS module G-sensor Sensor-in
Driving
Geographic direction
position, speed Acceleration (Brake,
.etc reverse, turn
left/right).

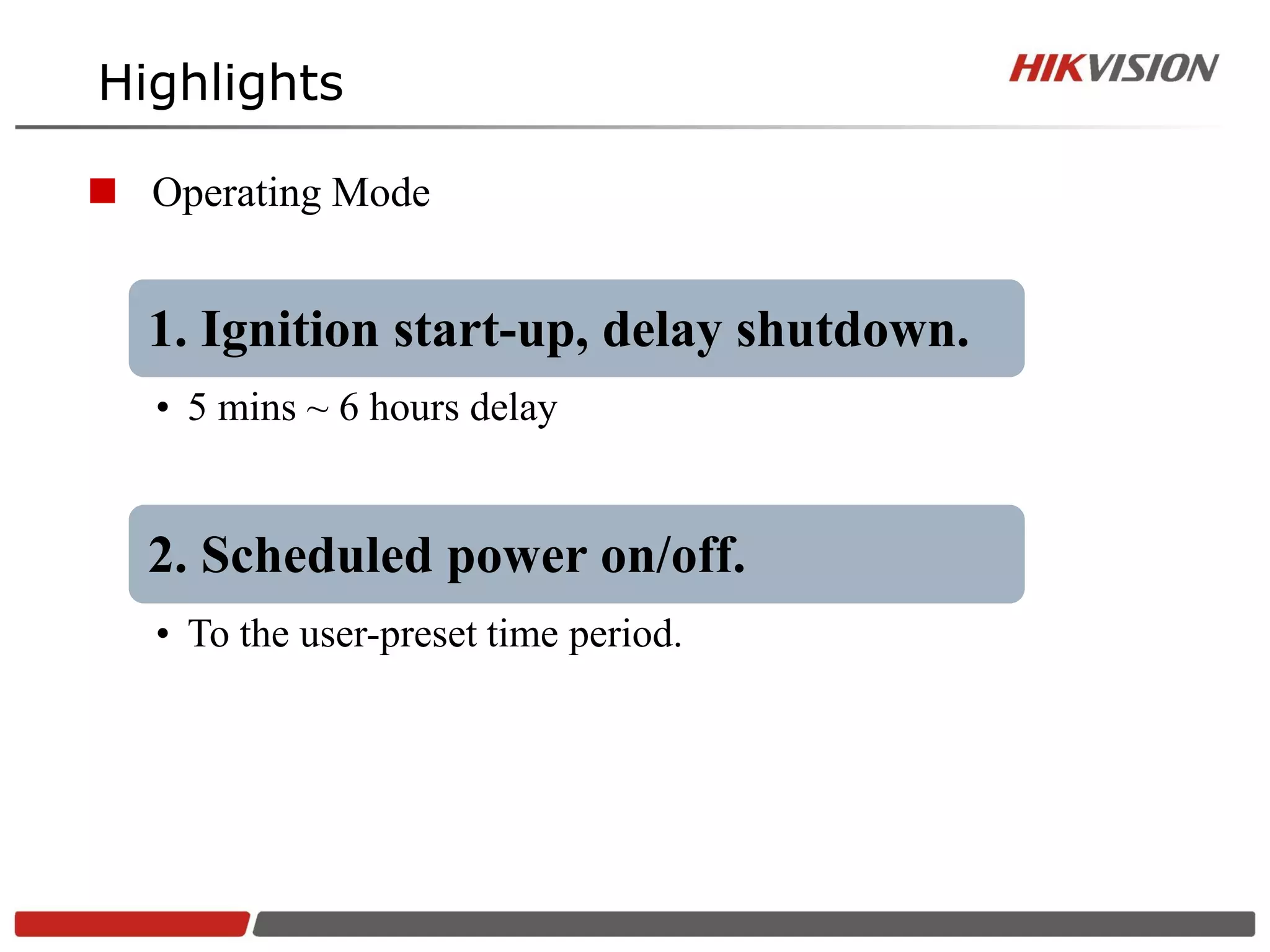

31. Highlights
 Operating Mode
1. Ignition start-up, delay shutdown.
• 5 mins ~ 6 hours delay
2. Scheduled power on/off.
• To the user-preset time period.

32. Contents
1 Requirements
2 New Product Line
3 Selling Points
CMS
4

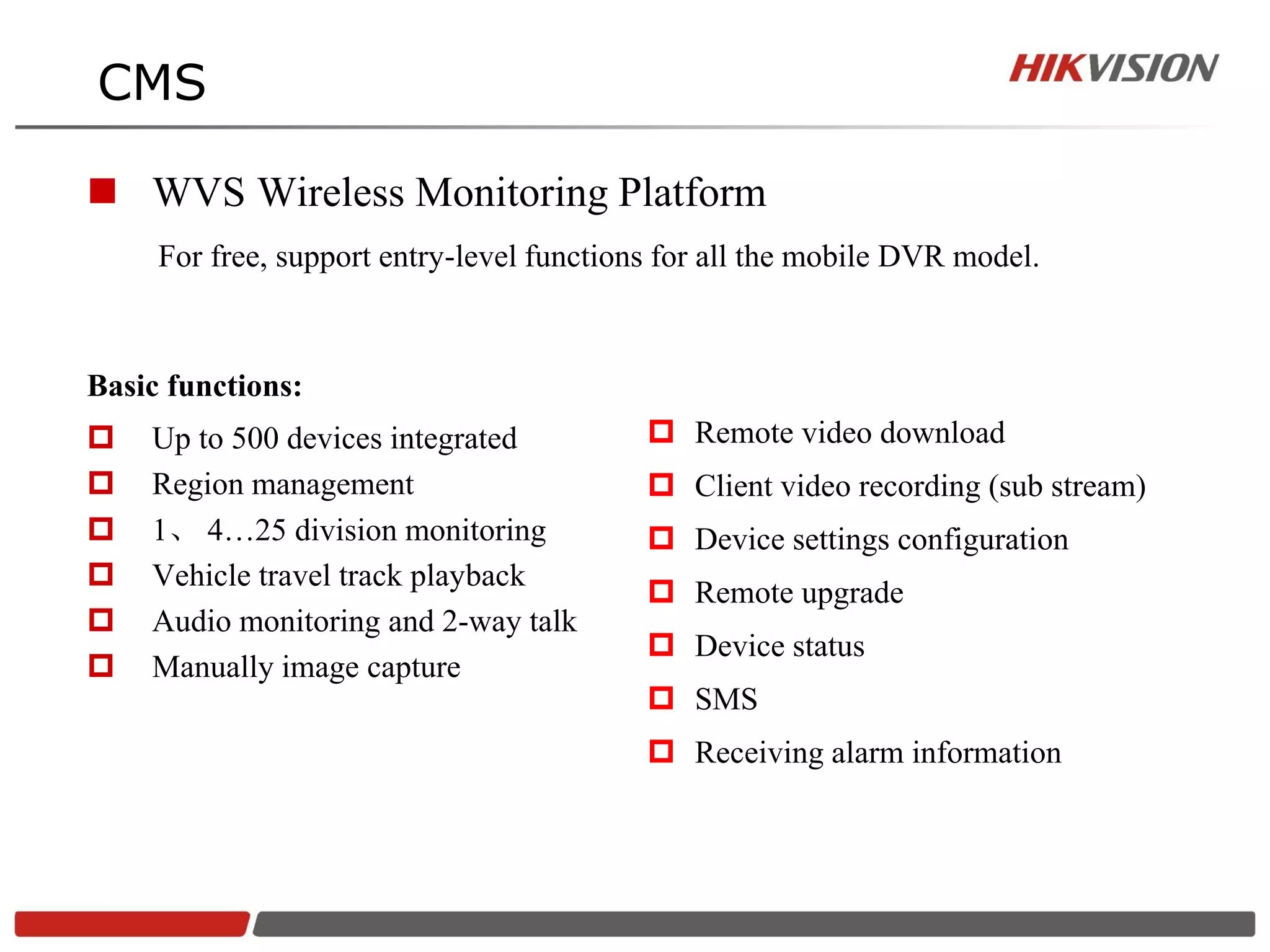

33. CMS
 WVS Wireless Monitoring Platform
For free, support entry-level functions for all the mobile DVR model.
Basic functions:
 Up to 500 devices integrated  Remote video download
 Region management  Client video recording (sub stream)
 1、 4…25 division monitoring  Device settings configuration
 Vehicle travel track playback
 Remote upgrade
 Audio monitoring and 2-way talk
 Device status
 Manually image capture
 SMS
 Receiving alarm information

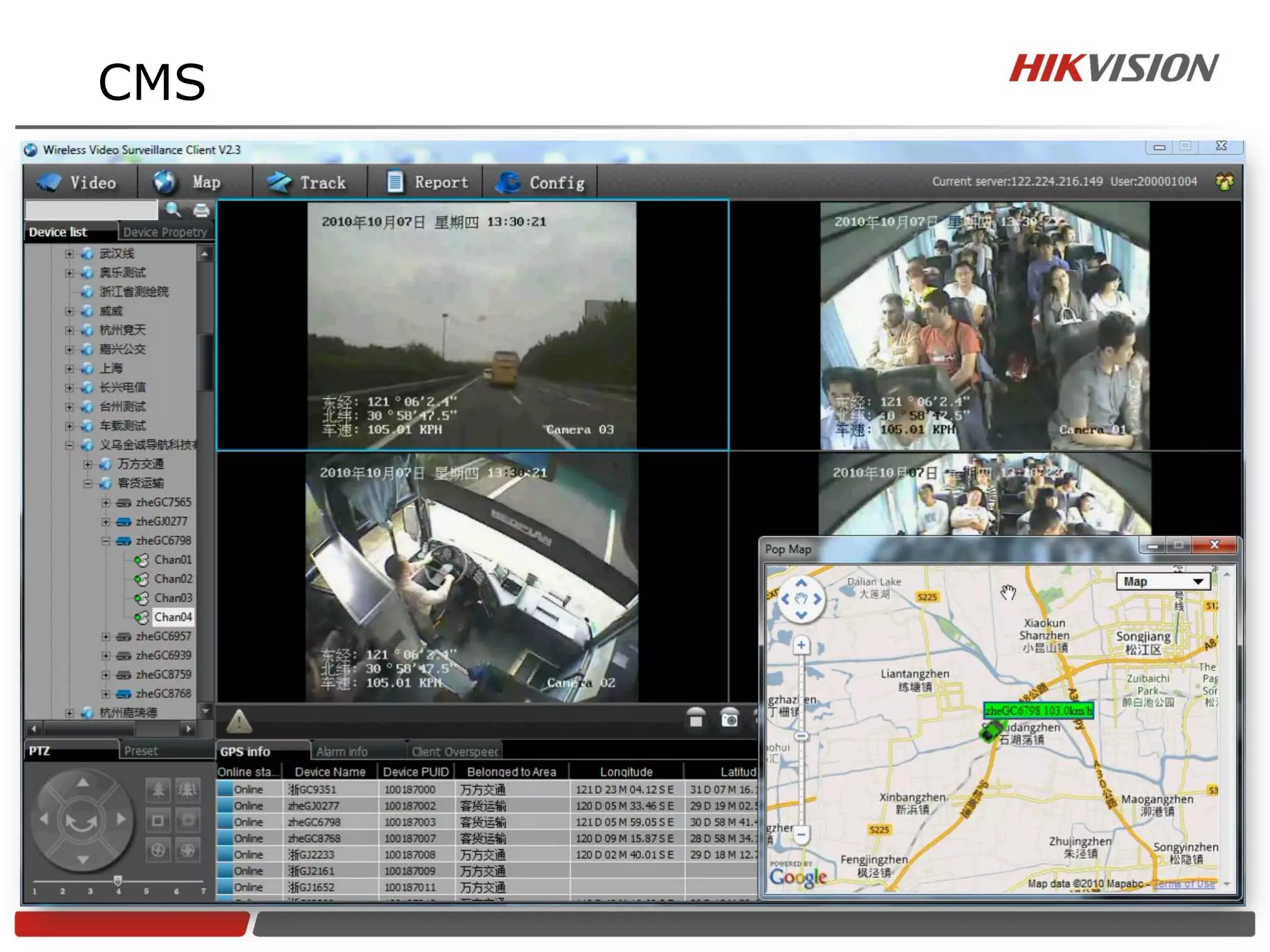

34. CMS

35. CMS

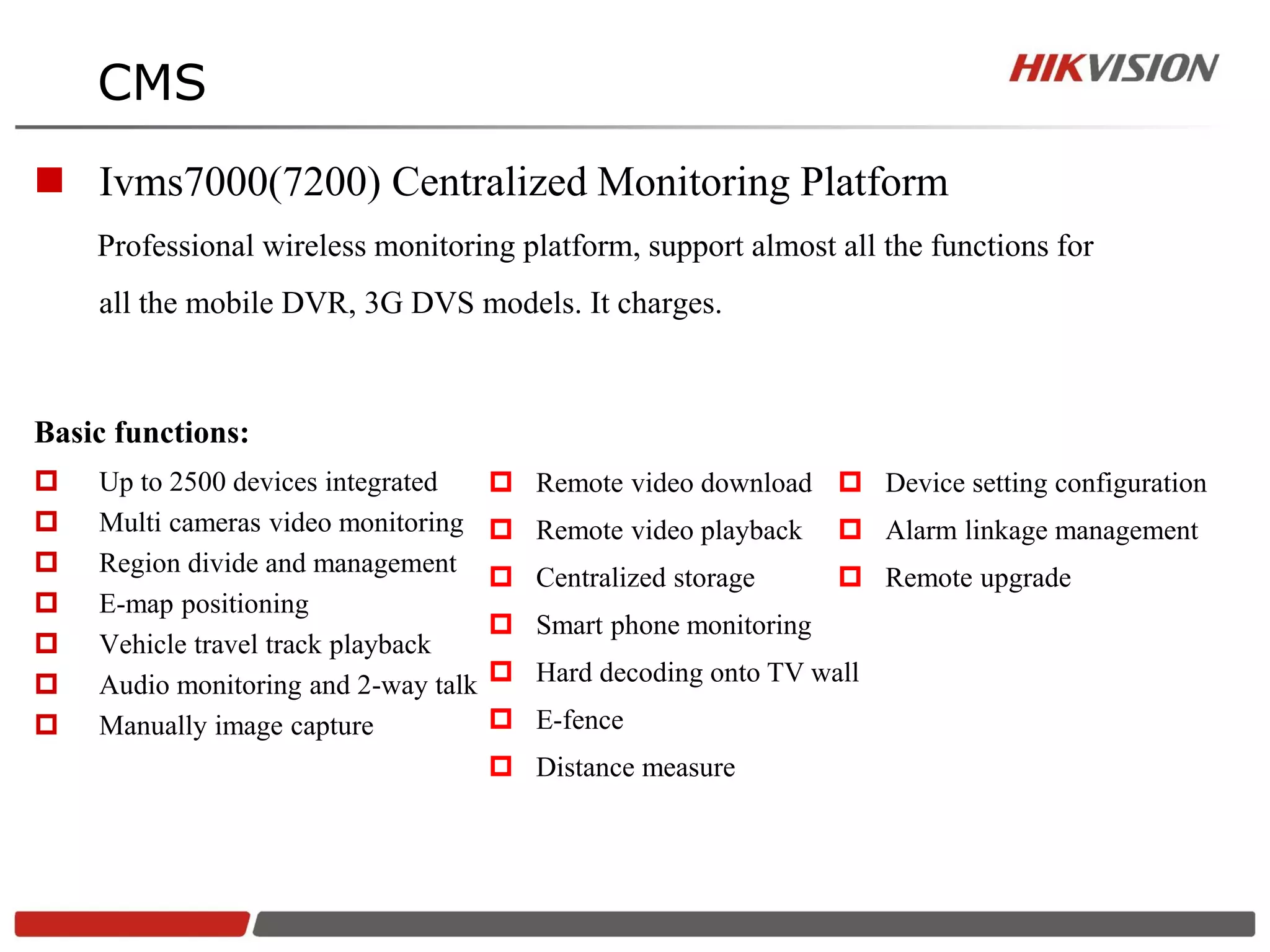

 Ivms7000(7200) Centralized Monitoring Platform
Professional wireless monitoring platform, support almost all the functions for
all the mobile DVR, 3G DVS models. It charges.
Basic functions:
 Up to 2500 devices integrated  Remote video download  Device setting configuration
 Multi cameras video monitoring  Remote video playback  Alarm linkage management
 Region divide and management
 Centralized storage  Remote upgrade
 E-map positioning
 Smart phone monitoring
 Vehicle travel track playback
 Audio monitoring and 2-way talk  Hard decoding onto TV wall
 Manually image capture  E-fence
 Distance measure

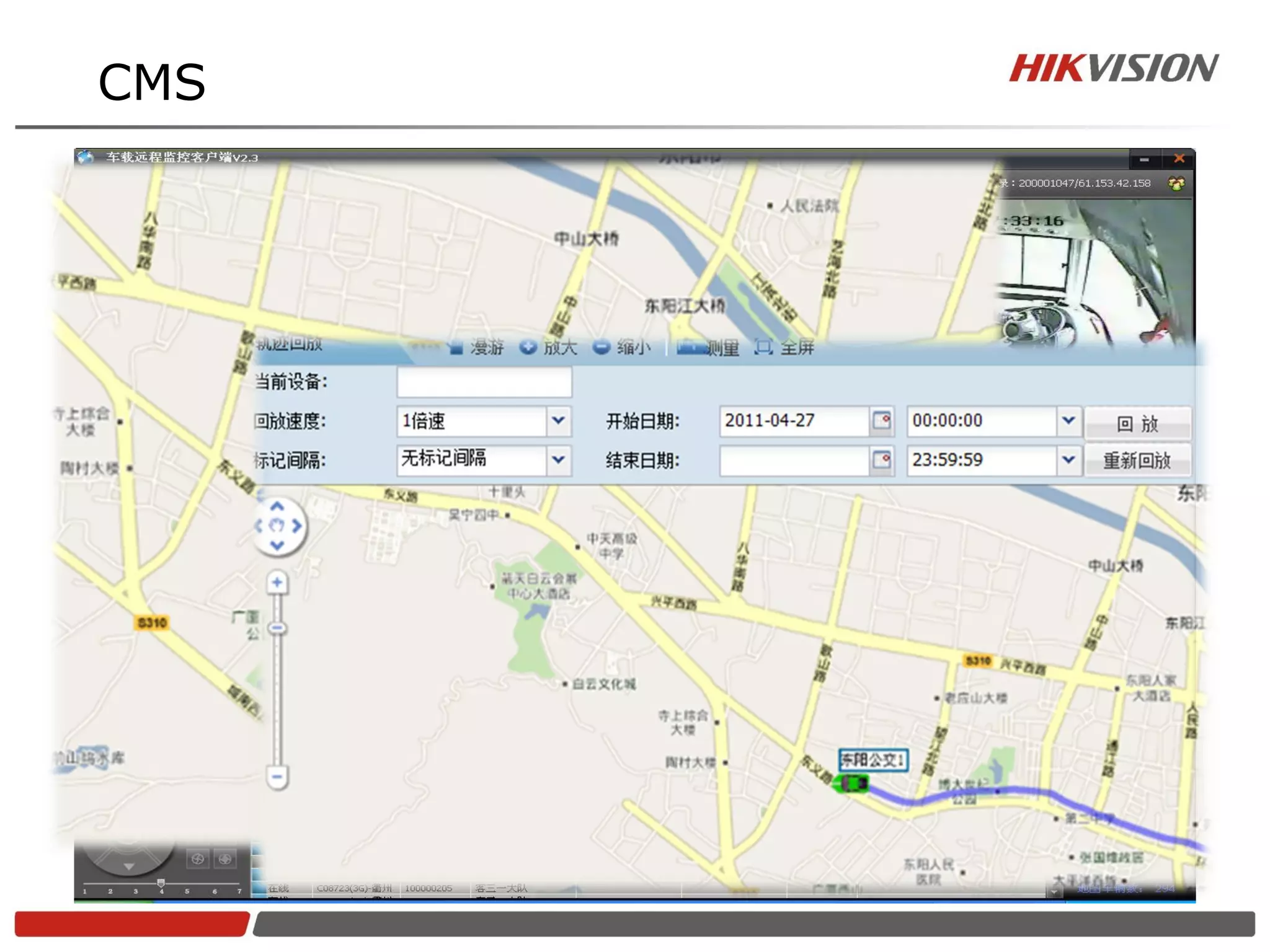

36. CMS

37. CMS

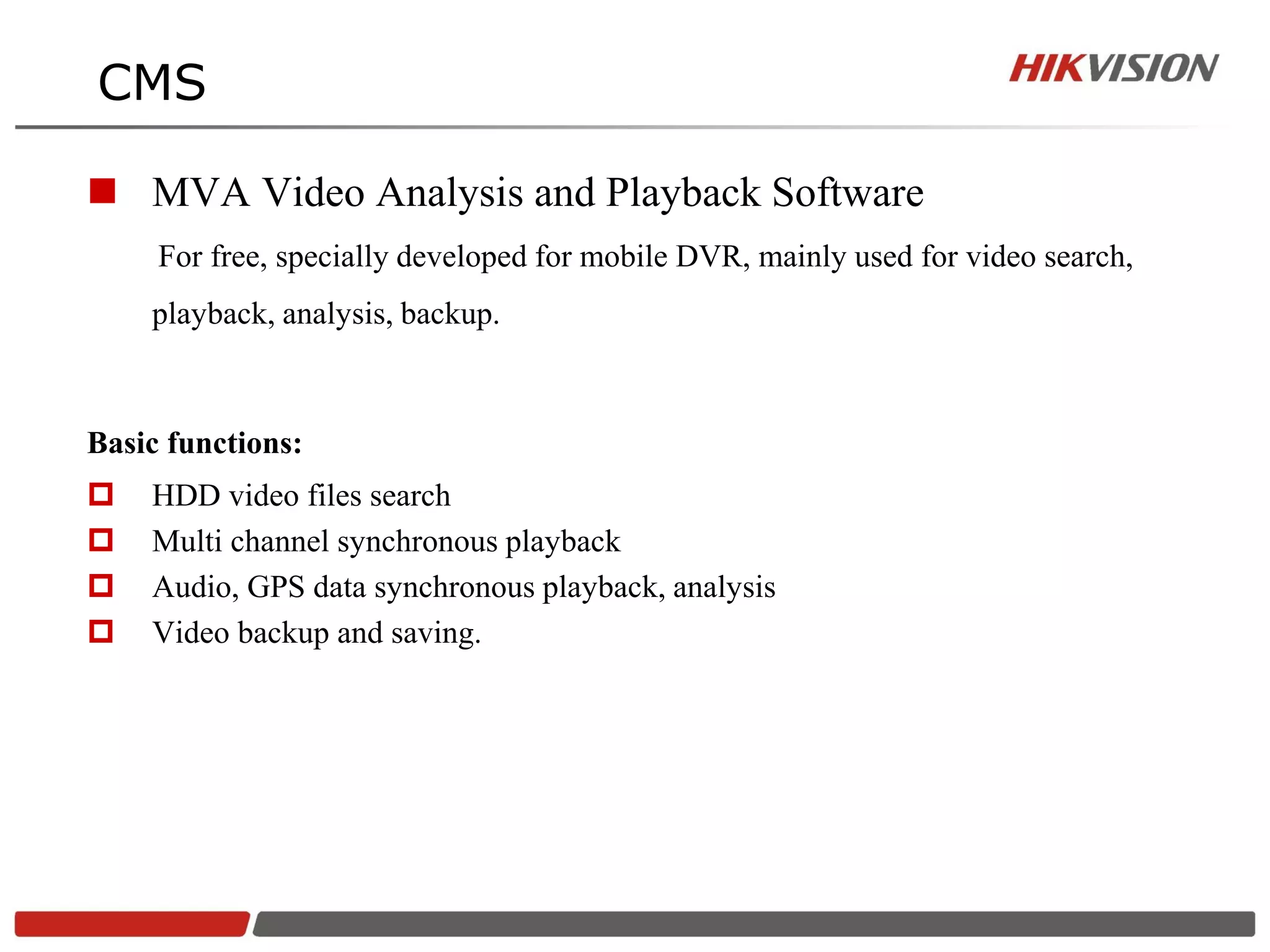

 MVA Video Analysis and Playback Software
For free, specially developed for mobile DVR, mainly used for video search,
playback, analysis, backup.
Basic functions:
 HDD video files search
 Multi channel synchronous playback
 Audio, GPS data synchronous playback, analysis
 Video backup and saving.

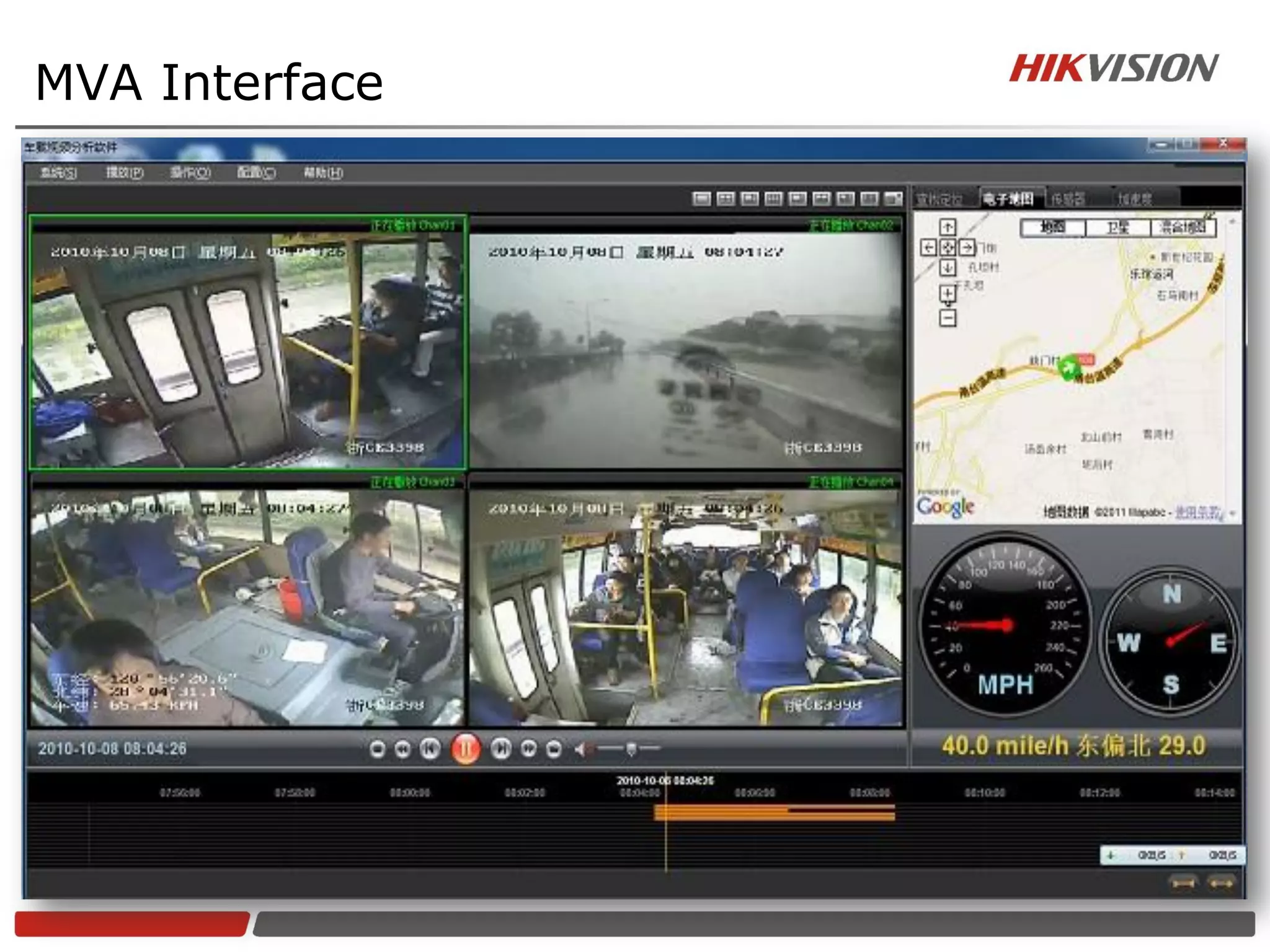

38. MVA Interface

39. THANKS!
China - USA - Europe - India - Russia - Middle East - Africa - South America
