This document lists and diagrams the main parts of a chainsaw, including the saw chain, guide bar, handles, throttle trigger, starter grip, and covers. It also identifies components like the chain brake, oil and fuel fillers, adjustment screws, and various safety features such as the throttle trigger interlock and chain catcher.

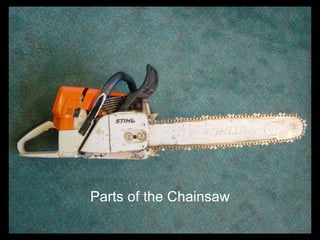

2. Parts of the Chainsaw

3. 1 Saw chain 2 Guide bar 3 Bar nose 4 Chain brake/front hand guard 5 Front handle 6 Rear handle 7 Rear hand guard 8 Throttle trigger 9 Starter grip 10 Chainsaw mitt 11 Oil filler cap 12 Fuel filler cap 10 9 8 7 6 5 4 2 3 1 11 12

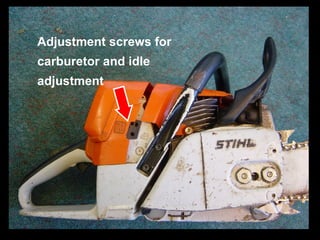

4. Adjustment screws for carburetor and idle adjustment

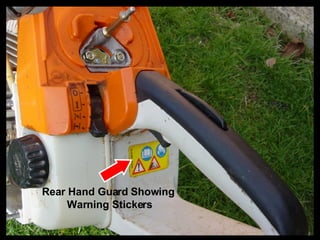

5. Rear Hand Guard Showing Warning Stickers

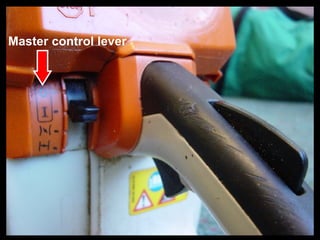

6. Master control lever

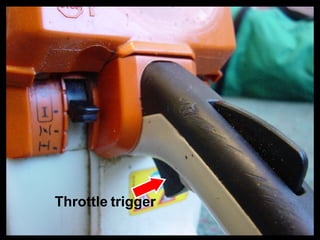

7. Throttle trigger

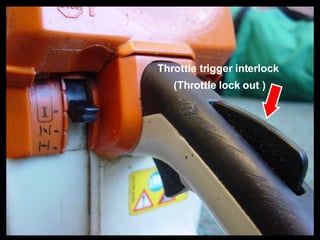

8. Throttle trigger interlock (Throttle lock out )

9. Chain sprocket cover

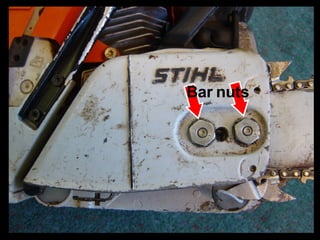

10. Bar nuts

11. Side chain tensioner

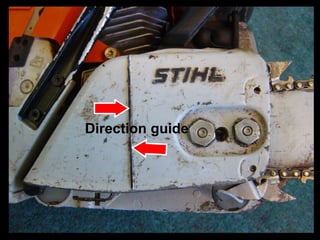

12. Direction guide

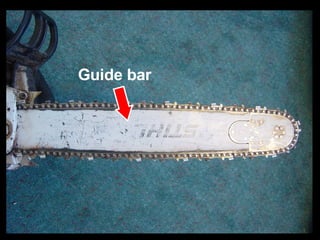

13. Guide bar

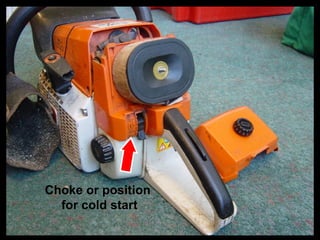

14. Choke or position for cold start

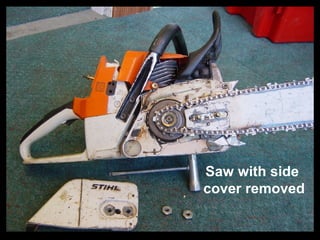

15. Saw with side cover removed

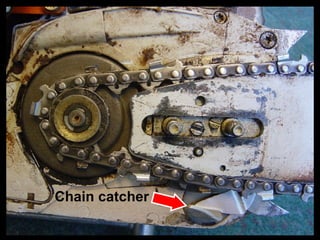

16. Chain catcher

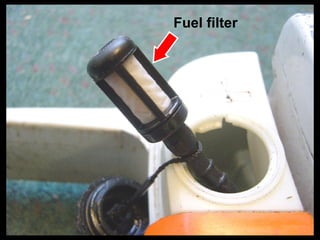

17. Fuel filter

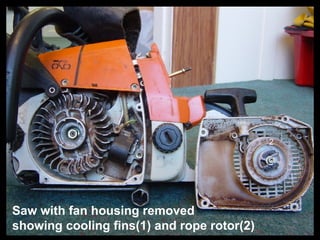

18. Saw with fan housing removed showing cooling fins(1) and rope rotor(2) 1 2
